#include <lte-ue-phy.h>

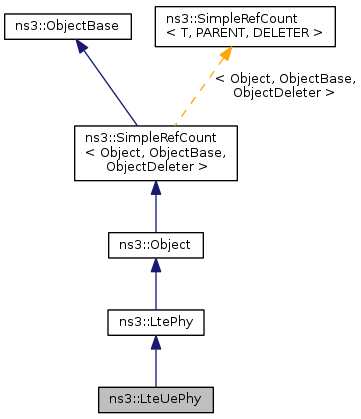

Inheritance diagram for ns3::LteUePhy:

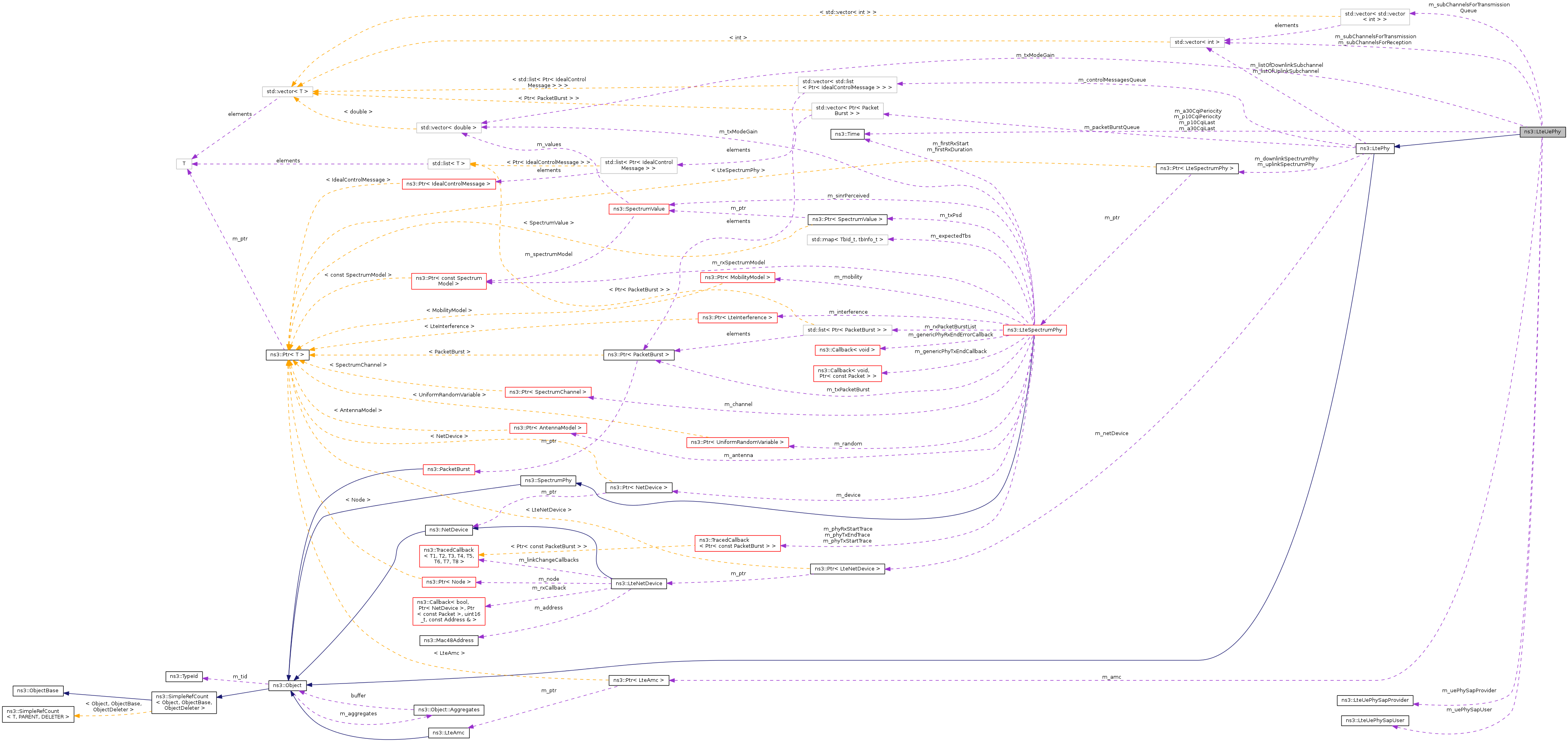

Collaboration diagram for ns3::LteUePhy:

Public Member Functions
	LteUePhy ()
	LteUePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LteUePhy ()
Ptr< DlCqiIdealControlMessage >	CreateDlCqiFeedbackMessage (const SpectrumValue &sinr)
	Create the DL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB.
virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for the TX.
virtual void	DoDispose (void)
virtual void	DoSendIdealControlMessage (Ptr< IdealControlMessage > msg)
virtual void	DoSendMacPdu (Ptr< Packet > p)
	Queue the MAC PDU to be sent.
virtual void	DoSetTransmissionMode (uint8_t txMode)
virtual void	DoSetUplinkSubChannels ()
	Update available channel for TX.
virtual void	DoStart (void)
virtual void	GenerateCqiReport (const SpectrumValue &sinr)
LteUePhySapProvider *	GetLteUePhySapProvider ()
	Get the PHY SAP provider.
uint8_t	GetMacChDelay (void) const
double	GetNoiseFigure () const
std::vector< int >	GetSubChannelsForReception (void)
	Get a list of sub channels to use in RX.
std::vector< int >	GetSubChannelsForTransmission (void)
	Get a list of sub channels to use in RX.
double	GetTxPower () const
void	PhyPduReceived (Ptr< Packet > p)
	PhySpectrum received a new PHY-PDU.
virtual void	ReceiveIdealControlMessage (Ptr< IdealControlMessage > msg)
	Receive SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
void	SetEnbCellId (uint16_t cellId)
void	SetLteUePhySapUser (LteUePhySapUser *s)
	Set the PHY SAP User.
void	SetNoiseFigure (double pow)
void	SetRnti (uint16_t rnti)
void	SetSubChannelsForReception (std::vector< int > mask)
	Get a list of sub channels to use in RX.
void	SetSubChannelsForTransmission (std::vector< int > mask)
	Set a list of sub channels to use in TX.
void	SetTxPower (double pow)
void	SubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	trigger from eNB the start from a new frame
Public Member Functions inherited from ns3::LtePhy
	LtePhy ()
	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LtePhy ()
void	DoSetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)
void	DoSetCellId (uint16_t cellId)
virtual void	DoSetDownlinkSubChannels ()
	do some operation after the set of a list of DL sub channels
virtual void	DoSetEarfcn (uint16_t dlEarfcn, uint16_t ulEarfcn)
std::list< Ptr < IdealControlMessage > >	GetControlMessages (void)
Ptr< LteNetDevice >	GetDevice ()
	Get the device where the phy layer is attached.
Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()
std::vector< int >	GetDownlinkSubChannels (void)
	get a list of sub channel to use in the downlink
Ptr< PacketBurst >	GetPacketBurst (void)
uint8_t	GetRbgSize (void) const
double	GetTti (void) const
Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()
std::vector< int >	GetUplinkSubChannels (void)
	get a list of sub channel to use in the downlink
void	SetControlMessages (Ptr< IdealControlMessage > m)
void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached.
void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
void	SetDownlinkSubChannels (std::vector< int > mask)
	set a list of sub channel to use in the downlink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms)
void	SetMacPdu (Ptr< Packet > p)
void	SetTti (double tti)
void	SetUplinkChannel (Ptr< SpectrumChannel > c)
void	SetUplinkSubChannels (std::vector< int > mask)
	set a list of sub channel to use in the uplink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteUePhy.

Private Member Functions
void	QueueSubChannelsForTransmission (std::vector< int > rbMap)
void	SetTxMode1Gain (double gain)
void	SetTxMode2Gain (double gain)
void	SetTxMode3Gain (double gain)
void	SetTxMode4Gain (double gain)
void	SetTxMode5Gain (double gain)
void	SetTxMode6Gain (double gain)
void	SetTxMode7Gain (double gain)
void	SetTxModeGain (uint8_t txMode, double gain)

Private Attributes
Time	m_a30CqiLast
Time	m_a30CqiPeriocity
Ptr< LteAmc >	m_amc
uint16_t	m_enbCellId
Time	m_p10CqiLast
Time	m_p10CqiPeriocity
uint16_t	m_rnti
std::vector< int >	m_subChannelsForReception
std::vector< int >	m_subChannelsForTransmission
std::vector< std::vector< int > >	m_subChannelsForTransmissionQueue
uint8_t	m_transmissionMode
std::vector< double >	m_txModeGain
LteUePhySapProvider *	m_uePhySapProvider
LteUePhySapUser *	m_uePhySapUser

Friends
class	UeMemberLteUePhySapProvider

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId
std::vector< std::list< Ptr < IdealControlMessage > > >	m_controlMessagesQueue
uint8_t	m_dlBandwidth
uint16_t	m_dlEarfcn
Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy
std::vector< int >	m_listOfDownlinkSubchannel
std::vector< int >	m_listOfUplinkSubchannel
uint8_t	m_macChTtiDelay
Ptr< LteNetDevice >	m_netDevice
double	m_noiseFigure
std::vector< Ptr< PacketBurst > >	m_packetBurstQueue
uint8_t	m_rbgSize
double	m_tti
double	m_txPower
uint8_t	m_ulBandwidth
uint16_t	m_ulEarfcn
Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy

Detailed Description

The LteSpectrumPhy models the physical layer of LTE

Definition at line 47 of file lte-ue-phy.h.

Constructor & Destructor Documentation

ns3::LteUePhy::LteUePhy ( )

Warning: the default constructor should not be used

Definition at line 105 of file lte-ue-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

ns3::LteUePhy::LteUePhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 111 of file lte-ue-phy.cc.

References m_amc, ns3::LtePhy::m_controlMessagesQueue, ns3::LtePhy::m_macChTtiDelay, ns3::LtePhy::m_packetBurstQueue, m_subChannelsForTransmissionQueue, m_uePhySapProvider, UeMemberLteUePhySapProvider, and UL_PUSCH_TTIS_DELAY.

ns3::LteUePhy::~LteUePhy ( )

virtual

Definition at line 135 of file lte-ue-phy.cc.

References m_txModeGain.

Member Function Documentation

Ptr< DlCqiIdealControlMessage > ns3::LteUePhy::CreateDlCqiFeedbackMessage ( const SpectrumValue & sinr )

Create the DL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB.

Parameters

sinr	SINR values vector

Definition at line 370 of file lte-ue-phy.cc.

References CqiListElement_s::A30, ns3::LteAmc::CreateCqiFeedbacks(), ns3::LtePhy::GetRbgSize(), m_a30CqiLast, m_a30CqiPeriocity, m_amc, ns3::LtePhy::m_dlBandwidth, SbMeasResult_s::m_higherLayerSelected, m_p10CqiLast, m_p10CqiPeriocity, m_rnti, HigherLayerSelected_s::m_sbCqi, HigherLayerSelected_s::m_sbPmi, m_transmissionMode, m_txModeGain, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, CqiListElement_s::P10, and ns3::TransmissionModesLayers::TxMode2LayerNum().

Referenced by GenerateCqiReport().

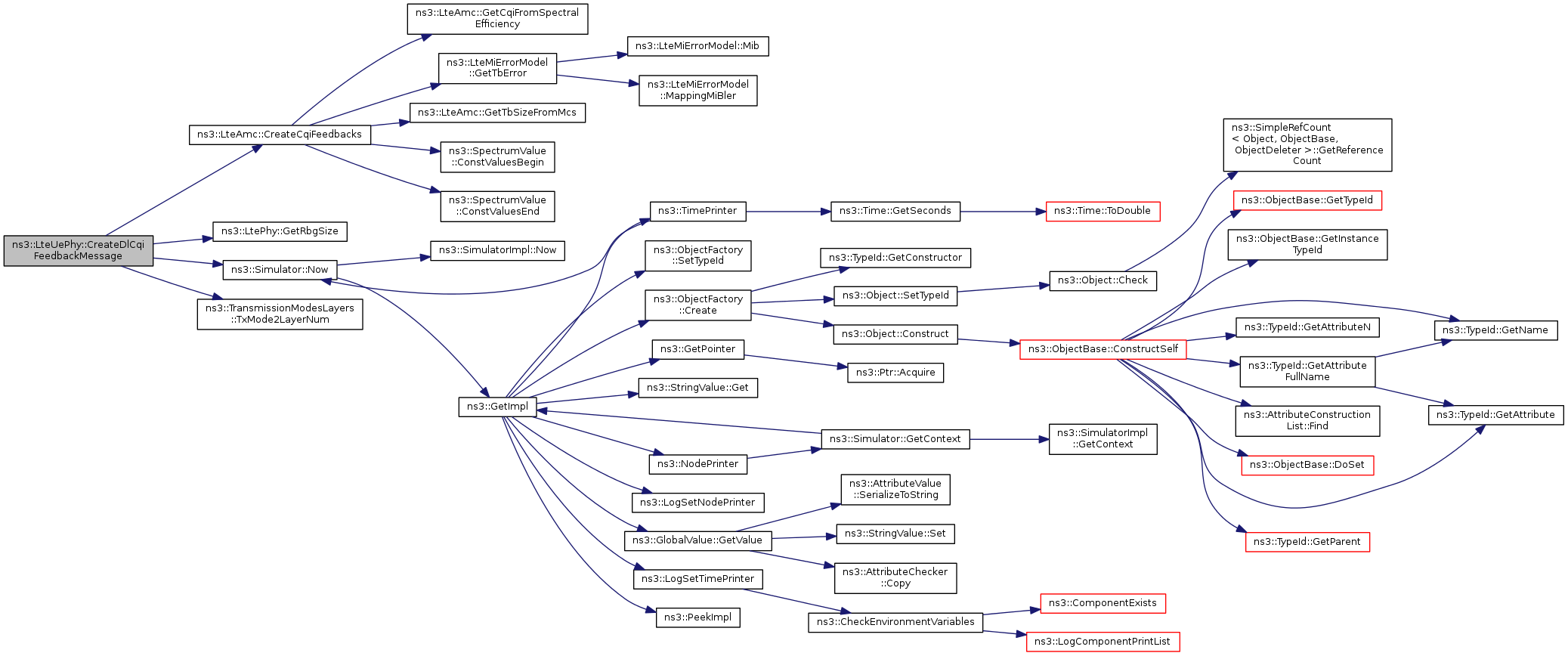

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::LteUePhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for the TX.

Returns: the pointer to the PSD

Implements ns3::LtePhy.

Definition at line 336 of file lte-ue-phy.cc.

References ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity(), GetSubChannelsForTransmission(), ns3::LtePhy::m_txPower, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_ulEarfcn, and NS_LOG_FUNCTION.

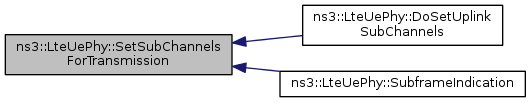

Referenced by SetSubChannelsForTransmission().

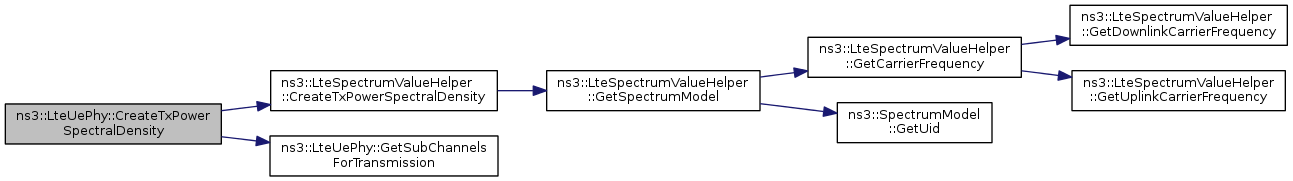

Here is the call graph for this function:

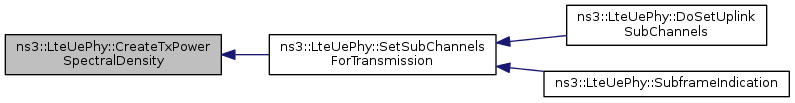

Here is the caller graph for this function:

void ns3::LteUePhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LtePhy.

Definition at line 141 of file lte-ue-phy.cc.

References m_uePhySapProvider, and NS_LOG_FUNCTION.

void ns3::LteUePhy::DoSendIdealControlMessage ( Ptr< IdealControlMessage > msg )

virtual

Definition at line 473 of file lte-ue-phy.cc.

References ns3::LtePhy::GetDevice(), ns3::Object::GetObject(), NS_LOG_FUNCTION, ns3::LtePhy::SetControlMessages(), ns3::IdealControlMessage::SetDestinationDevice(), and ns3::IdealControlMessage::SetSourceDevice().

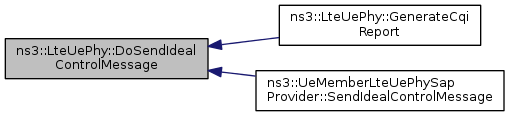

Referenced by GenerateCqiReport(), and ns3::UeMemberLteUePhySapProvider::SendIdealControlMessage().

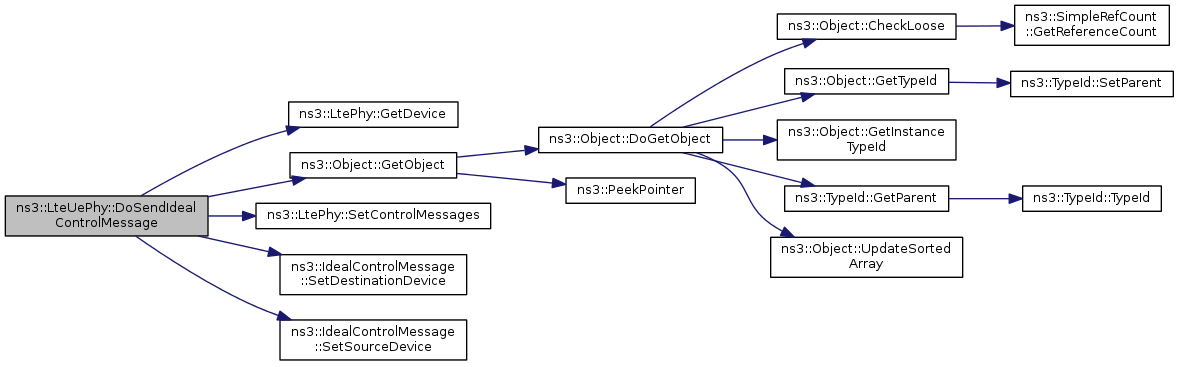

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSendMacPdu ( Ptr< Packet > p )

virtual

Queue the MAC PDU to be sent.

Parameters

p	the MAC PDU to sent

Implements ns3::LtePhy.

Definition at line 272 of file lte-ue-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetMacPdu().

Referenced by ns3::UeMemberLteUePhySapProvider::SendMacPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSetTransmissionMode ( uint8_t txMode )

virtual

Definition at line 626 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_transmissionMode, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetTransmissionMode().

Referenced by ns3::UeMemberLteUePhySapProvider::SetTransmissionMode().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::DoSetUplinkSubChannels ( )

virtual

Update available channel for TX.

Reimplemented from ns3::LtePhy.

Definition at line 287 of file lte-ue-phy.cc.

References ns3::LtePhy::GetUplinkSubChannels(), NS_LOG_FUNCTION, and SetSubChannelsForTransmission().

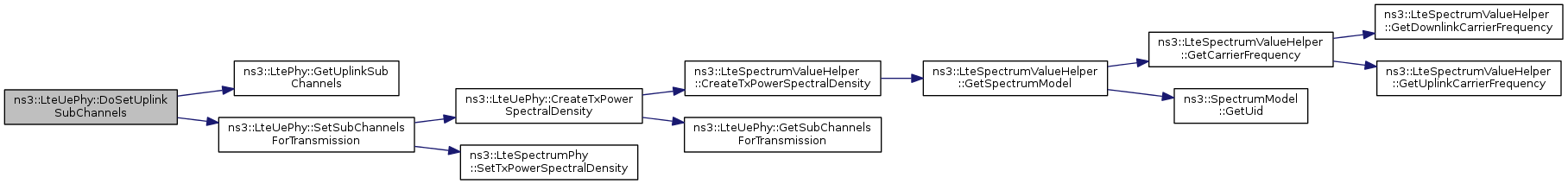

Here is the call graph for this function:

void ns3::LteUePhy::DoStart ( void )

virtual

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 214 of file lte-ue-phy.cc.

References ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_downlinkSpectrumPhy, ns3::LtePhy::m_noiseFigure, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity().

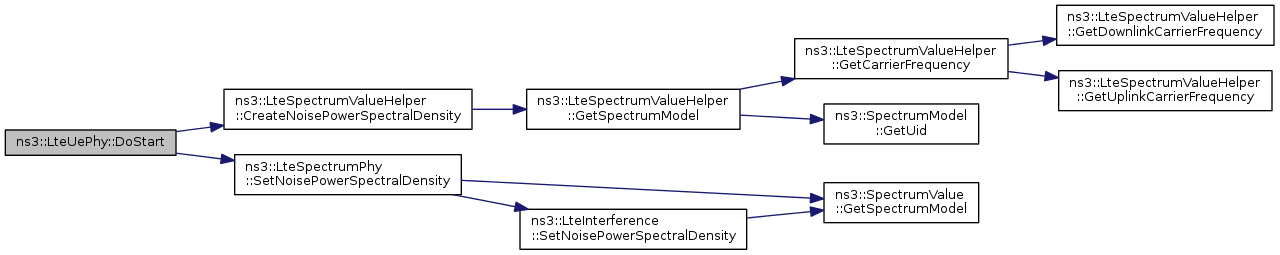

Here is the call graph for this function:

void ns3::LteUePhy::GenerateCqiReport ( const SpectrumValue & sinr )

virtual

generate a CQI report based on the given SINR

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 346 of file lte-ue-phy.cc.

References CreateDlCqiFeedbackMessage(), DoSendIdealControlMessage(), ns3::LtePhy::GetDevice(), ns3::Object::GetObject(), m_a30CqiLast, m_a30CqiPeriocity, m_p10CqiLast, m_p10CqiPeriocity, ns3::Now(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

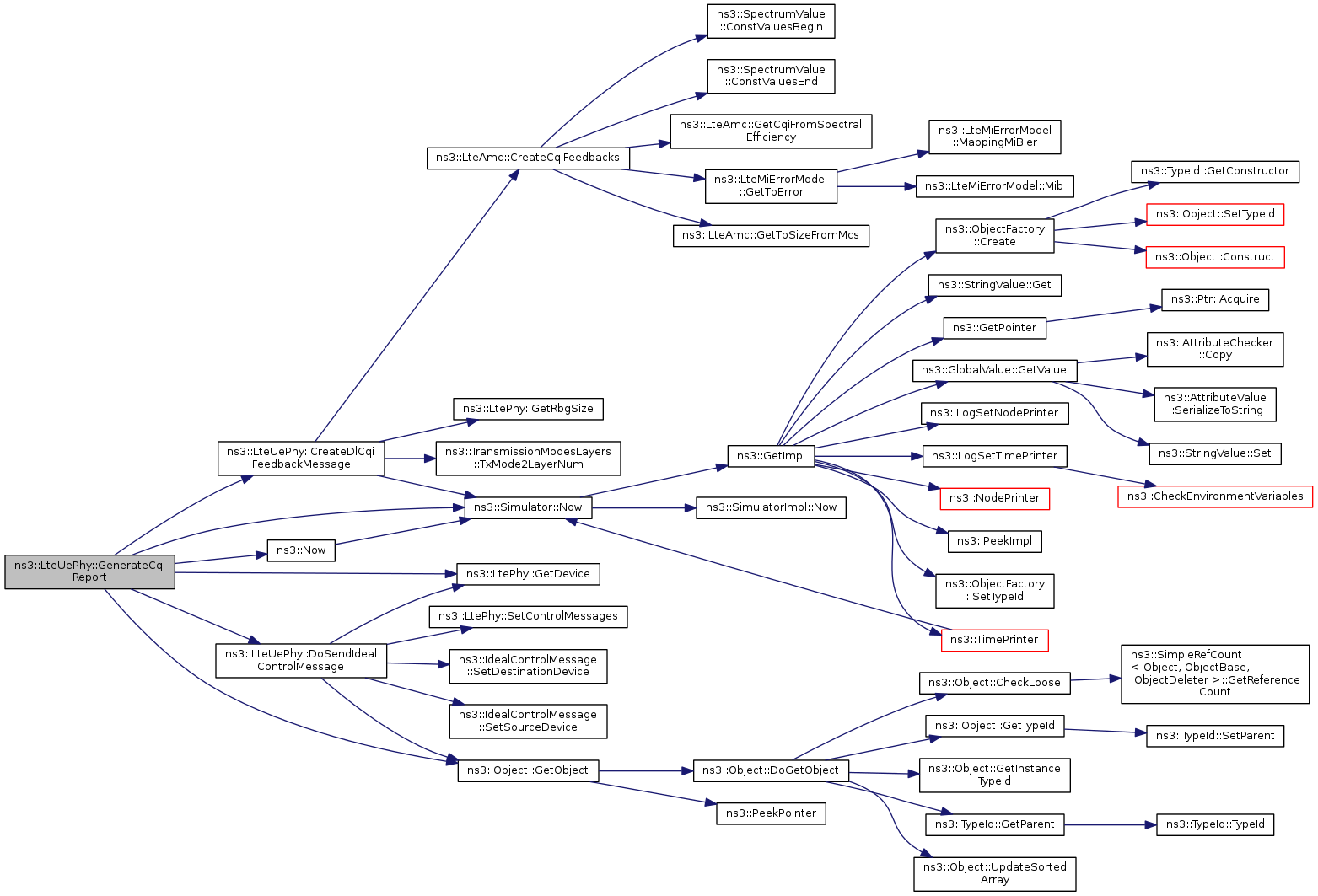

Here is the call graph for this function:

LteUePhySapProvider * ns3::LteUePhy::GetLteUePhySapProvider ( )

Get the PHY SAP provider.

Returns: a pointer to the SAP Provider of the PHY

Definition at line 230 of file lte-ue-phy.cc.

References m_uePhySapProvider, and NS_LOG_FUNCTION.

uint8_t ns3::LteUePhy::GetMacChDelay ( void ) const

Returns: the TTI delay between MAC and channel

Definition at line 266 of file lte-ue-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

double ns3::LteUePhy::GetNoiseFigure ( ) const

Returns: the noise figure in dB

Definition at line 244 of file lte-ue-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

std::vector< int > ns3::LteUePhy::GetSubChannelsForReception ( void )

Get a list of sub channels to use in RX.

Returns: a list of sub channels

Definition at line 328 of file lte-ue-phy.cc.

References m_subChannelsForReception, and NS_LOG_FUNCTION.

std::vector< int > ns3::LteUePhy::GetSubChannelsForTransmission ( void )

Get a list of sub channels to use in RX.

Returns: a list of sub channels

Definition at line 320 of file lte-ue-phy.cc.

References m_subChannelsForTransmission, and NS_LOG_FUNCTION.

Referenced by CreateTxPowerSpectralDensity().

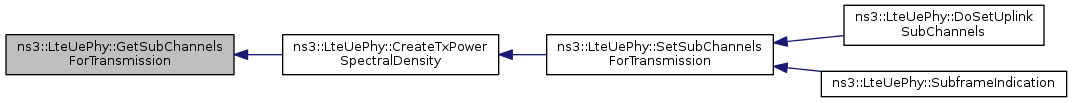

Here is the caller graph for this function:

double ns3::LteUePhy::GetTxPower ( ) const

Returns: the transmission power in dBm

Definition at line 258 of file lte-ue-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::LteUePhy::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteUePhy.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy

Attributes defined for this type:

TxPower: Transmission power in dBm
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
NoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0." In this model, we consider T0 = 290K.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 9
- Flags: construct write read
TxMode1Gain: Transmission mode 1 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode2Gain: Transmission mode 2 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 4.2
- Flags: construct write
TxMode3Gain: Transmission mode 3 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -2.8
- Flags: construct write
TxMode4Gain: Transmission mode 4 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode5Gain: Transmission mode 5 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode6Gain: Transmission mode 6 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write
TxMode7Gain: Transmission mode 7 gain in dB
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write

No TraceSources defined for this type.

Reimplemented from ns3::LtePhy.

Definition at line 151 of file lte-ue-phy.cc.

References GetNoiseFigure(), GetTxPower(), SetNoiseFigure(), ns3::TypeId::SetParent(), SetTxMode1Gain(), SetTxMode2Gain(), SetTxMode3Gain(), SetTxMode4Gain(), SetTxMode5Gain(), SetTxMode6Gain(), SetTxMode7Gain(), and SetTxPower().

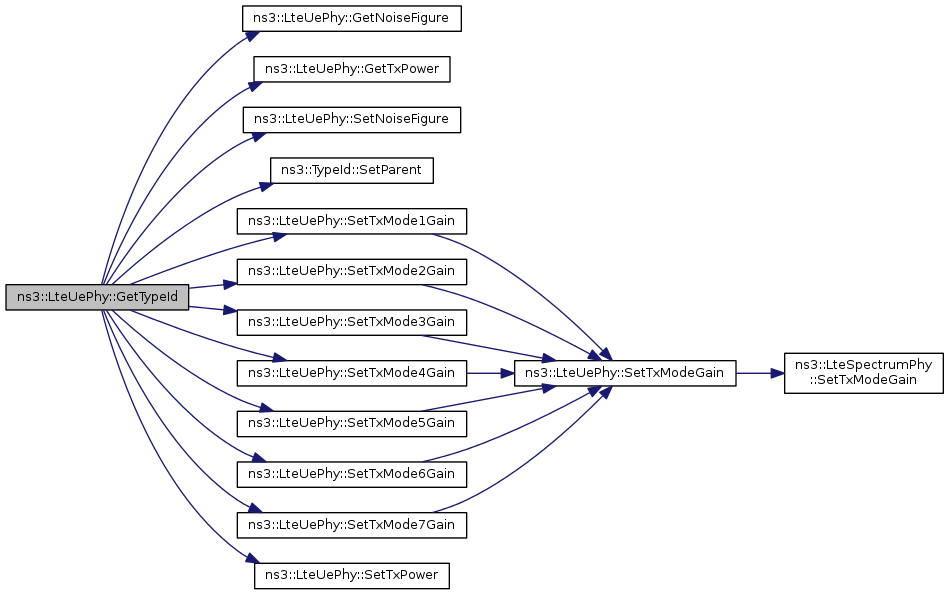

Here is the call graph for this function:

void ns3::LteUePhy::PhyPduReceived ( Ptr< Packet > p )

PhySpectrum received a new PHY-PDU.

Definition at line 281 of file lte-ue-phy.cc.

References m_uePhySapUser, and ns3::LteUePhySapUser::ReceivePhyPdu().

Referenced by ns3::LteHelper::InstallSingleUeDevice().

Here is the call graph for this function:

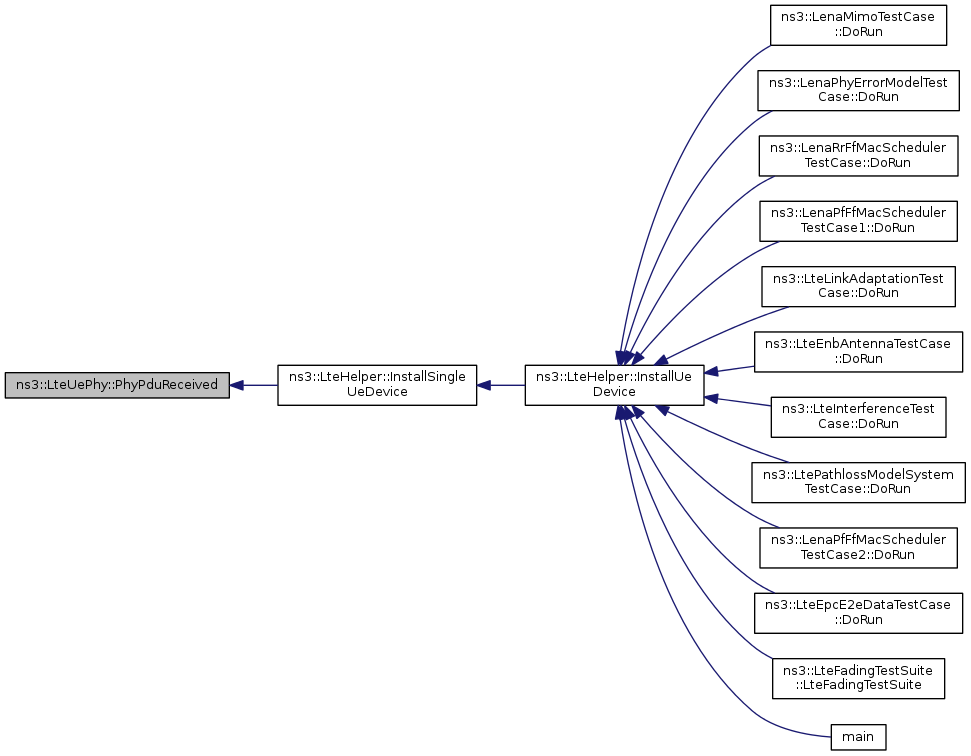

Here is the caller graph for this function:

void ns3::LteUePhy::QueueSubChannelsForTransmission ( std::vector< int > rbMap )

private

Definition at line 555 of file lte-ue-phy.cc.

References ns3::LtePhy::m_macChTtiDelay, and m_subChannelsForTransmissionQueue.

Referenced by ReceiveIdealControlMessage().

Here is the caller graph for this function:

void ns3::LteUePhy::ReceiveIdealControlMessage ( Ptr< IdealControlMessage > msg )

virtual

Receive SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters

msg	the Ideal Control Message to receive

Implements ns3::LtePhy.

Definition at line 485 of file lte-ue-phy.cc.

References ns3::LteSpectrumPhy::AddExpectedTb(), ns3::IdealControlMessage::DL_DCI, ns3::IdealControlMessage::GetMessageType(), ns3::LtePhy::GetRbgSize(), ns3::LtePhy::m_downlinkSpectrumPhy, m_rnti, m_uePhySapUser, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, QueueSubChannelsForTransmission(), ns3::LteUePhySapUser::ReceiveIdealControlMessage(), SetSubChannelsForReception(), and ns3::IdealControlMessage::UL_DCI.

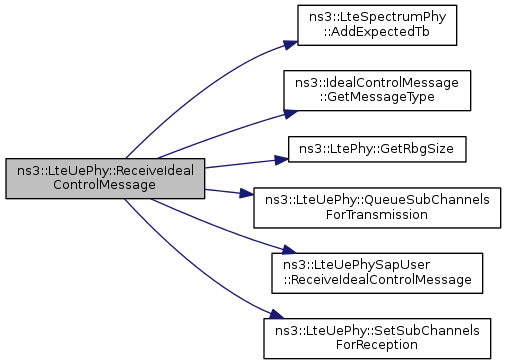

Here is the call graph for this function:

void ns3::LteUePhy::SetEnbCellId ( uint16_t cellId )

set the cellId of the eNb this PHY is synchronized with

Parameters

cellId the cell identifier of the eNB

Definition at line 608 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_enbCellId, ns3::LtePhy::m_uplinkSpectrumPhy, and ns3::LteSpectrumPhy::SetCellId().

Here is the call graph for this function:

void ns3::LteUePhy::SetLteUePhySapUser ( LteUePhySapUser * s )

Set the PHY SAP User.

Parameters

s	a pointer to the PHY SAP user

Definition at line 223 of file lte-ue-phy.cc.

References m_uePhySapUser, and NS_LOG_FUNCTION.

void ns3::LteUePhy::SetNoiseFigure ( double pow )

Parameters

pw	the noise figure in dB

Definition at line 237 of file lte-ue-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePhy::SetRnti ( uint16_t rnti )

Parameters

rnti	the rnti assigned to the UE

Definition at line 618 of file lte-ue-phy.cc.

References m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::Attach().

Here is the caller graph for this function:

void ns3::LteUePhy::SetSubChannelsForReception ( std::vector< int > mask )

Get a list of sub channels to use in RX.

Parameters

mask	list of sub channels

Definition at line 312 of file lte-ue-phy.cc.

References m_subChannelsForReception, and NS_LOG_FUNCTION.

Referenced by ReceiveIdealControlMessage().

Here is the caller graph for this function:

void ns3::LteUePhy::SetSubChannelsForTransmission ( std::vector< int > mask )

Set a list of sub channels to use in TX.

Parameters

mask	a list of sub channels

Definition at line 300 of file lte-ue-phy.cc.

References CreateTxPowerSpectralDensity(), m_subChannelsForTransmission, ns3::LtePhy::m_uplinkSpectrumPhy, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetTxPowerSpectralDensity().

Referenced by DoSetUplinkSubChannels(), and SubframeIndication().

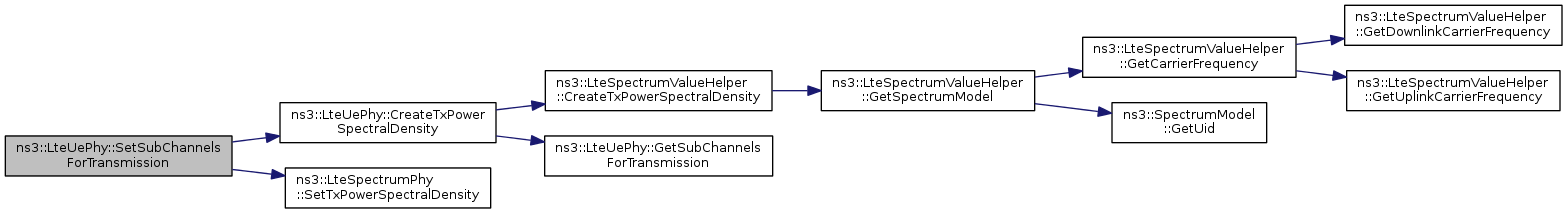

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode1Gain ( double gain )

private

Definition at line 635 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode2Gain ( double gain )

private

Definition at line 641 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode3Gain ( double gain )

private

Definition at line 647 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode4Gain ( double gain )

private

Definition at line 653 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode5Gain ( double gain )

private

Definition at line 659 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode6Gain ( double gain )

private

Definition at line 665 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxMode7Gain ( double gain )

private

Definition at line 671 of file lte-ue-phy.cc.

References SetTxModeGain().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxModeGain	(	uint8_t	txMode,
		double	gain
	)

private

Definition at line 678 of file lte-ue-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy, m_txModeGain, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetTxModeGain().

Referenced by SetTxMode1Gain(), SetTxMode2Gain(), SetTxMode3Gain(), SetTxMode4Gain(), SetTxMode5Gain(), SetTxMode6Gain(), and SetTxMode7Gain().

Here is the call graph for this function:

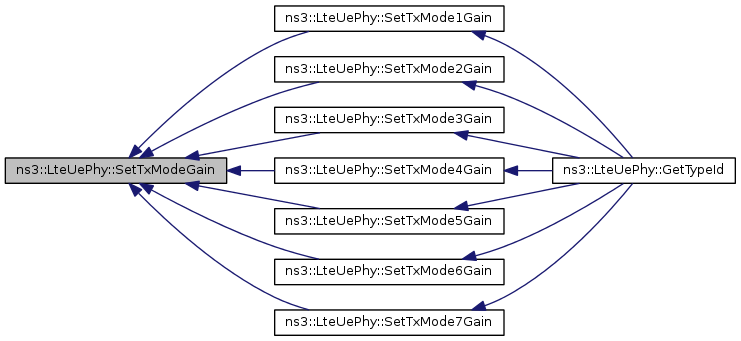

Here is the caller graph for this function:

void ns3::LteUePhy::SetTxPower ( double pow )

Parameters

pw	the transmission power in dBm

Definition at line 251 of file lte-ue-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePhy::SubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

trigger from eNB the start from a new frame

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 562 of file lte-ue-phy.cc.

References ns3::LtePhy::GetControlMessages(), ns3::LtePhy::GetDevice(), ns3::Object::GetObject(), ns3::LtePhy::GetPacketBurst(), ns3::LteUeNetDevice::GetPhy(), ns3::LtePhy::m_macChTtiDelay, m_subChannelsForTransmissionQueue, m_uePhySapUser, ns3::LtePhy::m_uplinkSpectrumPhy, NS_LOG_LOGIC, ns3::LtePhy::ReceiveIdealControlMessage(), SetSubChannelsForTransmission(), ns3::LteSpectrumPhy::StartTx(), and ns3::LteUePhySapUser::SubframeIndication().

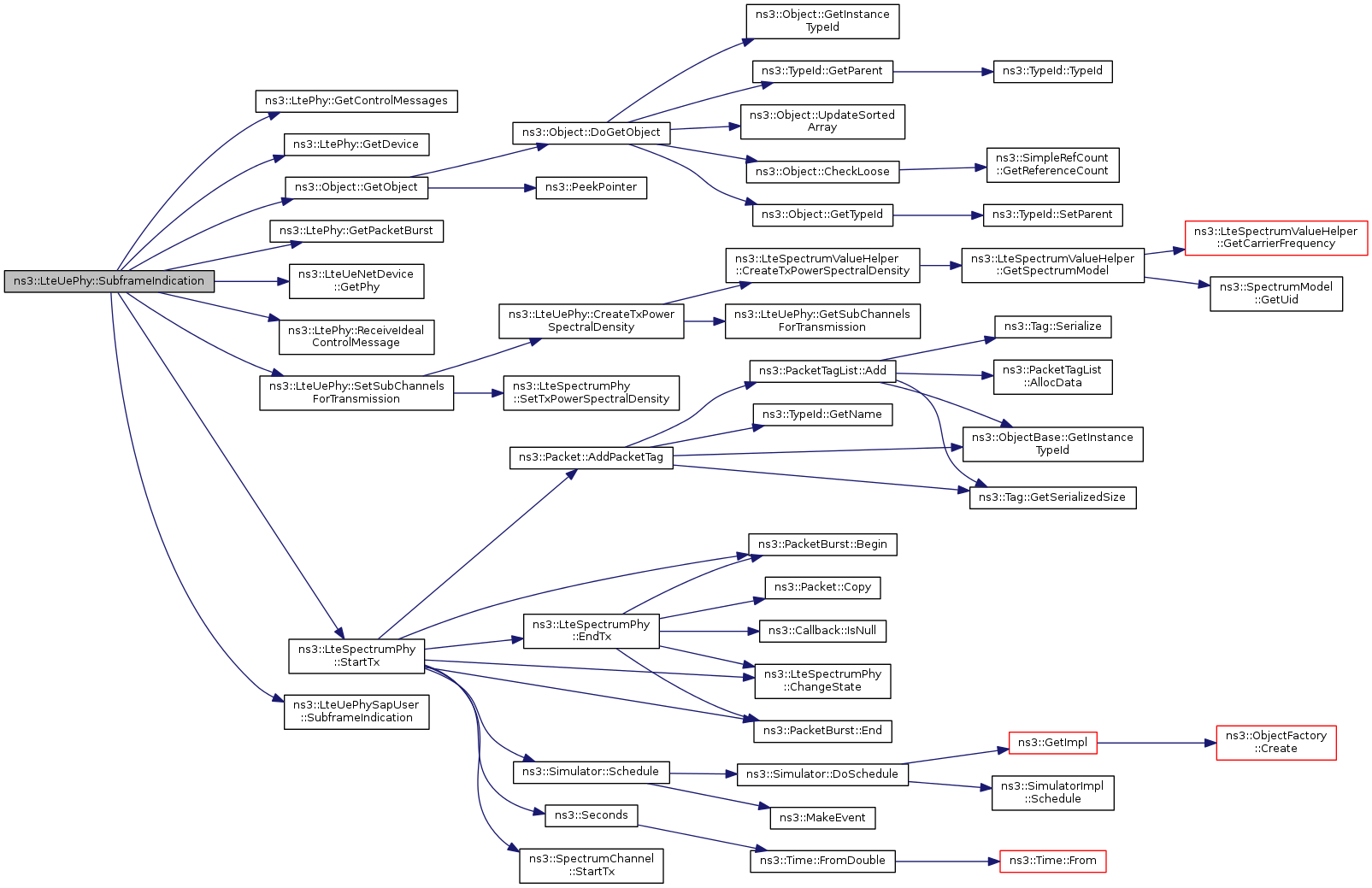

Here is the call graph for this function:

Friends And Related Function Documentation

friend class UeMemberLteUePhySapProvider

friend

Definition at line 50 of file lte-ue-phy.h.

Referenced by LteUePhy().

Member Data Documentation

Time ns3::LteUePhy::m_a30CqiLast

private

Definition at line 227 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCqiReport().

Time ns3::LteUePhy::m_a30CqiPeriocity

private

Definition at line 226 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCqiReport().

Ptr<LteAmc> ns3::LteUePhy::m_amc

private

Definition at line 219 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and LteUePhy().

uint16_t ns3::LteUePhy::m_enbCellId

private

Definition at line 234 of file lte-ue-phy.h.

Referenced by SetEnbCellId().

Time ns3::LteUePhy::m_p10CqiLast

private

SubBand Aperiodic CQI: activated by DCI format 0 or Random Access Response Grant

Definition at line 224 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCqiReport().

Time ns3::LteUePhy::m_p10CqiPeriocity

private

Wideband Periodic CQI: 2, 5, 10, 16, 20, 32, 40, 64, 80 or 160 ms

Definition at line 221 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and GenerateCqiReport().

uint16_t ns3::LteUePhy::m_rnti

private

Definition at line 232 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), ReceiveIdealControlMessage(), and SetRnti().

std::vector<int> ns3::LteUePhy::m_subChannelsForReception

private

Definition at line 214 of file lte-ue-phy.h.

Referenced by GetSubChannelsForReception(), and SetSubChannelsForReception().

std::vector<int> ns3::LteUePhy::m_subChannelsForTransmission

private

Definition at line 213 of file lte-ue-phy.h.

Referenced by GetSubChannelsForTransmission(), and SetSubChannelsForTransmission().

std::vector< std::vector <int> > ns3::LteUePhy::m_subChannelsForTransmissionQueue

private

Definition at line 216 of file lte-ue-phy.h.

Referenced by LteUePhy(), QueueSubChannelsForTransmission(), and SubframeIndication().

uint8_t ns3::LteUePhy::m_transmissionMode

private

Definition at line 236 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), and DoSetTransmissionMode().

std::vector<double> ns3::LteUePhy::m_txModeGain

private

Definition at line 237 of file lte-ue-phy.h.

Referenced by CreateDlCqiFeedbackMessage(), SetTxModeGain(), and ~LteUePhy().

LteUePhySapProvider* ns3::LteUePhy::m_uePhySapProvider

private

Definition at line 229 of file lte-ue-phy.h.

Referenced by DoDispose(), GetLteUePhySapProvider(), and LteUePhy().

LteUePhySapUser* ns3::LteUePhy::m_uePhySapUser

private

Definition at line 230 of file lte-ue-phy.h.

Referenced by PhyPduReceived(), ReceiveIdealControlMessage(), SetLteUePhySapUser(), and SubframeIndication().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-phy.h
doc/introspected-doxygen.h
src/lte/model/lte-ue-phy.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
