ns3::Radvd Class Reference

Router advertisement daemon. More...

#include <radvd.h>

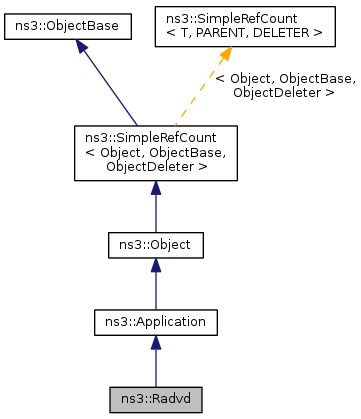

+ Inheritance diagram for ns3::Radvd:

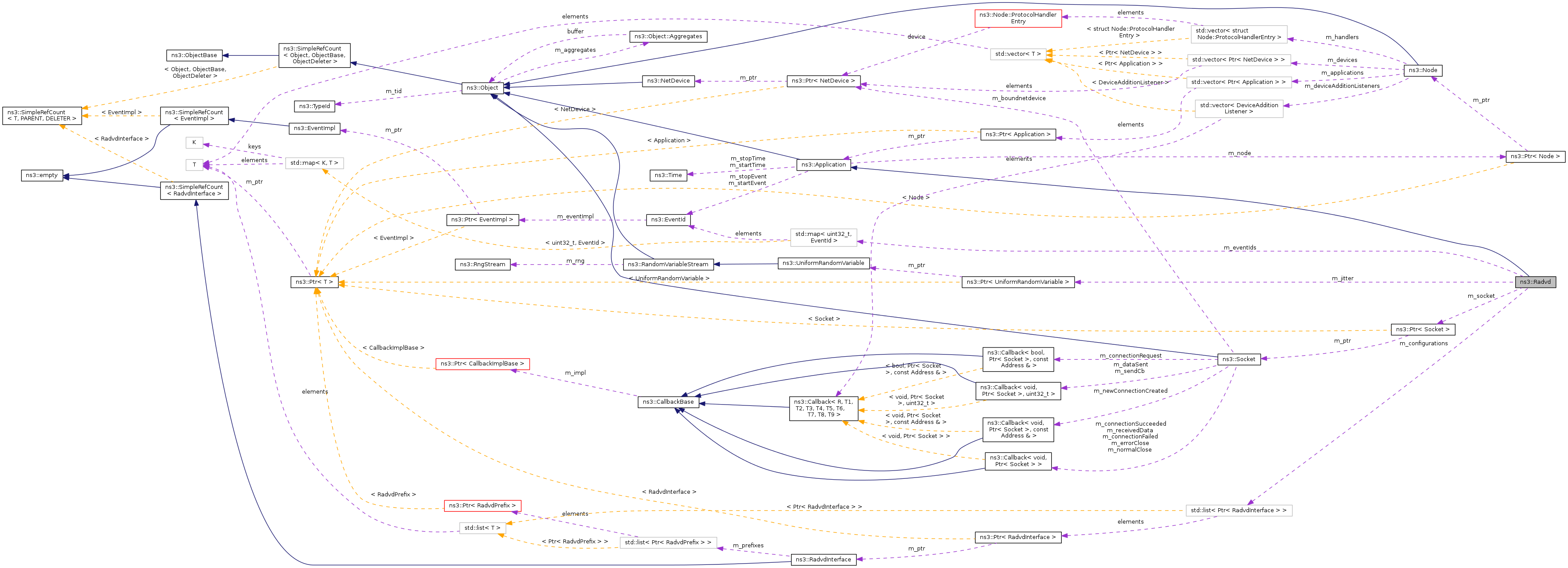

+ Collaboration diagram for ns3::Radvd:

Public Member Functions

 Radvd ()
 Constructor.
virtual ~Radvd ()
 Destructor.
void AddConfiguration (Ptr< RadvdInterface > routerInterface)
 Add configuration for an interface;.
int64_t AssignStreams (int64_t stream)
- Public Member Functions inherited from ns3::Application
 Application ()
virtual ~Application ()
Ptr< NodeGetNode () const
void SetNode (Ptr< Node > node)
void SetStartTime (Time start)
 Specify application start time.
void SetStopTime (Time stop)
 Specify application stop time.
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCountoperator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID.

Static Public Attributes

static const uint32_t MAX_RA_DELAY_TIME = 500
 Default value for maximum delay of RA (ms)

Protected Member Functions

virtual void DoDispose ()
 Dispose the instance.
- Protected Member Functions inherited from ns3::Application
virtual void DoStart (void)
- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void NotifyNewAggregate (void)

Private Types

typedef std::map< uint32_t,
EventId
EventIdMap
typedef std::map< uint32_t,
EventId >::const_iterator
EventIdMapCI
typedef std::map< uint32_t,
EventId >::iterator
EventIdMapI
typedef std::list< Ptr
< RadvdInterface > >
RadvdInterfaceList
typedef std::list< Ptr
< RadvdInterface >
>::const_iterator
RadvdInterfaceListCI
typedef std::list< Ptr
< RadvdInterface > >::iterator
RadvdInterfaceListI

Private Member Functions

void HandleRead (Ptr< Socket > socket)
 Handle received packet, especially router solicitation.
void ScheduleTransmit (Time dt, Ptr< RadvdInterface > config, EventId &eventId, Ipv6Address dst=Ipv6Address::GetAllNodesMulticast(), bool reschedule=false)
 Schedule sending a packet.
void Send (Ptr< RadvdInterface > config, Ipv6Address dst=Ipv6Address::GetAllNodesMulticast(), bool reschedule=false)
 Send a packet.
virtual void StartApplication ()
 Start the application.
virtual void StopApplication ()
 Stop the application.

Private Attributes

RadvdInterfaceList m_configurations
 List of configuration for interface.
EventIdMap m_eventIds
 Event ID map.
Ptr< UniformRandomVariablem_jitter
 Variable to provide jitter in advertisement interval.
Ptr< Socketm_socket
 Raw socket to send RA.

Additional Inherited Members

- Protected Attributes inherited from ns3::Application
Ptr< Nodem_node
EventId m_startEvent
Time m_startTime
EventId m_stopEvent
Time m_stopTime

Detailed Description

Router advertisement daemon.

Definition at line 47 of file radvd.h.

Member Typedef Documentation

typedef std::map<uint32_t, EventId> ns3::Radvd::EventIdMap
private

Definition at line 98 of file radvd.h.

typedef std::map<uint32_t, EventId>::const_iterator ns3::Radvd::EventIdMapCI
private

Definition at line 100 of file radvd.h.

typedef std::map<uint32_t, EventId>::iterator ns3::Radvd::EventIdMapI
private

Definition at line 99 of file radvd.h.

Definition at line 94 of file radvd.h.

typedef std::list<Ptr<RadvdInterface> >::const_iterator ns3::Radvd::RadvdInterfaceListCI
private

Definition at line 96 of file radvd.h.

Definition at line 95 of file radvd.h.

Constructor & Destructor Documentation

ns3::Radvd::Radvd ( )

Constructor.

Definition at line 61 of file radvd.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::Radvd::~Radvd ( )
virtual

Destructor.

Definition at line 66 of file radvd.cc.

References m_configurations, m_socket, and NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void ns3::Radvd::AddConfiguration ( Ptr< RadvdInterface routerInterface)

Add configuration for an interface;.

Parameters
routerInterfaceconfiguration

Definition at line 123 of file radvd.cc.

References m_configurations.

int64_t ns3::Radvd::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 129 of file radvd.cc.

References m_jitter, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

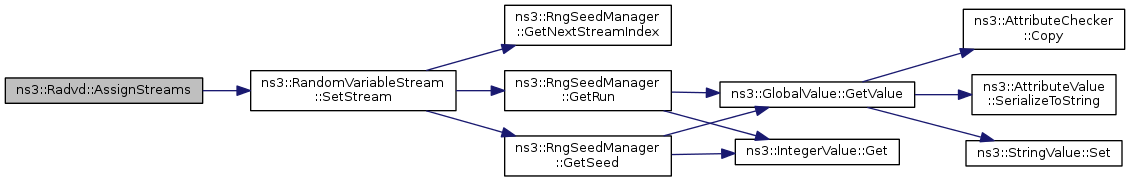

+ Here is the call graph for this function:

void ns3::Radvd::DoDispose ( void  )
protectedvirtual

Dispose the instance.

Reimplemented from ns3::Application.

Definition at line 77 of file radvd.cc.

References NS_LOG_FUNCTION_NOARGS.

TypeId ns3::Radvd::GetTypeId ( void  )
static

Get the type ID.

This method returns the TypeId associated to ns3::Radvd.

Returns
type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/ApplicationList/[i]/$ns3::Radvd

Attributes defined for this type:

Attributes defined in parent class ns3::Application:

  • StartTime: Time at which the application will start
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +0.0ns
    • Flags: construct write read
  • StopTime: Time at which the application will stop
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +0.0ns
    • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Application.

Definition at line 47 of file radvd.cc.

References m_jitter, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::Radvd::ScheduleTransmit ( Time  dt,
Ptr< RadvdInterface config,
EventId eventId,
Ipv6Address  dst = Ipv6Address::GetAllNodesMulticast (),
bool  reschedule = false
)
private

Schedule sending a packet.

Parameters
dtinterval between packet
configinterface configuration
eventIdevent ID associated
dstIPv6 destination address
rescheduleif true another send will be reschedule (periodic)

Definition at line 136 of file radvd.cc.

References NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and Send().

Referenced by HandleRead(), Send(), and StartApplication().

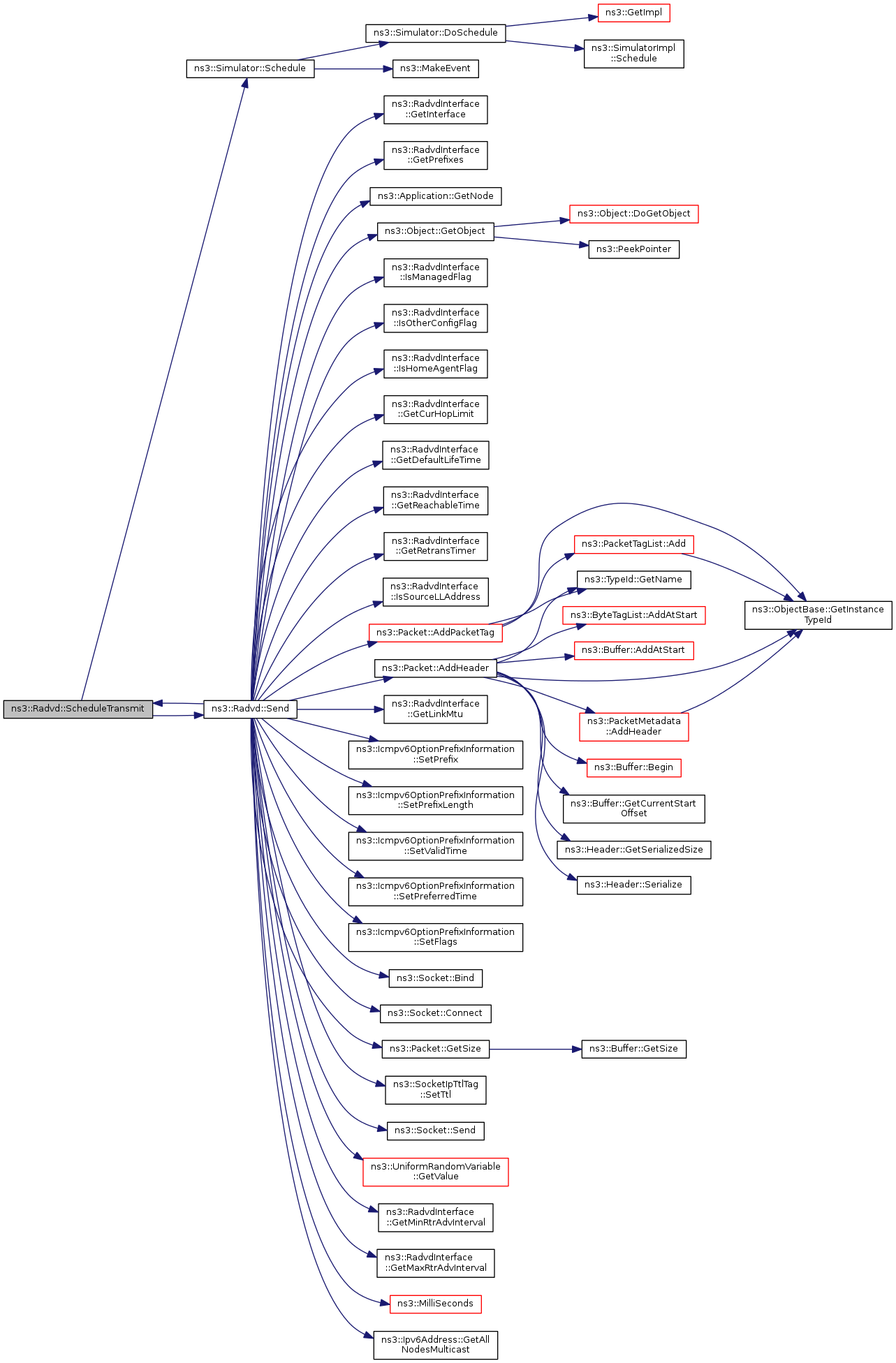

+ Here is the call graph for this function:

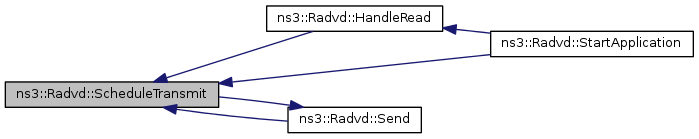

+ Here is the caller graph for this function:

void ns3::Radvd::Send ( Ptr< RadvdInterface config,
Ipv6Address  dst = Ipv6Address::GetAllNodesMulticast (),
bool  reschedule = false
)
private

Send a packet.

Parameters
configinterface configuration
dstdestination address (default ff02::1)
rescheduleif true another send will be reschedule (periodic)

Definition at line 142 of file radvd.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::Ipv6Address::GetAllNodesMulticast(), ns3::RadvdInterface::GetCurHopLimit(), ns3::RadvdInterface::GetDefaultLifeTime(), ns3::RadvdInterface::GetInterface(), ns3::RadvdInterface::GetLinkMtu(), ns3::RadvdInterface::GetMaxRtrAdvInterval(), ns3::RadvdInterface::GetMinRtrAdvInterval(), ns3::Application::GetNode(), ns3::Object::GetObject(), ns3::RadvdInterface::GetPrefixes(), ns3::RadvdInterface::GetReachableTime(), ns3::RadvdInterface::GetRetransTimer(), ns3::Packet::GetSize(), ns3::UniformRandomVariable::GetValue(), ns3::RadvdInterface::IsHomeAgentFlag(), ns3::RadvdInterface::IsManagedFlag(), ns3::RadvdInterface::IsOtherConfigFlag(), ns3::RadvdInterface::IsSourceLLAddress(), list, m_eventIds, m_jitter, m_socket, ns3::MilliSeconds(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ScheduleTransmit(), ns3::Socket::Send(), ns3::Icmpv6OptionPrefixInformation::SetFlags(), ns3::Icmpv6OptionPrefixInformation::SetPreferredTime(), ns3::Icmpv6OptionPrefixInformation::SetPrefix(), ns3::Icmpv6OptionPrefixInformation::SetPrefixLength(), ns3::SocketIpTtlTag::SetTtl(), and ns3::Icmpv6OptionPrefixInformation::SetValidTime().

Referenced by ScheduleTransmit().

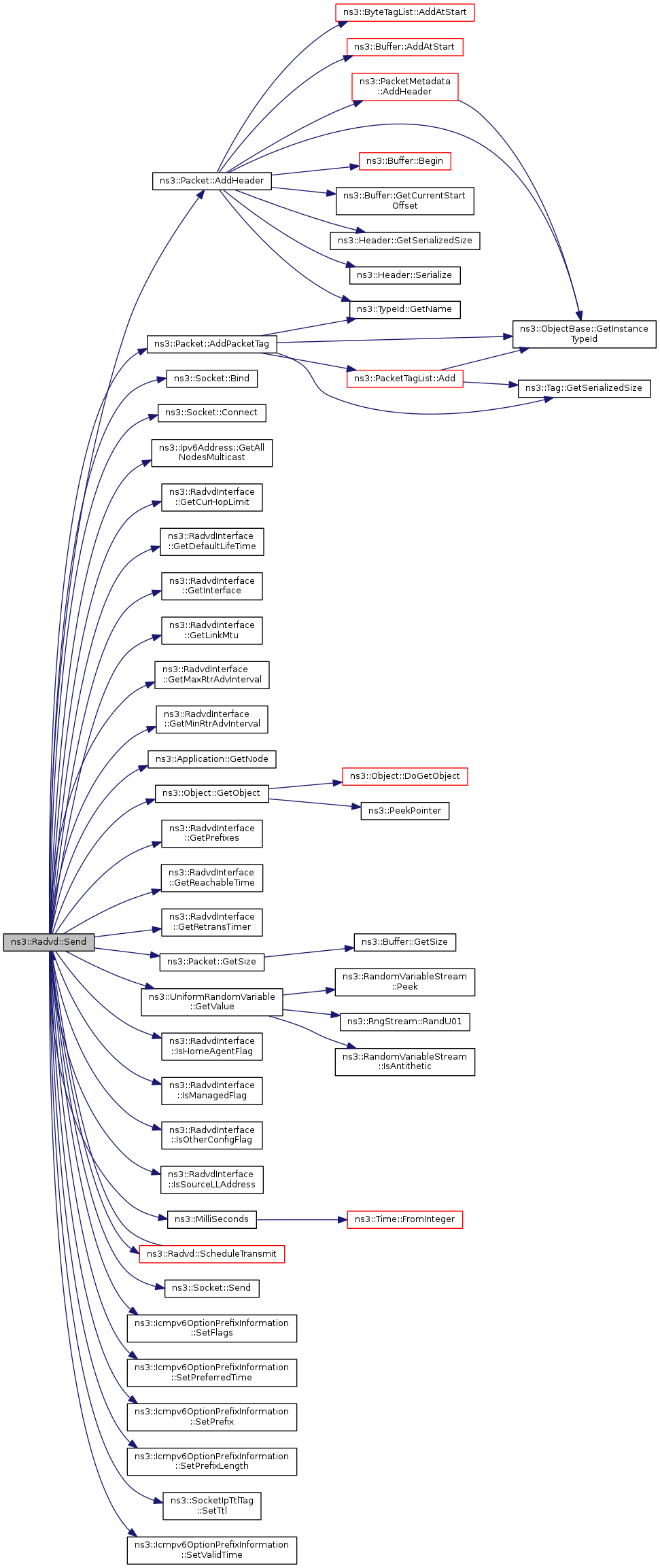

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Radvd::StopApplication ( void  )
privatevirtual

Stop the application.

Definition at line 107 of file radvd.cc.

References ns3::Simulator::Cancel(), m_eventIds, m_socket, ns3::MakeNullCallback(), NS_LOG_FUNCTION_NOARGS, and ns3::Socket::SetRecvCallback().

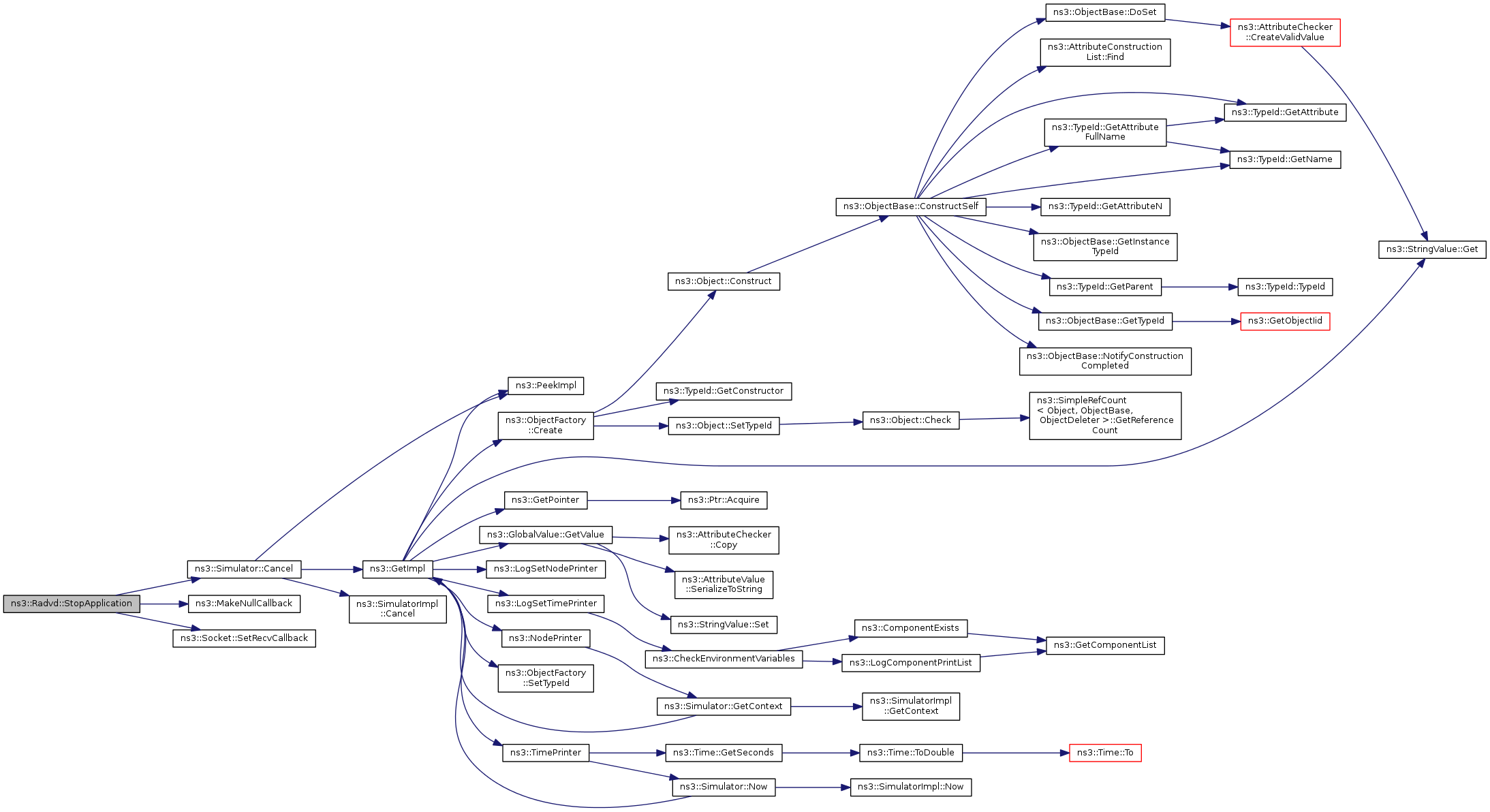

+ Here is the call graph for this function:

Member Data Documentation

RadvdInterfaceList ns3::Radvd::m_configurations
private

List of configuration for interface.

Definition at line 144 of file radvd.h.

Referenced by AddConfiguration(), HandleRead(), StartApplication(), and ~Radvd().

EventIdMap ns3::Radvd::m_eventIds
private

Event ID map.

Definition at line 149 of file radvd.h.

Referenced by HandleRead(), Send(), StartApplication(), and StopApplication().

Ptr<UniformRandomVariable> ns3::Radvd::m_jitter
private

Variable to provide jitter in advertisement interval.

Definition at line 154 of file radvd.h.

Referenced by AssignStreams(), GetTypeId(), HandleRead(), and Send().

Ptr<Socket> ns3::Radvd::m_socket
private

Raw socket to send RA.

Definition at line 139 of file radvd.h.

Referenced by Send(), StartApplication(), StopApplication(), and ~Radvd().

const uint32_t ns3::Radvd::MAX_RA_DELAY_TIME = 500
static

Default value for maximum delay of RA (ms)

Definition at line 69 of file radvd.h.

Referenced by HandleRead().


The documentation for this class was generated from the following files:
