Radvd interface configuration. More...

#include <radvd-interface.h>

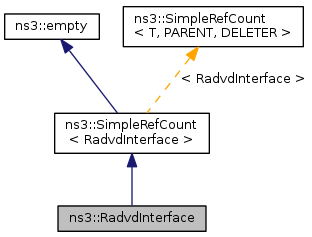

Inheritance diagram for ns3::RadvdInterface:

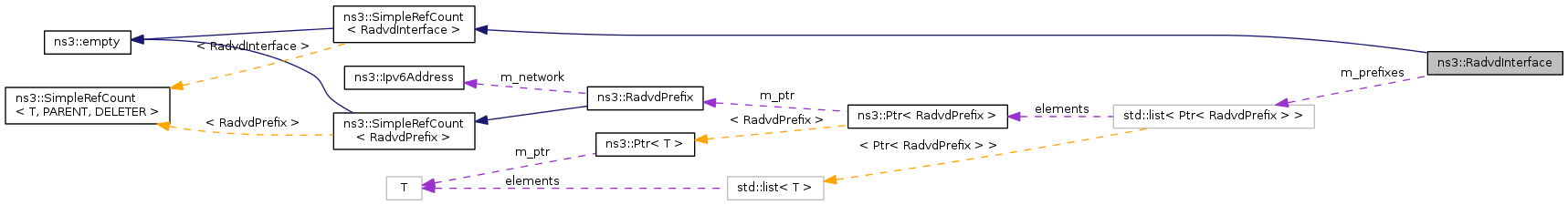

Collaboration diagram for ns3::RadvdInterface:

Public Member Functions
	RadvdInterface (uint32_t interface)
	Constructor.
	RadvdInterface (uint32_t interface, uint32_t maxRtrAdvInterval, uint32_t minRtrAdvInterval)
	Constructor.
	~RadvdInterface ()
	Destructor.
void	AddPrefix (Ptr< RadvdPrefix > routerPrefix)
	Add a prefix to advertise on interface.
uint8_t	GetCurHopLimit () const
	Get current hop limit.
uint32_t	GetDefaultLifeTime () const
	Get default lifetime.
uint8_t	GetDefaultPreference () const
	Get default preference.
uint32_t	GetHomeAgentLifeTime () const
	Get home agent lifetime.
uint32_t	GetHomeAgentPreference () const
	Get home agent preference.
uint32_t	GetInterface () const
	Get interface index for this configuration.
uint32_t	GetLinkMtu () const
	Get link MTU.
uint32_t	GetMaxRtrAdvInterval () const
	Get maximum RA interval.
uint32_t	GetMinDelayBetweenRAs () const
	Get minimum delay between RAs.
uint32_t	GetMinRtrAdvInterval () const
	Get minimum RA interval.
std::list< Ptr< RadvdPrefix > >	GetPrefixes () const
	Get list of prefixes advertised for this interface.
uint32_t	GetReachableTime () const
	Get reachable time.
uint32_t	GetRetransTimer () const
	Get retransmission timer.
bool	IsHomeAgentFlag () const
	Is "home agent" flag enabled ?
bool	IsHomeAgentInfo () const
	Is Home Agent Information option should be included in RA ?
bool	IsIntervalOpt () const
	Is advertisement interval option should be included in RA ?
bool	IsManagedFlag () const
	Is managed flag enabled ?
bool	IsMobRtrSupportFlag () const
	Is "mobile router support" flag enabled ?
bool	IsOtherConfigFlag () const
	Is "other config" flag enabled ?
bool	IsSendAdvert () const
	Is send advert enabled (periodic RA and reply to RS) ?
bool	IsSourceLLAddress () const
	Is source LLA option should be included in RA ?
void	SetCurHopLimit (uint8_t curHopLimit)
	Set current hop limit.
void	SetDefaultLifeTime (uint32_t defaultLifeTime)
	Set default lifetime.
void	SetDefaultPreference (uint8_t defaultPreference)
	Set default preference.
void	SetHomeAgentFlag (bool homeAgentFlag)
	Set "home agent" flag.
void	SetHomeAgentInfo (bool homeAgentFlag)
	Set flag to add or not HA information option to RA.
void	SetHomeAgentLifeTime (uint32_t homeAgentLifeTime)
	Set home agent lifetime.
void	SetHomeAgentPreference (uint32_t homeAgentPreference)
	Set home agent preference.
void	SetIntervalOpt (bool intervalOpt)
	Set flag to add or not advertisement interval to RA.
void	SetLinkMtu (uint32_t linkMtu)
	Set link MTU.
void	SetManagedFlag (bool managedFlag)
	Set managed flag.
void	SetMaxRtrAdvInterval (uint32_t maxRtrAdvInterval)
	Get maximum RA interval.
void	SetMinDelayBetweenRAs (uint32_t minDelayBetweenRAs)
	Set minimum delay between RAs.
void	SetMinRtrAdvInterval (uint32_t minRtrAdvInterval)
	Get minimum RA interval.
void	SetMobRtrSupportFlag (bool mobRtrSupportFlag)
	Set "mobile router support" flag.
void	SetOtherConfigFlag (bool otherConfigFlag)
	Set "other config" flag.
void	SetReachableTime (uint32_t reachableTime)
	Set reachable time.
void	SetRetransTimer (uint32_t retransTimer)
	Set retransmission timer.
void	SetSendAdvert (bool sendAdvert)
	Set send advert flag.
void	SetSourceLLAddress (bool sourceLLAddress)
	Set flag to add or not LLA to RA.
Public Member Functions inherited from ns3::SimpleRefCount< RadvdInterface >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Types
typedef std::list< Ptr < RadvdPrefix > >	RadvdPrefixList
typedef std::list< Ptr < RadvdPrefix > >::iterator	RadvdPrefixListI

Private Attributes
uint32_t	m_curHopLimit
	Current hop limit (TTL).
uint32_t	m_defaultLifeTime
	Default life time in seconds.
uint8_t	m_defaultPreference
	Preference associated with default router. 0 = low 1 = medium 2 = high.
bool	m_homeAgentFlag
	Flag to add HA (home agent) flag in RA.
bool	m_homeAgentInfo
	Flag to add Home Agent Information option (Mobile IPv6). Currently not implemented.
uint32_t	m_homeAgentLifeTime
	Home agent lifetime in seconds. Ignored if home agent info is not set.
uint32_t	m_homeAgentPreference
	Home agent preference. Ignored if home agent info is not set.
uint32_t	m_interface
	Interface to advertise RA.
bool	m_intervalOpt
	Flag to add Advertisement Interval option in RA.
uint32_t	m_linkMtu
	Link MTU to use.
bool	m_managedFlag
	Managed flag. If true host use the stateful protocol for address autoconfiguration.
uint32_t	m_maxRtrAdvInterval
	Maximum RA interval in milliseconds.
uint32_t	m_minDelayBetweenRAs
	Minimum delay between RA in milliseconds.
uint32_t	m_minRtrAdvInterval
	Minimum RA interval in milliseconds.
bool	m_mobRtrSupportFlag
	Flag for HA to signals it supports Mobile Router registrations (NEMO Basic).
bool	m_otherConfigFlag
	Other configuration flag. If true host use stateful protocol for other (non-address) information.
RadvdPrefixList	m_prefixes
	List of prefixes to advertise.
uint32_t	m_reachableTime
	Reachable time in milliseconds.
uint32_t	m_retransTimer
	Retransmission timer in milliseconds.
bool	m_sendAdvert
	Flag whether or not router sends periodic RA and respond to RS.
bool	m_sourceLLAddress
	Flag to add link-layer address in RA.

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< RadvdInterface >
static void	Cleanup (void)

Detailed Description

Radvd interface configuration.

Definition at line 36 of file radvd-interface.h.

Member Typedef Documentation

typedef std::list<Ptr<RadvdPrefix> > ns3::RadvdInterface::RadvdPrefixList

private

Definition at line 305 of file radvd-interface.h.

typedef std::list<Ptr<RadvdPrefix> >::iterator ns3::RadvdInterface::RadvdPrefixListI

private

Definition at line 306 of file radvd-interface.h.

Constructor & Destructor Documentation

ns3::RadvdInterface::RadvdInterface ( uint32_t interface )

Constructor.

Parameters

interface interface index

Definition at line 26 of file radvd-interface.cc.

References m_curHopLimit, m_defaultLifeTime, m_defaultPreference, m_homeAgentFlag, m_homeAgentInfo, m_homeAgentLifeTime, m_homeAgentPreference, m_intervalOpt, m_linkMtu, m_managedFlag, m_maxRtrAdvInterval, m_minDelayBetweenRAs, m_minRtrAdvInterval, m_mobRtrSupportFlag, m_otherConfigFlag, m_reachableTime, m_retransTimer, m_sendAdvert, and m_sourceLLAddress.

ns3::RadvdInterface::RadvdInterface	(	uint32_t	interface,
		uint32_t	maxRtrAdvInterval,
		uint32_t	minRtrAdvInterval
	)

Constructor.

Parameters

interface	interface index
maxRtrAdvInterval	maximum RA interval (ms)
minRtrAdvInterval	minimum RA interval (ms)

Definition at line 51 of file radvd-interface.cc.

References m_curHopLimit, m_defaultLifeTime, m_defaultPreference, m_homeAgentFlag, m_homeAgentInfo, m_homeAgentLifeTime, m_homeAgentPreference, m_intervalOpt, m_linkMtu, m_managedFlag, m_maxRtrAdvInterval, m_minDelayBetweenRAs, m_minRtrAdvInterval, m_mobRtrSupportFlag, m_otherConfigFlag, m_reachableTime, m_retransTimer, m_sendAdvert, m_sourceLLAddress, and NS_ASSERT.

ns3::RadvdInterface::~RadvdInterface ( )

Destructor.

Definition at line 76 of file radvd-interface.cc.

References m_prefixes.

Member Function Documentation

void ns3::RadvdInterface::AddPrefix ( Ptr< RadvdPrefix > routerPrefix )

Add a prefix to advertise on interface.

Parameters

routerPrefix prefix to advertise

Definition at line 86 of file radvd-interface.cc.

References m_prefixes.

uint8_t ns3::RadvdInterface::GetCurHopLimit ( ) const

Get current hop limit.

Returns: current hop limit for the link

Definition at line 202 of file radvd-interface.cc.

References m_curHopLimit.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetDefaultLifeTime ( ) const

Get default lifetime.

Returns: default lifetime

Definition at line 182 of file radvd-interface.cc.

References m_defaultLifeTime.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint8_t ns3::RadvdInterface::GetDefaultPreference ( ) const

Get default preference.

Returns: default preference

Definition at line 212 of file radvd-interface.cc.

References m_defaultPreference.

uint32_t ns3::RadvdInterface::GetHomeAgentLifeTime ( ) const

Get home agent lifetime.

Returns: home agent lifetime

Definition at line 252 of file radvd-interface.cc.

References m_homeAgentLifeTime.

uint32_t ns3::RadvdInterface::GetHomeAgentPreference ( ) const

Get home agent preference.

Returns: home agent preference

Definition at line 262 of file radvd-interface.cc.

References m_homeAgentPreference.

uint32_t ns3::RadvdInterface::GetInterface ( ) const

Get interface index for this configuration.

Returns: interface index

Definition at line 92 of file radvd-interface.cc.

References m_interface.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetLinkMtu ( ) const

Get link MTU.

Returns: link MTU

Definition at line 162 of file radvd-interface.cc.

References m_linkMtu.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetMaxRtrAdvInterval ( ) const

Get maximum RA interval.

Returns: RA interval (ms)

Definition at line 112 of file radvd-interface.cc.

References m_maxRtrAdvInterval.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetMinDelayBetweenRAs ( ) const

Get minimum delay between RAs.

Returns: minimum delay (ms)

Definition at line 132 of file radvd-interface.cc.

References m_minDelayBetweenRAs.

uint32_t ns3::RadvdInterface::GetMinRtrAdvInterval ( ) const

Get minimum RA interval.

Returns: RA interval (ms)

Definition at line 122 of file radvd-interface.cc.

References m_minRtrAdvInterval.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

std::list< Ptr< RadvdPrefix > > ns3::RadvdInterface::GetPrefixes ( ) const

Get list of prefixes advertised for this interface.

Returns: list of IPv6 prefixes

Definition at line 97 of file radvd-interface.cc.

References m_prefixes.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetReachableTime ( ) const

Get reachable time.

Returns: reachable time

Definition at line 172 of file radvd-interface.cc.

References m_reachableTime.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

uint32_t ns3::RadvdInterface::GetRetransTimer ( ) const

Get retransmission timer.

Returns: retransmission timer

Definition at line 192 of file radvd-interface.cc.

References m_retransTimer.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsHomeAgentFlag ( ) const

Is "home agent" flag enabled ?

Returns: "home agent" flag

Definition at line 232 of file radvd-interface.cc.

References m_homeAgentFlag.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsHomeAgentInfo ( ) const

Is Home Agent Information option should be included in RA ?

Returns: true if HA information option is added in RA, false otherwise

Definition at line 242 of file radvd-interface.cc.

References m_homeAgentInfo.

bool ns3::RadvdInterface::IsIntervalOpt ( ) const

Is advertisement interval option should be included in RA ?

Returns: true if advertisement interval option is added in RA, false otherwise

Definition at line 282 of file radvd-interface.cc.

References m_intervalOpt.

bool ns3::RadvdInterface::IsManagedFlag ( ) const

Is managed flag enabled ?

Returns: managed flag

Definition at line 142 of file radvd-interface.cc.

References m_managedFlag.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsMobRtrSupportFlag ( ) const

Is "mobile router support" flag enabled ?

Returns: "mobile router support" flag

Definition at line 272 of file radvd-interface.cc.

References m_mobRtrSupportFlag.

bool ns3::RadvdInterface::IsOtherConfigFlag ( ) const

Is "other config" flag enabled ?

Returns: other config flag

Definition at line 152 of file radvd-interface.cc.

References m_otherConfigFlag.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

bool ns3::RadvdInterface::IsSendAdvert ( ) const

Is send advert enabled (periodic RA and reply to RS) ?

Returns: send advert flag

Definition at line 102 of file radvd-interface.cc.

References m_sendAdvert.

bool ns3::RadvdInterface::IsSourceLLAddress ( ) const

Is source LLA option should be included in RA ?

Returns: true if source address is added in RA, false otherwise

Definition at line 222 of file radvd-interface.cc.

References m_sourceLLAddress.

Referenced by ns3::Radvd::Send().

Here is the caller graph for this function:

void ns3::RadvdInterface::SetCurHopLimit ( uint8_t curHopLimit )

Set current hop limit.

Parameters

curHopLimit current hop limit for the link

Definition at line 207 of file radvd-interface.cc.

References m_curHopLimit.

void ns3::RadvdInterface::SetDefaultLifeTime ( uint32_t defaultLifeTime )

Set default lifetime.

Parameters

defaultLifeTime default lifetime

Definition at line 187 of file radvd-interface.cc.

References m_defaultLifeTime.

void ns3::RadvdInterface::SetDefaultPreference ( uint8_t defaultPreference )

Set default preference.

Parameters

defaultPreference default preference

Definition at line 217 of file radvd-interface.cc.

References m_defaultPreference.

void ns3::RadvdInterface::SetHomeAgentFlag ( bool homeAgentFlag )

Set "home agent" flag.

Parameters

homeAgentFlag value

Definition at line 237 of file radvd-interface.cc.

References m_homeAgentFlag.

void ns3::RadvdInterface::SetHomeAgentInfo ( bool homeAgentFlag )

Set flag to add or not HA information option to RA.

Parameters

homeAgentFlag value

Definition at line 247 of file radvd-interface.cc.

References m_homeAgentInfo.

void ns3::RadvdInterface::SetHomeAgentLifeTime ( uint32_t homeAgentLifeTime )

Set home agent lifetime.

Parameters

homeAgentLifeTime home agent lifetime

Definition at line 257 of file radvd-interface.cc.

References m_homeAgentLifeTime.

void ns3::RadvdInterface::SetHomeAgentPreference ( uint32_t homeAgentPreference )

Set home agent preference.

Parameters

homeAgentPreference home agent preference

Definition at line 267 of file radvd-interface.cc.

References m_homeAgentPreference.

void ns3::RadvdInterface::SetIntervalOpt ( bool intervalOpt )

Set flag to add or not advertisement interval to RA.

Parameters

intervalOpt value

Definition at line 287 of file radvd-interface.cc.

References m_intervalOpt.

void ns3::RadvdInterface::SetLinkMtu ( uint32_t linkMtu )

Set link MTU.

Parameters

linkMtu link MTU

Definition at line 167 of file radvd-interface.cc.

References m_linkMtu.

void ns3::RadvdInterface::SetManagedFlag ( bool managedFlag )

Set managed flag.

Parameters

managedFlag value

Definition at line 147 of file radvd-interface.cc.

References m_managedFlag.

void ns3::RadvdInterface::SetMaxRtrAdvInterval ( uint32_t maxRtrAdvInterval )

Get maximum RA interval.

Parameters

maxRtrAdvInterval RA interval (ms)

Definition at line 117 of file radvd-interface.cc.

References m_maxRtrAdvInterval.

void ns3::RadvdInterface::SetMinDelayBetweenRAs ( uint32_t minDelayBetweenRAs )

Set minimum delay between RAs.

Parameters

minDelayBetweenRAs minimum delay (ms)

Definition at line 137 of file radvd-interface.cc.

References m_minDelayBetweenRAs.

void ns3::RadvdInterface::SetMinRtrAdvInterval ( uint32_t minRtrAdvInterval )

Get minimum RA interval.

Parameters

minRtrAdvInterval RA interval (ms).

Definition at line 127 of file radvd-interface.cc.

References m_minRtrAdvInterval.

void ns3::RadvdInterface::SetMobRtrSupportFlag ( bool mobRtrSupportFlag )

Set "mobile router support" flag.

Parameters

mobRtrSupportFlag value

Definition at line 277 of file radvd-interface.cc.

References m_mobRtrSupportFlag.

void ns3::RadvdInterface::SetOtherConfigFlag ( bool otherConfigFlag )

Set "other config" flag.

Parameters

otherConfigFlag value

Definition at line 157 of file radvd-interface.cc.

References m_otherConfigFlag.

void ns3::RadvdInterface::SetReachableTime ( uint32_t reachableTime )

Set reachable time.

Parameters

reachableTime reachable time

Definition at line 177 of file radvd-interface.cc.

References m_reachableTime.

void ns3::RadvdInterface::SetRetransTimer ( uint32_t retransTimer )

Set retransmission timer.

Parameters

retransTimer retransmission timer

Definition at line 197 of file radvd-interface.cc.

References m_retransTimer.

void ns3::RadvdInterface::SetSendAdvert ( bool sendAdvert )

Set send advert flag.

Parameters

sendAdvert value

Definition at line 107 of file radvd-interface.cc.

References m_sendAdvert.

void ns3::RadvdInterface::SetSourceLLAddress ( bool sourceLLAddress )

Set flag to add or not LLA to RA.

Parameters

sourceLLAddress value

Definition at line 227 of file radvd-interface.cc.

References m_sourceLLAddress.

Member Data Documentation

uint32_t ns3::RadvdInterface::m_curHopLimit

private

Current hop limit (TTL).

Definition at line 366 of file radvd-interface.h.

Referenced by GetCurHopLimit(), RadvdInterface(), and SetCurHopLimit().

uint32_t ns3::RadvdInterface::m_defaultLifeTime

private

Default life time in seconds.

Definition at line 371 of file radvd-interface.h.

Referenced by GetDefaultLifeTime(), RadvdInterface(), and SetDefaultLifeTime().

uint8_t ns3::RadvdInterface::m_defaultPreference

private

Preference associated with default router. 0 = low 1 = medium 2 = high.

Definition at line 379 of file radvd-interface.h.

Referenced by GetDefaultPreference(), RadvdInterface(), and SetDefaultPreference().

bool ns3::RadvdInterface::m_homeAgentFlag

private

Flag to add HA (home agent) flag in RA.

Definition at line 389 of file radvd-interface.h.

Referenced by IsHomeAgentFlag(), RadvdInterface(), and SetHomeAgentFlag().

bool ns3::RadvdInterface::m_homeAgentInfo

private

Flag to add Home Agent Information option (Mobile IPv6). Currently not implemented.

Definition at line 395 of file radvd-interface.h.

Referenced by IsHomeAgentInfo(), RadvdInterface(), and SetHomeAgentInfo().

uint32_t ns3::RadvdInterface::m_homeAgentLifeTime

private

Home agent lifetime in seconds. Ignored if home agent info is not set.

Definition at line 400 of file radvd-interface.h.

Referenced by GetHomeAgentLifeTime(), RadvdInterface(), and SetHomeAgentLifeTime().

uint32_t ns3::RadvdInterface::m_homeAgentPreference

private

Home agent preference. Ignored if home agent info is not set.

Definition at line 405 of file radvd-interface.h.

Referenced by GetHomeAgentPreference(), RadvdInterface(), and SetHomeAgentPreference().

uint32_t ns3::RadvdInterface::m_interface

private

Interface to advertise RA.

Definition at line 311 of file radvd-interface.h.

Referenced by GetInterface().

bool ns3::RadvdInterface::m_intervalOpt

private

Flag to add Advertisement Interval option in RA.

Definition at line 415 of file radvd-interface.h.

Referenced by IsIntervalOpt(), RadvdInterface(), and SetIntervalOpt().

uint32_t ns3::RadvdInterface::m_linkMtu

private

Link MTU to use.

Definition at line 351 of file radvd-interface.h.

Referenced by GetLinkMtu(), RadvdInterface(), and SetLinkMtu().

bool ns3::RadvdInterface::m_managedFlag

private

Managed flag. If true host use the stateful protocol for address autoconfiguration.

Definition at line 341 of file radvd-interface.h.

Referenced by IsManagedFlag(), RadvdInterface(), and SetManagedFlag().

uint32_t ns3::RadvdInterface::m_maxRtrAdvInterval

private

Maximum RA interval in milliseconds.

Definition at line 326 of file radvd-interface.h.

Referenced by GetMaxRtrAdvInterval(), RadvdInterface(), and SetMaxRtrAdvInterval().

uint32_t ns3::RadvdInterface::m_minDelayBetweenRAs

private

Minimum delay between RA in milliseconds.

Definition at line 336 of file radvd-interface.h.

Referenced by GetMinDelayBetweenRAs(), RadvdInterface(), and SetMinDelayBetweenRAs().

uint32_t ns3::RadvdInterface::m_minRtrAdvInterval

private

Minimum RA interval in milliseconds.

Definition at line 331 of file radvd-interface.h.

Referenced by GetMinRtrAdvInterval(), RadvdInterface(), and SetMinRtrAdvInterval().

bool ns3::RadvdInterface::m_mobRtrSupportFlag

private

Flag for HA to signals it supports Mobile Router registrations (NEMO Basic).

Definition at line 410 of file radvd-interface.h.

Referenced by IsMobRtrSupportFlag(), RadvdInterface(), and SetMobRtrSupportFlag().

bool ns3::RadvdInterface::m_otherConfigFlag

private

Other configuration flag. If true host use stateful protocol for other (non-address) information.

Definition at line 346 of file radvd-interface.h.

Referenced by IsOtherConfigFlag(), RadvdInterface(), and SetOtherConfigFlag().

RadvdPrefixList ns3::RadvdInterface::m_prefixes

private

List of prefixes to advertise.

Definition at line 316 of file radvd-interface.h.

Referenced by AddPrefix(), GetPrefixes(), and ~RadvdInterface().

uint32_t ns3::RadvdInterface::m_reachableTime

private

Reachable time in milliseconds.

Definition at line 356 of file radvd-interface.h.

Referenced by GetReachableTime(), RadvdInterface(), and SetReachableTime().

uint32_t ns3::RadvdInterface::m_retransTimer

private

Retransmission timer in milliseconds.

Definition at line 361 of file radvd-interface.h.

Referenced by GetRetransTimer(), RadvdInterface(), and SetRetransTimer().

bool ns3::RadvdInterface::m_sendAdvert

private

Flag whether or not router sends periodic RA and respond to RS.

Definition at line 321 of file radvd-interface.h.

Referenced by IsSendAdvert(), RadvdInterface(), and SetSendAdvert().

bool ns3::RadvdInterface::m_sourceLLAddress

private

Flag to add link-layer address in RA.

Definition at line 384 of file radvd-interface.h.

Referenced by IsSourceLLAddress(), RadvdInterface(), and SetSourceLLAddress().

The documentation for this class was generated from the following files:

src/applications/model/radvd-interface.h
src/applications/model/radvd-interface.cc

Public Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
