ns3::SSLinkManager Class Reference

this class implements the link manager of subscriber station net device. An ss link manager is responsible for link scanning and ranging More...

#include <ss-link-manager.h>

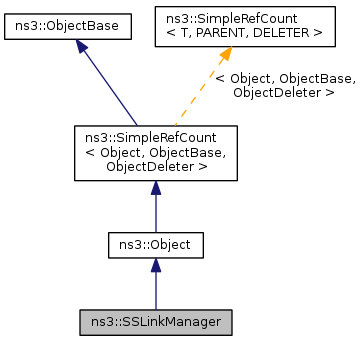

+ Inheritance diagram for ns3::SSLinkManager:

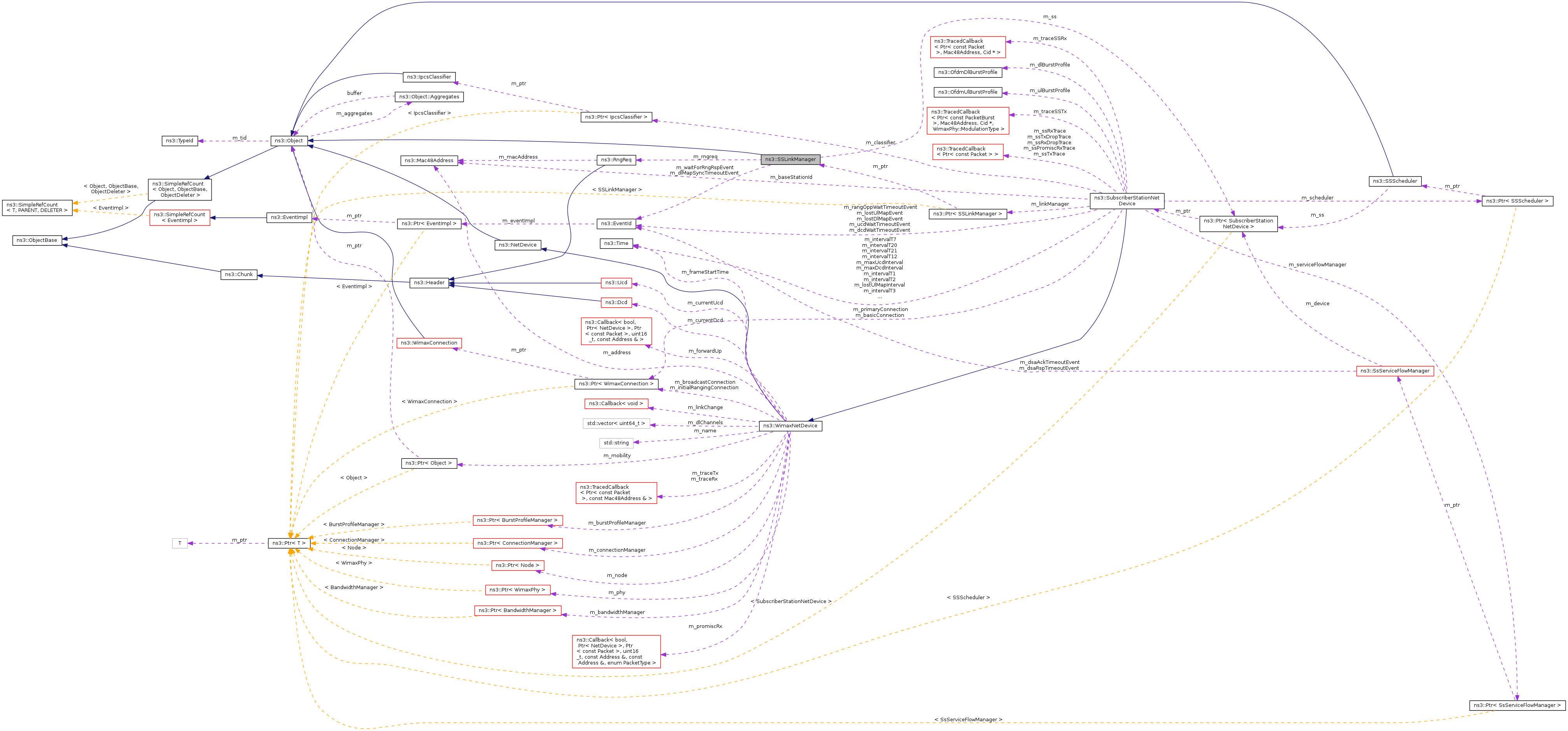

+ Collaboration diagram for ns3::SSLinkManager:

Public Member Functions

 SSLinkManager (Ptr< SubscriberStationNetDevice > ss)
 ~SSLinkManager (void)
void DoDispose (void)
EventId GetDlMapSyncTimeoutEvent (void)
bool GetRangingIntervalFound (void) const
void IncrementNrInvitedPollsRecvd (void)
bool IsUlChannelUsable (void)
void PerformBackoff (void)
void PerformRanging (Cid cid, RngRsp rngrsp)
void ScheduleScanningRestart (Time interval, SubscriberStationNetDevice::EventType eventType, bool deleteUlParameters, EventId &eventId)
void SendRangingRequest (uint8_t uiuc, uint16_t allocationSize)
void SetBsEirp (uint16_t bs_eirp)
void SetEirXPIrMax (uint16_t eir_x_p_ir_max)
void SetNrRangingTransOpps (uint8_t nrRangingTransOpps)
void SetRangingCW (uint8_t rangingCW)
void SetRangingIntervalFound (bool rangingIntervalFound)
void StartContentionResolution (void)
void StartScanning (SubscriberStationNetDevice::EventType type, bool deleteParameters)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCountoperator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::SSLinkManager.

Private Member Functions

 SSLinkManager (const SSLinkManager &)
void AdjustRangingParameters (const RngRsp &rngrsp)
uint16_t CalculateMaxIRSignalStrength (void)
void DeleteUplinkParameters (void)
void EndScanning (bool status, uint64_t frequency)
uint16_t GetMinTransmitPowerLevel (void)
void IncreaseRangingRequestCW (void)
void NegotiateBasicCapabilities (void)
SSLinkManageroperator= (const SSLinkManager &)
void ResetRangingRequestCW (void)
bool SearchForDlChannel (uint8_t channel)
void SelectRandomBackoff (void)
void StartSynchronizing (void)

Private Attributes

uint16_t m_bsEirp
uint8_t m_contentionRangingRetries
uint8_t m_dlChnlNr
EventId m_dlMapSyncTimeoutEvent
uint16_t m_eirXPIrMax
uint64_t m_frequency
uint8_t m_initRangOppNumber
bool m_isBackoffSet
uint16_t m_nrInvitedPollsRecvd
uint8_t m_nrRangingTransOpps
uint16_t m_nrRngReqsSent
uint16_t m_nrRngRspsRecvd
uint16_t m_pTxIrMax
uint8_t m_rangingAnomalies
uint8_t m_rangingBO
uint8_t m_rangingCW
bool m_rangingIntervalFound
WimaxNetDevice::RangingStatus m_rangingStatus
RngReq m_rngreq
uint32_t m_rngReqFrameNumber
Ptr< SubscriberStationNetDevicem_ss
EventId m_waitForRngRspEvent

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

this class implements the link manager of subscriber station net device. An ss link manager is responsible for link scanning and ranging

Definition at line 41 of file ss-link-manager.h.

Constructor & Destructor Documentation

ns3::SSLinkManager::SSLinkManager ( Ptr< SubscriberStationNetDevice ss)

Definition at line 47 of file ss-link-manager.cc.

ns3::SSLinkManager::~SSLinkManager ( void  )

Definition at line 71 of file ss-link-manager.cc.

References m_ss.

ns3::SSLinkManager::SSLinkManager ( const SSLinkManager )
private

Member Function Documentation

void ns3::SSLinkManager::AdjustRangingParameters ( const RngRsp rngrsp)
private

Definition at line 448 of file ss-link-manager.cc.

References ns3::RngRsp::GetOffsetFreqAdjust(), ns3::RngRsp::GetPowerLevelAdjust(), and ns3::RngRsp::GetTimingAdjust().

Referenced by PerformRanging().

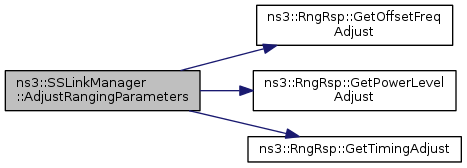

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint16_t ns3::SSLinkManager::CalculateMaxIRSignalStrength ( void  )
private

Definition at line 472 of file ss-link-manager.cc.

References GetMinTransmitPowerLevel(), m_bsEirp, and m_eirXPIrMax.

Referenced by SendRangingRequest().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::SSLinkManager::DeleteUplinkParameters ( void  )
private

Definition at line 435 of file ss-link-manager.cc.

References m_ss, and ns3::WimaxNetDevice::SetCurrentUcd().

Referenced by StartScanning().

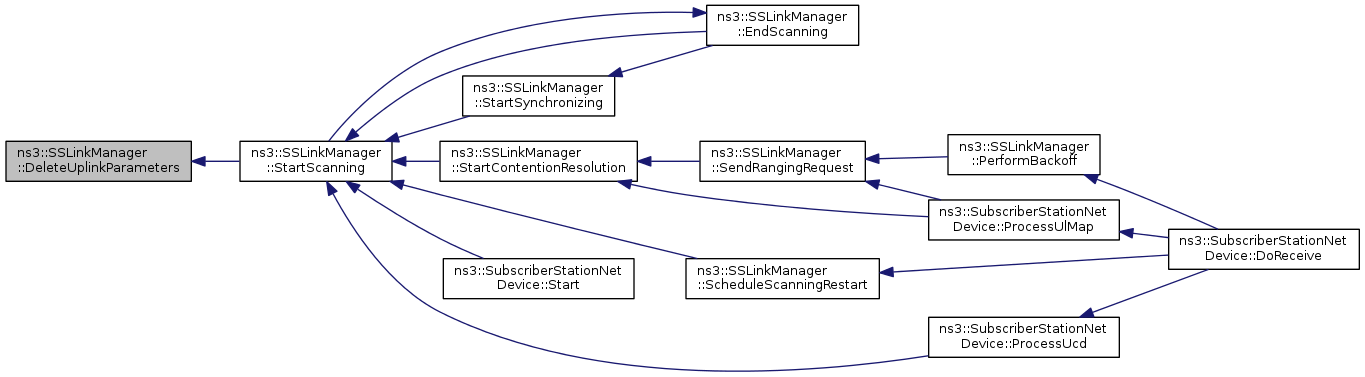

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::SSLinkManager::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 78 of file ss-link-manager.cc.

References m_ss.

void ns3::SSLinkManager::EndScanning ( bool  status,
uint64_t  frequency
)
private

Definition at line 164 of file ss-link-manager.cc.

References ns3::SubscriberStationNetDevice::EVENT_NONE, m_frequency, StartScanning(), and StartSynchronizing().

Referenced by StartScanning().

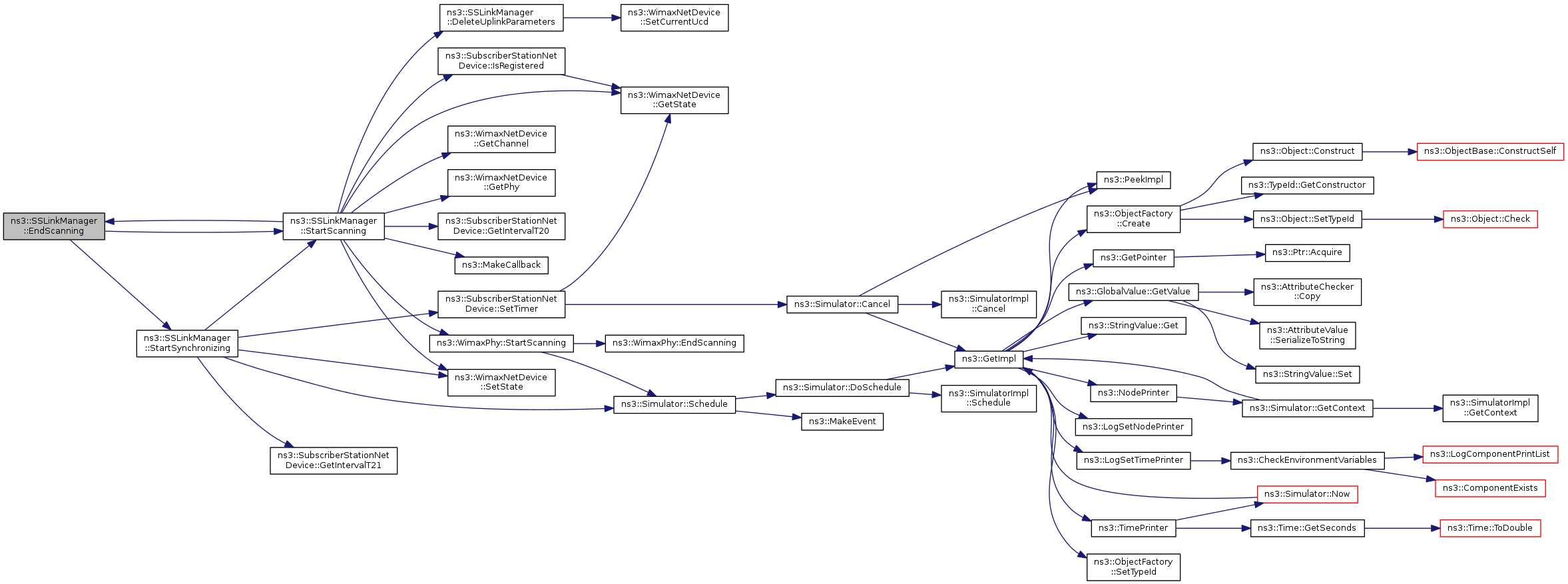

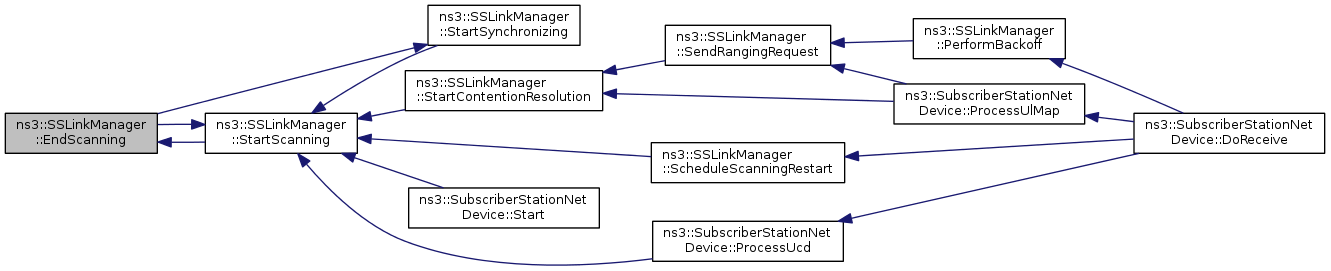

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

EventId ns3::SSLinkManager::GetDlMapSyncTimeoutEvent ( void  )

Definition at line 126 of file ss-link-manager.cc.

References m_dlMapSyncTimeoutEvent.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

+ Here is the caller graph for this function:

uint16_t ns3::SSLinkManager::GetMinTransmitPowerLevel ( void  )
private

Definition at line 490 of file ss-link-manager.cc.

Referenced by CalculateMaxIRSignalStrength().

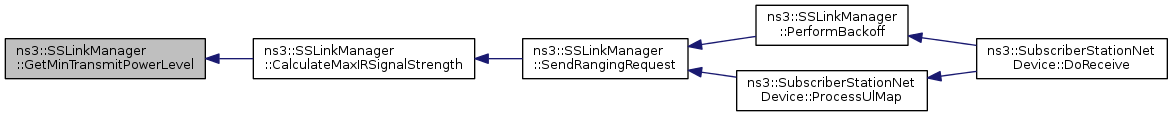

+ Here is the caller graph for this function:

bool ns3::SSLinkManager::GetRangingIntervalFound ( void  ) const

Definition at line 102 of file ss-link-manager.cc.

References m_rangingIntervalFound.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

+ Here is the caller graph for this function:

TypeId ns3::SSLinkManager::GetTypeId ( void  )
static

This method returns the TypeId associated to ns3::SSLinkManager.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 40 of file ss-link-manager.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::SSLinkManager::IncreaseRangingRequestCW ( void  )
private

Definition at line 331 of file ss-link-manager.cc.

References ns3::WimaxNetDevice::GetCurrentUcd(), ns3::Ucd::GetRangingBackoffEnd(), m_rangingCW, and m_ss.

Referenced by StartContentionResolution().

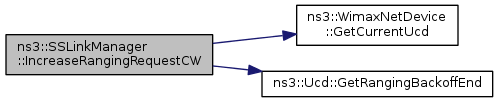

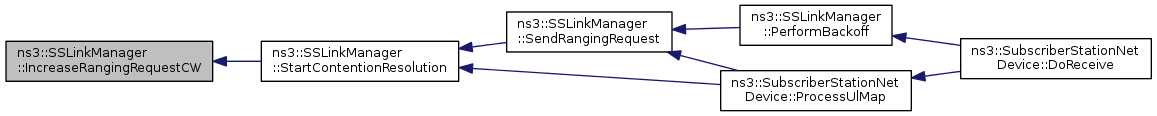

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::SSLinkManager::IncrementNrInvitedPollsRecvd ( void  )

Definition at line 120 of file ss-link-manager.cc.

References m_nrInvitedPollsRecvd.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

+ Here is the caller graph for this function:

bool ns3::SSLinkManager::IsUlChannelUsable ( void  )

Definition at line 441 of file ss-link-manager.cc.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

+ Here is the caller graph for this function:

void ns3::SSLinkManager::NegotiateBasicCapabilities ( void  )
private

Definition at line 466 of file ss-link-manager.cc.

Referenced by PerformRanging().

+ Here is the caller graph for this function:

SSLinkManager& ns3::SSLinkManager::operator= ( const SSLinkManager )
private
void ns3::SSLinkManager::PerformRanging ( Cid  cid,
RngRsp  rngrsp
)

Definition at line 345 of file ss-link-manager.cc.

References AdjustRangingParameters(), ns3::Cid::BASIC, ns3::Simulator::Cancel(), ns3::WimaxNetDevice::GetAddress(), ns3::SubscriberStationNetDevice::GetAreServiceFlowsAllocated(), ns3::RngRsp::GetBasicCid(), ns3::WimaxConnection::GetCid(), ns3::RngRsp::GetDlFreqOverride(), ns3::RngRsp::GetFrameNumber(), ns3::WimaxNetDevice::GetInitialRangingConnection(), ns3::RngRsp::GetInitRangOppNumber(), ns3::RngRsp::GetMacAddress(), ns3::RngRsp::GetPrimaryCid(), ns3::RngRsp::GetRangStatus(), ns3::SubscriberStationNetDevice::GetServiceFlowManager(), ns3::SubscriberStationNetDevice::HasServiceFlows(), ns3::SsServiceFlowManager::InitiateServiceFlows(), ns3::EventId::IsRunning(), m_initRangOppNumber, m_nrRngRspsRecvd, m_rangingStatus, m_rngReqFrameNumber, m_ss, m_waitForRngRspEvent, NegotiateBasicCapabilities(), NS_ASSERT_MSG, ns3::Cid::PRIMARY, ns3::WimaxNetDevice::RANGING_STATUS_ABORT, ns3::WimaxNetDevice::RANGING_STATUS_CONTINUE, ns3::WimaxNetDevice::RANGING_STATUS_SUCCESS, ResetRangingRequestCW(), ns3::SubscriberStationNetDevice::SetAreManagementConnectionsAllocated(), ns3::SubscriberStationNetDevice::SetBasicConnection(), ns3::SubscriberStationNetDevice::SetPrimaryConnection(), ns3::WimaxNetDevice::SetState(), ns3::SubscriberStationNetDevice::SS_STATE_ADJUSTING_PARAMETERS, ns3::SubscriberStationNetDevice::SS_STATE_REGISTERED, and ns3::SubscriberStationNetDevice::SS_STATE_WAITING_INV_RANG_INTRVL.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

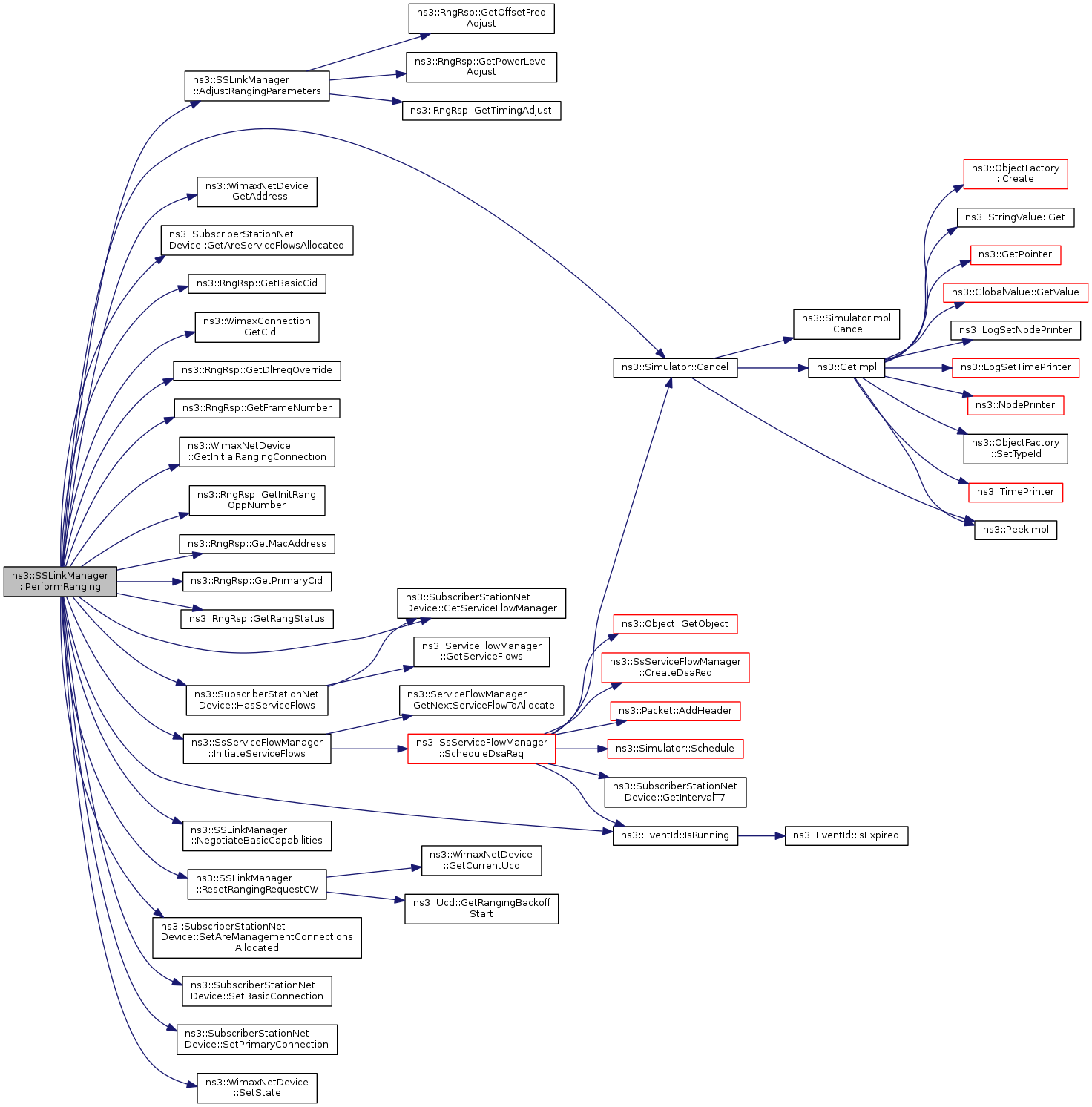

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::SSLinkManager::ResetRangingRequestCW ( void  )
private

Definition at line 338 of file ss-link-manager.cc.

References ns3::WimaxNetDevice::GetCurrentUcd(), ns3::Ucd::GetRangingBackoffStart(), m_rangingCW, and m_ss.

Referenced by PerformRanging().

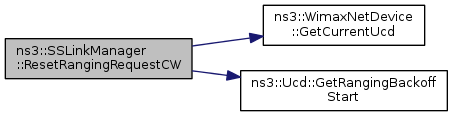

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::SSLinkManager::ScheduleScanningRestart ( Time  interval,
SubscriberStationNetDevice::EventType  eventType,
bool  deleteUlParameters,
EventId eventId
)

Definition at line 497 of file ss-link-manager.cc.

References m_ss, ns3::Simulator::Schedule(), ns3::SubscriberStationNetDevice::SetTimer(), and StartScanning().

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

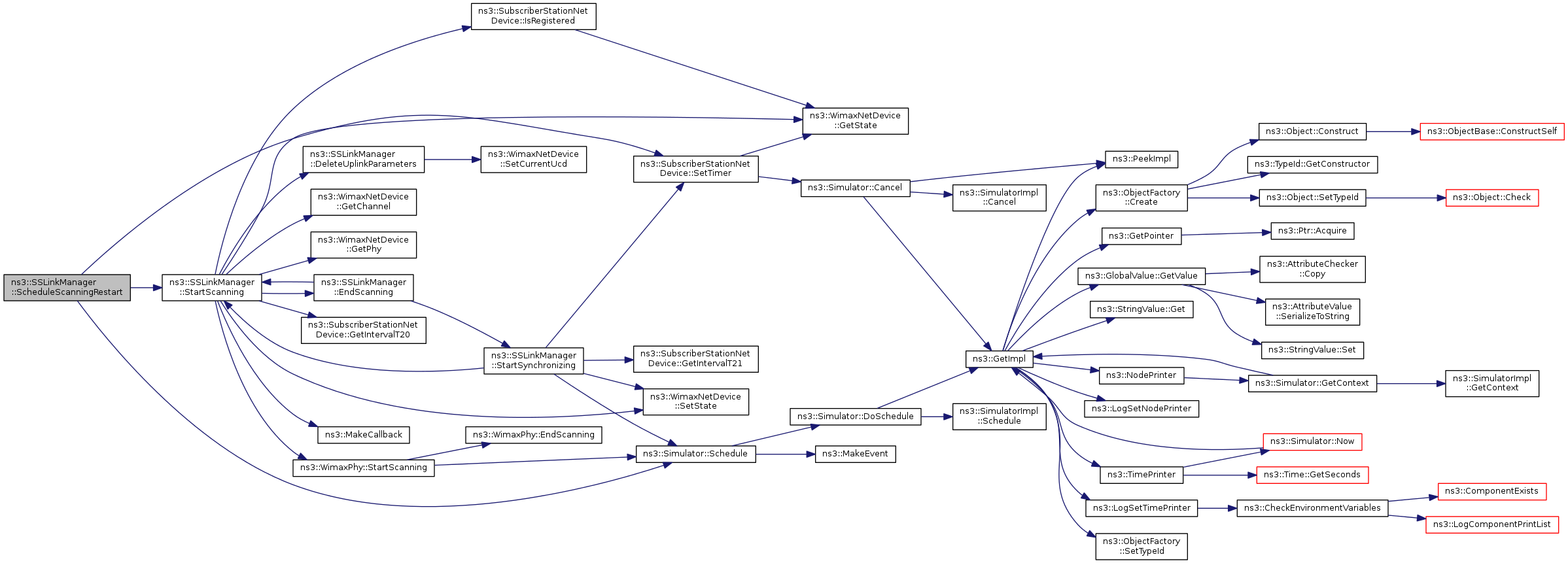

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::SSLinkManager::SearchForDlChannel ( uint8_t  channel)
private
void ns3::SSLinkManager::SelectRandomBackoff ( void  )
private

Definition at line 321 of file ss-link-manager.cc.

References m_isBackoffSet, m_rangingBO, m_rangingCW, and NS_ASSERT_MSG.

Referenced by StartContentionResolution().

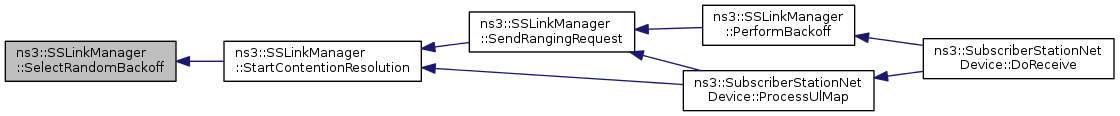

+ Here is the caller graph for this function:

void ns3::SSLinkManager::SendRangingRequest ( uint8_t  uiuc,
uint16_t  allocationSize
)

Definition at line 188 of file ss-link-manager.cc.

References ns3::Packet::AddHeader(), CalculateMaxIRSignalStrength(), ns3::SubscriberStationNetDevice::Enqueue(), ns3::SubscriberStationNetDevice::GetBasicConnection(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::BurstProfileManager::GetBurstProfileToRequest(), ns3::Ucd::GetChannelEncodings(), ns3::WimaxNetDevice::GetCurrentUcd(), ns3::WimaxNetDevice::GetInitialRangingConnection(), ns3::SubscriberStationNetDevice::GetIntervalT3(), ns3::WimaxNetDevice::GetMacAddress(), ns3::WimaxNetDevice::GetPhy(), ns3::WimaxPhy::GetPsPerSymbol(), ns3::UcdChannelEncodings::GetRangReqOppSize(), ns3::WimaxNetDevice::GetState(), m_nrRngReqsSent, m_nrRngRspsRecvd, m_pTxIrMax, m_rangingAnomalies, m_rangingStatus, m_rngreq, m_ss, m_waitForRngRspEvent, ns3::ManagementMessageType::MESSAGE_TYPE_RNG_REQ, NS_ASSERT_MSG, ns3::WimaxNetDevice::RANGING_STATUS_CONTINUE, ns3::Simulator::Schedule(), ns3::SubscriberStationNetDevice::SendBurst(), ns3::RngReq::SetMacAddress(), ns3::RngReq::SetRangingAnomalies(), ns3::RngReq::SetReqDlBurstProfile(), ns3::WimaxNetDevice::SetState(), ns3::SubscriberStationNetDevice::SetTimer(), ns3::SubscriberStationNetDevice::SS_STATE_WAITING_INV_RANG_INTRVL, ns3::SubscriberStationNetDevice::SS_STATE_WAITING_REG_RANG_INTRVL, ns3::SubscriberStationNetDevice::SS_STATE_WAITING_RNG_RSP, and StartContentionResolution().

Referenced by PerformBackoff(), and ns3::SubscriberStationNetDevice::ProcessUlMap().

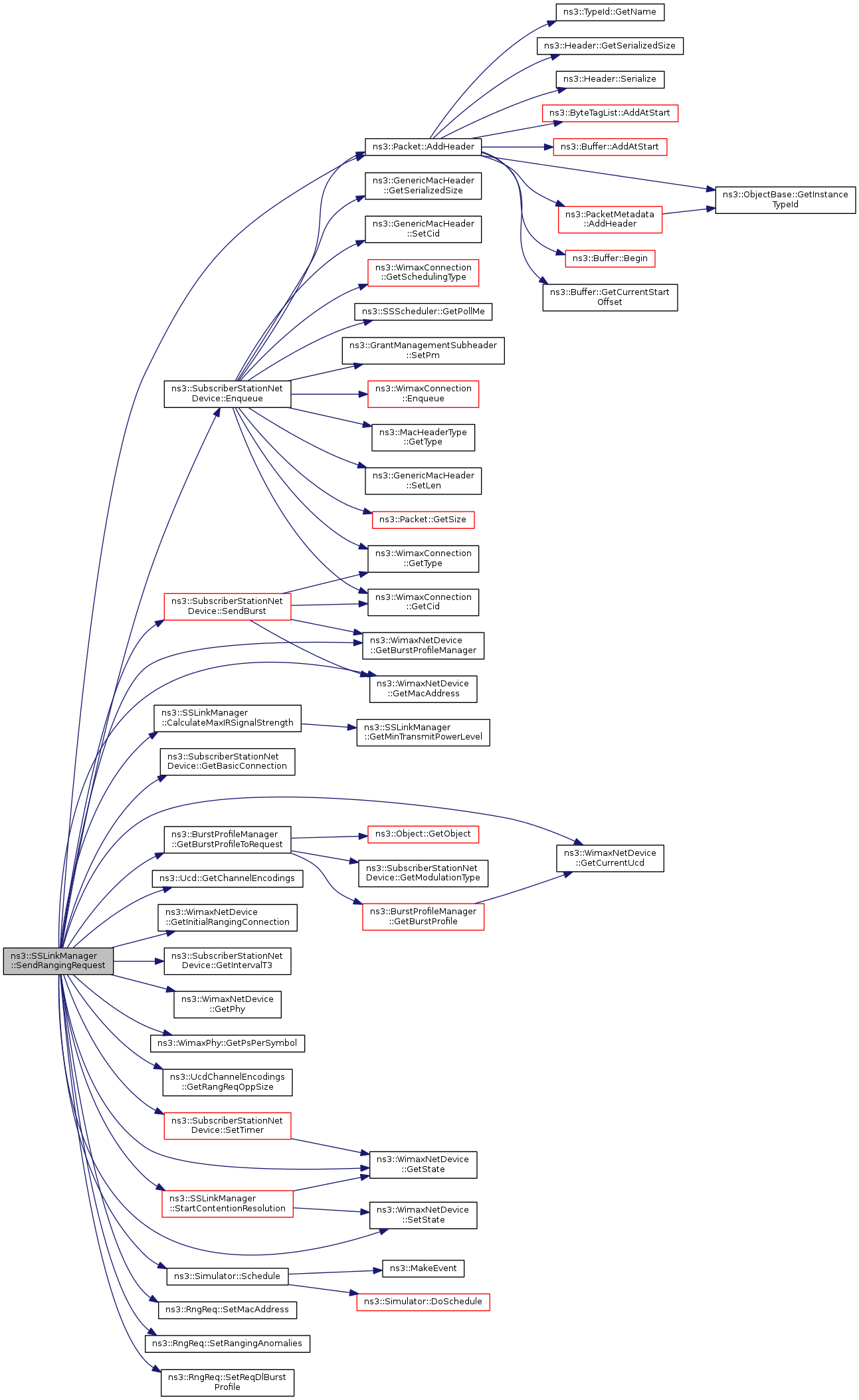

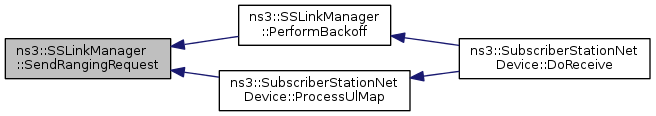

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::SSLinkManager::SetBsEirp ( uint16_t  bs_eirp)

Definition at line 84 of file ss-link-manager.cc.

References m_bsEirp.

Referenced by ns3::SubscriberStationNetDevice::ProcessDcd().

+ Here is the caller graph for this function:

void ns3::SSLinkManager::SetEirXPIrMax ( uint16_t  eir_x_p_ir_max)

Definition at line 90 of file ss-link-manager.cc.

References m_eirXPIrMax.

Referenced by ns3::SubscriberStationNetDevice::ProcessDcd().

+ Here is the caller graph for this function:

void ns3::SSLinkManager::SetNrRangingTransOpps ( uint8_t  nrRangingTransOpps)

Definition at line 108 of file ss-link-manager.cc.

References m_nrRangingTransOpps.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

+ Here is the caller graph for this function:

void ns3::SSLinkManager::SetRangingCW ( uint8_t  rangingCW)

Definition at line 114 of file ss-link-manager.cc.

References m_rangingCW.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd().

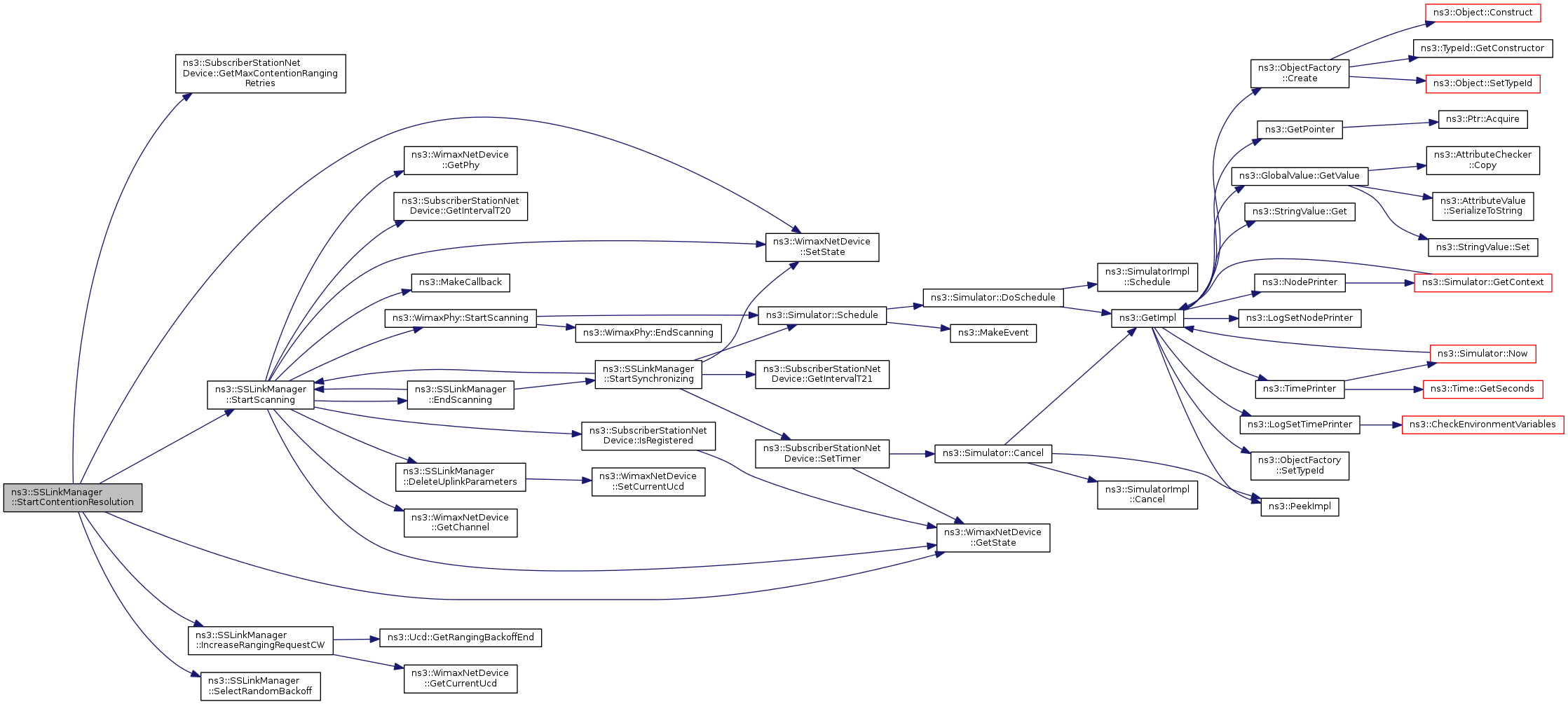

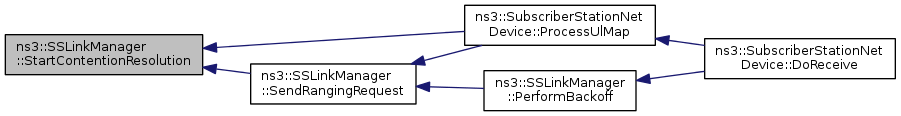

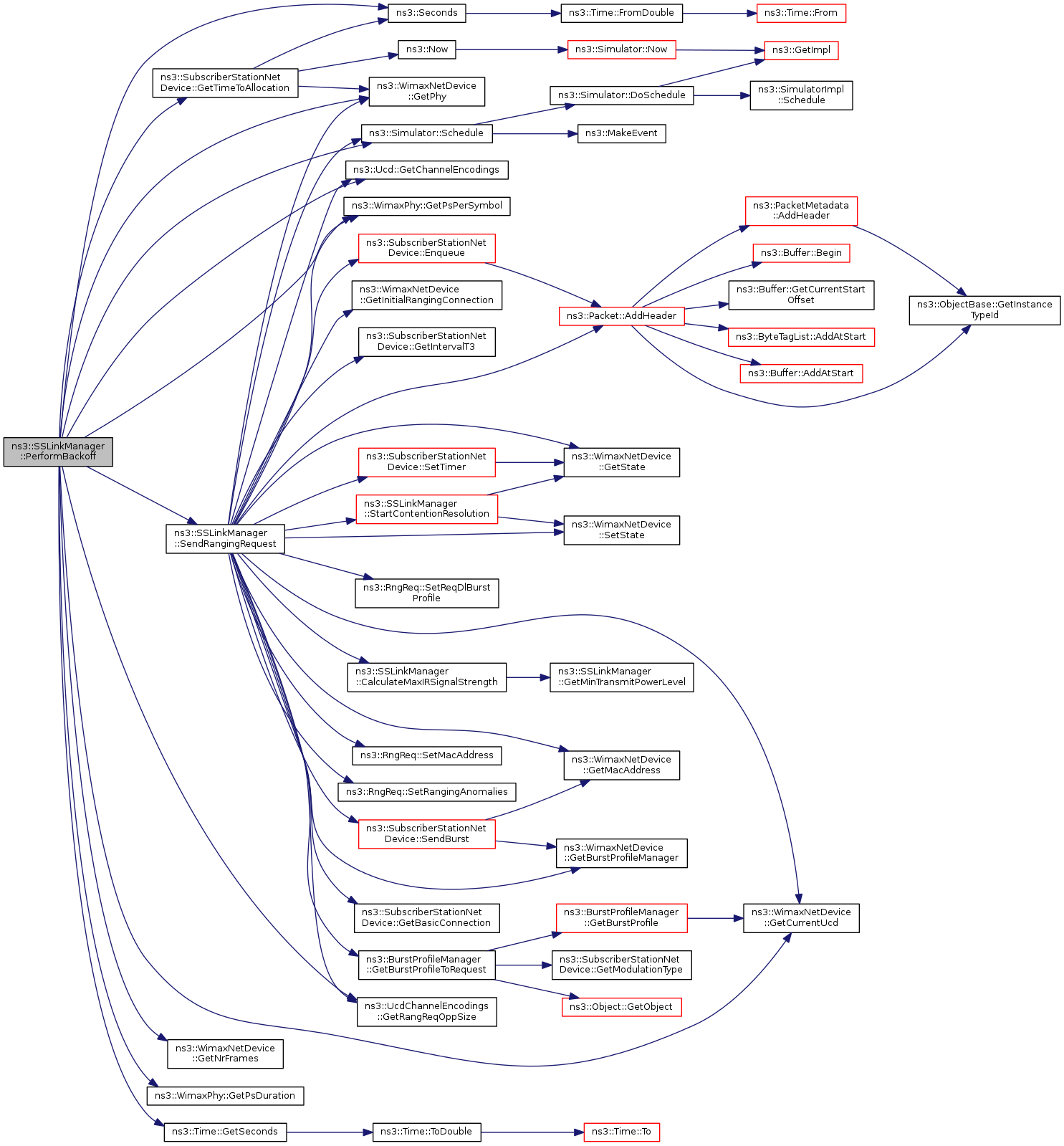

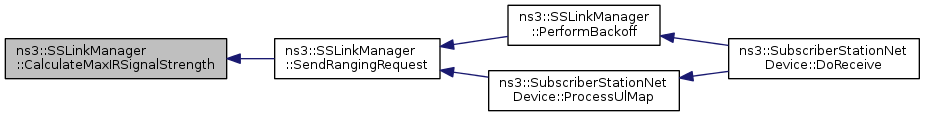

+ Here is the caller graph for this function:

void ns3::SSLinkManager::SetRangingIntervalFound ( bool  rangingIntervalFound)

Definition at line 96 of file ss-link-manager.cc.

References m_rangingIntervalFound.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

+ Here is the caller graph for this function:

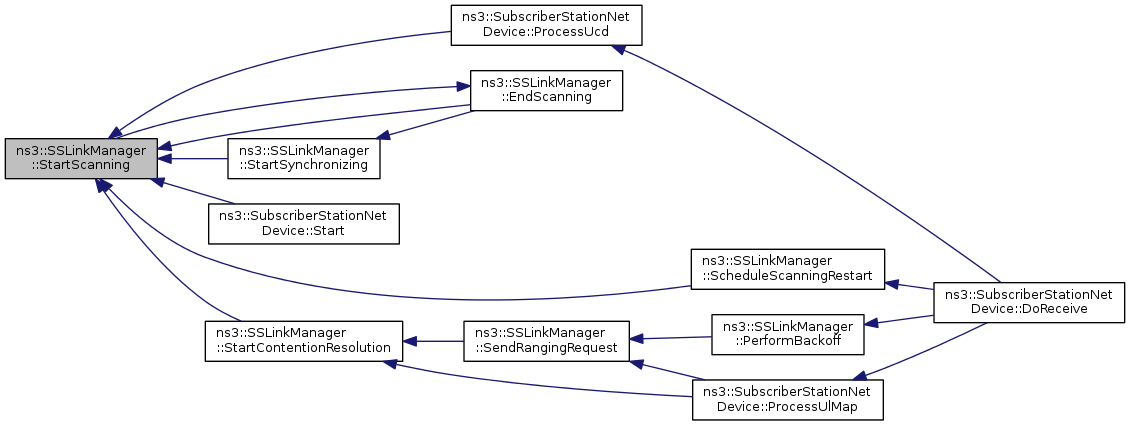

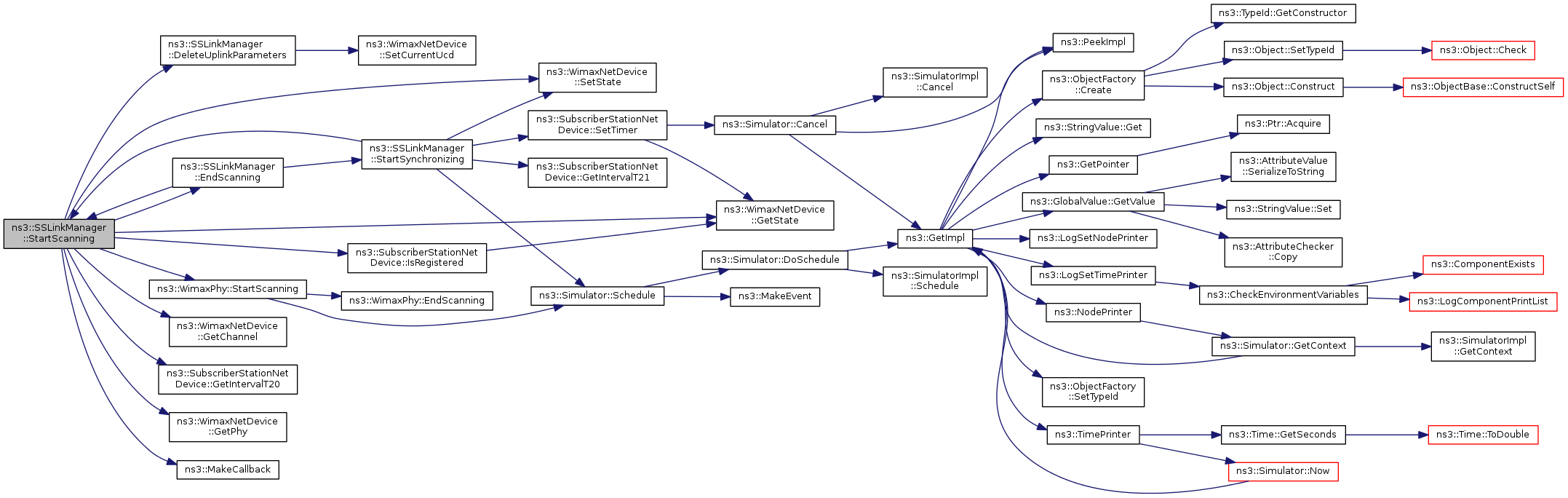

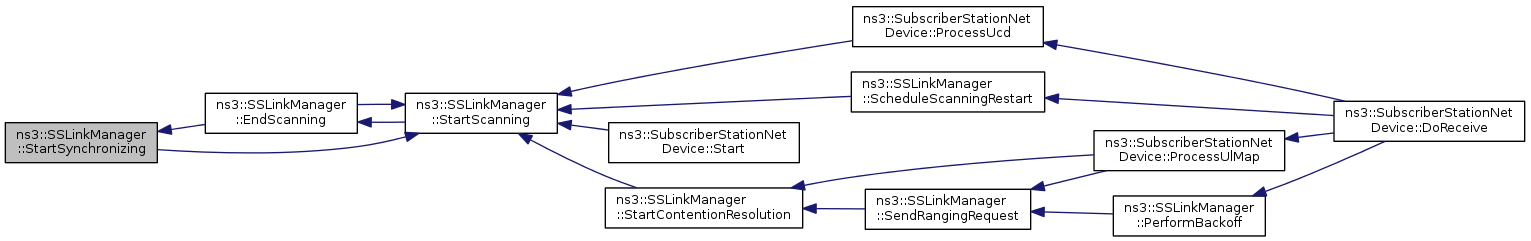

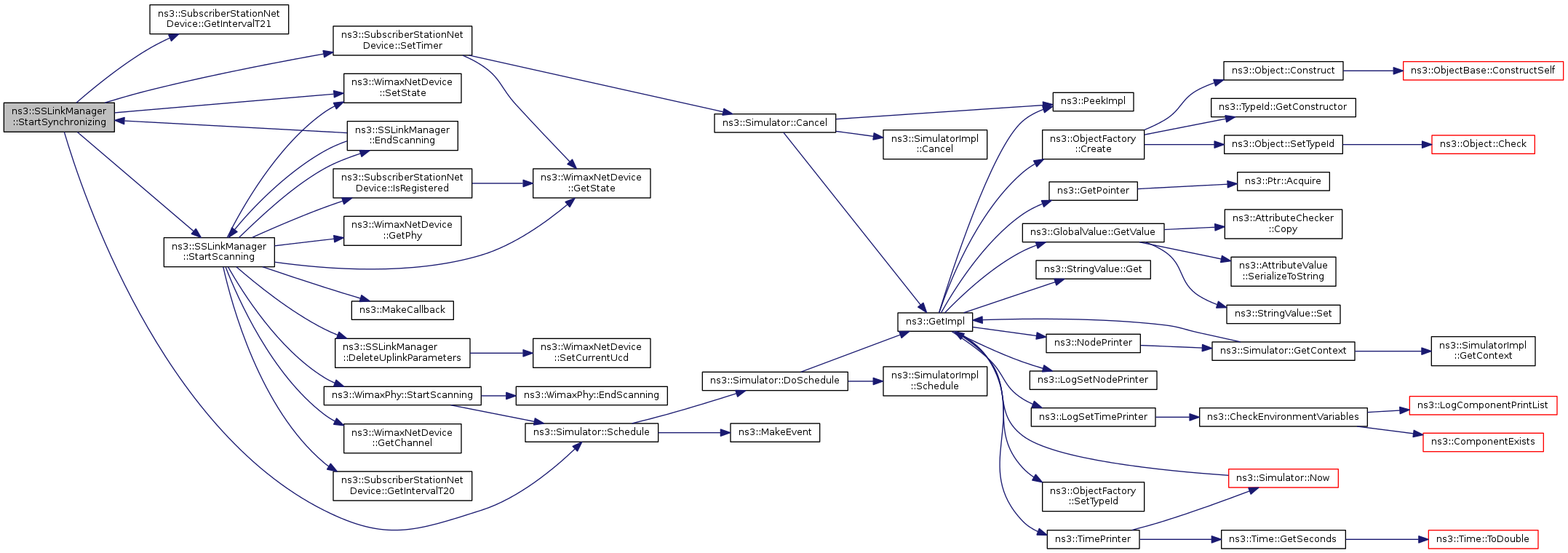

void ns3::SSLinkManager::StartSynchronizing ( void  )
private

Member Data Documentation

uint16_t ns3::SSLinkManager::m_bsEirp
private

Definition at line 88 of file ss-link-manager.h.

Referenced by CalculateMaxIRSignalStrength(), and SetBsEirp().

uint8_t ns3::SSLinkManager::m_contentionRangingRetries
private

Definition at line 93 of file ss-link-manager.h.

Referenced by StartContentionResolution().

uint8_t ns3::SSLinkManager::m_dlChnlNr
private

Definition at line 97 of file ss-link-manager.h.

Referenced by StartScanning().

EventId ns3::SSLinkManager::m_dlMapSyncTimeoutEvent
private

Definition at line 112 of file ss-link-manager.h.

Referenced by GetDlMapSyncTimeoutEvent(), and StartSynchronizing().

uint16_t ns3::SSLinkManager::m_eirXPIrMax
private

Definition at line 89 of file ss-link-manager.h.

Referenced by CalculateMaxIRSignalStrength(), and SetEirXPIrMax().

uint64_t ns3::SSLinkManager::m_frequency
private

Definition at line 98 of file ss-link-manager.h.

Referenced by EndScanning().

uint8_t ns3::SSLinkManager::m_initRangOppNumber
private

Definition at line 92 of file ss-link-manager.h.

Referenced by PerformBackoff(), and PerformRanging().

bool ns3::SSLinkManager::m_isBackoffSet
private
uint16_t ns3::SSLinkManager::m_nrInvitedPollsRecvd
private

Definition at line 104 of file ss-link-manager.h.

Referenced by IncrementNrInvitedPollsRecvd().

uint8_t ns3::SSLinkManager::m_nrRangingTransOpps
private

Definition at line 108 of file ss-link-manager.h.

Referenced by PerformBackoff(), and SetNrRangingTransOpps().

uint16_t ns3::SSLinkManager::m_nrRngReqsSent
private

Definition at line 102 of file ss-link-manager.h.

Referenced by SendRangingRequest().

uint16_t ns3::SSLinkManager::m_nrRngRspsRecvd
private

Definition at line 103 of file ss-link-manager.h.

Referenced by PerformRanging(), and SendRangingRequest().

uint16_t ns3::SSLinkManager::m_pTxIrMax
private

Definition at line 90 of file ss-link-manager.h.

Referenced by SendRangingRequest().

uint8_t ns3::SSLinkManager::m_rangingAnomalies
private

Definition at line 110 of file ss-link-manager.h.

Referenced by SendRangingRequest().

uint8_t ns3::SSLinkManager::m_rangingBO
private

Definition at line 107 of file ss-link-manager.h.

Referenced by PerformBackoff(), and SelectRandomBackoff().

uint8_t ns3::SSLinkManager::m_rangingCW
private
bool ns3::SSLinkManager::m_rangingIntervalFound
private

Definition at line 99 of file ss-link-manager.h.

Referenced by GetRangingIntervalFound(), and SetRangingIntervalFound().

WimaxNetDevice::RangingStatus ns3::SSLinkManager::m_rangingStatus
private

Definition at line 86 of file ss-link-manager.h.

Referenced by PerformRanging(), and SendRangingRequest().

RngReq ns3::SSLinkManager::m_rngreq
private

Definition at line 95 of file ss-link-manager.h.

Referenced by SendRangingRequest().

uint32_t ns3::SSLinkManager::m_rngReqFrameNumber
private

Definition at line 94 of file ss-link-manager.h.

Referenced by PerformBackoff(), and PerformRanging().

EventId ns3::SSLinkManager::m_waitForRngRspEvent
private

Definition at line 112 of file ss-link-manager.h.

Referenced by PerformRanging(), and SendRangingRequest().


The documentation for this class was generated from the following files:
