#include <ss-net-device.h>

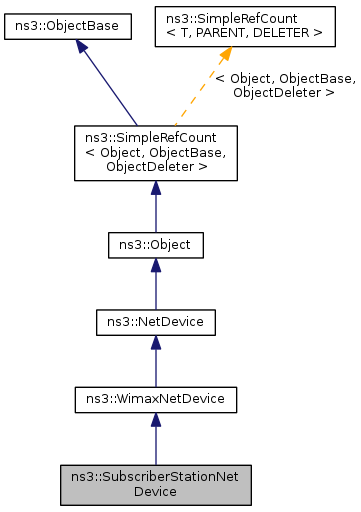

Inheritance diagram for ns3::SubscriberStationNetDevice:

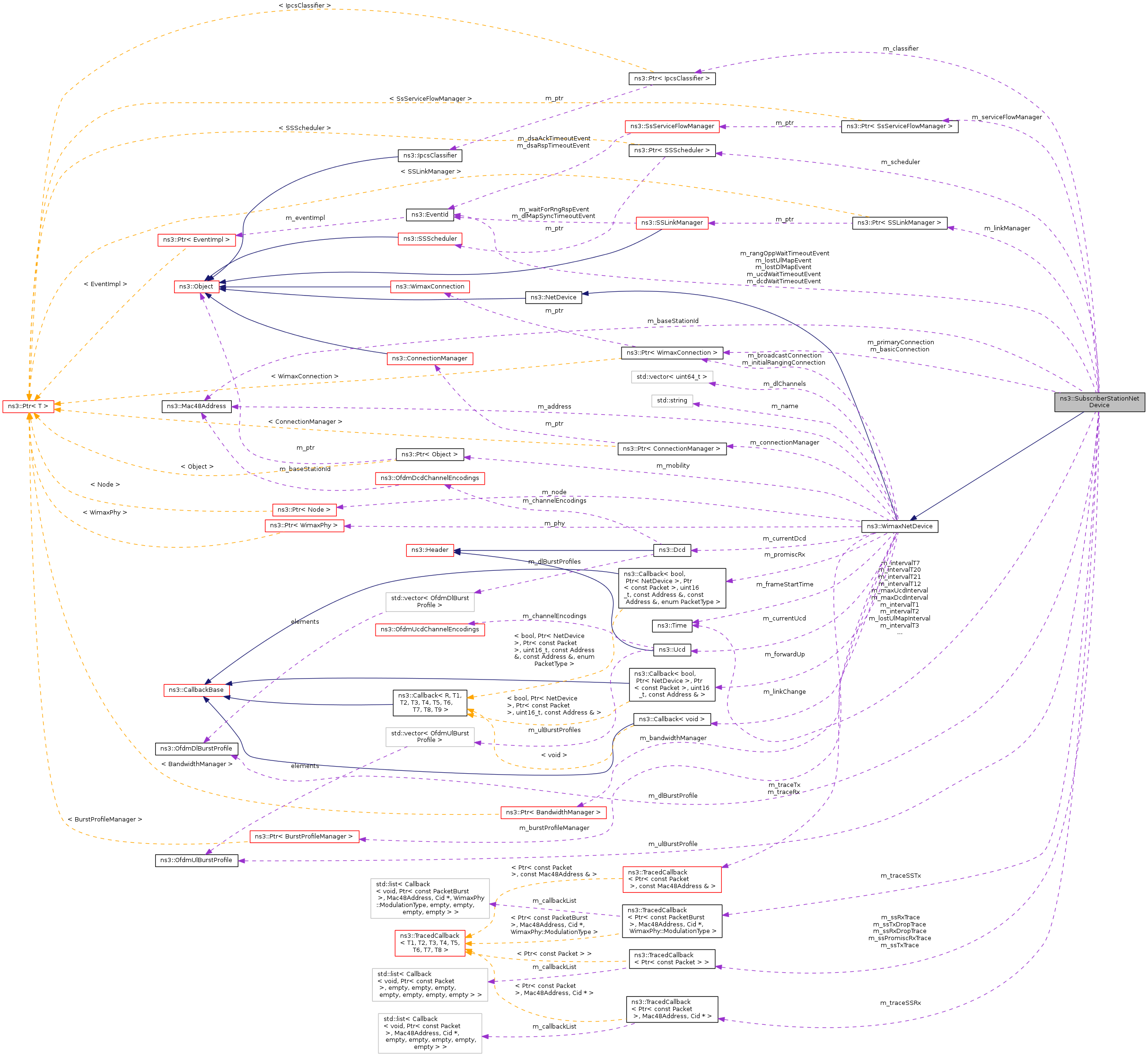

Collaboration diagram for ns3::SubscriberStationNetDevice:

Public Types
enum	EventType { EVENT_NONE, EVENT_WAIT_FOR_RNG_RSP, EVENT_DL_MAP_SYNC_TIMEOUT, EVENT_LOST_DL_MAP, EVENT_LOST_UL_MAP, EVENT_DCD_WAIT_TIMEOUT, EVENT_UCD_WAIT_TIMEOUT, EVENT_RANG_OPP_WAIT_TIMEOUT }
enum	State { SS_STATE_IDLE, SS_STATE_SCANNING, SS_STATE_SYNCHRONIZING, SS_STATE_ACQUIRING_PARAMETERS, SS_STATE_WAITING_REG_RANG_INTRVL, SS_STATE_WAITING_INV_RANG_INTRVL, SS_STATE_WAITING_RNG_RSP, SS_STATE_ADJUSTING_PARAMETERS, SS_STATE_REGISTERED, SS_STATE_TRANSMITTING, SS_STATE_STOPPED }
Public Types inherited from ns3::WimaxNetDevice
enum	Direction { DIRECTION_DOWNLINK, DIRECTION_UPLINK }
enum	RangingStatus { RANGING_STATUS_EXPIRED, RANGING_STATUS_CONTINUE, RANGING_STATUS_ABORT, RANGING_STATUS_SUCCESS }
Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions

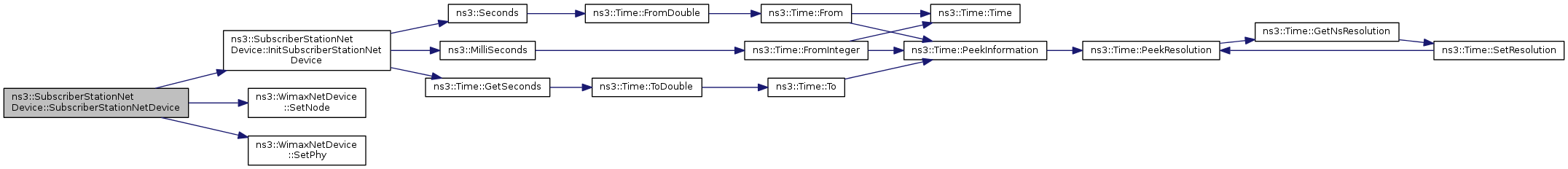

	SubscriberStationNetDevice (void)
	SubscriberStationNetDevice (Ptr< Node >, Ptr< WimaxPhy >)
	~SubscriberStationNetDevice (void)
void	AddServiceFlow (ServiceFlow *sf)
	adds a new service flow
void	AddServiceFlow (ServiceFlow sf)
	adds a new service flow

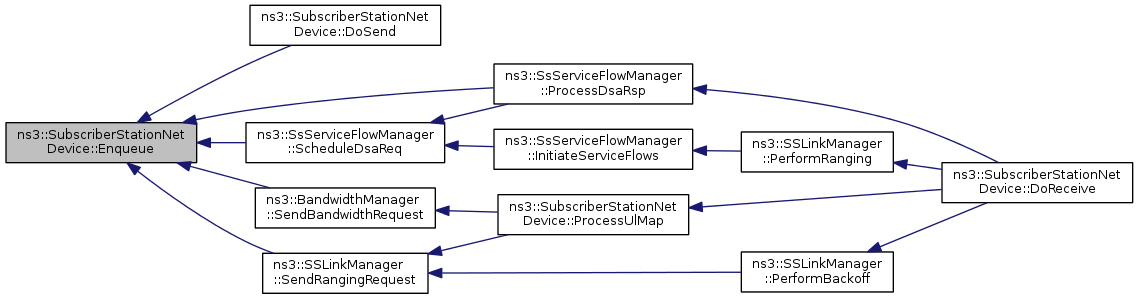

bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection)
	Enqueue a packet into a connection queue.
bool	GetAreManagementConnectionsAllocated (void) const
bool	GetAreServiceFlowsAllocated (void) const
Cid	GetBasicCid (void) const

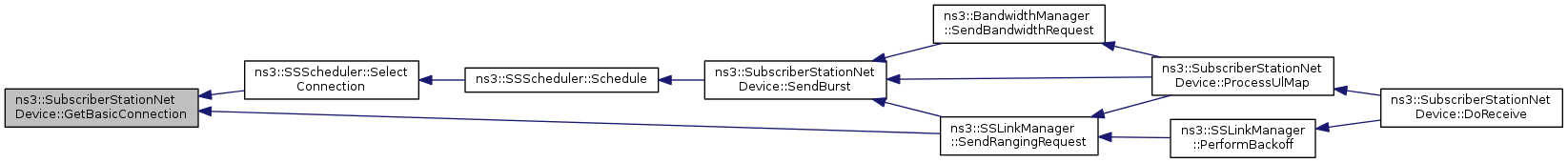

Ptr< WimaxConnection >	GetBasicConnection (void) const
Time	GetIntervalT1 (void) const
Time	GetIntervalT12 (void) const
Time	GetIntervalT2 (void) const
Time	GetIntervalT20 (void) const
Time	GetIntervalT21 (void) const

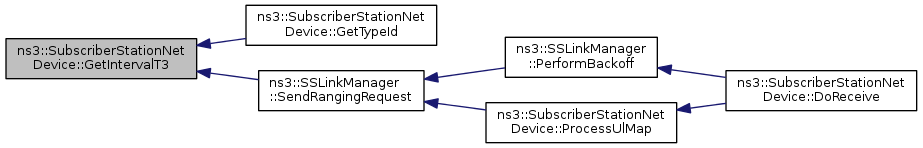

Time	GetIntervalT3 (void) const
Time	GetIntervalT7 (void) const
Ptr< IpcsClassifier >	GetIpcsClassifier () const
Ptr< SSLinkManager >	GetLinkManager (void) const
Time	GetLostDlMapInterval (void) const
Time	GetLostUlMapInterval (void) const

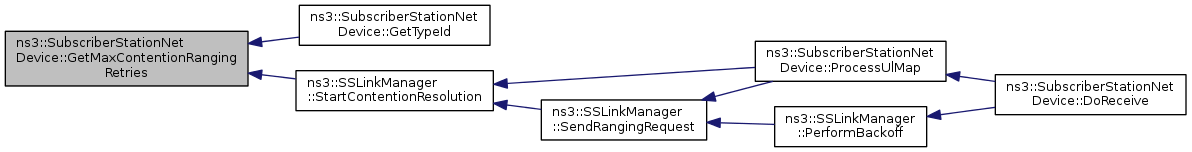

uint8_t	GetMaxContentionRangingRetries (void) const
Time	GetMaxDcdInterval (void) const
Time	GetMaxUcdInterval (void) const
WimaxPhy::ModulationType	GetModulationType (void) const
Cid	GetPrimaryCid (void) const
Ptr< WimaxConnection >	GetPrimaryConnection (void) const
Ptr< SSScheduler >	GetScheduler (void) const
Ptr< SsServiceFlowManager >	GetServiceFlowManager (void) const
Time	GetTimeToAllocation (Time defferTime)
bool	HasServiceFlows (void) const
void	InitSubscriberStationNetDevice (void)
	initializes the net device and sets the parameters to the default values
bool	IsRegistered (void) const
void	SendBurst (uint8_t uiuc, uint16_t nrSymbols, Ptr< WimaxConnection > connection, MacHeaderType::HeaderType packetType=MacHeaderType::HEADER_TYPE_GENERIC)
	Sends a burst on the uplink frame.
void	SetAreManagementConnectionsAllocated (bool areManagementConnectionsAllocated)
void	SetAreServiceFlowsAllocated (bool areServiceFlowsAllocated)
void	SetBasicConnection (Ptr< WimaxConnection > basicConnection)
void	SetIntervalT1 (Time interval1)
void	SetIntervalT12 (Time interval12)
void	SetIntervalT2 (Time interval2)
void	SetIntervalT20 (Time interval20)
void	SetIntervalT21 (Time interval21)
void	SetIntervalT3 (Time interval3)
void	SetIntervalT7 (Time interval7)
void	SetIpcsPacketClassifier (Ptr< IpcsClassifier >)
	Sets the packet classifier to be used.
void	SetLinkManager (Ptr< SSLinkManager >)
	sets the link manager to be used
void	SetLostDlMapInterval (Time lostDlMapInterval)
void	SetLostUlMapInterval (Time lostUlMapInterval)
void	SetMaxContentionRangingRetries (uint8_t maxContentionRangingRetries)
void	SetMaxDcdInterval (Time maxDcdInterval)
void	SetMaxUcdInterval (Time maxUcdInterval)
void	SetModulationType (WimaxPhy::ModulationType modulationType)
	Set the most efficient modulation and coding scheme (MCS) supported by the device.
void	SetPrimaryConnection (Ptr< WimaxConnection > primaryConnection)
void	SetScheduler (Ptr< SSScheduler > ssScheduler)
void	SetServiceFlowManager (Ptr< SsServiceFlowManager >)
	Sets the service flow manager to be installed on the device.
void	SetTimer (EventId eventId, EventId &event)
void	Start (void)
void	Stop (void)
Public Member Functions inherited from ns3::WimaxNetDevice
	WimaxNetDevice (void)
virtual	~WimaxNetDevice (void)
virtual void	AddLinkChangeCallback (Callback< void > callback)
void	Attach (Ptr< WimaxChannel > channel)
void	CreateDefaultConnections (void)
virtual void	DoDispose (void)
void	ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)
void	ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)
virtual Address	GetAddress (void) const
Ptr< BandwidthManager >	GetBandwidthManager (void) const
virtual Address	GetBroadcast (void) const
Ptr< WimaxConnection >	GetBroadcastConnection (void) const
Ptr< BurstProfileManager >	GetBurstProfileManager (void) const
uint64_t	GetChannel (uint8_t index) const
virtual Ptr< Channel >	GetChannel (void) const
Ptr< ConnectionManager >	GetConnectionManager (void) const
Dcd	GetCurrentDcd (void) const
Ucd	GetCurrentUcd (void) const
virtual uint32_t	GetIfIndex (void) const
Ptr< WimaxConnection >	GetInitialRangingConnection (void) const
Mac48Address	GetMacAddress (void) const
virtual uint16_t	GetMtu (void) const
virtual Address	GetMulticast (void) const
virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided.
virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group.
virtual std::string	GetName (void) const
virtual Ptr< Node >	GetNode (void) const
uint32_t	GetNrFrames (void) const
Ptr< WimaxPhy >	GetPhy (void) const
virtual Ptr< Channel >	GetPhyChannel (void) const
NetDevice::PromiscReceiveCallback	GetPromiscReceiveCallback (void)
uint16_t	GetRtg (void) const
uint8_t	GetState (void) const
uint16_t	GetTtg (void) const
virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge.
virtual bool	IsBroadcast (void) const
virtual bool	IsLinkUp (void) const
virtual bool	IsMulticast (void) const
virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link.
bool	IsPromisc (void)
virtual Address	MakeMulticastAddress (Ipv4Address multicastGroup) const
virtual bool	NeedsArp (void) const
void	NotifyPromiscTrace (Ptr< Packet > p)
virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual void	SetAddress (Address address)
void	SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)
void	SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)
void	SetChannel (Ptr< WimaxChannel > wimaxChannel)
virtual void	SetConnectionManager (Ptr< ConnectionManager > connectionManager)
void	SetCurrentDcd (Dcd dcd)
void	SetCurrentUcd (Ucd ucd)
virtual void	SetIfIndex (const uint32_t index)
virtual void	SetLinkChangeCallback (Callback< void > callback)
void	SetMacAddress (Mac48Address address)
virtual bool	SetMtu (const uint16_t mtu)
virtual void	SetName (const std::string name)
virtual void	SetNode (Ptr< Node > node)
void	SetNrFrames (uint32_t nrFrames)
void	SetPhy (Ptr< WimaxPhy > phy)
virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)
void	SetReceiveCallback (void)
virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)
void	SetRtg (uint16_t rtg)
void	SetState (uint8_t state)
void	SetTtg (uint16_t ttg)
virtual bool	SupportsSendFrom (void) const
Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SubscriberStationNetDevice.

Public Attributes
Ptr< SSLinkManager >	m_linkManager
Public Attributes inherited from ns3::WimaxNetDevice
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceRx
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceTx

Private Member Functions
void	DoDispose (void)
void	DoReceive (Ptr< Packet > packet)
bool	DoSend (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest, uint16_t protocolNumber)
void	ProcessDcd (const Dcd &dcd)
void	ProcessDlMap (const DlMap &dlmap)
void	ProcessUcd (const Ucd &ucd)
void	ProcessUlMap (const UlMap &ulmap)

Static Private Member Functions
static Time	GetDefaultLostDlMapInterval ()

Private Attributes
double	m_allocationStartTime
bool	m_areManagementConnectionsAllocated
bool	m_areServiceFlowsAllocated
Mac48Address	m_baseStationId
Ptr< WimaxConnection >	m_basicConnection
Ptr< IpcsClassifier >	m_classifier
uint8_t	m_dcdCount
EventId	m_dcdWaitTimeoutEvent
OfdmDlBurstProfile *	m_dlBurstProfile
Time	m_intervalT1
Time	m_intervalT12
Time	m_intervalT2
Time	m_intervalT20
Time	m_intervalT21
Time	m_intervalT3
Time	m_intervalT7
EventId	m_lostDlMapEvent
Time	m_lostDlMapInterval
EventId	m_lostUlMapEvent
Time	m_lostUlMapInterval
uint8_t	m_maxContentionRangingRetries
Time	m_maxDcdInterval
Time	m_maxUcdInterval
WimaxPhy::ModulationType	m_modulationType
uint32_t	m_nrDcdRecvd
uint16_t	m_nrDlMapElements
uint32_t	m_nrDlMapRecvd
uint32_t	m_nrUcdRecvd
uint16_t	m_nrUlMapElements
uint32_t	m_nrUlMapRecvd
Ptr< WimaxConnection >	m_primaryConnection
EventId	m_rangOppWaitTimeoutEvent
Ptr< SSScheduler >	m_scheduler
Ptr< SsServiceFlowManager >	m_serviceFlowManager
TracedCallback< Ptr< const Packet > >	m_ssPromiscRxTrace
TracedCallback< Ptr< const Packet > >	m_ssRxDropTrace
TracedCallback< Ptr< const Packet > >	m_ssRxTrace
TracedCallback< Ptr< const Packet > >	m_ssTxDropTrace
TracedCallback< Ptr< const Packet > >	m_ssTxTrace
TracedCallback< Ptr< const Packet >, Mac48Address, Cid * >	m_traceSSRx
TracedCallback< Ptr< const PacketBurst >, Mac48Address, Cid *, WimaxPhy::ModulationType >	m_traceSSTx
uint8_t	m_ucdCount
EventId	m_ucdWaitTimeoutEvent
OfdmUlBurstProfile *	m_ulBurstProfile

Additional Inherited Members
Static Public Attributes inherited from ns3::WimaxNetDevice
static uint8_t	m_direction = ~0
static Time	m_frameStartTime = Seconds (0)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Definition at line 47 of file ss-net-device.h.

Member Enumeration Documentation

enum ns3::SubscriberStationNetDevice::EventType

Enumerator:

EVENT_NONE
EVENT_WAIT_FOR_RNG_RSP
EVENT_DL_MAP_SYNC_TIMEOUT
EVENT_LOST_DL_MAP
EVENT_LOST_UL_MAP
EVENT_DCD_WAIT_TIMEOUT
EVENT_UCD_WAIT_TIMEOUT
EVENT_RANG_OPP_WAIT_TIMEOUT

Definition at line 59 of file ss-net-device.h.

enum ns3::SubscriberStationNetDevice::State

Enumerator:

SS_STATE_IDLE
SS_STATE_SCANNING
SS_STATE_SYNCHRONIZING
SS_STATE_ACQUIRING_PARAMETERS
SS_STATE_WAITING_REG_RANG_INTRVL
SS_STATE_WAITING_INV_RANG_INTRVL
SS_STATE_WAITING_RNG_RSP
SS_STATE_ADJUSTING_PARAMETERS
SS_STATE_REGISTERED
SS_STATE_TRANSMITTING
SS_STATE_STOPPED

Definition at line 50 of file ss-net-device.h.

Constructor & Destructor Documentation

ns3::SubscriberStationNetDevice::SubscriberStationNetDevice ( void )

Definition at line 205 of file ss-net-device.cc.

References InitSubscriberStationNetDevice().

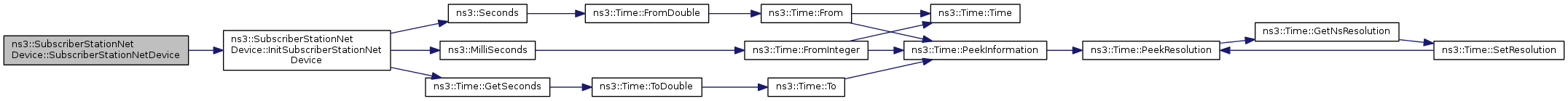

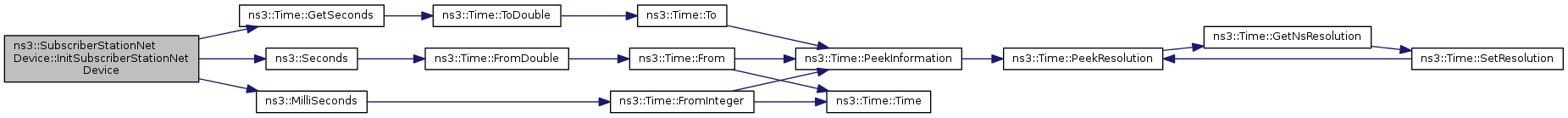

Here is the call graph for this function:

ns3::SubscriberStationNetDevice::SubscriberStationNetDevice	(	Ptr< Node >	node,
		Ptr< WimaxPhy >	phy
	)

Definition at line 251 of file ss-net-device.cc.

References InitSubscriberStationNetDevice(), ns3::WimaxNetDevice::SetNode(), and ns3::WimaxNetDevice::SetPhy().

Here is the call graph for this function:

ns3::SubscriberStationNetDevice::~SubscriberStationNetDevice ( void )

Definition at line 258 of file ss-net-device.cc.

Member Function Documentation

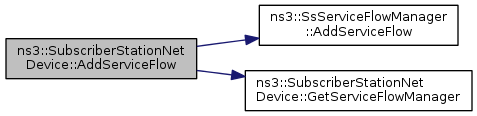

void ns3::SubscriberStationNetDevice::AddServiceFlow ( ServiceFlow * sf )

adds a new service flow

Definition at line 577 of file ss-net-device.cc.

References ns3::SsServiceFlowManager::AddServiceFlow(), and GetServiceFlowManager().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::AddServiceFlow ( ServiceFlow sf )

adds a new service flow

Definition at line 571 of file ss-net-device.cc.

References ns3::SsServiceFlowManager::AddServiceFlow(), and GetServiceFlowManager().

Here is the call graph for this function:

void ns3::SubscriberStationNetDevice::DoDispose ( void )

private

Definition at line 263 of file ss-net-device.cc.

References m_basicConnection, m_classifier, m_dlBurstProfile, m_linkManager, m_primaryConnection, m_scheduler, m_serviceFlowManager, and m_ulBurstProfile.

void ns3::SubscriberStationNetDevice::DoReceive ( Ptr< Packet > packet )

private

Definition at line 735 of file ss-net-device.cc.

Here is the call graph for this function:

bool ns3::SubscriberStationNetDevice::DoSend	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest,
		uint16_t	protocolNumber
	)

private

bool ns3::SubscriberStationNetDevice::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		Ptr< WimaxConnection >	connection
	)

virtual

Enqueue a packet into a connection queue.

Parameters

packet	the packet to be enqueued
hdrType	the mac header type to be appended to the packet
connection	the connection to be used

Implements ns3::WimaxNetDevice.

Definition at line 652 of file ss-net-device.cc.

References ns3::Packet::AddHeader(), ns3::WimaxConnection::Enqueue(), ns3::WimaxConnection::GetCid(), ns3::SSScheduler::GetPollMe(), ns3::WimaxConnection::GetSchedulingType(), ns3::GenericMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::MacHeaderType::GetType(), ns3::WimaxConnection::GetType(), ns3::MacHeaderType::HEADER_TYPE_BANDWIDTH, ns3::MacHeaderType::HEADER_TYPE_GENERIC, m_scheduler, NS_ASSERT_MSG, NS_LOG_INFO, ns3::GenericMacHeader::SetCid(), ns3::GenericMacHeader::SetLen(), ns3::GrantManagementSubheader::SetPm(), ns3::ServiceFlow::SF_TYPE_UGS, and ns3::Cid::TRANSPORT.

Referenced by DoSend(), ns3::SsServiceFlowManager::ProcessDsaRsp(), ns3::SsServiceFlowManager::ScheduleDsaReq(), ns3::BandwidthManager::SendBandwidthRequest(), and ns3::SSLinkManager::SendRangingRequest().

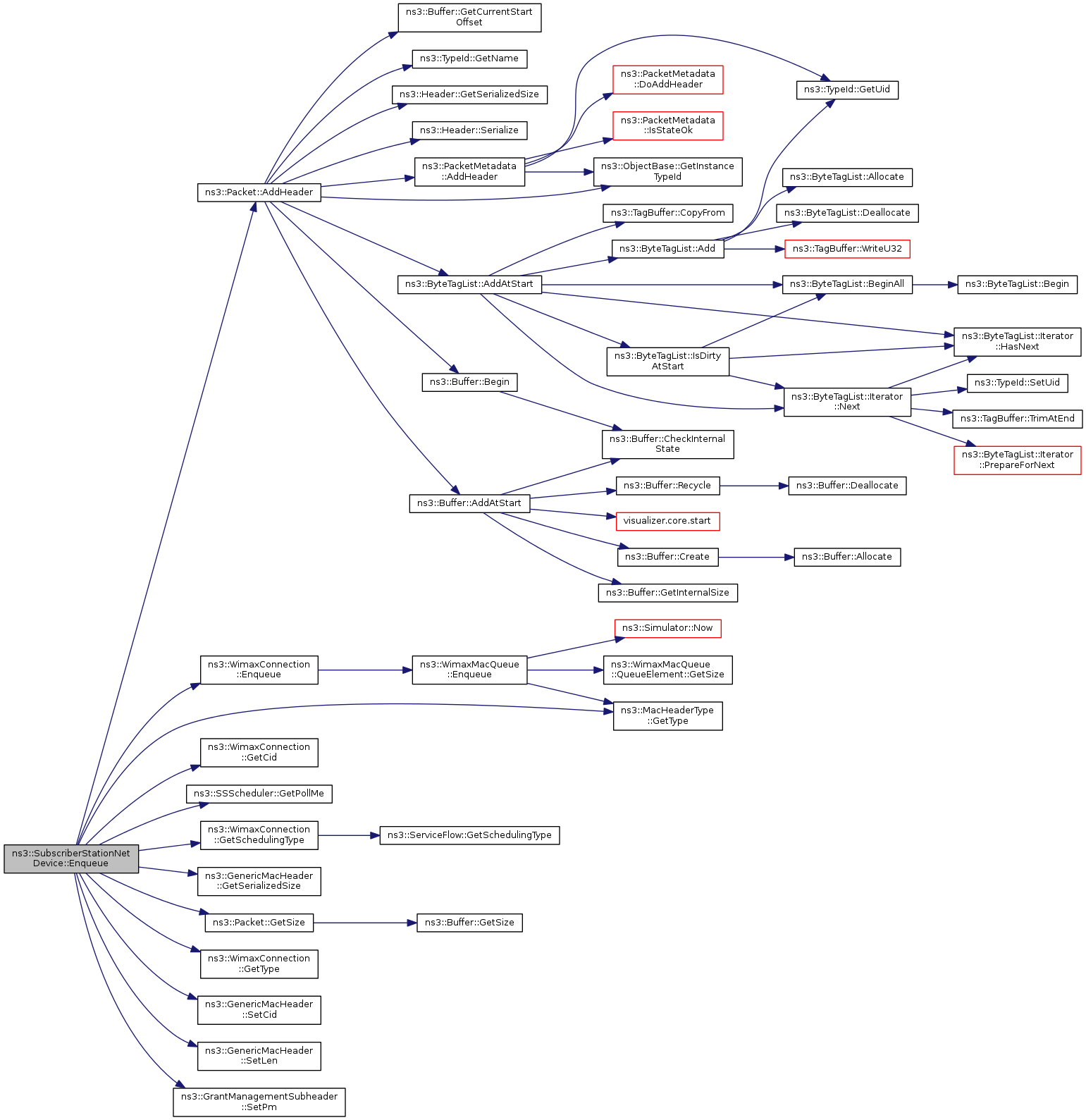

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::SubscriberStationNetDevice::GetAreManagementConnectionsAllocated ( void ) const

Returns: true if the management connections are allocated, false otherwise

Definition at line 479 of file ss-net-device.cc.

References m_areManagementConnectionsAllocated.

bool ns3::SubscriberStationNetDevice::GetAreServiceFlowsAllocated ( void ) const

Returns: true if the service flows are allocated, false otherwise

Definition at line 491 of file ss-net-device.cc.

References m_areServiceFlowsAllocated.

Referenced by ns3::SSLinkManager::PerformRanging().

Here is the caller graph for this function:

Cid ns3::SubscriberStationNetDevice::GetBasicCid ( void ) const

Returns: the basic CID

Definition at line 449 of file ss-net-device.cc.

References ns3::WimaxConnection::GetCid(), and m_basicConnection.

Here is the call graph for this function:

Ptr< WimaxConnection > ns3::SubscriberStationNetDevice::GetBasicConnection ( void ) const

Returns: the basic connection currently in use

Definition at line 431 of file ss-net-device.cc.

References m_basicConnection.

Referenced by ns3::SSScheduler::SelectConnection(), and ns3::SSLinkManager::SendRangingRequest().

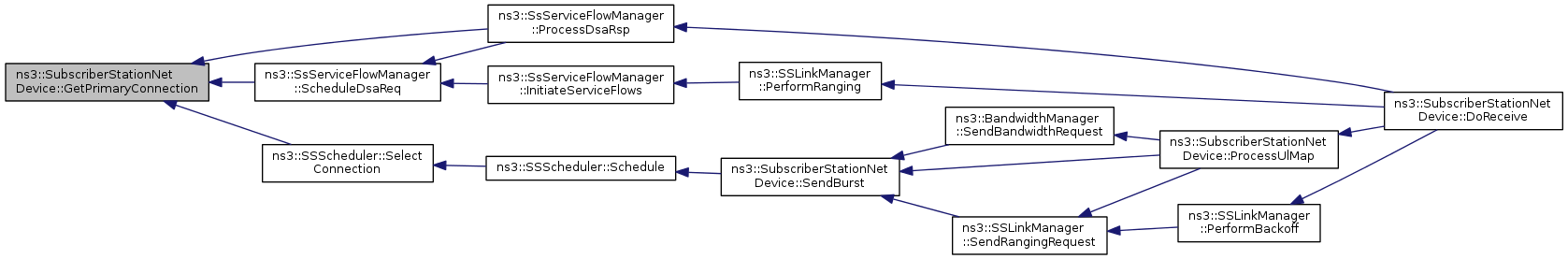

Here is the caller graph for this function:

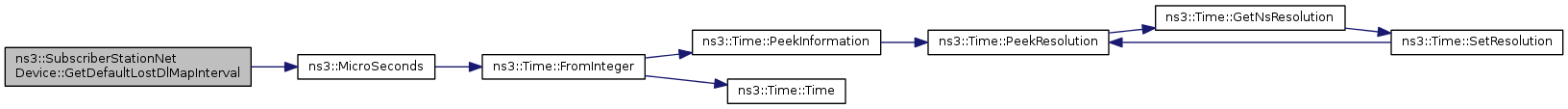

Time ns3::SubscriberStationNetDevice::GetDefaultLostDlMapInterval ( )

staticprivate

Definition at line 51 of file ss-net-device.cc.

References ns3::MicroSeconds().

Here is the call graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT1 ( void ) const

returns the wait for DCD timeout

Definition at line 335 of file ss-net-device.cc.

References m_intervalT1.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT12 ( void ) const

returns the wait for UCD descriptor timeout

Definition at line 383 of file ss-net-device.cc.

References m_intervalT12.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT2 ( void ) const

returns the wait for broadcast ranging timeout, i.e., wait for initial ranging opportunity

Definition at line 347 of file ss-net-device.cc.

References m_intervalT2.

Referenced by GetTypeId().

Here is the caller graph for this function:

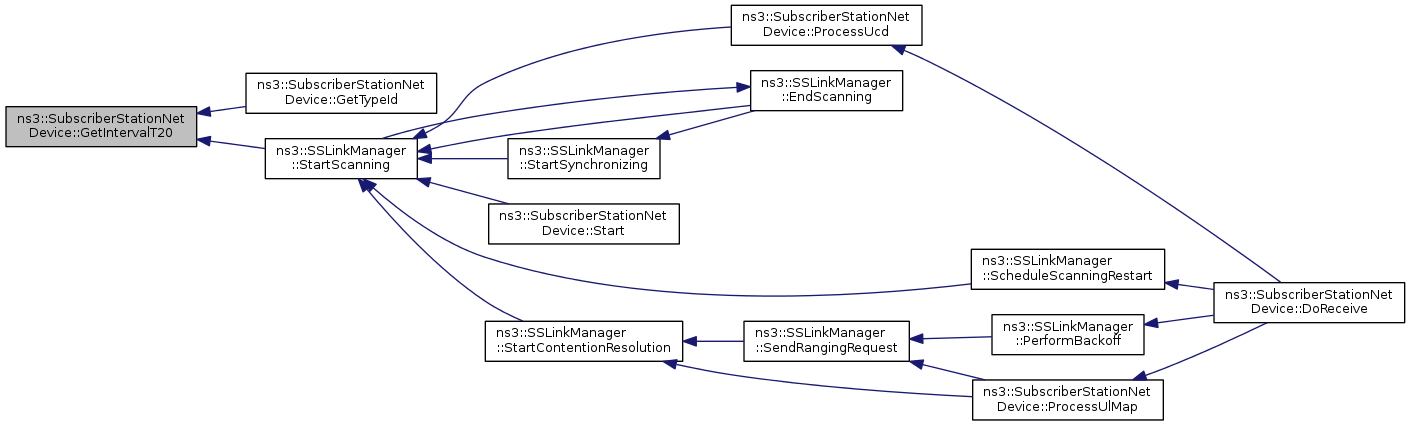

Time ns3::SubscriberStationNetDevice::GetIntervalT20 ( void ) const

returns the Time the SS searches for preambles on a given channel

Definition at line 395 of file ss-net-device.cc.

References m_intervalT20.

Referenced by GetTypeId(), and ns3::SSLinkManager::StartScanning().

Here is the caller graph for this function:

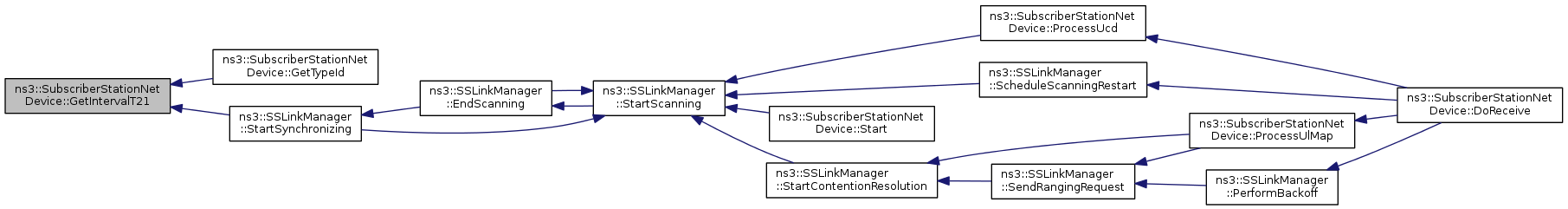

Time ns3::SubscriberStationNetDevice::GetIntervalT21 ( void ) const

returns the time the SS searches for (decodable) DL-MAP on a given channel

Definition at line 407 of file ss-net-device.cc.

References m_intervalT21.

Referenced by GetTypeId(), and ns3::SSLinkManager::StartSynchronizing().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT3 ( void ) const

returns the ranging Response reception timeout following the transmission of a ranging request

Definition at line 359 of file ss-net-device.cc.

References m_intervalT3.

Referenced by GetTypeId(), and ns3::SSLinkManager::SendRangingRequest().

Here is the caller graph for this function:

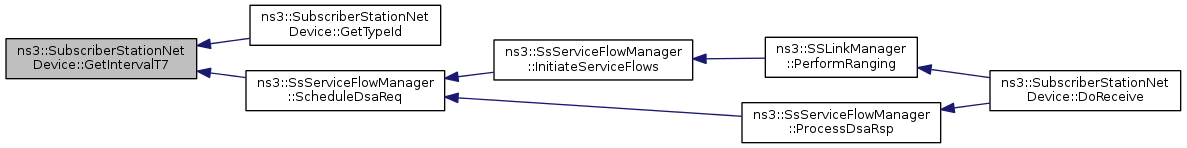

Time ns3::SubscriberStationNetDevice::GetIntervalT7 ( void ) const

returns the wait for DSA/DSC/DSD Response timeout

Definition at line 371 of file ss-net-device.cc.

References m_intervalT7.

Referenced by GetTypeId(), and ns3::SsServiceFlowManager::ScheduleDsaReq().

Here is the caller graph for this function:

Ptr< IpcsClassifier > ns3::SubscriberStationNetDevice::GetIpcsClassifier ( ) const

Returns: a pointer to the CS packet classifier

Definition at line 515 of file ss-net-device.cc.

References m_classifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< SSLinkManager > ns3::SubscriberStationNetDevice::GetLinkManager ( void ) const

Returns: a pointer to the link manger currently used

Definition at line 528 of file ss-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetLostDlMapInterval ( void ) const

Definition at line 287 of file ss-net-device.cc.

References m_lostDlMapInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetLostUlMapInterval ( void ) const

returns the time since last received UL-MAP before uplink synchronization is considered lost

Definition at line 299 of file ss-net-device.cc.

References m_lostUlMapInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::SubscriberStationNetDevice::GetMaxContentionRangingRetries ( void ) const

Returns: the Number of retries on contention Ranging Requests

Definition at line 419 of file ss-net-device.cc.

References m_maxContentionRangingRetries.

Referenced by GetTypeId(), and ns3::SSLinkManager::StartContentionResolution().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetMaxDcdInterval ( void ) const

returns the maximum time between transmission of DCD messages

Definition at line 311 of file ss-net-device.cc.

References m_maxDcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetMaxUcdInterval ( void ) const

returns the maximum time between transmission of UCD messages

Definition at line 323 of file ss-net-device.cc.

References m_maxUcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

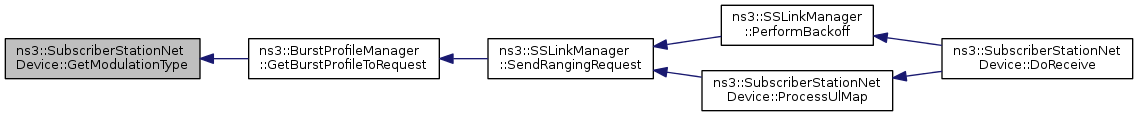

WimaxPhy::ModulationType ns3::SubscriberStationNetDevice::GetModulationType ( void ) const

returns the most efficient modulation and coding scheme (MCS) supported by the device

Definition at line 467 of file ss-net-device.cc.

References m_modulationType.

Referenced by ns3::BurstProfileManager::GetBurstProfileToRequest().

Here is the caller graph for this function:

Cid ns3::SubscriberStationNetDevice::GetPrimaryCid ( void ) const

Returns: the primary CID

Definition at line 455 of file ss-net-device.cc.

References ns3::WimaxConnection::GetCid(), and m_primaryConnection.

Here is the call graph for this function:

Ptr< WimaxConnection > ns3::SubscriberStationNetDevice::GetPrimaryConnection ( void ) const

returns the primary connection currently usde

Definition at line 443 of file ss-net-device.cc.

References m_primaryConnection.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp(), ns3::SsServiceFlowManager::ScheduleDsaReq(), and ns3::SSScheduler::SelectConnection().

Here is the caller graph for this function:

Ptr< SSScheduler > ns3::SubscriberStationNetDevice::GetScheduler ( void ) const

Returns: the scheduler installed on the device

Definition at line 497 of file ss-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< SsServiceFlowManager > ns3::SubscriberStationNetDevice::GetServiceFlowManager ( void ) const

Returns: a pointer to the service flow manager installed on the device

Definition at line 540 of file ss-net-device.cc.

References m_serviceFlowManager.

Referenced by AddServiceFlow(), DoReceive(), DoSend(), HasServiceFlows(), ns3::SSLinkManager::PerformRanging(), ns3::SSScheduler::SelectConnection(), and ns3::BandwidthManager::SelectFlowForRequest().

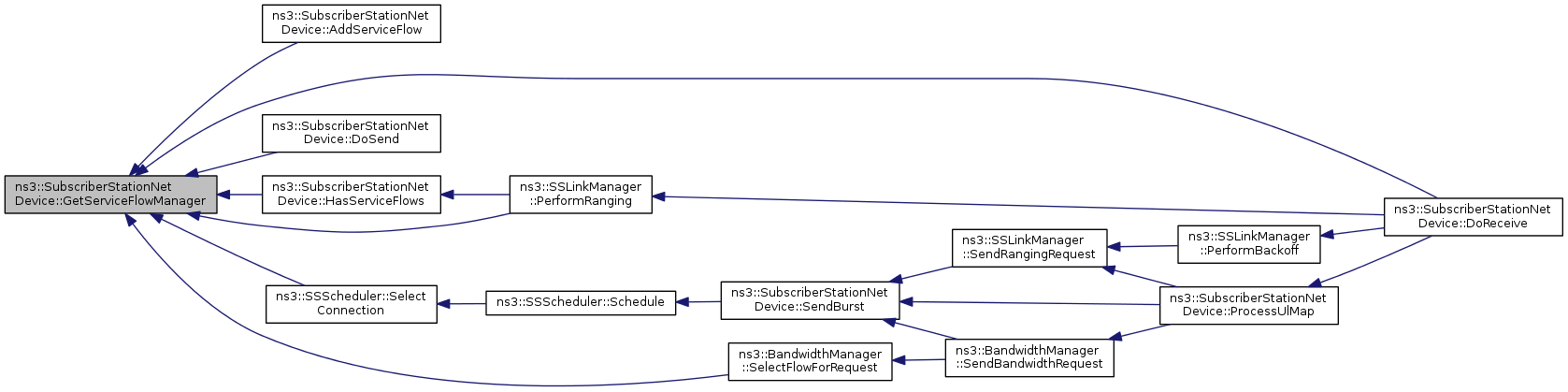

Here is the caller graph for this function:

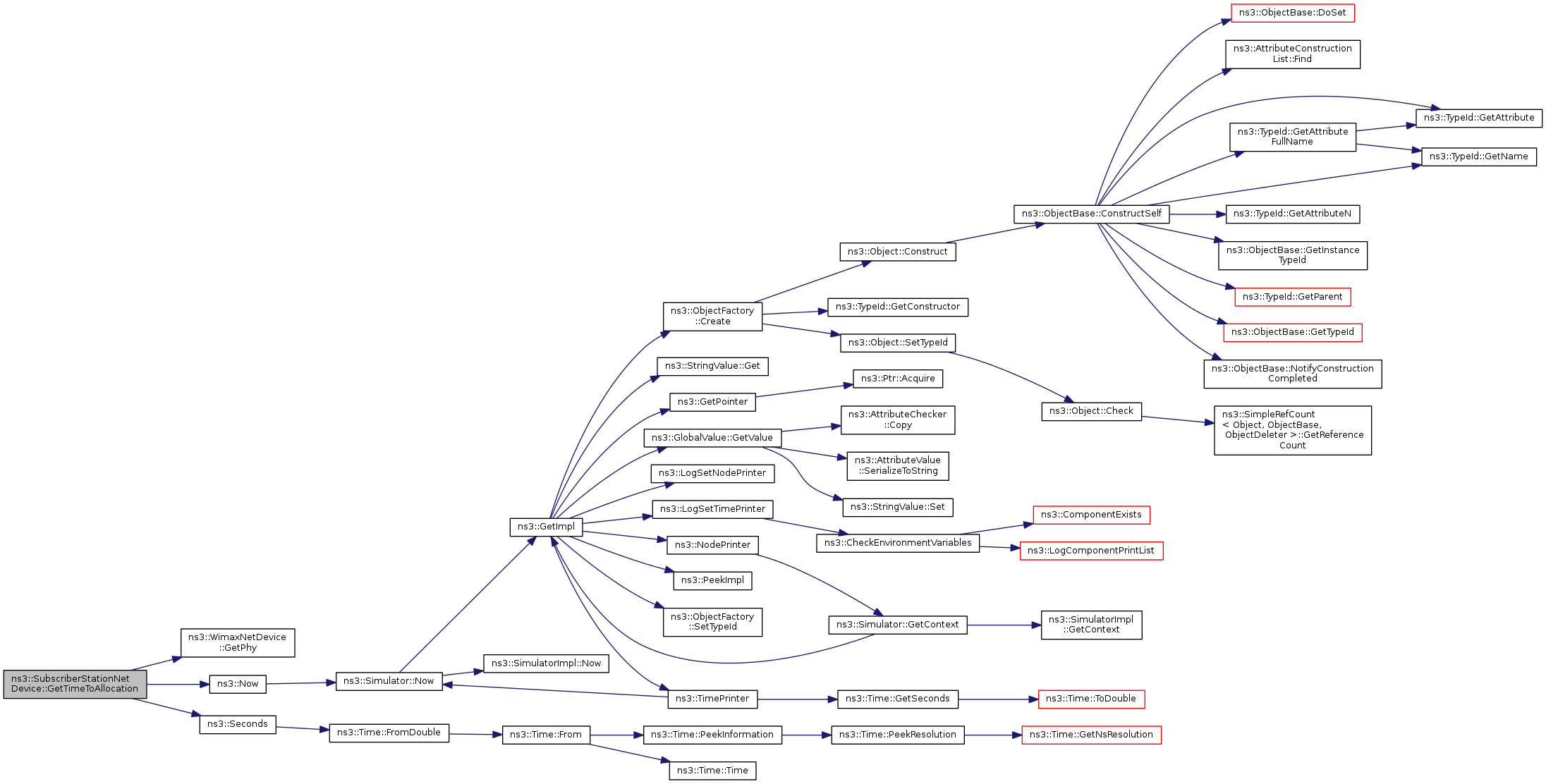

Time ns3::SubscriberStationNetDevice::GetTimeToAllocation ( Time defferTime )

Definition at line 1261 of file ss-net-device.cc.

References ns3::WimaxNetDevice::GetPhy(), m_allocationStartTime, ns3::WimaxNetDevice::m_frameStartTime, ns3::Now(), and ns3::Seconds().

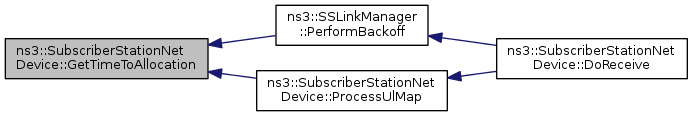

Referenced by ns3::SSLinkManager::PerformBackoff(), and ProcessUlMap().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::SubscriberStationNetDevice::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::SubscriberStationNetDevice.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice

Attributes defined for this type:

BasicConnection: Basic connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection >
- Initial value: 0
- Flags: construct write read
PrimaryConnection: Primary connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection >
- Initial value: 0
- Flags: construct write read
LostDlMapInterval: Time since last received DL-MAP message before downlink synchronization is considered lost. Maximum is 600ms
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +500000000.0ns
- Flags: construct write read
LostUlMapInterval: Time since last received UL-MAP before uplink synchronization is considered lost, maximum is 600.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +500000000.0ns
- Flags: construct write read
MaxDcdInterval: Maximum time between transmission of DCD messages. Maximum is 10s
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +10000000000.0ns
- Flags: construct write read
MaxUcdInterval: Maximum time between transmission of UCD messages. Maximum is 10s
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +10000000000.0ns
- Flags: construct write read
IntervalT1: Wait for DCD timeout. Maximum is 5*maxDcdInterval
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +50000000000.0ns
- Flags: construct write read
IntervalT2: Wait for broadcast ranging timeout, i.e., wait for initial ranging opportunity. Maximum is 5*Ranging interval
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +10000000000.0ns
- Flags: construct write read
IntervalT3: ranging Response reception timeout following the transmission of a ranging request. Maximum is 200ms
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +200000000.0ns
- Flags: construct write read
IntervalT7: wait for DSA/DSC/DSD Response timeout. Maximum is 1s
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +100000000.0ns
- Flags: construct write read
IntervalT12: Wait for UCD descriptor.Maximum is 5*MaxUcdInterval
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +10000000000.0ns
- Flags: construct write read
IntervalT20: Time the SS searches for preambles on a given channel. Minimum is 2 MAC frames
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +500000000.0ns
- Flags: construct write read
IntervalT21: time the SS searches for (decodable) DL-MAP on a given channel
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +10000000000.0ns
- Flags: construct write read
MaxContentionRangingRetries: Number of retries on contention Ranging Requests
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:16
- Initial value: 16
- Flags: construct write read
SSScheduler: The ss scheduler attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::SSScheduler >
- Initial value: 0
- Flags: construct write read
LinkManager: The ss link manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::SSLinkManager >
- Initial value: 0
- Flags: construct write read
Classifier: The ss classifier attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::IpcsClassifier >
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::WimaxNetDevice:

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:1500
- Initial value: 1400
- Flags: construct write read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxPhy >
- Initial value: 0
- Flags: construct write read
Channel: The channel attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel >
- Initial value: 0
- Flags: construct write read
RTG: receive/transmit transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
TTG: transmit/receive transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
ConnectionManager: The connection manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ConnectionManager >
- Initial value: 0
- Flags: construct write read
BurstProfileManager: The burst profile manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BurstProfileManager >
- Initial value: 0
- Flags: construct write read
BandwidthManager: The bandwidth manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BandwidthManager >
- Initial value: 0
- Flags: construct write read
InitialRangingConnection: Initial ranging connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection >
- Initial value: 0
- Flags: construct write read
BroadcastConnection: Broadcast connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection >
- Initial value: 0
- Flags: construct write read

TraceSources defined for this type:

SSTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
SSPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
SSRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
SSRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

TraceSources defined in parent class ns3::WimaxNetDevice:

Rx: Receive trace
Tx: Transmit trace

Reimplemented from ns3::WimaxNetDevice.

Definition at line 57 of file ss-net-device.cc.

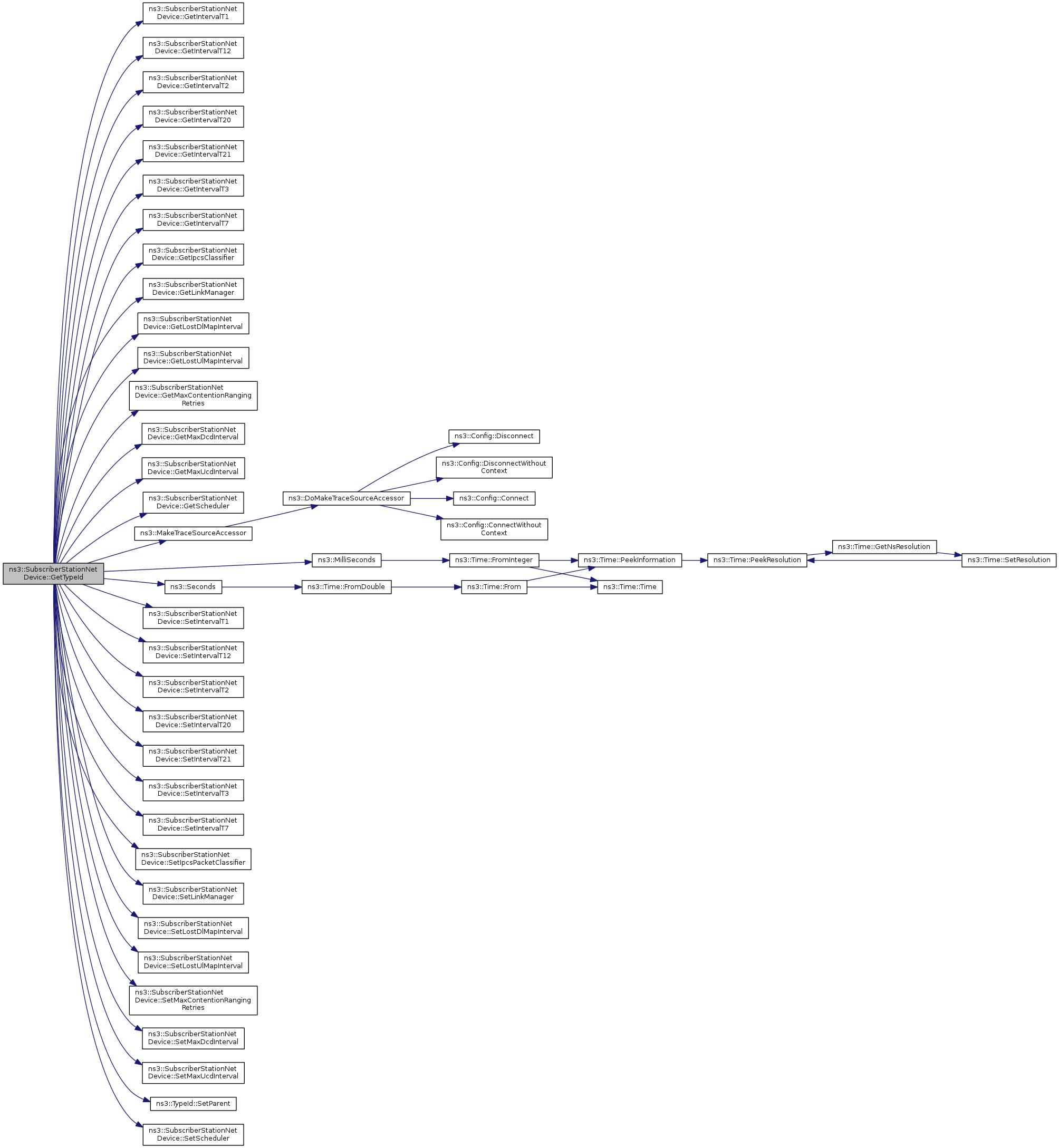

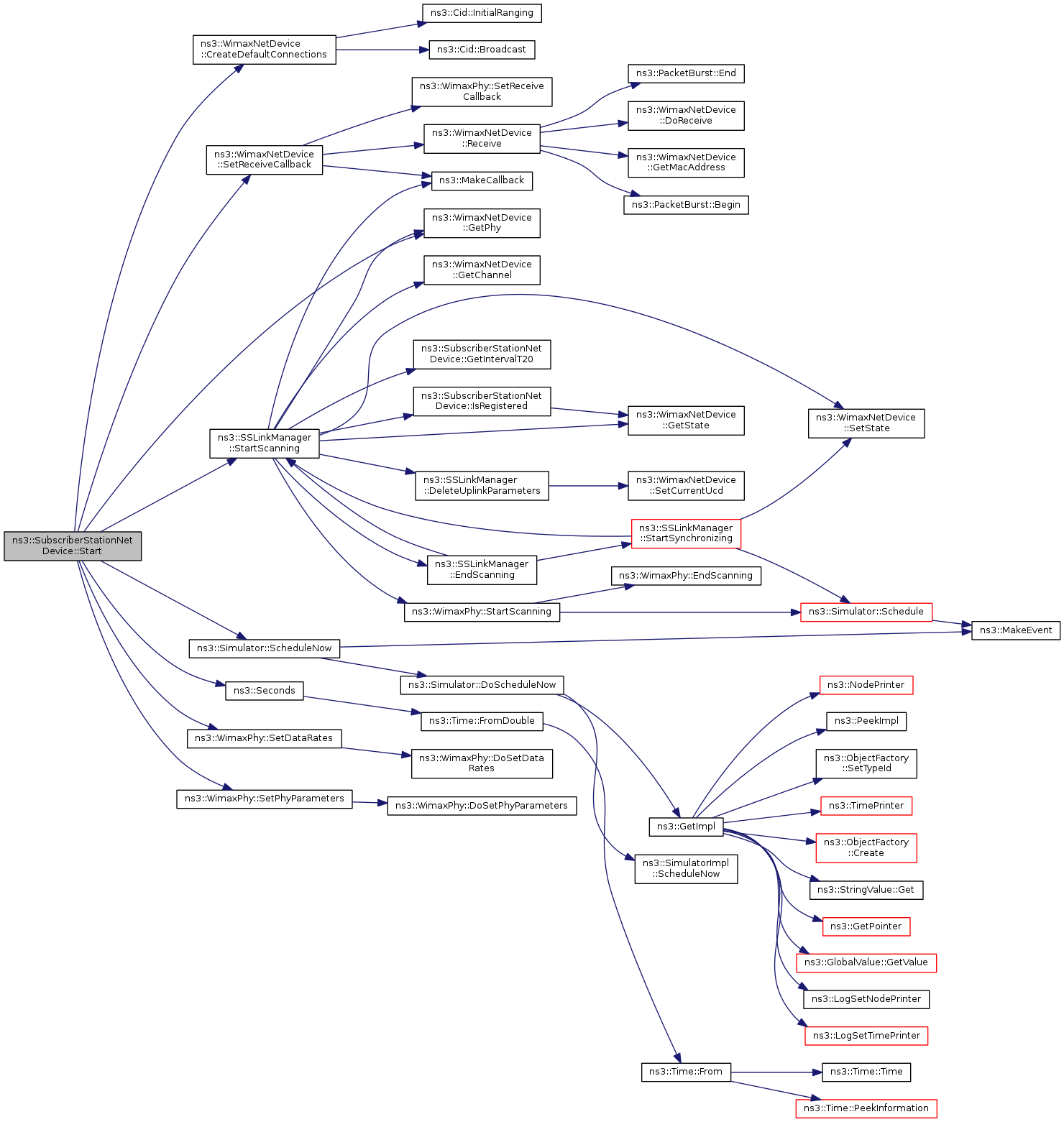

References GetIntervalT1(), GetIntervalT12(), GetIntervalT2(), GetIntervalT20(), GetIntervalT21(), GetIntervalT3(), GetIntervalT7(), GetIpcsClassifier(), GetLinkManager(), GetLostDlMapInterval(), GetLostUlMapInterval(), GetMaxContentionRangingRetries(), GetMaxDcdInterval(), GetMaxUcdInterval(), GetScheduler(), m_basicConnection, m_primaryConnection, m_ssPromiscRxTrace, m_ssRxDropTrace, m_ssRxTrace, m_ssTxDropTrace, ns3::MakeTraceSourceAccessor(), ns3::MilliSeconds(), ns3::Seconds(), SetIntervalT1(), SetIntervalT12(), SetIntervalT2(), SetIntervalT20(), SetIntervalT21(), SetIntervalT3(), SetIntervalT7(), SetIpcsPacketClassifier(), SetLinkManager(), SetLostDlMapInterval(), SetLostUlMapInterval(), SetMaxContentionRangingRetries(), SetMaxDcdInterval(), SetMaxUcdInterval(), ns3::TypeId::SetParent(), and SetScheduler().

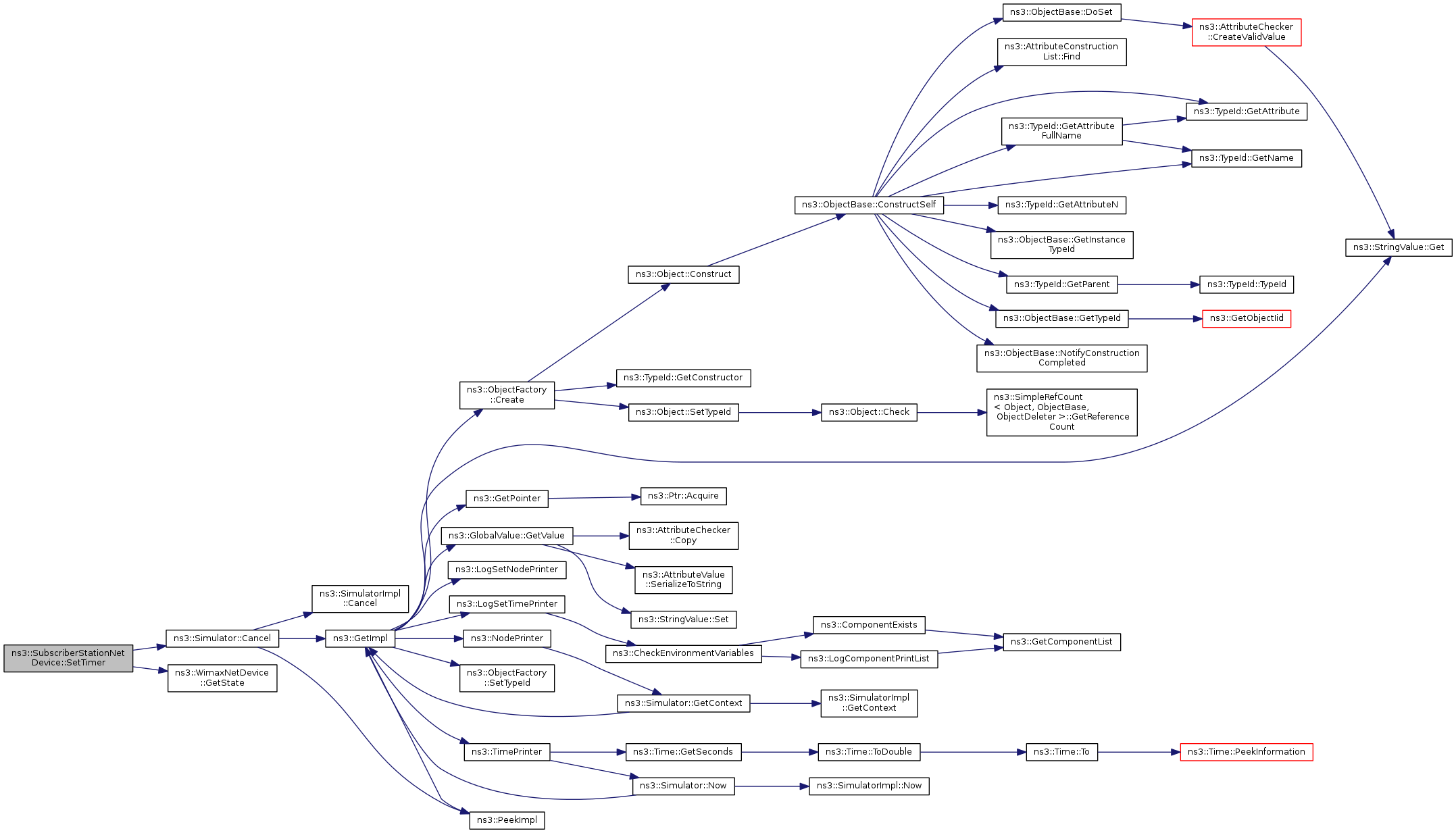

Here is the call graph for this function:

bool ns3::SubscriberStationNetDevice::HasServiceFlows ( void ) const

Returns: true if the device has at least one active service flow, false otherwise

Definition at line 509 of file ss-net-device.cc.

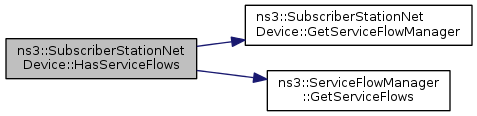

References GetServiceFlowManager(), ns3::ServiceFlowManager::GetServiceFlows(), and ns3::ServiceFlow::SF_TYPE_ALL.

Referenced by ns3::SSLinkManager::PerformRanging().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::InitSubscriberStationNetDevice ( void )

initializes the net device and sets the parameters to the default values

Definition at line 213 of file ss-net-device.cc.

References ns3::Time::GetSeconds(), m_allocationStartTime, m_areManagementConnectionsAllocated, m_areServiceFlowsAllocated, m_baseStationId, m_basicConnection, m_classifier, m_dcdCount, m_dlBurstProfile, m_intervalT1, m_intervalT12, m_intervalT2, m_intervalT21, m_intervalT3, m_intervalT7, m_linkManager, m_lostDlMapInterval, m_lostUlMapInterval, m_maxContentionRangingRetries, m_maxDcdInterval, m_maxUcdInterval, m_modulationType, m_nrDcdRecvd, m_nrDlMapElements, m_nrDlMapRecvd, m_nrUcdRecvd, m_nrUlMapElements, m_nrUlMapRecvd, m_primaryConnection, m_scheduler, m_serviceFlowManager, m_ucdCount, m_ulBurstProfile, ns3::MilliSeconds(), ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, and ns3::Seconds().

Referenced by SubscriberStationNetDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::SubscriberStationNetDevice::IsRegistered ( void ) const

Returns: true if the SS is registered to a BS, false otherwise

Definition at line 1255 of file ss-net-device.cc.

References ns3::WimaxNetDevice::GetState(), and SS_STATE_REGISTERED.

Referenced by DoSend(), SendBurst(), and ns3::SSLinkManager::StartScanning().

Here is the call graph for this function:

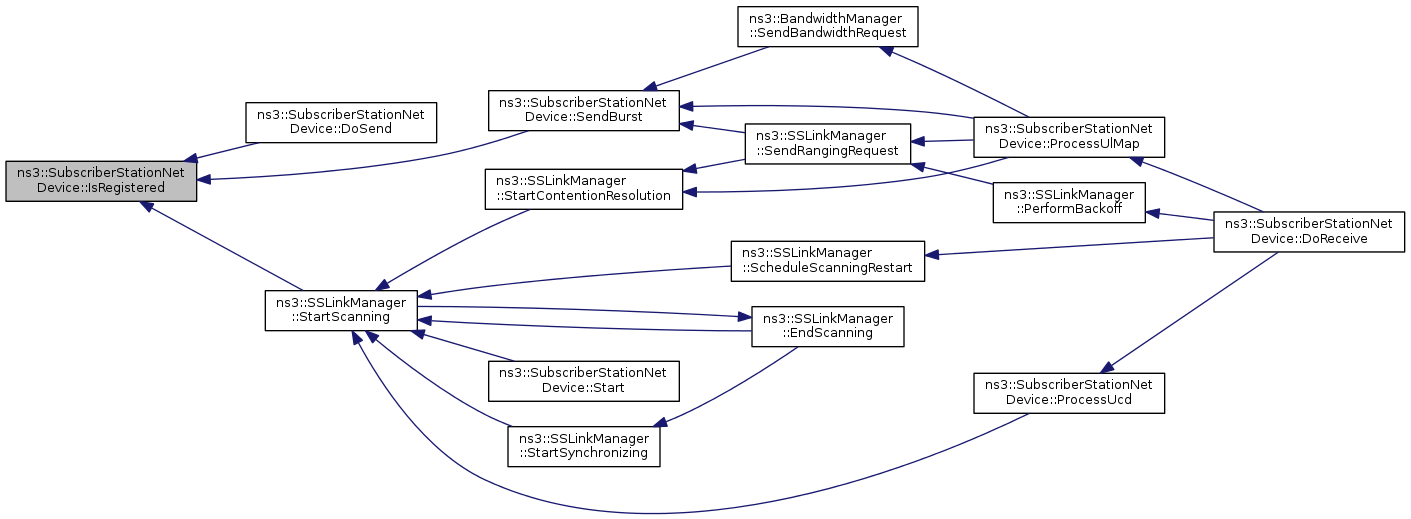

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::ProcessDcd ( const Dcd & dcd )

private

Definition at line 1184 of file ss-net-device.cc.

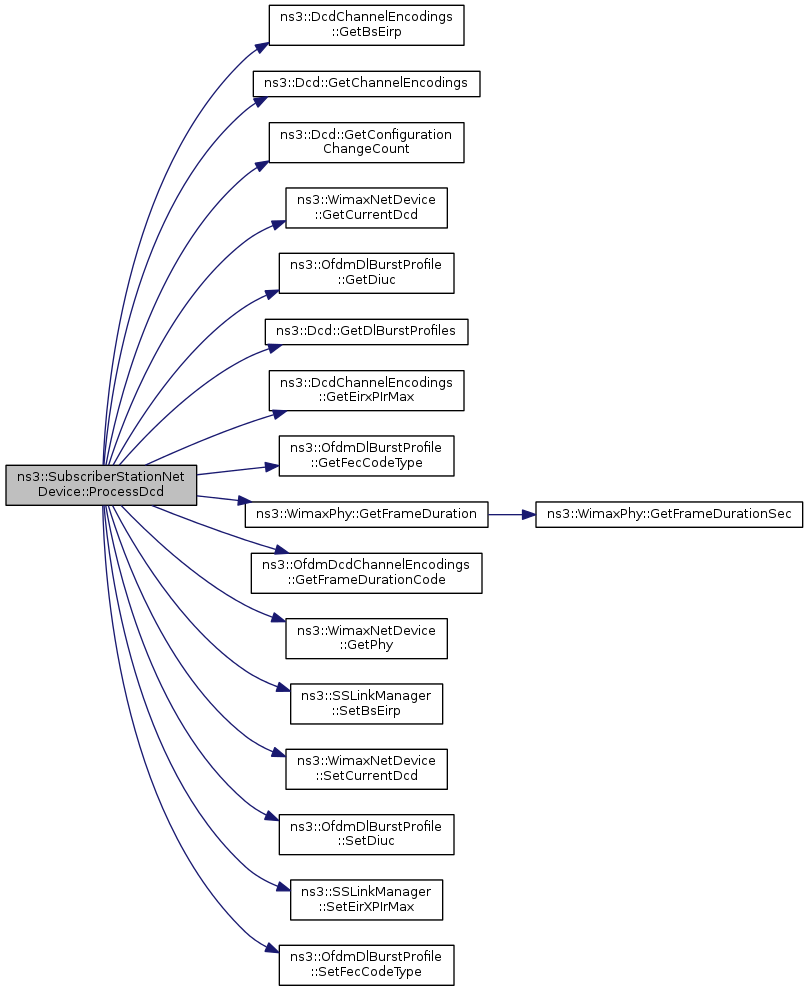

References ns3::DcdChannelEncodings::GetBsEirp(), ns3::Dcd::GetChannelEncodings(), ns3::Dcd::GetConfigurationChangeCount(), ns3::WimaxNetDevice::GetCurrentDcd(), ns3::OfdmDlBurstProfile::GetDiuc(), ns3::Dcd::GetDlBurstProfiles(), ns3::DcdChannelEncodings::GetEirxPIrMax(), ns3::OfdmDlBurstProfile::GetFecCodeType(), ns3::WimaxPhy::GetFrameDuration(), ns3::OfdmDcdChannelEncodings::GetFrameDurationCode(), ns3::WimaxNetDevice::GetPhy(), m_dlBurstProfile, m_linkManager, m_modulationType, m_nrDcdRecvd, ns3::SSLinkManager::SetBsEirp(), ns3::WimaxNetDevice::SetCurrentDcd(), ns3::OfdmDlBurstProfile::SetDiuc(), ns3::SSLinkManager::SetEirXPIrMax(), and ns3::OfdmDlBurstProfile::SetFecCodeType().

Referenced by DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::ProcessDlMap ( const DlMap & dlmap )

private

Definition at line 1062 of file ss-net-device.cc.

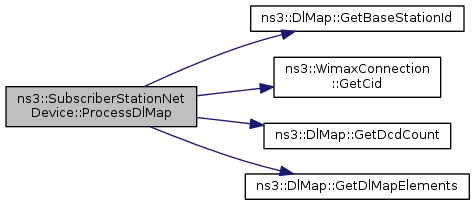

References ns3::OfdmDlBurstProfile::DIUC_END_OF_MAP, ns3::DlMap::GetBaseStationId(), ns3::WimaxConnection::GetCid(), ns3::DlMap::GetDcdCount(), ns3::DlMap::GetDlMapElements(), m_baseStationId, m_basicConnection, m_dcdCount, and m_nrDlMapRecvd.

Referenced by DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::ProcessUcd ( const Ucd & ucd )

private

Definition at line 1218 of file ss-net-device.cc.

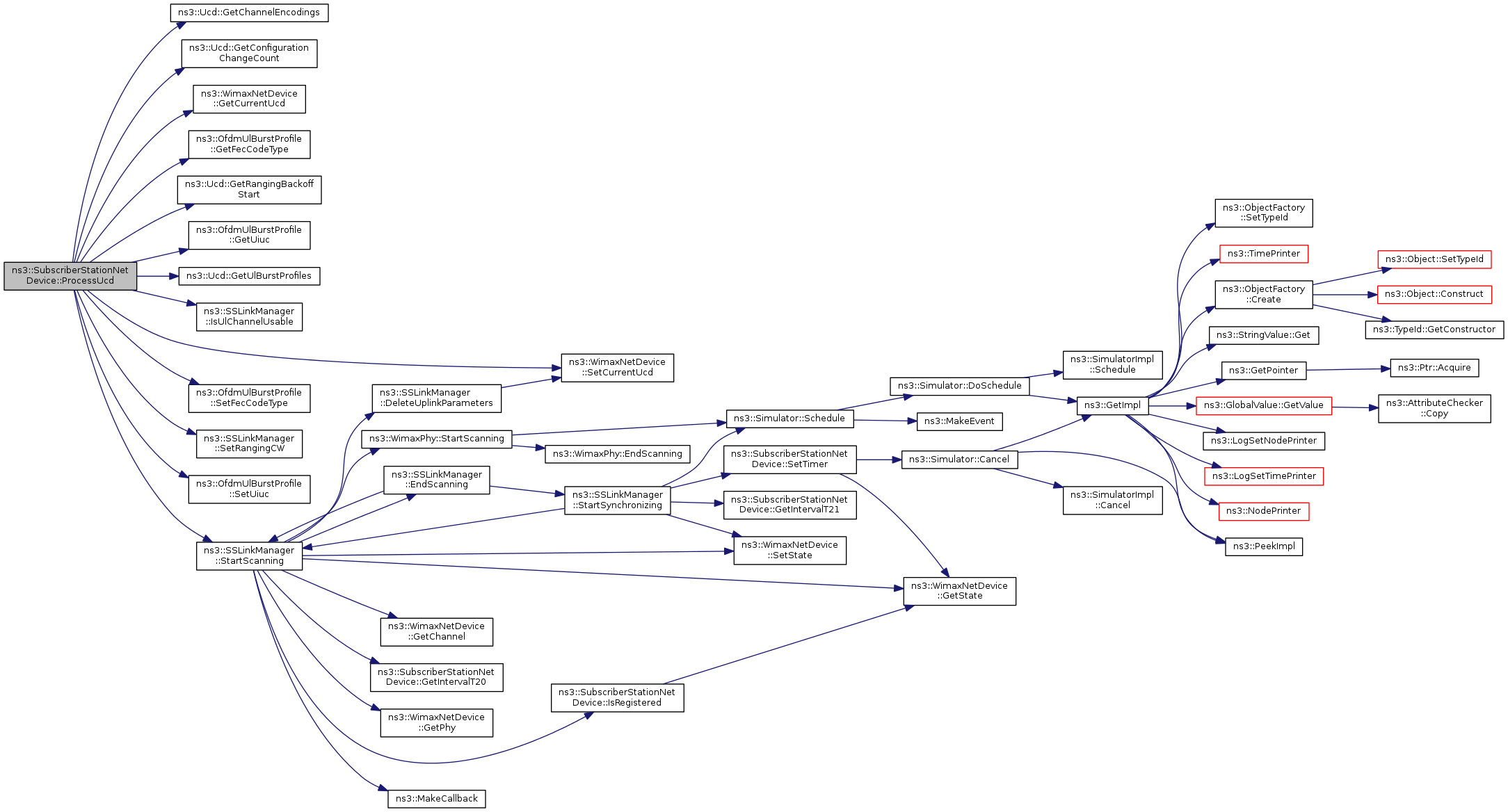

References EVENT_NONE, ns3::Ucd::GetChannelEncodings(), ns3::Ucd::GetConfigurationChangeCount(), ns3::WimaxNetDevice::GetCurrentUcd(), ns3::OfdmUlBurstProfile::GetFecCodeType(), ns3::Ucd::GetRangingBackoffStart(), ns3::OfdmUlBurstProfile::GetUiuc(), ns3::Ucd::GetUlBurstProfiles(), ns3::SSLinkManager::IsUlChannelUsable(), m_linkManager, m_modulationType, m_nrUcdRecvd, m_ulBurstProfile, ns3::WimaxNetDevice::SetCurrentUcd(), ns3::OfdmUlBurstProfile::SetFecCodeType(), ns3::SSLinkManager::SetRangingCW(), ns3::OfdmUlBurstProfile::SetUiuc(), and ns3::SSLinkManager::StartScanning().

Referenced by DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::ProcessUlMap ( const UlMap & ulmap )

private

Definition at line 1093 of file ss-net-device.cc.

References ns3::UlMap::GetAllocationStartTime(), ns3::WimaxNetDevice::GetBandwidthManager(), ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::Ucd::GetChannelEncodings(), ns3::WimaxConnection::GetCid(), ns3::OfdmUlMapIe::GetCid(), ns3::WimaxNetDevice::GetCurrentUcd(), ns3::OfdmUlMapIe::GetDuration(), ns3::WimaxNetDevice::GetPhy(), ns3::WimaxPhy::GetPsPerSymbol(), ns3::UcdChannelEncodings::GetRangReqOppSize(), ns3::Time::GetSeconds(), ns3::OfdmUlMapIe::GetStartTime(), ns3::WimaxNetDevice::GetState(), ns3::WimaxPhy::GetSymbolDuration(), GetTimeToAllocation(), ns3::UlMap::GetUcdCount(), ns3::OfdmUlMapIe::GetUiuc(), ns3::UlMap::GetUlMapElements(), ns3::MacHeaderType::HEADER_TYPE_GENERIC, ns3::SSLinkManager::IncrementNrInvitedPollsRecvd(), m_allocationStartTime, m_areManagementConnectionsAllocated, m_basicConnection, m_linkManager, m_nrUlMapRecvd, m_ucdCount, NS_ASSERT_MSG, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::BandwidthManager::SendBandwidthRequest(), SendBurst(), ns3::SSLinkManager::SendRangingRequest(), ns3::SSLinkManager::SetNrRangingTransOpps(), ns3::SSLinkManager::SetRangingIntervalFound(), SS_STATE_ADJUSTING_PARAMETERS, SS_STATE_WAITING_INV_RANG_INTRVL, SS_STATE_WAITING_REG_RANG_INTRVL, ns3::SSLinkManager::StartContentionResolution(), ns3::OfdmUlBurstProfile::UIUC_END_OF_MAP, ns3::OfdmUlBurstProfile::UIUC_INITIAL_RANGING, and ns3::OfdmUlBurstProfile::UIUC_REQ_REGION_FULL.

Referenced by DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SendBurst	(	uint8_t	uiuc,
		uint16_t	nrSymbols,
		Ptr< WimaxConnection >	connection,
		MacHeaderType::HeaderType	packetType = `MacHeaderType::HEADER_TYPE_GENERIC`
	)

Sends a burst on the uplink frame.

Definition at line 685 of file ss-net-device.cc.

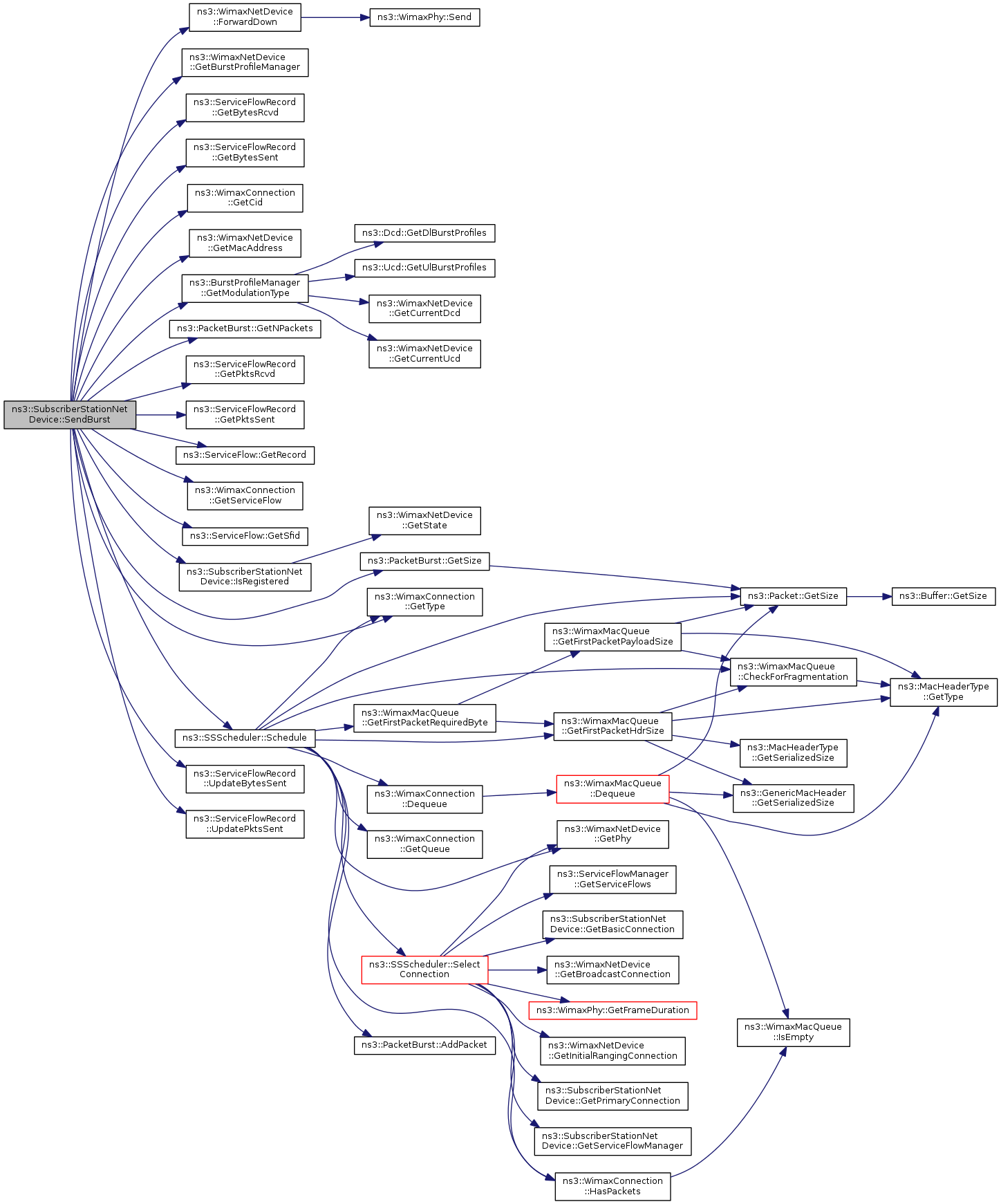

References ns3::WimaxNetDevice::DIRECTION_UPLINK, ns3::WimaxNetDevice::ForwardDown(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::ServiceFlowRecord::GetBytesRcvd(), ns3::ServiceFlowRecord::GetBytesSent(), ns3::WimaxConnection::GetCid(), ns3::WimaxNetDevice::GetMacAddress(), ns3::BurstProfileManager::GetModulationType(), ns3::PacketBurst::GetNPackets(), ns3::ServiceFlowRecord::GetPktsRcvd(), ns3::ServiceFlowRecord::GetPktsSent(), ns3::ServiceFlow::GetRecord(), ns3::WimaxConnection::GetServiceFlow(), ns3::ServiceFlow::GetSfid(), ns3::PacketBurst::GetSize(), ns3::WimaxConnection::GetType(), IsRegistered(), m_basicConnection, m_scheduler, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, NS_LOG_DEBUG, ns3::SSScheduler::Schedule(), ns3::Cid::TRANSPORT, ns3::OfdmUlBurstProfile::UIUC_INITIAL_RANGING, ns3::OfdmUlBurstProfile::UIUC_REQ_REGION_FULL, ns3::ServiceFlowRecord::UpdateBytesSent(), and ns3::ServiceFlowRecord::UpdatePktsSent().

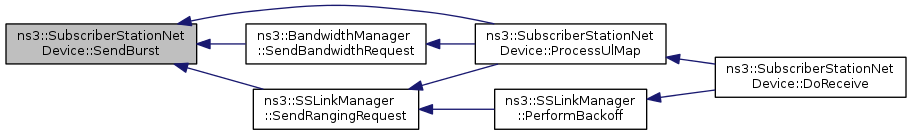

Referenced by ProcessUlMap(), ns3::BandwidthManager::SendBandwidthRequest(), and ns3::SSLinkManager::SendRangingRequest().

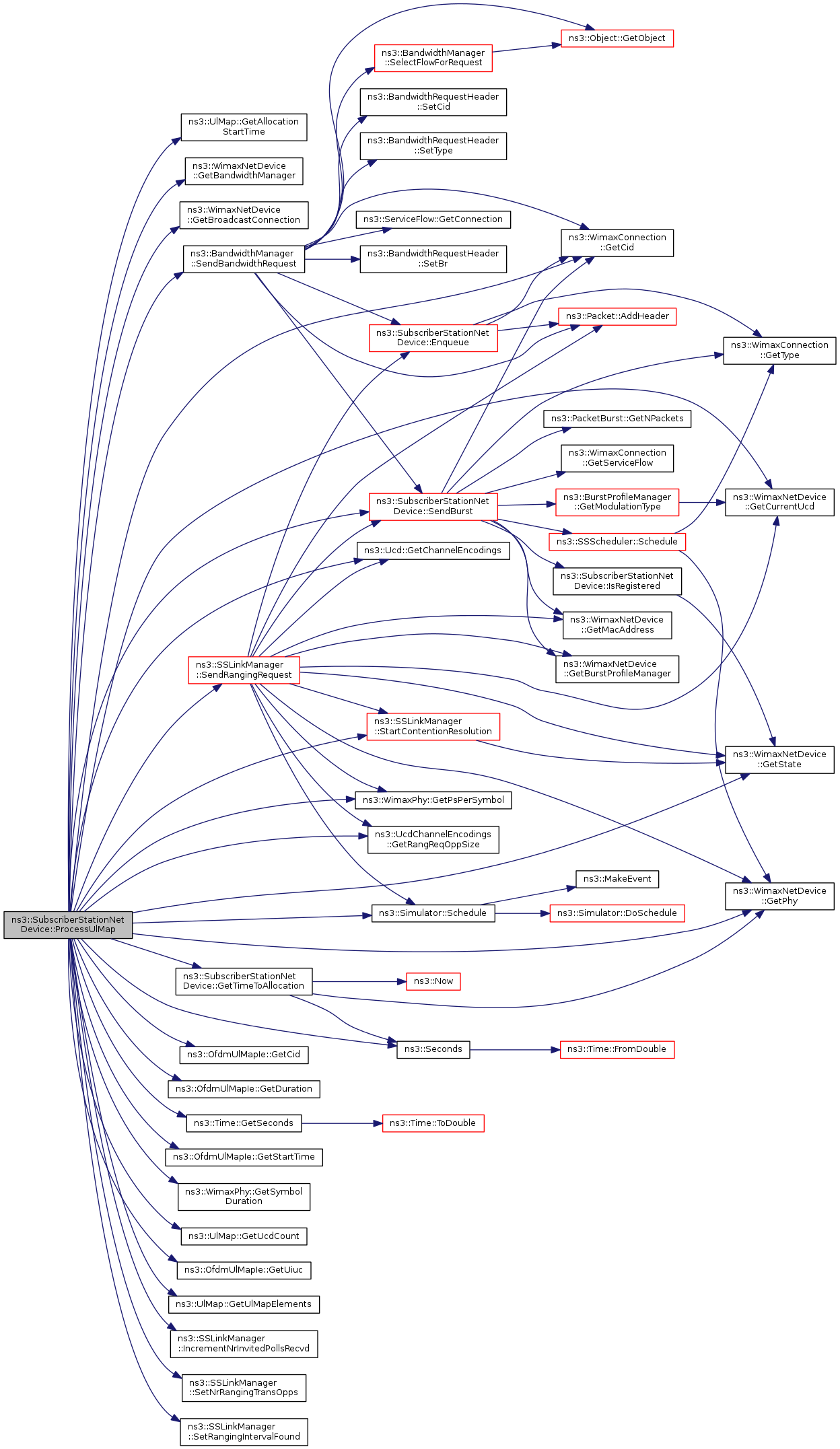

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetAreManagementConnectionsAllocated ( bool areManagementConnectionsAllocated )

Parameters

areManagementConnectionsAllocated true if the management connections are allocated, false otherwise

Definition at line 473 of file ss-net-device.cc.

References m_areManagementConnectionsAllocated.

Referenced by ns3::SSLinkManager::PerformRanging().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetAreServiceFlowsAllocated ( bool areServiceFlowsAllocated )

Parameters

areServiceFlowsAllocated true if the service flows are allocated, false otherwise

Definition at line 485 of file ss-net-device.cc.

References m_areServiceFlowsAllocated.

Referenced by ns3::SsServiceFlowManager::ProcessDsaRsp().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetBasicConnection ( Ptr< WimaxConnection > basicConnection )

Parameters

basicConnection the basic connection to be used

Definition at line 425 of file ss-net-device.cc.

References m_basicConnection.

Referenced by ns3::SSLinkManager::PerformRanging().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT1 ( Time interval1 )

Parameters

interval1 Wait for DCD timeout

Definition at line 329 of file ss-net-device.cc.

References m_intervalT1.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT12 ( Time interval12 )

Parameters

interval12 the Wait for UCD descriptor timeout

Definition at line 377 of file ss-net-device.cc.

References m_intervalT12.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT2 ( Time interval2 )

Parameters

interval2 the wait for broadcast ranging timeout, i.e., wait for initial ranging opportunity

Definition at line 341 of file ss-net-device.cc.

References m_intervalT2.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT20 ( Time interval20 )

Parameters

interval20 the Time the SS searches for preambles on a given channel

Definition at line 389 of file ss-net-device.cc.

References m_intervalT20.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT21 ( Time interval21 )

Parameters

interval21 the time the SS searches for (decodable) DL-MAP on a given channel

Definition at line 401 of file ss-net-device.cc.

References m_intervalT21.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT3 ( Time interval3 )

Parameters

interval3 the ranging Response reception timeout following the transmission of a ranging request

Definition at line 353 of file ss-net-device.cc.

References m_intervalT3.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT7 ( Time interval7 )

Parameters

interval7 the wait for DSA/DSC/DSD Response timeout

Definition at line 365 of file ss-net-device.cc.

References m_intervalT7.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIpcsPacketClassifier ( Ptr< IpcsClassifier > classifier )

Sets the packet classifier to be used.

Definition at line 522 of file ss-net-device.cc.

References m_classifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetLinkManager ( Ptr< SSLinkManager > linkManager )

sets the link manager to be used

Definition at line 534 of file ss-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetLostDlMapInterval ( Time lostDlMapInterval )

Parameters

lostDlMapInterval time since last received DL-MAP message before downlink synchronization is considered lost

Definition at line 281 of file ss-net-device.cc.

References m_lostDlMapInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetLostUlMapInterval ( Time lostUlMapInterval )

Parameters

lostUlMapInterval Time since last received UL-MAP before uplink synchronization is considered lost

Definition at line 293 of file ss-net-device.cc.

References m_lostUlMapInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetMaxContentionRangingRetries ( uint8_t maxContentionRangingRetries )

Parameters

maxContentionRangingRetries the Number of retries on contention Ranging Requests

Definition at line 413 of file ss-net-device.cc.

References m_maxContentionRangingRetries.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetMaxDcdInterval ( Time maxDcdInterval )

Parameters

maxDcdInterval Maximum time between transmission of DCD messages

Definition at line 305 of file ss-net-device.cc.

References m_maxDcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetMaxUcdInterval ( Time maxUcdInterval )

Parameters

maxUcdInterval Maximum time between transmission of UCD messages

Definition at line 317 of file ss-net-device.cc.

References m_maxUcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetModulationType ( WimaxPhy::ModulationType modulationType )

Set the most efficient modulation and coding scheme (MCS) supported by the device.

Parameters

modulationType the most robust MCS supported

Definition at line 461 of file ss-net-device.cc.

References m_modulationType.

Referenced by main().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetPrimaryConnection ( Ptr< WimaxConnection > primaryConnection )

Parameters

primaryConnection the primary connection to be used

Definition at line 437 of file ss-net-device.cc.

References m_primaryConnection.

Referenced by ns3::SSLinkManager::PerformRanging().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetScheduler ( Ptr< SSScheduler > ssScheduler )

Parameters

ssScheduler the scheduler to be installed on the device

Definition at line 503 of file ss-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetServiceFlowManager ( Ptr< SsServiceFlowManager > sfm )

Sets the service flow manager to be installed on the device.

Definition at line 546 of file ss-net-device.cc.

References m_serviceFlowManager.

void ns3::SubscriberStationNetDevice::SetTimer	(	EventId	eventId,
		EventId &	event
	)

Definition at line 1270 of file ss-net-device.cc.

References ns3::Simulator::Cancel(), ns3::WimaxNetDevice::GetState(), and SS_STATE_STOPPED.

Referenced by ns3::SSLinkManager::ScheduleScanningRestart(), ns3::SSLinkManager::SendRangingRequest(), and ns3::SSLinkManager::StartSynchronizing().

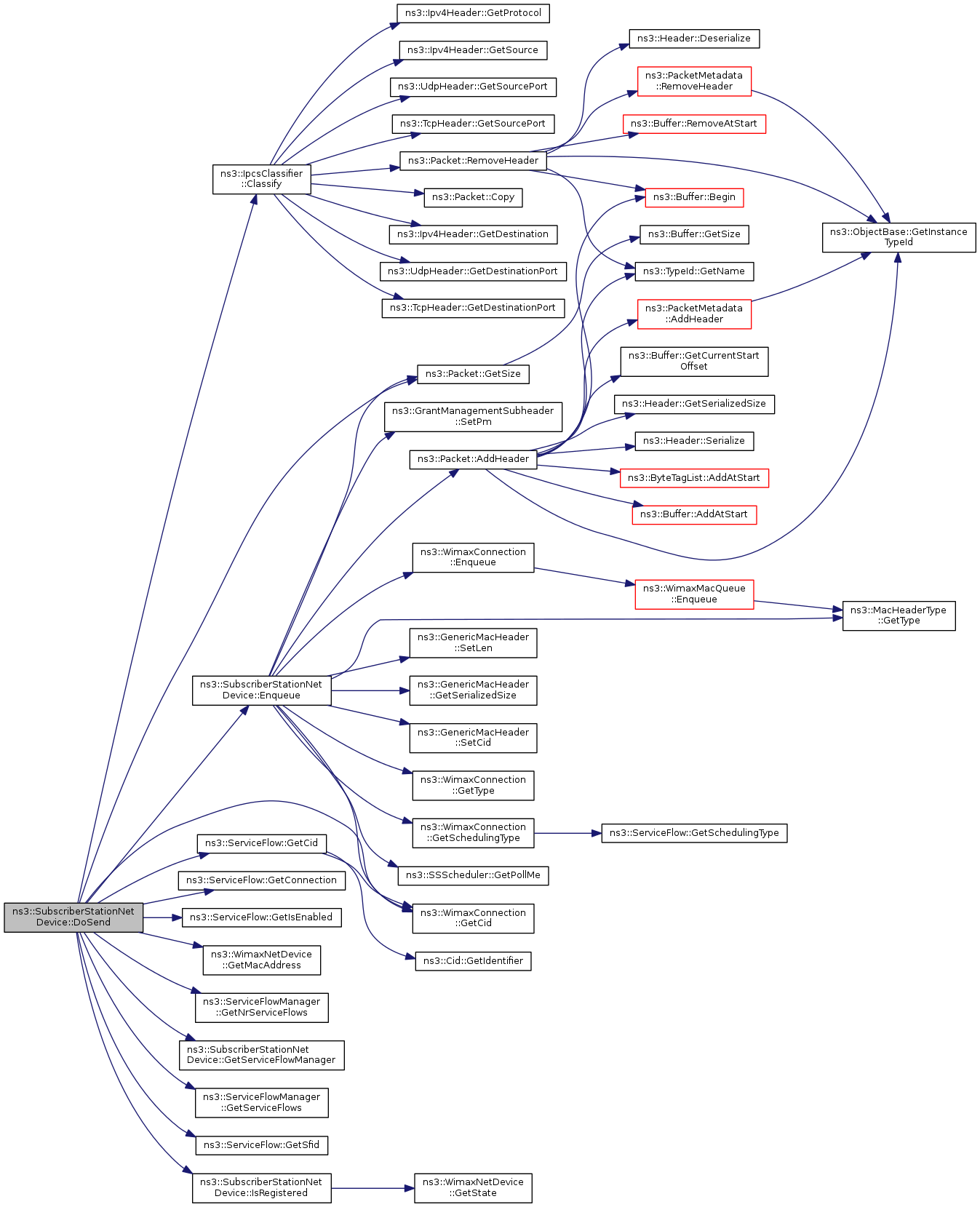

Here is the call graph for this function:

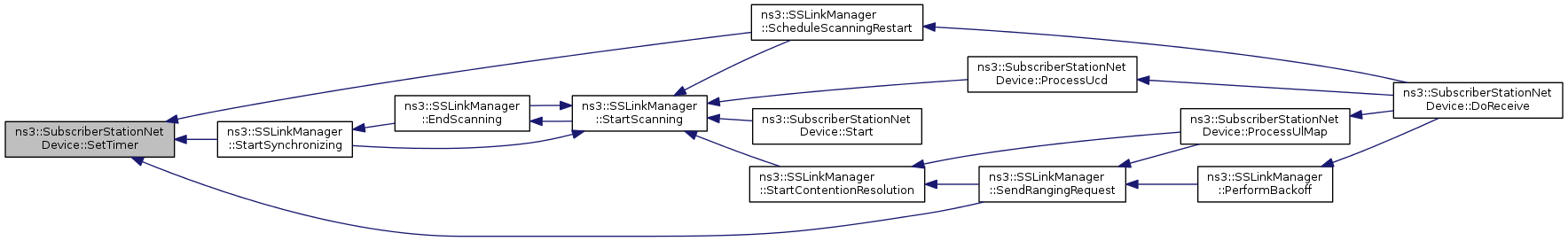

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::Start ( void )

virtual

This method calls the virtual DoStart method on all the objects aggregated to this object. DoStart will be called only once over the lifetime of an object, just like DoDispose is called only once.

See Also: DoStart

Note: the code here is a bit tricky because we need to protect ourselves from modifications in the aggregate array while DoStart is called. The user's implementation of the DoStart method could call GetObject (which could reorder the array) and it could call AggregateObject which would add an object at the end of the array. To be safe, we restart iteration over the array whenever we call some user code, just in case.

Implements ns3::WimaxNetDevice.

Definition at line 552 of file ss-net-device.cc.

References ns3::WimaxNetDevice::CreateDefaultConnections(), EVENT_NONE, ns3::WimaxNetDevice::GetPhy(), m_intervalT20, m_linkManager, ns3::Simulator::ScheduleNow(), ns3::Seconds(), ns3::WimaxPhy::SetDataRates(), ns3::WimaxPhy::SetPhyParameters(), ns3::WimaxNetDevice::SetReceiveCallback(), and ns3::SSLinkManager::StartScanning().

Here is the call graph for this function:

void ns3::SubscriberStationNetDevice::Stop ( void )

virtual

Implements ns3::WimaxNetDevice.

Definition at line 565 of file ss-net-device.cc.

References ns3::WimaxNetDevice::SetState(), and SS_STATE_STOPPED.

Here is the call graph for this function:

Member Data Documentation

double ns3::SubscriberStationNetDevice::m_allocationStartTime

private

Definition at line 323 of file ss-net-device.h.

Referenced by GetTimeToAllocation(), InitSubscriberStationNetDevice(), and ProcessUlMap().

bool ns3::SubscriberStationNetDevice::m_areManagementConnectionsAllocated

private

Definition at line 346 of file ss-net-device.h.

Referenced by GetAreManagementConnectionsAllocated(), InitSubscriberStationNetDevice(), ProcessUlMap(), and SetAreManagementConnectionsAllocated().

bool ns3::SubscriberStationNetDevice::m_areServiceFlowsAllocated

private

Definition at line 347 of file ss-net-device.h.

Referenced by GetAreServiceFlowsAllocated(), InitSubscriberStationNetDevice(), and SetAreServiceFlowsAllocated().

Mac48Address ns3::SubscriberStationNetDevice::m_baseStationId

private

Definition at line 319 of file ss-net-device.h.

Referenced by DoReceive(), InitSubscriberStationNetDevice(), and ProcessDlMap().

Ptr<WimaxConnection> ns3::SubscriberStationNetDevice::m_basicConnection

private

Definition at line 329 of file ss-net-device.h.

Referenced by DoDispose(), DoReceive(), DoSend(), GetBasicCid(), GetBasicConnection(), GetTypeId(), InitSubscriberStationNetDevice(), ProcessDlMap(), ProcessUlMap(), SendBurst(), and SetBasicConnection().

Ptr<IpcsClassifier> ns3::SubscriberStationNetDevice::m_classifier

private

Definition at line 351 of file ss-net-device.h.

Referenced by DoDispose(), DoSend(), GetIpcsClassifier(), InitSubscriberStationNetDevice(), and SetIpcsPacketClassifier().

uint8_t ns3::SubscriberStationNetDevice::m_dcdCount

private

Definition at line 318 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessDlMap().

EventId ns3::SubscriberStationNetDevice::m_dcdWaitTimeoutEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

OfdmDlBurstProfile* ns3::SubscriberStationNetDevice::m_dlBurstProfile

private

Definition at line 339 of file ss-net-device.h.

Referenced by DoDispose(), InitSubscriberStationNetDevice(), and ProcessDcd().

Time ns3::SubscriberStationNetDevice::m_intervalT1

private

Definition at line 308 of file ss-net-device.h.

Referenced by DoReceive(), GetIntervalT1(), InitSubscriberStationNetDevice(), and SetIntervalT1().

Time ns3::SubscriberStationNetDevice::m_intervalT12

private

Definition at line 312 of file ss-net-device.h.

Referenced by DoReceive(), GetIntervalT12(), InitSubscriberStationNetDevice(), and SetIntervalT12().

Time ns3::SubscriberStationNetDevice::m_intervalT2

private

Definition at line 309 of file ss-net-device.h.

Referenced by DoReceive(), GetIntervalT2(), InitSubscriberStationNetDevice(), and SetIntervalT2().

Time ns3::SubscriberStationNetDevice::m_intervalT20

private

Definition at line 313 of file ss-net-device.h.

Referenced by GetIntervalT20(), SetIntervalT20(), and Start().

Time ns3::SubscriberStationNetDevice::m_intervalT21

private

Definition at line 314 of file ss-net-device.h.

Referenced by GetIntervalT21(), InitSubscriberStationNetDevice(), and SetIntervalT21().

Time ns3::SubscriberStationNetDevice::m_intervalT3

private

Definition at line 310 of file ss-net-device.h.

Referenced by GetIntervalT3(), InitSubscriberStationNetDevice(), and SetIntervalT3().

Time ns3::SubscriberStationNetDevice::m_intervalT7

private

Definition at line 311 of file ss-net-device.h.

Referenced by GetIntervalT7(), InitSubscriberStationNetDevice(), and SetIntervalT7().

Ptr<SSLinkManager> ns3::SubscriberStationNetDevice::m_linkManager

Definition at line 265 of file ss-net-device.h.

Referenced by DoDispose(), DoReceive(), GetLinkManager(), InitSubscriberStationNetDevice(), ProcessDcd(), ProcessUcd(), ProcessUlMap(), SetLinkManager(), and Start().

EventId ns3::SubscriberStationNetDevice::m_lostDlMapEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

Time ns3::SubscriberStationNetDevice::m_lostDlMapInterval

private

Definition at line 304 of file ss-net-device.h.

Referenced by DoReceive(), GetLostDlMapInterval(), InitSubscriberStationNetDevice(), and SetLostDlMapInterval().

EventId ns3::SubscriberStationNetDevice::m_lostUlMapEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

Time ns3::SubscriberStationNetDevice::m_lostUlMapInterval

private

Definition at line 305 of file ss-net-device.h.

Referenced by DoReceive(), GetLostUlMapInterval(), InitSubscriberStationNetDevice(), and SetLostUlMapInterval().

uint8_t ns3::SubscriberStationNetDevice::m_maxContentionRangingRetries

private

Definition at line 315 of file ss-net-device.h.

Referenced by GetMaxContentionRangingRetries(), InitSubscriberStationNetDevice(), and SetMaxContentionRangingRetries().

Time ns3::SubscriberStationNetDevice::m_maxDcdInterval

private

Definition at line 306 of file ss-net-device.h.

Referenced by GetMaxDcdInterval(), InitSubscriberStationNetDevice(), and SetMaxDcdInterval().

Time ns3::SubscriberStationNetDevice::m_maxUcdInterval

private

Definition at line 307 of file ss-net-device.h.

Referenced by GetMaxUcdInterval(), InitSubscriberStationNetDevice(), and SetMaxUcdInterval().

WimaxPhy::ModulationType ns3::SubscriberStationNetDevice::m_modulationType

private

Definition at line 344 of file ss-net-device.h.

Referenced by GetModulationType(), InitSubscriberStationNetDevice(), ProcessDcd(), ProcessUcd(), and SetModulationType().

uint32_t ns3::SubscriberStationNetDevice::m_nrDcdRecvd

private

Definition at line 336 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessDcd().

uint16_t ns3::SubscriberStationNetDevice::m_nrDlMapElements

private

Definition at line 326 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice().

uint32_t ns3::SubscriberStationNetDevice::m_nrDlMapRecvd

private

Definition at line 334 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessDlMap().

uint32_t ns3::SubscriberStationNetDevice::m_nrUcdRecvd

private

Definition at line 337 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessUcd().

uint16_t ns3::SubscriberStationNetDevice::m_nrUlMapElements

private

Definition at line 327 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice().

uint32_t ns3::SubscriberStationNetDevice::m_nrUlMapRecvd

private

Definition at line 335 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessUlMap().

Ptr<WimaxConnection> ns3::SubscriberStationNetDevice::m_primaryConnection

private

Definition at line 330 of file ss-net-device.h.

Referenced by DoDispose(), DoReceive(), GetPrimaryCid(), GetPrimaryConnection(), GetTypeId(), InitSubscriberStationNetDevice(), and SetPrimaryConnection().

EventId ns3::SubscriberStationNetDevice::m_rangOppWaitTimeoutEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

Ptr<SSScheduler> ns3::SubscriberStationNetDevice::m_scheduler

private

Definition at line 349 of file ss-net-device.h.

Referenced by DoDispose(), Enqueue(), GetScheduler(), InitSubscriberStationNetDevice(), SendBurst(), and SetScheduler().

Ptr<SsServiceFlowManager> ns3::SubscriberStationNetDevice::m_serviceFlowManager

private

Definition at line 350 of file ss-net-device.h.

Referenced by DoDispose(), GetServiceFlowManager(), InitSubscriberStationNetDevice(), and SetServiceFlowManager().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). This is a promiscuous trace.

See Also: class CallBackTraceSource

Definition at line 379 of file ss-net-device.h.

Referenced by DoReceive(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See Also: class CallBackTraceSource

Definition at line 396 of file ss-net-device.h.

Referenced by DoReceive(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). This is a non- promiscuous trace.

See Also: class CallBackTraceSource

Definition at line 388 of file ss-net-device.h.

Referenced by DoReceive(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssTxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission.

See Also: class CallBackTraceSource

Definition at line 370 of file ss-net-device.h.

Referenced by DoSend(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See Also: class CallBackTraceSource

Definition at line 362 of file ss-net-device.h.

Referenced by DoSend().

TracedCallback<Ptr<const Packet>, Mac48Address, Cid*> ns3::SubscriberStationNetDevice::m_traceSSRx

private

Definition at line 353 of file ss-net-device.h.

Referenced by DoReceive().

TracedCallback<Ptr<const PacketBurst>, Mac48Address, Cid*, WimaxPhy::ModulationType> ns3::SubscriberStationNetDevice::m_traceSSTx

private

Definition at line 354 of file ss-net-device.h.

uint8_t ns3::SubscriberStationNetDevice::m_ucdCount

private

Definition at line 322 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessUlMap().

EventId ns3::SubscriberStationNetDevice::m_ucdWaitTimeoutEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

OfdmUlBurstProfile* ns3::SubscriberStationNetDevice::m_ulBurstProfile

private

Definition at line 340 of file ss-net-device.h.

Referenced by DoDispose(), InitSubscriberStationNetDevice(), and ProcessUcd().

The documentation for this class was generated from the following files:

src/wimax/model/ss-net-device.h
doc/introspected-doxygen.h
src/wimax/model/ss-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
