ns3::SimpleChannel Class Reference

A simple channel, for simple things and testing. More...

#include <simple-channel.h>

Inheritance diagram for ns3::SimpleChannel:

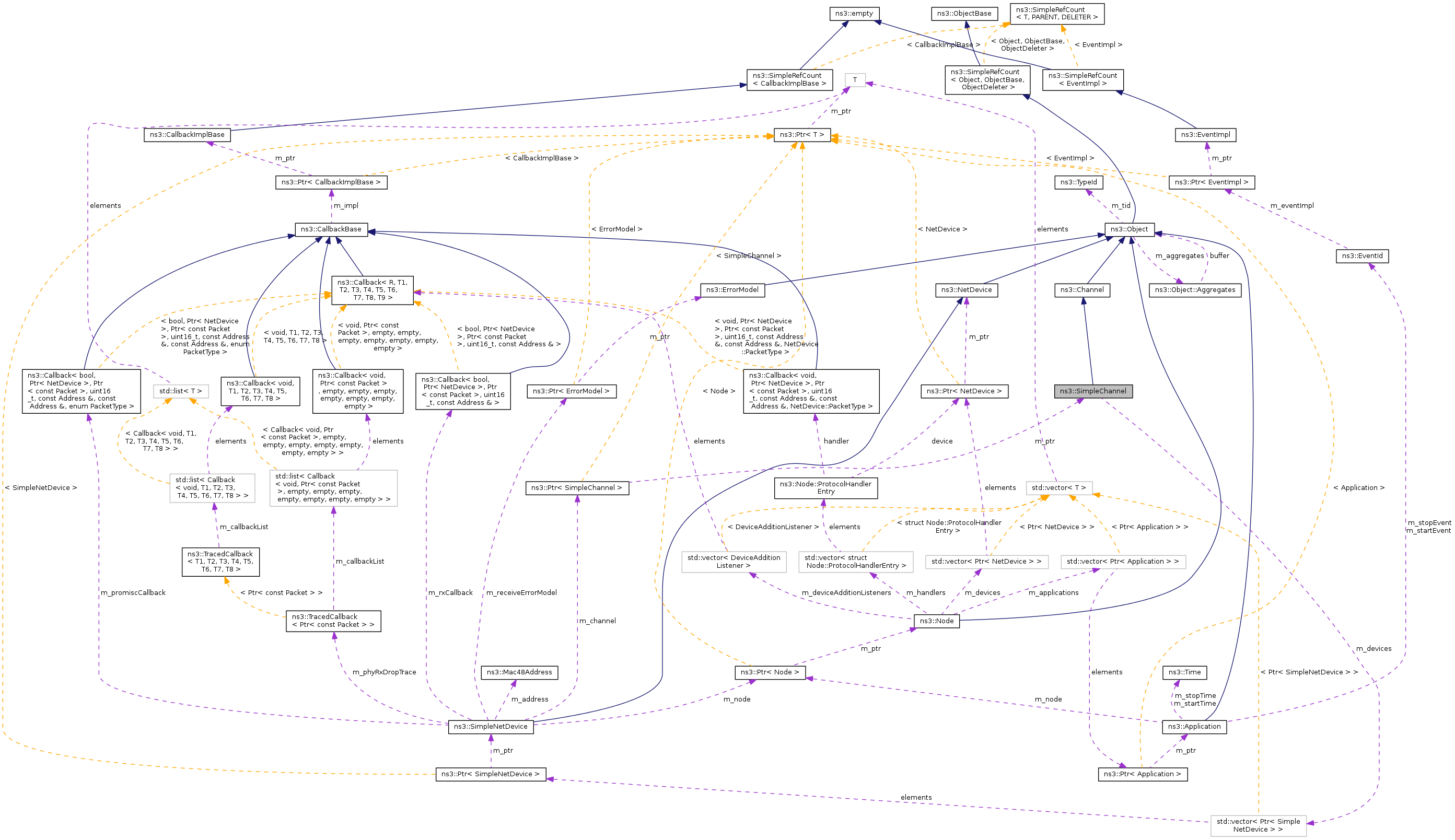

Collaboration diagram for ns3::SimpleChannel:

Public Member Functions
	SimpleChannel ()
void	Add (Ptr< SimpleNetDevice > device)
virtual Ptr< NetDevice >	GetDevice (uint32_t i) const
virtual uint32_t	GetNDevices (void) const
void	Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< SimpleNetDevice > sender)
Public Member Functions inherited from ns3::Channel
	Channel ()
virtual	~Channel ()
uint32_t	GetId (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SimpleChannel.

Private Attributes
std::vector< Ptr < SimpleNetDevice > >	m_devices

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

A simple channel, for simple things and testing.

Definition at line 36 of file simple-channel.h.

Constructor & Destructor Documentation

ns3::SimpleChannel::SimpleChannel

(

)

Definition at line 43 of file simple-channel.cc.

Member Function Documentation

void ns3::SimpleChannel::Add

(

Ptr< SimpleNetDevice >

device

)

Definition at line 66 of file simple-channel.cc.

References m_devices.

Referenced by ns3::SimpleNetDevice::SetChannel().

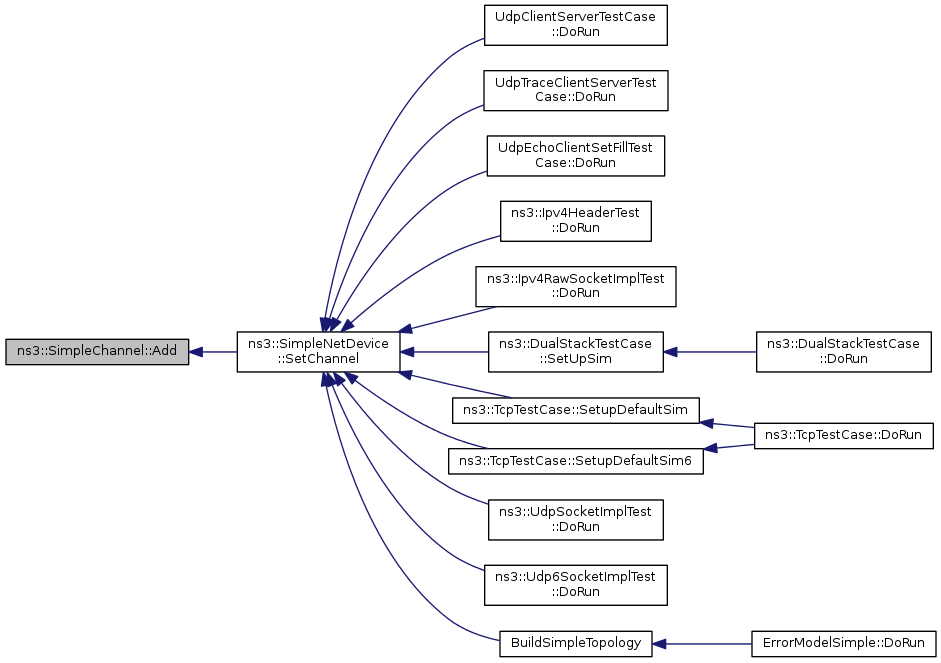

Here is the caller graph for this function:

Ptr< NetDevice > ns3::SimpleChannel::GetDevice ( uint32_t  i ) const

virtual

Parameters

i	index of NetDevice to retrieve

Returns

one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 77 of file simple-channel.cc.

References m_devices.

uint32_t ns3::SimpleChannel::GetNDevices ( void  ) const

virtual

Returns

the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 72 of file simple-channel.cc.

References m_devices.

TypeId ns3::SimpleChannel::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::SimpleChannel.

No Attributes defined for this type.
Attributes defined in parent class ns3::Channel:

• Id: The id (unique integer) of this Channel.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Channel.

Definition at line 34 of file simple-channel.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::SimpleChannel::Send	(	Ptr< Packet >	p,
		uint16_t	protocol,
		Mac48Address	to,
		Mac48Address	from,
		Ptr< SimpleNetDevice >	sender
	)

Definition at line 48 of file simple-channel.cc.

References ns3::Packet::Copy(), ns3::Node::GetId(), ns3::SimpleNetDevice::GetNode(), m_devices, NS_LOG_FUNCTION, ns3::SimpleNetDevice::Receive(), ns3::Simulator::ScheduleWithContext(), and ns3::Seconds().

Referenced by ns3::SimpleNetDevice::Send(), and ns3::SimpleNetDevice::SendFrom().

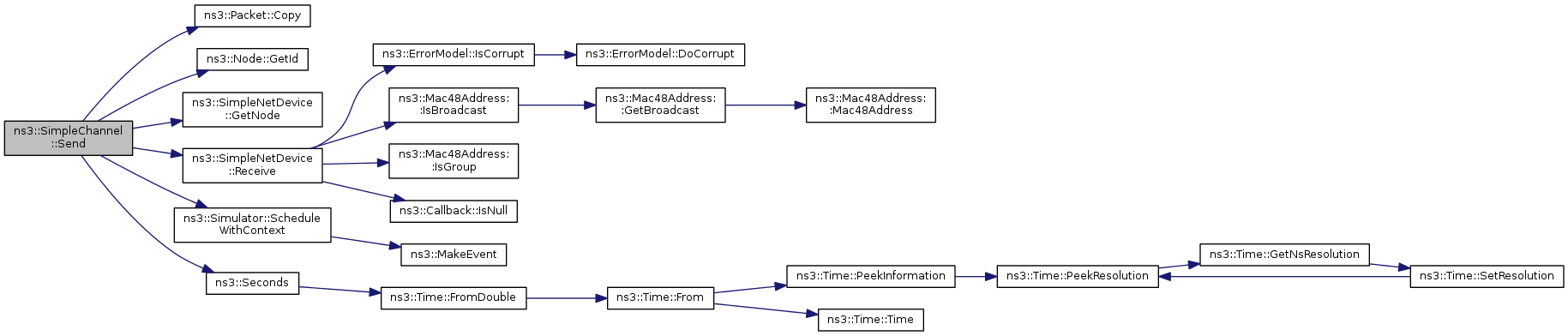

Here is the call graph for this function:

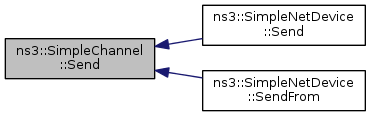

Here is the caller graph for this function:

Member Data Documentation

std::vector<Ptr<SimpleNetDevice> > ns3::SimpleChannel::m_devices

private

Definition at line 52 of file simple-channel.h.

Referenced by Add(), GetDevice(), GetNDevices(), and Send().

---

The documentation for this class was generated from the following files:

• src/network/utils/simple-channel.h
• doc/introspected-doxygen.h
• src/network/utils/simple-channel.cc
