#include <uan-phy.h>

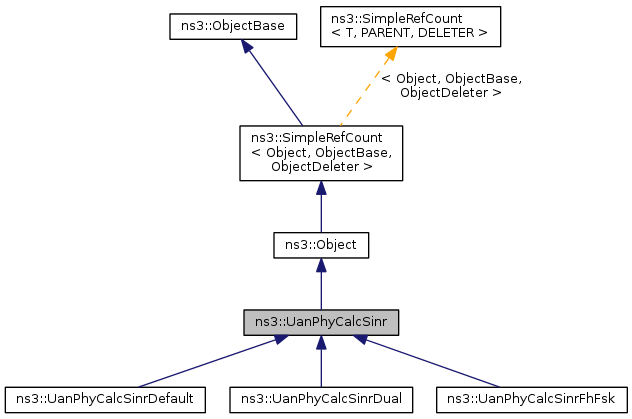

Inheritance diagram for ns3::UanPhyCalcSinr:

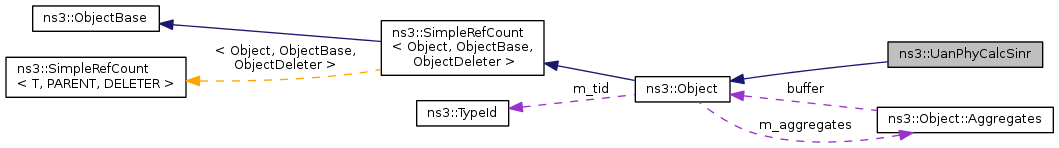

Collaboration diagram for ns3::UanPhyCalcSinr:

Public Member Functions
virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const =0
virtual void	Clear (void)
double	DbToKp (double db) const
	Converts dB re 1 uPa to kilopascals.
virtual void	DoDispose (void)
double	KpToDb (double kp) const
	Converts kilopascals to dB re 1 uPa.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyCalcSinr.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Class used for calculating SINR of packet in UanPhy. Can be set to any derived class using attributes of UanPhy to implement different models.

Definition at line 43 of file uan-phy.h.

Member Function Documentation

virtual double ns3::UanPhyCalcSinr::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)		const

pure virtual

Parameters

pkt	Packet to calculate SINR for
arrTime	Arrival time of pkt
rxPowerDb	The received signal strength of the packet in dB re 1 uPa
ambNoiseDb	Ambient channel noise in dB re 1 uPa
mode	TX Mode of pkt
pdp	Power delay profile of pkt
arrivalList	List of interfering arrivals given from Transducer.

Implemented in ns3::UanPhyCalcSinrFhFsk, ns3::UanPhyCalcSinrDefault, and ns3::UanPhyCalcSinrDual.

Referenced by ns3::UanPhyGen::CalculateSinrDb().

Here is the caller graph for this function:

void ns3::UanPhyCalcSinr::Clear ( void )

virtual

Clears all pointer references

Definition at line 35 of file uan-phy.cc.

Referenced by ns3::UanPhyGen::Clear(), and DoDispose().

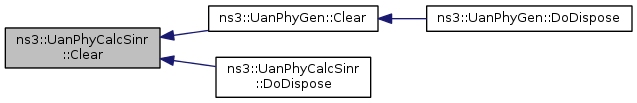

Here is the caller graph for this function:

double ns3::UanPhyCalcSinr::DbToKp ( double db ) const

inline

Converts dB re 1 uPa to kilopascals.

Parameters

db dB value

Returns: kilopascals

Definition at line 78 of file uan-phy.h.

Referenced by ns3::UanPhyCalcSinrDual::CalcSinrDb(), ns3::UanPhyCalcSinrDefault::CalcSinrDb(), and ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

Here is the caller graph for this function:

void ns3::UanPhyCalcSinr::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 40 of file uan-phy.cc.

References Clear().

Here is the call graph for this function:

TypeId ns3::UanPhyCalcSinr::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::UanPhyCalcSinr.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyDual/SinrModelPhy1
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyDual/SinrModelPhy2
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyGen/SinrModel

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::UanPhyCalcSinrFhFsk, ns3::UanPhyCalcSinrDefault, and ns3::UanPhyCalcSinrDual.

Definition at line 27 of file uan-phy.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:
