WHOI Micromodem like FH-FSK model. More...

#include <uan-phy-gen.h>

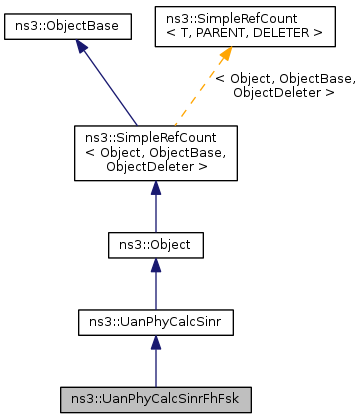

Inheritance diagram for ns3::UanPhyCalcSinrFhFsk:

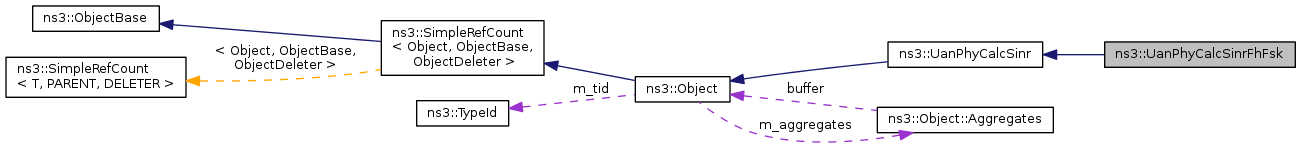

Collaboration diagram for ns3::UanPhyCalcSinrFhFsk:

Public Member Functions
	UanPhyCalcSinrFhFsk ()
virtual	~UanPhyCalcSinrFhFsk ()
virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const
Public Member Functions inherited from ns3::UanPhyCalcSinr
virtual void	Clear (void)
double	DbToKp (double db) const
	Converts dB re 1 uPa to kilopascals.
virtual void	DoDispose (void)
double	KpToDb (double kp) const
	Converts kilopascals to dB re 1 uPa.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyCalcSinrFhFsk.

Private Attributes
uint32_t	m_hops

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

WHOI Micromodem like FH-FSK model.

Model of interference calculation for FH-FSK wherein all nodes use an identical hopping pattern. In this case, there is an (M-1)*SymbolTime clearing time between symbols transmitted on the same frequency. This clearing time combats ISI from channel delay spread and also has a byproduct of possibly reducing interference from other transmitted packets.

Definition at line 133 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyCalcSinrFhFsk::UanPhyCalcSinrFhFsk ( )

Definition at line 98 of file uan-phy-gen.cc.

ns3::UanPhyCalcSinrFhFsk::~UanPhyCalcSinrFhFsk ( )

virtual

Definition at line 102 of file uan-phy-gen.cc.

Member Function Documentation

double ns3::UanPhyCalcSinrFhFsk::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)		const

virtual

Parameters

pkt	Packet to calculate SINR for
arrTime	Arrival time of pkt
rxPowerDb	The received signal strength of the packet in dB re 1 uPa
ambNoiseDb	Ambient channel noise in dB re 1 uPa
mode	TX Mode of pkt
pdp	Power delay profile of pkt
arrivalList	List of interfering arrivals given from Transducer.

Implements ns3::UanPhyCalcSinr.

Definition at line 122 of file uan-phy-gen.cc.

References ns3::UanPhyCalcSinr::DbToKp(), ns3::UanTxMode::FSK, ns3::UanPdp::GetBegin(), ns3::UanPdp::GetEnd(), ns3::UanTxMode::GetModType(), ns3::UanTxMode::GetPhyRateSps(), ns3::Time::GetSeconds(), ns3::UanPhyCalcSinr::KpToDb(), m_hops, NS_LOG_DEBUG, NS_LOG_WARN, ns3::Seconds(), visualizer.core::start(), ns3::UanPdp::SumTapsFromMaxNc(), and ns3::UanPdp::SumTapsNc().

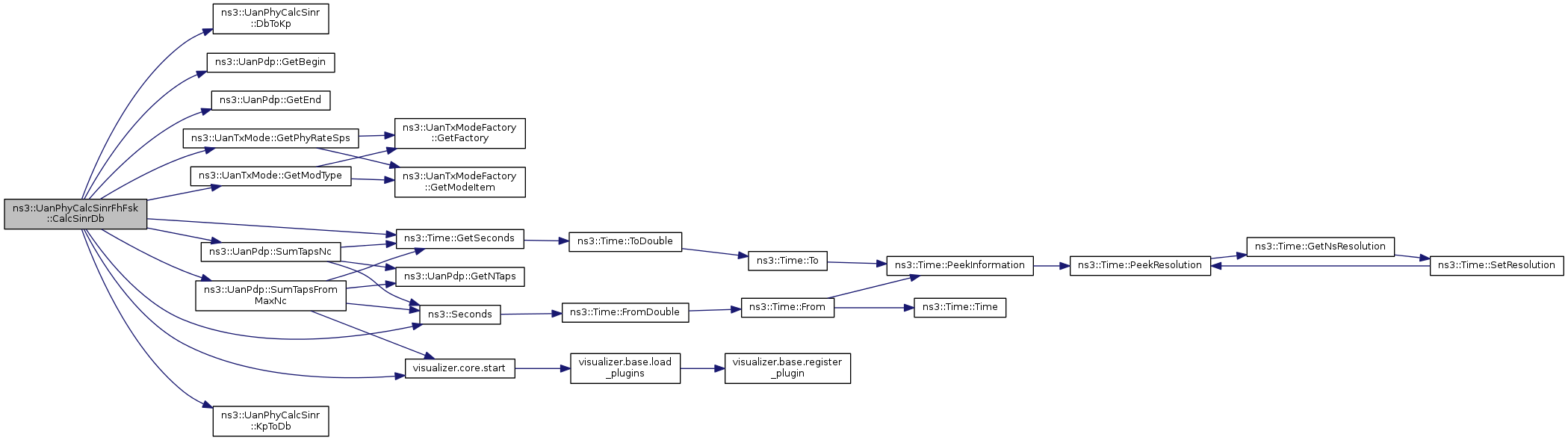

Here is the call graph for this function:

TypeId ns3::UanPhyCalcSinrFhFsk::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::UanPhyCalcSinrFhFsk.

Attributes defined for this type:

NumberOfHops: Number of frequencies in hopping pattern
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 13
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::UanPhyCalcSinr.

Definition at line 108 of file uan-phy-gen.cc.

References m_hops, and ns3::TypeId::SetParent().

Here is the call graph for this function:
