an application which sends one ICMP ECHO request, waits for a REPLYs and reports the calculated RTT. More...

#include <v4ping.h>

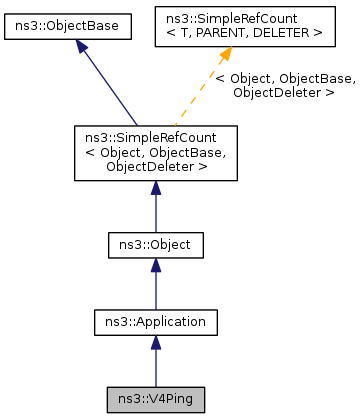

Inheritance diagram for ns3::V4Ping:

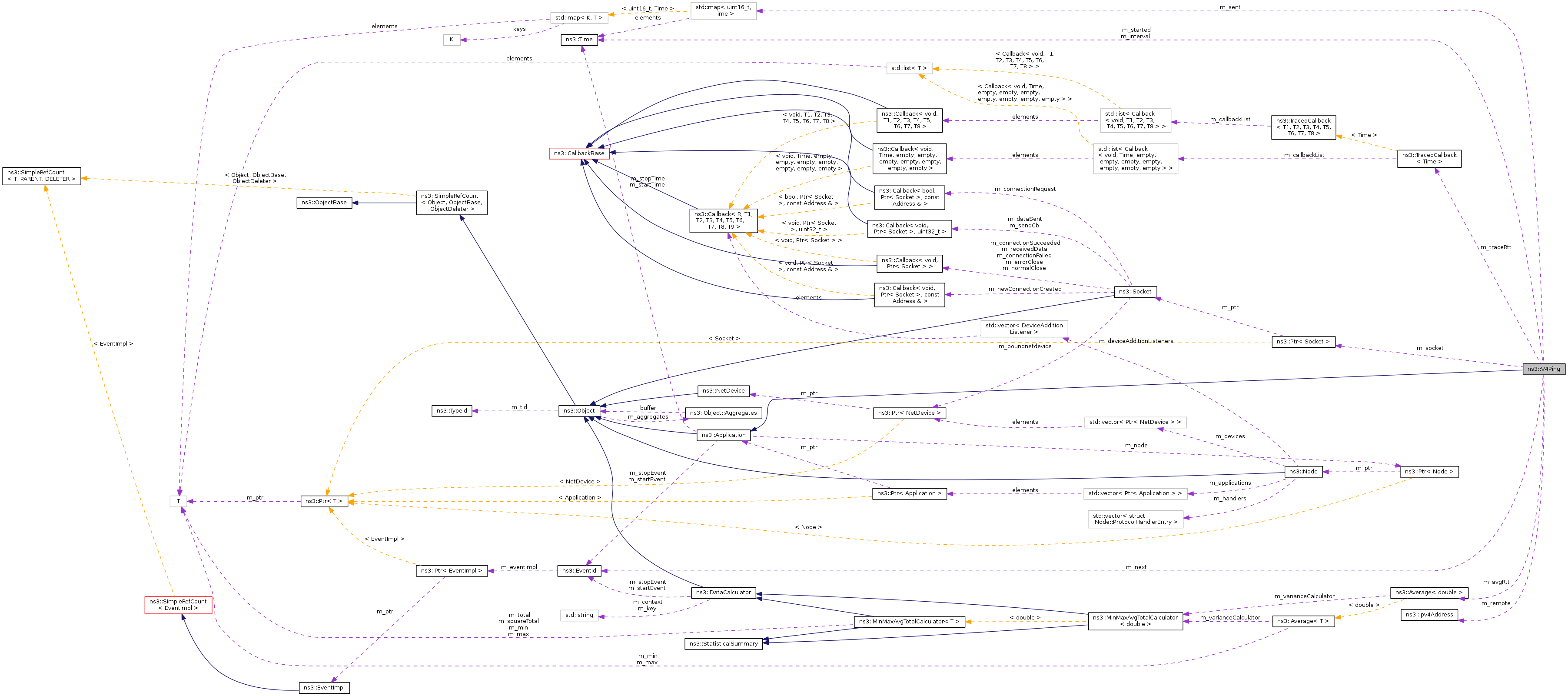

Collaboration diagram for ns3::V4Ping:

Public Member Functions
	V4Ping ()
virtual	~V4Ping ()
Public Member Functions inherited from ns3::Application
	Application ()
virtual	~Application ()
Ptr< Node >	GetNode () const
void	SetNode (Ptr< Node > node)
void	SetStartTime (Time start)
	Specify application start time.
void	SetStopTime (Time stop)
	Specify application stop time.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::V4Ping.

Private Member Functions
virtual void	DoDispose (void)
uint32_t	GetApplicationId (void) const
void	Read32 (const uint8_t *buffer, uint32_t &data)
void	Receive (Ptr< Socket > socket)
void	Send ()
virtual void	StartApplication (void)
virtual void	StopApplication (void)
void	Write32 (uint8_t *buffer, const uint32_t data)

Private Attributes
Average< double >	m_avgRtt
	Average rtt is ms.
Time	m_interval
	Wait interval seconds between sending each packet.
EventId	m_next
	Next packet will be sent.
uint32_t	m_recv
	received packets counter
Ipv4Address	m_remote
	Remote address.
std::map< uint16_t, Time >	m_sent
	All sent but not answered packets. Map icmp seqno -> when sent.
uint16_t	m_seq
uint32_t	m_size
Ptr< Socket >	m_socket
Time	m_started
	Start time to report total ping time.
TracedCallback< Time >	m_traceRtt
bool	m_verbose
	produce ping-style output if true

Additional Inherited Members
Protected Member Functions inherited from ns3::Application
virtual void	DoDispose (void)
virtual void	DoStart (void)
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
EventId	m_startEvent
Time	m_startTime
EventId	m_stopEvent
Time	m_stopTime

Detailed Description

an application which sends one ICMP ECHO request, waits for a REPLYs and reports the calculated RTT.

Note: The RTT calculated is reported through a trace source.

Definition at line 36 of file v4ping.h.

Constructor & Destructor Documentation

ns3::V4Ping::V4Ping ( )

create a pinger applications

Definition at line 64 of file v4ping.cc.

ns3::V4Ping::~V4Ping ( )

virtual

Definition at line 73 of file v4ping.cc.

Member Function Documentation

void ns3::V4Ping::DoDispose ( void )

privatevirtual

Definition at line 78 of file v4ping.cc.

References m_socket, and NS_LOG_FUNCTION.

uint32_t ns3::V4Ping::GetApplicationId ( void ) const

private

Definition at line 86 of file v4ping.cc.

References ns3::Node::GetApplication(), ns3::Node::GetNApplications(), ns3::Application::GetNode(), and NS_ASSERT_MSG.

Referenced by Receive(), and Send().

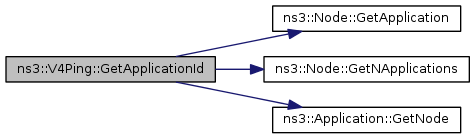

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::V4Ping::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::V4Ping.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::V4Ping

Attributes defined for this type:

Remote: The address of the machine we want to ping.
- Set with class: Ipv4AddressValue
- Underlying type: Ipv4Address
- Initial value: 102.102.102.102
- Flags: construct write read
Verbose: Produce usual output.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
Interval: Wait interval seconds between sending each packet.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +1000000000.0ns
- Flags: construct write read
Size: The number of data bytes to be sent, real packet will be 8 (ICMP) + 20 (IP) bytes longer.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 16:4294967295
- Initial value: 56
- Flags: construct write read

Attributes defined in parent class ns3::Application:

StartTime: Time at which the application will start
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read

TraceSources defined for this type:

Rtt: The rtt calculated by the ping.

Reimplemented from ns3::Application.

Definition at line 34 of file v4ping.cc.

References m_interval, m_remote, m_size, m_traceRtt, m_verbose, ns3::MakeTraceSourceAccessor(), ns3::Seconds(), and ns3::TypeId::SetParent().

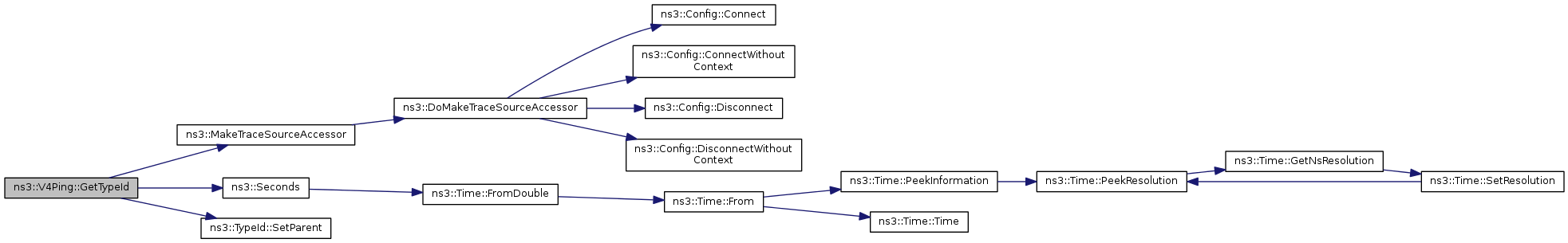

Here is the call graph for this function:

void ns3::V4Ping::Read32	(	const uint8_t *	buffer,
		uint32_t &	data
	)

private

Definition at line 176 of file v4ping.cc.

Referenced by Receive().

Here is the caller graph for this function:

void ns3::V4Ping::Receive ( Ptr< Socket > socket )

private

Definition at line 101 of file v4ping.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::Icmpv4Header::ECHO_REPLY, GetApplicationId(), ns3::Icmpv4Echo::GetData(), ns3::Icmpv4Echo::GetDataSize(), ns3::Icmpv4Echo::GetIdentifier(), ns3::InetSocketAddress::GetIpv4(), ns3::Time::GetMilliSeconds(), ns3::Application::GetNode(), ns3::InetSocketAddress::GetPort(), ns3::Socket::GetRxAvailable(), ns3::Icmpv4Echo::GetSequenceNumber(), ns3::Packet::GetSize(), ns3::InetSocketAddress::IsMatchingType(), m_avgRtt, m_recv, m_sent, m_size, m_socket, m_traceRtt, m_verbose, ns3::Now(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, Read32(), ns3::Socket::RecvFrom(), ns3::Packet::RemoveHeader(), and ns3::Average< T >::Update().

Referenced by StartApplication().

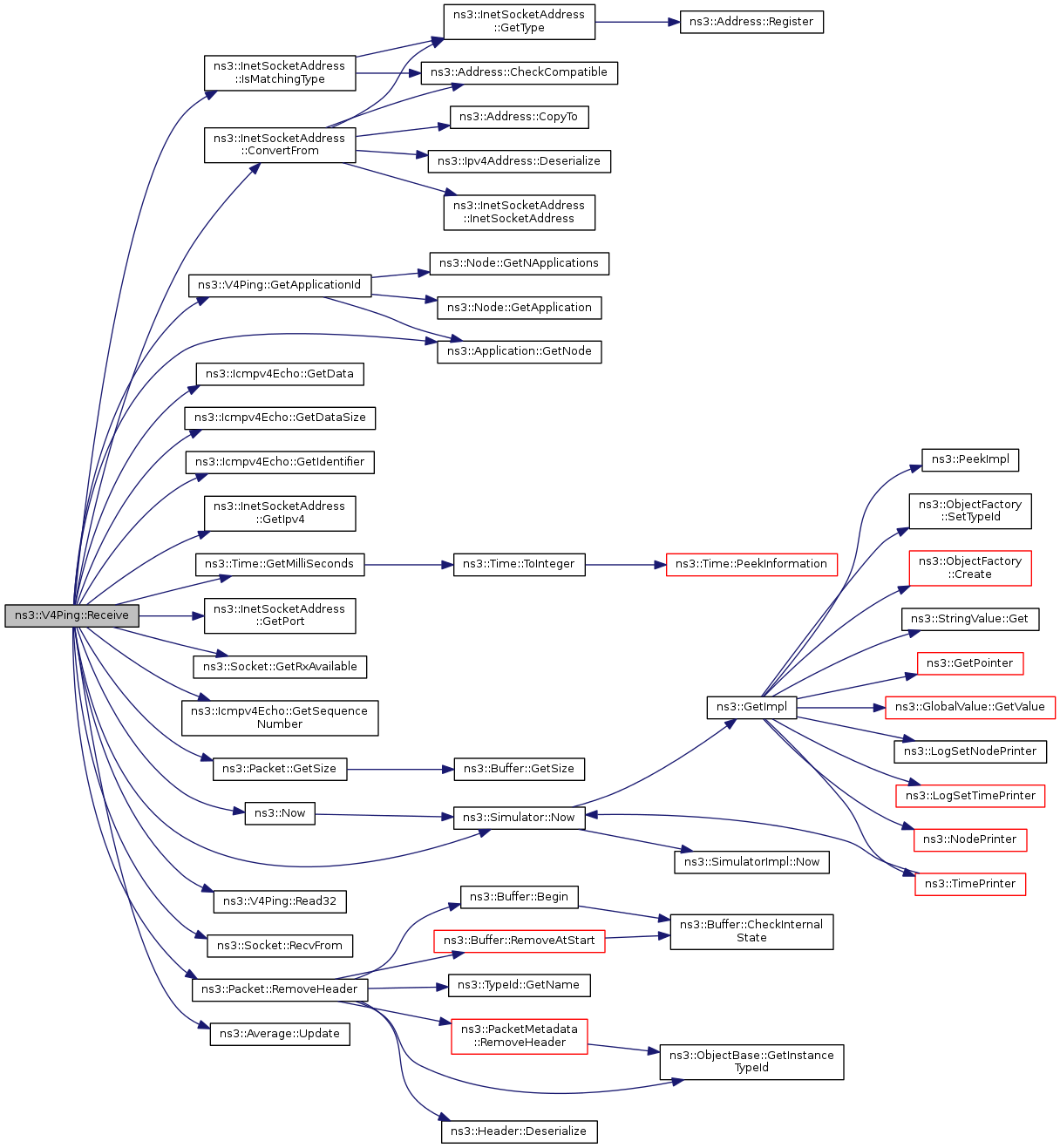

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::V4Ping::Send ( void )

private

Definition at line 182 of file v4ping.cc.

References ns3::Packet::AddHeader(), ns3::Node::ChecksumEnabled(), data, ns3::Icmpv4Header::ECHO, ns3::Icmpv4Header::EnableChecksum(), GetApplicationId(), ns3::Node::GetId(), ns3::Application::GetNode(), m_interval, m_next, m_sent, m_seq, m_size, m_socket, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Socket::Send(), ns3::Icmpv4Header::SetCode(), ns3::Icmpv4Echo::SetSequenceNumber(), ns3::Icmpv4Header::SetType(), and Write32().

Referenced by StartApplication().

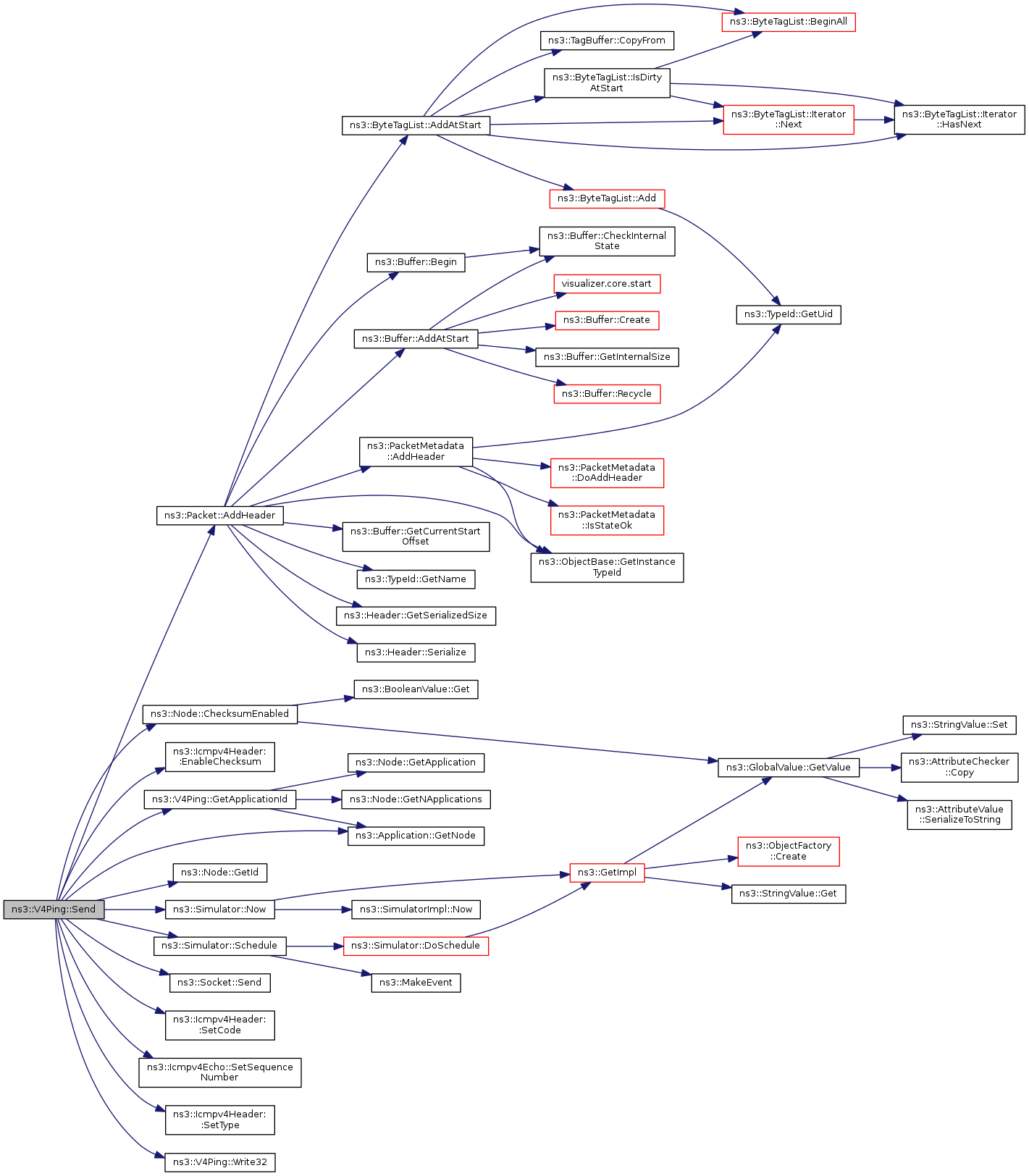

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::V4Ping::StartApplication ( void )

privatevirtual

Definition at line 225 of file v4ping.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), ns3::Application::GetNode(), ns3::TypeId::LookupByName(), m_remote, m_socket, m_started, m_verbose, ns3::MakeCallback(), ns3::Now(), NS_ASSERT, NS_LOG_FUNCTION, Receive(), Send(), ns3::ObjectBase::SetAttribute(), and ns3::Socket::SetRecvCallback().

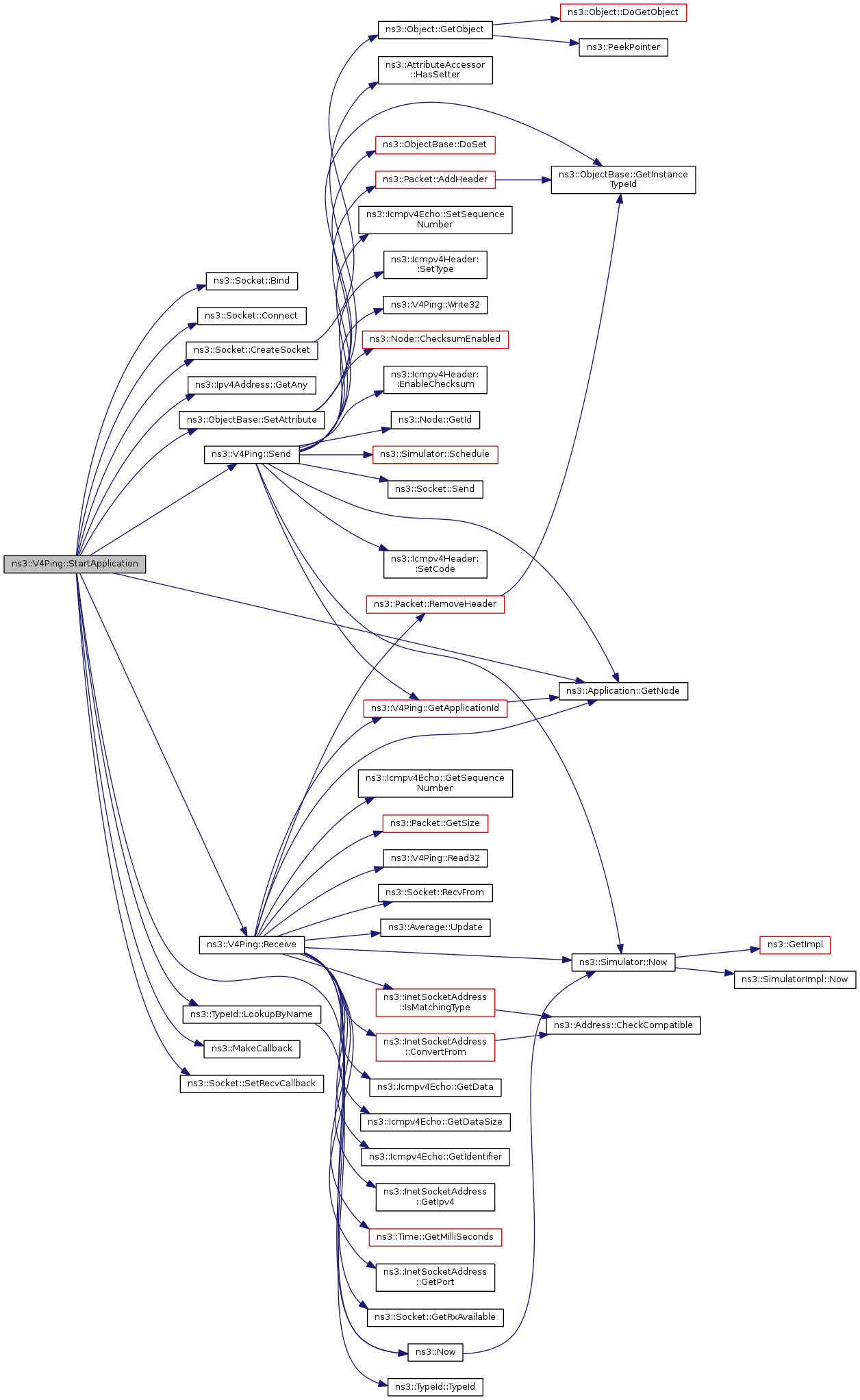

Here is the call graph for this function:

void ns3::V4Ping::StopApplication ( void )

privatevirtual

Definition at line 250 of file v4ping.cc.

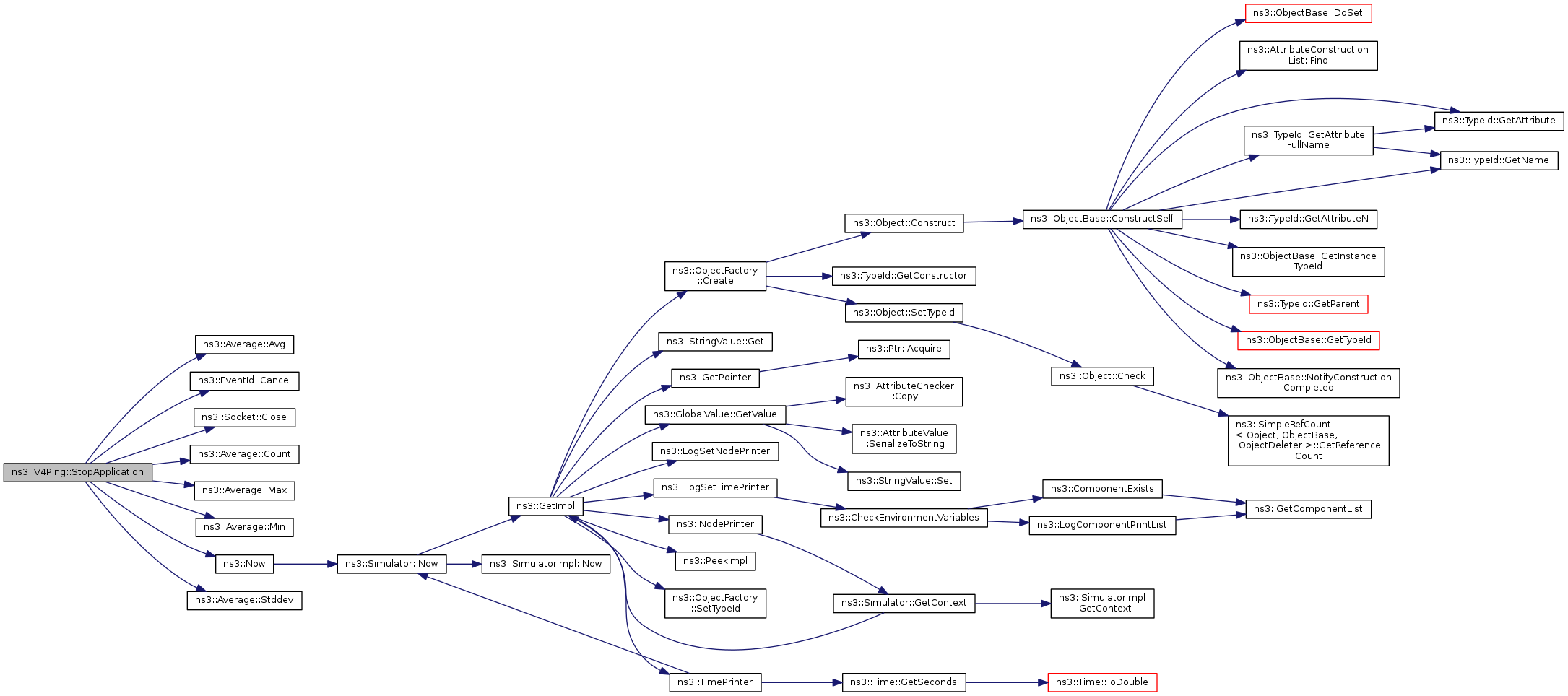

References ns3::Average< T >::Avg(), ns3::EventId::Cancel(), ns3::Socket::Close(), ns3::Average< T >::Count(), m_avgRtt, m_next, m_recv, m_remote, m_seq, m_socket, m_started, m_verbose, ns3::Average< T >::Max(), ns3::Average< T >::Min(), ns3::Now(), NS_LOG_FUNCTION, and ns3::Average< T >::Stddev().

Here is the call graph for this function:

void ns3::V4Ping::Write32	(	uint8_t *	buffer,
		const uint32_t	data
	)

private

Definition at line 166 of file v4ping.cc.

Referenced by Send().

Here is the caller graph for this function:

Member Data Documentation

Average<double> ns3::V4Ping::m_avgRtt

private

Average rtt is ms.

Definition at line 78 of file v4ping.h.

Referenced by Receive(), and StopApplication().

Time ns3::V4Ping::m_interval

private

Wait interval seconds between sending each packet.

Definition at line 62 of file v4ping.h.

Referenced by GetTypeId(), and Send().

EventId ns3::V4Ping::m_next

private

Next packet will be sent.

Definition at line 80 of file v4ping.h.

Referenced by Send(), and StopApplication().

uint32_t ns3::V4Ping::m_recv

private

received packets counter

Definition at line 74 of file v4ping.h.

Referenced by Receive(), and StopApplication().

Ipv4Address ns3::V4Ping::m_remote

private

Remote address.

Definition at line 60 of file v4ping.h.

Referenced by GetTypeId(), StartApplication(), and StopApplication().

std::map<uint16_t, Time> ns3::V4Ping::m_sent

private

All sent but not answered packets. Map icmp seqno -> when sent.

Definition at line 82 of file v4ping.h.

Referenced by Receive(), and Send().

uint16_t ns3::V4Ping::m_seq

private

Definition at line 69 of file v4ping.h.

Referenced by Send(), and StopApplication().

uint32_t ns3::V4Ping::m_size

private

Specifies the number of data bytes to be sent. The default is 56, which translates into 64 ICMP data bytes when combined with the 8 bytes of ICMP header data.

Definition at line 67 of file v4ping.h.

Referenced by GetTypeId(), Receive(), and Send().

Ptr<Socket> ns3::V4Ping::m_socket

private

Definition at line 68 of file v4ping.h.

Referenced by DoDispose(), Receive(), Send(), StartApplication(), and StopApplication().

Time ns3::V4Ping::m_started

private

Start time to report total ping time.

Definition at line 76 of file v4ping.h.

Referenced by StartApplication(), and StopApplication().

TracedCallback<Time> ns3::V4Ping::m_traceRtt

private

Definition at line 70 of file v4ping.h.

Referenced by GetTypeId(), and Receive().

bool ns3::V4Ping::m_verbose

private

produce ping-style output if true

Definition at line 72 of file v4ping.h.

Referenced by GetTypeId(), Receive(), StartApplication(), and StopApplication().

The documentation for this class was generated from the following files:

src/applications/model/v4ping.h
doc/introspected-doxygen.h
src/applications/model/v4ping.cc
