create a pinger application and associate it to a node More...

#include <v4ping-helper.h>

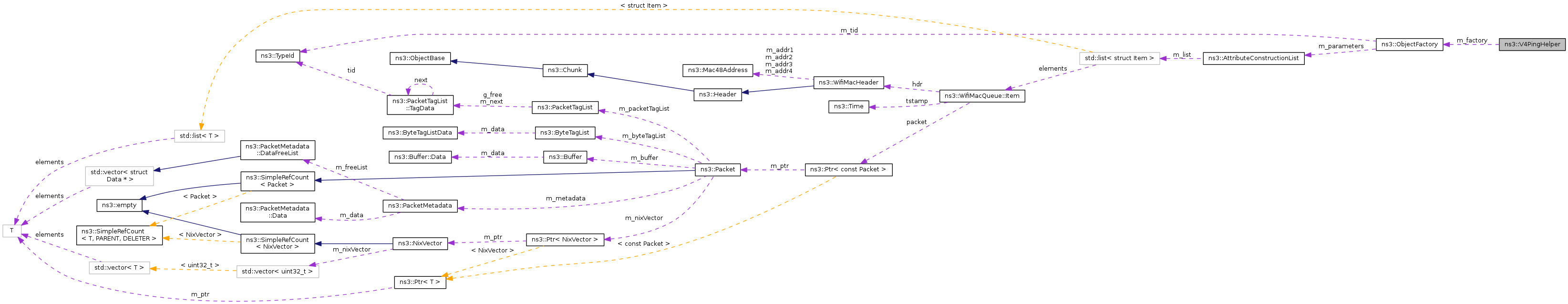

Collaboration diagram for ns3::V4PingHelper:

Public Member Functions
	V4PingHelper (Ipv4Address remote)
ApplicationContainer	Install (NodeContainer nodes) const
ApplicationContainer	Install (Ptr< Node > node) const
ApplicationContainer	Install (std::string nodeName) const
void	SetAttribute (std::string name, const AttributeValue &value)
	Configure ping applications attribute.

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const

Private Attributes
ObjectFactory	m_factory

Detailed Description

create a pinger application and associate it to a node

This class creates one or multiple instances of ns3::V4Ping and associates it/them to one/multiple node(s).

Definition at line 16 of file v4ping-helper.h.

Constructor & Destructor Documentation

ns3::V4PingHelper::V4PingHelper ( Ipv4Address remote )

Create a V4PingHelper which is used to make life easier for people wanting to use ping Applications.

Parameters

remote The address which should be pinged

Definition at line 27 of file v4ping-helper.cc.

References m_factory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

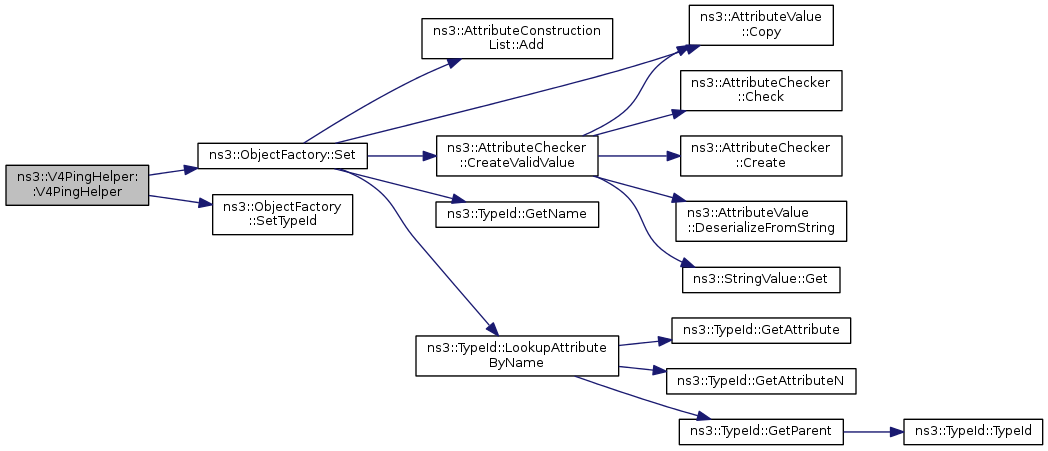

Here is the call graph for this function:

Member Function Documentation

ApplicationContainer ns3::V4PingHelper::Install ( NodeContainer nodes ) const

Install a pinger application on each Node in the provided NodeContainer.

Parameters

nodes The NodeContainer containing all of the nodes to get a V4Ping application.

Returns: A list of pinger applications, one for each input node

Definition at line 53 of file v4ping-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Referenced by CsmaPingTestCase::DoRun(), and main().

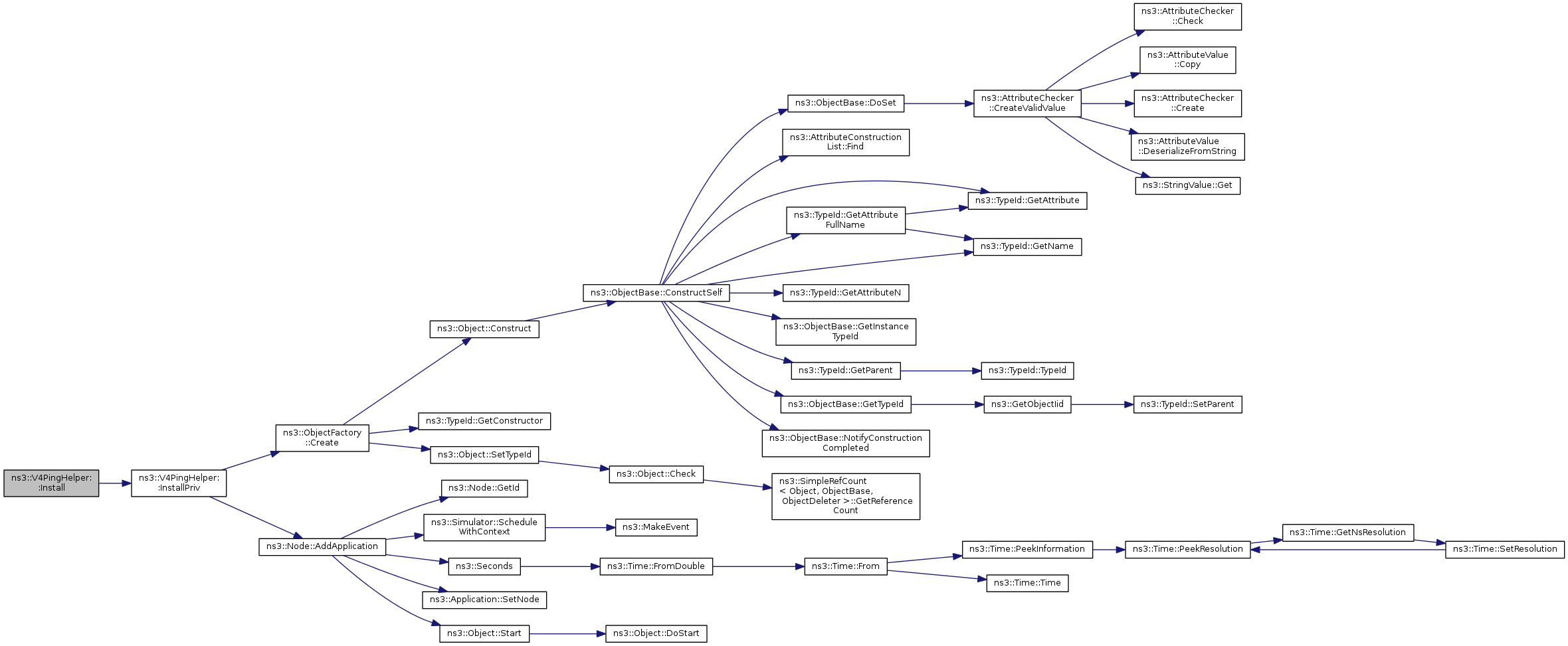

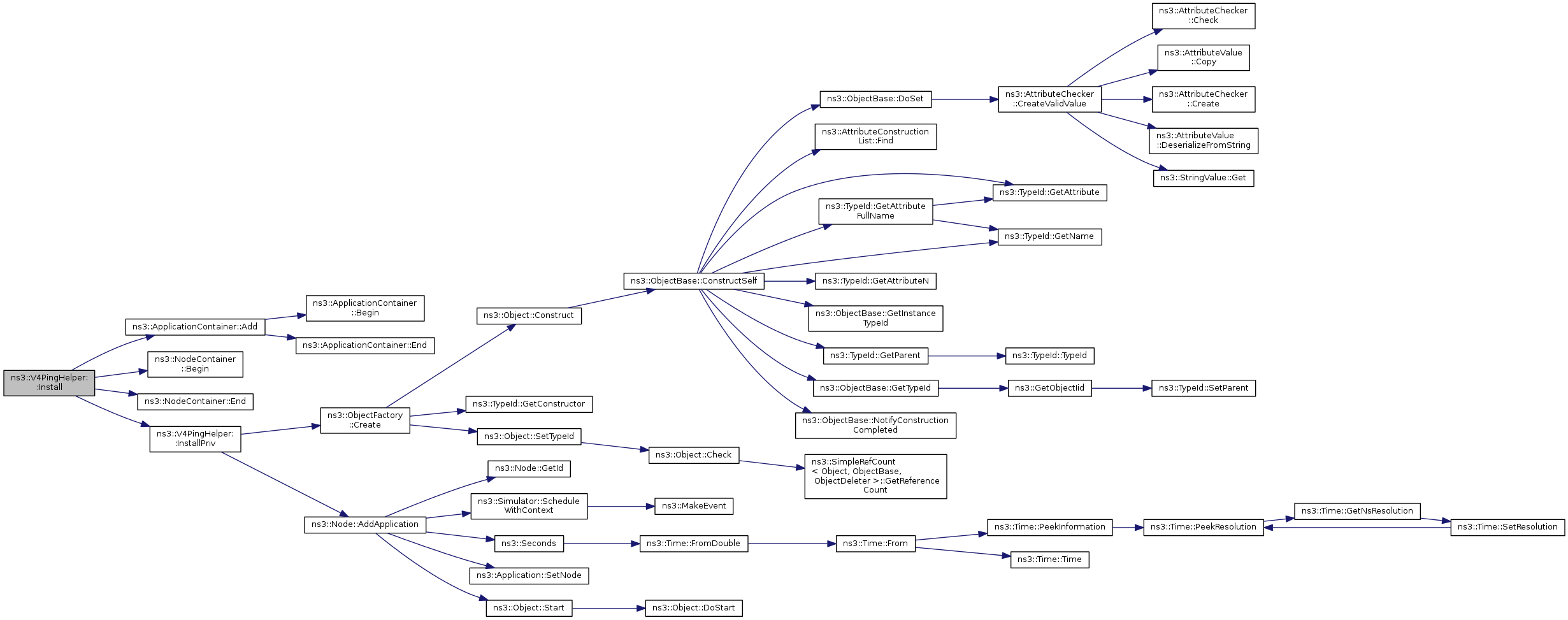

Here is the call graph for this function:

Here is the caller graph for this function:

ApplicationContainer ns3::V4PingHelper::Install ( Ptr< Node > node ) const

Install a pinger application on the provided Node. The Node is specified directly by a Ptr<Node>

Parameters

node	The node to install the V4PingApplication on.

Returns: An ApplicationContainer holding the pinger application created.

Definition at line 40 of file v4ping-helper.cc.

References InstallPriv().

Here is the call graph for this function:

ApplicationContainer ns3::V4PingHelper::Install ( std::string nodeName ) const

Install a pinger application on the provided Node. The Node is specified by a string that must have previously been associated with a Node using the Object Name Service.

Parameters

nodeName The node to install the V4PingApplication on.
