ns3::flame::FlameTag Class Reference

Transmitter and receiver addresses. More...

#include <flame-protocol.h>

Inheritance diagram for ns3::flame::FlameTag:

Collaboration diagram for ns3::flame::FlameTag:

Public Member Functions
	FlameTag (Mac48Address a=Mac48Address())

Public Attributes
Mac48Address	receiver
	Receiver of the packet:
Mac48Address	transmitter
	transmitter for incoming:

Inherited from Tag
TypeId	GetInstanceTypeId () const
uint32_t	GetSerializedSize () const
void	Serialize (TagBuffer i) const
void	Deserialize (TagBuffer i)
void	Print (std::ostream &os) const
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::flame::FlameTag.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Transmitter and receiver addresses.

Definition at line 54 of file flame-protocol.h.

Constructor & Destructor Documentation

ns3::flame::FlameTag::FlameTag ( Mac48Address  a = Mac48Address () )

inline

Definition at line 62 of file flame-protocol.h.

Member Function Documentation

void ns3::flame::FlameTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 81 of file flame-protocol.cc.

References ns3::Mac48Address::CopyFrom(), ns3::TagBuffer::ReadU8(), receiver, and transmitter.

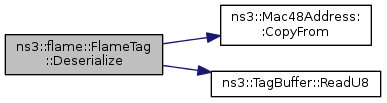

Here is the call graph for this function:

TypeId ns3::flame::FlameTag::GetInstanceTypeId ( ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 52 of file flame-protocol.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::flame::FlameTag::GetSerializedSize ( ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 58 of file flame-protocol.cc.

TypeId ns3::flame::FlameTag::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::flame::FlameTag.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Tag.

Definition at line 45 of file flame-protocol.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::flame::FlameTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 98 of file flame-protocol.cc.

References receiver, and transmitter.

void ns3::flame::FlameTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 64 of file flame-protocol.cc.

References ns3::Mac48Address::CopyTo(), receiver, transmitter, and ns3::TagBuffer::WriteU8().

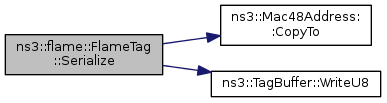

Here is the call graph for this function:

Member Data Documentation

Mac48Address ns3::flame::FlameTag::receiver

Receiver of the packet:

Definition at line 60 of file flame-protocol.h.

Referenced by Deserialize(), Print(), ns3::flame::FlameProtocolMac::Receive(), ns3::flame::FlameProtocol::RequestRoute(), Serialize(), and ns3::flame::FlameProtocolMac::UpdateOutcomingFrame().

Mac48Address ns3::flame::FlameTag::transmitter

transmitter for incoming:

Definition at line 58 of file flame-protocol.h.

Referenced by Deserialize(), Print(), ns3::flame::FlameProtocolMac::Receive(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), ns3::flame::FlameProtocol::RequestRoute(), and Serialize().

---

The documentation for this class was generated from the following files:

• src/mesh/model/flame/flame-protocol.h
• doc/introspected-doxygen.h
• src/mesh/model/flame/flame-protocol.cc
