ns3::PollTable Class Reference

#include <wait-queue.h>

Inheritance diagram for ns3::PollTable:

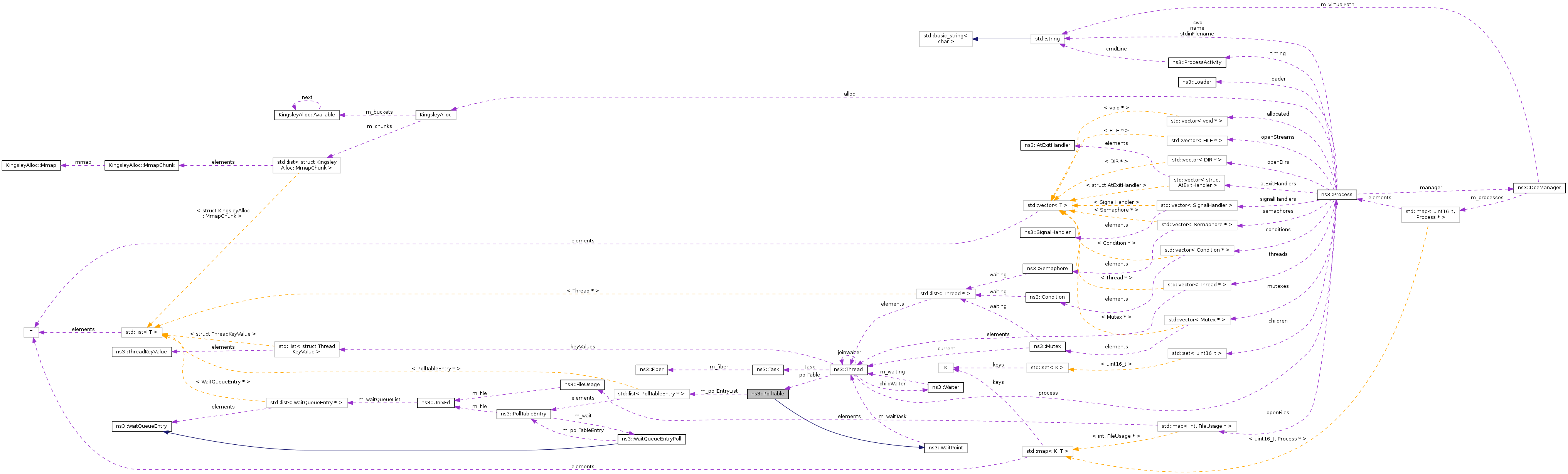

Collaboration diagram for ns3::PollTable:

Public Member Functions
	PollTable ()
	~PollTable ()
void	FreeWait ()
short	GetEventMask () const
void	PollWait (UnixFd *file)
void	PollWait (void *ref, Callback< void, void * > cb)
void	SetEventMask (short e)
Public Member Functions inherited from ns3::WaitPoint
	WaitPoint ()
WaitPoint::Result	Wait (Time to)
void	WakeUpCallback ()

Private Attributes
short	m_eventMask
std::list< PollTableEntry * >	m_pollEntryList

Additional Inherited Members
Public Types inherited from ns3::WaitPoint
enum	Result { INTERRUPTED, TIMEOUT, OK }

Detailed Description

Poll table used to store WaitQueues of waiting files.

Definition at line 131 of file wait-queue.h.

Constructor & Destructor Documentation

ns3::PollTable::PollTable

(

)

Definition at line 135 of file wait-queue.cc.

ns3::PollTable::~PollTable

(

)

Definition at line 139 of file wait-queue.cc.

References m_pollEntryList.

Member Function Documentation

void ns3::PollTable::FreeWait

(

)

Definition at line 164 of file wait-queue.cc.

References m_pollEntryList.

Referenced by ns3::DceManager::CleanupThread(), and dce_poll().

Here is the caller graph for this function:

short ns3::PollTable::GetEventMask

(

)

const

Definition at line 178 of file wait-queue.cc.

References m_eventMask.

Referenced by ns3::LinuxSocketFdFactory::Poll().

Here is the caller graph for this function:

void ns3::PollTable::PollWait

(

UnixFd *

file

)

Definition at line 150 of file wait-queue.cc.

References ns3::UnixFd::AddWaitQueue(), m_eventMask, m_pollEntryList, ns3::WaitQueueEntryPoll::SetPollTableEntry(), and ns3::WaitPoint::WakeUpCallback().

Referenced by ns3::UnixDatagramSocketFd::Poll(), ns3::UnixStreamSocketFd::Poll(), ns3::UnixFileFdBase::Poll(), ns3::UnixTimerFd::Poll(), ns3::LocalDatagramSocketFd::Poll(), ns3::LinuxSocketFdFactory::Poll(), ns3::PipeFd::Poll(), and ns3::LocalStreamSocketFd::Poll().

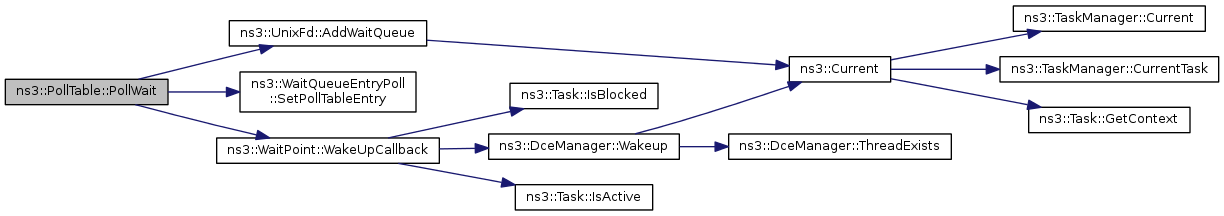

Here is the call graph for this function:

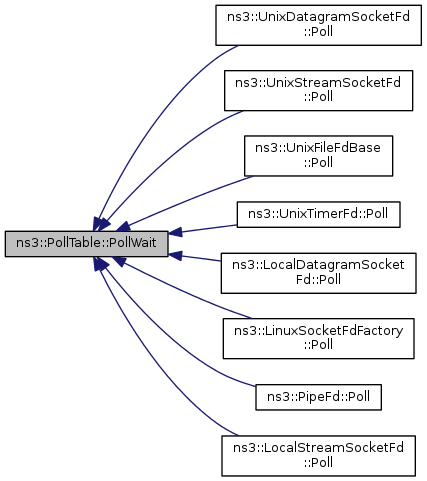

Here is the caller graph for this function:

void ns3::PollTable::PollWait	(	void *	ref,
		Callback< void, void * >	cb
	)

Definition at line 159 of file wait-queue.cc.

References m_pollEntryList.

void ns3::PollTable::SetEventMask

(

short

e

)

Definition at line 173 of file wait-queue.cc.

References m_eventMask.

Referenced by dce_poll(), and ns3::LinuxSocketImpl::Poll().

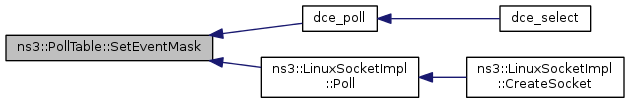

Here is the caller graph for this function:

Member Data Documentation

short ns3::PollTable::m_eventMask

private

Definition at line 147 of file wait-queue.h.

Referenced by GetEventMask(), PollWait(), and SetEventMask().

std::list<PollTableEntry*> ns3::PollTable::m_pollEntryList

private

Definition at line 146 of file wait-queue.h.

Referenced by FreeWait(), PollWait(), and ~PollTable().

---

The documentation for this class was generated from the following files:

• model/wait-queue.h
• model/wait-queue.cc
