ns3::PollTableEntry Class Reference

#include <wait-queue.h>

Inheritance diagram for ns3::PollTableEntry:

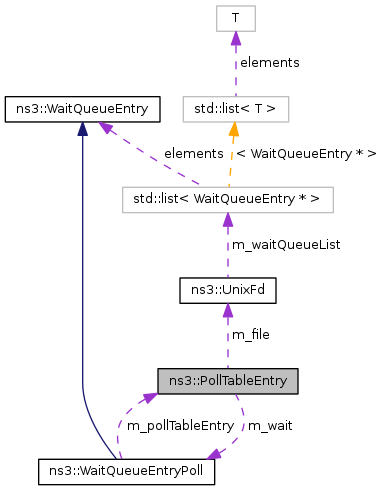

Collaboration diagram for ns3::PollTableEntry:

Public Member Functions
	PollTableEntry ()
	PollTableEntry (UnixFd *file, WaitQueueEntryPoll *wait, short eventMask)
virtual	~PollTableEntry ()
virtual void	FreeWait ()
int	IsEventMatch (short e) const

Private Attributes
short const	m_eventMask
UnixFd *const	m_file
WaitQueueEntryPoll *const	m_wait

Detailed Description

Entry in the following Poll Table, Each pollable file must subscribe itself in the PollTable by creating a PollTableEntry when it is involved in a poll call

Definition at line 81 of file wait-queue.h.

Constructor & Destructor Documentation

ns3::PollTableEntry::PollTableEntry

(

)

Definition at line 58 of file wait-queue.cc.

ns3::PollTableEntry::PollTableEntry	(	UnixFd *	file,
		WaitQueueEntryPoll *	wait,
		short	eventMask
	)

Parameters

file,:	the involved file,
wait,:	the wait queue entry in the wait queue of the file,
eventMask,:	Set of wanted events

Definition at line 63 of file wait-queue.cc.

ns3::PollTableEntry::~PollTableEntry ( )

virtual

Definition at line 69 of file wait-queue.cc.

References m_wait.

Member Function Documentation

void ns3::PollTableEntry::FreeWait ( )

virtual

Free the wait queue entry

Reimplemented in ns3::PollTableEntryLinux.

Definition at line 77 of file wait-queue.cc.

References m_file, m_wait, and ns3::UnixFd::RemoveWaitQueue().

Here is the call graph for this function:

int ns3::PollTableEntry::IsEventMatch

(

short

e

)

const

Definition at line 83 of file wait-queue.cc.

References m_eventMask.

Referenced by ns3::WaitQueueEntryPoll::WakeUp().

Here is the caller graph for this function:

Member Data Documentation

short const ns3::PollTableEntry::m_eventMask

private

Definition at line 102 of file wait-queue.h.

Referenced by IsEventMatch().

UnixFd* const ns3::PollTableEntry::m_file

private

Definition at line 100 of file wait-queue.h.

Referenced by FreeWait().

WaitQueueEntryPoll* const ns3::PollTableEntry::m_wait

private

Definition at line 101 of file wait-queue.h.

Referenced by FreeWait(), and ~PollTableEntry().

---

The documentation for this class was generated from the following files:

• model/wait-queue.h
• model/wait-queue.cc
