ns3::WaitQueueEntryPoll Class Reference

#include <wait-queue.h>

Inheritance diagram for ns3::WaitQueueEntryPoll:

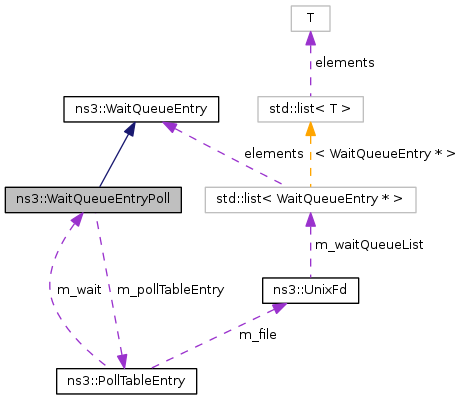

Collaboration diagram for ns3::WaitQueueEntryPoll:

Public Member Functions
	WaitQueueEntryPoll (Callback< void > cb)
void	SetPollTableEntry (PollTableEntry *p)
virtual void	WakeUp (void *key)
Public Member Functions inherited from ns3::WaitQueueEntry
	WaitQueueEntry ()

Private Attributes
Callback< void > const	m_func
PollTableEntry *	m_pollTableEntry

Detailed Description

WaitQueueEntry specialised for poll usage.

Definition at line 59 of file wait-queue.h.

Constructor & Destructor Documentation

ns3::WaitQueueEntryPoll::WaitQueueEntryPoll

(

Callback< void >

cb

)

Parameters

cb callback used to wake up the waiter task.

Definition at line 38 of file wait-queue.cc.

Member Function Documentation

void ns3::WaitQueueEntryPoll::SetPollTableEntry

(

PollTableEntry *

p

)

Definition at line 43 of file wait-queue.cc.

References m_pollTableEntry.

Referenced by ns3::PollTable::PollWait().

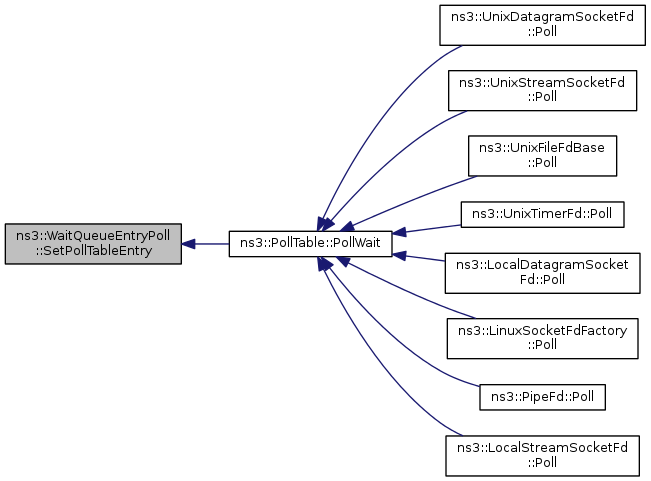

Here is the caller graph for this function:

void ns3::WaitQueueEntryPoll::WakeUp ( void *  key )

virtual

Implements ns3::WaitQueueEntry.

Definition at line 49 of file wait-queue.cc.

References ns3::PollTableEntry::IsEventMatch(), m_func, and m_pollTableEntry.

Here is the call graph for this function:

Member Data Documentation

Callback<void> const ns3::WaitQueueEntryPoll::m_func

private

Definition at line 72 of file wait-queue.h.

Referenced by WakeUp().

PollTableEntry* ns3::WaitQueueEntryPoll::m_pollTableEntry

private

Definition at line 73 of file wait-queue.h.

Referenced by SetPollTableEntry(), and WakeUp().

---

The documentation for this class was generated from the following files:

• model/wait-queue.h
• model/wait-queue.cc
