ns3::Icmpv6Header Class Reference

ICMPv6 header. More...

#include <icmpv6-header.h>

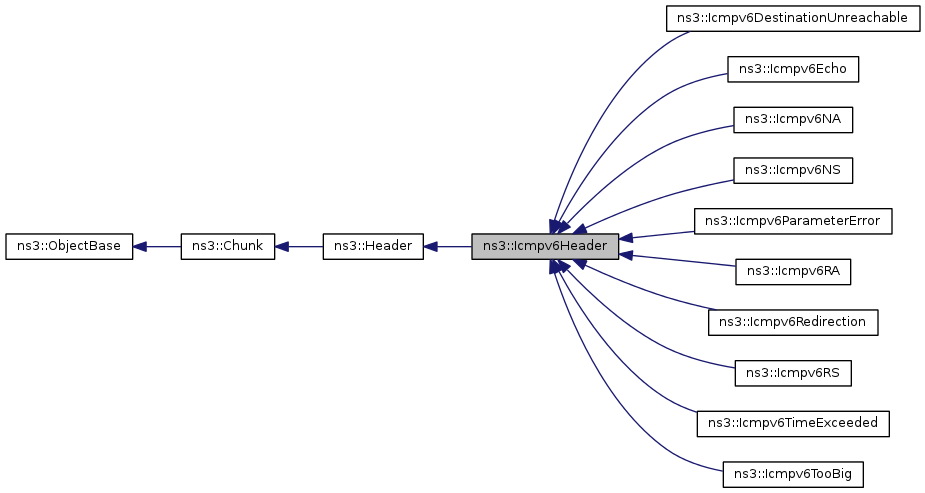

Inheritance diagram for ns3::Icmpv6Header:

Collaboration diagram for ns3::Icmpv6Header:

Public Types
enum	ErrorDestinationUnreachable_e {   ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE,   ICMPV6_PORT_UNREACHABLE }
	ICMPv6 error code : Destination Unreachable. More...
enum	ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
	ICMPv6 error code : Parameter Error. More...
enum	ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
	ICMPv6 error code : Time Exceeded. More...
enum	OptionType_e {   ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED,   ICMPV6_OPT_MTU }
	ICMPv6 Option type code. More...
enum	Type_e {   ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR,   ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT,   ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION,   ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST,   ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT,   ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION,   ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY }
	ICMPv6 type code. More...

Public Member Functions
	Icmpv6Header ()
	Constructor.
virtual	~Icmpv6Header ()
	Destructor.
void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
uint16_t	GetChecksum () const
	Get the checksum.
uint8_t	GetCode () const
	Get the code field.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
uint8_t	GetType () const
	Get the type field.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetChecksum (uint16_t checksum)
	Set the checksum.
void	SetCode (uint8_t code)
	Set the code field.
void	SetType (uint8_t type)
	Set the type.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Protected Attributes
bool	m_calcChecksum
	Checksum enable or not.
uint16_t	m_checksum
	The checksum.

Private Attributes
uint8_t	m_code
	The code.
uint8_t	m_type
	The type.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

ICMPv6 header.

Definition at line 37 of file icmpv6-header.h.

Member Enumeration Documentation

enum ns3::Icmpv6Header::ErrorDestinationUnreachable_e

ICMPv6 error code : Destination Unreachable.

Enumerator:

ICMPV6_NO_ROUTE
ICMPV6_ADM_PROHIBITED
ICMPV6_NOT_NEIGHBOUR
ICMPV6_ADDR_UNREACHABLE
ICMPV6_PORT_UNREACHABLE

Definition at line 91 of file icmpv6-header.h.

enum ns3::Icmpv6Header::ErrorParameterError_e

ICMPv6 error code : Parameter Error.

Enumerator:

ICMPV6_MALFORMED_HEADER
ICMPV6_UNKNOWN_NEXT_HEADER
ICMPV6_UNKNOWN_OPTION

Definition at line 114 of file icmpv6-header.h.

enum ns3::Icmpv6Header::ErrorTimeExceeded_e

ICMPv6 error code : Time Exceeded.

Enumerator:

ICMPV6_HOPLIMIT
ICMPV6_FRAGTIME

Definition at line 104 of file icmpv6-header.h.

enum ns3::Icmpv6Header::OptionType_e

ICMPv6 Option type code.

Enumerator:

ICMPV6_OPT_LINK_LAYER_SOURCE
ICMPV6_OPT_LINK_LAYER_TARGET
ICMPV6_OPT_PREFIX
ICMPV6_OPT_REDIRECTED
ICMPV6_OPT_MTU

Definition at line 78 of file icmpv6-header.h.

enum ns3::Icmpv6Header::Type_e

ICMPv6 type code.

Enumerator:

ICMPV6_ERROR_DESTINATION_UNREACHABLE
ICMPV6_ERROR_PACKET_TOO_BIG
ICMPV6_ERROR_TIME_EXCEEDED
ICMPV6_ERROR_PARAMETER_ERROR
ICMPV6_ECHO_REQUEST
ICMPV6_ECHO_REPLY
ICMPV6_SUBSCRIBE_REQUEST
ICMPV6_SUBSCRIBE_REPORT
ICMPV6_SUBSCRIVE_END
ICMPV6_ND_ROUTER_SOLICITATION
ICMPV6_ND_ROUTER_ADVERTISEMENT
ICMPV6_ND_NEIGHBOR_SOLICITATION
ICMPV6_ND_NEIGHBOR_ADVERTISEMENT
ICMPV6_ND_REDIRECTION
ICMPV6_ROUTER_RENUMBER
ICMPV6_INFORMATION_REQUEST
ICMPV6_INFORMATION_RESPONSE
ICMPV6_INVERSE_ND_SOLICITATION
ICMPV6_INVERSE_ND_ADVERSTISEMENT
ICMPV6_MLDV2_SUBSCRIBE_REPORT
ICMPV6_MOBILITY_HA_DISCOVER_REQUEST
ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE
ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION
ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION
ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT
ICMPV6_EXPERIMENTAL_MOBILITY

Definition at line 44 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6Header::Icmpv6Header

(

)

Constructor.

Definition at line 50 of file icmpv6-header.cc.

ns3::Icmpv6Header::~Icmpv6Header ( )

virtual

Destructor.

Definition at line 58 of file icmpv6-header.cc.

Member Function Documentation

void ns3::Icmpv6Header::CalculatePseudoHeaderChecksum	(	Ipv6Address	src,
		Ipv6Address	dst,
		uint16_t	length,
		uint8_t	protocol
	)

Calculate pseudo header checksum for IPv6.

Parameters

src	source address
dst	destination address
length	length
protocol	the protocol number to use in the underlying IPv6 packet.

Definition at line 136 of file icmpv6-header.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), ns3::Buffer::Iterator::CalculateIpChecksum(), m_checksum, ns3::Ipv6Address::Serialize(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::Icmpv6L4Protocol::ForgeNA(), ns3::Icmpv6L4Protocol::ForgeNS(), ns3::Icmpv6L4Protocol::ForgeRS(), ns3::Icmpv6L4Protocol::SendEchoReply(), ns3::Icmpv6L4Protocol::SendMessage(), and ns3::Ipv6RawSocketImpl::SendTo().

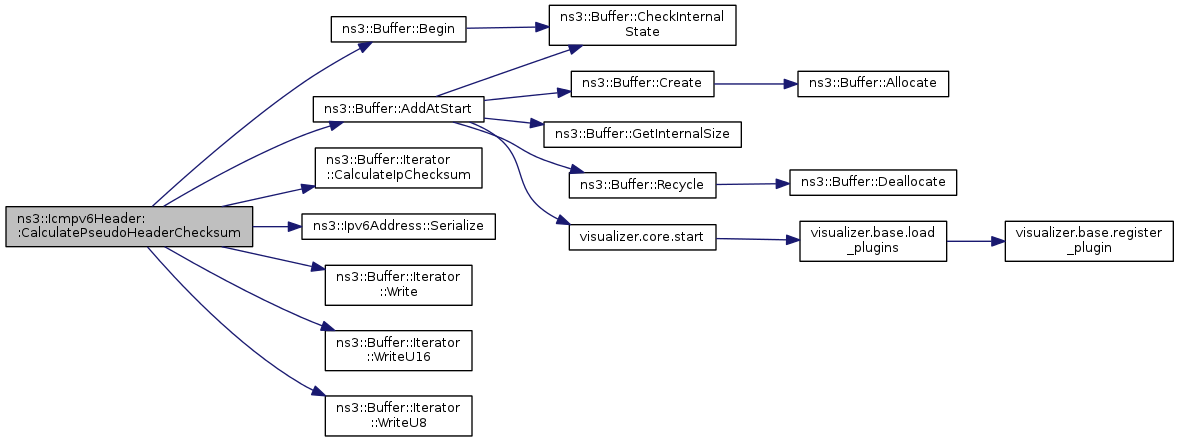

Here is the call graph for this function:

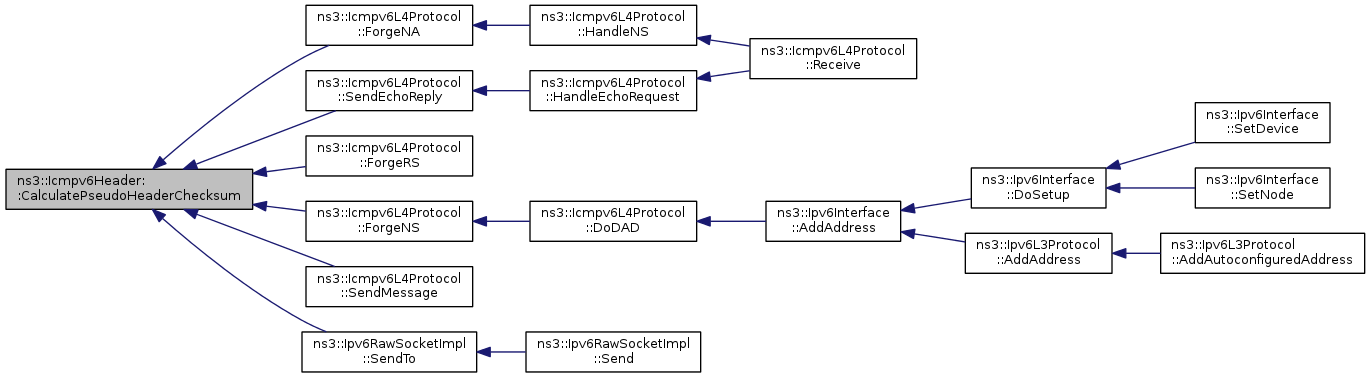

Here is the caller graph for this function:

uint32_t ns3::Icmpv6Header::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

start offset

Returns

length of packet

Implements ns3::Header.

Reimplemented in ns3::Icmpv6ParameterError, ns3::Icmpv6TimeExceeded, ns3::Icmpv6TooBig, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6Echo, ns3::Icmpv6Redirection, ns3::Icmpv6RS, ns3::Icmpv6RA, ns3::Icmpv6NA, and ns3::Icmpv6NS.

Definition at line 102 of file icmpv6-header.cc.

References GetSerializedSize(), m_checksum, m_code, m_type, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

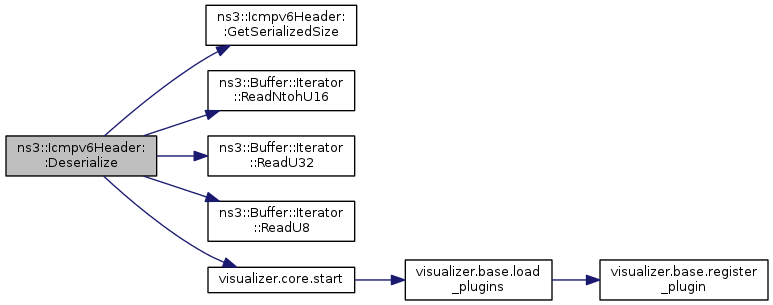

Here is the call graph for this function:

uint16_t ns3::Icmpv6Header::GetChecksum

(

)

const

Get the checksum.

Returns

checksum

Definition at line 82 of file icmpv6-header.cc.

References m_checksum.

Referenced by ns3::Icmpv6NS::Print(), ns3::Icmpv6NA::Print(), ns3::Icmpv6RA::Print(), ns3::Icmpv6RS::Print(), ns3::Icmpv6Redirection::Print(), ns3::Icmpv6Echo::Print(), ns3::Icmpv6DestinationUnreachable::Print(), ns3::Icmpv6TooBig::Print(), ns3::Icmpv6TimeExceeded::Print(), ns3::Icmpv6ParameterError::Print(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6RA::Serialize(), ns3::Icmpv6RS::Serialize(), ns3::Icmpv6Redirection::Serialize(), ns3::Icmpv6Echo::Serialize(), ns3::Icmpv6DestinationUnreachable::Serialize(), ns3::Icmpv6TooBig::Serialize(), ns3::Icmpv6TimeExceeded::Serialize(), and ns3::Icmpv6ParameterError::Serialize().

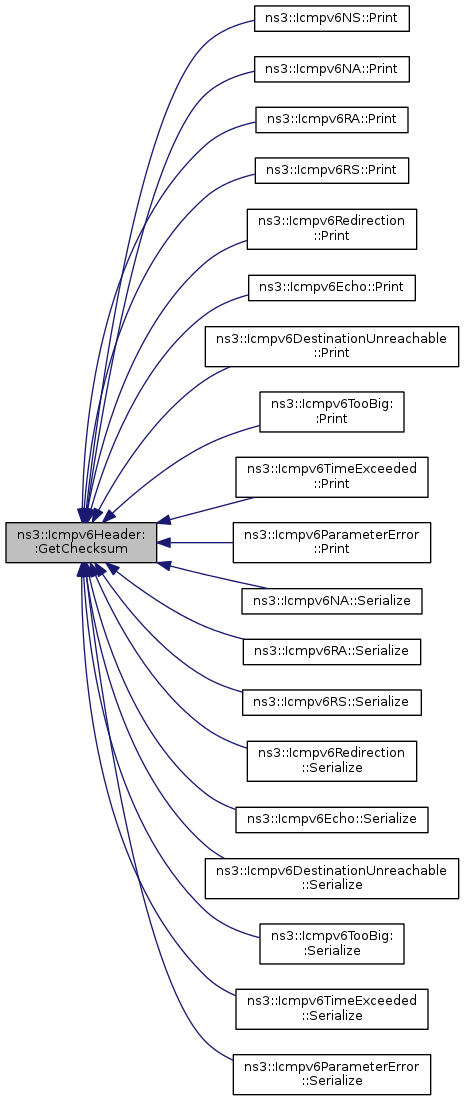

Here is the caller graph for this function:

uint8_t ns3::Icmpv6Header::GetCode

(

void

)

const

Get the code field.

Returns

code of ICMPv6 message

Definition at line 72 of file icmpv6-header.cc.

References m_code.

Referenced by ns3::Icmpv6L4Protocol::Forward(), ns3::Icmpv6L4Protocol::HandleDestinationUnreachable(), ns3::Icmpv6L4Protocol::HandleParameterError(), ns3::Radvd::HandleRead(), ns3::Icmpv6L4Protocol::HandleTimeExceeded(), ns3::Icmpv6NS::Print(), ns3::Icmpv6NA::Print(), ns3::Icmpv6RA::Print(), ns3::Icmpv6RS::Print(), ns3::Icmpv6Redirection::Print(), ns3::Icmpv6Echo::Print(), ns3::Icmpv6DestinationUnreachable::Print(), ns3::Icmpv6TooBig::Print(), ns3::Icmpv6TimeExceeded::Print(), ns3::Icmpv6ParameterError::Print(), ns3::Icmpv6NS::Serialize(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6RA::Serialize(), ns3::Icmpv6RS::Serialize(), ns3::Icmpv6Redirection::Serialize(), ns3::Icmpv6Echo::Serialize(), ns3::Icmpv6DestinationUnreachable::Serialize(), ns3::Icmpv6TooBig::Serialize(), ns3::Icmpv6TimeExceeded::Serialize(), and ns3::Icmpv6ParameterError::Serialize().

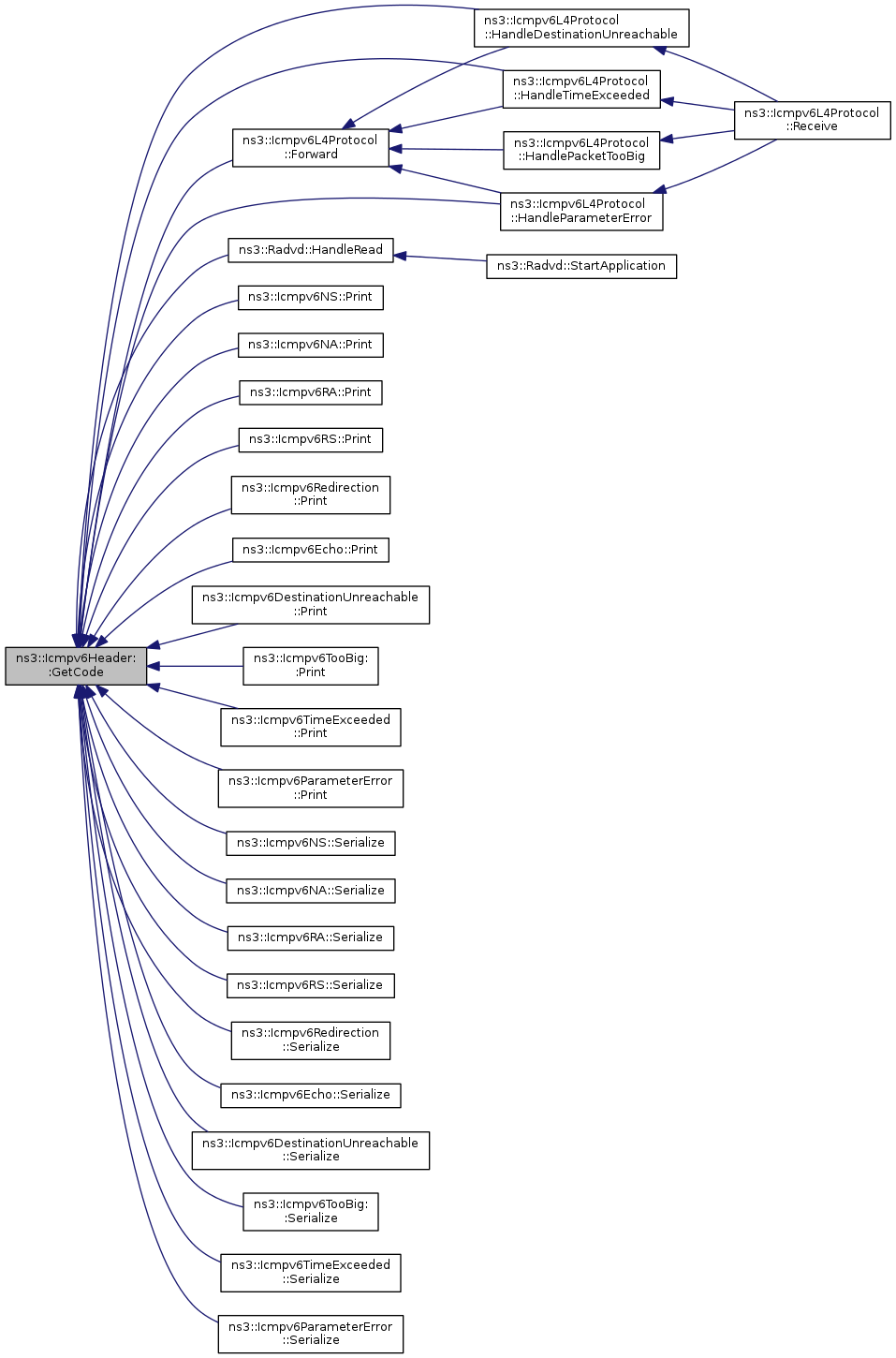

Here is the caller graph for this function:

TypeId ns3::Icmpv6Header::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Icmpv6ParameterError, ns3::Icmpv6TimeExceeded, ns3::Icmpv6TooBig, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6Echo, ns3::Icmpv6Redirection, ns3::Icmpv6RS, ns3::Icmpv6RA, ns3::Icmpv6NA, and ns3::Icmpv6NS.

Definition at line 45 of file icmpv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::Icmpv6Header::GetSerializedSize ( void  ) const

virtual

Get the serialized size.

Returns

serialized size

Implements ns3::Header.

Reimplemented in ns3::Icmpv6ParameterError, ns3::Icmpv6TimeExceeded, ns3::Icmpv6TooBig, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6Echo, ns3::Icmpv6Redirection, ns3::Icmpv6RS, ns3::Icmpv6RA, ns3::Icmpv6NA, and ns3::Icmpv6NS.

Definition at line 97 of file icmpv6-header.cc.

Referenced by Deserialize(), and ns3::Icmpv6L4Protocol::SendMessage().

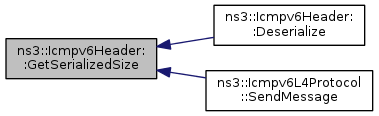

Here is the caller graph for this function:

uint8_t ns3::Icmpv6Header::GetType

(

void

)

const

Get the type field.

Returns

type of ICMPv6 message

Definition at line 62 of file icmpv6-header.cc.

References m_type.

Referenced by ns3::Icmpv6L4Protocol::Forward(), ns3::Ipv6RawSocketImpl::ForwardUp(), ns3::Icmpv6NS::Print(), ns3::Icmpv6NA::Print(), ns3::Icmpv6RA::Print(), ns3::Icmpv6RS::Print(), ns3::Icmpv6Redirection::Print(), ns3::Icmpv6Echo::Print(), ns3::Icmpv6DestinationUnreachable::Print(), ns3::Icmpv6TooBig::Print(), ns3::Icmpv6TimeExceeded::Print(), ns3::Icmpv6ParameterError::Print(), ns3::Icmpv6NS::Serialize(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6RA::Serialize(), ns3::Icmpv6RS::Serialize(), ns3::Icmpv6Redirection::Serialize(), ns3::Icmpv6Echo::Serialize(), ns3::Icmpv6DestinationUnreachable::Serialize(), ns3::Icmpv6TooBig::Serialize(), ns3::Icmpv6TimeExceeded::Serialize(), and ns3::Icmpv6ParameterError::Serialize().

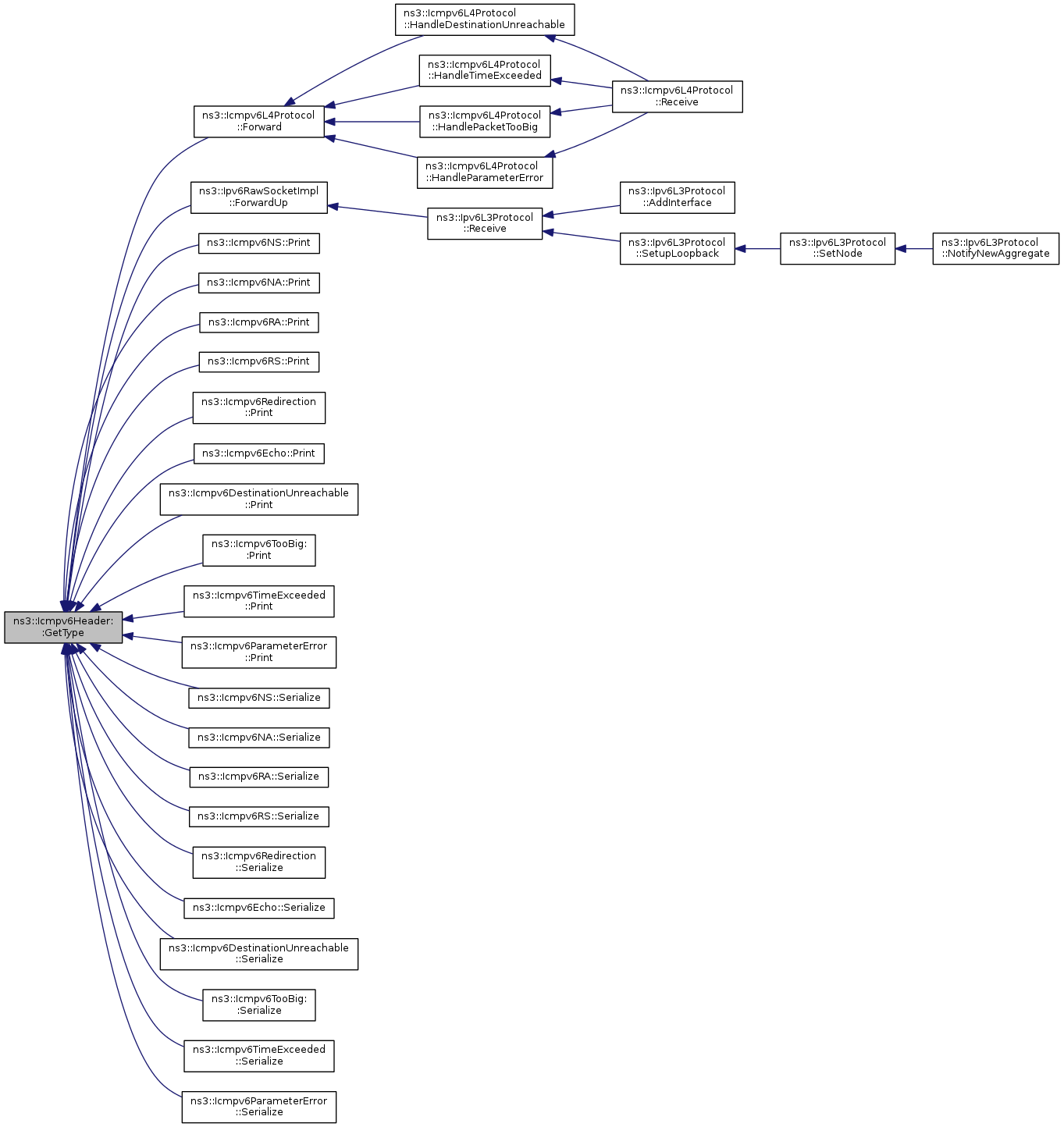

Here is the caller graph for this function:

TypeId ns3::Icmpv6Header::GetTypeId ( void  )

static

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6Header.

Returns

UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Reimplemented in ns3::Icmpv6ParameterError, ns3::Icmpv6TimeExceeded, ns3::Icmpv6TooBig, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6Echo, ns3::Icmpv6Redirection, ns3::Icmpv6RS, ns3::Icmpv6RA, ns3::Icmpv6NA, and ns3::Icmpv6NS.

Definition at line 36 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6Header::Print ( std::ostream &  os ) const

virtual

Print informations.

Parameters

os	output stream

Implements ns3::Header.

Reimplemented in ns3::Icmpv6ParameterError, ns3::Icmpv6TimeExceeded, ns3::Icmpv6TooBig, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6Echo, ns3::Icmpv6Redirection, ns3::Icmpv6RS, ns3::Icmpv6RA, ns3::Icmpv6NA, and ns3::Icmpv6NS.

Definition at line 92 of file icmpv6-header.cc.

References m_checksum, m_code, and m_type.

void ns3::Icmpv6Header::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

start offset

Implements ns3::Header.

Reimplemented in ns3::Icmpv6ParameterError, ns3::Icmpv6TimeExceeded, ns3::Icmpv6TooBig, ns3::Icmpv6DestinationUnreachable, ns3::Icmpv6Echo, ns3::Icmpv6Redirection, ns3::Icmpv6RS, ns3::Icmpv6RA, ns3::Icmpv6NA, and ns3::Icmpv6NS.

Definition at line 115 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Buffer::Iterator::GetSize(), m_calcChecksum, m_checksum, m_code, m_type, ns3::Buffer::Iterator::Next(), visualizer.core::start(), ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

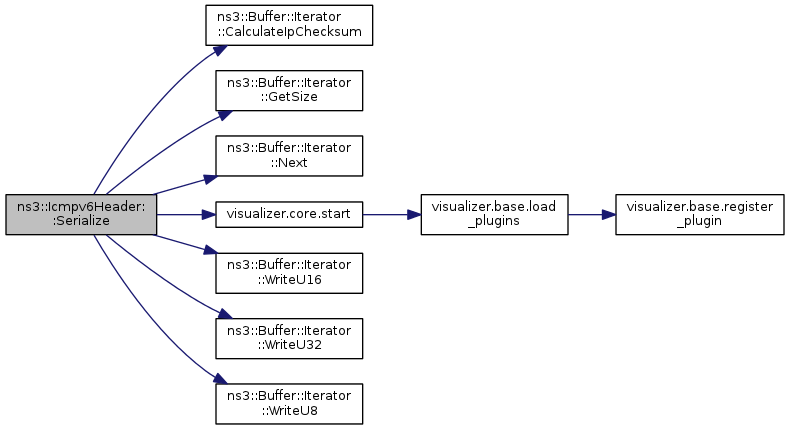

Here is the call graph for this function:

void ns3::Icmpv6Header::SetChecksum

(

uint16_t

checksum

)

Set the checksum.

Parameters

checksum

to set

Definition at line 87 of file icmpv6-header.cc.

References m_checksum.

void ns3::Icmpv6Header::SetCode

(

uint8_t

code

)

Set the code field.

Parameters

code	code to set

Definition at line 77 of file icmpv6-header.cc.

References m_code.

Referenced by ns3::Icmpv6NS::Deserialize(), ns3::Icmpv6NA::Deserialize(), ns3::Icmpv6RA::Deserialize(), ns3::Icmpv6RS::Deserialize(), ns3::Icmpv6Redirection::Deserialize(), ns3::Icmpv6Echo::Deserialize(), ns3::Icmpv6DestinationUnreachable::Deserialize(), ns3::Icmpv6TooBig::Deserialize(), ns3::Icmpv6TimeExceeded::Deserialize(), ns3::Icmpv6ParameterError::Deserialize(), ns3::Icmpv6Echo::Icmpv6Echo(), ns3::Icmpv6NA::Icmpv6NA(), ns3::Icmpv6NS::Icmpv6NS(), ns3::Icmpv6RA::Icmpv6RA(), ns3::Icmpv6Redirection::Icmpv6Redirection(), ns3::Icmpv6RS::Icmpv6RS(), ns3::Icmpv6L4Protocol::SendErrorDestinationUnreachable(), ns3::Icmpv6L4Protocol::SendErrorParameterError(), ns3::Icmpv6L4Protocol::SendErrorTimeExceeded(), and ns3::Icmpv6L4Protocol::SendErrorTooBig().

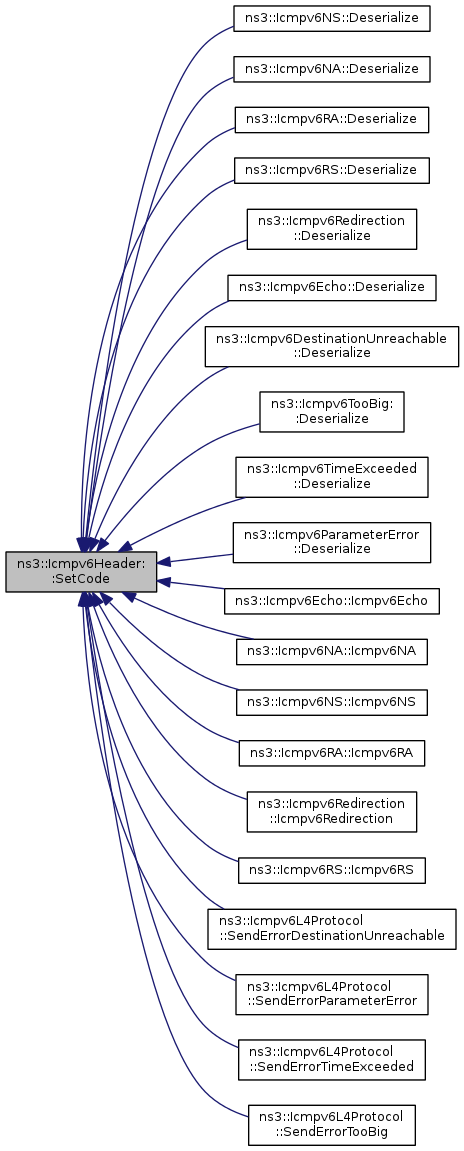

Here is the caller graph for this function:

void ns3::Icmpv6Header::SetType

(

uint8_t

type

)

Set the type.

Parameters

type	type to set

Definition at line 67 of file icmpv6-header.cc.

References m_type.

Referenced by ns3::Icmpv6NS::Deserialize(), ns3::Icmpv6NA::Deserialize(), ns3::Icmpv6RA::Deserialize(), ns3::Icmpv6RS::Deserialize(), ns3::Icmpv6Redirection::Deserialize(), ns3::Icmpv6Echo::Deserialize(), ns3::Icmpv6DestinationUnreachable::Deserialize(), ns3::Icmpv6TooBig::Deserialize(), ns3::Icmpv6TimeExceeded::Deserialize(), ns3::Icmpv6ParameterError::Deserialize(), ns3::Icmpv6DestinationUnreachable::Icmpv6DestinationUnreachable(), ns3::Icmpv6Echo::Icmpv6Echo(), ns3::Icmpv6NA::Icmpv6NA(), ns3::Icmpv6NS::Icmpv6NS(), ns3::Icmpv6ParameterError::Icmpv6ParameterError(), ns3::Icmpv6RA::Icmpv6RA(), ns3::Icmpv6Redirection::Icmpv6Redirection(), ns3::Icmpv6RS::Icmpv6RS(), ns3::Icmpv6TimeExceeded::Icmpv6TimeExceeded(), and ns3::Icmpv6TooBig::Icmpv6TooBig().

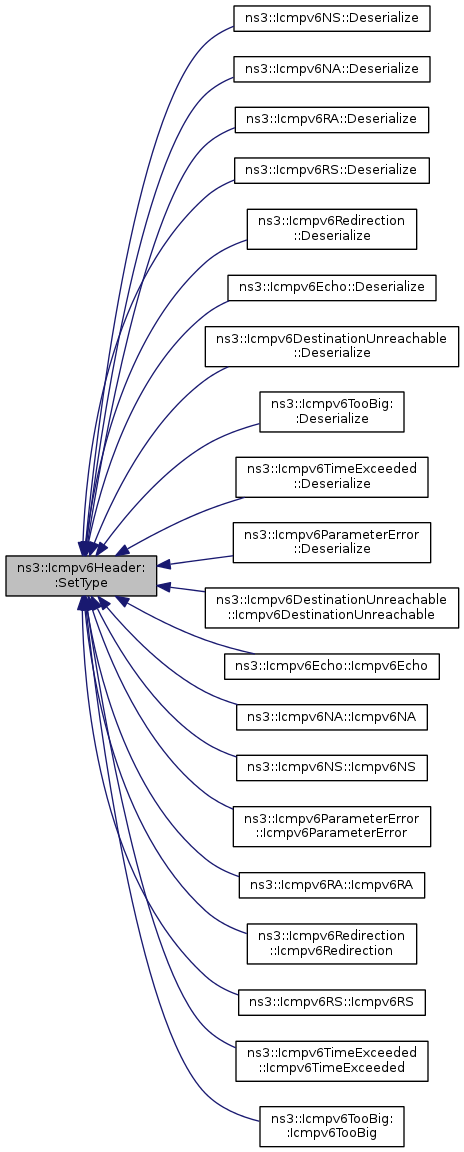

Here is the caller graph for this function:

Member Data Documentation

bool ns3::Icmpv6Header::m_calcChecksum

protected

Checksum enable or not.

Definition at line 218 of file icmpv6-header.h.

Referenced by Serialize(), ns3::Icmpv6NS::Serialize(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6RS::Serialize(), ns3::Icmpv6Redirection::Serialize(), and ns3::Icmpv6Echo::Serialize().

uint16_t ns3::Icmpv6Header::m_checksum

protected

The checksum.

Definition at line 223 of file icmpv6-header.h.

Referenced by CalculatePseudoHeaderChecksum(), Deserialize(), ns3::Icmpv6NS::Deserialize(), ns3::Icmpv6NA::Deserialize(), ns3::Icmpv6RA::Deserialize(), ns3::Icmpv6RS::Deserialize(), ns3::Icmpv6Redirection::Deserialize(), ns3::Icmpv6Echo::Deserialize(), ns3::Icmpv6DestinationUnreachable::Deserialize(), ns3::Icmpv6TooBig::Deserialize(), ns3::Icmpv6TimeExceeded::Deserialize(), ns3::Icmpv6ParameterError::Deserialize(), GetChecksum(), ns3::Icmpv6Echo::Icmpv6Echo(), ns3::Icmpv6NA::Icmpv6NA(), ns3::Icmpv6NS::Icmpv6NS(), ns3::Icmpv6Redirection::Icmpv6Redirection(), Print(), Serialize(), ns3::Icmpv6NS::Serialize(), and SetChecksum().

uint8_t ns3::Icmpv6Header::m_code

private

The code.

Definition at line 234 of file icmpv6-header.h.

Referenced by Deserialize(), GetCode(), Print(), Serialize(), and SetCode().

uint8_t ns3::Icmpv6Header::m_type

private

The type.

Definition at line 229 of file icmpv6-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().

---

The documentation for this class was generated from the following files:

• src/internet/model/icmpv6-header.h
• doc/introspected-doxygen.h
• src/internet/model/icmpv6-header.cc
