ns3::Icmpv6NS Class Reference

ICMPv6 Neighbor Solicitation header. More...

#include <icmpv6-header.h>

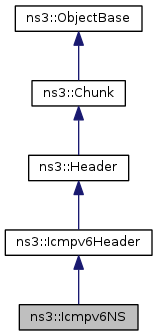

+ Inheritance diagram for ns3::Icmpv6NS:

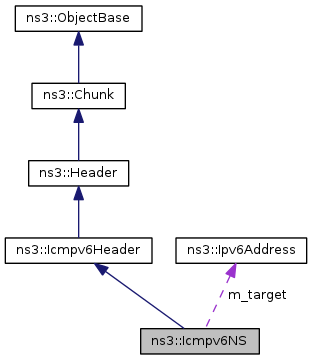

+ Collaboration diagram for ns3::Icmpv6NS:

Public Member Functions

 Icmpv6NS (Ipv6Address target)
 Constructor.
 Icmpv6NS ()
 Constructor.
virtual ~Icmpv6NS ()
 Destructor.
virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet.
virtual TypeId GetInstanceTypeId () const
 Get the instance type ID.
Ipv6Address GetIpv6Target () const
 Get the IPv6 target field.
uint32_t GetReserved () const
 Get the reserved field.
virtual uint32_t GetSerializedSize () const
 Get the serialized size.
virtual void Print (std::ostream &os) const
 Print informations.
virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet.
void SetIpv6Target (Ipv6Address target)
 Set the IPv6 target field.
void SetReserved (uint32_t reserved)
 Set the reserved field.
- Public Member Functions inherited from ns3::Icmpv6Header
 Icmpv6Header ()
 Constructor.
virtual ~Icmpv6Header ()
 Destructor.
void CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
 Calculate pseudo header checksum for IPv6.
uint16_t GetChecksum () const
 Get the checksum.
uint8_t GetCode () const
 Get the code field.
uint8_t GetType () const
 Get the type field.
void SetChecksum (uint16_t checksum)
 Set the checksum.
void SetCode (uint8_t code)
 Set the code field.
void SetType (uint8_t type)
 Set the type.
- Public Member Functions inherited from ns3::Header
virtual ~Header ()

Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class.

Private Attributes

uint32_t m_reserved
 The reserved value.
Ipv6Address m_target
 The IPv6 target address.

Additional Inherited Members

- Public Types inherited from ns3::Icmpv6Header
enum  ErrorDestinationUnreachable_e {
  ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE,
  ICMPV6_PORT_UNREACHABLE
}
 ICMPv6 error code : Destination Unreachable. More...
enum  ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
 ICMPv6 error code : Parameter Error. More...
enum  ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
 ICMPv6 error code : Time Exceeded. More...
enum  OptionType_e {
  ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED,
  ICMPV6_OPT_MTU
}
 ICMPv6 Option type code. More...
enum  Type_e {
  ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR,
  ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT,
  ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION,
  ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST,
  ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT,
  ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION,
  ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY
}
 ICMPv6 type code. More...
- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
virtual void NotifyConstructionCompleted (void)
- Protected Attributes inherited from ns3::Icmpv6Header
bool m_calcChecksum
 Checksum enable or not.
uint16_t m_checksum
 The checksum.

Detailed Description

ICMPv6 Neighbor Solicitation header.

Definition at line 331 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6NS::Icmpv6NS ( Ipv6Address  target)

Constructor.

Parameters
targettarget IPv6 address

Definition at line 184 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ND_NEIGHBOR_SOLICITATION, ns3::Icmpv6Header::m_checksum, ns3::Icmpv6Header::SetCode(), SetIpv6Target(), SetReserved(), and ns3::Icmpv6Header::SetType().

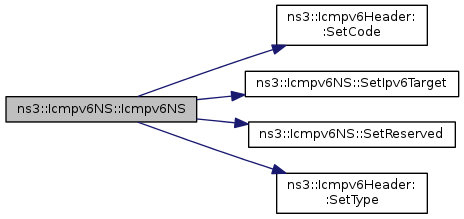

+ Here is the call graph for this function:

ns3::Icmpv6NS::Icmpv6NS ( )

Constructor.

Definition at line 162 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ND_NEIGHBOR_SOLICITATION, ns3::Icmpv6Header::m_checksum, ns3::Icmpv6Header::SetCode(), SetReserved(), and ns3::Icmpv6Header::SetType().

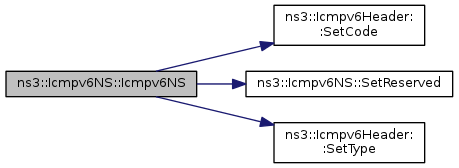

+ Here is the call graph for this function:

ns3::Icmpv6NS::~Icmpv6NS ( )
virtual

Destructor.

Definition at line 198 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6NS::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startstart offset
Returns
length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 256 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_reserved, m_target, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6Address::Set(), ns3::Icmpv6Header::SetCode(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

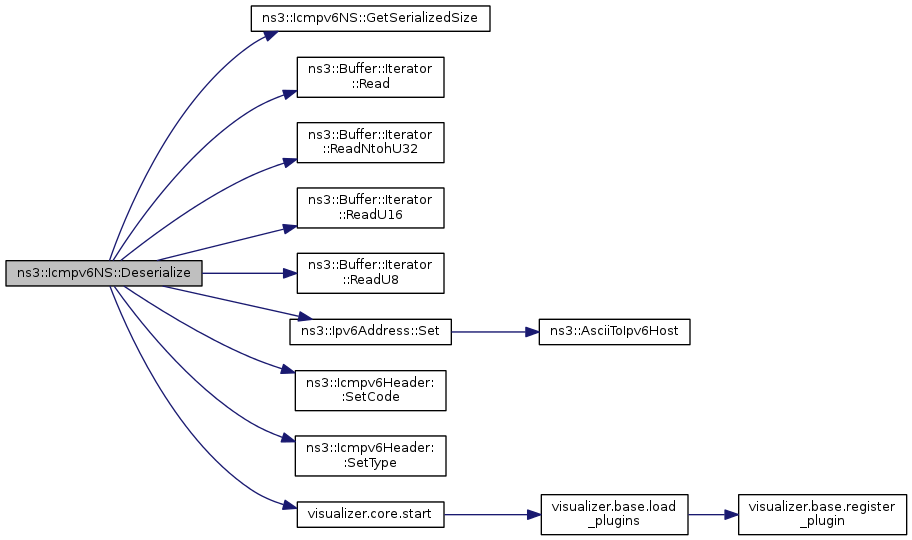

+ Here is the call graph for this function:

TypeId ns3::Icmpv6NS::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 179 of file icmpv6-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

Ipv6Address ns3::Icmpv6NS::GetIpv6Target ( ) const

Get the IPv6 target field.

Returns
IPv6 address

Definition at line 212 of file icmpv6-header.cc.

References m_target.

Referenced by ns3::Icmpv6L4Protocol::HandleNS().

+ Here is the caller graph for this function:

uint32_t ns3::Icmpv6NS::GetReserved ( ) const

Get the reserved field.

Returns
reserved value

Definition at line 202 of file icmpv6-header.cc.

References m_reserved.

uint32_t ns3::Icmpv6NS::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 227 of file icmpv6-header.cc.

Referenced by Deserialize(), and ns3::Icmpv6L4Protocol::ForgeNS().

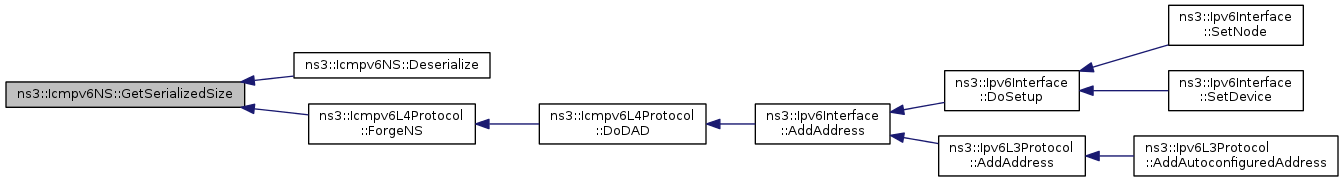

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6NS::GetTypeId ( void  )
static

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6NS.

Returns
UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Icmpv6Header.

Definition at line 170 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6NS::Print ( std::ostream &  os) const
virtual

Print informations.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 222 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), and ns3::Icmpv6Header::GetType().

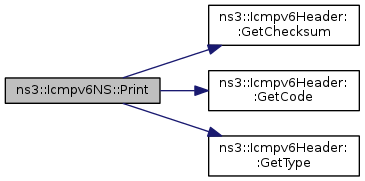

+ Here is the call graph for this function:

void ns3::Icmpv6NS::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startstart offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 232 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), ns3::Icmpv6Header::m_calcChecksum, ns3::Icmpv6Header::m_checksum, m_reserved, m_target, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION_NOARGS, ns3::Ipv6Address::Serialize(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

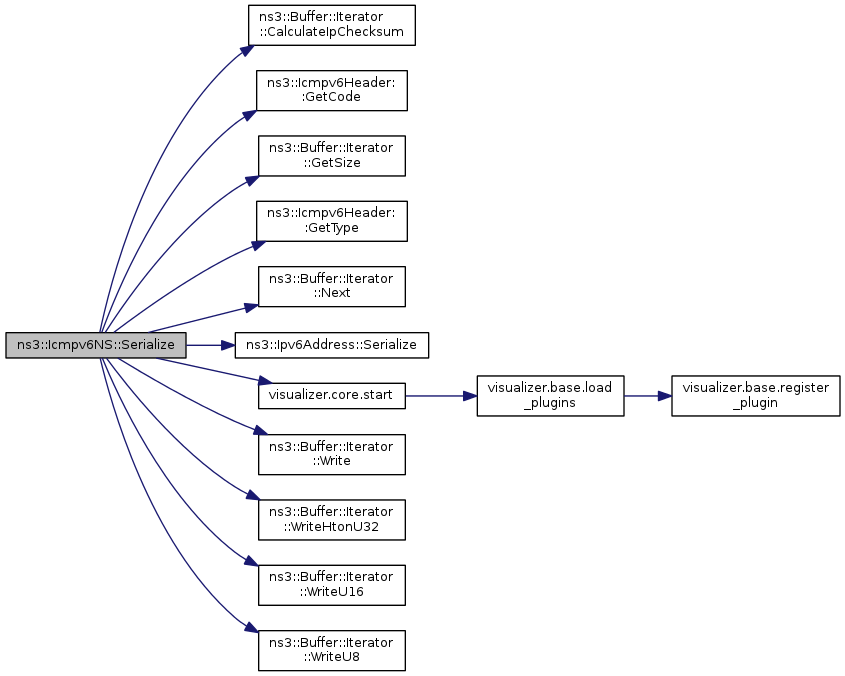

+ Here is the call graph for this function:

void ns3::Icmpv6NS::SetIpv6Target ( Ipv6Address  target)

Set the IPv6 target field.

Parameters
targetIPv6 address

Definition at line 217 of file icmpv6-header.cc.

References m_target.

Referenced by Icmpv6NS().

+ Here is the caller graph for this function:

void ns3::Icmpv6NS::SetReserved ( uint32_t  reserved)

Set the reserved field.

Parameters
reservedthe reserved value

Definition at line 207 of file icmpv6-header.cc.

References m_reserved.

Referenced by Icmpv6NS().

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::Icmpv6NS::m_reserved
private

The reserved value.

Definition at line 416 of file icmpv6-header.h.

Referenced by Deserialize(), GetReserved(), Serialize(), and SetReserved().

Ipv6Address ns3::Icmpv6NS::m_target
private

The IPv6 target address.

Definition at line 421 of file icmpv6-header.h.

Referenced by Deserialize(), GetIpv6Target(), Serialize(), and SetIpv6Target().

The documentation for this class was generated from the following files:
