IPv6 raw socket. More...

#include <ipv6-raw-socket-impl.h>

Inheritance diagram for ns3::Ipv6RawSocketImpl:

Collaboration diagram for ns3::Ipv6RawSocketImpl:

Classes
struct	Data
	IPv6 raw data and additional information. More...
struct	icmpv6Filter
	Struct to hold the ICMPv6 filter. More...

Public Member Functions
	Ipv6RawSocketImpl ()
	Constructor.
virtual	~Ipv6RawSocketImpl ()
	Destructor.
virtual int	Bind (const Address &address)
	Bind the socket to address.
virtual int	Bind ()
	Bind socket.
virtual int	Bind6 ()
	Allocate a local IPv6 endpoint for this socket.
virtual int	Close ()
	Close the socket.
virtual int	Connect (const Address &address)
	Connect to address.
bool	ForwardUp (Ptr< const Packet > p, Ipv6Header hdr, Ptr< NetDevice > device)
	Forward up to receive method.
virtual bool	GetAllowBroadcast () const
	Query whether broadcast datagram transmissions are allowed.
virtual enum Socket::SocketErrno	GetErrno () const
	Get last error number.
virtual Ptr< Node >	GetNode () const
	Get node.
virtual uint32_t	GetRxAvailable () const
	Get RX size available.
virtual enum Socket::SocketType	GetSocketType () const
	Get socket type (NS3_SOCK_RAW)
virtual int	GetSockName (Address &address) const
	Get socket address.
virtual uint32_t	GetTxAvailable () const
	Get TX size available.
void	Icmpv6FilterSetBlock (uint8_t type)
	Set the filter to block one ICMPv6 type.
void	Icmpv6FilterSetBlockAll ()
	Set the filter to block all the ICMPv6 types.
void	Icmpv6FilterSetPass (uint8_t type)
	Set the filter to pass one ICMPv6 type.
void	Icmpv6FilterSetPassAll ()
	Clean the ICMPv6 filter structure.
bool	Icmpv6FilterWillBlock (uint8_t type)
	Ask the filter about the status of one ICMPv6 type.
bool	Icmpv6FilterWillPass (uint8_t type)
	Ask the filter about the status of one ICMPv6 type.
virtual int	Listen ()
	Listen.
virtual Ptr< Packet >	Recv (uint32_t maxSize, uint32_t flags)
	Receive packet.
virtual Ptr< Packet >	RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)
	Receive packet.
virtual int	Send (Ptr< Packet > p, uint32_t flags)
	Send a packet.
virtual int	SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)
	Send a packet.
virtual bool	SetAllowBroadcast (bool allowBroadcast)
	Configure whether broadcast datagram transmissions are allowed.
void	SetNode (Ptr< Node > node)
	Set the node.
void	SetProtocol (uint16_t protocol)
	Set protocol field.
virtual int	ShutdownRecv ()
	Shutdown receive capability.
virtual int	ShutdownSend ()
	Shutdown send capability.
Public Member Functions inherited from ns3::Socket
	Socket (void)
virtual	~Socket (void)
virtual void	BindToNetDevice (Ptr< NetDevice > netdevice)
	Bind a socket to specific device.
Ptr< NetDevice >	GetBoundNetDevice ()
	Returns socket's bound netdevice, if any.
bool	IsRecvPktInfo () const
	Get status indicating whether enable/disable packet information to socket.
Ptr< Packet >	Recv (void)
	Read a single packet from the socket.
int	Recv (uint8_t *buf, uint32_t size, uint32_t flags)
	Recv data (or dummy data) from the remote host.
Ptr< Packet >	RecvFrom (Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address.
int	RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address.
int	Send (Ptr< Packet > p)
	Send data (or dummy data) to the remote host.
int	Send (const uint8_t *buf, uint32_t size, uint32_t flags)
	Send data (or dummy data) to the remote host.
int	SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address)
	Send data to a specified peer.
void	SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated)
	Accept connection requests from remote hosts.
void	SetCloseCallbacks (Callback< void, Ptr< Socket > > normalClose, Callback< void, Ptr< Socket > > errorClose)
	Detect socket recv() events such as graceful shutdown or error.
void	SetConnectCallback (Callback< void, Ptr< Socket > > connectionSucceeded, Callback< void, Ptr< Socket > > connectionFailed)
	Specify callbacks to allow the caller to determine if the connection succeeds of fails.
void	SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent)
	Notify application when a packet has been sent from transport protocol (non-standard socket call)
void	SetRecvCallback (Callback< void, Ptr< Socket > >)
	Notify application when new data is available to be read.
void	SetRecvPktInfo (bool flag)
	Enable/Disable receive packet information to socket.
void	SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb)
	Notify application when space in transmit buffer is added.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID of this class.
Static Public Member Functions inherited from ns3::Socket
static Ptr< Socket >	CreateSocket (Ptr< Node > node, TypeId tid)

Private Member Functions
virtual void	DoDispose ()
	Dispose object.

Private Attributes
std::list< struct Data >	m_data
	Packet waiting to be processed.
Ipv6Address	m_dst
	Destination address.
enum Socket::SocketErrno	m_err
	Last error number.
icmpv6Filter	m_icmpFilter
	ICMPv6 filter.
Ptr< Node >	m_node
	Node.
uint16_t	m_protocol
	Protocol.
bool	m_shutdownRecv
	Flag to shutdown receive capability.
bool	m_shutdownSend
	Flag to shutdown send capability.
Ipv6Address	m_src
	Source address.

Additional Inherited Members
Public Types inherited from ns3::Socket
enum	SocketErrno { ERROR_NOTERROR, ERROR_ISCONN, ERROR_NOTCONN, ERROR_MSGSIZE, ERROR_AGAIN, ERROR_SHUTDOWN, ERROR_OPNOTSUPP, ERROR_AFNOSUPPORT, ERROR_INVAL, ERROR_BADF, ERROR_NOROUTETOHOST, ERROR_NODEV, ERROR_ADDRNOTAVAIL, ERROR_ADDRINUSE, SOCKET_ERRNO_LAST }
enum	SocketType { NS3_SOCK_STREAM, NS3_SOCK_SEQPACKET, NS3_SOCK_DGRAM, NS3_SOCK_RAW }
Protected Member Functions inherited from ns3::Socket
virtual void	DoDispose (void)
void	NotifyConnectionFailed (void)
bool	NotifyConnectionRequest (const Address &from)
void	NotifyConnectionSucceeded (void)
void	NotifyDataRecv (void)
void	NotifyDataSent (uint32_t size)
void	NotifyErrorClose (void)
void	NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from)
void	NotifyNormalClose (void)
void	NotifySend (uint32_t spaceAvailable)
Protected Attributes inherited from ns3::Socket
Ptr< NetDevice >	m_boundnetdevice
bool	m_recvPktInfo

Detailed Description

IPv6 raw socket.

A RAW Socket typically is used to access specific IP layers not usually available through L4 sockets, e.g., ICMP. The implementer should take particular care to define the Ipv6RawSocketImpl Attributes, and in particular the Protocol attribute. Not setting it will result in a zero protocol at IP level (corresponding to the HopByHop IPv6 Extension header, i.e., Ipv6ExtensionHopByHopHeader) when sending data through the socket, which is probably not the intended behavior.

A correct example is (from src/applications/model/radvd.cc):

if (!m_socket)
  {
    TypeId tid = TypeId::LookupByName ("ns3::Ipv6RawSocketFactory");
    m_socket = Socket::CreateSocket (GetNode (), tid);
    NS_ASSERT (m_socket);
    m_socket->SetAttribute ("Protocol", UintegerValue(Ipv6Header::IPV6_ICMPV6));
    m_socket->SetRecvCallback (MakeCallback (&Radvd::HandleRead, this));
  }

Definition at line 64 of file ipv6-raw-socket-impl.h.

Constructor & Destructor Documentation

ns3::Ipv6RawSocketImpl::Ipv6RawSocketImpl ( )

Constructor.

Definition at line 58 of file ipv6-raw-socket-impl.cc.

References ns3::Socket::ERROR_NOTERROR, ns3::Ipv6Address::GetAny(), Icmpv6FilterSetPassAll(), m_dst, m_err, m_node, m_protocol, m_shutdownRecv, m_shutdownSend, m_src, and NS_LOG_FUNCTION_NOARGS.

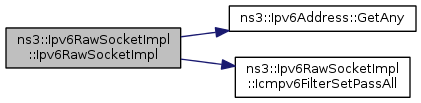

Here is the call graph for this function:

ns3::Ipv6RawSocketImpl::~Ipv6RawSocketImpl ( )

virtual

Destructor.

Definition at line 71 of file ipv6-raw-socket-impl.cc.

Member Function Documentation

int ns3::Ipv6RawSocketImpl::Bind ( const Address & address )

virtual

Bind the socket to address.

Parameters

address bind to this address

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 104 of file ipv6-raw-socket-impl.cc.

References ns3::Inet6SocketAddress::ConvertFrom(), ns3::Socket::ERROR_INVAL, ns3::Inet6SocketAddress::GetIpv6(), ns3::Inet6SocketAddress::IsMatchingType(), m_err, m_src, and NS_LOG_FUNCTION.

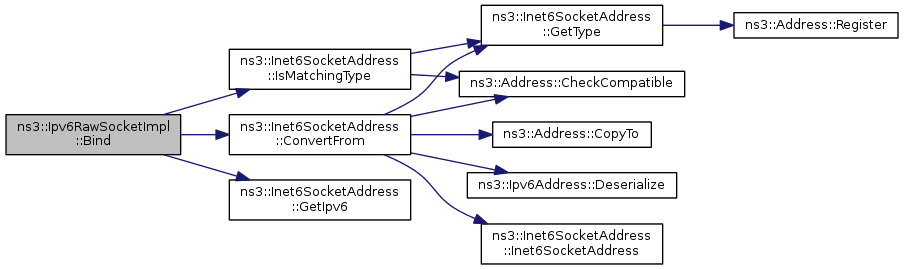

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::Bind ( void )

virtual

Bind socket.

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 118 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6Address::GetAny(), m_src, and NS_LOG_FUNCTION_NOARGS.

Referenced by Bind6().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::Ipv6RawSocketImpl::Bind6 ( )

virtual

Allocate a local IPv6 endpoint for this socket.

Returns: 0 on success, -1 on failure.

Implements ns3::Socket.

Definition at line 125 of file ipv6-raw-socket-impl.cc.

References Bind().

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::Close ( void )

virtual

Close the socket.

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 137 of file ipv6-raw-socket-impl.cc.

References ns3::Object::GetObject(), m_node, and NS_LOG_FUNCTION_NOARGS.

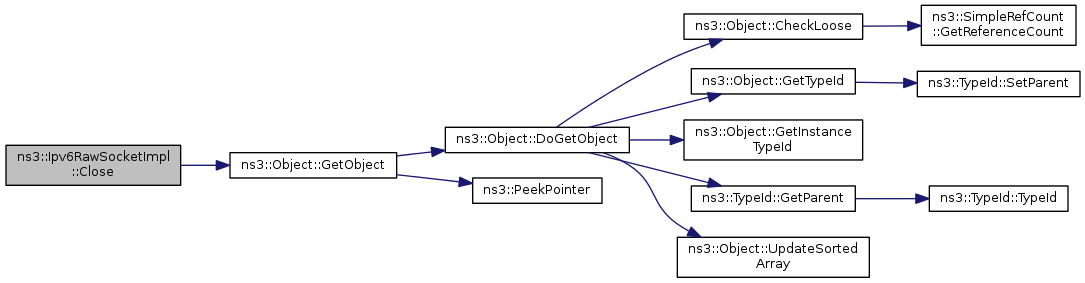

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::Connect ( const Address & address )

virtual

Connect to address.

Parameters

address address

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 163 of file ipv6-raw-socket-impl.cc.

References ns3::Inet6SocketAddress::ConvertFrom(), ns3::Socket::ERROR_INVAL, ns3::Inet6SocketAddress::GetIpv6(), ns3::Inet6SocketAddress::IsMatchingType(), m_dst, m_err, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6RawSocketImpl::DoDispose ( void )

privatevirtual

Dispose object.

Definition at line 75 of file ipv6-raw-socket-impl.cc.

References m_node, and NS_LOG_FUNCTION_NOARGS.

bool ns3::Ipv6RawSocketImpl::ForwardUp	(	Ptr< const Packet >	p,
		Ipv6Header	hdr,
		Ptr< NetDevice >	device
	)

Forward up to receive method.

Parameters

p	packet
hdr	IPv6 header
device	device

Returns: true if forwarded, false otherwise

Definition at line 311 of file ipv6-raw-socket-impl.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Packet::Copy(), ns3::Ipv6RawSocketImpl::Data::fromIp, ns3::Ipv6RawSocketImpl::Data::fromProtocol, ns3::Ipv6Address::GetAny(), ns3::Ipv6Header::GetDestinationAddress(), ns3::NetDevice::GetIfIndex(), ns3::Ipv6Header::GetNextHeader(), ns3::Ipv6Header::GetSourceAddress(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Icmpv6Header::GetType(), Icmpv6FilterWillBlock(), ns3::Socket::IsRecvPktInfo(), m_data, m_dst, m_protocol, m_shutdownRecv, m_src, ns3::Socket::NotifyDataRecv(), NS_LOG_FUNCTION, ns3::Ipv6RawSocketImpl::Data::packet, ns3::Packet::PeekHeader(), ns3::Packet::RemovePacketTag(), and ns3::Ipv6PacketInfoTag::SetRecvIf().

Referenced by ns3::Ipv6L3Protocol::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv6RawSocketImpl::GetAllowBroadcast ( ) const

virtual

Query whether broadcast datagram transmissions are allowed.

This method corresponds to using getsockopt() SO_BROADCAST of real network or BSD sockets.

Returns: true if broadcast is allowed, false otherwise

Implements ns3::Socket.

Definition at line 372 of file ipv6-raw-socket-impl.cc.

enum Socket::SocketErrno ns3::Ipv6RawSocketImpl::GetErrno ( void ) const

virtual

Get last error number.

Returns: error number

Implements ns3::Socket.

Definition at line 93 of file ipv6-raw-socket-impl.cc.

References m_err, and NS_LOG_FUNCTION_NOARGS.

Ptr< Node > ns3::Ipv6RawSocketImpl::GetNode ( void ) const

virtual

Get node.

Returns: node associated with this raw socket.

Implements ns3::Socket.

Definition at line 88 of file ipv6-raw-socket-impl.cc.

References m_node.

uint32_t ns3::Ipv6RawSocketImpl::GetRxAvailable ( void ) const

virtual

Get RX size available.

Returns: RX size

Implements ns3::Socket.

Definition at line 298 of file ipv6-raw-socket-impl.cc.

References m_data, and NS_LOG_FUNCTION_NOARGS.

enum Socket::SocketType ns3::Ipv6RawSocketImpl::GetSocketType ( void ) const

virtual

Get socket type (NS3_SOCK_RAW)

Returns: socket type

Implements ns3::Socket.

Definition at line 99 of file ipv6-raw-socket-impl.cc.

References ns3::Socket::NS3_SOCK_RAW.

int ns3::Ipv6RawSocketImpl::GetSockName ( Address & address ) const

virtual

Get socket address.

Parameters

address socket address if method success

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 130 of file ipv6-raw-socket-impl.cc.

References m_src, and NS_LOG_FUNCTION_NOARGS.

uint32_t ns3::Ipv6RawSocketImpl::GetTxAvailable ( void ) const

virtual

Get TX size available.

Returns: TX size

Implements ns3::Socket.

Definition at line 292 of file ipv6-raw-socket-impl.cc.

References NS_LOG_FUNCTION_NOARGS.

TypeId ns3::Ipv6RawSocketImpl::GetTypeId ( void )

static

Get the type ID of this class.

This method returns the TypeId associated to ns3::Ipv6RawSocketImpl.

Returns: type ID

Attributes defined for this type:

Protocol: Protocol number to match.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Socket.

Definition at line 46 of file ipv6-raw-socket-impl.cc.

References m_protocol, and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::Ipv6RawSocketImpl::Icmpv6FilterSetBlock ( uint8_t type )

Set the filter to block one ICMPv6 type.

Parameters

the	ICMPv6 type to block

Definition at line 396 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6RawSocketImpl::icmpv6Filter::icmpv6Filt, and m_icmpFilter.

void ns3::Ipv6RawSocketImpl::Icmpv6FilterSetBlockAll ( )

Set the filter to block all the ICMPv6 types.

Definition at line 384 of file ipv6-raw-socket-impl.cc.

References m_icmpFilter.

void ns3::Ipv6RawSocketImpl::Icmpv6FilterSetPass ( uint8_t type )

Set the filter to pass one ICMPv6 type.

Parameters

the	ICMPv6 type to pass

Definition at line 390 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6RawSocketImpl::icmpv6Filter::icmpv6Filt, and m_icmpFilter.

void ns3::Ipv6RawSocketImpl::Icmpv6FilterSetPassAll ( )

Clean the ICMPv6 filter structure.

Definition at line 378 of file ipv6-raw-socket-impl.cc.

References m_icmpFilter.

Referenced by Ipv6RawSocketImpl().

Here is the caller graph for this function:

bool ns3::Ipv6RawSocketImpl::Icmpv6FilterWillBlock ( uint8_t type )

Ask the filter about the status of one ICMPv6 type.

Parameters

the	ICMPv6 type

Returns: true if the ICMP type is being blocked

Definition at line 408 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6RawSocketImpl::icmpv6Filter::icmpv6Filt, and m_icmpFilter.

Referenced by ForwardUp().

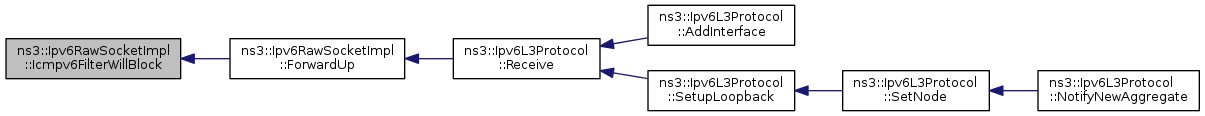

Here is the caller graph for this function:

bool ns3::Ipv6RawSocketImpl::Icmpv6FilterWillPass ( uint8_t type )

Ask the filter about the status of one ICMPv6 type.

Parameters

the	ICMPv6 type

Returns: true if the ICMP type is passing through

Definition at line 402 of file ipv6-raw-socket-impl.cc.

References ns3::Ipv6RawSocketImpl::icmpv6Filter::icmpv6Filt, and m_icmpFilter.

int ns3::Ipv6RawSocketImpl::Listen ( void )

virtual

Listen.

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 178 of file ipv6-raw-socket-impl.cc.

References ns3::Socket::ERROR_OPNOTSUPP, m_err, and NS_LOG_FUNCTION_NOARGS.

Ptr< Packet > ns3::Ipv6RawSocketImpl::Recv	(	uint32_t	maxSize,
		uint32_t	flags
	)

virtual

Receive packet.

Parameters

maxSize	maximum size
flags	additionnal flags

Returns: packet received

Implements ns3::Socket.

Definition at line 257 of file ipv6-raw-socket-impl.cc.

References NS_LOG_FUNCTION, and RecvFrom().

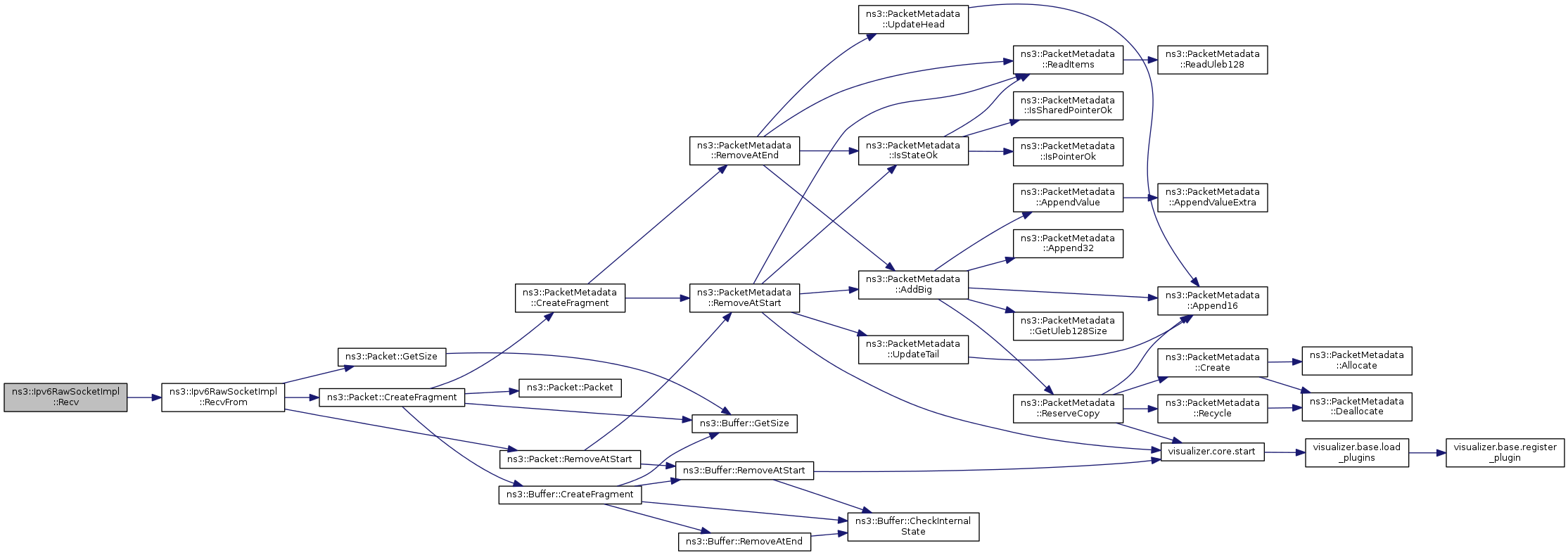

Here is the call graph for this function:

Ptr< Packet > ns3::Ipv6RawSocketImpl::RecvFrom	(	uint32_t	maxSize,
		uint32_t	flags,
		Address &	fromAddress
	)

virtual

Receive packet.

Parameters

maxSize	maximum size
flags	additionnal flags
fromAddress	source address

Returns: packet received

Implements ns3::Socket.

Definition at line 264 of file ipv6-raw-socket-impl.cc.

References ns3::Packet::CreateFragment(), ns3::Ipv6RawSocketImpl::Data::fromIp, ns3::Ipv6RawSocketImpl::Data::fromProtocol, ns3::Packet::GetSize(), m_data, NS_LOG_FUNCTION, ns3::Ipv6RawSocketImpl::Data::packet, and ns3::Packet::RemoveAtStart().

Referenced by Recv().

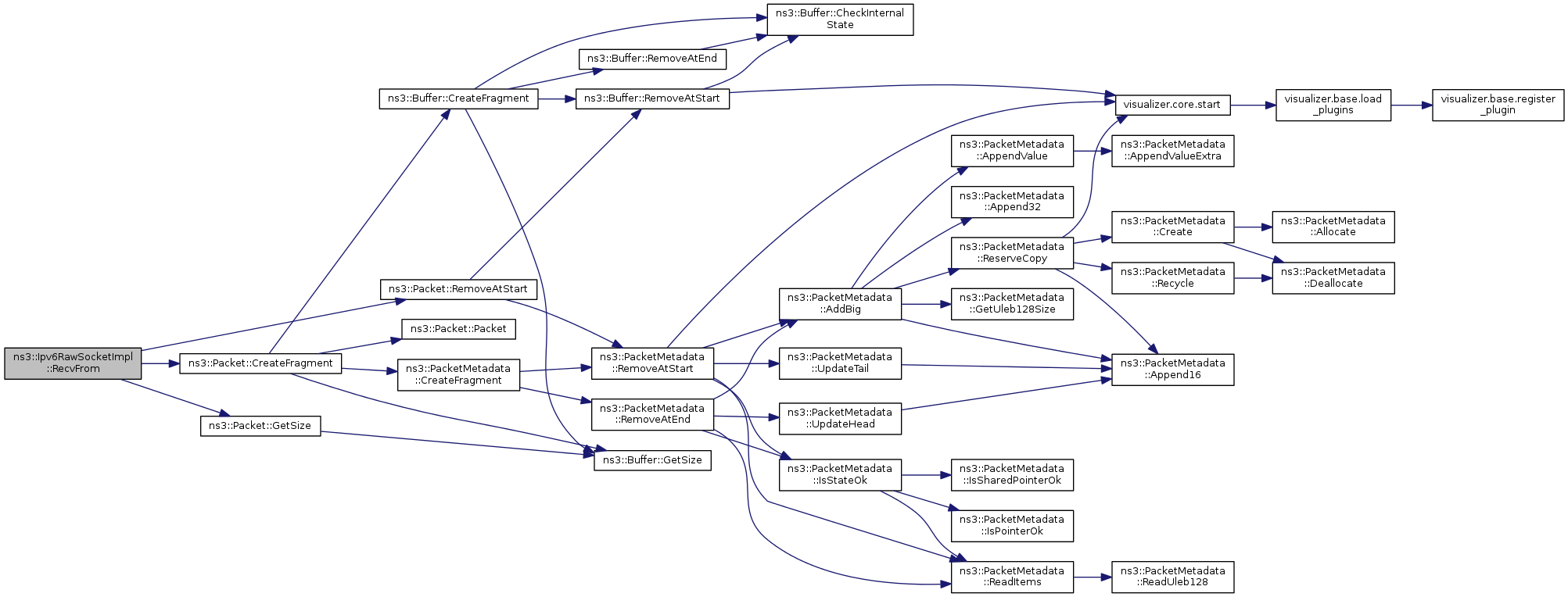

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::Ipv6RawSocketImpl::Send	(	Ptr< Packet >	p,
		uint32_t	flags
	)

virtual

Send a packet.

Parameters

p	packet to send
flags	additionnal flags

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 185 of file ipv6-raw-socket-impl.cc.

References m_dst, m_protocol, NS_LOG_FUNCTION, and SendTo().

Here is the call graph for this function:

int ns3::Ipv6RawSocketImpl::SendTo	(	Ptr< Packet >	p,
		uint32_t	flags,
		const Address &	toAddress
	)

virtual

Send a packet.

Parameters

p	packet to send
flags	additionnal flags
toAddress	destination address

Returns: 0 if success, -1 otherwise

Implements ns3::Socket.

Definition at line 192 of file ipv6-raw-socket-impl.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::Packet::CopyData(), ns3::Socket::ERROR_INVAL, ns3::Socket::ERROR_NOTERROR, ns3::Inet6SocketAddress::GetIpv6(), ns3::Object::GetObject(), ns3::Icmpv6Echo::GetSerializedSize(), ns3::Packet::GetSize(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Icmpv6Header::ICMPV6_ECHO_REQUEST, ns3::Ipv6Address::IsAny(), ns3::Inet6SocketAddress::IsMatchingType(), m_err, m_node, m_protocol, m_shutdownSend, m_src, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::RemoveHeader(), and ns3::Ipv6Header::SetDestinationAddress().

Referenced by Send().

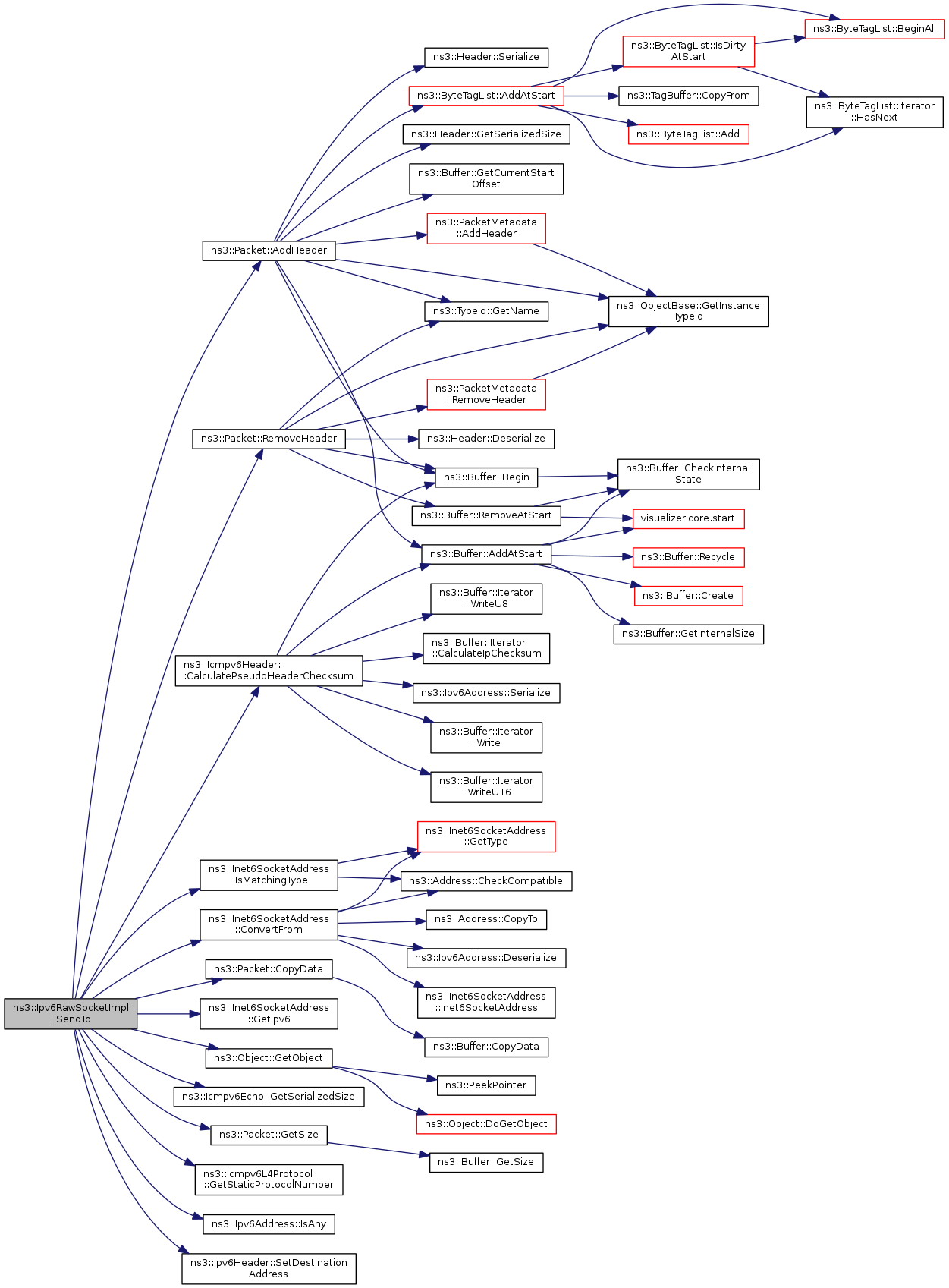

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv6RawSocketImpl::SetAllowBroadcast ( bool allowBroadcast )

virtual

Configure whether broadcast datagram transmissions are allowed.

This method corresponds to using setsockopt() SO_BROADCAST of real network or BSD sockets. If set on a socket, this option will enable or disable packets to be transmitted to broadcast destination addresses.

Parameters

allowBroadcast Whether broadcast is allowed
