Inheritance diagram for ns3::PacketSocketFactory:

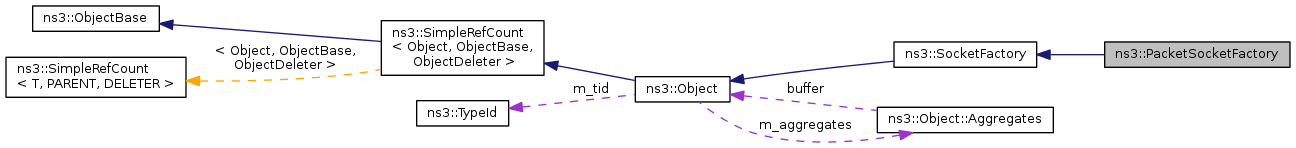

Collaboration diagram for ns3::PacketSocketFactory:

Public Member Functions
	PacketSocketFactory ()
virtual Ptr< Socket >	CreateSocket (void)
Public Member Functions inherited from ns3::SocketFactory
	SocketFactory ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::PacketSocketFactory.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This can be used as an interface in a node in order for the node to generate PacketSockets that can connect to net devices.

Definition at line 35 of file packet-socket-factory.h.

Constructor & Destructor Documentation

ns3::PacketSocketFactory::PacketSocketFactory ( )

Definition at line 36 of file packet-socket-factory.cc.

Ptr< Socket > ns3::PacketSocketFactory::CreateSocket ( void )

virtual

Creates a PacketSocket and returns a pointer to it.

Definition at line 40 of file packet-socket-factory.cc.

TypeId ns3::PacketSocketFactory::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::PacketSocketFactory.

This object is accessible through the following paths with Config::Set and Config::Connect:

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::SocketFactory.

Definition at line 29 of file packet-socket-factory.cc.

Here is the call graph for this function:

The documentation for this class was generated from the following files:
