ns3::StaWifiMac Class Reference
Wifi Models

#include <sta-wifi-mac.h>

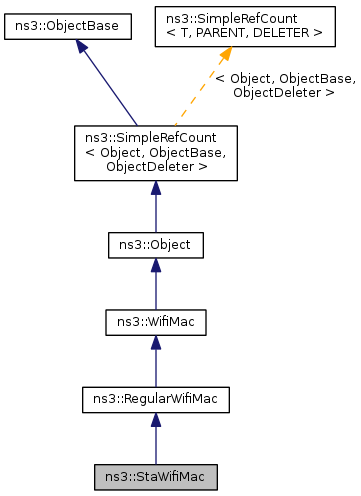

+ Inheritance diagram for ns3::StaWifiMac:

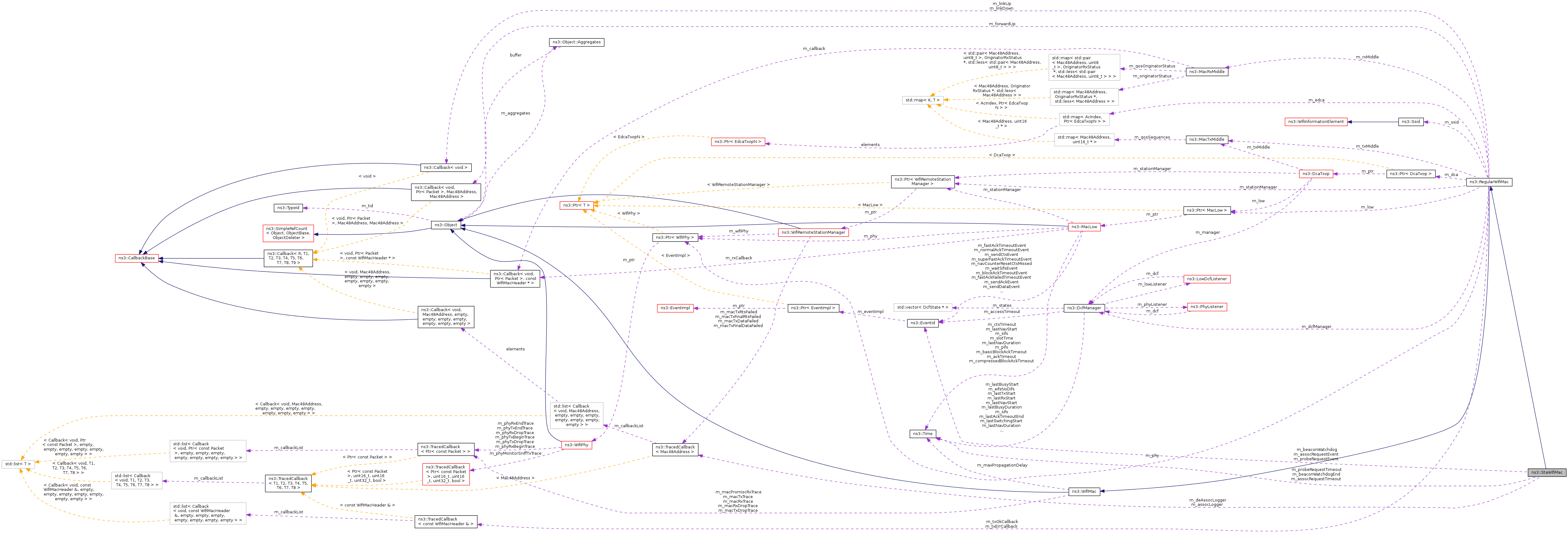

+ Collaboration diagram for ns3::StaWifiMac:

Public Member Functions

 StaWifiMac ()
virtual ~StaWifiMac ()
virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to)
void SetAssocRequestTimeout (Time timeout)
void SetMaxMissedBeacons (uint32_t missed)
void SetProbeRequestTimeout (Time timeout)
void StartActiveAssociation (void)
- Public Member Functions inherited from ns3::RegularWifiMac
 RegularWifiMac ()
virtual ~RegularWifiMac ()
virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)
Time GetAckTimeout (void) const
virtual Mac48Address GetAddress (void) const
virtual Time GetBasicBlockAckTimeout (void) const
virtual Mac48Address GetBssid (void) const
virtual Time GetCompressedBlockAckTimeout (void) const
Time GetCtsTimeout (void) const
Time GetEifsNoDifs (void) const
Time GetPifs (void) const
Time GetSifs (void) const
Time GetSlot (void) const
virtual Ssid GetSsid (void) const
virtual Ptr< WifiPhy > GetWifiPhy () const
virtual Ptr
< WifiRemoteStationManager > 		GetWifiRemoteStationManager () const
void SetAckTimeout (Time ackTimeout)
virtual void SetAddress (Mac48Address address)
virtual void SetBasicBlockAckTimeout (Time blockAckTimeout)
virtual void SetBssid (Mac48Address bssid)
virtual void SetCompressedBlockAckTimeout (Time blockAckTimeout)
void SetCtsTimeout (Time ctsTimeout)
void SetEifsNoDifs (Time eifsNoDifs)
virtual void SetForwardUpCallback (ForwardUpCallback upCallback)
virtual void SetLinkDownCallback (Callback< void > linkDown)
virtual void SetLinkUpCallback (Callback< void > linkUp)
void SetPifs (Time pifs)
virtual void SetPromisc (void)
 Sets the interface in promiscuous mode.
void SetSifs (Time sifs)
void SetSlot (Time slotTime)
virtual void SetSsid (Ssid ssid)
virtual void SetWifiPhy (Ptr< WifiPhy > phy)
virtual void SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)
virtual bool SupportsSendFrom (void) const
- Public Member Functions inherited from ns3::WifiMac
void ConfigureStandard (enum WifiPhyStandard standard)
Time GetMaxPropagationDelay (void) const
Time GetMsduLifetime (void) const
void NotifyPromiscRx (Ptr< const Packet > packet)
void NotifyRx (Ptr< const Packet > packet)
void NotifyRxDrop (Ptr< const Packet > packet)
void NotifyTx (Ptr< const Packet > packet)
void NotifyTxDrop (Ptr< const Packet > packet)
virtual void SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0
void SetMaxPropagationDelay (Time delay)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::StaWifiMac.

Private Types

enum  MacState {
  ASSOCIATED, WAIT_PROBE_RESP, WAIT_ASSOC_RESP, BEACON_MISSED,
  REFUSED
}

Private Member Functions

void AssocRequestTimeout (void)
bool GetActiveProbing (void) const
SupportedRates GetSupportedRates (void) const
bool IsAssociated (void) const
bool IsWaitAssocResp (void) const
void MissedBeacons (void)
void ProbeRequestTimeout (void)
virtual void Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
void RestartBeaconWatchdog (Time delay)
void SendAssociationRequest (void)
void SendProbeRequest (void)
void SetActiveProbing (bool enable)
void SetState (enum MacState value)
void TryToEnsureAssociated (void)

Private Attributes

TracedCallback< Mac48Address > m_assocLogger
EventId m_assocRequestEvent
Time m_assocRequestTimeout
EventId m_beaconWatchdog
Time m_beaconWatchdogEnd
TracedCallback< Mac48Address > m_deAssocLogger
uint32_t m_maxMissedBeacons
EventId m_probeRequestEvent
Time m_probeRequestTimeout
enum MacState m_state

Additional Inherited Members

- Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr
< Packet >, Mac48Address,
Mac48Address > 		ForwardUpCallback
- Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr
< EdcaTxopN > > 		EdcaQueues
- Protected Member Functions inherited from ns3::RegularWifiMac
virtual void DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
virtual void DoDispose ()
virtual void DoStart ()
virtual void FinishConfigureStandard (enum WifiPhyStandard standard)
void ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
bool GetQosSupported () const
virtual void Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
virtual void SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
void SetQosSupported (bool enable)
void SetTypeOfStation (TypeOfStation type)
virtual void TxFailed (const WifiMacHeader &hdr)
virtual void TxOk (const WifiMacHeader &hdr)
- Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxop > m_dca
DcfManager * m_dcfManager
EdcaQueues m_edca
ForwardUpCallback m_forwardUp
Callback< void > m_linkDown
Callback< void > m_linkUp
Ptr< MacLow > m_low
Ptr< WifiPhy > m_phy
bool m_qosSupported
MacRxMiddle * m_rxMiddle
Ssid m_ssid
Ptr< WifiRemoteStationManager > m_stationManager
MacTxMiddle * m_txMiddle

Detailed Description

The Wifi MAC high model for a non-AP STA in a BSS.

Definition at line 43 of file sta-wifi-mac.h.

Member Enumeration Documentation

enum ns3::StaWifiMac::MacState
private
Enumerator:
ASSOCIATED
WAIT_PROBE_RESP
WAIT_ASSOC_RESP
BEACON_MISSED
REFUSED

Definition at line 87 of file sta-wifi-mac.h.

Constructor & Destructor Documentation

ns3::StaWifiMac::StaWifiMac ( )

Definition at line 96 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, ns3::RegularWifiMac::SetTypeOfStation(), and ns3::STA.

+ Here is the call graph for this function:

ns3::StaWifiMac::~StaWifiMac ( )
virtual

Definition at line 109 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::StaWifiMac::AssocRequestTimeout ( void  )
private

Definition at line 252 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, SendAssociationRequest(), SetState(), and WAIT_ASSOC_RESP.

Referenced by SendAssociationRequest().

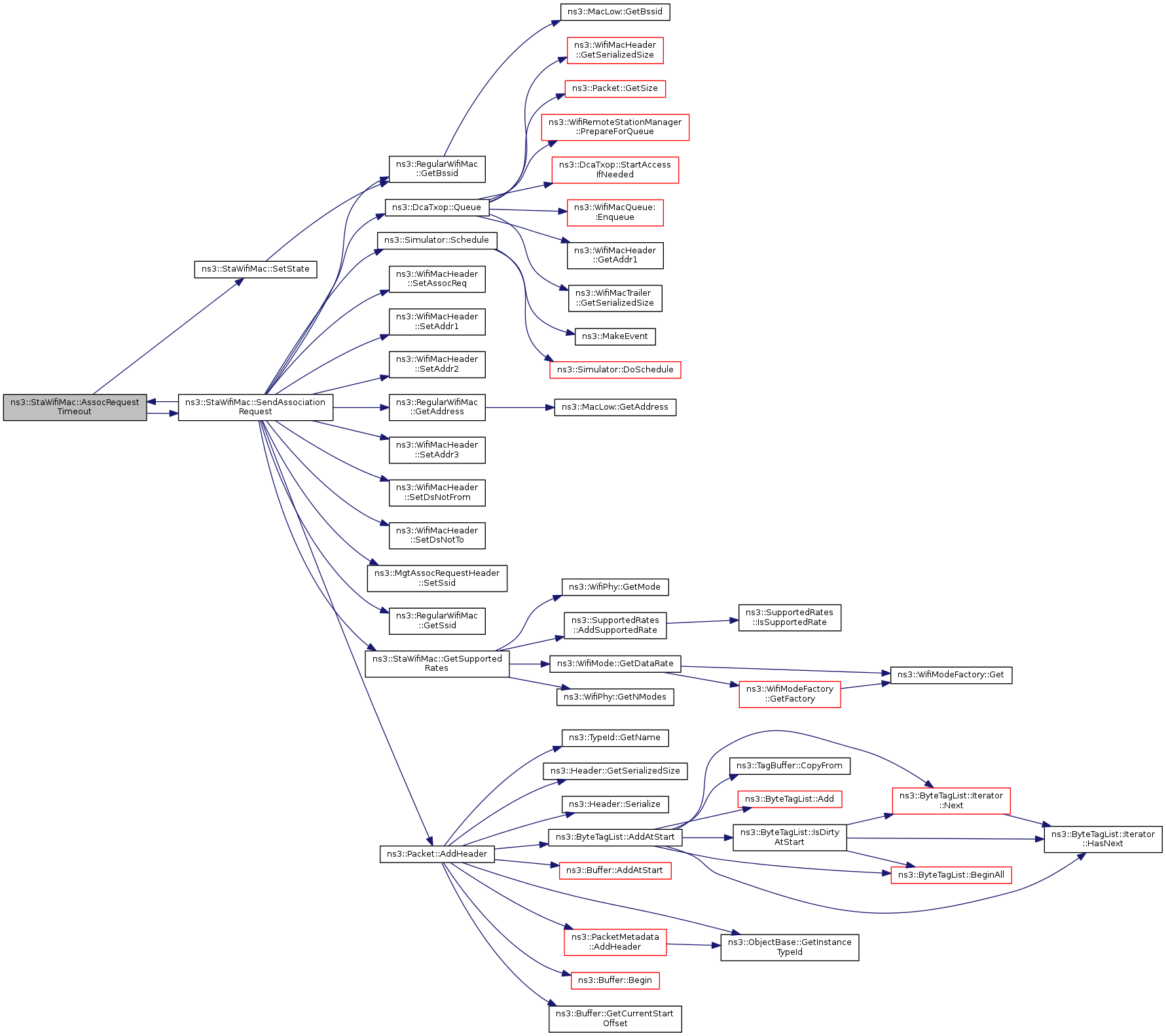

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::StaWifiMac::Enqueue ( Ptr< const Packet >  packet,
Mac48Address  to
)
virtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 308 of file sta-wifi-mac.cc.

References ns3::MacLow::GetAddress(), ns3::RegularWifiMac::GetBssid(), IsAssociated(), ns3::RegularWifiMac::m_dca, ns3::RegularWifiMac::m_edca, ns3::RegularWifiMac::m_low, ns3::RegularWifiMac::m_qosSupported, ns3::WifiMacHeader::NORMAL_ACK, ns3::WifiMac::NotifyTxDrop(), NS_ASSERT, NS_LOG_FUNCTION, ns3::QosUtilsGetTidForPacket(), ns3::QosUtilsMapTidToAc(), ns3::DcaTxop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsTo(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetQosNoAmsdu(), ns3::WifiMacHeader::SetQosNoEosp(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetQosTxopLimit(), ns3::WifiMacHeader::SetType(), ns3::WifiMacHeader::SetTypeData(), TryToEnsureAssociated(), and ns3::WIFI_MAC_QOSDATA.

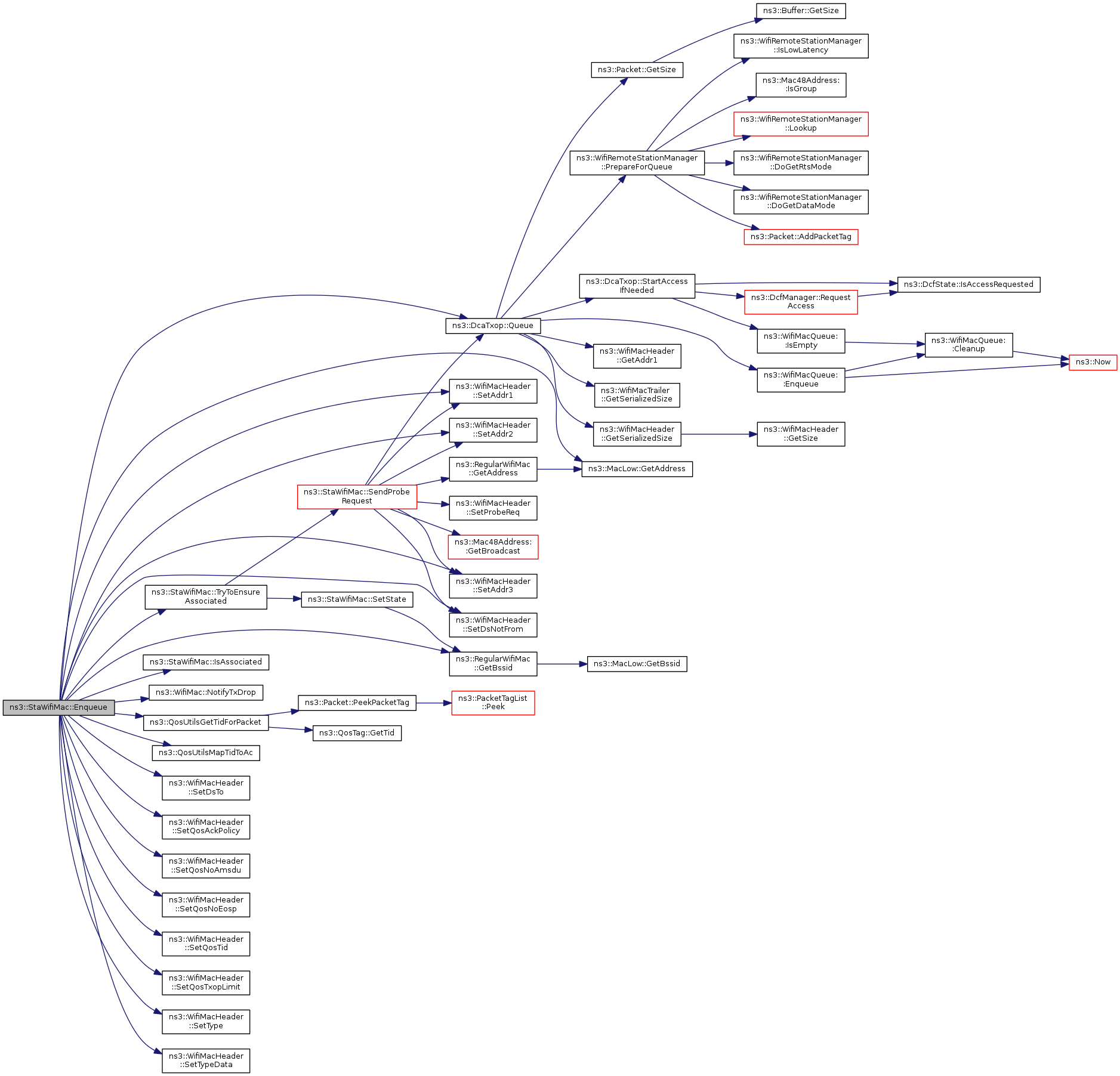

+ Here is the call graph for this function:

bool ns3::StaWifiMac::GetActiveProbing ( void  ) const
private
SupportedRates ns3::StaWifiMac::GetSupportedRates ( void  ) const
private

Definition at line 535 of file sta-wifi-mac.cc.

References ns3::SupportedRates::AddSupportedRate(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), and ns3::RegularWifiMac::m_phy.

Referenced by SendAssociationRequest(), and SendProbeRequest().

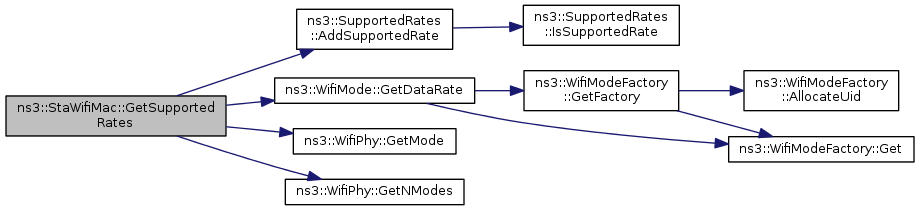

+ Here is the call graph for this function:

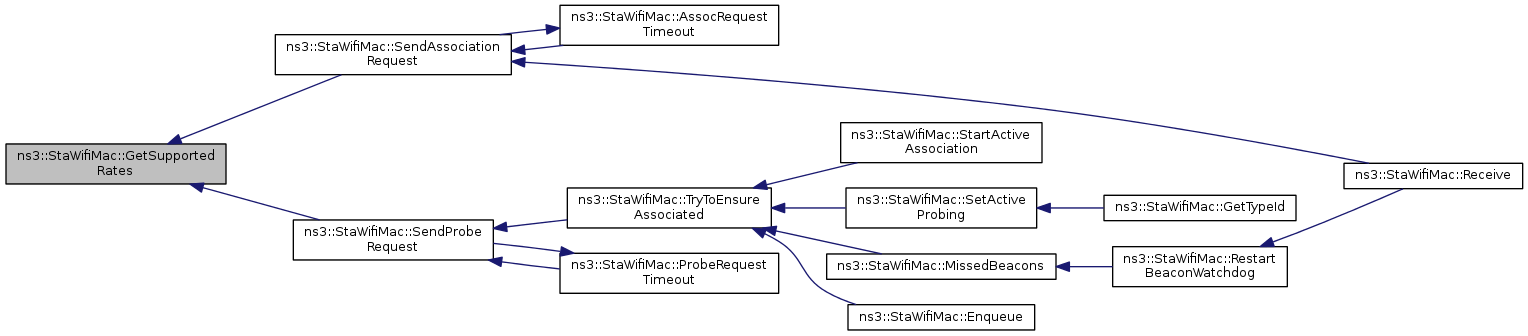

+ Here is the caller graph for this function:

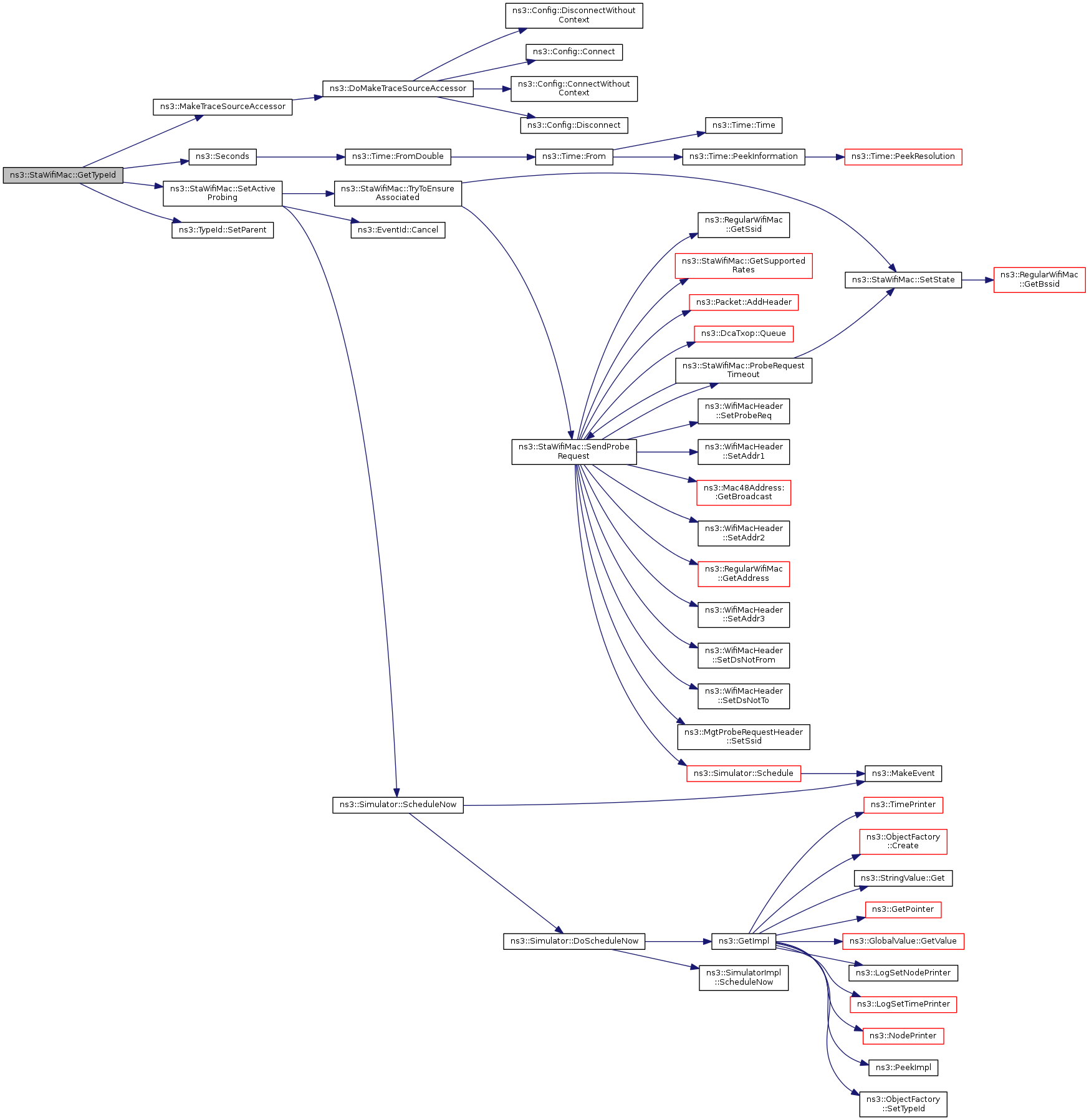

TypeId ns3::StaWifiMac::GetTypeId ( void  )
static

This method returns the TypeId associated to ns3::StaWifiMac.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::StaWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::StaWifiMac

Attributes defined for this type:

  • ProbeRequestTimeout: The interval between two consecutive probe request attempts.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +50000000.0ns
    • Flags: construct write read
  • AssocRequestTimeout: The interval between two consecutive assoc request attempts.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +500000000.0ns
    • Flags: construct write read
  • MaxMissedBeacons: Number of beacons which much be consecutively missed before we attempt to restart association.
  • ActiveProbing: If true, we send probe requests. If false, we don't. NOTE: if more than one STA in your simulation is using active probing, you should enable it at a different simulation time for each STA, otherwise all the STAs will start sending probes at the same time resulting in collisions. See bug 1060 for more info.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write

Attributes defined in parent class ns3::RegularWifiMac:

Attributes defined in parent class ns3::WifiMac:

  • CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +75000.0ns
    • Flags: construct write read
  • AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +75000.0ns
    • Flags: construct write read
  • BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +281000.0ns
    • Flags: construct write read
  • CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +99000.0ns
    • Flags: construct write read
  • Sifs: The value of the SIFS constant.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +16000.0ns
    • Flags: construct write read
  • EifsNoDifs: The value of EIFS-DIFS
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +60000.0ns
    • Flags: construct write read
  • Slot: The duration of a Slot.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +9000.0ns
    • Flags: construct write read
  • Pifs: The value of the PIFS constant.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +25000.0ns
    • Flags: construct write read
  • MaxPropagationDelay: The maximum propagation delay. Unused for now.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +3333.0ns
    • Flags: construct write read
  • Ssid: The ssid we want to belong to.
    • Set with class: SsidValue
    • Underlying type: Ssid
    • Initial value: default
    • Flags: construct write read

TraceSources defined for this type:

  • Assoc: Associated with an access point.
  • DeAssoc: Association with an access point lost.

TraceSources defined in parent class ns3::RegularWifiMac:

  • TxOkHeader: The header of successfully transmitted packet
  • TxErrHeader: The header of unsuccessfully transmitted packet

TraceSources defined in parent class ns3::WifiMac:

  • MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
  • MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
  • MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
  • MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
  • MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Reimplemented from ns3::RegularWifiMac.

Definition at line 65 of file sta-wifi-mac.cc.

References m_assocLogger, m_assocRequestTimeout, m_deAssocLogger, m_maxMissedBeacons, m_probeRequestTimeout, ns3::MakeTraceSourceAccessor(), ns3::Seconds(), SetActiveProbing(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

bool ns3::StaWifiMac::IsAssociated ( void  ) const
private

Definition at line 296 of file sta-wifi-mac.cc.

References ASSOCIATED, and m_state.

Referenced by Enqueue(), and Receive().

+ Here is the caller graph for this function:

bool ns3::StaWifiMac::IsWaitAssocResp ( void  ) const
private

Definition at line 302 of file sta-wifi-mac.cc.

References m_state, and WAIT_ASSOC_RESP.

Referenced by Receive().

+ Here is the caller graph for this function:

void ns3::StaWifiMac::MissedBeacons ( void  )
private

Definition at line 268 of file sta-wifi-mac.cc.

References BEACON_MISSED, m_beaconWatchdog, m_beaconWatchdogEnd, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SetState(), and TryToEnsureAssociated().

Referenced by RestartBeaconWatchdog().

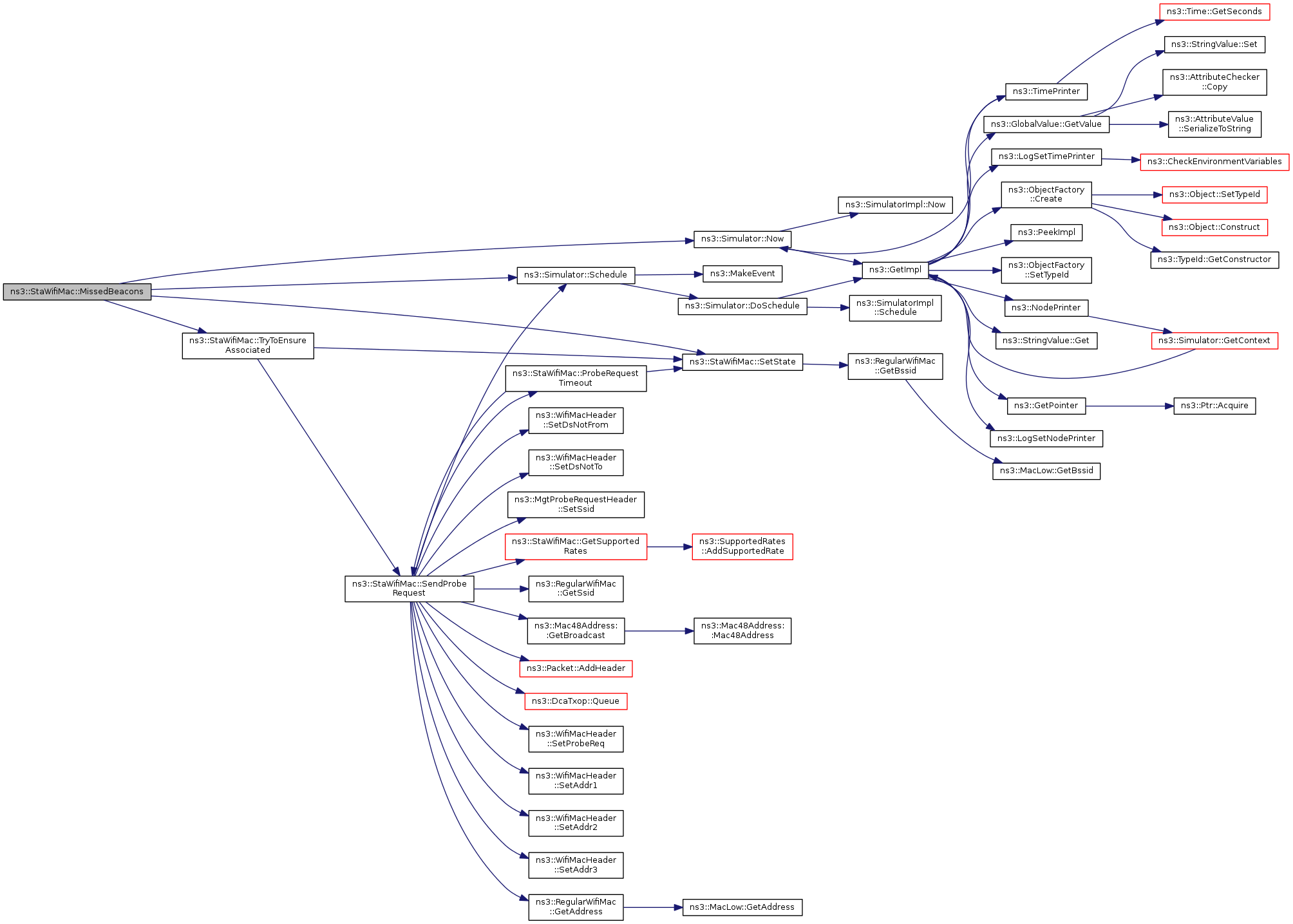

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::StaWifiMac::ProbeRequestTimeout ( void  )
private

Definition at line 260 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, SendProbeRequest(), SetState(), and WAIT_PROBE_RESP.

Referenced by SendProbeRequest().

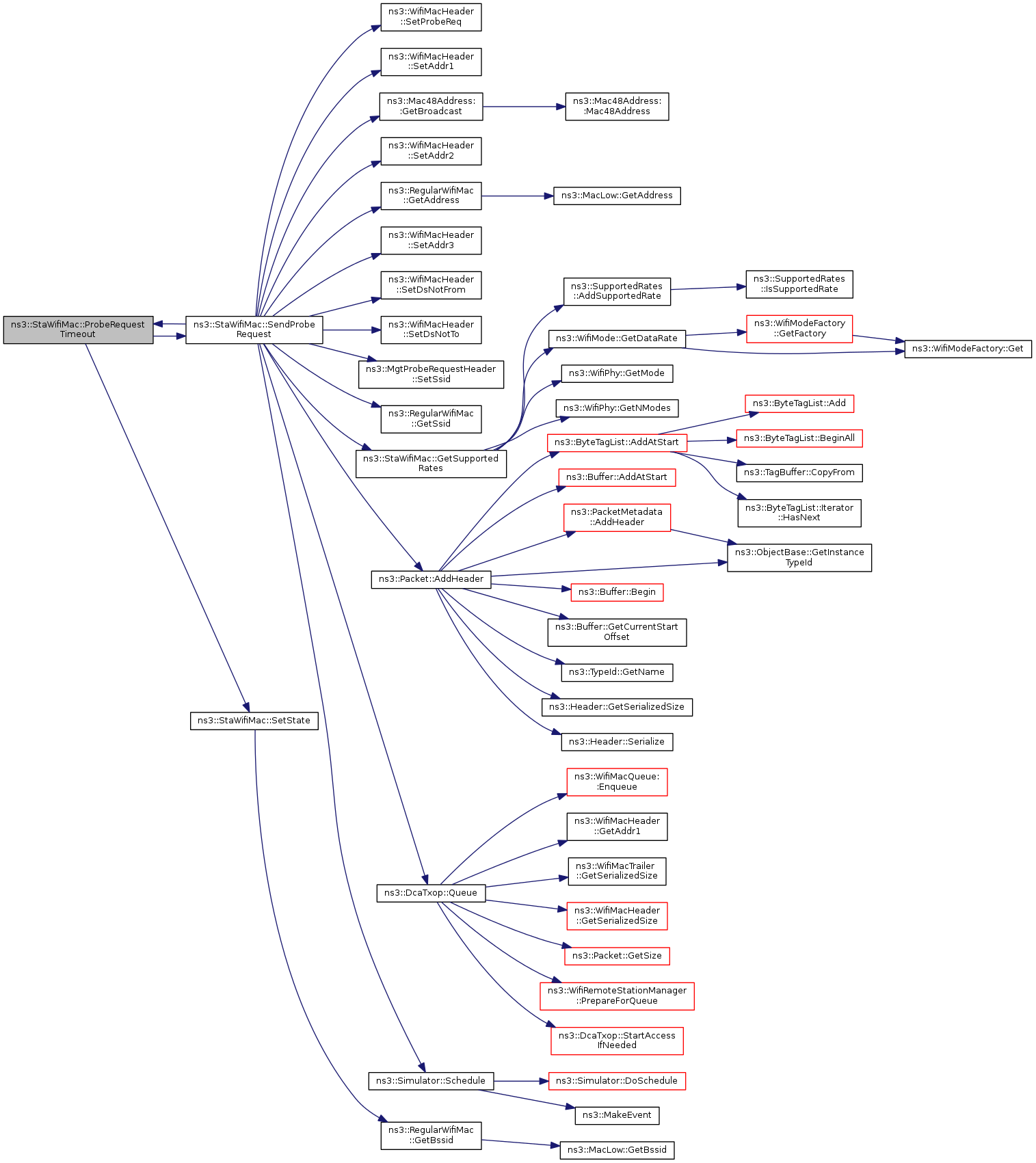

+ Here is the call graph for this function:

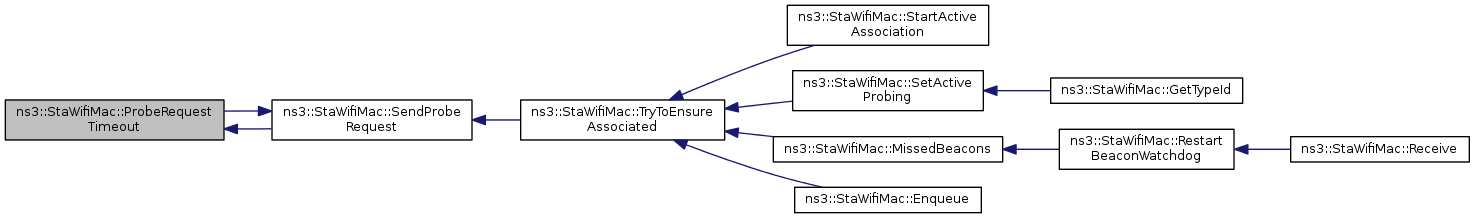

+ Here is the caller graph for this function:

void ns3::StaWifiMac::Receive ( Ptr< Packet >  packet,
const WifiMacHeader *  hdr
)
privatevirtual

Definition at line 374 of file sta-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddBasicMode(), ns3::WifiRemoteStationManager::AddSupportedMode(), ASSOCIATED, BEACON_MISSED, ns3::EventId::Cancel(), ns3::RegularWifiMac::DeaggregateAmsduAndForward(), ns3::RegularWifiMac::ForwardUp(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), ns3::RegularWifiMac::GetAddress(), ns3::MgtProbeResponseHeader::GetBeaconIntervalUs(), ns3::RegularWifiMac::GetBssid(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), ns3::RegularWifiMac::GetSsid(), ns3::MgtProbeResponseHeader::GetSsid(), ns3::MgtAssocResponseHeader::GetStatusCode(), ns3::MgtAssocResponseHeader::GetSupportedRates(), IsAssociated(), ns3::WifiMacHeader::IsAssocReq(), ns3::WifiMacHeader::IsAssocResp(), ns3::SupportedRates::IsBasicRate(), ns3::WifiMacHeader::IsBeacon(), ns3::WifiMacHeader::IsCtl(), ns3::WifiMacHeader::IsData(), ns3::Ssid::IsEqual(), ns3::WifiMacHeader::IsFromDs(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::WifiMacHeader::IsProbeReq(), ns3::WifiMacHeader::IsProbeResp(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), ns3::EventId::IsRunning(), ns3::StatusCode::IsSuccess(), ns3::SupportedRates::IsSupportedRate(), ns3::WifiMacHeader::IsToDs(), IsWaitAssocResp(), m_assocRequestEvent, ns3::RegularWifiMac::m_linkUp, m_maxMissedBeacons, ns3::RegularWifiMac::m_phy, m_probeRequestEvent, m_state, ns3::RegularWifiMac::m_stationManager, ns3::MicroSeconds(), ns3::WifiMac::NotifyRxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, REFUSED, ns3::Packet::RemoveHeader(), RestartBeaconWatchdog(), SendAssociationRequest(), ns3::RegularWifiMac::SetBssid(), SetState(), WAIT_ASSOC_RESP, and WAIT_PROBE_RESP.

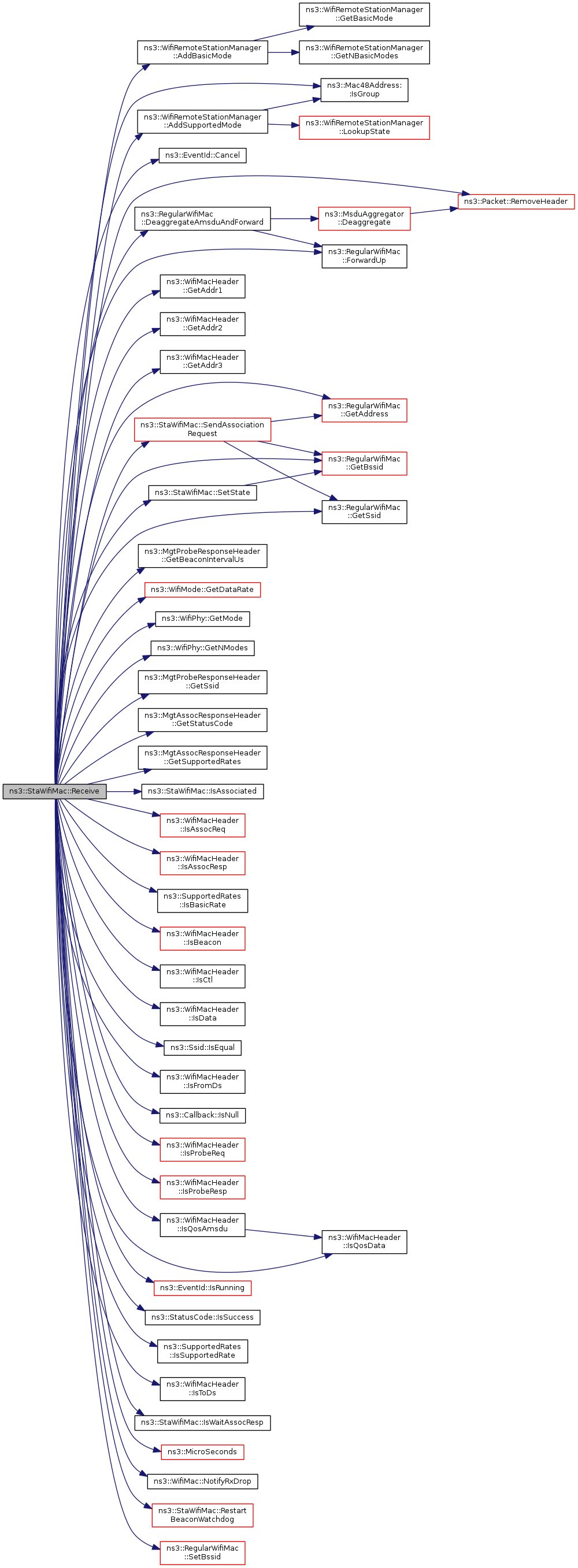

+ Here is the call graph for this function:

void ns3::StaWifiMac::RestartBeaconWatchdog ( Time  delay)
private

Definition at line 283 of file sta-wifi-mac.cc.

References ns3::Simulator::GetDelayLeft(), ns3::EventId::IsExpired(), m_beaconWatchdog, m_beaconWatchdogEnd, MissedBeacons(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by Receive().

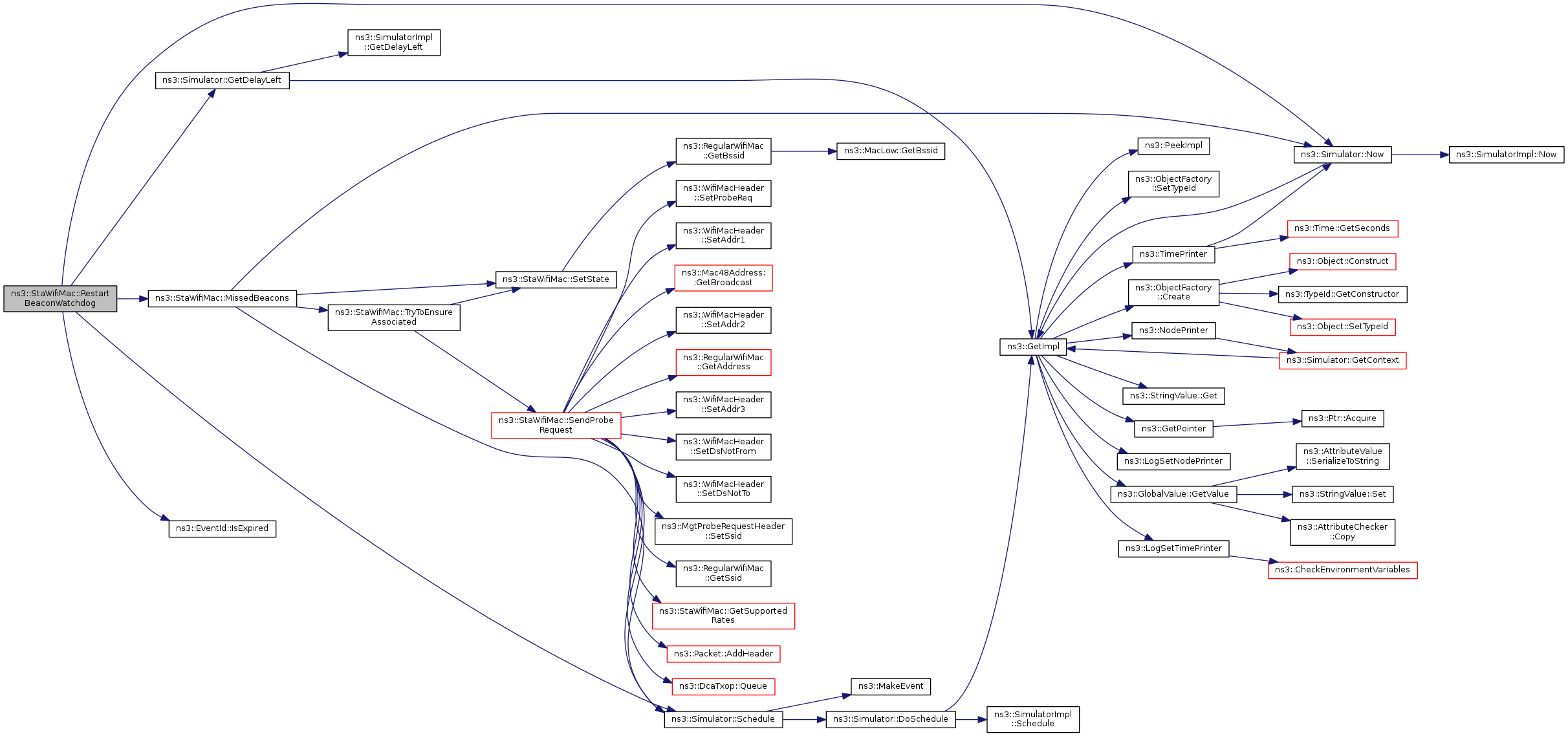

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::StaWifiMac::SendAssociationRequest ( void  )
private

Definition at line 184 of file sta-wifi-mac.cc.

References ns3::Packet::AddHeader(), AssocRequestTimeout(), ns3::RegularWifiMac::GetAddress(), ns3::RegularWifiMac::GetBssid(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), m_assocRequestEvent, m_assocRequestTimeout, ns3::RegularWifiMac::m_dca, NS_LOG_FUNCTION, ns3::DcaTxop::Queue(), ns3::Simulator::Schedule(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetAssocReq(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::MgtAssocRequestHeader::SetSsid().

Referenced by AssocRequestTimeout(), and Receive().

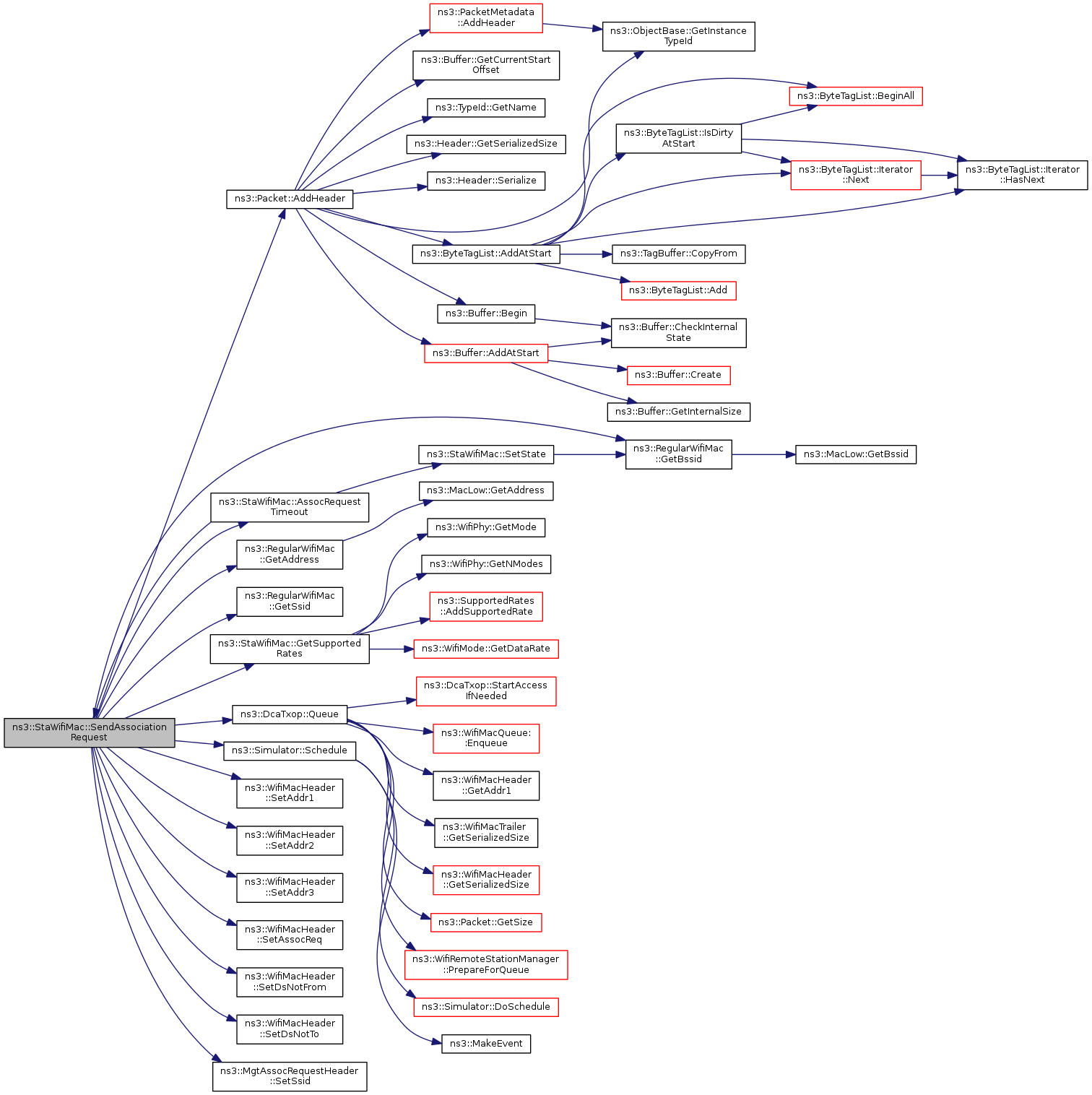

+ Here is the call graph for this function:

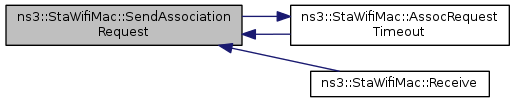

+ Here is the caller graph for this function:

void ns3::StaWifiMac::SendProbeRequest ( void  )
private

Definition at line 157 of file sta-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), ns3::RegularWifiMac::m_dca, m_probeRequestEvent, m_probeRequestTimeout, NS_LOG_FUNCTION, ProbeRequestTimeout(), ns3::DcaTxop::Queue(), ns3::Simulator::Schedule(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetProbeReq(), and ns3::MgtProbeRequestHeader::SetSsid().

Referenced by ProbeRequestTimeout(), and TryToEnsureAssociated().

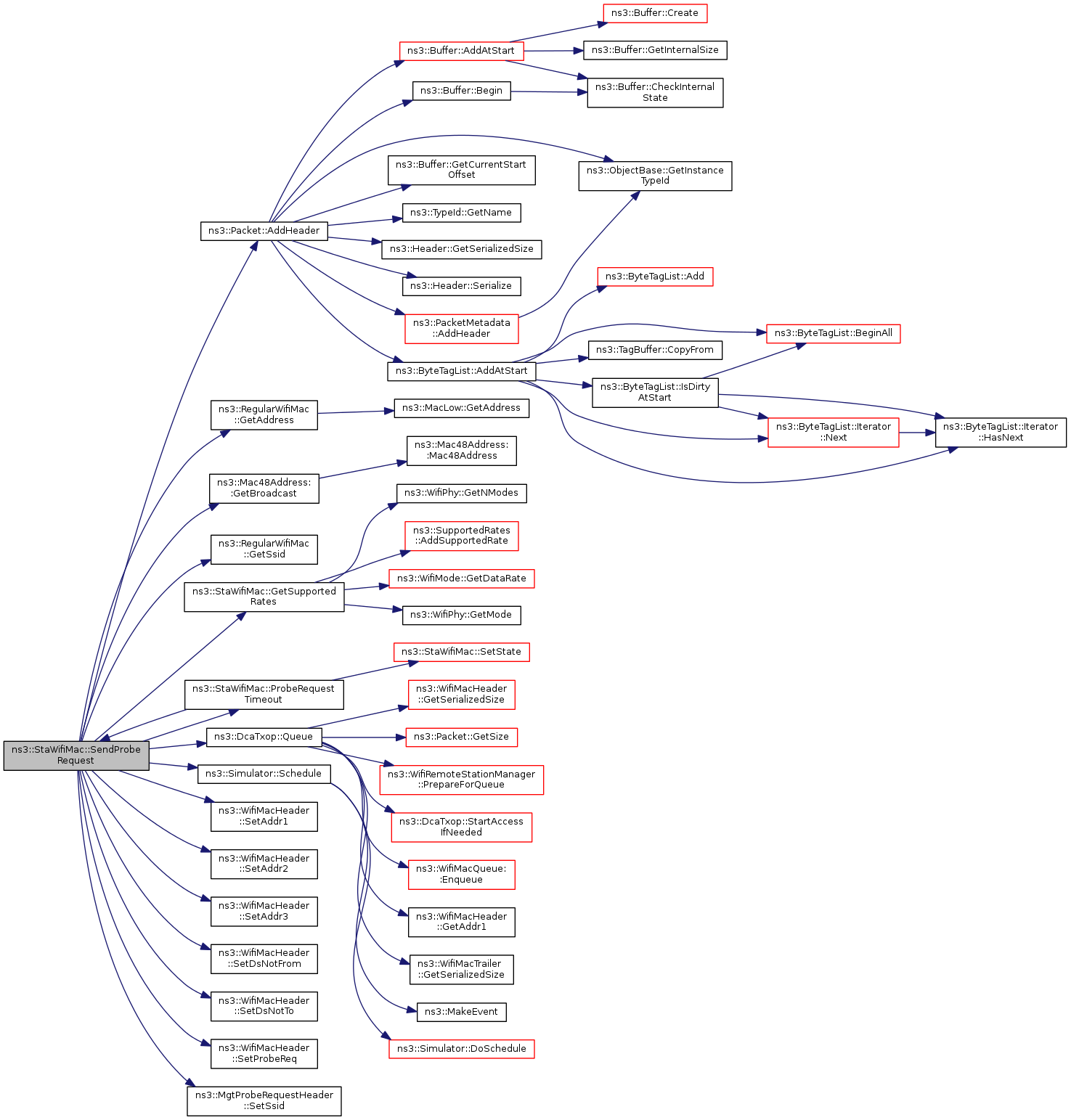

+ Here is the call graph for this function:

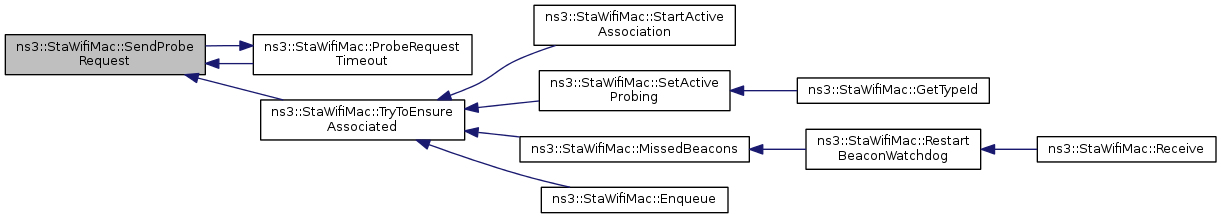

+ Here is the caller graph for this function:

void ns3::StaWifiMac::SetActiveProbing ( bool  enable)
private

Definition at line 143 of file sta-wifi-mac.cc.

References ns3::EventId::Cancel(), m_probeRequestEvent, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and TryToEnsureAssociated().

Referenced by GetTypeId().

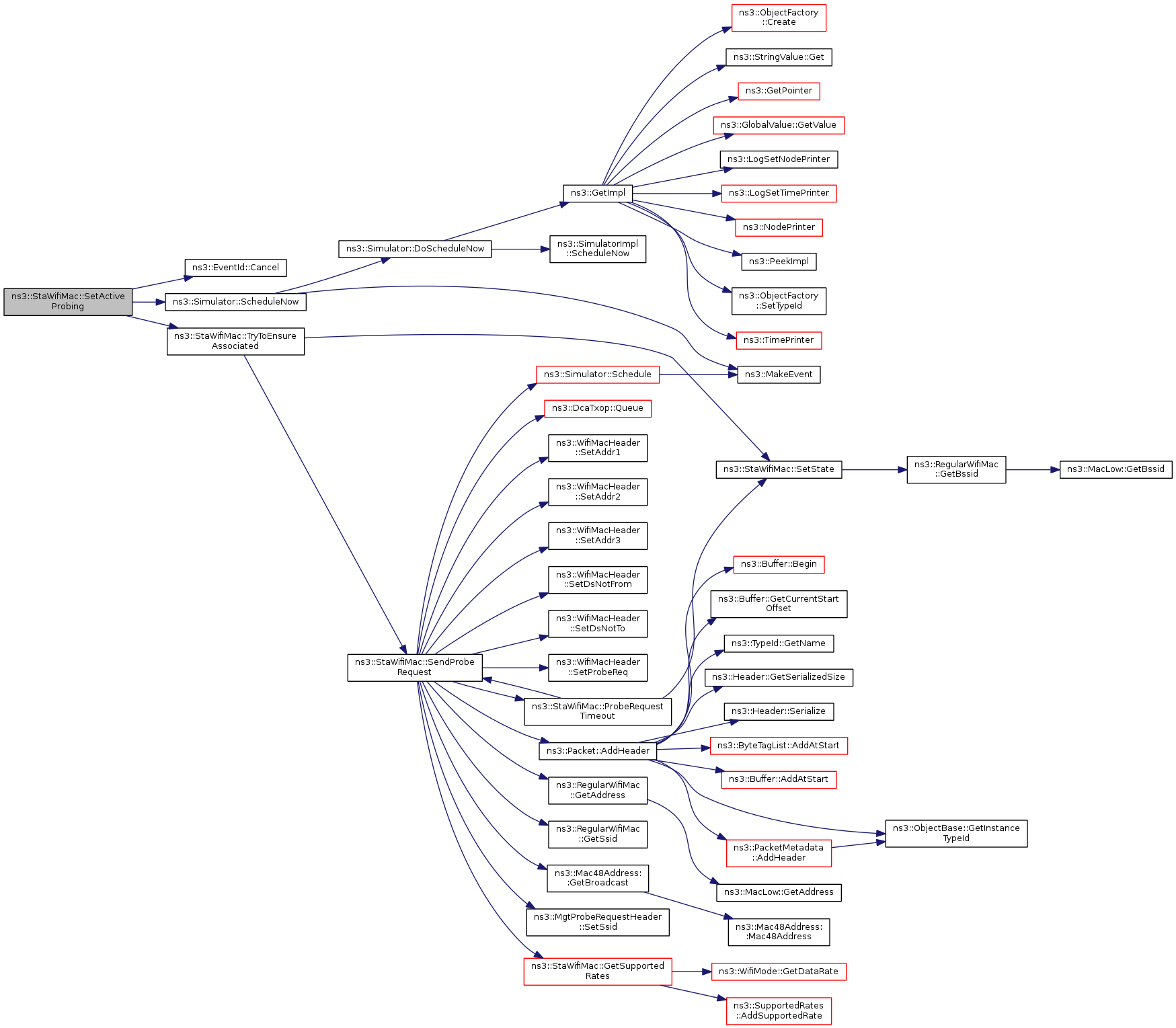

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::StaWifiMac::SetAssocRequestTimeout ( Time  timeout)
Parameters
timeoutIf no association response is received within the specified timeout, the station sends a new association request.

Definition at line 129 of file sta-wifi-mac.cc.

References m_assocRequestTimeout, NS_LOG_FUNCTION, and timeout.

void ns3::StaWifiMac::SetMaxMissedBeacons ( uint32_t  missed)
Parameters
missedthe number of beacons which must be missed before a new association sequence is started.

Definition at line 115 of file sta-wifi-mac.cc.

References m_maxMissedBeacons, and NS_LOG_FUNCTION.

void ns3::StaWifiMac::SetProbeRequestTimeout ( Time  timeout)
Parameters
timeoutIf no probe response is received within the specified timeout, the station sends a new probe request.

Definition at line 122 of file sta-wifi-mac.cc.

References m_probeRequestTimeout, NS_LOG_FUNCTION, and timeout.

void ns3::StaWifiMac::SetState ( enum MacState  value)
private

Definition at line 547 of file sta-wifi-mac.cc.

References ASSOCIATED, ns3::RegularWifiMac::GetBssid(), m_assocLogger, m_deAssocLogger, and m_state.

Referenced by AssocRequestTimeout(), MissedBeacons(), ProbeRequestTimeout(), Receive(), and TryToEnsureAssociated().

+ Here is the call graph for this function:

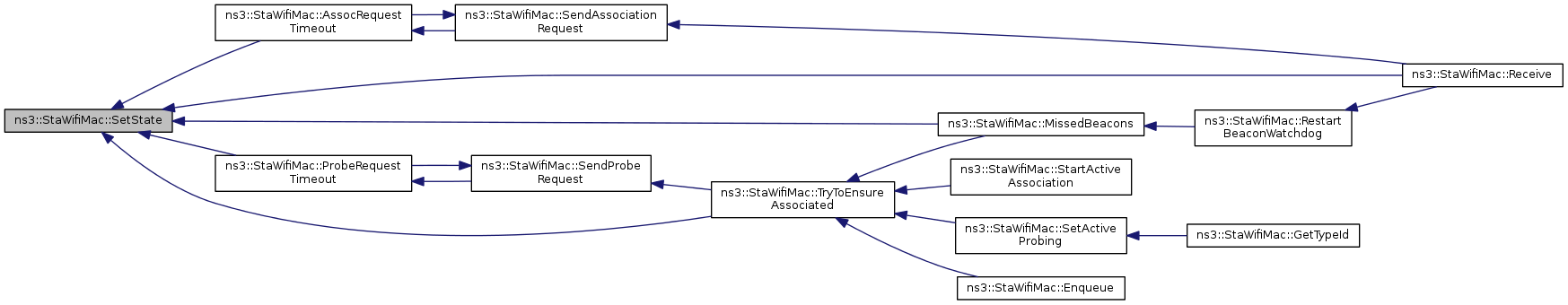

+ Here is the caller graph for this function:

void ns3::StaWifiMac::StartActiveAssociation ( void  )

Start an active association sequence immediately.

Definition at line 136 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, and TryToEnsureAssociated().

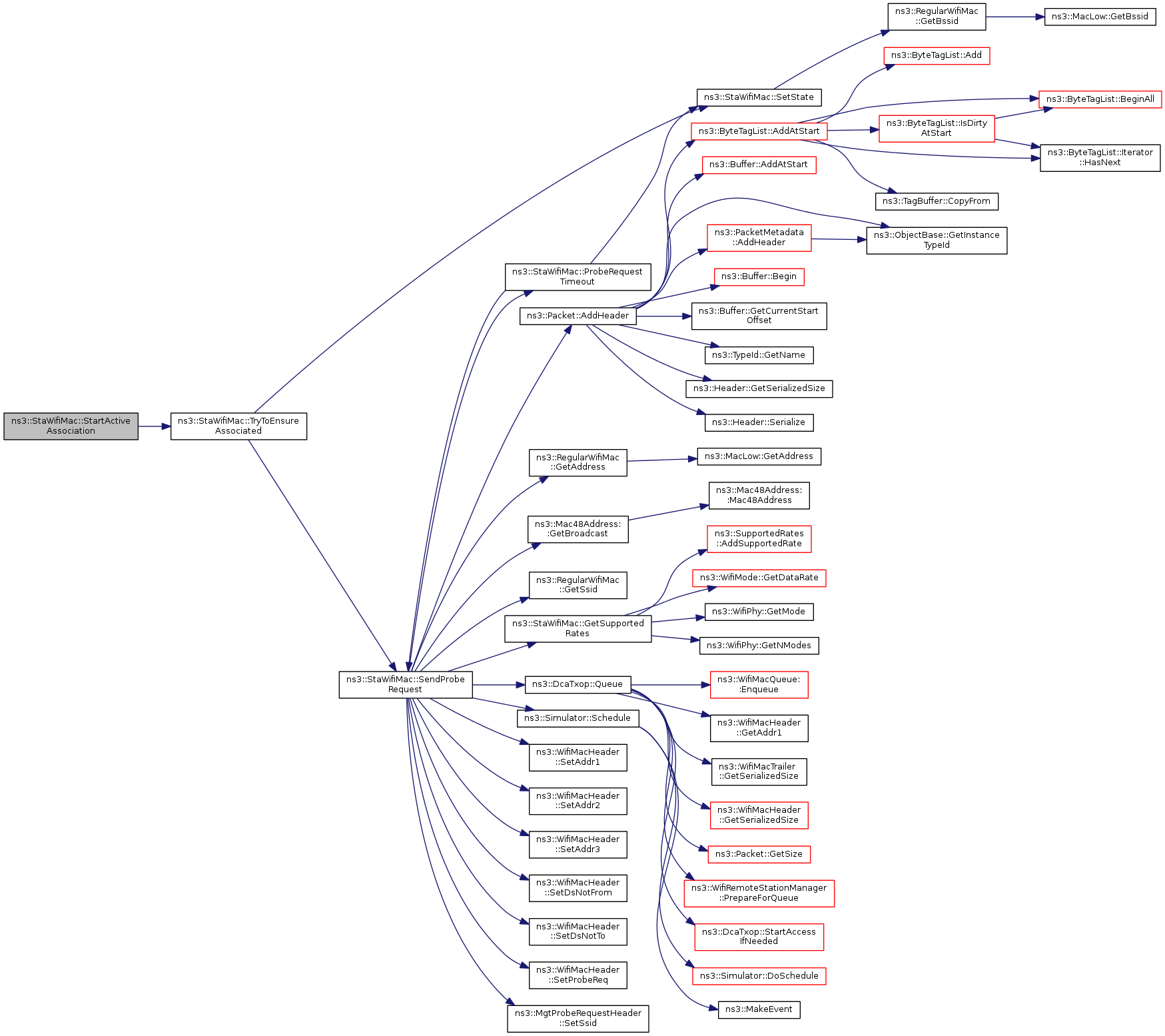

+ Here is the call graph for this function:

void ns3::StaWifiMac::TryToEnsureAssociated ( void  )
private

Definition at line 211 of file sta-wifi-mac.cc.

References ASSOCIATED, BEACON_MISSED, ns3::RegularWifiMac::m_linkDown, m_state, NS_LOG_FUNCTION, REFUSED, SendProbeRequest(), SetState(), WAIT_ASSOC_RESP, and WAIT_PROBE_RESP.

Referenced by Enqueue(), MissedBeacons(), SetActiveProbing(), and StartActiveAssociation().

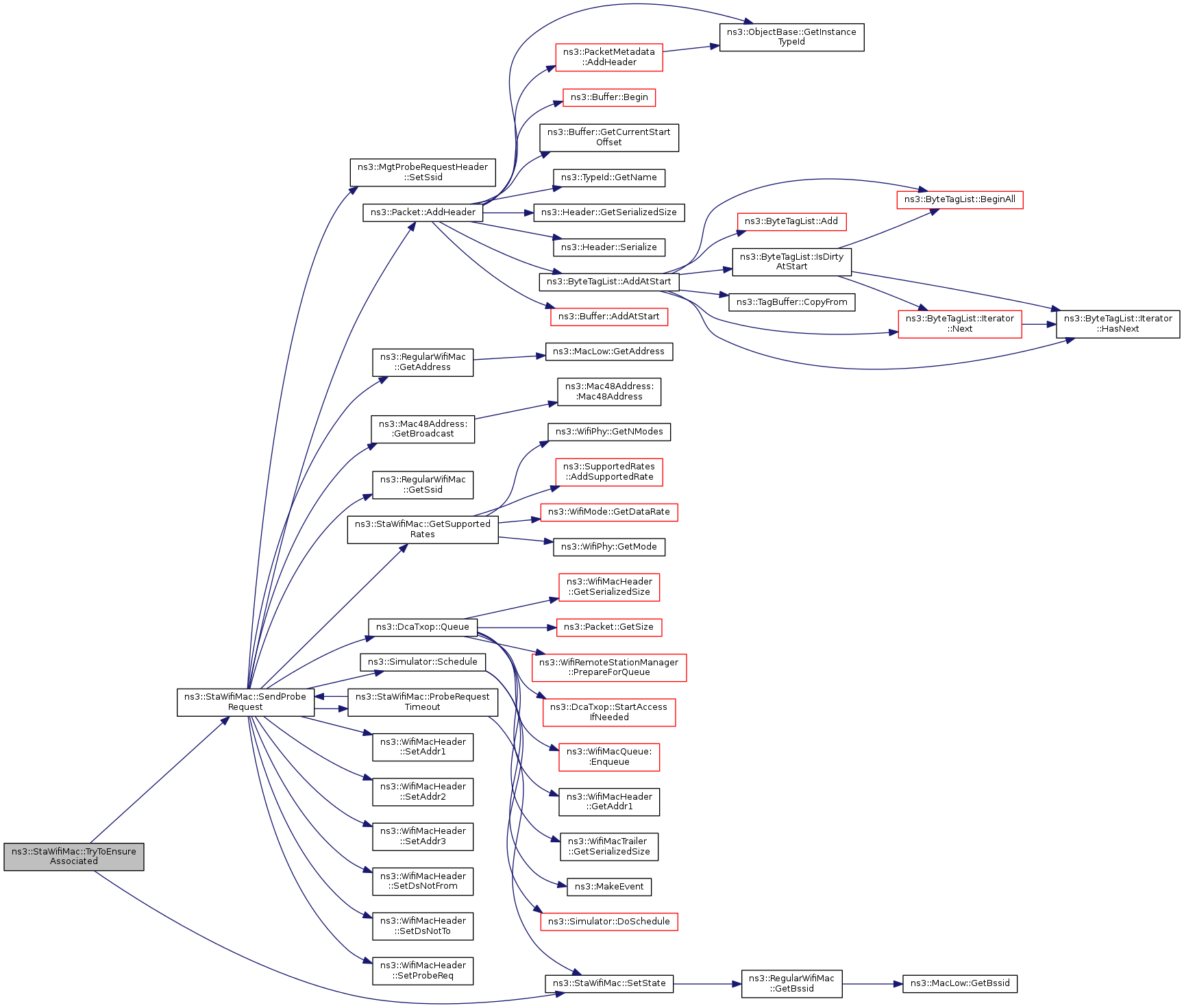

+ Here is the call graph for this function:

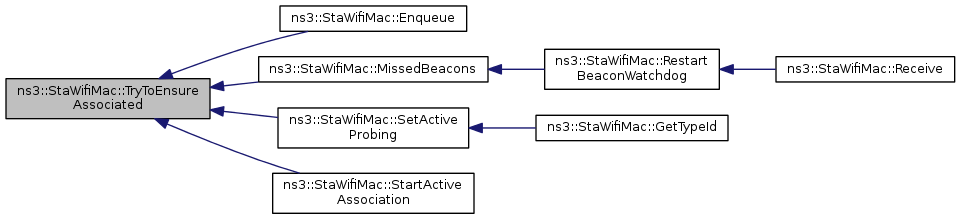

+ Here is the caller graph for this function:

Member Data Documentation

TracedCallback<Mac48Address> ns3::StaWifiMac::m_assocLogger
private

Definition at line 120 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SetState().

EventId ns3::StaWifiMac::m_assocRequestEvent
private

Definition at line 115 of file sta-wifi-mac.h.

Referenced by Receive(), and SendAssociationRequest().

Time ns3::StaWifiMac::m_assocRequestTimeout
private

Definition at line 113 of file sta-wifi-mac.h.

Referenced by GetTypeId(), SendAssociationRequest(), and SetAssocRequestTimeout().

EventId ns3::StaWifiMac::m_beaconWatchdog
private

Definition at line 116 of file sta-wifi-mac.h.

Referenced by MissedBeacons(), and RestartBeaconWatchdog().

Time ns3::StaWifiMac::m_beaconWatchdogEnd
private

Definition at line 117 of file sta-wifi-mac.h.

Referenced by MissedBeacons(), and RestartBeaconWatchdog().

TracedCallback<Mac48Address> ns3::StaWifiMac::m_deAssocLogger
private

Definition at line 121 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SetState().

uint32_t ns3::StaWifiMac::m_maxMissedBeacons
private

Definition at line 118 of file sta-wifi-mac.h.

Referenced by GetTypeId(), Receive(), and SetMaxMissedBeacons().

EventId ns3::StaWifiMac::m_probeRequestEvent
private

Definition at line 114 of file sta-wifi-mac.h.

Referenced by Receive(), SendProbeRequest(), and SetActiveProbing().

Time ns3::StaWifiMac::m_probeRequestTimeout
private

Definition at line 112 of file sta-wifi-mac.h.

Referenced by GetTypeId(), SendProbeRequest(), and SetProbeRequestTimeout().

enum MacState ns3::StaWifiMac::m_state
private

Definition at line 111 of file sta-wifi-mac.h.

Referenced by IsAssociated(), IsWaitAssocResp(), Receive(), SetState(), and TryToEnsureAssociated().

The documentation for this class was generated from the following files:
