802.11 PHY layer modelThis PHY implements a model of 802.11a. The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf). More...

#include <yans-wifi-phy.h>

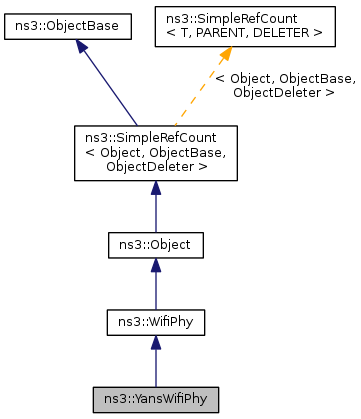

Inheritance diagram for ns3::YansWifiPhy:

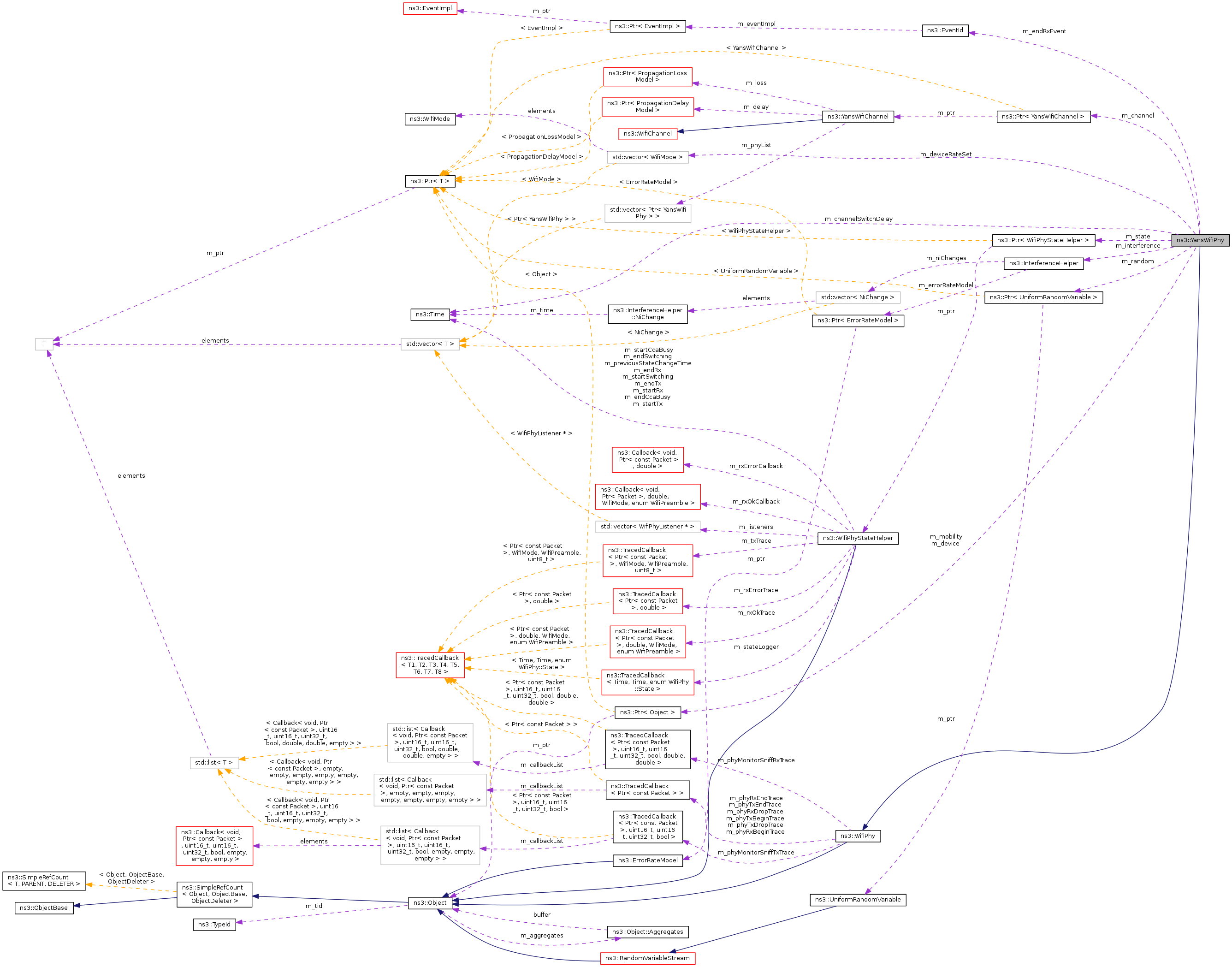

Collaboration diagram for ns3::YansWifiPhy:

Public Member Functions
	YansWifiPhy ()
virtual	~YansWifiPhy ()
int64_t	AssignStreams (int64_t stream)
virtual double	CalculateSnr (WifiMode txMode, double ber) const
virtual void	ConfigureStandard (enum WifiPhyStandard standard)
double	GetCcaMode1Threshold (void) const
virtual Ptr< WifiChannel >	GetChannel (void) const
double	GetChannelFrequencyMhz () const
	Return current center channel frequency in MHz, see SetChannelNumber()
uint16_t	GetChannelNumber () const
	Return current channel number, see SetChannelNumber()
virtual Time	GetDelayUntilIdle (void)
Ptr< Object >	GetDevice (void) const
double	GetEdThreshold (void) const
Ptr< ErrorRateModel >	GetErrorRateModel (void) const
virtual Time	GetLastRxStartTime (void) const
Ptr< Object >	GetMobility (void)
virtual WifiMode	GetMode (uint32_t mode) const
virtual uint32_t	GetNModes (void) const
virtual uint32_t	GetNTxPower (void) const
double	GetRxGain (void) const
double	GetRxNoiseFigure (void) const
virtual Time	GetStateDuration (void)
double	GetTxGain (void) const
virtual double	GetTxPowerEnd (void) const
virtual double	GetTxPowerStart (void) const

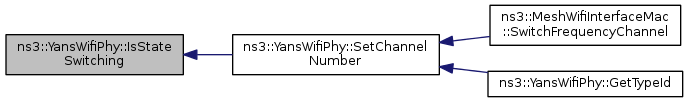

virtual bool	IsStateBusy (void)
virtual bool	IsStateCcaBusy (void)
virtual bool	IsStateIdle (void)
virtual bool	IsStateRx (void)
virtual bool	IsStateSwitching (void)
virtual bool	IsStateTx (void)
virtual void	RegisterListener (WifiPhyListener *listener)
virtual void	SendPacket (Ptr< const Packet > packet, WifiMode mode, enum WifiPreamble preamble, uint8_t txPowerLevel)
void	SetCcaMode1Threshold (double threshold)
void	SetChannel (Ptr< YansWifiChannel > channel)
void	SetChannelNumber (uint16_t id)
	Set channel number.
void	SetDevice (Ptr< Object > device)
void	SetEdThreshold (double threshold)
void	SetErrorRateModel (Ptr< ErrorRateModel > rate)
void	SetMobility (Ptr< Object > mobility)
void	SetNTxPower (uint32_t n)
virtual void	SetReceiveErrorCallback (WifiPhy::RxErrorCallback callback)
virtual void	SetReceiveOkCallback (WifiPhy::RxOkCallback callback)
void	SetRxGain (double gain)
void	SetRxNoiseFigure (double noiseFigureDb)
void	SetTxGain (double gain)
void	SetTxPowerEnd (double end)
void	SetTxPowerStart (double start)
void	StartReceivePacket (Ptr< Packet > packet, double rxPowerDbm, WifiMode mode, WifiPreamble preamble)
Public Member Functions inherited from ns3::WifiPhy
	WifiPhy ()
virtual	~WifiPhy ()
void	NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble, double signalDbm, double noiseDbm)
void	NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, bool isShortPreamble)
void	NotifyRxBegin (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyRxEnd (Ptr< const Packet > packet)
void	NotifyTxBegin (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
void	NotifyTxEnd (Ptr< const Packet > packet)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::YansWifiPhy.
Static Public Member Functions inherited from ns3::WifiPhy
static Time	CalculateTxDuration (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble)
static WifiMode	GetDsssRate11Mbps ()
static WifiMode	GetDsssRate1Mbps ()
static WifiMode	GetDsssRate2Mbps ()
static WifiMode	GetDsssRate5_5Mbps ()
static WifiMode	GetErpOfdmRate12Mbps ()
static WifiMode	GetErpOfdmRate18Mbps ()
static WifiMode	GetErpOfdmRate24Mbps ()
static WifiMode	GetErpOfdmRate36Mbps ()
static WifiMode	GetErpOfdmRate48Mbps ()
static WifiMode	GetErpOfdmRate54Mbps ()
static WifiMode	GetErpOfdmRate6Mbps ()
static WifiMode	GetErpOfdmRate9Mbps ()
static WifiMode	GetOfdmRate12Mbps ()
static WifiMode	GetOfdmRate12MbpsBW10MHz ()
static WifiMode	GetOfdmRate12MbpsBW5MHz ()
static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
static WifiMode	GetOfdmRate18Mbps ()
static WifiMode	GetOfdmRate18MbpsBW10MHz ()
static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
static WifiMode	GetOfdmRate24Mbps ()
static WifiMode	GetOfdmRate24MbpsBW10MHz ()
static WifiMode	GetOfdmRate27MbpsBW10MHz ()
static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
static WifiMode	GetOfdmRate36Mbps ()
static WifiMode	GetOfdmRate3MbpsBW10MHz ()
static WifiMode	GetOfdmRate3MbpsBW5MHz ()
static WifiMode	GetOfdmRate48Mbps ()
static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
static WifiMode	GetOfdmRate54Mbps ()
static WifiMode	GetOfdmRate6Mbps ()
static WifiMode	GetOfdmRate6MbpsBW10MHz ()
static WifiMode	GetOfdmRate6MbpsBW5MHz ()
static WifiMode	GetOfdmRate9Mbps ()
static WifiMode	GetOfdmRate9MbpsBW10MHz ()
static WifiMode	GetOfdmRate9MbpsBW5MHz ()
static uint32_t	GetPayloadDurationMicroSeconds (uint32_t size, WifiMode payloadMode)
static uint32_t	GetPlcpHeaderDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)
static WifiMode	GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble)
static uint32_t	GetPlcpPreambleDurationMicroSeconds (WifiMode payloadMode, WifiPreamble preamble)

Private Member Functions
	YansWifiPhy (const YansWifiPhy &o)
void	Configure80211_10Mhz (void)
void	Configure80211_5Mhz ()
void	Configure80211a (void)
void	Configure80211b (void)
void	Configure80211g (void)
void	Configure80211p_CCH (void)
void	Configure80211p_SCH (void)
void	ConfigureHolland (void)
double	DbmToW (double dbm) const
double	DbToRatio (double db) const
virtual void	DoDispose (void)
void	EndReceive (Ptr< Packet > packet, Ptr< InterferenceHelper::Event > event)
double	GetEdThresholdW (void) const
double	GetPowerDbm (uint8_t power) const

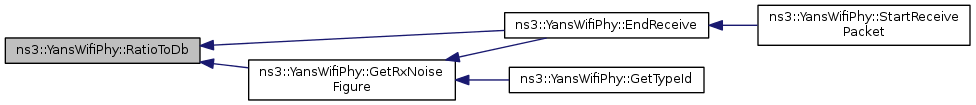

double	RatioToDb (double ratio) const
double	WToDbm (double w) const

Private Attributes
double	m_ccaMode1ThresholdW
Ptr< YansWifiChannel >	m_channel
uint16_t	m_channelNumber
double	m_channelStartingFrequency
	Standard-dependent center frequency of 0-th channel, MHz.
Time	m_channelSwitchDelay
Ptr< Object >	m_device
WifiModeList	m_deviceRateSet
double	m_edThresholdW
EventId	m_endRxEvent
InterferenceHelper	m_interference
Ptr< Object >	m_mobility
uint32_t	m_nTxPower
Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables.
double	m_rxGainDb
Ptr< WifiPhyStateHelper >	m_state
double	m_txGainDb
double	m_txPowerBaseDbm
double	m_txPowerEndDbm

Additional Inherited Members
Public Types inherited from ns3::WifiPhy
typedef Callback< void, Ptr < const Packet >, double >	RxErrorCallback
typedef Callback< void, Ptr < Packet >, double, WifiMode, enum WifiPreamble >	RxOkCallback
enum	State { IDLE, CCA_BUSY, TX, RX, SWITCHING }
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

802.11 PHY layer model

This PHY implements a model of 802.11a. The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).

This PHY model depends on a channel loss and delay model as provided by the ns3::PropagationLossModel and ns3::PropagationDelayModel classes, both of which are members of the ns3::YansWifiChannel class.

Definition at line 63 of file yans-wifi-phy.h.

Constructor & Destructor Documentation

ns3::YansWifiPhy::YansWifiPhy ( )

Definition at line 127 of file yans-wifi-phy.cc.

References m_random, m_state, and NS_LOG_FUNCTION.

ns3::YansWifiPhy::~YansWifiPhy ( )

virtual

Definition at line 137 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

ns3::YansWifiPhy::YansWifiPhy ( const YansWifiPhy & o )

private

Member Function Documentation

int64_t ns3::YansWifiPhy::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::WifiPhy.

Definition at line 801 of file yans-wifi-phy.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

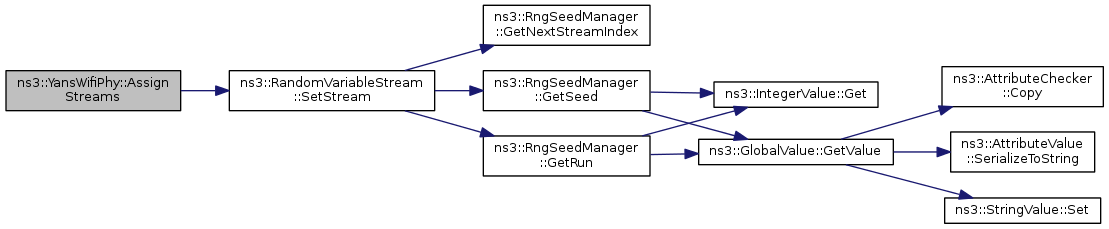

Here is the call graph for this function:

double ns3::YansWifiPhy::CalculateSnr	(	WifiMode	txMode,
		double	ber
	)		const

virtual

Parameters

txMode	the transmission mode
ber	the probability of bit error rate

Returns: the minimum snr which is required to achieve the requested ber for the specified transmission mode. (W/W)

Implements ns3::WifiPhy.

Definition at line 309 of file yans-wifi-phy.cc.

References ns3::ErrorRateModel::CalculateSnr(), ns3::InterferenceHelper::GetErrorRateModel(), and m_interference.

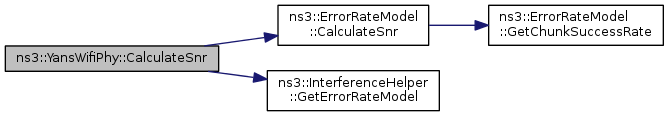

Here is the call graph for this function:

void ns3::YansWifiPhy::Configure80211_10Mhz ( void )

private

Definition at line 589 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

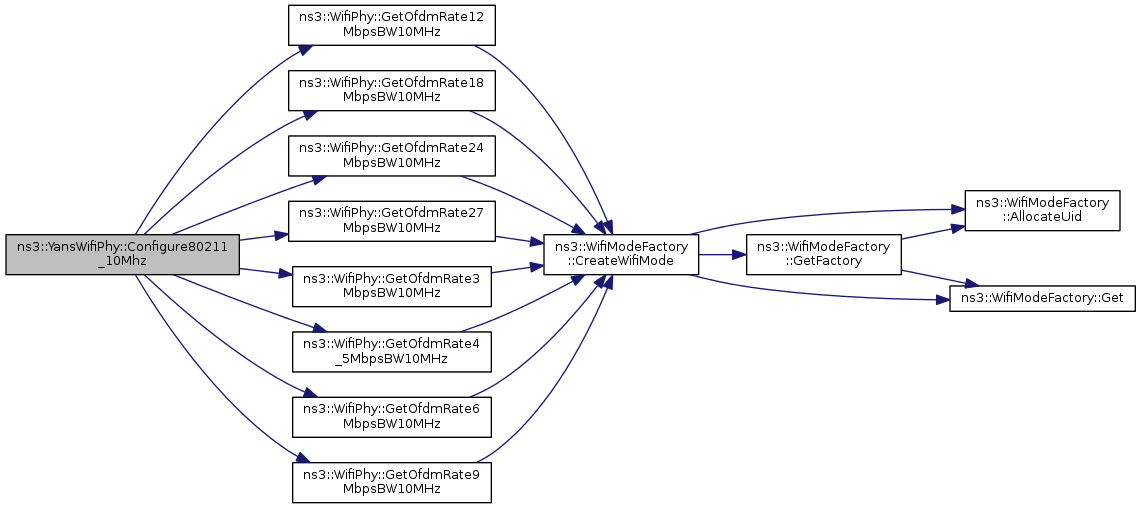

Here is the call graph for this function:

Here is the caller graph for this function:

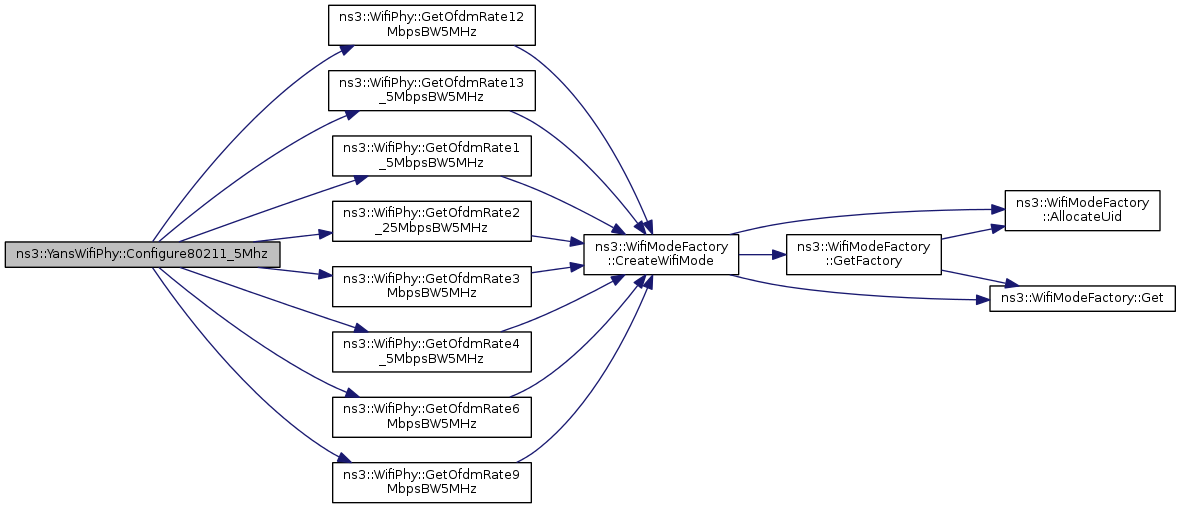

void ns3::YansWifiPhy::Configure80211_5Mhz ( void )

private

Definition at line 605 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

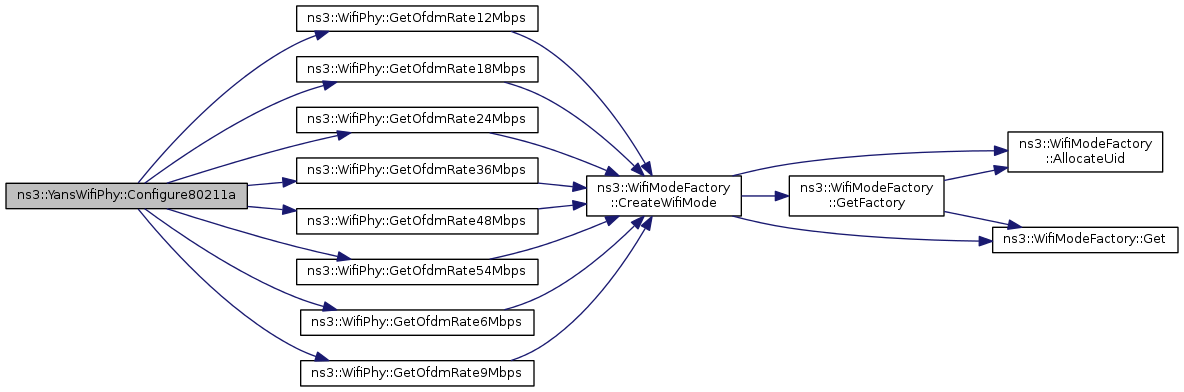

void ns3::YansWifiPhy::Configure80211a ( void )

private

Definition at line 540 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate48Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate9Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211b ( void )

private

Definition at line 557 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

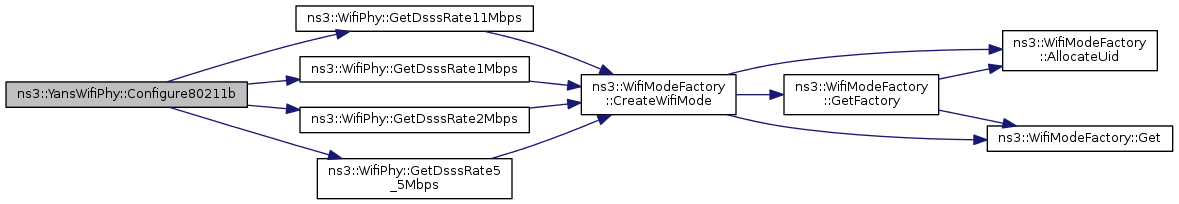

Here is the call graph for this function:

Here is the caller graph for this function:

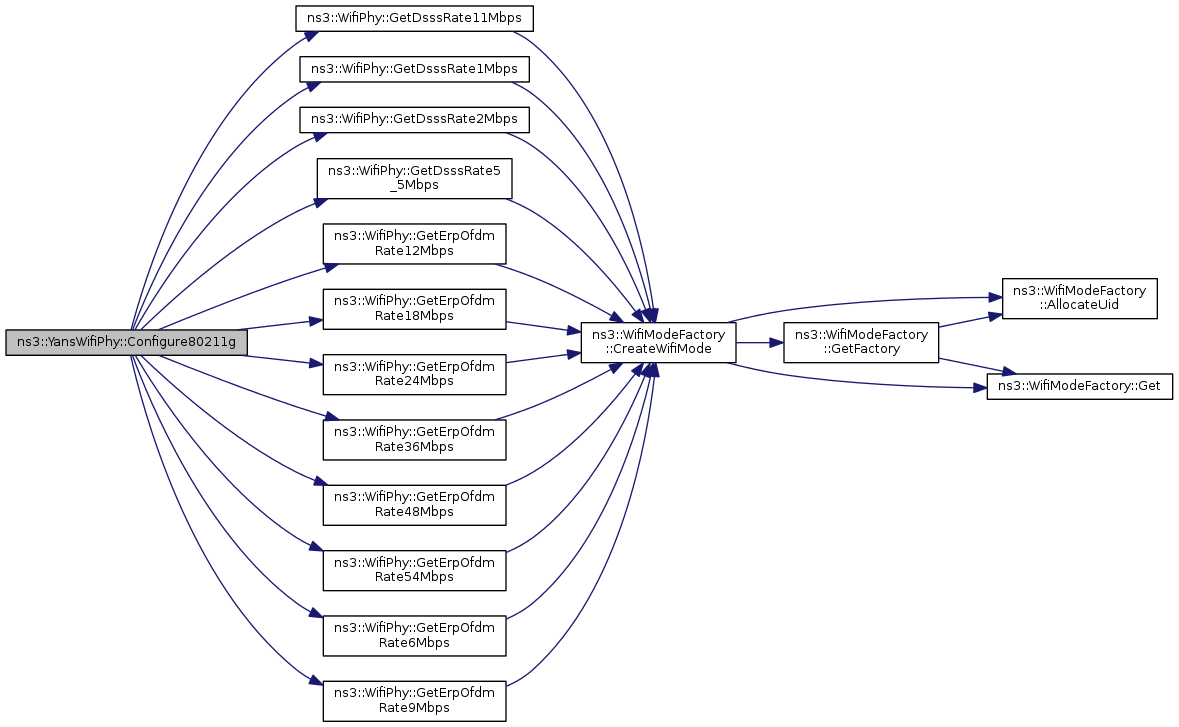

void ns3::YansWifiPhy::Configure80211g ( void )

private

Definition at line 569 of file yans-wifi-phy.cc.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211p_CCH ( void )

private

Definition at line 633 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

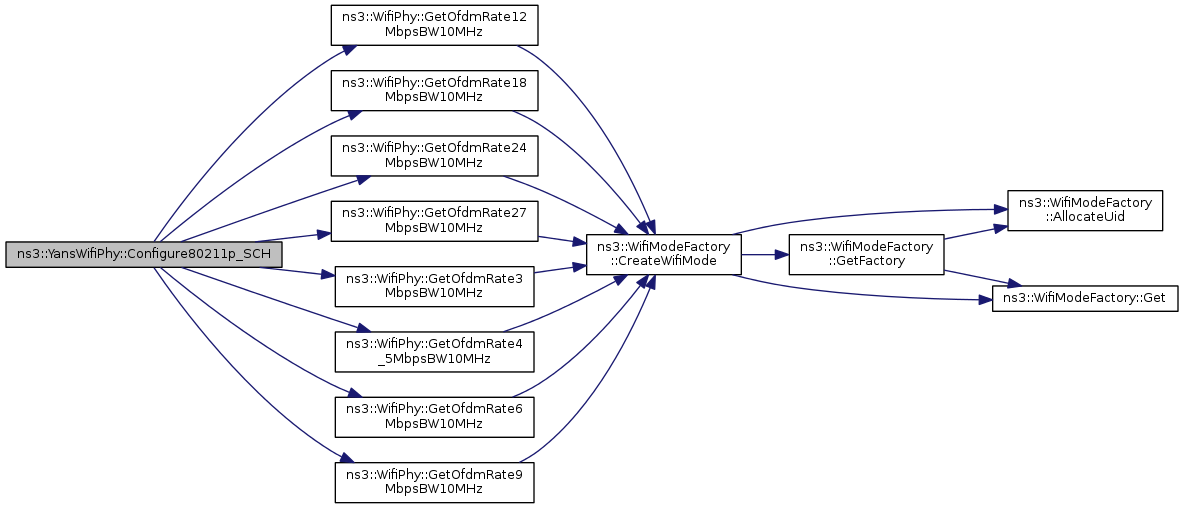

void ns3::YansWifiPhy::Configure80211p_SCH ( void )

private

Definition at line 649 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::ConfigureHolland ( void )

private

Definition at line 621 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), m_channelStartingFrequency, m_deviceRateSet, and NS_LOG_FUNCTION.

Referenced by ConfigureStandard().

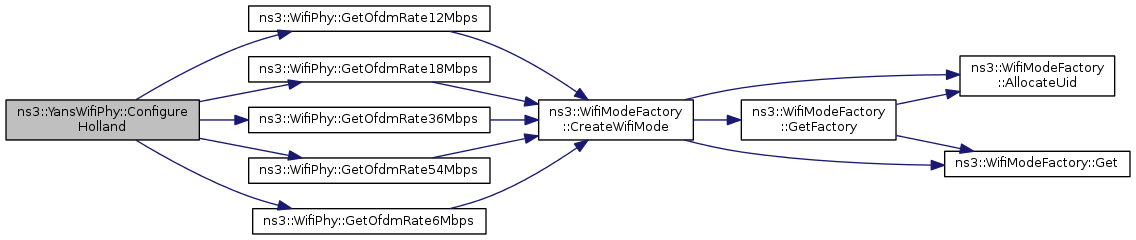

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::ConfigureStandard ( enum WifiPhyStandard standard )

virtual

Implements ns3::WifiPhy.

Definition at line 154 of file yans-wifi-phy.cc.

References Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211p_CCH(), Configure80211p_SCH(), ConfigureHolland(), NS_ASSERT, NS_LOG_FUNCTION, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211p_CCH, ns3::WIFI_PHY_STANDARD_80211p_SCH, and ns3::WIFI_PHY_STANDARD_holland.

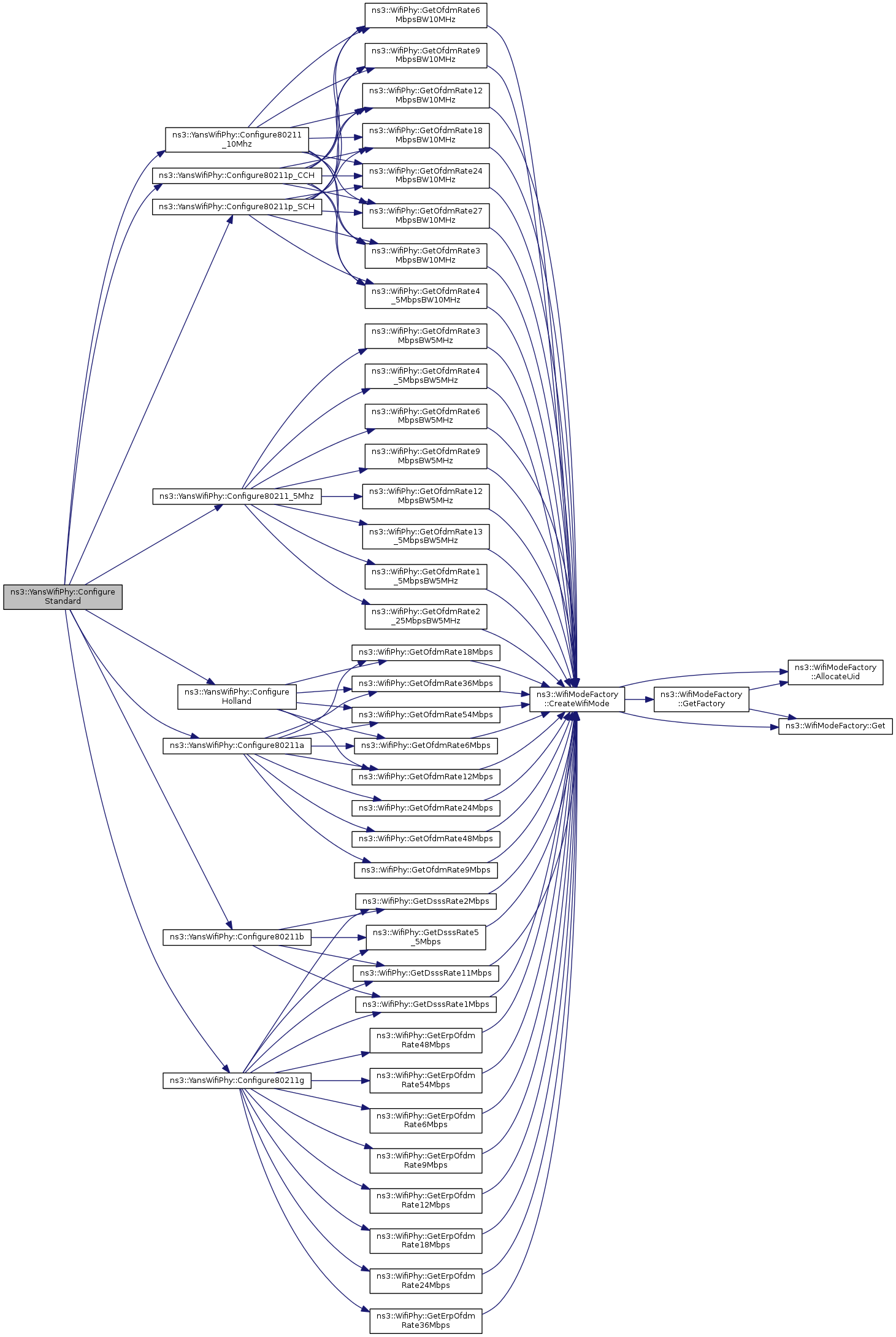

Here is the call graph for this function:

double ns3::YansWifiPhy::DbmToW ( double dbm ) const

private

Definition at line 727 of file yans-wifi-phy.cc.

Referenced by SetCcaMode1Threshold(), SetEdThreshold(), and StartReceivePacket().

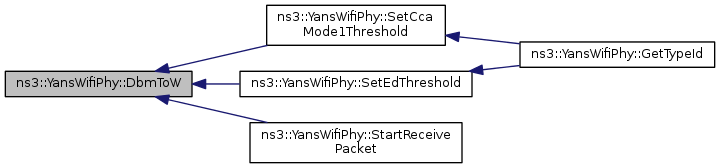

Here is the caller graph for this function:

double ns3::YansWifiPhy::DbToRatio ( double db ) const

private

Definition at line 720 of file yans-wifi-phy.cc.

Referenced by SetRxNoiseFigure().

Here is the caller graph for this function:

void ns3::YansWifiPhy::DoDispose ( void )

privatevirtual

Definition at line 143 of file yans-wifi-phy.cc.

References m_channel, m_device, m_deviceRateSet, m_mobility, m_state, and NS_LOG_FUNCTION.

void ns3::YansWifiPhy::EndReceive	(	Ptr< Packet >	packet,
		Ptr< InterferenceHelper::Event >	event
	)

private

Definition at line 770 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::CalculateSnrPer(), GetChannelFrequencyMhz(), GetChannelNumber(), GetRxNoiseFigure(), ns3::Packet::GetSize(), ns3::UniformRandomVariable::GetValue(), IsStateRx(), m_interference, m_random, m_state, ns3::WifiPhy::NotifyMonitorSniffRx(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyRxEnd(), ns3::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, RatioToDb(), ns3::WifiPhyStateHelper::SwitchFromRxEndError(), ns3::WifiPhyStateHelper::SwitchFromRxEndOk(), and ns3::WIFI_PREAMBLE_SHORT.

Referenced by StartReceivePacket().

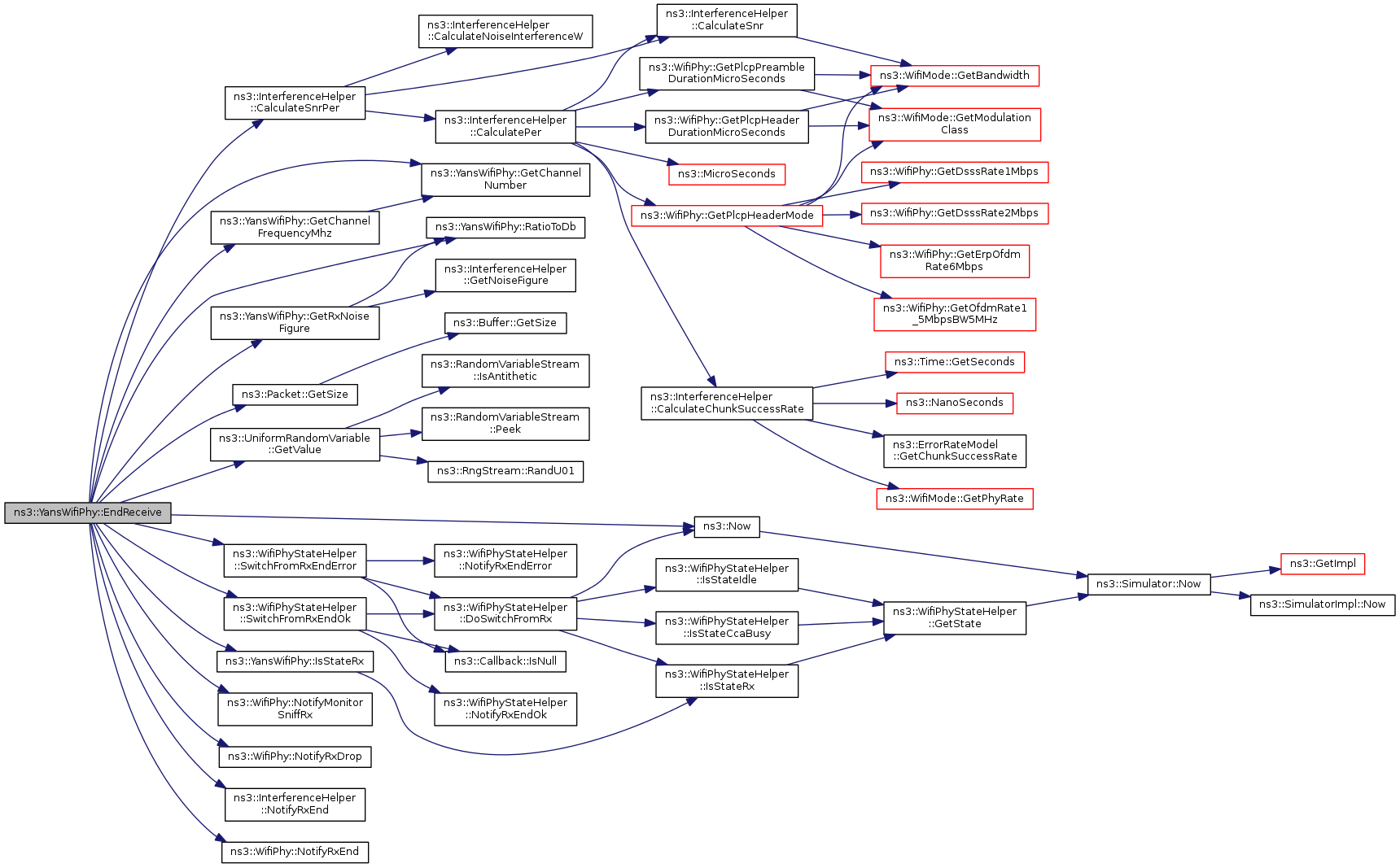

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetCcaMode1Threshold ( void ) const

Definition at line 287 of file yans-wifi-phy.cc.

References m_ccaMode1ThresholdW, and WToDbm().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WifiChannel > ns3::YansWifiPhy::GetChannel ( void ) const

virtual

Implements ns3::WifiPhy.

Definition at line 315 of file yans-wifi-phy.cc.

References m_channel.

double ns3::YansWifiPhy::GetChannelFrequencyMhz ( ) const

Return current center channel frequency in MHz, see SetChannelNumber()

Definition at line 382 of file yans-wifi-phy.cc.

References GetChannelNumber(), and m_channelStartingFrequency.

Referenced by EndReceive(), and SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::YansWifiPhy::GetChannelNumber ( ) const

virtual

Return current channel number, see SetChannelNumber()

Implements ns3::WifiPhy.

Definition at line 376 of file yans-wifi-phy.cc.

References m_channelNumber.

Referenced by EndReceive(), GetChannelFrequencyMhz(), ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), GetTypeId(), ns3::YansWifiChannel::Send(), and SendPacket().

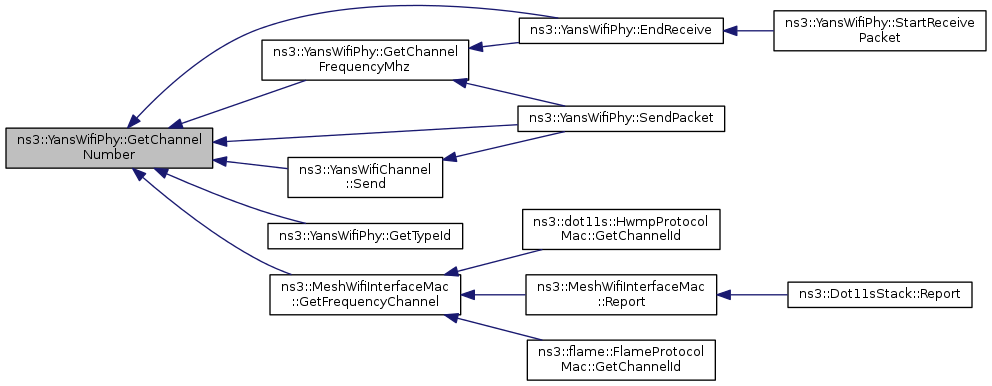

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetDelayUntilIdle ( void )

virtual

Returns: the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE before the delay returned by this method but it could become really idle later.

Implements ns3::WifiPhy.

Definition at line 708 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::GetDelayUntilIdle(), and m_state.

Referenced by SetChannelNumber().

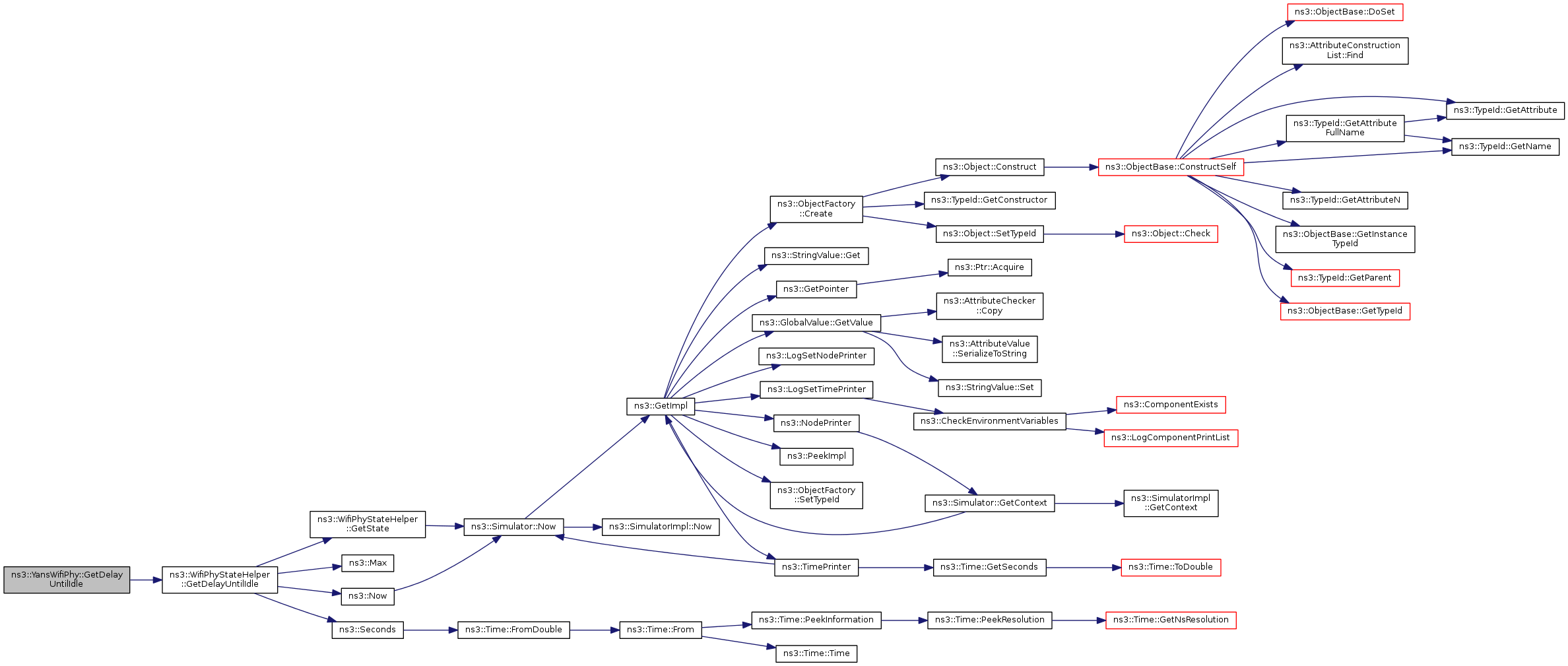

Here is the call graph for this function:

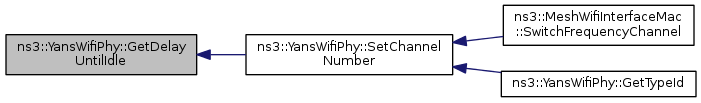

Here is the caller graph for this function:

Ptr< Object > ns3::YansWifiPhy::GetDevice ( void ) const

Definition at line 298 of file yans-wifi-phy.cc.

References m_device.

double ns3::YansWifiPhy::GetEdThreshold ( void ) const

Definition at line 281 of file yans-wifi-phy.cc.

References m_edThresholdW, and WToDbm().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetEdThresholdW ( void ) const

private

Definition at line 746 of file yans-wifi-phy.cc.

References m_edThresholdW.

Ptr< ErrorRateModel > ns3::YansWifiPhy::GetErrorRateModel ( void ) const

Definition at line 293 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::GetErrorRateModel(), and m_interference.

Here is the call graph for this function:

Time ns3::YansWifiPhy::GetLastRxStartTime ( void ) const

virtual

Implements ns3::WifiPhy.

Definition at line 714 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::GetLastRxStartTime(), and m_state.

Here is the call graph for this function:

Ptr< Object > ns3::YansWifiPhy::GetMobility ( void )

Definition at line 303 of file yans-wifi-phy.cc.

References m_mobility.

Referenced by ns3::YansWifiChannel::Send().

Here is the caller graph for this function:

WifiMode ns3::YansWifiPhy::GetMode ( uint32_t mode ) const

virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Parameters

mode	index in array of supported modes

Returns: the mode whose index is specified.

See Also: WifiPhy::GetNModes()

Implements ns3::WifiPhy.

Definition at line 529 of file yans-wifi-phy.cc.

References m_deviceRateSet.

uint32_t ns3::YansWifiPhy::GetNModes ( void ) const

virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Returns: the number of transmission modes supported by this PHY.

See Also: WifiPhy::GetMode()

Implements ns3::WifiPhy.

Definition at line 524 of file yans-wifi-phy.cc.

References m_deviceRateSet.

uint32_t ns3::YansWifiPhy::GetNTxPower ( void ) const

virtual

Returns: the number of tx power levels available for this PHY.

Implements ns3::WifiPhy.

Definition at line 534 of file yans-wifi-phy.cc.

References m_nTxPower.

double ns3::YansWifiPhy::GetPowerDbm ( uint8_t power ) const

private

Definition at line 752 of file yans-wifi-phy.cc.

References m_nTxPower, m_txPowerBaseDbm, m_txPowerEndDbm, NS_ASSERT, and NS_ASSERT_MSG.

Referenced by SendPacket().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetRxGain ( void ) const

Definition at line 275 of file yans-wifi-phy.cc.

References m_rxGainDb.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetRxNoiseFigure ( void ) const

Definition at line 255 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::GetNoiseFigure(), m_interference, and RatioToDb().

Referenced by EndReceive(), and GetTypeId().

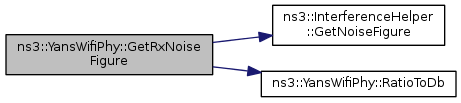

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetStateDuration ( void )

virtual

Returns: the amount of time since the current state has started.

Implements ns3::WifiPhy.

Definition at line 703 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::GetStateDuration(), and m_state.

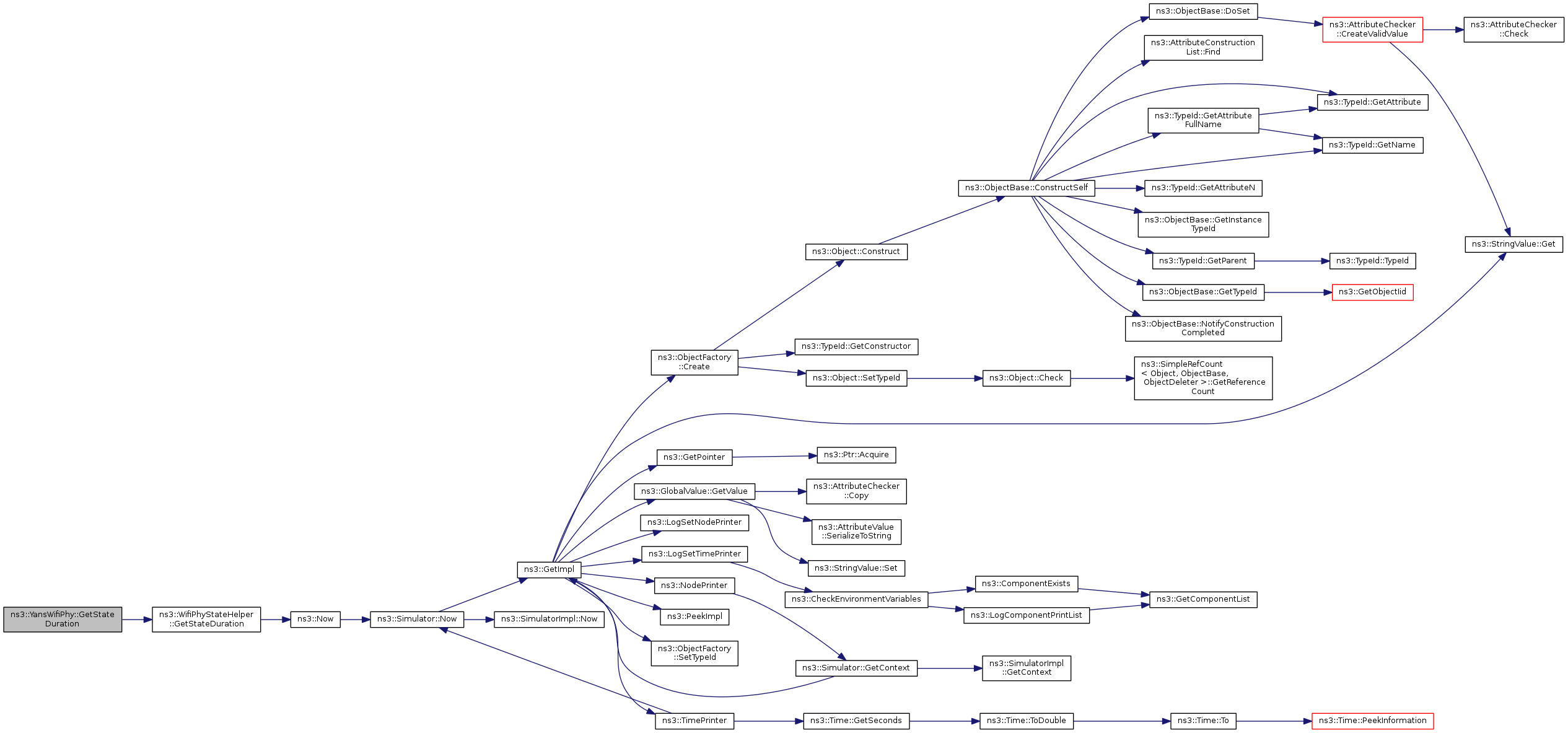

Here is the call graph for this function:

double ns3::YansWifiPhy::GetTxGain ( void ) const

Definition at line 270 of file yans-wifi-phy.cc.

References m_txGainDb.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetTxPowerEnd ( void ) const

virtual

Implements ns3::WifiPhy.

Definition at line 265 of file yans-wifi-phy.cc.

References m_txPowerEndDbm.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetTxPowerStart ( void ) const

virtual

Implements ns3::WifiPhy.

Definition at line 260 of file yans-wifi-phy.cc.

References m_txPowerBaseDbm.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::YansWifiPhy::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::YansWifiPhy.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/$ns3::YansWifiPhy

Attributes defined for this type:

EnergyDetectionThreshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -96
- Flags: construct write read
CcaMode1Threshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to declare CCA BUSY state
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -99
- Flags: construct write read
TxGain: Transmission gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
RxGain: Reception gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
TxPowerLevels: Number of transmission power levels available between TxPowerStart and TxPowerEnd included.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
TxPowerEnd: Maximum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
TxPowerStart: Minimum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
RxNoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0 (usually 290 K)". For
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write read
State: The state of the PHY layer
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiPhyStateHelper >
- Initial value: 0
- Flags: construct write read
ChannelSwitchDelay: Delay between two short frames transmitted on different frequencies. NOTE: Unused now.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +250000.0ns
- Flags: construct write read
ChannelNumber: Channel center frequency = Channel starting frequency + 5 MHz * (nch - 1)
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1
- Flags: construct write read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::WifiPhy:

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date (YansWifiPhy) never fires this trace source.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted

Reimplemented from ns3::WifiPhy.

Definition at line 46 of file yans-wifi-phy.cc.

References GetCcaMode1Threshold(), GetChannelNumber(), GetEdThreshold(), GetRxGain(), GetRxNoiseFigure(), GetTxGain(), GetTxPowerEnd(), GetTxPowerStart(), m_channelSwitchDelay, m_nTxPower, m_state, ns3::MicroSeconds(), SetCcaMode1Threshold(), SetChannelNumber(), SetEdThreshold(), ns3::TypeId::SetParent(), SetRxGain(), SetRxNoiseFigure(), SetTxGain(), SetTxPowerEnd(), and SetTxPowerStart().

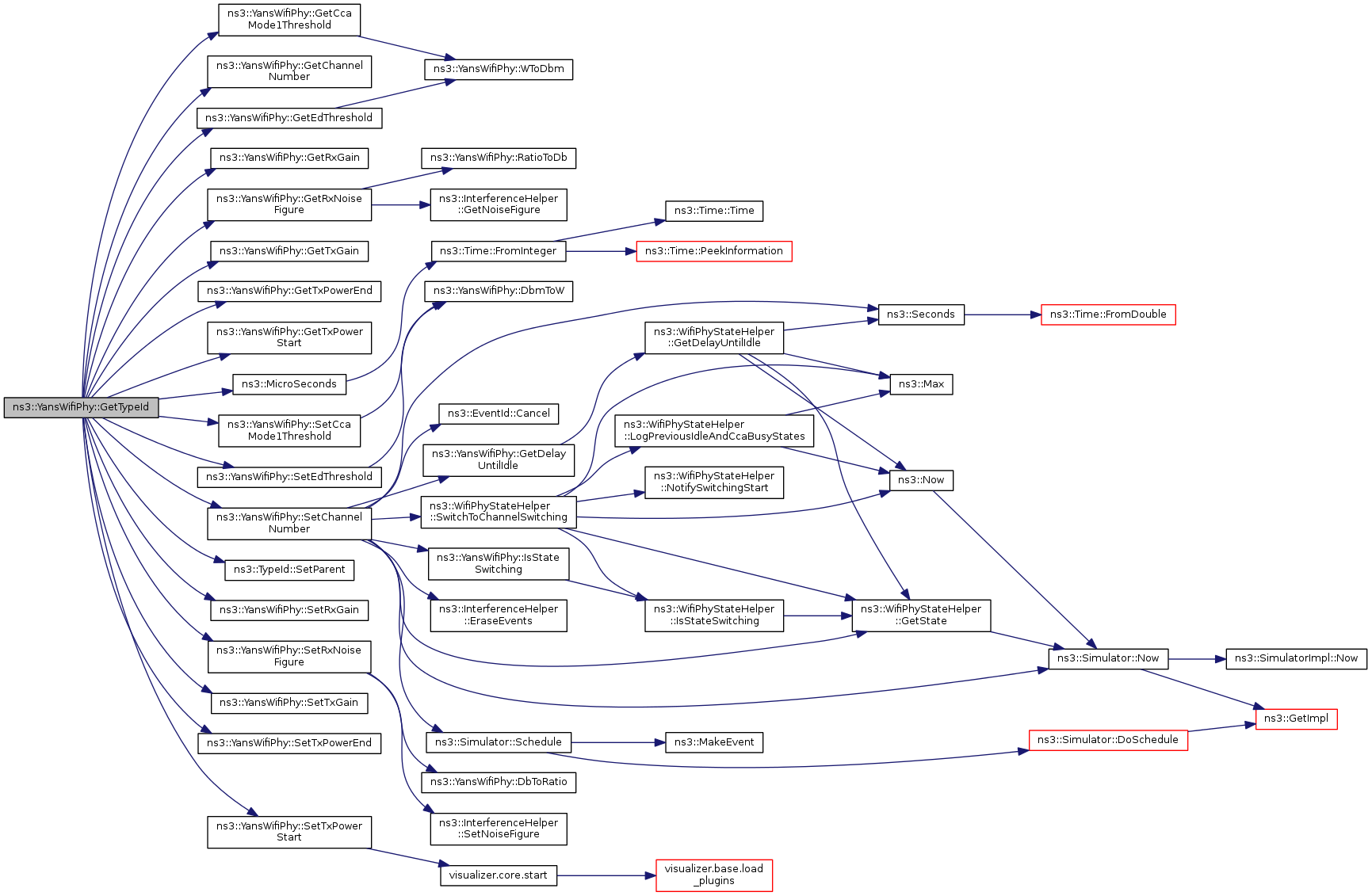

Here is the call graph for this function:

bool ns3::YansWifiPhy::IsStateBusy ( void )

virtual

Returns: true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implements ns3::WifiPhy.

Definition at line 682 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::IsStateBusy(), and m_state.

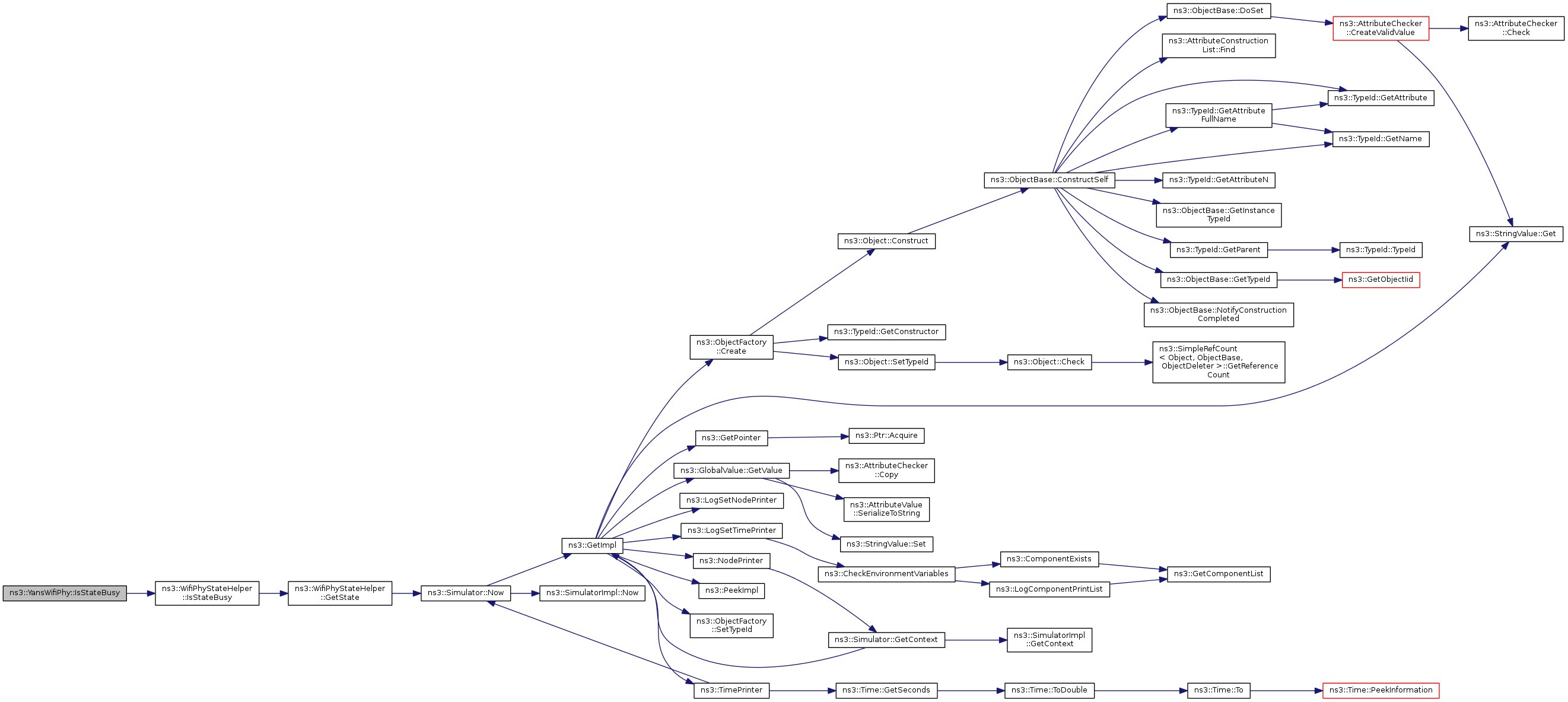

Here is the call graph for this function:

bool ns3::YansWifiPhy::IsStateCcaBusy ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implements ns3::WifiPhy.

Definition at line 671 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::IsStateCcaBusy(), and m_state.

Here is the call graph for this function:

bool ns3::YansWifiPhy::IsStateIdle ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implements ns3::WifiPhy.

Definition at line 677 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::IsStateIdle(), and m_state.

Here is the call graph for this function:

bool ns3::YansWifiPhy::IsStateRx ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::RX, false otherwise.

Implements ns3::WifiPhy.

Definition at line 687 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::IsStateRx(), and m_state.

Referenced by EndReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::YansWifiPhy::IsStateSwitching ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::SWITCHING, false otherwise.

Implements ns3::WifiPhy.

Definition at line 697 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::IsStateSwitching(), and m_state.

Referenced by SetChannelNumber().

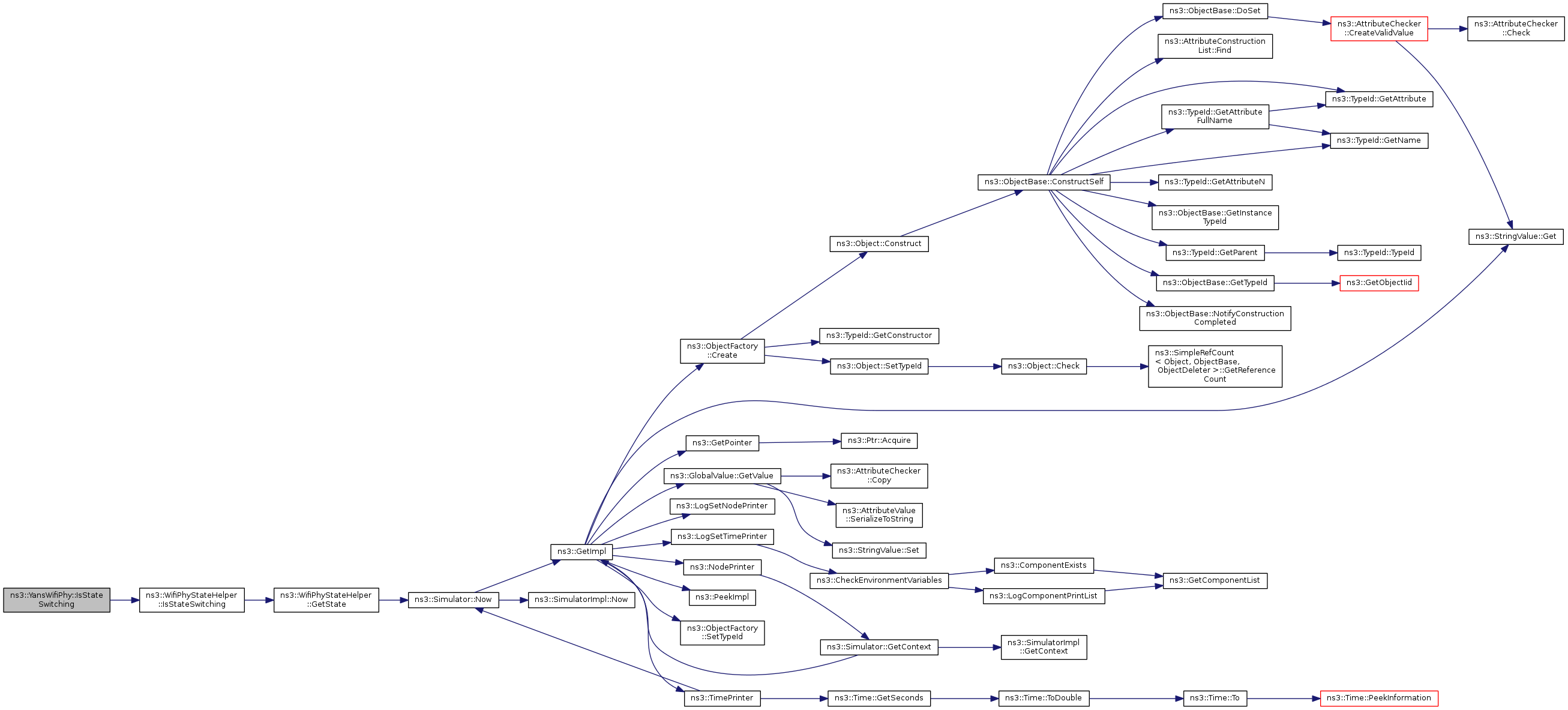

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::YansWifiPhy::IsStateTx ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implements ns3::WifiPhy.

Definition at line 692 of file yans-wifi-phy.cc.

References ns3::WifiPhyStateHelper::IsStateTx(), and m_state.

Here is the call graph for this function:

double ns3::YansWifiPhy::RatioToDb ( double ratio ) const

private

Definition at line 740 of file yans-wifi-phy.cc.

Referenced by EndReceive(), and GetRxNoiseFigure().

Here is the caller graph for this function:

void ns3::YansWifiPhy::RegisterListener ( WifiPhyListener * listener )

virtual

Parameters

listener the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implements ns3::WifiPhy.

Definition at line 665 of file yans-wifi-phy.cc.

References m_state, and ns3::WifiPhyStateHelper::RegisterListener().

Here is the call graph for this function:

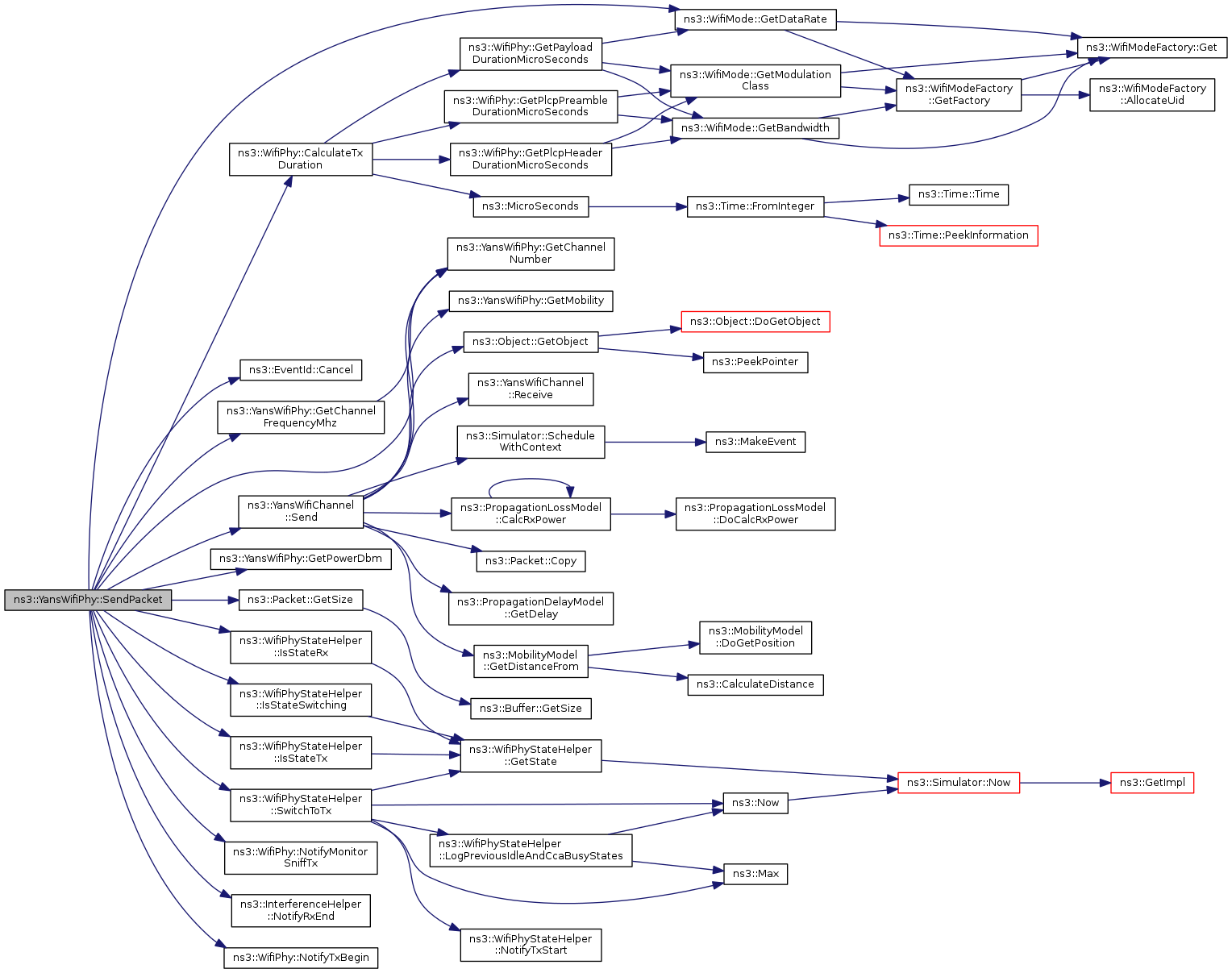

void ns3::YansWifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiMode	mode,
		enum WifiPreamble	preamble,
		uint8_t	txPowerLevel
	)

virtual

Parameters

packet	the packet to send
mode	the transmission mode to use to send this packet
preamble	the type of preamble to use to send this packet.
txPowerLevel	a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels

Implements ns3::WifiPhy.

Definition at line 498 of file yans-wifi-phy.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::EventId::Cancel(), GetChannelFrequencyMhz(), GetChannelNumber(), ns3::WifiMode::GetDataRate(), GetPowerDbm(), ns3::Packet::GetSize(), ns3::WifiPhyStateHelper::IsStateRx(), ns3::WifiPhyStateHelper::IsStateSwitching(), ns3::WifiPhyStateHelper::IsStateTx(), m_channel, m_endRxEvent, m_interference, m_state, m_txGainDb, ns3::WifiPhy::NotifyMonitorSniffTx(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyTxBegin(), NS_ASSERT, NS_LOG_FUNCTION, ns3::YansWifiChannel::Send(), ns3::WifiPhyStateHelper::SwitchToTx(), and ns3::WIFI_PREAMBLE_SHORT.

Here is the call graph for this function:

void ns3::YansWifiPhy::SetCcaMode1Threshold ( double threshold )

Definition at line 233 of file yans-wifi-phy.cc.

References DbmToW(), m_ccaMode1ThresholdW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetChannel ( Ptr< YansWifiChannel > channel )

Definition at line 320 of file yans-wifi-phy.cc.

References ns3::YansWifiChannel::Add(), and m_channel.

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetChannelNumber ( uint16_t id )

virtual

Set channel number.

Channel center frequency = Channel starting frequency + 5 MHz * (nch - 1)

where Starting channel frequency is standard-dependent, see SetStandard() as defined in IEEE 802.11-2007 17.3.8.3.2.

YansWifiPhy can switch among different channels. Basically, YansWifiPhy has a private attribute m_channelNumber that identifies the channel the PHY operates on. Channel switching cannot interrupt an ongoing transmission. When PHY is in TX state, the channel switching is postponed until the end of the current transmission. When the PHY is in RX state, the channel switching causes the drop of the synchronized packet.

Implements ns3::WifiPhy.

Definition at line 327 of file yans-wifi-phy.cc.

References ns3::EventId::Cancel(), ns3::WifiPhy::CCA_BUSY, ns3::InterferenceHelper::EraseEvents(), GetDelayUntilIdle(), ns3::WifiPhyStateHelper::GetState(), ns3::WifiPhy::IDLE, IsStateSwitching(), m_channelNumber, m_channelSwitchDelay, m_endRxEvent, m_interference, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::WifiPhyStateHelper::SwitchToChannelSwitching(), and ns3::WifiPhy::TX.

Referenced by GetTypeId(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().

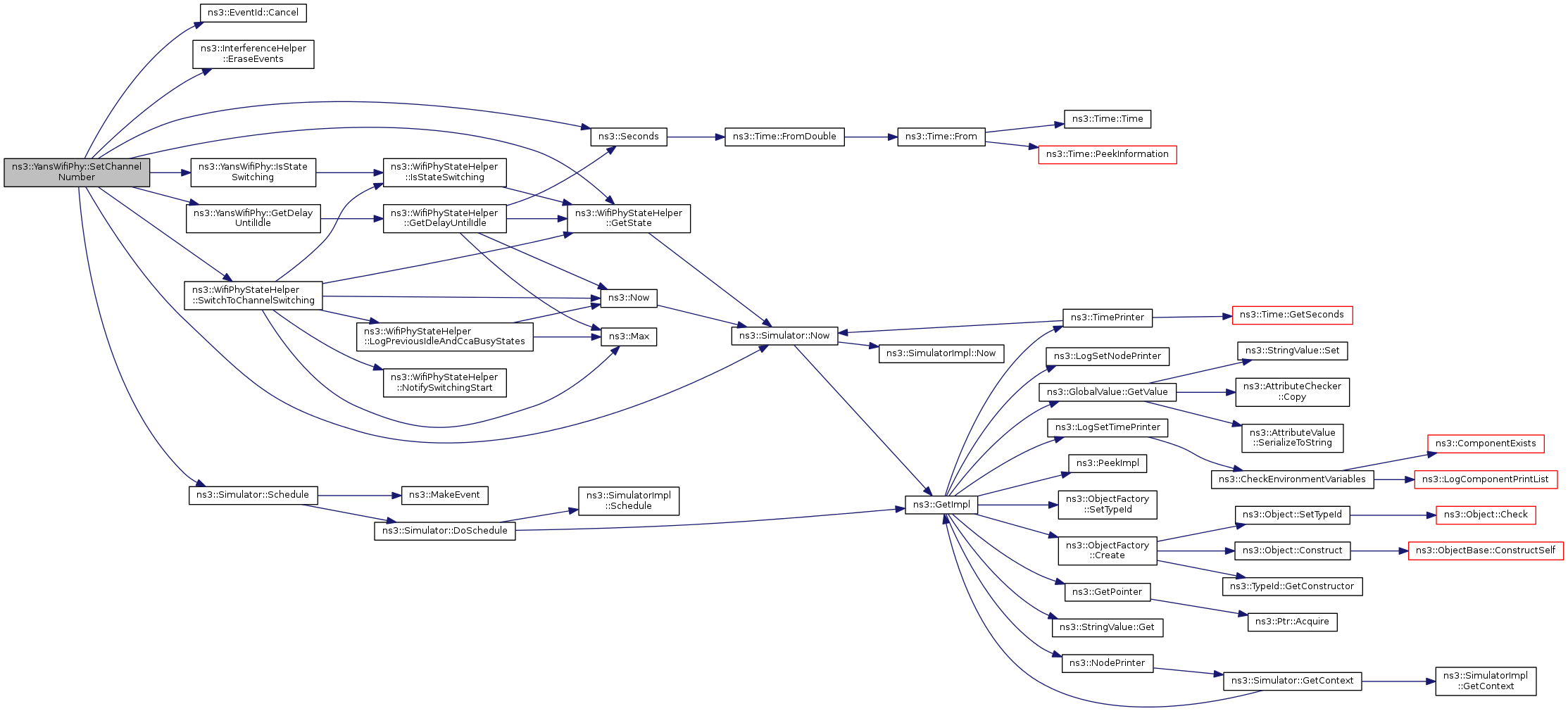

Here is the call graph for this function:

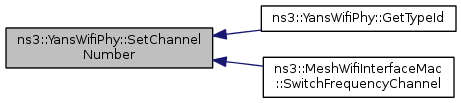

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetDevice ( Ptr< Object > device )

Definition at line 244 of file yans-wifi-phy.cc.

References m_device.

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetEdThreshold ( double threshold )

Definition at line 227 of file yans-wifi-phy.cc.

References DbmToW(), m_edThresholdW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetErrorRateModel ( Ptr< ErrorRateModel > rate )

Definition at line 239 of file yans-wifi-phy.cc.

References m_interference, and ns3::InterferenceHelper::SetErrorRateModel().

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetMobility ( Ptr< Object > mobility )

Definition at line 249 of file yans-wifi-phy.cc.

References m_mobility.

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetNTxPower ( uint32_t n )

Definition at line 209 of file yans-wifi-phy.cc.

References m_nTxPower, and NS_LOG_FUNCTION.

void ns3::YansWifiPhy::SetReceiveErrorCallback ( WifiPhy::RxErrorCallback callback )

virtual

Parameters

callback the callback to invoke upon erroneous packet reception.

Implements ns3::WifiPhy.

Definition at line 393 of file yans-wifi-phy.cc.

References m_state, and ns3::WifiPhyStateHelper::SetReceiveErrorCallback().

Here is the call graph for this function:

void ns3::YansWifiPhy::SetReceiveOkCallback ( WifiPhy::RxOkCallback callback )

virtual

Parameters

callback the callback to invoke upon successful packet reception.

Implements ns3::WifiPhy.

Definition at line 388 of file yans-wifi-phy.cc.

References m_state, and ns3::WifiPhyStateHelper::SetReceiveOkCallback().

Here is the call graph for this function:

void ns3::YansWifiPhy::SetRxGain ( double gain )

Definition at line 221 of file yans-wifi-phy.cc.

References m_rxGainDb, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

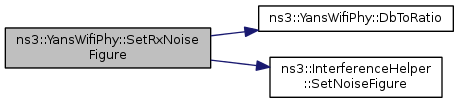

void ns3::YansWifiPhy::SetRxNoiseFigure ( double noiseFigureDb )

Definition at line 191 of file yans-wifi-phy.cc.

References DbToRatio(), m_interference, NS_LOG_FUNCTION, and ns3::InterferenceHelper::SetNoiseFigure().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxGain ( double gain )

Definition at line 215 of file yans-wifi-phy.cc.

References m_txGainDb, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxPowerEnd ( double end )

Definition at line 203 of file yans-wifi-phy.cc.

References m_txPowerEndDbm, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxPowerStart ( double start )

Definition at line 197 of file yans-wifi-phy.cc.

References m_txPowerBaseDbm, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::StartReceivePacket	(	Ptr< Packet >	packet,
		double	rxPowerDbm,
		WifiMode	mode,
		WifiPreamble	preamble
	)

Definition at line 398 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::Add(), ns3::WifiPhy::CalculateTxDuration(), ns3::WifiPhy::CCA_BUSY, DbmToW(), EndReceive(), ns3::WifiPhyStateHelper::GetDelayUntilIdle(), ns3::InterferenceHelper::GetEnergyDuration(), ns3::Packet::GetSize(), ns3::WifiPhyStateHelper::GetState(), ns3::WifiPhy::IDLE, ns3::EventId::IsExpired(), ns3::Time::IsZero(), m_ccaMode1ThresholdW, m_edThresholdW, m_endRxEvent, m_interference, m_rxGainDb, m_state, ns3::WifiPhy::NotifyRxBegin(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxStart(), ns3::Now(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SWITCHING, ns3::WifiPhyStateHelper::SwitchMaybeToCcaBusy(), ns3::WifiPhyStateHelper::SwitchToRx(), and ns3::WifiPhy::TX.

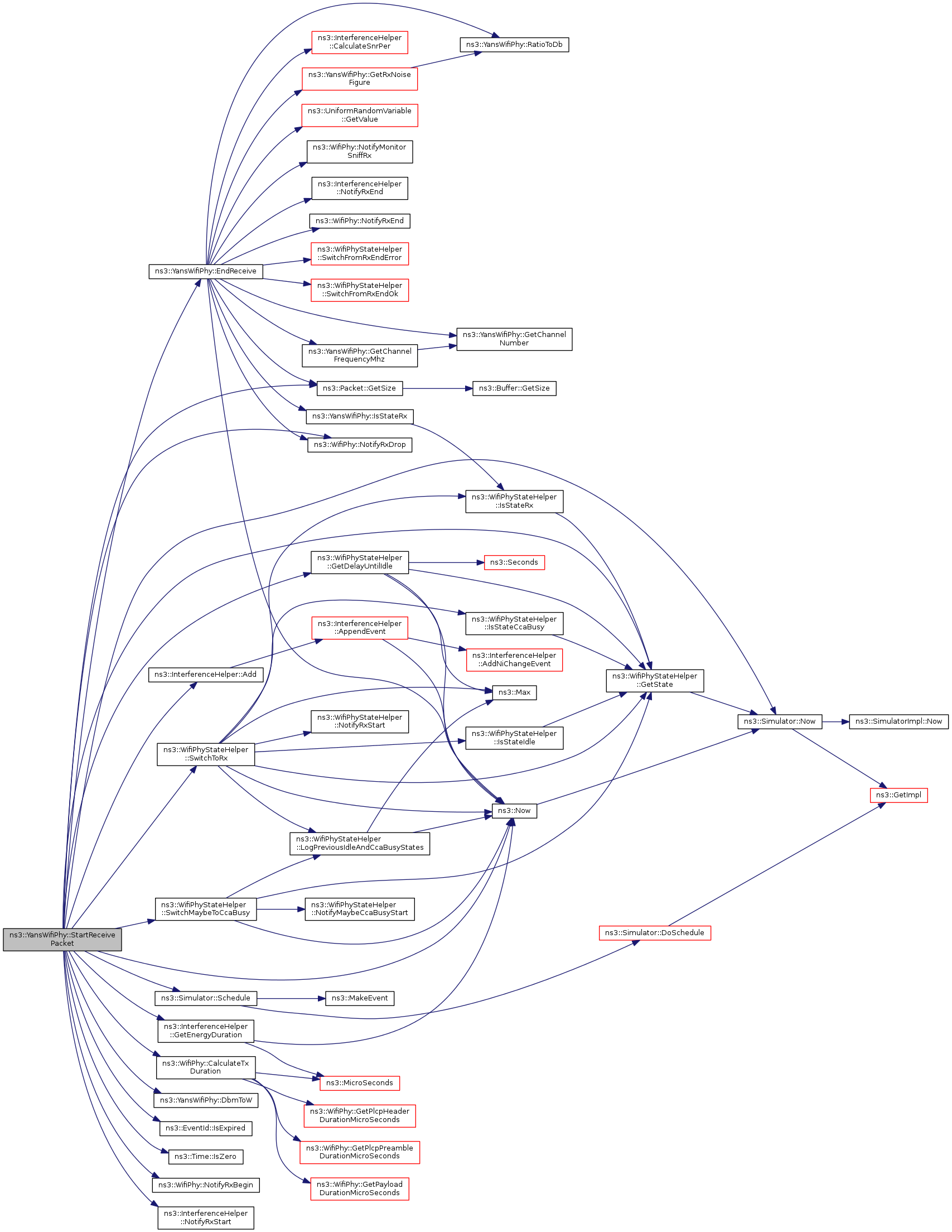

Here is the call graph for this function:

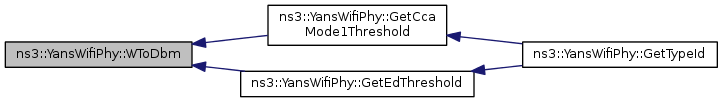

double ns3::YansWifiPhy::WToDbm ( double w ) const

private

Definition at line 734 of file yans-wifi-phy.cc.

Referenced by GetCcaMode1Threshold(), and GetEdThreshold().

Here is the caller graph for this function:

Member Data Documentation

double ns3::YansWifiPhy::m_ccaMode1ThresholdW

private

Definition at line 175 of file yans-wifi-phy.h.

Referenced by GetCcaMode1Threshold(), SetCcaMode1Threshold(), and StartReceivePacket().

Ptr<YansWifiChannel> ns3::YansWifiPhy::m_channel

private

Definition at line 182 of file yans-wifi-phy.h.

Referenced by DoDispose(), GetChannel(), SendPacket(), and SetChannel().

uint16_t ns3::YansWifiPhy::m_channelNumber

private

Definition at line 183 of file yans-wifi-phy.h.

Referenced by GetChannelNumber(), and SetChannelNumber().

double ns3::YansWifiPhy::m_channelStartingFrequency

private

Standard-dependent center frequency of 0-th channel, MHz.

Definition at line 229 of file yans-wifi-phy.h.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211p_CCH(), Configure80211p_SCH(), ConfigureHolland(), and GetChannelFrequencyMhz().

Time ns3::YansWifiPhy::m_channelSwitchDelay

private

Definition at line 232 of file yans-wifi-phy.h.

Referenced by GetTypeId(), and SetChannelNumber().

Ptr<Object> ns3::YansWifiPhy::m_device

private

Definition at line 184 of file yans-wifi-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

WifiModeList ns3::YansWifiPhy::m_deviceRateSet

private

This vector holds the set of transmission modes that this WifiPhy(-derived class) can support. In conversation we call this the DeviceRateSet (not a term you'll find in the standard), and it is a superset of standard-defined parameters such as the OperationalRateSet, and the BSSBasicRateSet (which, themselves, have a superset/subset relationship).

Mandatory rates relevant to this WifiPhy can be found by iterating over this vector looking for WifiMode objects for which WifiMode::IsMandatory() is true.

A quick note is appropriate here (well, here is as good a place as any I can find)...

In the standard there is no text that explicitly precludes production of a device that does not support some rates that are mandatory (according to the standard) for PHYs that the device happens to fully or partially support.

This approach is taken by some devices which choose to only support, for example, 6 and 9 Mbps ERP-OFDM rates for cost and power consumption reasons (i.e., these devices don't need to be designed for and waste current on the increased linearity requirement of higher-order constellations when 6 and 9 Mbps more than meet their data requirements). The wording of the standard allows such devices to have an OperationalRateSet which includes 6 and 9 Mbps ERP-OFDM rates, despite 12 and 24 Mbps being "mandatory" rates for the ERP-OFDM PHY.

Now this doesn't actually have any impact on code, yet. It is, however, something that we need to keep in mind for the future. Basically, the key point is that we can't be making assumptions like "the Operational Rate Set will contain all the mandatory rates".

Definition at line 223 of file yans-wifi-phy.h.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211b(), Configure80211g(), Configure80211p_CCH(), Configure80211p_SCH(), ConfigureHolland(), DoDispose(), GetMode(), and GetNModes().
