Dsr Option Route Error. More...

#include <dsr-options.h>

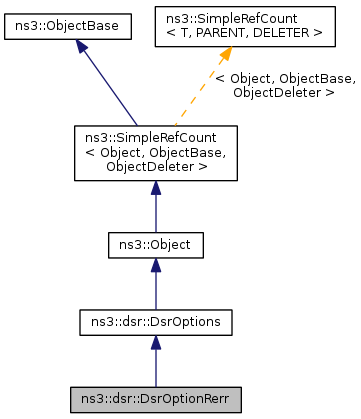

Inheritance diagram for ns3::dsr::DsrOptionRerr:

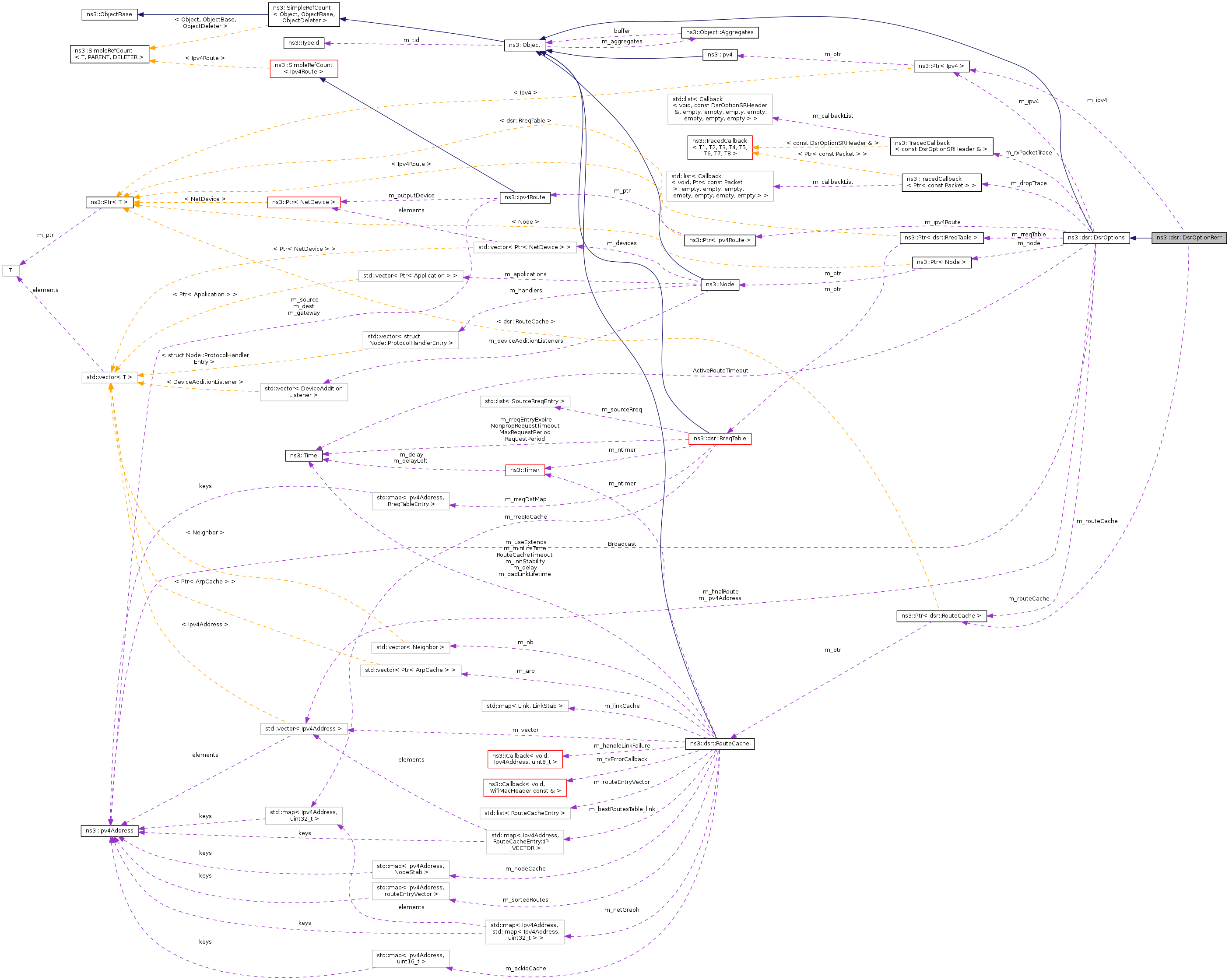

Collaboration diagram for ns3::dsr::DsrOptionRerr:

Public Member Functions
	DsrOptionRerr ()
	Constructor.
virtual	~DsrOptionRerr ()
	Destructor.
uint8_t	DoSendError (Ptr< Packet > p, DsrOptionRerrUnreachHeader &rerr, uint32_t rerrSize, Ipv4Address ipv4Address, uint8_t protocol)
	Do Send error message.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint8_t	GetOptionNumber () const
	Get the option number.
virtual uint8_t	Process (Ptr< Packet > packet, Ptr< Packet > dsrP, Ipv4Address ipv4Address, Ipv4Address source, Ipv4Header const &ipv4Header, uint8_t protocol, bool &isPromisc)
	Process method.
Public Member Functions inherited from ns3::dsr::DsrOptions
	DsrOptions ()
	Constructor.
virtual	~DsrOptions ()
	Destructor.
bool	CheckDuplicates (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
bool	ContainAddressAfter (Ipv4Address ipv4Address, Ipv4Address destAddress, std::vector< Ipv4Address > &nodeList)
	Search for the ipv4 address in the node list.
std::vector< Ipv4Address >	CutRoute (Ipv4Address ipv4Address, std::vector< Ipv4Address > &nodeList)
	Cut the route from ipv4Address to the end of the route vector.
uint32_t	GetIDfromIP (Ipv4Address address)
Ptr< Node >	GetNode () const
	Get the node.
Ptr< Node >	GetNodeWithAddress (Ipv4Address ipv4Address)
bool	IfDuplicates (std::vector< Ipv4Address > &vec, std::vector< Ipv4Address > &vec2)
void	PrintVector (std::vector< Ipv4Address > &vec)
void	RemoveDuplicates (std::vector< Ipv4Address > &vec)
bool	ReverseRoutes (std::vector< Ipv4Address > &vec)
	Reverse the routes.
Ipv4Address	ReverseSearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
void	ScheduleReply (Ptr< Packet > &packet, std::vector< Ipv4Address > &nodeList, Ipv4Address &source, Ipv4Address &destination)
Ipv4Address	SearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
void	SetNode (Ptr< Node > node)
	Set the node.
virtual Ptr< Ipv4Route >	SetRoute (Ipv4Address nextHop, Ipv4Address srcAddress)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Static Public Attributes
static const uint8_t	OPT_NUMBER = 3
	Dsr Route Error option number.

Private Attributes
Ptr< Ipv4 >	m_ipv4
	The ipv4 layer 3.
uint32_t	m_length
	The length of the packet.
Ptr< dsr::RouteCache >	m_routeCache
	The route cache.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::dsr::DsrOptions
Time	ActiveRouteTimeout
	The active route timeout value.
Ipv4Address	Broadcast
	The broadcast IP address.
TracedCallback< Ptr< const Packet > >	m_dropTrace
	Drop trace callback.
std::vector< Ipv4Address >	m_finalRoute
	The vector of final Ipv4 address.
Ptr< Ipv4 >	m_ipv4
	The ipv4.
std::vector< Ipv4Address >	m_ipv4Address
	The vector of Ipv4 address.
Ptr< Ipv4Route >	m_ipv4Route
	The ipv4 route.
Ptr< dsr::RouteCache >	m_routeCache
	The route cache table.
Ptr< dsr::RreqTable >	m_rreqTable
	The route request table.
TracedCallback< const DsrOptionSRHeader & >	m_rxPacketTrace

Detailed Description

Dsr Option Route Error.

Definition at line 500 of file dsr-options.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionRerr::DsrOptionRerr ( )

Constructor.

Definition at line 1307 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::dsr::DsrOptionRerr::~DsrOptionRerr ( )

virtual

Destructor.

Definition at line 1312 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

uint8_t ns3::dsr::DsrOptionRerr::DoSendError	(	Ptr< Packet >	p,
		DsrOptionRerrUnreachHeader &	rerr,
		uint32_t	rerrSize,
		Ipv4Address	ipv4Address,
		uint8_t	protocol
	)

Do Send error message.

Parameters

p	the packet
rerr	the DsrOptionRerrUnreachHeader header
rerrSize	the route error header size
ipv4Address	ipv4 address of our own
protocol	the protocol number of the up layer

Returns: the processed size

Definition at line 1395 of file dsr-options.cc.

Referenced by Process().

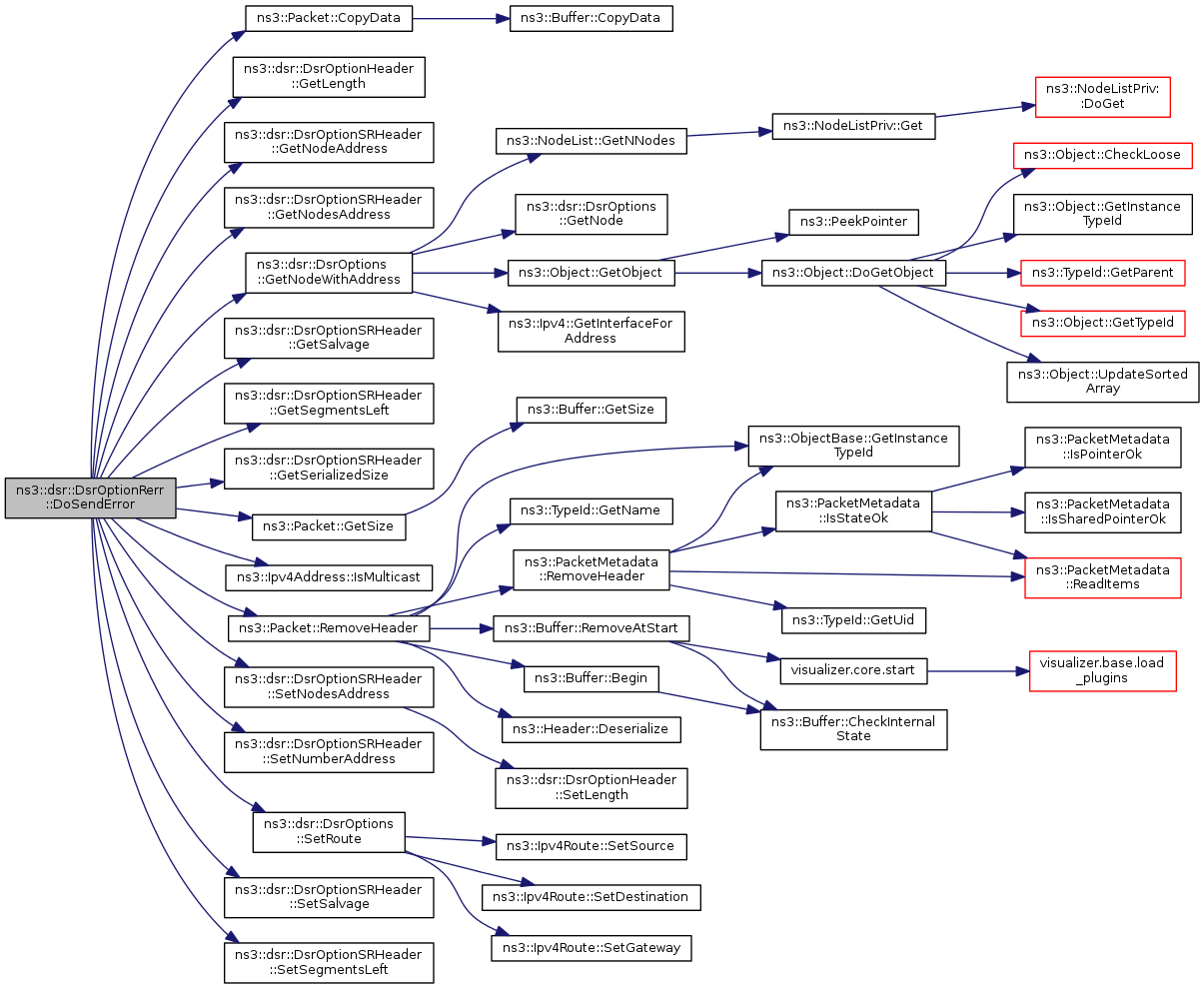

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionRerr::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Object.

Definition at line 1317 of file dsr-options.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::dsr::DsrOptionRerr::GetOptionNumber ( ) const

virtual

Get the option number.

Returns: option number

Implements ns3::dsr::DsrOptions.

Definition at line 1322 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS, and OPT_NUMBER.

TypeId ns3::dsr::DsrOptionRerr::GetTypeId ( void )

static

Get the type identificator.

This method returns the TypeId associated to ns3::dsr::DsrOptionRerr.

Returns: type identificator

No Attributes defined for this type.
Attributes defined in parent class ns3::dsr::DsrOptions:

OptionNumber: The Dsr option number.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::dsr::DsrOptions:

Rx: Receive DSR packet.

Reimplemented from ns3::dsr::DsrOptions.

Definition at line 1298 of file dsr-options.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrOptionRerr::Process	(	Ptr< Packet >	packet,
		Ptr< Packet >	dsrP,
		Ipv4Address	ipv4Address,
		Ipv4Address	source,
		Ipv4Header const &	ipv4Header,
		uint8_t	protocol,
		bool &	isPromisc
	)

virtual

Process method.

Called from DsrRouting::Receive.

Parameters

packet	the packet
dsrP	the clean packet with payload
ipv4Header	the IPv4 header of packet received
protocol	the protocol number of the up layer
isPromisc	if the packet must be dropped

Returns: the processed size

Implements ns3::dsr::DsrOptions.

Definition at line 1328 of file dsr-options.cc.

References ns3::Packet::Copy(), ns3::Packet::CopyData(), data, DoSendError(), ns3::dsr::DsrOptionRerrUnreachHeader::GetErrorDst(), ns3::dsr::DsrOptionRerrUnreachHeader::GetErrorSrc(), ns3::dsr::DsrOptions::GetNodeWithAddress(), ns3::Object::GetObject(), ns3::dsr::DsrOptionRerrUnreachHeader::GetSerializedSize(), ns3::dsr::DsrOptionRerrUnsupportHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::dsr::DsrOptionRerrUnreachHeader::GetUnreachNode(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Packet::RemoveHeader().

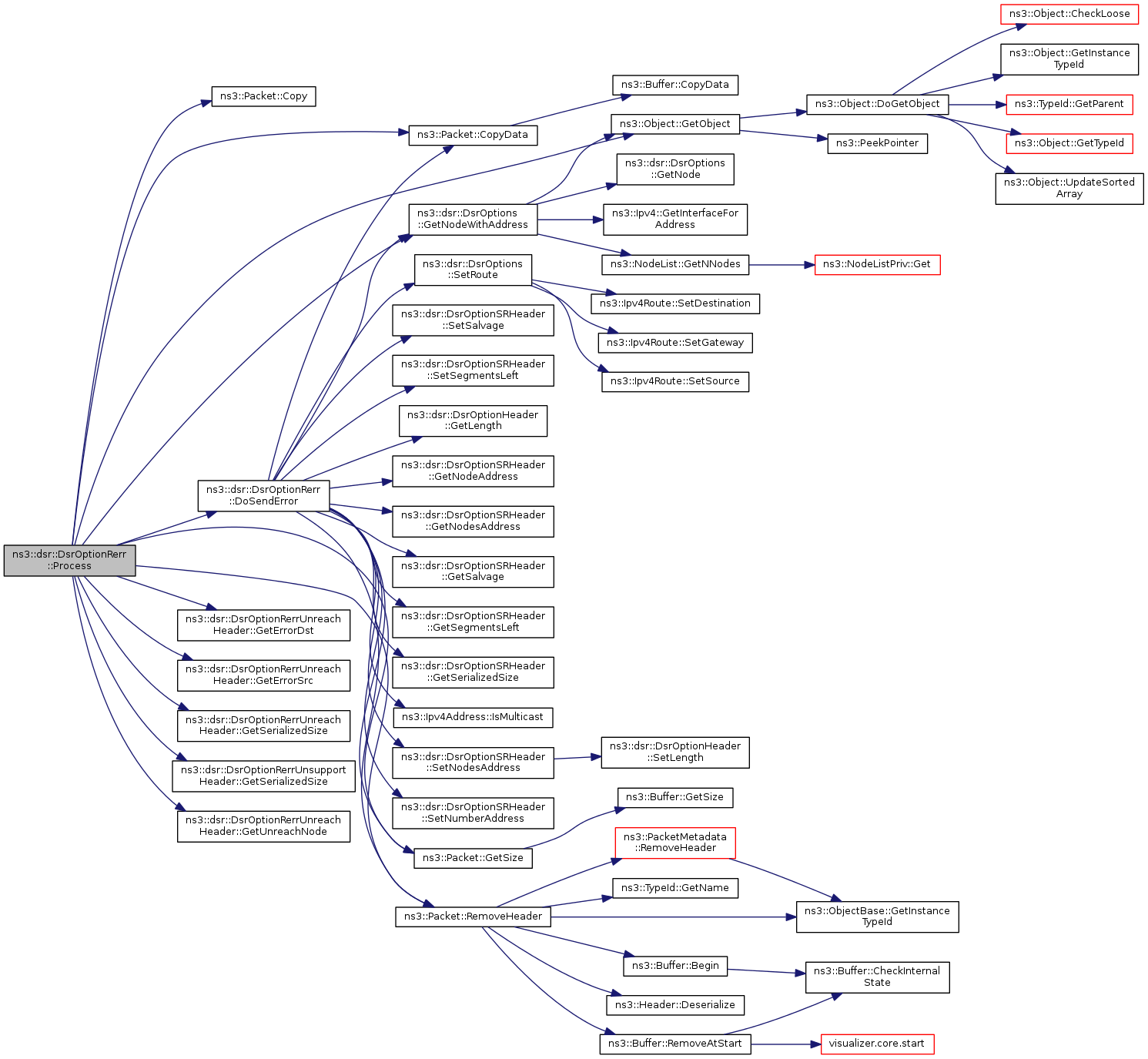

Here is the call graph for this function:

Member Data Documentation

Ptr<Ipv4> ns3::dsr::DsrOptionRerr::m_ipv4

private

The ipv4 layer 3.

Definition at line 566 of file dsr-options.h.

uint32_t ns3::dsr::DsrOptionRerr::m_length

private

The length of the packet.

Definition at line 562 of file dsr-options.h.

Ptr<dsr::RouteCache> ns3::dsr::DsrOptionRerr::m_routeCache

private

The route cache.

Definition at line 558 of file dsr-options.h.

const uint8_t ns3::dsr::DsrOptionRerr::OPT_NUMBER = 3

static

Dsr Route Error option number.

Definition at line 506 of file dsr-options.h.

Referenced by GetOptionNumber().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-options.h
doc/introspected-doxygen.h
src/dsr/model/dsr-options.cc
