#include <dsr-options.h>

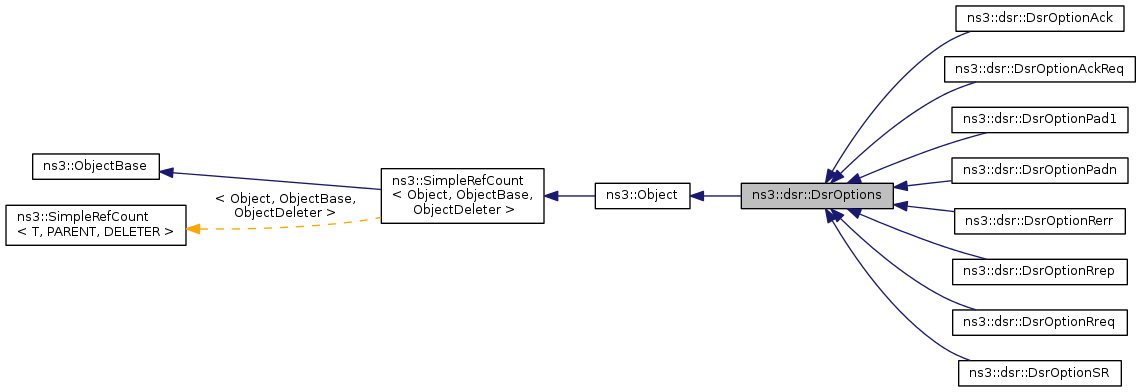

Inheritance diagram for ns3::dsr::DsrOptions:

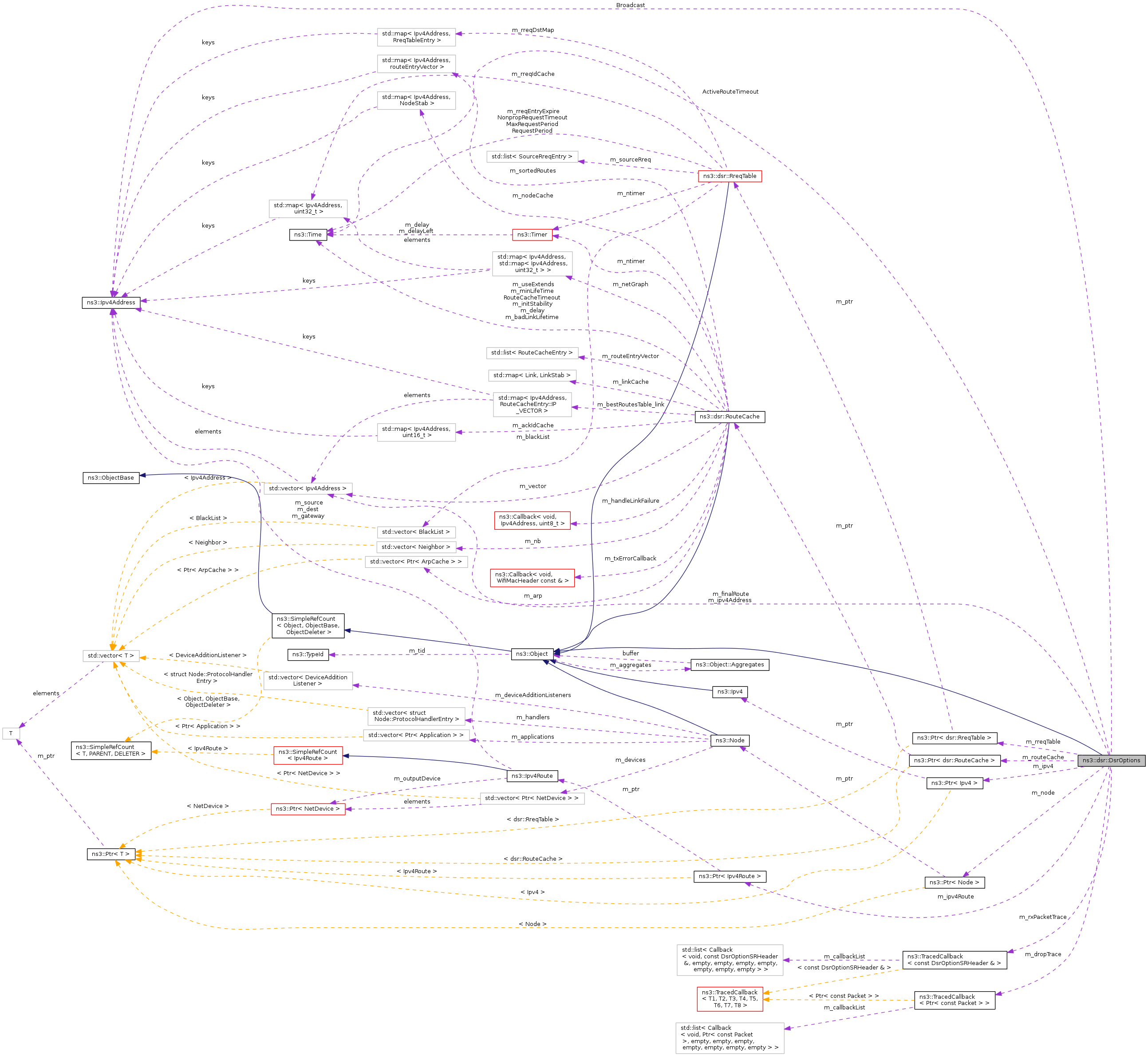

Collaboration diagram for ns3::dsr::DsrOptions:

Public Member Functions
	DsrOptions ()
	Constructor.
virtual	~DsrOptions ()
	Destructor.
bool	CheckDuplicates (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
bool	ContainAddressAfter (Ipv4Address ipv4Address, Ipv4Address destAddress, std::vector< Ipv4Address > &nodeList)
	Search for the ipv4 address in the node list.
std::vector< Ipv4Address >	CutRoute (Ipv4Address ipv4Address, std::vector< Ipv4Address > &nodeList)
	Cut the route from ipv4Address to the end of the route vector.
uint32_t	GetIDfromIP (Ipv4Address address)
Ptr< Node >	GetNode () const
	Get the node.
Ptr< Node >	GetNodeWithAddress (Ipv4Address ipv4Address)
virtual uint8_t	GetOptionNumber () const =0
	Get the option number.
bool	IfDuplicates (std::vector< Ipv4Address > &vec, std::vector< Ipv4Address > &vec2)
void	PrintVector (std::vector< Ipv4Address > &vec)
virtual uint8_t	Process (Ptr< Packet > packet, Ptr< Packet > dsrP, Ipv4Address ipv4Address, Ipv4Address source, Ipv4Header const &ipv4Header, uint8_t protocol, bool &isPromisc)=0
	Process method.
void	RemoveDuplicates (std::vector< Ipv4Address > &vec)
bool	ReverseRoutes (std::vector< Ipv4Address > &vec)
	Reverse the routes.
Ipv4Address	ReverseSearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
void	ScheduleReply (Ptr< Packet > &packet, std::vector< Ipv4Address > &nodeList, Ipv4Address &source, Ipv4Address &destination)
Ipv4Address	SearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
void	SetNode (Ptr< Node > node)
	Set the node.
virtual Ptr< Ipv4Route >	SetRoute (Ipv4Address nextHop, Ipv4Address srcAddress)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type identificator.

Protected Attributes
Time	ActiveRouteTimeout
	The active route timeout value.
Ipv4Address	Broadcast
	The broadcast IP address.
TracedCallback< Ptr< const Packet > >	m_dropTrace
	Drop trace callback.
std::vector< Ipv4Address >	m_finalRoute
	The vector of final Ipv4 address.
Ptr< Ipv4 >	m_ipv4
	The ipv4.
std::vector< Ipv4Address >	m_ipv4Address
	The vector of Ipv4 address.
Ptr< Ipv4Route >	m_ipv4Route
	The ipv4 route.
Ptr< dsr::RouteCache >	m_routeCache
	The route cache table.
Ptr< dsr::RreqTable >	m_rreqTable
	The route request table.
TracedCallback< const DsrOptionSRHeader & >	m_rxPacketTrace

Private Attributes
Ptr< Node >	m_node

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Definition at line 74 of file dsr-options.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptions::DsrOptions ( )

Constructor.

Definition at line 84 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::dsr::DsrOptions::~DsrOptions ( )

virtual

Destructor.

Definition at line 89 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

bool ns3::dsr::DsrOptions::CheckDuplicates	(	Ipv4Address	ipv4Address,
		std::vector< Ipv4Address > &	vec
	)

Definition at line 264 of file dsr-options.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::dsr::DsrOptionRreq::Process().

Here is the caller graph for this function:

bool ns3::dsr::DsrOptions::ContainAddressAfter	(	Ipv4Address	ipv4Address,
		Ipv4Address	destAddress,
		std::vector< Ipv4Address > &	nodeList
	)

Search for the ipv4 address in the node list.

Returns: true if contain ip address

Definition at line 106 of file dsr-options.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::dsr::DsrOptionSR::Process().

Here is the caller graph for this function:

std::vector< Ipv4Address > ns3::dsr::DsrOptions::CutRoute	(	Ipv4Address	ipv4Address,
		std::vector< Ipv4Address > &	nodeList
	)

Cut the route from ipv4Address to the end of the route vector.

Returns: the vector after the route cut

Definition at line 122 of file dsr-options.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::dsr::DsrOptionRrep::Process().

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrOptions::GetIDfromIP ( Ipv4Address address )

Definition at line 326 of file dsr-options.cc.

References ns3::Ipv4::GetAddress(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNNodes(), GetNode(), ns3::Object::GetObject(), and NS_LOG_FUNCTION.

Referenced by ns3::dsr::DsrOptionRreq::Process(), and ns3::dsr::DsrOptionRrep::Process().

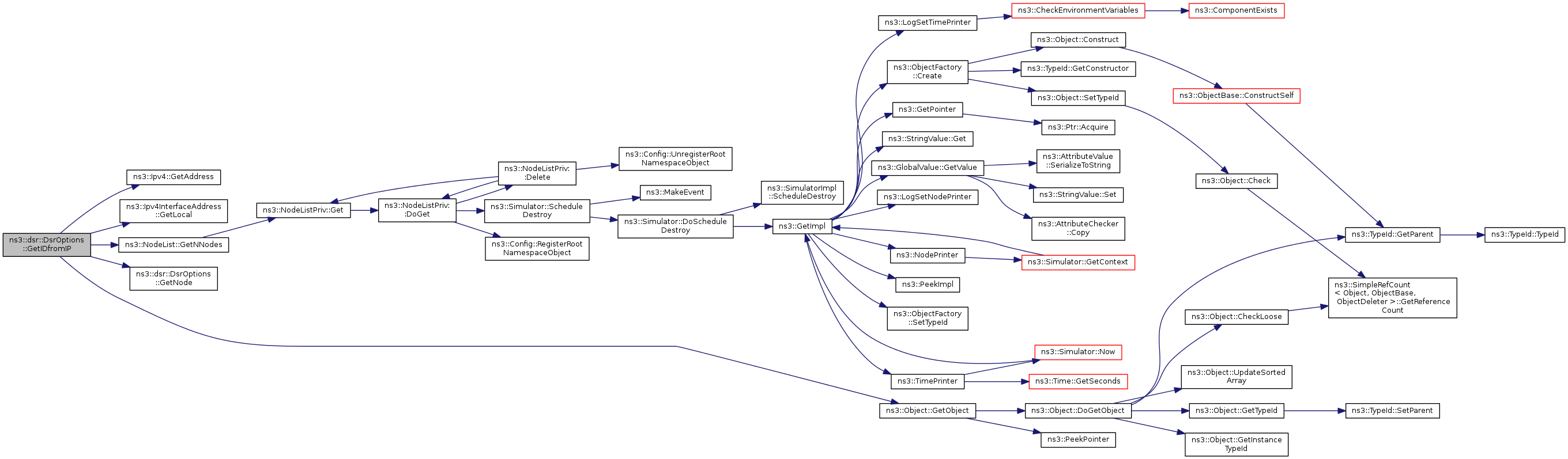

Here is the call graph for this function:

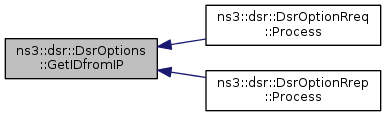

Here is the caller graph for this function:

Ptr< Node > ns3::dsr::DsrOptions::GetNode ( void ) const

Get the node.

Returns: the node

Definition at line 100 of file dsr-options.cc.

References m_node, and NS_LOG_FUNCTION_NOARGS.

Referenced by GetIDfromIP(), and GetNodeWithAddress().

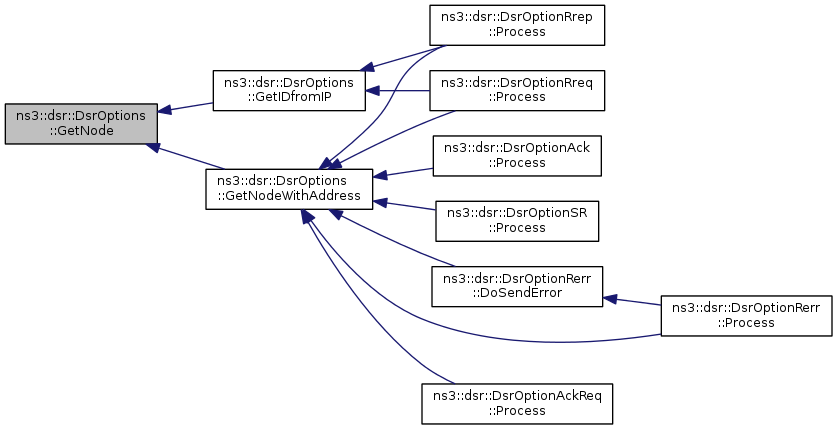

Here is the caller graph for this function:

Ptr< Node > ns3::dsr::DsrOptions::GetNodeWithAddress ( Ipv4Address ipv4Address )

Definition at line 342 of file dsr-options.cc.

References ns3::Ipv4::GetInterfaceForAddress(), ns3::NodeList::GetNNodes(), GetNode(), ns3::Object::GetObject(), and NS_LOG_FUNCTION.

Referenced by ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrOptionRerr::Process(), ns3::dsr::DsrOptionAckReq::Process(), and ns3::dsr::DsrOptionAck::Process().

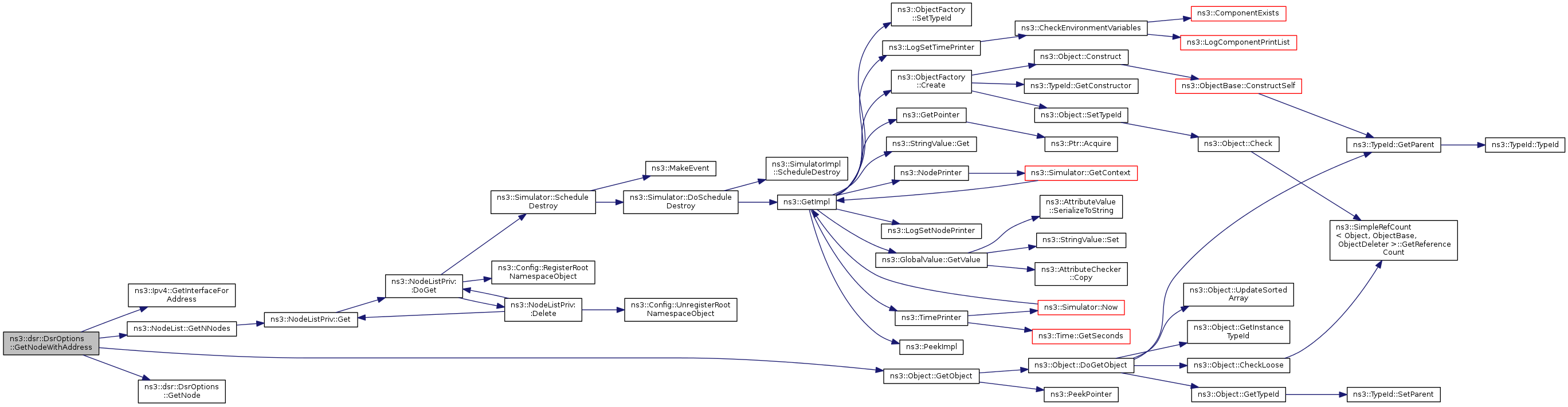

Here is the call graph for this function:

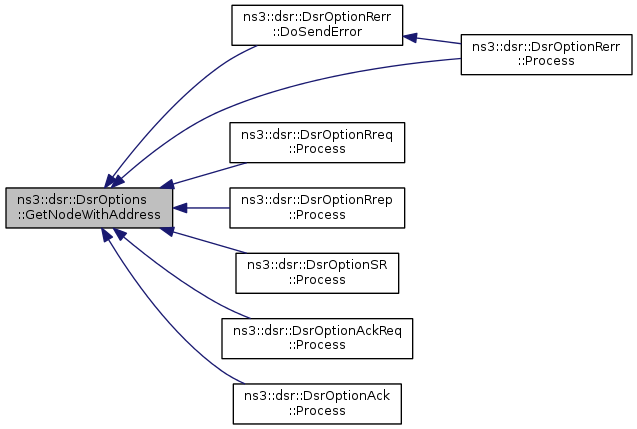

Here is the caller graph for this function:

virtual uint8_t ns3::dsr::DsrOptions::GetOptionNumber ( ) const

pure virtual

Get the option number.

Returns: option number

Implemented in ns3::dsr::DsrOptionAck, ns3::dsr::DsrOptionAckReq, ns3::dsr::DsrOptionRerr, ns3::dsr::DsrOptionSR, ns3::dsr::DsrOptionRrep, ns3::dsr::DsrOptionRreq, ns3::dsr::DsrOptionPadn, and ns3::dsr::DsrOptionPad1.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptions::GetTypeId ( void )

static

Get the type identificator.

This method returns the TypeId associated to ns3::dsr::DsrOptions.

Returns: type identificator

Attributes defined for this type:

OptionNumber: The Dsr option number.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

TraceSources defined for this type:

Rx: Receive DSR packet.

Reimplemented from ns3::Object.

Reimplemented in ns3::dsr::DsrOptionAck, ns3::dsr::DsrOptionAckReq, ns3::dsr::DsrOptionRerr, ns3::dsr::DsrOptionSR, ns3::dsr::DsrOptionRrep, ns3::dsr::DsrOptionRreq, ns3::dsr::DsrOptionPadn, and ns3::dsr::DsrOptionPad1.

Definition at line 70 of file dsr-options.cc.

References GetOptionNumber(), m_rxPacketTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

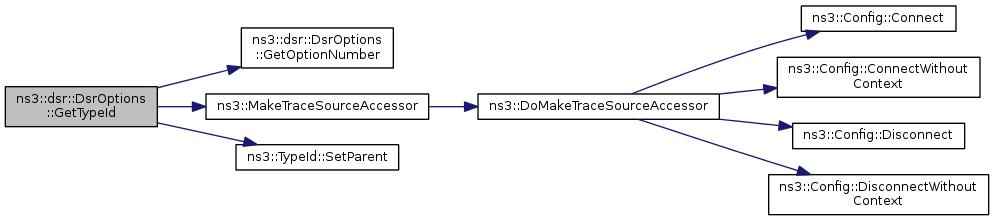

Here is the call graph for this function:

bool ns3::dsr::DsrOptions::IfDuplicates	(	std::vector< Ipv4Address > &	vec,
		std::vector< Ipv4Address > &	vec2
	)

Definition at line 240 of file dsr-options.cc.

References NS_LOG_DEBUG, NS_LOG_FUNCTION, and PrintVector().

Referenced by ns3::dsr::DsrOptionRreq::Process().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptions::PrintVector ( std::vector< Ipv4Address > & vec )

Definition at line 220 of file dsr-options.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by IfDuplicates(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), and RemoveDuplicates().

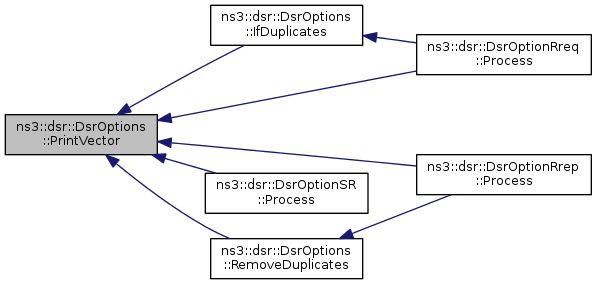

Here is the caller graph for this function:

virtual uint8_t ns3::dsr::DsrOptions::Process	(	Ptr< Packet >	packet,
		Ptr< Packet >	dsrP,
		Ipv4Address	ipv4Address,
		Ipv4Address	source,
		Ipv4Header const &	ipv4Header,
		uint8_t	protocol,
		bool &	isPromisc
	)

pure virtual

Process method.

Called from DsrRouting::Receive.

Parameters

packet	the packet
dsrP	the clean packet with payload
ipv4Header	the IPv4 header of packet received
protocol	the protocol number of the up layer
isPromisc	if the packet must be dropped

Returns: the processed size

Implemented in ns3::dsr::DsrOptionAck, ns3::dsr::DsrOptionAckReq, ns3::dsr::DsrOptionRerr, ns3::dsr::DsrOptionSR, ns3::dsr::DsrOptionRrep, ns3::dsr::DsrOptionRreq, ns3::dsr::DsrOptionPadn, and ns3::dsr::DsrOptionPad1.

void ns3::dsr::DsrOptions::RemoveDuplicates ( std::vector< Ipv4Address > & vec )

Definition at line 281 of file dsr-options.cc.

References NS_LOG_FUNCTION, and PrintVector().

Referenced by ns3::dsr::DsrOptionRrep::Process().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::dsr::DsrOptions::ReverseRoutes ( std::vector< Ipv4Address > & vec )

Reverse the routes.

Returns: true if successfully reversed

Definition at line 144 of file dsr-options.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::dsr::DsrOptionRreq::Process().

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrOptions::ReverseSearchNextHop	(	Ipv4Address	ipv4Address,
		std::vector< Ipv4Address > &	vec
	)

Definition at line 194 of file dsr-options.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::dsr::DsrOptionRreq::Process(), and ns3::dsr::DsrOptionRrep::Process().

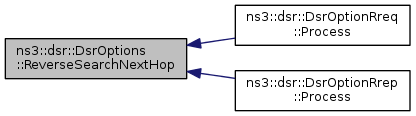

Here is the caller graph for this function:

void ns3::dsr::DsrOptions::ScheduleReply	(	Ptr< Packet > &	packet,
		std::vector< Ipv4Address > &	nodeList,
		Ipv4Address &	source,
		Ipv4Address &	destination
	)
