#include <aloha-noack-net-device.h>

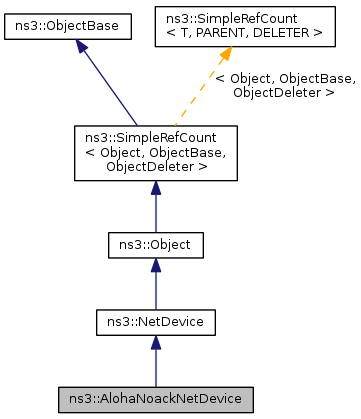

Inheritance diagram for ns3::AlohaNoackNetDevice:

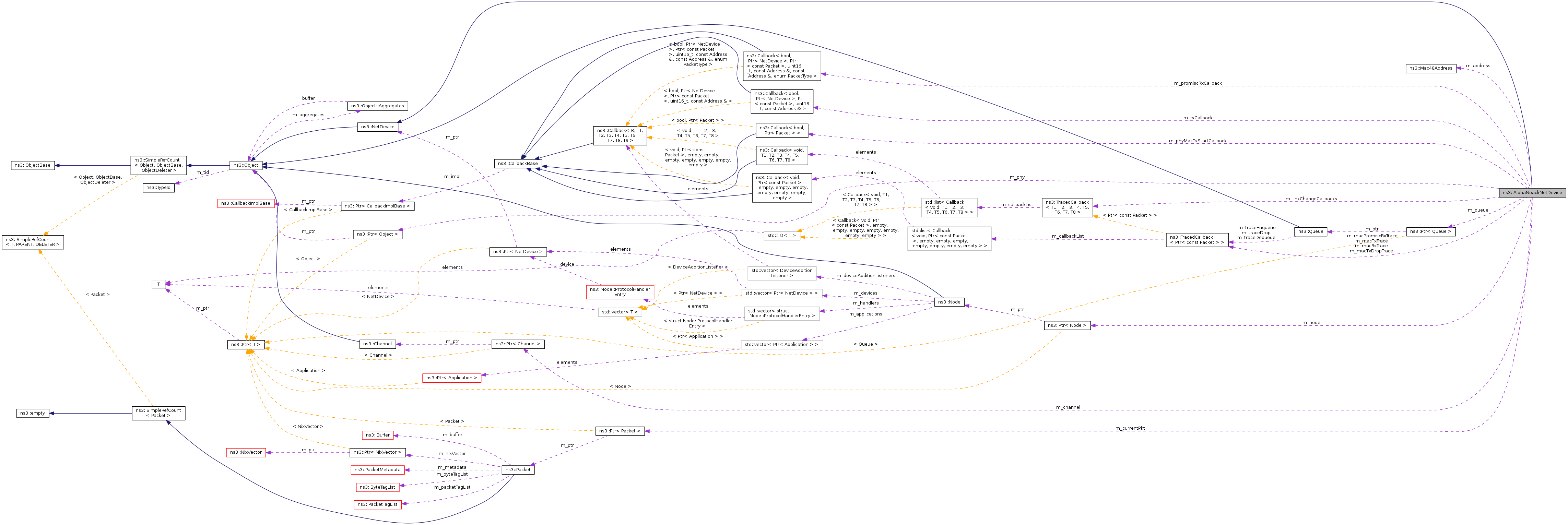

Collaboration diagram for ns3::AlohaNoackNetDevice:

Public Types
enum	State { IDLE, TX, RX }
Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions
	AlohaNoackNetDevice ()
virtual	~AlohaNoackNetDevice ()
virtual void	AddLinkChangeCallback (Callback< void > callback)
virtual Address	GetAddress (void) const
virtual Address	GetBroadcast (void) const
virtual Ptr< Channel >	GetChannel (void) const
virtual uint32_t	GetIfIndex (void) const
virtual uint16_t	GetMtu (void) const
virtual Address	GetMulticast (Ipv4Address addr) const
	Make and return a MAC multicast address using the provided multicast group.
virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided.
virtual Ptr< Node >	GetNode (void) const
Ptr< Object >	GetPhy () const
virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge.
virtual bool	IsBroadcast (void) const
virtual bool	IsLinkUp (void) const
virtual bool	IsMulticast (void) const
virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link.
virtual bool	NeedsArp (void) const
void	NotifyReceptionEndError ()
void	NotifyReceptionEndOk (Ptr< Packet > p)
void	NotifyReceptionStart ()
void	NotifyTransmissionEnd (Ptr< const Packet >)
virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual void	SetAddress (Address address)
void	SetChannel (Ptr< Channel > c)
void	SetGenericPhyTxStartCallback (GenericPhyTxStartCallback c)
virtual void	SetIfIndex (const uint32_t index)
virtual bool	SetMtu (const uint16_t mtu)
virtual void	SetNode (Ptr< Node > node)
void	SetPhy (Ptr< Object > phy)
virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)
virtual void	SetQueue (Ptr< Queue > queue)
virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)
virtual bool	SupportsSendFrom (void) const
Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
virtual void	DoDispose (void)
void	NotifyGuardIntervalEnd ()

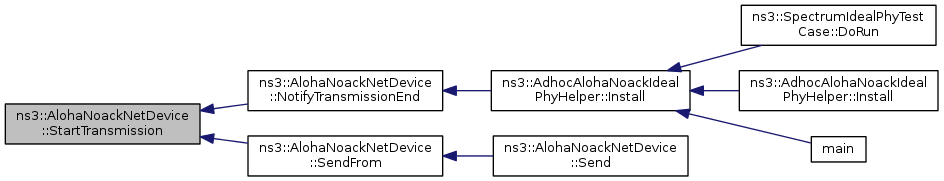

void	StartTransmission ()

Private Attributes
Mac48Address	m_address
Ptr< Channel >	m_channel
Ptr< Packet >	m_currentPkt
uint32_t	m_ifIndex
TracedCallback	m_linkChangeCallbacks
bool	m_linkUp
TracedCallback< Ptr< const Packet > >	m_macPromiscRxTrace
TracedCallback< Ptr< const Packet > >	m_macRxTrace
TracedCallback< Ptr< const Packet > >	m_macTxDropTrace
TracedCallback< Ptr< const Packet > >	m_macTxTrace
uint32_t	m_mtu
Ptr< Node >	m_node
Ptr< Object >	m_phy
GenericPhyTxStartCallback	m_phyMacTxStartCallback
NetDevice::PromiscReceiveCallback	m_promiscRxCallback
Ptr< Queue >	m_queue
NetDevice::ReceiveCallback	m_rxCallback
State	m_state

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This devices implements the following features:

layer 3 protocol multiplexing
MAC addressing
Aloha MAC:
- packets transmitted as soon as possible
- a new packet is queued if previous one is still being transmitted
- no acknowledgements, hence no retransmissions
can support any PHY layer compatible with the API defined in generic-phy.h

Config Paths

ns3::AlohaNoackNetDevice is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice

Attributes

Address: The MAC address of this device.
- Set with class: Mac48AddressValue
- Underlying type: Mac48Address
- Initial value: 12:34:56:78:90:12
- Flags: construct write read
Queue: packets being transmitted get queued here
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Queue >
- Initial value: 0
- Flags: construct write read
Mtu: The Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:65535
- Initial value: 1500
- Flags: construct write read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Object >
- Initial value: 0
- Flags: construct write read

TraceSources

MacTx: Trace source indicating a packet has arrived for transmission by this device
MacTxDrop: Trace source indicating a packet has been dropped by the device before transmission
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,

Definition at line 59 of file aloha-noack-net-device.h.

Member Enumeration Documentation

enum ns3::AlohaNoackNetDevice::State

Enumerator:

IDLE
TX
RX

Definition at line 62 of file aloha-noack-net-device.h.

Constructor & Destructor Documentation

ns3::AlohaNoackNetDevice::AlohaNoackNetDevice ( )

Definition at line 104 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

ns3::AlohaNoackNetDevice::~AlohaNoackNetDevice ( )

virtual

Definition at line 110 of file aloha-noack-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::AlohaNoackNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 297 of file aloha-noack-net-device.cc.

References ns3::TracedCallback< T1, T2, T3, T4, T5, T6, T7, T8 >::ConnectWithoutContext(), m_linkChangeCallbacks, and NS_LOG_FUNCTION.

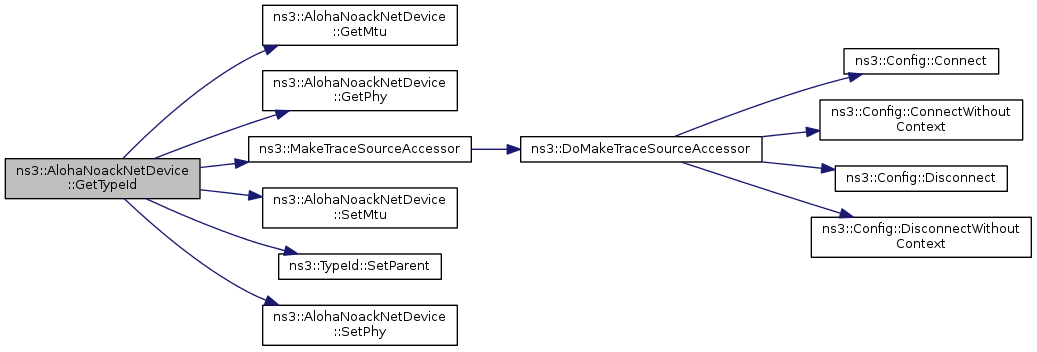

Here is the call graph for this function:

void ns3::AlohaNoackNetDevice::DoDispose ( void )

privatevirtual

Definition at line 117 of file aloha-noack-net-device.cc.

References m_channel, m_currentPkt, m_node, m_phy, m_phyMacTxStartCallback, m_queue, and NS_LOG_FUNCTION.

Address ns3::AlohaNoackNetDevice::GetAddress ( void ) const

virtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 176 of file aloha-noack-net-device.cc.

References m_address, and NS_LOG_FUNCTION.

Address ns3::AlohaNoackNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 190 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

Ptr< Channel > ns3::AlohaNoackNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 275 of file aloha-noack-net-device.cc.

References m_channel, and NS_LOG_FUNCTION.

uint32_t ns3::AlohaNoackNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 138 of file aloha-noack-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

uint16_t ns3::AlohaNoackNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 153 of file aloha-noack-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Address ns3::AlohaNoackNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See Also: Ipv4Address; Address; NetDevice::IsMulticast

Implements ns3::NetDevice.

Definition at line 204 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

Referenced by GetMulticast().

Here is the caller graph for this function:

Address ns3::AlohaNoackNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 212 of file aloha-noack-net-device.cc.

References GetMulticast(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< Node > ns3::AlohaNoackNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 236 of file aloha-noack-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

Ptr< Object > ns3::AlohaNoackNetDevice::GetPhy ( void ) const

Returns: a reference to the PHY object embedded in this NetDevice.

Definition at line 259 of file aloha-noack-net-device.cc.

References m_phy, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::AlohaNoackNetDevice::GetTypeId ( void )

static

Reimplemented from ns3::NetDevice.

Definition at line 61 of file aloha-noack-net-device.cc.

References GetMtu(), GetPhy(), m_address, m_macPromiscRxTrace, m_macRxTrace, m_macTxDropTrace, m_macTxTrace, m_queue, ns3::MakeTraceSourceAccessor(), SetMtu(), ns3::TypeId::SetParent(), and SetPhy().

Here is the call graph for this function:

bool ns3::AlohaNoackNetDevice::IsBridge ( void ) const

virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 228 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

bool ns3::AlohaNoackNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 183 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

bool ns3::AlohaNoackNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 290 of file aloha-noack-net-device.cc.

References m_linkUp, and NS_LOG_FUNCTION.

bool ns3::AlohaNoackNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 197 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

bool ns3::AlohaNoackNetDevice::IsPointToPoint ( void ) const

virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 221 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

bool ns3::AlohaNoackNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 283 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

void ns3::AlohaNoackNetDevice::NotifyGuardIntervalEnd ( )

private

void ns3::AlohaNoackNetDevice::NotifyReceptionEndError ( )

Notify the MAC that the PHY finished a reception with an error

Definition at line 439 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

void ns3::AlohaNoackNetDevice::NotifyReceptionEndOk ( Ptr< Packet > p )

Notify the MAC that the PHY finished a reception successfully

Parameters

p	the received packet

Definition at line 449 of file aloha-noack-net-device.cc.

References ns3::Packet::Copy(), ns3::AlohaNoackMacHeader::GetDestination(), ns3::AlohaNoackMacHeader::GetSource(), ns3::Mac48Address::IsBroadcast(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_address, m_promiscRxCallback, m_rxCallback, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::NetDevice::PACKET_BROADCAST, ns3::NetDevice::PACKET_HOST, ns3::NetDevice::PACKET_MULTICAST, ns3::NetDevice::PACKET_OTHERHOST, and ns3::Packet::RemoveHeader().

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

Here is the call graph for this function:

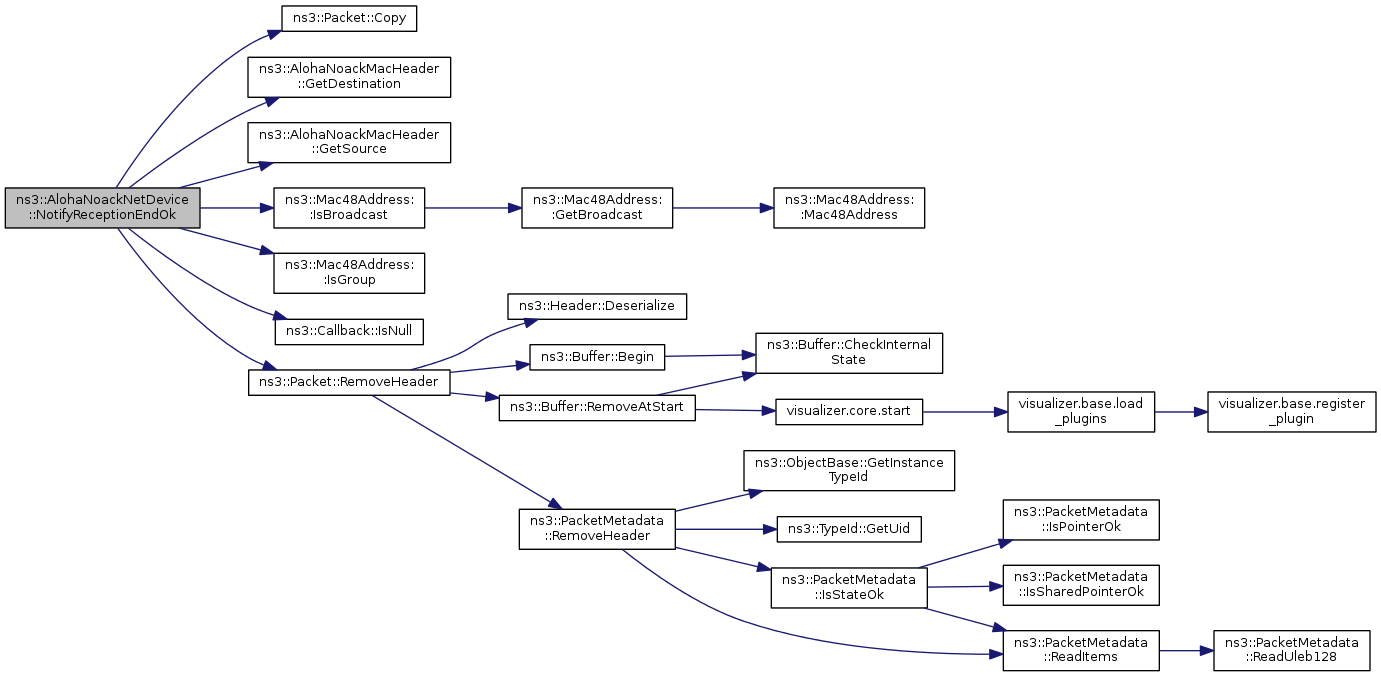

Here is the caller graph for this function:

void ns3::AlohaNoackNetDevice::NotifyReceptionStart ( )

Notify the MAC that the PHY has started a reception

Definition at line 431 of file aloha-noack-net-device.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

Here is the caller graph for this function:

void ns3::AlohaNoackNetDevice::NotifyTransmissionEnd ( Ptr< const Packet > )

Notify the MAC that the PHY has finished a previously started transmission

Definition at line 414 of file aloha-noack-net-device.cc.

References ns3::Queue::Dequeue(), IDLE, ns3::Queue::IsEmpty(), m_currentPkt, m_queue, m_state, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Simulator::ScheduleNow(), StartTransmission(), and TX.

Referenced by ns3::AdhocAlohaNoackIdealPhyHelper::Install().

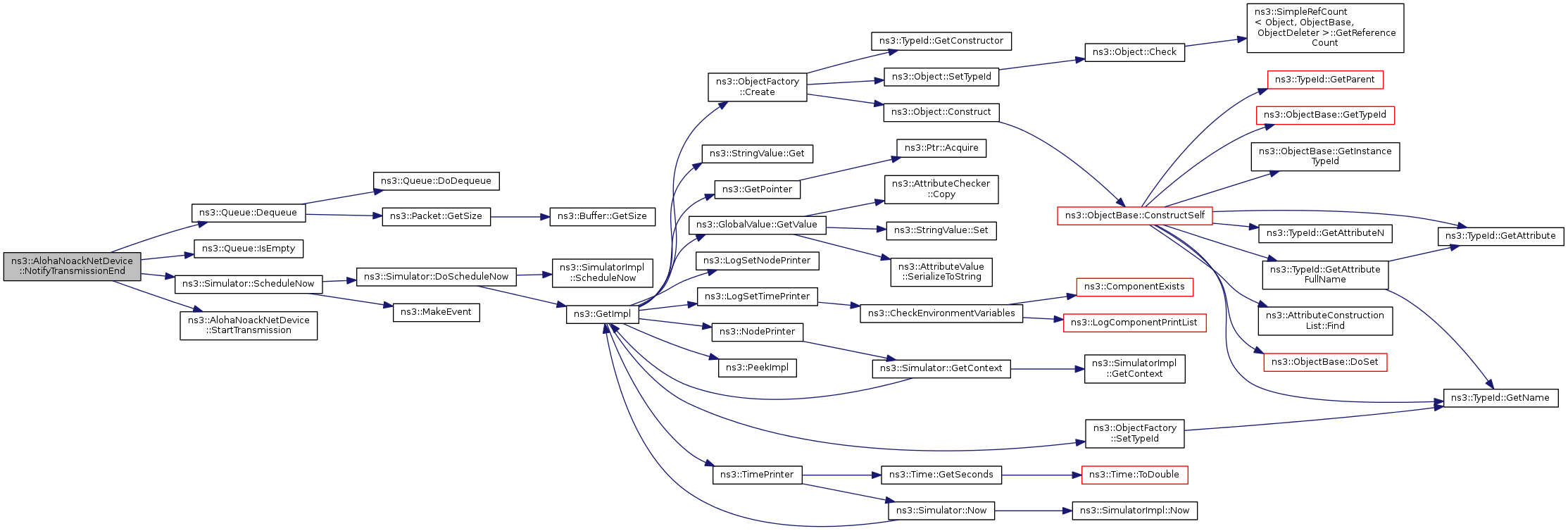

Here is the call graph for this function:

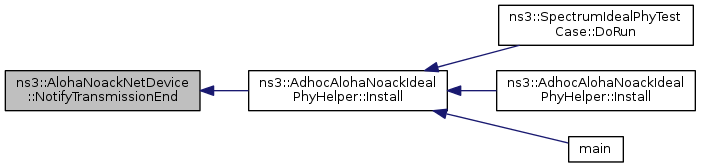

Here is the caller graph for this function:

bool ns3::AlohaNoackNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 326 of file aloha-noack-net-device.cc.

References m_address, NS_LOG_FUNCTION, and SendFrom().

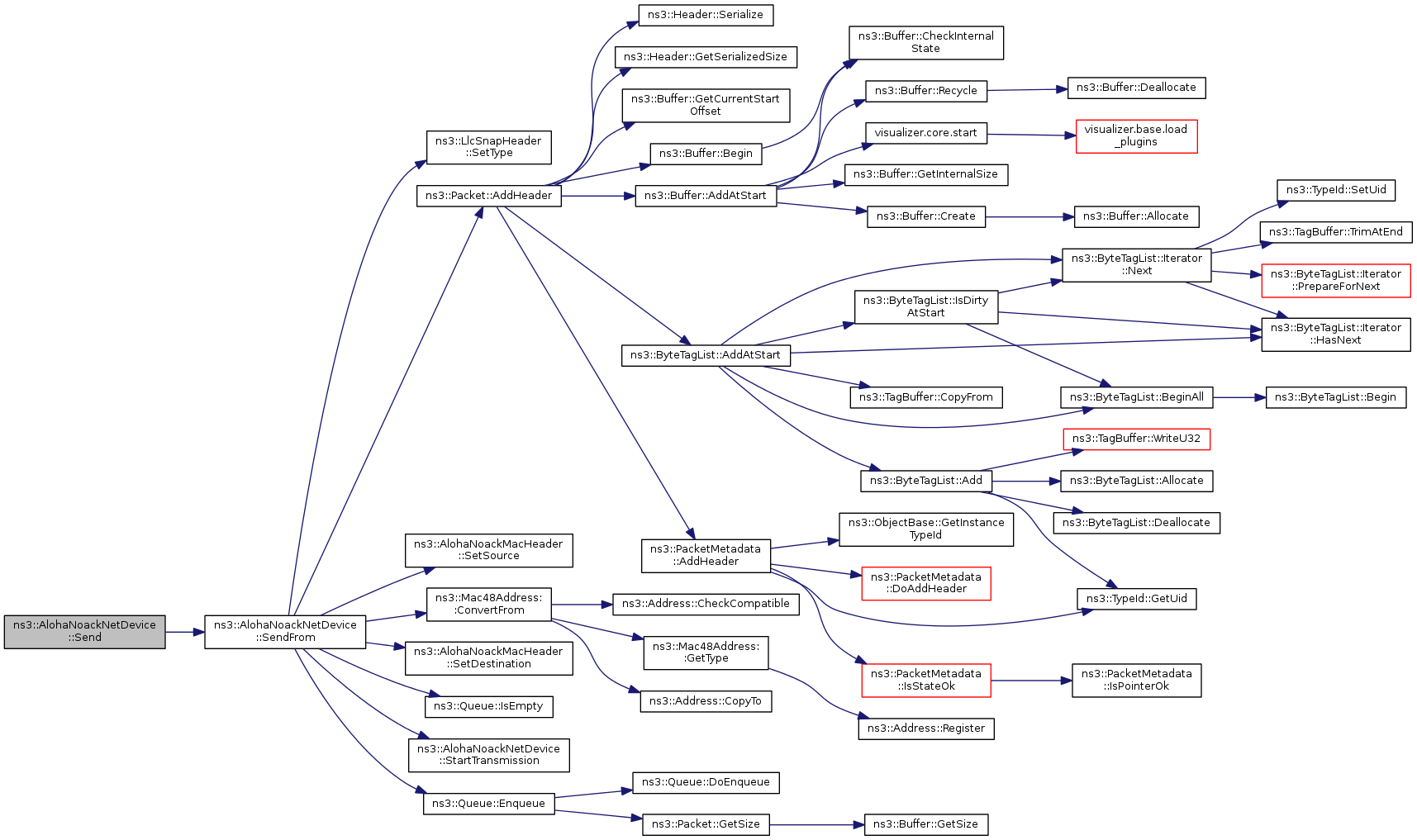

Here is the call graph for this function:

bool ns3::AlohaNoackNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 333 of file aloha-noack-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), ns3::Queue::Enqueue(), IDLE, ns3::Queue::IsEmpty(), m_currentPkt, m_macTxDropTrace, m_macTxTrace, m_queue, m_state, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::AlohaNoackMacHeader::SetDestination(), ns3::AlohaNoackMacHeader::SetSource(), ns3::LlcSnapHeader::SetType(), and StartTransmission().

Referenced by Send().

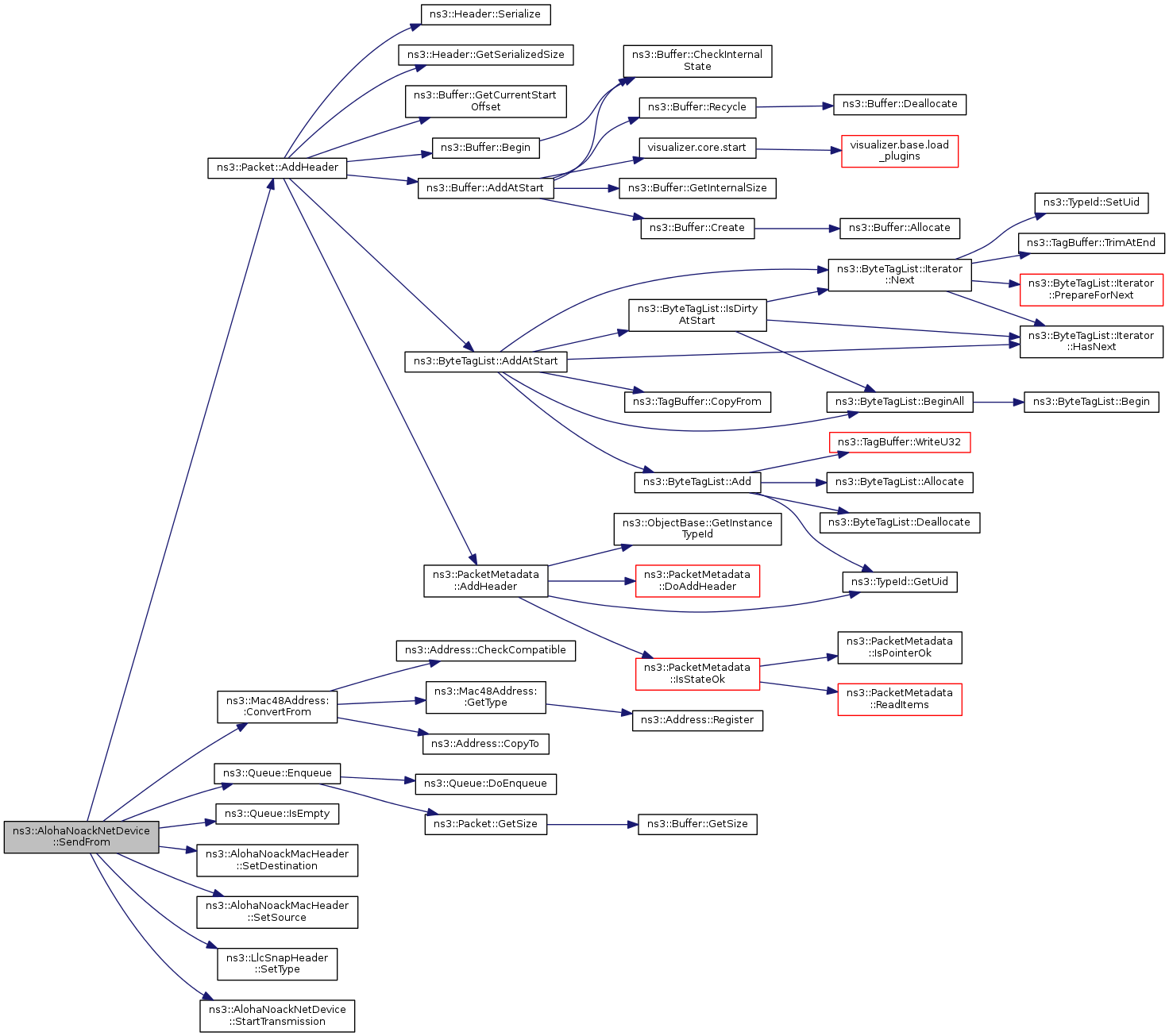

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AlohaNoackNetDevice::SetAddress ( Address address )

virtual

Set the address of this interface

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 169 of file aloha-noack-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), m_address, and NS_LOG_FUNCTION.

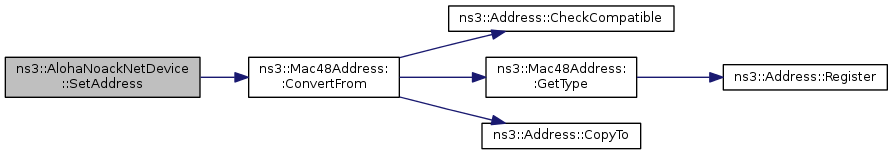

Here is the call graph for this function:

void ns3::AlohaNoackNetDevice::SetChannel ( Ptr< Channel > c )

This class doesn't talk directly with the underlying channel (a dedicated PHY class is expected to do it), however the NetDevice specification features a GetChannel() method. This method here is therefore provide to allow AlohaNoackNetDevice::GetChannel() to have something meaningful to return.

Parameters

c	the underlying channel

Definition at line 267 of file aloha-noack-net-device.cc.

References m_channel, and NS_LOG_FUNCTION.

void ns3::AlohaNoackNetDevice::SetGenericPhyTxStartCallback ( GenericPhyTxStartCallback c )

set the callback used to instruct the lower layer to start a TX

Parameters

c

Definition at line 387 of file aloha-noack-net-device.cc.

References m_phyMacTxStartCallback, and NS_LOG_FUNCTION.

void ns3::AlohaNoackNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 131 of file aloha-noack-net-device.cc.

References m_ifIndex, and NS_LOG_FUNCTION.

bool ns3::AlohaNoackNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 145 of file aloha-noack-net-device.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::AlohaNoackNetDevice::SetNode ( Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 243 of file aloha-noack-net-device.cc.

References m_node, and NS_LOG_FUNCTION.

void ns3::AlohaNoackNetDevice::SetPhy ( Ptr< Object > phy )

Set the Phy object which is attached to this device. This object is needed so that we can set/get attributes and connect to trace sources of the PHY from the net device.

Parameters

phy	the Phy object attached to the device. Note that the API between the PHY and the above (this NetDevice which also implements the MAC) is implemented entirely by callbacks, so we do not require that the PHY inherits by any specific class.

Definition at line 251 of file aloha-noack-net-device.cc.

References m_phy, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::AlohaNoackNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 311 of file aloha-noack-net-device.cc.

References m_promiscRxCallback, and NS_LOG_FUNCTION.

void ns3::AlohaNoackNetDevice::SetQueue ( Ptr< Queue > queue )

virtual

set the queue which is going to be used by this device

Parameters

queue

Definition at line 161 of file aloha-noack-net-device.cc.

References m_queue, and NS_LOG_FUNCTION.

void ns3::AlohaNoackNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual
