#include <sta-wifi-mac.h>

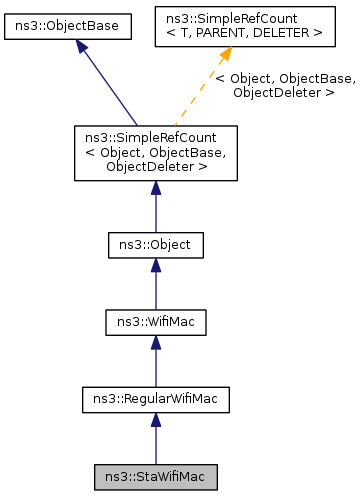

Inheritance diagram for ns3::StaWifiMac:

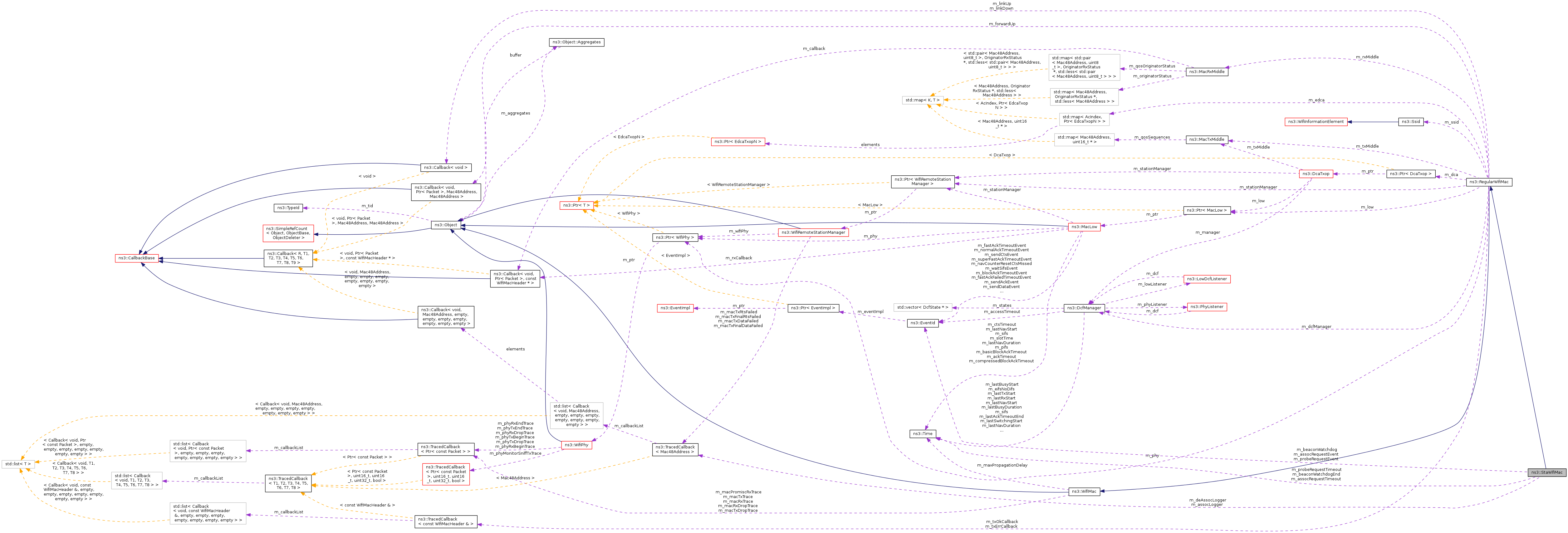

Collaboration diagram for ns3::StaWifiMac:

Public Member Functions
	StaWifiMac ()
virtual	~StaWifiMac ()
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)
void	SetAssocRequestTimeout (Time timeout)
void	SetMaxMissedBeacons (uint32_t missed)
void	SetProbeRequestTimeout (Time timeout)
void	StartActiveAssociation (void)
Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()
virtual	~RegularWifiMac ()
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)
Time	GetAckTimeout (void) const
virtual Mac48Address	GetAddress (void) const
virtual Time	GetBasicBlockAckTimeout (void) const
virtual Mac48Address	GetBssid (void) const
virtual Time	GetCompressedBlockAckTimeout (void) const
Time	GetCtsTimeout (void) const
Time	GetEifsNoDifs (void) const
Time	GetPifs (void) const
Time	GetSifs (void) const
Time	GetSlot (void) const
virtual Ssid	GetSsid (void) const
virtual Ptr< WifiPhy >	GetWifiPhy () const
virtual Ptr < WifiRemoteStationManager >	GetWifiRemoteStationManager () const
void	SetAckTimeout (Time ackTimeout)
virtual void	SetAddress (Mac48Address address)
virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)
virtual void	SetBssid (Mac48Address bssid)
virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
void	SetCtsTimeout (Time ctsTimeout)
void	SetEifsNoDifs (Time eifsNoDifs)
virtual void	SetForwardUpCallback (ForwardUpCallback upCallback)
virtual void	SetLinkDownCallback (Callback< void > linkDown)
virtual void	SetLinkUpCallback (Callback< void > linkUp)
void	SetPifs (Time pifs)
virtual void	SetPromisc (void)
	Sets the interface in promiscuous mode.
void	SetSifs (Time sifs)
void	SetSlot (Time slotTime)
virtual void	SetSsid (Ssid ssid)
virtual void	SetWifiPhy (Ptr< WifiPhy > phy)
virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)
virtual bool	SupportsSendFrom (void) const
Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (enum WifiPhyStandard standard)
Time	GetMaxPropagationDelay (void) const
Time	GetMsduLifetime (void) const
void	NotifyPromiscRx (Ptr< const Packet > packet)
void	NotifyRx (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyTx (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0
void	SetMaxPropagationDelay (Time delay)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Types
enum	MacState { ASSOCIATED, WAIT_PROBE_RESP, WAIT_ASSOC_RESP, BEACON_MISSED, REFUSED }

Private Member Functions
void	AssocRequestTimeout (void)
bool	GetActiveProbing (void) const
SupportedRates	GetSupportedRates (void) const
bool	IsAssociated (void) const
bool	IsWaitAssocResp (void) const
void	MissedBeacons (void)
void	ProbeRequestTimeout (void)
virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
void	RestartBeaconWatchdog (Time delay)
void	SendAssociationRequest (void)
void	SendProbeRequest (void)
void	SetActiveProbing (bool enable)
void	SetState (enum MacState value)
void	TryToEnsureAssociated (void)

Private Attributes
TracedCallback< Mac48Address >	m_assocLogger
EventId	m_assocRequestEvent
Time	m_assocRequestTimeout
EventId	m_beaconWatchdog
Time	m_beaconWatchdogEnd
TracedCallback< Mac48Address >	m_deAssocLogger
uint32_t	m_maxMissedBeacons
EventId	m_probeRequestEvent
Time	m_probeRequestTimeout
enum MacState	m_state

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr < Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr < EdcaTxopN > >	EdcaQueues
Protected Member Functions inherited from ns3::RegularWifiMac
virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
virtual void	DoDispose ()
virtual void	DoStart ()
virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)
void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
bool	GetQosSupported () const
virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
virtual void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
void	SetQosSupported (bool enable)
void	SetTypeOfStation (TypeOfStation type)
virtual void	TxFailed (const WifiMacHeader &hdr)
virtual void	TxOk (const WifiMacHeader &hdr)
Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxop >	m_dca
DcfManager *	m_dcfManager
EdcaQueues	m_edca
ForwardUpCallback	m_forwardUp
Callback< void >	m_linkDown
Callback< void >	m_linkUp
Ptr< MacLow >	m_low
Ptr< WifiPhy >	m_phy
bool	m_qosSupported
MacRxMiddle *	m_rxMiddle
Ssid	m_ssid
Ptr< WifiRemoteStationManager >	m_stationManager
MacTxMiddle *	m_txMiddle

Detailed Description

The Wifi MAC high model for a non-AP STA in a BSS.

Config Paths

ns3::StaWifiMac is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::StaWifiMac
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::StaWifiMac

Attributes

ProbeRequestTimeout: The interval between two consecutive probe request attempts.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +50000000.0ns
- Flags: construct write read
AssocRequestTimeout: The interval between two consecutive assoc request attempts.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +500000000.0ns
- Flags: construct write read
MaxMissedBeacons: Number of beacons which much be consecutively missed before we attempt to restart association.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
ActiveProbing: If true, we send probe requests. If false, we don't. NOTE: if more than one STA in your simulation is using active probing, you should enable it at a different simulation time for each STA, otherwise all the STAs will start sending probes at the same time resulting in collisions. See bug 1060 for more info.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write

Attributes defined in parent class ns3::RegularWifiMac

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
DcaTxop: The DcaTxop object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::DcaTxop >
- Flags: read
VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN >
- Flags: read
VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN >
- Flags: read
BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN >
- Flags: read
BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::EdcaTxopN >
- Flags: read

Attributes defined in parent class ns3::WifiMac

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +75000.0ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +75000.0ns
- Flags: construct write read
BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +281000.0ns
- Flags: construct write read
CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +99000.0ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +16000.0ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +60000.0ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +9000.0ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +25000.0ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +3333.0ns
- Flags: construct write read
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

TraceSources

Assoc: Associated with an access point.
DeAssoc: Association with an access point lost.

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet
TxErrHeader: The header of unsuccessfully transmitted packet

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Definition at line 43 of file sta-wifi-mac.h.

Member Enumeration Documentation

enum ns3::StaWifiMac::MacState

private

Enumerator:

ASSOCIATED
WAIT_PROBE_RESP
WAIT_ASSOC_RESP
BEACON_MISSED
REFUSED

Definition at line 87 of file sta-wifi-mac.h.

Constructor & Destructor Documentation

ns3::StaWifiMac::StaWifiMac ( )

Definition at line 96 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, ns3::RegularWifiMac::SetTypeOfStation(), and ns3::STA.

Here is the call graph for this function:

ns3::StaWifiMac::~StaWifiMac ( )

virtual

Definition at line 109 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::StaWifiMac::AssocRequestTimeout ( void )

private

Definition at line 252 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, SendAssociationRequest(), SetState(), and WAIT_ASSOC_RESP.

Referenced by SendAssociationRequest().

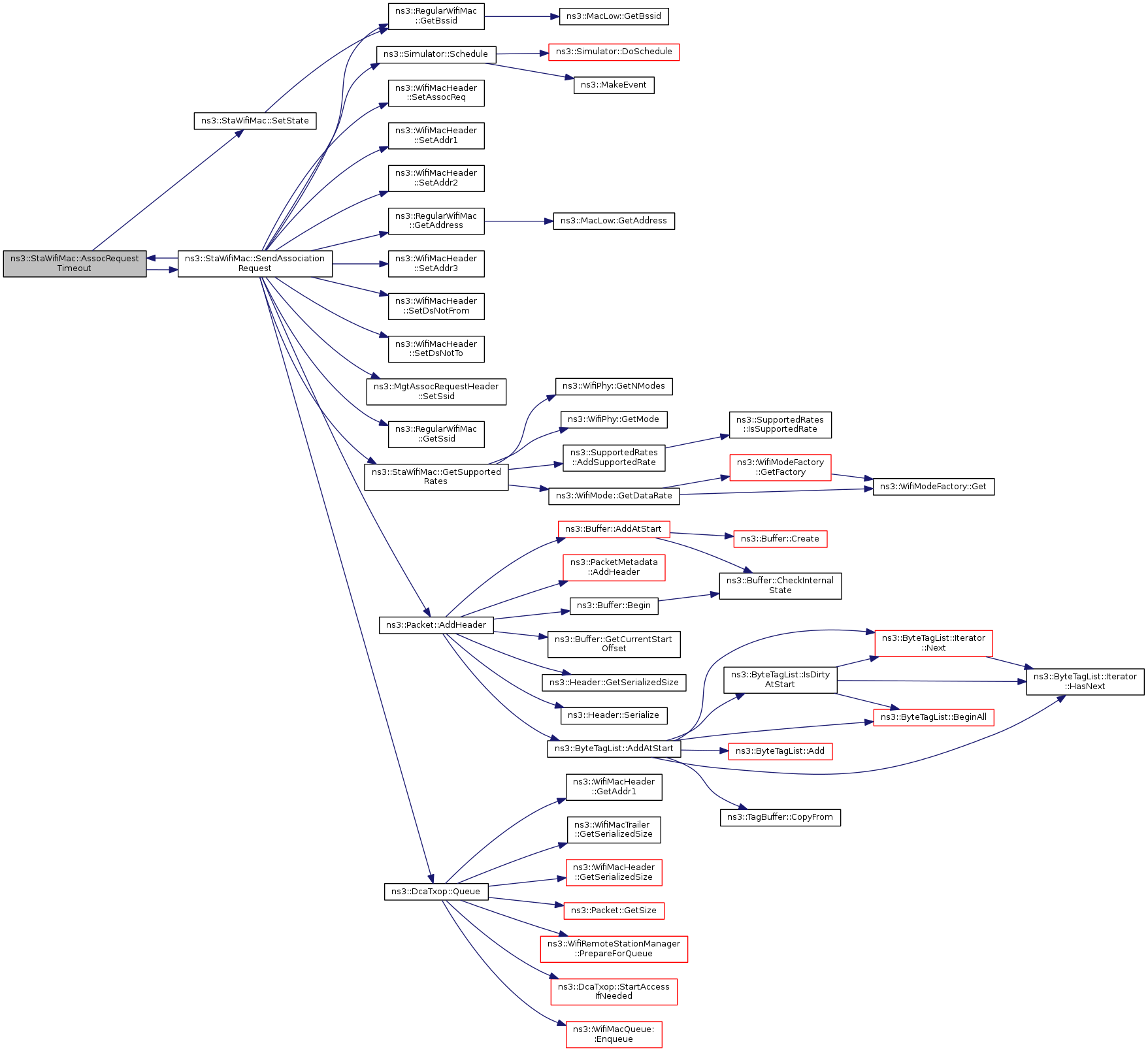

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::StaWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 308 of file sta-wifi-mac.cc.

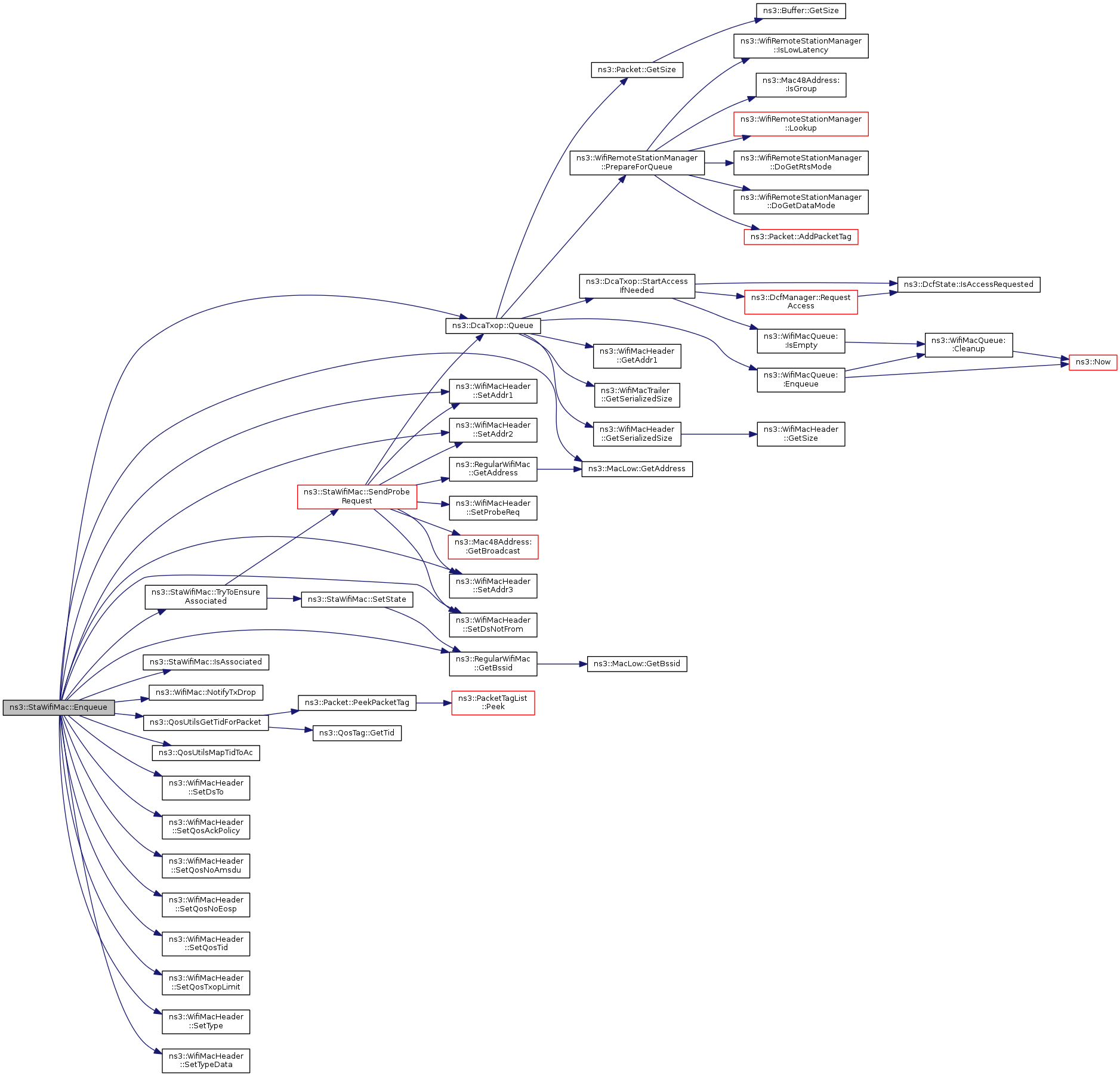

Here is the call graph for this function:

bool ns3::StaWifiMac::GetActiveProbing ( void ) const

private

SupportedRates ns3::StaWifiMac::GetSupportedRates ( void ) const

private

Definition at line 535 of file sta-wifi-mac.cc.

References ns3::SupportedRates::AddSupportedRate(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), and ns3::RegularWifiMac::m_phy.

Referenced by SendAssociationRequest(), and SendProbeRequest().

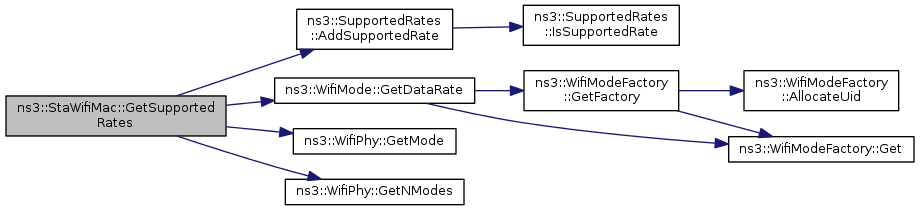

Here is the call graph for this function:

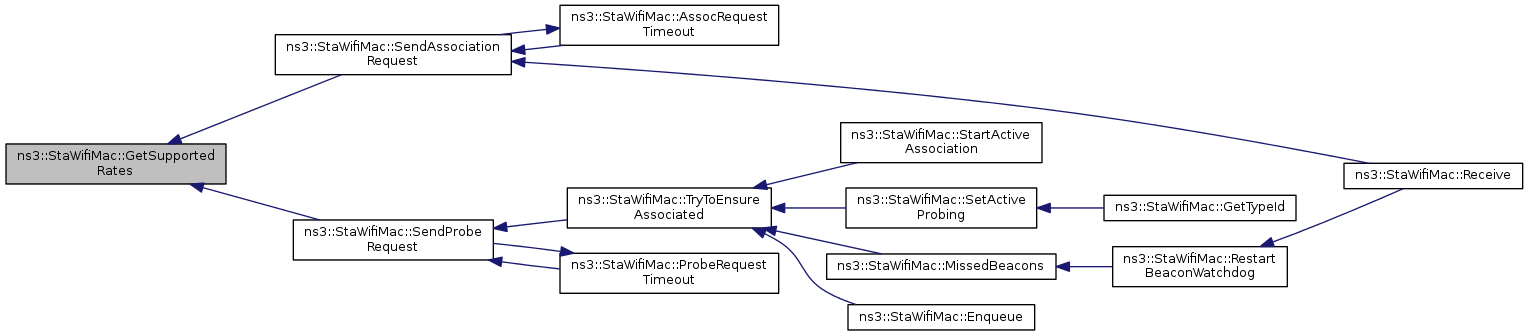

Here is the caller graph for this function:

TypeId ns3::StaWifiMac::GetTypeId ( void )

static

Reimplemented from ns3::RegularWifiMac.

Definition at line 65 of file sta-wifi-mac.cc.

References m_assocLogger, m_assocRequestTimeout, m_deAssocLogger, m_maxMissedBeacons, m_probeRequestTimeout, ns3::MakeTraceSourceAccessor(), ns3::Seconds(), SetActiveProbing(), and ns3::TypeId::SetParent().

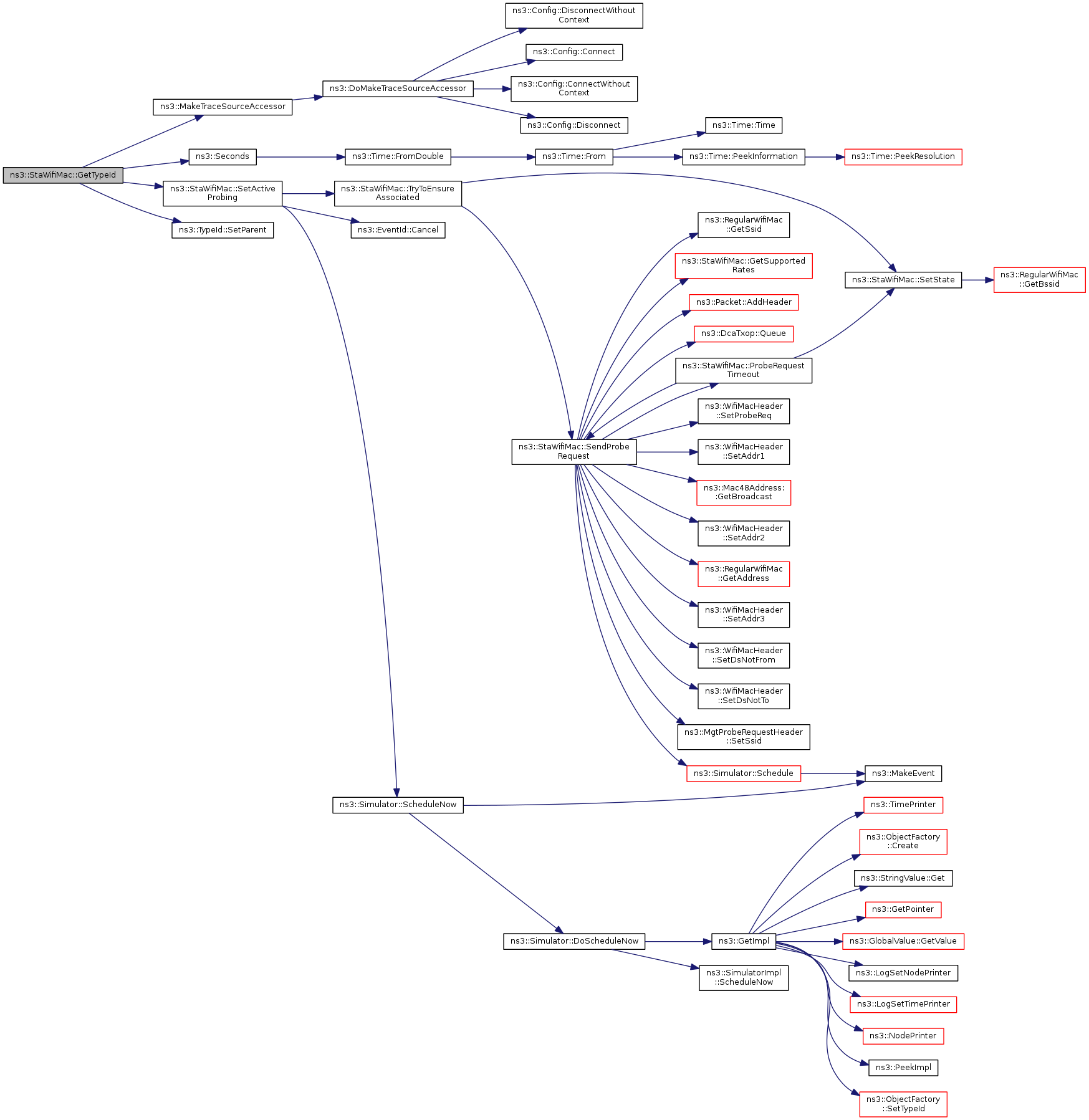

Here is the call graph for this function:

bool ns3::StaWifiMac::IsAssociated ( void ) const

private

Definition at line 296 of file sta-wifi-mac.cc.

References ASSOCIATED, and m_state.

Referenced by Enqueue(), and Receive().

Here is the caller graph for this function:

bool ns3::StaWifiMac::IsWaitAssocResp ( void ) const

private

Definition at line 302 of file sta-wifi-mac.cc.

References m_state, and WAIT_ASSOC_RESP.

Referenced by Receive().

Here is the caller graph for this function:

void ns3::StaWifiMac::MissedBeacons ( void )

private

Definition at line 268 of file sta-wifi-mac.cc.

References BEACON_MISSED, m_beaconWatchdog, m_beaconWatchdogEnd, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SetState(), and TryToEnsureAssociated().

Referenced by RestartBeaconWatchdog().

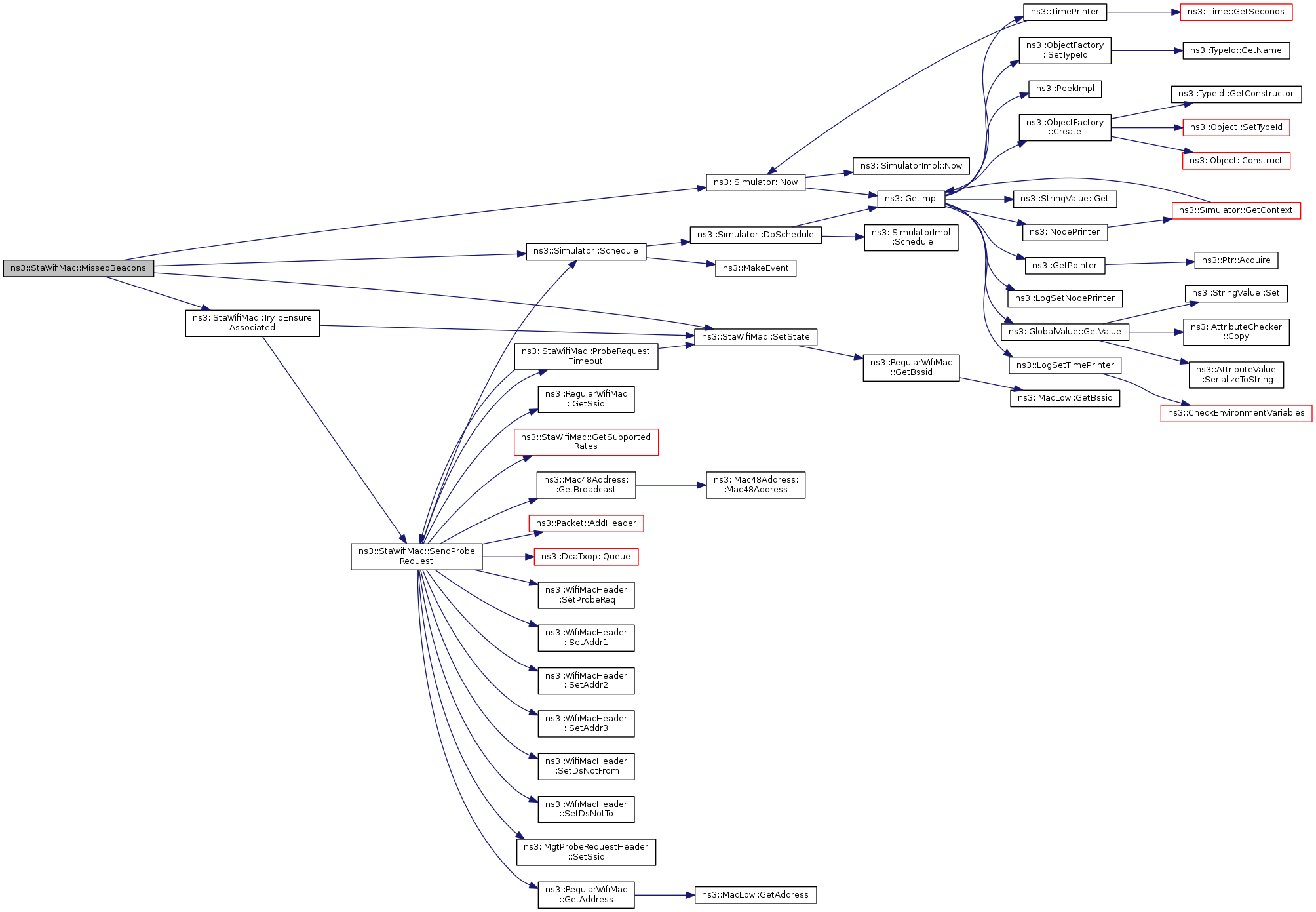

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::StaWifiMac::ProbeRequestTimeout ( void )

private

Definition at line 260 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, SendProbeRequest(), SetState(), and WAIT_PROBE_RESP.

Referenced by SendProbeRequest().

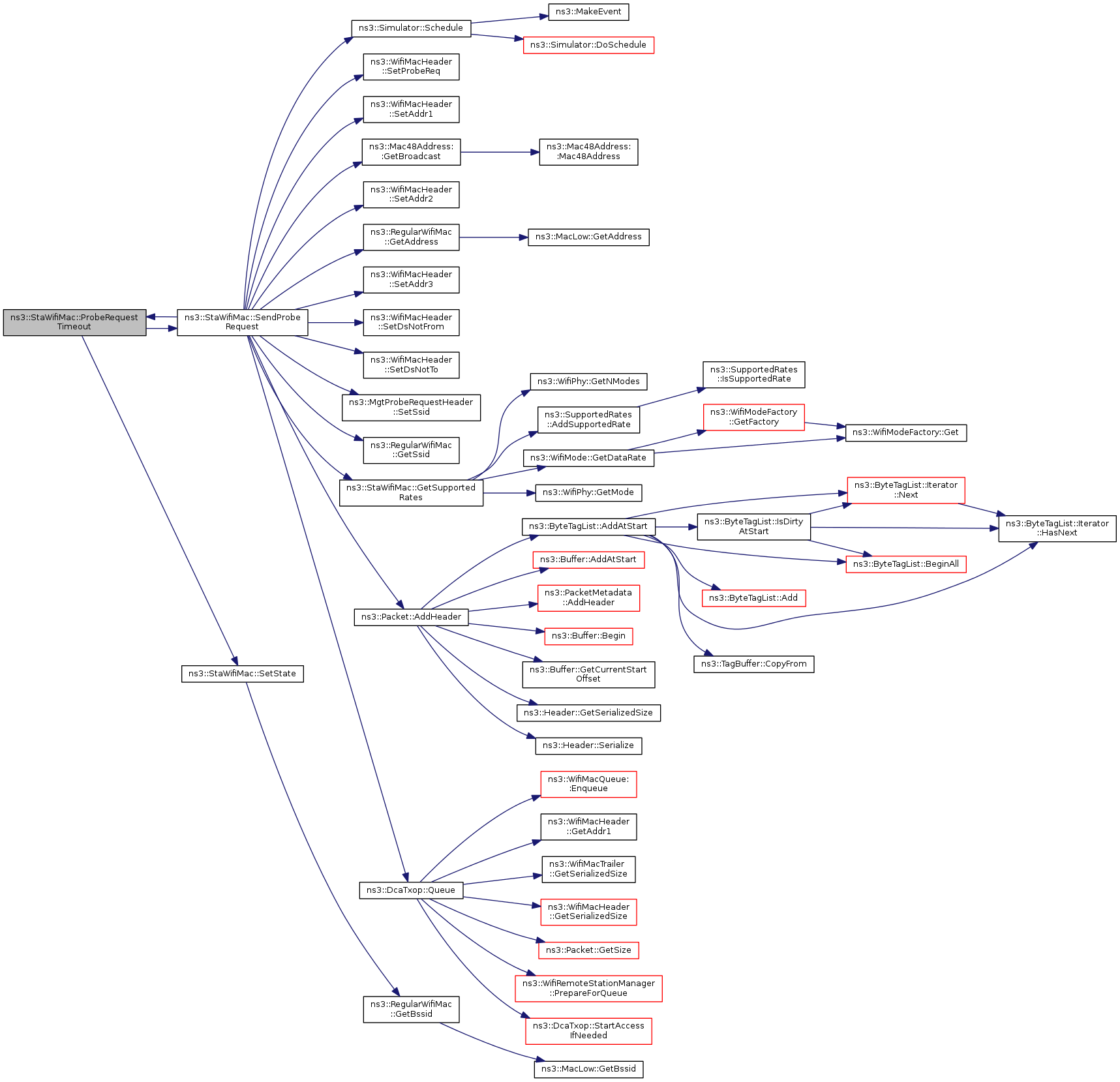

Here is the call graph for this function:

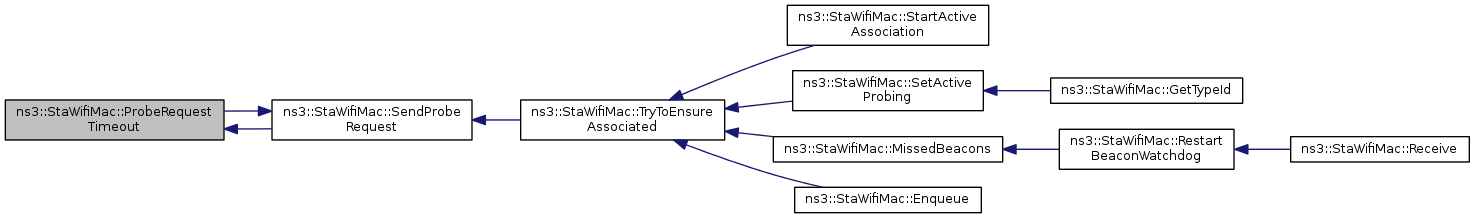

Here is the caller graph for this function:

void ns3::StaWifiMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader *	hdr
	)

privatevirtual

Definition at line 374 of file sta-wifi-mac.cc.

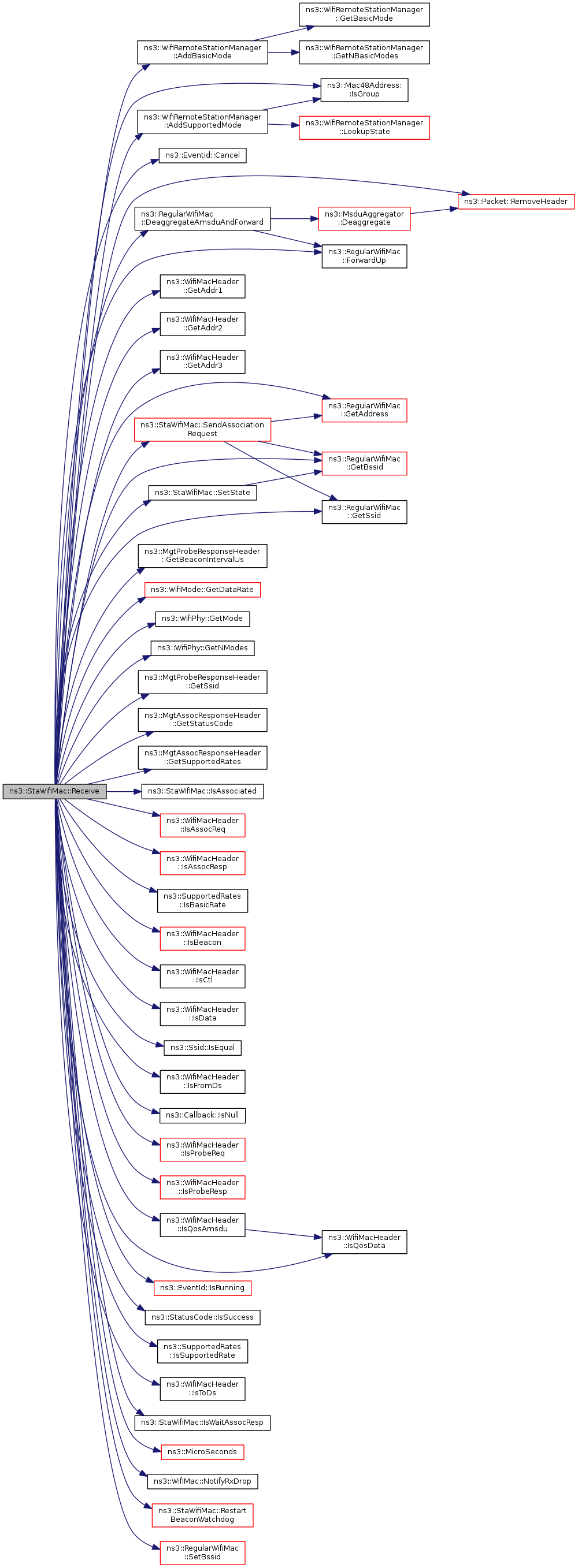

Here is the call graph for this function:

void ns3::StaWifiMac::RestartBeaconWatchdog ( Time delay )

private

Definition at line 283 of file sta-wifi-mac.cc.

References ns3::Simulator::GetDelayLeft(), ns3::EventId::IsExpired(), m_beaconWatchdog, m_beaconWatchdogEnd, MissedBeacons(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by Receive().

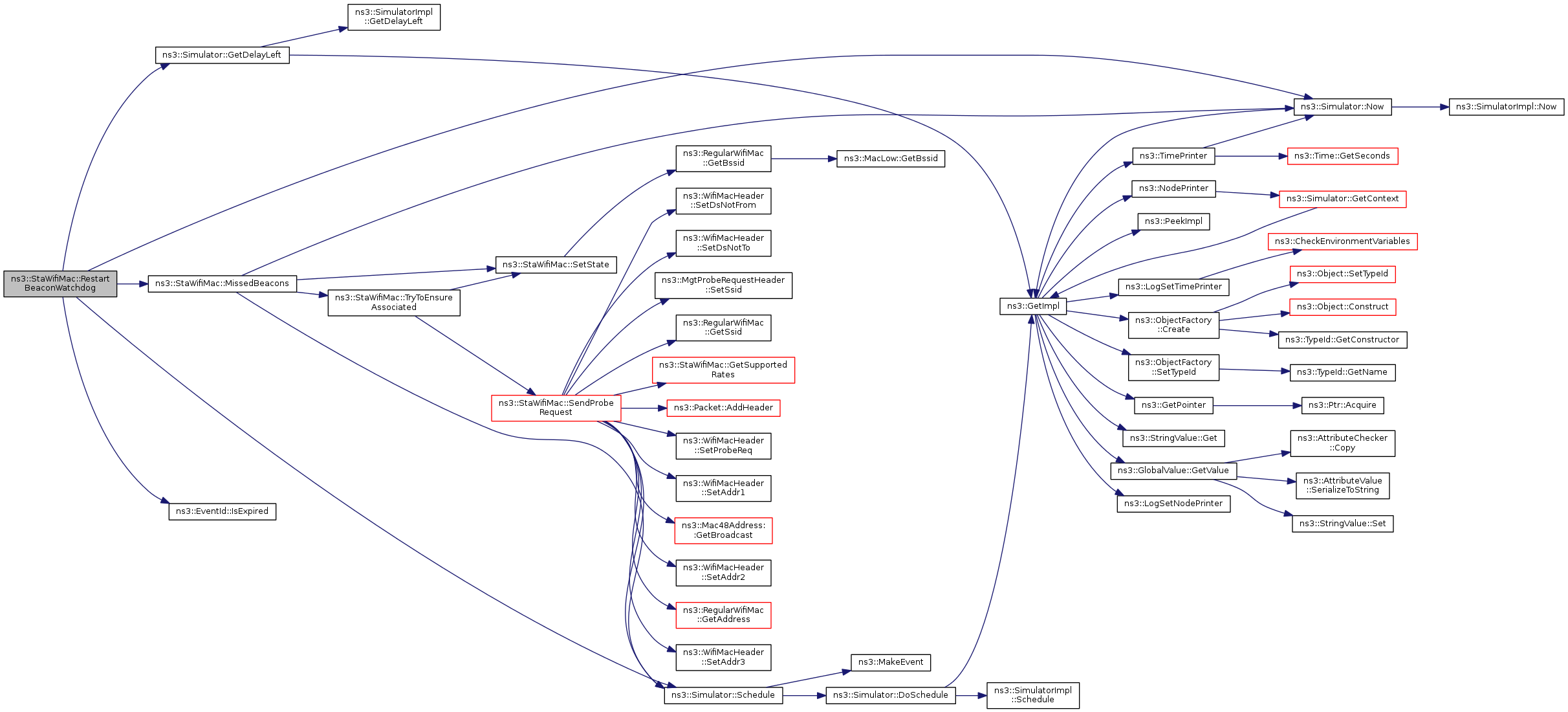

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::StaWifiMac::SendAssociationRequest ( void )

private

Definition at line 184 of file sta-wifi-mac.cc.

References ns3::Packet::AddHeader(), AssocRequestTimeout(), ns3::RegularWifiMac::GetAddress(), ns3::RegularWifiMac::GetBssid(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), m_assocRequestEvent, m_assocRequestTimeout, ns3::RegularWifiMac::m_dca, NS_LOG_FUNCTION, ns3::DcaTxop::Queue(), ns3::Simulator::Schedule(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetAssocReq(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::MgtAssocRequestHeader::SetSsid().

Referenced by AssocRequestTimeout(), and Receive().

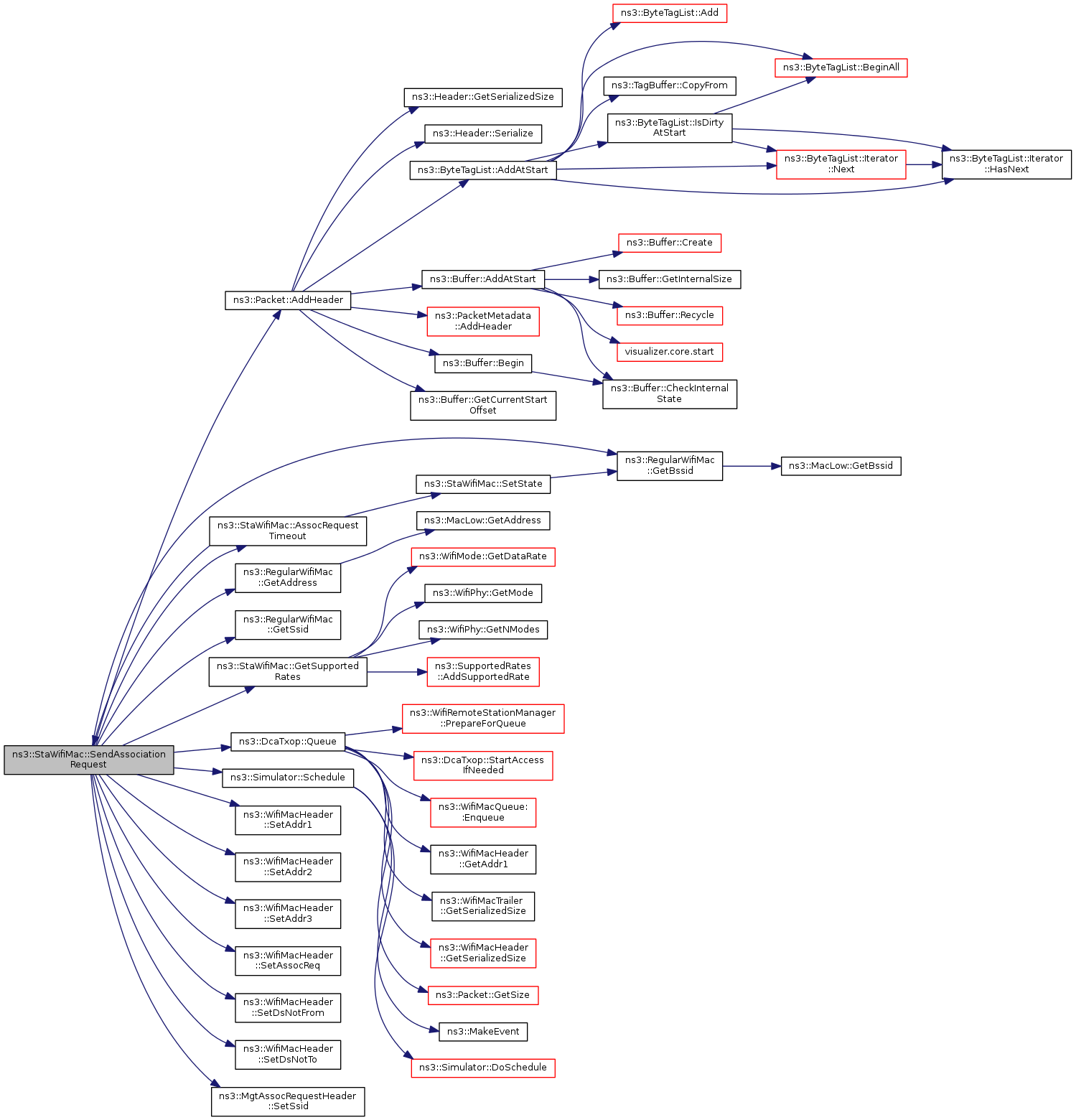

Here is the call graph for this function:

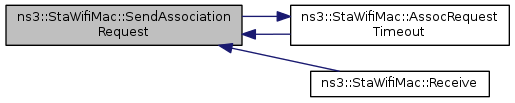

Here is the caller graph for this function:

void ns3::StaWifiMac::SendProbeRequest ( void )

private

Definition at line 157 of file sta-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), ns3::RegularWifiMac::m_dca, m_probeRequestEvent, m_probeRequestTimeout, NS_LOG_FUNCTION, ProbeRequestTimeout(), ns3::DcaTxop::Queue(), ns3::Simulator::Schedule(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetProbeReq(), and ns3::MgtProbeRequestHeader::SetSsid().

Referenced by ProbeRequestTimeout(), and TryToEnsureAssociated().

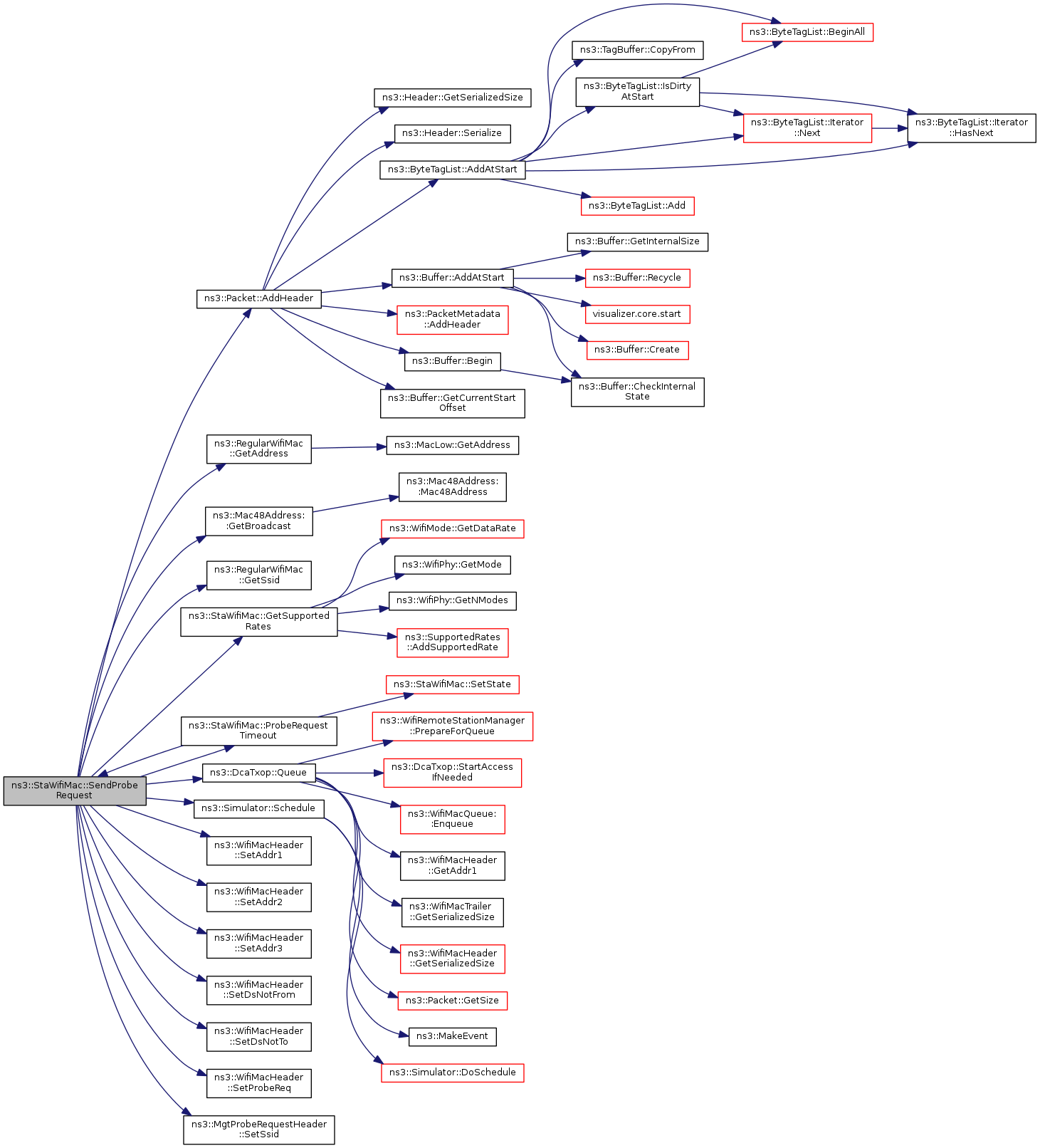

Here is the call graph for this function:

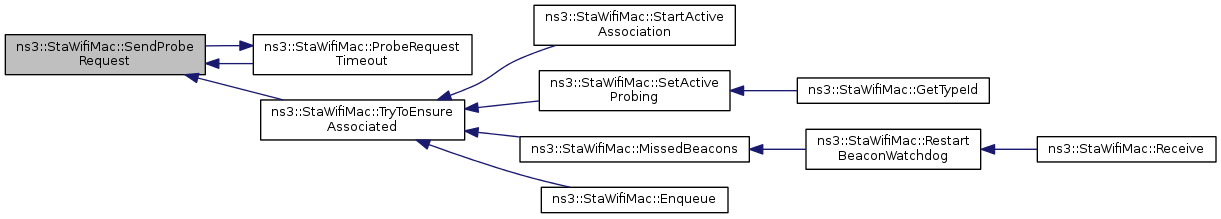

Here is the caller graph for this function:

void ns3::StaWifiMac::SetActiveProbing ( bool enable )

private

Definition at line 143 of file sta-wifi-mac.cc.

References ns3::EventId::Cancel(), m_probeRequestEvent, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and TryToEnsureAssociated().

Referenced by GetTypeId().

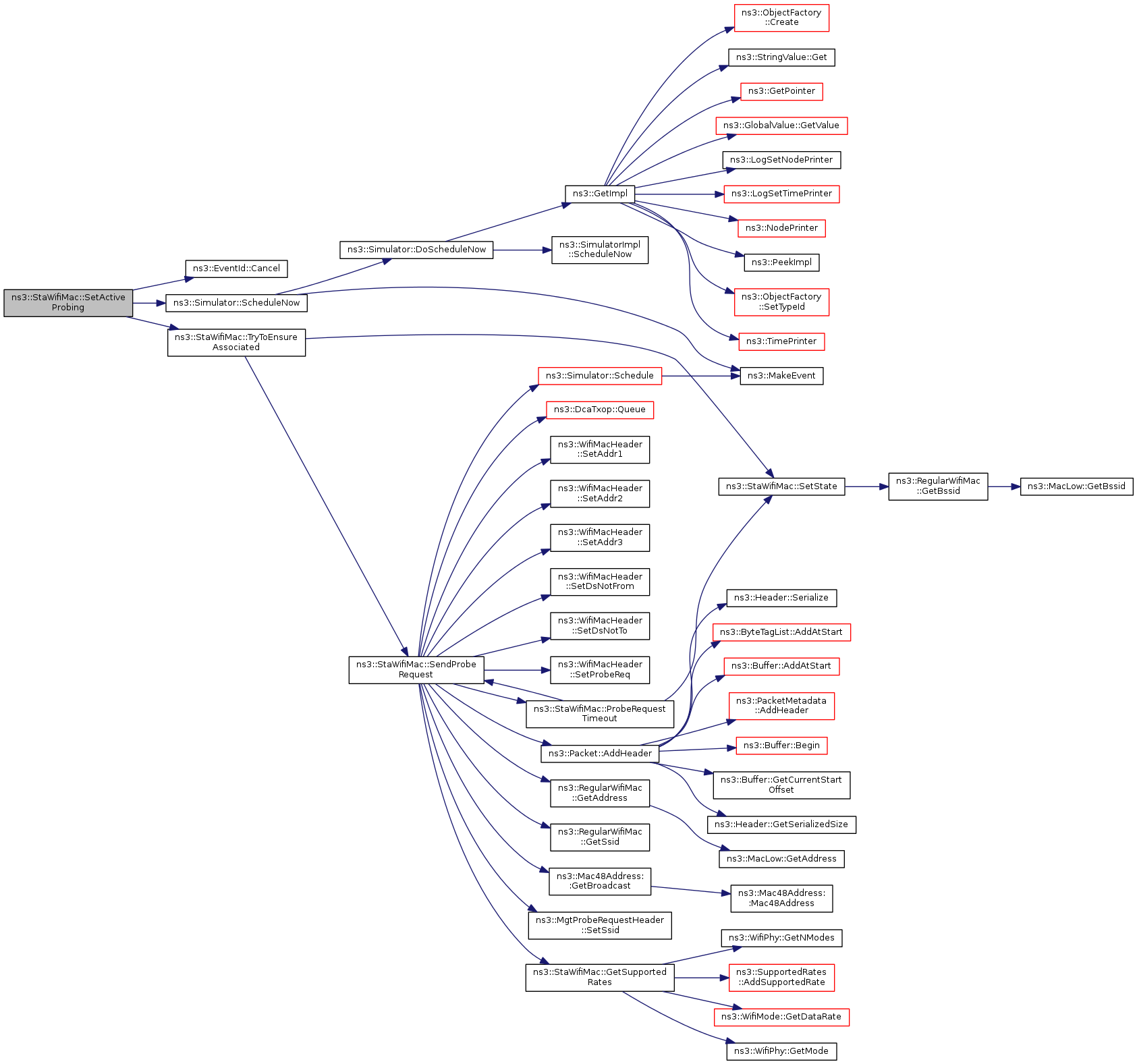

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::StaWifiMac::SetAssocRequestTimeout ( Time timeout )

Parameters

timeout If no association response is received within the specified timeout, the station sends a new association request.

Definition at line 129 of file sta-wifi-mac.cc.

References m_assocRequestTimeout, NS_LOG_FUNCTION, and timeout.

void ns3::StaWifiMac::SetMaxMissedBeacons ( uint32_t missed )

Parameters

missed the number of beacons which must be missed before a new association sequence is started.

Definition at line 115 of file sta-wifi-mac.cc.

References m_maxMissedBeacons, and NS_LOG_FUNCTION.

void ns3::StaWifiMac::SetProbeRequestTimeout ( Time timeout )

Parameters

timeout If no probe response is received within the specified timeout, the station sends a new probe request.

Definition at line 122 of file sta-wifi-mac.cc.

References m_probeRequestTimeout, NS_LOG_FUNCTION, and timeout.

void ns3::StaWifiMac::SetState ( enum MacState value )

private

Definition at line 547 of file sta-wifi-mac.cc.

References ASSOCIATED, ns3::RegularWifiMac::GetBssid(), m_assocLogger, m_deAssocLogger, and m_state.

Referenced by AssocRequestTimeout(), MissedBeacons(), ProbeRequestTimeout(), Receive(), and TryToEnsureAssociated().

Here is the call graph for this function:

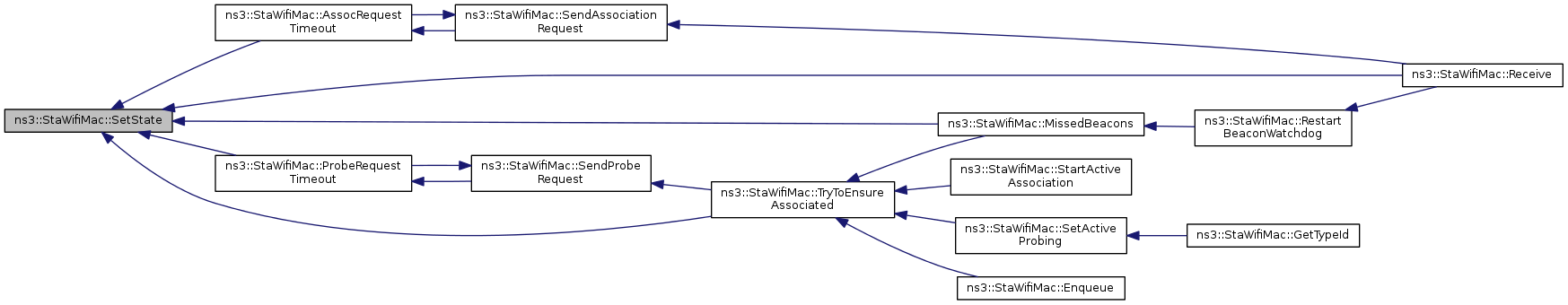

Here is the caller graph for this function:

void ns3::StaWifiMac::StartActiveAssociation ( void )

Start an active association sequence immediately.

Definition at line 136 of file sta-wifi-mac.cc.

References NS_LOG_FUNCTION, and TryToEnsureAssociated().

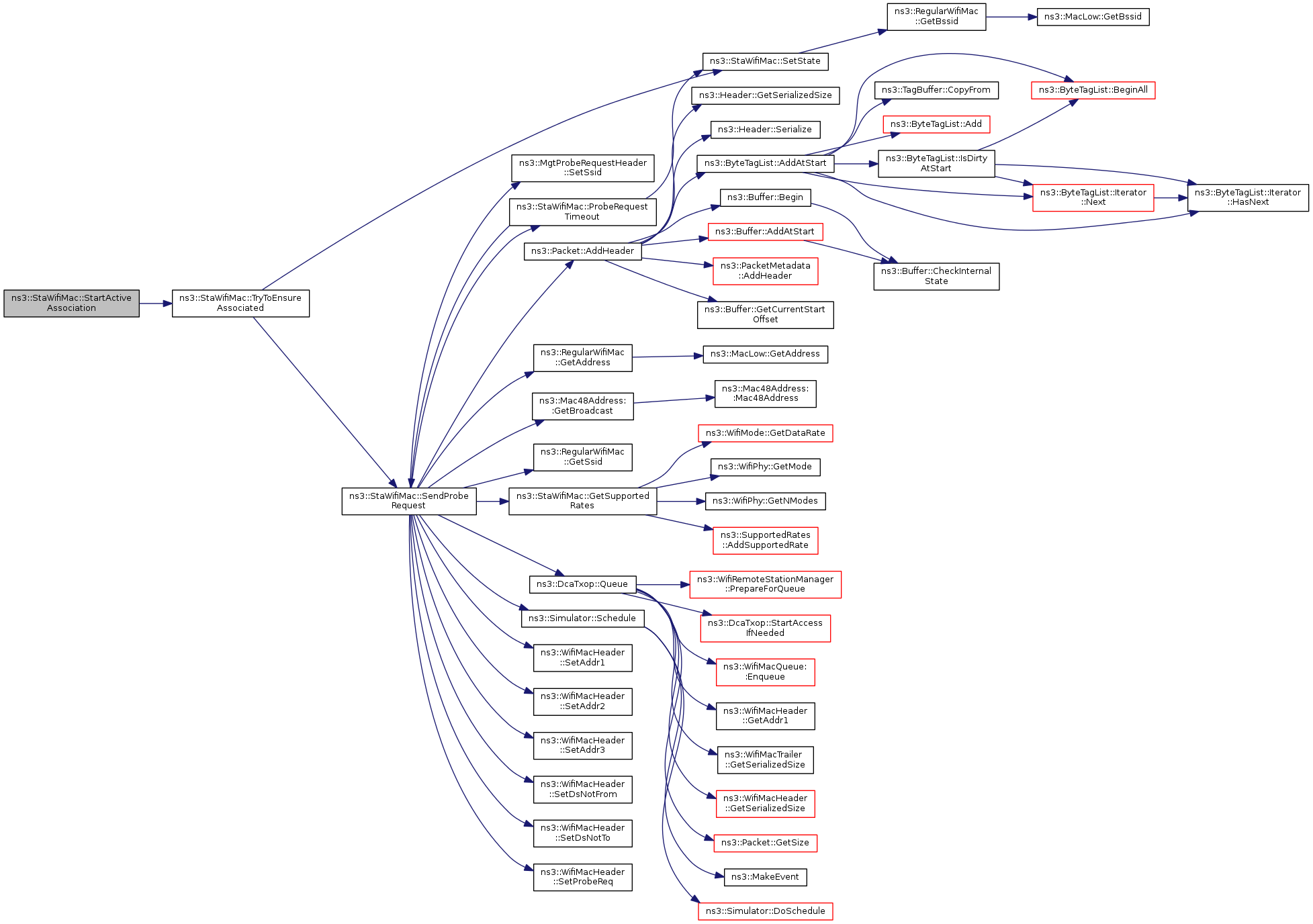

Here is the call graph for this function:

void ns3::StaWifiMac::TryToEnsureAssociated ( void )

private

Definition at line 211 of file sta-wifi-mac.cc.

References ASSOCIATED, BEACON_MISSED, ns3::RegularWifiMac::m_linkDown, m_state, NS_LOG_FUNCTION, REFUSED, SendProbeRequest(), SetState(), WAIT_ASSOC_RESP, and WAIT_PROBE_RESP.

Referenced by Enqueue(), MissedBeacons(), SetActiveProbing(), and StartActiveAssociation().

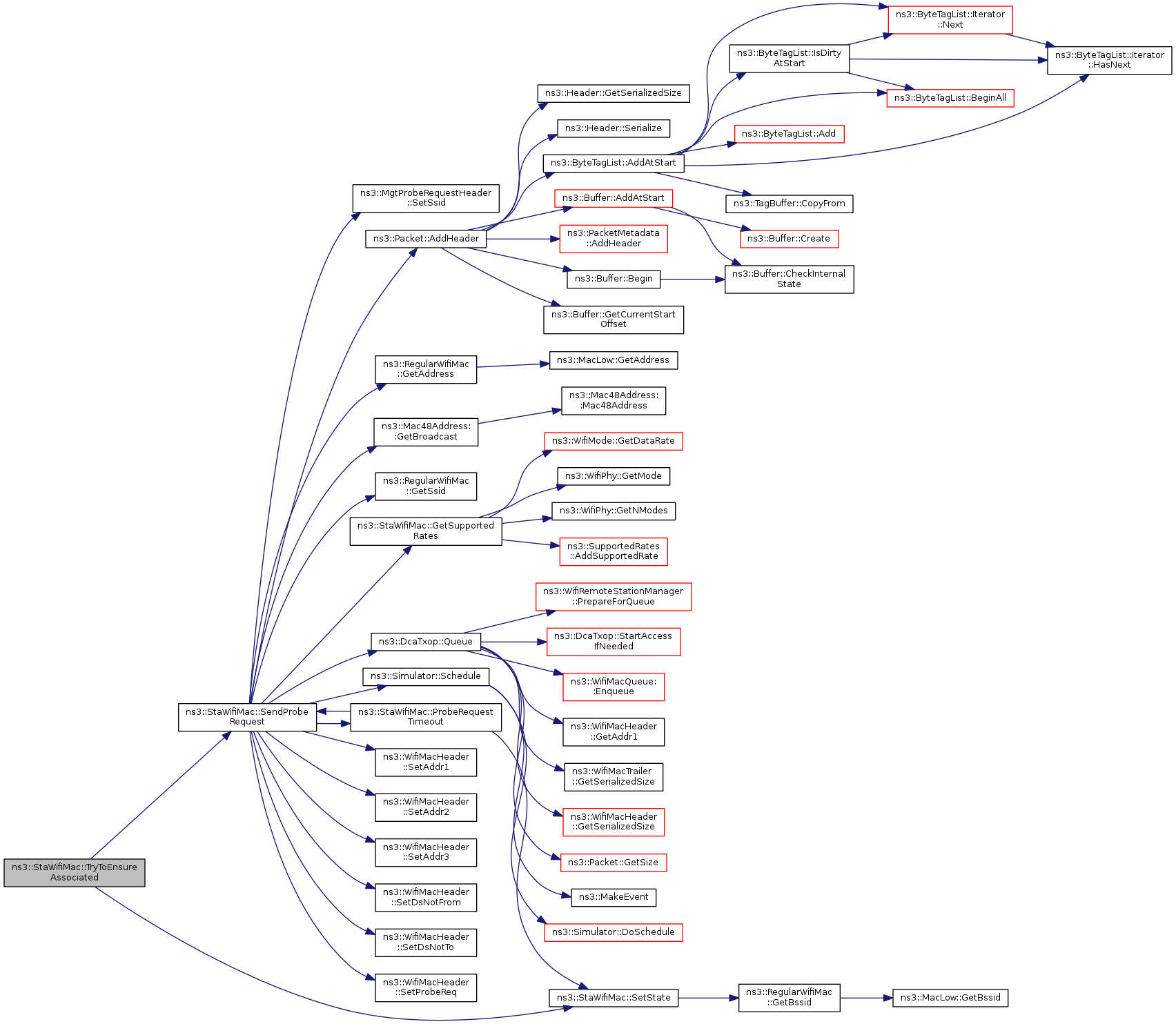

Here is the call graph for this function:

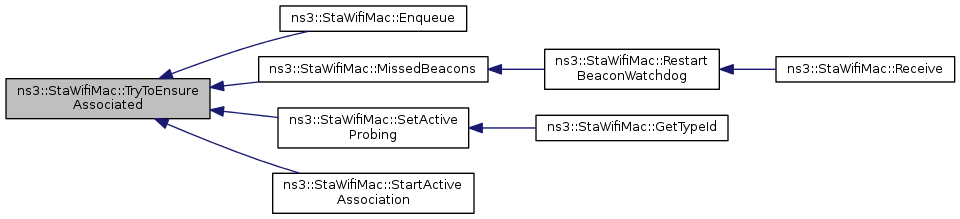

Here is the caller graph for this function:

Member Data Documentation

TracedCallback<Mac48Address> ns3::StaWifiMac::m_assocLogger

private

Definition at line 120 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SetState().

EventId ns3::StaWifiMac::m_assocRequestEvent

private

Definition at line 115 of file sta-wifi-mac.h.

Referenced by Receive(), and SendAssociationRequest().

Time ns3::StaWifiMac::m_assocRequestTimeout

private

Definition at line 113 of file sta-wifi-mac.h.

Referenced by GetTypeId(), SendAssociationRequest(), and SetAssocRequestTimeout().

EventId ns3::StaWifiMac::m_beaconWatchdog

private

Definition at line 116 of file sta-wifi-mac.h.

Referenced by MissedBeacons(), and RestartBeaconWatchdog().

Time ns3::StaWifiMac::m_beaconWatchdogEnd

private

Definition at line 117 of file sta-wifi-mac.h.

Referenced by MissedBeacons(), and RestartBeaconWatchdog().

TracedCallback<Mac48Address> ns3::StaWifiMac::m_deAssocLogger

private

Definition at line 121 of file sta-wifi-mac.h.

Referenced by GetTypeId(), and SetState().

uint32_t ns3::StaWifiMac::m_maxMissedBeacons

private

Definition at line 118 of file sta-wifi-mac.h.

Referenced by GetTypeId(), Receive(), and SetMaxMissedBeacons().

EventId ns3::StaWifiMac::m_probeRequestEvent

private

Definition at line 114 of file sta-wifi-mac.h.

Referenced by Receive(), SendProbeRequest(), and SetActiveProbing().

Time ns3::StaWifiMac::m_probeRequestTimeout

private

Definition at line 112 of file sta-wifi-mac.h.

Referenced by GetTypeId(), SendProbeRequest(), and SetProbeRequestTimeout().

enum MacState ns3::StaWifiMac::m_state

private

Definition at line 111 of file sta-wifi-mac.h.

Referenced by IsAssociated(), IsWaitAssocResp(), Receive(), SetState(), and TryToEnsureAssociated().

The documentation for this class was generated from the following files:

src/wifi/model/sta-wifi-mac.h
src/wifi/model/sta-wifi-mac.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::RegularWifiMac

Attributes defined in parent class ns3::WifiMac

TraceSources

TraceSources defined in parent class ns3::RegularWifiMac

TraceSources defined in parent class ns3::WifiMac

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
