AODV routing protocol. More...

#include <aodv-routing-protocol.h>

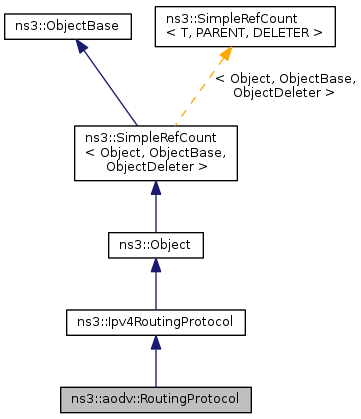

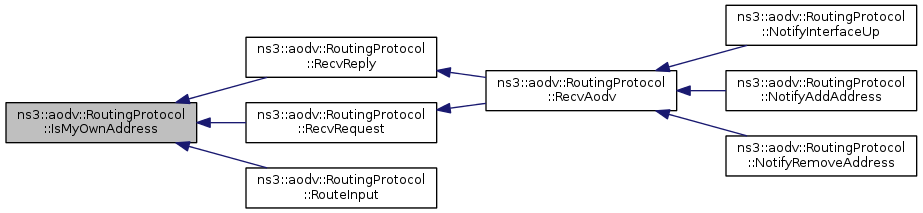

Inheritance diagram for ns3::aodv::RoutingProtocol:

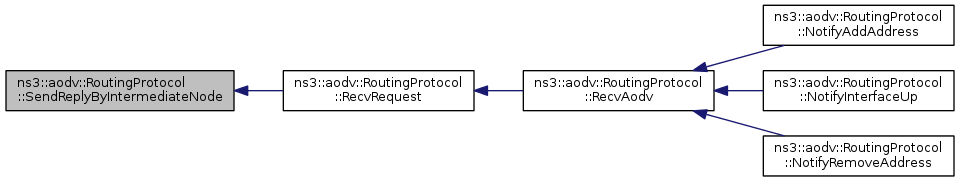

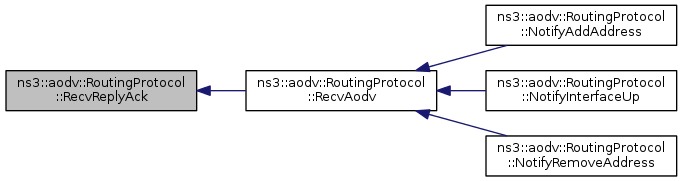

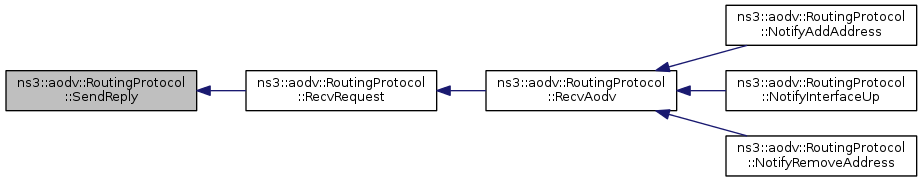

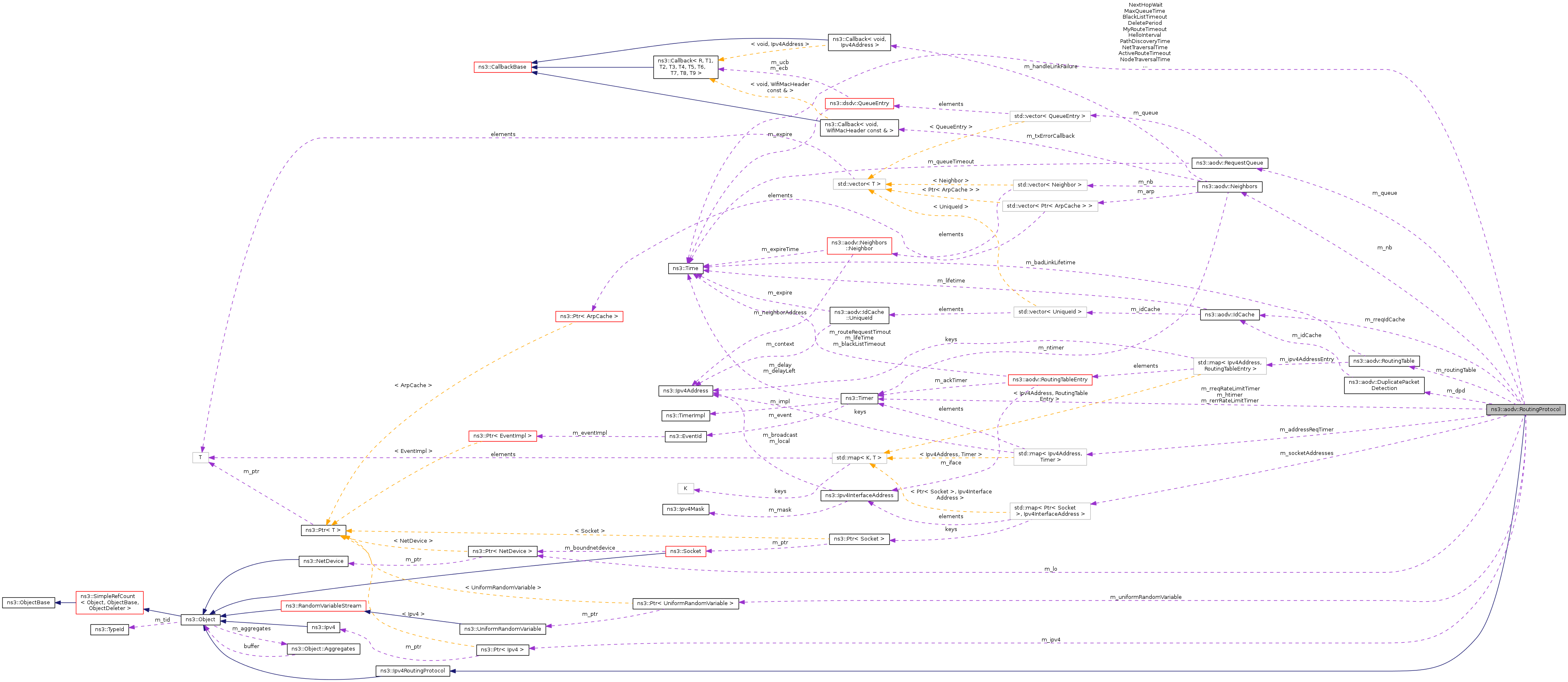

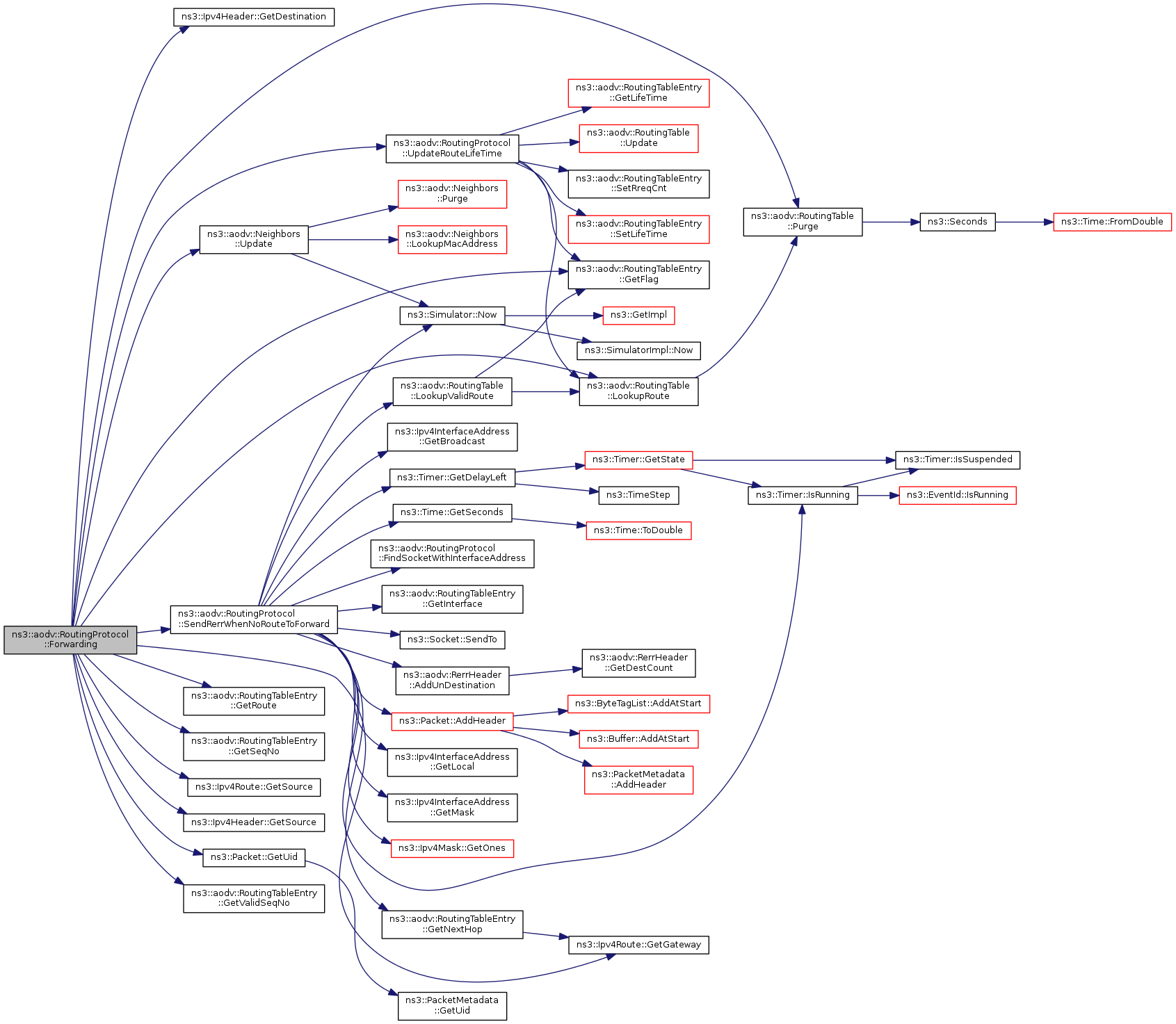

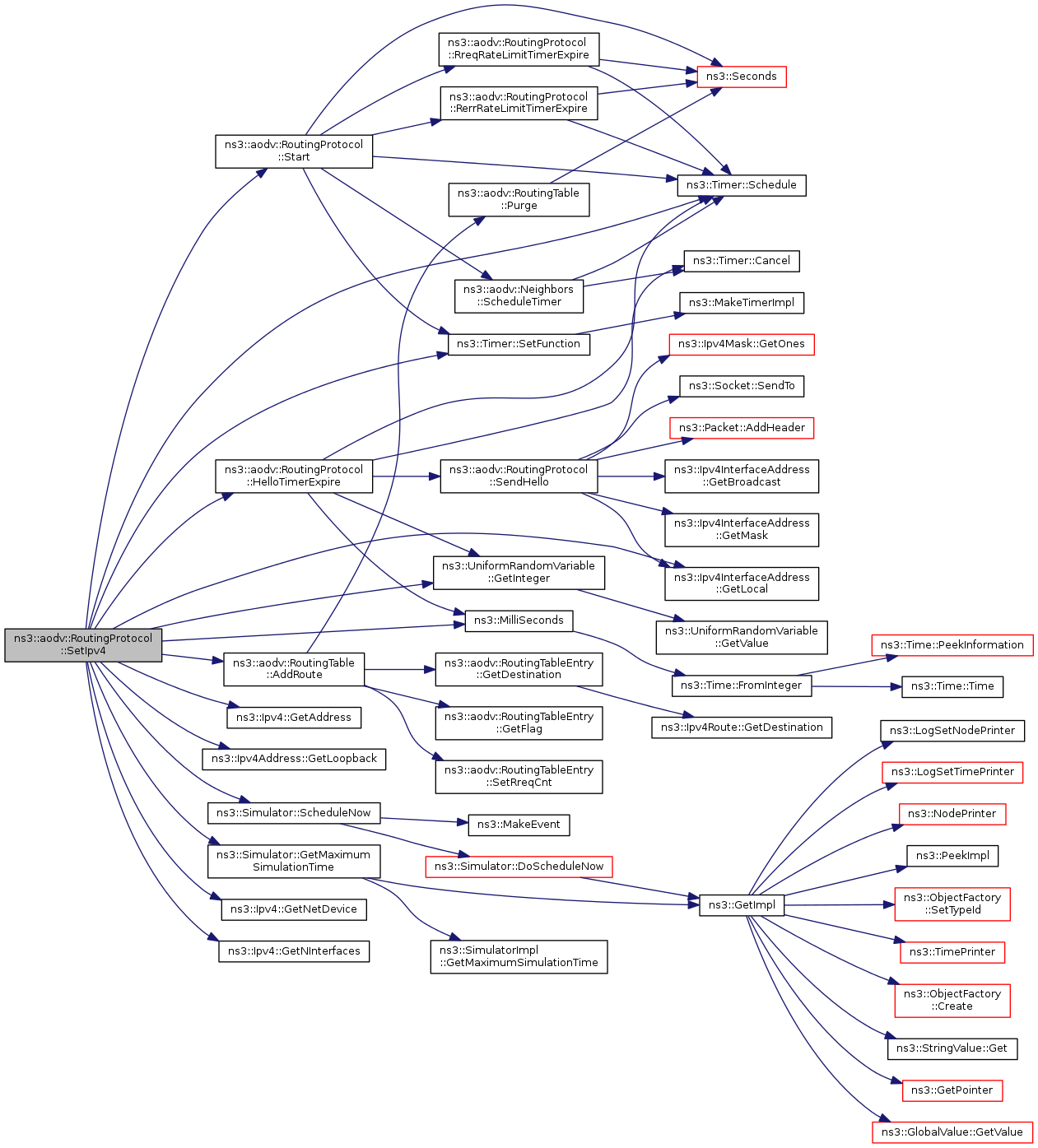

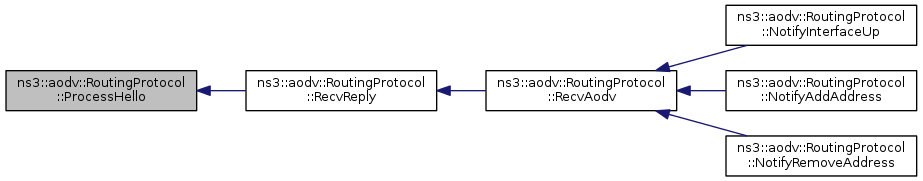

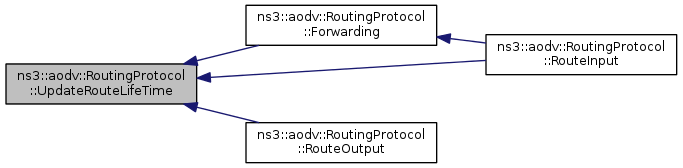

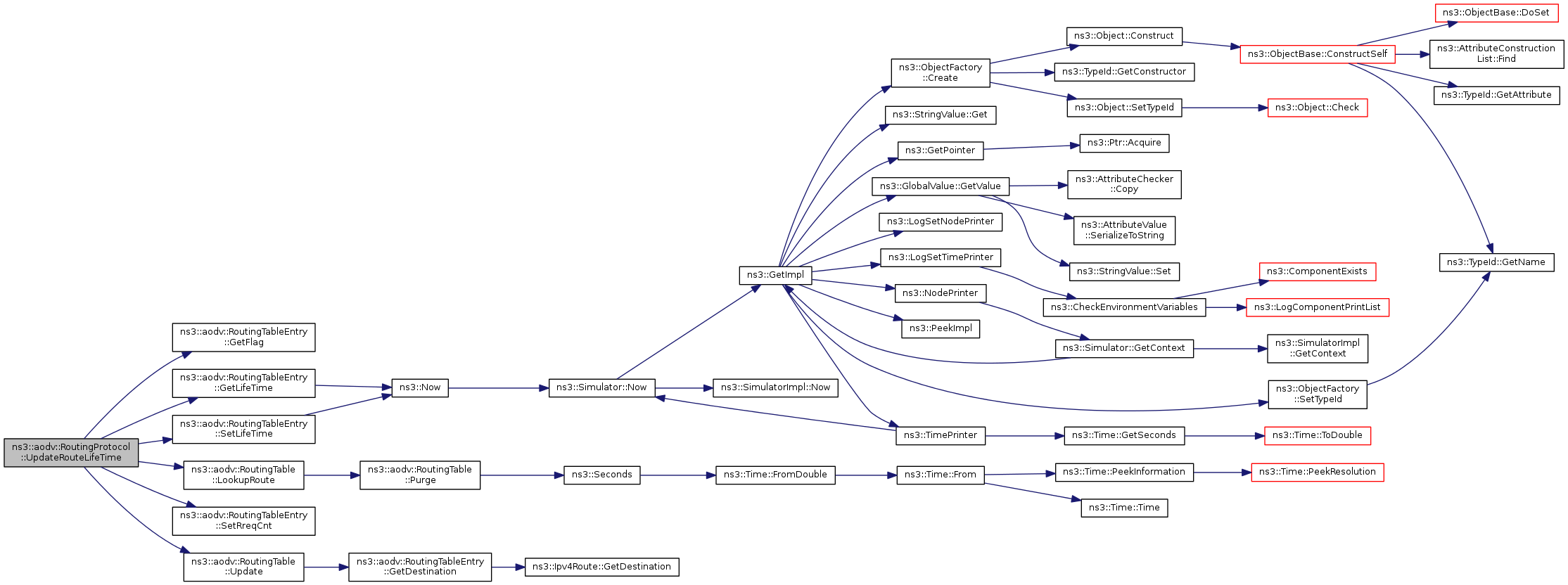

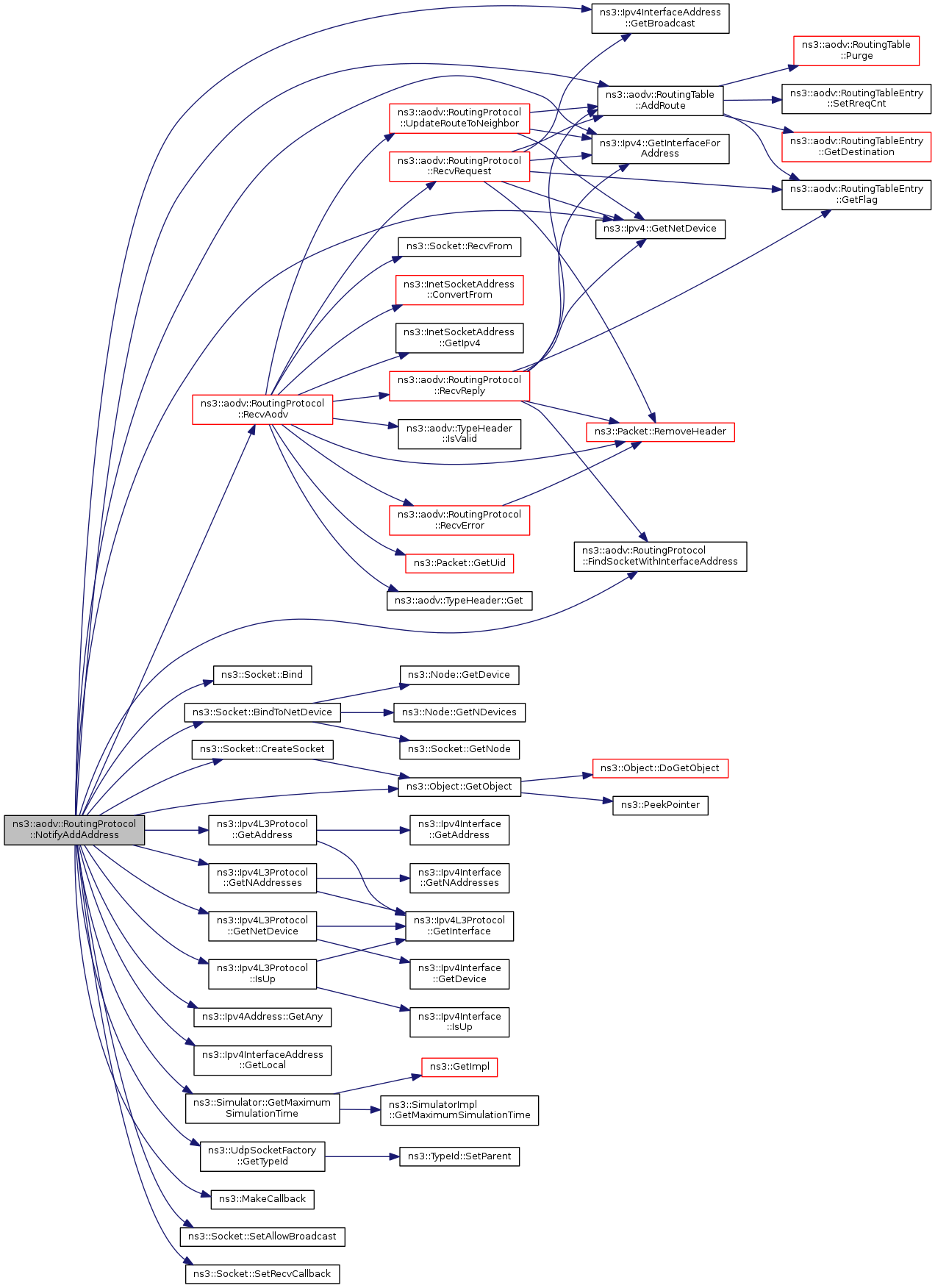

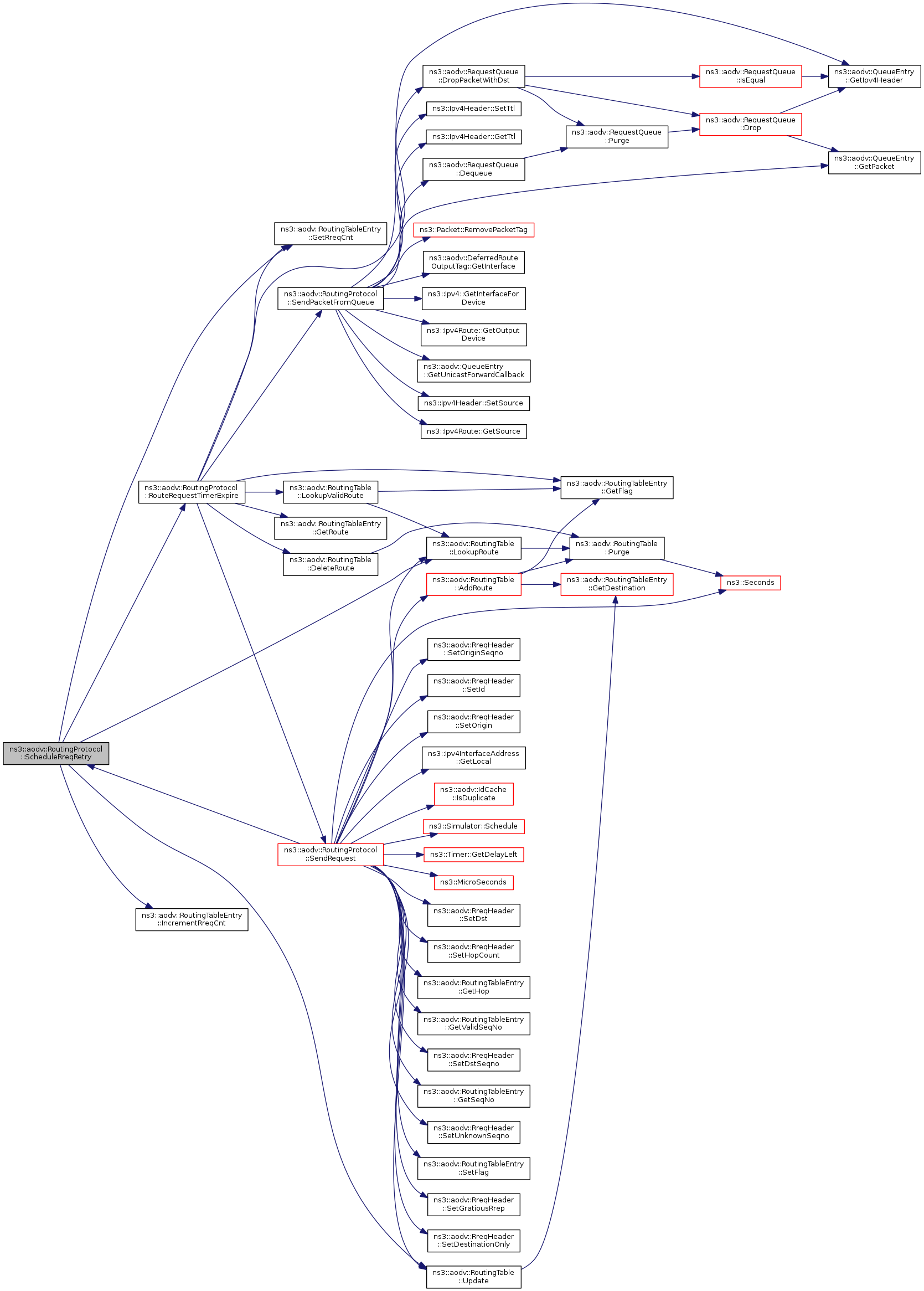

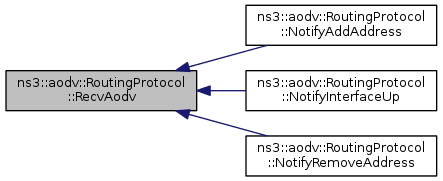

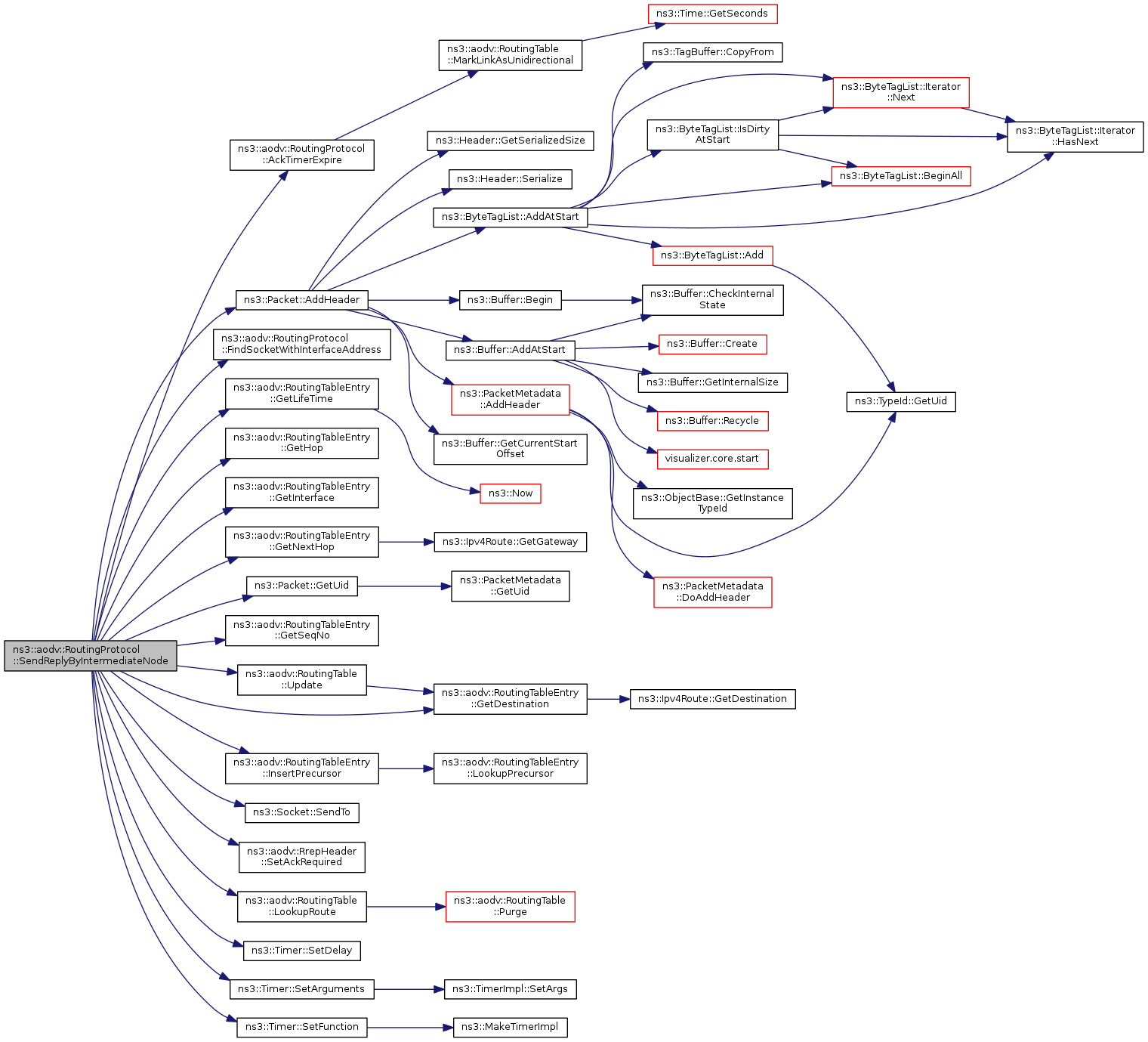

Collaboration diagram for ns3::aodv::RoutingProtocol:

Public Member Functions
	RoutingProtocol ()
	c-tor
virtual	~RoutingProtocol ()
int64_t	AssignStreams (int64_t stream)
virtual void	DoDispose ()
From Ipv4RoutingProtocol
Ptr< Ipv4Route >	RouteOutput (Ptr< Packet > p, const Ipv4Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet.

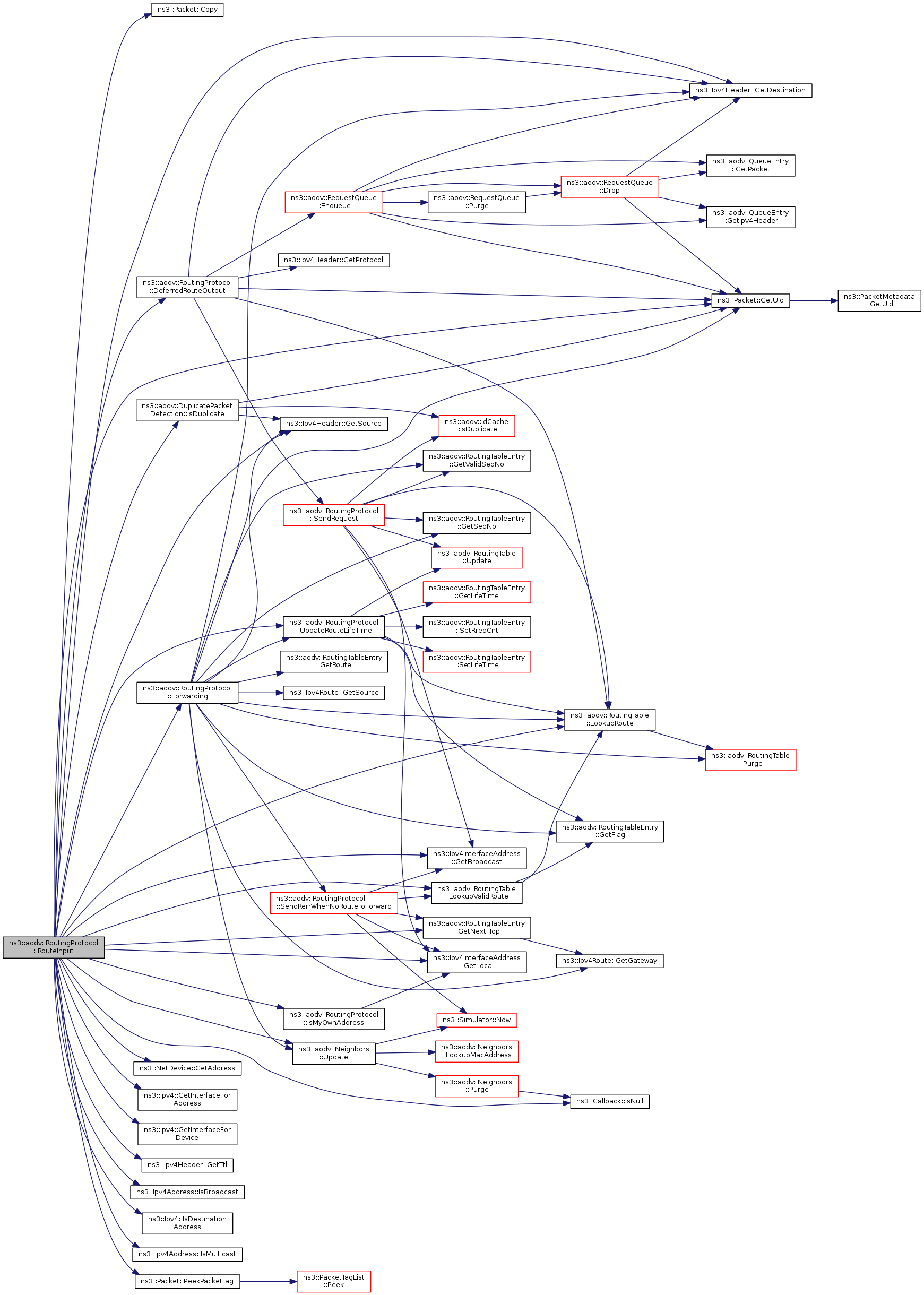

bool	RouteInput (Ptr< const Packet > p, const Ipv4Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered)
virtual void	NotifyInterfaceUp (uint32_t interface)
virtual void	NotifyInterfaceDown (uint32_t interface)
virtual void	NotifyAddAddress (uint32_t interface, Ipv4InterfaceAddress address)
virtual void	NotifyRemoveAddress (uint32_t interface, Ipv4InterfaceAddress address)
virtual void	SetIpv4 (Ptr< Ipv4 > ipv4)
virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream) const
	Print the Routing Table entries.
Handle protocol parameters
Time	GetMaxQueueTime () const
void	SetMaxQueueTime (Time t)
uint32_t	GetMaxQueueLen () const
void	SetMaxQueueLen (uint32_t len)
bool	GetDesinationOnlyFlag () const
void	SetDesinationOnlyFlag (bool f)
bool	GetGratuitousReplyFlag () const
void	SetGratuitousReplyFlag (bool f)
void	SetHelloEnable (bool f)
bool	GetHelloEnable () const
void	SetBroadcastEnable (bool f)
bool	GetBroadcastEnable () const

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Attributes
static const uint32_t	AODV_PORT = 654
	UDP Port for AODV control traffic.

Private Member Functions
void	AckTimerExpire (Ipv4Address neighbor, Time blacklistTimeout)
	Mark link to neighbor node as unidirectional for blacklistTimeout.
void	DeferredRouteOutput (Ptr< const Packet > p, const Ipv4Header &header, UnicastForwardCallback ucb, ErrorCallback ecb)
	Queue packet and send route request.
Ptr< Socket >	FindSocketWithInterfaceAddress (Ipv4InterfaceAddress iface) const
	Find socket with local interface address iface.
bool	Forwarding (Ptr< const Packet > p, const Ipv4Header &header, UnicastForwardCallback ucb, ErrorCallback ecb)
	If route exists and valid, forward packet.
void	HelloTimerExpire ()
	Schedule next send of hello message.
bool	IsMyOwnAddress (Ipv4Address src)
	Check that packet is send from own interface.
Ptr< Ipv4Route >	LoopbackRoute (const Ipv4Header &header, Ptr< NetDevice > oif) const
	Create loopback route for given header.
void	ProcessHello (RrepHeader const &rrepHeader, Ipv4Address receiverIfaceAddr)
	Process hello message.
void	RerrRateLimitTimerExpire ()
	Reset RERR count and schedule RERR rate limit timer with delay 1 sec.
void	RouteRequestTimerExpire (Ipv4Address dst)
	Handle route discovery process.
void	RreqRateLimitTimerExpire ()
	Reset RREQ count and schedule RREQ rate limit timer with delay 1 sec.

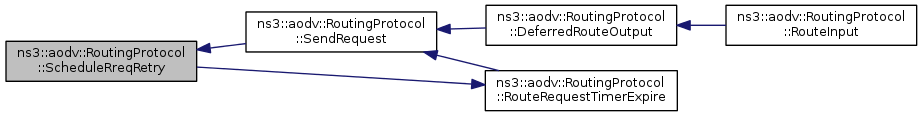

void	ScheduleRreqRetry (Ipv4Address dst)
void	Start ()
	Start protocol operation.
bool	UpdateRouteLifeTime (Ipv4Address addr, Time lt)
void	UpdateRouteToNeighbor (Ipv4Address sender, Ipv4Address receiver)
Receive control packets

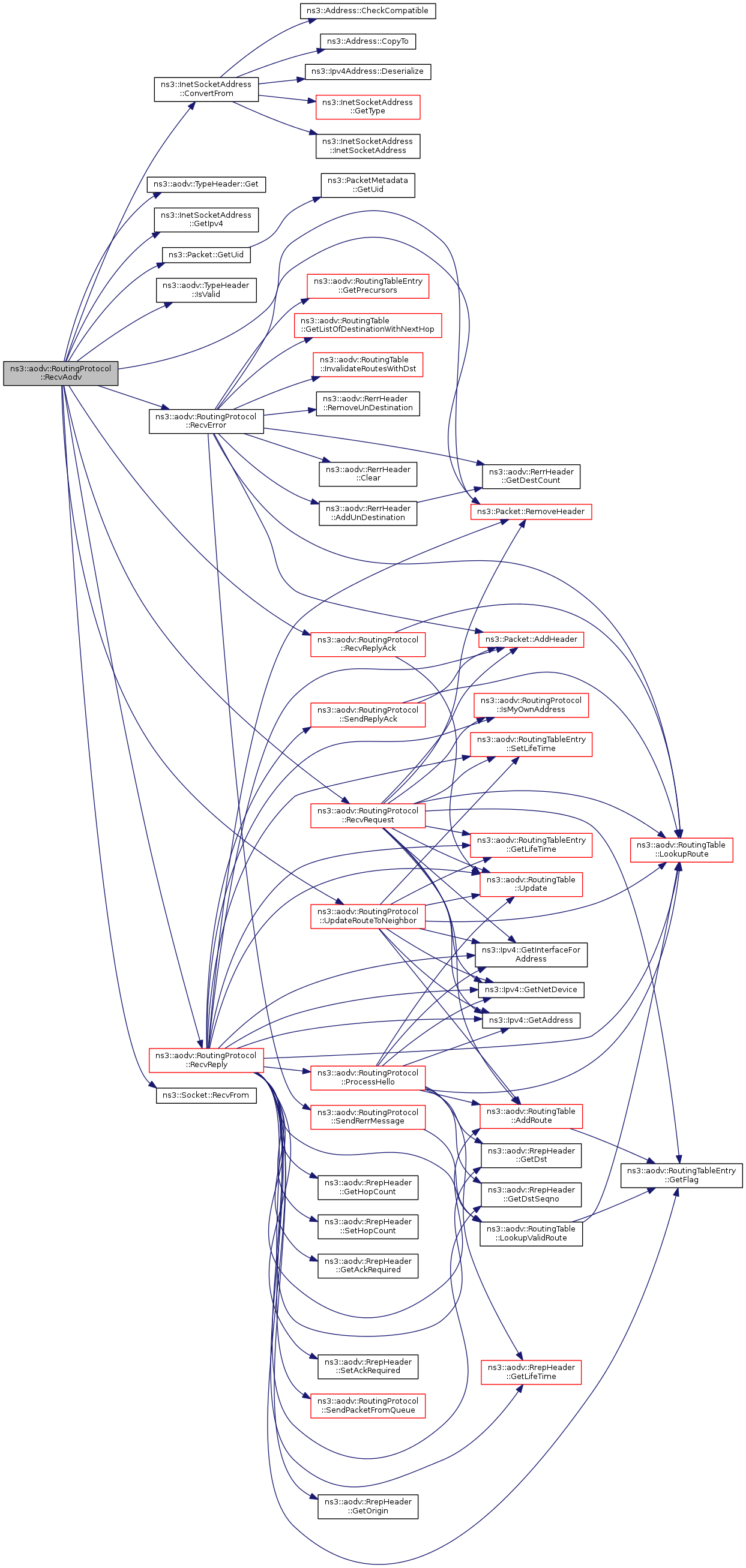

void	RecvAodv (Ptr< Socket > socket)
	Receive and process control packet.
void	RecvRequest (Ptr< Packet > p, Ipv4Address receiver, Ipv4Address src)
	Receive RREQ.
void	RecvReply (Ptr< Packet > p, Ipv4Address my, Ipv4Address src)
	Receive RREP.
void	RecvReplyAck (Ipv4Address neighbor)
	Receive RREP_ACK.
void	RecvError (Ptr< Packet > p, Ipv4Address src)
	Receive RERR from node with address src.
Send

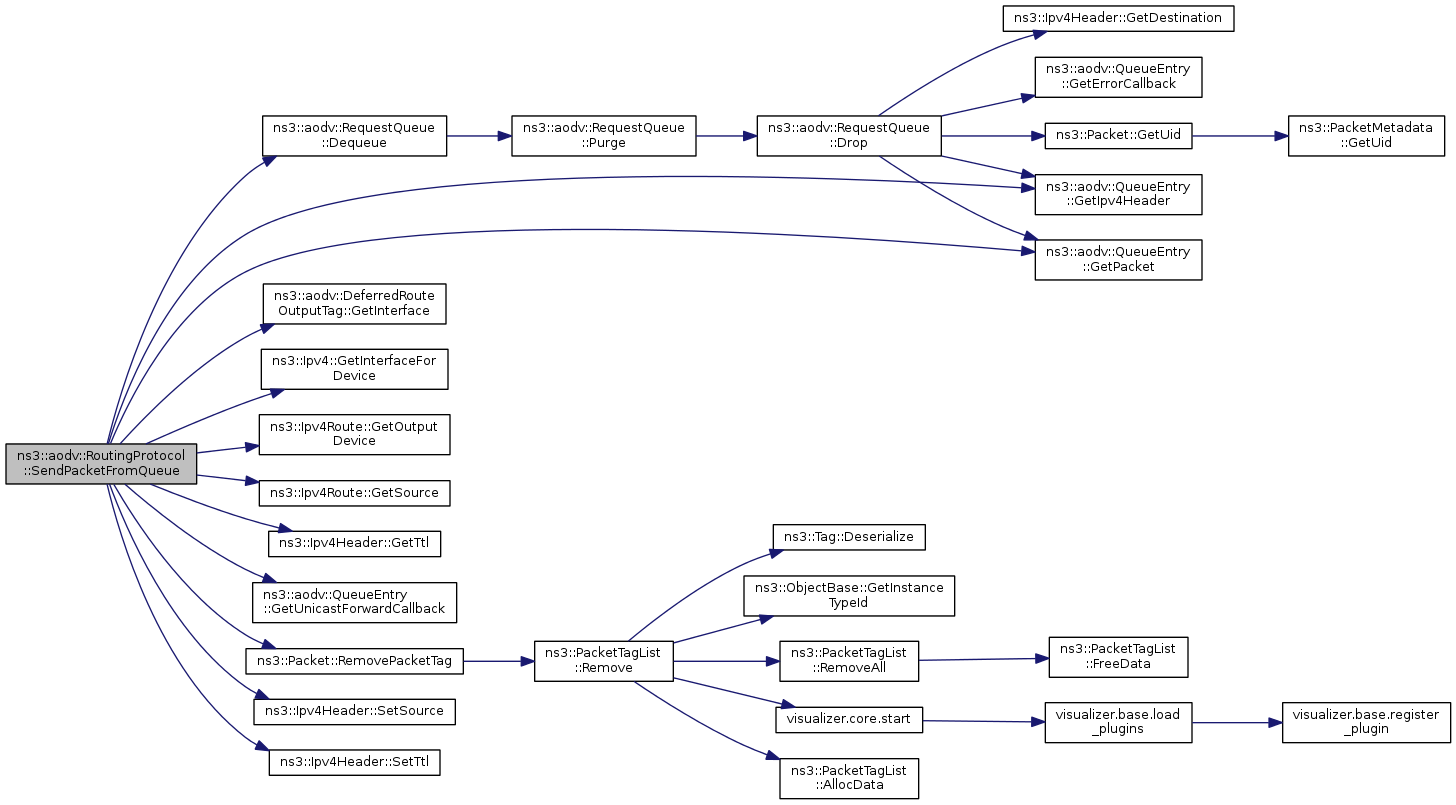

void	SendPacketFromQueue (Ipv4Address dst, Ptr< Ipv4Route > route)
	Forward packet from route request queue.
void	SendHello ()
	Send hello.
void	SendRequest (Ipv4Address dst)
	Send RREQ.
void	SendReply (RreqHeader const &rreqHeader, RoutingTableEntry const &toOrigin)
	Send RREP.
void	SendReplyByIntermediateNode (RoutingTableEntry &toDst, RoutingTableEntry &toOrigin, bool gratRep)

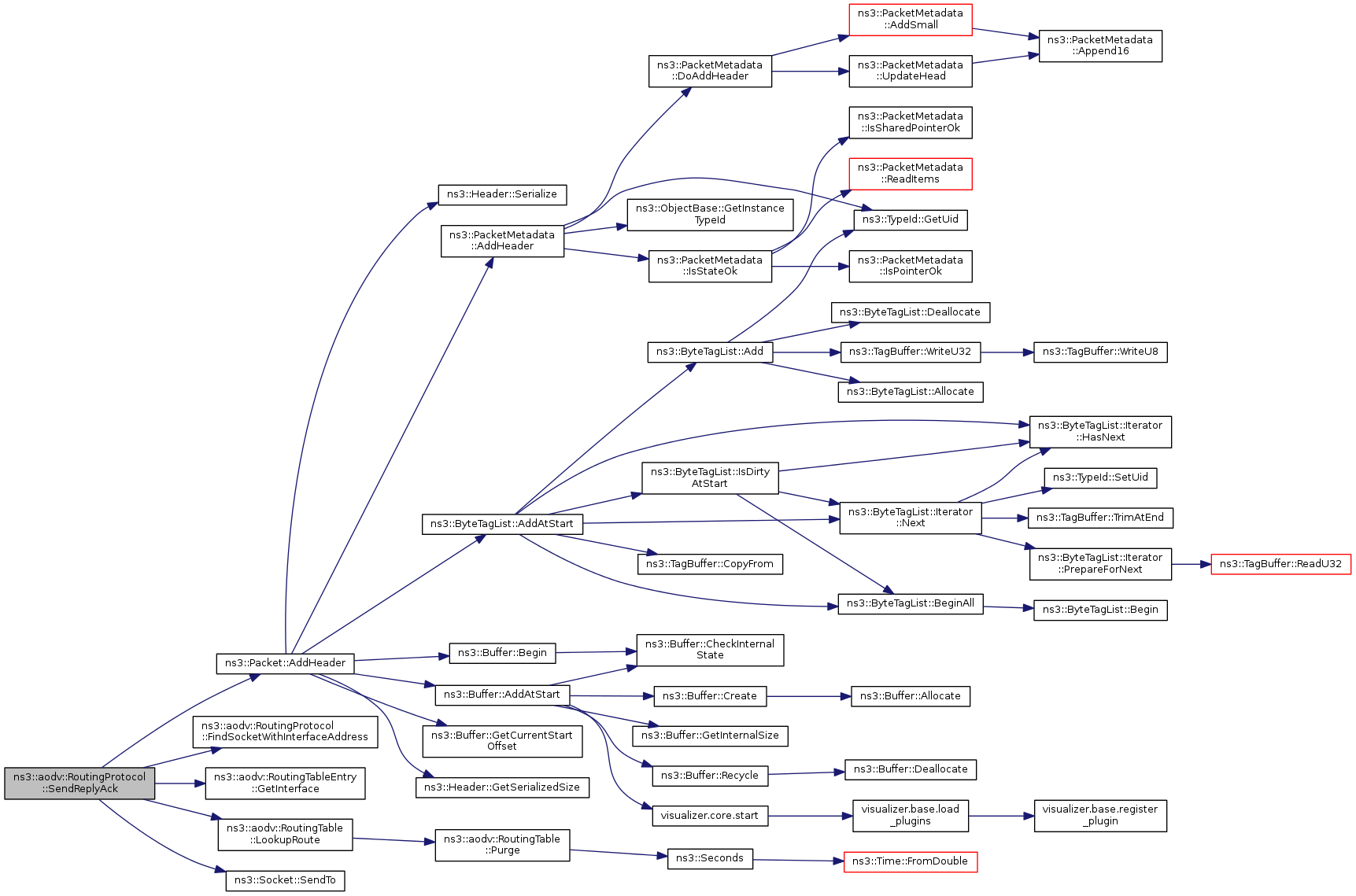

void	SendReplyAck (Ipv4Address neighbor)
	Send RREP_ACK.
void	SendRerrWhenBreaksLinkToNextHop (Ipv4Address nextHop)
	Initiate RERR.

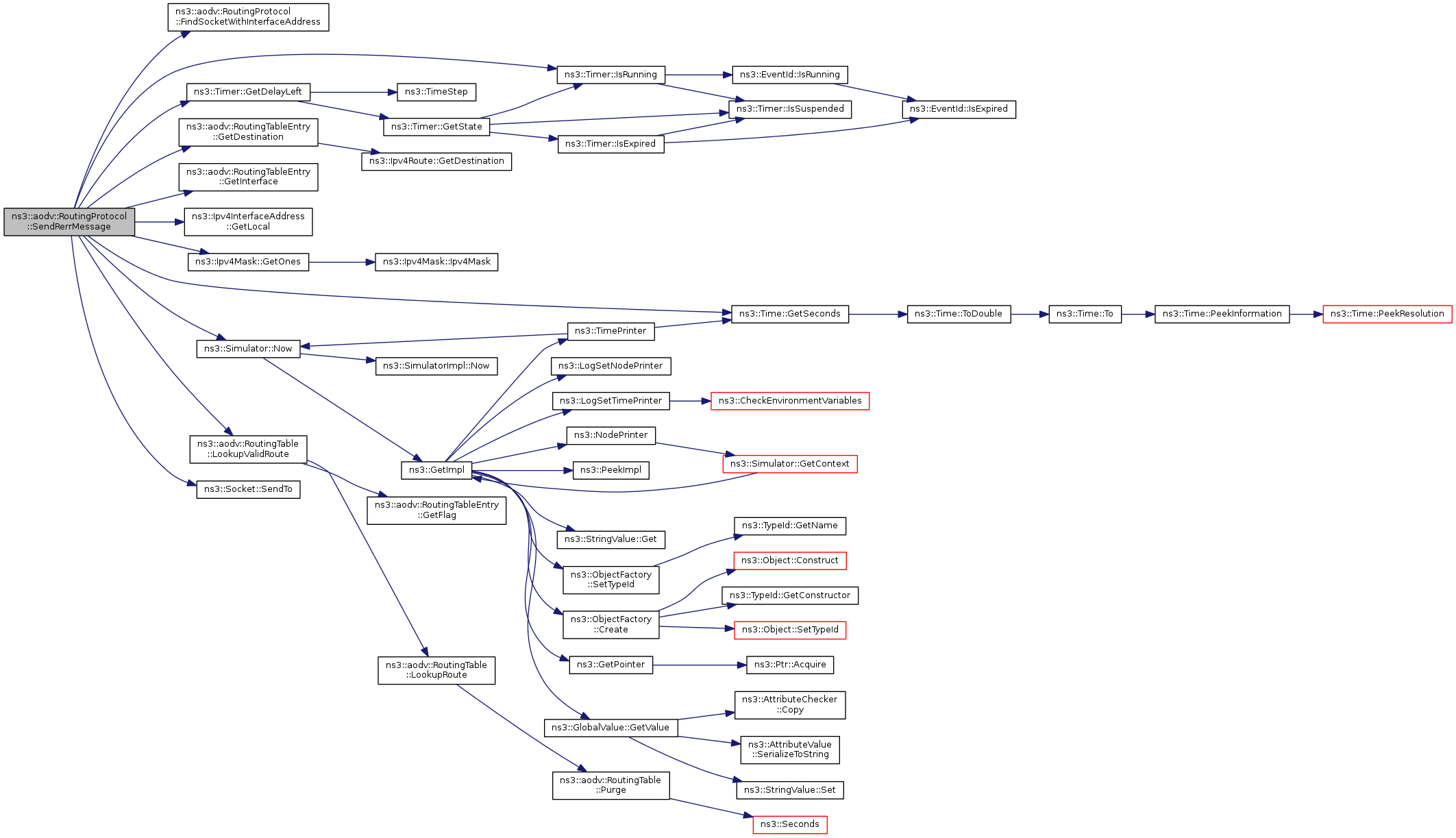

void	SendRerrMessage (Ptr< Packet > packet, std::vector< Ipv4Address > precursors)
	Forward RERR.
void	SendRerrWhenNoRouteToForward (Ipv4Address dst, uint32_t dstSeqNo, Ipv4Address origin)

Private Attributes
std::map< Ipv4Address, Timer >	m_addressReqTimer
	Map IP address + RREQ timer.
DuplicatePacketDetection	m_dpd
	Handle duplicated broadcast/multicast packets.
Timer	m_htimer
	Hello timer.
Ptr< Ipv4 >	m_ipv4
	IP protocol.
Ptr< NetDevice >	m_lo
	Loopback device used to defer RREQ until packet will be fully formed.
Neighbors	m_nb
	Handle neighbors.
RequestQueue	m_queue
	A "drop-front" queue used by the routing layer to buffer packets to which it does not have a route.
uint32_t	m_requestId
	Broadcast ID.
uint16_t	m_rerrCount
	Number of RERRs used for RERR rate control.
Timer	m_rerrRateLimitTimer
	RERR rate limit timer.
RoutingTable	m_routingTable
	Routing table.
uint16_t	m_rreqCount
	Number of RREQs used for RREQ rate control.
IdCache	m_rreqIdCache
	Handle duplicated RREQ.
Timer	m_rreqRateLimitTimer
	RREQ rate limit timer.
uint32_t	m_seqNo
	Request sequence number.
std::map< Ptr< Socket > , Ipv4InterfaceAddress >	m_socketAddresses
	Raw socket per each IP interface, map socket -> iface address (IP + mask)
Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables.
Protocol parameters.
uint32_t	RreqRetries
	Maximum number of retransmissions of RREQ with TTL = NetDiameter to discover a route.
uint16_t	RreqRateLimit
	Maximum number of RREQ per second.
uint16_t	RerrRateLimit
	Maximum number of REER per second.
Time	ActiveRouteTimeout
	Period of time during which the route is considered to be valid.
uint32_t	NetDiameter
	Net diameter measures the maximum possible number of hops between two nodes in the network.
Time	NodeTraversalTime
Time	NetTraversalTime
	Estimate of the average net traversal time.
Time	PathDiscoveryTime
	Estimate of maximum time needed to find route in network.
Time	MyRouteTimeout
	Value of lifetime field in RREP generating by this node.
Time	HelloInterval
uint32_t	AllowedHelloLoss
	Number of hello messages which may be loss for valid link.
Time	DeletePeriod
Time	NextHopWait
	Period of our waiting for the neighbour's RREP_ACK.
uint16_t	TimeoutBuffer
Time	BlackListTimeout
	Time for which the node is put into the blacklist.
uint32_t	MaxQueueLen
	The maximum number of packets that we allow a routing protocol to buffer.
Time	MaxQueueTime
	The maximum period of time that a routing protocol is allowed to buffer a packet for.
bool	DestinationOnly
	Indicates only the destination may respond to this RREQ.
bool	GratuitousReply
	Indicates whether a gratuitous RREP should be unicast to the node originated route discovery.
bool	EnableHello
	Indicates whether a hello messages enable.
bool	EnableBroadcast
	Indicates whether a a broadcast data packets forwarding enable.

Additional Inherited Members
Public Types inherited from ns3::Ipv4RoutingProtocol
typedef Callback< void, Ptr < const Packet >, const Ipv4Header &, Socket::SocketErrno >	ErrorCallback
typedef Callback< void, Ptr < const Packet >, const Ipv4Header &, uint32_t >	LocalDeliverCallback
typedef Callback< void, Ptr < Ipv4MulticastRoute >, Ptr < const Packet >, const Ipv4Header & >	MulticastForwardCallback
typedef Callback< void, Ptr < Ipv4Route >, Ptr< const Packet >, const Ipv4Header & >	UnicastForwardCallback
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

AODV routing protocol.

This type is not accessible from the Config system.

Attributes

HelloInterval: HELLO messages emission interval.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +1000000000.0ns
- Flags: construct write read
RreqRetries: Maximum number of retransmissions of RREQ to discover a route
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
RreqRateLimit: Maximum number of RREQ per second.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
RerrRateLimit: Maximum number of RERR per second.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
NodeTraversalTime: Conservative estimate of the average one hop traversal time for packets and should include queuing delays, interrupt processing times and transfer times.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +40000000.0ns
- Flags: construct write read
NextHopWait: Period of our waiting for the neighbour's RREP_ACK = 10 ms + NodeTraversalTime
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +50000000.0ns
- Flags: construct write read
ActiveRouteTimeout: Period of time during which the route is considered to be valid
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +3000000000.0ns
- Flags: construct write read
MyRouteTimeout: Value of lifetime field in RREP generating by this node = 2 * max(ActiveRouteTimeout, PathDiscoveryTime)
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +11199999999.0ns
- Flags: construct write read
BlackListTimeout: Time for which the node is put into the blacklist = RreqRetries * NetTraversalTime
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +5599999999.0ns
- Flags: construct write read
DeletePeriod: DeletePeriod is intended to provide an upper bound on the time for which an upstream node A can have a neighbor B as an active next hop for destination D, while B has invalidated the route to D. = 5 * max (HelloInterval, ActiveRouteTimeout)
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +15000000000.0ns
- Flags: construct write read
TimeoutBuffer: Its purpose is to provide a buffer for the timeout so that if the RREP is delayed due to congestion, a timeout is less likely to occur while the RREP is still en route back to the source.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2
- Flags: construct write read
NetDiameter: Net diameter measures the maximum possible number of hops between two nodes in the network
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 35
- Flags: construct write read
NetTraversalTime: Estimate of the average net traversal time = 2 * NodeTraversalTime * NetDiameter
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +2799999999.0ns
- Flags: construct write read
PathDiscoveryTime: Estimate of maximum time needed to find route in network = 2 * NetTraversalTime
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +5599999999.0ns
- Flags: construct write read
MaxQueueLen: Maximum number of packets that we allow a routing protocol to buffer.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
MaxQueueTime: Maximum time packets can be queued (in seconds)
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +30000000000.0ns
- Flags: construct write read
AllowedHelloLoss: Number of hello messages which may be loss for valid link.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 2
- Flags: construct write read
GratuitousReply: Indicates whether a gratuitous RREP should be unicast to the node originated route discovery.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
DestinationOnly: Indicates only the destination may respond to this RREQ.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
EnableHello: Indicates whether a hello messages enable.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
EnableBroadcast: Indicates whether a broadcast data packets forwarding enable.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
UniformRv: Access to the underlying UniformRandomVariable
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UniformRandomVariable >
- Initial value: ns3::UniformRandomVariable
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 53 of file aodv-routing-protocol.h.

Constructor & Destructor Documentation

ns3::aodv::RoutingProtocol::RoutingProtocol ( )

c-tor

Definition at line 118 of file aodv-routing-protocol.cc.

References EnableHello, m_nb, ns3::MakeCallback(), SendRerrWhenBreaksLinkToNextHop(), and ns3::aodv::Neighbors::SetCallback().

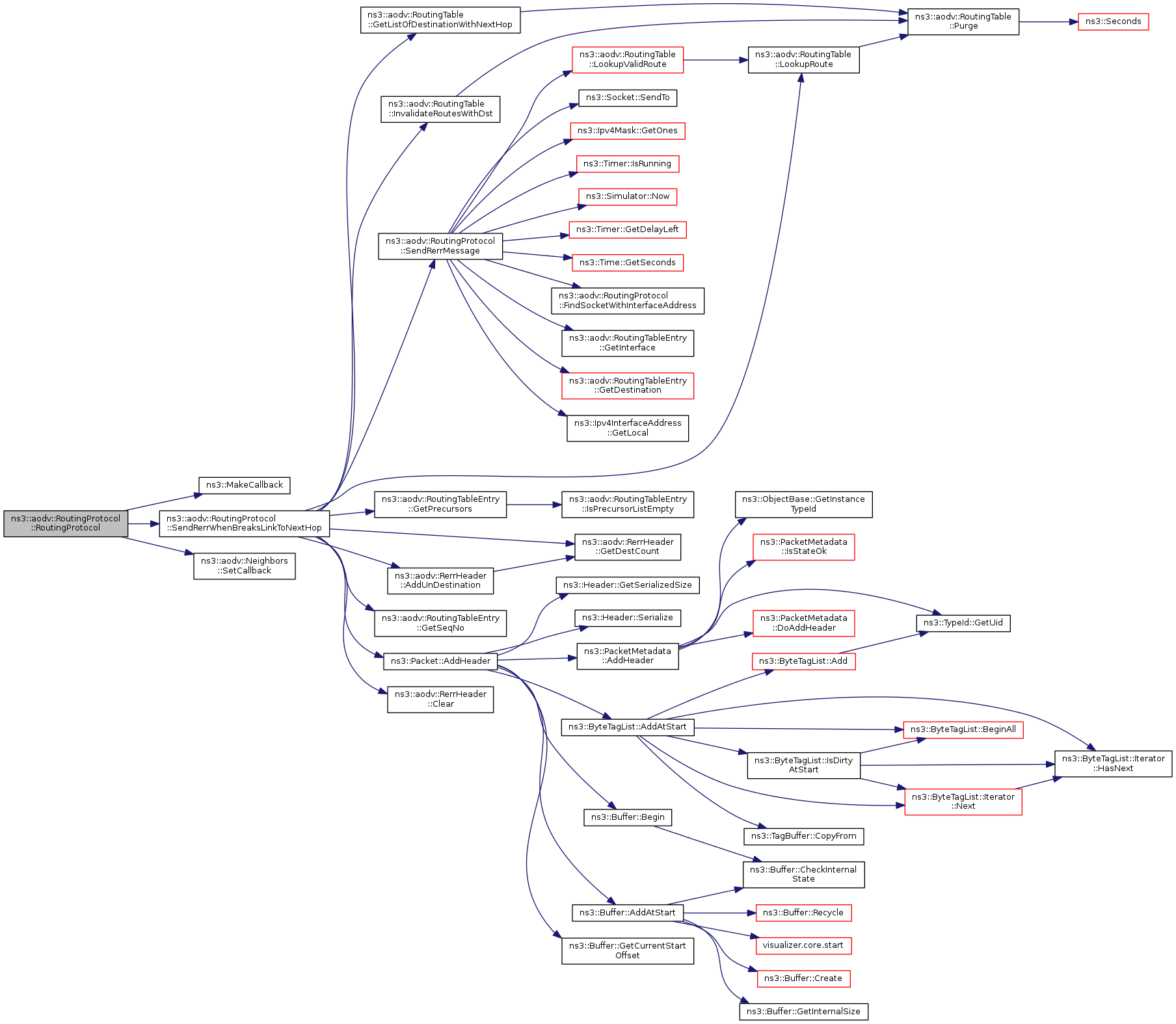

Here is the call graph for this function:

ns3::aodv::RoutingProtocol::~RoutingProtocol ( )

virtual

Definition at line 280 of file aodv-routing-protocol.cc.

Member Function Documentation

void ns3::aodv::RoutingProtocol::AckTimerExpire	(	Ipv4Address	neighbor,
		Time	blacklistTimeout
	)

private

Mark link to neighbor node as unidirectional for blacklistTimeout.

Definition at line 1565 of file aodv-routing-protocol.cc.

References m_routingTable, ns3::aodv::RoutingTable::MarkLinkAsUnidirectional(), and NS_LOG_FUNCTION.

Referenced by SendReplyByIntermediateNode().

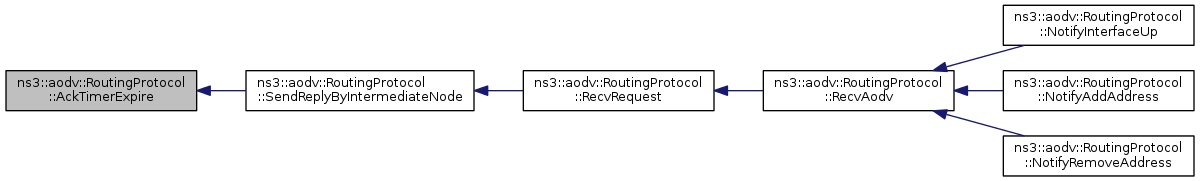

Here is the call graph for this function:

Here is the caller graph for this function:

int64_t ns3::aodv::RoutingProtocol::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 305 of file aodv-routing-protocol.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

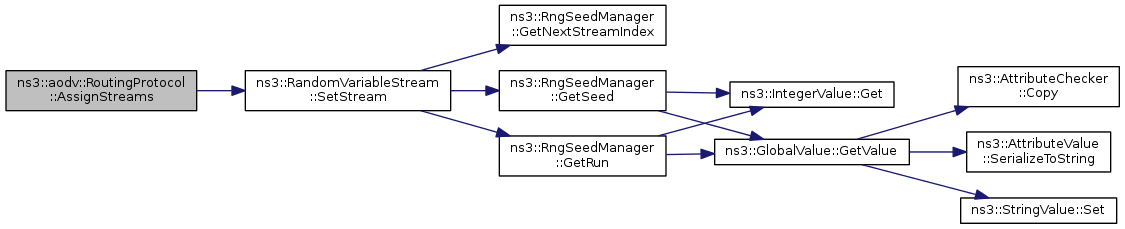

Here is the call graph for this function:

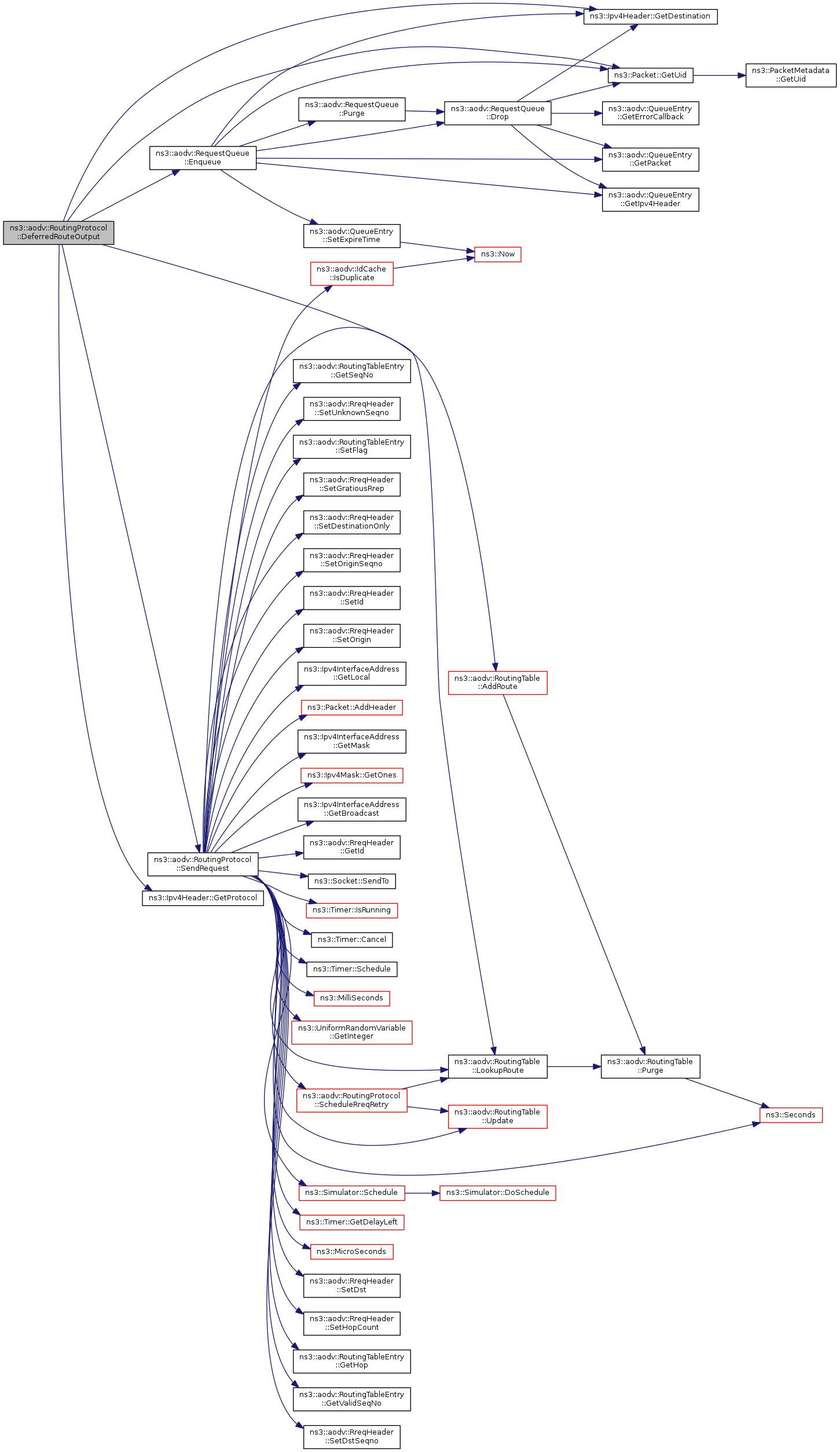

void ns3::aodv::RoutingProtocol::DeferredRouteOutput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		UnicastForwardCallback	ucb,
		ErrorCallback	ecb
	)

private

Queue packet and send route request.

Definition at line 379 of file aodv-routing-protocol.cc.

References ns3::aodv::RequestQueue::Enqueue(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetProtocol(), ns3::Packet::GetUid(), ns3::aodv::IN_SEARCH, ns3::aodv::RoutingTable::LookupRoute(), m_queue, m_routingTable, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and SendRequest().

Referenced by RouteInput().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 285 of file aodv-routing-protocol.cc.

References m_ipv4, and m_socketAddresses.

Ptr< Socket > ns3::aodv::RoutingProtocol::FindSocketWithInterfaceAddress ( Ipv4InterfaceAddress iface ) const

private

Find socket with local interface address iface.

Definition at line 1799 of file aodv-routing-protocol.cc.

References m_socketAddresses, and NS_LOG_FUNCTION.

Referenced by NotifyAddAddress(), NotifyInterfaceDown(), NotifyRemoveAddress(), RecvReply(), SendReply(), SendReplyAck(), SendReplyByIntermediateNode(), SendRerrMessage(), and SendRerrWhenNoRouteToForward().

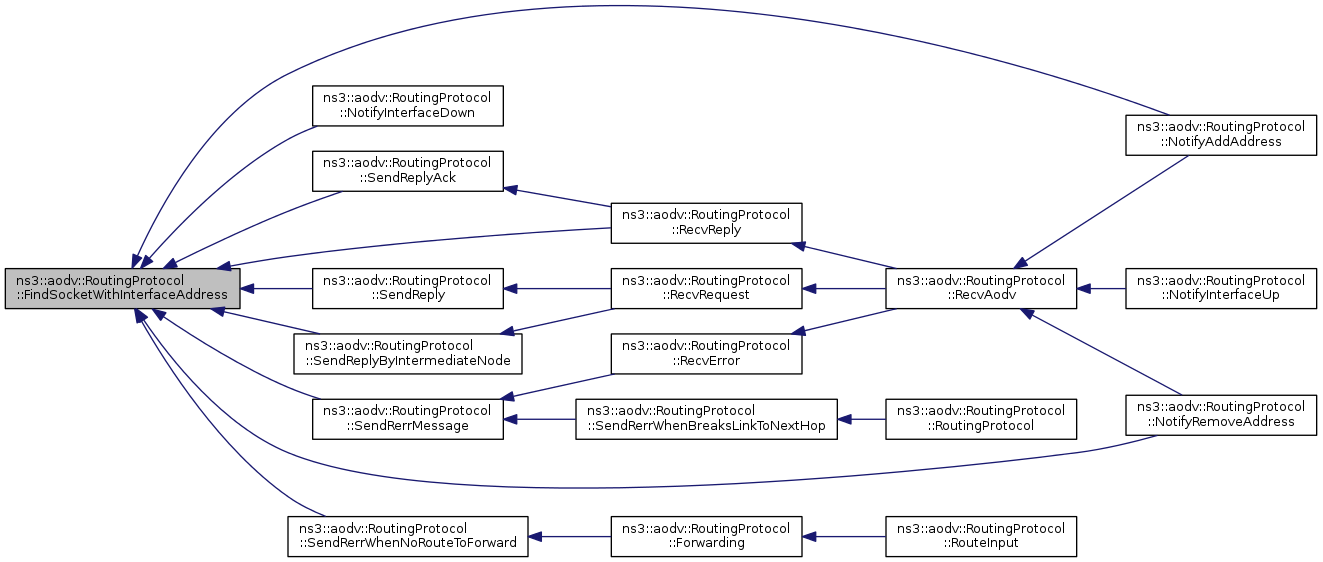

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::Forwarding	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		UnicastForwardCallback	ucb,
		ErrorCallback	ecb
	)

private

If route exists and valid, forward packet.

Definition at line 521 of file aodv-routing-protocol.cc.

References ActiveRouteTimeout, ns3::Ipv4Header::GetDestination(), ns3::aodv::RoutingTableEntry::GetFlag(), ns3::Ipv4Route::GetGateway(), ns3::aodv::RoutingTableEntry::GetRoute(), ns3::aodv::RoutingTableEntry::GetSeqNo(), ns3::Ipv4Route::GetSource(), ns3::Ipv4Header::GetSource(), ns3::Packet::GetUid(), ns3::aodv::RoutingTableEntry::GetValidSeqNo(), ns3::aodv::RoutingTable::LookupRoute(), m_nb, m_routingTable, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::aodv::RoutingTable::Purge(), SendRerrWhenNoRouteToForward(), ns3::aodv::Neighbors::Update(), UpdateRouteLifeTime(), and ns3::aodv::VALID.

Referenced by RouteInput().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::GetBroadcastEnable ( ) const

inline

Definition at line 91 of file aodv-routing-protocol.h.

References EnableBroadcast.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::GetDesinationOnlyFlag ( ) const

inline

Definition at line 84 of file aodv-routing-protocol.h.

References DestinationOnly.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::GetGratuitousReplyFlag ( ) const

inline

Definition at line 86 of file aodv-routing-protocol.h.

References GratuitousReply.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::GetHelloEnable ( ) const

inline

Definition at line 89 of file aodv-routing-protocol.h.

References EnableHello.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::aodv::RoutingProtocol::GetMaxQueueLen ( ) const

inline

Definition at line 82 of file aodv-routing-protocol.h.

References MaxQueueLen.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::aodv::RoutingProtocol::GetMaxQueueTime ( ) const

inline

Definition at line 80 of file aodv-routing-protocol.h.

References MaxQueueTime.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::aodv::RoutingProtocol::GetTypeId ( void )

static

Reimplemented from ns3::Ipv4RoutingProtocol.

Definition at line 159 of file aodv-routing-protocol.cc.

References ActiveRouteTimeout, AllowedHelloLoss, BlackListTimeout, DeletePeriod, GetBroadcastEnable(), GetDesinationOnlyFlag(), GetGratuitousReplyFlag(), GetHelloEnable(), GetMaxQueueLen(), GetMaxQueueTime(), HelloInterval, m_uniformRandomVariable, ns3::MilliSeconds(), MyRouteTimeout, NetDiameter, NetTraversalTime, NextHopWait, NodeTraversalTime, PathDiscoveryTime, RerrRateLimit, RreqRateLimit, RreqRetries, ns3::Seconds(), SetBroadcastEnable(), SetDesinationOnlyFlag(), SetGratuitousReplyFlag(), SetHelloEnable(), SetMaxQueueLen(), SetMaxQueueTime(), ns3::TypeId::SetParent(), and TimeoutBuffer.

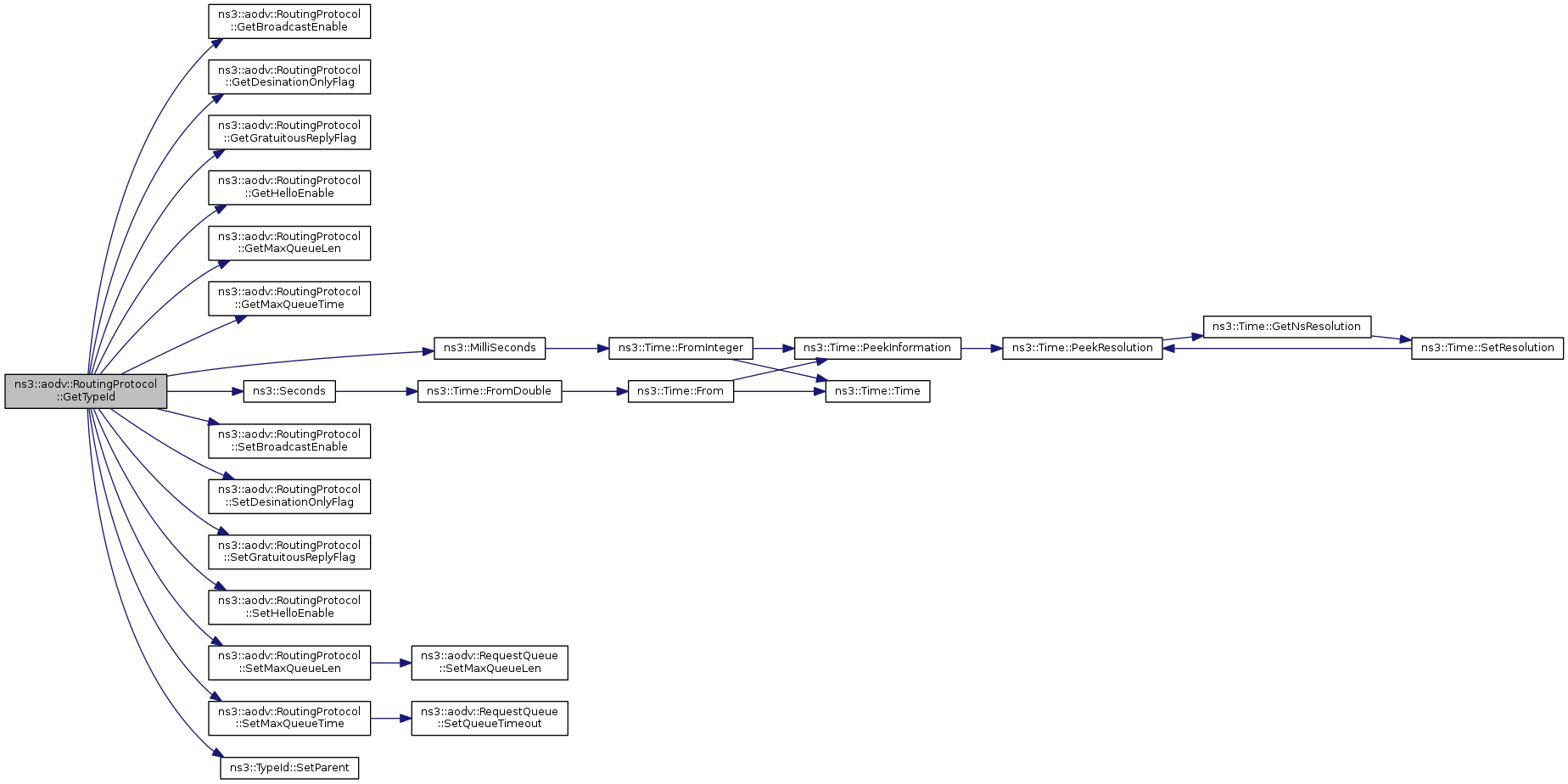

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::HelloTimerExpire ( )

private

Schedule next send of hello message.

Definition at line 1539 of file aodv-routing-protocol.cc.

References ns3::Timer::Cancel(), ns3::UniformRandomVariable::GetInteger(), HelloInterval, m_htimer, m_uniformRandomVariable, ns3::MilliSeconds(), NS_LOG_FUNCTION, ns3::Timer::Schedule(), and SendHello().

Referenced by SetIpv4().

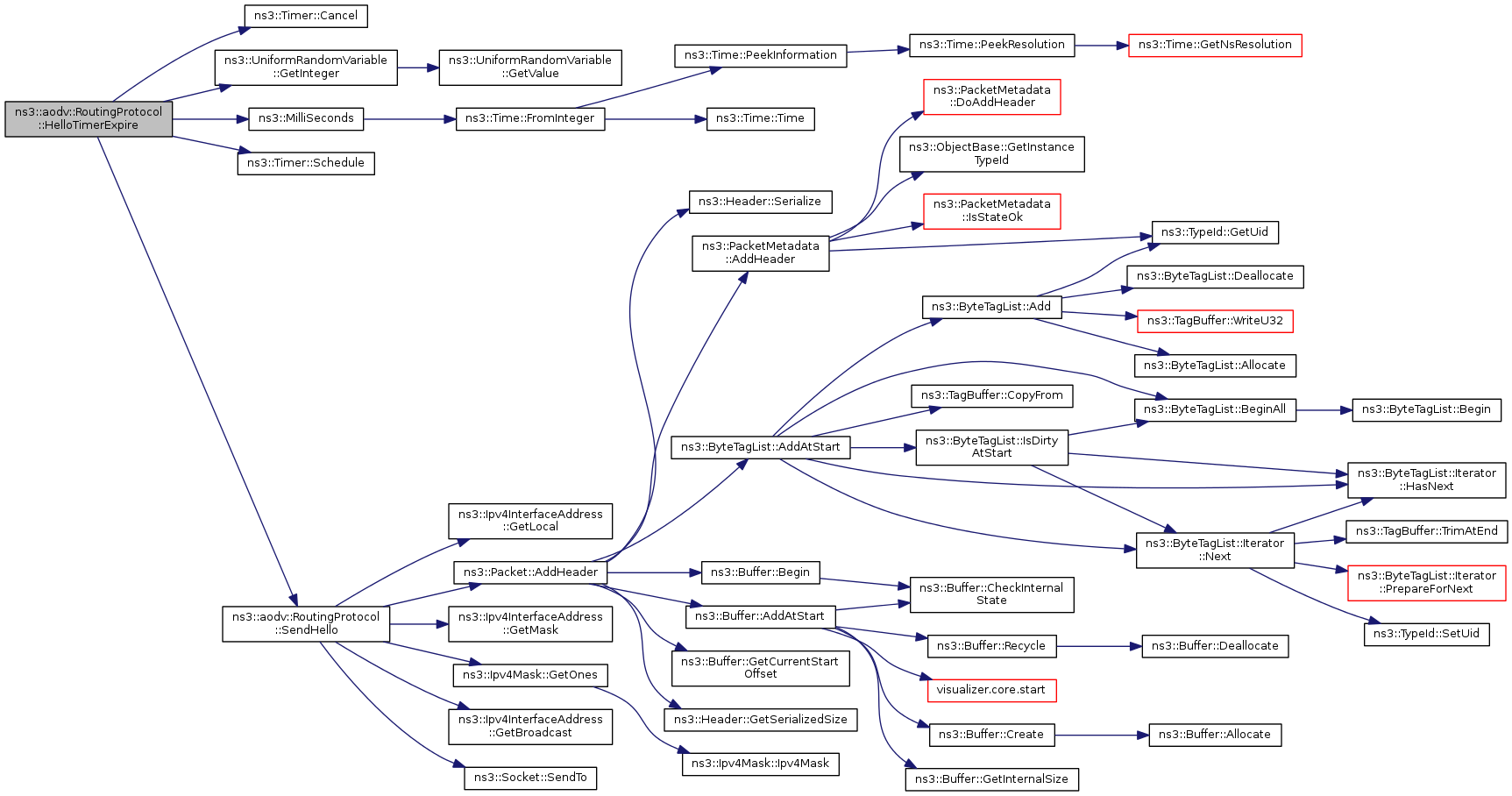

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::IsMyOwnAddress ( Ipv4Address src )

private

Check that packet is send from own interface.

Definition at line 768 of file aodv-routing-protocol.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), m_socketAddresses, and NS_LOG_FUNCTION.

Referenced by RecvReply(), RecvRequest(), and RouteInput().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Ipv4Route > ns3::aodv::RoutingProtocol::LoopbackRoute	(	const Ipv4Header &	header,
		Ptr< NetDevice >	oif
	)		const

private

Create loopback route for given header.

Definition at line 784 of file aodv-routing-protocol.cc.

References ns3::Ipv4Header::GetDestination(), ns3::Ipv4::GetNetDevice(), ns3::Ipv4Route::GetSource(), m_ipv4, m_lo, m_socketAddresses, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::Ipv4Route::SetDestination(), ns3::Ipv4Route::SetGateway(), ns3::Ipv4Route::SetOutputDevice(), and ns3::Ipv4Route::SetSource().

Referenced by RouteOutput().

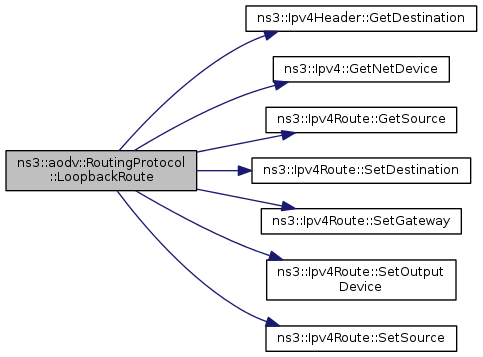

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::NotifyAddAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

virtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 683 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), AODV_PORT, ns3::Socket::Bind(), ns3::Socket::BindToNetDevice(), ns3::Socket::CreateSocket(), FindSocketWithInterfaceAddress(), ns3::Ipv4L3Protocol::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4::GetInterfaceForAddress(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Simulator::GetMaximumSimulationTime(), ns3::Ipv4L3Protocol::GetNAddresses(), ns3::Ipv4::GetNetDevice(), ns3::Ipv4L3Protocol::GetNetDevice(), ns3::Object::GetObject(), ns3::UdpSocketFactory::GetTypeId(), ns3::Ipv4L3Protocol::IsUp(), m_ipv4, m_routingTable, m_socketAddresses, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, RecvAodv(), ns3::Socket::SetAllowBroadcast(), and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::NotifyInterfaceDown ( uint32_t interface )

virtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 647 of file aodv-routing-protocol.cc.

References ns3::Timer::Cancel(), ns3::aodv::Neighbors::Clear(), ns3::aodv::RoutingTable::Clear(), ns3::Socket::Close(), ns3::aodv::Neighbors::DelArpCache(), ns3::aodv::RoutingTable::DeleteAllRoutesFromInterface(), FindSocketWithInterfaceAddress(), ns3::Ipv4::GetAddress(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Object::GetObject(), ns3::aodv::Neighbors::GetTxErrorCallback(), m_htimer, m_ipv4, m_nb, m_routingTable, m_socketAddresses, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::ObjectBase::TraceDisconnectWithoutContext().

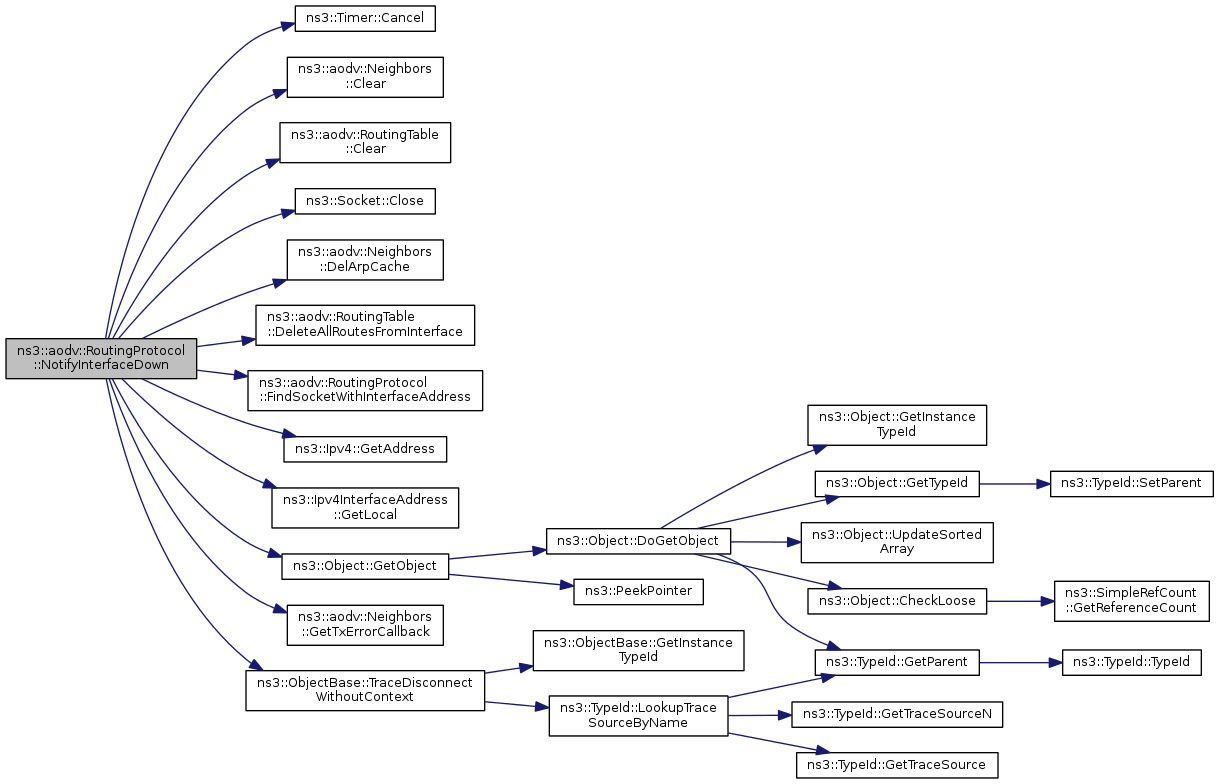

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::NotifyInterfaceUp ( uint32_t interface )

virtual

Parameters

interface the index of the interface we are being notified about

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 605 of file aodv-routing-protocol.cc.

References ns3::aodv::Neighbors::AddArpCache(), ns3::aodv::RoutingTable::AddRoute(), AODV_PORT, ns3::Socket::Bind(), ns3::Socket::BindToNetDevice(), ns3::Socket::CreateSocket(), ns3::Ipv4::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4::GetInterfaceForAddress(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Simulator::GetMaximumSimulationTime(), ns3::Ipv4::GetNetDevice(), ns3::Object::GetObject(), ns3::aodv::Neighbors::GetTxErrorCallback(), ns3::UdpSocketFactory::GetTypeId(), m_ipv4, m_nb, m_routingTable, m_socketAddresses, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_WARN, RecvAodv(), ns3::Socket::SetAllowBroadcast(), ns3::ObjectBase::SetAttribute(), ns3::Socket::SetRecvCallback(), and ns3::ObjectBase::TraceConnectWithoutContext().

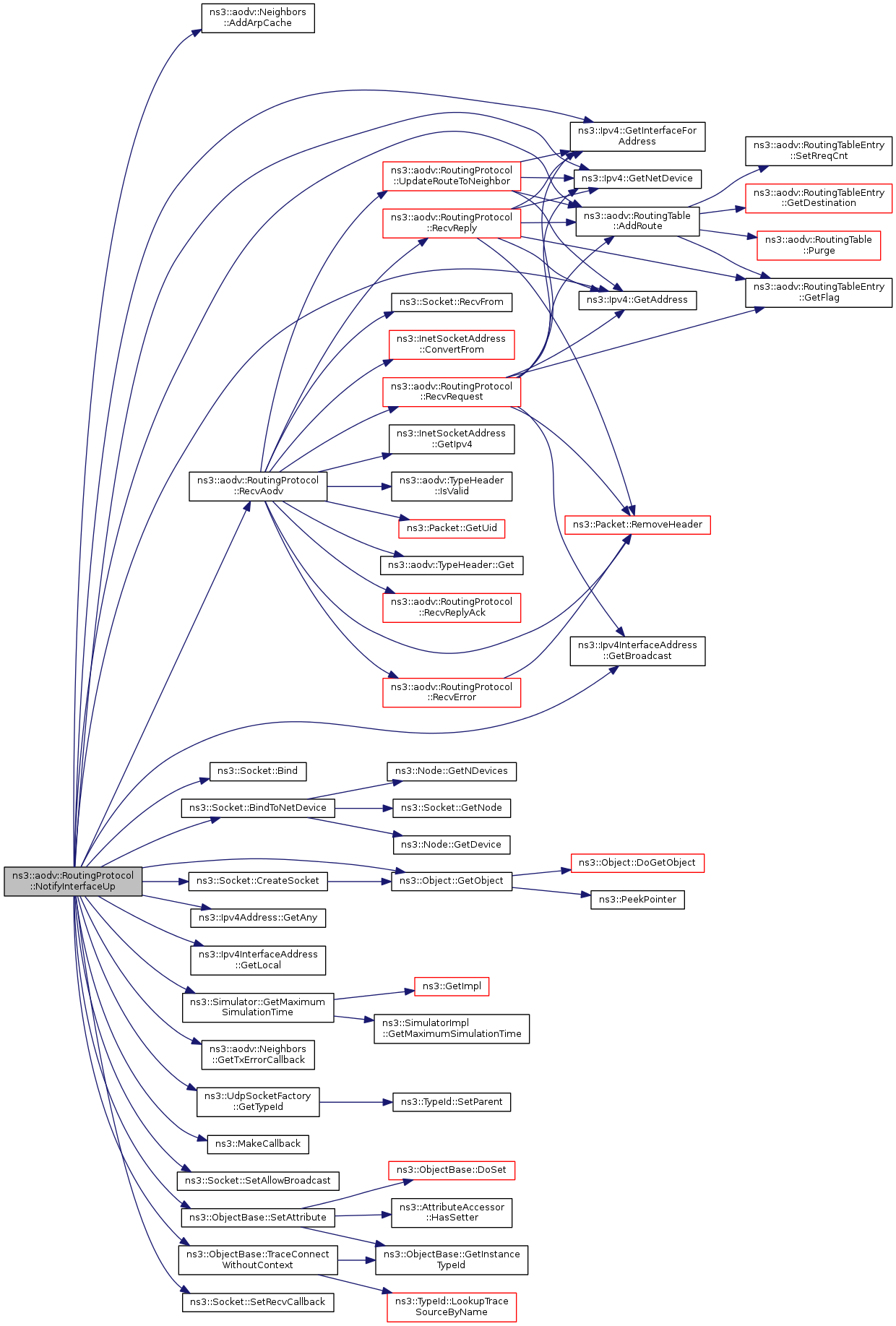

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv4InterfaceAddress	address
	)

virtual

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Implements ns3::Ipv4RoutingProtocol.

Definition at line 724 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), AODV_PORT, ns3::Socket::Bind(), ns3::Timer::Cancel(), ns3::aodv::Neighbors::Clear(), ns3::aodv::RoutingTable::Clear(), ns3::Socket::CreateSocket(), ns3::aodv::RoutingTable::DeleteAllRoutesFromInterface(), FindSocketWithInterfaceAddress(), ns3::Ipv4L3Protocol::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4::GetInterfaceForAddress(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Simulator::GetMaximumSimulationTime(), ns3::Ipv4L3Protocol::GetNAddresses(), ns3::Ipv4::GetNetDevice(), ns3::Object::GetObject(), ns3::UdpSocketFactory::GetTypeId(), m_htimer, m_ipv4, m_nb, m_routingTable, m_socketAddresses, ns3::MakeCallback(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, RecvAodv(), ns3::Socket::SetAllowBroadcast(), and ns3::Socket::SetRecvCallback().

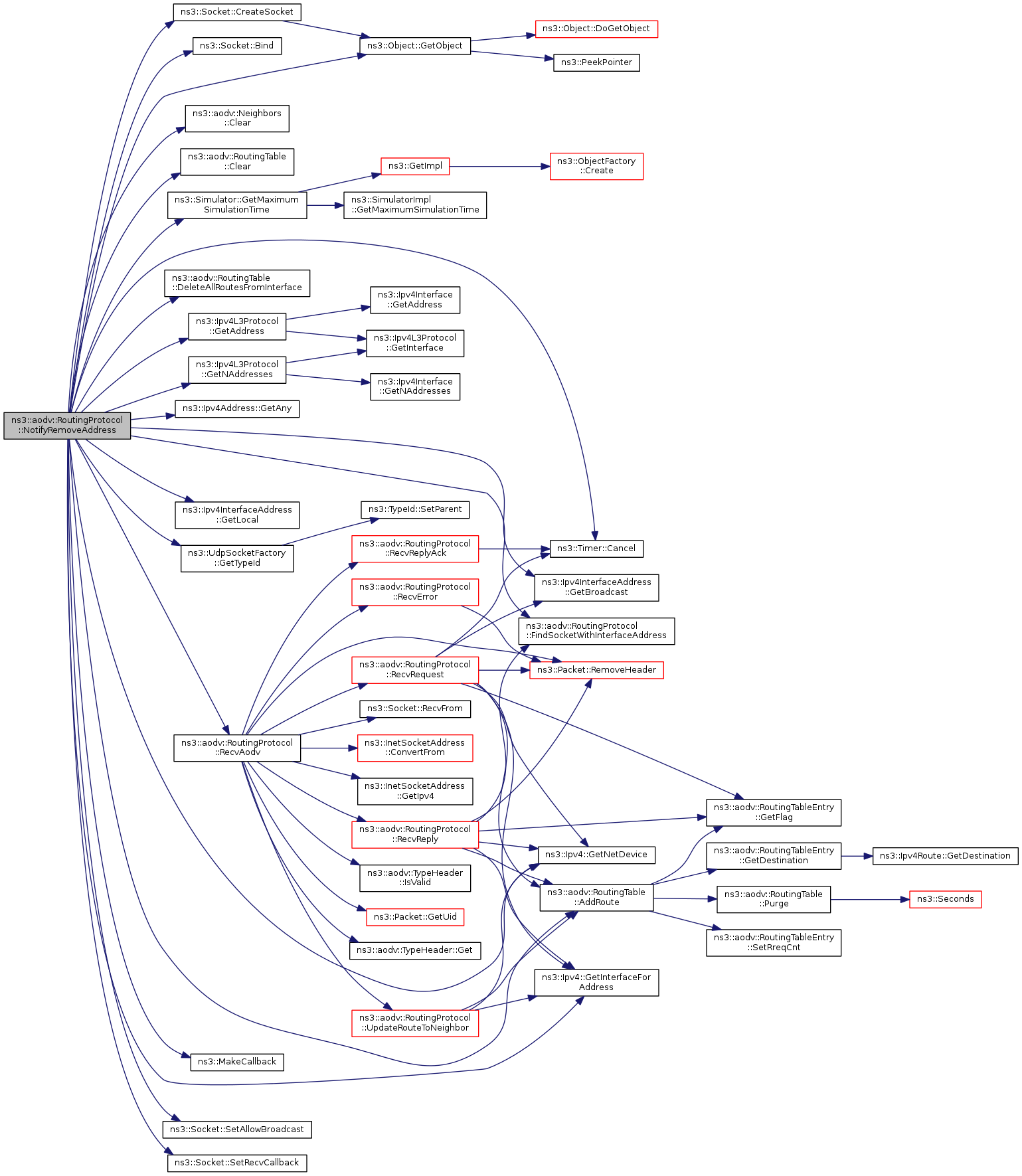

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::PrintRoutingTable ( Ptr< OutputStreamWrapper > stream ) const

virtual

Print the Routing Table entries.

Parameters

stream the ostream the Routing table is printed to

Implements ns3::Ipv4RoutingProtocol.

Definition at line 298 of file aodv-routing-protocol.cc.

References ns3::Object::GetObject(), ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), m_ipv4, m_routingTable, ns3::Now(), and ns3::aodv::RoutingTable::Print().

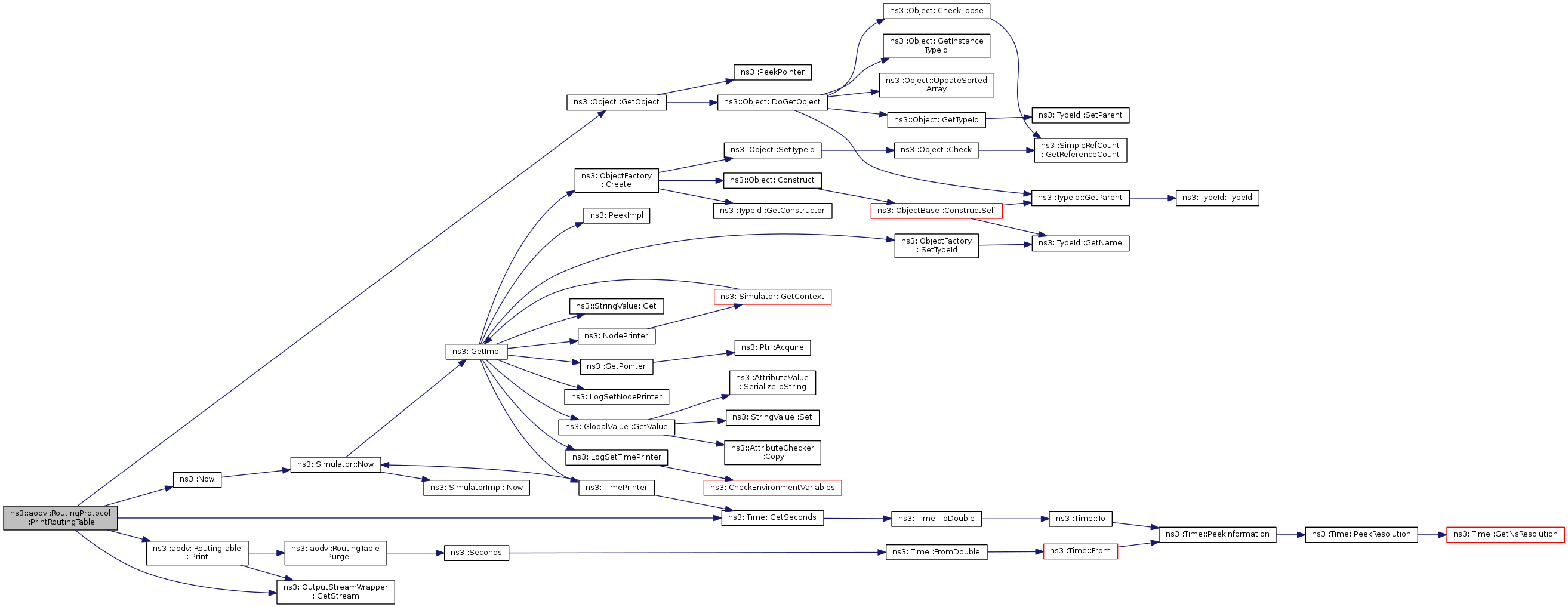

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::ProcessHello	(	RrepHeader const &	rrepHeader,
		Ipv4Address	receiverIfaceAddr
	)

private

Process hello message.

Definition at line 1411 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), AllowedHelloLoss, EnableHello, ns3::Ipv4::GetAddress(), ns3::aodv::RrepHeader::GetDst(), ns3::aodv::RrepHeader::GetDstSeqno(), ns3::Ipv4::GetInterfaceForAddress(), ns3::aodv::RrepHeader::GetLifeTime(), ns3::Ipv4::GetNetDevice(), HelloInterval, ns3::aodv::RoutingTable::LookupRoute(), m_ipv4, m_nb, m_routingTable, NS_LOG_FUNCTION, ns3::aodv::Neighbors::Update(), ns3::aodv::RoutingTable::Update(), and ns3::aodv::VALID.

Referenced by RecvReply().

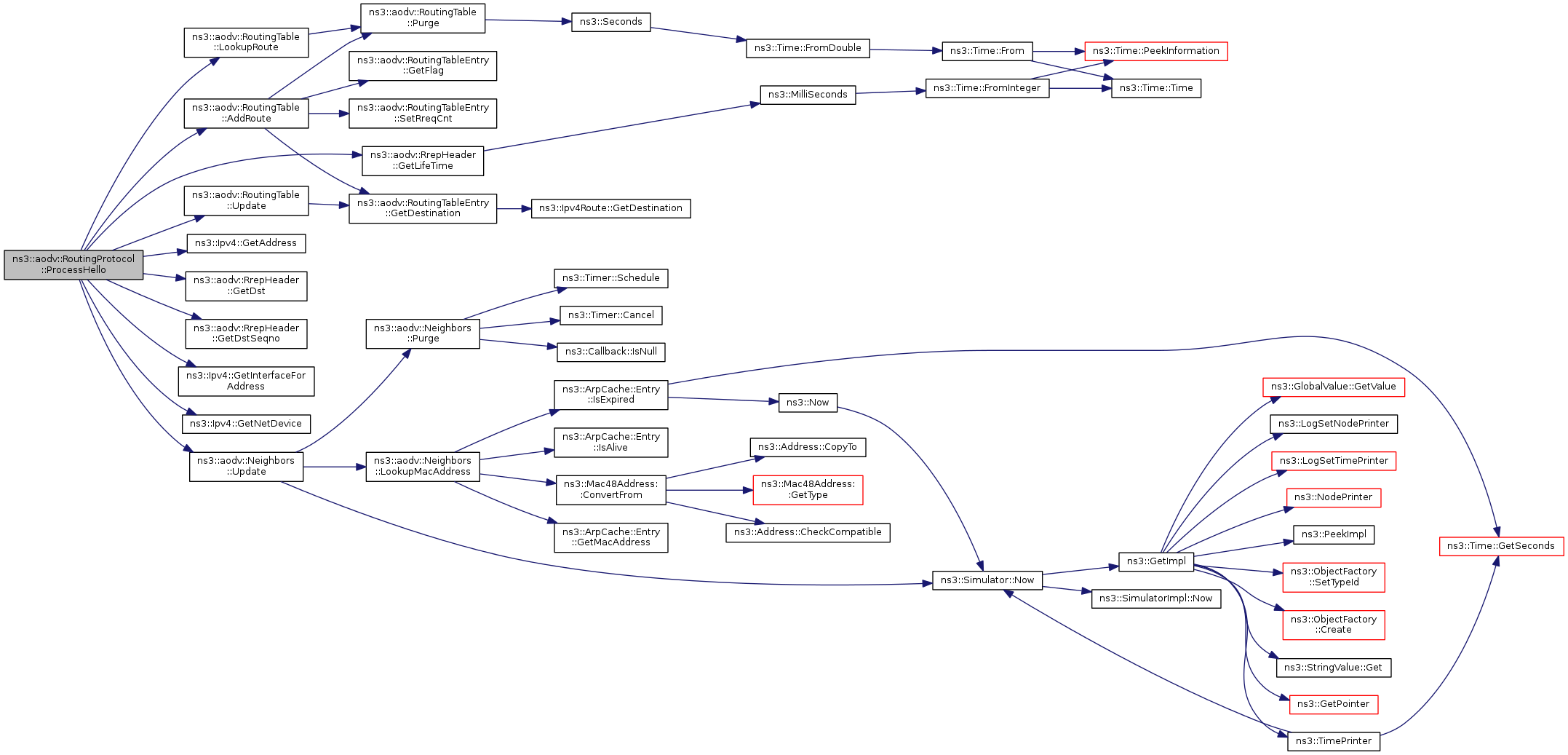

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvAodv ( Ptr< Socket > socket )

private

Receive and process control packet.

Definition at line 940 of file aodv-routing-protocol.cc.

References ns3::aodv::AODVTYPE_RERR, ns3::aodv::AODVTYPE_RREP, ns3::aodv::AODVTYPE_RREP_ACK, ns3::aodv::AODVTYPE_RREQ, ns3::InetSocketAddress::ConvertFrom(), ns3::aodv::TypeHeader::Get(), ns3::InetSocketAddress::GetIpv4(), ns3::Packet::GetUid(), ns3::aodv::TypeHeader::IsValid(), m_socketAddresses, NS_LOG_DEBUG, NS_LOG_FUNCTION, RecvError(), ns3::Socket::RecvFrom(), RecvReply(), RecvReplyAck(), RecvRequest(), ns3::Packet::RemoveHeader(), and UpdateRouteToNeighbor().

Referenced by NotifyAddAddress(), NotifyInterfaceUp(), and NotifyRemoveAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvError	(	Ptr< Packet >	p,
		Ipv4Address	src
	)

private

Receive RERR from node with address src.

Definition at line 1445 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), ns3::aodv::RerrHeader::AddUnDestination(), ns3::aodv::AODVTYPE_RERR, ns3::aodv::RerrHeader::Clear(), ns3::aodv::RerrHeader::GetDestCount(), ns3::aodv::RoutingTable::GetListOfDestinationWithNextHop(), ns3::aodv::RoutingTableEntry::GetPrecursors(), ns3::aodv::RoutingTable::InvalidateRoutesWithDst(), ns3::aodv::RoutingTable::LookupRoute(), m_routingTable, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::aodv::RerrHeader::RemoveUnDestination(), and SendRerrMessage().

Referenced by RecvAodv().

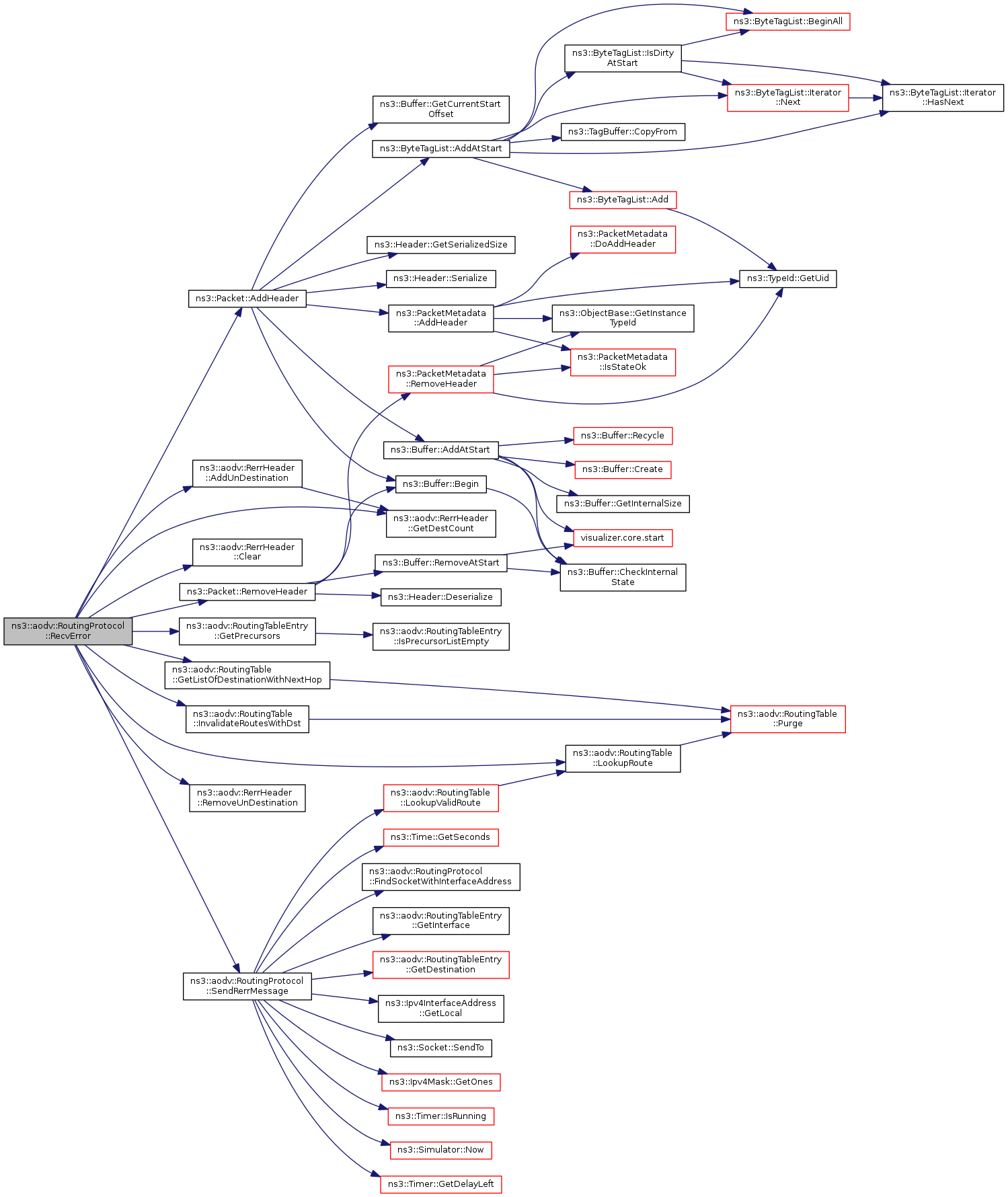

Here is the call graph for this function:

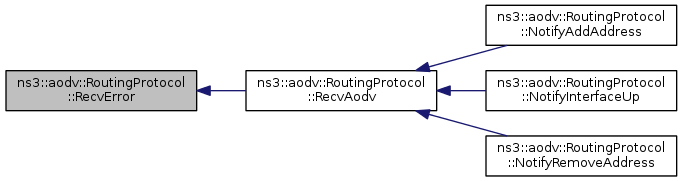

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvReply	(	Ptr< Packet >	p,
		Ipv4Address	my,
		Ipv4Address	src
	)

private

Receive RREP.

Definition at line 1272 of file aodv-routing-protocol.cc.

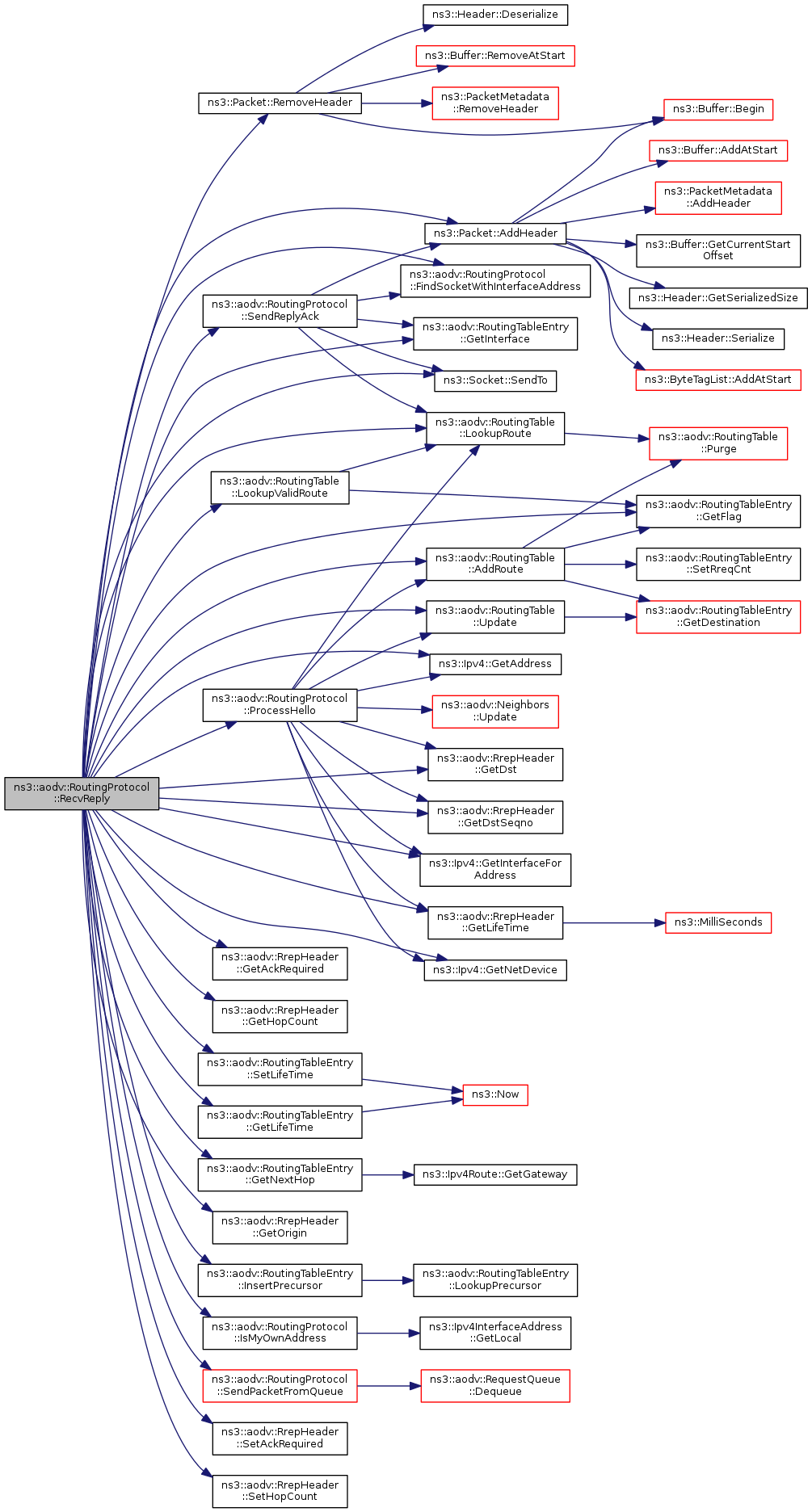

Referenced by RecvAodv().

Here is the call graph for this function:

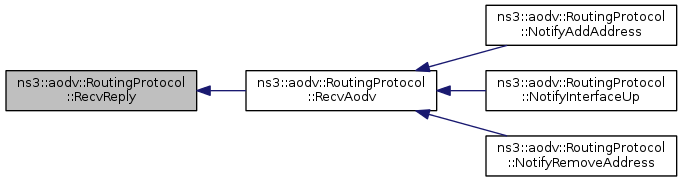

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvReplyAck ( Ipv4Address neighbor )

private

Receive RREP_ACK.

Definition at line 1398 of file aodv-routing-protocol.cc.

References ns3::Timer::Cancel(), ns3::aodv::RoutingTable::LookupRoute(), ns3::aodv::RoutingTableEntry::m_ackTimer, m_routingTable, NS_LOG_FUNCTION, ns3::aodv::RoutingTableEntry::SetFlag(), ns3::aodv::RoutingTable::Update(), and ns3::aodv::VALID.

Referenced by RecvAodv().

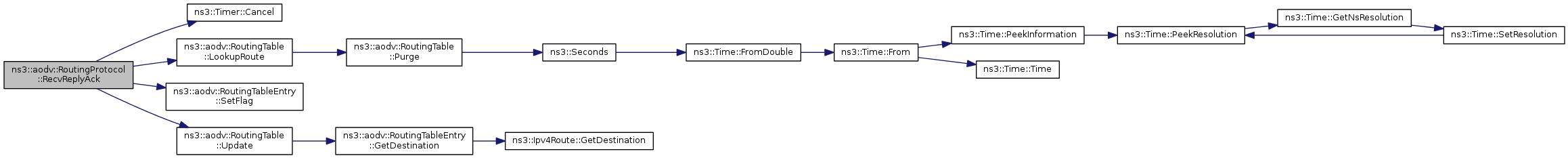

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RecvRequest	(	Ptr< Packet >	p,
		Ipv4Address	receiver,
		Ipv4Address	src
	)

private

Receive RREQ.

Definition at line 1034 of file aodv-routing-protocol.cc.

Referenced by RecvAodv().

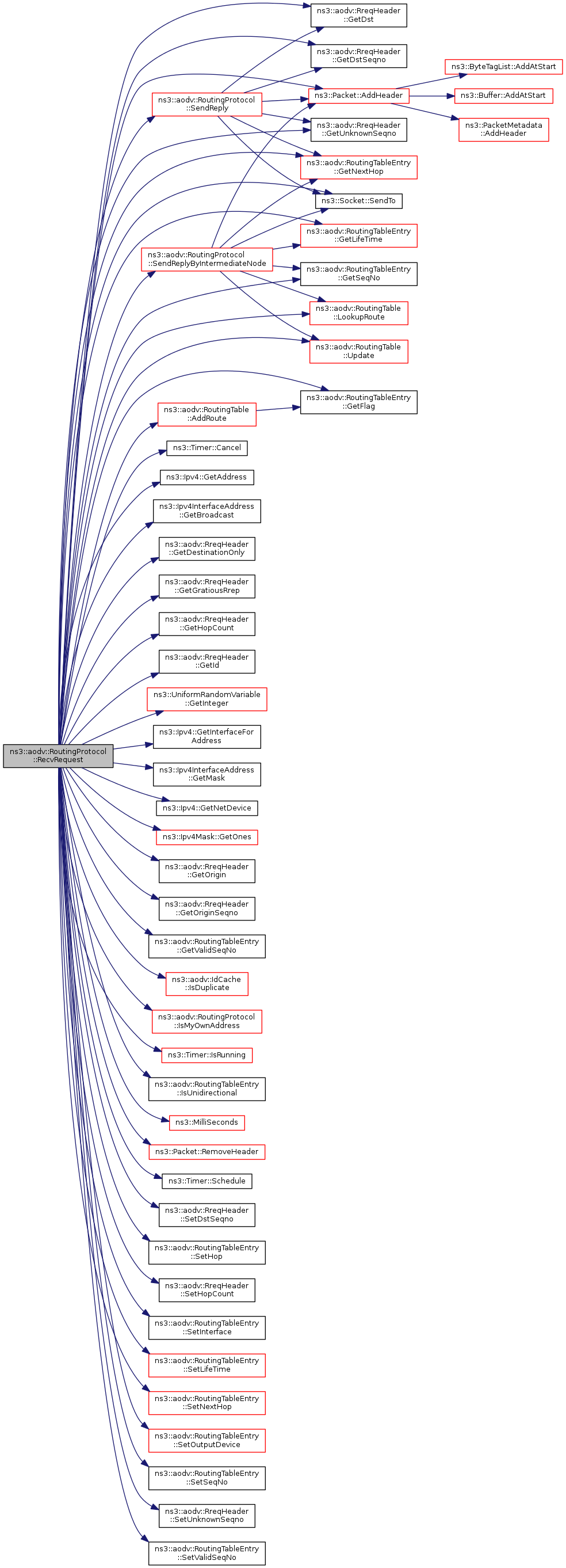

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RerrRateLimitTimerExpire ( )

private

Reset RERR count and schedule RERR rate limit timer with delay 1 sec.

Definition at line 1557 of file aodv-routing-protocol.cc.

References m_rerrCount, m_rerrRateLimitTimer, NS_LOG_FUNCTION, ns3::Timer::Schedule(), and ns3::Seconds().

Referenced by Start().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::RouteInput	(	Ptr< const Packet >	p,
		const Ipv4Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)

virtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv4RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input(). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv4RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Implements ns3::Ipv4RoutingProtocol.

Definition at line 401 of file aodv-routing-protocol.cc.

References ActiveRouteTimeout, ns3::Packet::Copy(), DeferredRouteOutput(), EnableBroadcast, ns3::Socket::ERROR_NOROUTETOHOST, Forwarding(), ns3::NetDevice::GetAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4::GetInterfaceForAddress(), ns3::Ipv4::GetInterfaceForDevice(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::aodv::RoutingTableEntry::GetNextHop(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Header::GetTtl(), ns3::Packet::GetUid(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4::IsDestinationAddress(), ns3::aodv::DuplicatePacketDetection::IsDuplicate(), ns3::Ipv4Address::IsMulticast(), IsMyOwnAddress(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::aodv::RoutingTable::LookupRoute(), ns3::aodv::RoutingTable::LookupValidRoute(), m_dpd, m_ipv4, m_lo, m_nb, m_routingTable, m_socketAddresses, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::PeekPacketTag(), ns3::aodv::Neighbors::Update(), and UpdateRouteLifeTime().

Here is the call graph for this function:

Ptr< Ipv4Route > ns3::aodv::RoutingProtocol::RouteOutput	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

virtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output()

The header input parameter may have an uninitialized value for the source address, but the destination address should always be properly set by the caller.

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface Netdevice. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno

Returns: a code that indicates what happened in the lookup

Implements ns3::Ipv4RoutingProtocol.

Definition at line 331 of file aodv-routing-protocol.cc.

References ActiveRouteTimeout, ns3::Packet::AddPacketTag(), ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NOTERROR, ns3::Ipv4Route::GetDestination(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Route::GetGateway(), ns3::NetDevice::GetIfIndex(), ns3::Ipv4::GetInterfaceForDevice(), ns3::Ipv4Route::GetOutputDevice(), ns3::aodv::RoutingTableEntry::GetRoute(), ns3::Ipv4Route::GetSource(), ns3::aodv::RoutingTable::LookupValidRoute(), LoopbackRoute(), m_ipv4, m_routingTable, m_socketAddresses, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Packet::PeekPacketTag(), and UpdateRouteLifeTime().

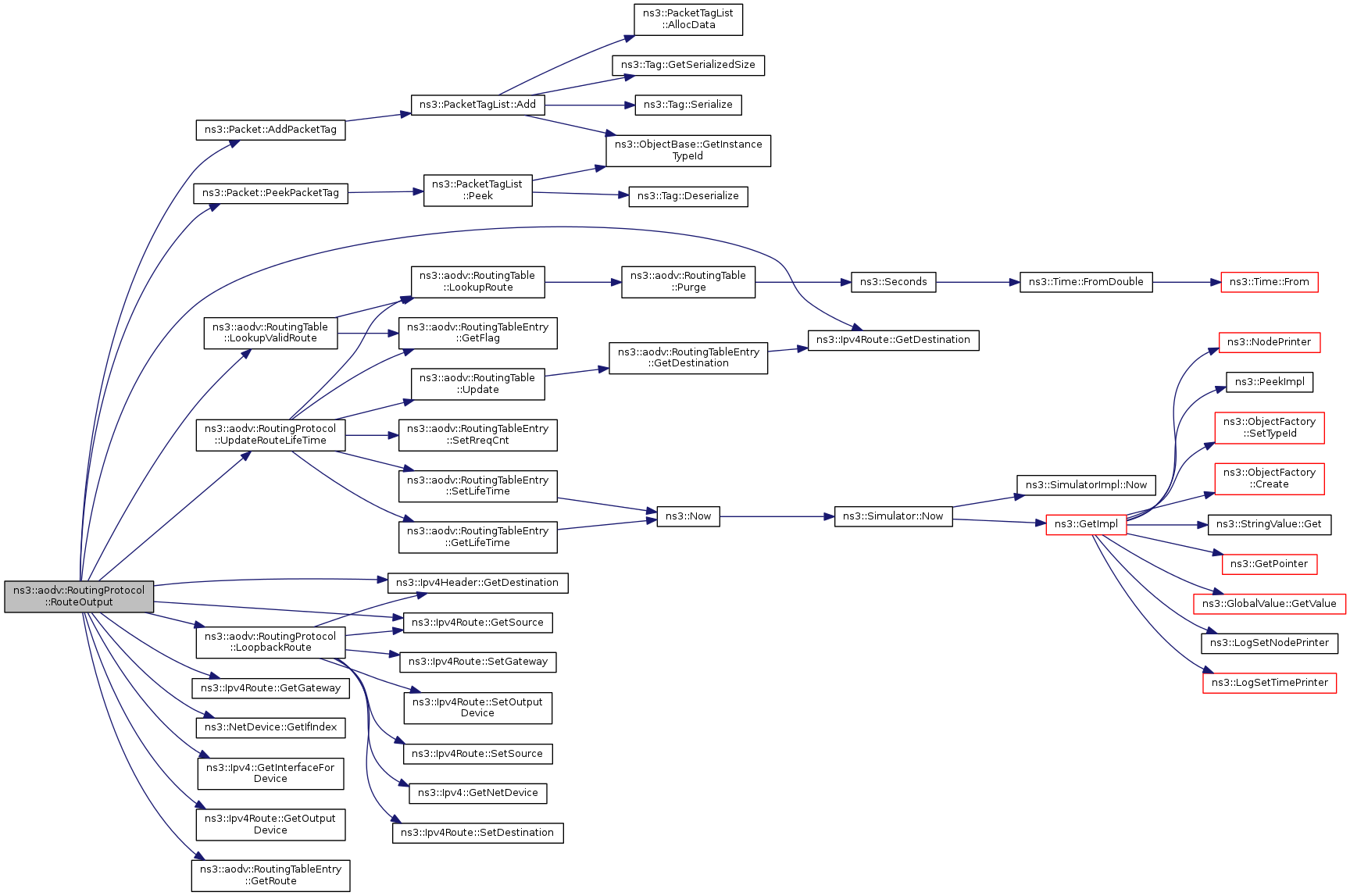

Here is the call graph for this function:

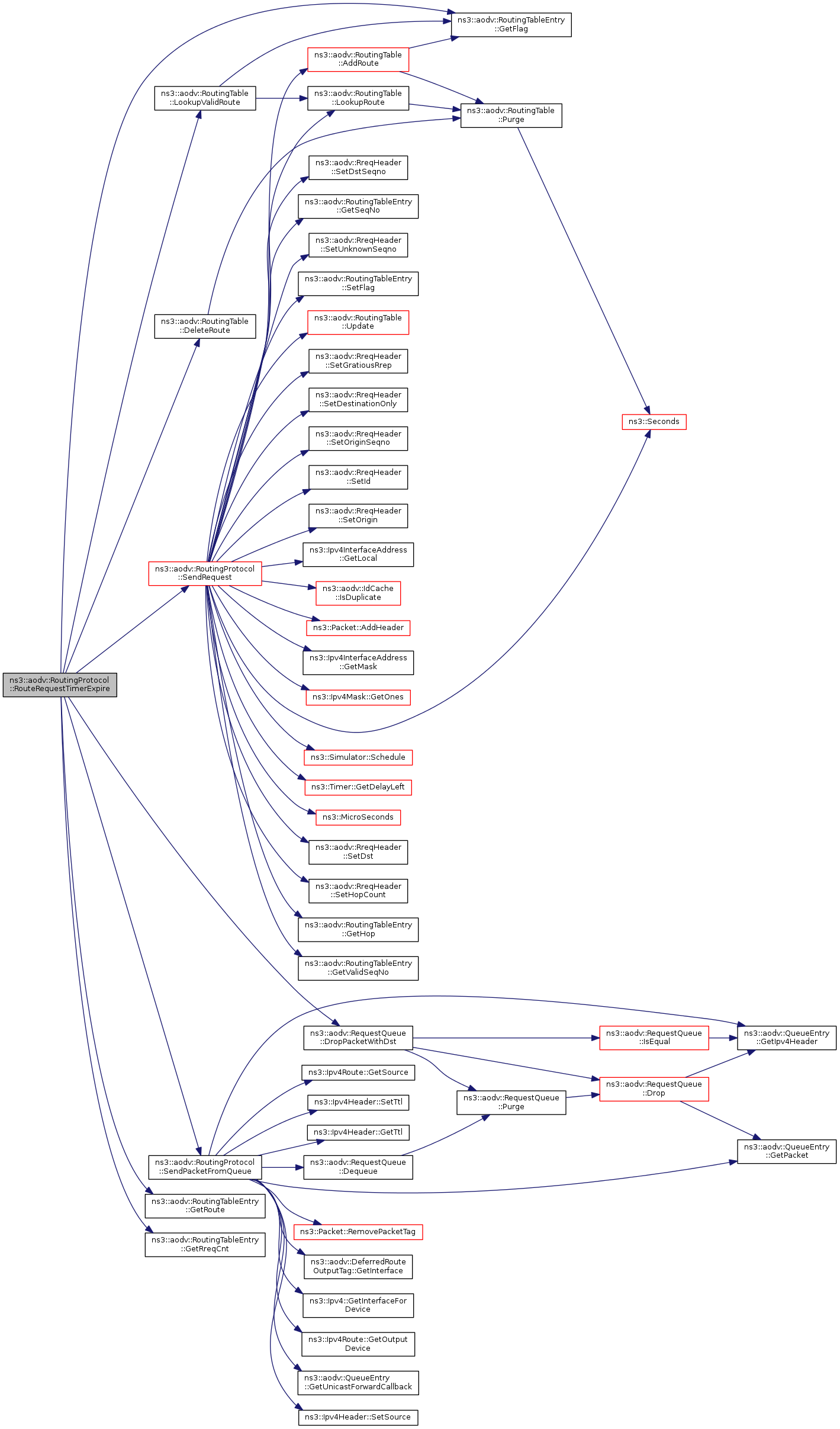

void ns3::aodv::RoutingProtocol::RouteRequestTimerExpire ( Ipv4Address dst )

private

Handle route discovery process.

Definition at line 1499 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::DeleteRoute(), ns3::aodv::RequestQueue::DropPacketWithDst(), ns3::aodv::RoutingTableEntry::GetFlag(), ns3::aodv::RoutingTableEntry::GetRoute(), ns3::aodv::RoutingTableEntry::GetRreqCnt(), ns3::aodv::IN_SEARCH, ns3::aodv::RoutingTable::LookupValidRoute(), m_addressReqTimer, m_queue, m_routingTable, NetDiameter, NS_LOG_DEBUG, NS_LOG_LOGIC, RreqRetries, SendPacketFromQueue(), and SendRequest().

Referenced by ScheduleRreqRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::RreqRateLimitTimerExpire ( )

private

Reset RREQ count and schedule RREQ rate limit timer with delay 1 sec.

Definition at line 1549 of file aodv-routing-protocol.cc.

References m_rreqCount, m_rreqRateLimitTimer, NS_LOG_FUNCTION, ns3::Timer::Schedule(), and ns3::Seconds().

Referenced by Start().

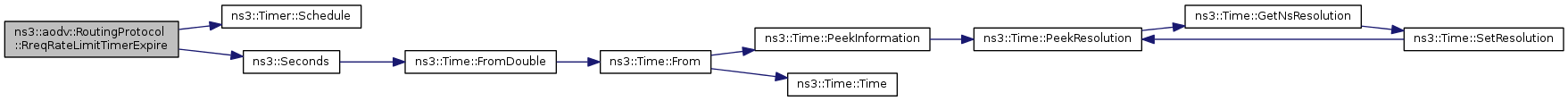

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::ScheduleRreqRetry ( Ipv4Address dst )

private

To reduce congestion in a network, repeated attempts by a source node at route discovery for a single destination MUST utilize a binary exponential backoff.

Definition at line 920 of file aodv-routing-protocol.cc.

References ns3::Timer::CANCEL_ON_DESTROY, ns3::aodv::RoutingTableEntry::GetRreqCnt(), ns3::aodv::RoutingTableEntry::IncrementRreqCnt(), ns3::aodv::RoutingTable::LookupRoute(), m_addressReqTimer, m_routingTable, NetTraversalTime, NS_LOG_FUNCTION, NS_LOG_LOGIC, RouteRequestTimerExpire(), and ns3::aodv::RoutingTable::Update().

Referenced by SendRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

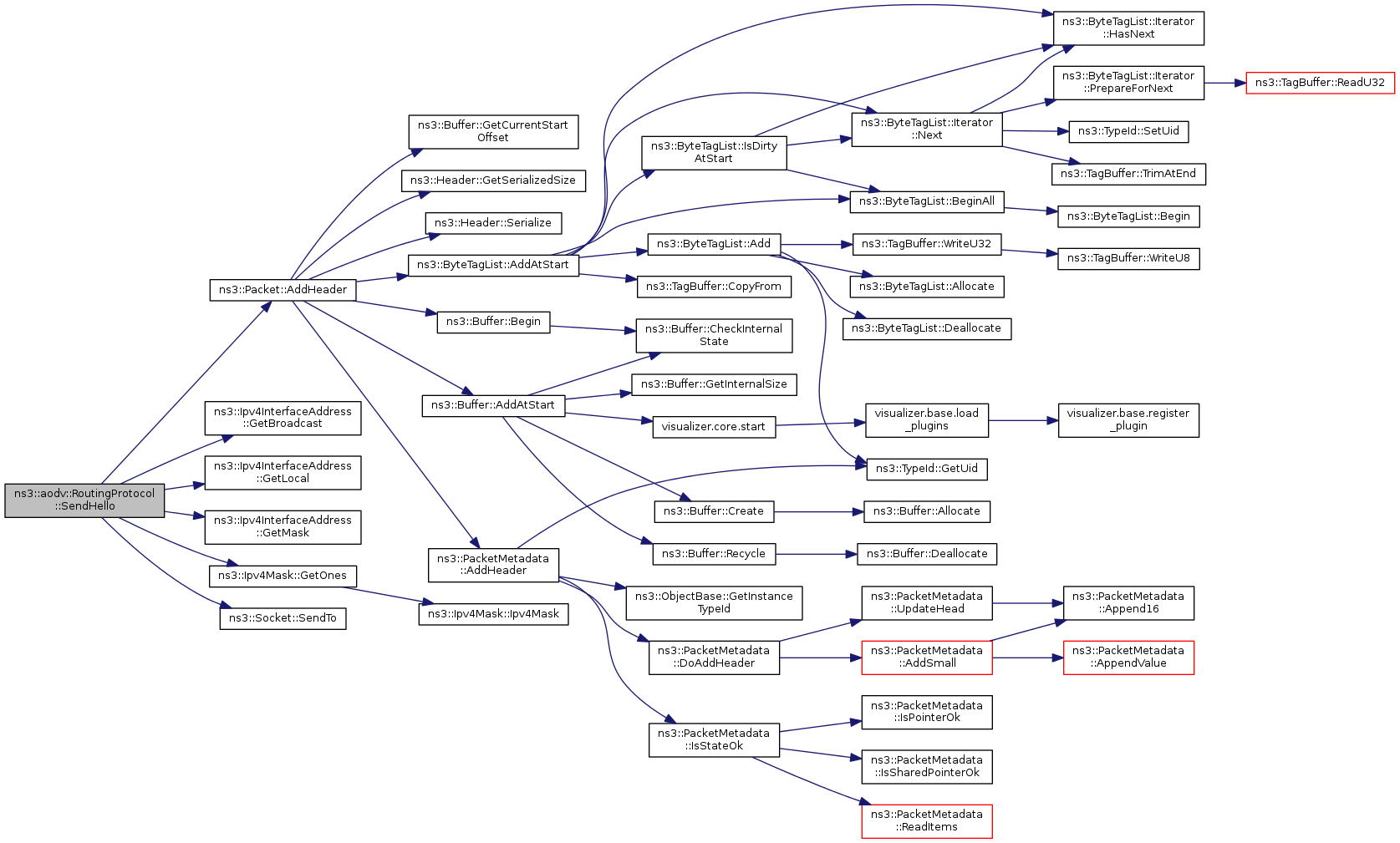

void ns3::aodv::RoutingProtocol::SendHello ( )

private

Send hello.

Definition at line 1572 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), AllowedHelloLoss, AODV_PORT, ns3::aodv::AODVTYPE_RREP, ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::Ipv4Mask::GetOnes(), HelloInterval, m_seqNo, m_socketAddresses, NS_LOG_FUNCTION, and ns3::Socket::SendTo().

Referenced by HelloTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

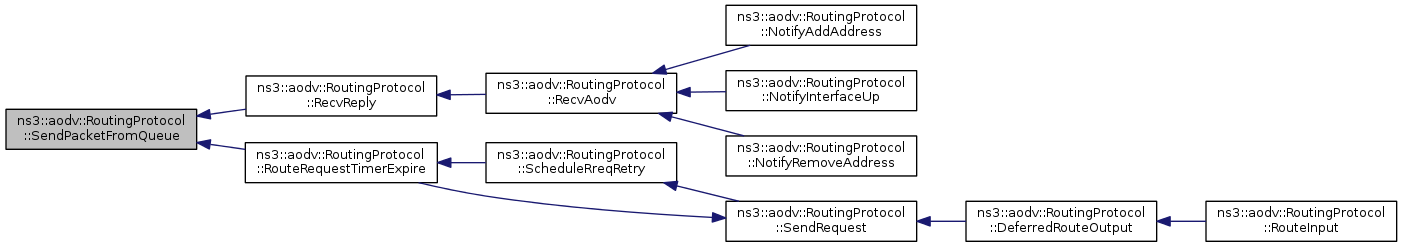

void ns3::aodv::RoutingProtocol::SendPacketFromQueue	(	Ipv4Address	dst,
		Ptr< Ipv4Route >	route
	)

private

Forward packet from route request queue.

Definition at line 1606 of file aodv-routing-protocol.cc.

References ns3::aodv::RequestQueue::Dequeue(), ns3::aodv::DeferredRouteOutputTag::GetInterface(), ns3::Ipv4::GetInterfaceForDevice(), ns3::aodv::QueueEntry::GetIpv4Header(), ns3::Ipv4Route::GetOutputDevice(), ns3::aodv::QueueEntry::GetPacket(), ns3::Ipv4Route::GetSource(), ns3::Ipv4Header::GetTtl(), ns3::aodv::QueueEntry::GetUnicastForwardCallback(), m_ipv4, m_queue, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemovePacketTag(), ns3::Ipv4Header::SetSource(), and ns3::Ipv4Header::SetTtl().

Referenced by RecvReply(), and RouteRequestTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

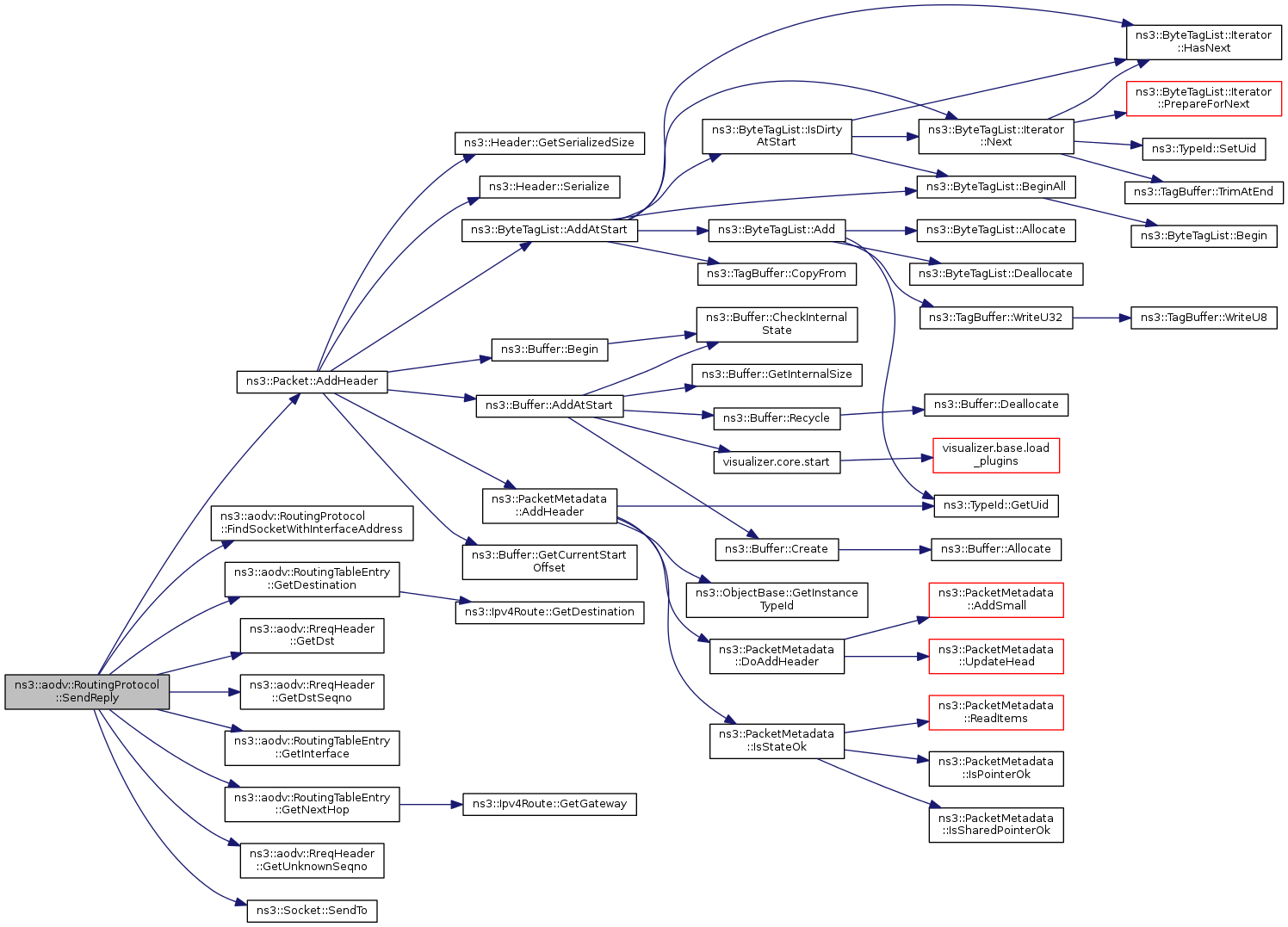

void ns3::aodv::RoutingProtocol::SendReply	(	RreqHeader const &	rreqHeader,
		RoutingTableEntry const &	toOrigin
	)

private

Send RREP.

Definition at line 1187 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), AODV_PORT, ns3::aodv::AODVTYPE_RREP, FindSocketWithInterfaceAddress(), ns3::aodv::RoutingTableEntry::GetDestination(), ns3::aodv::RreqHeader::GetDst(), ns3::aodv::RreqHeader::GetDstSeqno(), ns3::aodv::RoutingTableEntry::GetInterface(), ns3::aodv::RoutingTableEntry::GetNextHop(), ns3::aodv::RreqHeader::GetUnknownSeqno(), m_seqNo, MyRouteTimeout, NS_ASSERT, NS_LOG_FUNCTION, and ns3::Socket::SendTo().

Referenced by RecvRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendReplyAck ( Ipv4Address neighbor )

private

Send RREP_ACK.

Definition at line 1256 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), AODV_PORT, ns3::aodv::AODVTYPE_RREP_ACK, FindSocketWithInterfaceAddress(), ns3::aodv::RoutingTableEntry::GetInterface(), ns3::aodv::RoutingTable::LookupRoute(), m_routingTable, NS_ASSERT, NS_LOG_FUNCTION, and ns3::Socket::SendTo().

Referenced by RecvReply().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode	(	RoutingTableEntry &	toDst,
		RoutingTableEntry &	toOrigin,
		bool	gratRep
	)

private

Send RREP by intermediate node

Parameters

toDst	routing table entry to destination
toOrigin	routing table entry to originator
gratRep	indicates whether a gratuitous RREP should be unicast to destination

Definition at line 1208 of file aodv-routing-protocol.cc.

Referenced by RecvRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

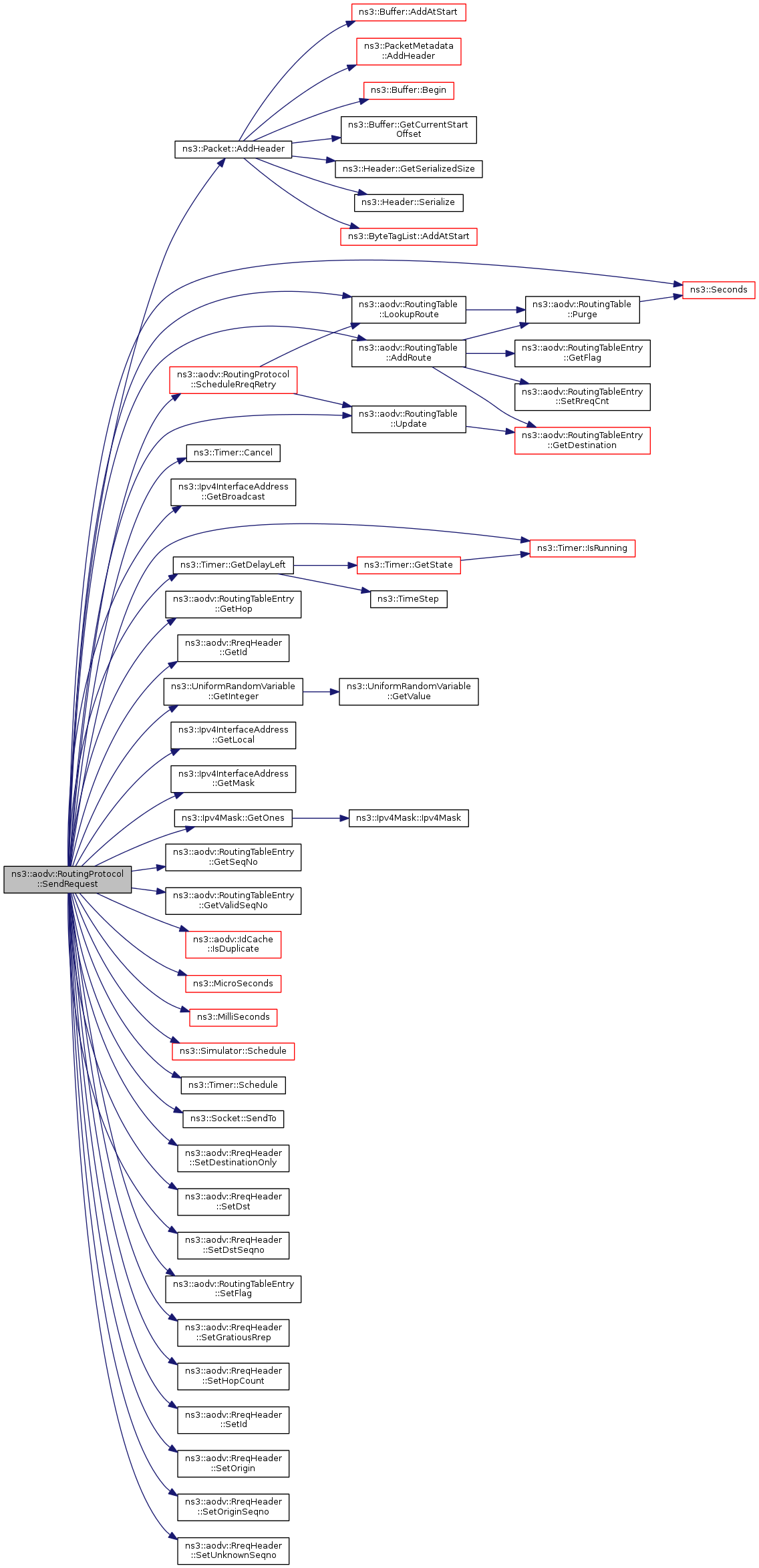

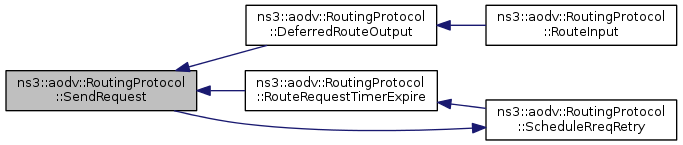

void ns3::aodv::RoutingProtocol::SendRequest ( Ipv4Address dst )

private

Send RREQ.

Definition at line 832 of file aodv-routing-protocol.cc.

Referenced by DeferredRouteOutput(), and RouteRequestTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

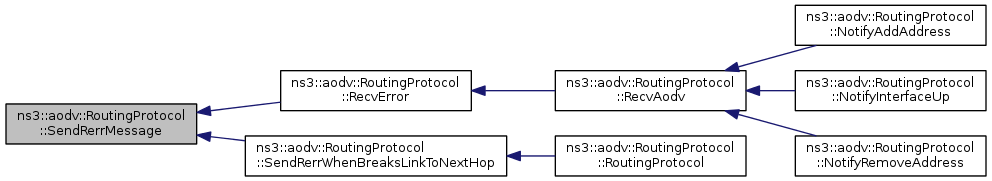

void ns3::aodv::RoutingProtocol::SendRerrMessage	(	Ptr< Packet >	packet,
		std::vector< Ipv4Address >	precursors
	)

private

Forward RERR.

Definition at line 1731 of file aodv-routing-protocol.cc.

References AODV_PORT, FindSocketWithInterfaceAddress(), ns3::Timer::GetDelayLeft(), ns3::aodv::RoutingTableEntry::GetDestination(), ns3::aodv::RoutingTableEntry::GetInterface(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4Mask::GetOnes(), ns3::Time::GetSeconds(), ns3::Timer::IsRunning(), ns3::aodv::RoutingTable::LookupValidRoute(), m_rerrCount, m_rerrRateLimitTimer, m_routingTable, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, RerrRateLimit, and ns3::Socket::SendTo().

Referenced by RecvError(), and SendRerrWhenBreaksLinkToNextHop().

Here is the call graph for this function:

Here is the caller graph for this function:

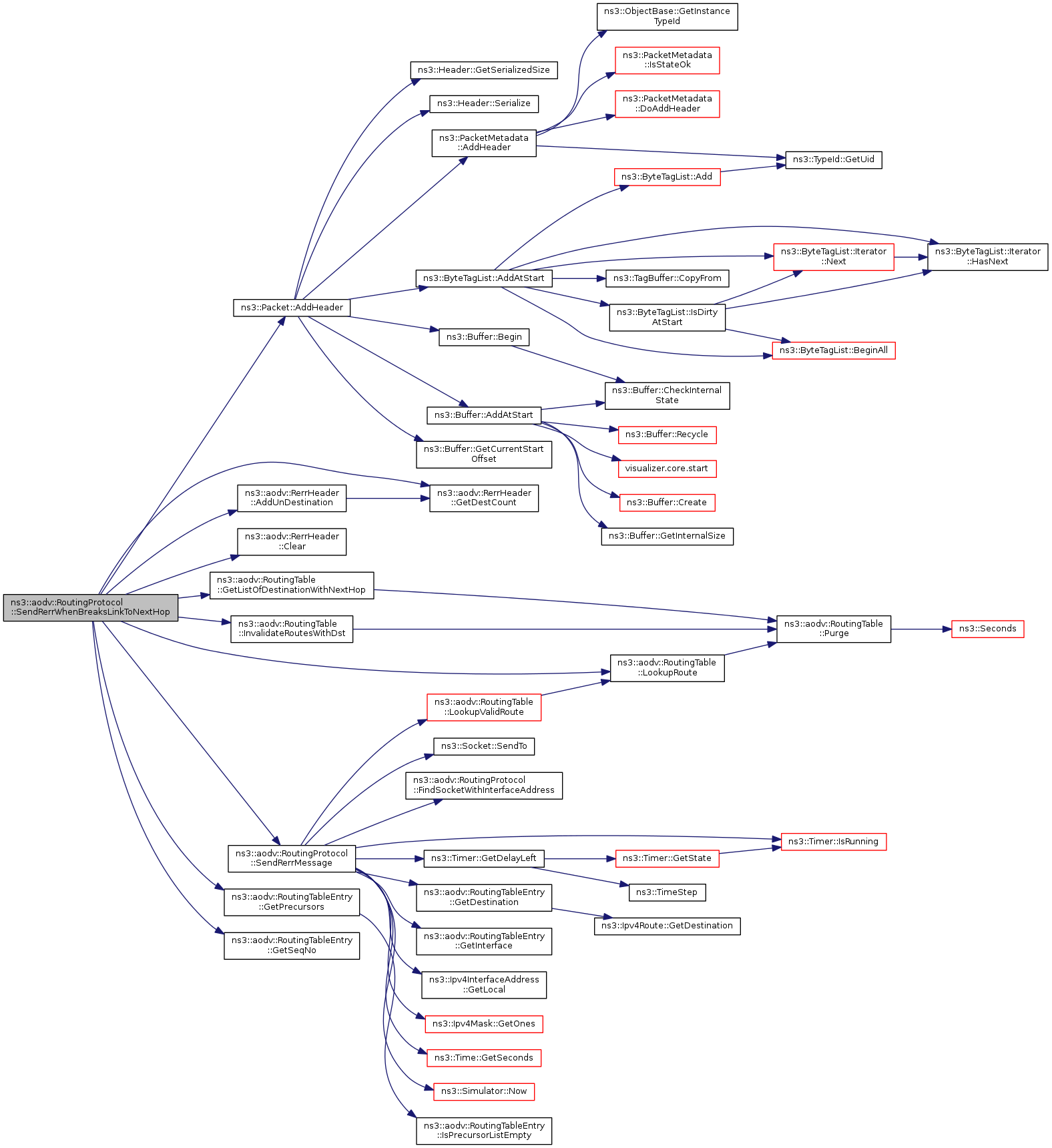

void ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop ( Ipv4Address nextHop )

private

Initiate RERR.

Definition at line 1630 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), ns3::aodv::RerrHeader::AddUnDestination(), ns3::aodv::AODVTYPE_RERR, ns3::aodv::RerrHeader::Clear(), ns3::aodv::RerrHeader::GetDestCount(), ns3::aodv::RoutingTable::GetListOfDestinationWithNextHop(), ns3::aodv::RoutingTableEntry::GetPrecursors(), ns3::aodv::RoutingTableEntry::GetSeqNo(), ns3::aodv::RoutingTable::InvalidateRoutesWithDst(), ns3::aodv::RoutingTable::LookupRoute(), m_routingTable, NS_LOG_FUNCTION, NS_LOG_LOGIC, and SendRerrMessage().

Referenced by RoutingProtocol().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward	(	Ipv4Address	dst,
		uint32_t	dstSeqNo,
		Ipv4Address	origin
	)

private

Send RERR message when no route to forward input packet. Unicast if there is reverse route to originating node, broadcast otherwise.

Parameters

dst	- destination node IP address
dstSeqNo	- destination node sequence number
origin	- originating node IP address

Definition at line 1677 of file aodv-routing-protocol.cc.

References ns3::Packet::AddHeader(), ns3::aodv::RerrHeader::AddUnDestination(), AODV_PORT, ns3::aodv::AODVTYPE_RERR, FindSocketWithInterfaceAddress(), ns3::Ipv4InterfaceAddress::GetBroadcast(), ns3::Timer::GetDelayLeft(), ns3::aodv::RoutingTableEntry::GetInterface(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::aodv::RoutingTableEntry::GetNextHop(), ns3::Ipv4Mask::GetOnes(), ns3::Time::GetSeconds(), ns3::Timer::IsRunning(), ns3::aodv::RoutingTable::LookupValidRoute(), m_rerrCount, m_rerrRateLimitTimer, m_routingTable, m_socketAddresses, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, RerrRateLimit, and ns3::Socket::SendTo().

Referenced by Forwarding().

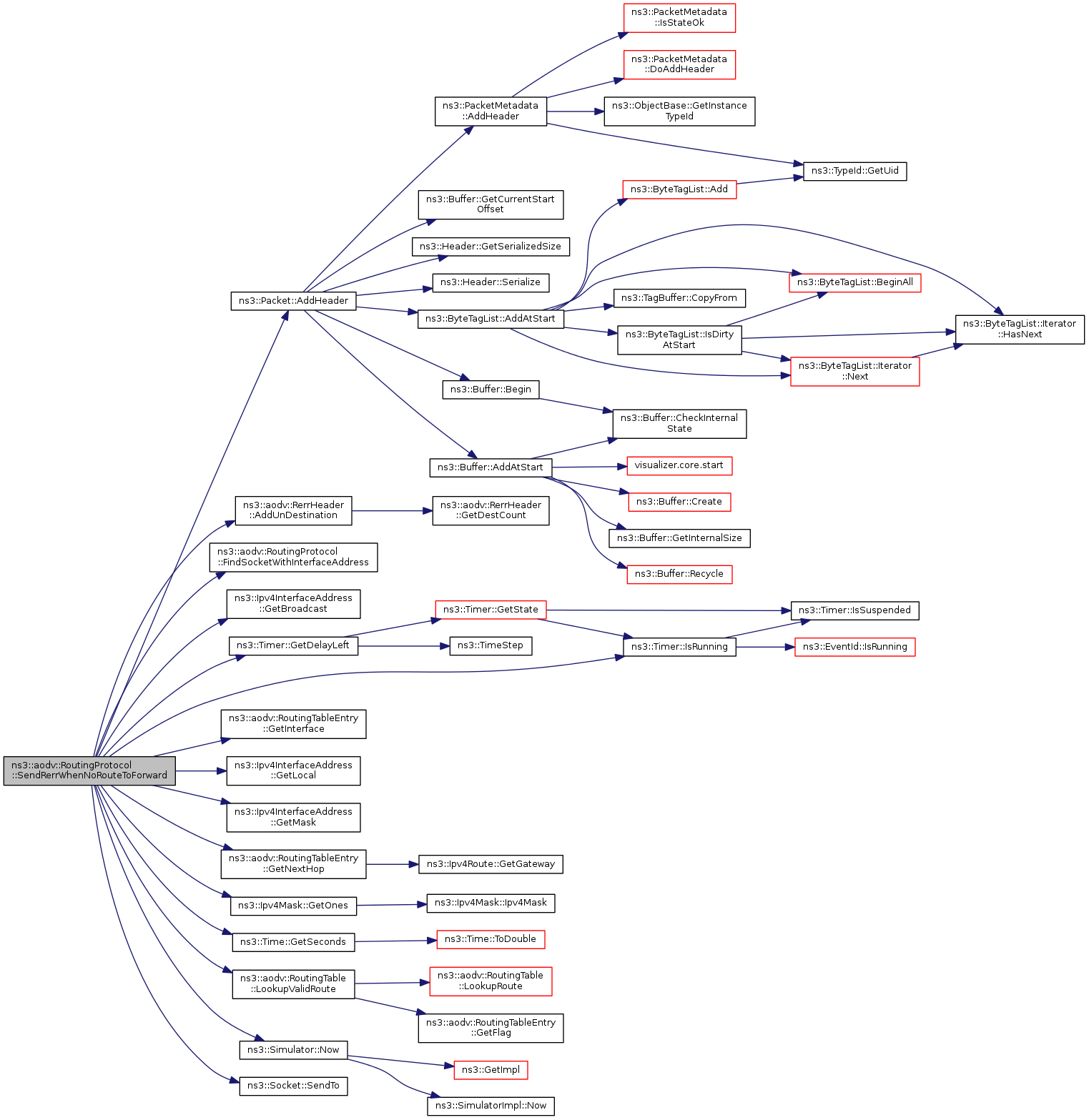

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetBroadcastEnable ( bool f )

inline

Definition at line 90 of file aodv-routing-protocol.h.

References EnableBroadcast.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetDesinationOnlyFlag ( bool f )

inline

Definition at line 85 of file aodv-routing-protocol.h.

References DestinationOnly.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetGratuitousReplyFlag ( bool f )

inline

Definition at line 87 of file aodv-routing-protocol.h.

References GratuitousReply.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetHelloEnable ( bool f )

inline

Definition at line 88 of file aodv-routing-protocol.h.

References EnableHello.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetIpv4 ( Ptr< Ipv4 > ipv4 )

virtual

Parameters

ipv4	the ipv4 object this routing protocol is being associated with

Typically, invoked directly or indirectly from ns3::Ipv4::SetRoutingProtocol

Implements ns3::Ipv4RoutingProtocol.

Definition at line 577 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTable::AddRoute(), EnableHello, ns3::Ipv4::GetAddress(), ns3::UniformRandomVariable::GetInteger(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4Address::GetLoopback(), ns3::Simulator::GetMaximumSimulationTime(), ns3::Ipv4::GetNetDevice(), ns3::Ipv4::GetNInterfaces(), HelloTimerExpire(), m_htimer, m_ipv4, m_lo, m_routingTable, m_uniformRandomVariable, ns3::MilliSeconds(), NS_ASSERT, ns3::Timer::Schedule(), ns3::Simulator::ScheduleNow(), ns3::Timer::SetFunction(), and Start().

Here is the call graph for this function:

void ns3::aodv::RoutingProtocol::SetMaxQueueLen ( uint32_t len )

Definition at line 268 of file aodv-routing-protocol.cc.

References m_queue, MaxQueueLen, and ns3::aodv::RequestQueue::SetMaxQueueLen().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingProtocol::SetMaxQueueTime ( Time t )

Definition at line 274 of file aodv-routing-protocol.cc.

References m_queue, MaxQueueTime, and ns3::aodv::RequestQueue::SetQueueTimeout().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

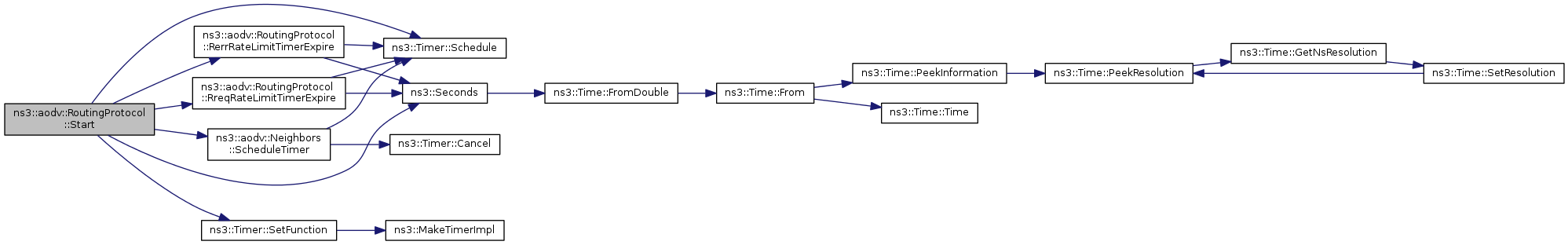

void ns3::aodv::RoutingProtocol::Start ( void )

private

Start protocol operation.

Definition at line 313 of file aodv-routing-protocol.cc.

References EnableHello, m_nb, m_rerrRateLimitTimer, m_rreqRateLimitTimer, NS_LOG_FUNCTION, RerrRateLimitTimerExpire(), RreqRateLimitTimerExpire(), ns3::Timer::Schedule(), ns3::aodv::Neighbors::ScheduleTimer(), ns3::Seconds(), and ns3::Timer::SetFunction().

Referenced by SetIpv4().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingProtocol::UpdateRouteLifeTime	(	Ipv4Address	addr,
		Time	lt
	)

private

Set lifetime field in routing table entry to the maximum of existing lifetime and lt, if the entry exists

Parameters

addr	- destination address
lt	- proposed time for lifetime field in routing table entry for destination with address addr.

Returns: true if route to destination address addr exist

Definition at line 984 of file aodv-routing-protocol.cc.

References ns3::aodv::RoutingTableEntry::GetFlag(), ns3::aodv::RoutingTableEntry::GetLifeTime(), ns3::aodv::RoutingTable::LookupRoute(), m_routingTable, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::aodv::RoutingTableEntry::SetLifeTime(), ns3::aodv::RoutingTableEntry::SetRreqCnt(), ns3::aodv::RoutingTable::Update(), and ns3::aodv::VALID.

Referenced by Forwarding(), RouteInput(), and RouteOutput().

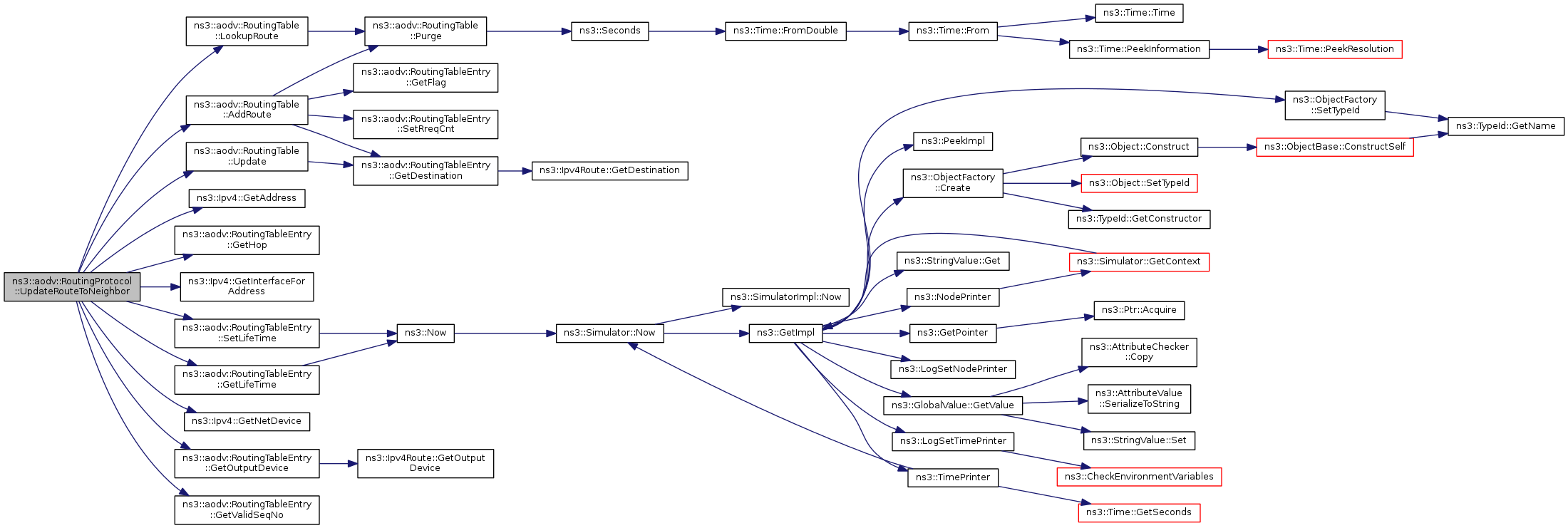

Here is the call graph for this function:

Here is the caller graph for this function:

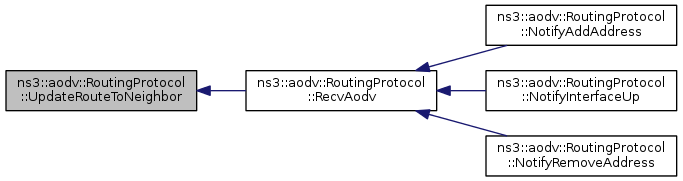

void ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor	(	Ipv4Address	sender,
		Ipv4Address	receiver
	)

private

Update neighbor record.

Parameters

receiver	is supposed to be my interface
sender	is supposed to be IP address of my neighbor.

Definition at line 1003 of file aodv-routing-protocol.cc.

Referenced by RecvAodv().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Time ns3::aodv::RoutingProtocol::ActiveRouteTimeout

private

Period of time during which the route is considered to be valid.

Definition at line 110 of file aodv-routing-protocol.h.

Referenced by Forwarding(), GetTypeId(), RecvReply(), RouteInput(), RouteOutput(), and UpdateRouteToNeighbor().

uint32_t ns3::aodv::RoutingProtocol::AllowedHelloLoss

private

Number of hello messages which may be loss for valid link.

Definition at line 125 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), ProcessHello(), and SendHello().

const uint32_t ns3::aodv::RoutingProtocol::AODV_PORT = 654

static

UDP Port for AODV control traffic.

Definition at line 57 of file aodv-routing-protocol.h.

Referenced by NotifyAddAddress(), NotifyInterfaceUp(), NotifyRemoveAddress(), RecvReply(), RecvRequest(), SendHello(), SendReply(), SendReplyAck(), SendReplyByIntermediateNode(), SendRequest(), SendRerrMessage(), and SendRerrWhenNoRouteToForward().

Time ns3::aodv::RoutingProtocol::BlackListTimeout

private

Time for which the node is put into the blacklist.

Definition at line 137 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and SendReplyByIntermediateNode().

Time ns3::aodv::RoutingProtocol::DeletePeriod

private

DeletePeriod is intended to provide an upper bound on the time for which an upstream node A can have a neighbor B as an active next hop for destination D, while B has invalidated the route to D.

Definition at line 130 of file aodv-routing-protocol.h.

Referenced by GetTypeId().

bool ns3::aodv::RoutingProtocol::DestinationOnly

private

Indicates only the destination may respond to this RREQ.

Definition at line 140 of file aodv-routing-protocol.h.

Referenced by GetDesinationOnlyFlag(), SendRequest(), and SetDesinationOnlyFlag().

bool ns3::aodv::RoutingProtocol::EnableBroadcast

private

Indicates whether a a broadcast data packets forwarding enable.

Definition at line 143 of file aodv-routing-protocol.h.

Referenced by GetBroadcastEnable(), RouteInput(), and SetBroadcastEnable().

bool ns3::aodv::RoutingProtocol::EnableHello

private

Indicates whether a hello messages enable.

Definition at line 142 of file aodv-routing-protocol.h.

Referenced by GetHelloEnable(), ProcessHello(), RecvRequest(), RoutingProtocol(), SendRequest(), SetHelloEnable(), SetIpv4(), and Start().

bool ns3::aodv::RoutingProtocol::GratuitousReply

private

Indicates whether a gratuitous RREP should be unicast to the node originated route discovery.

Definition at line 141 of file aodv-routing-protocol.h.

Referenced by GetGratuitousReplyFlag(), SendRequest(), and SetGratuitousReplyFlag().

Time ns3::aodv::RoutingProtocol::HelloInterval

private

Every HelloInterval the node checks whether it has sent a broadcast within the last HelloInterval. If it has not, it MAY broadcast a Hello message

Definition at line 124 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), HelloTimerExpire(), ProcessHello(), RecvRequest(), SendHello(), and SendRequest().

std::map<Ipv4Address, Timer> ns3::aodv::RoutingProtocol::m_addressReqTimer

private

Map IP address + RREQ timer.

Definition at line 264 of file aodv-routing-protocol.h.

Referenced by RecvReply(), RouteRequestTimerExpire(), and ScheduleRreqRetry().

DuplicatePacketDetection ns3::aodv::RoutingProtocol::m_dpd

private

Handle duplicated broadcast/multicast packets.

Definition at line 164 of file aodv-routing-protocol.h.

Referenced by RouteInput().

Timer ns3::aodv::RoutingProtocol::m_htimer

private

Hello timer.

Definition at line 252 of file aodv-routing-protocol.h.

Referenced by HelloTimerExpire(), NotifyInterfaceDown(), NotifyRemoveAddress(), RecvRequest(), SendRequest(), and SetIpv4().

Ptr<Ipv4> ns3::aodv::RoutingProtocol::m_ipv4

private

IP protocol.

Definition at line 147 of file aodv-routing-protocol.h.

Referenced by DoDispose(), LoopbackRoute(), NotifyAddAddress(), NotifyInterfaceDown(), NotifyInterfaceUp(), NotifyRemoveAddress(), PrintRoutingTable(), ProcessHello(), RecvReply(), RecvRequest(), RouteInput(), RouteOutput(), SendPacketFromQueue(), SetIpv4(), and UpdateRouteToNeighbor().

Ptr<NetDevice> ns3::aodv::RoutingProtocol::m_lo

private

Loopback device used to defer RREQ until packet will be fully formed.

Definition at line 151 of file aodv-routing-protocol.h.

Referenced by LoopbackRoute(), RouteInput(), and SetIpv4().

Neighbors ns3::aodv::RoutingProtocol::m_nb

private

Handle neighbors.

Definition at line 166 of file aodv-routing-protocol.h.

Referenced by Forwarding(), NotifyInterfaceDown(), NotifyInterfaceUp(), NotifyRemoveAddress(), ProcessHello(), RouteInput(), RoutingProtocol(), and Start().

RequestQueue ns3::aodv::RoutingProtocol::m_queue

private

A "drop-front" queue used by the routing layer to buffer packets to which it does not have a route.

Definition at line 156 of file aodv-routing-protocol.h.

Referenced by DeferredRouteOutput(), RouteRequestTimerExpire(), SendPacketFromQueue(), SetMaxQueueLen(), and SetMaxQueueTime().

uint32_t ns3::aodv::RoutingProtocol::m_requestId

private

Broadcast ID.

Definition at line 158 of file aodv-routing-protocol.h.

Referenced by SendRequest().

uint16_t ns3::aodv::RoutingProtocol::m_rerrCount

private

Number of RERRs used for RERR rate control.

Definition at line 170 of file aodv-routing-protocol.h.

Referenced by RerrRateLimitTimerExpire(), SendRerrMessage(), and SendRerrWhenNoRouteToForward().

Timer ns3::aodv::RoutingProtocol::m_rerrRateLimitTimer

private

RERR rate limit timer.

Definition at line 260 of file aodv-routing-protocol.h.

Referenced by RerrRateLimitTimerExpire(), SendRerrMessage(), SendRerrWhenNoRouteToForward(), and Start().

RoutingTable ns3::aodv::RoutingProtocol::m_routingTable

private

uint16_t ns3::aodv::RoutingProtocol::m_rreqCount

private

Number of RREQs used for RREQ rate control.

Definition at line 168 of file aodv-routing-protocol.h.

Referenced by RreqRateLimitTimerExpire(), and SendRequest().

IdCache ns3::aodv::RoutingProtocol::m_rreqIdCache

private

Handle duplicated RREQ.

Definition at line 162 of file aodv-routing-protocol.h.

Referenced by RecvRequest(), and SendRequest().

Timer ns3::aodv::RoutingProtocol::m_rreqRateLimitTimer

private

RREQ rate limit timer.

Definition at line 256 of file aodv-routing-protocol.h.

Referenced by RreqRateLimitTimerExpire(), SendRequest(), and Start().

uint32_t ns3::aodv::RoutingProtocol::m_seqNo

private

Request sequence number.

Definition at line 160 of file aodv-routing-protocol.h.

Referenced by SendHello(), SendReply(), and SendRequest().

std::map< Ptr<Socket>, Ipv4InterfaceAddress > ns3::aodv::RoutingProtocol::m_socketAddresses

private

Raw socket per each IP interface, map socket -> iface address (IP + mask)

Definition at line 149 of file aodv-routing-protocol.h.

Referenced by DoDispose(), FindSocketWithInterfaceAddress(), IsMyOwnAddress(), LoopbackRoute(), NotifyAddAddress(), NotifyInterfaceDown(), NotifyInterfaceUp(), NotifyRemoveAddress(), RecvAodv(), RecvRequest(), RouteInput(), RouteOutput(), SendHello(), SendRequest(), and SendRerrWhenNoRouteToForward().

Ptr<UniformRandomVariable> ns3::aodv::RoutingProtocol::m_uniformRandomVariable

private

Provides uniform random variables.

Definition at line 271 of file aodv-routing-protocol.h.

Referenced by AssignStreams(), GetTypeId(), HelloTimerExpire(), RecvRequest(), SendRequest(), and SetIpv4().

uint32_t ns3::aodv::RoutingProtocol::MaxQueueLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 138 of file aodv-routing-protocol.h.

Referenced by GetMaxQueueLen(), and SetMaxQueueLen().

Time ns3::aodv::RoutingProtocol::MaxQueueTime

private

The maximum period of time that a routing protocol is allowed to buffer a packet for.

Definition at line 139 of file aodv-routing-protocol.h.

Referenced by GetMaxQueueTime(), and SetMaxQueueTime().

Time ns3::aodv::RoutingProtocol::MyRouteTimeout

private

Value of lifetime field in RREP generating by this node.

Definition at line 119 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and SendReply().

uint32_t ns3::aodv::RoutingProtocol::NetDiameter

private

Net diameter measures the maximum possible number of hops between two nodes in the network.

Definition at line 111 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and RouteRequestTimerExpire().

Time ns3::aodv::RoutingProtocol::NetTraversalTime

private

Estimate of the average net traversal time.

Definition at line 117 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), RecvRequest(), and ScheduleRreqRetry().

Time ns3::aodv::RoutingProtocol::NextHopWait

private

Period of our waiting for the neighbour's RREP_ACK.

Definition at line 131 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and SendReplyByIntermediateNode().

Time ns3::aodv::RoutingProtocol::NodeTraversalTime

private

NodeTraversalTime is a conservative estimate of the average one hop traversal time for packets and should include queuing delays, interrupt processing times and transfer times.

Definition at line 116 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and RecvRequest().

Time ns3::aodv::RoutingProtocol::PathDiscoveryTime

private

Estimate of maximum time needed to find route in network.

Definition at line 118 of file aodv-routing-protocol.h.

Referenced by GetTypeId().

uint16_t ns3::aodv::RoutingProtocol::RerrRateLimit

private

Maximum number of REER per second.

Definition at line 109 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), SendRerrMessage(), and SendRerrWhenNoRouteToForward().

uint16_t ns3::aodv::RoutingProtocol::RreqRateLimit

private

Maximum number of RREQ per second.

Definition at line 108 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and SendRequest().

uint32_t ns3::aodv::RoutingProtocol::RreqRetries

private

Maximum number of retransmissions of RREQ with TTL = NetDiameter to discover a route.

Definition at line 107 of file aodv-routing-protocol.h.

Referenced by GetTypeId(), and RouteRequestTimerExpire().

uint16_t ns3::aodv::RoutingProtocol::TimeoutBuffer

private

The TimeoutBuffer is configurable. Its purpose is to provide a buffer for the timeout so that if the RREP is delayed due to congestion, a timeout is less likely to occur while the RREP is still en route back to the source.

Definition at line 136 of file aodv-routing-protocol.h.

Referenced by GetTypeId().

The documentation for this class was generated from the following files:

src/aodv/model/aodv-routing-protocol.h
src/aodv/model/aodv-routing-protocol.cc

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
