Dsr Option Route Reply. More...

#include <dsr-options.h>

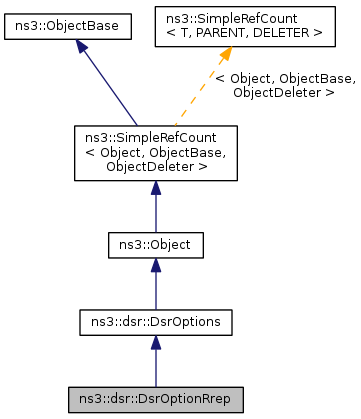

Inheritance diagram for ns3::dsr::DsrOptionRrep:

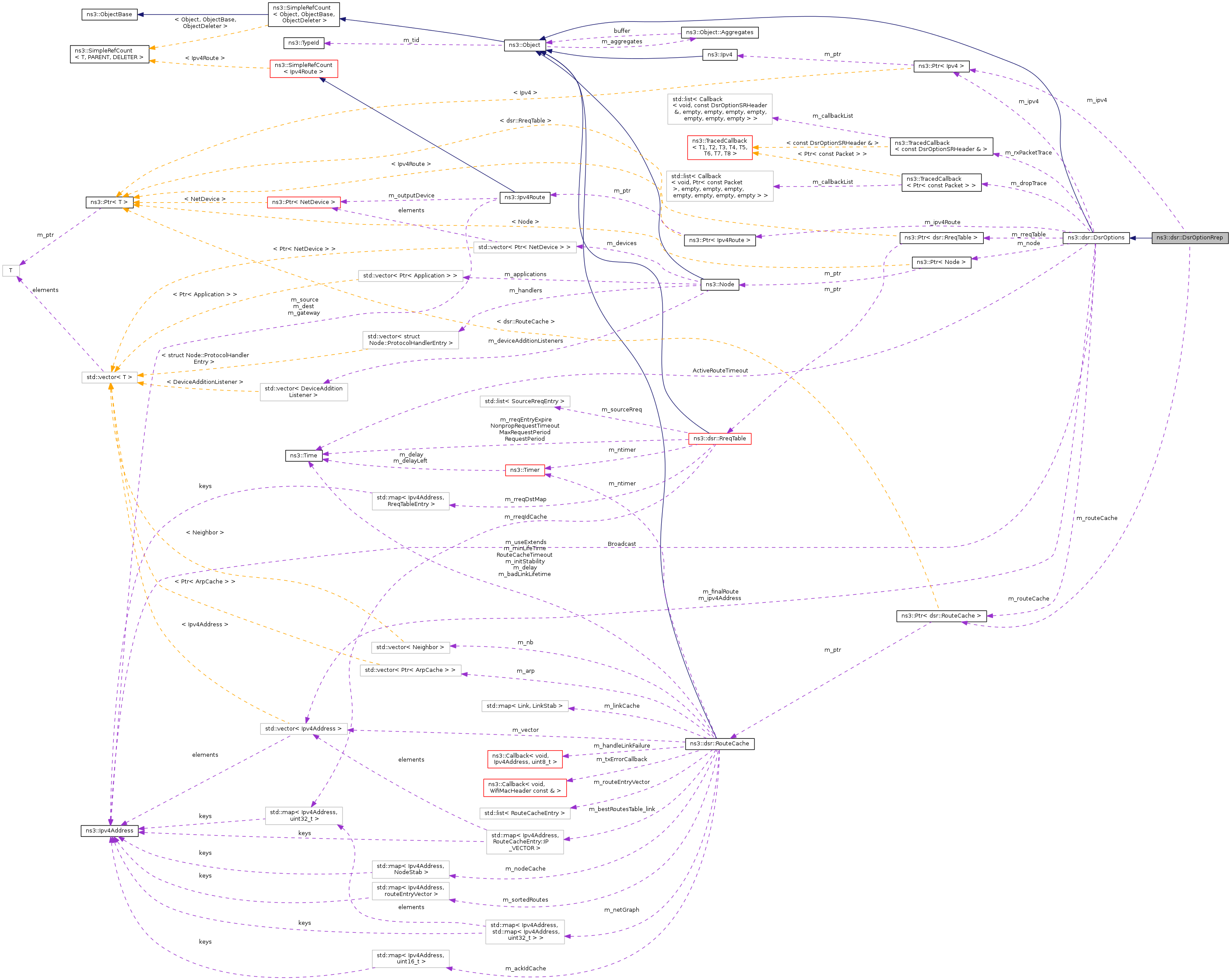

Collaboration diagram for ns3::dsr::DsrOptionRrep:

Public Member Functions
	DsrOptionRrep ()
	Constructor.
virtual	~DsrOptionRrep ()
	Destructor.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint8_t	GetOptionNumber () const
	Get the option number.
virtual uint8_t	Process (Ptr< Packet > packet, Ptr< Packet > dsrP, Ipv4Address ipv4Address, Ipv4Address source, Ipv4Header const &ipv4Header, uint8_t protocol, bool &isPromisc)
	Process method.
Public Member Functions inherited from ns3::dsr::DsrOptions
	DsrOptions ()
	Constructor.
virtual	~DsrOptions ()
	Destructor.
bool	CheckDuplicates (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
bool	ContainAddressAfter (Ipv4Address ipv4Address, Ipv4Address destAddress, std::vector< Ipv4Address > &nodeList)
	Search for the ipv4 address in the node list.
std::vector< Ipv4Address >	CutRoute (Ipv4Address ipv4Address, std::vector< Ipv4Address > &nodeList)
	Cut the route from ipv4Address to the end of the route vector.
uint32_t	GetIDfromIP (Ipv4Address address)
Ptr< Node >	GetNode () const
	Get the node.
Ptr< Node >	GetNodeWithAddress (Ipv4Address ipv4Address)
bool	IfDuplicates (std::vector< Ipv4Address > &vec, std::vector< Ipv4Address > &vec2)
void	PrintVector (std::vector< Ipv4Address > &vec)
void	RemoveDuplicates (std::vector< Ipv4Address > &vec)
bool	ReverseRoutes (std::vector< Ipv4Address > &vec)
	Reverse the routes.
Ipv4Address	ReverseSearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
void	ScheduleReply (Ptr< Packet > &packet, std::vector< Ipv4Address > &nodeList, Ipv4Address &source, Ipv4Address &destination)
Ipv4Address	SearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
void	SetNode (Ptr< Node > node)
	Set the node.
virtual Ptr< Ipv4Route >	SetRoute (Ipv4Address nextHop, Ipv4Address srcAddress)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Static Public Attributes
static const uint8_t	OPT_NUMBER = 2
	Router alert option number.

Private Attributes
Ptr< Ipv4 >	m_ipv4
	The ip layer 3.
uint32_t	m_length
	The length of the packet.
Ptr< dsr::RouteCache >	m_routeCache
	The route cache.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::dsr::DsrOptions
Time	ActiveRouteTimeout
	The active route timeout value.
Ipv4Address	Broadcast
	The broadcast IP address.
TracedCallback< Ptr< const Packet > >	m_dropTrace
	Drop trace callback.
std::vector< Ipv4Address >	m_finalRoute
	The vector of final Ipv4 address.
Ptr< Ipv4 >	m_ipv4
	The ipv4.
std::vector< Ipv4Address >	m_ipv4Address
	The vector of Ipv4 address.
Ptr< Ipv4Route >	m_ipv4Route
	The ipv4 route.
Ptr< dsr::RouteCache >	m_routeCache
	The route cache table.
Ptr< dsr::RreqTable >	m_rreqTable
	The route request table.
TracedCallback< const DsrOptionSRHeader & >	m_rxPacketTrace

Detailed Description

Dsr Option Route Reply.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

TraceSources defined in parent class ns3::dsr::DsrOptions

Rx: Receive DSR packet.

Definition at line 380 of file dsr-options.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionRrep::DsrOptionRrep ( )

Constructor.

Definition at line 916 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::dsr::DsrOptionRrep::~DsrOptionRrep ( )

virtual

Destructor.

Definition at line 921 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

TypeId ns3::dsr::DsrOptionRrep::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Object.

Definition at line 926 of file dsr-options.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::dsr::DsrOptionRrep::GetOptionNumber ( ) const

virtual

Get the option number.

Returns: option number

Implements ns3::dsr::DsrOptions.

Definition at line 931 of file dsr-options.cc.

References NS_LOG_FUNCTION_NOARGS, and OPT_NUMBER.

TypeId ns3::dsr::DsrOptionRrep::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Reimplemented from ns3::dsr::DsrOptions.

Definition at line 907 of file dsr-options.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrOptionRrep::Process	(	Ptr< Packet >	packet,
		Ptr< Packet >	dsrP,
		Ipv4Address	ipv4Address,
		Ipv4Address	source,
		Ipv4Header const &	ipv4Header,
		uint8_t	protocol,
		bool &	isPromisc
	)

virtual

Process method.

Called from DsrRouting::Receive.

Parameters

packet	the packet
dsrP	the clean packet with payload
ipv4Header	the IPv4 header of packet received
protocol	the protocol number of the up layer
isPromisc	if the packet must be dropped

Returns: the processed size

Get the destination address, which is the last element in the nodeList

Get the destination address for the data packet, which is the last element in the nodeList

Add the newly found route to the route cache The route looks like: \ "srcAddress" + "intermediate node address" + "targetAddress"

Found a route the dst, construct the source route option header

Schedule the packet retry

Implements ns3::dsr::DsrOptions.

Definition at line 938 of file dsr-options.cc.

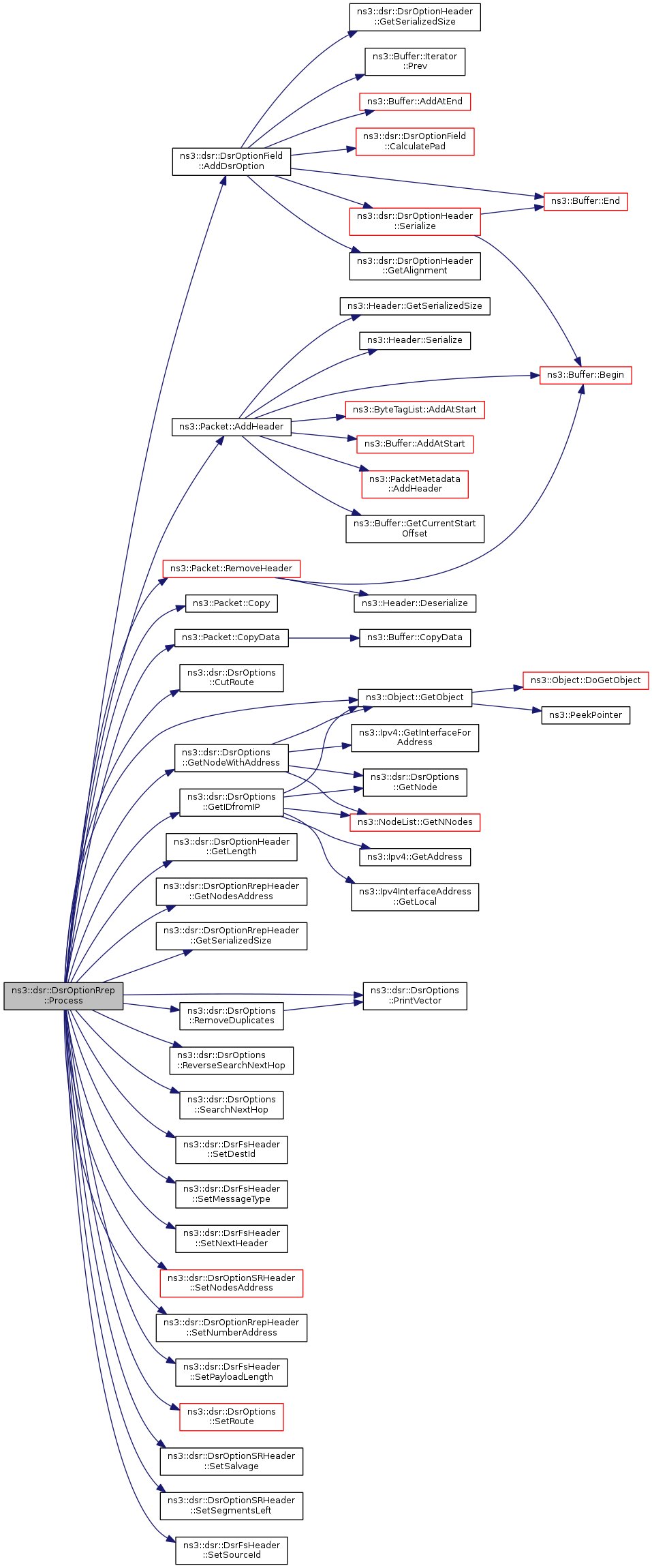

Here is the call graph for this function:

Member Data Documentation

Ptr<Ipv4> ns3::dsr::DsrOptionRrep::m_ipv4

private

The ip layer 3.

Definition at line 435 of file dsr-options.h.

uint32_t ns3::dsr::DsrOptionRrep::m_length

private

The length of the packet.

Definition at line 431 of file dsr-options.h.

Ptr<dsr::RouteCache> ns3::dsr::DsrOptionRrep::m_routeCache

private

The route cache.

Definition at line 427 of file dsr-options.h.

const uint8_t ns3::dsr::DsrOptionRrep::OPT_NUMBER = 2

static

Router alert option number.

Definition at line 386 of file dsr-options.h.

Referenced by GetOptionNumber().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-options.h
src/dsr/model/dsr-options.cc
