A trace based streamer. More...

#include <udp-trace-client.h>

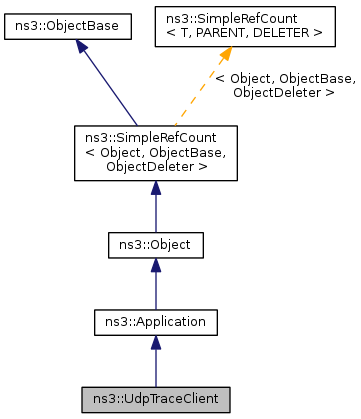

Inheritance diagram for ns3::UdpTraceClient:

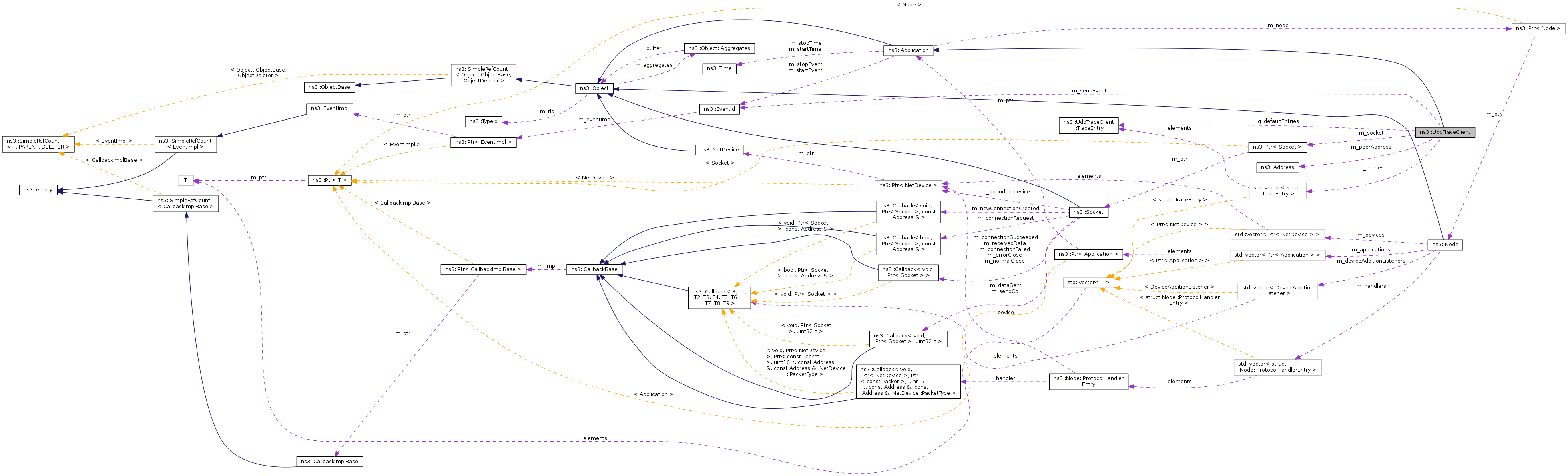

Collaboration diagram for ns3::UdpTraceClient:

Classes
struct	TraceEntry

Public Member Functions
	UdpTraceClient ()
	creates a traceBasedStreamer application
	UdpTraceClient (Ipv4Address ip, uint16_t port, char *traceFile)
	creates a traceBasedStreamer application
	~UdpTraceClient ()
uint16_t	GetMaxPacketSize (void)
void	SetMaxPacketSize (uint16_t maxPacketSize)
void	SetRemote (Address ip, uint16_t port)
	set the destination IP address and port
void	SetRemote (Ipv4Address ip, uint16_t port)
void	SetRemote (Ipv6Address ip, uint16_t port)
void	SetTraceFile (std::string filename)
	set the trace file to be used by the application
Public Member Functions inherited from ns3::Application
	Application ()
virtual	~Application ()
Ptr< Node >	GetNode () const
void	SetNode (Ptr< Node > node)
void	SetStartTime (Time start)
	Specify application start time.
void	SetStopTime (Time stop)
	Specify application stop time.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose (void)
Protected Member Functions inherited from ns3::Application
virtual void	DoStart (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)

Private Member Functions
void	LoadDefaultTrace (void)
void	LoadTrace (std::string filename)
void	ScheduleTransmit (Time dt)
void	Send (void)
void	SendPacket (uint32_t size)
virtual void	StartApplication (void)
virtual void	StopApplication (void)

Private Attributes
uint32_t	m_currentEntry
std::vector< struct TraceEntry >	m_entries
uint16_t	m_maxPacketSize
Address	m_peerAddress
uint16_t	m_peerPort
EventId	m_sendEvent
uint32_t	m_sent
Ptr< Socket >	m_socket

Static Private Attributes
static struct TraceEntry	g_defaultEntries []

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
EventId	m_startEvent
Time	m_startTime
EventId	m_stopEvent
Time	m_stopTime

Detailed Description

A trace based streamer.

Config Paths

ns3::UdpTraceClient is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::UdpTraceClient

Attributes

RemoteAddress: The destination Address of the outbound packets
- Set with class: AddressValue
- Underlying type: Address
- Initial value: 00-00-00
- Flags: construct write read
RemotePort: The destination port of the outbound packets
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 100
- Flags: construct write read
MaxPacketSize: The maximum size of a packet.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1024
- Flags: construct write read
TraceFilename: Name of file to load a trace from. By default, uses a hardcoded trace.
- Set with class: StringValue
- Underlying type: std::string
- Initial value:
- Flags: construct write

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read

No TraceSources are defined for this type.

sends udp packets based on a trace file of an MPEG4 stream trace files could be downloaded form : http://www.tkn.tu-berlin.de/research/trace/ltvt.html (the 2 first lines of the file should be removed) A valid trace file is a file with 4 columns: -1- the first one represents the frame index -2- the second one indicates the type of the frame: I, P or B -3- the third one indicates the time on which the frame was generated by the encoder -4- the fourth one indicates the frame size in byte if no valid MPEG4 trace file is provided to the application the trace from g_defaultEntries array will be loaded.

Definition at line 43 of file udp-trace-client.cc.

Constructor & Destructor Documentation

ns3::UdpTraceClient::UdpTraceClient ( )

creates a traceBasedStreamer application

Definition at line 87 of file udp-trace-client.cc.

References m_maxPacketSize, m_sendEvent, m_sent, m_socket, and NS_LOG_FUNCTION.

ns3::UdpTraceClient::UdpTraceClient	(	Ipv4Address	ip,
		uint16_t	port,
		char *	traceFile
	)

creates a traceBasedStreamer application

Parameters

ip	the destination ip address to which the stream will be sent
port	the destination udp port to which the stream will be sent
traceFile	a path to an MPEG4 trace file formatted as follows: FrameNo Frametype Time[ms] Length [byte] FrameNo Frametype Time[ms] Length [byte] ...

Definition at line 96 of file udp-trace-client.cc.

References m_currentEntry, m_maxPacketSize, m_peerAddress, m_peerPort, m_sendEvent, m_sent, m_socket, NS_LOG_FUNCTION, port, and SetTraceFile().

Here is the call graph for this function:

ns3::UdpTraceClient::~UdpTraceClient ( )

Definition at line 113 of file udp-trace-client.cc.

References m_entries, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::UdpTraceClient::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 176 of file udp-trace-client.cc.

References NS_LOG_FUNCTION.

uint16_t ns3::UdpTraceClient::GetMaxPacketSize ( void )
