ns3::ApWifiMac Class Reference
Wifi Models

Wi-Fi AP state machineHandle association, dis-association and authentication, of STAs within an infrastructure BSS. More...

#include <ap-wifi-mac.h>

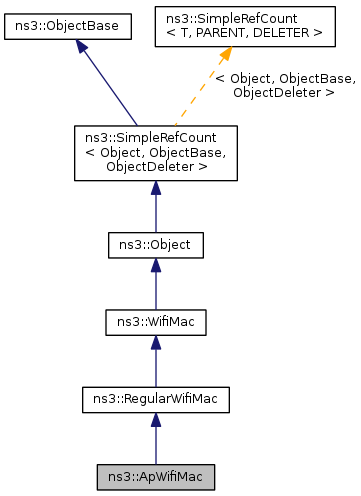

+ Inheritance diagram for ns3::ApWifiMac:

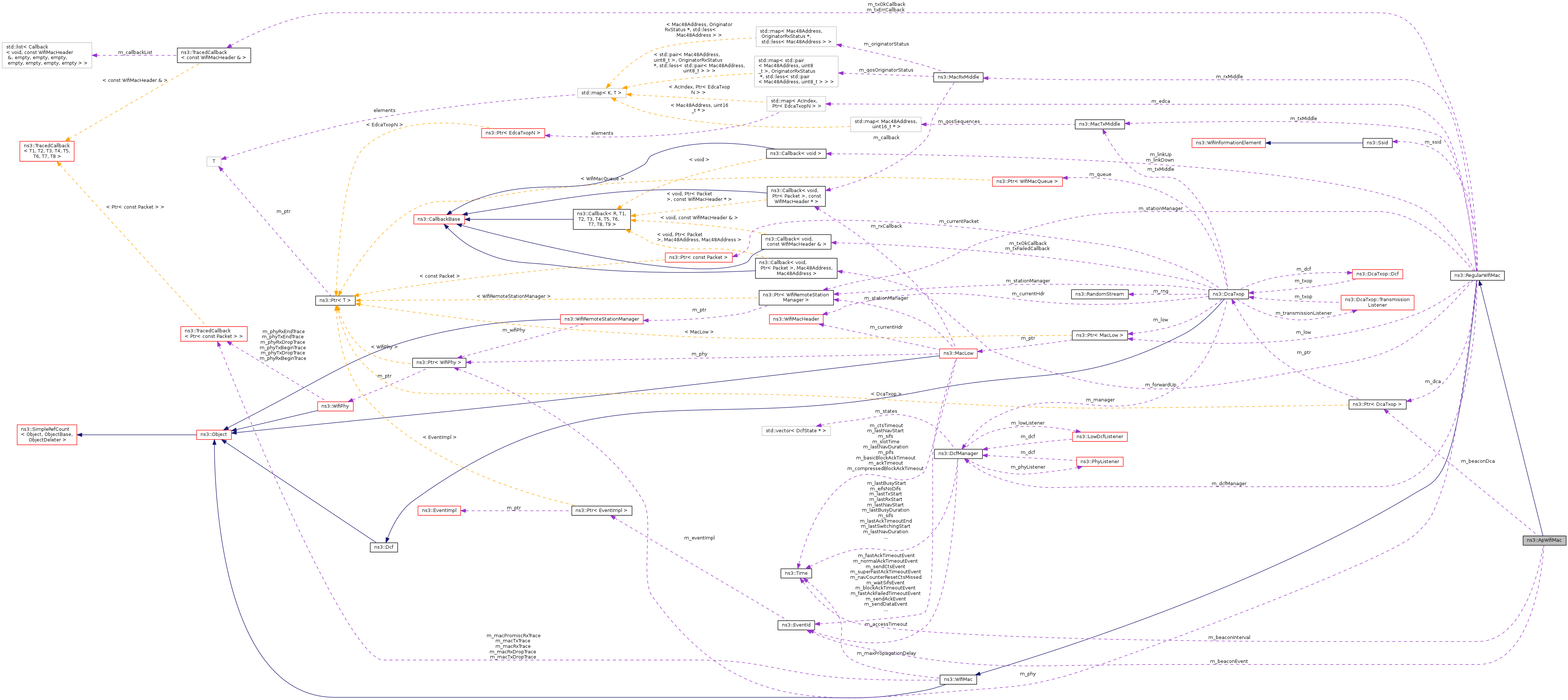

+ Collaboration diagram for ns3::ApWifiMac:

Public Member Functions

 ApWifiMac ()
virtual ~ApWifiMac ()
virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to)
virtual void Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)
Time GetBeaconInterval (void) const
virtual void SetAddress (Mac48Address address)
void SetBeaconInterval (Time interval)
virtual void SetLinkUpCallback (Callback< void > linkUp)
virtual void SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)
void StartBeaconing (void)
virtual bool SupportsSendFrom (void) const
- Public Member Functions inherited from ns3::RegularWifiMac
 RegularWifiMac ()
virtual ~RegularWifiMac ()
Time GetAckTimeout (void) const
virtual Mac48Address GetAddress (void) const
virtual Time GetBasicBlockAckTimeout (void) const
virtual Mac48Address GetBssid (void) const
virtual Time GetCompressedBlockAckTimeout (void) const
Time GetCtsTimeout (void) const
Time GetEifsNoDifs (void) const
Time GetPifs (void) const
Time GetSifs (void) const
Time GetSlot (void) const
virtual Ssid GetSsid (void) const
virtual Ptr< WifiPhy > GetWifiPhy () const
virtual Ptr
< WifiRemoteStationManager > 		GetWifiRemoteStationManager () const
void SetAckTimeout (Time ackTimeout)
virtual void SetBasicBlockAckTimeout (Time blockAckTimeout)
virtual void SetBssid (Mac48Address bssid)
virtual void SetCompressedBlockAckTimeout (Time blockAckTimeout)
void SetCtsTimeout (Time ctsTimeout)
void SetEifsNoDifs (Time eifsNoDifs)
virtual void SetForwardUpCallback (ForwardUpCallback upCallback)
virtual void SetLinkDownCallback (Callback< void > linkDown)
void SetPifs (Time pifs)
virtual void SetPromisc (void)
 Sets the interface in promiscuous mode.
void SetSifs (Time sifs)
void SetSlot (Time slotTime)
virtual void SetSsid (Ssid ssid)
virtual void SetWifiPhy (Ptr< WifiPhy > phy)
- Public Member Functions inherited from ns3::WifiMac
void ConfigureStandard (enum WifiPhyStandard standard)
Time GetMaxPropagationDelay (void) const
Time GetMsduLifetime (void) const
void NotifyPromiscRx (Ptr< const Packet > packet)
void NotifyRx (Ptr< const Packet > packet)
void NotifyRxDrop (Ptr< const Packet > packet)
void NotifyTx (Ptr< const Packet > packet)
void NotifyTxDrop (Ptr< const Packet > packet)
virtual void SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0
void SetMaxPropagationDelay (Time delay)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

virtual void DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
virtual void DoDispose (void)
virtual void DoInitialize (void)
void ForwardDown (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
void ForwardDown (Ptr< const Packet > packet, Mac48Address from, Mac48Address to, uint8_t tid)
bool GetBeaconGeneration (void) const
SupportedRates GetSupportedRates (void) const
virtual void Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
void SendAssocResp (Mac48Address to, bool success)
void SendOneBeacon (void)
void SendProbeResp (Mac48Address to)
void SetBeaconGeneration (bool enable)
virtual void TxFailed (const WifiMacHeader &hdr)
virtual void TxOk (const WifiMacHeader &hdr)

Private Attributes

Ptr< DcaTxop > m_beaconDca
EventId m_beaconEvent
Time m_beaconInterval
bool m_enableBeaconGeneration

Additional Inherited Members

- Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr
< Packet >, Mac48Address,
Mac48Address > 		ForwardUpCallback
- Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr
< EdcaTxopN > > 		EdcaQueues
- Protected Member Functions inherited from ns3::RegularWifiMac
virtual void DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
virtual void DoDispose ()
virtual void DoInitialize ()
virtual void FinishConfigureStandard (enum WifiPhyStandard standard)
void ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
bool GetQosSupported () const
virtual void Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
virtual void SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
void SetQosSupported (bool enable)
void SetTypeOfStation (TypeOfStation type)
virtual void TxFailed (const WifiMacHeader &hdr)
virtual void TxOk (const WifiMacHeader &hdr)
- Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxop > m_dca
DcfManager * m_dcfManager
EdcaQueues m_edca
ForwardUpCallback m_forwardUp
Callback< void > m_linkDown
Callback< void > m_linkUp
Ptr< MacLow > m_low
Ptr< WifiPhy > m_phy
bool m_qosSupported
MacRxMiddle * m_rxMiddle
Ssid m_ssid
Ptr< WifiRemoteStationManager > m_stationManager
MacTxMiddle * m_txMiddle

Detailed Description

Wi-Fi AP state machine

Handle association, dis-association and authentication, of STAs within an infrastructure BSS.

Config Paths

ns3::ApWifiMac is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::ApWifiMac
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::ApWifiMac

Attributes

  • BeaconInterval: Delay between two beacons
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +102400000.0ns
    • Flags: construct write read
  • BeaconGeneration: Whether or not beacons are generated.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read

Attributes defined in parent class ns3::RegularWifiMac

Attributes defined in parent class ns3::WifiMac

  • CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +75000.0ns
    • Flags: construct write read
  • AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +75000.0ns
    • Flags: construct write read
  • BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +281000.0ns
    • Flags: construct write read
  • CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +99000.0ns
    • Flags: construct write read
  • Sifs: The value of the SIFS constant.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +16000.0ns
    • Flags: construct write read
  • EifsNoDifs: The value of EIFS-DIFS
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +60000.0ns
    • Flags: construct write read
  • Slot: The duration of a Slot.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +9000.0ns
    • Flags: construct write read
  • Pifs: The value of the PIFS constant.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +25000.0ns
    • Flags: construct write read
  • MaxPropagationDelay: The maximum propagation delay. Unused for now.
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +3333.0ns
    • Flags: construct write read
  • Ssid: The ssid we want to belong to.
    • Set with class: SsidValue
    • Underlying type: Ssid
    • Initial value: default
    • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

  • TxOkHeader: The header of successfully transmitted packet
  • TxErrHeader: The header of unsuccessfully transmitted packet

TraceSources defined in parent class ns3::WifiMac

  • MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
  • MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
  • MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
  • MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
  • MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Definition at line 39 of file ap-wifi-mac.h.

Constructor & Destructor Documentation

ns3::ApWifiMac::ApWifiMac ( )

Definition at line 67 of file ap-wifi-mac.cc.

References ns3::AP, m_beaconDca, ns3::RegularWifiMac::m_dcfManager, m_enableBeaconGeneration, ns3::RegularWifiMac::m_low, NS_LOG_FUNCTION, ns3::DcaTxop::SetAifsn(), ns3::DcaTxop::SetLow(), ns3::DcaTxop::SetManager(), ns3::DcaTxop::SetMaxCw(), ns3::DcaTxop::SetMinCw(), and ns3::RegularWifiMac::SetTypeOfStation().

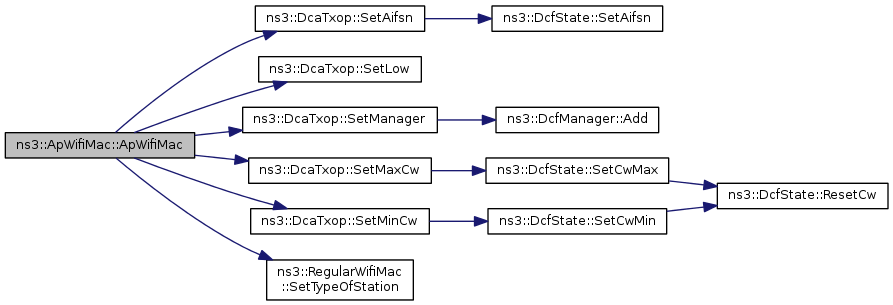

+ Here is the call graph for this function:

ns3::ApWifiMac::~ApWifiMac ( )
virtual

Definition at line 83 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::ApWifiMac::DeaggregateAmsduAndForward ( Ptr< Packet >  aggregatedPacket,
const WifiMacHeader *  hdr
)
privatevirtual

This method is called to de-aggregate an A-MSDU and forward the constituent packets up the stack. We override the WifiMac version here because, as an AP, we also need to think about redistributing to other associated STAs.

Parameters
aggregatedPacketthe Packet containing the A-MSDU.
hdra pointer to the MAC header for aggregatedPacket.

Definition at line 549 of file ap-wifi-mac.cc.

References ns3::MsduAggregator::Deaggregate(), ForwardDown(), ns3::RegularWifiMac::ForwardUp(), ns3::RegularWifiMac::GetAddress(), ns3::WifiMacHeader::GetQosTid(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by Receive().

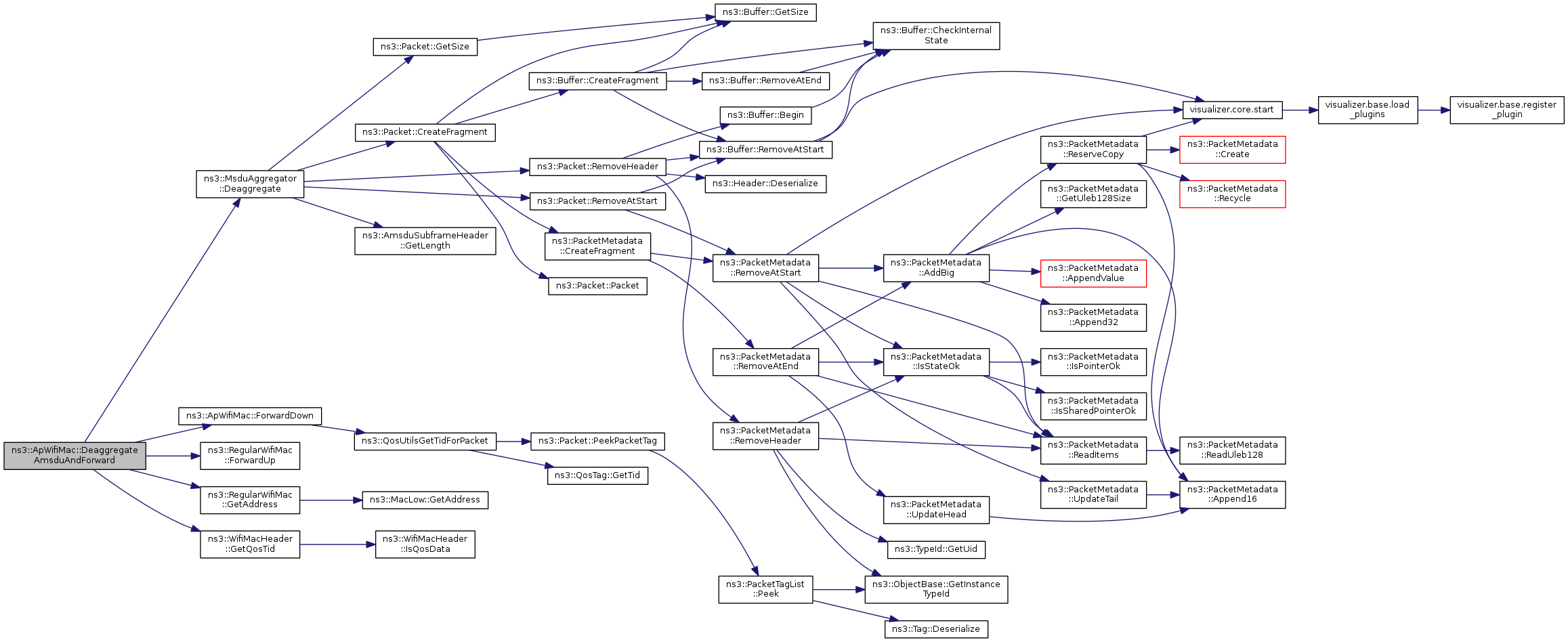

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::ApWifiMac::DoDispose ( void  )
privatevirtual

Definition at line 89 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), m_beaconDca, m_beaconEvent, m_enableBeaconGeneration, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::ApWifiMac::DoInitialize ( void  )
privatevirtual

Definition at line 575 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), ns3::Object::Initialize(), m_beaconDca, m_beaconEvent, m_enableBeaconGeneration, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SendOneBeacon().

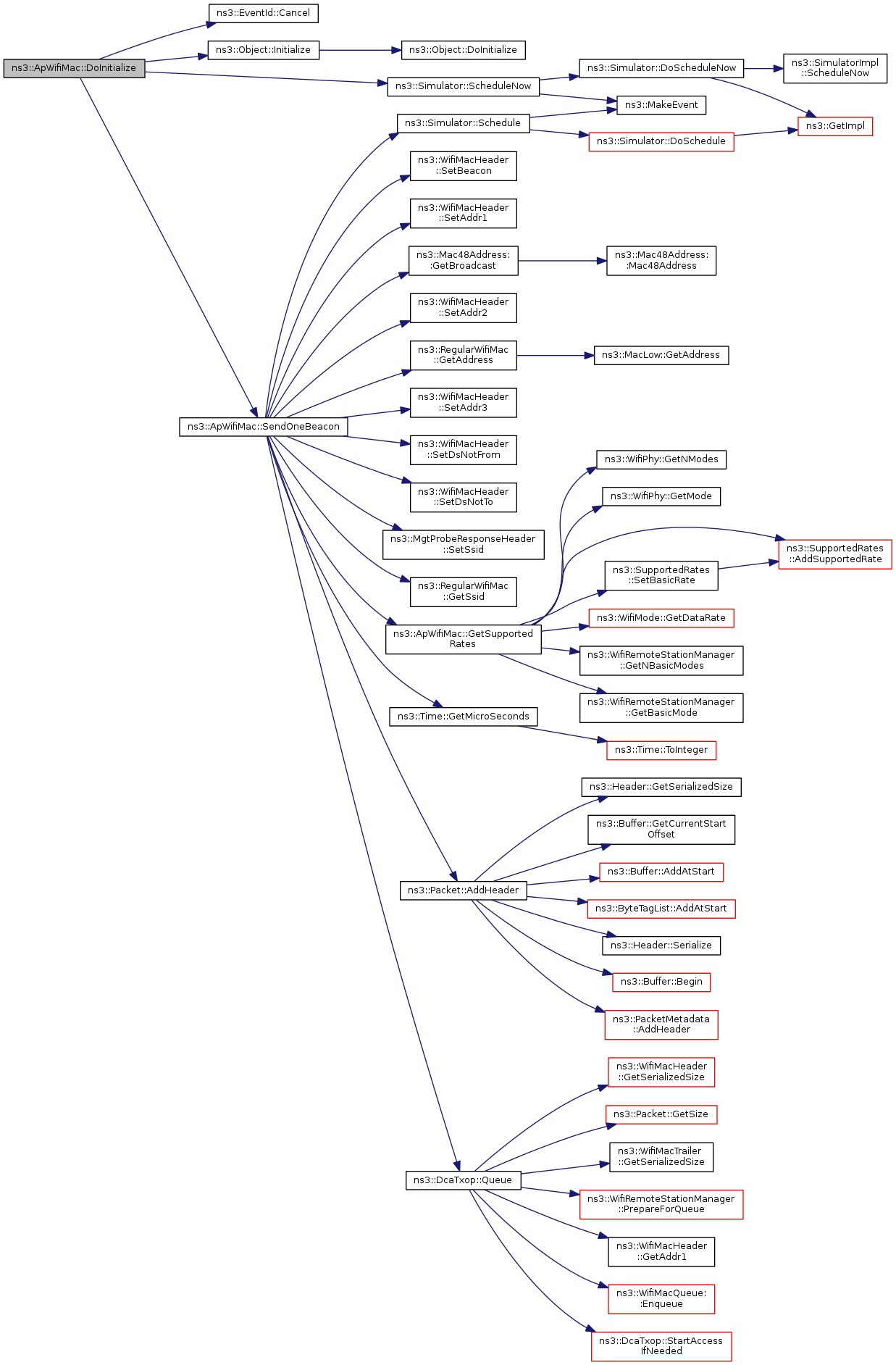

+ Here is the call graph for this function:

void ns3::ApWifiMac::Enqueue ( Ptr< const Packet >  packet,
Mac48Address  to
)
virtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 259 of file ap-wifi-mac.cc.

References ns3::MacLow::GetAddress(), ns3::RegularWifiMac::m_low, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::ApWifiMac::Enqueue ( Ptr< const Packet >  packet,
Mac48Address  to,
Mac48Address  from
)
virtual
Parameters
packetthe packet to send.
tothe address to which the packet should be sent.
fromthe address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Reimplemented from ns3::RegularWifiMac.

Definition at line 249 of file ap-wifi-mac.cc.

References ForwardDown(), ns3::WifiRemoteStationManager::IsAssociated(), ns3::Mac48Address::IsBroadcast(), ns3::RegularWifiMac::m_stationManager, and NS_LOG_FUNCTION.

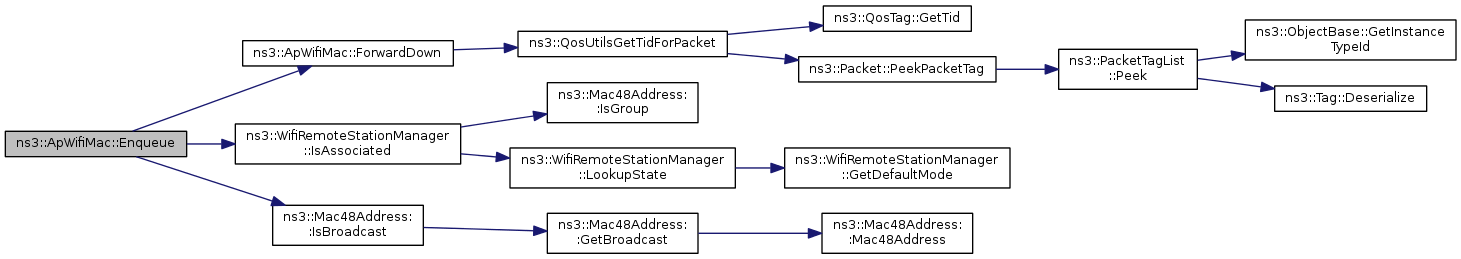

+ Here is the call graph for this function:

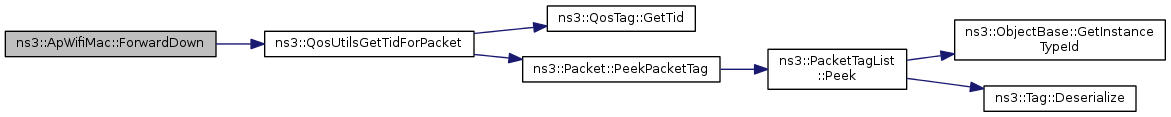

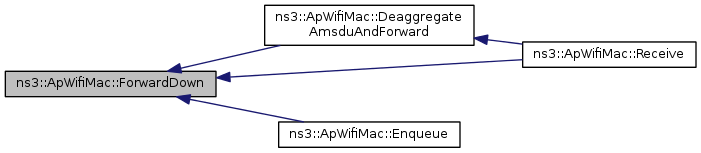

void ns3::ApWifiMac::ForwardDown ( Ptr< const Packet >  packet,
Mac48Address  from,
Mac48Address  to
)
private

Definition at line 176 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::m_qosSupported, NS_LOG_FUNCTION, and ns3::QosUtilsGetTidForPacket().

Referenced by DeaggregateAmsduAndForward(), Enqueue(), and Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

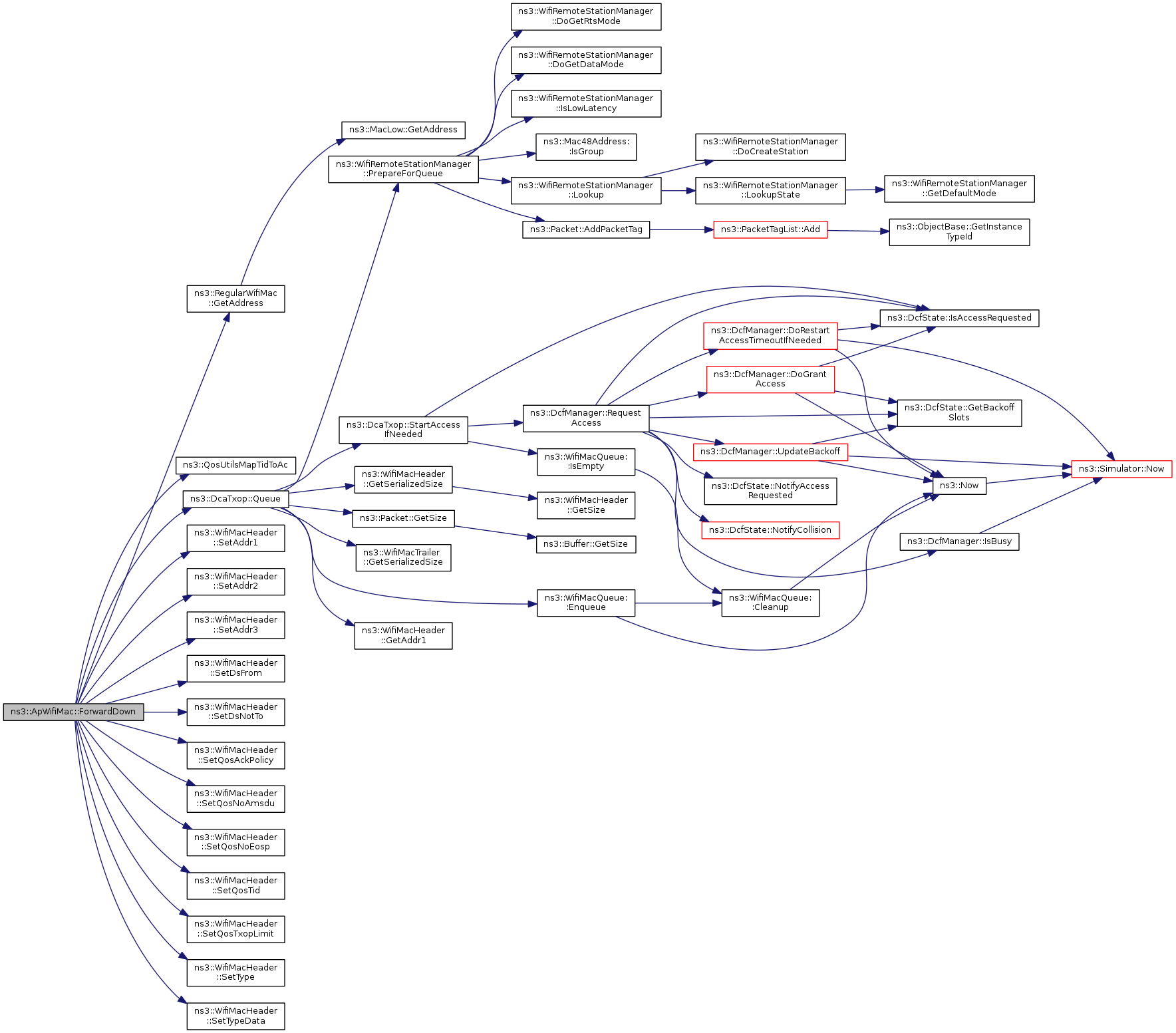

void ns3::ApWifiMac::ForwardDown ( Ptr< const Packet >  packet,
Mac48Address  from,
Mac48Address  to,
uint8_t  tid
)
private

Definition at line 202 of file ap-wifi-mac.cc.

References ns3::RegularWifiMac::GetAddress(), ns3::RegularWifiMac::m_dca, ns3::RegularWifiMac::m_edca, ns3::RegularWifiMac::m_qosSupported, ns3::WifiMacHeader::NORMAL_ACK, NS_ASSERT, NS_LOG_FUNCTION, ns3::QosUtilsMapTidToAc(), ns3::DcaTxop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetQosAckPolicy(), ns3::WifiMacHeader::SetQosNoAmsdu(), ns3::WifiMacHeader::SetQosNoEosp(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetQosTxopLimit(), ns3::WifiMacHeader::SetType(), ns3::WifiMacHeader::SetTypeData(), and ns3::WIFI_MAC_QOSDATA.

+ Here is the call graph for this function:

bool ns3::ApWifiMac::GetBeaconGeneration ( void  ) const
private

Definition at line 124 of file ap-wifi-mac.cc.

References m_enableBeaconGeneration, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Time ns3::ApWifiMac::GetBeaconInterval ( void  ) const
Returns
the interval between two beacon transmissions.

Definition at line 131 of file ap-wifi-mac.cc.

References m_beaconInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

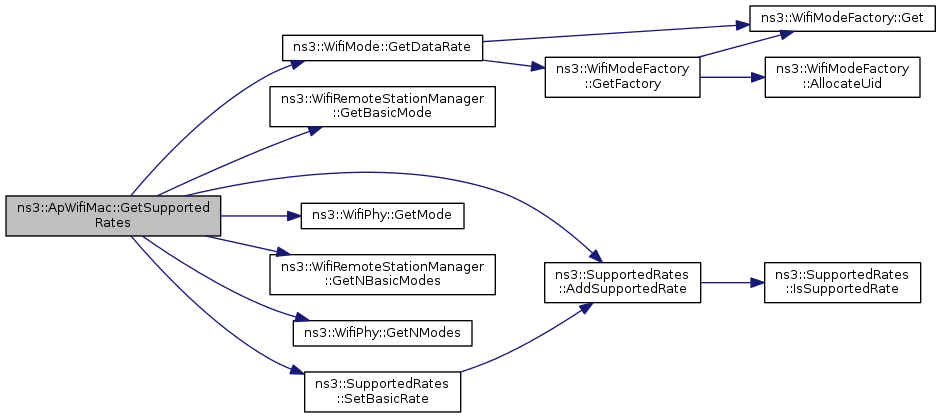

SupportedRates ns3::ApWifiMac::GetSupportedRates ( void  ) const
private

Definition at line 276 of file ap-wifi-mac.cc.

References ns3::SupportedRates::AddSupportedRate(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetMode(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiPhy::GetNModes(), ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, NS_LOG_FUNCTION, and ns3::SupportedRates::SetBasicRate().

Referenced by SendAssocResp(), SendOneBeacon(), and SendProbeResp().

+ Here is the call graph for this function:

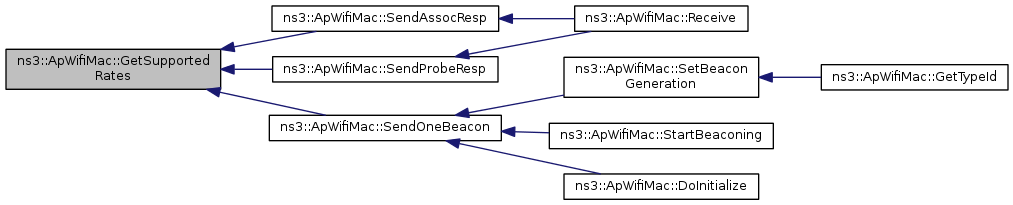

+ Here is the caller graph for this function:

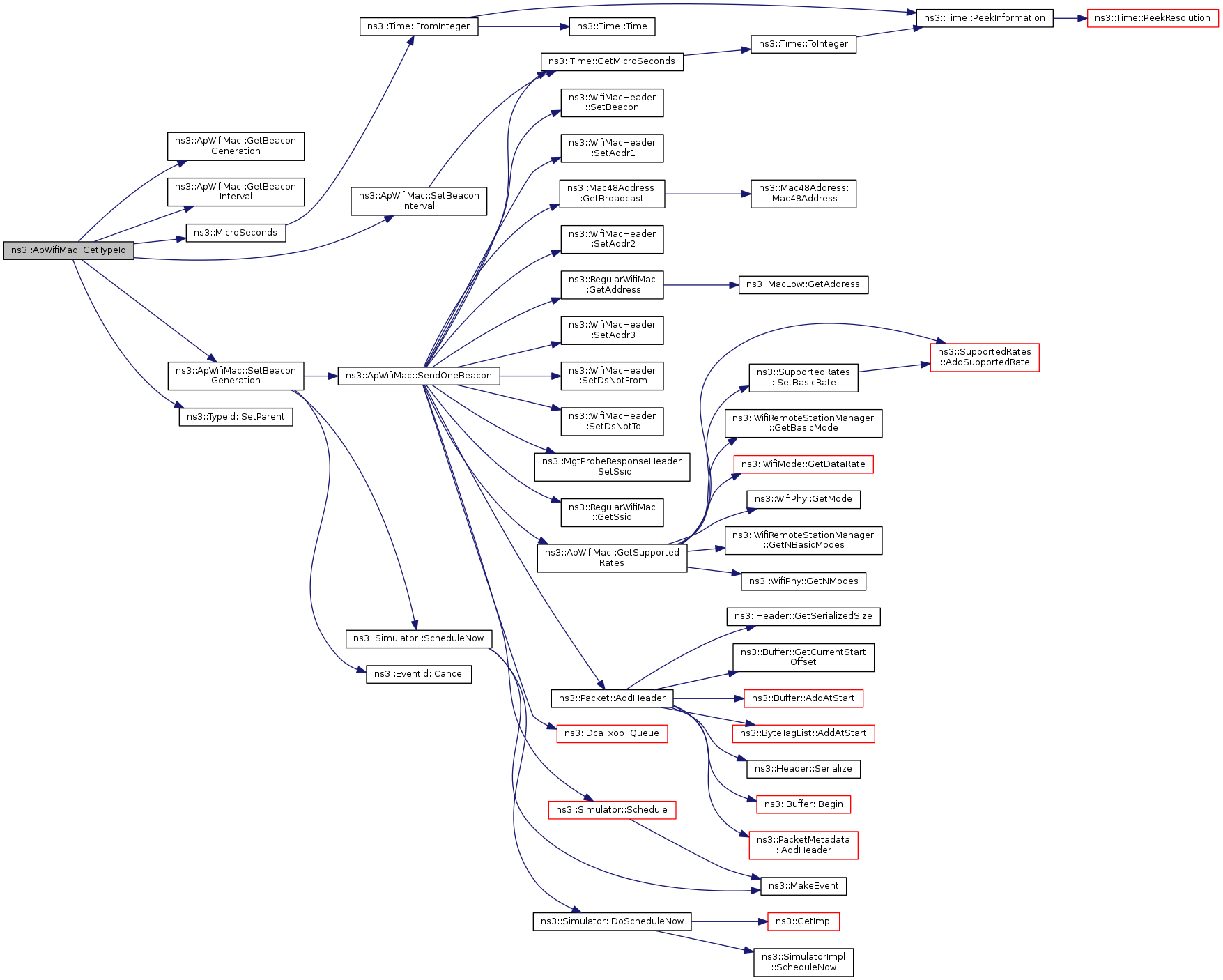

TypeId ns3::ApWifiMac::GetTypeId ( void  )
static

Reimplemented from ns3::RegularWifiMac.

Definition at line 48 of file ap-wifi-mac.cc.

References GetBeaconGeneration(), GetBeaconInterval(), ns3::MicroSeconds(), SetBeaconGeneration(), SetBeaconInterval(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::ApWifiMac::Receive ( Ptr< Packet >  packet,
const WifiMacHeader *  hdr
)
privatevirtual

Definition at line 407 of file ap-wifi-mac.cc.

References ns3::WifiRemoteStationManager::AddSupportedMode(), ns3::Packet::Copy(), DeaggregateAmsduAndForward(), ForwardDown(), ns3::RegularWifiMac::ForwardUp(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), ns3::RegularWifiMac::GetAddress(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiMode::GetDataRate(), ns3::WifiPhy::GetMode(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiPhy::GetNModes(), ns3::WifiMacHeader::GetQosTid(), ns3::Packet::GetSize(), ns3::MgtAssocRequestHeader::GetSupportedRates(), ns3::WifiRemoteStationManager::IsAssociated(), ns3::WifiMacHeader::IsAssocReq(), ns3::Mac48Address::IsBroadcast(), ns3::WifiMacHeader::IsData(), ns3::WifiMacHeader::IsDisassociation(), ns3::WifiMacHeader::IsFromDs(), ns3::Mac48Address::IsGroup(), ns3::WifiMacHeader::IsMgt(), ns3::WifiMacHeader::IsProbeReq(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), ns3::SupportedRates::IsSupportedRate(), ns3::WifiMacHeader::IsToDs(), ns3::RegularWifiMac::m_phy, ns3::RegularWifiMac::m_stationManager, ns3::WifiMac::NotifyRxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::RecordDisassociated(), ns3::WifiRemoteStationManager::RecordWaitAssocTxOk(), ns3::Packet::RemoveHeader(), SendAssocResp(), and SendProbeResp().

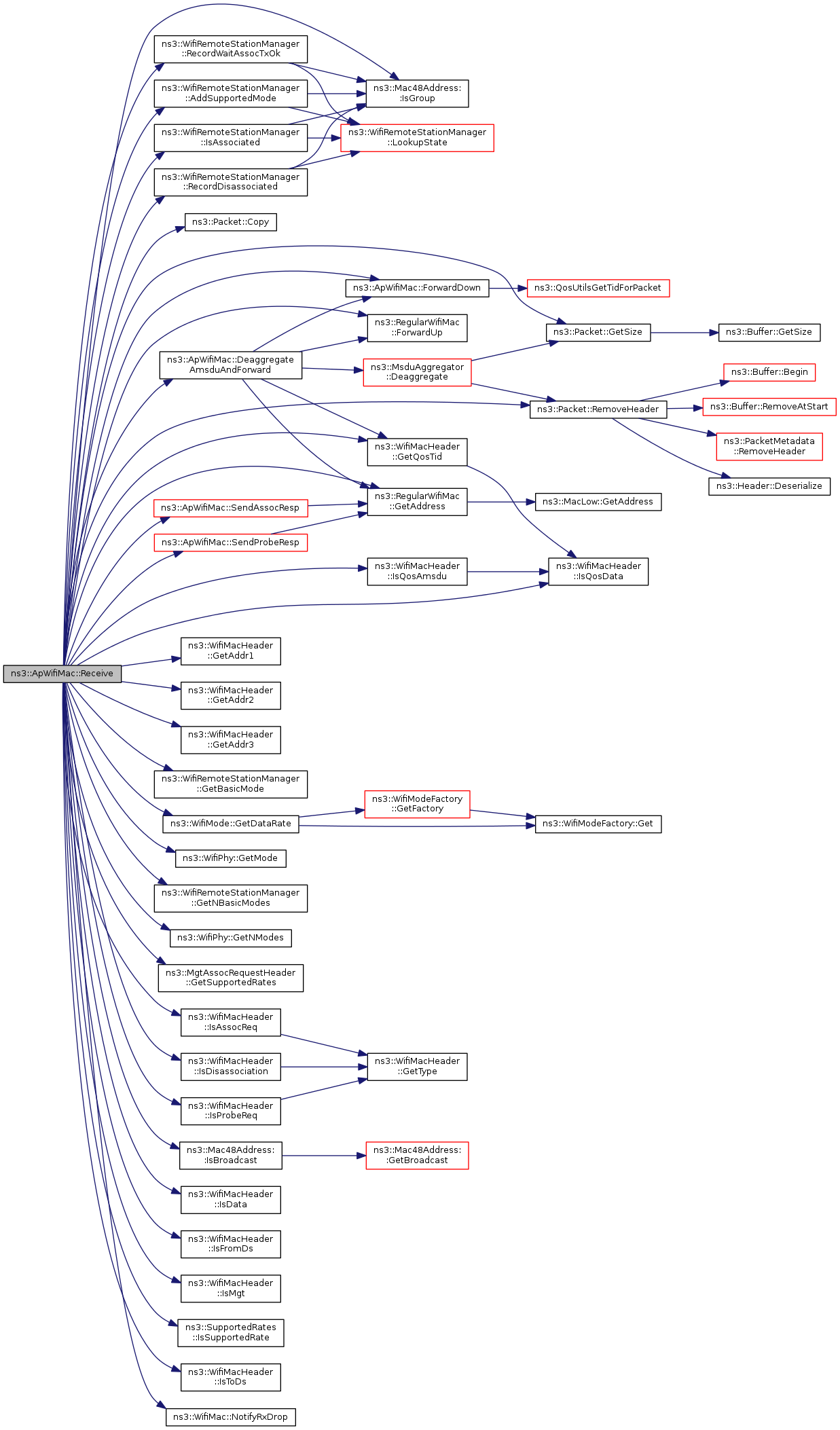

+ Here is the call graph for this function:

void ns3::ApWifiMac::SendAssocResp ( Mac48Address  to,
bool  success
)
private

Definition at line 322 of file ap-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), GetSupportedRates(), ns3::RegularWifiMac::m_dca, NS_LOG_FUNCTION, ns3::DcaTxop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetAssocResp(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::StatusCode::SetFailure(), and ns3::StatusCode::SetSuccess().

Referenced by Receive().

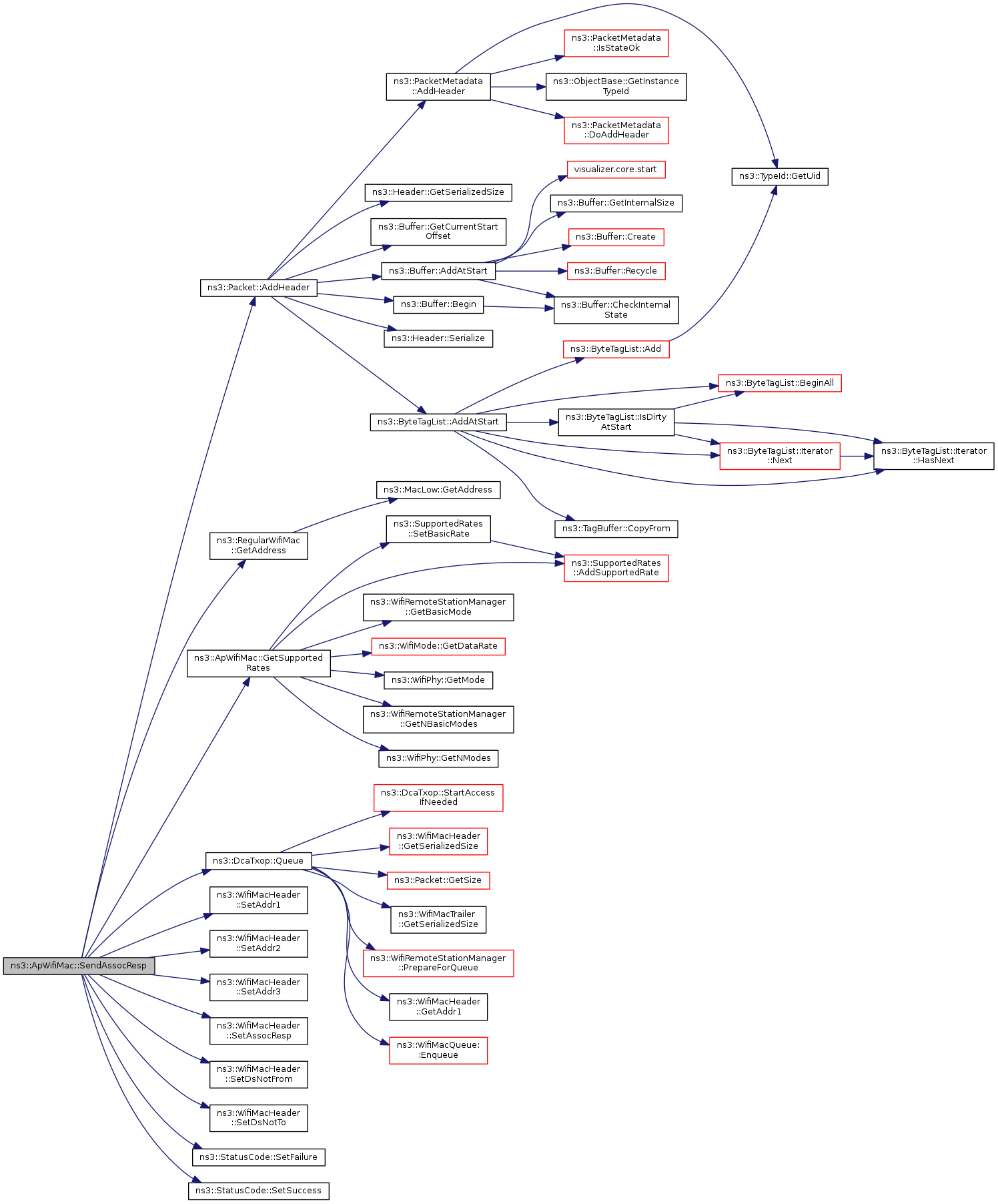

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

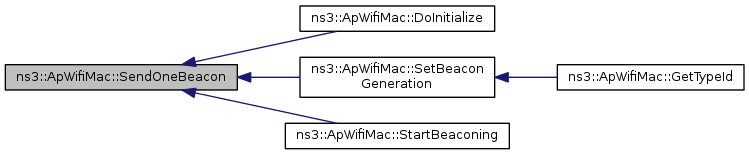

void ns3::ApWifiMac::SendOneBeacon ( void  )
private

Definition at line 355 of file ap-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::Time::GetMicroSeconds(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), m_beaconDca, m_beaconEvent, m_beaconInterval, NS_LOG_FUNCTION, ns3::DcaTxop::Queue(), ns3::Simulator::Schedule(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetBeacon(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::MgtProbeResponseHeader::SetSsid().

Referenced by DoInitialize(), SetBeaconGeneration(), and StartBeaconing().

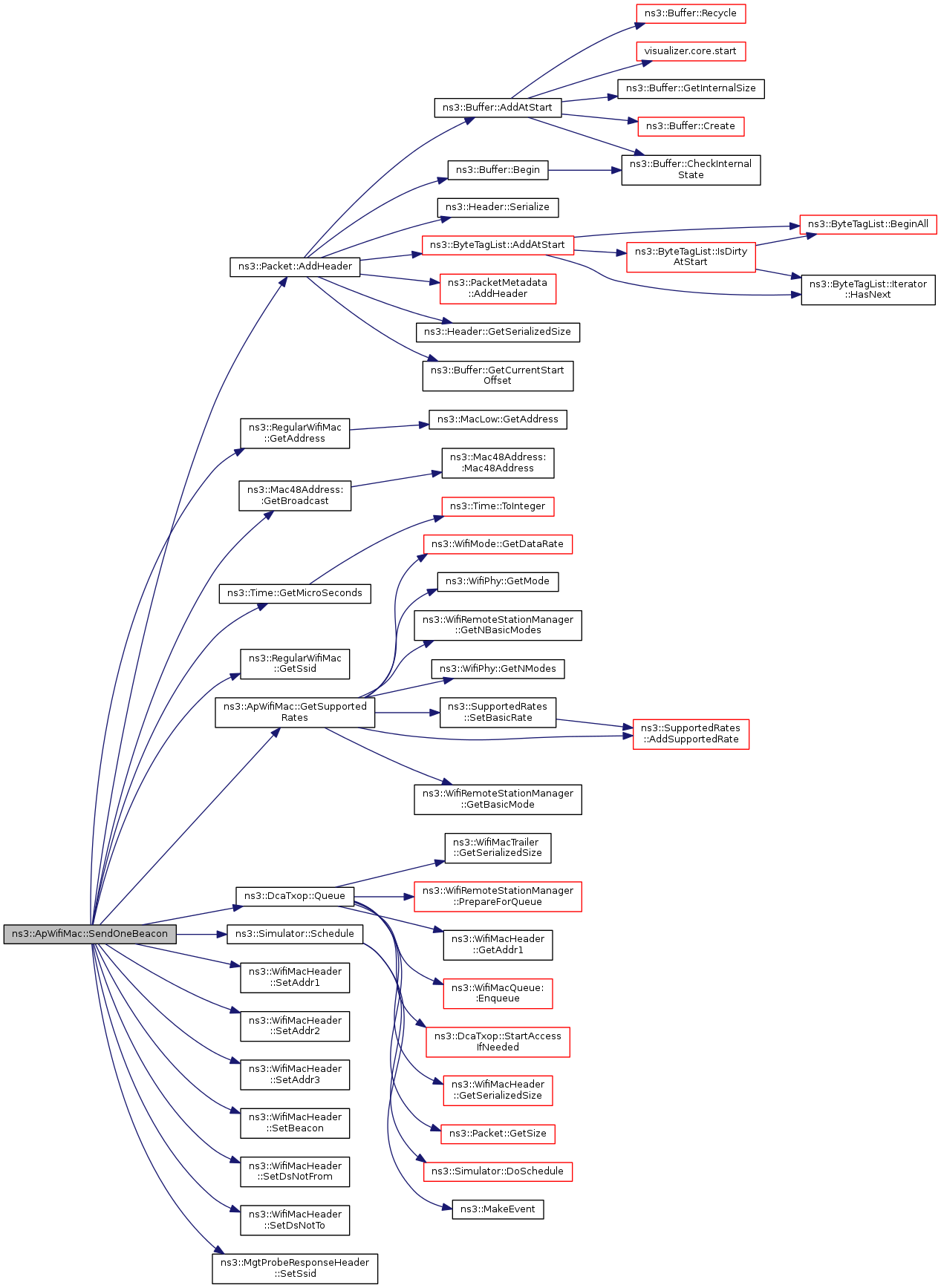

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::ApWifiMac::SendProbeResp ( Mac48Address  to)
private

Definition at line 297 of file ap-wifi-mac.cc.

References ns3::Packet::AddHeader(), ns3::RegularWifiMac::GetAddress(), ns3::Time::GetMicroSeconds(), ns3::RegularWifiMac::GetSsid(), GetSupportedRates(), m_beaconInterval, ns3::RegularWifiMac::m_dca, NS_LOG_FUNCTION, ns3::DcaTxop::Queue(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetProbeResp(), and ns3::MgtProbeResponseHeader::SetSsid().

Referenced by Receive().

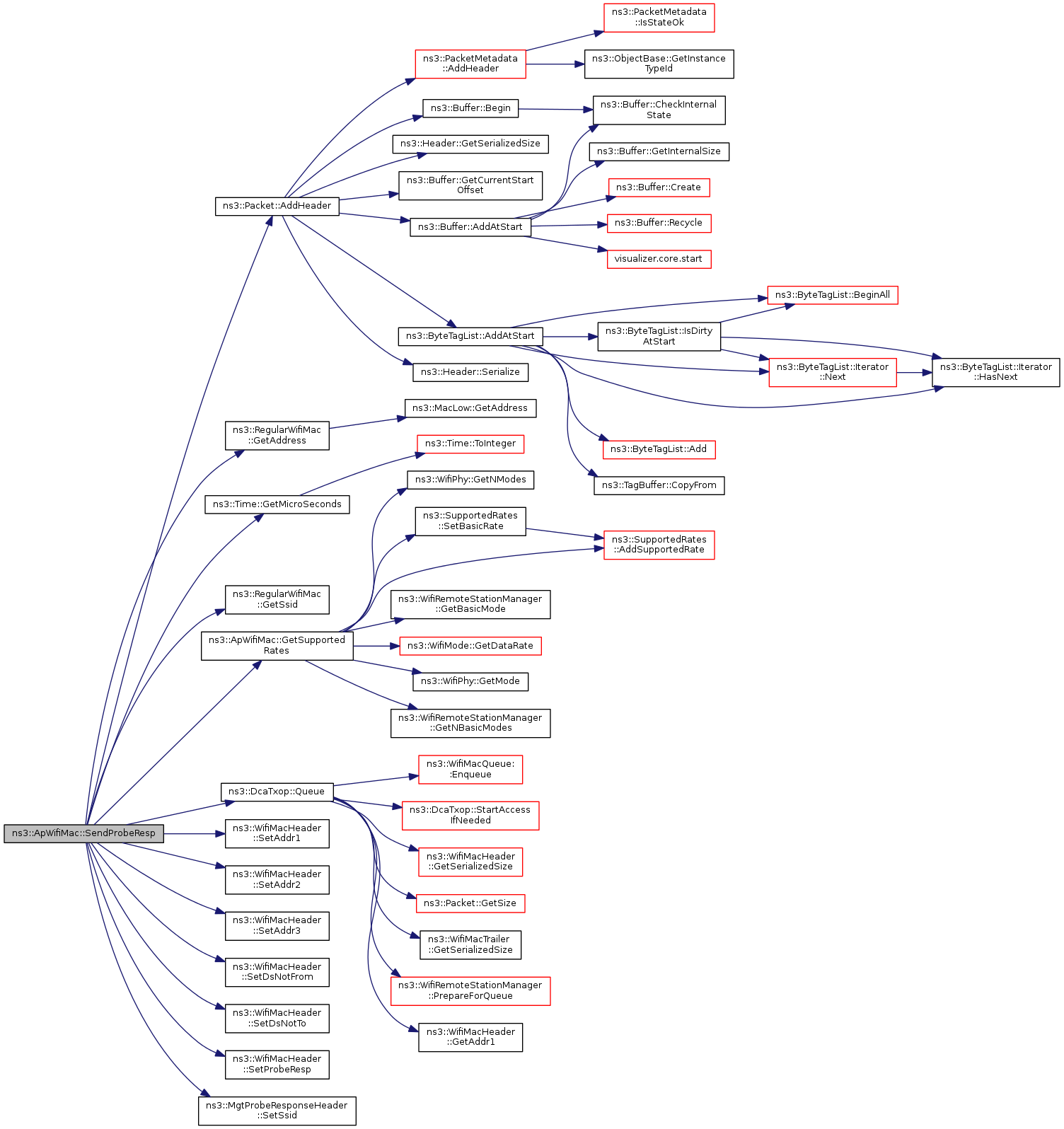

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::ApWifiMac::SetAddress ( Mac48Address  address)
virtual
Parameters
addressthe current address of this MAC layer.

Reimplemented from ns3::RegularWifiMac.

Definition at line 99 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetBssid().

+ Here is the call graph for this function:

void ns3::ApWifiMac::SetBeaconGeneration ( bool  enable)
private

Definition at line 109 of file ap-wifi-mac.cc.

References ns3::EventId::Cancel(), m_beaconEvent, m_enableBeaconGeneration, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SendOneBeacon().

Referenced by GetTypeId().

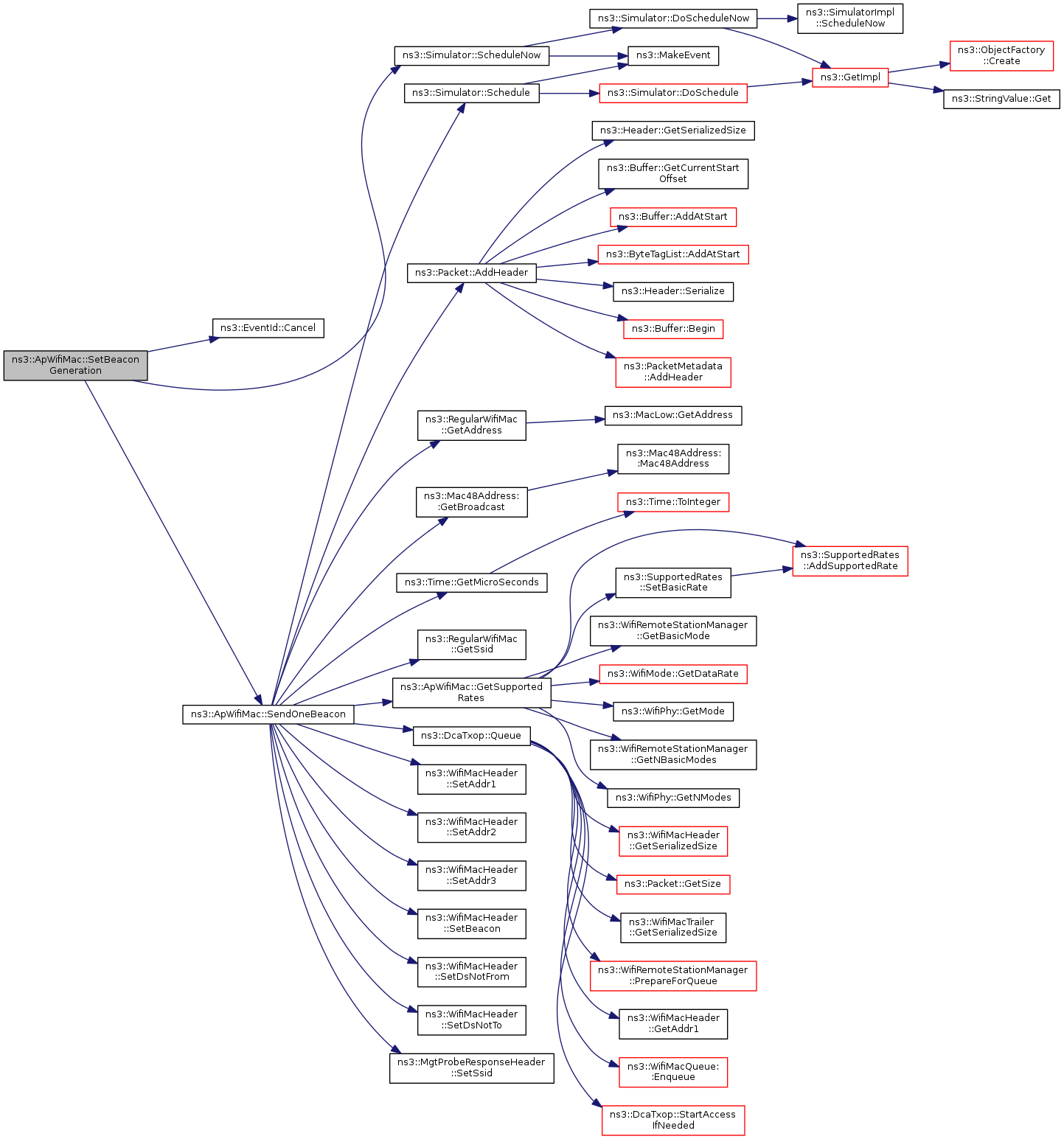

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::ApWifiMac::SetBeaconInterval ( Time  interval)
Parameters
intervalthe interval between two beacon transmissions.

Definition at line 158 of file ap-wifi-mac.cc.

References ns3::Time::GetMicroSeconds(), m_beaconInterval, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by GetTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::ApWifiMac::SetLinkUpCallback ( Callback< void >  linkUp)
virtual
Parameters
linkUpthe callback to invoke when the link becomes up.

Reimplemented from ns3::RegularWifiMac.

Definition at line 146 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION.

void ns3::ApWifiMac::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager >  stationManager)
virtual
Parameters
stationManagerthe station manager attached to this MAC.

Reimplemented from ns3::RegularWifiMac.

Definition at line 138 of file ap-wifi-mac.cc.

References m_beaconDca, NS_LOG_FUNCTION, and ns3::DcaTxop::SetWifiRemoteStationManager().

+ Here is the call graph for this function:

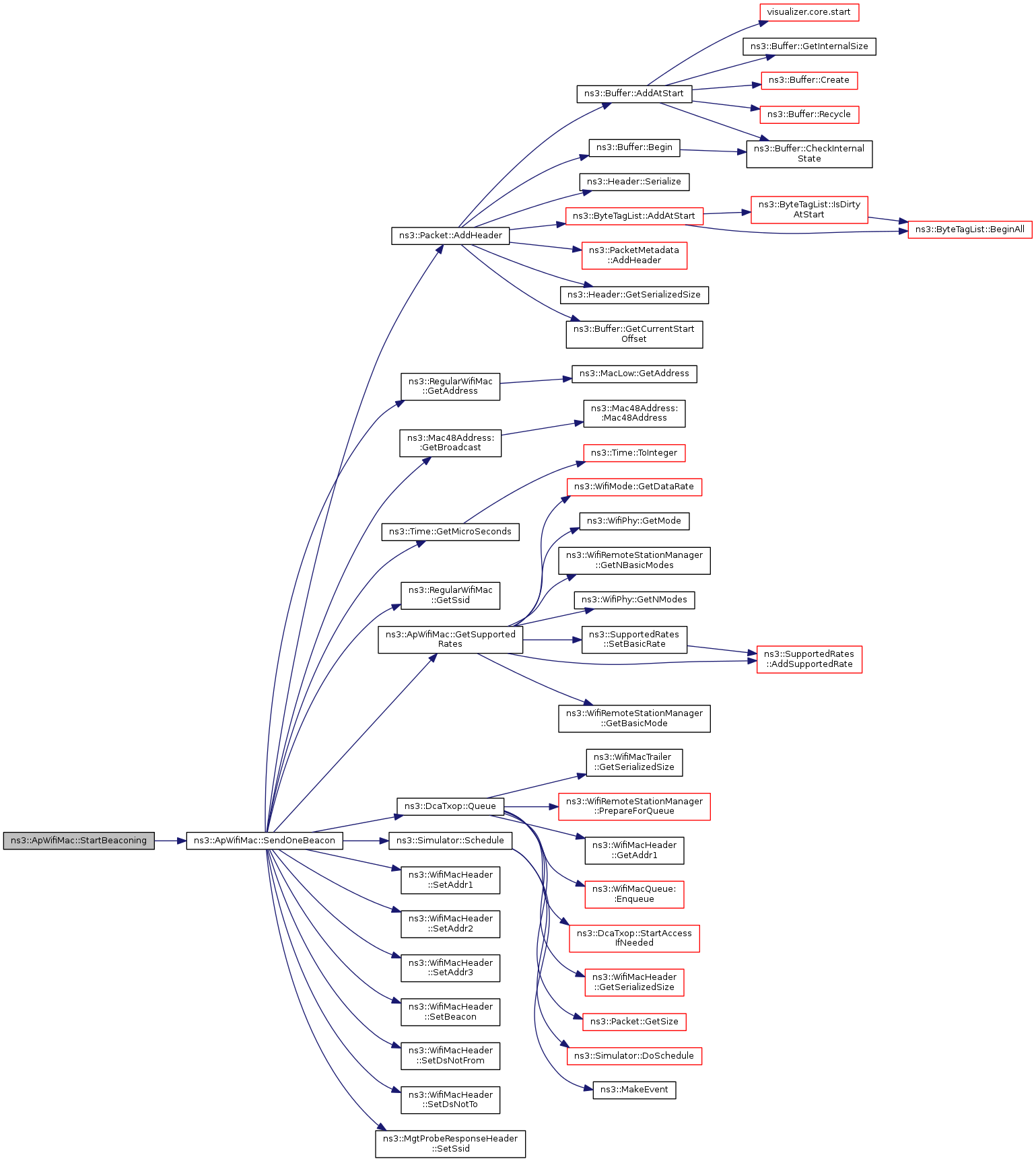

void ns3::ApWifiMac::StartBeaconing ( void  )

Start beacon transmission immediately.

Definition at line 169 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION, and SendOneBeacon().

+ Here is the call graph for this function:

bool ns3::ApWifiMac::SupportsSendFrom ( void  ) const
virtual

Reimplemented from ns3::RegularWifiMac.

Definition at line 269 of file ap-wifi-mac.cc.

References NS_LOG_FUNCTION.

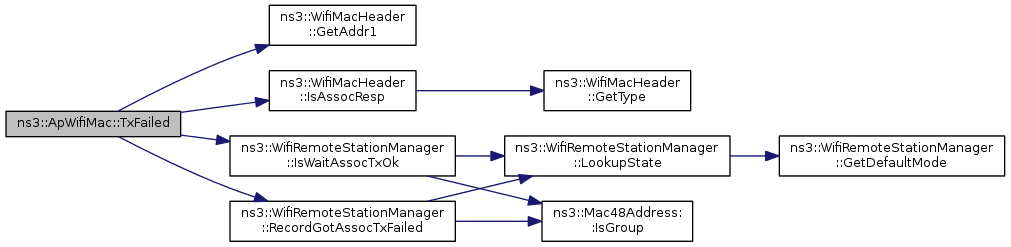

void ns3::ApWifiMac::TxFailed ( const WifiMacHeader &  hdr)
privatevirtual

Definition at line 393 of file ap-wifi-mac.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::IsAssocResp(), ns3::WifiRemoteStationManager::IsWaitAssocTxOk(), ns3::RegularWifiMac::m_stationManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WifiRemoteStationManager::RecordGotAssocTxFailed().

+ Here is the call graph for this function:

void ns3::ApWifiMac::TxOk ( const WifiMacHeader &  hdr)
privatevirtual

Definition at line 379 of file ap-wifi-mac.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::IsAssocResp(), ns3::WifiRemoteStationManager::IsWaitAssocTxOk(), ns3::RegularWifiMac::m_stationManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::WifiRemoteStationManager::RecordGotAssocTxOk().

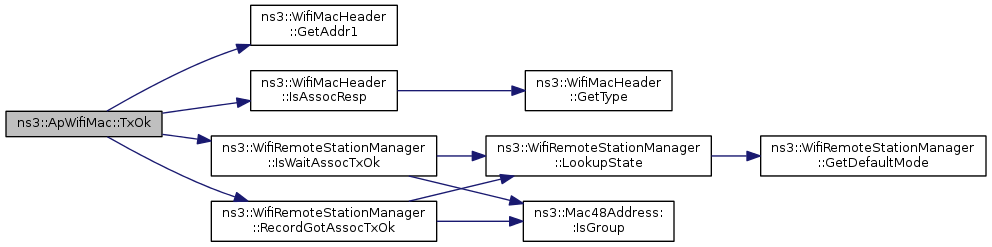

+ Here is the call graph for this function:

Member Data Documentation

Ptr<DcaTxop> ns3::ApWifiMac::m_beaconDca
private

Definition at line 126 of file ap-wifi-mac.h.

Referenced by ApWifiMac(), DoDispose(), DoInitialize(), SendOneBeacon(), and SetWifiRemoteStationManager().

EventId ns3::ApWifiMac::m_beaconEvent
private

Definition at line 129 of file ap-wifi-mac.h.

Referenced by DoDispose(), DoInitialize(), SendOneBeacon(), and SetBeaconGeneration().

Time ns3::ApWifiMac::m_beaconInterval
private

Definition at line 127 of file ap-wifi-mac.h.

Referenced by GetBeaconInterval(), SendOneBeacon(), SendProbeResp(), and SetBeaconInterval().

bool ns3::ApWifiMac::m_enableBeaconGeneration
private

Definition at line 128 of file ap-wifi-mac.h.

Referenced by ApWifiMac(), DoDispose(), DoInitialize(), GetBeaconGeneration(), and SetBeaconGeneration().

The documentation for this class was generated from the following files:
