#include <lte-rrc-protocol-ideal.h>

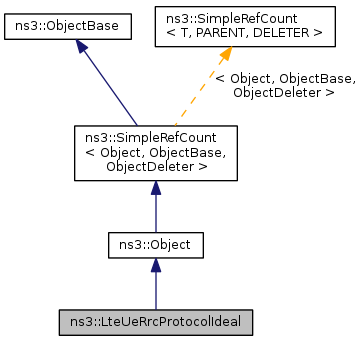

Inheritance diagram for ns3::LteUeRrcProtocolIdeal:

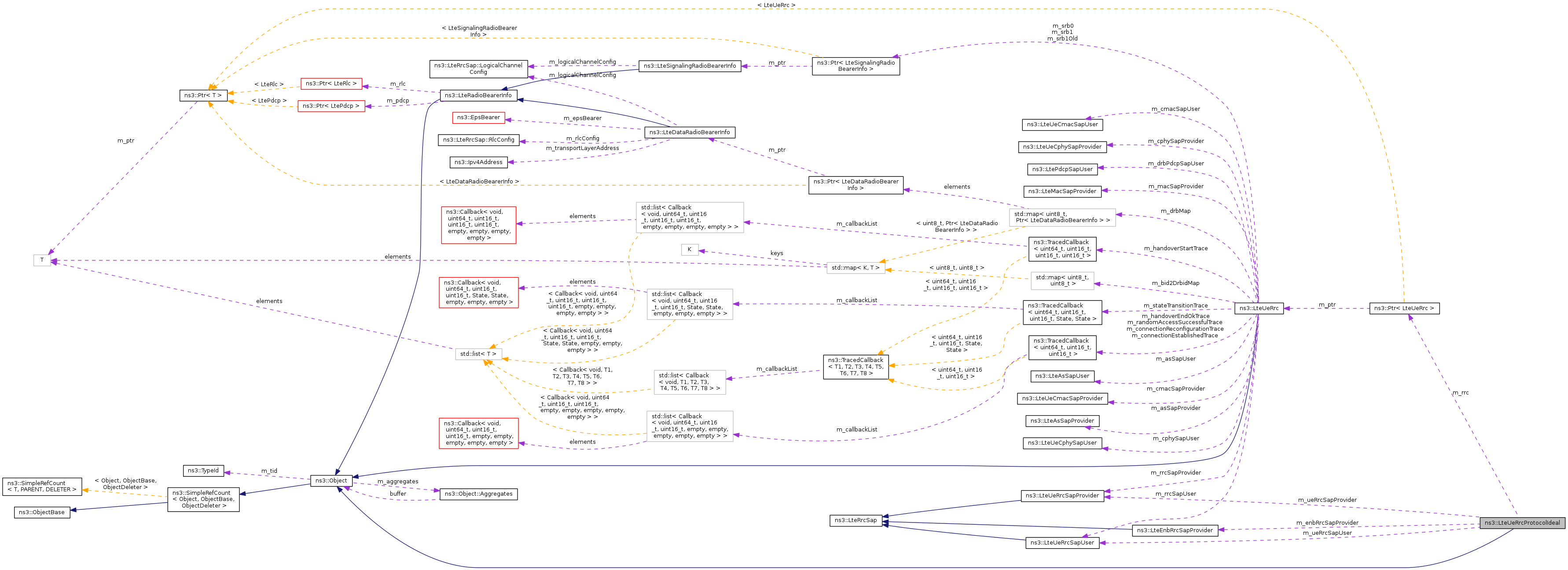

Collaboration diagram for ns3::LteUeRrcProtocolIdeal:

Public Member Functions
	LteUeRrcProtocolIdeal ()
virtual	~LteUeRrcProtocolIdeal ()
virtual void	DoDispose (void)
LteUeRrcSapUser *	GetLteUeRrcSapUser ()
void	SetLteUeRrcSapProvider (LteUeRrcSapProvider *p)
void	SetUeRrc (Ptr< LteUeRrc > rrc)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
void	DoSendMeasurementReport (LteRrcSap::MeasurementReport msg)
void	DoSendRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)
void	DoSendRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)
void	DoSendRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)
void	DoSendRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)
void	DoSendRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)
void	DoSetup (LteUeRrcSapUser::SetupParameters params)
void	SetEnbRrcSapProvider ()

Private Attributes
LteEnbRrcSapProvider *	m_enbRrcSapProvider
uint16_t	m_rnti
Ptr< LteUeRrc >	m_rrc
LteUeRrcSapProvider *	m_ueRrcSapProvider
LteUeRrcSapUser *	m_ueRrcSapUser

Friends
class	MemberLteUeRrcSapUser< LteUeRrcProtocolIdeal >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Models the transmission of RRC messages from the UE to the eNB in an ideal fashion, without errors and without consuming any radio resources.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 46 of file lte-rrc-protocol-ideal.h.

Constructor & Destructor Documentation

ns3::LteUeRrcProtocolIdeal::LteUeRrcProtocolIdeal ( )

Definition at line 44 of file lte-rrc-protocol-ideal.cc.

References m_ueRrcSapUser.

ns3::LteUeRrcProtocolIdeal::~LteUeRrcProtocolIdeal ( )

virtual

Definition at line 51 of file lte-rrc-protocol-ideal.cc.

Member Function Documentation

void ns3::LteUeRrcProtocolIdeal::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 56 of file lte-rrc-protocol-ideal.cc.

References m_rrc, m_ueRrcSapUser, and NS_LOG_FUNCTION.

void ns3::LteUeRrcProtocolIdeal::DoSendMeasurementReport ( LteRrcSap::MeasurementReport msg )

private

Definition at line 159 of file lte-rrc-protocol-ideal.cc.

References m_enbRrcSapProvider, m_rnti, ns3::LteEnbRrcSapProvider::RecvMeasurementReport(), ns3::RRC_IDEAL_MSG_DELAY, and ns3::Simulator::Schedule().

Here is the call graph for this function:
