#include <lte-enb-rrc.h>

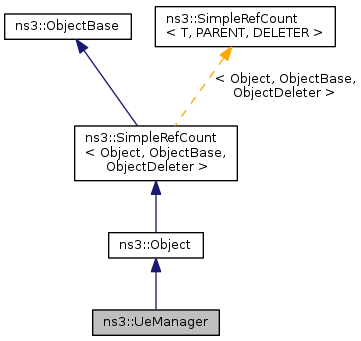

Inheritance diagram for ns3::UeManager:

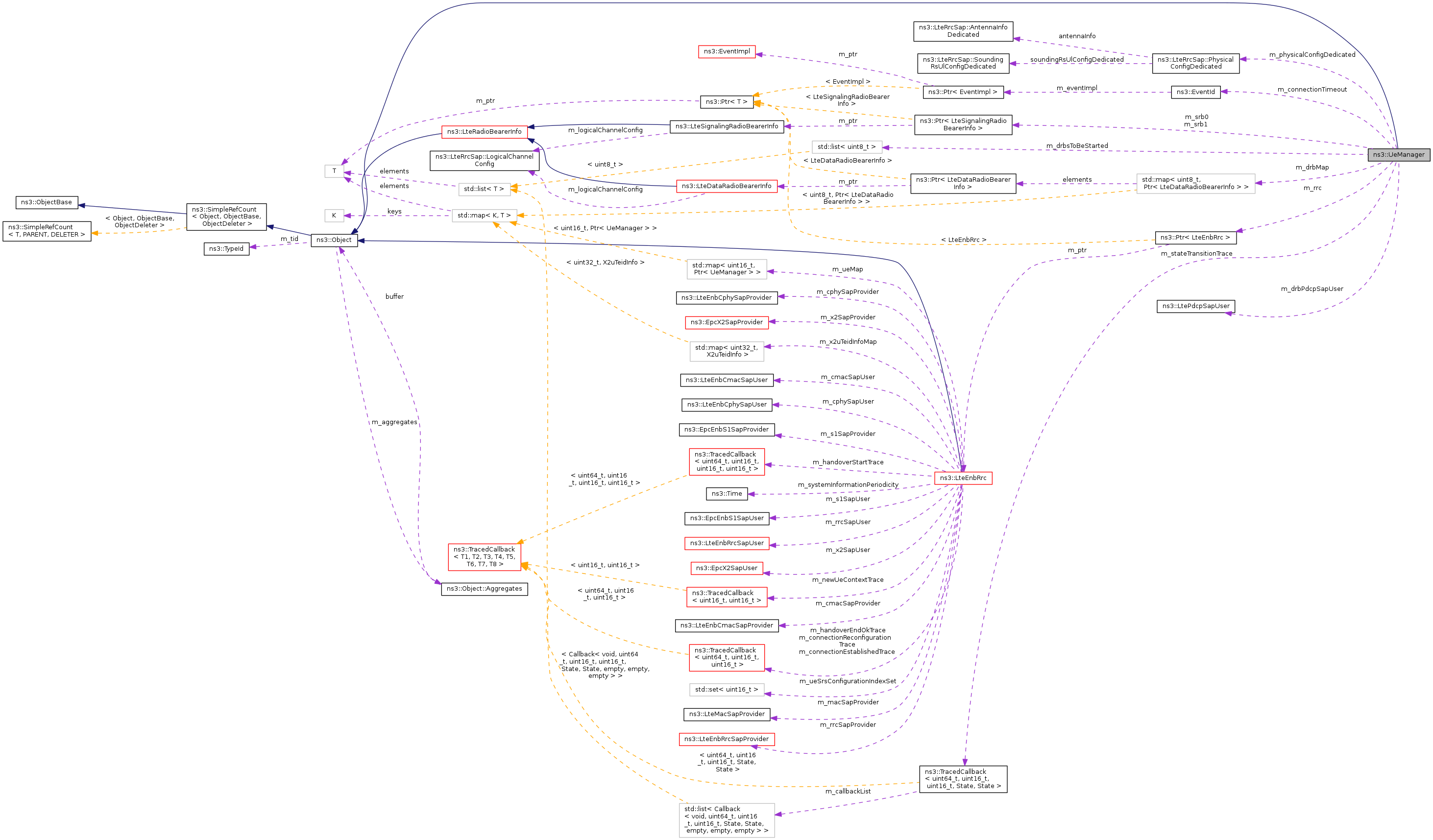

Collaboration diagram for ns3::UeManager:

Public Types
enum	State { INITIAL_RANDOM_ACCESS = 0, CONNECTION_SETUP, CONNECTION_REJECTED, CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, HANDOVER_PREPARATION, HANDOVER_JOINING, HANDOVER_PATH_SWITCH, HANDOVER_LEAVING, NUM_STATES }

Public Member Functions
	UeManager ()
	UeManager (Ptr< LteEnbRrc > rrc, uint16_t rnti, State s)
virtual	~UeManager (void)
void	CmacUeConfigUpdateInd (LteEnbCmacSapUser::UeConfig cmacParams)
void	CompleteSetupUe (LteEnbRrcSapProvider::CompleteSetupUeParameters params)
void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)
std::vector < EpcX2Sap::ErabToBeSetupItem >	GetErabList ()
uint64_t	GetImsi (void)
LteRrcSap::RadioResourceConfigDedicated	GetRadioResourceConfigForHandoverPreparationInfo ()
uint16_t	GetRnti (void)
LteRrcSap::RrcConnectionReconfiguration	GetRrcConnectionReconfigurationForHandover ()
uint16_t	GetSrsConfigurationIndex (void)
State	GetState ()
void	PrepareHandover (uint16_t cellId)
void	RecordDataRadioBearersToBeStarted ()
void	RecvHandoverPreparationFailure (uint16_t cellId)
void	RecvHandoverRequestAck (EpcX2SapUser::HandoverRequestAckParams params)
void	RecvMeasurementReport (LteRrcSap::MeasurementReport msg)
void	RecvRrcConnectionReconfigurationCompleted (LteRrcSap::RrcConnectionReconfigurationCompleted msg)
void	RecvRrcConnectionReestablishmentComplete (LteRrcSap::RrcConnectionReestablishmentComplete msg)
void	RecvRrcConnectionReestablishmentRequest (LteRrcSap::RrcConnectionReestablishmentRequest msg)
void	RecvRrcConnectionRequest (LteRrcSap::RrcConnectionRequest msg)
void	RecvRrcConnectionSetupCompleted (LteRrcSap::RrcConnectionSetupCompleted msg)
void	RecvSnStatusTransfer (EpcX2SapUser::SnStatusTransferParams params)
void	ReleaseDataRadioBearer (uint8_t drbid)
void	ScheduleRrcConnectionReconfiguration ()
void	SendData (uint8_t bid, Ptr< Packet > p)
void	SendUeContextRelease ()
void	SetImsi (uint64_t imsi)
void	SetSource (uint16_t sourceCellId, uint16_t sourceX2apId)
void	SetSrsConfigurationIndex (uint16_t srsConfIndex)
void	SetupDataRadioBearer (EpsBearer bearer, uint8_t bearerId, uint32_t gtpTeid, Ipv4Address transportLayerAddress)
void	StartDataRadioBearers ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose ()
virtual void	DoInitialize ()
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)

Private Member Functions
uint8_t	AddDataRadioBearerInfo (Ptr< LteDataRadioBearerInfo > radioBearerInfo)
uint8_t	Bid2Drbid (uint8_t bid)
uint8_t	Bid2Lcid (uint8_t bid)
LteRrcSap::RadioResourceConfigDedicated	BuildRadioResourceConfigDedicated ()
LteRrcSap::RrcConnectionReconfiguration	BuildRrcConnectionReconfiguration ()
uint8_t	Drbid2Bid (uint8_t drbid)
uint8_t	Drbid2Lcid (uint8_t drbid)
Ptr< LteDataRadioBearerInfo >	GetDataRadioBearerInfo (uint8_t drbid)
uint8_t	GetNewRrcTransactionIdentifier ()
uint8_t	Lcid2Bid (uint8_t lcid)
uint8_t	Lcid2Drbid (uint8_t lcid)
void	RemoveDataRadioBearerInfo (uint8_t drbid)
void	SwitchToState (State s)

Private Attributes
EventId	m_connectionTimeout
std::map< uint8_t, Ptr < LteDataRadioBearerInfo > >	m_drbMap
LtePdcpSapUser *	m_drbPdcpSapUser
std::list< uint8_t >	m_drbsToBeStarted
uint64_t	m_imsi
uint8_t	m_lastAllocatedDrbid
uint8_t	m_lastRrcTransactionIdentifier
bool	m_needTransmissionModeConfiguration
bool	m_pendingRrcConnectionReconfiguration
LteRrcSap::PhysicalConfigDedicated	m_physicalConfigDedicated
uint16_t	m_rnti
Ptr< LteEnbRrc >	m_rrc
uint16_t	m_sourceCellId
uint16_t	m_sourceX2apId
Ptr< LteSignalingRadioBearerInfo >	m_srb0
Ptr< LteSignalingRadioBearerInfo >	m_srb1
State	m_state
TracedCallback< uint64_t, uint16_t, uint16_t, State, State >	m_stateTransitionTrace
uint16_t	m_targetCellId

Friends
class	LtePdcpSpecificLtePdcpSapUser< UeManager >

Detailed Description

Manages all the radio bearer information possessed by the ENB RRC for a single UE

Config Paths

ns3::UeManager is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]

Attributes

DataRadioBearerMap: List of UE DataRadioBearerInfo by DRBID.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::LteDataRadioBearerInfo >
- Flags: read
Srb0: SignalingRadioBearerInfo for SRB0
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
- Initial value: 0
- Flags: construct write read
Srb1: SignalingRadioBearerInfo for SRB1
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
- Initial value: 0
- Flags: construct write read
C-RNTI: Cell Radio Network Temporary Identifier
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read

TraceSources

StateTransition: fired upon every UE state transition seen by the UeManager at the eNB RRC

Definition at line 57 of file lte-enb-rrc.h.

Member Enumeration Documentation

enum ns3::UeManager::State

The state of the UeManager at the eNB RRC

Enumerator:

INITIAL_RANDOM_ACCESS
CONNECTION_SETUP
CONNECTION_REJECTED
CONNECTED_NORMALLY
CONNECTION_RECONFIGURATION
CONNECTION_REESTABLISHMENT
HANDOVER_PREPARATION
HANDOVER_JOINING
HANDOVER_PATH_SWITCH
HANDOVER_LEAVING
NUM_STATES

Definition at line 68 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::UeManager::UeManager ( )

Definition at line 127 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR.

ns3::UeManager::UeManager	(	Ptr< LteEnbRrc >	rrc,
		uint16_t	rnti,
		State	s
	)

UeManager constructor

Parameters

rrc	pointer to the LteEnbRrc holding this UeManager
rnti	RNTI of the UE
s	initial state of the UeManager

Returns

Definition at line 133 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

ns3::UeManager::~UeManager ( void )

virtual

Definition at line 261 of file lte-enb-rrc.cc.

Member Function Documentation

uint8_t ns3::UeManager::AddDataRadioBearerInfo ( Ptr< LteDataRadioBearerInfo > radioBearerInfo )

private

Add a new LteDataRadioBearerInfo structure to the UeManager

Parameters

radioBearerInfo

Returns: the id of the newly added data radio bearer structure

Definition at line 979 of file lte-enb-rrc.cc.

References ns3::LteDataRadioBearerInfo::m_drbIdentity, m_drbMap, m_lastAllocatedDrbid, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by SetupDataRadioBearer().

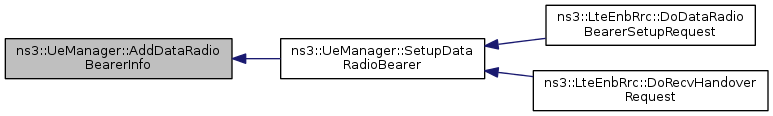

Here is the caller graph for this function:

uint8_t ns3::UeManager::Bid2Drbid ( uint8_t bid )

private

Parameters

bid	an EPS Bearer Identifier

Returns: the corresponding Data Radio Bearer Id

Definition at line 1104 of file lte-enb-rrc.cc.

Referenced by SendData().

Here is the caller graph for this function:

uint8_t ns3::UeManager::Bid2Lcid ( uint8_t bid )

private

Parameters

bid	an EPS Bearer Identifier

Returns: the corresponding Logical Channel Identifier

Definition at line 1092 of file lte-enb-rrc.cc.

Referenced by SendData().

Here is the caller graph for this function:

LteRrcSap::RadioResourceConfigDedicated ns3::UeManager::BuildRadioResourceConfigDedicated ( )

private

Returns: a RadioResourceConfigDedicated struct built based on the current configuration

Definition at line 1036 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::DrbToAddMod::drbIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::DrbToAddMod::epsBearerIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::SrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::DrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::DrbToAddMod::logicalChannelIdentity, m_drbMap, ns3::LteSignalingRadioBearerInfo::m_logicalChannelConfig, m_physicalConfigDedicated, m_srb1, ns3::LteSignalingRadioBearerInfo::m_srbIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteRrcSap::DrbToAddMod::rlcConfig, ns3::LteRrcSap::SrbToAddMod::srbIdentity, and ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList.

Referenced by BuildRrcConnectionReconfiguration(), GetRadioResourceConfigForHandoverPreparationInfo(), RecvRrcConnectionReestablishmentRequest(), and RecvRrcConnectionRequest().

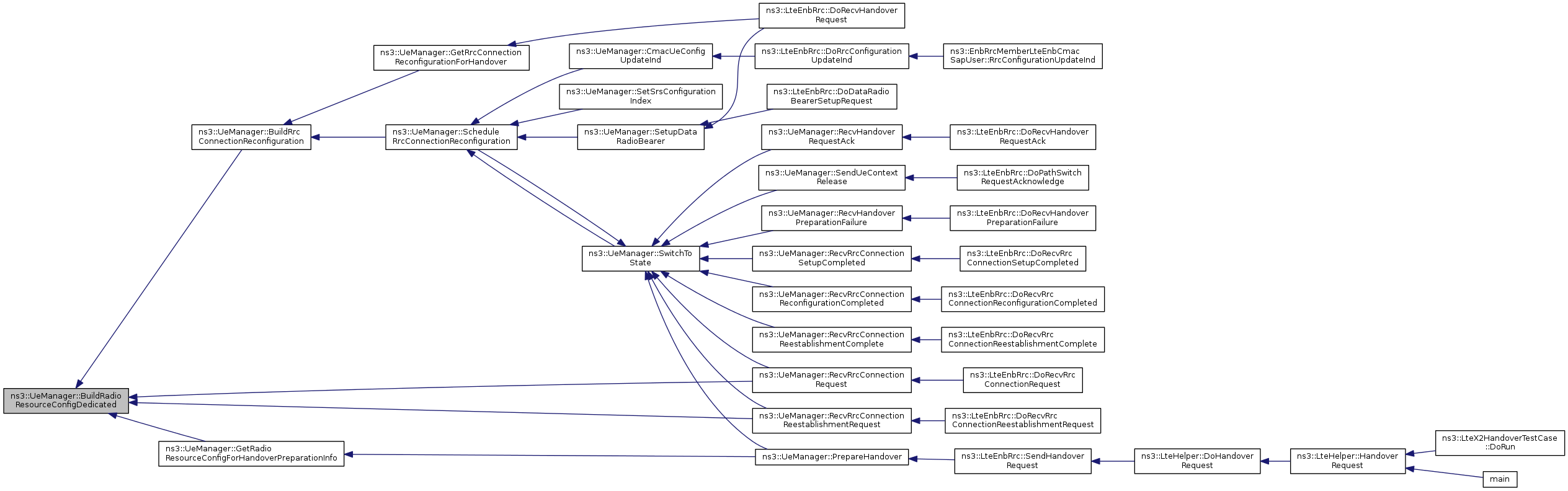

Here is the caller graph for this function:

LteRrcSap::RrcConnectionReconfiguration ns3::UeManager::BuildRrcConnectionReconfiguration ( )

private

Returns: an RrcConnectionReconfiguration struct built based on the current configuration

Definition at line 1024 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), GetNewRrcTransactionIdentifier(), ns3::LteRrcSap::RrcConnectionReconfiguration::haveMeasConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::RrcConnectionReconfiguration::haveRadioResourceConfigDedicated, ns3::LteRrcSap::RrcConnectionReconfiguration::radioResourceConfigDedicated, and ns3::LteRrcSap::RrcConnectionReconfiguration::rrcTransactionIdentifier.

Referenced by GetRrcConnectionReconfigurationForHandover(), and ScheduleRrcConnectionReconfiguration().

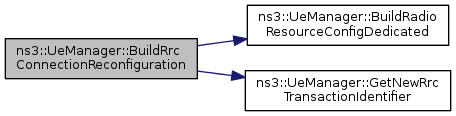

Here is the call graph for this function:

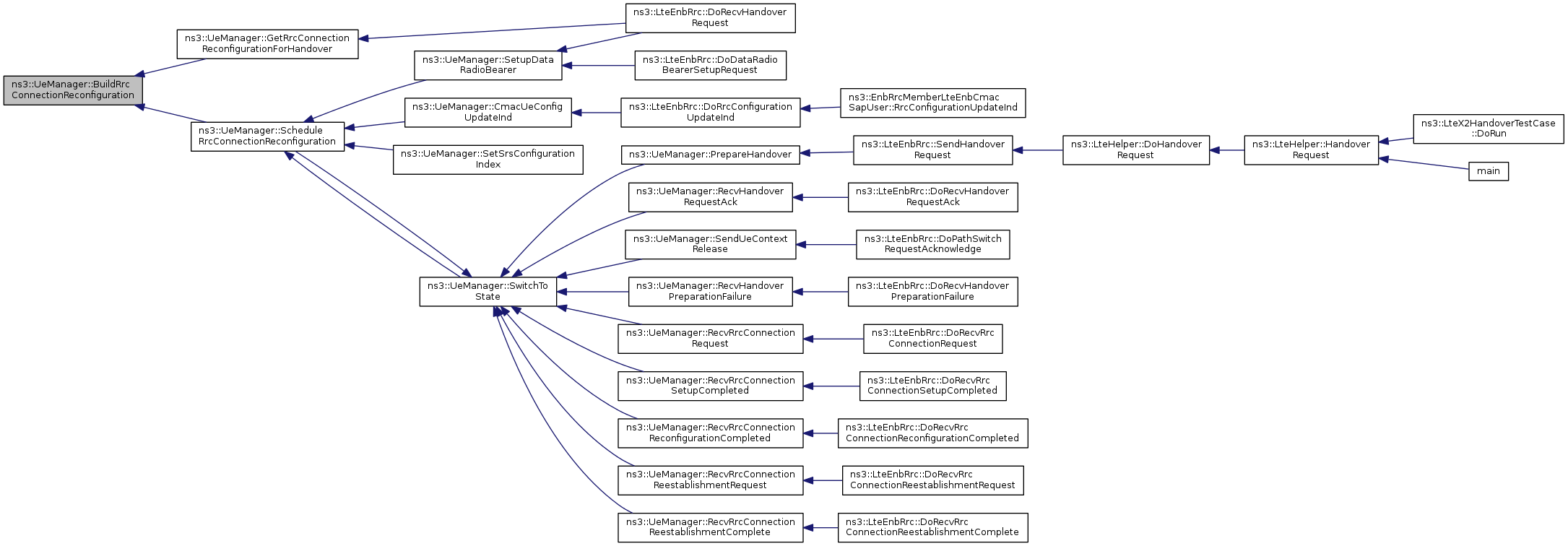

Here is the caller graph for this function:

void ns3::UeManager::CmacUeConfigUpdateInd ( LteEnbCmacSapUser::UeConfig cmacParams )

Definition at line 903 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, m_needTransmissionModeConfiguration, m_physicalConfigDedicated, m_rnti, ns3::LteEnbCmacSapUser::UeConfig::m_transmissionMode, NS_LOG_FUNCTION, ScheduleRrcConnectionReconfiguration(), and ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode.

Referenced by ns3::LteEnbRrc::DoRrcConfigurationUpdateInd().

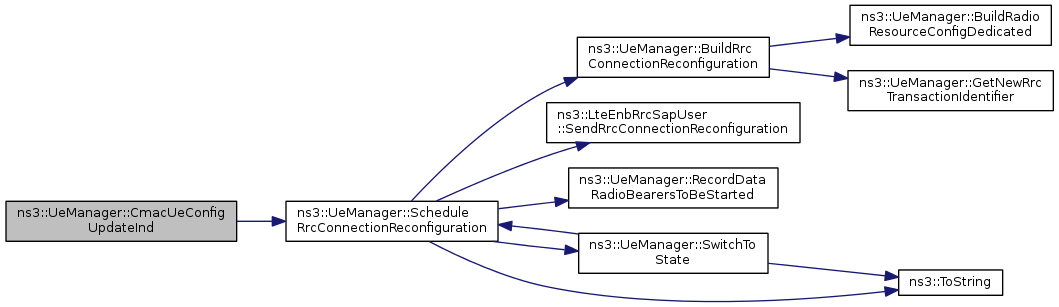

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UeManager::CompleteSetupUe ( LteEnbRrcSapProvider::CompleteSetupUeParameters params )

Definition at line 750 of file lte-enb-rrc.cc.

References ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, m_srb0, m_srb1, NS_LOG_FUNCTION, ns3::LtePdcp::SetLtePdcpSapUser(), ns3::LteRlc::SetLteRlcSapUser(), ns3::LteEnbRrcSapProvider::CompleteSetupUeParameters::srb0SapUser, and ns3::LteEnbRrcSapProvider::CompleteSetupUeParameters::srb1SapUser.

Referenced by ns3::LteEnbRrc::DoCompleteSetupUe().

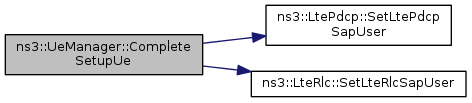

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UeManager::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 266 of file lte-enb-rrc.cc.

References m_drbMap, m_drbPdcpSapUser, m_rrc, and ns3::LteEnbRrc::m_x2uTeidInfoMap.

void ns3::UeManager::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize. If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 149 of file lte-enb-rrc.cc.

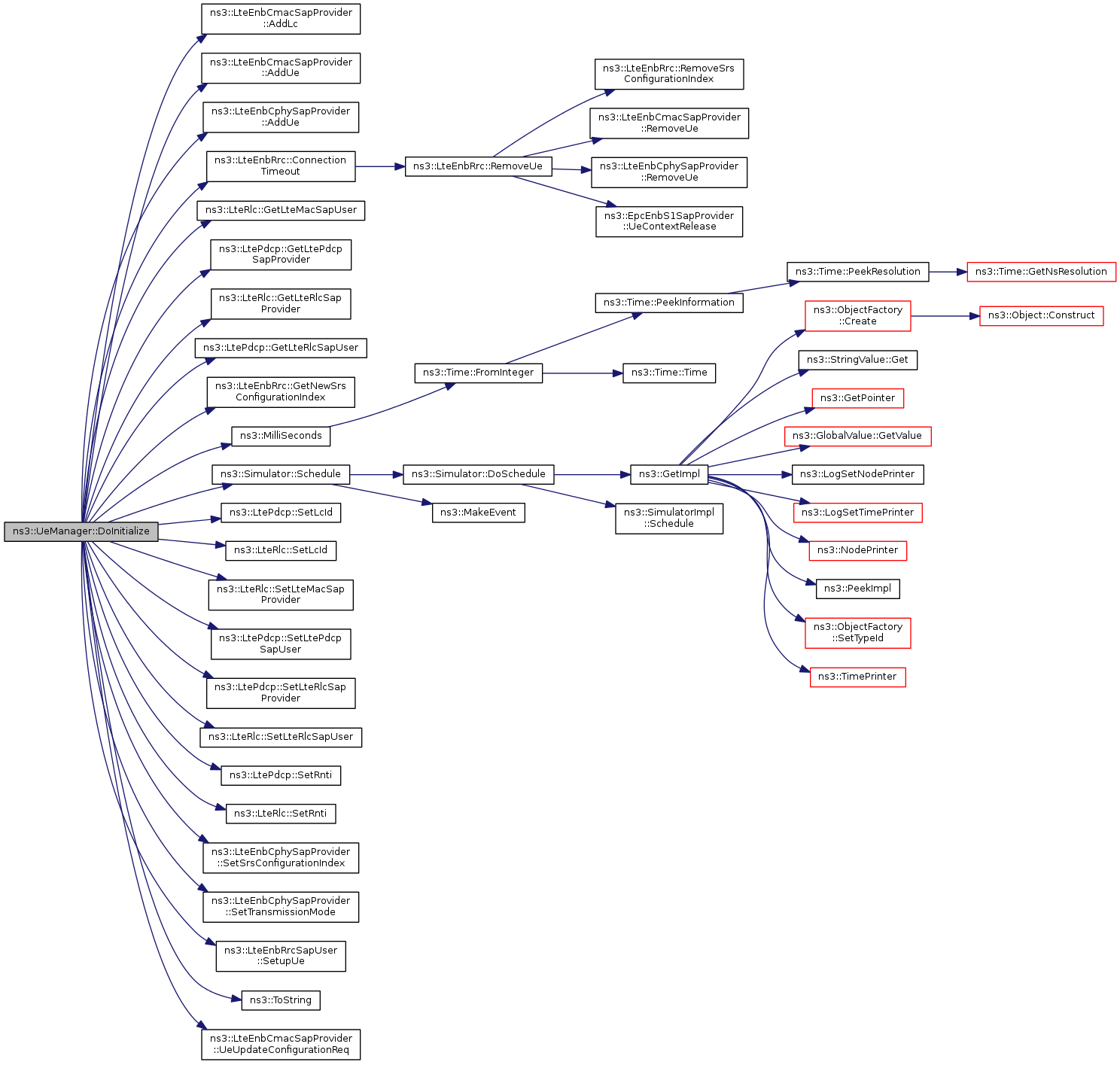

Here is the call graph for this function:

void ns3::UeManager::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters params )

Definition at line 920 of file lte-enb-rrc.cc.

References ns3::Packet::AddPacketTag(), ns3::LtePdcpSapUser::ReceivePdcpSduParameters::lcid, Lcid2Bid(), ns3::LteEnbRrc::m_forwardUpCallback, m_rrc, NS_LOG_FUNCTION, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::rnti, ns3::EpsBearerTag::SetBid(), and ns3::EpsBearerTag::SetRnti().

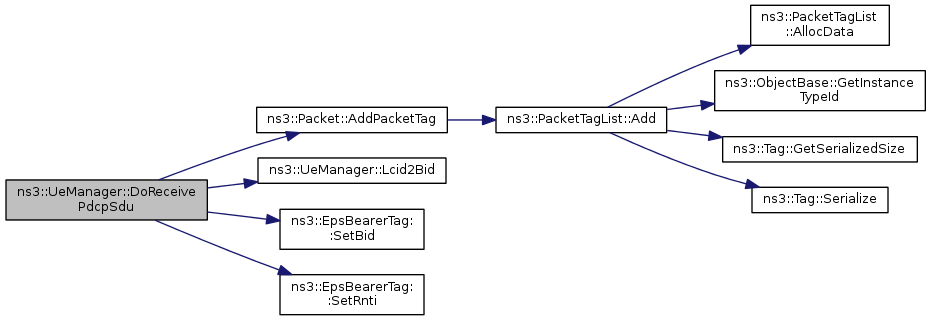

Here is the call graph for this function:

uint8_t ns3::UeManager::Drbid2Bid ( uint8_t drbid )

private

Parameters

drbid Data Radio Bearer Id

Returns: the corresponding EPS Bearer Identifier

Definition at line 1098 of file lte-enb-rrc.cc.

Referenced by SetupDataRadioBearer().

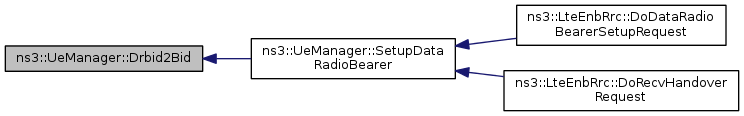

Here is the caller graph for this function:

uint8_t ns3::UeManager::Drbid2Lcid ( uint8_t drbid )

private

Parameters

drbid a Data Radio Bearer Id

Returns: the corresponding Logical Channel Identifier

Definition at line 1080 of file lte-enb-rrc.cc.

Referenced by ReleaseDataRadioBearer(), and SetupDataRadioBearer().

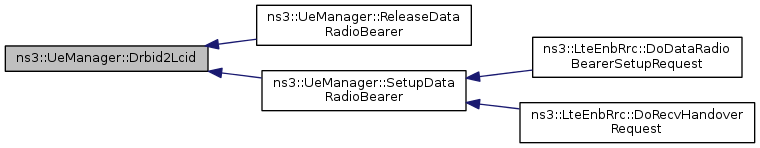

Here is the caller graph for this function:

Ptr< LteDataRadioBearerInfo > ns3::UeManager::GetDataRadioBearerInfo ( uint8_t drbid )

private

Parameters

drbid the Data Radio Bearer id

Returns: the corresponding LteDataRadioBearerInfo

Definition at line 1003 of file lte-enb-rrc.cc.

References m_drbMap, NS_ABORT_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by SendData().

Here is the caller graph for this function:

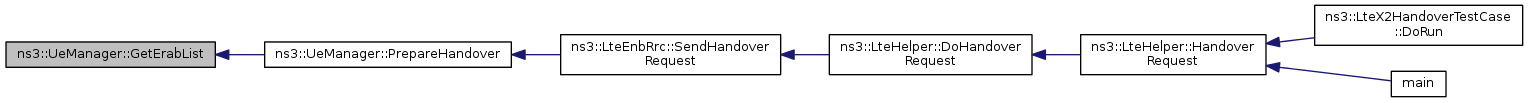

std::vector< EpcX2Sap::ErabToBeSetupItem > ns3::UeManager::GetErabList ( )

Returns: a list of ERAB-to-be-setup items to be put in a X2 HO REQ message

Definition at line 668 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::ErabToBeSetupItem::dlForwarding, ns3::EpcX2Sap::ErabToBeSetupItem::erabId, ns3::EpcX2Sap::ErabToBeSetupItem::erabLevelQosParameters, ns3::EpcX2Sap::ErabToBeSetupItem::gtpTeid, m_drbMap, NS_LOG_FUNCTION, and ns3::EpcX2Sap::ErabToBeSetupItem::transportLayerAddress.

Referenced by PrepareHandover().

Here is the caller graph for this function:

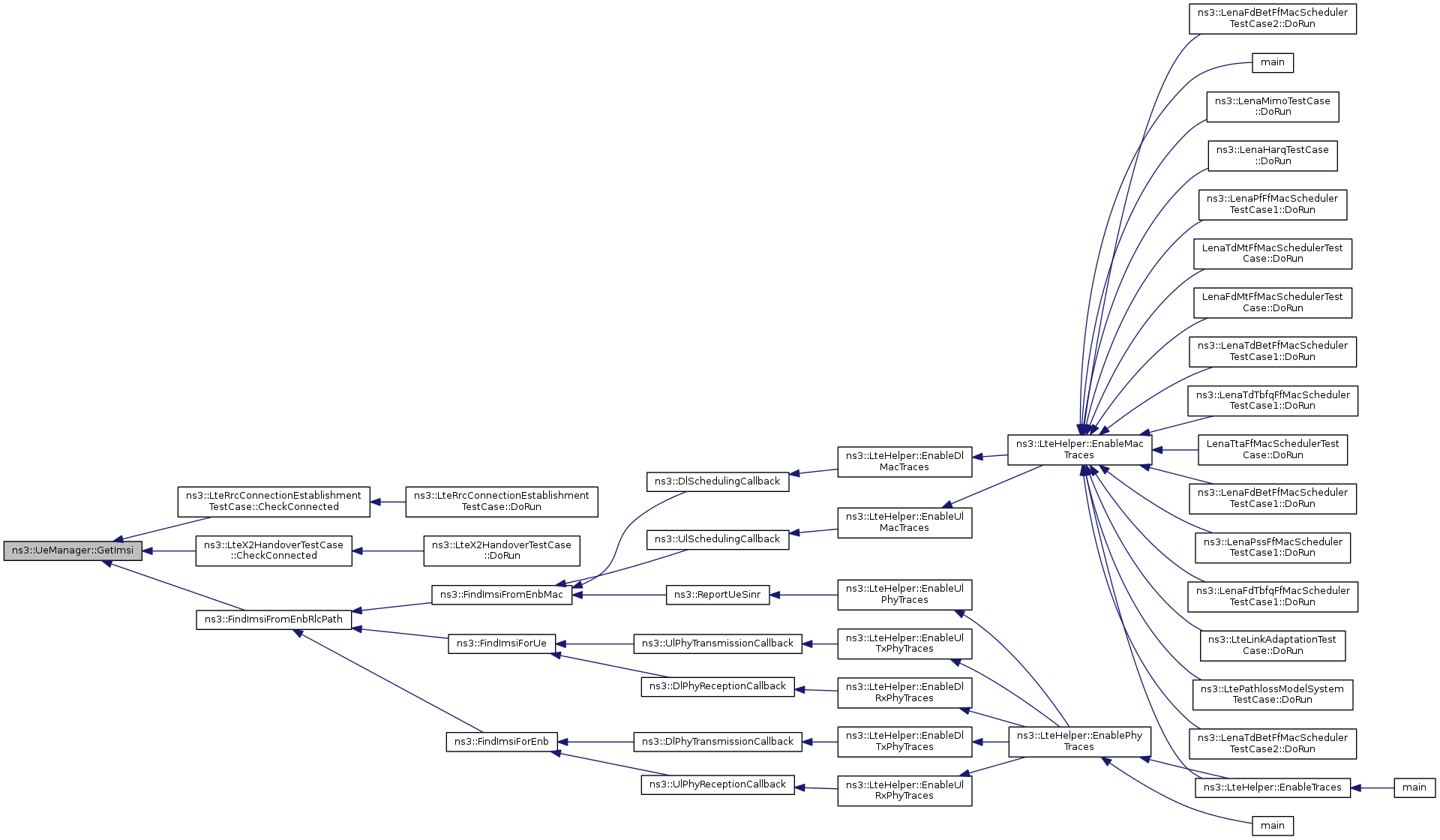

uint64_t ns3::UeManager::GetImsi ( void )

Returns: the IMSI, i.e., a globally unique UE identifier

Definition at line 942 of file lte-enb-rrc.cc.

References m_imsi.

Referenced by ns3::LteRrcConnectionEstablishmentTestCase::CheckConnected(), ns3::LteX2HandoverTestCase::CheckConnected(), and ns3::FindImsiFromEnbRlcPath().

Here is the caller graph for this function:

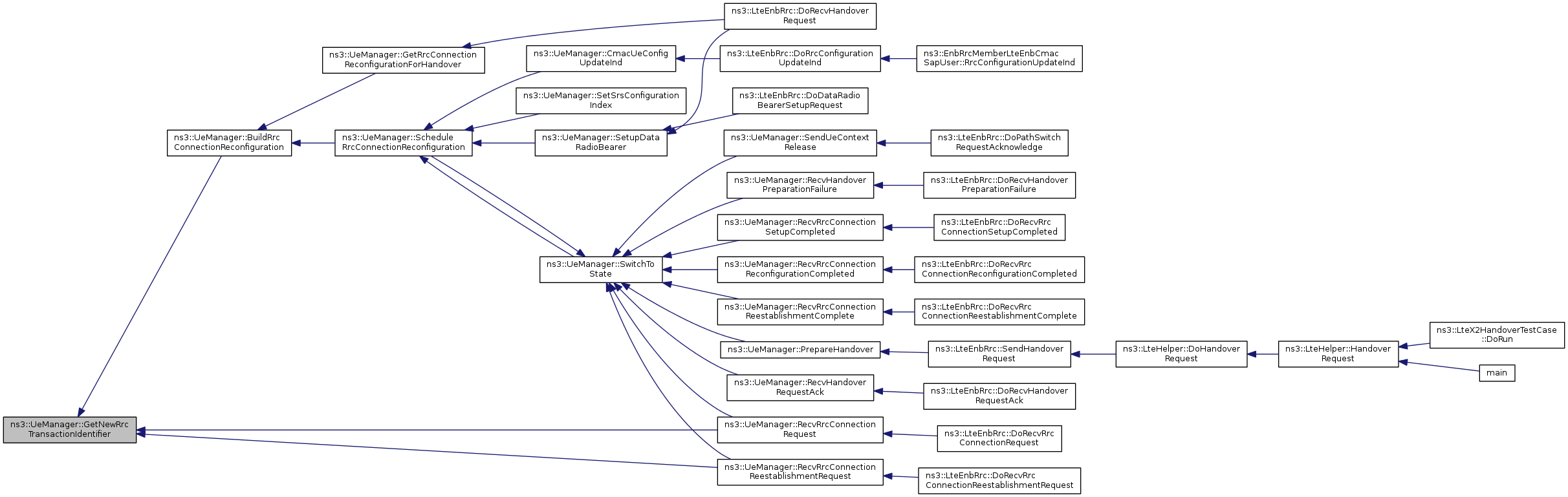

uint8_t ns3::UeManager::GetNewRrcTransactionIdentifier ( )

private

Returns: a newly allocated identifier for a new RRC transaction

Definition at line 1067 of file lte-enb-rrc.cc.

References m_lastRrcTransactionIdentifier.

Referenced by BuildRrcConnectionReconfiguration(), RecvRrcConnectionReestablishmentRequest(), and RecvRrcConnectionRequest().

Here is the caller graph for this function:

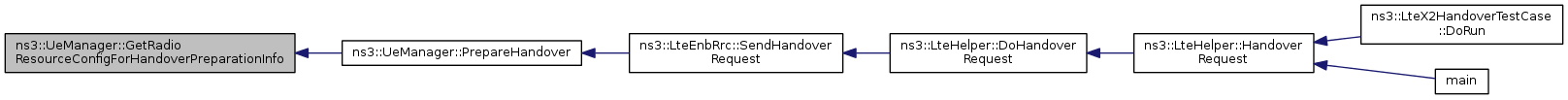

LteRrcSap::RadioResourceConfigDedicated ns3::UeManager::GetRadioResourceConfigForHandoverPreparationInfo ( )

Returns: the HandoverPreparationInfo sent by the source eNB to the target eNB in the X2-based handover procedure

Definition at line 605 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), and NS_LOG_FUNCTION.

Referenced by PrepareHandover().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::UeManager::GetRnti ( void )

Returns: the RNTI, i.e., an UE identifier that is unique within the cell

Definition at line 936 of file lte-enb-rrc.cc.

References m_rnti.

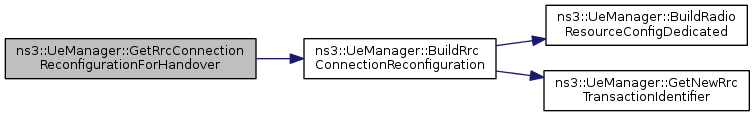

LteRrcSap::RrcConnectionReconfiguration ns3::UeManager::GetRrcConnectionReconfigurationForHandover ( )

Returns: retrieve the data that the target eNB needs to send to the source eNB as the Handover Command in the X2-based handover procedure.

Note: mobility control info is not expected to be filled in (shall be filled in by the caller).

Definition at line 612 of file lte-enb-rrc.cc.

References BuildRrcConnectionReconfiguration(), and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

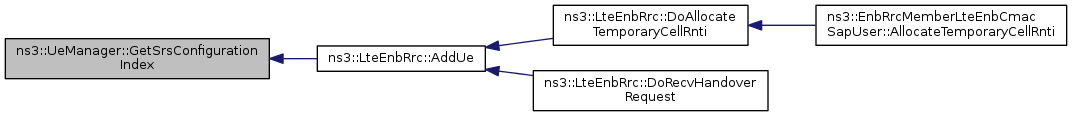

uint16_t ns3::UeManager::GetSrsConfigurationIndex ( void )

Returns: the SRS Configuration Index

Definition at line 948 of file lte-enb-rrc.cc.

References m_physicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex.

Referenced by ns3::LteEnbRrc::AddUe().

Here is the caller graph for this function:

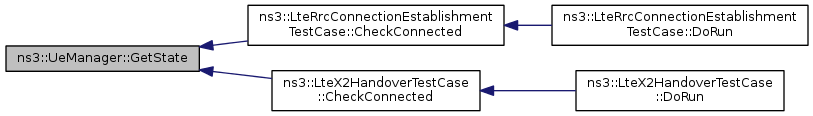

UeManager::State ns3::UeManager::GetState ( void )

Returns: the current state

Definition at line 973 of file lte-enb-rrc.cc.

References m_state.

Referenced by ns3::LteRrcConnectionEstablishmentTestCase::CheckConnected(), and ns3::LteX2HandoverTestCase::CheckConnected().

Here is the caller graph for this function:

TypeId ns3::UeManager::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Definition at line 278 of file lte-enb-rrc.cc.

References ns3::TypeId::ATTR_GET, m_drbMap, m_rnti, m_srb0, m_srb1, m_stateTransitionTrace, ns3::MakeObjectMapAccessor(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

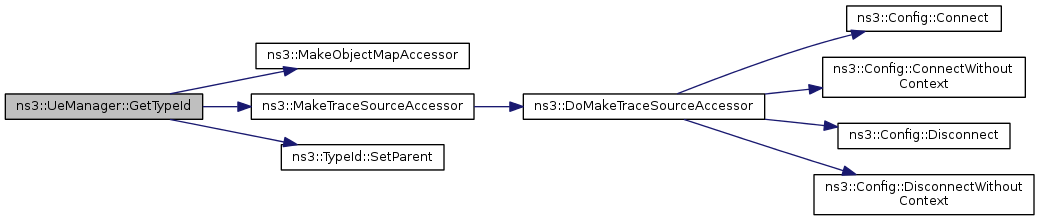

Here is the call graph for this function:

uint8_t ns3::UeManager::Lcid2Bid ( uint8_t lcid )

private

Parameters

lcid	a Logical Channel Identifier

Returns: the corresponding EPS Bearer Identifier

Definition at line 1085 of file lte-enb-rrc.cc.

References NS_ASSERT.

Referenced by DoReceivePdcpSdu().

Here is the caller graph for this function:

uint8_t ns3::UeManager::Lcid2Drbid ( uint8_t lcid )

private

Parameters

lcid	a Logical Channel Identifier

Returns: the corresponding Data Radio Bearer Id

Definition at line 1073 of file lte-enb-rrc.cc.

References NS_ASSERT.

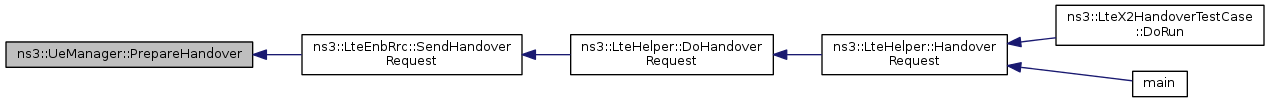

void ns3::UeManager::PrepareHandover ( uint16_t cellId )

Start the handover preparation and send the handover request

Parameters

cellId id of the target cell

Definition at line 502 of file lte-enb-rrc.cc.

Referenced by ns3::LteEnbRrc::SendHandoverRequest().

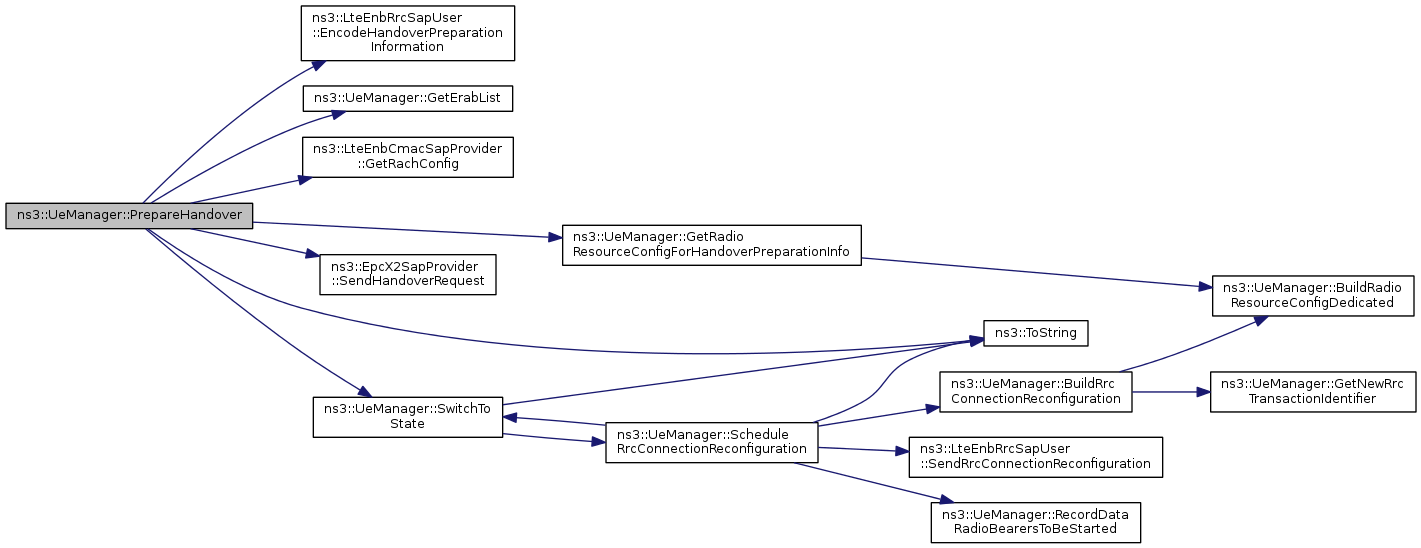

Here is the call graph for this function:

Here is the caller graph for this function:

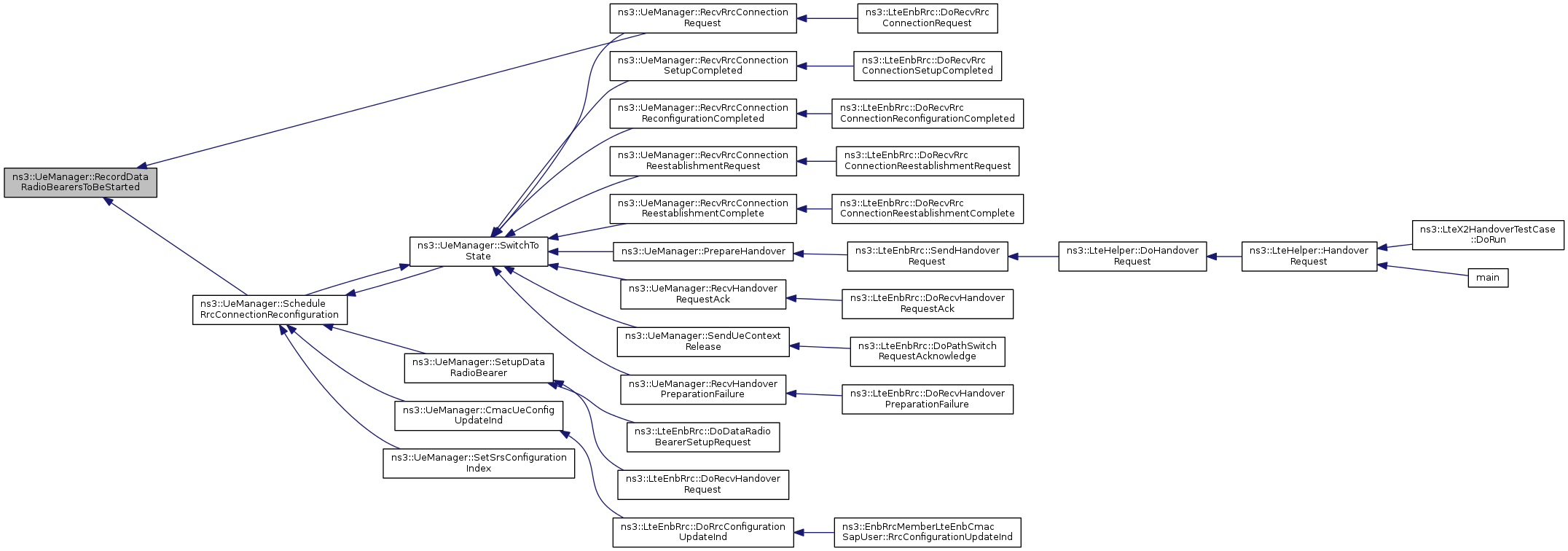

void ns3::UeManager::RecordDataRadioBearersToBeStarted ( )

Start all configured data radio bearers. It is safe to call this method if any bearer had been already started previously.

Definition at line 411 of file lte-enb-rrc.cc.

References m_drbMap, m_drbsToBeStarted, m_rnti, and NS_LOG_FUNCTION.

Referenced by RecvRrcConnectionRequest(), and ScheduleRrcConnectionReconfiguration().

Here is the caller graph for this function:

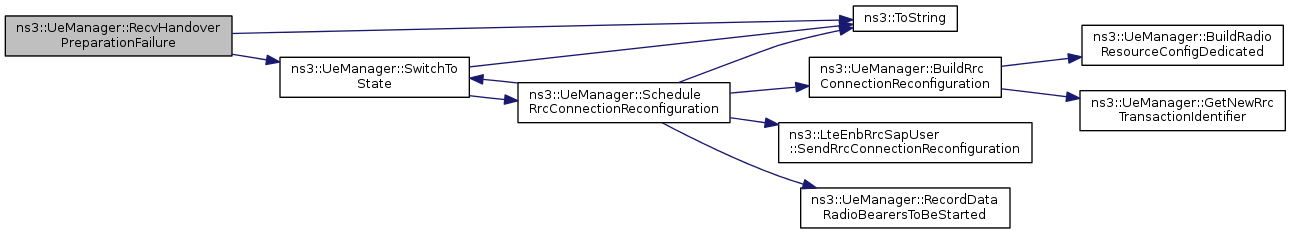

void ns3::UeManager::RecvHandoverPreparationFailure ( uint16_t cellId )

Take the necessary actions in response to the reception of an X2 HO preparation failure message

Parameters

cellId id of the target cell

Definition at line 711 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, HANDOVER_PREPARATION, m_state, m_targetCellId, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, SwitchToState(), and ns3::ToString().

Referenced by ns3::LteEnbRrc::DoRecvHandoverPreparationFailure().

Here is the call graph for this function:

Here is the caller graph for this function:

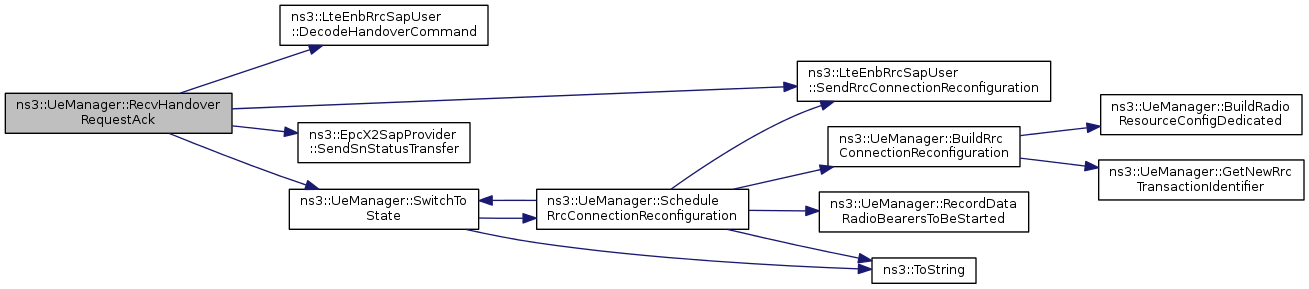

void ns3::UeManager::RecvHandoverRequestAck ( EpcX2SapUser::HandoverRequestAckParams params )

take the necessary actions in response to the reception of an X2 HANDOVER REQUEST ACK message

Parameters

params

Definition at line 561 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::HandoverRequestAckParams::admittedBearers, ns3::LteEnbRrcSapUser::DecodeHandoverCommand(), ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::dlPdcpSn, ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, HANDOVER_LEAVING, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteEnbRrc::m_cellId, m_drbMap, ns3::LteEnbRrc::m_handoverStartTrace, m_imsi, m_rnti, m_rrc, ns3::LteEnbRrc::m_rrcSapUser, ns3::LteEnbRrc::m_x2SapProvider, ns3::LteRrcSap::RrcConnectionReconfiguration::mobilityControlInfo, ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::notAdmittedBearers, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::rrcContext, ns3::LtePdcp::Status::rxSn, ns3::LteEnbRrcSapUser::SendRrcConnectionReconfiguration(), ns3::EpcX2SapProvider::SendSnStatusTransfer(), ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, ns3::EpcX2Sap::SnStatusTransferParams::sourceCellId, SwitchToState(), ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId, ns3::EpcX2Sap::SnStatusTransferParams::targetCellId, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LtePdcp::Status::txSn, and ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::ulPdcpSn.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequestAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UeManager::RecvMeasurementReport ( LteRrcSap::MeasurementReport msg )

Definition at line 894 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::LteEnbRrc::DoRecvMeasurementReport().

Here is the caller graph for this function:

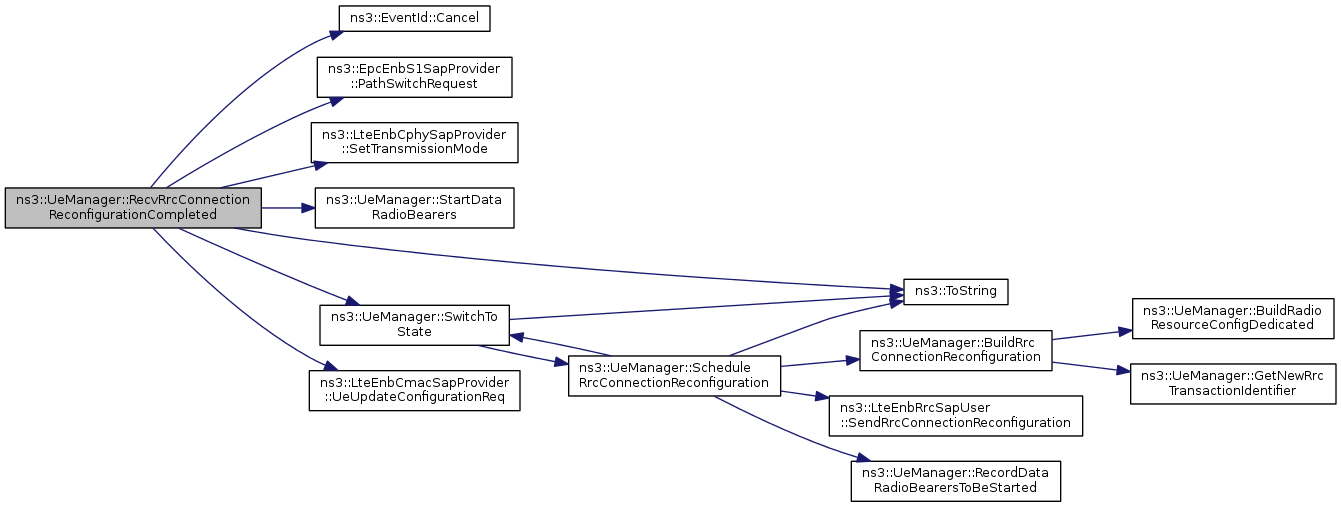

void ns3::UeManager::RecvRrcConnectionReconfigurationCompleted ( LteRrcSap::RrcConnectionReconfigurationCompleted msg )

Definition at line 819 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::bearersToBeSwitched, ns3::EventId::Cancel(), ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::cellId, CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, ns3::EpcEnbS1SapProvider::BearerToBeSwitched::epsBearerId, HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PATH_SWITCH, ns3::LteEnbRrc::m_cellId, ns3::LteEnbRrc::m_cmacSapProvider, ns3::LteEnbRrc::m_connectionReconfigurationTrace, m_connectionTimeout, ns3::LteEnbRrc::m_cphySapProvider, m_drbMap, m_imsi, m_needTransmissionModeConfiguration, m_physicalConfigDedicated, ns3::LteEnbCmacSapProvider::UeConfig::m_rnti, m_rnti, m_rrc, ns3::LteEnbRrc::m_s1SapProvider, m_state, ns3::LteEnbCmacSapProvider::UeConfig::m_transmissionMode, ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::mmeUeS1Id, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::EpcEnbS1SapProvider::PathSwitchRequest(), ns3::EpcEnbS1SapProvider::PathSwitchRequestParameters::rnti, ns3::LteEnbCphySapProvider::SetTransmissionMode(), StartDataRadioBearers(), SwitchToState(), ns3::EpcEnbS1SapProvider::BearerToBeSwitched::teid, ns3::ToString(), ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode, and ns3::LteEnbCmacSapProvider::UeUpdateConfigurationReq().

Referenced by ns3::LteEnbRrc::DoRecvRrcConnectionReconfigurationCompleted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UeManager::RecvRrcConnectionReestablishmentComplete ( LteRrcSap::RrcConnectionReestablishmentComplete msg )

Definition at line 887 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, NS_LOG_FUNCTION, and SwitchToState().

Referenced by ns3::LteEnbRrc::DoRecvRrcConnectionReestablishmentComplete().

Here is the call graph for this function:

Here is the caller graph for this function:

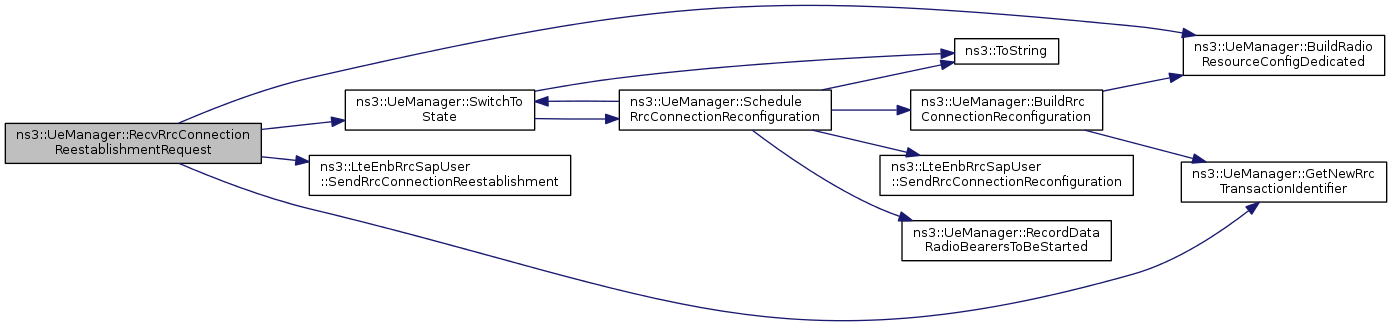

void ns3::UeManager::RecvRrcConnectionReestablishmentRequest ( LteRrcSap::RrcConnectionReestablishmentRequest msg )

Definition at line 876 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), CONNECTION_REESTABLISHMENT, GetNewRrcTransactionIdentifier(), m_rnti, m_rrc, ns3::LteEnbRrc::m_rrcSapUser, NS_LOG_FUNCTION, ns3::LteRrcSap::RrcConnectionReestablishment::radioResourceConfigDedicated, ns3::LteRrcSap::RrcConnectionReestablishment::rrcTransactionIdentifier, ns3::LteEnbRrcSapUser::SendRrcConnectionReestablishment(), and SwitchToState().

Referenced by ns3::LteEnbRrc::DoRecvRrcConnectionReestablishmentRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

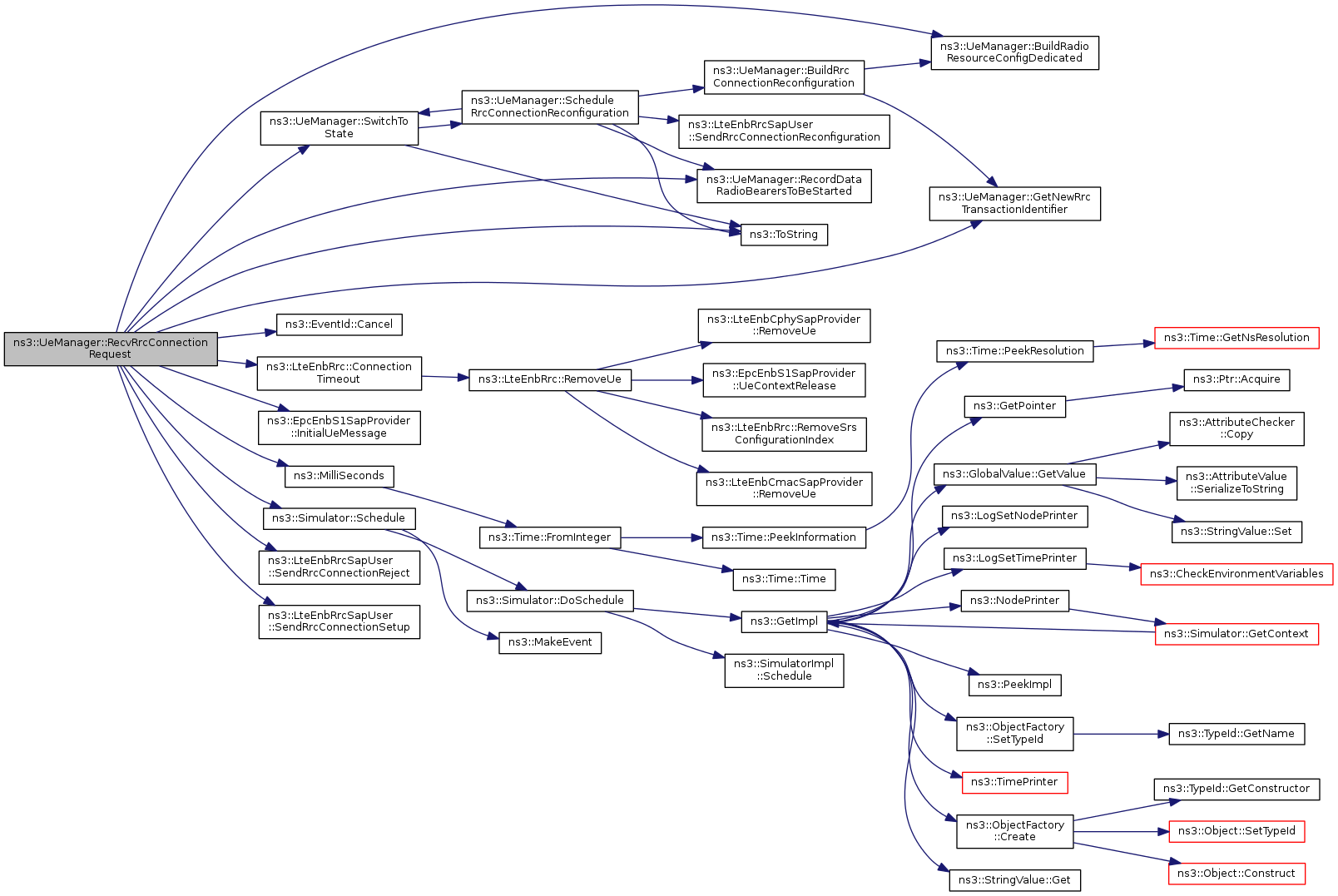

void ns3::UeManager::RecvRrcConnectionRequest ( LteRrcSap::RrcConnectionRequest msg )

Definition at line 758 of file lte-enb-rrc.cc.

References BuildRadioResourceConfigDedicated(), ns3::EventId::Cancel(), CONNECTION_REJECTED, CONNECTION_SETUP, ns3::LteEnbRrc::ConnectionTimeout(), GetNewRrcTransactionIdentifier(), INITIAL_RANDOM_ACCESS, ns3::EpcEnbS1SapProvider::InitialUeMessage(), ns3::LteEnbRrc::m_admitRrcConnectionRequest, m_connectionTimeout, m_imsi, m_rnti, m_rrc, ns3::LteEnbRrc::m_rrcSapUser, ns3::LteEnbRrc::m_s1SapProvider, m_state, ns3::MilliSeconds(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteRrcSap::RrcConnectionSetup::radioResourceConfigDedicated, RecordDataRadioBearersToBeStarted(), ns3::LteRrcSap::RrcConnectionSetup::rrcTransactionIdentifier, ns3::Simulator::Schedule(), ns3::LteEnbRrcSapUser::SendRrcConnectionReject(), ns3::LteEnbRrcSapUser::SendRrcConnectionSetup(), SwitchToState(), ns3::ToString(), ns3::LteRrcSap::RrcConnectionRequest::ueIdentity, and ns3::LteRrcSap::RrcConnectionReject::waitTime.

Referenced by ns3::LteEnbRrc::DoRecvRrcConnectionRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

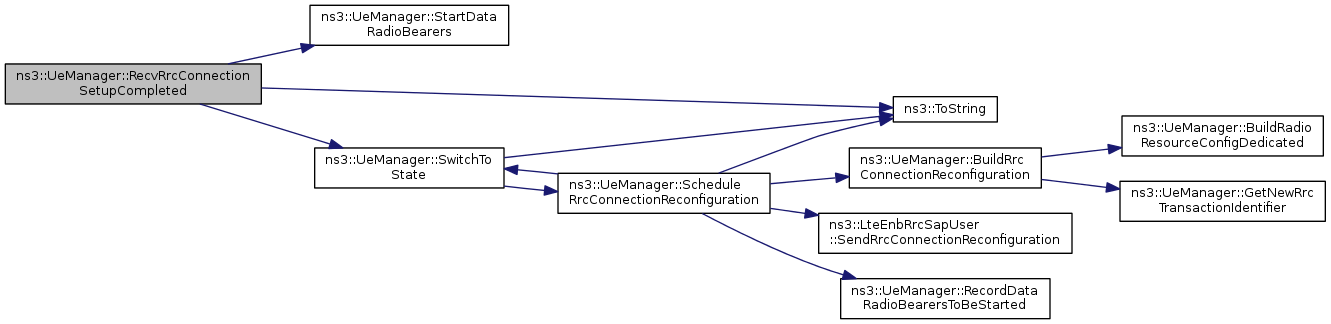

void ns3::UeManager::RecvRrcConnectionSetupCompleted ( LteRrcSap::RrcConnectionSetupCompleted msg )

Definition at line 801 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, CONNECTION_SETUP, ns3::LteEnbRrc::m_cellId, ns3::LteEnbRrc::m_connectionEstablishedTrace, m_imsi, m_rnti, m_rrc, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, StartDataRadioBearers(), SwitchToState(), and ns3::ToString().

Referenced by ns3::LteEnbRrc::DoRecvRrcConnectionSetupCompleted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UeManager::RecvSnStatusTransfer ( EpcX2SapUser::SnStatusTransferParams params )

Take the necessary actions in response to the reception of an X2 SN STATUS TRANSFER message

Parameters

params the SN STATUS

Definition at line 729 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbRrc::DoRecvSnStatusTransfer().

Here is the caller graph for this function:

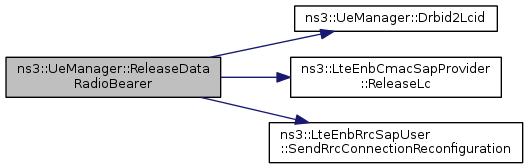

void ns3::UeManager::ReleaseDataRadioBearer ( uint8_t drbid )

Release a given radio bearer

Parameters

drbid the data radio bearer id of the bearer to be released

Definition at line 443 of file lte-enb-rrc.cc.

References Drbid2Lcid(), ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMeasConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteEnbRrc::m_cmacSapProvider, m_drbMap, m_rnti, m_rrc, ns3::LteEnbRrc::m_rrcSapUser, ns3::LteEnbRrc::m_x2uTeidInfoMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteEnbCmacSapProvider::ReleaseLc(), and ns3::LteEnbRrcSapUser::SendRrcConnectionReconfiguration().

Here is the call graph for this function:

void ns3::UeManager::RemoveDataRadioBearerInfo ( uint8_t drbid )

private

remove the LteDataRadioBearerInfo corresponding to a bearer being released

Parameters

drbid the Data Radio Bearer id

Definition at line 1014 of file lte-enb-rrc.cc.

References m_drbMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

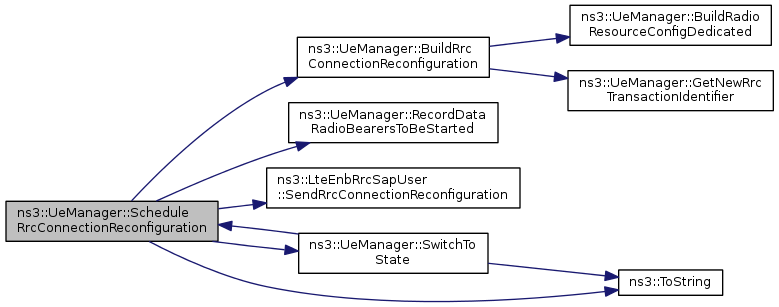

void ns3::UeManager::ScheduleRrcConnectionReconfiguration ( )

schedule an RRC Connection Reconfiguration procedure with the UE

Definition at line 469 of file lte-enb-rrc.cc.

References BuildRrcConnectionReconfiguration(), CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, CONNECTION_SETUP, HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PREPARATION, INITIAL_RANDOM_ACCESS, m_pendingRrcConnectionReconfiguration, m_rnti, m_rrc, ns3::LteEnbRrc::m_rrcSapUser, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, RecordDataRadioBearersToBeStarted(), ns3::LteEnbRrcSapUser::SendRrcConnectionReconfiguration(), SwitchToState(), and ns3::ToString().

Referenced by CmacUeConfigUpdateInd(), SetSrsConfigurationIndex(), SetupDataRadioBearer(), and SwitchToState().

Here is the call graph for this function:

Here is the caller graph for this function:

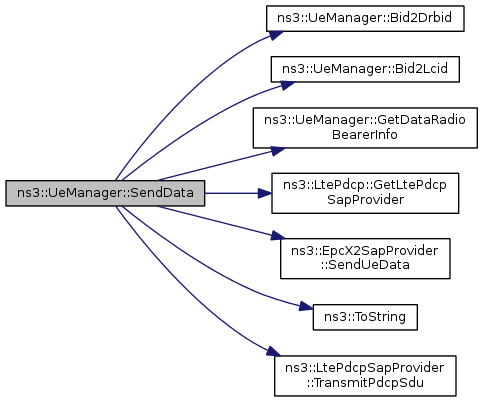

void ns3::UeManager::SendData	(	uint8_t	bid,
		Ptr< Packet >	p
	)

Send a data packet over the appropriate Data Radio Bearer

Parameters

bid	the corresponding EPS Bearer ID
p	the packet

Definition at line 619 of file lte-enb-rrc.cc.

References Bid2Drbid(), Bid2Lcid(), CONNECTED_NORMALLY, CONNECTION_RECONFIGURATION, CONNECTION_REESTABLISHMENT, CONNECTION_SETUP, GetDataRadioBearerInfo(), ns3::LtePdcp::GetLtePdcpSapProvider(), ns3::EpcX2Sap::UeDataParams::gtpTeid, HANDOVER_JOINING, HANDOVER_LEAVING, HANDOVER_PATH_SWITCH, HANDOVER_PREPARATION, INITIAL_RANDOM_ACCESS, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, ns3::LteEnbRrc::m_cellId, ns3::LteDataRadioBearerInfo::m_gtpTeid, ns3::LteRadioBearerInfo::m_pdcp, m_rnti, m_rrc, m_state, m_targetCellId, ns3::LteEnbRrc::m_x2SapProvider, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, ns3::EpcX2SapProvider::SendUeData(), ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, ns3::ToString(), ns3::LtePdcpSapProvider::TransmitPdcpSdu(), and ns3::EpcX2Sap::UeDataParams::ueData.

Referenced by ns3::LteEnbRrc::DoRecvUeData(), and ns3::LteEnbRrc::SendData().

Here is the call graph for this function:

Here is the caller graph for this function:

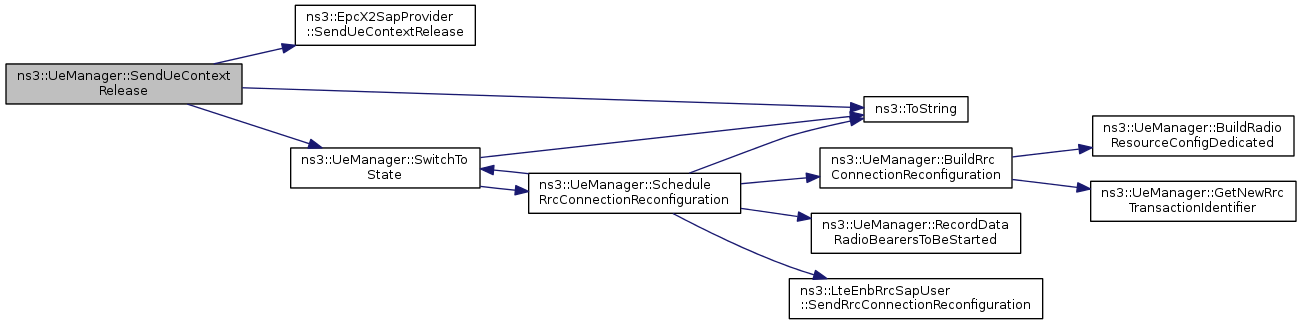

void ns3::UeManager::SendUeContextRelease ( )

send the UE CONTEXT RELEASE X2 message to the source eNB, thus successfully terminating an X2 handover procedure

Definition at line 688 of file lte-enb-rrc.cc.

References CONNECTED_NORMALLY, HANDOVER_PATH_SWITCH, ns3::LteEnbRrc::m_cellId, ns3::LteEnbRrc::m_handoverEndOkTrace, m_imsi, m_rnti, m_rrc, m_sourceCellId, m_sourceX2apId, m_state, ns3::LteEnbRrc::m_x2SapProvider, ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, ns3::EpcX2SapProvider::SendUeContextRelease(), ns3::EpcX2Sap::UeContextReleaseParams::sourceCellId, SwitchToState(), and ns3::ToString().

Referenced by ns3::LteEnbRrc::DoPathSwitchRequestAcknowledge().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UeManager::SetImsi ( uint64_t imsi )

Set the IMSI

Parameters

imsi the IMSI

Definition at line 316 of file lte-enb-rrc.cc.

References m_imsi.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest().

Here is the caller graph for this function:

void ns3::UeManager::SetSource	(	uint16_t	sourceCellId,
		uint16_t	sourceX2apId
	)

Set the identifiers of the source eNB for the case where a UE joins the current eNB as part of a handover procedure

Parameters

sourceCellId
sourceX2apId

Definition at line 309 of file lte-enb-rrc.cc.

References m_sourceCellId, and m_sourceX2apId.

Referenced by ns3::LteEnbRrc::DoRecvHandoverRequest().

Here is the caller graph for this function:

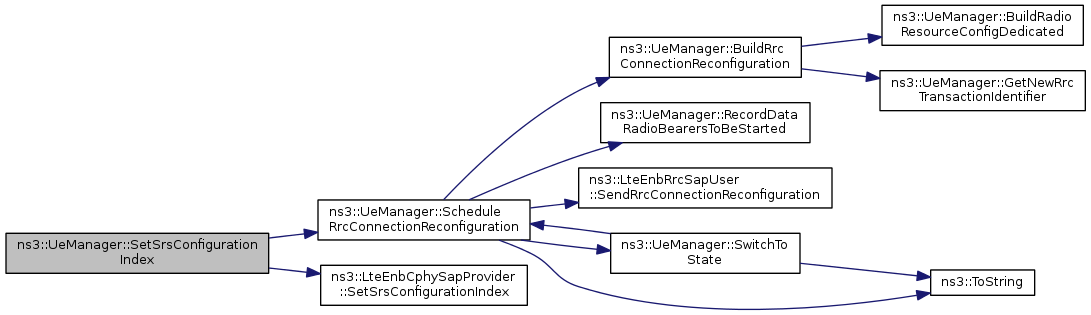

void ns3::UeManager::SetSrsConfigurationIndex ( uint16_t srsConfIndex )

Set the SRS configuration index and do the necessary reconfiguration

Parameters

srsConfIndex

Definition at line 954 of file lte-enb-rrc.cc.

References INITIAL_RANDOM_ACCESS, ns3::LteEnbRrc::m_cphySapProvider, m_physicalConfigDedicated, m_rnti, m_rrc, m_state, NS_LOG_FUNCTION, ScheduleRrcConnectionReconfiguration(), ns3::LteEnbCphySapProvider::SetSrsConfigurationIndex(), ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex.

Here is the call graph for this function:

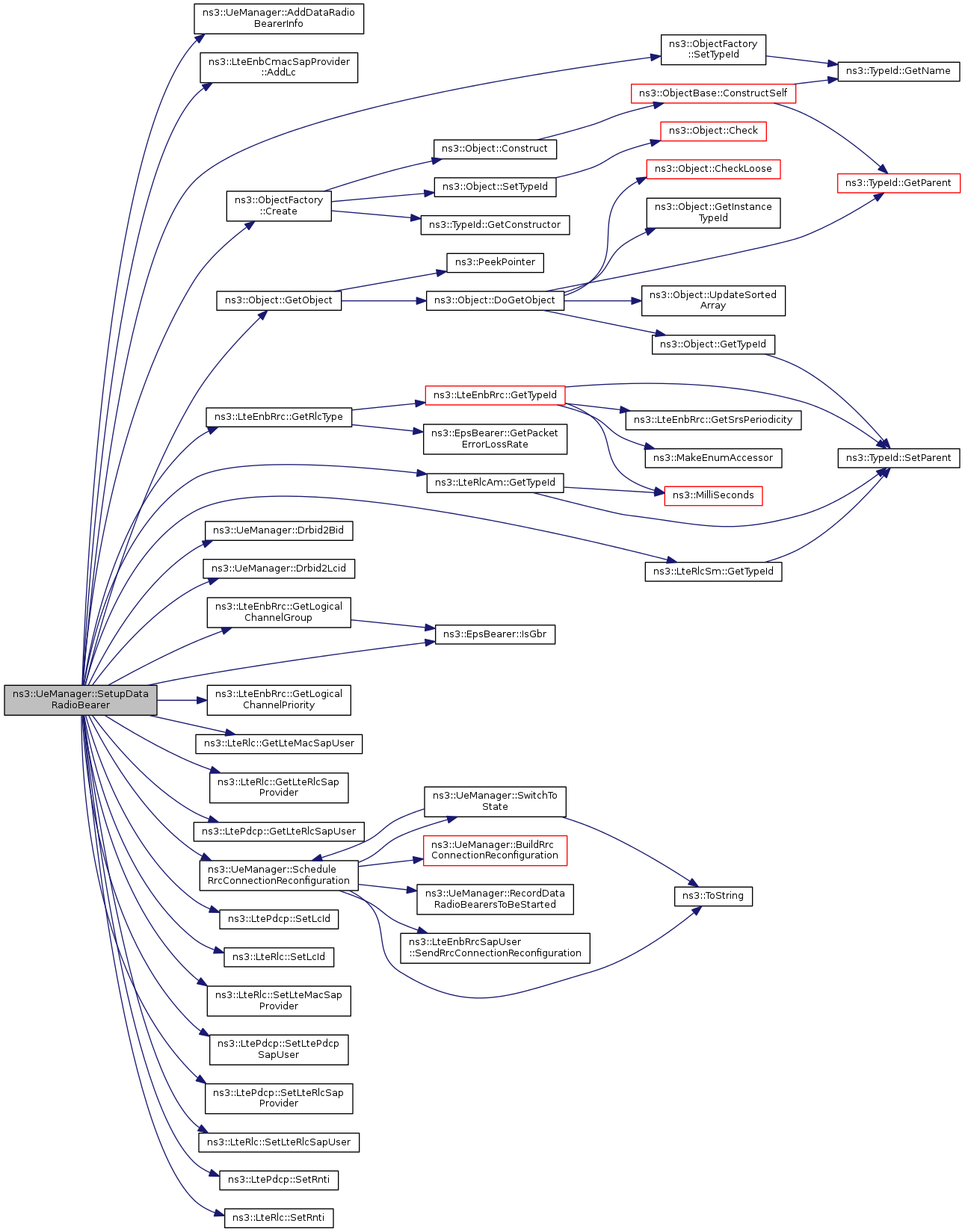

void ns3::UeManager::SetupDataRadioBearer	(	EpsBearer	bearer,
		uint8_t	bearerId,
		uint32_t	gtpTeid,
		Ipv4Address	transportLayerAddress
	)

Setup a new data radio bearer, including both the configuration within the eNB and the necessary RRC signaling with the UE

Parameters

bearer	the QoS characteristics of the bearer
bearerId	the EPS bearer identifier
gtpTeid	S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1
transportLayerAddress	IP Address of the SGW, see 36.423 9.2.1

Definition at line 322 of file lte-enb-rrc.cc.

References AddDataRadioBearerInfo(), ns3::LteEnbCmacSapProvider::AddLc(), ns3::LteRrcSap::RlcConfig::AM, ns3::LteRrcSap::LogicalChannelConfig::bucketSizeDurationMs, ns3::LteRrcSap::RlcConfig::choice, ns3::ObjectFactory::Create(), ns3::LteEnbRrc::X2uTeidInfo::drbid, Drbid2Bid(), Drbid2Lcid(), ns3::GbrQosInformation::gbrDl, ns3::LteEnbCmacSapProvider::LcInfo::gbrDl, ns3::EpsBearer::gbrQosInfo, ns3::GbrQosInformation::gbrUl, ns3::LteEnbCmacSapProvider::LcInfo::gbrUl, ns3::LteEnbRrc::GetLogicalChannelGroup(), ns3::LteEnbRrc::GetLogicalChannelPriority(), ns3::LteRlc::GetLteMacSapUser(), ns3::LteRlc::GetLteRlcSapProvider(), ns3::LtePdcp::GetLteRlcSapUser(), ns3::Object::GetObject(), ns3::LteEnbRrc::GetRlcType(), ns3::LteRlcAm::GetTypeId(), ns3::LteRlcSm::GetTypeId(), HANDOVER_JOINING, ns3::LteEnbCmacSapProvider::LcInfo::isGbr, ns3::EpsBearer::IsGbr(), ns3::LteEnbCmacSapProvider::LcInfo::lcGroup, ns3::LteEnbCmacSapProvider::LcInfo::lcId, ns3::LteRrcSap::LogicalChannelConfig::logicalChannelGroup, ns3::LteEnbRrc::m_cmacSapProvider, ns3::LteDataRadioBearerInfo::m_drbIdentity, m_drbPdcpSapUser, ns3::LteDataRadioBearerInfo::m_epsBearerIdentity, ns3::LteDataRadioBearerInfo::m_gtpTeid, ns3::LteDataRadioBearerInfo::m_logicalChannelConfig, ns3::LteDataRadioBearerInfo::m_logicalChannelIdentity, ns3::LteEnbRrc::m_macSapProvider, ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, ns3::LteDataRadioBearerInfo::m_rlcConfig, m_rnti, m_rrc, m_state, ns3::LteDataRadioBearerInfo::m_transportLayerAddress, ns3::LteEnbRrc::m_x2uTeidInfoMap, ns3::GbrQosInformation::mbrDl, ns3::LteEnbCmacSapProvider::LcInfo::mbrDl, ns3::GbrQosInformation::mbrUl, ns3::LteEnbCmacSapProvider::LcInfo::mbrUl, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteRrcSap::LogicalChannelConfig::prioritizedBitRateKbps, ns3::LteRrcSap::LogicalChannelConfig::priority, ns3::LteEnbCmacSapProvider::LcInfo::qci, ns3::EpsBearer::qci, ns3::LteEnbCmacSapProvider::LcInfo::rnti, ns3::LteEnbRrc::X2uTeidInfo::rnti, ScheduleRrcConnectionReconfiguration(), ns3::LtePdcp::SetLcId(), ns3::LteRlc::SetLcId(), ns3::LteRlc::SetLteMacSapProvider(), ns3::LtePdcp::SetLtePdcpSapUser(), ns3::LtePdcp::SetLteRlcSapProvider(), ns3::LteRlc::SetLteRlcSapUser(), ns3::LtePdcp::SetRnti(), ns3::LteRlc::SetRnti(), ns3::ObjectFactory::SetTypeId(), and ns3::LteRrcSap::RlcConfig::UM_BI_DIRECTIONAL.
