#include <lte-enb-rrc.h>

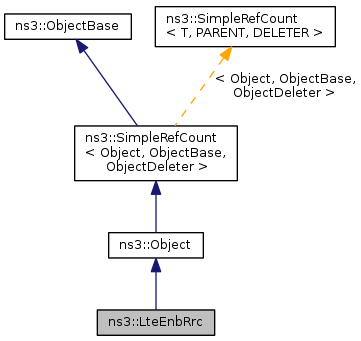

Inheritance diagram for ns3::LteEnbRrc:

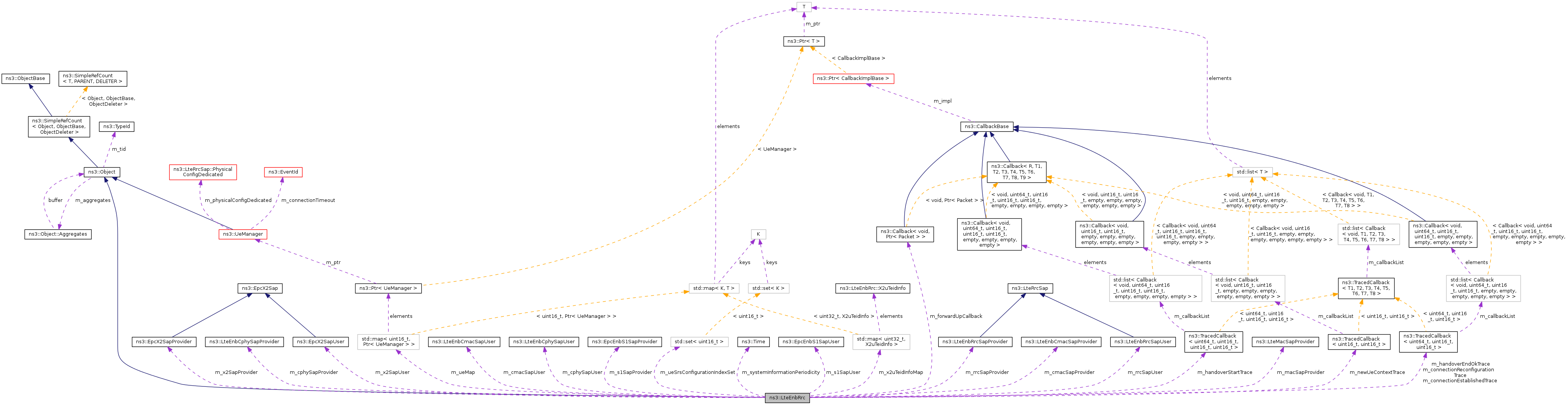

Collaboration diagram for ns3::LteEnbRrc:

Classes
struct	X2uTeidInfo

Public Types
enum	LteEpsBearerToRlcMapping_t { RLC_SM_ALWAYS = 1, RLC_UM_ALWAYS = 2, RLC_AM_ALWAYS = 3, PER_BASED = 4 }

Public Member Functions
	LteEnbRrc ()
virtual	~LteEnbRrc ()
void	ConfigureCell (uint8_t ulBandwidth, uint8_t dlBandwidth, uint16_t ulEarfcn, uint16_t dlEarfcn, uint16_t cellId)
void	ConnectionTimeout (uint16_t rnti)
EpcX2SapUser *	GetEpcX2SapUser ()
LteEnbCmacSapUser *	GetLteEnbCmacSapUser ()
LteEnbCphySapUser *	GetLteEnbCphySapUser ()
LteEnbRrcSapProvider *	GetLteEnbRrcSapProvider ()
EpcEnbS1SapUser *	GetS1SapUser ()
uint32_t	GetSrsPeriodicity () const
Ptr< UeManager >	GetUeManager (uint16_t rnti)
bool	SendData (Ptr< Packet > p)
void	SendHandoverRequest (uint16_t rnti, uint16_t cellId)
void	SetCellId (uint16_t m_cellId)
void	SetEpcX2SapProvider (EpcX2SapProvider *s)
void	SetForwardUpCallback (Callback< void, Ptr< Packet > > cb)
void	SetLteEnbCmacSapProvider (LteEnbCmacSapProvider *s)
void	SetLteEnbCphySapProvider (LteEnbCphySapProvider *s)
void	SetLteEnbRrcSapUser (LteEnbRrcSapUser *s)
void	SetLteMacSapProvider (LteMacSapProvider *s)
void	SetS1SapProvider (EpcEnbS1SapProvider *s)
void	SetSrsPeriodicity (uint32_t p)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Private Member Functions
uint16_t	AddUe (UeManager::State state)
uint16_t	DoAllocateTemporaryCellRnti ()
void	DoCompleteSetupUe (uint16_t rnti, LteEnbRrcSapProvider::CompleteSetupUeParameters params)
void	DoDataRadioBearerSetupRequest (EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters params)
void	DoNotifyLcConfigResult (uint16_t rnti, uint8_t lcid, bool success)
void	DoPathSwitchRequestAcknowledge (EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters params)
void	DoRecvHandoverPreparationFailure (EpcX2SapUser::HandoverPreparationFailureParams params)
void	DoRecvHandoverRequest (EpcX2SapUser::HandoverRequestParams params)
void	DoRecvHandoverRequestAck (EpcX2SapUser::HandoverRequestAckParams params)
void	DoRecvLoadInformation (EpcX2SapUser::LoadInformationParams params)
void	DoRecvMeasurementReport (uint16_t rnti, LteRrcSap::MeasurementReport msg)
void	DoRecvResourceStatusUpdate (EpcX2SapUser::ResourceStatusUpdateParams params)
void	DoRecvRrcConnectionReconfigurationCompleted (uint16_t rnti, LteRrcSap::RrcConnectionReconfigurationCompleted msg)
void	DoRecvRrcConnectionReestablishmentComplete (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentComplete msg)
void	DoRecvRrcConnectionReestablishmentRequest (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentRequest msg)
void	DoRecvRrcConnectionRequest (uint16_t rnti, LteRrcSap::RrcConnectionRequest msg)
void	DoRecvRrcConnectionSetupCompleted (uint16_t rnti, LteRrcSap::RrcConnectionSetupCompleted msg)
void	DoRecvSnStatusTransfer (EpcX2SapUser::SnStatusTransferParams params)
void	DoRecvUeContextRelease (EpcX2SapUser::UeContextReleaseParams params)
void	DoRecvUeData (EpcX2SapUser::UeDataParams params)
void	DoRrcConfigurationUpdateInd (LteEnbCmacSapUser::UeConfig params)
uint8_t	GetLogicalChannelGroup (EpsBearer bearer)
uint8_t	GetLogicalChannelPriority (EpsBearer bearer)
uint16_t	GetNewSrsConfigurationIndex (void)
TypeId	GetRlcType (EpsBearer bearer)
void	RemoveSrsConfigurationIndex (uint16_t srcCi)
void	RemoveUe (uint16_t rnti)
void	SendSystemInformation ()

Private Attributes
bool	m_admitHandoverRequest
bool	m_admitRrcConnectionRequest
uint16_t	m_cellId
LteEnbCmacSapProvider *	m_cmacSapProvider
LteEnbCmacSapUser *	m_cmacSapUser
bool	m_configured
TracedCallback< uint64_t, uint16_t, uint16_t >	m_connectionEstablishedTrace
TracedCallback< uint64_t, uint16_t, uint16_t >	m_connectionReconfigurationTrace
LteEnbCphySapProvider *	m_cphySapProvider
LteEnbCphySapUser *	m_cphySapUser
uint8_t	m_defaultTransmissionMode
uint16_t	m_dlBandwidth
uint16_t	m_dlEarfcn
enum LteEpsBearerToRlcMapping_t	m_epsBearerToRlcMapping
Callback< void, Ptr< Packet > >	m_forwardUpCallback
TracedCallback< uint64_t, uint16_t, uint16_t >	m_handoverEndOkTrace
TracedCallback< uint64_t, uint16_t, uint16_t, uint16_t >	m_handoverStartTrace
uint16_t	m_lastAllocatedConfigurationIndex
uint16_t	m_lastAllocatedRnti
LteMacSapProvider *	m_macSapProvider
TracedCallback< uint16_t, uint16_t >	m_newUeContextTrace
bool	m_reconfigureUes
LteEnbRrcSapProvider *	m_rrcSapProvider
LteEnbRrcSapUser *	m_rrcSapUser
EpcEnbS1SapProvider *	m_s1SapProvider
EpcEnbS1SapUser *	m_s1SapUser
uint16_t	m_srsCurrentPeriodicityId
Time	m_systemInformationPeriodicity
std::map< uint16_t, Ptr < UeManager > >	m_ueMap
std::set< uint16_t >	m_ueSrsConfigurationIndexSet
uint16_t	m_ulBandwidth
uint16_t	m_ulEarfcn
EpcX2SapProvider *	m_x2SapProvider
EpcX2SapUser *	m_x2SapUser
std::map< uint32_t, X2uTeidInfo >	m_x2uTeidInfoMap

Friends
class	EnbRrcMemberLteEnbCmacSapUser
class	EpcX2SpecificEpcX2SapUser< LteEnbRrc >
class	MemberEpcEnbS1SapUser< LteEnbRrc >
class	MemberLteEnbRrcSapProvider< LteEnbRrc >
class	UeManager

Detailed Description

The LTE Radio Resource Control entity at the eNB

Config Paths

ns3::LteEnbRrc is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc

Attributes

UeMap: List of UeManager by C-RNTI.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::UeManager >
- Flags: read
DefaultTransmissionMode: The default UEs' transmission mode (0: SISO)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read
EpsBearerToRlcMapping: Specify which type of RLC will be used for each type of EPS bearer.
- Set with class: ns3::EnumValue
- Underlying type: RlcSmAlways|RlcUmAlways|RlcAmAlways|PacketErrorRateBased
- Initial value: RlcSmAlways
- Flags: construct write read
SystemInformationPeriodicity: The interval for sending system information (Time value)
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +80000000.0ns
- Flags: construct write read
SrsPeriodicity: The SRS periodicity in milliseconds
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 40
- Flags: construct write read
AdmitHandoverRequest: Whether to admit an X2 handover request from another eNB
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
AdmitRrcConnectionRequest: Whether to admit a connection request from a Ue
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

TraceSources

NewUeContext: trace fired upon creation of a new UE context
ConnectionEstablished: trace fired upon successful RRC connection establishment
ConnectionReconfiguration: trace fired upon RRC connection reconfiguration
HandoverStart: trace fired upon start of a handover procedure
HandoverEndOk: trace fired upon successful termination of a handover procedure

Definition at line 403 of file lte-enb-rrc.h.

Member Enumeration Documentation

enum ns3::LteEnbRrc::LteEpsBearerToRlcMapping_t

Identifies how EPS Bearer parameters are mapped to different RLC types

Enumerator:

RLC_SM_ALWAYS
RLC_UM_ALWAYS
RLC_AM_ALWAYS
PER_BASED

Definition at line 585 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::LteEnbRrc::LteEnbRrc ( )

create an RRC instance for use within an eNB

Definition at line 1160 of file lte-enb-rrc.cc.

References EnbRrcMemberLteEnbCmacSapUser, m_cmacSapUser, m_cphySapUser, m_rrcSapProvider, m_s1SapUser, m_x2SapUser, and NS_LOG_FUNCTION.

ns3::LteEnbRrc::~LteEnbRrc ( )

virtual

Destructor

Definition at line 1184 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint16_t ns3::LteEnbRrc::AddUe ( UeManager::State state )

private

Allocate a new RNTI for a new UE. This is done in the following cases:

T-C-RNTI allocation upon contention-based MAC Random Access procedure
target cell RNTI allocation upon handover

Parameters

state the initial state of the UeManager

Returns: the newly allocated RNTI

Definition at line 1714 of file lte-enb-rrc.cc.

References ns3::UeManager::GetSrsConfigurationIndex(), ns3::Object::Initialize(), m_cellId, m_lastAllocatedRnti, m_newUeContextTrace, m_ueMap, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoAllocateTemporaryCellRnti(), and DoRecvHandoverRequest().

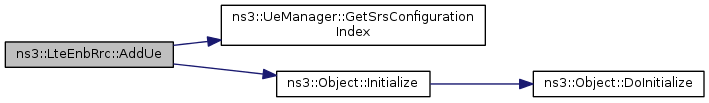

Here is the call graph for this function:

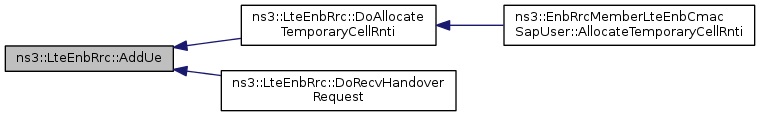

Here is the caller graph for this function:

void ns3::LteEnbRrc::ConfigureCell	(	uint8_t	ulBandwidth,
		uint8_t	dlBandwidth,
		uint16_t	ulEarfcn,
		uint16_t	dlEarfcn,
		uint16_t	cellId
	)

configure cell-specific parameters

Parameters

ulBandwidth	the uplink bandwidth in number of RB
dlBandwidth	the downlink bandwidth in number of RB
ulEarfcn	the UL EARFCN
dlEarfcn	the DL EARFCN
cellId	the ID of the cell

Definition at line 1353 of file lte-enb-rrc.cc.

References ns3::LteEnbCmacSapProvider::ConfigureMac(), ns3::LteRrcSap::MasterInformationBlock::dlBandwidth, m_cellId, m_cmacSapProvider, m_configured, m_cphySapProvider, m_dlBandwidth, m_dlEarfcn, m_ulBandwidth, m_ulEarfcn, ns3::MilliSeconds(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SendSystemInformation(), ns3::LteEnbCphySapProvider::SetBandwidth(), ns3::LteEnbCphySapProvider::SetCellId(), ns3::LteEnbCphySapProvider::SetEarfcn(), and ns3::LteEnbCphySapProvider::SetMasterInformationBlock().

Referenced by ns3::LteEnbNetDevice::UpdateConfig().

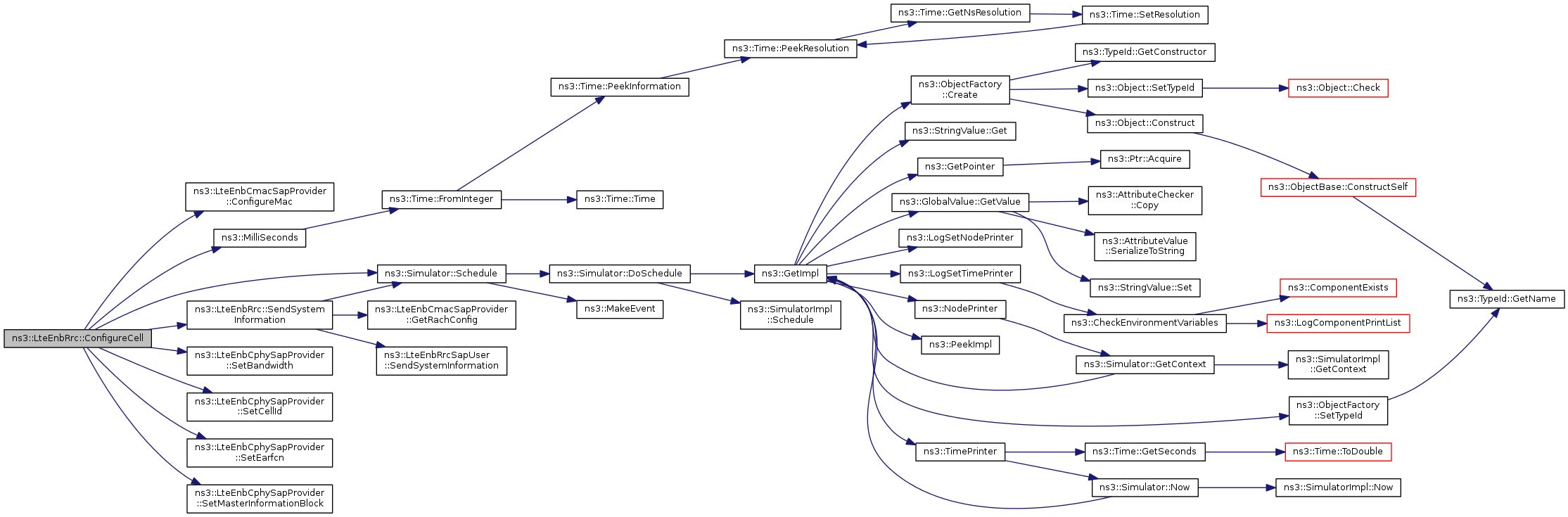

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::ConnectionTimeout ( uint16_t rnti )

Method triggered when a UE is expected to get connected but does not do so in a reasonable time

Parameters

rnti	the T-C-RNTI whose timeout expired

Definition at line 1403 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION, and RemoveUe().

Referenced by ns3::UeManager::DoInitialize(), and ns3::UeManager::RecvRrcConnectionRequest().

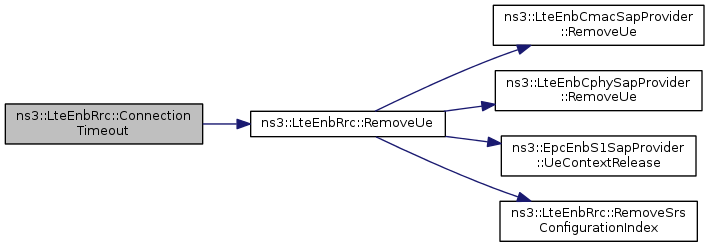

Here is the call graph for this function:

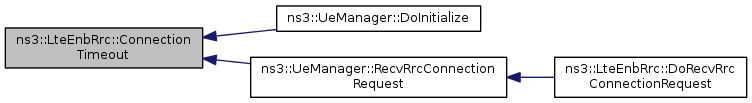

Here is the caller graph for this function:

uint16_t ns3::LteEnbRrc::DoAllocateTemporaryCellRnti ( )

private

Definition at line 1691 of file lte-enb-rrc.cc.

References AddUe(), ns3::UeManager::INITIAL_RANDOM_ACCESS, and NS_LOG_FUNCTION.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::AllocateTemporaryCellRnti().

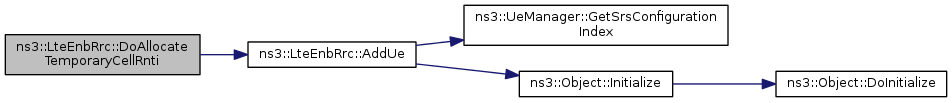

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::DoCompleteSetupUe	(	uint16_t	rnti,
		LteEnbRrcSapProvider::CompleteSetupUeParameters	params
	)

private

Definition at line 1423 of file lte-enb-rrc.cc.

References ns3::UeManager::CompleteSetupUe(), GetUeManager(), and NS_LOG_FUNCTION.

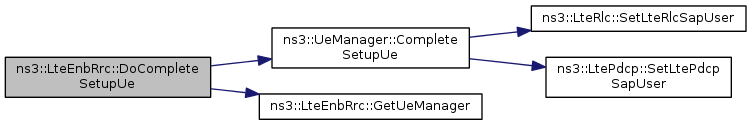

Here is the call graph for this function:

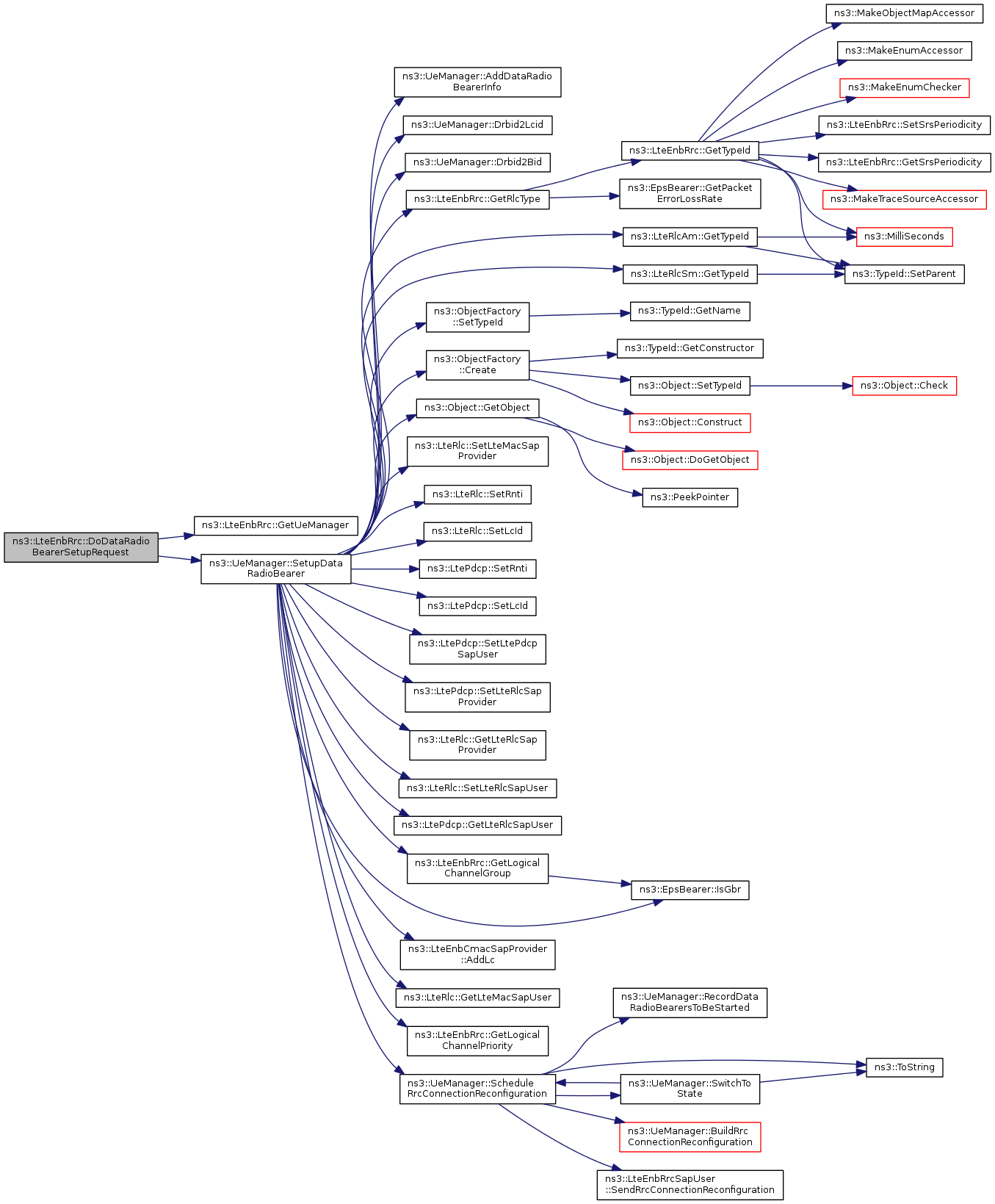

void ns3::LteEnbRrc::DoDataRadioBearerSetupRequest ( EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters params )

private

Definition at line 1473 of file lte-enb-rrc.cc.

References ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearer, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearerId, GetUeManager(), ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::gtpTeid, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::rnti, ns3::UeManager::SetupDataRadioBearer(), and ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::transportLayerAddress.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 1191 of file lte-enb-rrc.cc.

References m_cmacSapUser, m_cphySapUser, m_rrcSapProvider, m_s1SapUser, m_ueMap, m_x2SapUser, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::DoNotifyLcConfigResult	(	uint16_t	rnti,
		uint8_t	lcid,
		bool	success
	)

private

Definition at line 1705 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::NotifyLcConfigResult().

Here is the caller graph for this function:

void ns3::LteEnbRrc::DoPathSwitchRequestAcknowledge ( EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters params )

private

Definition at line 1480 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters::rnti, and ns3::UeManager::SendUeContextRelease().

Here is the call graph for this function:

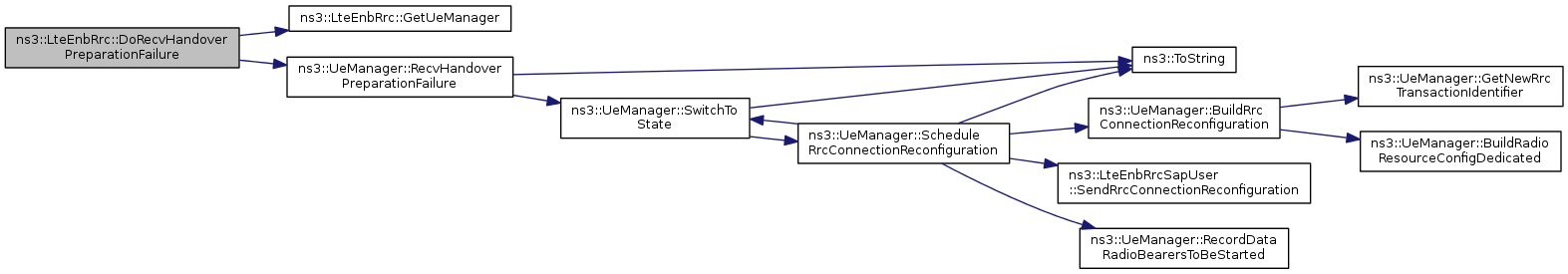

void ns3::LteEnbRrc::DoRecvHandoverPreparationFailure ( EpcX2SapUser::HandoverPreparationFailureParams params )

private

Definition at line 1594 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::HandoverPreparationFailureParams::cause, ns3::EpcX2Sap::HandoverPreparationFailureParams::criticalityDiagnostics, GetUeManager(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverPreparationFailureParams::oldEnbUeX2apId, ns3::UeManager::RecvHandoverPreparationFailure(), ns3::EpcX2Sap::HandoverPreparationFailureParams::sourceCellId, and ns3::EpcX2Sap::HandoverPreparationFailureParams::targetCellId.

Here is the call graph for this function:

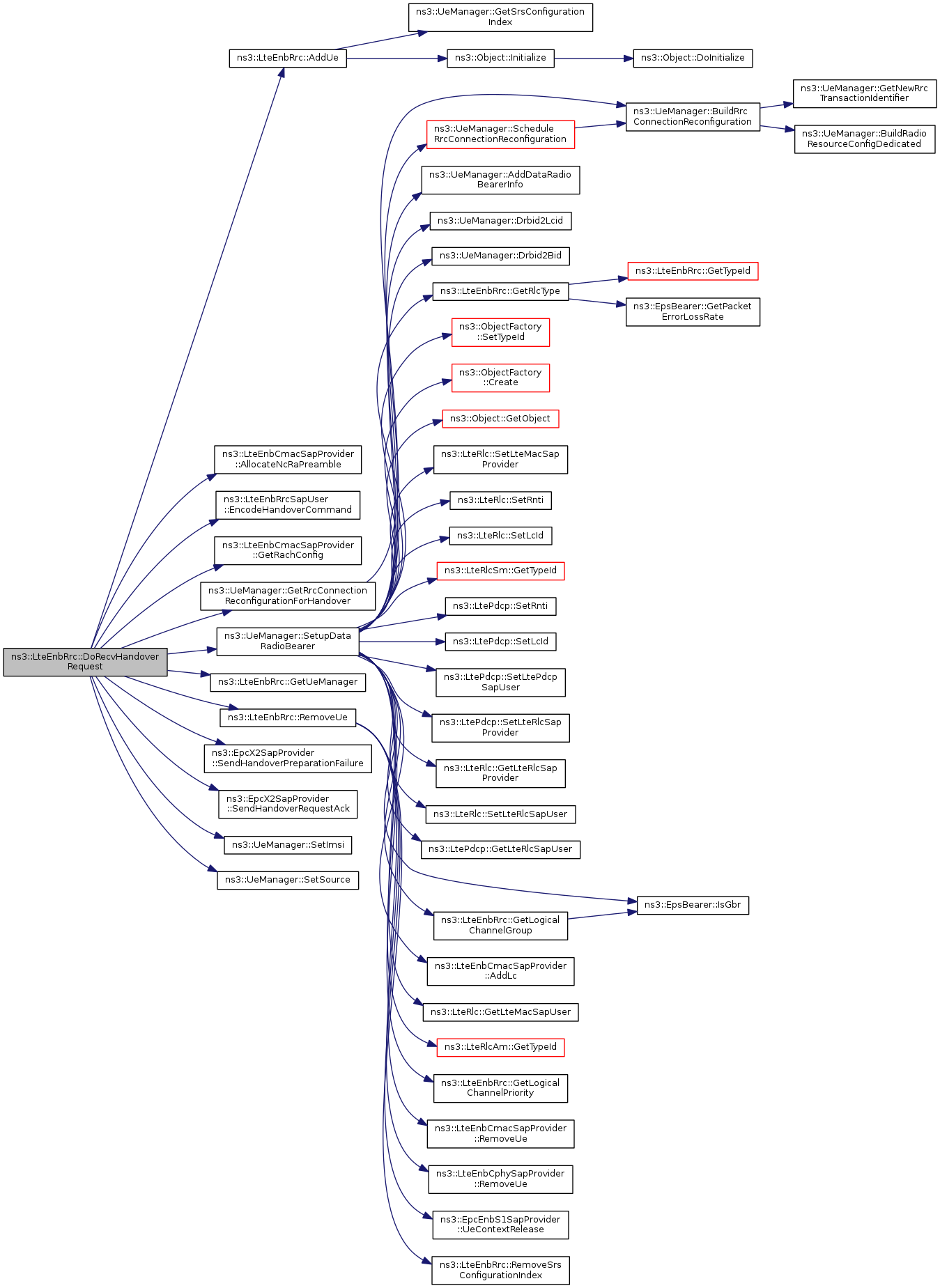

void ns3::LteEnbRrc::DoRecvHandoverRequest ( EpcX2SapUser::HandoverRequestParams params )

private

Definition at line 1487 of file lte-enb-rrc.cc.

Here is the call graph for this function:

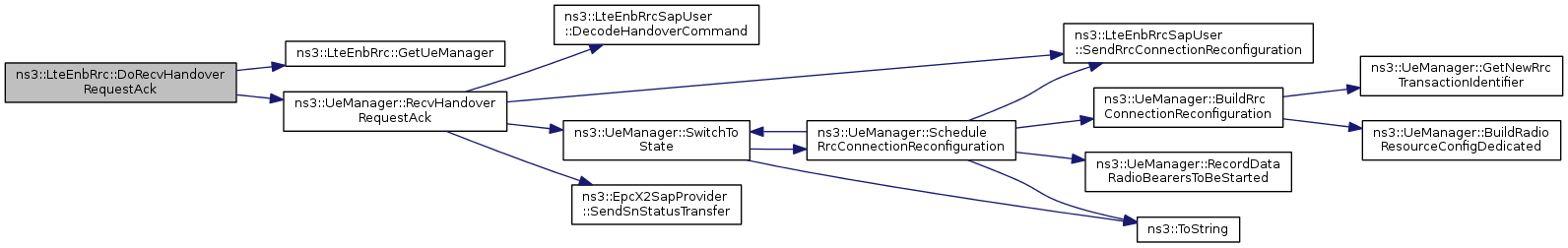

void ns3::LteEnbRrc::DoRecvHandoverRequestAck ( EpcX2SapUser::HandoverRequestAckParams params )

private

Definition at line 1577 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::UeManager::RecvHandoverRequestAck(), ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, and ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvLoadInformation ( EpcX2SapUser::LoadInformationParams params )

private

Definition at line 1642 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::LoadInformationParams::cellInformationList, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

void ns3::LteEnbRrc::DoRecvMeasurementReport	(	uint16_t	rnti,
		LteRrcSap::MeasurementReport	msg
	)

private

Definition at line 1466 of file lte-enb-rrc.cc.

References GetUeManager(), NS_LOG_FUNCTION, and ns3::UeManager::RecvMeasurementReport().

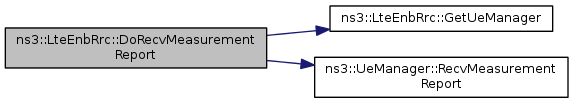

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvResourceStatusUpdate ( EpcX2SapUser::ResourceStatusUpdateParams params )

private

Definition at line 1654 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::ResourceStatusUpdateParams::cellMeasurementResultList, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

void ns3::LteEnbRrc::DoRecvRrcConnectionReconfigurationCompleted	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReconfigurationCompleted	msg
	)

private

Definition at line 1445 of file lte-enb-rrc.cc.

References GetUeManager(), NS_LOG_FUNCTION, and ns3::UeManager::RecvRrcConnectionReconfigurationCompleted().

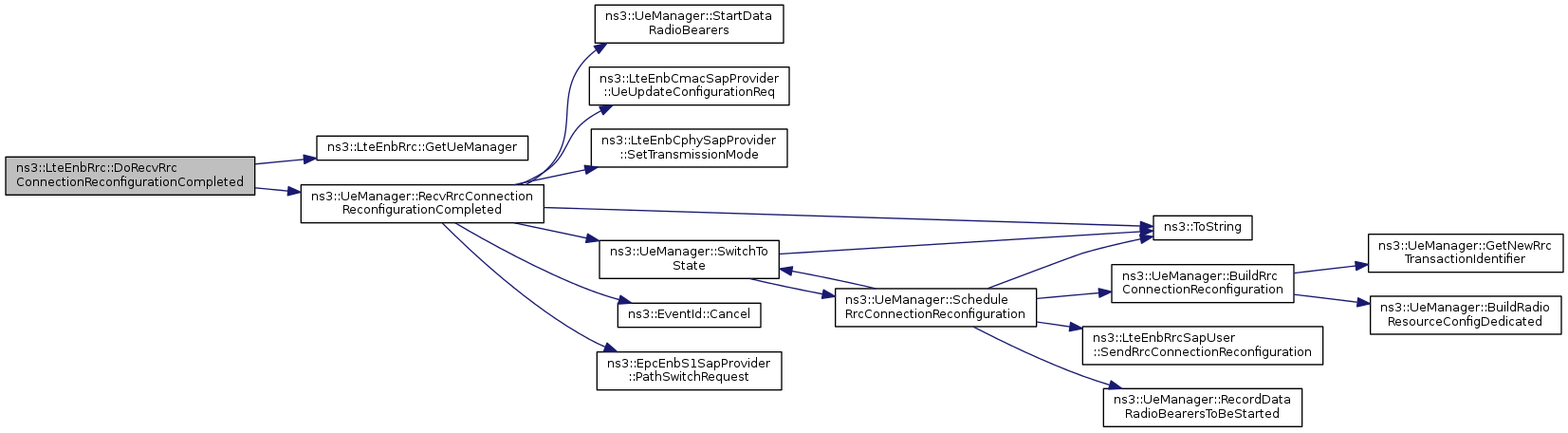

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionReestablishmentComplete	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReestablishmentComplete	msg
	)

private

Definition at line 1459 of file lte-enb-rrc.cc.

References GetUeManager(), NS_LOG_FUNCTION, and ns3::UeManager::RecvRrcConnectionReestablishmentComplete().

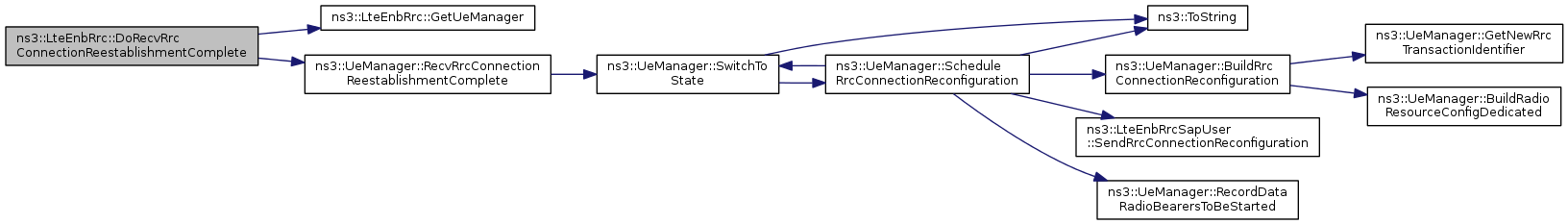

Here is the call graph for this function:

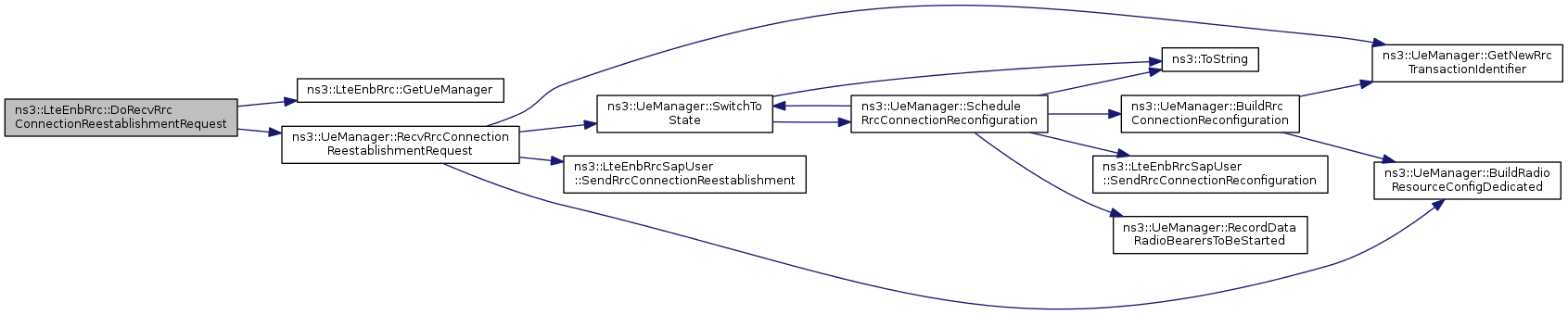

void ns3::LteEnbRrc::DoRecvRrcConnectionReestablishmentRequest	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReestablishmentRequest	msg
	)

private

Definition at line 1452 of file lte-enb-rrc.cc.

References GetUeManager(), NS_LOG_FUNCTION, and ns3::UeManager::RecvRrcConnectionReestablishmentRequest().

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionRequest	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionRequest	msg
	)

private

Definition at line 1430 of file lte-enb-rrc.cc.

References GetUeManager(), NS_LOG_FUNCTION, and ns3::UeManager::RecvRrcConnectionRequest().

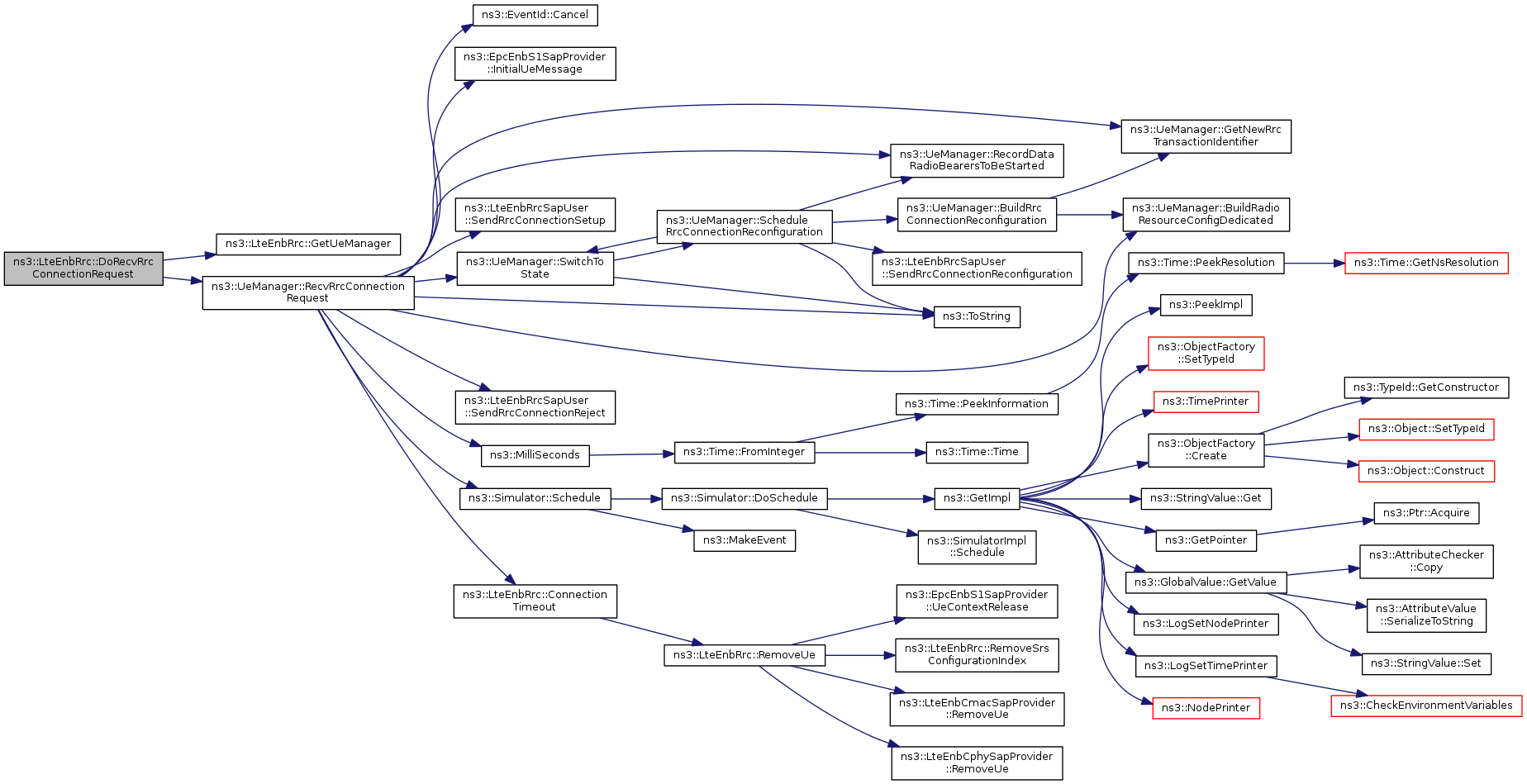

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionSetupCompleted	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionSetupCompleted	msg
	)

private

Definition at line 1438 of file lte-enb-rrc.cc.

References GetUeManager(), NS_LOG_FUNCTION, and ns3::UeManager::RecvRrcConnectionSetupCompleted().

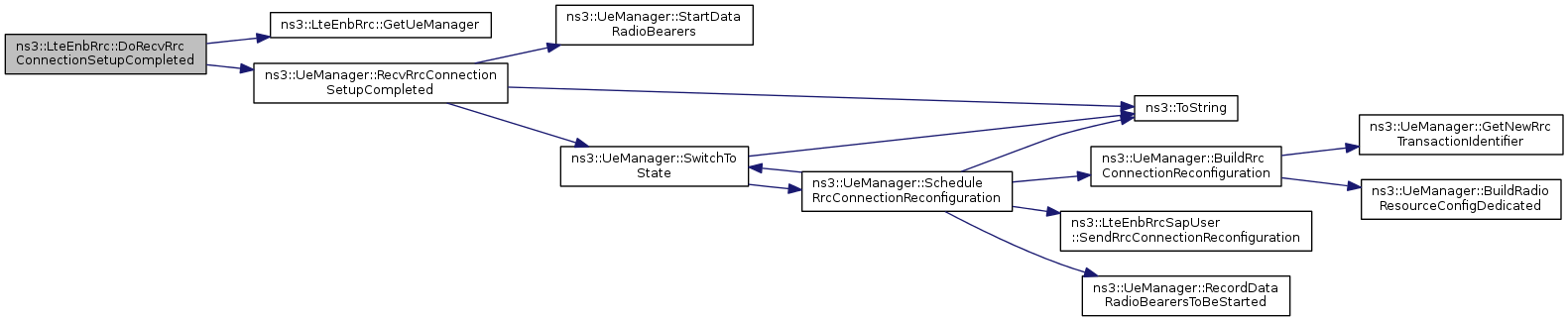

Here is the call graph for this function:

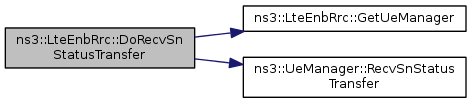

void ns3::LteEnbRrc::DoRecvSnStatusTransfer ( EpcX2SapUser::SnStatusTransferParams params )

private

Definition at line 1612 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, GetUeManager(), ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId, and ns3::UeManager::RecvSnStatusTransfer().

Here is the call graph for this function:

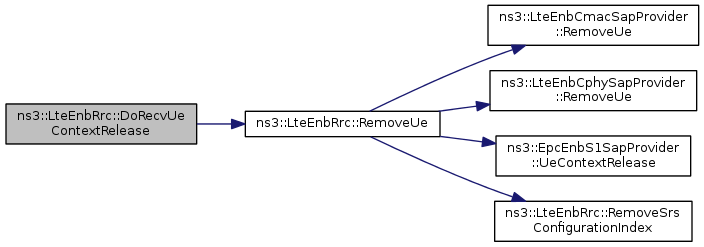

void ns3::LteEnbRrc::DoRecvUeContextRelease ( EpcX2SapUser::UeContextReleaseParams params )

private

Definition at line 1628 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, and RemoveUe().

Here is the call graph for this function:

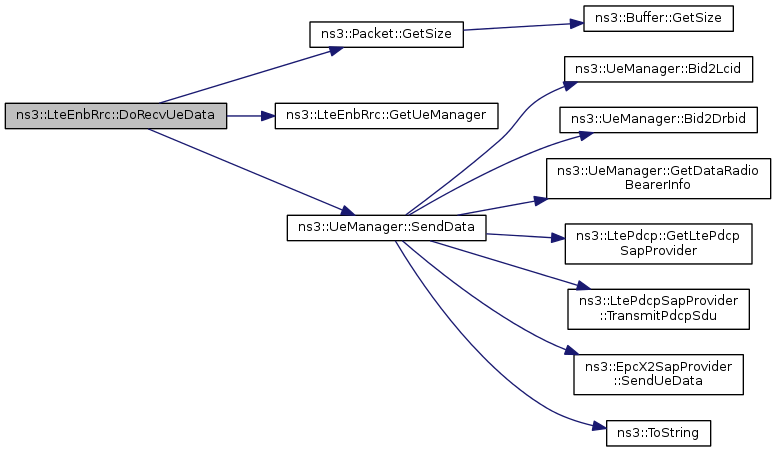

void ns3::LteEnbRrc::DoRecvUeData ( EpcX2SapUser::UeDataParams params )

private

Definition at line 1666 of file lte-enb-rrc.cc.

References ns3::Packet::GetSize(), GetUeManager(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2uTeidInfoMap, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::UeManager::SendData(), ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.

Here is the call graph for this function:

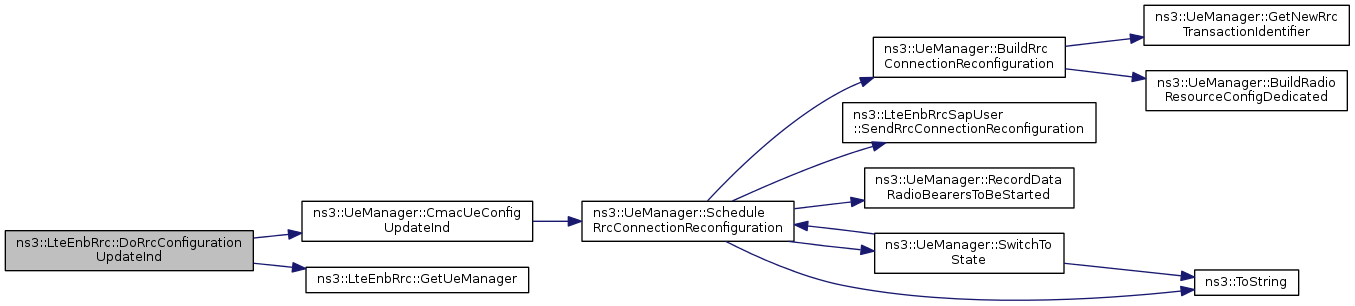

void ns3::LteEnbRrc::DoRrcConfigurationUpdateInd ( LteEnbCmacSapUser::UeConfig params )

private

Definition at line 1698 of file lte-enb-rrc.cc.

References ns3::UeManager::CmacUeConfigUpdateInd(), GetUeManager(), and ns3::LteEnbCmacSapUser::UeConfig::m_rnti.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::RrcConfigurationUpdateInd().

Here is the call graph for this function:

Here is the caller graph for this function:

EpcX2SapUser * ns3::LteEnbRrc::GetEpcX2SapUser ( )

Get the X2 SAP offered by this RRC

Returns: s the X2 SAP User interface offered to the X2 entity by this RRC entity

Definition at line 1274 of file lte-enb-rrc.cc.

References m_x2SapUser, and NS_LOG_FUNCTION.

uint8_t ns3::LteEnbRrc::GetLogicalChannelGroup ( EpsBearer bearer )

private

Parameters

bearer the characteristics of the bearer

Returns: the Logical Channel Group in a bearer with these characteristics is put. Used for MAC Buffer Status Reporting purposes.

Definition at line 1896 of file lte-enb-rrc.cc.

References ns3::EpsBearer::IsGbr().

Referenced by ns3::UeManager::SetupDataRadioBearer().

Here is the call graph for this function:

Here is the caller graph for this function:

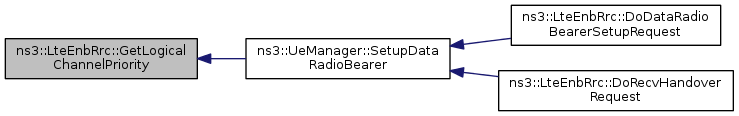

uint8_t ns3::LteEnbRrc::GetLogicalChannelPriority ( EpsBearer bearer )

private

Parameters

bearer the characteristics of the bearer

Returns: the priority level of a bearer with these characteristics is put. Used for the part of UL MAC Scheduling carried out by the UE

Definition at line 1909 of file lte-enb-rrc.cc.

References ns3::EpsBearer::qci.

Referenced by ns3::UeManager::SetupDataRadioBearer().

Here is the caller graph for this function:

LteEnbCmacSapUser * ns3::LteEnbRrc::GetLteEnbCmacSapUser ( )

Get the CMAC SAP offered by this RRC

Returns: s the CMAC SAP User interface offered to the MAC by this RRC

Definition at line 1288 of file lte-enb-rrc.cc.

References m_cmacSapUser, and NS_LOG_FUNCTION.

LteEnbCphySapUser * ns3::LteEnbRrc::GetLteEnbCphySapUser ( )

Returns: s the CPHY SAP User interface offered to the PHY by this RRC

Definition at line 1336 of file lte-enb-rrc.cc.

References m_cphySapUser, and NS_LOG_FUNCTION.

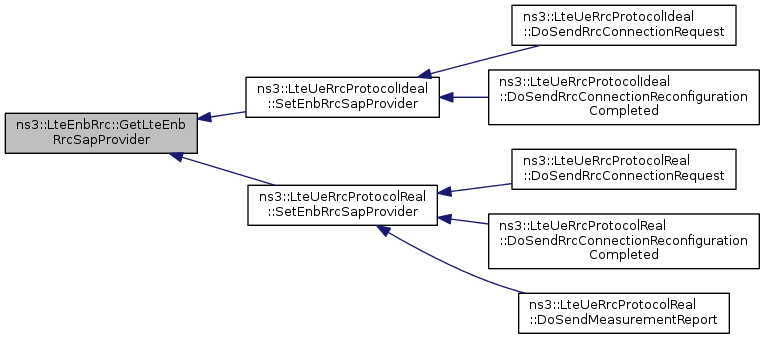

LteEnbRrcSapProvider * ns3::LteEnbRrc::GetLteEnbRrcSapProvider ( )

Returns: s the RRC SAP Provider interface offered to the MAC by this RRC

Definition at line 1302 of file lte-enb-rrc.cc.

References m_rrcSapProvider, and NS_LOG_FUNCTION.

Referenced by ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider(), and ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider().

Here is the caller graph for this function:

uint16_t ns3::LteEnbRrc::GetNewSrsConfigurationIndex ( void )

private

Allocate a new SRS configuration index for a new UE.

Note: this method can have the side effect of updating the SRS configuration index of all UEs

Returns: the newly allocated SRS configuration index

Definition at line 1833 of file lte-enb-rrc.cc.

References ns3::g_srsCiHigh, ns3::g_srsCiLow, ns3::g_srsPeriodicity, m_lastAllocatedConfigurationIndex, m_srsCurrentPeriodicityId, m_ueSrsConfigurationIndexSet, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

Referenced by ns3::UeManager::DoInitialize().

Here is the caller graph for this function:

TypeId ns3::LteEnbRrc::GetRlcType ( EpsBearer bearer )

private

Parameters

bearer the specification of an EPS bearer

Returns: the type of RLC that is to be created for the given EPS bearer

Definition at line 1759 of file lte-enb-rrc.cc.

References ns3::EpsBearer::GetPacketErrorLossRate(), GetTypeId(), m_epsBearerToRlcMapping, PER_BASED, RLC_AM_ALWAYS, RLC_SM_ALWAYS, and RLC_UM_ALWAYS.

Referenced by ns3::UeManager::SetupDataRadioBearer().

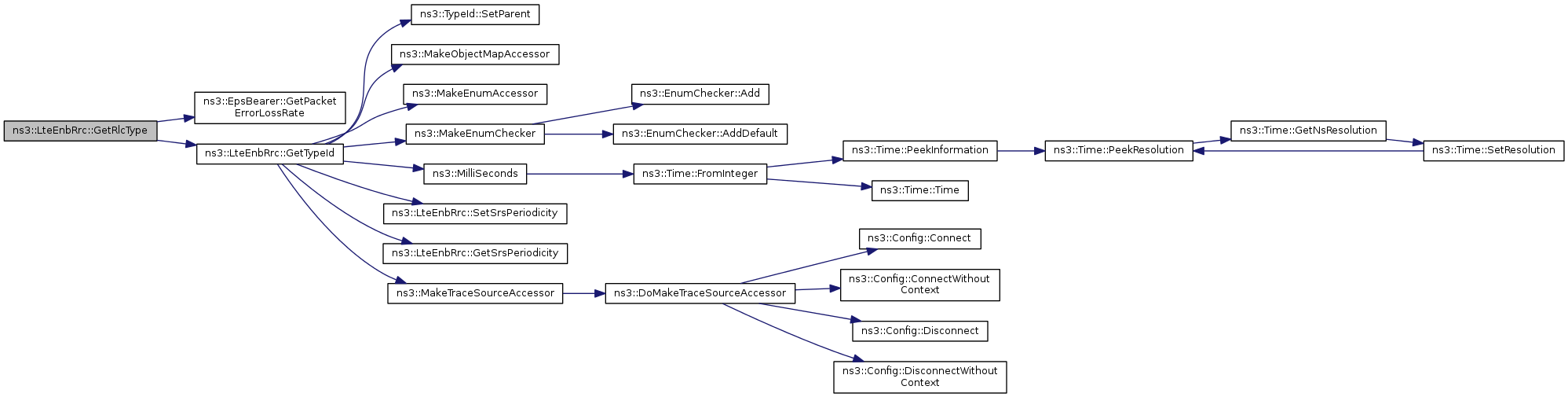

Here is the call graph for this function:

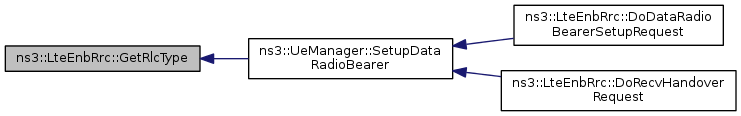

Here is the caller graph for this function:

EpcEnbS1SapUser * ns3::LteEnbRrc::GetS1SapUser ( )

Returns: the S1 SAP user

Definition at line 1323 of file lte-enb-rrc.cc.

References m_s1SapUser.

Referenced by ns3::DrbActivator::ActivateDrb().

Here is the caller graph for this function:

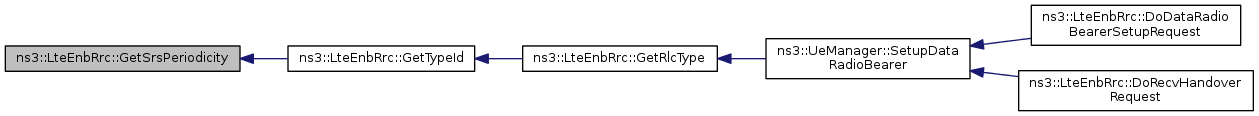

uint32_t ns3::LteEnbRrc::GetSrsPeriodicity ( ) const

Returns: the current SRS periodicity

Definition at line 1823 of file lte-enb-rrc.cc.

References ns3::g_srsPeriodicity, m_srsCurrentPeriodicityId, NS_ASSERT, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

Referenced by GetTypeId().

Here is the caller graph for this function:

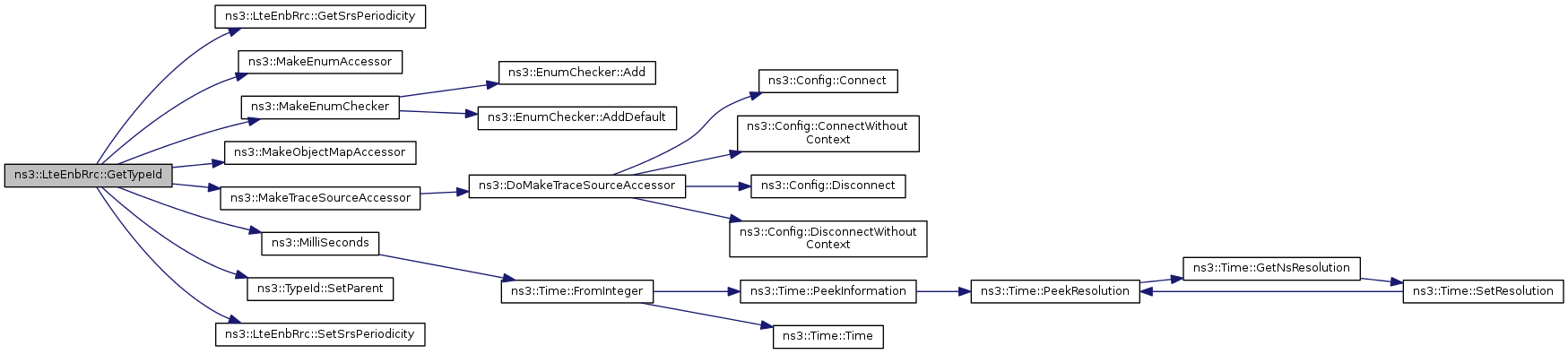

TypeId ns3::LteEnbRrc::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Definition at line 1203 of file lte-enb-rrc.cc.

References GetSrsPeriodicity(), m_admitHandoverRequest, m_admitRrcConnectionRequest, m_connectionEstablishedTrace, m_connectionReconfigurationTrace, m_defaultTransmissionMode, m_epsBearerToRlcMapping, m_handoverEndOkTrace, m_handoverStartTrace, m_newUeContextTrace, m_systemInformationPeriodicity, m_ueMap, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeObjectMapAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MilliSeconds(), NS_LOG_FUNCTION, PER_BASED, RLC_AM_ALWAYS, RLC_SM_ALWAYS, RLC_UM_ALWAYS, ns3::TypeId::SetParent(), and SetSrsPeriodicity().

Referenced by GetRlcType().

Here is the call graph for this function:

Here is the caller graph for this function:

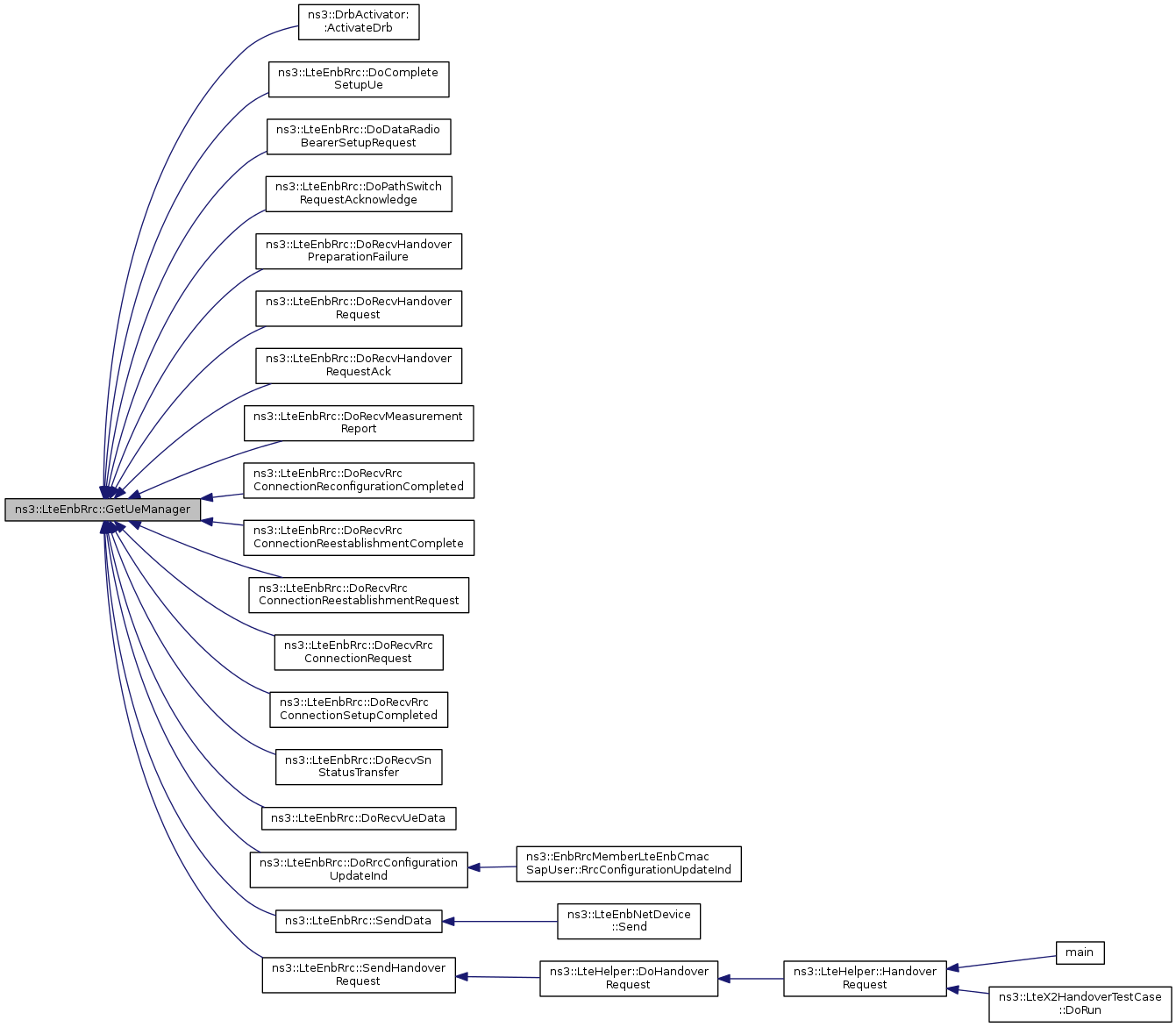

Ptr< UeManager > ns3::LteEnbRrc::GetUeManager ( uint16_t rnti )

Parameters

rnti	the identifier of an UE

Returns: the corresponding UeManager instance

Definition at line 1343 of file lte-enb-rrc.cc.

References m_cellId, m_ueMap, NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::DrbActivator::ActivateDrb(), DoCompleteSetupUe(), DoDataRadioBearerSetupRequest(), DoPathSwitchRequestAcknowledge(), DoRecvHandoverPreparationFailure(), DoRecvHandoverRequest(), DoRecvHandoverRequestAck(), DoRecvMeasurementReport(), DoRecvRrcConnectionReconfigurationCompleted(), DoRecvRrcConnectionReestablishmentComplete(), DoRecvRrcConnectionReestablishmentRequest(), DoRecvRrcConnectionRequest(), DoRecvRrcConnectionSetupCompleted(), DoRecvSnStatusTransfer(), DoRecvUeData(), DoRrcConfigurationUpdateInd(), SendData(), and SendHandoverRequest().

Here is the caller graph for this function:

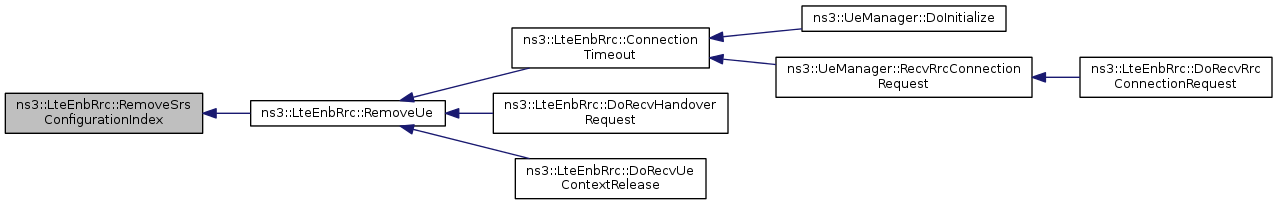

void ns3::LteEnbRrc::RemoveSrsConfigurationIndex ( uint16_t srcCi )

private

remove a previously allocated SRS configuration index

Note: this method can have the side effect of updating the SRS configuration index of all UEs

Parameters

srcCi the indext to be removed

Definition at line 1887 of file lte-enb-rrc.cc.

References m_ueSrsConfigurationIndexSet, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by RemoveUe().

Here is the caller graph for this function:

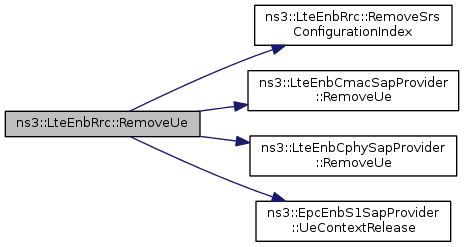

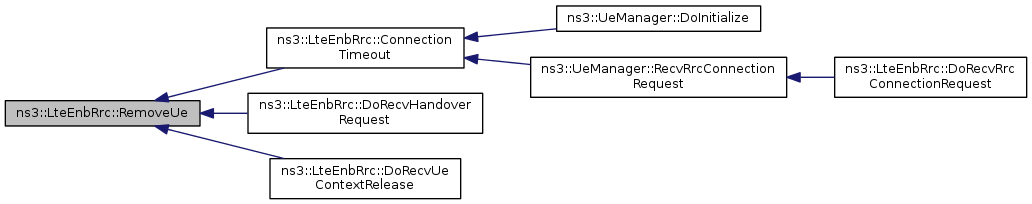

void ns3::LteEnbRrc::RemoveUe ( uint16_t rnti )

private

remove a UE from the cell

Parameters

rnti	the C-RNTI identiftying the user

Definition at line 1741 of file lte-enb-rrc.cc.

References m_cmacSapProvider, m_cphySapProvider, m_s1SapProvider, m_ueMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveSrsConfigurationIndex(), ns3::LteEnbCmacSapProvider::RemoveUe(), ns3::LteEnbCphySapProvider::RemoveUe(), and ns3::EpcEnbS1SapProvider::UeContextRelease().

Referenced by ConnectionTimeout(), DoRecvHandoverRequest(), and DoRecvUeContextRelease().

Here is the call graph for this function:

Here is the caller graph for this function:

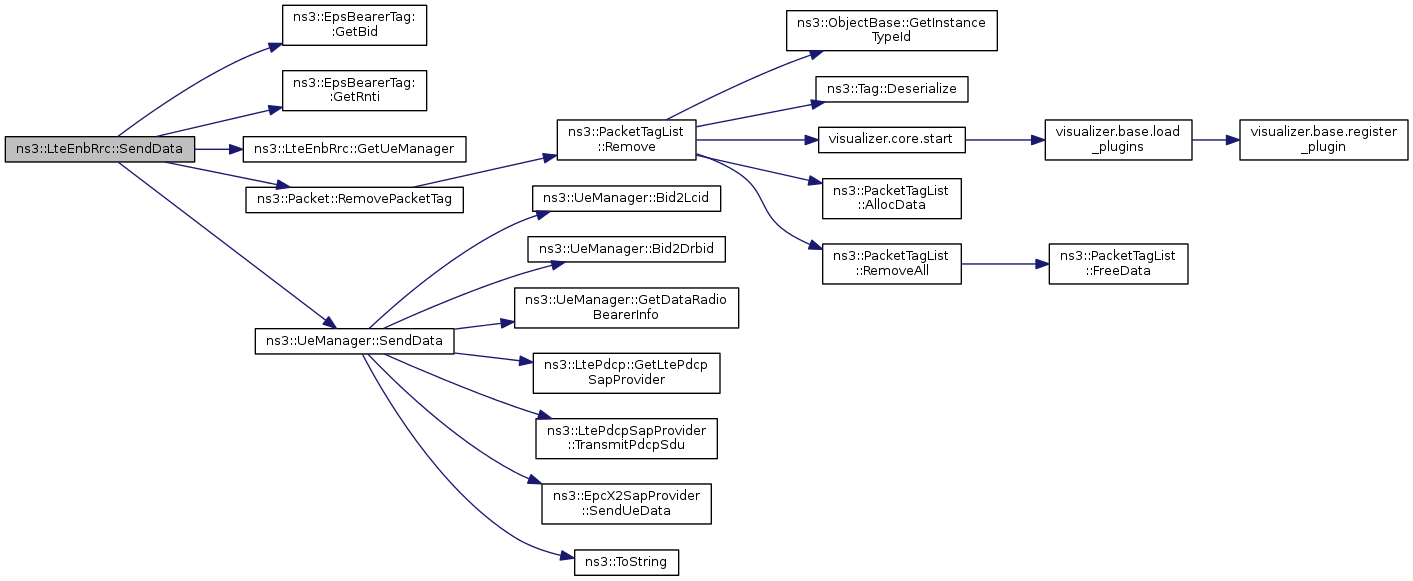

bool ns3::LteEnbRrc::SendData ( Ptr< Packet > p )

Enqueue an IP data packet on the proper bearer for downlink transmission. Normally expected to be called by the NetDevice forwarding a packet coming from the EpcEnbApplication

Parameters

p	the packet

Returns: true if successful, false if an error occurred

Definition at line 1383 of file lte-enb-rrc.cc.

References ns3::EpsBearerTag::GetBid(), ns3::EpsBearerTag::GetRnti(), GetUeManager(), NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::Packet::RemovePacketTag(), and ns3::UeManager::SendData().

Referenced by ns3::LteEnbNetDevice::Send().

Here is the call graph for this function:

Here is the caller graph for this function:

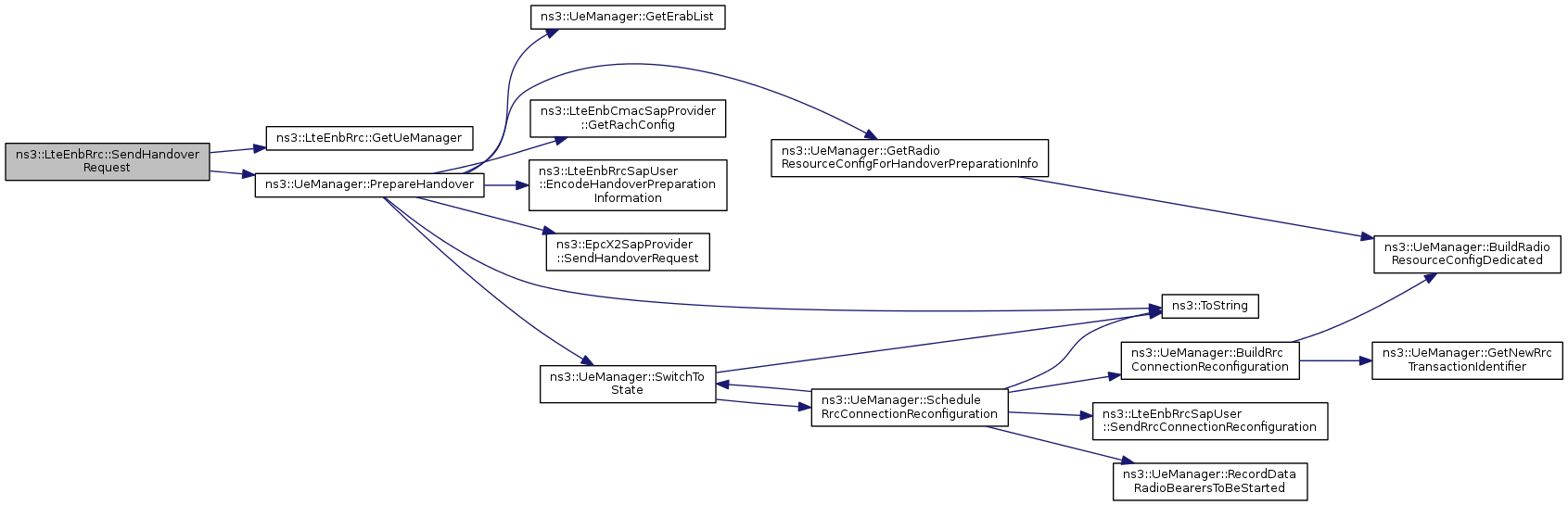

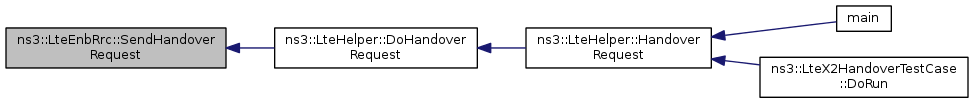

void ns3::LteEnbRrc::SendHandoverRequest	(	uint16_t	rnti,
		uint16_t	cellId
	)

Send a HandoverRequest through the X2 SAP interface

This method will trigger a handover which is started by the RRC by sending a handover request to the target eNB over the X2 interface

Parameters

imsi	the id of the UE to be handed over
cellId	the id of the target eNB

Definition at line 1411 of file lte-enb-rrc.cc.

References GetUeManager(), m_configured, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::UeManager::PrepareHandover().

Referenced by ns3::LteHelper::DoHandoverRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

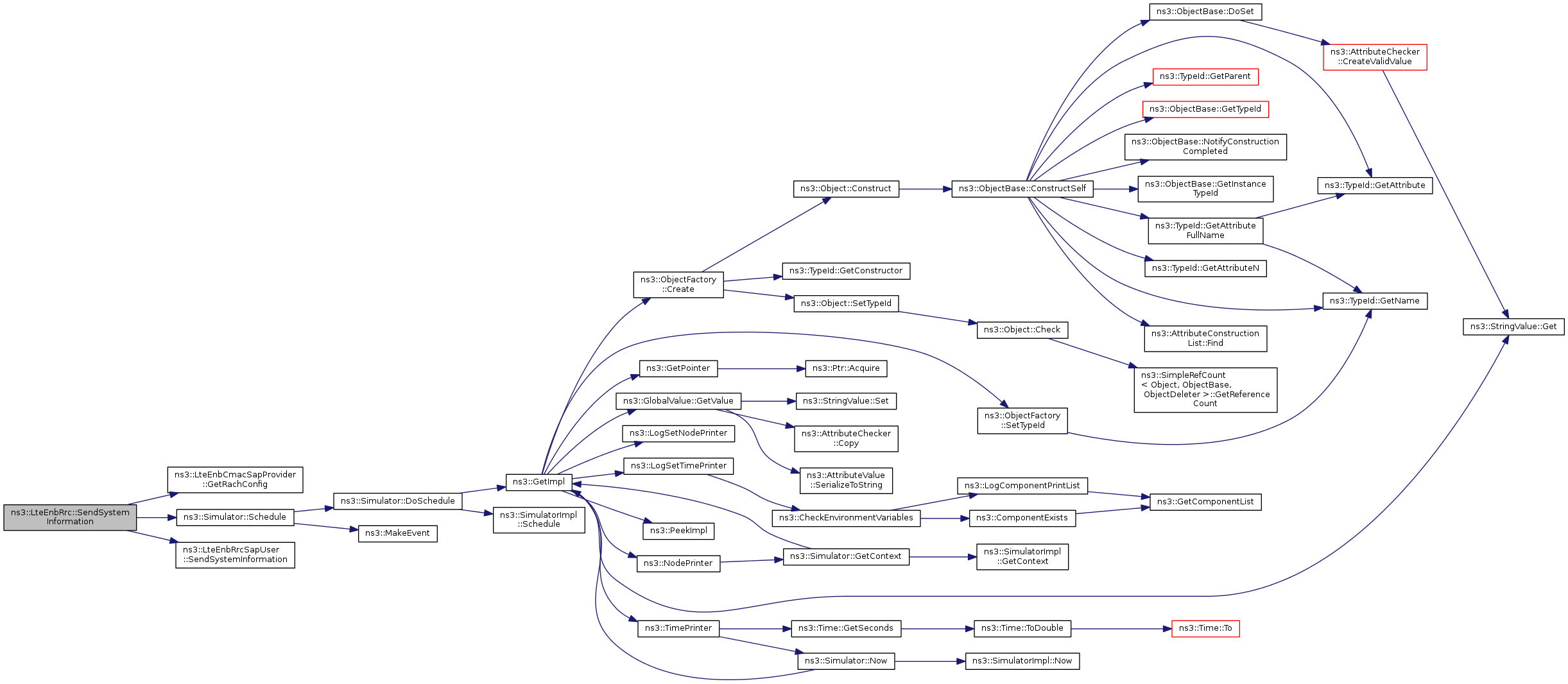

void ns3::LteEnbRrc::SendSystemInformation ( )

private

method used to periodically send System Information

Definition at line 1915 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::SystemInformationBlockType2::freqInfo, ns3::LteEnbCmacSapProvider::GetRachConfig(), ns3::LteRrcSap::SystemInformation::haveSib2, m_cmacSapProvider, m_rrcSapUser, m_systemInformationPeriodicity, m_ulBandwidth, m_ulEarfcn, NS_LOG_FUNCTION, ns3::LteEnbCmacSapProvider::RachConfig::numberOfRaPreambles, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteEnbCmacSapProvider::RachConfig::preambleTransMax, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommonSib::rachConfigCommon, ns3::LteRrcSap::SystemInformationBlockType2::radioResourceConfigCommon, ns3::LteEnbCmacSapProvider::RachConfig::raResponseWindowSize, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, ns3::Simulator::Schedule(), ns3::LteEnbRrcSapUser::SendSystemInformation(), ns3::LteRrcSap::SystemInformation::sib2, ns3::LteRrcSap::FreqInfo::ulBandwidth, and ns3::LteRrcSap::FreqInfo::ulCarrierFreq.

Referenced by ConfigureCell().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::SetCellId ( uint16_t m_cellId )

set the cell id of this eNB

Parameters

m_cellId

Definition at line 1377 of file lte-enb-rrc.cc.

References m_cellId.

Referenced by ns3::LteEnbNetDevice::UpdateConfig().

Here is the caller graph for this function:

void ns3::LteEnbRrc::SetEpcX2SapProvider ( EpcX2SapProvider * s )

Set the X2 SAP this RRC should interact with

Parameters

s	the X2 SAP Provider to be used by this RRC entity

Definition at line 1267 of file lte-enb-rrc.cc.

References m_x2SapProvider, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::SetForwardUpCallback ( Callback< void, Ptr< Packet > > cb )

set the callback used to forward data packets up the stack

Parameters

void
cb

Definition at line 1397 of file lte-enb-rrc.cc.

References m_forwardUpCallback.

void ns3::LteEnbRrc::SetLteEnbCmacSapProvider ( LteEnbCmacSapProvider * s )

set the CMAC SAP this RRC should interact with

Parameters

s	the CMAC SAP Provider to be used by this RRC

Definition at line 1281 of file lte-enb-rrc.cc.

References m_cmacSapProvider, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::SetLteEnbCphySapProvider ( LteEnbCphySapProvider * s )

set the CPHY SAP this RRC should use to interact with the PHY

Parameters

s	the CPHY SAP Provider

Definition at line 1329 of file lte-enb-rrc.cc.

References m_cphySapProvider, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::SetLteEnbRrcSapUser ( LteEnbRrcSapUser * s )

set the RRC SAP this RRC should interact with

Parameters

s	the RRC SAP User to be used by this RRC

Definition at line 1295 of file lte-enb-rrc.cc.

References m_rrcSapUser, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::SetLteMacSapProvider ( LteMacSapProvider * s )

set the MAC SAP provider. The eNB RRC does not use this directly, but it needs to provide it to newly created RLC instances.

Parameters

s	the MAC SAP provider that will be used by all newly created RLC instances

Definition at line 1309 of file lte-enb-rrc.cc.

References m_macSapProvider, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::SetS1SapProvider ( EpcEnbS1SapProvider * s )

Set the S1 SAP Provider

Parameters

s	the S1 SAP Provider

Definition at line 1316 of file lte-enb-rrc.cc.

References m_s1SapProvider.

void ns3::LteEnbRrc::SetSrsPeriodicity ( uint32_t p )

Parameters

p	the SRS periodicity in num TTIs

Definition at line 1802 of file lte-enb-rrc.cc.

References ns3::g_srsPeriodicity, m_srsCurrentPeriodicityId, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

Referenced by GetTypeId().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class EnbRrcMemberLteEnbCmacSapUser

friend

Definition at line 406 of file lte-enb-rrc.h.

Referenced by LteEnbRrc().

friend class EpcX2SpecificEpcX2SapUser< LteEnbRrc >

friend

Definition at line 409 of file lte-enb-rrc.h.

friend class MemberEpcEnbS1SapUser< LteEnbRrc >

friend

Definition at line 408 of file lte-enb-rrc.h.

friend class MemberLteEnbRrcSapProvider< LteEnbRrc >

friend

Definition at line 407 of file lte-enb-rrc.h.

friend class UeManager

friend

Definition at line 410 of file lte-enb-rrc.h.

Member Data Documentation

bool ns3::LteEnbRrc::m_admitHandoverRequest

private

Definition at line 768 of file lte-enb-rrc.h.

Referenced by DoRecvHandoverRequest(), and GetTypeId().

bool ns3::LteEnbRrc::m_admitRrcConnectionRequest

private

Definition at line 769 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and ns3::UeManager::RecvRrcConnectionRequest().

uint16_t ns3::LteEnbRrc::m_cellId

private

Definition at line 738 of file lte-enb-rrc.h.

Referenced by AddUe(), ConfigureCell(), DoRecvHandoverRequest(), GetUeManager(), ns3::UeManager::PrepareHandover(), ns3::UeManager::RecvHandoverRequestAck(), ns3::UeManager::RecvRrcConnectionReconfigurationCompleted(), ns3::UeManager::RecvRrcConnectionSetupCompleted(), ns3::UeManager::SendData(), ns3::UeManager::SendUeContextRelease(), SetCellId(), and ns3::UeManager::SwitchToState().

LteEnbCmacSapProvider* ns3::LteEnbRrc::m_cmacSapProvider

private

Definition at line 724 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), ns3::UeManager::DoInitialize(), DoRecvHandoverRequest(), ns3::UeManager::PrepareHandover(), ns3::UeManager::RecvRrcConnectionReconfigurationCompleted(), ns3::UeManager::ReleaseDataRadioBearer(), RemoveUe(), SendSystemInformation(), SetLteEnbCmacSapProvider(), and ns3::UeManager::SetupDataRadioBearer().

LteEnbCmacSapUser* ns3::LteEnbRrc::m_cmacSapUser

private

Definition at line 723 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbCmacSapUser(), and LteEnbRrc().

bool ns3::LteEnbRrc::m_configured

private

Definition at line 737 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and SendHandoverRequest().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_connectionEstablishedTrace

private

Definition at line 774 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and ns3::UeManager::RecvRrcConnectionSetupCompleted().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_connectionReconfigurationTrace

private

Definition at line 776 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and ns3::UeManager::RecvRrcConnectionReconfigurationCompleted().

LteEnbCphySapProvider* ns3::LteEnbRrc::m_cphySapProvider

private

Definition at line 735 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), ns3::UeManager::DoInitialize(), ns3::UeManager::RecvRrcConnectionReconfigurationCompleted(), RemoveUe(), SetLteEnbCphySapProvider(), and ns3::UeManager::SetSrsConfigurationIndex().

LteEnbCphySapUser* ns3::LteEnbRrc::m_cphySapUser

private

Definition at line 734 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbCphySapUser(), and LteEnbRrc().

uint8_t ns3::LteEnbRrc::m_defaultTransmissionMode

private

Definition at line 756 of file lte-enb-rrc.h.

Referenced by ns3::UeManager::DoInitialize(), and GetTypeId().

uint16_t ns3::LteEnbRrc::m_dlBandwidth

private

Definition at line 741 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), and ns3::UeManager::PrepareHandover().

uint16_t ns3::LteEnbRrc::m_dlEarfcn

private

Definition at line 739 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), and ns3::UeManager::PrepareHandover().

enum LteEpsBearerToRlcMapping_t ns3::LteEnbRrc::m_epsBearerToRlcMapping

private

Definition at line 758 of file lte-enb-rrc.h.

Referenced by GetRlcType(), and GetTypeId().

Callback<void, Ptr<Packet> > ns3::LteEnbRrc::m_forwardUpCallback

private

Definition at line 718 of file lte-enb-rrc.h.

Referenced by ns3::UeManager::DoReceivePdcpSdu(), and SetForwardUpCallback().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_handoverEndOkTrace

private

Definition at line 780 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and ns3::UeManager::SendUeContextRelease().

TracedCallback<uint64_t, uint16_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_handoverStartTrace

private

Definition at line 778 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and ns3::UeManager::RecvHandoverRequestAck().

uint16_t ns3::LteEnbRrc::m_lastAllocatedConfigurationIndex

private

Definition at line 765 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex().

uint16_t ns3::LteEnbRrc::m_lastAllocatedRnti

private

Definition at line 743 of file lte-enb-rrc.h.

Referenced by AddUe().

LteMacSapProvider* ns3::LteEnbRrc::m_macSapProvider

private

Definition at line 729 of file lte-enb-rrc.h.

Referenced by ns3::UeManager::DoInitialize(), SetLteMacSapProvider(), and ns3::UeManager::SetupDataRadioBearer().

TracedCallback<uint16_t, uint16_t> ns3::LteEnbRrc::m_newUeContextTrace

private

Definition at line 772 of file lte-enb-rrc.h.

Referenced by AddUe(), and GetTypeId().

bool ns3::LteEnbRrc::m_reconfigureUes

private

Definition at line 766 of file lte-enb-rrc.h.

LteEnbRrcSapProvider* ns3::LteEnbRrc::m_rrcSapProvider

private

Definition at line 727 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbRrcSapProvider(), and LteEnbRrc().

LteEnbRrcSapUser* ns3::LteEnbRrc::m_rrcSapUser

private

Definition at line 726 of file lte-enb-rrc.h.

Referenced by ns3::UeManager::DoInitialize(), DoRecvHandoverRequest(), ns3::UeManager::PrepareHandover(), ns3::UeManager::RecvHandoverRequestAck(), ns3::UeManager::RecvRrcConnectionReestablishmentRequest(), ns3::UeManager::RecvRrcConnectionRequest(), ns3::UeManager::ReleaseDataRadioBearer(), ns3::UeManager::ScheduleRrcConnectionReconfiguration(), SendSystemInformation(), and SetLteEnbRrcSapUser().

EpcEnbS1SapProvider* ns3::LteEnbRrc::m_s1SapProvider

private

Definition at line 731 of file lte-enb-rrc.h.

Referenced by ns3::UeManager::RecvRrcConnectionReconfigurationCompleted(), ns3::UeManager::RecvRrcConnectionRequest(), RemoveUe(), and SetS1SapProvider().

EpcEnbS1SapUser* ns3::LteEnbRrc::m_s1SapUser

private

Definition at line 732 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetS1SapUser(), and LteEnbRrc().

uint16_t ns3::LteEnbRrc::m_srsCurrentPeriodicityId

private

Definition at line 763 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex(), GetSrsPeriodicity(), and SetSrsPeriodicity().

Time ns3::LteEnbRrc::m_systemInformationPeriodicity

private

Definition at line 760 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and SendSystemInformation().

std::map<uint16_t, Ptr<UeManager> > ns3::LteEnbRrc::m_ueMap

private

Definition at line 745 of file lte-enb-rrc.h.

Referenced by AddUe(), DoDispose(), GetTypeId(), GetUeManager(), and RemoveUe().

std::set<uint16_t> ns3::LteEnbRrc::m_ueSrsConfigurationIndexSet

private

Definition at line 764 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex(), and RemoveSrsConfigurationIndex().

uint16_t ns3::LteEnbRrc::m_ulBandwidth

private

Definition at line 742 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), ns3::UeManager::PrepareHandover(), and SendSystemInformation().

uint16_t ns3::LteEnbRrc::m_ulEarfcn

private

Definition at line 740 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), ns3::UeManager::PrepareHandover(), and SendSystemInformation().

EpcX2SapProvider* ns3::LteEnbRrc::m_x2SapProvider

private

Definition at line 721 of file lte-enb-rrc.h.

Referenced by DoRecvHandoverRequest(), ns3::UeManager::PrepareHandover(), ns3::UeManager::RecvHandoverRequestAck(), ns3::UeManager::SendData(), ns3::UeManager::SendUeContextRelease(), and SetEpcX2SapProvider().

EpcX2SapUser* ns3::LteEnbRrc::m_x2SapUser

private

Definition at line 720 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetEpcX2SapUser(), and LteEnbRrc().

std::map<uint32_t, X2uTeidInfo> ns3::LteEnbRrc::m_x2uTeidInfoMap

private

Definition at line 754 of file lte-enb-rrc.h.

Referenced by ns3::UeManager::DoDispose(), DoRecvUeData(), ns3::UeManager::ReleaseDataRadioBearer(), and ns3::UeManager::SetupDataRadioBearer().

The documentation for this class was generated from the following files:

src/lte/model/lte-enb-rrc.h
src/lte/model/lte-enb-rrc.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
