#include <ff-mac-scheduler.h>

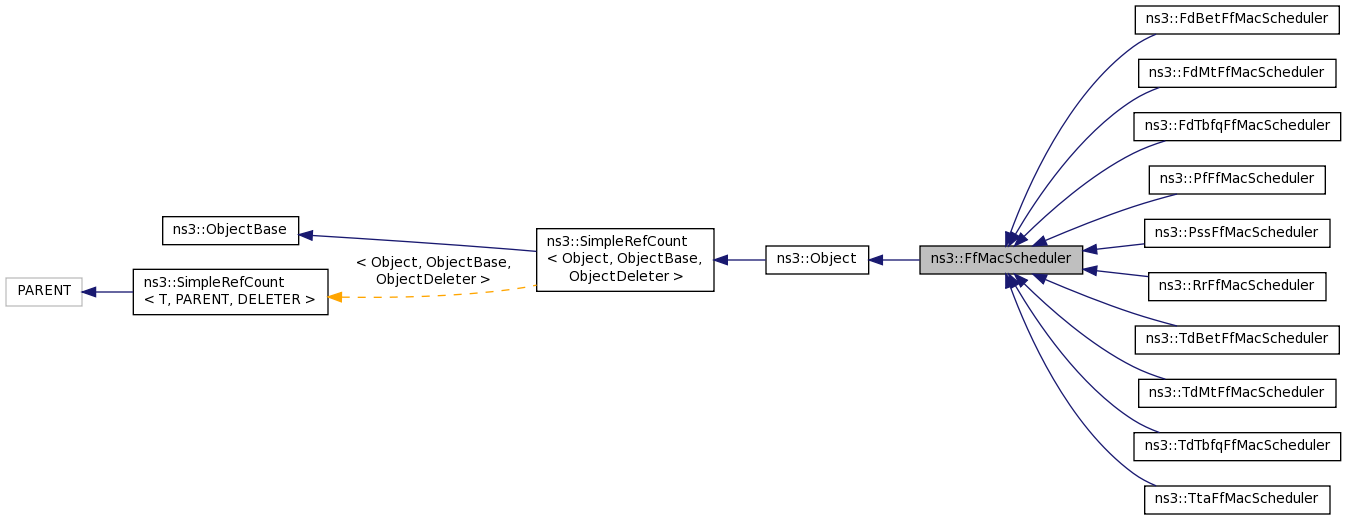

Inheritance diagram for ns3::FfMacScheduler:

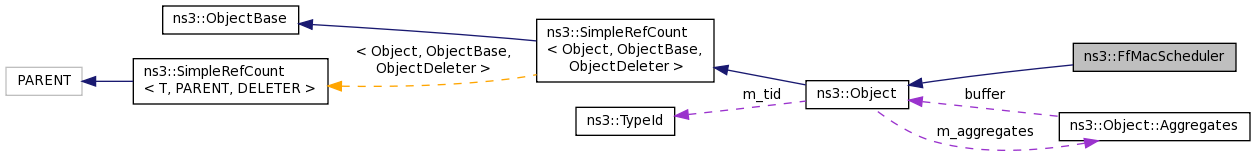

Collaboration diagram for ns3::FfMacScheduler:

Public Types
enum	UlCqiFilter_t { SRS_UL_CQI, PUSCH_UL_CQI, ALL_UL_CQI }

Public Member Functions
	FfMacScheduler ()

virtual	~FfMacScheduler ()

virtual void	DoDispose (void)

virtual FfMacCschedSapProvider *	GetFfMacCschedSapProvider ()=0

virtual FfMacSchedSapProvider *	GetFfMacSchedSapProvider ()=0

virtual void	SetFfMacCschedSapUser (FfMacCschedSapUser *s)=0

virtual void	SetFfMacSchedSapUser (FfMacSchedSapUser *s)=0

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

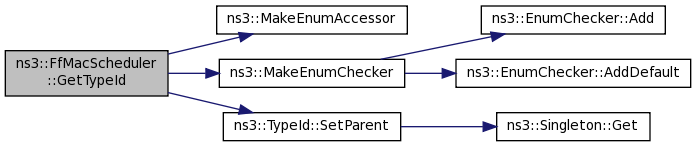

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Attributes
UlCqiFilter_t	m_ulCqiFilter

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

This abstract base class identifies the interface by means of which the helper object can plug on the MAC a scheduler implementation based on the FF MAC Sched API.

Config Paths

ns3::FfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/FfMacScheduler
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/FfMacScheduler

Attributes

UlCqiFilter: The filter to apply on UL CQIs received
- Set with class: ns3::EnumValue
- Underlying type: SRS_UL_CQI|PUSCH_UL_CQI|ALL_UL_CQI
- Initial value: ALL_UL_CQI
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 51 of file ff-mac-scheduler.h.

Member Enumeration Documentation

enum ns3::FfMacScheduler::UlCqiFilter_t

The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type)

Enumerator
SRS_UL_CQI
PUSCH_UL_CQI
ALL_UL_CQI

Definition at line 59 of file ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::FfMacScheduler::FfMacScheduler ( )

constructor

Definition at line 34 of file ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

ns3::FfMacScheduler::~FfMacScheduler ( )

virtual

destructor

Definition at line 41 of file ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::FfMacScheduler::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::PssFfMacScheduler, ns3::FdTbfqFfMacScheduler, ns3::TdTbfqFfMacScheduler, ns3::FdBetFfMacScheduler, ns3::TdBetFfMacScheduler, ns3::PfFfMacScheduler, ns3::FdMtFfMacScheduler, ns3::TdMtFfMacScheduler, ns3::TtaFfMacScheduler, and ns3::RrFfMacScheduler.

Definition at line 47 of file ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

virtual FfMacCschedSapProvider* ns3::FfMacScheduler::GetFfMacCschedSapProvider ( )

pure virtual
