Class that monitors flows at the IPv4 layer of a Node. More...

#include <ipv4-flow-probe.h>

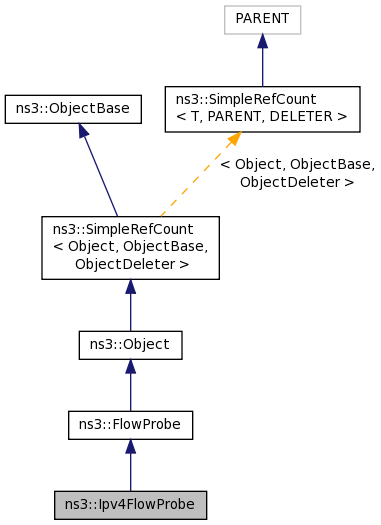

Inheritance diagram for ns3::Ipv4FlowProbe:

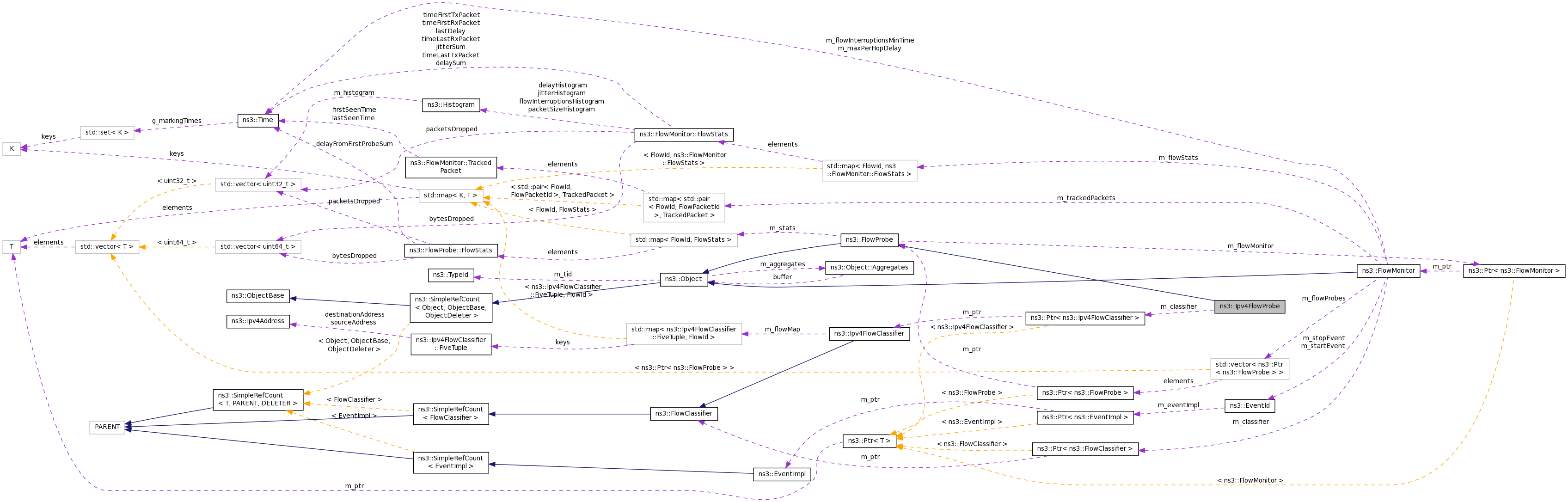

Collaboration diagram for ns3::Ipv4FlowProbe:

Public Types
enum	DropReason { DROP_NO_ROUTE = 0, DROP_TTL_EXPIRE, DROP_BAD_CHECKSUM, DROP_QUEUE, DROP_INTERFACE_DOWN, DROP_ROUTE_ERROR, DROP_FRAGMENT_TIMEOUT, DROP_INVALID_REASON }
	enumeration of possible reasons why a packet may be dropped More...

Public Types inherited from ns3::FlowProbe
typedef std::map< FlowId, FlowStats >	Stats

Public Member Functions
	Ipv4FlowProbe (Ptr< FlowMonitor > monitor, Ptr< Ipv4FlowClassifier > classifier, Ptr< Node > node)

virtual	~Ipv4FlowProbe ()

Public Member Functions inherited from ns3::FlowProbe
virtual	~FlowProbe ()

void	AddPacketDropStats (FlowId flowId, uint32_t packetSize, uint32_t reasonCode)

void	AddPacketStats (FlowId flowId, uint32_t packetSize, Time delayFromFirstProbe)

Stats	GetStats () const

void	SerializeToXmlStream (std::ostream &os, int indent, uint32_t index) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Protected Member Functions
virtual void	DoDispose (void)

Protected Member Functions inherited from ns3::FlowProbe
	FlowProbe (Ptr< FlowMonitor > flowMonitor)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Private Member Functions
void	DropLogger (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, Ipv4L3Protocol::DropReason reason, Ptr< Ipv4 > ipv4, uint32_t ifIndex)

void	ForwardLogger (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, uint32_t interface)

void	ForwardUpLogger (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, uint32_t interface)

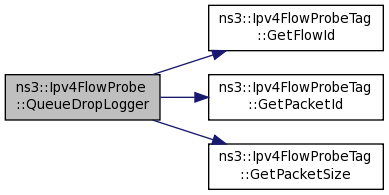

void	QueueDropLogger (Ptr< const Packet > ipPayload)

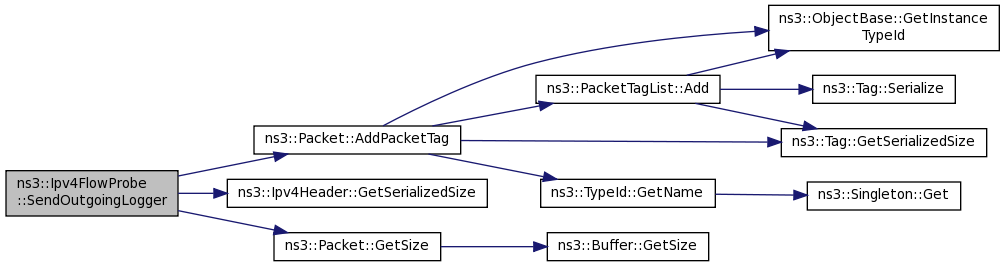

void	SendOutgoingLogger (const Ipv4Header &ipHeader, Ptr< const Packet > ipPayload, uint32_t interface)

Private Attributes
Ptr< Ipv4FlowClassifier >	m_classifier

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Attributes inherited from ns3::FlowProbe
Ptr< FlowMonitor >	m_flowMonitor

Stats	m_stats

Detailed Description

Class that monitors flows at the IPv4 layer of a Node.

For each node in the simulation, one instance of the class Ipv4FlowProbe is created to monitor that node. Ipv4FlowProbe accomplishes this by connecting callbacks to trace sources in the Ipv4L3Protocol interface of the node.

Definition at line 39 of file ipv4-flow-probe.h.

Member Enumeration Documentation

enum ns3::Ipv4FlowProbe::DropReason

enumeration of possible reasons why a packet may be dropped

Enumerator
DROP_NO_ROUTE	Packet dropped due to missing route to the destination.
DROP_TTL_EXPIRE	Packet dropped due to TTL decremented to zero during IPv4 forwarding.
DROP_BAD_CHECKSUM	Packet dropped due to invalid checksum in the IPv4 header.
DROP_QUEUE	Packet dropped due to queue overflow. Note: only works for NetDevices that provide a TxQueue attribute of type Queue with a Drop trace source. It currently works with Csma and PointToPoint devices, but not with WiFi or WiMax.
DROP_INTERFACE_DOWN	Interface is down so can not send packet
DROP_ROUTE_ERROR	Route error
DROP_FRAGMENT_TIMEOUT	Fragment timeout exceeded
DROP_INVALID_REASON

Definition at line 47 of file ipv4-flow-probe.h.

Constructor & Destructor Documentation

ns3::Ipv4FlowProbe::Ipv4FlowProbe	(	Ptr< FlowMonitor >	monitor,
		Ptr< Ipv4FlowClassifier >	classifier,
		Ptr< Node >	node
	)

Definition at line 148 of file ipv4-flow-probe.cc.

References ns3::Config::ConnectWithoutContext(), DropLogger(), ForwardLogger(), ForwardUpLogger(), ns3::Node::GetId(), ns3::Object::GetObject(), ns3::MakeCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, QueueDropLogger(), and SendOutgoingLogger().

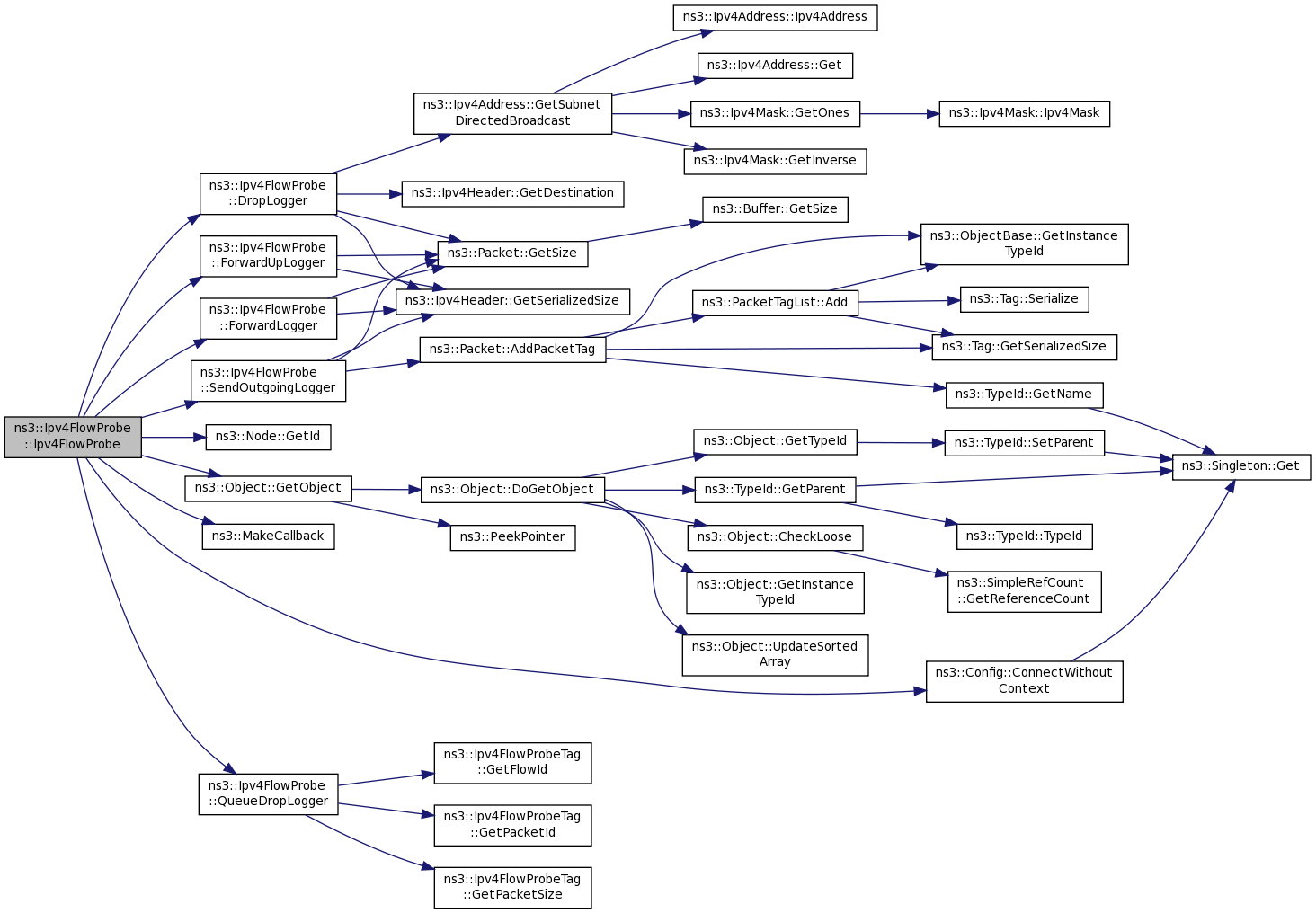

Here is the call graph for this function:

ns3::Ipv4FlowProbe::~Ipv4FlowProbe ( )

virtual

Definition at line 186 of file ipv4-flow-probe.cc.

Member Function Documentation

void ns3::Ipv4FlowProbe::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::FlowProbe.

Definition at line 191 of file ipv4-flow-probe.cc.

References ns3::FlowProbe::DoDispose().

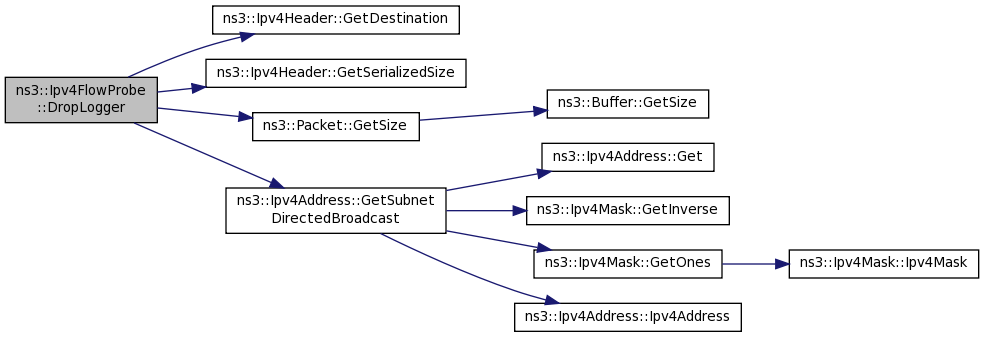

Here is the call graph for this function:

void ns3::Ipv4FlowProbe::DropLogger	(	const Ipv4Header &	ipHeader,
		Ptr< const Packet >	ipPayload,
		Ipv4L3Protocol::DropReason	reason,
		Ptr< Ipv4 >	ipv4,
		uint32_t	ifIndex
	)
