ns3::LteEnbRrc Class Reference
LTE Models

#include <lte-enb-rrc.h>

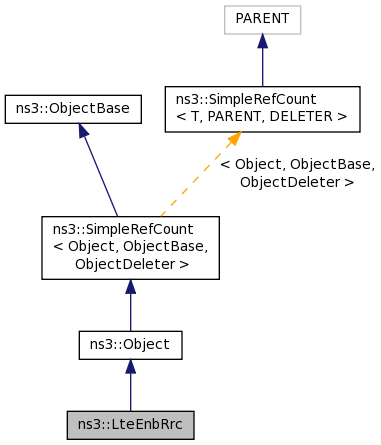

+ Inheritance diagram for ns3::LteEnbRrc:

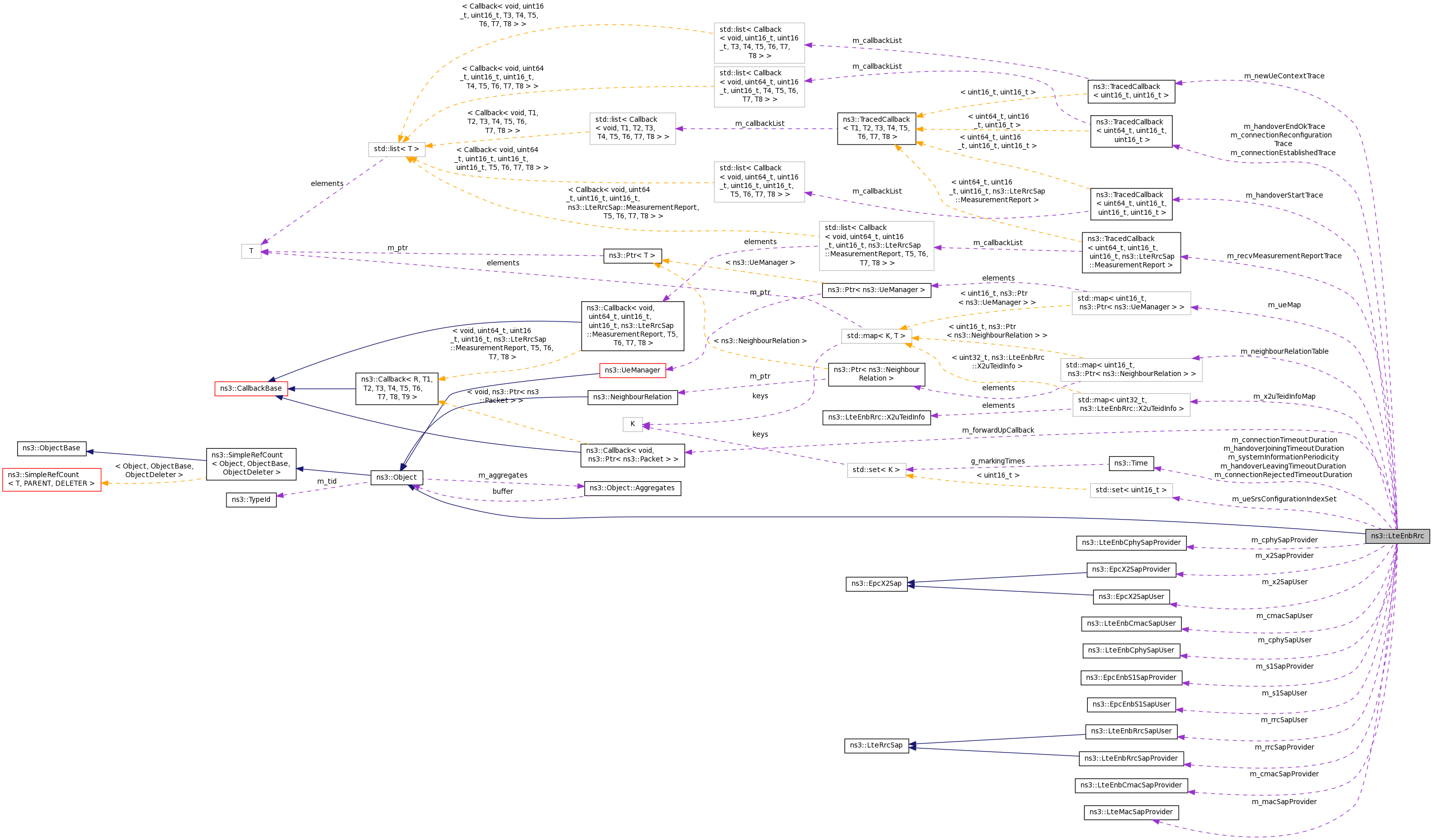

+ Collaboration diagram for ns3::LteEnbRrc:

Classes

struct  X2uTeidInfo


Public Types

enum  LteEpsBearerToRlcMapping_t { RLC_SM_ALWAYS = 1, RLC_UM_ALWAYS = 2, RLC_AM_ALWAYS = 3, PER_BASED = 4 }


Public Member Functions

 LteEnbRrc ()

virtual ~LteEnbRrc ()

void AddX2Neighbour (uint16_t cellId)

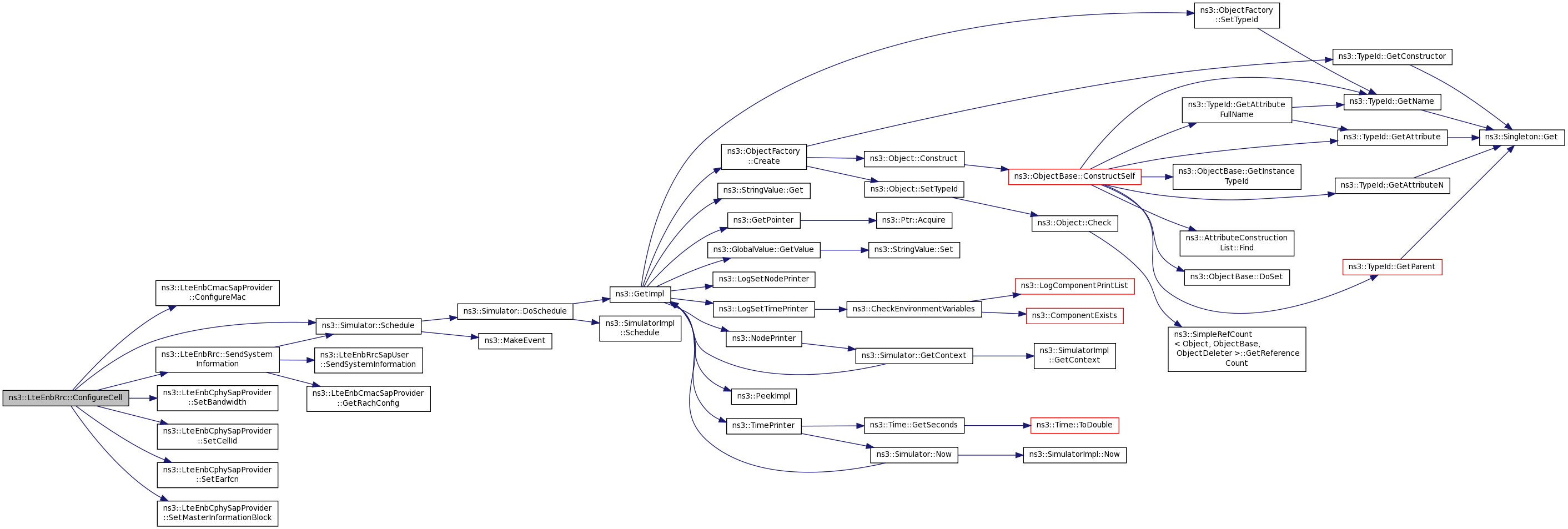

void ConfigureCell (uint8_t ulBandwidth, uint8_t dlBandwidth, uint16_t ulEarfcn, uint16_t dlEarfcn, uint16_t cellId)

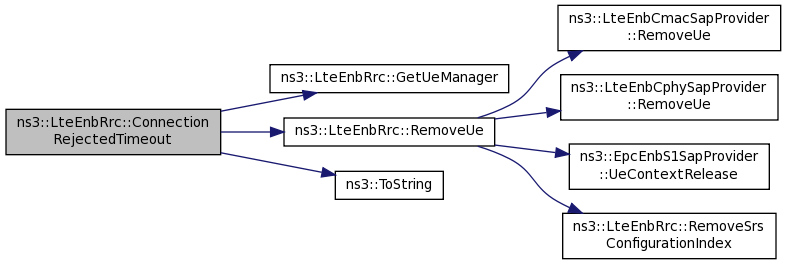

void ConnectionRejectedTimeout (uint16_t rnti)

void ConnectionTimeout (uint16_t rnti)

EpcX2SapUser * GetEpcX2SapUser ()

LteEnbCmacSapUser * GetLteEnbCmacSapUser ()

LteEnbCphySapUser * GetLteEnbCphySapUser ()

LteEnbRrcSapProvider * GetLteEnbRrcSapProvider ()

EpcEnbS1SapUser * GetS1SapUser ()

uint32_t GetSrsPeriodicity () const

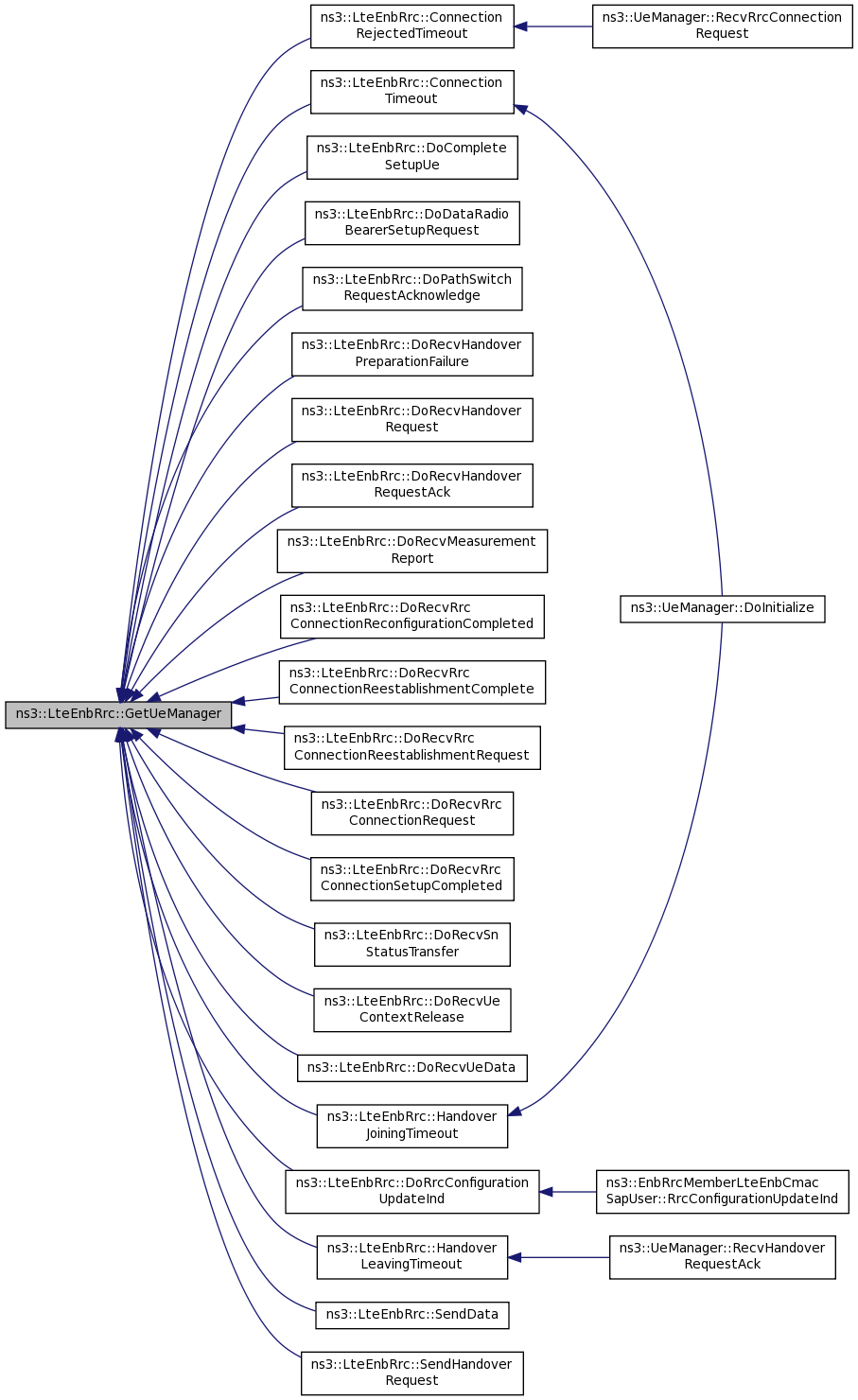

Ptr< UeManager > GetUeManager (uint16_t rnti)

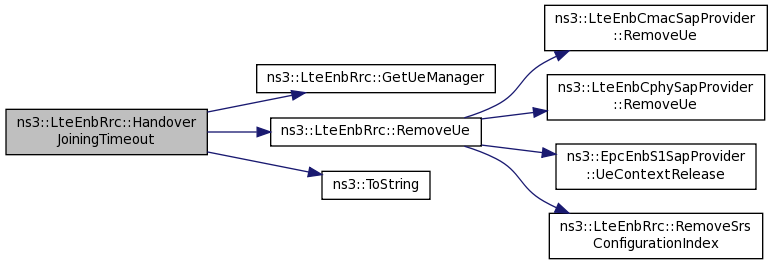

void HandoverJoiningTimeout (uint16_t rnti)

void HandoverLeavingTimeout (uint16_t rnti)

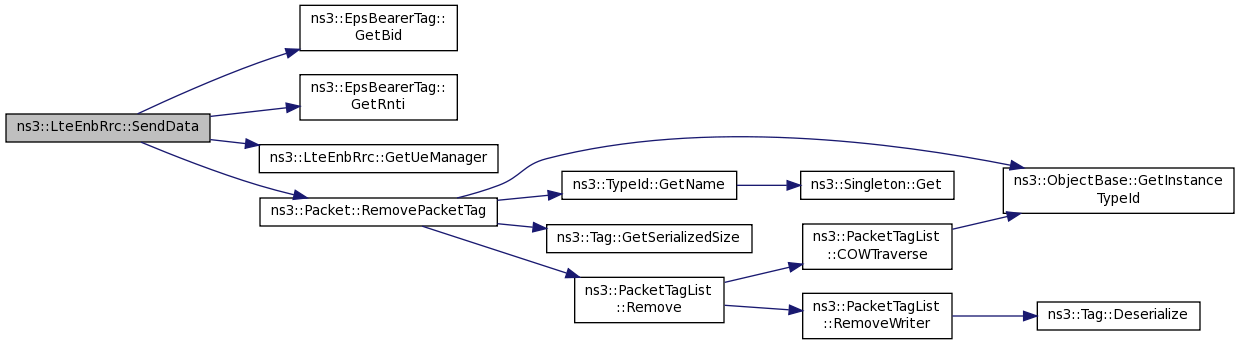

bool SendData (Ptr< Packet > p)

void SendHandoverRequest (uint16_t rnti, uint16_t cellId)

void SetCellId (uint16_t m_cellId)

void SetEpcX2SapProvider (EpcX2SapProvider *s)

void SetForwardUpCallback (Callback< void, Ptr< Packet > > cb)

void SetLteEnbCmacSapProvider (LteEnbCmacSapProvider *s)

void SetLteEnbCphySapProvider (LteEnbCphySapProvider *s)

void SetLteEnbRrcSapUser (LteEnbRrcSapUser *s)

void SetLteMacSapProvider (LteMacSapProvider *s)

void SetS1SapProvider (EpcEnbS1SapProvider *s)

void SetSrsPeriodicity (uint32_t p)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

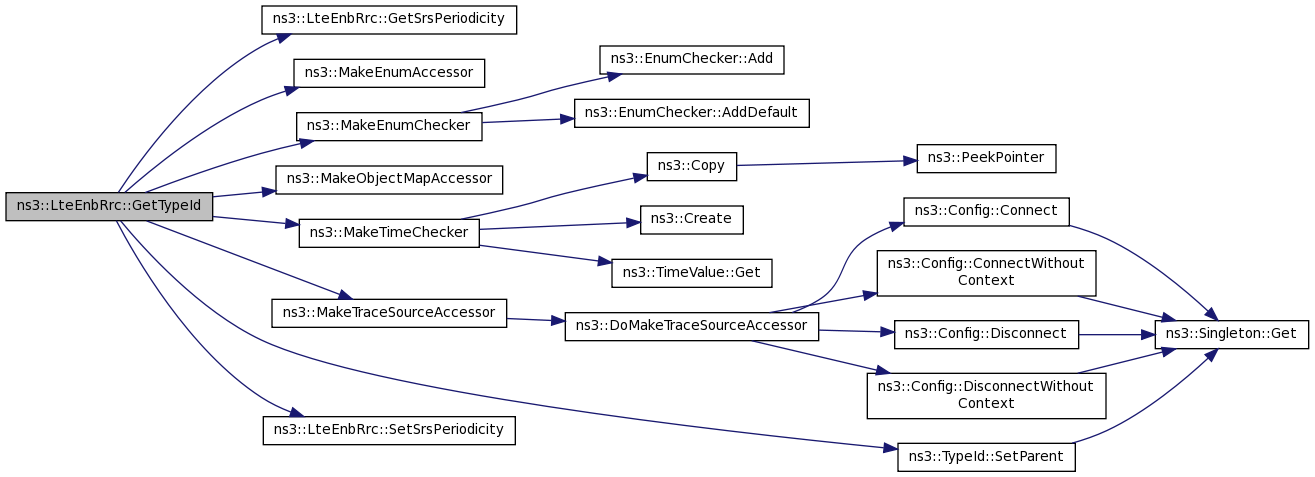

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Protected Member Functions

virtual void DoDispose (void)

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Private Member Functions

uint16_t AddUe (UeManager::State state)

uint16_t DoAllocateTemporaryCellRnti ()

void DoCompleteSetupUe (uint16_t rnti, LteEnbRrcSapProvider::CompleteSetupUeParameters params)

void DoDataRadioBearerSetupRequest (EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters params)

void DoNotifyLcConfigResult (uint16_t rnti, uint8_t lcid, bool success)

void DoPathSwitchRequestAcknowledge (EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters params)

void DoRecvHandoverPreparationFailure (EpcX2SapUser::HandoverPreparationFailureParams params)

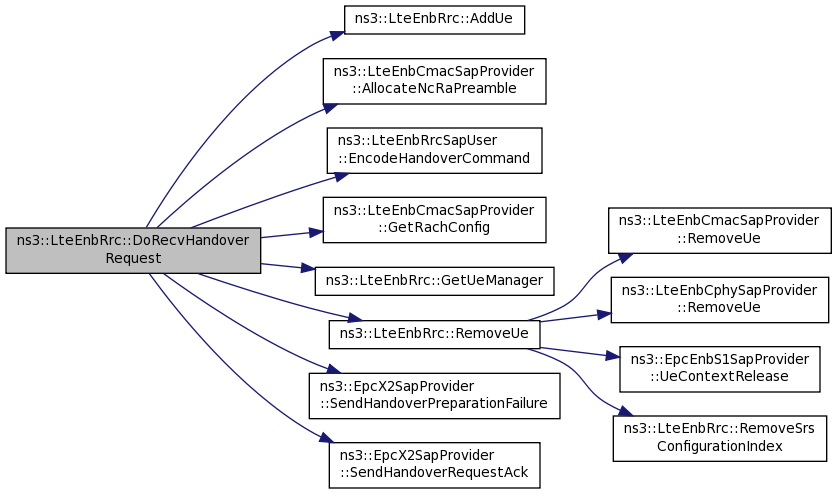

void DoRecvHandoverRequest (EpcX2SapUser::HandoverRequestParams params)

void DoRecvHandoverRequestAck (EpcX2SapUser::HandoverRequestAckParams params)

void DoRecvLoadInformation (EpcX2SapUser::LoadInformationParams params)

void DoRecvMeasurementReport (uint16_t rnti, LteRrcSap::MeasurementReport msg)

void DoRecvResourceStatusUpdate (EpcX2SapUser::ResourceStatusUpdateParams params)

void DoRecvRrcConnectionReconfigurationCompleted (uint16_t rnti, LteRrcSap::RrcConnectionReconfigurationCompleted msg)

void DoRecvRrcConnectionReestablishmentComplete (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentComplete msg)

void DoRecvRrcConnectionReestablishmentRequest (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentRequest msg)

void DoRecvRrcConnectionRequest (uint16_t rnti, LteRrcSap::RrcConnectionRequest msg)

void DoRecvRrcConnectionSetupCompleted (uint16_t rnti, LteRrcSap::RrcConnectionSetupCompleted msg)

void DoRecvSnStatusTransfer (EpcX2SapUser::SnStatusTransferParams params)

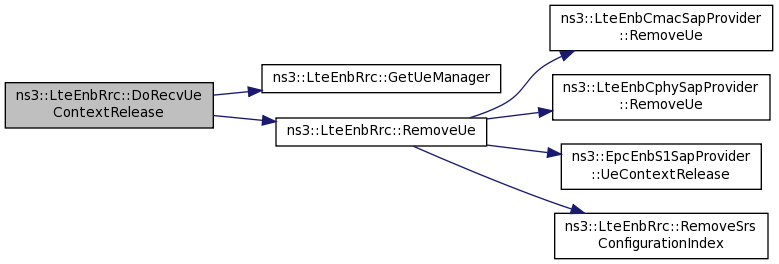

void DoRecvUeContextRelease (EpcX2SapUser::UeContextReleaseParams params)

void DoRecvUeData (EpcX2SapUser::UeDataParams params)

void DoRrcConfigurationUpdateInd (LteEnbCmacSapUser::UeConfig params)

uint8_t GetLogicalChannelGroup (EpsBearer bearer)

uint8_t GetLogicalChannelPriority (EpsBearer bearer)

uint16_t GetNewSrsConfigurationIndex (void)

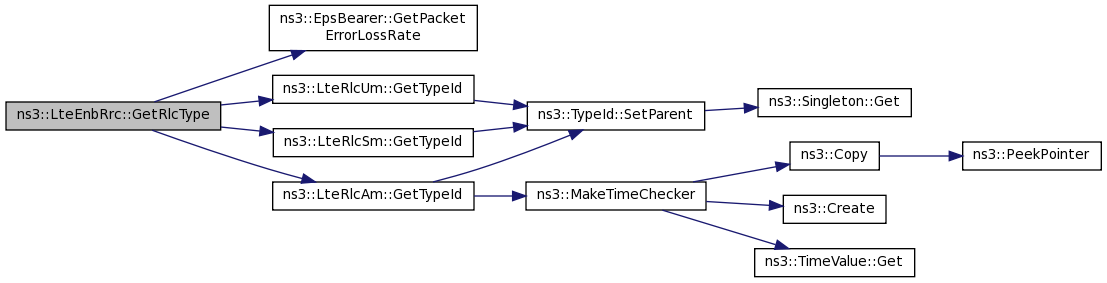

TypeId GetRlcType (EpsBearer bearer)

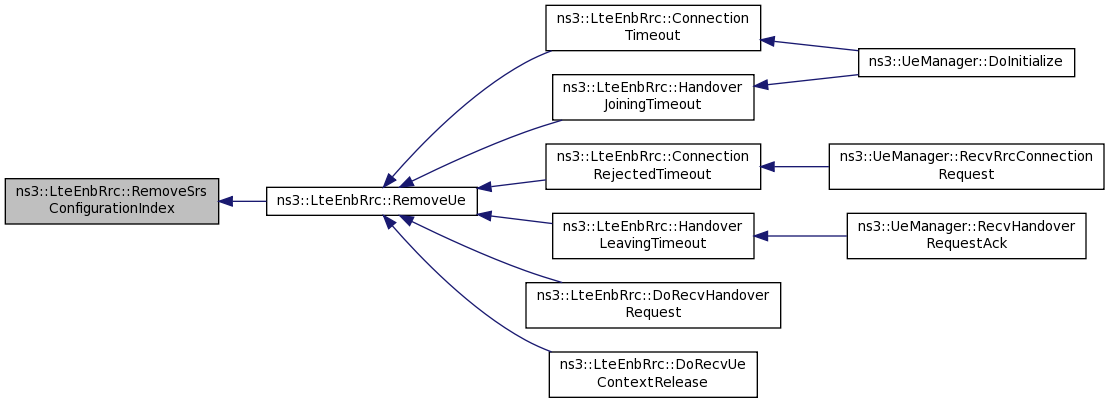

void RemoveSrsConfigurationIndex (uint16_t srcCi)

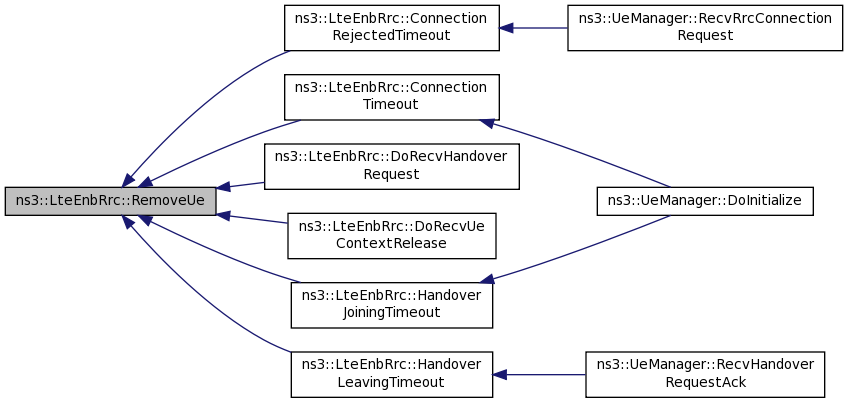

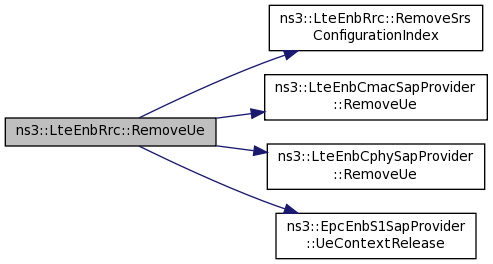

void RemoveUe (uint16_t rnti)

void SendSystemInformation ()


Private Attributes

bool m_admitHandoverRequest

bool m_admitRrcConnectionRequest

uint16_t m_cellId

LteEnbCmacSapProvider * m_cmacSapProvider

LteEnbCmacSapUser * m_cmacSapUser

bool m_configured

TracedCallback< uint64_t,
uint16_t, uint16_t > 		m_connectionEstablishedTrace

TracedCallback< uint64_t,
uint16_t, uint16_t > 		m_connectionReconfigurationTrace

Time m_connectionRejectedTimeoutDuration

Time m_connectionTimeoutDuration

LteEnbCphySapProvider * m_cphySapProvider

LteEnbCphySapUser * m_cphySapUser

uint8_t m_defaultTransmissionMode

uint16_t m_dlBandwidth

uint16_t m_dlEarfcn

enum LteEpsBearerToRlcMapping_t m_epsBearerToRlcMapping

uint8_t m_eventA2Threshold

uint8_t m_eventA4Threshold

Callback< void, Ptr< Packet > > m_forwardUpCallback

TracedCallback< uint64_t,
uint16_t, uint16_t > 		m_handoverEndOkTrace

Time m_handoverJoiningTimeoutDuration

Time m_handoverLeavingTimeoutDuration

TracedCallback< uint64_t,
uint16_t, uint16_t, uint16_t > 		m_handoverStartTrace

uint16_t m_lastAllocatedConfigurationIndex

uint16_t m_lastAllocatedRnti

LteMacSapProvider * m_macSapProvider

uint8_t m_neighbourCellHandoverOffset

std::map< uint16_t, Ptr
< NeighbourRelation > > 		m_neighbourRelationTable

TracedCallback< uint16_t,
uint16_t > 		m_newUeContextTrace

bool m_reconfigureUes

TracedCallback< uint64_t,
uint16_t, uint16_t,
LteRrcSap::MeasurementReport > 		m_recvMeasurementReportTrace

LteEnbRrcSapProvider * m_rrcSapProvider

LteEnbRrcSapUser * m_rrcSapUser

EpcEnbS1SapProvider * m_s1SapProvider

EpcEnbS1SapUser * m_s1SapUser

uint8_t m_servingCellHandoverThreshold

uint16_t m_srsCurrentPeriodicityId

Time m_systemInformationPeriodicity

std::map< uint16_t, Ptr
< UeManager > > 		m_ueMap

std::set< uint16_t > m_ueSrsConfigurationIndexSet

uint16_t m_ulBandwidth

uint16_t m_ulEarfcn

EpcX2SapProvider * m_x2SapProvider

EpcX2SapUser * m_x2SapUser

std::map< uint32_t, X2uTeidInfo > m_x2uTeidInfoMap


Friends

class EnbRrcMemberLteEnbCmacSapUser

class EpcX2SpecificEpcX2SapUser< LteEnbRrc >

class MemberEpcEnbS1SapUser< LteEnbRrc >

class MemberLteEnbRrcSapProvider< LteEnbRrc >

class UeManager


Detailed Description

The LTE Radio Resource Control entity at the eNB

Config Paths

ns3::LteEnbRrc is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc

Attributes

  • UeMap: List of UeManager by C-RNTI.
  • DefaultTransmissionMode: The default UEs' transmission mode (0: SISO)
  • EpsBearerToRlcMapping: Specify which type of RLC will be used for each type of EPS bearer.
    • Set with class: ns3::EnumValue
    • Underlying type: RlcSmAlways|RlcUmAlways|RlcAmAlways|PacketErrorRateBased
    • Initial value: RlcSmAlways
    • Flags: construct write read
  • SystemInformationPeriodicity: The interval for sending system information (Time value)
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +80000000.0ns
    • Flags: construct write read
  • SrsPeriodicity: The SRS periodicity in milliseconds
  • ConnectionTimeoutDuration: After a RA attempt, if no RRC Connection Request is received before this time, the UE context is destroyed. Must account for reception of RAR and transmission of RRC CONNECTION REQUEST over UL GRANT.
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +15000000.0ns
    • Flags: construct write read
  • ConnectionRejectedTimeoutDuration: Time to wait between sending a RRC CONNECTION REJECT and destroying the UE context
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +30000000.0ns
    • Flags: construct write read
  • HandoverJoiningTimeoutDuration: After accepting a handover request, if no RRC Connection Reconfiguration Completed is received before this time, the UE context is destroyed. Must account for reception of X2 HO REQ ACK by source eNB, transmission of the Handover Command, non-contention-based random access and reception of the RRC Connection Reconfiguration Completed message.
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +200000000.0ns
    • Flags: construct write read
  • HandoverLeavingTimeoutDuration: After issuing a Handover Command, if neither RRC Connection Reestablishment nor X2 UE Context Release has been previously received, the UE context is destroyed.
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +500000000.0ns
    • Flags: construct write read
  • AdmitHandoverRequest: Whether to admit an X2 handover request from another eNB
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • AdmitRrcConnectionRequest: Whether to admit a connection request from a Ue
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • EventA2Threshold: Threshold of the event A2 (Serving becomes worse than threshold)
  • EventA4Threshold: Threshold of the event A4 (Neighbour becomes better than threshold)
  • ServingCellHandoverThreshold: If serving cell is worse than this threshold, neighbour cells are consider for Handover
  • NeighbourCellHandoverOffset: Minimum offset between serving and best neighbour cell to trigger the Handover

TraceSources

  • NewUeContext: trace fired upon creation of a new UE context
  • ConnectionEstablished: trace fired upon successful RRC connection establishment
  • ConnectionReconfiguration: trace fired upon RRC connection reconfiguration
  • HandoverStart: trace fired upon start of a handover procedure
  • HandoverEndOk: trace fired upon successful termination of a handover procedure
  • RecvMeasurementReport: trace fired when measurement report is received

Definition at line 453 of file lte-enb-rrc.h.

Member Enumeration Documentation

enum ns3::LteEnbRrc::LteEpsBearerToRlcMapping_t

Identifies how EPS Bearer parameters are mapped to different RLC types

Enumerator
RLC_SM_ALWAYS
RLC_UM_ALWAYS
RLC_AM_ALWAYS
PER_BASED

Definition at line 658 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::LteEnbRrc::LteEnbRrc ( )

create an RRC instance for use within an eNB

Definition at line 1395 of file lte-enb-rrc.cc.

References EnbRrcMemberLteEnbCmacSapUser, m_cmacSapUser, m_cphySapUser, m_rrcSapProvider, m_s1SapUser, m_x2SapUser, and NS_LOG_FUNCTION.

ns3::LteEnbRrc::~LteEnbRrc ( )
virtual

Destructor

Definition at line 1419 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

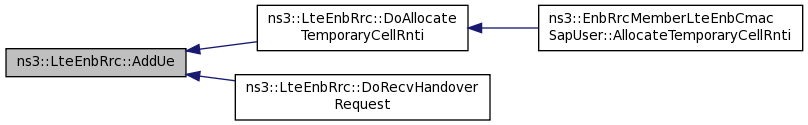

uint16_t ns3::LteEnbRrc::AddUe ( UeManager::State  state)
private

Allocate a new RNTI for a new UE. This is done in the following cases:

  • T-C-RNTI allocation upon contention-based MAC Random Access procedure
  • target cell RNTI allocation upon handover
Parameters
statethe initial state of the UeManager
Returns
the newly allocated RNTI

Definition at line 2021 of file lte-enb-rrc.cc.

References m_cellId, m_lastAllocatedRnti, m_newUeContextTrace, m_ueMap, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoAllocateTemporaryCellRnti(), and DoRecvHandoverRequest().

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::AddX2Neighbour ( uint16_t  cellId)

Add a neighbour with an X2 interface

Parameters
cellidneighbouring cell id

Definition at line 2101 of file lte-enb-rrc.cc.

References m_neighbourRelationTable, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::ConfigureCell ( uint8_t  ulBandwidth,
uint8_t  dlBandwidth,
uint16_t  ulEarfcn,
uint16_t  dlEarfcn,
uint16_t  cellId
)

configure cell-specific parameters

Parameters
ulBandwidththe uplink bandwidth in number of RB
dlBandwidththe downlink bandwidth in number of RB
ulEarfcnthe UL EARFCN
dlEarfcnthe DL EARFCN
cellIdthe ID of the cell

Definition at line 1631 of file lte-enb-rrc.cc.

References ns3::LteEnbCmacSapProvider::ConfigureMac(), ns3::LteRrcSap::MasterInformationBlock::dlBandwidth, m_cellId, m_cmacSapProvider, m_configured, m_cphySapProvider, m_dlBandwidth, m_dlEarfcn, m_ulBandwidth, m_ulEarfcn, NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SendSystemInformation(), ns3::LteEnbCphySapProvider::SetBandwidth(), ns3::LteEnbCphySapProvider::SetCellId(), ns3::LteEnbCphySapProvider::SetEarfcn(), and ns3::LteEnbCphySapProvider::SetMasterInformationBlock().

+ Here is the call graph for this function:

void ns3::LteEnbRrc::ConnectionRejectedTimeout ( uint16_t  rnti)

Method triggered a while after sending RRC Connection Rejected

Parameters
rntithe T-C-RNTI whose timeout expired

Definition at line 1690 of file lte-enb-rrc.cc.

References ns3::UeManager::CONNECTION_REJECTED, GetUeManager(), NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::RecvRrcConnectionRequest().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::ConnectionTimeout ( uint16_t  rnti)

Method triggered when a UE is expected to get connected but does not do so in a reasonable time

Parameters
rntithe T-C-RNTI whose timeout expired

Definition at line 1681 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::UeManager::INITIAL_RANDOM_ACCESS, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::DoInitialize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint16_t ns3::LteEnbRrc::DoAllocateTemporaryCellRnti ( )
private

Definition at line 1998 of file lte-enb-rrc.cc.

References AddUe(), ns3::UeManager::INITIAL_RANDOM_ACCESS, and NS_LOG_FUNCTION.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::AllocateTemporaryCellRnti().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::DoCompleteSetupUe ( uint16_t  rnti,
LteEnbRrcSapProvider::CompleteSetupUeParameters  params
)
private

Definition at line 1729 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoDataRadioBearerSetupRequest ( EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters  params)
private

Definition at line 1779 of file lte-enb-rrc.cc.

References ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearer, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearerId, GetUeManager(), ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::gtpTeid, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::rnti, and ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::transportLayerAddress.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoDispose ( void  )
protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 1426 of file lte-enb-rrc.cc.

References m_cmacSapUser, m_cphySapUser, m_rrcSapProvider, m_s1SapUser, m_ueMap, m_x2SapUser, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::DoNotifyLcConfigResult ( uint16_t  rnti,
uint8_t  lcid,
bool  success
)
private

Definition at line 2012 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::NotifyLcConfigResult().

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::DoPathSwitchRequestAcknowledge ( EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters  params)
private

Definition at line 1786 of file lte-enb-rrc.cc.

References GetUeManager(), and ns3::EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters::rnti.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvHandoverPreparationFailure ( EpcX2SapUser::HandoverPreparationFailureParams  params)
private

Definition at line 1900 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::HandoverPreparationFailureParams::cause, ns3::EpcX2Sap::HandoverPreparationFailureParams::criticalityDiagnostics, GetUeManager(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverPreparationFailureParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverPreparationFailureParams::sourceCellId, and ns3::EpcX2Sap::HandoverPreparationFailureParams::targetCellId.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvHandoverRequest ( EpcX2SapUser::HandoverRequestParams  params)
private

Definition at line 1793 of file lte-enb-rrc.cc.

References AddUe(), ns3::EpcX2Sap::HandoverRequestAckParams::admittedBearers, ns3::LteEnbCmacSapProvider::AllocateNcRaPreamble(), ns3::EpcX2Sap::HandoverRequestParams::bearers, ns3::LteRrcSap::MobilityControlInfo::carrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::carrierFreq, ns3::EpcX2Sap::HandoverPreparationFailureParams::cause, ns3::EpcX2Sap::HandoverPreparationFailureParams::criticalityDiagnostics, ns3::LteRrcSap::CarrierBandwidthEutra::dlBandwidth, ns3::LteRrcSap::CarrierFreqEutra::dlCarrierFreq, ns3::LteEnbRrcSapUser::EncodeHandoverCommand(), ns3::EpcX2Sap::ErabAdmittedItem::erabId, ns3::LteEnbCmacSapProvider::GetRachConfig(), GetUeManager(), ns3::UeManager::HANDOVER_JOINING, ns3::LteRrcSap::MobilityControlInfo::haveCarrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::haveCarrierFreq, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::MobilityControlInfo::haveRachConfigDedicated, m_admitHandoverRequest, m_cellId, m_cmacSapProvider, m_dlBandwidth, m_dlEarfcn, m_rrcSapUser, m_ulBandwidth, m_ulEarfcn, m_x2SapProvider, ns3::EpcX2Sap::HandoverRequestParams::mmeUeS1apId, ns3::LteRrcSap::RrcConnectionReconfiguration::mobilityControlInfo, ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, ns3::LteRrcSap::MobilityControlInfo::newUeIdentity, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::LteEnbCmacSapProvider::RachConfig::numberOfRaPreambles, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, ns3::EpcX2Sap::HandoverRequestParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverPreparationFailureParams::oldEnbUeX2apId, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteEnbCmacSapProvider::RachConfig::preambleTransMax, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommon::rachConfigCommon, ns3::LteRrcSap::MobilityControlInfo::rachConfigDedicated, ns3::LteRrcSap::MobilityControlInfo::radioResourceConfigCommon, ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::raPrachMaskIndex, ns3::LteRrcSap::RachConfigDedicated::raPrachMaskIndex, ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::raPreambleId, ns3::LteRrcSap::RachConfigDedicated::raPreambleIndex, ns3::LteEnbCmacSapProvider::RachConfig::raResponseWindowSize, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, RemoveUe(), ns3::EpcX2Sap::HandoverRequestAckParams::rrcContext, ns3::EpcX2SapProvider::SendHandoverPreparationFailure(), ns3::EpcX2SapProvider::SendHandoverRequestAck(), ns3::EpcX2Sap::HandoverRequestParams::sourceCellId, ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, ns3::EpcX2Sap::HandoverPreparationFailureParams::sourceCellId, ns3::EpcX2Sap::HandoverRequestParams::targetCellId, ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId, ns3::EpcX2Sap::HandoverPreparationFailureParams::targetCellId, ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::LteRrcSap::CarrierBandwidthEutra::ulBandwidth, ns3::LteRrcSap::CarrierFreqEutra::ulCarrierFreq, and ns3::LteEnbCmacSapProvider::AllocateNcRaPreambleReturnValue::valid.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvHandoverRequestAck ( EpcX2SapUser::HandoverRequestAckParams  params)
private

Definition at line 1883 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, and ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvLoadInformation ( EpcX2SapUser::LoadInformationParams  params)
private

Definition at line 1949 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::LoadInformationParams::cellInformationList, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

void ns3::LteEnbRrc::DoRecvMeasurementReport ( uint16_t  rnti,
LteRrcSap::MeasurementReport  msg
)
private

Definition at line 1772 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvResourceStatusUpdate ( EpcX2SapUser::ResourceStatusUpdateParams  params)
private

Definition at line 1961 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::ResourceStatusUpdateParams::cellMeasurementResultList, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

void ns3::LteEnbRrc::DoRecvRrcConnectionReconfigurationCompleted ( uint16_t  rnti,
LteRrcSap::RrcConnectionReconfigurationCompleted  msg
)
private

Definition at line 1751 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionReestablishmentComplete ( uint16_t  rnti,
LteRrcSap::RrcConnectionReestablishmentComplete  msg
)
private

Definition at line 1765 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionReestablishmentRequest ( uint16_t  rnti,
LteRrcSap::RrcConnectionReestablishmentRequest  msg
)
private

Definition at line 1758 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionRequest ( uint16_t  rnti,
LteRrcSap::RrcConnectionRequest  msg
)
private

Definition at line 1736 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionSetupCompleted ( uint16_t  rnti,
LteRrcSap::RrcConnectionSetupCompleted  msg
)
private

Definition at line 1744 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvSnStatusTransfer ( EpcX2SapUser::SnStatusTransferParams  params)
private

Definition at line 1918 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, GetUeManager(), ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvUeContextRelease ( EpcX2SapUser::UeContextReleaseParams  params)
private

Definition at line 1934 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, and RemoveUe().

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvUeData ( EpcX2SapUser::UeDataParams  params)
private

Definition at line 1973 of file lte-enb-rrc.cc.

References ns3::Packet::GetSize(), GetUeManager(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2uTeidInfoMap, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::DoRrcConfigurationUpdateInd ( LteEnbCmacSapUser::UeConfig  params)
private

Definition at line 2005 of file lte-enb-rrc.cc.

References GetUeManager(), and ns3::LteEnbCmacSapUser::UeConfig::m_rnti.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::RrcConfigurationUpdateInd().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

EpcX2SapUser * ns3::LteEnbRrc::GetEpcX2SapUser ( )

Get the X2 SAP offered by this RRC

Returns
s the X2 SAP User interface offered to the X2 entity by this RRC entity

Definition at line 1552 of file lte-enb-rrc.cc.

References m_x2SapUser, and NS_LOG_FUNCTION.

uint8_t ns3::LteEnbRrc::GetLogicalChannelGroup ( EpsBearer  bearer)
private
Parameters
bearerthe characteristics of the bearer
Returns
the Logical Channel Group in a bearer with these characteristics is put. Used for MAC Buffer Status Reporting purposes.

Definition at line 2218 of file lte-enb-rrc.cc.

References ns3::EpsBearer::IsGbr().

+ Here is the call graph for this function:

uint8_t ns3::LteEnbRrc::GetLogicalChannelPriority ( EpsBearer  bearer)
private
Parameters
bearerthe characteristics of the bearer
Returns
the priority level of a bearer with these characteristics is put. Used for the part of UL MAC Scheduling carried out by the UE

Definition at line 2231 of file lte-enb-rrc.cc.

References ns3::EpsBearer::qci.

LteEnbCmacSapUser * ns3::LteEnbRrc::GetLteEnbCmacSapUser ( )

Get the CMAC SAP offered by this RRC

Returns
s the CMAC SAP User interface offered to the MAC by this RRC

Definition at line 1566 of file lte-enb-rrc.cc.

References m_cmacSapUser, and NS_LOG_FUNCTION.

LteEnbCphySapUser * ns3::LteEnbRrc::GetLteEnbCphySapUser ( )
Returns
s the CPHY SAP User interface offered to the PHY by this RRC

Definition at line 1614 of file lte-enb-rrc.cc.

References m_cphySapUser, and NS_LOG_FUNCTION.

LteEnbRrcSapProvider * ns3::LteEnbRrc::GetLteEnbRrcSapProvider ( )
Returns
s the RRC SAP Provider interface offered to the MAC by this RRC

Definition at line 1580 of file lte-enb-rrc.cc.

References m_rrcSapProvider, and NS_LOG_FUNCTION.

uint16_t ns3::LteEnbRrc::GetNewSrsConfigurationIndex ( void  )
private

Allocate a new SRS configuration index for a new UE.

Note
this method can have the side effect of updating the SRS configuration index of all UEs
Returns
the newly allocated SRS configuration index

Definition at line 2155 of file lte-enb-rrc.cc.

References ns3::g_srsCiHigh, ns3::g_srsCiLow, ns3::g_srsPeriodicity, m_lastAllocatedConfigurationIndex, m_srsCurrentPeriodicityId, m_ueSrsConfigurationIndexSet, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

TypeId ns3::LteEnbRrc::GetRlcType ( EpsBearer  bearer)
private
Parameters
bearerthe specification of an EPS bearer
Returns
the type of RLC that is to be created for the given EPS bearer

Definition at line 2066 of file lte-enb-rrc.cc.

References ns3::EpsBearer::GetPacketErrorLossRate(), ns3::LteRlcUm::GetTypeId(), ns3::LteRlcAm::GetTypeId(), ns3::LteRlcSm::GetTypeId(), m_epsBearerToRlcMapping, PER_BASED, RLC_AM_ALWAYS, RLC_SM_ALWAYS, and RLC_UM_ALWAYS.

+ Here is the call graph for this function:

EpcEnbS1SapUser * ns3::LteEnbRrc::GetS1SapUser ( )
Returns
the S1 SAP user

Definition at line 1601 of file lte-enb-rrc.cc.

References m_s1SapUser.

uint32_t ns3::LteEnbRrc::GetSrsPeriodicity ( ) const
Returns
the current SRS periodicity

Definition at line 2145 of file lte-enb-rrc.cc.

References ns3::g_srsPeriodicity, m_srsCurrentPeriodicityId, NS_ASSERT, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

TypeId ns3::LteEnbRrc::GetTypeId ( void  )
static

Definition at line 1438 of file lte-enb-rrc.cc.

References GetSrsPeriodicity(), m_admitHandoverRequest, m_admitRrcConnectionRequest, m_connectionEstablishedTrace, m_connectionReconfigurationTrace, m_connectionRejectedTimeoutDuration, m_connectionTimeoutDuration, m_defaultTransmissionMode, m_epsBearerToRlcMapping, m_eventA2Threshold, m_eventA4Threshold, m_handoverEndOkTrace, m_handoverJoiningTimeoutDuration, m_handoverLeavingTimeoutDuration, m_handoverStartTrace, m_neighbourCellHandoverOffset, m_newUeContextTrace, m_recvMeasurementReportTrace, m_servingCellHandoverThreshold, m_systemInformationPeriodicity, m_ueMap, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeObjectMapAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), NS_LOG_FUNCTION, PER_BASED, RLC_AM_ALWAYS, RLC_SM_ALWAYS, RLC_UM_ALWAYS, ns3::TypeId::SetParent(), and SetSrsPeriodicity().

+ Here is the call graph for this function:

Ptr< UeManager > ns3::LteEnbRrc::GetUeManager ( uint16_t  rnti)
Parameters
rntithe identifier of an UE
Returns
the corresponding UeManager instance

Definition at line 1621 of file lte-enb-rrc.cc.

References m_cellId, m_ueMap, NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ConnectionRejectedTimeout(), ConnectionTimeout(), DoCompleteSetupUe(), DoDataRadioBearerSetupRequest(), DoPathSwitchRequestAcknowledge(), DoRecvHandoverPreparationFailure(), DoRecvHandoverRequest(), DoRecvHandoverRequestAck(), DoRecvMeasurementReport(), DoRecvRrcConnectionReconfigurationCompleted(), DoRecvRrcConnectionReestablishmentComplete(), DoRecvRrcConnectionReestablishmentRequest(), DoRecvRrcConnectionRequest(), DoRecvRrcConnectionSetupCompleted(), DoRecvSnStatusTransfer(), DoRecvUeContextRelease(), DoRecvUeData(), DoRrcConfigurationUpdateInd(), HandoverJoiningTimeout(), HandoverLeavingTimeout(), SendData(), and SendHandoverRequest().

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::HandoverJoiningTimeout ( uint16_t  rnti)

Method triggered when a UE is expected to join the cell for a handover but does not do so in a reasonable time

Parameters
rntithe C-RNTI whose timeout expired

Definition at line 1699 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::UeManager::HANDOVER_JOINING, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::DoInitialize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::HandoverLeavingTimeout ( uint16_t  rnti)

Method triggered when a UE is expected to leave a cell for a handover but no feedback is received in a reasonable time

Parameters
rntithe C-RNTI whose timeout expired

Definition at line 1708 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::UeManager::HANDOVER_LEAVING, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::RecvHandoverRequestAck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::RemoveSrsConfigurationIndex ( uint16_t  srcCi)
private

remove a previously allocated SRS configuration index

Note
this method can have the side effect of updating the SRS configuration index of all UEs
Parameters
srcCithe indext to be removed

Definition at line 2209 of file lte-enb-rrc.cc.

References m_ueSrsConfigurationIndexSet, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by RemoveUe().

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::RemoveUe ( uint16_t  rnti)
private

remove a UE from the cell

Parameters
rntithe C-RNTI identiftying the user

Definition at line 2048 of file lte-enb-rrc.cc.

References m_cmacSapProvider, m_cphySapProvider, m_s1SapProvider, m_ueMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveSrsConfigurationIndex(), ns3::LteEnbCmacSapProvider::RemoveUe(), ns3::LteEnbCphySapProvider::RemoveUe(), and ns3::EpcEnbS1SapProvider::UeContextRelease().

Referenced by ConnectionRejectedTimeout(), ConnectionTimeout(), DoRecvHandoverRequest(), DoRecvUeContextRelease(), HandoverJoiningTimeout(), and HandoverLeavingTimeout().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::LteEnbRrc::SendData ( Ptr< Packet >  p)

Enqueue an IP data packet on the proper bearer for downlink transmission. Normally expected to be called by the NetDevice forwarding a packet coming from the EpcEnbApplication

Parameters
pthe packet
Returns
true if successful, false if an error occurred

Definition at line 1661 of file lte-enb-rrc.cc.

References ns3::EpsBearerTag::GetBid(), ns3::EpsBearerTag::GetRnti(), GetUeManager(), NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::Packet::RemovePacketTag().

+ Here is the call graph for this function:

void ns3::LteEnbRrc::SendHandoverRequest ( uint16_t  rnti,
uint16_t  cellId
)

Send a HandoverRequest through the X2 SAP interface

This method will trigger a handover which is started by the RRC by sending a handover request to the target eNB over the X2 interface

Parameters
imsithe id of the UE to be handed over
cellIdthe id of the target eNB

Definition at line 1717 of file lte-enb-rrc.cc.

References GetUeManager(), m_configured, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

+ Here is the call graph for this function:

void ns3::LteEnbRrc::SendSystemInformation ( )
private

method used to periodically send System Information

Definition at line 2237 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::SystemInformationBlockType2::freqInfo, ns3::LteEnbCmacSapProvider::GetRachConfig(), ns3::LteRrcSap::SystemInformation::haveSib2, m_cmacSapProvider, m_rrcSapUser, m_systemInformationPeriodicity, m_ulBandwidth, m_ulEarfcn, ns3::LteEnbCmacSapProvider::RachConfig::numberOfRaPreambles, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteEnbCmacSapProvider::RachConfig::preambleTransMax, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommonSib::rachConfigCommon, ns3::LteRrcSap::SystemInformationBlockType2::radioResourceConfigCommon, ns3::LteEnbCmacSapProvider::RachConfig::raResponseWindowSize, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, ns3::Simulator::Schedule(), ns3::LteEnbRrcSapUser::SendSystemInformation(), ns3::LteRrcSap::SystemInformation::sib2, ns3::LteRrcSap::FreqInfo::ulBandwidth, and ns3::LteRrcSap::FreqInfo::ulCarrierFreq.

Referenced by ConfigureCell().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteEnbRrc::SetCellId ( uint16_t  m_cellId)

set the cell id of this eNB

Parameters
m_cellId

Definition at line 1655 of file lte-enb-rrc.cc.

References m_cellId.

void ns3::LteEnbRrc::SetEpcX2SapProvider ( EpcX2SapProvider *  s)

Set the X2 SAP this RRC should interact with

Parameters
sthe X2 SAP Provider to be used by this RRC entity

Definition at line 1545 of file lte-enb-rrc.cc.

References m_x2SapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetForwardUpCallback ( Callback< void, Ptr< Packet > >  cb)

set the callback used to forward data packets up the stack

Parameters
void
cb

Definition at line 1675 of file lte-enb-rrc.cc.

References m_forwardUpCallback.

void ns3::LteEnbRrc::SetLteEnbCmacSapProvider ( LteEnbCmacSapProvider *  s)

set the CMAC SAP this RRC should interact with

Parameters
sthe CMAC SAP Provider to be used by this RRC

Definition at line 1559 of file lte-enb-rrc.cc.

References m_cmacSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteEnbCphySapProvider ( LteEnbCphySapProvider *  s)

set the CPHY SAP this RRC should use to interact with the PHY

Parameters
sthe CPHY SAP Provider

Definition at line 1607 of file lte-enb-rrc.cc.

References m_cphySapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteEnbRrcSapUser ( LteEnbRrcSapUser *  s)

set the RRC SAP this RRC should interact with

Parameters
sthe RRC SAP User to be used by this RRC

Definition at line 1573 of file lte-enb-rrc.cc.

References m_rrcSapUser, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteMacSapProvider ( LteMacSapProvider *  s)

set the MAC SAP provider. The eNB RRC does not use this directly, but it needs to provide it to newly created RLC instances.

Parameters
sthe MAC SAP provider that will be used by all newly created RLC instances

Definition at line 1587 of file lte-enb-rrc.cc.

References m_macSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetS1SapProvider ( EpcEnbS1SapProvider *  s)

Set the S1 SAP Provider

Parameters
sthe S1 SAP Provider

Definition at line 1594 of file lte-enb-rrc.cc.

References m_s1SapProvider, and s.

void ns3::LteEnbRrc::SetSrsPeriodicity ( uint32_t  p)
Parameters
pthe SRS periodicity in num TTIs

Definition at line 2124 of file lte-enb-rrc.cc.

References ns3::g_srsPeriodicity, m_srsCurrentPeriodicityId, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class EnbRrcMemberLteEnbCmacSapUser
friend

Definition at line 456 of file lte-enb-rrc.h.

Referenced by LteEnbRrc().

friend class EpcX2SpecificEpcX2SapUser< LteEnbRrc >
friend

Definition at line 459 of file lte-enb-rrc.h.

friend class MemberEpcEnbS1SapUser< LteEnbRrc >
friend

Definition at line 458 of file lte-enb-rrc.h.

friend class MemberLteEnbRrcSapProvider< LteEnbRrc >
friend

Definition at line 457 of file lte-enb-rrc.h.

friend class UeManager
friend

Definition at line 460 of file lte-enb-rrc.h.

Member Data Documentation

bool ns3::LteEnbRrc::m_admitHandoverRequest
private

Definition at line 850 of file lte-enb-rrc.h.

Referenced by DoRecvHandoverRequest(), and GetTypeId().

bool ns3::LteEnbRrc::m_admitRrcConnectionRequest
private

Definition at line 851 of file lte-enb-rrc.h.

Referenced by GetTypeId().

uint16_t ns3::LteEnbRrc::m_cellId
private

Definition at line 819 of file lte-enb-rrc.h.

Referenced by AddUe(), ConfigureCell(), DoRecvHandoverRequest(), GetUeManager(), and SetCellId().

LteEnbCmacSapProvider* ns3::LteEnbRrc::m_cmacSapProvider
private

Definition at line 805 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), RemoveUe(), SendSystemInformation(), and SetLteEnbCmacSapProvider().

LteEnbCmacSapUser* ns3::LteEnbRrc::m_cmacSapUser
private

Definition at line 804 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbCmacSapUser(), and LteEnbRrc().

bool ns3::LteEnbRrc::m_configured
private

Definition at line 818 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and SendHandoverRequest().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_connectionEstablishedTrace
private

Definition at line 870 of file lte-enb-rrc.h.

Referenced by GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_connectionReconfigurationTrace
private

Definition at line 872 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_connectionRejectedTimeoutDuration
private

Definition at line 859 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_connectionTimeoutDuration
private

Definition at line 858 of file lte-enb-rrc.h.

Referenced by GetTypeId().

LteEnbCphySapProvider* ns3::LteEnbRrc::m_cphySapProvider
private

Definition at line 816 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), RemoveUe(), and SetLteEnbCphySapProvider().

LteEnbCphySapUser* ns3::LteEnbRrc::m_cphySapUser
private

Definition at line 815 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbCphySapUser(), and LteEnbRrc().

uint8_t ns3::LteEnbRrc::m_defaultTransmissionMode
private

Definition at line 837 of file lte-enb-rrc.h.

Referenced by GetTypeId().

uint16_t ns3::LteEnbRrc::m_dlBandwidth
private

Definition at line 822 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and DoRecvHandoverRequest().

uint16_t ns3::LteEnbRrc::m_dlEarfcn
private

Definition at line 820 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and DoRecvHandoverRequest().

enum LteEpsBearerToRlcMapping_t ns3::LteEnbRrc::m_epsBearerToRlcMapping
private

Definition at line 839 of file lte-enb-rrc.h.

Referenced by GetRlcType(), and GetTypeId().

uint8_t ns3::LteEnbRrc::m_eventA2Threshold
private

Definition at line 852 of file lte-enb-rrc.h.

Referenced by GetTypeId().

uint8_t ns3::LteEnbRrc::m_eventA4Threshold
private

Definition at line 853 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Callback<void, Ptr<Packet> > ns3::LteEnbRrc::m_forwardUpCallback
private

Definition at line 799 of file lte-enb-rrc.h.

Referenced by SetForwardUpCallback().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_handoverEndOkTrace
private

Definition at line 876 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_handoverJoiningTimeoutDuration
private

Definition at line 860 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_handoverLeavingTimeoutDuration
private

Definition at line 861 of file lte-enb-rrc.h.

Referenced by GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_handoverStartTrace
private

Definition at line 874 of file lte-enb-rrc.h.

Referenced by GetTypeId().

uint16_t ns3::LteEnbRrc::m_lastAllocatedConfigurationIndex
private

Definition at line 846 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex().

uint16_t ns3::LteEnbRrc::m_lastAllocatedRnti
private

Definition at line 824 of file lte-enb-rrc.h.

Referenced by AddUe().

LteMacSapProvider* ns3::LteEnbRrc::m_macSapProvider
private

Definition at line 810 of file lte-enb-rrc.h.

Referenced by SetLteMacSapProvider().

uint8_t ns3::LteEnbRrc::m_neighbourCellHandoverOffset
private

Definition at line 855 of file lte-enb-rrc.h.

Referenced by GetTypeId().

std::map<uint16_t, Ptr<NeighbourRelation> > ns3::LteEnbRrc::m_neighbourRelationTable
private

Definition at line 864 of file lte-enb-rrc.h.

Referenced by AddX2Neighbour().

TracedCallback<uint16_t, uint16_t> ns3::LteEnbRrc::m_newUeContextTrace
private

Definition at line 868 of file lte-enb-rrc.h.

Referenced by AddUe(), and GetTypeId().

bool ns3::LteEnbRrc::m_reconfigureUes
private

Definition at line 847 of file lte-enb-rrc.h.

TracedCallback<uint64_t, uint16_t, uint16_t, LteRrcSap::MeasurementReport> ns3::LteEnbRrc::m_recvMeasurementReportTrace
private

Definition at line 879 of file lte-enb-rrc.h.

Referenced by GetTypeId().

LteEnbRrcSapProvider* ns3::LteEnbRrc::m_rrcSapProvider
private

Definition at line 808 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbRrcSapProvider(), and LteEnbRrc().

LteEnbRrcSapUser* ns3::LteEnbRrc::m_rrcSapUser
private

Definition at line 807 of file lte-enb-rrc.h.

Referenced by DoRecvHandoverRequest(), SendSystemInformation(), and SetLteEnbRrcSapUser().

EpcEnbS1SapProvider* ns3::LteEnbRrc::m_s1SapProvider
private

Definition at line 812 of file lte-enb-rrc.h.

Referenced by RemoveUe(), and SetS1SapProvider().

EpcEnbS1SapUser* ns3::LteEnbRrc::m_s1SapUser
private

Definition at line 813 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetS1SapUser(), and LteEnbRrc().

uint8_t ns3::LteEnbRrc::m_servingCellHandoverThreshold
private

Definition at line 854 of file lte-enb-rrc.h.

Referenced by GetTypeId().

uint16_t ns3::LteEnbRrc::m_srsCurrentPeriodicityId
private

Definition at line 844 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex(), GetSrsPeriodicity(), and SetSrsPeriodicity().

Time ns3::LteEnbRrc::m_systemInformationPeriodicity
private

Definition at line 841 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and SendSystemInformation().

std::map<uint16_t, Ptr<UeManager> > ns3::LteEnbRrc::m_ueMap
private

Definition at line 826 of file lte-enb-rrc.h.

Referenced by AddUe(), DoDispose(), GetTypeId(), GetUeManager(), and RemoveUe().

std::set<uint16_t> ns3::LteEnbRrc::m_ueSrsConfigurationIndexSet
private

Definition at line 845 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex(), and RemoveSrsConfigurationIndex().

uint16_t ns3::LteEnbRrc::m_ulBandwidth
private

Definition at line 823 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), and SendSystemInformation().

uint16_t ns3::LteEnbRrc::m_ulEarfcn
private

Definition at line 821 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), and SendSystemInformation().

EpcX2SapProvider* ns3::LteEnbRrc::m_x2SapProvider
private

Definition at line 802 of file lte-enb-rrc.h.

Referenced by DoRecvHandoverRequest(), and SetEpcX2SapProvider().

EpcX2SapUser* ns3::LteEnbRrc::m_x2SapUser
private

Definition at line 801 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetEpcX2SapUser(), and LteEnbRrc().

std::map<uint32_t, X2uTeidInfo> ns3::LteEnbRrc::m_x2uTeidInfoMap
private

Definition at line 835 of file lte-enb-rrc.h.

Referenced by DoRecvUeData().

The documentation for this class was generated from the following files:
