ns3::LteSpectrumPhy Class Reference
LTE Models

#include <lte-spectrum-phy.h>

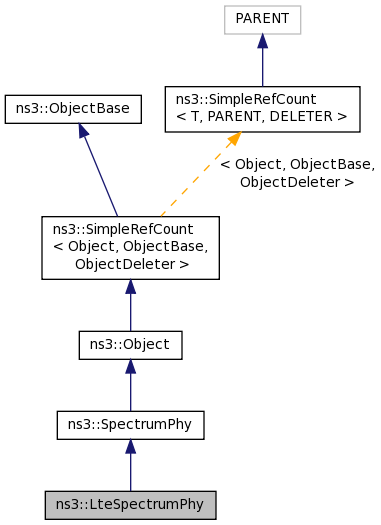

+ Inheritance diagram for ns3::LteSpectrumPhy:

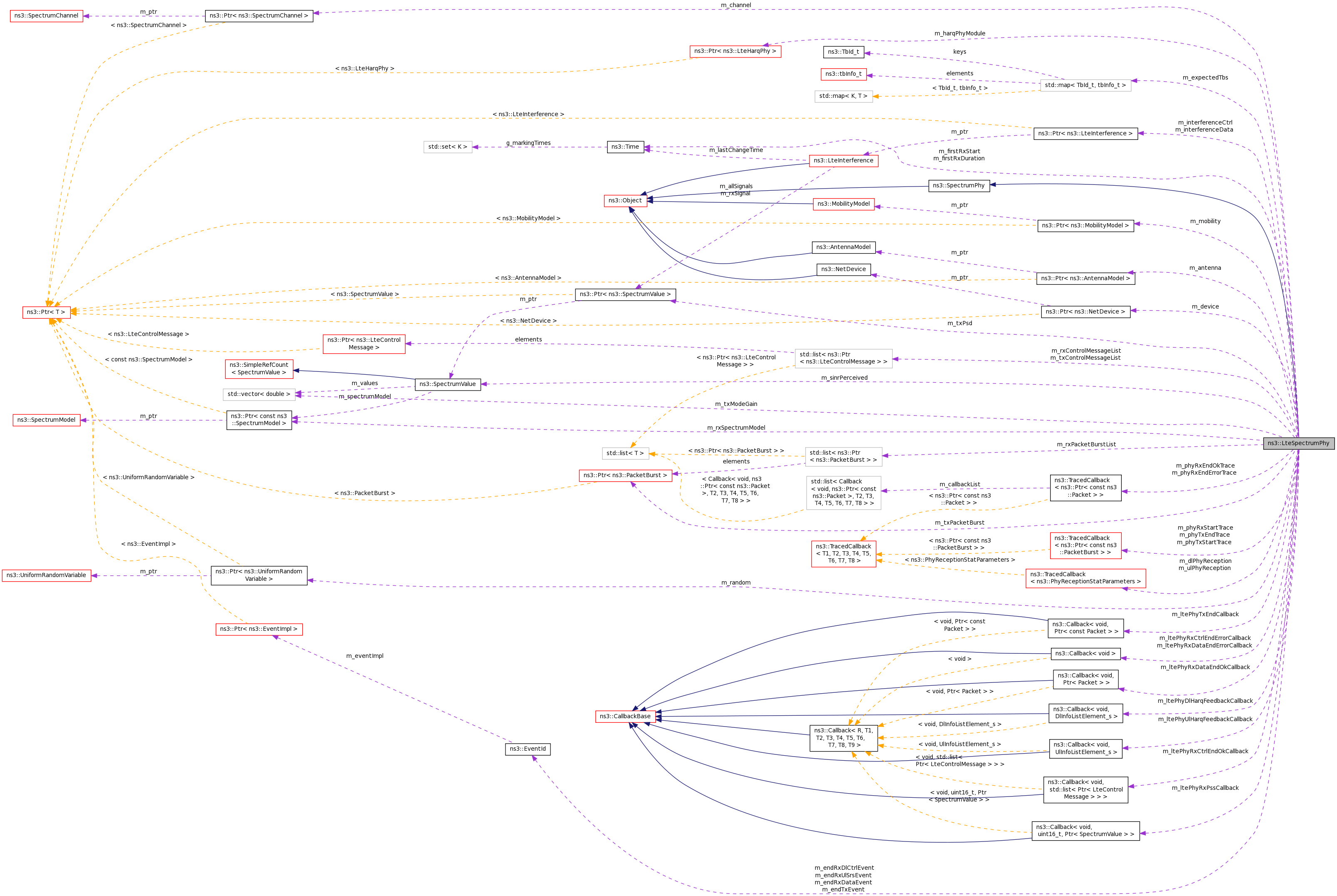

+ Collaboration diagram for ns3::LteSpectrumPhy:

Public Types

enum  State { IDLE, TX, RX_DATA, RX_CTRL }


Public Member Functions

 LteSpectrumPhy ()

virtual ~LteSpectrumPhy ()

void AddCtrlSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)

void AddDataSinrChunkProcessor (Ptr< LteSinrChunkProcessor > p)

void AddExpectedTb (uint16_t rnti, uint8_t ndi, uint16_t size, uint8_t mcs, std::vector< int > map, uint8_t layer, uint8_t harqId, uint8_t rv, bool downlink)

void AddInterferenceCtrlChunkProcessor (Ptr< LteSinrChunkProcessor > p)

void AddInterferenceDataChunkProcessor (Ptr< LteSinrChunkProcessor > p)

void AddRsPowerChunkProcessor (Ptr< LteSinrChunkProcessor > p)

int64_t AssignStreams (int64_t stream)

virtual void DoDispose ()

Ptr< SpectrumChannel > GetChannel ()

Ptr< NetDevice > GetDevice ()

Ptr< MobilityModel > GetMobility ()

Ptr< AntennaModel > GetRxAntenna ()

Ptr< const SpectrumModel > GetRxSpectrumModel () const

void Reset ()

void SetAntenna (Ptr< AntennaModel > a)

void SetCellId (uint16_t cellId)

void SetChannel (Ptr< SpectrumChannel > c)

void SetDevice (Ptr< NetDevice > d)

void SetHarqPhyModule (Ptr< LteHarqPhy > harq)

void SetLtePhyDlHarqFeedbackCallback (LtePhyDlHarqFeedbackCallback c)

void SetLtePhyRxCtrlEndErrorCallback (LtePhyRxCtrlEndErrorCallback c)

void SetLtePhyRxCtrlEndOkCallback (LtePhyRxCtrlEndOkCallback c)

void SetLtePhyRxDataEndErrorCallback (LtePhyRxDataEndErrorCallback c)

void SetLtePhyRxDataEndOkCallback (LtePhyRxDataEndOkCallback c)

void SetLtePhyRxPssCallback (LtePhyRxPssCallback c)

void SetLtePhyTxEndCallback (LtePhyTxEndCallback c)

void SetLtePhyUlHarqFeedbackCallback (LtePhyUlHarqFeedbackCallback c)

void SetMobility (Ptr< MobilityModel > m)

void SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)
 set the noise power spectral density More...

void SetState (State newState)
 Set the state of the phy layer. More...

void SetTransmissionMode (uint8_t txMode)

void SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)

void StartRx (Ptr< SpectrumSignalParameters > params)

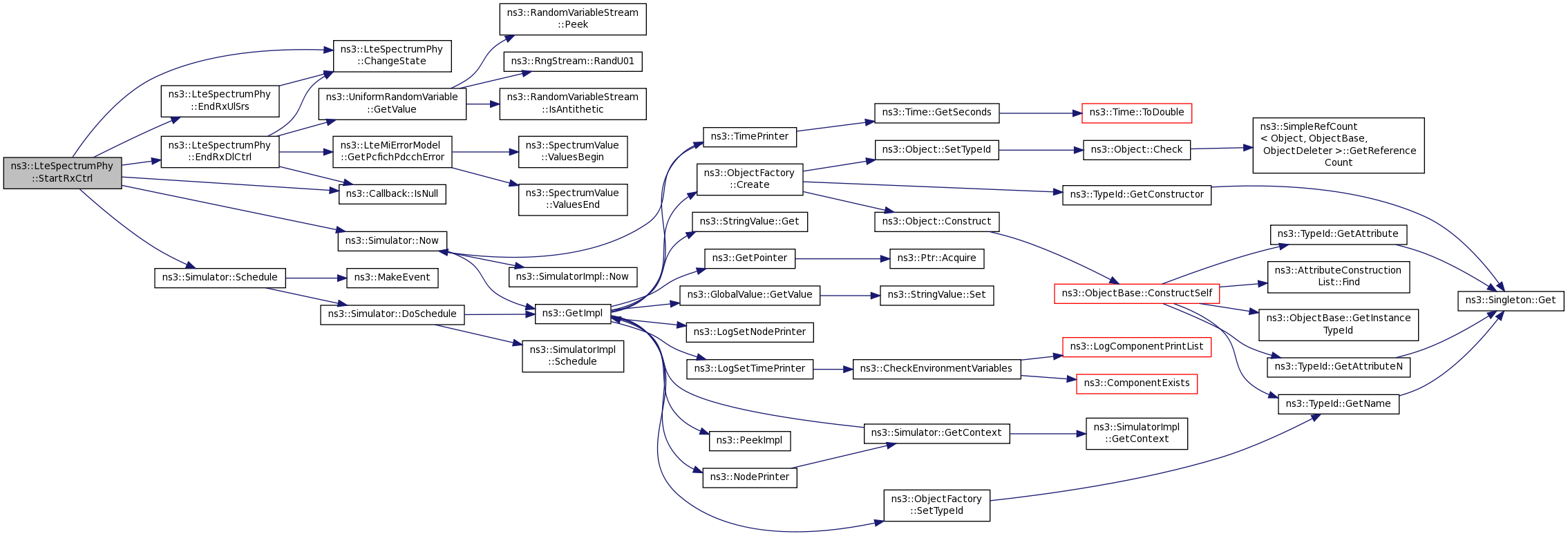

void StartRxCtrl (Ptr< SpectrumSignalParameters > params)

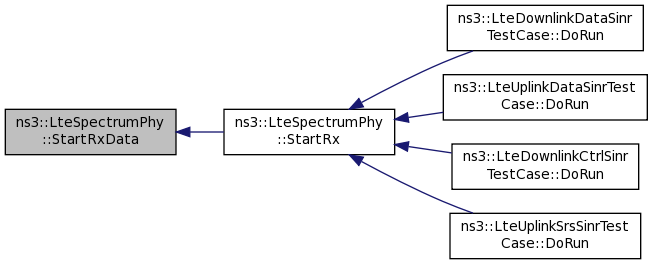

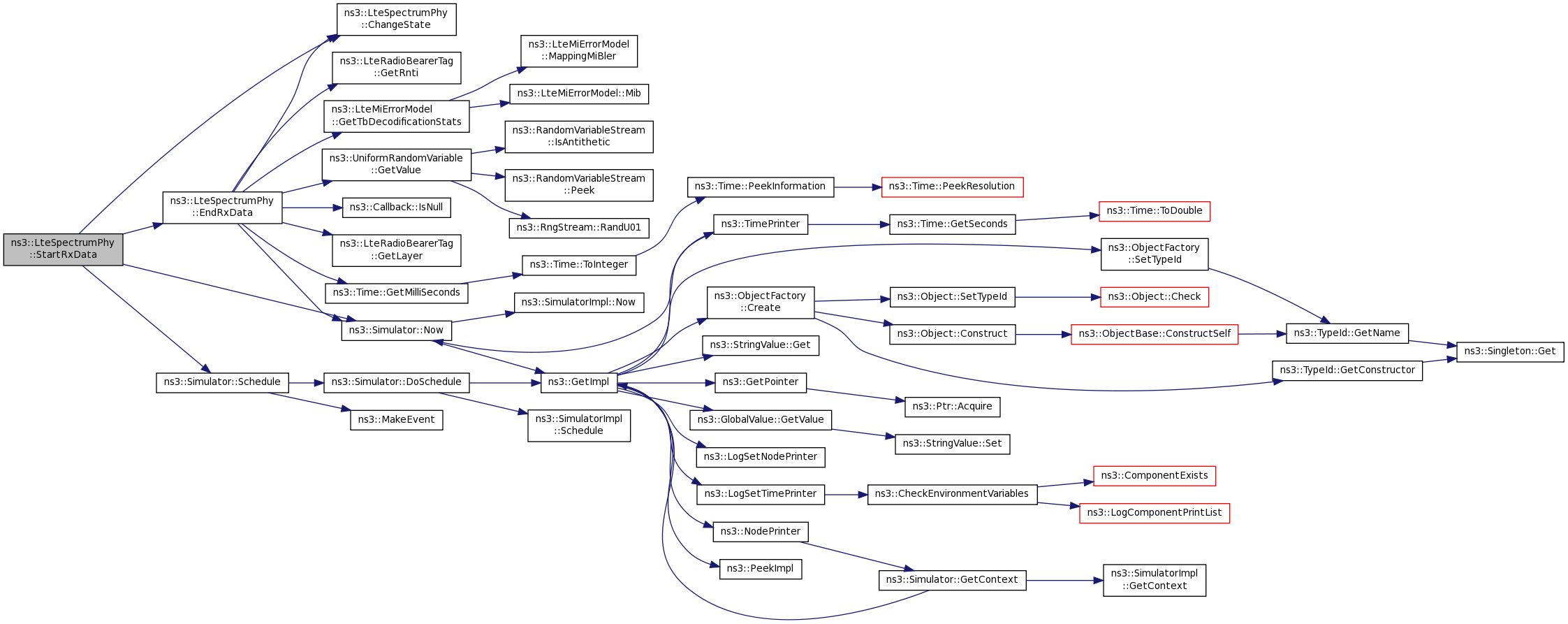

void StartRxData (Ptr< LteSpectrumSignalParametersDataFrame > params)

bool StartTxDataFrame (Ptr< PacketBurst > pb, std::list< Ptr< LteControlMessage > > ctrlMsgList, Time duration)

bool StartTxDlCtrlFrame (std::list< Ptr< LteControlMessage > > ctrlMsgList, bool pss)

bool StartTxUlSrsFrame ()

void UpdateSinrPerceived (const SpectrumValue &sinr)

- Public Member Functions inherited from ns3::SpectrumPhy
 SpectrumPhy ()

virtual ~SpectrumPhy ()

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

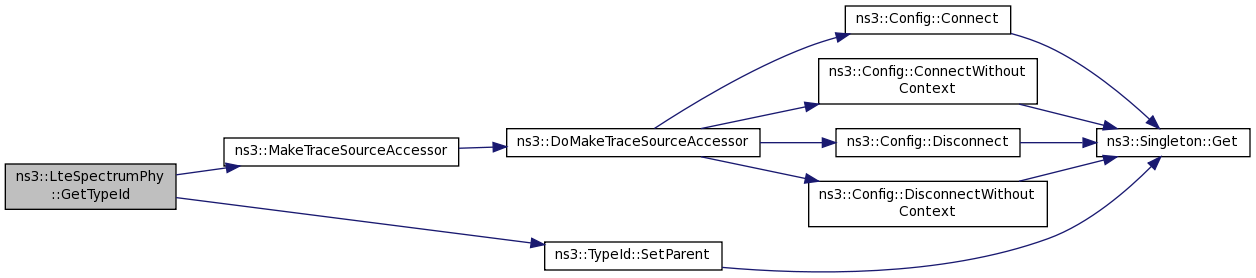

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Member Functions

void ChangeState (State newState)

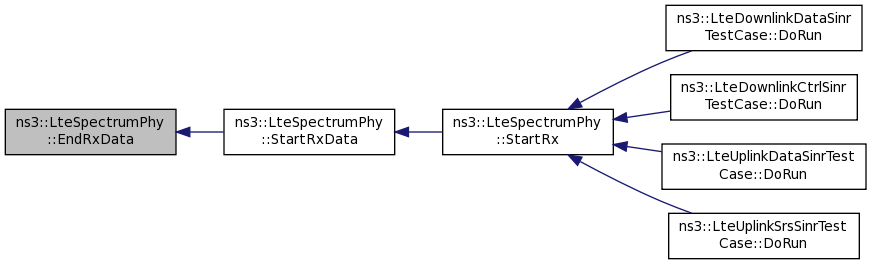

void EndRxData ()

void EndRxDlCtrl ()

void EndRxUlSrs ()

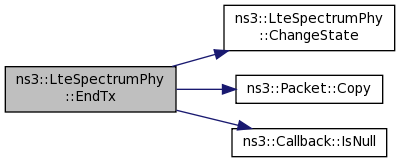

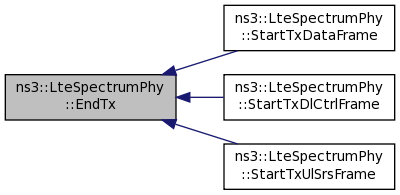

void EndTx ()

void SetTxModeGain (uint8_t txMode, double gain)


Private Attributes

Ptr< AntennaModel > m_antenna

uint16_t m_cellId

Ptr< SpectrumChannel > m_channel

bool m_ctrlErrorModelEnabled

bool m_dataErrorModelEnabled

Ptr< NetDevice > m_device

TracedCallback
< PhyReceptionStatParameters > 		m_dlPhyReception

EventId m_endRxDataEvent

EventId m_endRxDlCtrlEvent

EventId m_endRxUlSrsEvent

EventId m_endTxEvent

expectedTbs_t m_expectedTbs

Time m_firstRxDuration

Time m_firstRxStart

Ptr< LteHarqPhy > m_harqPhyModule

Ptr< LteInterference > m_interferenceCtrl

Ptr< LteInterference > m_interferenceData

uint8_t m_layersNum

LtePhyDlHarqFeedbackCallback m_ltePhyDlHarqFeedbackCallback

LtePhyRxCtrlEndErrorCallback m_ltePhyRxCtrlEndErrorCallback

LtePhyRxCtrlEndOkCallback m_ltePhyRxCtrlEndOkCallback

LtePhyRxDataEndErrorCallback m_ltePhyRxDataEndErrorCallback

LtePhyRxDataEndOkCallback m_ltePhyRxDataEndOkCallback

LtePhyRxPssCallback m_ltePhyRxPssCallback

LtePhyTxEndCallback m_ltePhyTxEndCallback

LtePhyUlHarqFeedbackCallback m_ltePhyUlHarqFeedbackCallback

Ptr< MobilityModel > m_mobility

TracedCallback< Ptr< const
Packet > > 		m_phyRxEndErrorTrace

TracedCallback< Ptr< const
Packet > > 		m_phyRxEndOkTrace

TracedCallback< Ptr< const
PacketBurst > > 		m_phyRxStartTrace

TracedCallback< Ptr< const
PacketBurst > > 		m_phyTxEndTrace

TracedCallback< Ptr< const
PacketBurst > > 		m_phyTxStartTrace

Ptr< UniformRandomVariable > m_random
 Provides uniform random variables. More...

std::list< Ptr
< LteControlMessage > > 		m_rxControlMessageList

std::list< Ptr< PacketBurst > > m_rxPacketBurstList

Ptr< const SpectrumModel > m_rxSpectrumModel

SpectrumValue m_sinrPerceived

State m_state

uint8_t m_transmissionMode

std::list< Ptr
< LteControlMessage > > 		m_txControlMessageList

std::vector< double > m_txModeGain

Ptr< PacketBurst > m_txPacketBurst

Ptr< SpectrumValue > m_txPsd

TracedCallback
< PhyReceptionStatParameters > 		m_ulPhyReception


Friends

class LteUePhy


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Detailed Description

The LteSpectrumPhy models the physical layer of LTE

It supports a single antenna model instance which is used for both transmission and reception.

Config Paths

ns3::LteSpectrumPhy is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy/DlSpectrumPhy
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy/UlSpectrumPhy
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy/DlSpectrumPhy
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy/UlSpectrumPhy
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy/DlSpectrumPhy
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUePhy/UlSpectrumPhy
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy/DlSpectrumPhy
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUePhy/UlSpectrumPhy

Attributes

  • DataErrorModelEnabled: Activate/Deactivate the error model of data (TBs of PDSCH and PUSCH) [by default is active].
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • CtrlErrorModelEnabled: Activate/Deactivate the error model of control (PCFICH-PDCCH decodification) [by default is active].
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read

TraceSources

  • TxStart: Trace fired when a new transmission is started
  • TxEnd: Trace fired when a previosuly started transmission is finished
  • RxStart: Trace fired when the start of a signal is detected
  • RxEndOk: Trace fired when a previosuly started RX terminates successfully
  • RxEndError: Trace fired when a previosuly started RX terminates with an error
  • DlPhyReception: DL reception PHY layer statistics.
  • UlPhyReception: DL reception PHY layer statistics.

Definition at line 153 of file lte-spectrum-phy.h.

Member Enumeration Documentation

enum ns3::LteSpectrumPhy::State

PHY states

Enumerator
IDLE
TX
RX_DATA
RX_CTRL

Definition at line 163 of file lte-spectrum-phy.h.

Constructor & Destructor Documentation

ns3::LteSpectrumPhy::LteSpectrumPhy ( )

Definition at line 115 of file lte-spectrum-phy.cc.

References m_interferenceCtrl, m_interferenceData, m_random, m_txModeGain, NS_LOG_FUNCTION, and ns3::ObjectBase::SetAttribute().

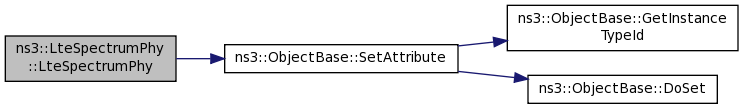

+ Here is the call graph for this function:

ns3::LteSpectrumPhy::~LteSpectrumPhy ( )
virtual

Definition at line 134 of file lte-spectrum-phy.cc.

References m_expectedTbs, m_txModeGain, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSpectrumPhy::AddCtrlSinrChunkProcessor ( Ptr< LteSinrChunkProcessor >  p)
Parameters
pthe new LteSinrChunkProcessor to be added to the ctrl processing chain

Definition at line 1143 of file lte-spectrum-phy.cc.

References m_interferenceCtrl.

void ns3::LteSpectrumPhy::AddDataSinrChunkProcessor ( Ptr< LteSinrChunkProcessor >  p)
Parameters
pthe new LteSinrChunkProcessor to be added to the data processing chain

Definition at line 1125 of file lte-spectrum-phy.cc.

References m_interferenceData.

void ns3::LteSpectrumPhy::AddExpectedTb ( uint16_t  rnti,
uint8_t  ndi,
uint16_t  size,
uint8_t  mcs,
std::vector< int >  map,
uint8_t  layer,
uint8_t  harqId,
uint8_t  rv,
bool  downlink
)
Parameters
rntithe rnti of the source of the TB
ndinew data indicator flag
sizethe size of the TB
mcsthe MCS of the TB
mapthe map of RB(s) used
layerthe layer (in case of MIMO tx)
harqIdthe id of the HARQ process (valid only for DL)
downlinktrue when the TB is for DL

Definition at line 835 of file lte-spectrum-phy.cc.

References m_expectedTbs, ns3::TbId_t::m_layer, ns3::TbId_t::m_rnti, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::AddInterferenceCtrlChunkProcessor ( Ptr< LteSinrChunkProcessor >  p)

LteSinrChunkProcessor devoted to evaluate intefrerence + noise power in control symbols of the subframe

Parameters
pthe new LteSinrChunkProcessor to be added to the data processing chain

Definition at line 1131 of file lte-spectrum-phy.cc.

References m_interferenceCtrl.

void ns3::LteSpectrumPhy::AddInterferenceDataChunkProcessor ( Ptr< LteSinrChunkProcessor >  p)

LteSinrChunkProcessor devoted to evaluate intefrerence + noise power in data symbols of the subframe

Parameters
pthe new LteSinrChunkProcessor to be added to the data processing chain

Definition at line 1137 of file lte-spectrum-phy.cc.

References m_interferenceData.

void ns3::LteSpectrumPhy::AddRsPowerChunkProcessor ( Ptr< LteSinrChunkProcessor >  p)
Parameters
pthe new LteSinrChunkProcessor to be added to the RS power chain

Definition at line 1118 of file lte-spectrum-phy.cc.

References m_interferenceCtrl.

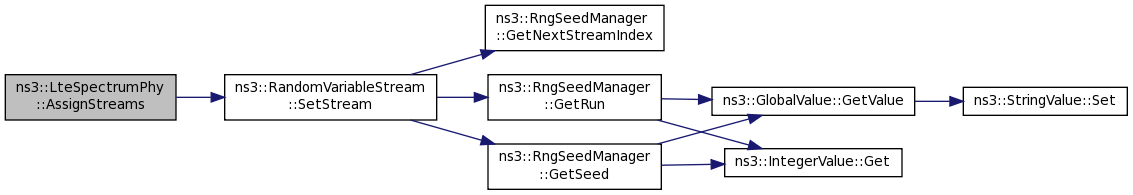

int64_t ns3::LteSpectrumPhy::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 1185 of file lte-spectrum-phy.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

+ Here is the call graph for this function:

void ns3::LteSpectrumPhy::ChangeState ( State  newState)
private

Definition at line 402 of file lte-spectrum-phy.cc.

References m_state, and NS_LOG_LOGIC.

Referenced by EndRxData(), EndRxDlCtrl(), EndRxUlSrs(), EndTx(), SetState(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

+ Here is the caller graph for this function:

void ns3::LteSpectrumPhy::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 141 of file lte-spectrum-phy.cc.

References ns3::Object::DoDispose(), m_channel, m_device, m_interferenceCtrl, m_interferenceData, m_ltePhyDlHarqFeedbackCallback, m_ltePhyRxCtrlEndErrorCallback, m_ltePhyRxCtrlEndOkCallback, m_ltePhyRxDataEndErrorCallback, m_ltePhyRxDataEndOkCallback, m_ltePhyRxPssCallback, m_ltePhyTxEndCallback, m_ltePhyUlHarqFeedbackCallback, m_mobility, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteSpectrumPhy::EndRxData ( )
private

Definition at line 855 of file lte-spectrum-phy.cc.

References ns3::DlInfoListElement_s::ACK, ChangeState(), ns3::EffectiveCodingRate, ns3::LteRadioBearerTag::GetLayer(), ns3::Time::GetMilliSeconds(), ns3::LteRadioBearerTag::GetRnti(), ns3::LteMiErrorModel::GetTbDecodificationStats(), ns3::UniformRandomVariable::GetValue(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), list, ns3::PhyReceptionStatParameters::m_cellId, m_cellId, ns3::PhyReceptionStatParameters::m_correctness, m_dataErrorModelEnabled, m_dlPhyReception, m_expectedTbs, m_harqPhyModule, ns3::DlInfoListElement_s::m_harqProcessId, ns3::DlInfoListElement_s::m_harqStatus, ns3::PhyReceptionStatParameters::m_imsi, m_interferenceData, ns3::TbId_t::m_layer, ns3::PhyReceptionStatParameters::m_layer, m_layersNum, m_ltePhyDlHarqFeedbackCallback, m_ltePhyRxCtrlEndOkCallback, m_ltePhyRxDataEndOkCallback, m_ltePhyUlHarqFeedbackCallback, ns3::PhyReceptionStatParameters::m_mcs, ns3::PhyReceptionStatParameters::m_ndi, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_random, ns3::UlInfoListElement_s::m_receptionStatus, ns3::TbId_t::m_rnti, ns3::PhyReceptionStatParameters::m_rnti, ns3::UlInfoListElement_s::m_rnti, ns3::DlInfoListElement_s::m_rnti, ns3::PhyReceptionStatParameters::m_rv, m_rxControlMessageList, m_rxPacketBurstList, m_sinrPerceived, ns3::PhyReceptionStatParameters::m_size, m_state, ns3::PhyReceptionStatParameters::m_timestamp, ns3::UlInfoListElement_s::m_tpc, m_transmissionMode, ns3::PhyReceptionStatParameters::m_txMode, m_txModeGain, m_ulPhyReception, ns3::TbStats_t::mi, ns3::DlInfoListElement_s::NACK, ns3::UlInfoListElement_s::NotOk, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::UlInfoListElement_s::Ok, RX_DATA, and ns3::TbStats_t::tbler.

Referenced by StartRxData().

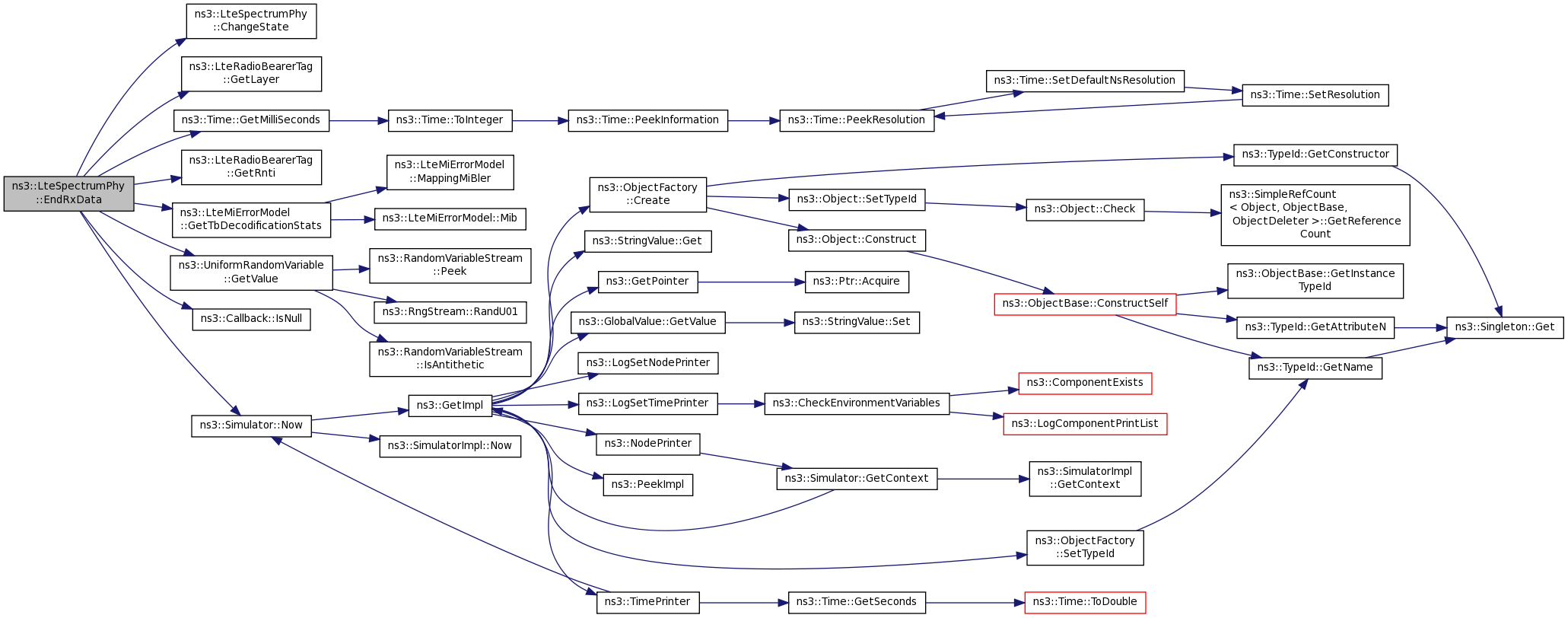

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndRxDlCtrl ( )
private

Definition at line 1053 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::LteMiErrorModel::GetPcfichPdcchError(), ns3::UniformRandomVariable::GetValue(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_ctrlErrorModelEnabled, m_interferenceCtrl, m_ltePhyRxCtrlEndErrorCallback, m_ltePhyRxCtrlEndOkCallback, m_random, m_rxControlMessageList, m_sinrPerceived, m_state, m_transmissionMode, m_txModeGain, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and RX_CTRL.

Referenced by StartRxCtrl().

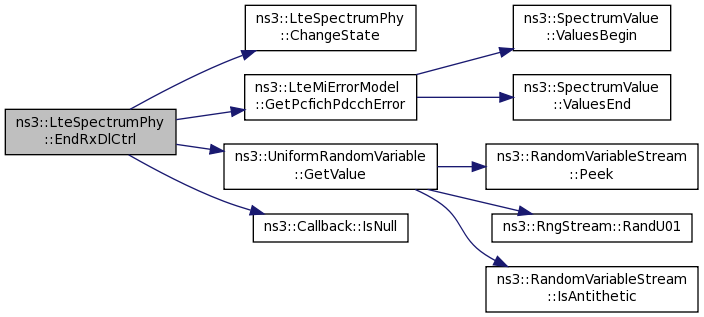

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndRxUlSrs ( )
private

Definition at line 1102 of file lte-spectrum-phy.cc.

References ChangeState(), IDLE, m_interferenceCtrl, m_state, NS_ASSERT, and RX_CTRL.

Referenced by StartRxCtrl().

+ Here is the call graph for this function:

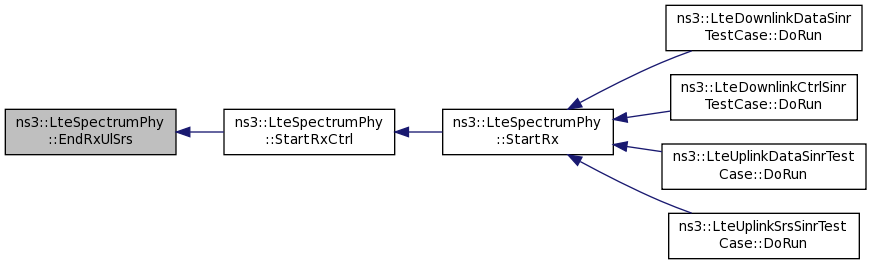

+ Here is the caller graph for this function:

void ns3::LteSpectrumPhy::EndTx ( )
private

Definition at line 589 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::Packet::Copy(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), list, m_ltePhyTxEndCallback, m_phyTxEndTrace, m_state, m_txPacketBurst, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and TX.

Referenced by StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< SpectrumChannel > ns3::LteSpectrumPhy::GetChannel ( void  )
Returns
the previously set channel

Definition at line 267 of file lte-spectrum-phy.cc.

References m_channel.

Ptr< NetDevice > ns3::LteSpectrumPhy::GetDevice ( )
virtual

get the associated NetDevice instance

Returns
a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 228 of file lte-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::LteSpectrumPhy::GetMobility ( )
virtual

get the associated MobilityModel instance

Returns
a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 236 of file lte-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

Ptr< AntennaModel > ns3::LteSpectrumPhy::GetRxAntenna ( )
virtual

get the AntennaModel used by the NetDevice for reception

Returns
a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 382 of file lte-spectrum-phy.cc.

References m_antenna.

Ptr< const SpectrumModel > ns3::LteSpectrumPhy::GetRxSpectrumModel ( ) const
virtual
Returns
returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 273 of file lte-spectrum-phy.cc.

References m_rxSpectrumModel.

TypeId ns3::LteSpectrumPhy::GetTypeId ( void  )
static

Definition at line 186 of file lte-spectrum-phy.cc.

References m_ctrlErrorModelEnabled, m_dataErrorModelEnabled, m_dlPhyReception, m_phyRxEndErrorTrace, m_phyRxEndOkTrace, m_phyRxStartTrace, m_phyTxEndTrace, m_phyTxStartTrace, m_ulPhyReception, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::LteSpectrumPhy::Reset ( void  )

reset the internal state

Definition at line 300 of file lte-spectrum-phy.cc.

References ns3::EventId::Cancel(), IDLE, m_cellId, m_endRxDataEvent, m_endRxDlCtrlEvent, m_endRxUlSrsEvent, m_endTxEvent, m_expectedTbs, m_layersNum, m_rxControlMessageList, m_rxPacketBurstList, m_rxSpectrumModel, m_state, m_transmissionMode, m_txControlMessageList, m_txPacketBurst, and NS_LOG_FUNCTION.

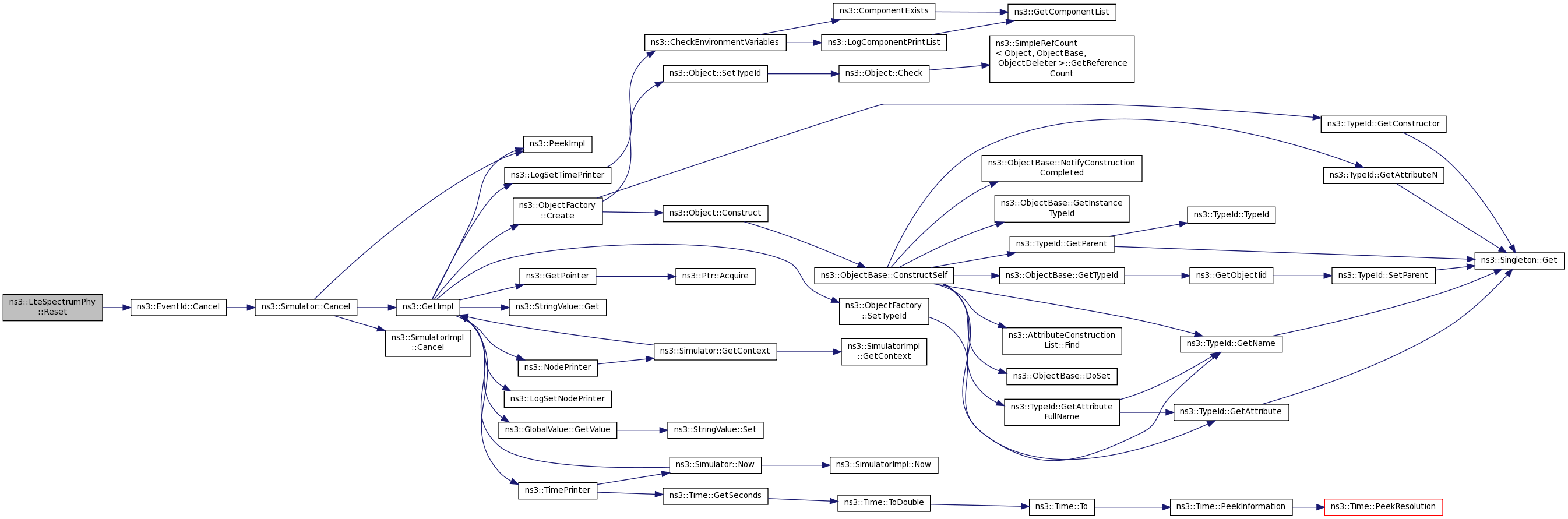

+ Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetAntenna ( Ptr< AntennaModel >  a)

set the AntennaModel to be used

Parameters
athe Antenna Model

Definition at line 388 of file lte-spectrum-phy.cc.

References m_antenna, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetCellId ( uint16_t  cellId)
Parameters
cellIdthe Cell Identifier

Definition at line 1111 of file lte-spectrum-phy.cc.

References m_cellId.

void ns3::LteSpectrumPhy::SetChannel ( Ptr< SpectrumChannel >  c)
virtual

Set the channel attached to this device.

Parameters
cthe channel

Implements ns3::SpectrumPhy.

Definition at line 260 of file lte-spectrum-phy.cc.

References m_channel, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetDevice ( Ptr< NetDevice >  d)
virtual

set the associated NetDevice instance

Parameters
dthe NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 244 of file lte-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetHarqPhyModule ( Ptr< LteHarqPhy >  harq)

Definition at line 410 of file lte-spectrum-phy.cc.

References m_harqPhyModule.

void ns3::LteSpectrumPhy::SetLtePhyDlHarqFeedbackCallback ( LtePhyDlHarqFeedbackCallback  c)

set the callback for the DL HARQ feedback as part of the interconnections betweenthe LteSpectrumPhy and the PHY

Parameters
cthe callback

Definition at line 367 of file lte-spectrum-phy.cc.

References m_ltePhyDlHarqFeedbackCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxCtrlEndErrorCallback ( LtePhyRxCtrlEndErrorCallback  c)

set the callback for the erroneous end of a RX ctrl frame, as part of the interconnections betweenthe LteSpectrumPhy and the PHY

Parameters
cthe callback

Definition at line 352 of file lte-spectrum-phy.cc.

References m_ltePhyRxCtrlEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxCtrlEndOkCallback ( LtePhyRxCtrlEndOkCallback  c)

set the callback for the successful end of a RX ctrl frame, as part of the interconnections betweenthe LteSpectrumPhy and the PHY

Parameters
cthe callback

Definition at line 345 of file lte-spectrum-phy.cc.

References m_ltePhyRxCtrlEndOkCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxDataEndErrorCallback ( LtePhyRxDataEndErrorCallback  c)

set the callback for the end of a RX in error, as part of the interconnections betweenthe PHY and the MAC

Parameters
cthe callback

Definition at line 330 of file lte-spectrum-phy.cc.

References m_ltePhyRxDataEndErrorCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxDataEndOkCallback ( LtePhyRxDataEndOkCallback  c)

set the callback for the successful end of a RX, as part of the interconnections betweenthe PHY and the MAC

Parameters
cthe callback

Definition at line 338 of file lte-spectrum-phy.cc.

References m_ltePhyRxDataEndOkCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyRxPssCallback ( LtePhyRxPssCallback  c)

set the callback for the reception of the PSS as part of the interconnections between the LteSpectrumPhy and the UE PHY

Parameters
cthe callback

Definition at line 360 of file lte-spectrum-phy.cc.

References m_ltePhyRxPssCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyTxEndCallback ( LtePhyTxEndCallback  c)

set the callback for the end of a TX, as part of the interconnections betweenthe PHY and the MAC

Parameters
cthe callback

Definition at line 322 of file lte-spectrum-phy.cc.

References m_ltePhyTxEndCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetLtePhyUlHarqFeedbackCallback ( LtePhyUlHarqFeedbackCallback  c)

set the callback for the UL HARQ feedback as part of the interconnections betweenthe LteSpectrumPhy and the PHY

Parameters
cthe callback

Definition at line 374 of file lte-spectrum-phy.cc.

References m_ltePhyUlHarqFeedbackCallback, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetMobility ( Ptr< MobilityModel >  m)
virtual

Set the mobility model associated with this device.

Parameters
mthe mobility model

Implements ns3::SpectrumPhy.

Definition at line 252 of file lte-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity ( Ptr< const SpectrumValue >  noisePsd)

set the noise power spectral density

Parameters
noisePsdthe Noise Power Spectral Density in power units (Watt, Pascal...) per Hz.

Definition at line 289 of file lte-spectrum-phy.cc.

References m_interferenceCtrl, m_interferenceData, m_rxSpectrumModel, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetState ( State  newState)

Set the state of the phy layer.

Parameters
newStatethe state

Definition at line 395 of file lte-spectrum-phy.cc.

References ChangeState().

+ Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetTransmissionMode ( uint8_t  txMode)
Parameters
txModeUE transmission mode (SISO, MIMO tx diversity, ...)

Definition at line 1149 of file lte-spectrum-phy.cc.

References m_layersNum, m_transmissionMode, m_txModeGain, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::TransmissionModesLayers::TxMode2LayerNum().

+ Here is the call graph for this function:

void ns3::LteSpectrumPhy::SetTxModeGain ( uint8_t  txMode,
double  gain
)
private

Definition at line 1159 of file lte-spectrum-phy.cc.

References m_txModeGain, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::SetTxPowerSpectralDensity ( Ptr< SpectrumValue >  txPsd)

set the Power Spectral Density of outgoing signals in W/Hz.

Parameters
txPsd

Definition at line 280 of file lte-spectrum-phy.cc.

References m_txPsd, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::LteSpectrumPhy::StartRx ( Ptr< SpectrumSignalParameters >  params)
virtual

Notify the SpectrumPhy instance of an incoming signal

Parameters
paramsthe parameters of the signals being received

Implements ns3::SpectrumPhy.

Definition at line 614 of file lte-spectrum-phy.cc.

References m_interferenceCtrl, m_interferenceData, m_state, NS_LOG_FUNCTION, NS_LOG_LOGIC, StartRxCtrl(), and StartRxData().

Referenced by ns3::LteDownlinkDataSinrTestCase::DoRun(), ns3::LteUplinkDataSinrTestCase::DoRun(), ns3::LteDownlinkCtrlSinrTestCase::DoRun(), and ns3::LteUplinkSrsSinrTestCase::DoRun().

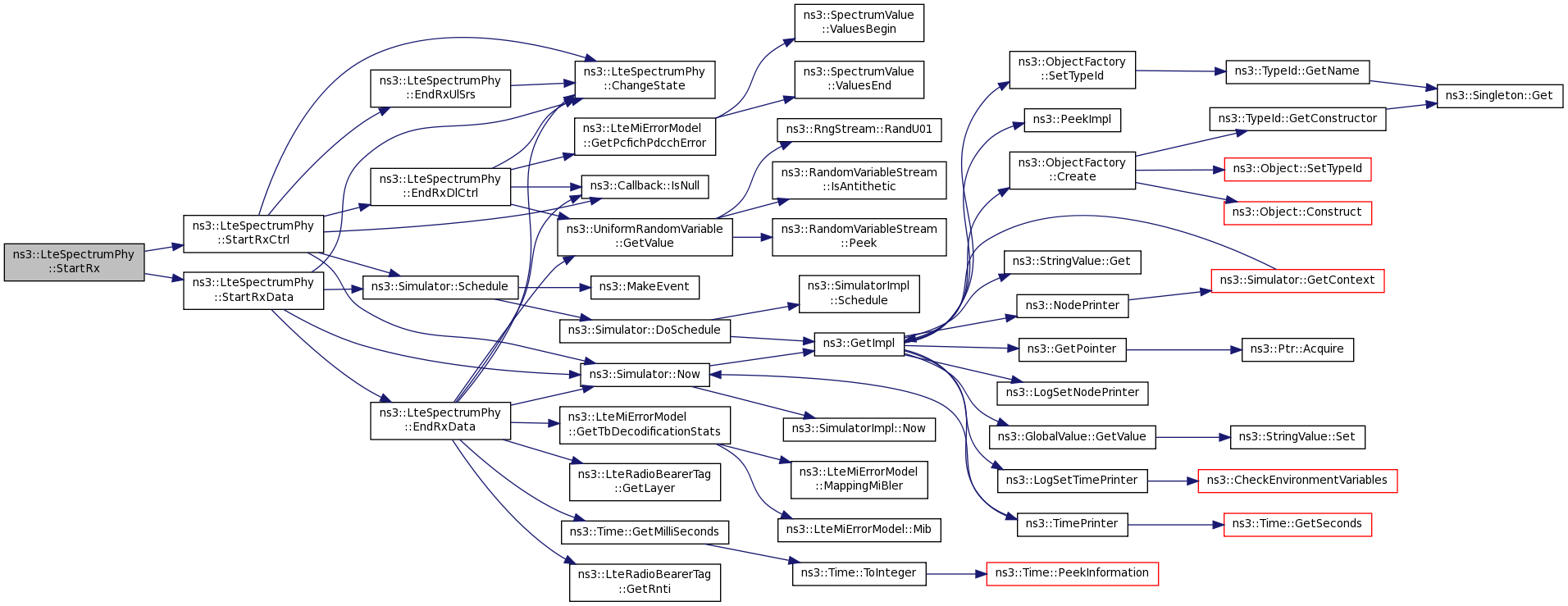

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteSpectrumPhy::StartRxCtrl ( Ptr< SpectrumSignalParameters >  params)

Definition at line 726 of file lte-spectrum-phy.cc.

References ChangeState(), EndRxDlCtrl(), EndRxUlSrs(), IDLE, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_cellId, m_endRxDlCtrlEvent, m_endRxUlSrsEvent, m_firstRxDuration, m_firstRxStart, m_interferenceCtrl, m_ltePhyRxPssCallback, m_rxControlMessageList, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), and TX.

Referenced by StartRx().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteSpectrumPhy::StartRxData ( Ptr< LteSpectrumSignalParametersDataFrame >  params)

Definition at line 650 of file lte-spectrum-phy.cc.

References ChangeState(), EndRxData(), IDLE, m_cellId, m_endRxDataEvent, m_firstRxDuration, m_firstRxStart, m_interferenceData, m_phyRxStartTrace, m_rxControlMessageList, m_rxPacketBurstList, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), and TX.

Referenced by StartRx().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::LteSpectrumPhy::StartTxDataFrame ( Ptr< PacketBurst >  pb,
std::list< Ptr< LteControlMessage > >  ctrlMsgList,
Time  duration
)

Start a transmission of data frame in DL and UL

Parameters
pbthe burst of packets to be transmitted in PDSCH/PUSCH
ctrlMsgListthe list of LteControlMessage to send
durationthe duration of the data frame
Returns
true if an error occurred and the transmission was not started, false otherwise.

Definition at line 419 of file lte-spectrum-phy.cc.

References ChangeState(), EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_phyTxStartTrace, m_state, m_txPacketBurst, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), and TX.

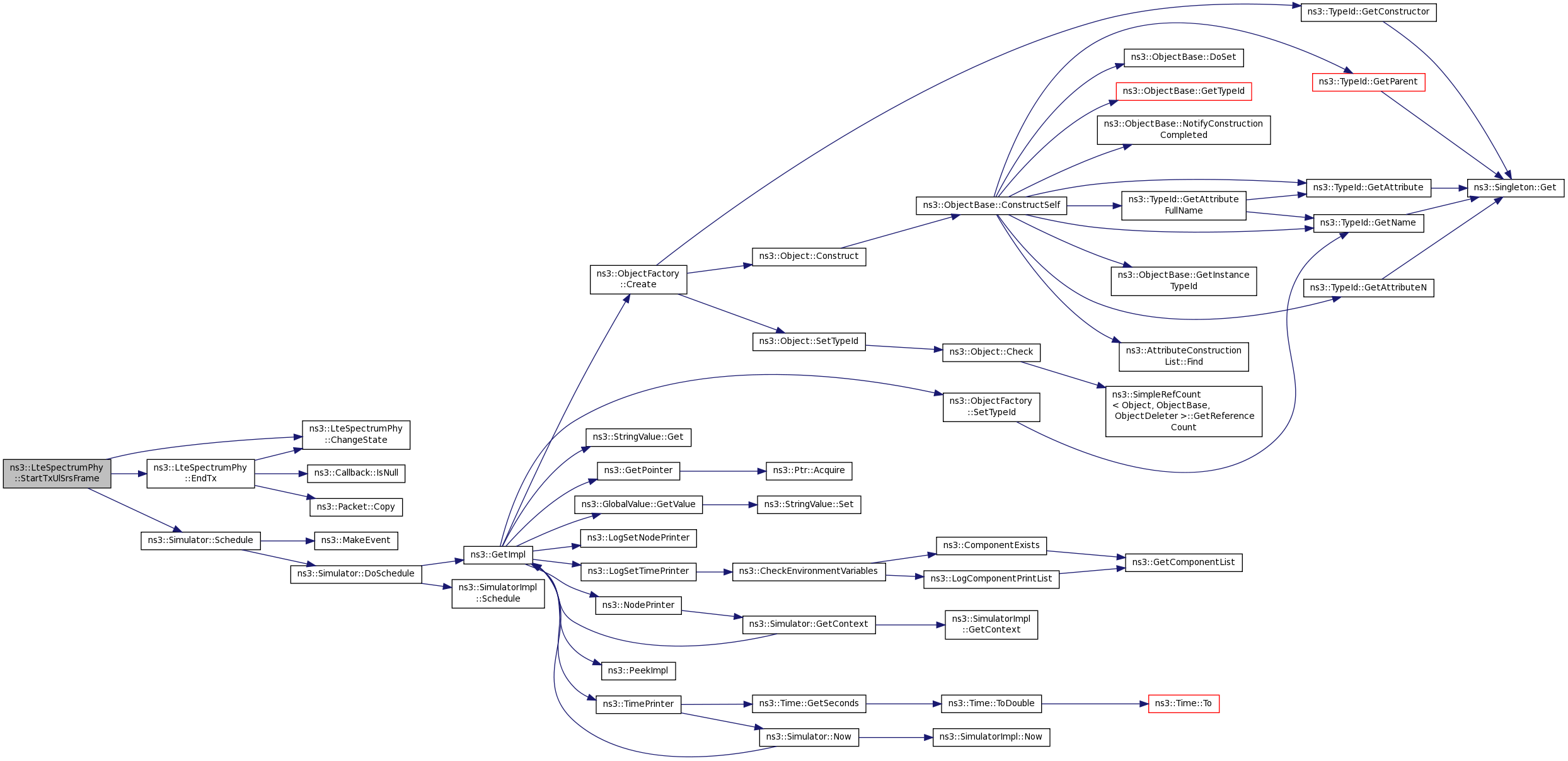

+ Here is the call graph for this function:

bool ns3::LteSpectrumPhy::StartTxDlCtrlFrame ( std::list< Ptr< LteControlMessage > >  ctrlMsgList,
bool  pss
)

Start a transmission of control frame in DL

Parameters
ctrlMsgListthe burst of contrl messages to be transmitted
pssthe flag for transmitting the primary synchronization signal
Returns
true if an error occurred and the transmission was not started, false otherwise.

Definition at line 475 of file lte-spectrum-phy.cc.

References ChangeState(), ns3::DL_CTRL_DURATION, EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_state, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), and TX.

+ Here is the call graph for this function:

bool ns3::LteSpectrumPhy::StartTxUlSrsFrame ( )

Start a transmission of control frame in UL

Parameters
pbthe burst of control messages to be transmitted
Returns
true if an error occurred and the transmission was not started, false otherwise.

Definition at line 533 of file lte-spectrum-phy.cc.

References ChangeState(), EndTx(), IDLE, m_antenna, m_cellId, m_channel, m_endTxEvent, m_state, m_txPsd, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, RX_CTRL, RX_DATA, ns3::Simulator::Schedule(), TX, and ns3::UL_SRS_DURATION.

+ Here is the call graph for this function:

void ns3::LteSpectrumPhy::UpdateSinrPerceived ( const SpectrumValue &  sinr)
Parameters
sinrvector of sinr perceived per each RB

Definition at line 827 of file lte-spectrum-phy.cc.

References m_sinrPerceived, and NS_LOG_FUNCTION.

Friends And Related Function Documentation

friend class LteUePhy
friend

Definition at line 404 of file lte-spectrum-phy.h.

Member Data Documentation

Ptr<AntennaModel> ns3::LteSpectrumPhy::m_antenna
private

Definition at line 427 of file lte-spectrum-phy.h.

Referenced by GetRxAntenna(), SetAntenna(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

uint16_t ns3::LteSpectrumPhy::m_cellId
private

Definition at line 462 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), SetCellId(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

Ptr<SpectrumChannel> ns3::LteSpectrumPhy::m_channel
private

Definition at line 430 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetChannel(), SetChannel(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

bool ns3::LteSpectrumPhy::m_ctrlErrorModelEnabled
private

Definition at line 470 of file lte-spectrum-phy.h.

Referenced by EndRxDlCtrl(), and GetTypeId().

bool ns3::LteSpectrumPhy::m_dataErrorModelEnabled
private

Definition at line 469 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

Ptr<NetDevice> ns3::LteSpectrumPhy::m_device
private

Definition at line 428 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

TracedCallback<PhyReceptionStatParameters> ns3::LteSpectrumPhy::m_dlPhyReception
private

Trace information regarding PHY stats from DL Rx perspective PhyReceptionStatParameters (see lte-common.h)

Definition at line 485 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

EventId ns3::LteSpectrumPhy::m_endRxDataEvent
private

Definition at line 495 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxData().

EventId ns3::LteSpectrumPhy::m_endRxDlCtrlEvent
private

Definition at line 496 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxCtrl().

EventId ns3::LteSpectrumPhy::m_endRxUlSrsEvent
private

Definition at line 497 of file lte-spectrum-phy.h.

Referenced by Reset(), and StartRxCtrl().

EventId ns3::LteSpectrumPhy::m_endTxEvent
private

Definition at line 494 of file lte-spectrum-phy.h.

Referenced by Reset(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

expectedTbs_t ns3::LteSpectrumPhy::m_expectedTbs
private

Definition at line 464 of file lte-spectrum-phy.h.

Referenced by AddExpectedTb(), EndRxData(), Reset(), and ~LteSpectrumPhy().

Time ns3::LteSpectrumPhy::m_firstRxDuration
private

Definition at line 443 of file lte-spectrum-phy.h.

Referenced by StartRxCtrl(), and StartRxData().

Time ns3::LteSpectrumPhy::m_firstRxStart
private

Definition at line 442 of file lte-spectrum-phy.h.

Referenced by StartRxCtrl(), and StartRxData().

Ptr<LteHarqPhy> ns3::LteSpectrumPhy::m_harqPhyModule
private

Definition at line 476 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and SetHarqPhyModule().

Ptr<LteInterference> ns3::LteSpectrumPhy::m_interferenceCtrl
private

Definition at line 460 of file lte-spectrum-phy.h.

Referenced by AddCtrlSinrChunkProcessor(), AddInterferenceCtrlChunkProcessor(), AddRsPowerChunkProcessor(), DoDispose(), EndRxDlCtrl(), EndRxUlSrs(), LteSpectrumPhy(), SetNoisePowerSpectralDensity(), StartRx(), and StartRxCtrl().

Ptr<LteInterference> ns3::LteSpectrumPhy::m_interferenceData
private

Definition at line 459 of file lte-spectrum-phy.h.

Referenced by AddDataSinrChunkProcessor(), AddInterferenceDataChunkProcessor(), DoDispose(), EndRxData(), LteSpectrumPhy(), SetNoisePowerSpectralDensity(), StartRx(), and StartRxData().

uint8_t ns3::LteSpectrumPhy::m_layersNum
private

Definition at line 473 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), and SetTransmissionMode().

LtePhyDlHarqFeedbackCallback ns3::LteSpectrumPhy::m_ltePhyDlHarqFeedbackCallback
private

Definition at line 477 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyDlHarqFeedbackCallback().

LtePhyRxCtrlEndErrorCallback ns3::LteSpectrumPhy::m_ltePhyRxCtrlEndErrorCallback
private

Definition at line 456 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxDlCtrl(), and SetLtePhyRxCtrlEndErrorCallback().

LtePhyRxCtrlEndOkCallback ns3::LteSpectrumPhy::m_ltePhyRxCtrlEndOkCallback
private

Definition at line 455 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), EndRxDlCtrl(), and SetLtePhyRxCtrlEndOkCallback().

LtePhyRxDataEndErrorCallback ns3::LteSpectrumPhy::m_ltePhyRxDataEndErrorCallback
private

Definition at line 452 of file lte-spectrum-phy.h.

Referenced by DoDispose(), and SetLtePhyRxDataEndErrorCallback().

LtePhyRxDataEndOkCallback ns3::LteSpectrumPhy::m_ltePhyRxDataEndOkCallback
private

Definition at line 453 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyRxDataEndOkCallback().

LtePhyRxPssCallback ns3::LteSpectrumPhy::m_ltePhyRxPssCallback
private

Definition at line 457 of file lte-spectrum-phy.h.

Referenced by DoDispose(), SetLtePhyRxPssCallback(), and StartRxCtrl().

LtePhyTxEndCallback ns3::LteSpectrumPhy::m_ltePhyTxEndCallback
private

Definition at line 451 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndTx(), and SetLtePhyTxEndCallback().

LtePhyUlHarqFeedbackCallback ns3::LteSpectrumPhy::m_ltePhyUlHarqFeedbackCallback
private

Definition at line 478 of file lte-spectrum-phy.h.

Referenced by DoDispose(), EndRxData(), and SetLtePhyUlHarqFeedbackCallback().

Ptr<MobilityModel> ns3::LteSpectrumPhy::m_mobility
private

Definition at line 426 of file lte-spectrum-phy.h.

Referenced by DoDispose(), GetMobility(), and SetMobility().

TracedCallback<Ptr<const Packet> > ns3::LteSpectrumPhy::m_phyRxEndErrorTrace
private

Definition at line 449 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::LteSpectrumPhy::m_phyRxEndOkTrace
private

Definition at line 448 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyRxStartTrace
private

Definition at line 447 of file lte-spectrum-phy.h.

Referenced by GetTypeId(), and StartRxData().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyTxEndTrace
private

Definition at line 446 of file lte-spectrum-phy.h.

Referenced by EndTx(), and GetTypeId().

TracedCallback<Ptr<const PacketBurst> > ns3::LteSpectrumPhy::m_phyTxStartTrace
private

Definition at line 445 of file lte-spectrum-phy.h.

Referenced by GetTypeId(), and StartTxDataFrame().

Ptr<UniformRandomVariable> ns3::LteSpectrumPhy::m_random
private

Provides uniform random variables.

Definition at line 468 of file lte-spectrum-phy.h.

Referenced by AssignStreams(), EndRxData(), EndRxDlCtrl(), and LteSpectrumPhy().

std::list<Ptr<LteControlMessage> > ns3::LteSpectrumPhy::m_rxControlMessageList
private

Definition at line 438 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), Reset(), StartRxCtrl(), and StartRxData().

std::list<Ptr<PacketBurst> > ns3::LteSpectrumPhy::m_rxPacketBurstList
private

Definition at line 435 of file lte-spectrum-phy.h.

Referenced by EndRxData(), Reset(), and StartRxData().

Ptr<const SpectrumModel> ns3::LteSpectrumPhy::m_rxSpectrumModel
private

Definition at line 432 of file lte-spectrum-phy.h.

Referenced by GetRxSpectrumModel(), Reset(), and SetNoisePowerSpectralDensity().

SpectrumValue ns3::LteSpectrumPhy::m_sinrPerceived
private

Definition at line 465 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), and UpdateSinrPerceived().

State ns3::LteSpectrumPhy::m_state
private

Definition at line 441 of file lte-spectrum-phy.h.

Referenced by ChangeState(), EndRxData(), EndRxDlCtrl(), EndRxUlSrs(), EndTx(), Reset(), StartRx(), StartRxCtrl(), StartRxData(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

uint8_t ns3::LteSpectrumPhy::m_transmissionMode
private

Definition at line 472 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), Reset(), and SetTransmissionMode().

std::list<Ptr<LteControlMessage> > ns3::LteSpectrumPhy::m_txControlMessageList
private

Definition at line 437 of file lte-spectrum-phy.h.

Referenced by Reset().

std::vector<double> ns3::LteSpectrumPhy::m_txModeGain
private

Definition at line 474 of file lte-spectrum-phy.h.

Referenced by EndRxData(), EndRxDlCtrl(), LteSpectrumPhy(), SetTransmissionMode(), SetTxModeGain(), and ~LteSpectrumPhy().

Ptr<PacketBurst> ns3::LteSpectrumPhy::m_txPacketBurst
private

Definition at line 434 of file lte-spectrum-phy.h.

Referenced by EndTx(), Reset(), and StartTxDataFrame().

Ptr<SpectrumValue> ns3::LteSpectrumPhy::m_txPsd
private

Definition at line 433 of file lte-spectrum-phy.h.

Referenced by SetTxPowerSpectralDensity(), StartTxDataFrame(), StartTxDlCtrlFrame(), and StartTxUlSrsFrame().

TracedCallback<PhyReceptionStatParameters> ns3::LteSpectrumPhy::m_ulPhyReception
private

Trace information regarding PHY stats from UL Rx perspective PhyReceptionStatParameters (see lte-common.h)

Definition at line 492 of file lte-spectrum-phy.h.

Referenced by EndRxData(), and GetTypeId().

The documentation for this class was generated from the following files:
