ns3::LteUeRrc Class Reference

#include <lte-ue-rrc.h>

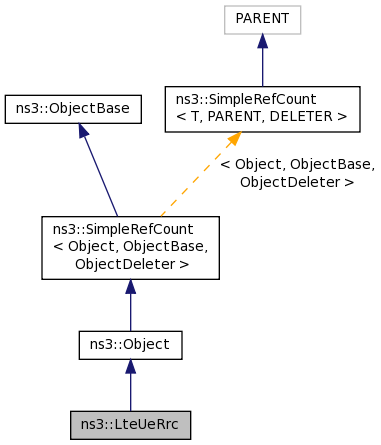

+ Inheritance diagram for ns3::LteUeRrc:

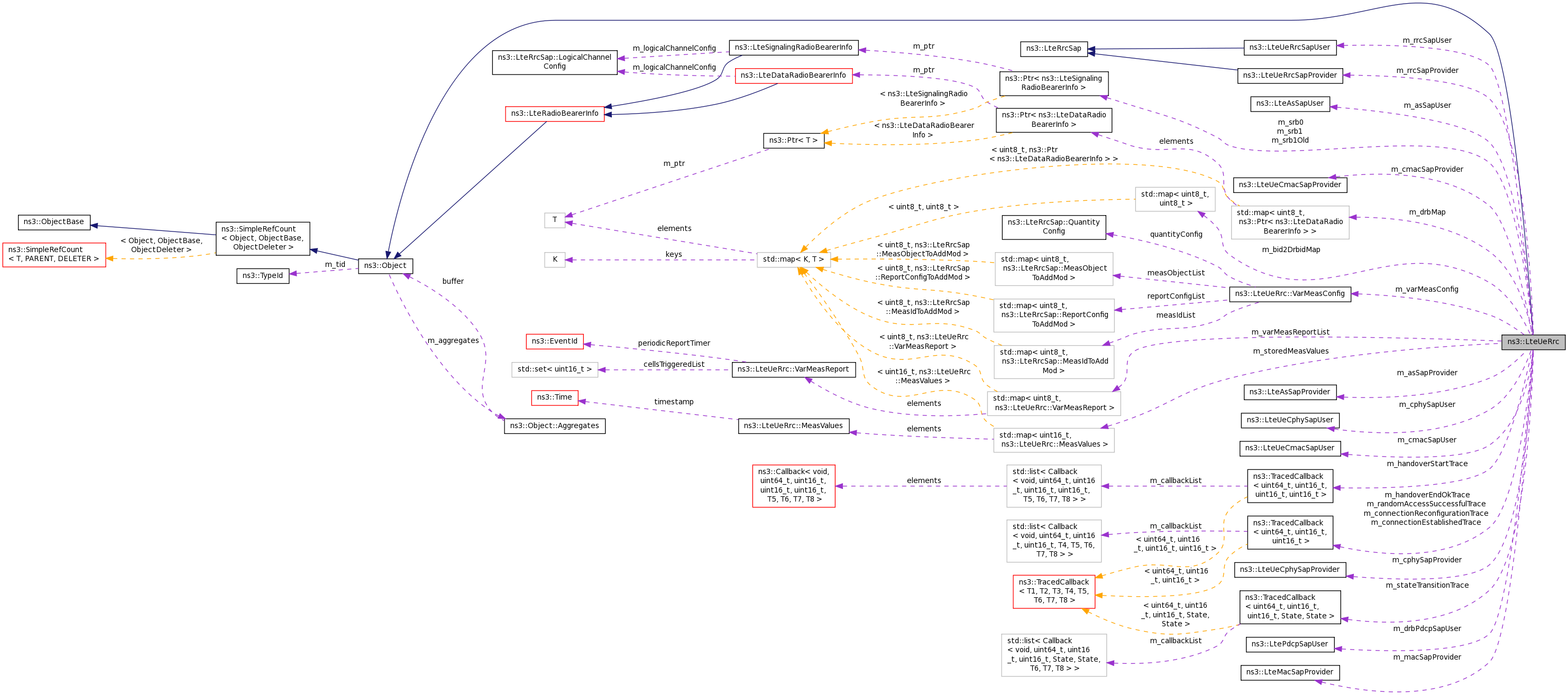

+ Collaboration diagram for ns3::LteUeRrc:

Classes

struct  MeasValues

struct  VarMeasConfig

struct  VarMeasReport


Public Types

enum  State {
  IDLE_CELL_SELECTION = 0, IDLE_WAIT_SYSTEM_INFO, IDLE_CAMPED_NORMALLY, IDLE_RANDOM_ACCESS,
  IDLE_CONNECTING, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, CONNECTED_HANDOVER,
  NUM_STATES
}


Public Member Functions

 LteUeRrc ()

virtual ~LteUeRrc ()

LteAsSapProvider * GetAsSapProvider ()

uint16_t GetCellId () const

uint8_t GetDlBandwidth () const

uint16_t GetDlEarfcn () const

uint64_t GetImsi (void)

LteUeCmacSapUser * GetLteUeCmacSapUser ()

LteUeCphySapUser * GetLteUeCphySapUser ()

LteUeRrcSapProvider * GetLteUeRrcSapProvider ()

uint16_t GetRnti () const

State GetState ()

uint8_t GetUlBandwidth () const

uint16_t GetUlEarfcn () const

void SetAsSapUser (LteAsSapUser *s)

void SetImsi (uint64_t imsi)

void SetLteMacSapProvider (LteMacSapProvider *s)

void SetLteUeCmacSapProvider (LteUeCmacSapProvider *s)

void SetLteUeCphySapProvider (LteUeCphySapProvider *s)

void SetLteUeRrcSapUser (LteUeRrcSapUser *s)

void SetUseRlcSm (bool val)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Member Functions

void ApplyMeasConfig (LteRrcSap::MeasConfig mc)

void ApplyRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated rrcd)

uint8_t Bid2Drbid (uint8_t bid)

void DisposeOldSrb1 ()

void DoCompleteSetup (LteUeRrcSapProvider::CompleteSetupParameters params)

void DoConnect ()

void DoDisconnect ()

virtual void DoDispose (void)

void DoForceCampedOnEnb (uint16_t cellId, uint16_t earfcn)

virtual void DoInitialize (void)

void DoNotifyRandomAccessFailed ()

void DoNotifyRandomAccessSuccessful ()

void DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

void DoRecvMasterInformationBlock (LteRrcSap::MasterInformationBlock msg)

void DoRecvRrcConnectionReconfiguration (LteRrcSap::RrcConnectionReconfiguration msg)

void DoRecvRrcConnectionReestablishment (LteRrcSap::RrcConnectionReestablishment msg)

void DoRecvRrcConnectionReestablishmentReject (LteRrcSap::RrcConnectionReestablishmentReject msg)

void DoRecvRrcConnectionReject (LteRrcSap::RrcConnectionReject msg)

void DoRecvRrcConnectionRelease (LteRrcSap::RrcConnectionRelease msg)

void DoRecvRrcConnectionSetup (LteRrcSap::RrcConnectionSetup msg)

void DoRecvSystemInformation (LteRrcSap::SystemInformation msg)

void DoRecvSystemInformationBlockType1 (LteRrcSap::SystemInformationBlockType1 msg)

void DoReportUeMeasurements (LteUeCphySapUser::UeMeasurementsParameters params)

void DoSendData (Ptr< Packet > packet, uint8_t bid)

void DoSetTemporaryCellRnti (uint16_t rnti)

void LeaveConnectedMode ()

void SendMeasurementReport (uint8_t measId)

void StartConnection ()

void SwitchToState (State s)


Private Attributes

LteAsSapProvider * m_asSapProvider

LteAsSapUser * m_asSapUser

std::map< uint8_t, uint8_t > m_bid2DrbidMap

uint16_t m_cellId

LteUeCmacSapProvider * m_cmacSapProvider

LteUeCmacSapUser * m_cmacSapUser

TracedCallback< uint64_t,
uint16_t, uint16_t > 		m_connectionEstablishedTrace

bool m_connectionPending

TracedCallback< uint64_t,
uint16_t, uint16_t > 		m_connectionReconfigurationTrace

LteUeCphySapProvider * m_cphySapProvider

LteUeCphySapUser * m_cphySapUser

uint8_t m_dlBandwidth

uint16_t m_dlEarfcn

std::map< uint8_t, Ptr
< LteDataRadioBearerInfo > > 		m_drbMap

LtePdcpSapUser * m_drbPdcpSapUser

TracedCallback< uint64_t,
uint16_t, uint16_t > 		m_handoverEndOkTrace

TracedCallback< uint64_t,
uint16_t, uint16_t, uint16_t > 		m_handoverStartTrace

uint64_t m_imsi

uint8_t m_lastRrcTransactionIdentifier

LteMacSapProvider * m_macSapProvider

TracedCallback< uint64_t,
uint16_t, uint16_t > 		m_randomAccessSuccessfulTrace

bool m_receivedMib

bool m_receivedSib2

uint16_t m_rnti

LteUeRrcSapProvider * m_rrcSapProvider

LteUeRrcSapUser * m_rrcSapUser

Ptr< LteSignalingRadioBearerInfo > m_srb0

Ptr< LteSignalingRadioBearerInfo > m_srb1

Ptr< LteSignalingRadioBearerInfo > m_srb1Old

State m_state

TracedCallback< uint64_t,
uint16_t, uint16_t, State,
State > 		m_stateTransitionTrace

std::map< uint16_t, MeasValues > m_storedMeasValues

uint8_t m_ulBandwidth

uint16_t m_ulEarfcn

bool m_useRlcSm

VarMeasConfig m_varMeasConfig

std::map< uint8_t, VarMeasReport > m_varMeasReportList


Friends

class LtePdcpSpecificLtePdcpSapUser< LteUeRrc >

class MemberLteAsSapProvider< LteUeRrc >

class MemberLteUeCphySapUser< LteUeRrc >

class MemberLteUeRrcSapProvider< LteUeRrc >

class UeMemberLteUeCmacSapUser

class UeRrcMemberLteEnbCmacSapUser


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Detailed Description

Config Paths

ns3::LteUeRrc is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc
  • /NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc

Attributes

  • DataRadioBearerMap: List of UE RadioBearerInfo for Data Radio Bearers by LCID.
  • Srb0: SignalingRadioBearerInfo for SRB0
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
    • Initial value: 0
    • Flags: construct write read
  • Srb1: SignalingRadioBearerInfo for SRB1
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
    • Initial value: 0
    • Flags: construct write read
  • CellId: Serving cell identifier
  • C-RNTI: Cell Radio Network Temporary Identifier

TraceSources

  • StateTransition: trace fired upon every UE RRC state transition
  • RandomAccessSuccessful: trace fired upon successful completion of the random access procedure
  • ConnectionEstablished: trace fired upon successful RRC connection establishment
  • ConnectionReconfiguration: trace fired upon RRC connection reconfiguration
  • HandoverStart: trace fired upon start of a handover procedure
  • HandoverEndOk: trace fired upon successful termination of a handover procedure

Definition at line 50 of file lte-ue-rrc.h.

Member Enumeration Documentation

enum ns3::LteUeRrc::State

The states of the UE RRC entity

Enumerator
IDLE_CELL_SELECTION
IDLE_WAIT_SYSTEM_INFO
IDLE_CAMPED_NORMALLY
IDLE_RANDOM_ACCESS
IDLE_CONNECTING
CONNECTED_NORMALLY
CONNECTED_REESTABLISHING
CONNECTED_HANDOVER
NUM_STATES

Definition at line 66 of file lte-ue-rrc.h.

Constructor & Destructor Documentation

ns3::LteUeRrc::LteUeRrc ( )

create an RRC instance for use within an ue

Definition at line 121 of file lte-ue-rrc.cc.

References m_asSapProvider, m_cmacSapUser, m_cphySapUser, m_drbPdcpSapUser, m_rrcSapProvider, NS_LOG_FUNCTION, and UeMemberLteUeCmacSapUser.

ns3::LteUeRrc::~LteUeRrc ( )
virtual

Destructor

Definition at line 146 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteUeRrc::ApplyMeasConfig ( LteRrcSap::MeasConfig  mc)
private

Definition at line 1166 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::VarMeasConfig::aRsrp, ns3::LteUeRrc::VarMeasConfig::aRsrq, ns3::LteRrcSap::ReportConfigEutra::EVENT, ns3::LteRrcSap::ReportConfigEutra::EVENT_A2, ns3::LteRrcSap::ReportConfigEutra::EVENT_A4, ns3::LteRrcSap::QuantityConfig::filterCoefficientRSRP, ns3::LteRrcSap::QuantityConfig::filterCoefficientRSRQ, ns3::LteRrcSap::MeasConfig::haveMeasGapConfig, ns3::LteRrcSap::MeasConfig::haveQuantityConfig, ns3::LteRrcSap::MeasConfig::haveSmeasure, ns3::LteRrcSap::MeasConfig::haveSpeedStatePars, m_varMeasConfig, m_varMeasReportList, ns3::LteUeRrc::VarMeasConfig::measIdList, ns3::LteRrcSap::MeasConfig::measIdToAddModList, ns3::LteRrcSap::MeasConfig::measIdToRemoveList, ns3::LteUeRrc::VarMeasConfig::measObjectList, ns3::LteRrcSap::MeasConfig::measObjectToAddModList, ns3::LteRrcSap::MeasConfig::measObjectToRemoveList, NS_ASSERT, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteRrcSap::ReportConfigEutra::PERIODICAL, ns3::LteUeRrc::VarMeasConfig::quantityConfig, ns3::LteRrcSap::MeasConfig::quantityConfig, ns3::LteUeRrc::VarMeasConfig::reportConfigList, ns3::LteRrcSap::MeasConfig::reportConfigToAddModList, and ns3::LteRrcSap::MeasConfig::reportConfigToRemoveList.

Referenced by DoRecvRrcConnectionReconfiguration().

+ Here is the caller graph for this function:

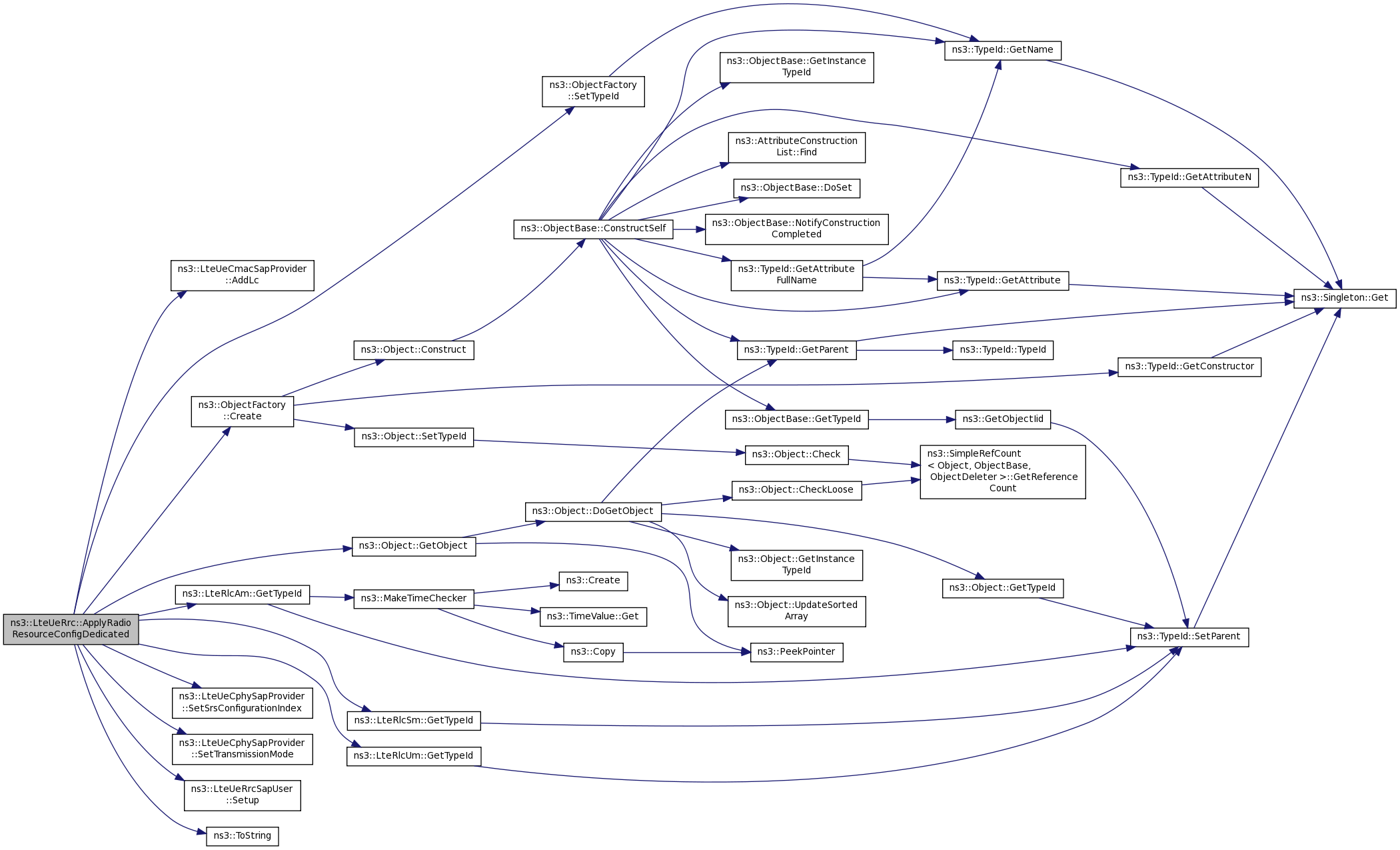

void ns3::LteUeRrc::ApplyRadioResourceConfigDedicated ( LteRrcSap::RadioResourceConfigDedicated  rrcd)
private
Todo:
currently not implemented. Would need to modify drbInfo, and then propagate changes to the MAC

Definition at line 992 of file lte-ue-rrc.cc.

References ns3::LteUeCmacSapProvider::AddLc(), ns3::LteRrcSap::RlcConfig::AM, ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::LteUeCmacSapProvider::LogicalChannelConfig::bucketSizeDurationMs, CONNECTED_HANDOVER, ns3::ObjectFactory::Create(), ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::Object::GetObject(), ns3::LteRlcUm::GetTypeId(), ns3::LteRlcAm::GetTypeId(), ns3::LteRlcSm::GetTypeId(), ns3::LteRrcSap::PhysicalConfigDedicated::haveAntennaInfoDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::haveSoundingRsUlConfigDedicated, IDLE_CONNECTING, ns3::LteUeCmacSapProvider::LogicalChannelConfig::logicalChannelGroup, m_bid2DrbidMap, m_cmacSapProvider, m_cphySapProvider, m_drbMap, m_drbPdcpSapUser, m_imsi, m_macSapProvider, m_rnti, m_rrcSapUser, m_srb0, m_srb1, m_state, m_useRlcSm, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteUeCmacSapProvider::LogicalChannelConfig::prioritizedBitRateKbps, ns3::LteUeCmacSapProvider::LogicalChannelConfig::priority, ns3::LteUeCphySapProvider::SetSrsConfigurationIndex(), ns3::LteUeCphySapProvider::SetTransmissionMode(), ns3::ObjectFactory::SetTypeId(), ns3::LteUeRrcSapUser::Setup(), ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex, ns3::ToString(), ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode, and ns3::LteRrcSap::RlcConfig::UM_BI_DIRECTIONAL.

Referenced by DoRecvRrcConnectionReconfiguration(), and DoRecvRrcConnectionSetup().

+ Here is the call graph for this function:

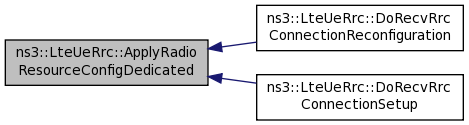

+ Here is the caller graph for this function:

uint8_t ns3::LteUeRrc::Bid2Drbid ( uint8_t  bid)
private

Definition at line 1570 of file lte-ue-rrc.cc.

References m_bid2DrbidMap, and NS_ASSERT_MSG.

Referenced by DoSendData().

+ Here is the caller graph for this function:

void ns3::LteUeRrc::DisposeOldSrb1 ( )
private

Definition at line 1563 of file lte-ue-rrc.cc.

References m_srb1Old, and NS_LOG_FUNCTION.

Referenced by DoRecvRrcConnectionReconfiguration().

+ Here is the caller graph for this function:

void ns3::LteUeRrc::DoCompleteSetup ( LteUeRrcSapProvider::CompleteSetupParameters  params)
private

Definition at line 804 of file lte-ue-rrc.cc.

References m_srb0, m_srb1, NS_LOG_FUNCTION, ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb0SapUser, and ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb1SapUser.

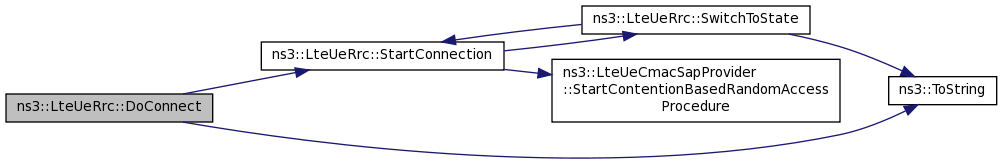

void ns3::LteUeRrc::DoConnect ( void  )
private

Definition at line 498 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SELECTION, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_WAIT_SYSTEM_INFO, m_connectionPending, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_WARN, StartConnection(), and ns3::ToString().

+ Here is the call graph for this function:

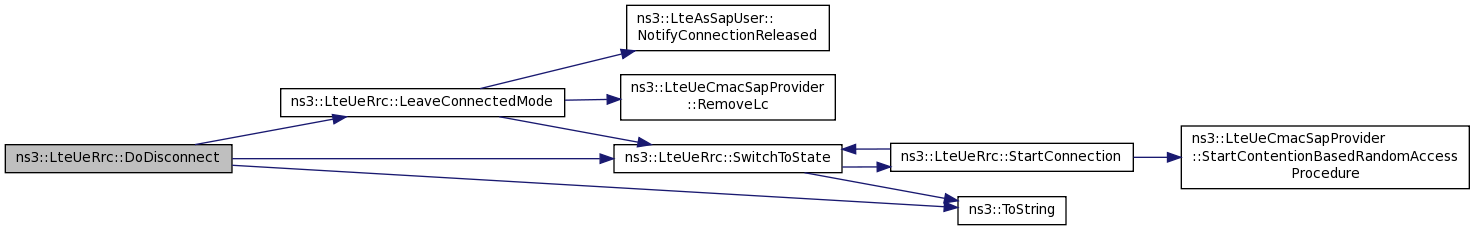

void ns3::LteUeRrc::DoDisconnect ( )
private

Definition at line 400 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SELECTION, IDLE_CONNECTING, LeaveConnectedMode(), m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, SwitchToState(), and ns3::ToString().

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoDispose ( void  )
privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 152 of file lte-ue-rrc.cc.

References m_asSapProvider, m_cmacSapUser, m_cphySapUser, m_drbMap, m_drbPdcpSapUser, m_rrcSapProvider, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoForceCampedOnEnb ( uint16_t  cellId,
uint16_t  earfcn
)
private

Definition at line 487 of file lte-ue-rrc.cc.

References IDLE_WAIT_SYSTEM_INFO, m_cellId, m_cphySapProvider, m_dlEarfcn, NS_LOG_FUNCTION, SwitchToState(), and ns3::LteUeCphySapProvider::SyncronizeWithEnb().

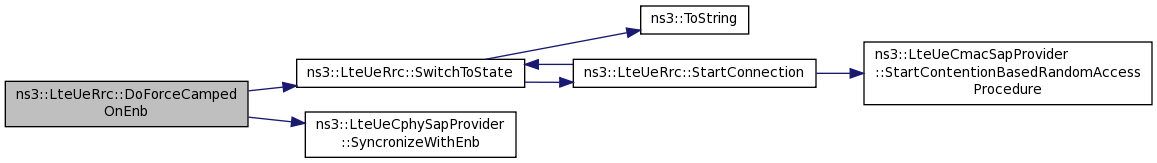

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoInitialize ( void  )
privatevirtual

This method is called only once by Object::Initialize. If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 347 of file lte-ue-rrc.cc.

References ns3::LteUeCmacSapProvider::AddLc(), ns3::LteUeCmacSapProvider::LogicalChannelConfig::bucketSizeDurationMs, ns3::LteUeCmacSapProvider::LogicalChannelConfig::logicalChannelGroup, m_cmacSapProvider, m_macSapProvider, m_rnti, m_rrcSapUser, m_srb0, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::LogicalChannelConfig::prioritizedBitRateKbps, ns3::LteUeCmacSapProvider::LogicalChannelConfig::priority, ns3::LteUeRrcSapUser::Setup(), ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider.

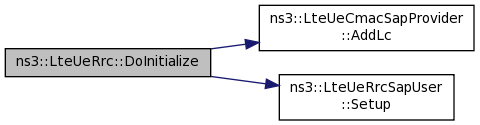

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoNotifyRandomAccessFailed ( )
private

Definition at line 480 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessFailed().

+ Here is the caller graph for this function:

void ns3::LteUeRrc::DoNotifyRandomAccessSuccessful ( )
private

Definition at line 446 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, m_cellId, m_handoverEndOkTrace, m_imsi, m_lastRrcTransactionIdentifier, m_randomAccessSuccessfulTrace, m_rnti, m_rrcSapUser, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteRrcSap::RrcConnectionReconfigurationCompleted::rrcTransactionIdentifier, ns3::LteUeRrcSapUser::SendRrcConnectionReconfigurationCompleted(), ns3::LteUeRrcSapUser::SendRrcConnectionRequest(), SwitchToState(), ns3::ToString(), and ns3::LteRrcSap::RrcConnectionRequest::ueIdentity.

Referenced by ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessSuccessful().

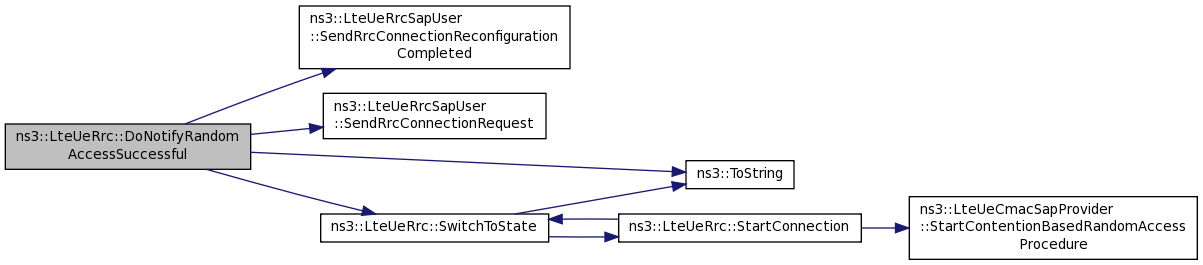

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteUeRrc::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters  params)
private

Definition at line 429 of file lte-ue-rrc.cc.

References m_asSapUser, NS_LOG_FUNCTION, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu, and ns3::LteAsSapUser::RecvData().

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvMasterInformationBlock ( LteRrcSap::MasterInformationBlock  msg)
private

Definition at line 536 of file lte-ue-rrc.cc.

References ns3::LteRrcSap::MasterInformationBlock::dlBandwidth, IDLE_CAMPED_NORMALLY, IDLE_WAIT_SYSTEM_INFO, m_cphySapProvider, m_dlBandwidth, m_receivedMib, m_receivedSib2, m_state, NS_LOG_FUNCTION, ns3::LteUeCphySapProvider::SetDlBandwidth(), and SwitchToState().

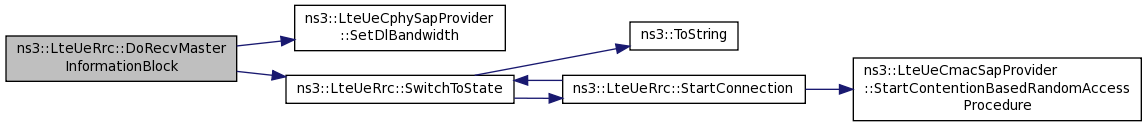

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration ( LteRrcSap::RrcConnectionReconfiguration  msg)
private

Definition at line 871 of file lte-ue-rrc.cc.

References ApplyMeasConfig(), ApplyRadioResourceConfigDedicated(), ns3::LteRrcSap::MobilityControlInfo::carrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::carrierFreq, ns3::LteUeCphySapProvider::ConfigureUplink(), CONNECTED_HANDOVER, CONNECTED_NORMALLY, DisposeOldSrb1(), ns3::LteRrcSap::CarrierBandwidthEutra::dlBandwidth, ns3::LteRrcSap::CarrierFreqEutra::dlCarrierFreq, ns3::LteRrcSap::MobilityControlInfo::haveCarrierBandwidth, ns3::LteRrcSap::MobilityControlInfo::haveCarrierFreq, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMeasConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::haveMobilityControlInfo, ns3::LteRrcSap::MobilityControlInfo::haveRachConfigDedicated, ns3::LteRrcSap::RrcConnectionReconfiguration::haveRadioResourceConfigDedicated, m_cellId, m_cmacSapProvider, m_connectionReconfigurationTrace, m_cphySapProvider, m_drbMap, m_handoverStartTrace, m_imsi, m_lastRrcTransactionIdentifier, m_rnti, m_rrcSapUser, m_srb0, m_srb1, m_srb1Old, m_state, ns3::LteRrcSap::RrcConnectionReconfiguration::measConfig, ns3::LteRrcSap::RrcConnectionReconfiguration::mobilityControlInfo, ns3::LteRrcSap::MobilityControlInfo::newUeIdentity, NS_ASSERT, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteRrcSap::MobilityControlInfo::rachConfigDedicated, ns3::LteRrcSap::RrcConnectionReconfiguration::radioResourceConfigDedicated, ns3::LteRrcSap::RachConfigDedicated::raPrachMaskIndex, ns3::LteRrcSap::RachConfigDedicated::raPreambleIndex, ns3::LteUeCphySapProvider::Reset(), ns3::LteUeCmacSapProvider::Reset(), ns3::LteRrcSap::RrcConnectionReconfiguration::rrcTransactionIdentifier, ns3::LteRrcSap::RrcConnectionReconfigurationCompleted::rrcTransactionIdentifier, ns3::Simulator::ScheduleNow(), ns3::LteUeRrcSapUser::SendRrcConnectionReconfigurationCompleted(), ns3::LteUeCphySapProvider::SetDlBandwidth(), ns3::LteUeCphySapProvider::SetRnti(), ns3::LteUeCmacSapProvider::StartNonContentionBasedRandomAccessProcedure(), SwitchToState(), ns3::LteUeCphySapProvider::SyncronizeWithEnb(), ns3::LteRrcSap::MobilityControlInfo::targetPhysCellId, ns3::ToString(), ns3::LteRrcSap::CarrierBandwidthEutra::ulBandwidth, and ns3::LteRrcSap::CarrierFreqEutra::ulCarrierFreq.

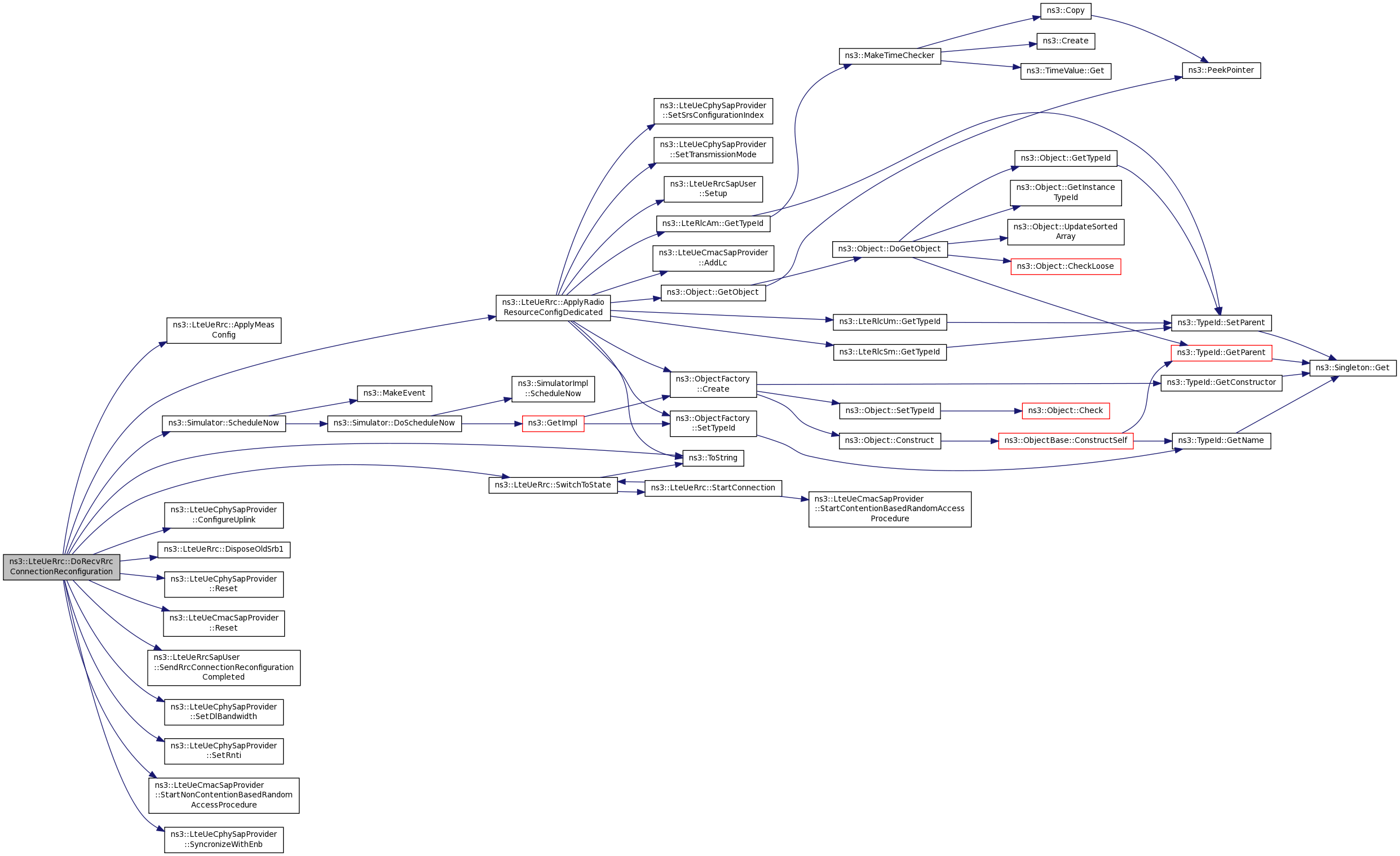

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReestablishment ( LteRrcSap::RrcConnectionReestablishment  msg)
private

Definition at line 942 of file lte-ue-rrc.cc.

References CONNECTED_REESTABLISHING, m_state, NS_FATAL_ERROR, and ns3::ToString().

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReestablishmentReject ( LteRrcSap::RrcConnectionReestablishmentReject  msg)
private

Definition at line 958 of file lte-ue-rrc.cc.

References CONNECTED_REESTABLISHING, LeaveConnectedMode(), m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::ToString().

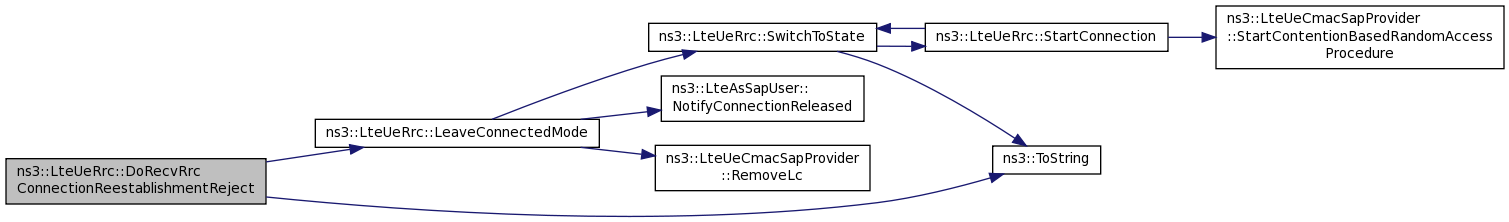

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReject ( LteRrcSap::RrcConnectionReject  msg)
private

Definition at line 982 of file lte-ue-rrc.cc.

References IDLE_CAMPED_NORMALLY, m_cmacSapProvider, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::Reset(), and SwitchToState().

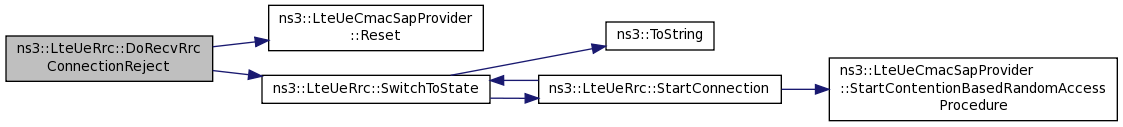

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionRelease ( LteRrcSap::RrcConnectionRelease  msg)
private

Definition at line 976 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoRecvRrcConnectionSetup ( LteRrcSap::RrcConnectionSetup  msg)
private

Definition at line 847 of file lte-ue-rrc.cc.

References ApplyRadioResourceConfigDedicated(), CONNECTED_NORMALLY, IDLE_CONNECTING, m_asSapUser, m_cellId, m_connectionEstablishedTrace, m_imsi, m_rnti, m_rrcSapUser, m_state, ns3::LteAsSapUser::NotifyConnectionSuccessful(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteRrcSap::RrcConnectionSetup::radioResourceConfigDedicated, ns3::LteRrcSap::RrcConnectionSetup::rrcTransactionIdentifier, ns3::LteRrcSap::RrcConnectionSetupCompleted::rrcTransactionIdentifier, ns3::LteUeRrcSapUser::SendRrcConnectionSetupCompleted(), SwitchToState(), and ns3::ToString().

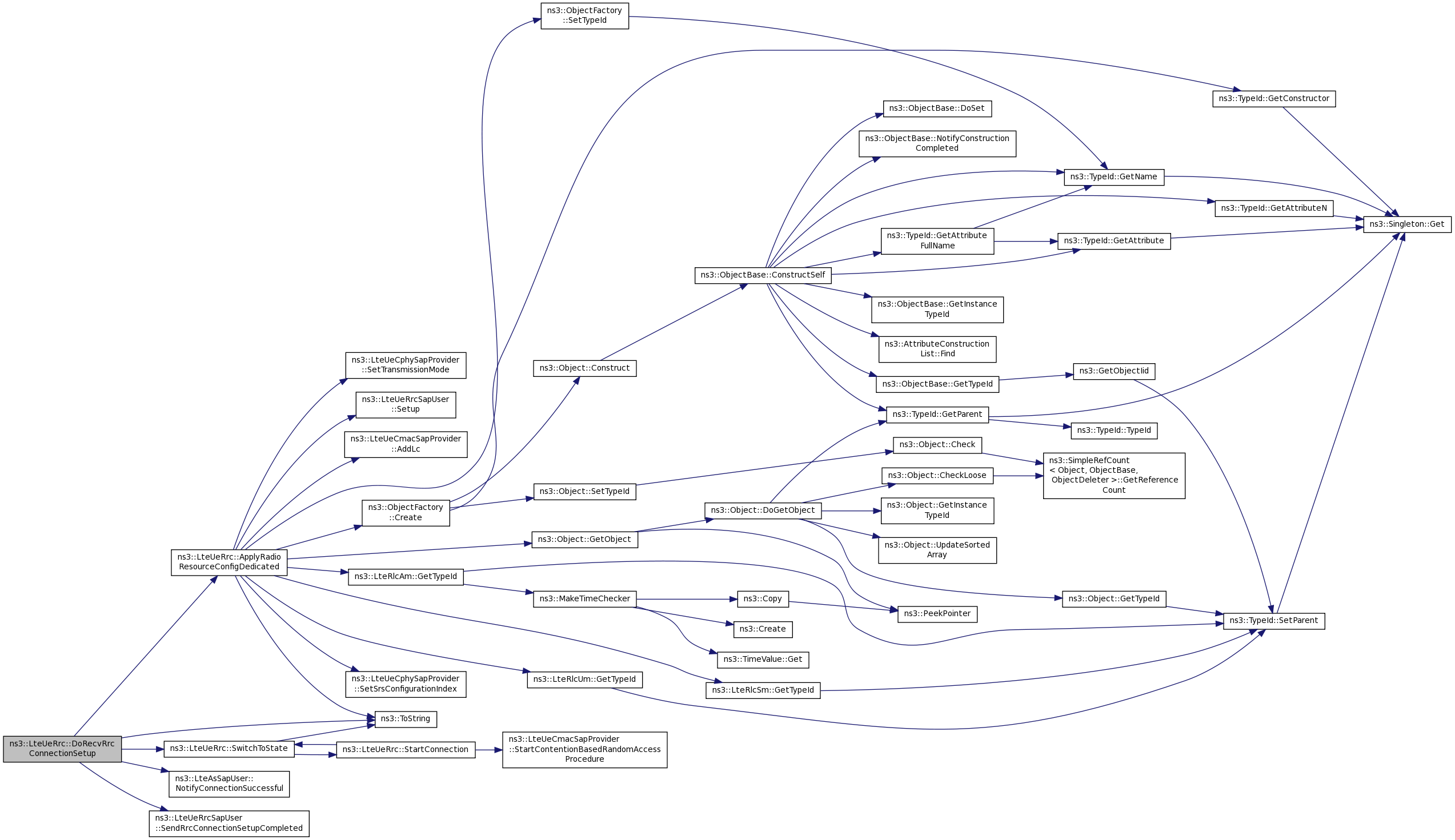

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvSystemInformation ( LteRrcSap::SystemInformation  msg)
private

Definition at line 824 of file lte-ue-rrc.cc.

References ns3::LteUeCmacSapProvider::ConfigureRach(), ns3::LteUeCphySapProvider::ConfigureUplink(), ns3::LteRrcSap::SystemInformationBlockType2::freqInfo, ns3::LteRrcSap::SystemInformation::haveSib2, IDLE_CAMPED_NORMALLY, IDLE_WAIT_SYSTEM_INFO, m_cmacSapProvider, m_cphySapProvider, m_receivedMib, m_receivedSib2, m_state, m_ulBandwidth, m_ulEarfcn, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RachConfig::numberOfRaPreambles, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteUeCmacSapProvider::RachConfig::preambleTransMax, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommonSib::rachConfigCommon, ns3::LteRrcSap::SystemInformationBlockType2::radioResourceConfigCommon, ns3::LteUeCmacSapProvider::RachConfig::raResponseWindowSize, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, ns3::LteRrcSap::SystemInformation::sib2, SwitchToState(), ns3::LteRrcSap::FreqInfo::ulBandwidth, and ns3::LteRrcSap::FreqInfo::ulCarrierFreq.

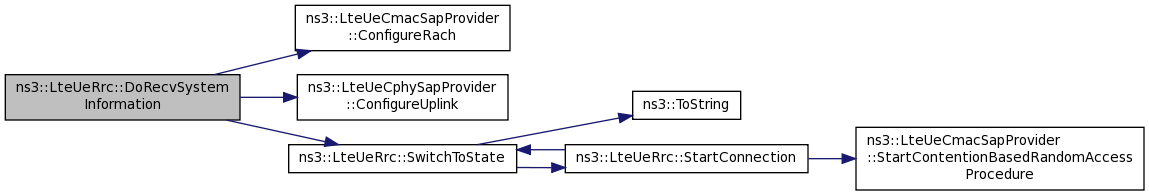

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvSystemInformationBlockType1 ( LteRrcSap::SystemInformationBlockType1  msg)
private

Definition at line 816 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoReportUeMeasurements ( LteUeCphySapUser::UeMeasurementsParameters  params)
private

Definition at line 549 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::VarMeasConfig::aRsrp, ns3::LteUeRrc::VarMeasConfig::aRsrq, ns3::LteRrcSap::ReportConfigEutra::EVENT, ns3::LteRrcSap::ReportConfigEutra::EVENT_A2, ns3::LteRrcSap::ReportConfigEutra::EVENT_A3, ns3::LteRrcSap::ReportConfigEutra::EVENT_A4, m_cellId, m_storedMeasValues, ns3::LteUeCphySapUser::UeMeasurementsParameters::m_ueMeasurementsList, m_varMeasConfig, m_varMeasReportList, ns3::LteUeRrc::VarMeasReport::measId, ns3::LteUeRrc::VarMeasConfig::measIdList, ns3::LteUeRrc::VarMeasConfig::measObjectList, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteUeRrc::VarMeasConfig::reportConfigList, ns3::LteRrcSap::ReportConfigEutra::RSRP, ns3::LteUeRrc::MeasValues::rsrp, ns3::EutranMeasurementMapping::RsrpRange2Dbm(), ns3::LteRrcSap::ReportConfigEutra::RSRQ, ns3::LteUeRrc::MeasValues::rsrq, ns3::EutranMeasurementMapping::RsrqRange2Db(), SendMeasurementReport(), ns3::LteRrcSap::ThresholdEutra::THRESHOLD_RSRP, and ns3::LteRrcSap::ThresholdEutra::THRESHOLD_RSRQ.

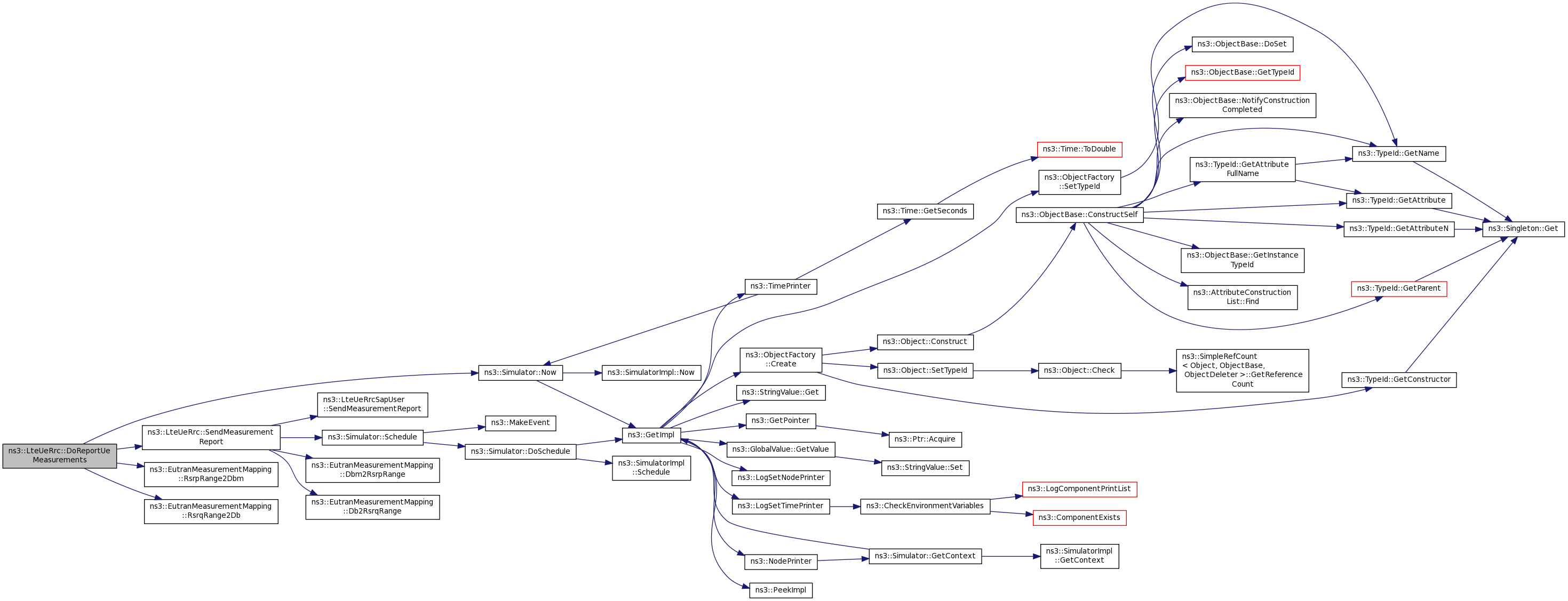

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoSendData ( Ptr< Packet >  packet,
uint8_t  bid
)
private

Definition at line 380 of file lte-ue-rrc.cc.

References Bid2Drbid(), ns3::Packet::GetSize(), m_drbMap, m_rnti, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu.

+ Here is the call graph for this function:

void ns3::LteUeRrc::DoSetTemporaryCellRnti ( uint16_t  rnti)
private

Definition at line 437 of file lte-ue-rrc.cc.

References m_cphySapProvider, m_rnti, m_srb0, NS_LOG_FUNCTION, and ns3::LteUeCphySapProvider::SetRnti().

Referenced by ns3::UeMemberLteUeCmacSapUser::SetTemporaryCellRnti().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

LteAsSapProvider * ns3::LteUeRrc::GetAsSapProvider ( )
Returns
the AS SAP provider exported by this RRC

Definition at line 270 of file lte-ue-rrc.cc.

References m_asSapProvider.

uint16_t ns3::LteUeRrc::GetCellId ( ) const
Returns
the CellId of the attached Enb

Definition at line 296 of file lte-ue-rrc.cc.

References m_cellId, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

uint8_t ns3::LteUeRrc::GetDlBandwidth ( ) const
Returns
the downlink bandwidth in RBs

Definition at line 311 of file lte-ue-rrc.cc.

References m_dlBandwidth, and NS_LOG_FUNCTION.

uint16_t ns3::LteUeRrc::GetDlEarfcn ( ) const
Returns
the downlink carrier frequency (EARFCN)

Definition at line 318 of file lte-ue-rrc.cc.

References m_dlEarfcn.

uint64_t ns3::LteUeRrc::GetImsi ( void  )
Returns
imsi the unique UE identifier

Definition at line 283 of file lte-ue-rrc.cc.

References m_imsi.

LteUeCmacSapUser * ns3::LteUeRrc::GetLteUeCmacSapUser ( )
Returns
s the CMAC SAP User interface offered to the MAC by this RRC

Definition at line 236 of file lte-ue-rrc.cc.

References m_cmacSapUser, and NS_LOG_FUNCTION.

LteUeCphySapUser * ns3::LteUeRrc::GetLteUeCphySapUser ( )
Returns
s the CPHY SAP User interface offered to the PHY by this RRC

Definition at line 222 of file lte-ue-rrc.cc.

References m_cphySapUser, and NS_LOG_FUNCTION.

LteUeRrcSapProvider * ns3::LteUeRrc::GetLteUeRrcSapProvider ( )
Returns
s the RRC SAP Provider interface offered to the MAC by this RRC

Definition at line 250 of file lte-ue-rrc.cc.

References m_rrcSapProvider, and NS_LOG_FUNCTION.

uint16_t ns3::LteUeRrc::GetRnti ( void  ) const
Returns
the C-RNTI of the user

Definition at line 289 of file lte-ue-rrc.cc.

References m_rnti, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

LteUeRrc::State ns3::LteUeRrc::GetState ( void  )
Returns
the current state

Definition at line 332 of file lte-ue-rrc.cc.

References m_state, and NS_LOG_FUNCTION.

TypeId ns3::LteUeRrc::GetTypeId ( void  )
static

Definition at line 164 of file lte-ue-rrc.cc.

References GetCellId(), GetRnti(), m_connectionEstablishedTrace, m_connectionReconfigurationTrace, m_drbMap, m_handoverEndOkTrace, m_handoverStartTrace, m_randomAccessSuccessfulTrace, m_srb0, m_srb1, m_stateTransitionTrace, ns3::MakeObjectMapAccessor(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

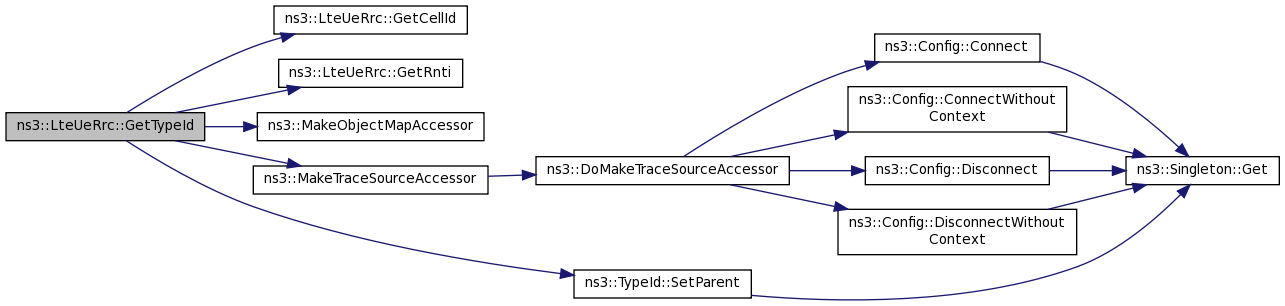

+ Here is the call graph for this function:

uint8_t ns3::LteUeRrc::GetUlBandwidth ( ) const
Returns
the uplink bandwidth in RBs

Definition at line 304 of file lte-ue-rrc.cc.

References m_ulBandwidth, and NS_LOG_FUNCTION.

uint16_t ns3::LteUeRrc::GetUlEarfcn ( ) const
Returns
the uplink carrier frequency (EARFCN)

Definition at line 324 of file lte-ue-rrc.cc.

References m_ulEarfcn, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::LeaveConnectedMode ( )
private

Definition at line 1546 of file lte-ue-rrc.cc.

References IDLE_CAMPED_NORMALLY, m_asSapUser, m_bid2DrbidMap, m_cmacSapProvider, m_drbMap, m_imsi, m_srb1, ns3::LteAsSapUser::NotifyConnectionReleased(), NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RemoveLc(), and SwitchToState().

Referenced by DoDisconnect(), and DoRecvRrcConnectionReestablishmentReject().

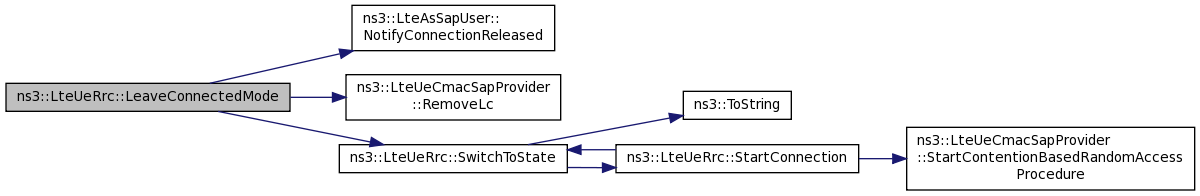

+ Here is the call graph for this function:

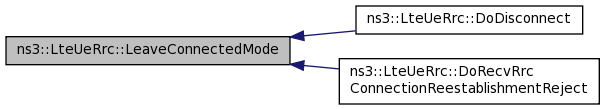

+ Here is the caller graph for this function:

void ns3::LteUeRrc::SendMeasurementReport ( uint8_t  measId)
private

Definition at line 1418 of file lte-ue-rrc.cc.

References ns3::EutranMeasurementMapping::Db2RsrqRange(), ns3::EutranMeasurementMapping::Dbm2RsrpRange(), ns3::LteRrcSap::MeasResults::haveMeasResultNeighCells, m_cellId, m_rrcSapUser, m_storedMeasValues, m_varMeasConfig, m_varMeasReportList, ns3::LteRrcSap::MeasResults::measId, ns3::LteUeRrc::VarMeasConfig::measIdList, ns3::LteRrcSap::MeasResults::measResultListEutra, ns3::LteRrcSap::MeasurementReport::measResults, ns3::LteRrcSap::ReportConfigEutra::MS480, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, ns3::LteRrcSap::MeasResultEutra::physCellId, ns3::LteUeRrc::VarMeasConfig::reportConfigList, ns3::LteRrcSap::ReportConfigEutra::RSRP, ns3::LteRrcSap::MeasResults::rsrpResult, ns3::LteRrcSap::ReportConfigEutra::RSRQ, ns3::LteRrcSap::MeasResults::rsrqResult, ns3::Simulator::Schedule(), and ns3::LteUeRrcSapUser::SendMeasurementReport().

Referenced by DoReportUeMeasurements().

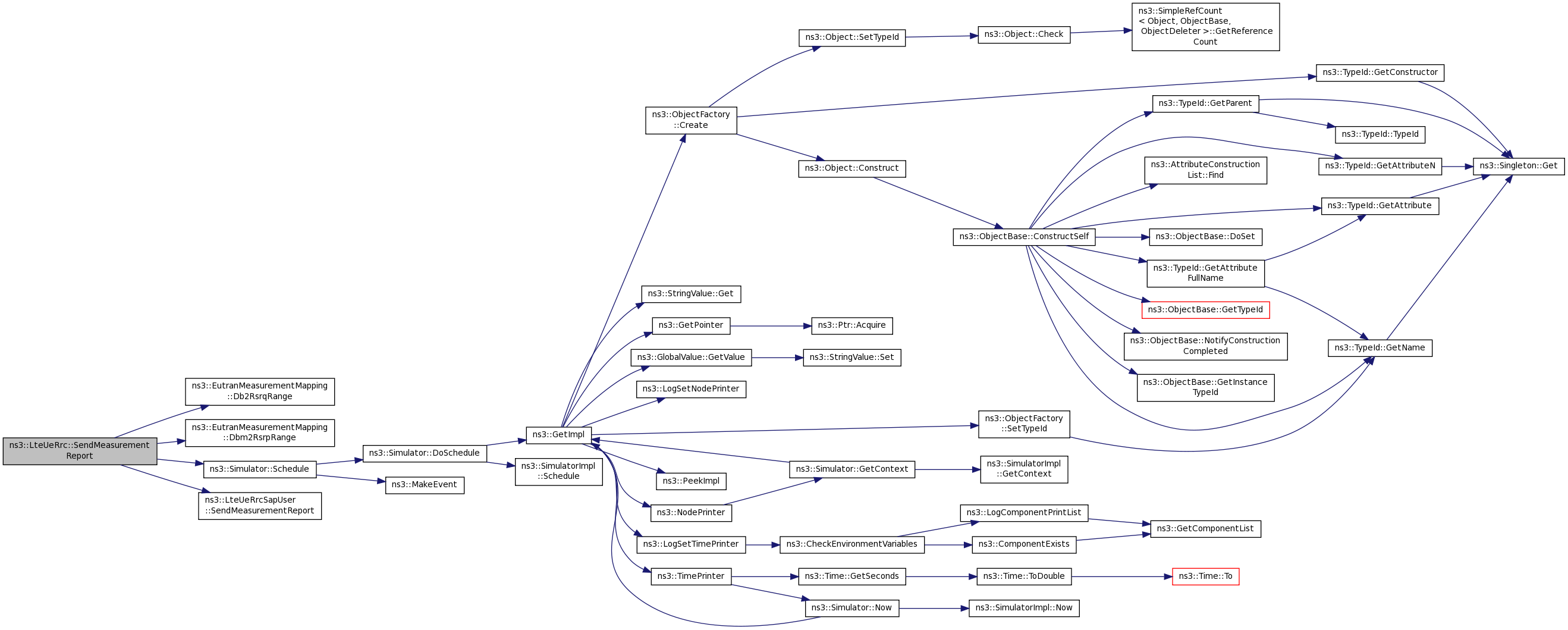

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteUeRrc::SetAsSapUser ( LteAsSapUser *  s)

Set the AS SAP user to interact with the NAS entity

Parameters
sthe AS SAP user

Definition at line 264 of file lte-ue-rrc.cc.

References m_asSapUser, and s.

void ns3::LteUeRrc::SetImsi ( uint64_t  imsi)
Parameters
imsithe unique UE identifier

Definition at line 276 of file lte-ue-rrc.cc.

References m_imsi, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::SetLteMacSapProvider ( LteMacSapProvider *  s)

set the MAC SAP provider. The ue RRC does not use this directly, but it needs to provide it to newly created RLC instances.

Parameters
sthe MAC SAP provider that will be used by all newly created RLC instances

Definition at line 257 of file lte-ue-rrc.cc.

References m_macSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteUeRrc::SetLteUeCmacSapProvider ( LteUeCmacSapProvider *  s)

set the CMAC SAP this RRC should interact with

Parameters
sthe CMAC SAP Provider to be used by this RRC

Definition at line 229 of file lte-ue-rrc.cc.

References m_cmacSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteUeRrc::SetLteUeCphySapProvider ( LteUeCphySapProvider *  s)

set the CPHY SAP this RRC should use to interact with the PHY

Parameters
sthe CPHY SAP Provider

Definition at line 215 of file lte-ue-rrc.cc.

References m_cphySapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteUeRrc::SetLteUeRrcSapUser ( LteUeRrcSapUser *  s)

set the RRC SAP this RRC should interact with

Parameters
sthe RRC SAP User to be used by this RRC

Definition at line 243 of file lte-ue-rrc.cc.

References m_rrcSapUser, NS_LOG_FUNCTION, and s.

void ns3::LteUeRrc::SetUseRlcSm ( bool  val)
Parameters
valtrue if RLC SM is to be used, false if RLC UM/AM are to be used

Definition at line 339 of file lte-ue-rrc.cc.

References m_useRlcSm, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::StartConnection ( )
private

Definition at line 1537 of file lte-ue-rrc.cc.

References IDLE_RANDOM_ACCESS, m_cmacSapProvider, m_connectionPending, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::StartContentionBasedRandomAccessProcedure(), and SwitchToState().

Referenced by DoConnect(), and SwitchToState().

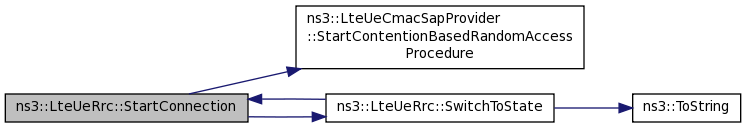

+ Here is the call graph for this function:

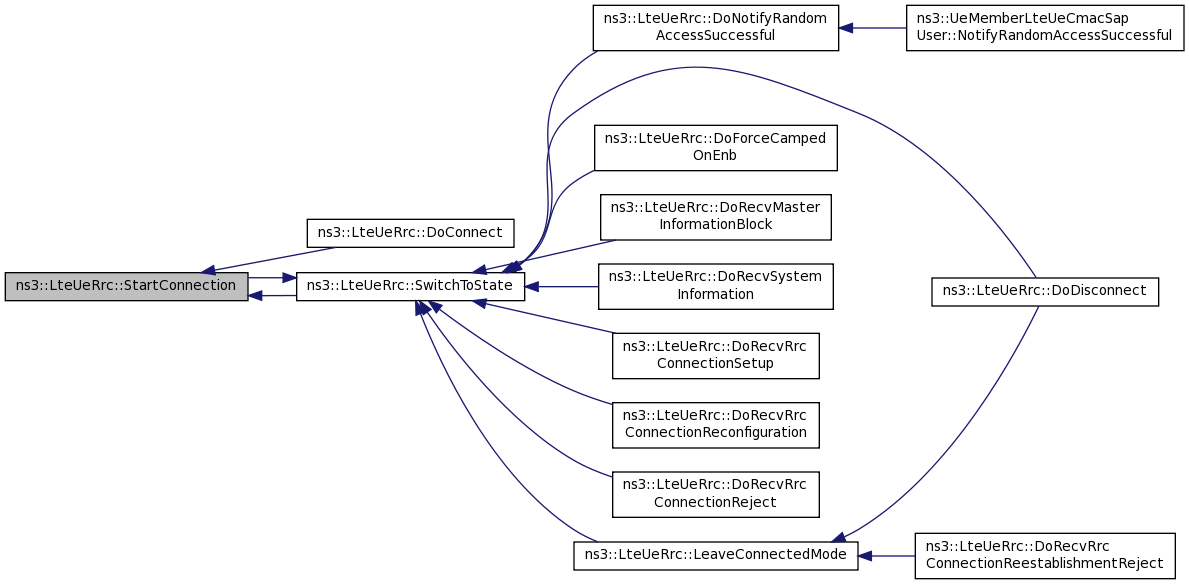

+ Here is the caller graph for this function:

void ns3::LteUeRrc::SwitchToState ( State  s)
private

Definition at line 1579 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SELECTION, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_WAIT_SYSTEM_INFO, m_cellId, m_connectionPending, m_imsi, m_rnti, m_state, m_stateTransitionTrace, NS_LOG_FUNCTION, NS_LOG_INFO, StartConnection(), and ns3::ToString().

Referenced by DoDisconnect(), DoForceCampedOnEnb(), DoNotifyRandomAccessSuccessful(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReject(), DoRecvRrcConnectionSetup(), DoRecvSystemInformation(), LeaveConnectedMode(), and StartConnection().

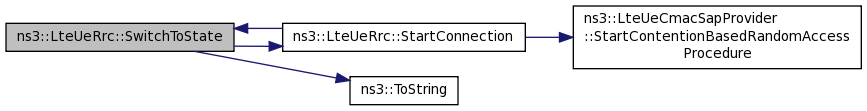

+ Here is the call graph for this function:

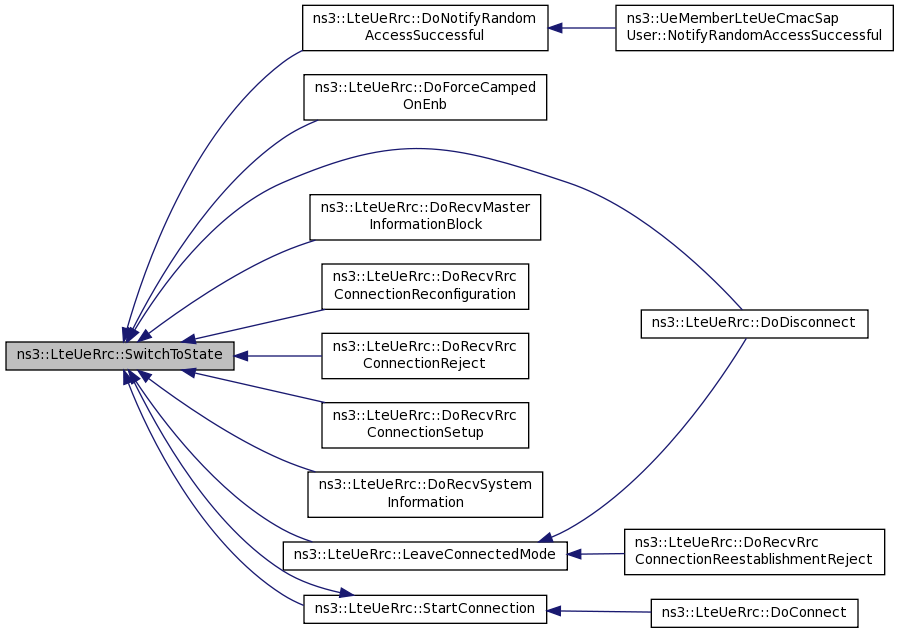

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class LtePdcpSpecificLtePdcpSapUser< LteUeRrc >
friend

Definition at line 55 of file lte-ue-rrc.h.

friend class MemberLteAsSapProvider< LteUeRrc >
friend

Definition at line 56 of file lte-ue-rrc.h.

friend class MemberLteUeCphySapUser< LteUeRrc >
friend

Definition at line 57 of file lte-ue-rrc.h.

friend class MemberLteUeRrcSapProvider< LteUeRrc >
friend

Definition at line 58 of file lte-ue-rrc.h.

friend class UeMemberLteUeCmacSapUser
friend

Definition at line 53 of file lte-ue-rrc.h.

Referenced by LteUeRrc().

friend class UeRrcMemberLteEnbCmacSapUser
friend

Definition at line 54 of file lte-ue-rrc.h.

Member Data Documentation

LteAsSapProvider* ns3::LteUeRrc::m_asSapProvider
private

Definition at line 285 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetAsSapProvider(), and LteUeRrc().

LteAsSapUser* ns3::LteUeRrc::m_asSapUser
private

Definition at line 286 of file lte-ue-rrc.h.

Referenced by DoReceivePdcpSdu(), DoRecvRrcConnectionSetup(), LeaveConnectedMode(), and SetAsSapUser().

std::map<uint8_t, uint8_t> ns3::LteUeRrc::m_bid2DrbidMap
private

Definition at line 271 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), Bid2Drbid(), and LeaveConnectedMode().

uint16_t ns3::LteUeRrc::m_cellId
private

Definition at line 292 of file lte-ue-rrc.h.

Referenced by DoForceCampedOnEnb(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), DoReportUeMeasurements(), GetCellId(), SendMeasurementReport(), and SwitchToState().

LteUeCmacSapProvider* ns3::LteUeRrc::m_cmacSapProvider
private

Definition at line 277 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReject(), DoRecvSystemInformation(), LeaveConnectedMode(), SetLteUeCmacSapProvider(), and StartConnection().

LteUeCmacSapUser* ns3::LteUeRrc::m_cmacSapUser
private

Definition at line 276 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeCmacSapUser(), and LteUeRrc().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_connectionEstablishedTrace
private

Definition at line 314 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionSetup(), and GetTypeId().

bool ns3::LteUeRrc::m_connectionPending
private

true if a connection request by upper layers is pending

Definition at line 322 of file lte-ue-rrc.h.

Referenced by DoConnect(), StartConnection(), and SwitchToState().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_connectionReconfigurationTrace
private

Definition at line 316 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionReconfiguration(), and GetTypeId().

LteUeCphySapProvider* ns3::LteUeRrc::m_cphySapProvider
private

Definition at line 274 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoForceCampedOnEnb(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvSystemInformation(), DoSetTemporaryCellRnti(), and SetLteUeCphySapProvider().

LteUeCphySapUser* ns3::LteUeRrc::m_cphySapUser
private

Definition at line 273 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeCphySapUser(), and LteUeRrc().

uint8_t ns3::LteUeRrc::m_dlBandwidth
private

downlink bandwidth in RBs

Definition at line 303 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), and GetDlBandwidth().

uint16_t ns3::LteUeRrc::m_dlEarfcn
private

downlink carrier frequency

Definition at line 306 of file lte-ue-rrc.h.

Referenced by DoForceCampedOnEnb(), and GetDlEarfcn().

std::map<uint8_t, Ptr<LteDataRadioBearerInfo> > ns3::LteUeRrc::m_drbMap
private

Definition at line 297 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoDispose(), DoRecvRrcConnectionReconfiguration(), DoSendData(), GetTypeId(), and LeaveConnectedMode().

LtePdcpSapUser* ns3::LteUeRrc::m_drbPdcpSapUser
private

Definition at line 283 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoDispose(), and LteUeRrc().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_handoverEndOkTrace
private

Definition at line 320 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t, uint16_t> ns3::LteUeRrc::m_handoverStartTrace
private

Definition at line 318 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionReconfiguration(), and GetTypeId().

uint64_t ns3::LteUeRrc::m_imsi
private

Definition at line 290 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), GetImsi(), LeaveConnectedMode(), SetImsi(), and SwitchToState().

uint8_t ns3::LteUeRrc::m_lastRrcTransactionIdentifier
private

Definition at line 301 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and DoRecvRrcConnectionReconfiguration().

LteMacSapProvider* ns3::LteUeRrc::m_macSapProvider
private

Definition at line 282 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), and SetLteMacSapProvider().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_randomAccessSuccessfulTrace
private

Definition at line 312 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and GetTypeId().

bool ns3::LteUeRrc::m_receivedMib
private

true if MIB was received for the current cell

Definition at line 323 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), and DoRecvSystemInformation().

bool ns3::LteUeRrc::m_receivedSib2
private

true if SIB2 was received for the current cell

Definition at line 324 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), and DoRecvSystemInformation().

uint16_t ns3::LteUeRrc::m_rnti
private

Definition at line 291 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), DoSendData(), DoSetTemporaryCellRnti(), GetRnti(), and SwitchToState().

LteUeRrcSapProvider* ns3::LteUeRrc::m_rrcSapProvider
private

Definition at line 280 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeRrcSapProvider(), and LteUeRrc().

LteUeRrcSapUser* ns3::LteUeRrc::m_rrcSapUser
private

Definition at line 279 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), SendMeasurementReport(), and SetLteUeRrcSapUser().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb0
private

Definition at line 294 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoCompleteSetup(), DoInitialize(), DoRecvRrcConnectionReconfiguration(), DoSetTemporaryCellRnti(), and GetTypeId().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb1
private

Definition at line 295 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoCompleteSetup(), DoRecvRrcConnectionReconfiguration(), GetTypeId(), and LeaveConnectedMode().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb1Old
private

Definition at line 296 of file lte-ue-rrc.h.

Referenced by DisposeOldSrb1(), and DoRecvRrcConnectionReconfiguration().

State ns3::LteUeRrc::m_state
private

Definition at line 288 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoConnect(), DoDisconnect(), DoNotifyRandomAccessSuccessful(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReestablishment(), DoRecvRrcConnectionReestablishmentReject(), DoRecvRrcConnectionSetup(), DoRecvSystemInformation(), GetState(), and SwitchToState().

TracedCallback<uint64_t, uint16_t, uint16_t, State, State> ns3::LteUeRrc::m_stateTransitionTrace
private

Definition at line 310 of file lte-ue-rrc.h.

Referenced by GetTypeId(), and SwitchToState().

std::map<uint16_t, MeasValues> ns3::LteUeRrc::m_storedMeasValues
private

Definition at line 364 of file lte-ue-rrc.h.

Referenced by DoReportUeMeasurements(), and SendMeasurementReport().

uint8_t ns3::LteUeRrc::m_ulBandwidth
private

uplink bandwidth in RBs

Definition at line 304 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformation(), and GetUlBandwidth().

uint16_t ns3::LteUeRrc::m_ulEarfcn
private

uplink carrier frequency

Definition at line 307 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformation(), and GetUlEarfcn().

bool ns3::LteUeRrc::m_useRlcSm
private

Definition at line 299 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), and SetUseRlcSm().

VarMeasConfig ns3::LteUeRrc::m_varMeasConfig
private

Definition at line 352 of file lte-ue-rrc.h.

Referenced by ApplyMeasConfig(), DoReportUeMeasurements(), and SendMeasurementReport().

std::map<uint8_t, VarMeasReport> ns3::LteUeRrc::m_varMeasReportList
private

Definition at line 354 of file lte-ue-rrc.h.

Referenced by ApplyMeasConfig(), DoReportUeMeasurements(), and SendMeasurementReport().

The documentation for this class was generated from the following files:
