Implementation of Minstrel Rate Control AlgorithmPorting Minstrel from Madwifi and Linux Kernel http://linuxwireless.org/en/developers/Documentation/mac80211/RateControl/minstrel. More...

#include <minstrel-wifi-manager.h>

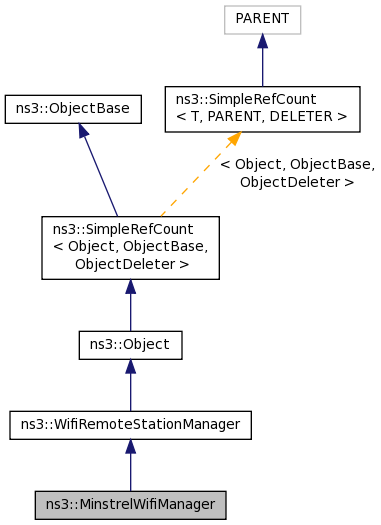

Inheritance diagram for ns3::MinstrelWifiManager:

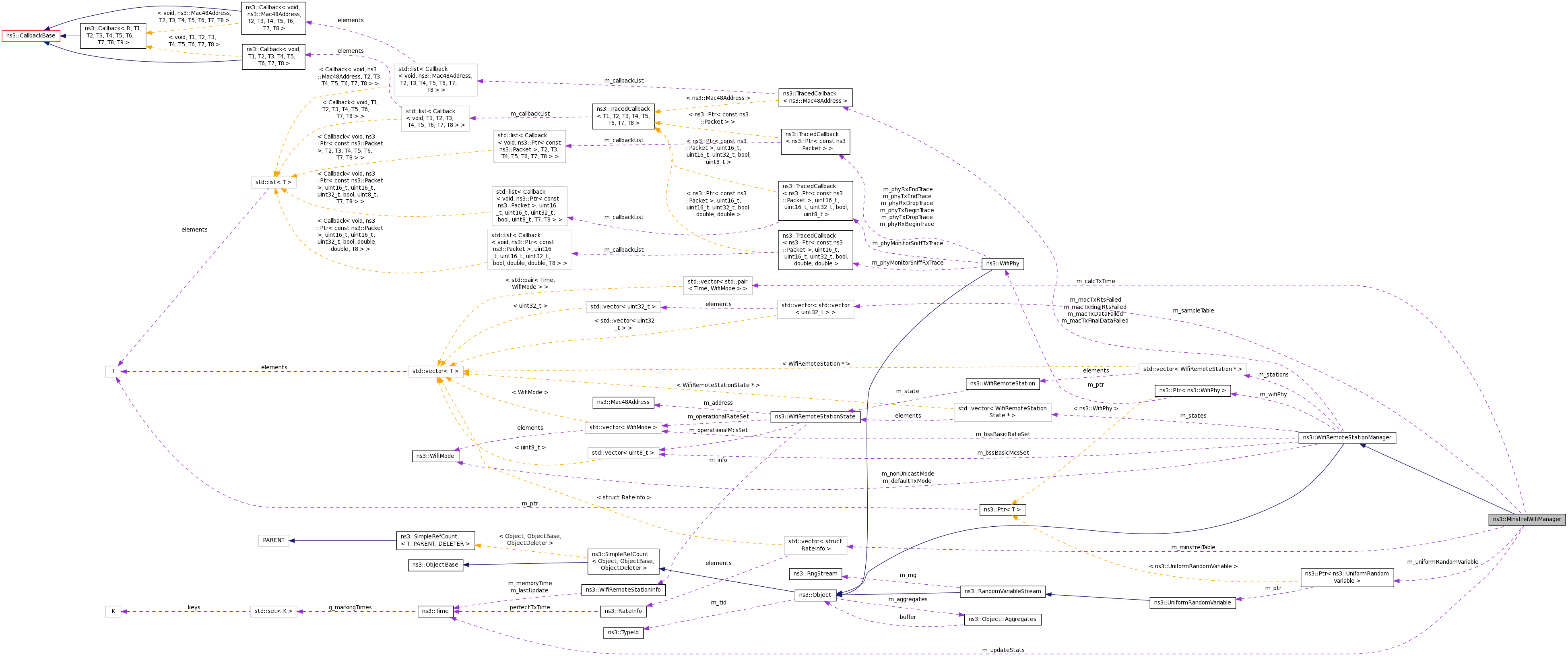

Collaboration diagram for ns3::MinstrelWifiManager:

Public Member Functions
	MinstrelWifiManager ()

virtual	~MinstrelWifiManager ()

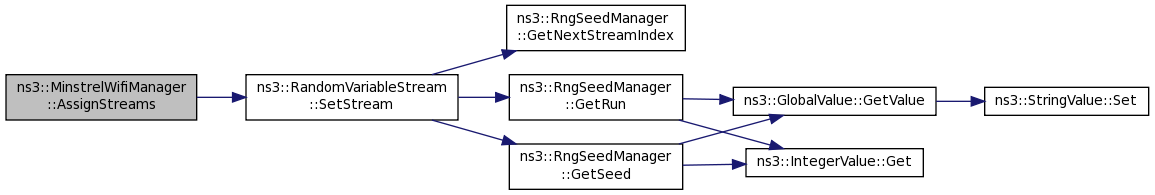

int64_t	AssignStreams (int64_t stream)

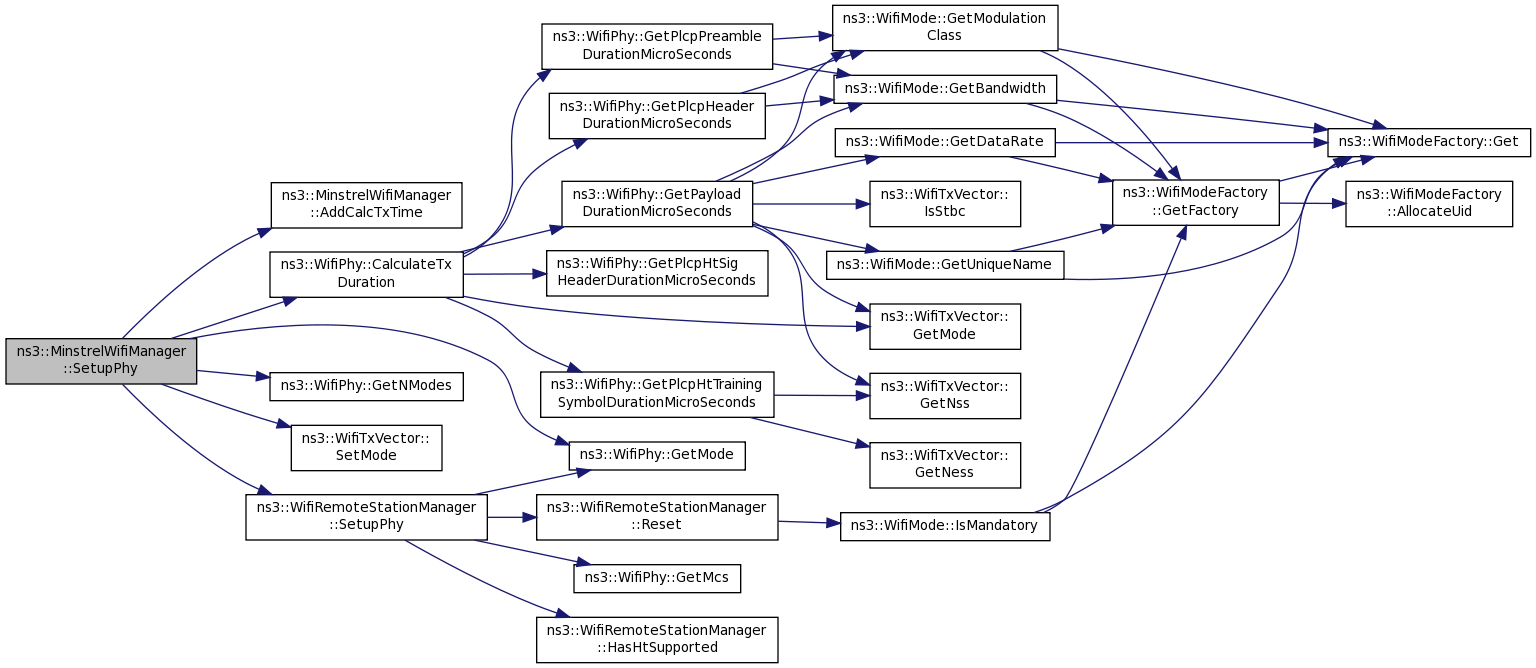

virtual void	SetupPhy (Ptr< WifiPhy > phy)

Public Member Functions inherited from ns3::WifiRemoteStationManager
	WifiRemoteStationManager ()

virtual	~WifiRemoteStationManager ()

void	AddBasicMcs (uint8_t mcs)

void	AddBasicMode (WifiMode mode)

void	AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)

void	AddSupportedMcs (Mac48Address address, uint8_t mcs)

void	AddSupportedMode (Mac48Address address, WifiMode mode)

WifiTxVector	DoGetCtsToSelfTxVector (void)

WifiTxVector	GetAckTxVector (Mac48Address address, WifiMode dataMode)

uint8_t	GetBasicMcs (uint32_t i) const

WifiMode	GetBasicMode (uint32_t i) const

WifiTxVector	GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)

WifiTxVector	GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)

WifiTxVector	GetCtsTxVector (Mac48Address address, WifiMode rtsMode)

WifiTxVector	GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

uint8_t	GetDefaultMcs (void) const

WifiMode	GetDefaultMode (void) const

uint8_t	GetDefaultTxPowerLevel (void) const

uint32_t	GetFragmentationThreshold (void) const

uint32_t	GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

uint32_t	GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool	GetGreenfieldSupported (Mac48Address address) const

WifiRemoteStationInfo	GetInfo (Mac48Address address)

uint32_t	GetMaxSlrc (void) const

uint32_t	GetMaxSsrc (void) const

uint32_t	GetNBasicMcs (void) const

uint32_t	GetNBasicModes (void) const

WifiMode	GetNonUnicastMode (void) const

uint32_t	GetNumberOfTransmitAntennas (void)

uint32_t	GetRtsCtsThreshold (void) const

WifiTxVector	GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	HasHtSupported (void) const

bool	IsAssociated (Mac48Address address) const

bool	IsBrandNew (Mac48Address address) const

bool	IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool	IsWaitAssocTxOk (Mac48Address address) const

bool	NeedCtsToSelf (WifiTxVector txVector)

bool	NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

void	PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

void	RecordDisassociated (Mac48Address address)

void	RecordGotAssocTxFailed (Mac48Address address)

void	RecordGotAssocTxOk (Mac48Address address)

void	RecordWaitAssocTxOk (Mac48Address address)

void	ReportDataFailed (Mac48Address address, const WifiMacHeader *header)

void	ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)

void	ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)

void	ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)

void	ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)

void	ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)

void	ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)

void	Reset (void)

void	Reset (Mac48Address address)

void	SetDefaultTxPowerLevel (uint8_t txPower)

void	SetFragmentationThreshold (uint32_t threshold)

void	SetHtSupported (bool enable)

void	SetMaxSlrc (uint32_t maxSlrc)

void	SetMaxSsrc (uint32_t maxSsrc)

void	SetRtsCtsThreshold (uint32_t threshold)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

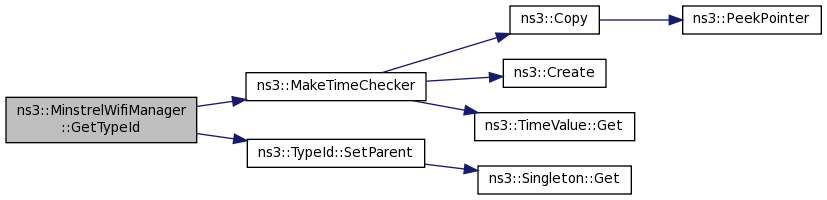

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiRemoteStationManager
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Types
typedef std::vector< std::pair < Time, WifiMode > >	TxTime

Private Member Functions
void	AddCalcTxTime (WifiMode mode, Time t)

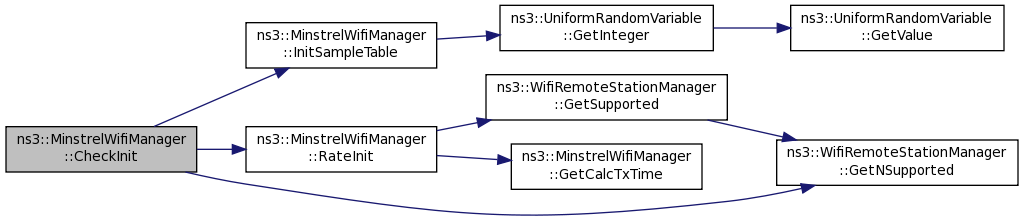

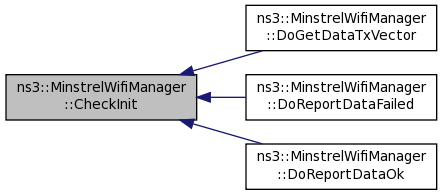

void	CheckInit (MinstrelWifiRemoteStation *station)
	check for initializations More...

virtual WifiRemoteStation *	DoCreateStation (void) const

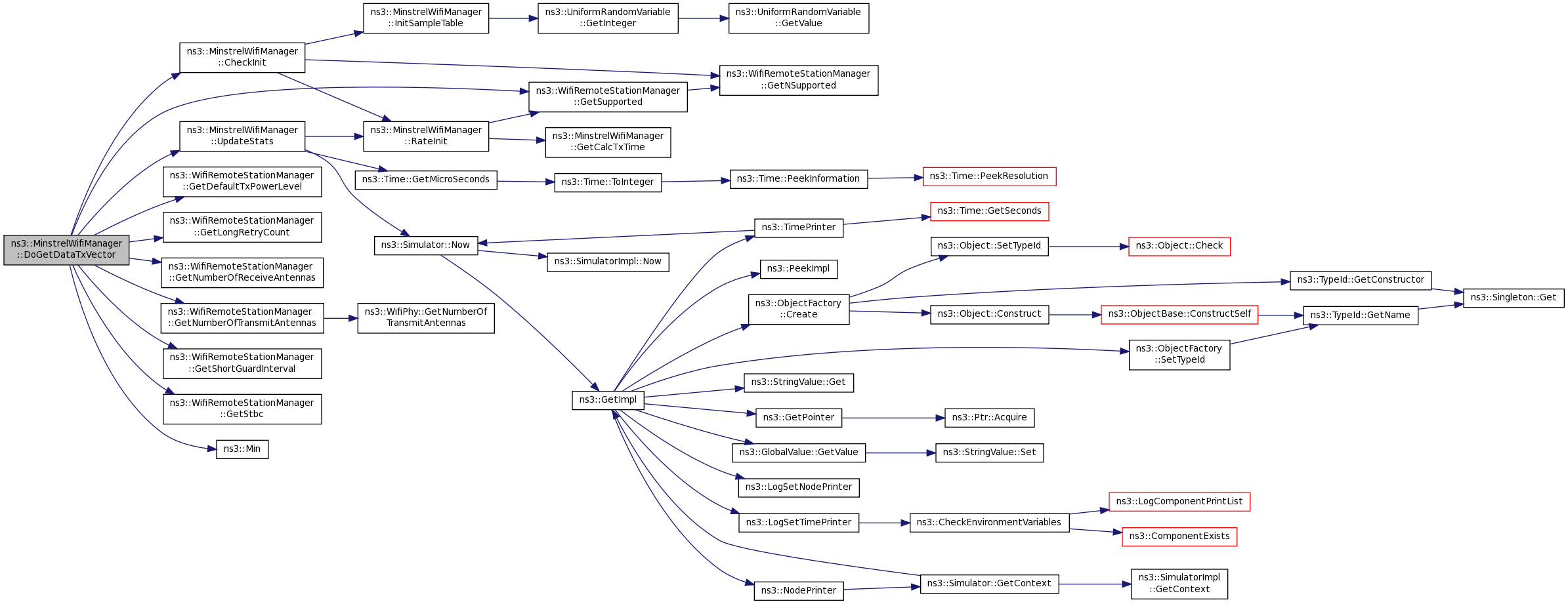

virtual WifiTxVector	DoGetDataTxVector (WifiRemoteStation *station, uint32_t size)

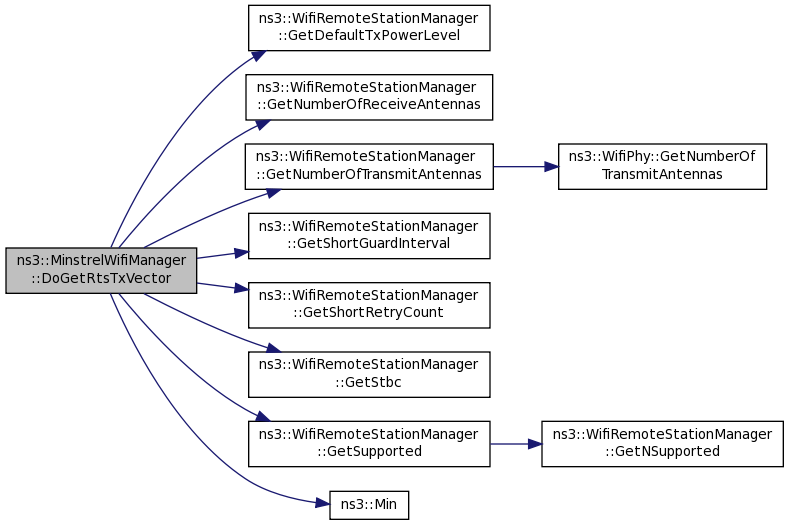

virtual WifiTxVector	DoGetRtsTxVector (WifiRemoteStation *station)

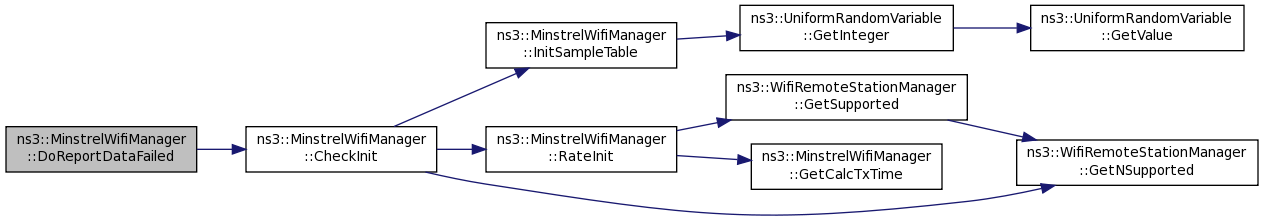

virtual void	DoReportDataFailed (WifiRemoteStation *station)

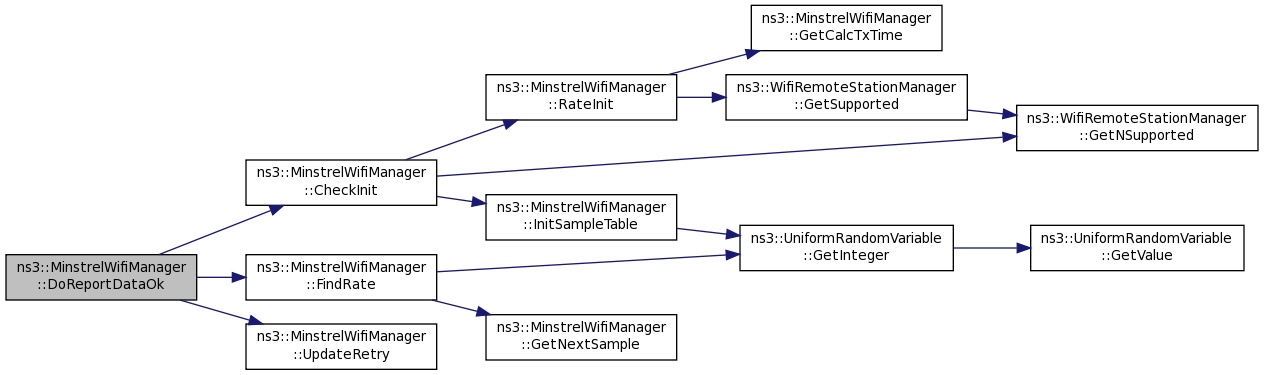

virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)

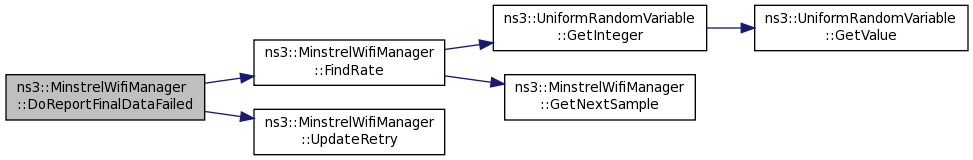

virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)

virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)

virtual void	DoReportRtsFailed (WifiRemoteStation *station)

virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)

virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)

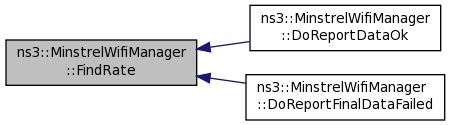

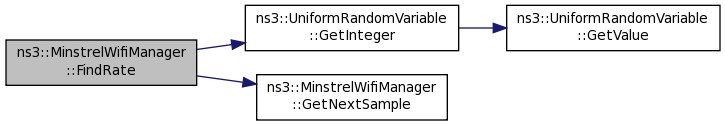

uint32_t	FindRate (MinstrelWifiRemoteStation *station)
	find a rate to use from Minstrel Table More...

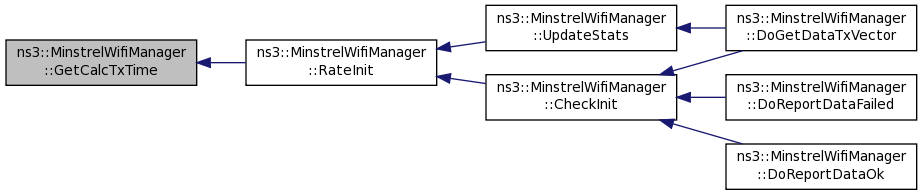

Time	GetCalcTxTime (WifiMode mode) const
	for estimating the TxTime of a packet with a given mode More...

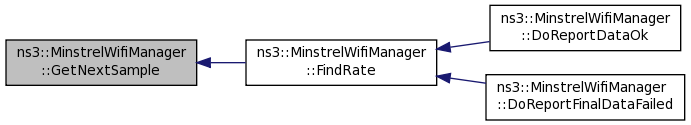

uint32_t	GetNextSample (MinstrelWifiRemoteStation *station)
	getting the next sample from Sample Table More...

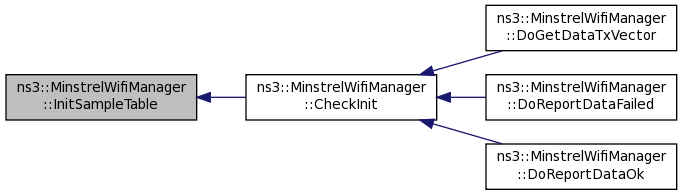

void	InitSampleTable (MinstrelWifiRemoteStation *station)
	initialize Sample Table More...

virtual bool	IsLowLatency (void) const

void	PrintSampleTable (MinstrelWifiRemoteStation *station)
	printing Sample Table More...

void	PrintTable (MinstrelWifiRemoteStation *station)
	printing Minstrel Table More...

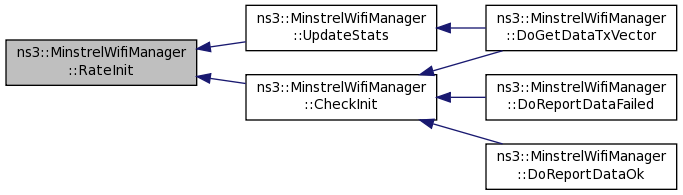

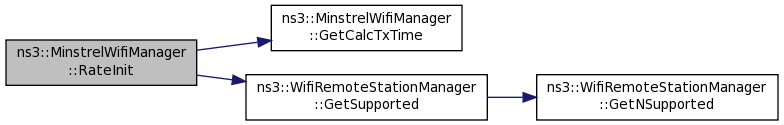

void	RateInit (MinstrelWifiRemoteStation *station)
	initialize Minstrel Table More...

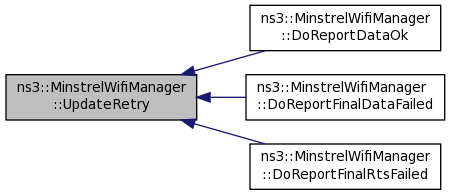

void	UpdateRetry (MinstrelWifiRemoteStation *station)
	update the number of retries and reset accordingly More...

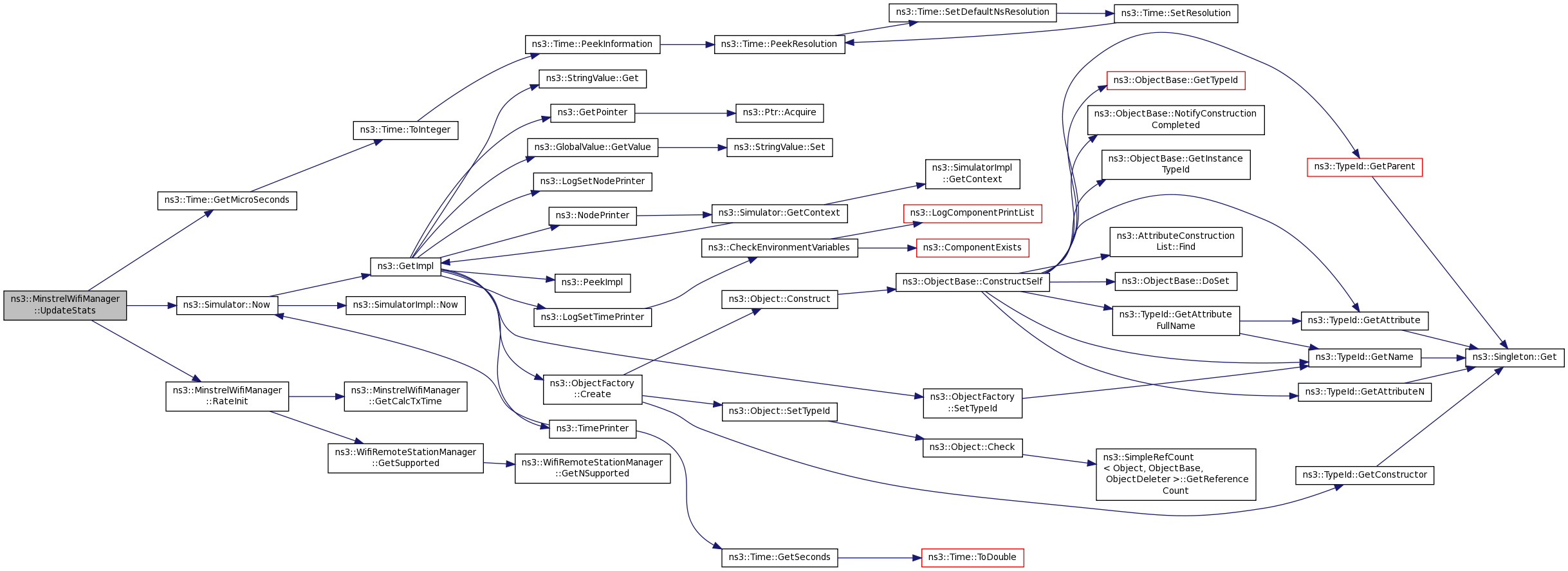

void	UpdateStats (MinstrelWifiRemoteStation *station)
	updating the Minstrel Table every 1/10 seconds More...

Private Attributes
TxTime	m_calcTxTime
	to hold all the calculated TxTime for all modes More...

double	m_ewmaLevel
	exponential weighted moving average More...

double	m_lookAroundRate
	the % to try other rates than our current rate More...

MinstrelRate	m_minstrelTable
	minstrel table More...

uint32_t	m_nsupported
	modes supported More...

uint32_t	m_pktLen
	packet length used for calculate mode TxTime More...

uint32_t	m_sampleCol
	number of sample columns More...

SampleRate	m_sampleTable
	sample table More...

Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables. More...

Time	m_updateStats
	how frequent do we calculate the stats(1/10 seconds) More...

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void	DoDispose (void)

bool	GetGreenfield (const WifiRemoteStation *station) const

uint32_t	GetLongRetryCount (const WifiRemoteStation *station) const

uint8_t	GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const

uint32_t	GetNMcsSupported (const WifiRemoteStation *station) const

uint32_t	GetNSupported (const WifiRemoteStation *station) const

uint32_t	GetNumberOfReceiveAntennas (const WifiRemoteStation *station) const

uint32_t	GetNumberOfTransmitAntennas (const WifiRemoteStation *station) const

bool	GetShortGuardInterval (const WifiRemoteStation *station) const

uint32_t	GetShortRetryCount (const WifiRemoteStation *station) const

bool	GetStbc (const WifiRemoteStation *station) const

WifiMode	GetSupported (const WifiRemoteStation *station, uint32_t i) const

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implementation of Minstrel Rate Control Algorithm

Porting Minstrel from Madwifi and Linux Kernel http://linuxwireless.org/en/developers/Documentation/mac80211/RateControl/minstrel.

Author: Duy Nguyen

Config Paths

ns3::MinstrelWifiManager is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::MinstrelWifiManager

Attributes

UpdateStatistics: The interval between updating statistics table
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read
LookAroundRate: the percentage to try other rates
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
EWMA: EWMA level
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 75
- Flags: construct write read
SampleColumn: The number of columns used for sampling
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
PacketLength: The packet length used for calculating mode TxTime
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1200
- Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager

IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
- Set with class: BooleanValue
- Underlying type: bool
- Flags: read
MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
NonUnicastMode: Wifi mode used for non-unicast transmissions.
- Set with class: WifiModeValue
- Underlying type: WifiMode
- Initial value: Invalid-WifiMode
- Flags: construct write read
DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do notimplement TX power control.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiRemoteStationManager

MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 87 of file minstrel-wifi-manager.h.

Member Typedef Documentation

typedef std::vector<std::pair<Time,WifiMode> > ns3::MinstrelWifiManager::TxTime

private

Definition at line 155 of file minstrel-wifi-manager.h.

Constructor & Destructor Documentation

ns3::MinstrelWifiManager::MinstrelWifiManager ( )

Definition at line 118 of file minstrel-wifi-manager.cc.

References m_nsupported, and m_uniformRandomVariable.

ns3::MinstrelWifiManager::~MinstrelWifiManager ( )

virtual

Definition at line 125 of file minstrel-wifi-manager.cc.

Member Function Documentation

void ns3::MinstrelWifiManager::AddCalcTxTime	(	WifiMode	mode,
		Time	t
	)

private

Definition at line 167 of file minstrel-wifi-manager.cc.

References m_calcTxTime.

Referenced by SetupPhy().

Here is the caller graph for this function:

int64_t ns3::MinstrelWifiManager::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 144 of file minstrel-wifi-manager.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::MinstrelWifiManager::CheckInit ( MinstrelWifiRemoteStation * station )

private

check for initializations

Definition at line 200 of file minstrel-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetNSupported(), InitSampleTable(), ns3::MinstrelWifiRemoteStation::m_initialized, m_minstrelTable, m_nsupported, m_sampleCol, m_sampleTable, and RateInit().

Referenced by DoGetDataTxVector(), DoReportDataFailed(), and DoReportDataOk().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiRemoteStation * ns3::MinstrelWifiManager::DoCreateStation ( void ) const

privatevirtual

Returns: a new station data structure

Implements ns3::WifiRemoteStationManager.

Definition at line 173 of file minstrel-wifi-manager.cc.

Here is the call graph for this function:

WifiTxVector ns3::MinstrelWifiManager::DoGetDataTxVector	(	WifiRemoteStation *	station,
		uint32_t	size
	)

privatevirtual

Parameters

station	the station with which we need to communicate
size	size of the packet or fragment we want to send

Returns: the transmission mode to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

start the rate at half way

Implements ns3::WifiRemoteStationManager.

Definition at line 438 of file minstrel-wifi-manager.cc.

References CheckInit(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetLongRetryCount(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), ns3::MinstrelWifiRemoteStation::m_initialized, m_nsupported, ns3::MinstrelWifiRemoteStation::m_txrate, ns3::Min(), and UpdateStats().

Here is the call graph for this function:

WifiTxVector ns3::MinstrelWifiManager::DoGetRtsTxVector ( WifiRemoteStation * station )

privatevirtual

Parameters

station the station with which we need to communicate

Returns: the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Implements ns3::WifiRemoteStationManager.

Definition at line 454 of file minstrel-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortRetryCount(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), ns3::MinstrelWifiRemoteStation::m_txrate, ns3::Min(), and NS_LOG_DEBUG.

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportDataFailed ( WifiRemoteStation * station )

privatevirtual

Retry Chain table is implemented here

Try | LOOKAROUND RATE | NORMAL RATE

| random < best | random > best |

Note: For clarity, multiple blocks of if's and else's are used After a failing 7 times, DoReportFinalDataFailed will be called

for normal rate, we're not currently sampling random rates

use best throughput rate

< there's still a few retries left

use second best throughput rate

use best probability rate

use lowest base rate

for look-around rate, we're currently sampling random rates

current sampling rate is slower than the current best rate

use best throughput rate

< there are a few retries left

use random rate

use max probability rate

use lowest base rate

current sampling rate is better than current best rate

use random rate

< keep using it

use the best rate

use the best probability rate

use the lowest base rate

Implements ns3::WifiRemoteStationManager.

Definition at line 247 of file minstrel-wifi-manager.cc.

References CheckInit(), ns3::MinstrelWifiRemoteStation::m_initialized, ns3::MinstrelWifiRemoteStation::m_isSampling, ns3::MinstrelWifiRemoteStation::m_longRetry, ns3::MinstrelWifiRemoteStation::m_maxProbRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate2, m_minstrelTable, ns3::MinstrelWifiRemoteStation::m_sampleRate, ns3::MinstrelWifiRemoteStation::m_sampleRateSlower, ns3::MinstrelWifiRemoteStation::m_txrate, and NS_LOG_DEBUG.

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportDataOk	(	WifiRemoteStation *	station,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 381 of file minstrel-wifi-manager.cc.

References CheckInit(), FindRate(), ns3::MinstrelWifiRemoteStation::m_initialized, ns3::MinstrelWifiRemoteStation::m_isSampling, m_minstrelTable, m_nsupported, ns3::MinstrelWifiRemoteStation::m_packetCount, ns3::MinstrelWifiRemoteStation::m_retry, ns3::MinstrelWifiRemoteStation::m_sampleRateSlower, ns3::MinstrelWifiRemoteStation::m_txrate, and UpdateRetry().

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportFinalDataFailed ( WifiRemoteStation * station )

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 410 of file minstrel-wifi-manager.cc.

References FindRate(), ns3::MinstrelWifiRemoteStation::m_err, ns3::MinstrelWifiRemoteStation::m_isSampling, m_minstrelTable, m_nsupported, ns3::MinstrelWifiRemoteStation::m_retry, ns3::MinstrelWifiRemoteStation::m_sampleRateSlower, ns3::MinstrelWifiRemoteStation::m_txrate, NS_LOG_DEBUG, and UpdateRetry().

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation * station )

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 239 of file minstrel-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_err, and UpdateRetry().

Here is the call graph for this function:

void ns3::MinstrelWifiManager::DoReportRtsFailed ( WifiRemoteStation * station )

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 224 of file minstrel-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_shortRetry, ns3::MinstrelWifiRemoteStation::m_txrate, and NS_LOG_DEBUG.

void ns3::MinstrelWifiManager::DoReportRtsOk	(	WifiRemoteStation *	station,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 233 of file minstrel-wifi-manager.cc.

References NS_LOG_DEBUG.

void ns3::MinstrelWifiManager::DoReportRxOk	(	WifiRemoteStation *	station,
		double	rxSnr,
		WifiMode	txMode
	)

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 217 of file minstrel-wifi-manager.cc.

References NS_LOG_DEBUG.

uint32_t ns3::MinstrelWifiManager::FindRate ( MinstrelWifiRemoteStation * station )

private

find a rate to use from Minstrel Table

for determining when to try a sample rate

if we are below the target of look around rate percentage, look around note: do it randomly by flipping a coin instead sampling all at once until it reaches the look around rate

now go through the table and find an index rate

This if condition is used to make sure that we don't need to use the sample rate it is the same as our current rate

start sample count

set flag that we are currently sampling

bookeeping for resetting stuff

error check

set the rate that we're currently sampling

is this rate slower than the current best rate

using the best rate instead

continue using the best rate

Definition at line 488 of file minstrel-wifi-manager.cc.

Referenced by DoReportDataOk(), and DoReportFinalDataFailed().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::MinstrelWifiManager::GetCalcTxTime ( WifiMode mode ) const

private

for estimating the TxTime of a packet with a given mode

Definition at line 152 of file minstrel-wifi-manager.cc.

References m_calcTxTime, and NS_ASSERT.

Referenced by RateInit().

Here is the caller graph for this function:

uint32_t ns3::MinstrelWifiManager::GetNextSample ( MinstrelWifiRemoteStation * station )

private

getting the next sample from Sample Table

bookeeping for m_index and m_col variables

Definition at line 468 of file minstrel-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_col, ns3::MinstrelWifiRemoteStation::m_index, m_nsupported, m_sampleCol, and m_sampleTable.

Referenced by FindRate().

Here is the caller graph for this function:

TypeId ns3::MinstrelWifiManager::GetTypeId ( void )

static

Definition at line 84 of file minstrel-wifi-manager.cc.

References m_ewmaLevel, m_lookAroundRate, m_pktLen, m_sampleCol, m_updateStats, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::MinstrelWifiManager::InitSampleTable ( MinstrelWifiRemoteStation * station )

private

initialize Sample Table

for off-seting to make rates fall between 0 and numrates

The next two lines basically tries to generate a random number between 0 and the number of available rates

this loop is used for filling in other uninitilized places

Definition at line 738 of file minstrel-wifi-manager.cc.

References ns3::UniformRandomVariable::GetInteger(), ns3::MinstrelWifiRemoteStation::m_col, ns3::MinstrelWifiRemoteStation::m_index, m_nsupported, m_sampleCol, m_sampleTable, m_uniformRandomVariable, and NS_LOG_DEBUG.

Referenced by CheckInit().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MinstrelWifiManager::IsLowLatency ( void ) const

privatevirtual

Returns: whether this manager is a manager designed to work in low-latency environments.

Note: In this context, low vs high latency is defined in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Implements ns3::WifiRemoteStationManager.

Definition at line 463 of file minstrel-wifi-manager.cc.

void ns3::MinstrelWifiManager::PrintSampleTable ( MinstrelWifiRemoteStation * station )

private

printing Sample Table

Definition at line 772 of file minstrel-wifi-manager.cc.

References m_nsupported, m_sampleCol, m_sampleTable, and NS_LOG_DEBUG.

void ns3::MinstrelWifiManager::PrintTable ( MinstrelWifiRemoteStation * station )

private

printing Minstrel Table

Definition at line 788 of file minstrel-wifi-manager.cc.

References m_minstrelTable, m_nsupported, and NS_LOG_DEBUG.

void ns3::MinstrelWifiManager::RateInit ( MinstrelWifiRemoteStation * station )

private

initialize Minstrel Table

Definition at line 716 of file minstrel-wifi-manager.cc.

References GetCalcTxTime(), ns3::WifiRemoteStationManager::GetSupported(), m_minstrelTable, m_nsupported, and NS_LOG_DEBUG.

Referenced by CheckInit(), and UpdateStats().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MinstrelWifiManager::SetupPhy ( Ptr< WifiPhy > phy )

virtual

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 130 of file minstrel-wifi-manager.cc.

References AddCalcTxTime(), ns3::WifiPhy::CalculateTxDuration(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), m_pktLen, ns3::WifiTxVector::SetMode(), ns3::WifiRemoteStationManager::SetupPhy(), and ns3::WIFI_PREAMBLE_LONG.

Here is the call graph for this function:

void ns3::MinstrelWifiManager::UpdateRetry ( MinstrelWifiRemoteStation * station )

private

update the number of retries and reset accordingly

Definition at line 430 of file minstrel-wifi-manager.cc.

References ns3::MinstrelWifiRemoteStation::m_longRetry, ns3::MinstrelWifiRemoteStation::m_retry, and ns3::MinstrelWifiRemoteStation::m_shortRetry.

Referenced by DoReportDataOk(), DoReportFinalDataFailed(), and DoReportFinalRtsFailed().

Here is the caller graph for this function:

void ns3::MinstrelWifiManager::UpdateStats ( MinstrelWifiRemoteStation * station )

private

updating the Minstrel Table every 1/10 seconds

calculate the perfect tx time for this rate

just for initialization

if we've attempted something

calculate the probability of success assume probability scales from 0 to 18000

bookeeping

ewma probability (cast for gcc 3.4 compatibility)

calculating throughput

bookeeping

Sample less often below 10% and above 95% of success

retry count denotes the number of retries permitted for each rate

retry_count/2

if it's 0 allow one retry limit

go find max throughput, second maximum throughput, high probability succ

find the second highest max

reset it

Definition at line 576 of file minstrel-wifi-manager.cc.

References ns3::Time::GetMicroSeconds(), ns3::MinstrelWifiRemoteStation::m_currentRate, m_ewmaLevel, ns3::MinstrelWifiRemoteStation::m_initialized, ns3::MinstrelWifiRemoteStation::m_maxProbRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate, ns3::MinstrelWifiRemoteStation::m_maxTpRate2, m_minstrelTable, ns3::MinstrelWifiRemoteStation::m_nextStatsUpdate, m_nsupported, ns3::MinstrelWifiRemoteStation::m_txrate, m_updateStats, ns3::Simulator::Now(), NS_LOG_DEBUG, RateInit(), and throughput.

Referenced by DoGetDataTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

TxTime ns3::MinstrelWifiManager::m_calcTxTime

private

to hold all the calculated TxTime for all modes

Definition at line 160 of file minstrel-wifi-manager.h.

Referenced by AddCalcTxTime(), and GetCalcTxTime().

double ns3::MinstrelWifiManager::m_ewmaLevel

private

exponential weighted moving average

Definition at line 163 of file minstrel-wifi-manager.h.

Referenced by GetTypeId(), and UpdateStats().

double ns3::MinstrelWifiManager::m_lookAroundRate

private

the % to try other rates than our current rate

Definition at line 162 of file minstrel-wifi-manager.h.

Referenced by FindRate(), and GetTypeId().

MinstrelRate ns3::MinstrelWifiManager::m_minstrelTable

private

minstrel table

Definition at line 156 of file minstrel-wifi-manager.h.

Referenced by CheckInit(), DoReportDataFailed(), DoReportDataOk(), DoReportFinalDataFailed(), FindRate(), PrintTable(), RateInit(), and UpdateStats().

uint32_t ns3::MinstrelWifiManager::m_nsupported

private

modes supported

Definition at line 166 of file minstrel-wifi-manager.h.

Referenced by CheckInit(), DoGetDataTxVector(), DoReportDataOk(), DoReportFinalDataFailed(), FindRate(), GetNextSample(), InitSampleTable(), MinstrelWifiManager(), PrintSampleTable(), PrintTable(), RateInit(), and UpdateStats().

uint32_t ns3::MinstrelWifiManager::m_pktLen

private

packet length used for calculate mode TxTime

Definition at line 165 of file minstrel-wifi-manager.h.

Referenced by GetTypeId(), and SetupPhy().

uint32_t ns3::MinstrelWifiManager::m_sampleCol

private

number of sample columns

Definition at line 164 of file minstrel-wifi-manager.h.

Referenced by CheckInit(), GetNextSample(), GetTypeId(), InitSampleTable(), and PrintSampleTable().

SampleRate ns3::MinstrelWifiManager::m_sampleTable

private

sample table

Definition at line 157 of file minstrel-wifi-manager.h.

Referenced by CheckInit(), GetNextSample(), InitSampleTable(), and PrintSampleTable().

Ptr<UniformRandomVariable> ns3::MinstrelWifiManager::m_uniformRandomVariable

private

Provides uniform random variables.

Definition at line 169 of file minstrel-wifi-manager.h.

Referenced by AssignStreams(), FindRate(), InitSampleTable(), and MinstrelWifiManager().

Time ns3::MinstrelWifiManager::m_updateStats

private

how frequent do we calculate the stats(1/10 seconds)

Definition at line 161 of file minstrel-wifi-manager.h.

Referenced by DoCreateStation(), GetTypeId(), and UpdateStats().

The documentation for this class was generated from the following files:

src/wifi/model/minstrel-wifi-manager.h
src/wifi/model/minstrel-wifi-manager.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::WifiRemoteStationManager

TraceSources defined in parent class ns3::WifiRemoteStationManager

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

| random < best | random > best |

retry_count/2

Member Data Documentation
