ns3::WifiRemoteStationManager Class Referenceabstract
Wifi Models

hold a list of per-remote-station state. More...

#include <wifi-remote-station-manager.h>

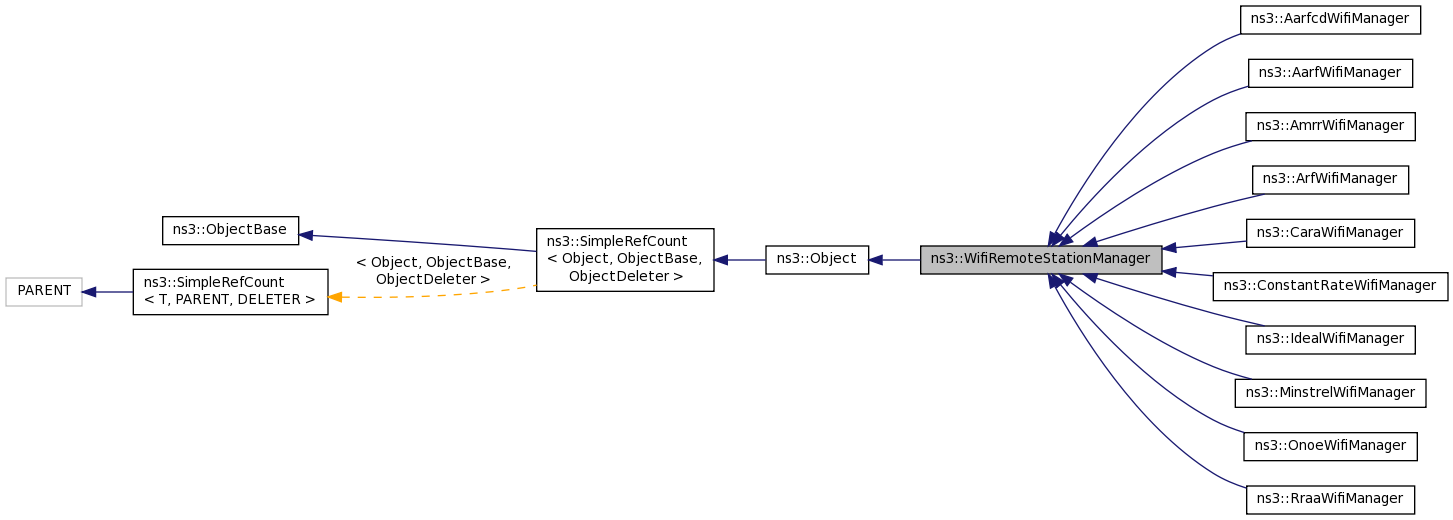

+ Inheritance diagram for ns3::WifiRemoteStationManager:

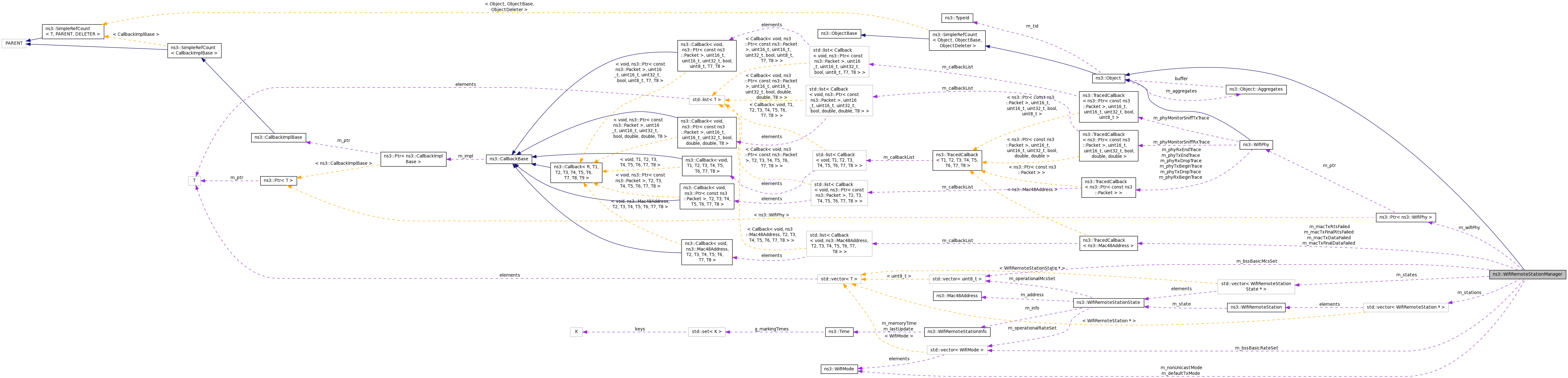

+ Collaboration diagram for ns3::WifiRemoteStationManager:

Public Member Functions

 WifiRemoteStationManager ()

virtual ~WifiRemoteStationManager ()

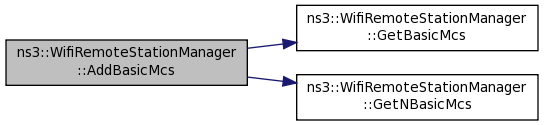

void AddBasicMcs (uint8_t mcs)

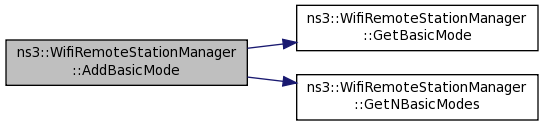

void AddBasicMode (WifiMode mode)

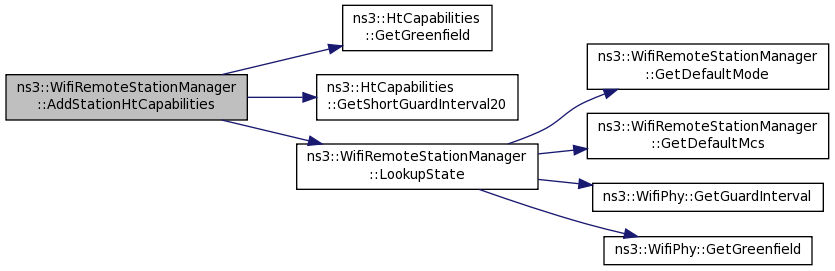

void AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)

void AddSupportedMcs (Mac48Address address, uint8_t mcs)

void AddSupportedMode (Mac48Address address, WifiMode mode)

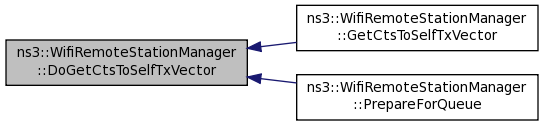

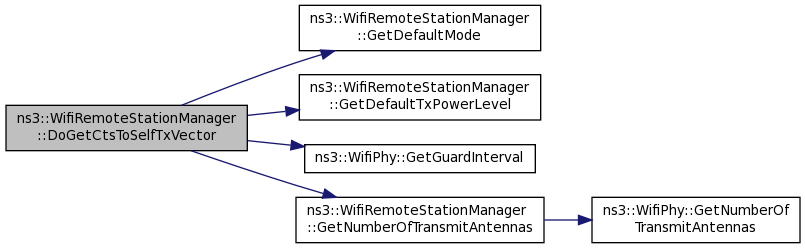

WifiTxVector DoGetCtsToSelfTxVector (void)

WifiTxVector GetAckTxVector (Mac48Address address, WifiMode dataMode)

uint8_t GetBasicMcs (uint32_t i) const

WifiMode GetBasicMode (uint32_t i) const

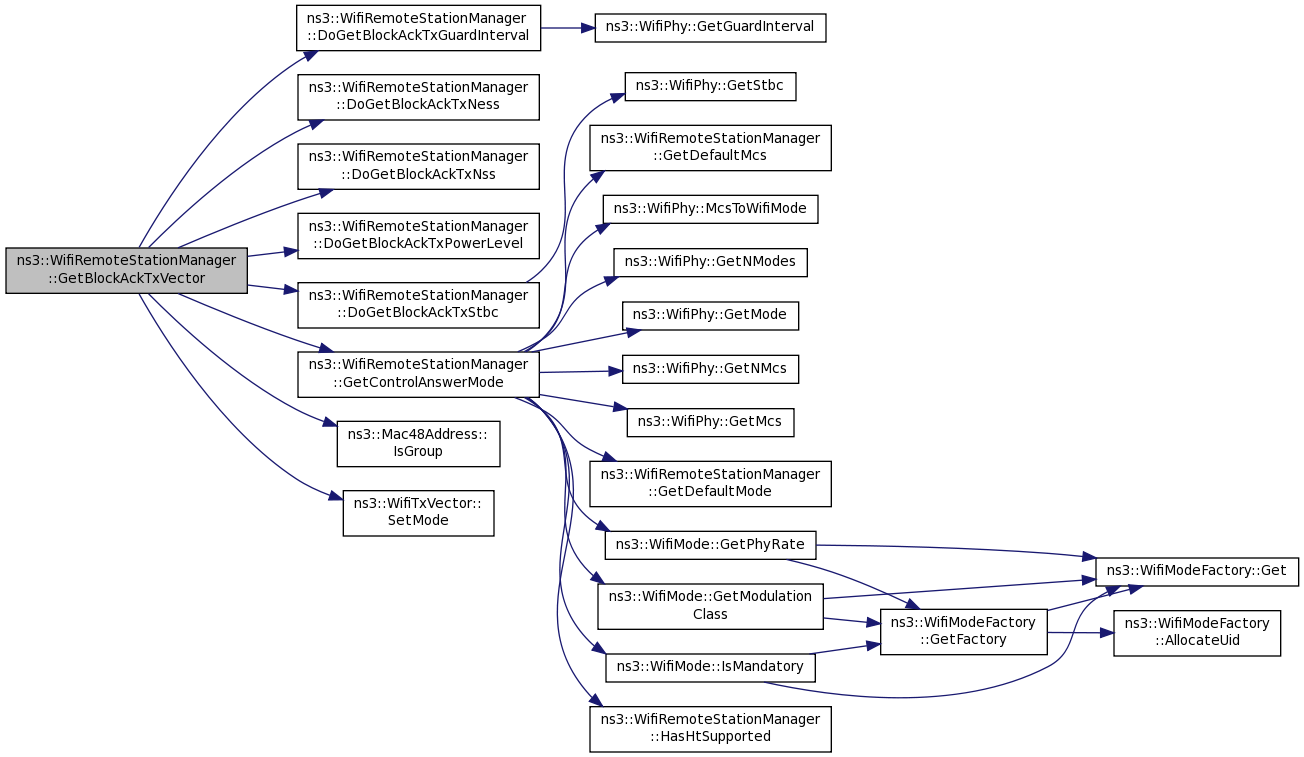

WifiTxVector GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)

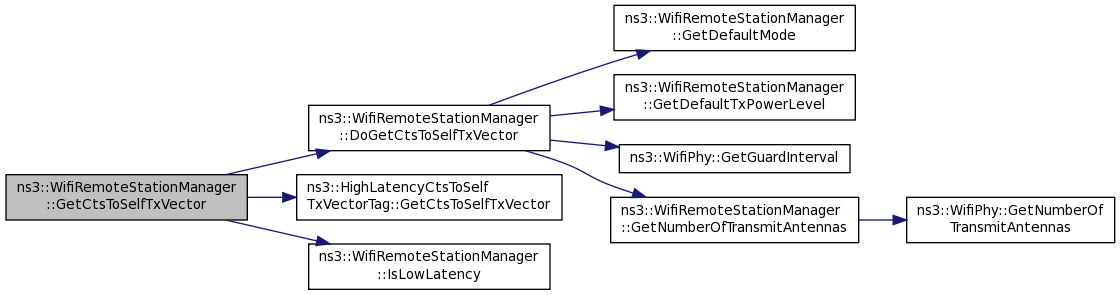

WifiTxVector GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)

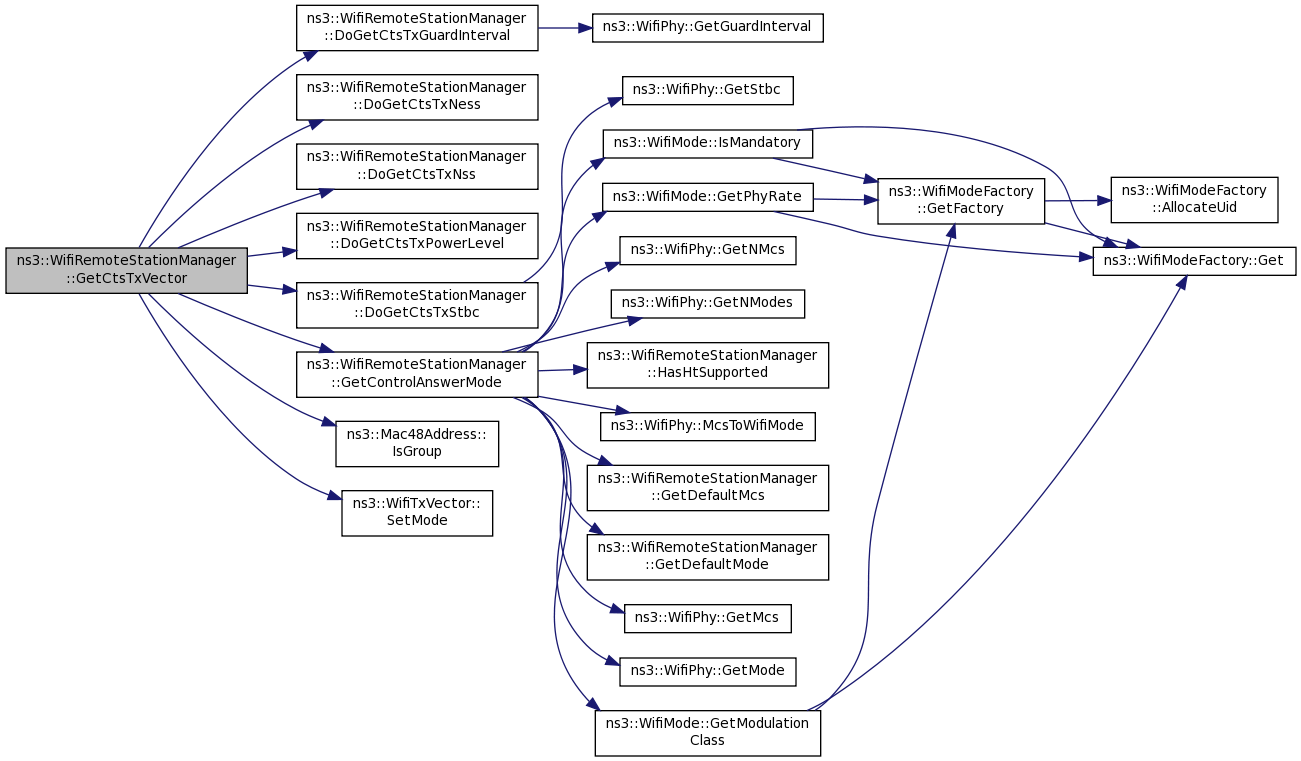

WifiTxVector GetCtsTxVector (Mac48Address address, WifiMode rtsMode)

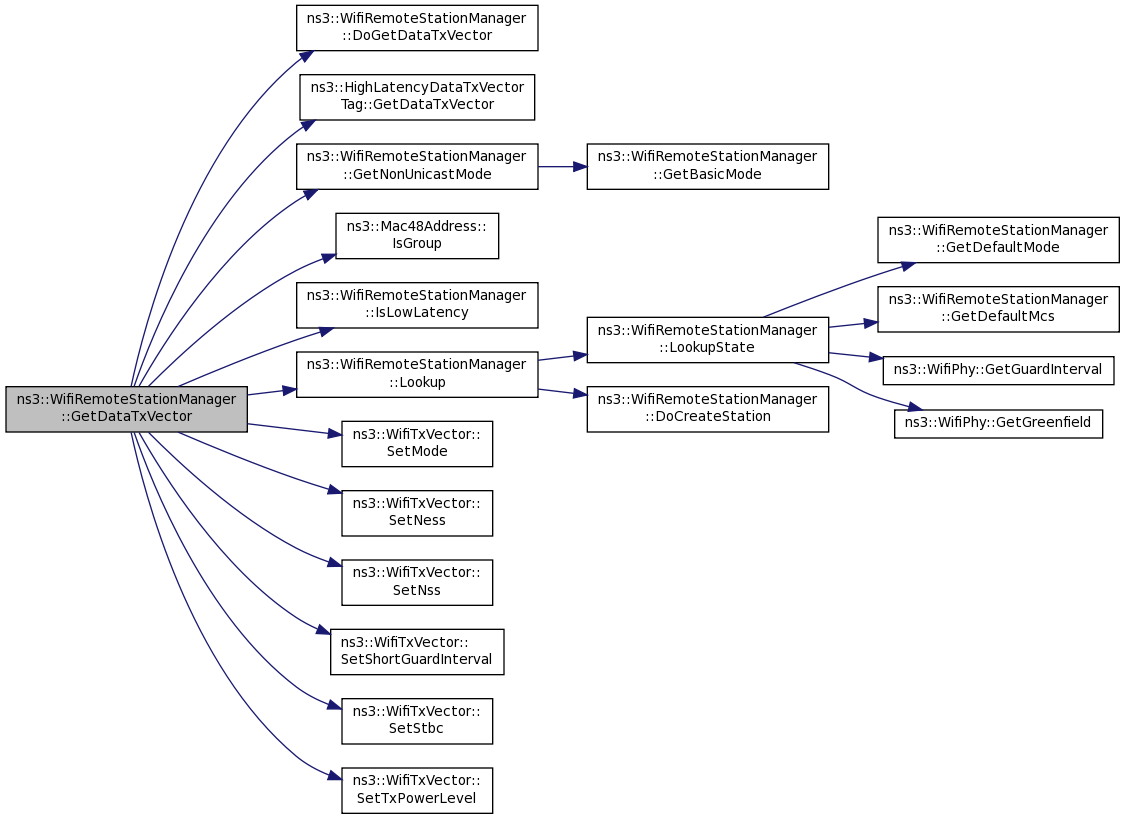

WifiTxVector GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

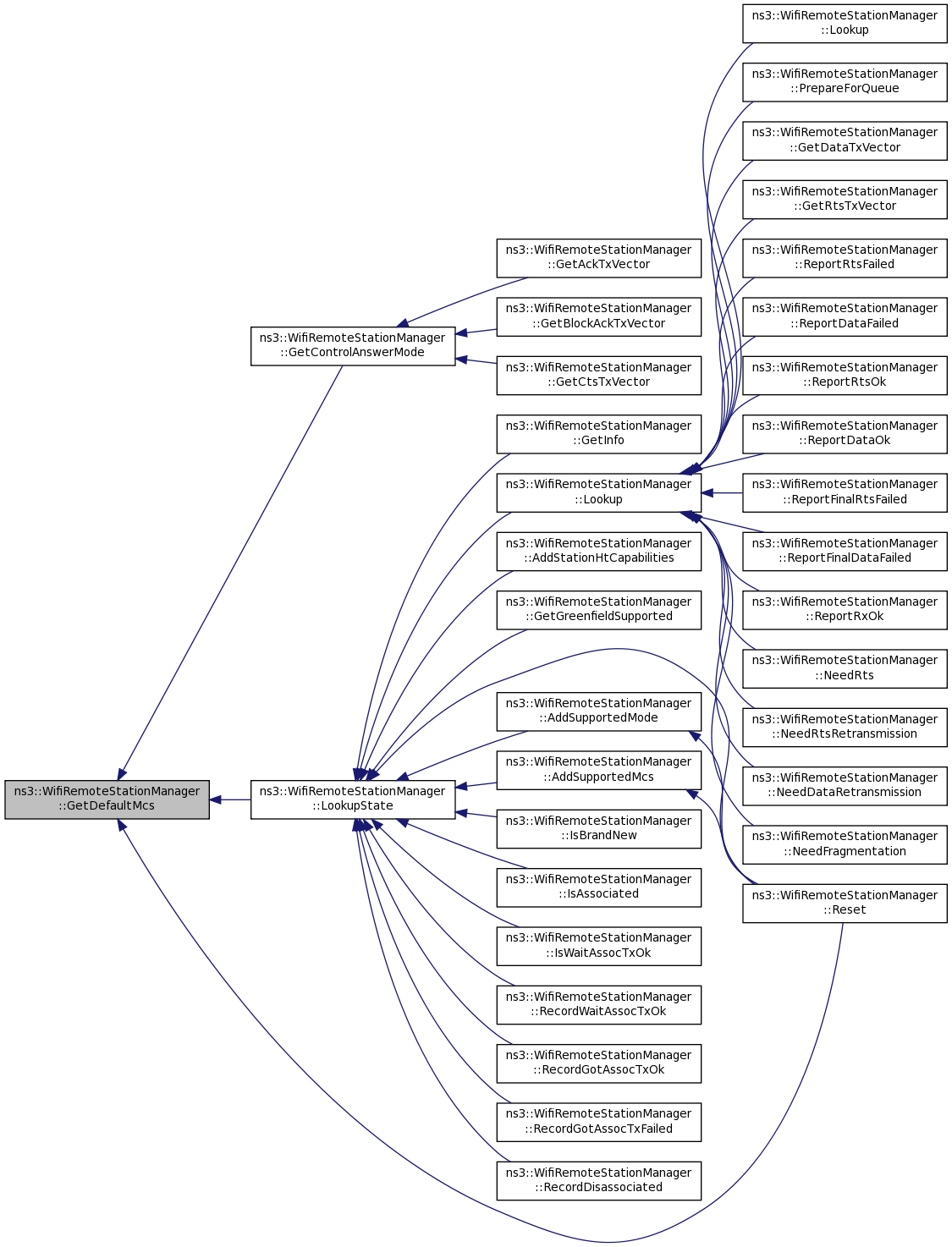

uint8_t GetDefaultMcs (void) const

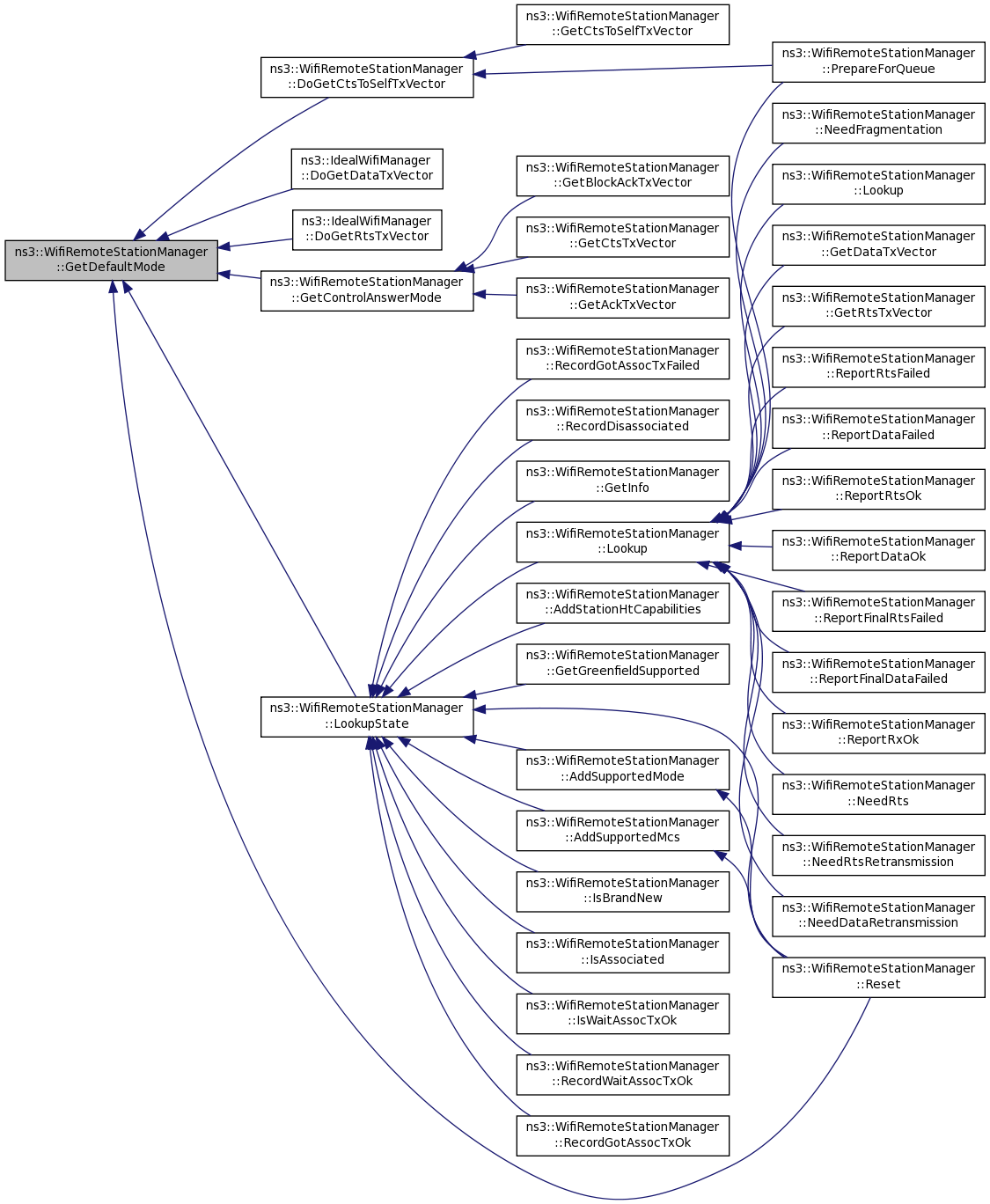

WifiMode GetDefaultMode (void) const

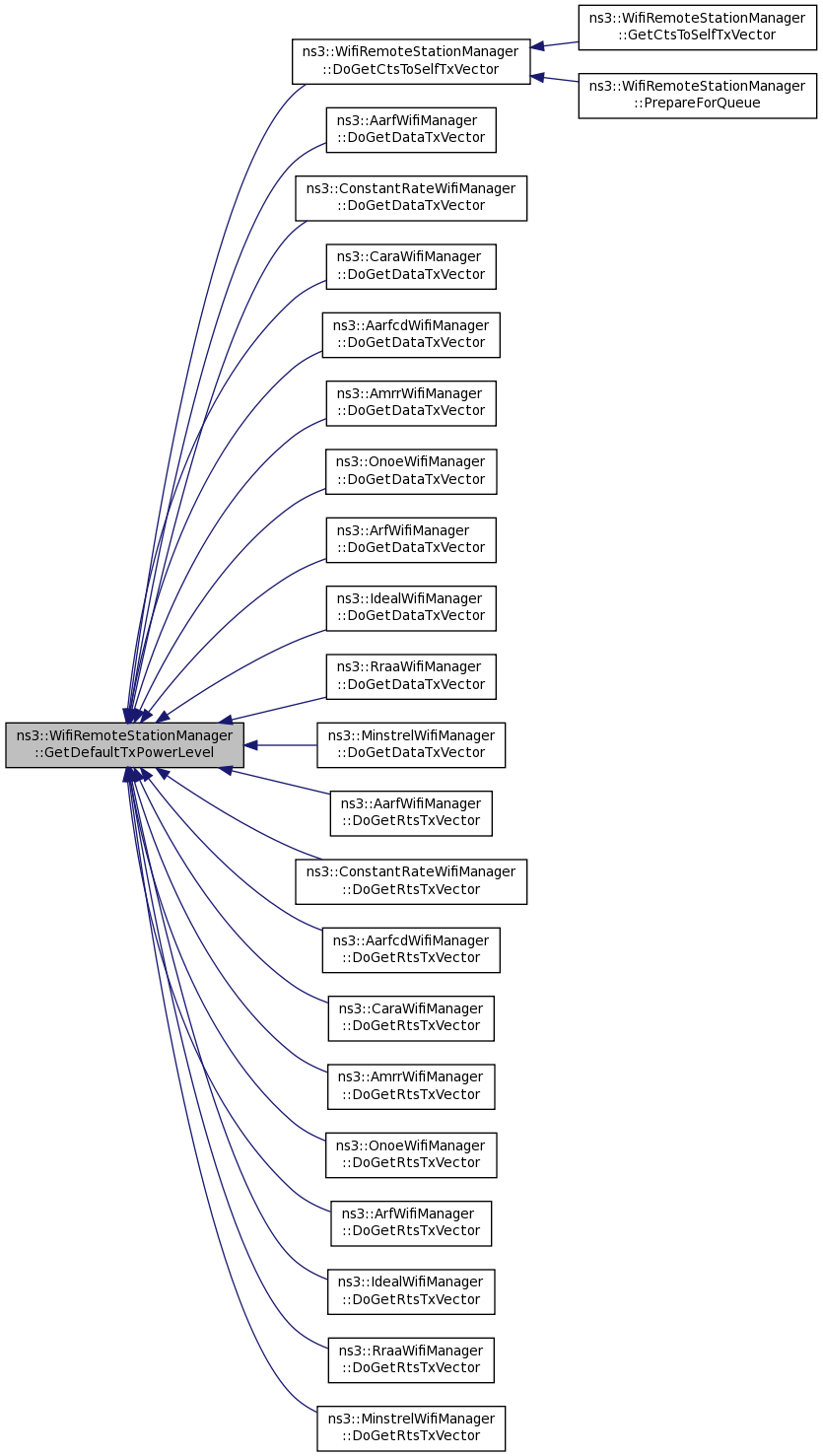

uint8_t GetDefaultTxPowerLevel (void) const

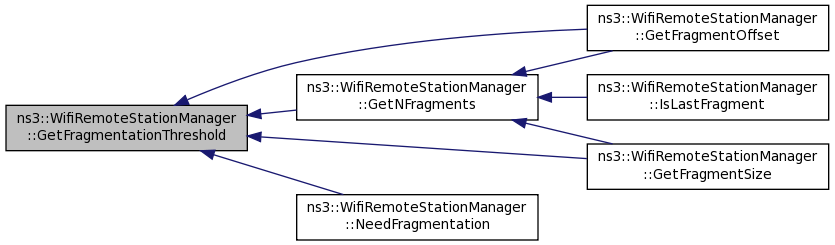

uint32_t GetFragmentationThreshold (void) const

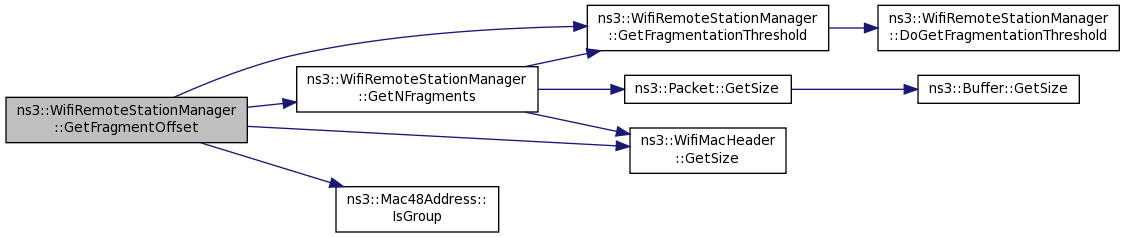

uint32_t GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

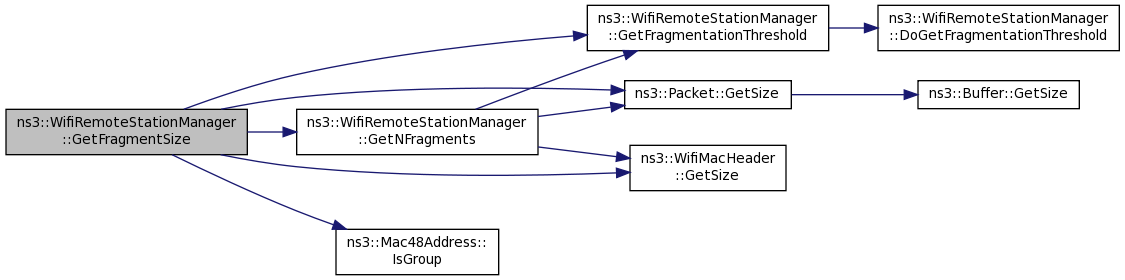

uint32_t GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

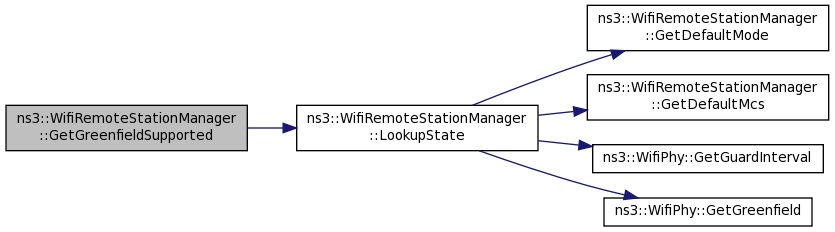

bool GetGreenfieldSupported (Mac48Address address) const

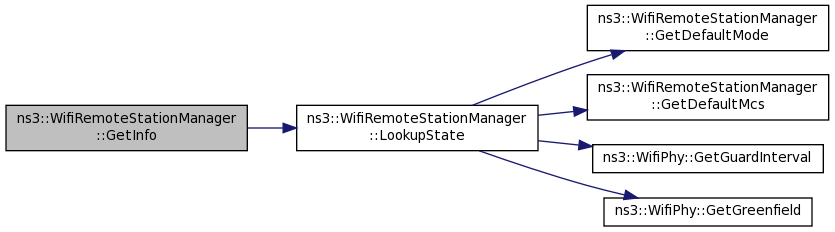

WifiRemoteStationInfo GetInfo (Mac48Address address)

uint32_t GetMaxSlrc (void) const

uint32_t GetMaxSsrc (void) const

uint32_t GetNBasicMcs (void) const

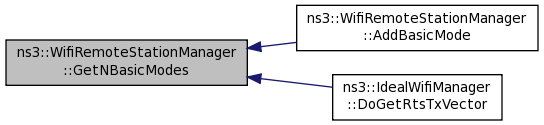

uint32_t GetNBasicModes (void) const

WifiMode GetNonUnicastMode (void) const

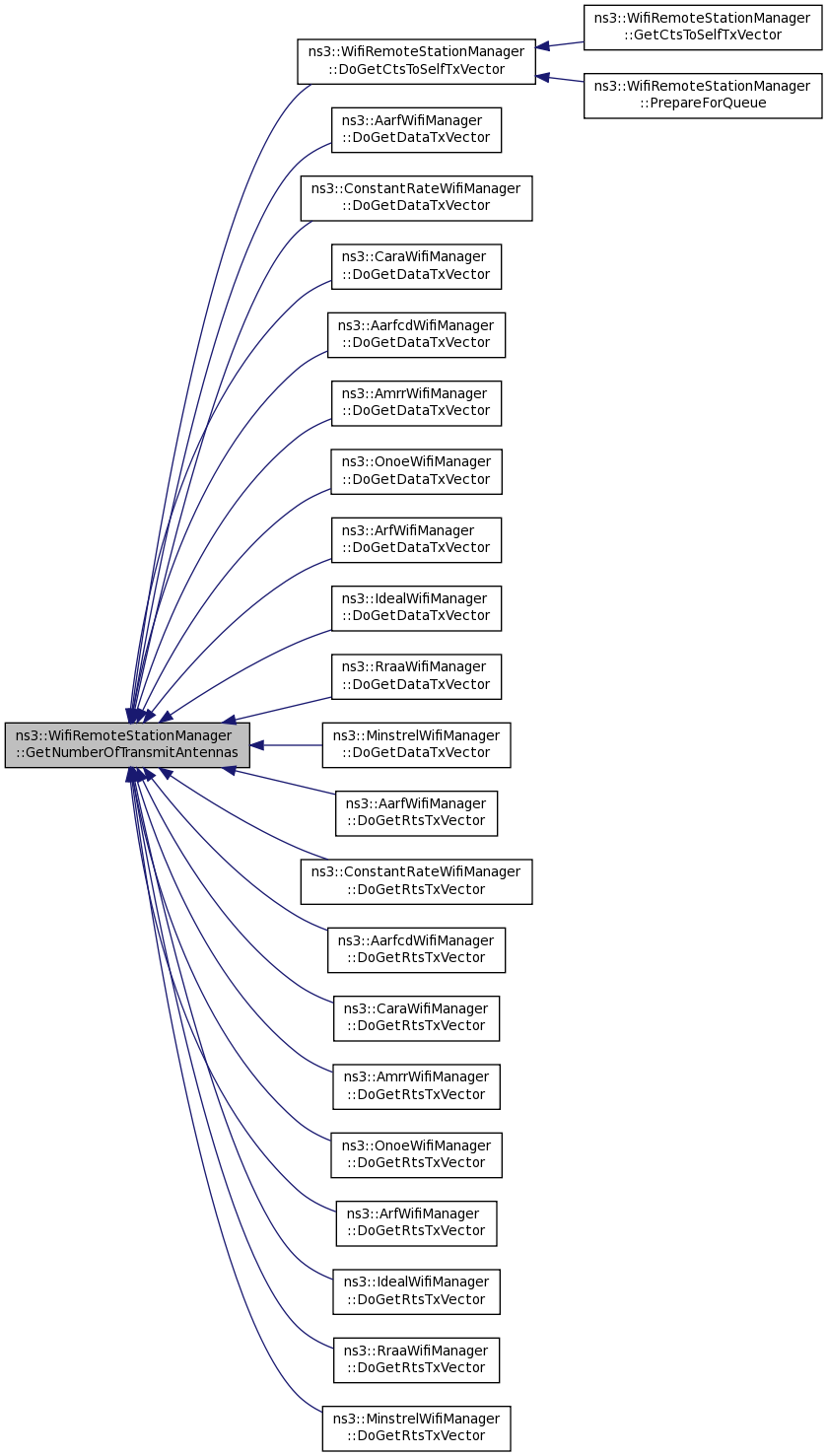

uint32_t GetNumberOfTransmitAntennas (void)

uint32_t GetRtsCtsThreshold (void) const

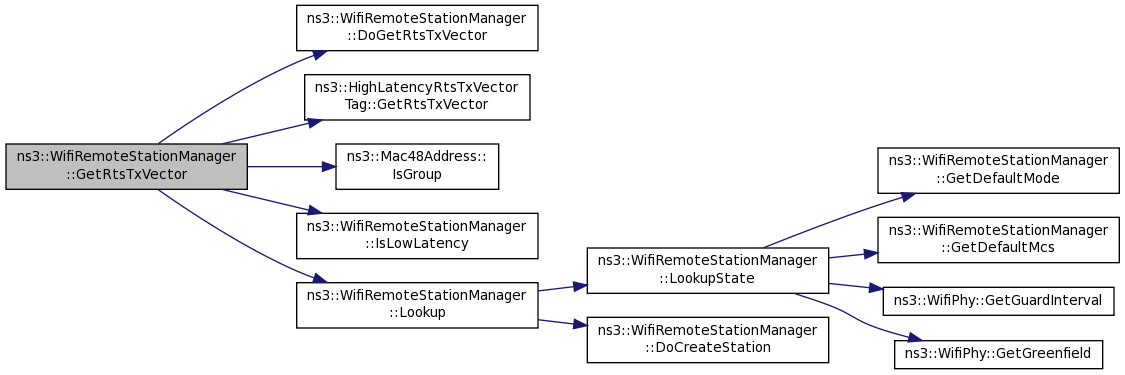

WifiTxVector GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool HasHtSupported (void) const

bool IsAssociated (Mac48Address address) const

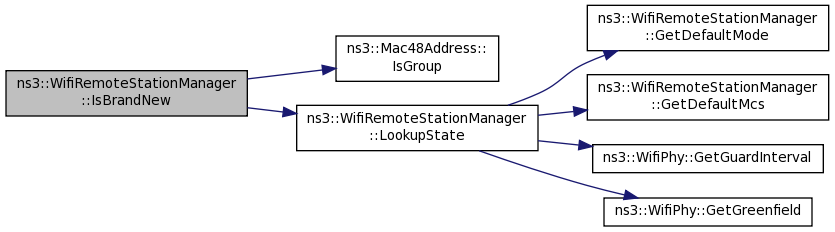

bool IsBrandNew (Mac48Address address) const

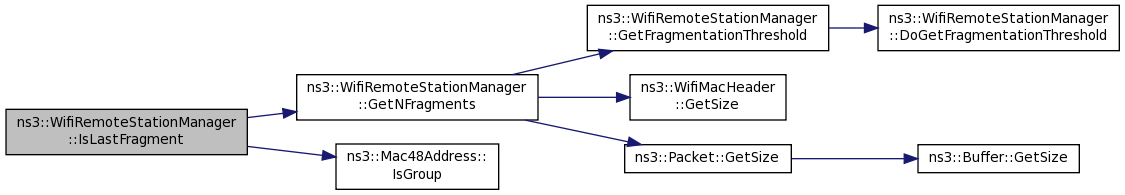

bool IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool IsWaitAssocTxOk (Mac48Address address) const

bool NeedCtsToSelf (WifiTxVector txVector)

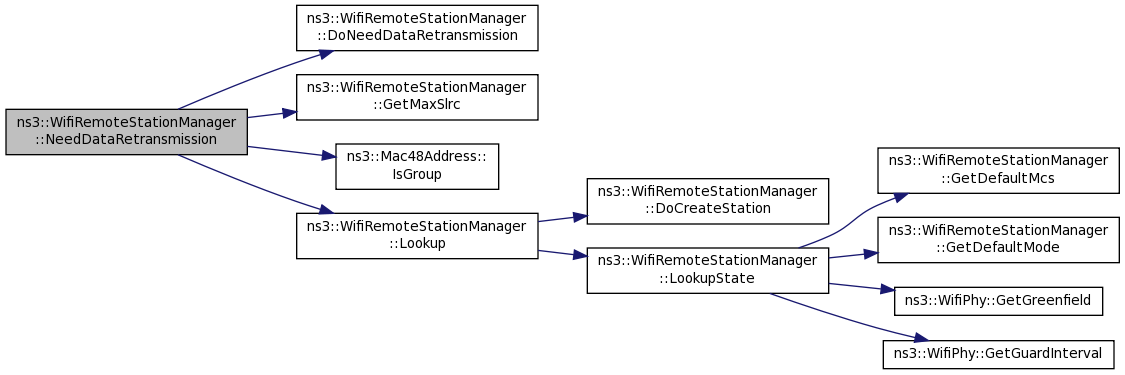

bool NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

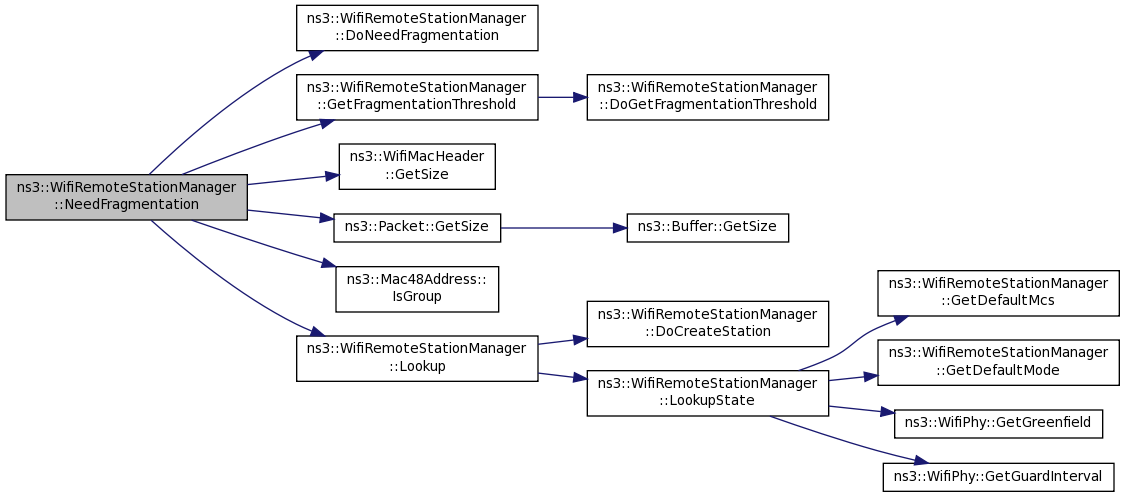

bool NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

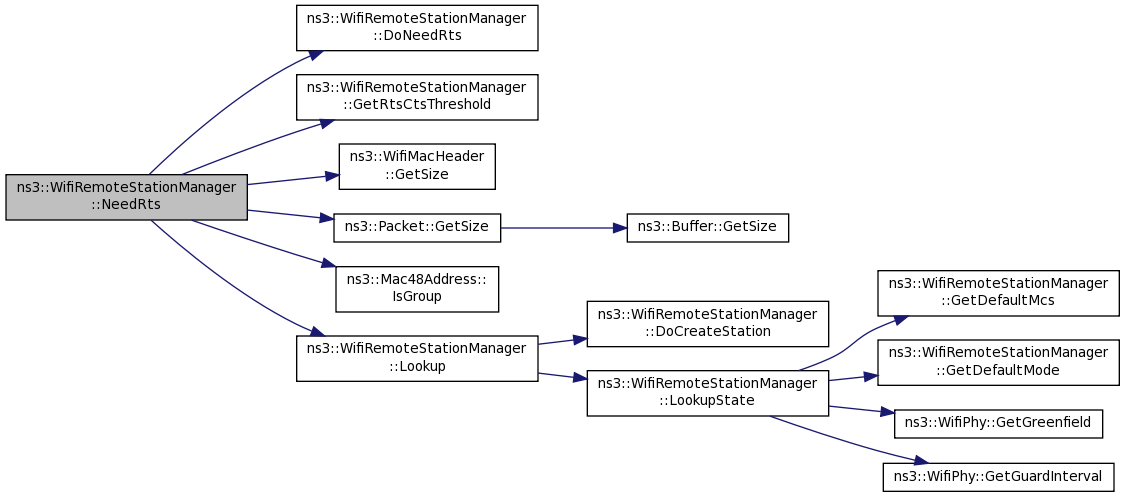

bool NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

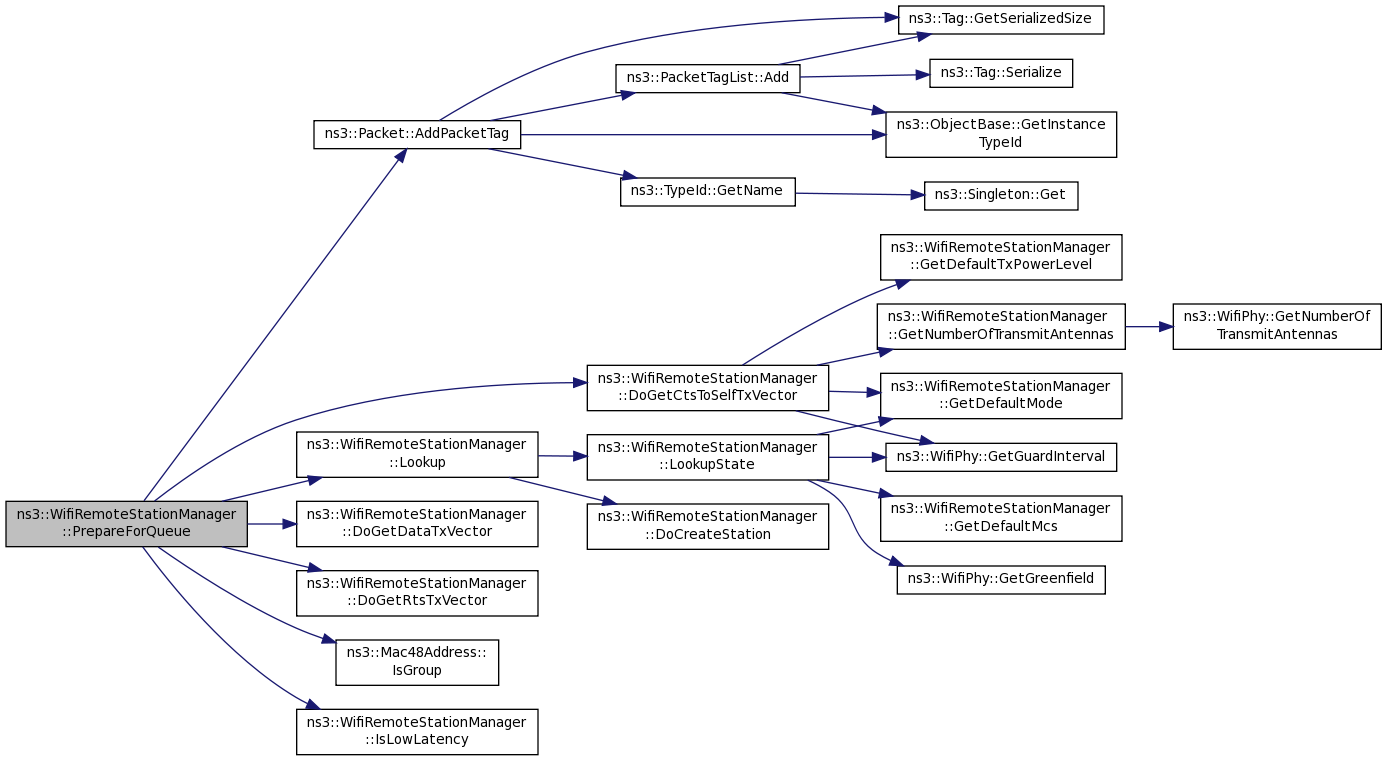

void PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

void RecordDisassociated (Mac48Address address)

void RecordGotAssocTxFailed (Mac48Address address)

void RecordGotAssocTxOk (Mac48Address address)

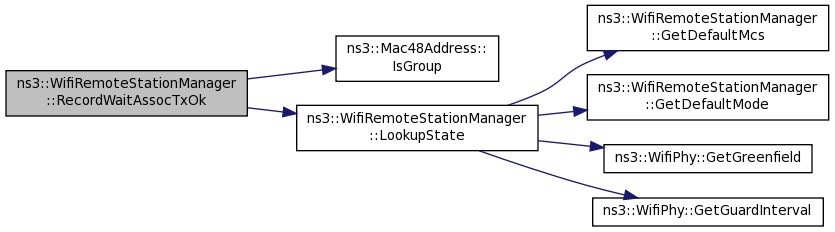

void RecordWaitAssocTxOk (Mac48Address address)

void ReportDataFailed (Mac48Address address, const WifiMacHeader *header)

void ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)

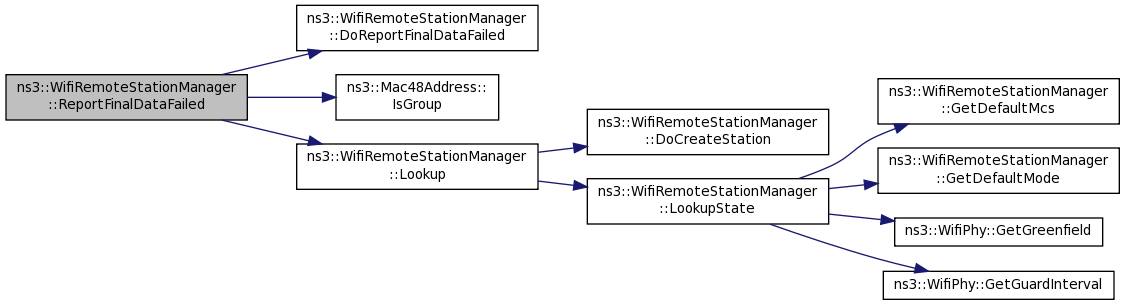

void ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)

void ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)

void ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)

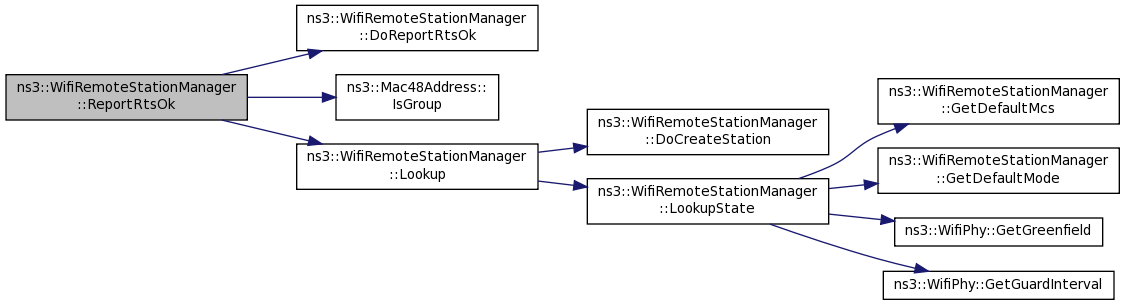

void ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)

void ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)

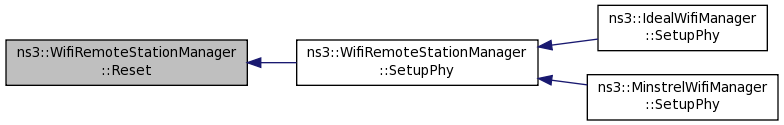

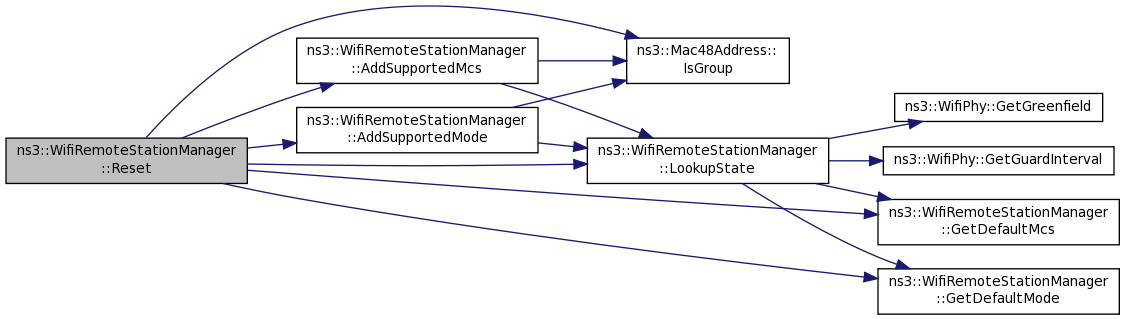

void Reset (void)

void Reset (Mac48Address address)

void SetDefaultTxPowerLevel (uint8_t txPower)

void SetFragmentationThreshold (uint32_t threshold)

void SetHtSupported (bool enable)

void SetMaxSlrc (uint32_t maxSlrc)

void SetMaxSsrc (uint32_t maxSsrc)

void SetRtsCtsThreshold (uint32_t threshold)

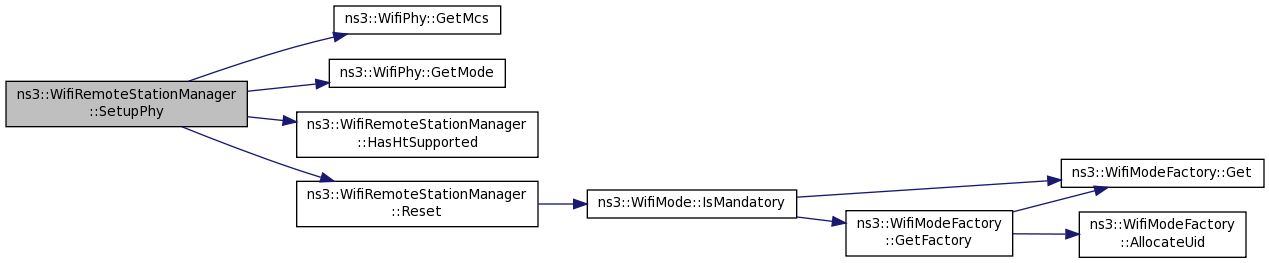

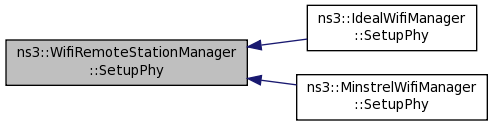

virtual void SetupPhy (Ptr< WifiPhy > phy)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Protected Member Functions

virtual void DoDispose (void)

bool GetGreenfield (const WifiRemoteStation *station) const

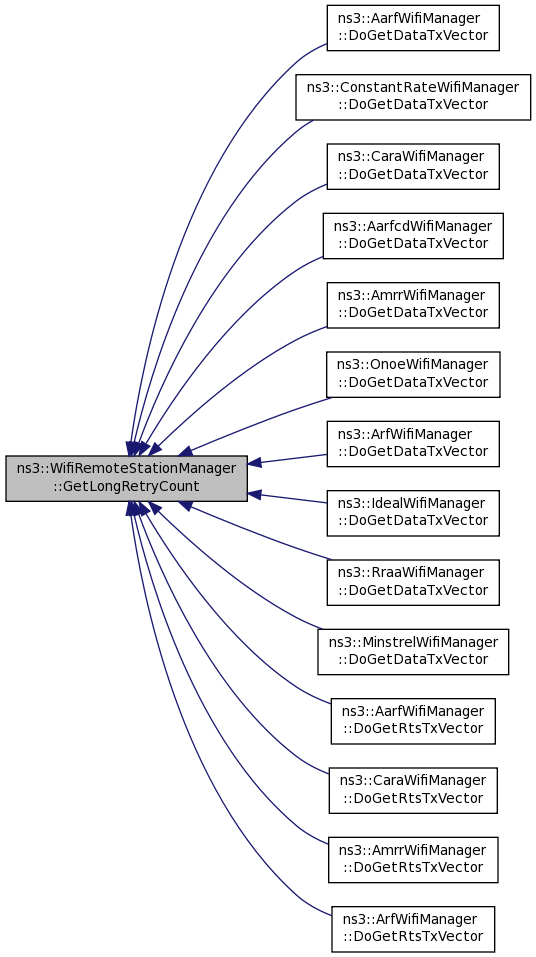

uint32_t GetLongRetryCount (const WifiRemoteStation *station) const

uint8_t GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const

uint32_t GetNMcsSupported (const WifiRemoteStation *station) const

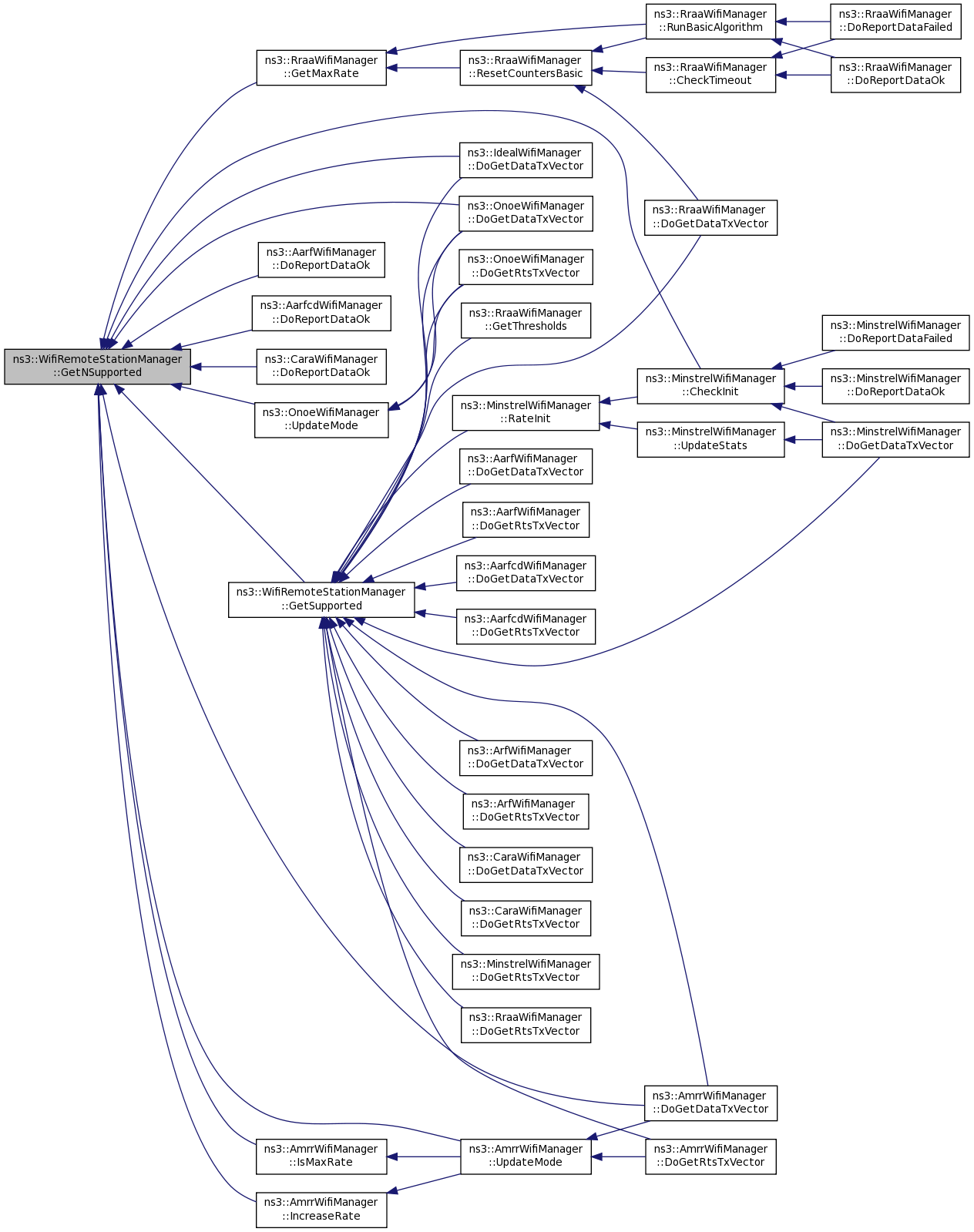

uint32_t GetNSupported (const WifiRemoteStation *station) const

uint32_t GetNumberOfReceiveAntennas (const WifiRemoteStation *station) const

uint32_t GetNumberOfTransmitAntennas (const WifiRemoteStation *station) const

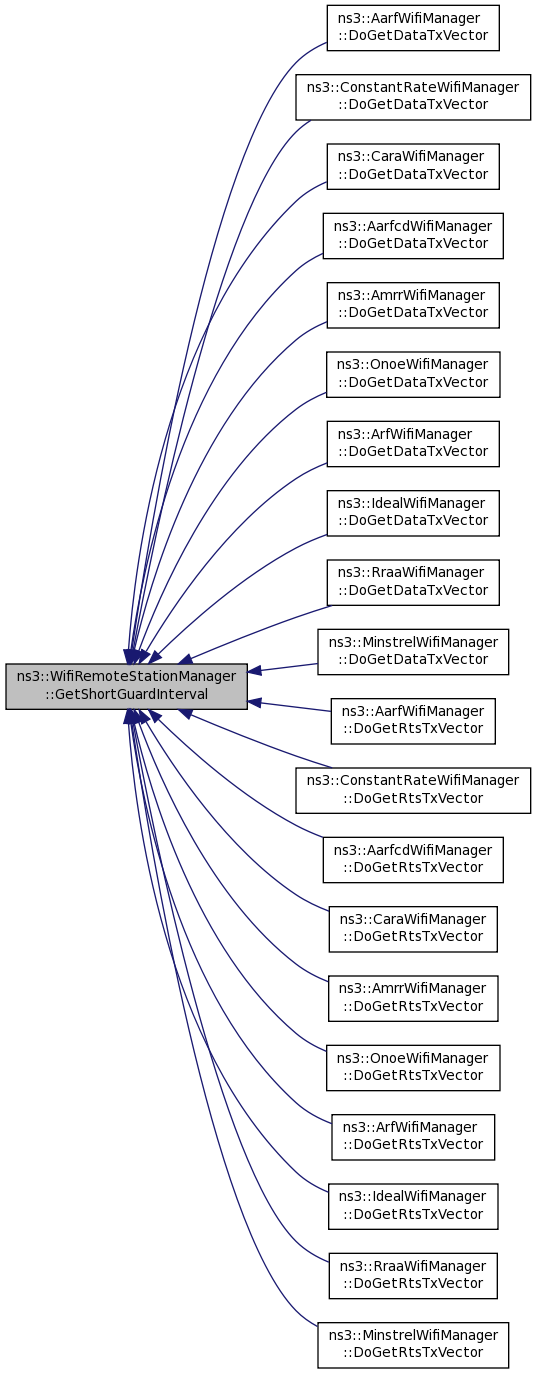

bool GetShortGuardInterval (const WifiRemoteStation *station) const

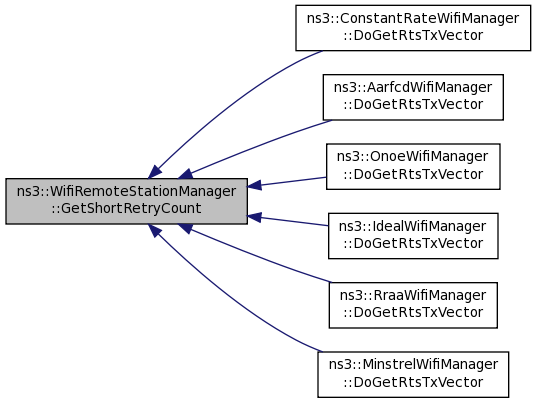

uint32_t GetShortRetryCount (const WifiRemoteStation *station) const

bool GetStbc (const WifiRemoteStation *station) const

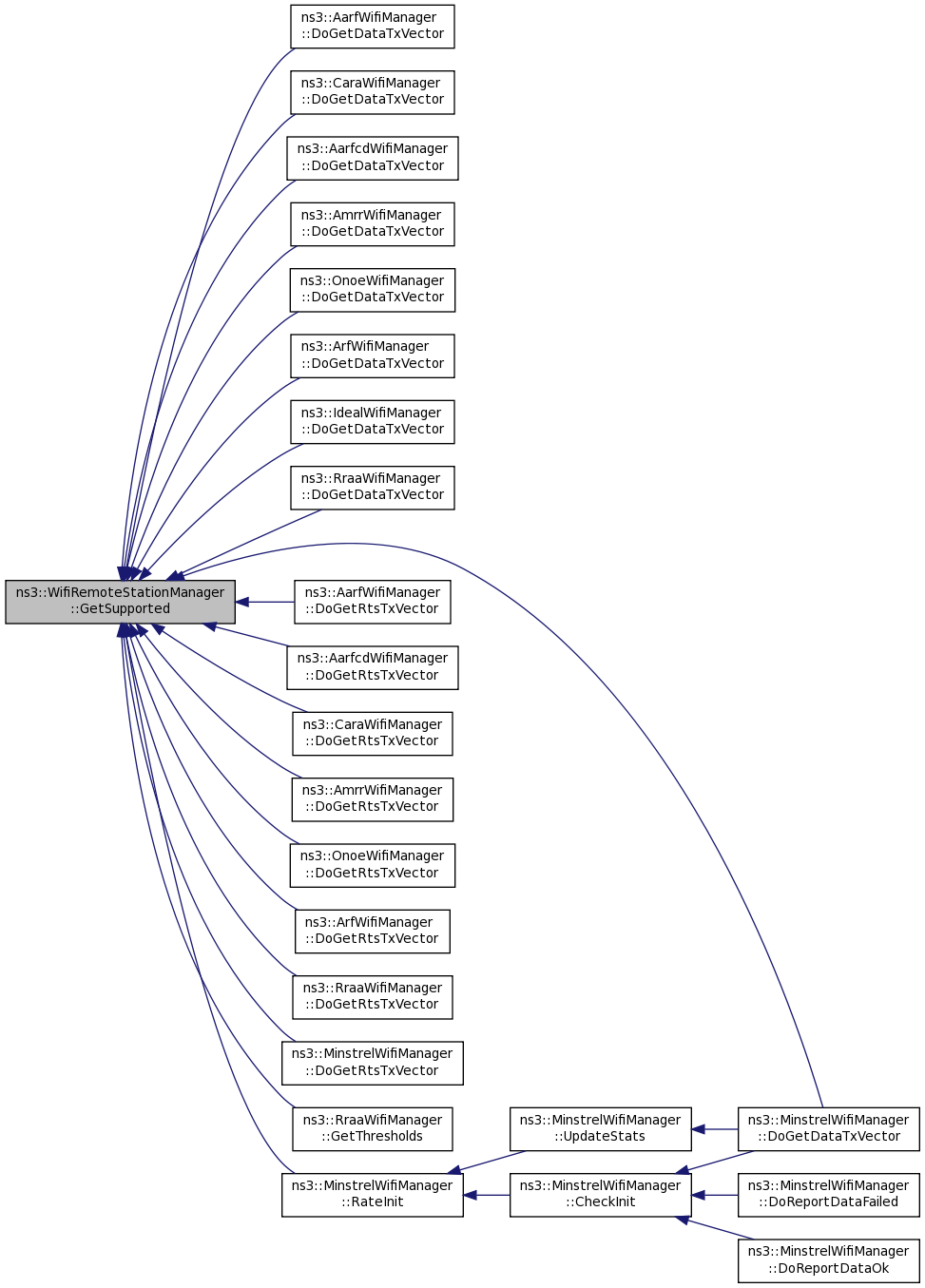

WifiMode GetSupported (const WifiRemoteStation *station, uint32_t i) const

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Private Types

typedef std::vector
< WifiRemoteStation * > 		Stations

typedef std::vector
< WifiRemoteStationState * > 		StationStates


Private Member Functions

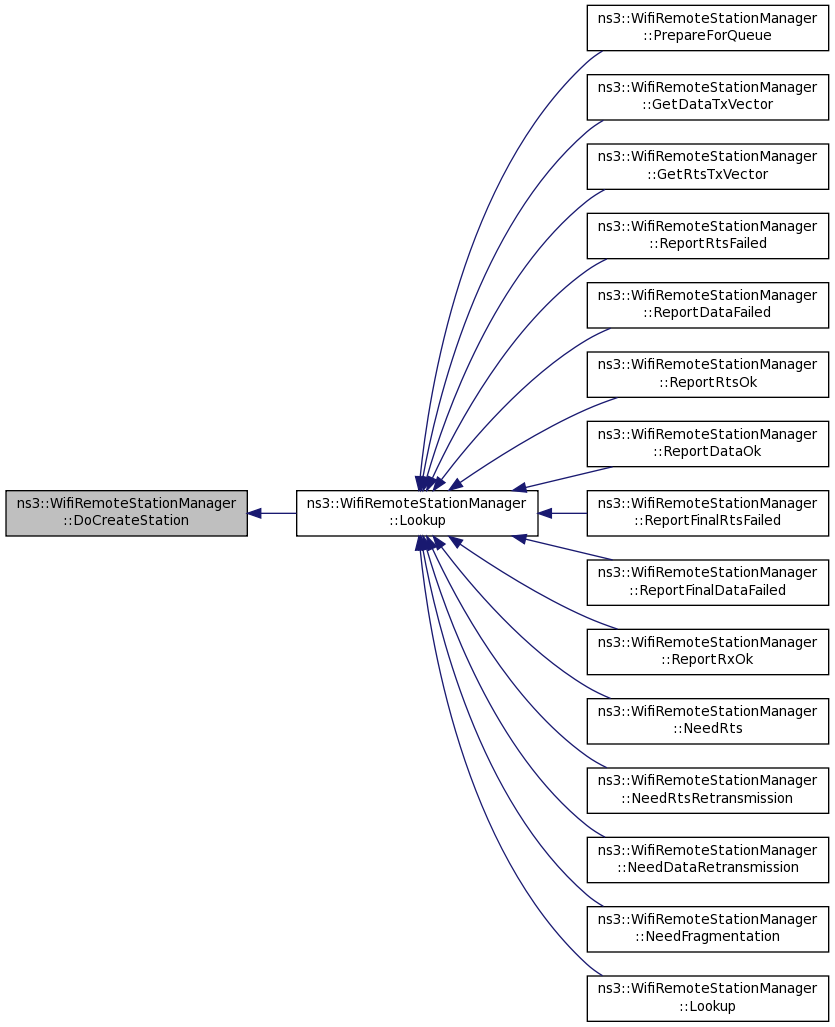

virtual WifiRemoteStation * DoCreateStation (void) const =0

virtual bool DoGetAckTxGuardInterval (Mac48Address address, WifiMode ackMode)

virtual uint8_t DoGetAckTxNess (Mac48Address address, WifiMode ackMode)

virtual uint8_t DoGetAckTxNss (Mac48Address address, WifiMode ackMode)

virtual uint8_t DoGetAckTxPowerLevel (Mac48Address address, WifiMode ackMode)

virtual bool DoGetAckTxStbc (Mac48Address address, WifiMode ackMode)

virtual bool DoGetBlockAckTxGuardInterval (Mac48Address address, WifiMode blockAckMode)

virtual uint8_t DoGetBlockAckTxNess (Mac48Address address, WifiMode blockAckMode)

virtual uint8_t DoGetBlockAckTxNss (Mac48Address address, WifiMode blockAckMode)

virtual uint8_t DoGetBlockAckTxPowerLevel (Mac48Address address, WifiMode blockAckMode)

virtual bool DoGetBlockAckTxStbc (Mac48Address address, WifiMode blockAckMode)

virtual bool DoGetCtsTxGuardInterval (Mac48Address address, WifiMode ctsMode)

virtual uint8_t DoGetCtsTxNess (Mac48Address address, WifiMode ctsMode)

virtual uint8_t DoGetCtsTxNss (Mac48Address address, WifiMode ctsMode)

virtual uint8_t DoGetCtsTxPowerLevel (Mac48Address address, WifiMode ctsMode)

virtual bool DoGetCtsTxStbc (Mac48Address address, WifiMode ctsMode)

virtual WifiTxVector DoGetDataTxVector (WifiRemoteStation *station, uint32_t size)=0

uint32_t DoGetFragmentationThreshold (void) const

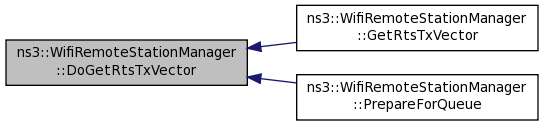

virtual WifiTxVector DoGetRtsTxVector (WifiRemoteStation *station)=0

virtual bool DoNeedDataRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual bool DoNeedFragmentation (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual bool DoNeedRts (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual bool DoNeedRtsRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)

virtual void DoReportDataFailed (WifiRemoteStation *station)=0

virtual void DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)=0

virtual void DoReportFinalDataFailed (WifiRemoteStation *station)=0

virtual void DoReportFinalRtsFailed (WifiRemoteStation *station)=0

virtual void DoReportRtsFailed (WifiRemoteStation *station)=0

virtual void DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)=0

virtual void DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)=0

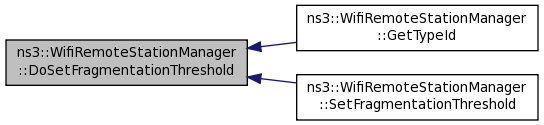

void DoSetFragmentationThreshold (uint32_t threshold)

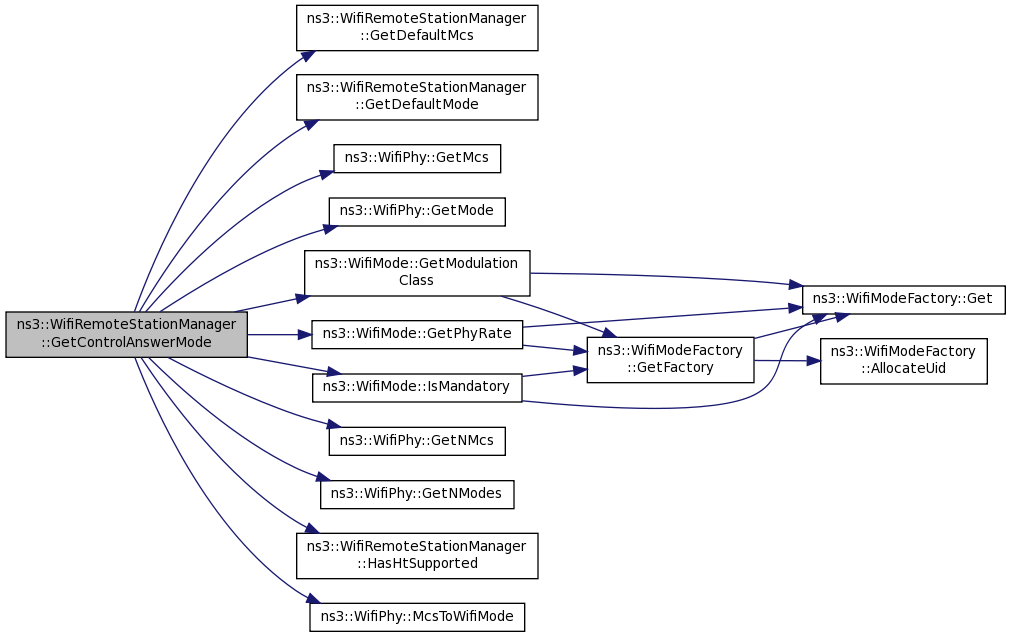

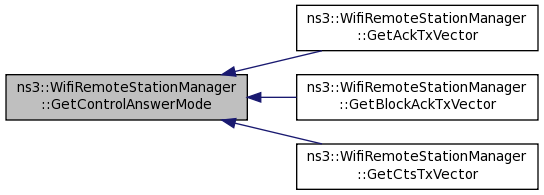

WifiMode GetControlAnswerMode (Mac48Address address, WifiMode reqMode)

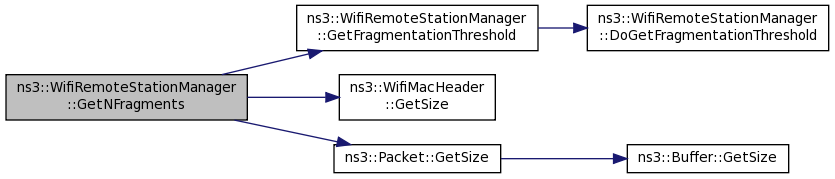

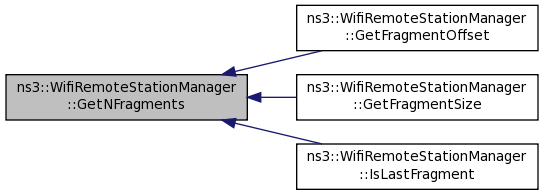

uint32_t GetNFragments (const WifiMacHeader *header, Ptr< const Packet > packet)

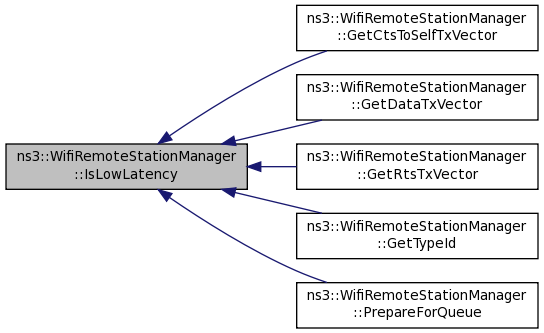

virtual bool IsLowLatency (void) const =0

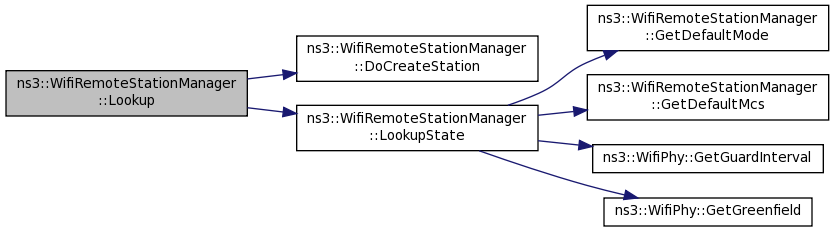

WifiRemoteStation * Lookup (Mac48Address address, uint8_t tid) const

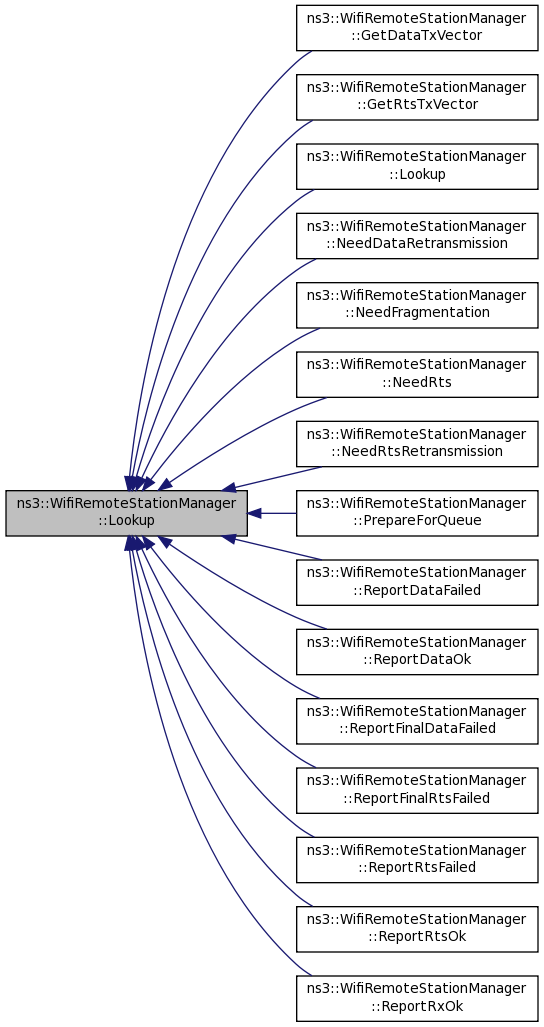

WifiRemoteStation * Lookup (Mac48Address address, const WifiMacHeader *header) const
 Find a remote station by its remote address and TID taken from MAC header. More...

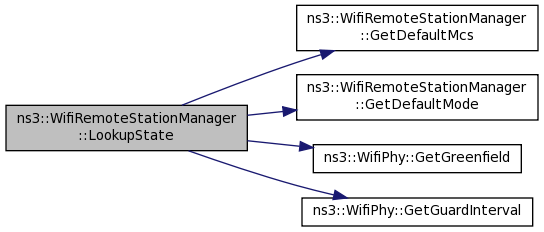

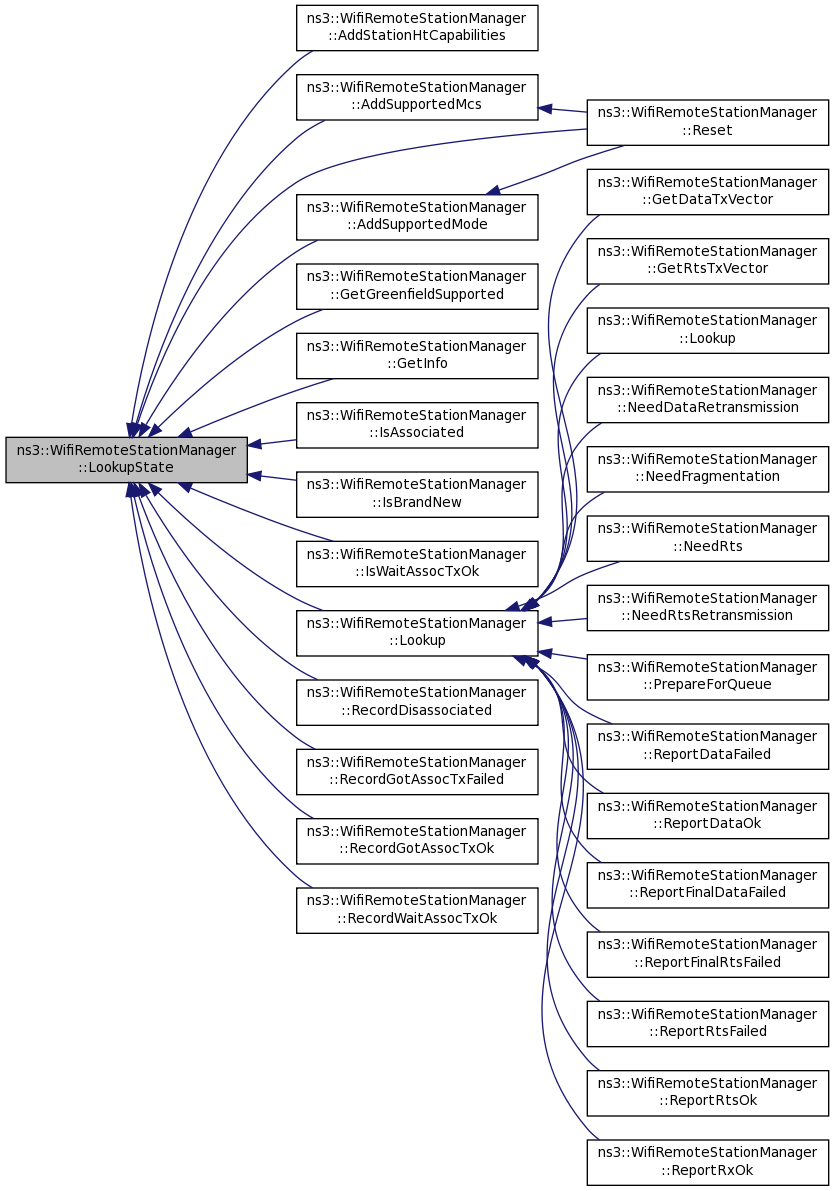

WifiRemoteStationState * LookupState (Mac48Address address) const


Private Attributes

WifiMcsList m_bssBasicMcsSet

WifiModeList m_bssBasicRateSet

uint8_t m_defaultTxMcs

WifiMode m_defaultTxMode

uint8_t m_defaultTxPowerLevel

uint32_t m_fragmentationThreshold

bool m_htSupported

TracedCallback< Mac48Address > m_macTxDataFailed

TracedCallback< Mac48Address > m_macTxFinalDataFailed

TracedCallback< Mac48Address > m_macTxFinalRtsFailed

TracedCallback< Mac48Address > m_macTxRtsFailed

uint32_t m_maxSlrc

uint32_t m_maxSsrc

WifiMode m_nonUnicastMode

uint32_t m_rtsCtsThreshold

StationStates m_states

Stations m_stations

Ptr< WifiPhy > m_wifiPhy


Detailed Description

hold a list of per-remote-station state.

See also
ns3::WifiRemoteStation.

Config Paths

ns3::WifiRemoteStationManager is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager

Attributes

  • IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
  • FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read
  • DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do notimplement TX power control.

TraceSources

  • MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
  • MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
  • MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
  • MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 83 of file wifi-remote-station-manager.h.

Member Typedef Documentation

typedef std::vector<WifiRemoteStation *> ns3::WifiRemoteStationManager::Stations
private

Definition at line 498 of file wifi-remote-station-manager.h.

typedef std::vector<WifiRemoteStationState *> ns3::WifiRemoteStationManager::StationStates
private

Definition at line 499 of file wifi-remote-station-manager.h.

Constructor & Destructor Documentation

ns3::WifiRemoteStationManager::WifiRemoteStationManager ( )

Definition at line 307 of file wifi-remote-station-manager.cc.

ns3::WifiRemoteStationManager::~WifiRemoteStationManager ( )
virtual

Definition at line 311 of file wifi-remote-station-manager.cc.

Member Function Documentation

void ns3::WifiRemoteStationManager::AddBasicMcs ( uint8_t  mcs)

Definition at line 1250 of file wifi-remote-station-manager.cc.

References GetBasicMcs(), GetNBasicMcs(), and m_bssBasicMcsSet.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::AddBasicMode ( WifiMode  mode)

Definition at line 1226 of file wifi-remote-station-manager.cc.

References GetBasicMode(), GetNBasicModes(), and m_bssBasicRateSet.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::AddStationHtCapabilities ( Mac48Address  from,
HtCapabilities  htcapabilities
)

Definition at line 1187 of file wifi-remote-station-manager.cc.

References ns3::HtCapabilities::GetGreenfield(), ns3::HtCapabilities::GetShortGuardInterval20(), LookupState(), ns3::WifiRemoteStationState::m_greenfield, and ns3::WifiRemoteStationState::m_shortGuardInterval.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedMcs ( Mac48Address  address,
uint8_t  mcs
)

Definition at line 447 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), and NS_ASSERT.

Referenced by Reset().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedMode ( Mac48Address  address,
WifiMode  mode
)

Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. The set of supported modes includes the BSSBasicRateSet.

Definition at line 411 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), and NS_ASSERT.

Referenced by Reset().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual WifiRemoteStation* ns3::WifiRemoteStationManager::DoCreateStation ( void  ) const
privatepure virtual
Returns
a new station data structure

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by Lookup().

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::DoDispose ( void  )
protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 315 of file wifi-remote-station-manager.cc.

References m_states, and m_stations.

bool ns3::WifiRemoteStationManager::DoGetAckTxGuardInterval ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual

Definition at line 1061 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetGuardInterval(), and m_wifiPhy.

Referenced by GetAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxNess ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual

Definition at line 1072 of file wifi-remote-station-manager.cc.

Referenced by GetAckTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxNss ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual

Definition at line 1067 of file wifi-remote-station-manager.cc.

Referenced by GetAckTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetAckTxPowerLevel ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual
Parameters
addressthe address of the recipient of the ACK
ctsModethe mode to be used for the ACK
Returns
the power level to be used to send the ACK

Definition at line 1055 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetAckTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetAckTxStbc ( Mac48Address  address,
WifiMode  ackMode
)
privatevirtual

Definition at line 1077 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetBlockAckTxGuardInterval ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual

Definition at line 1089 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetGuardInterval(), and m_wifiPhy.

Referenced by GetBlockAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxNess ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual

Definition at line 1100 of file wifi-remote-station-manager.cc.

Referenced by GetBlockAckTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxNss ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual

Definition at line 1095 of file wifi-remote-station-manager.cc.

Referenced by GetBlockAckTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetBlockAckTxPowerLevel ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual
Parameters
addressthe address of the recipient of the Block ACK
ctsModethe mode to be used for the Block ACK
Returns
the power level to be used to send the Block ACK

Definition at line 1083 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetBlockAckTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetBlockAckTxStbc ( Mac48Address  address,
WifiMode  blockAckMode
)
privatevirtual

Definition at line 1105 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetBlockAckTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::DoGetCtsToSelfTxVector ( void  )

Definition at line 587 of file wifi-remote-station-manager.cc.

References GetDefaultMode(), GetDefaultTxPowerLevel(), ns3::WifiPhy::GetGuardInterval(), GetNumberOfTransmitAntennas(), and m_wifiPhy.

Referenced by GetCtsToSelfTxVector(), and PrepareForQueue().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetCtsTxGuardInterval ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual

Definition at line 1033 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetGuardInterval(), and m_wifiPhy.

Referenced by GetCtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxNess ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual

Definition at line 1044 of file wifi-remote-station-manager.cc.

Referenced by GetCtsTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxNss ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual

Definition at line 1039 of file wifi-remote-station-manager.cc.

Referenced by GetCtsTxVector().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::DoGetCtsTxPowerLevel ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual
Parameters
addressthe address of the recipient of the CTS
ctsModethe mode to be used for the CTS
Returns
the power level to be used to send the CTS

Definition at line 1027 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by GetCtsTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoGetCtsTxStbc ( Mac48Address  address,
WifiMode  ctsMode
)
privatevirtual

Definition at line 1049 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetStbc(), and m_wifiPhy.

Referenced by GetCtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

virtual WifiTxVector ns3::WifiRemoteStationManager::DoGetDataTxVector ( WifiRemoteStation *  station,
uint32_t  size
)
privatepure virtual
Parameters
stationthe station with which we need to communicate
sizesize of the packet or fragment we want to send
Returns
the transmission mode to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by GetDataTxVector(), and PrepareForQueue().

+ Here is the caller graph for this function:

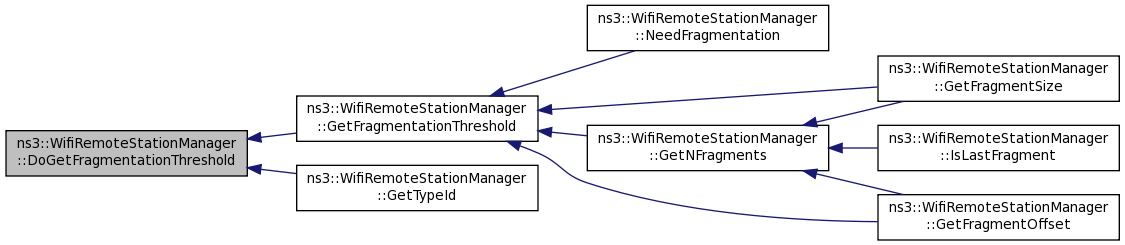

uint32_t ns3::WifiRemoteStationManager::DoGetFragmentationThreshold ( void  ) const
private

Definition at line 779 of file wifi-remote-station-manager.cc.

References m_fragmentationThreshold.

Referenced by GetFragmentationThreshold(), and GetTypeId().

+ Here is the caller graph for this function:

virtual WifiTxVector ns3::WifiRemoteStationManager::DoGetRtsTxVector ( WifiRemoteStation *  station)
privatepure virtual
Parameters
stationthe station with which we need to communicate
Returns
the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by GetRtsTxVector(), and PrepareForQueue().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedDataRetransmission ( WifiRemoteStation *  station,
Ptr< const Packet >  packet,
bool  normally
)
privatevirtual
Parameters
stationthe station with which we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 data retransmission mechanism would request that the data is retransmitted or not.
Returns
true if we want to resend a packet after a failed transmission attempt, false otherwise.

Note: This method is called after a unicast packet transmission has been attempted and has failed.

Definition at line 1300 of file wifi-remote-station-manager.cc.

Referenced by NeedDataRetransmission().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedFragmentation ( WifiRemoteStation *  station,
Ptr< const Packet >  packet,
bool  normally
)
privatevirtual
Parameters
stationthe station with which we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 data fragmentation mechanism would request that the data packet is fragmented or not.
Returns
true if this packet should be fragmented, false otherwise.

Note: This method is called before sending a unicast packet.

Definition at line 1306 of file wifi-remote-station-manager.cc.

Referenced by NeedFragmentation().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedRts ( WifiRemoteStation *  station,
Ptr< const Packet >  packet,
bool  normally
)
privatevirtual
Parameters
stationthe station with which we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 rts enable mechanism would request that the rts is sent or not.
Returns
true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Note: This method is called before a unicast packet is sent on the medium.

Reimplemented in ns3::RraaWifiManager, ns3::AarfcdWifiManager, and ns3::CaraWifiManager.

Definition at line 1288 of file wifi-remote-station-manager.cc.

Referenced by NeedRts().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedRtsRetransmission ( WifiRemoteStation *  station,
Ptr< const Packet >  packet,
bool  normally
)
privatevirtual
Parameters
stationthe station with which we need to communicate
packetthe packet to send
normallyindicates whether the normal 802.11 rts enable mechanism would request that the rts is retransmitted or not.
Returns
true if we want to restart a failed RTS/CTS handshake, false otherwise.

Note: This method is called after an rts/cts handshake has been attempted and has failed.

Definition at line 1294 of file wifi-remote-station-manager.cc.

Referenced by NeedRtsRetransmission().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportDataFailed ( WifiRemoteStation *  station)
privatepure virtual

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportDataFailed().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportDataOk ( WifiRemoteStation *  station,
double  ackSnr,
WifiMode  ackMode,
double  dataSnr
)
privatepure virtual

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportDataOk().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportFinalDataFailed ( WifiRemoteStation *  station)
privatepure virtual

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportFinalDataFailed().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportFinalRtsFailed ( WifiRemoteStation *  station)
privatepure virtual

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportFinalRtsFailed().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRtsFailed ( WifiRemoteStation *  station)
privatepure virtual

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportRtsFailed().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRtsOk ( WifiRemoteStation *  station,
double  ctsSnr,
WifiMode  ctsMode,
double  rtsSnr
)
privatepure virtual

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportRtsOk().

+ Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRxOk ( WifiRemoteStation *  station,
double  rxSnr,
WifiMode  txMode
)
privatepure virtual

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by ReportRxOk().

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::DoSetFragmentationThreshold ( uint32_t  threshold)
private

Definition at line 750 of file wifi-remote-station-manager.cc.

References m_fragmentationThreshold, and NS_LOG_WARN.

Referenced by GetTypeId(), and SetFragmentationThreshold().

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetAckTxVector ( Mac48Address  address,
WifiMode  dataMode
)
Parameters
address
dataModethe transmission mode used to send an ACK we just received
Returns
the transmission mode to use for the ACK to complete the data/ACK handshake.

Definition at line 1000 of file wifi-remote-station-manager.cc.

References DoGetAckTxGuardInterval(), DoGetAckTxNess(), DoGetAckTxNss(), DoGetAckTxPowerLevel(), DoGetAckTxStbc(), GetControlAnswerMode(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WifiTxVector::SetMode().

+ Here is the call graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetBasicMcs ( uint32_t  i) const

Definition at line 1268 of file wifi-remote-station-manager.cc.

References m_bssBasicMcsSet, and NS_ASSERT.

Referenced by AddBasicMcs().

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetBasicMode ( uint32_t  i) const

Definition at line 1243 of file wifi-remote-station-manager.cc.

References m_bssBasicRateSet, and NS_ASSERT.

Referenced by AddBasicMode(), ns3::IdealWifiManager::DoGetRtsTxVector(), and GetNonUnicastMode().

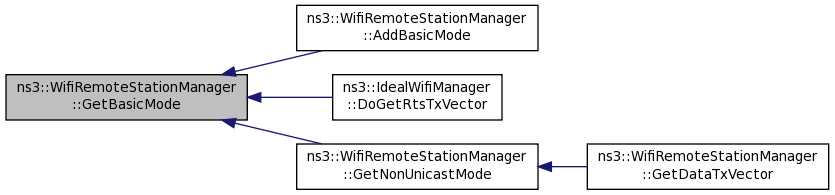

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetBlockAckTxVector ( Mac48Address  address,
WifiMode  dataMode
)
Parameters
address
dataModethe transmission mode used to send an ACK we just received
Returns
the transmission mode to use for the ACK to complete the data/ACK handshake.

Definition at line 1013 of file wifi-remote-station-manager.cc.

References DoGetBlockAckTxGuardInterval(), DoGetBlockAckTxNess(), DoGetBlockAckTxNss(), DoGetBlockAckTxPowerLevel(), DoGetBlockAckTxStbc(), GetControlAnswerMode(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WifiTxVector::SetMode().

+ Here is the call graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetControlAnswerMode ( Mac48Address  address,
WifiMode  reqMode
)
private

The standard has relatively unambiguous rules for selecting a control response rate (the below is quoted from IEEE 802.11-2007, Section 9.6):

To allow the transmitting STA to calculate the contents of the Duration/ID field, a STA responding to a received frame shall transmit its Control Response frame (either CTS or ACK), other than the BlockAck control frame, at the highest rate in the BSSBasicRateSet parameter that is less than or equal to the rate of the immediately previous frame in the frame exchange sequence (as defined in 9.12) and that is of the same modulation class (see 9.6.1) as the received frame...

If no suitable basic rate was found, we search the mandatory rates. The standard (IEEE 802.11-2007, Section 9.6) says:

...If no rate contained in the BSSBasicRateSet parameter meets these conditions, then the control frame sent in response to a received frame shall be transmitted at the highest mandatory rate of the PHY that is less than or equal to the rate of the received frame, and that is of the same modulation class as the received frame. In addition, the Control Response frame shall be sent using the same PHY options as the received frame, unless they conflict with the requirement to use the BSSBasicRateSet parameter.

Todo:
Note that we're ignoring the last sentence for now, because there is not yet any manipulation here of PHY options.

If we still haven't found a suitable rate for the response then someone has messed up the simulation config. This probably means that the WifiPhyStandard is not set correctly, or that a rate that is not supported by the PHY has been explicitly requested in a WifiRemoteStationManager (or descendant) configuration.

Either way, it is serious - we can either disobey the standard or fail, and I have chosen to do the latter...

Definition at line 838 of file wifi-remote-station-manager.cc.

References GetDefaultMcs(), GetDefaultMode(), ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNMcs(), ns3::WifiPhy::GetNModes(), ns3::WifiMode::GetPhyRate(), HasHtSupported(), ns3::WifiMode::IsMandatory(), m_bssBasicMcsSet, m_bssBasicRateSet, m_wifiPhy, ns3::WifiPhy::McsToWifiMode(), and NS_FATAL_ERROR.

Referenced by GetAckTxVector(), GetBlockAckTxVector(), and GetCtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetCtsToSelfTxVector ( const WifiMacHeader *  header,
Ptr< const Packet >  packet
)

Definition at line 568 of file wifi-remote-station-manager.cc.

References DoGetCtsToSelfTxVector(), ns3::HighLatencyCtsToSelfTxVectorTag::GetCtsToSelfTxVector(), IsLowLatency(), and NS_ASSERT.

+ Here is the call graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetCtsTxVector ( Mac48Address  address,
WifiMode  rtsMode
)
Parameters
addressremote address
rtsModethe transmission mode used to send an RTS we just received
Returns
the transmission mode to use for the CTS to complete the RTS/CTS handshake.

Definition at line 987 of file wifi-remote-station-manager.cc.

References DoGetCtsTxGuardInterval(), DoGetCtsTxNess(), DoGetCtsTxNss(), DoGetCtsTxPowerLevel(), DoGetCtsTxStbc(), GetControlAnswerMode(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WifiTxVector::SetMode().

+ Here is the call graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetDataTxVector ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet,
uint32_t  fullPacketSize
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
fullPacketSizethe size of the packet after its 802.11 MAC header has been added.
Returns
the transmission mode to use to send this packet

Definition at line 540 of file wifi-remote-station-manager.cc.

References DoGetDataTxVector(), ns3::HighLatencyDataTxVectorTag::GetDataTxVector(), GetNonUnicastMode(), ns3::Mac48Address::IsGroup(), IsLowLatency(), Lookup(), m_defaultTxPowerLevel, NS_ASSERT, ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetShortGuardInterval(), ns3::WifiTxVector::SetStbc(), and ns3::WifiTxVector::SetTxPowerLevel().

+ Here is the call graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetDefaultMcs ( void  ) const

Definition at line 1207 of file wifi-remote-station-manager.cc.

References m_defaultTxMcs.

Referenced by GetControlAnswerMode(), LookupState(), and Reset().

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetDefaultMode ( void  ) const

Definition at line 1202 of file wifi-remote-station-manager.cc.

References m_defaultTxMode.

Referenced by DoGetCtsToSelfTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), GetControlAnswerMode(), LookupState(), and Reset().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel ( void  ) const
Returns
the default transmission power

Definition at line 1112 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

Referenced by DoGetCtsToSelfTxVector(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentationThreshold ( void  ) const

Definition at line 375 of file wifi-remote-station-manager.cc.

References DoGetFragmentationThreshold().

Referenced by GetFragmentOffset(), GetFragmentSize(), GetNFragments(), and NeedFragmentation().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentOffset ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet,
uint32_t  fragmentNumber
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
fragmentNumberthe fragment index of the next fragment to send (starts at zero).
Returns
the offset within the original packet where this fragment starts.

Definition at line 821 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), GetNFragments(), ns3::WifiMacHeader::GetSize(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WIFI_MAC_FCS_LENGTH.

+ Here is the call graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentSize ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet,
uint32_t  fragmentNumber
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
fragmentNumberthe fragment index of the next fragment to send (starts at zero).
Returns
the size of the corresponding fragment.

Definition at line 799 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), GetNFragments(), ns3::WifiMacHeader::GetSize(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), NS_ASSERT, and ns3::WIFI_MAC_FCS_LENGTH.

+ Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::GetGreenfield ( const WifiRemoteStation *  station) const
protected

Definition at line 1330 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_greenfield, and ns3::WifiRemoteStation::m_state.

bool ns3::WifiRemoteStationManager::GetGreenfieldSupported ( Mac48Address  address) const

Definition at line 1197 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_greenfield.

+ Here is the call graph for this function:

WifiRemoteStationInfo ns3::WifiRemoteStationManager::GetInfo ( Mac48Address  address)
Parameters
addressof the remote station
Returns
information regarding the remote station associated with the given address

Definition at line 1119 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_info.

+ Here is the call graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetLongRetryCount ( const WifiRemoteStation *  station) const
protected

Definition at line 1355 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_slrc.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), and ns3::ArfWifiManager::DoGetRtsTxVector().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetMaxSlrc ( void  ) const

Definition at line 365 of file wifi-remote-station-manager.cc.

References m_maxSlrc.

Referenced by NeedDataRetransmission().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetMaxSsrc ( void  ) const

Definition at line 360 of file wifi-remote-station-manager.cc.

References m_maxSsrc.

Referenced by NeedRtsRetransmission().

+ Here is the caller graph for this function:

uint8_t ns3::WifiRemoteStationManager::GetMcsSupported ( const WifiRemoteStation *  station,
uint32_t  i
) const
protected

Definition at line 1319 of file wifi-remote-station-manager.cc.

References GetNMcsSupported(), ns3::WifiRemoteStationState::m_operationalMcsSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.

+ Here is the call graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNBasicMcs ( void  ) const

Definition at line 1263 of file wifi-remote-station-manager.cc.

References m_bssBasicMcsSet.

Referenced by AddBasicMcs().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNBasicModes ( void  ) const

Definition at line 1238 of file wifi-remote-station-manager.cc.

References m_bssBasicRateSet.

Referenced by AddBasicMode(), and ns3::IdealWifiManager::DoGetRtsTxVector().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNFragments ( const WifiMacHeader *  header,
Ptr< const Packet >  packet
)
private

Definition at line 785 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), ns3::WifiMacHeader::GetSize(), ns3::Packet::GetSize(), and ns3::WIFI_MAC_FCS_LENGTH.

Referenced by GetFragmentOffset(), GetFragmentSize(), and IsLastFragment().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNMcsSupported ( const WifiRemoteStation *  station) const
protected

Definition at line 1365 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalMcsSet, and ns3::WifiRemoteStation::m_state.

Referenced by GetMcsSupported().

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetNonUnicastMode ( void  ) const

Definition at line 1275 of file wifi-remote-station-manager.cc.

References GetBasicMode(), and m_nonUnicastMode.

Referenced by GetDataTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNSupported ( const WifiRemoteStation *  station) const
protected

Definition at line 1360 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalRateSet, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::MinstrelWifiManager::CheckInit(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoReportDataOk(), ns3::AarfcdWifiManager::DoReportDataOk(), ns3::CaraWifiManager::DoReportDataOk(), ns3::RraaWifiManager::GetMaxRate(), GetSupported(), ns3::AmrrWifiManager::IncreaseRate(), ns3::AmrrWifiManager::IsMaxRate(), ns3::AmrrWifiManager::UpdateMode(), and ns3::OnoeWifiManager::UpdateMode().

+ Here is the caller graph for this function:

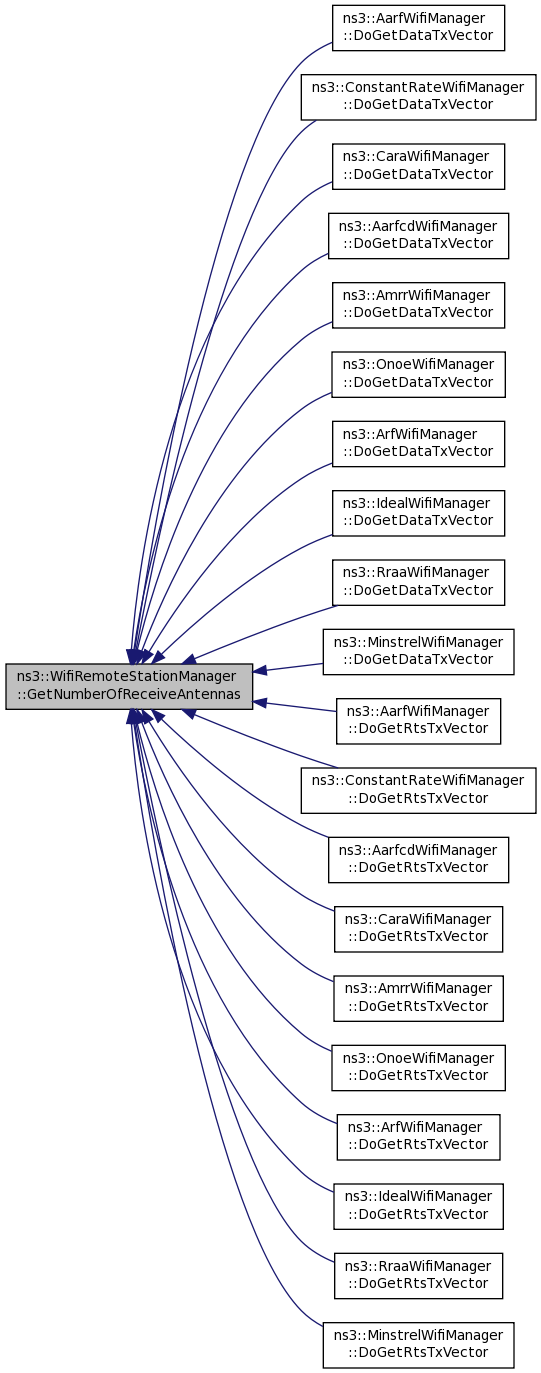

uint32_t ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas ( const WifiRemoteStation *  station) const
protected

Definition at line 1340 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_rx, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas ( void  )
Returns
the number of transmit antennas supported by the phy layer

Definition at line 1377 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetNumberOfTransmitAntennas(), and m_wifiPhy.

Referenced by DoGetCtsToSelfTxVector(), ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas ( const WifiRemoteStation *  station) const
protected

Definition at line 1345 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_state, and ns3::WifiRemoteStationState::m_tx.

uint32_t ns3::WifiRemoteStationManager::GetRtsCtsThreshold ( void  ) const

Definition at line 370 of file wifi-remote-station-manager.cc.

References m_rtsCtsThreshold.

Referenced by NeedRts().

+ Here is the caller graph for this function:

WifiTxVector ns3::WifiRemoteStationManager::GetRtsTxVector ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
Returns
the transmission mode to use to send the RTS prior to the transmission of the data packet itself.

Definition at line 593 of file wifi-remote-station-manager.cc.

References DoGetRtsTxVector(), ns3::HighLatencyRtsTxVectorTag::GetRtsTxVector(), ns3::Mac48Address::IsGroup(), IsLowLatency(), Lookup(), and NS_ASSERT.

+ Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::GetShortGuardInterval ( const WifiRemoteStation *  station) const
protected

Definition at line 1325 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_shortGuardInterval, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

+ Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetShortRetryCount ( const WifiRemoteStation *  station) const
protected

Definition at line 1350 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_ssrc.

Referenced by ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::GetStbc ( const WifiRemoteStation *  station) const
protected

Definition at line 1335 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStation::m_state, and ns3::WifiRemoteStationState::m_stbc.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::ConstantRateWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::ConstantRateWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), and ns3::MinstrelWifiManager::DoGetRtsTxVector().

+ Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetSupported ( const WifiRemoteStation *  station,
uint32_t  i
) const
protected

Definition at line 1313 of file wifi-remote-station-manager.cc.

References GetNSupported(), ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.

Referenced by ns3::AarfWifiManager::DoGetDataTxVector(), ns3::CaraWifiManager::DoGetDataTxVector(), ns3::AarfcdWifiManager::DoGetDataTxVector(), ns3::AmrrWifiManager::DoGetDataTxVector(), ns3::OnoeWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoGetDataTxVector(), ns3::RraaWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::AarfWifiManager::DoGetRtsTxVector(), ns3::AarfcdWifiManager::DoGetRtsTxVector(), ns3::CaraWifiManager::DoGetRtsTxVector(), ns3::AmrrWifiManager::DoGetRtsTxVector(), ns3::OnoeWifiManager::DoGetRtsTxVector(), ns3::ArfWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::DoGetRtsTxVector(), ns3::MinstrelWifiManager::DoGetRtsTxVector(), ns3::RraaWifiManager::GetThresholds(), and ns3::MinstrelWifiManager::RateInit().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

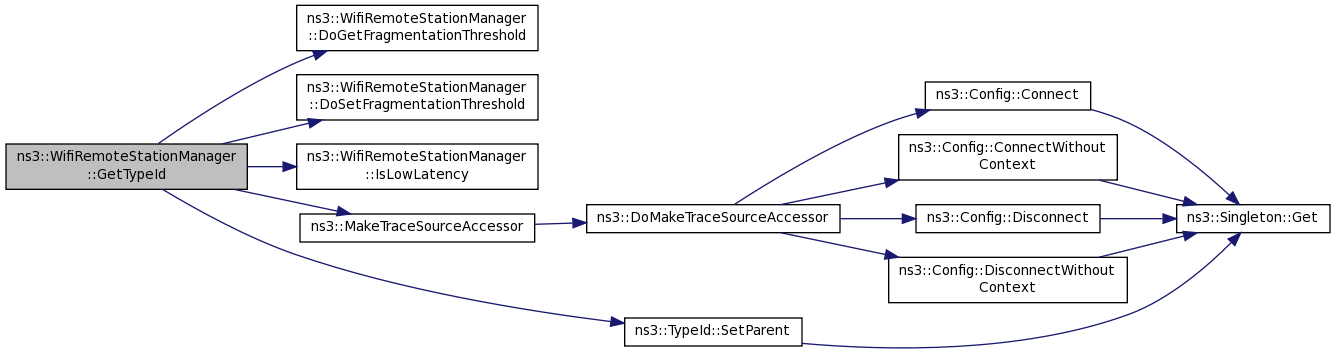

TypeId ns3::WifiRemoteStationManager::GetTypeId ( void  )
static

Definition at line 245 of file wifi-remote-station-manager.cc.

References DoGetFragmentationThreshold(), DoSetFragmentationThreshold(), IsLowLatency(), m_defaultTxPowerLevel, m_macTxDataFailed, m_macTxFinalDataFailed, m_macTxFinalRtsFailed, m_macTxRtsFailed, m_maxSlrc, m_maxSsrc, m_nonUnicastMode, m_rtsCtsThreshold, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

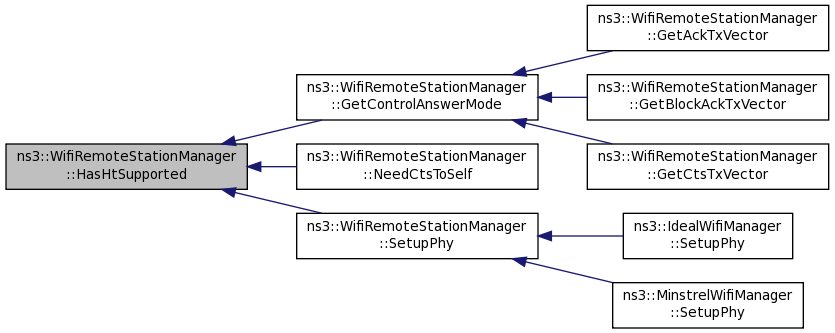

bool ns3::WifiRemoteStationManager::HasHtSupported ( void  ) const

Definition at line 355 of file wifi-remote-station-manager.cc.

References m_htSupported.

Referenced by GetControlAnswerMode(), NeedCtsToSelf(), and SetupPhy().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::IsAssociated ( Mac48Address  address) const

Definition at line 471 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, ns3::Mac48Address::IsGroup(), LookupState(), and ns3::WifiRemoteStationState::m_state.

+ Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::IsBrandNew ( Mac48Address  address) const

Definition at line 462 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::BRAND_NEW, ns3::Mac48Address::IsGroup(), LookupState(), and ns3::WifiRemoteStationState::m_state.

+ Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::IsLastFragment ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet,
uint32_t  fragmentNumber
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
fragmentNumberthe fragment index of the next fragment to send (starts at zero).
Returns
true if this is the last fragment, false otherwise.

Definition at line 830 of file wifi-remote-station-manager.cc.

References GetNFragments(), ns3::Mac48Address::IsGroup(), and NS_ASSERT.

+ Here is the call graph for this function:

virtual bool ns3::WifiRemoteStationManager::IsLowLatency ( void  ) const
privatepure virtual
Returns
whether this manager is a manager designed to work in low-latency environments.

Note: In this context, low vs high latency is defined in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Implemented in ns3::MinstrelWifiManager, ns3::RraaWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::AmrrWifiManager, ns3::ConstantRateWifiManager, and ns3::AarfWifiManager.

Referenced by GetCtsToSelfTxVector(), GetDataTxVector(), GetRtsTxVector(), GetTypeId(), and PrepareForQueue().

+ Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::IsWaitAssocTxOk ( Mac48Address  address) const

Definition at line 480 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.

+ Here is the call graph for this function:

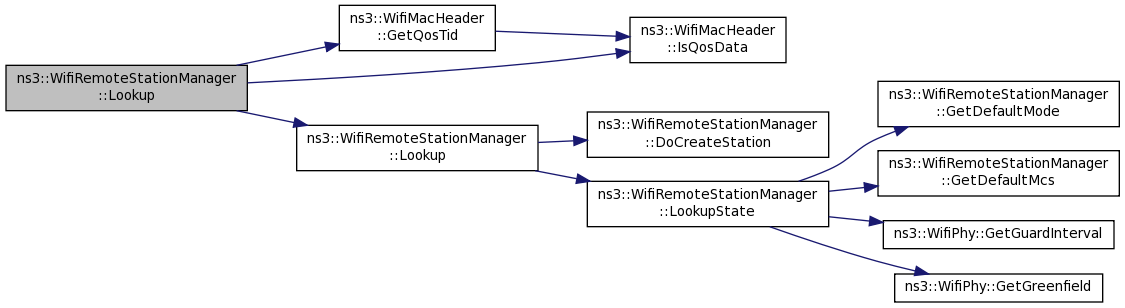

WifiRemoteStation * ns3::WifiRemoteStationManager::Lookup ( Mac48Address  address,
uint8_t  tid
) const
private

Definition at line 1163 of file wifi-remote-station-manager.cc.

References DoCreateStation(), LookupState(), ns3::WifiRemoteStation::m_slrc, ns3::WifiRemoteStation::m_ssrc, ns3::WifiRemoteStation::m_state, m_stations, and ns3::WifiRemoteStation::m_tid.

Referenced by GetDataTxVector(), GetRtsTxVector(), Lookup(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), PrepareForQueue(), ReportDataFailed(), ReportDataOk(), ReportFinalDataFailed(), ReportFinalRtsFailed(), ReportRtsFailed(), ReportRtsOk(), and ReportRxOk().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

WifiRemoteStation * ns3::WifiRemoteStationManager::Lookup ( Mac48Address  address,
const WifiMacHeader *  header
) const
private

Find a remote station by its remote address and TID taken from MAC header.

Definition at line 1149 of file wifi-remote-station-manager.cc.

References ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosData(), and Lookup().

+ Here is the call graph for this function:

WifiRemoteStationState * ns3::WifiRemoteStationManager::LookupState ( Mac48Address  address) const
private

Definition at line 1126 of file wifi-remote-station-manager.cc.

References first::address, ns3::WifiRemoteStationState::BRAND_NEW, GetDefaultMcs(), GetDefaultMode(), ns3::WifiPhy::GetGreenfield(), ns3::WifiPhy::GetGuardInterval(), ns3::WifiRemoteStationState::m_address, ns3::WifiRemoteStationState::m_greenfield, ns3::WifiRemoteStationState::m_operationalMcsSet, ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStationState::m_rx, ns3::WifiRemoteStationState::m_shortGuardInterval, ns3::WifiRemoteStationState::m_state, m_states, ns3::WifiRemoteStationState::m_stbc, ns3::WifiRemoteStationState::m_tx, and m_wifiPhy.

Referenced by AddStationHtCapabilities(), AddSupportedMcs(), AddSupportedMode(), GetGreenfieldSupported(), GetInfo(), IsAssociated(), IsBrandNew(), IsWaitAssocTxOk(), Lookup(), RecordDisassociated(), RecordGotAssocTxFailed(), RecordGotAssocTxOk(), RecordWaitAssocTxOk(), and Reset().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

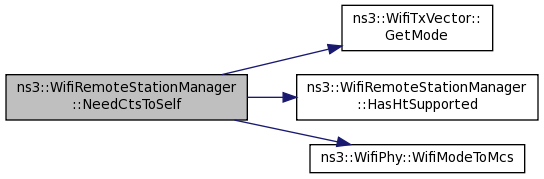

bool ns3::WifiRemoteStationManager::NeedCtsToSelf ( WifiTxVector  txVector)

Definition at line 691 of file wifi-remote-station-manager.cc.

References ns3::WifiTxVector::GetMode(), HasHtSupported(), m_bssBasicMcsSet, m_bssBasicRateSet, m_wifiPhy, and ns3::WifiPhy::WifiModeToMcs().

+ Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::NeedDataRetransmission ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
Returns
true if we want to resend a packet after a failed transmission attempt, false otherwise.

Definition at line 728 of file wifi-remote-station-manager.cc.

References DoNeedDataRetransmission(), GetMaxSlrc(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

+ Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::NeedFragmentation ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
Returns
true if this packet should be fragmented, false otherwise.

Definition at line 737 of file wifi-remote-station-manager.cc.

References DoNeedFragmentation(), GetFragmentationThreshold(), ns3::WifiMacHeader::GetSize(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), Lookup(), and ns3::WIFI_MAC_FCS_LENGTH.

+ Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::NeedRts ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
Returns
true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Definition at line 680 of file wifi-remote-station-manager.cc.

References DoNeedRts(), GetRtsCtsThreshold(), ns3::WifiMacHeader::GetSize(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), Lookup(), and ns3::WIFI_MAC_FCS_LENGTH.

+ Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::NeedRtsRetransmission ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet
)
Parameters
addressremote address
headerMAC header
packetthe packet to send
Returns
true if we want to restart a failed RTS/CTS handshake, false otherwise.

Definition at line 719 of file wifi-remote-station-manager.cc.

References DoNeedRtsRetransmission(), GetMaxSsrc(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::PrepareForQueue ( Mac48Address  address,
const WifiMacHeader *  header,
Ptr< const Packet >  packet,
uint32_t  fullPacketSize
)
Parameters
addressremote address
headerMAC header
packetthe packet to queue
fullPacketSizethe size of the packet after its 802.11 MAC header has been added.

This method is typically invoked just before queuing a packet for transmission. It is a no-op unless the IsLowLatency attribute of the attached ns3::WifiRemoteStationManager is set to false, in which case, the tx parameters of the packet are calculated and stored in the packet as a tag. These tx parameters are later retrieved from GetDadaMode and GetRtsMode.

Definition at line 513 of file wifi-remote-station-manager.cc.

References ns3::Packet::AddPacketTag(), data, DoGetCtsToSelfTxVector(), DoGetDataTxVector(), DoGetRtsTxVector(), ns3::Mac48Address::IsGroup(), IsLowLatency(), and Lookup().

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::RecordDisassociated ( Mac48Address  address)

Definition at line 507 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::DISASSOC, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::RecordGotAssocTxFailed ( Mac48Address  address)

Definition at line 501 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::DISASSOC, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::RecordGotAssocTxOk ( Mac48Address  address)

Definition at line 495 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::RecordWaitAssocTxOk ( Mac48Address  address)

Definition at line 489 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, NS_ASSERT, and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportDataFailed ( Mac48Address  address,
const WifiMacHeader *  header
)

Should be invoked whenever the AckTimeout associated to a transmission attempt expires.

Definition at line 620 of file wifi-remote-station-manager.cc.

References DoReportDataFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxDataFailed, and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportDataOk ( Mac48Address  address,
const WifiMacHeader *  header,
double  ackSnr,
WifiMode  ackMode,
double  dataSnr
)

Should be invoked whenever we receive the Ack associated to a data packet we just sent.

Definition at line 639 of file wifi-remote-station-manager.cc.

References DoReportDataOk(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportFinalDataFailed ( Mac48Address  address,
const WifiMacHeader *  header
)

Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false

Definition at line 659 of file wifi-remote-station-manager.cc.

References DoReportFinalDataFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxFinalDataFailed, and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportFinalRtsFailed ( Mac48Address  address,
const WifiMacHeader *  header
)

Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false

Definition at line 649 of file wifi-remote-station-manager.cc.

References DoReportFinalRtsFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxFinalRtsFailed, and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportRtsFailed ( Mac48Address  address,
const WifiMacHeader *  header
)

Should be invoked whenever the RtsTimeout associated to a transmission attempt expires.

Definition at line 611 of file wifi-remote-station-manager.cc.

References DoReportRtsFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxRtsFailed, and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportRtsOk ( Mac48Address  address,
const WifiMacHeader *  header,
double  ctsSnr,
WifiMode  ctsMode,
double  rtsSnr
)

Should be invoked whenever we receive the Cts associated to an RTS we just sent.

Definition at line 629 of file wifi-remote-station-manager.cc.

References DoReportRtsOk(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::ReportRxOk ( Mac48Address  address,
const WifiMacHeader *  header,
double  rxSnr,
WifiMode  txMode
)
Parameters
addressremote address
headerMAC header
rxSnrthe snr of the packet received
txModethe transmission mode used for the packet received.

Should be invoked whenever a packet is successfully received.

Definition at line 669 of file wifi-remote-station-manager.cc.

References DoReportRxOk(), ns3::Mac48Address::IsGroup(), and Lookup().

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::Reset ( void  )

Definition at line 1212 of file wifi-remote-station-manager.cc.

References ns3::WifiMode::IsMandatory(), m_bssBasicMcsSet, m_bssBasicRateSet, m_defaultTxMcs, m_defaultTxMode, m_stations, and NS_ASSERT.

Referenced by SetupPhy().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::Reset ( Mac48Address  address)

Invoked in an AP upon disassociation of a specific STA.

Definition at line 401 of file wifi-remote-station-manager.cc.

References AddSupportedMcs(), AddSupportedMode(), GetDefaultMcs(), GetDefaultMode(), ns3::Mac48Address::IsGroup(), LookupState(), and NS_ASSERT.

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::SetDefaultTxPowerLevel ( uint8_t  txPower)

Set the default transmission power level

Definition at line 1370 of file wifi-remote-station-manager.cc.

References m_defaultTxPowerLevel.

void ns3::WifiRemoteStationManager::SetFragmentationThreshold ( uint32_t  threshold)

Definition at line 395 of file wifi-remote-station-manager.cc.

References DoSetFragmentationThreshold().

+ Here is the call graph for this function:

void ns3::WifiRemoteStationManager::SetHtSupported ( bool  enable)

Definition at line 349 of file wifi-remote-station-manager.cc.

References m_htSupported.

void ns3::WifiRemoteStationManager::SetMaxSlrc ( uint32_t  maxSlrc)

Definition at line 385 of file wifi-remote-station-manager.cc.

References m_maxSlrc.

void ns3::WifiRemoteStationManager::SetMaxSsrc ( uint32_t  maxSsrc)

Definition at line 380 of file wifi-remote-station-manager.cc.

References m_maxSsrc.

void ns3::WifiRemoteStationManager::SetRtsCtsThreshold ( uint32_t  threshold)

Definition at line 390 of file wifi-remote-station-manager.cc.

References m_rtsCtsThreshold.

void ns3::WifiRemoteStationManager::SetupPhy ( Ptr< WifiPhy >  phy)
virtual

Reimplemented in ns3::MinstrelWifiManager, and ns3::IdealWifiManager.

Definition at line 329 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetMcs(), ns3::WifiPhy::GetMode(), HasHtSupported(), m_defaultTxMcs, m_defaultTxMode, m_wifiPhy, and Reset().

Referenced by ns3::IdealWifiManager::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

WifiMcsList ns3::WifiRemoteStationManager::m_bssBasicMcsSet
private

Definition at line 524 of file wifi-remote-station-manager.h.

Referenced by AddBasicMcs(), GetBasicMcs(), GetControlAnswerMode(), GetNBasicMcs(), NeedCtsToSelf(), and Reset().

WifiModeList ns3::WifiRemoteStationManager::m_bssBasicRateSet
private

This member is the list of WifiMode objects that comprise the BSSBasicRateSet parameter. This list is constructed through calls to WifiRemoteStationManager::AddBasicMode(), and an API that allows external access to it is available through WifiRemoteStationManager::GetNBasicModes() and WifiRemoteStationManager::GetBasicMode().

Definition at line 523 of file wifi-remote-station-manager.h.

Referenced by AddBasicMode(), GetBasicMode(), GetControlAnswerMode(), GetNBasicModes(), NeedCtsToSelf(), and Reset().

uint8_t ns3::WifiRemoteStationManager::m_defaultTxMcs
private

Definition at line 513 of file wifi-remote-station-manager.h.

Referenced by GetDefaultMcs(), Reset(), and SetupPhy().

WifiMode ns3::WifiRemoteStationManager::m_defaultTxMode
private

Definition at line 512 of file wifi-remote-station-manager.h.

Referenced by GetDefaultMode(), Reset(), and SetupPhy().

uint8_t ns3::WifiRemoteStationManager::m_defaultTxPowerLevel
private

Definition at line 531 of file wifi-remote-station-manager.h.

Referenced by DoGetAckTxPowerLevel(), DoGetBlockAckTxPowerLevel(), DoGetCtsTxPowerLevel(), GetDataTxVector(), GetDefaultTxPowerLevel(), GetTypeId(), and SetDefaultTxPowerLevel().

uint32_t ns3::WifiRemoteStationManager::m_fragmentationThreshold
private

Definition at line 530 of file wifi-remote-station-manager.h.

Referenced by DoGetFragmentationThreshold(), and DoSetFragmentationThreshold().

bool ns3::WifiRemoteStationManager::m_htSupported
private

Definition at line 526 of file wifi-remote-station-manager.h.

Referenced by HasHtSupported(), and SetHtSupported().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxDataFailed
private

The trace source fired when the transmission of a single data packet has failed

Definition at line 541 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportDataFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxFinalDataFailed
private

The trace source fired when the transmission of a data packet has exceeded the maximum number of attempts

Definition at line 551 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportFinalDataFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxFinalRtsFailed
private

The trace source fired when the transmission of a RTS has exceeded the maximum number of attempts

Definition at line 546 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportFinalRtsFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxRtsFailed
private

The trace source fired when the transmission of a single RTS has failed

Definition at line 537 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportRtsFailed().

uint32_t ns3::WifiRemoteStationManager::m_maxSlrc
private

Definition at line 528 of file wifi-remote-station-manager.h.

Referenced by GetMaxSlrc(), GetTypeId(), and SetMaxSlrc().

uint32_t ns3::WifiRemoteStationManager::m_maxSsrc
private

Definition at line 527 of file wifi-remote-station-manager.h.

Referenced by GetMaxSsrc(), GetTypeId(), and SetMaxSsrc().

WifiMode ns3::WifiRemoteStationManager::m_nonUnicastMode
private

Definition at line 532 of file wifi-remote-station-manager.h.

Referenced by GetNonUnicastMode(), and GetTypeId().

uint32_t ns3::WifiRemoteStationManager::m_rtsCtsThreshold
private

Definition at line 529 of file wifi-remote-station-manager.h.

Referenced by GetRtsCtsThreshold(), GetTypeId(), and SetRtsCtsThreshold().

StationStates ns3::WifiRemoteStationManager::m_states
private

Definition at line 501 of file wifi-remote-station-manager.h.

Referenced by DoDispose(), and LookupState().

Stations ns3::WifiRemoteStationManager::m_stations
private

Definition at line 502 of file wifi-remote-station-manager.h.

Referenced by DoDispose(), Lookup(), and Reset().

Ptr<WifiPhy> ns3::WifiRemoteStationManager::m_wifiPhy
private

This is a pointer to the WifiPhy associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupPhy(). Through this pointer the station manager can determine PHY characteristics, such as the set of all transmission rates that may be supported (the "DeviceRateSet").

Definition at line 511 of file wifi-remote-station-manager.h.

Referenced by DoGetAckTxGuardInterval(), DoGetAckTxStbc(), DoGetBlockAckTxGuardInterval(), DoGetBlockAckTxStbc(), DoGetCtsToSelfTxVector(), DoGetCtsTxGuardInterval(), DoGetCtsTxStbc(), GetControlAnswerMode(), GetNumberOfTransmitAntennas(), LookupState(), NeedCtsToSelf(), and SetupPhy().

The documentation for this class was generated from the following files:
