Robust Rate Adaptation AlgorithmThis is an implementation of RRAA as described in "Robust rate adaptation for 802.11 wireless networks" by "Starsky H. Y. Wong", "Hao Yang", "Songwu Lu", and, "Vaduvur Bharghavan" published in Mobicom 06. More...

#include <rraa-wifi-manager.h>

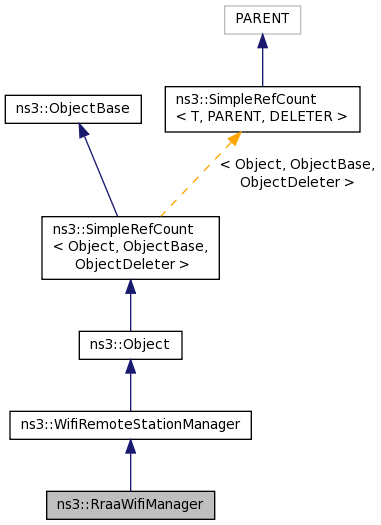

Inheritance diagram for ns3::RraaWifiManager:

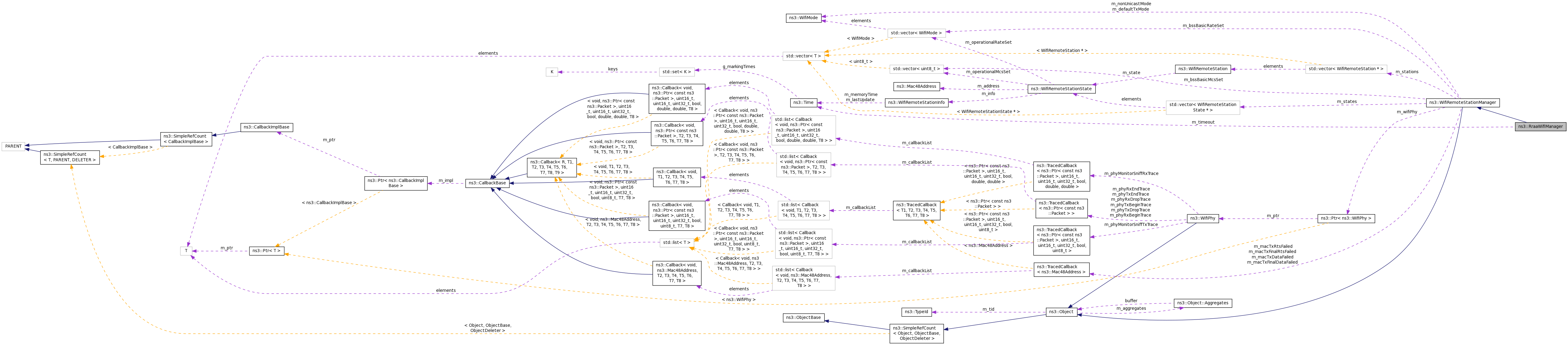

Collaboration diagram for ns3::RraaWifiManager:

Classes
struct	ThresholdsItem

Public Member Functions
	RraaWifiManager ()

virtual	~RraaWifiManager ()

Public Member Functions inherited from ns3::WifiRemoteStationManager
	WifiRemoteStationManager ()

virtual	~WifiRemoteStationManager ()

void	AddBasicMcs (uint8_t mcs)

void	AddBasicMode (WifiMode mode)

void	AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)

void	AddSupportedMcs (Mac48Address address, uint8_t mcs)

void	AddSupportedMode (Mac48Address address, WifiMode mode)

WifiTxVector	DoGetCtsToSelfTxVector (void)

WifiTxVector	GetAckTxVector (Mac48Address address, WifiMode dataMode)

uint8_t	GetBasicMcs (uint32_t i) const

WifiMode	GetBasicMode (uint32_t i) const

WifiTxVector	GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)

WifiTxVector	GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)

WifiTxVector	GetCtsTxVector (Mac48Address address, WifiMode rtsMode)

WifiTxVector	GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

uint8_t	GetDefaultMcs (void) const

WifiMode	GetDefaultMode (void) const

uint8_t	GetDefaultTxPowerLevel (void) const

uint32_t	GetFragmentationThreshold (void) const

uint32_t	GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

uint32_t	GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool	GetGreenfieldSupported (Mac48Address address) const

WifiRemoteStationInfo	GetInfo (Mac48Address address)

uint32_t	GetMaxSlrc (void) const

uint32_t	GetMaxSsrc (void) const

uint32_t	GetNBasicMcs (void) const

uint32_t	GetNBasicModes (void) const

WifiMode	GetNonUnicastMode (void) const

uint32_t	GetNumberOfTransmitAntennas (void)

uint32_t	GetRtsCtsThreshold (void) const

WifiTxVector	GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	HasHtSupported (void) const

bool	IsAssociated (Mac48Address address) const

bool	IsBrandNew (Mac48Address address) const

bool	IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

bool	IsWaitAssocTxOk (Mac48Address address) const

bool	NeedCtsToSelf (WifiTxVector txVector)

bool	NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

bool	NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

void	PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

void	RecordDisassociated (Mac48Address address)

void	RecordGotAssocTxFailed (Mac48Address address)

void	RecordGotAssocTxOk (Mac48Address address)

void	RecordWaitAssocTxOk (Mac48Address address)

void	ReportDataFailed (Mac48Address address, const WifiMacHeader *header)

void	ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)

void	ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)

void	ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)

void	ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)

void	ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)

void	ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)

void	Reset (void)

void	Reset (Mac48Address address)

void	SetDefaultTxPowerLevel (uint8_t txPower)

void	SetFragmentationThreshold (uint32_t threshold)

void	SetHtSupported (bool enable)

void	SetMaxSlrc (uint32_t maxSlrc)

void	SetMaxSsrc (uint32_t maxSsrc)

void	SetRtsCtsThreshold (uint32_t threshold)

virtual void	SetupPhy (Ptr< WifiPhy > phy)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiRemoteStationManager
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
void	ARts (RraaWifiRemoteStation *station)

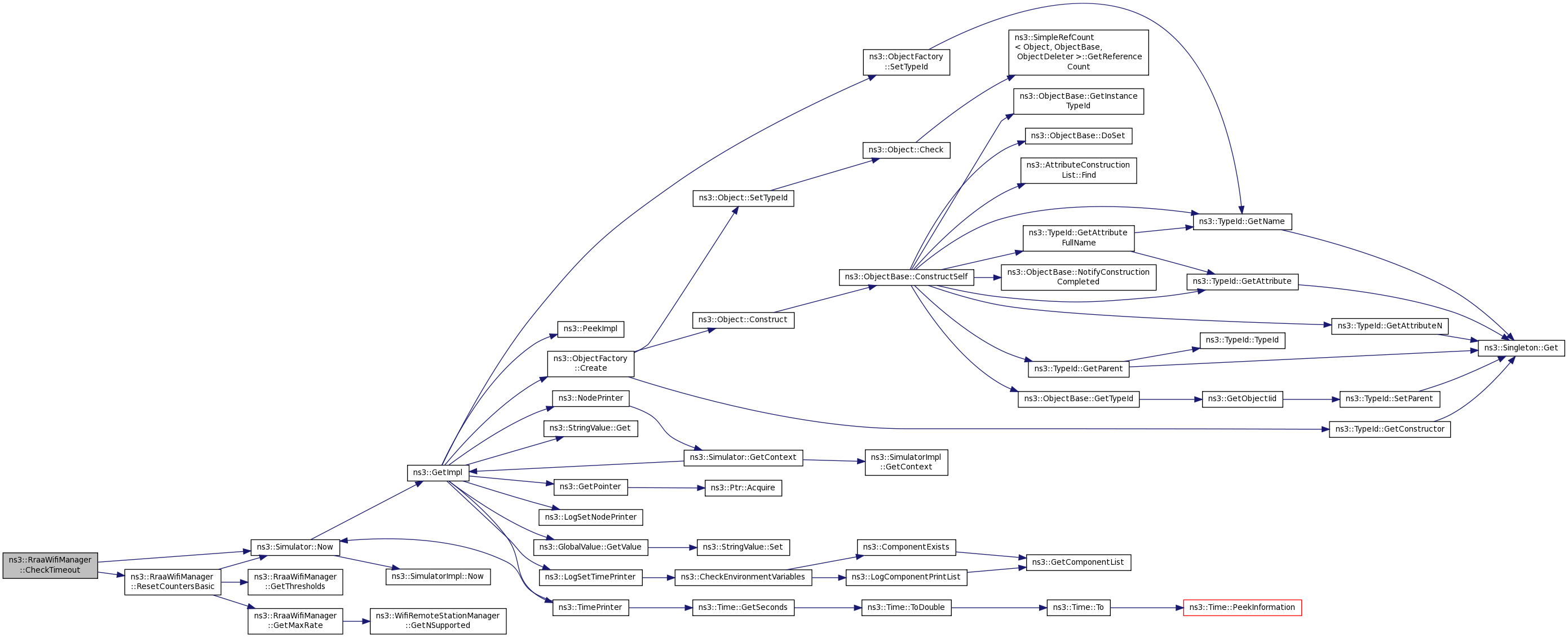

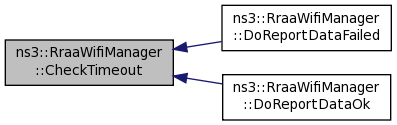

void	CheckTimeout (RraaWifiRemoteStation *station)

virtual WifiRemoteStation *	DoCreateStation (void) const

virtual WifiTxVector	DoGetDataTxVector (WifiRemoteStation *station, uint32_t size)

virtual WifiTxVector	DoGetRtsTxVector (WifiRemoteStation *station)

virtual bool	DoNeedRts (WifiRemoteStation *st, Ptr< const Packet > packet, bool normally)

virtual void	DoReportDataFailed (WifiRemoteStation *station)

virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)

virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)

virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)

virtual void	DoReportRtsFailed (WifiRemoteStation *station)

virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)

virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)

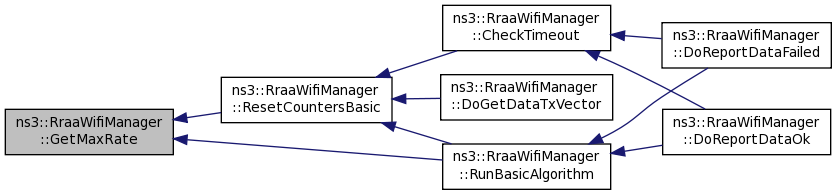

uint32_t	GetMaxRate (RraaWifiRemoteStation *station)

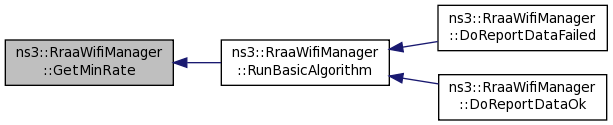

uint32_t	GetMinRate (RraaWifiRemoteStation *station)

struct ThresholdsItem	GetThresholds (WifiMode mode) const

struct ThresholdsItem	GetThresholds (RraaWifiRemoteStation *station, uint32_t rate) const

virtual bool	IsLowLatency (void) const

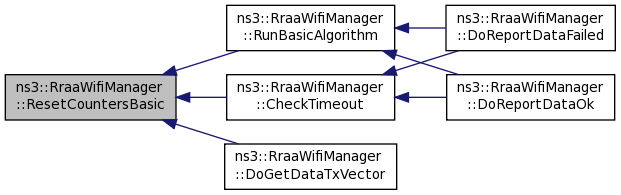

void	ResetCountersBasic (RraaWifiRemoteStation *station)

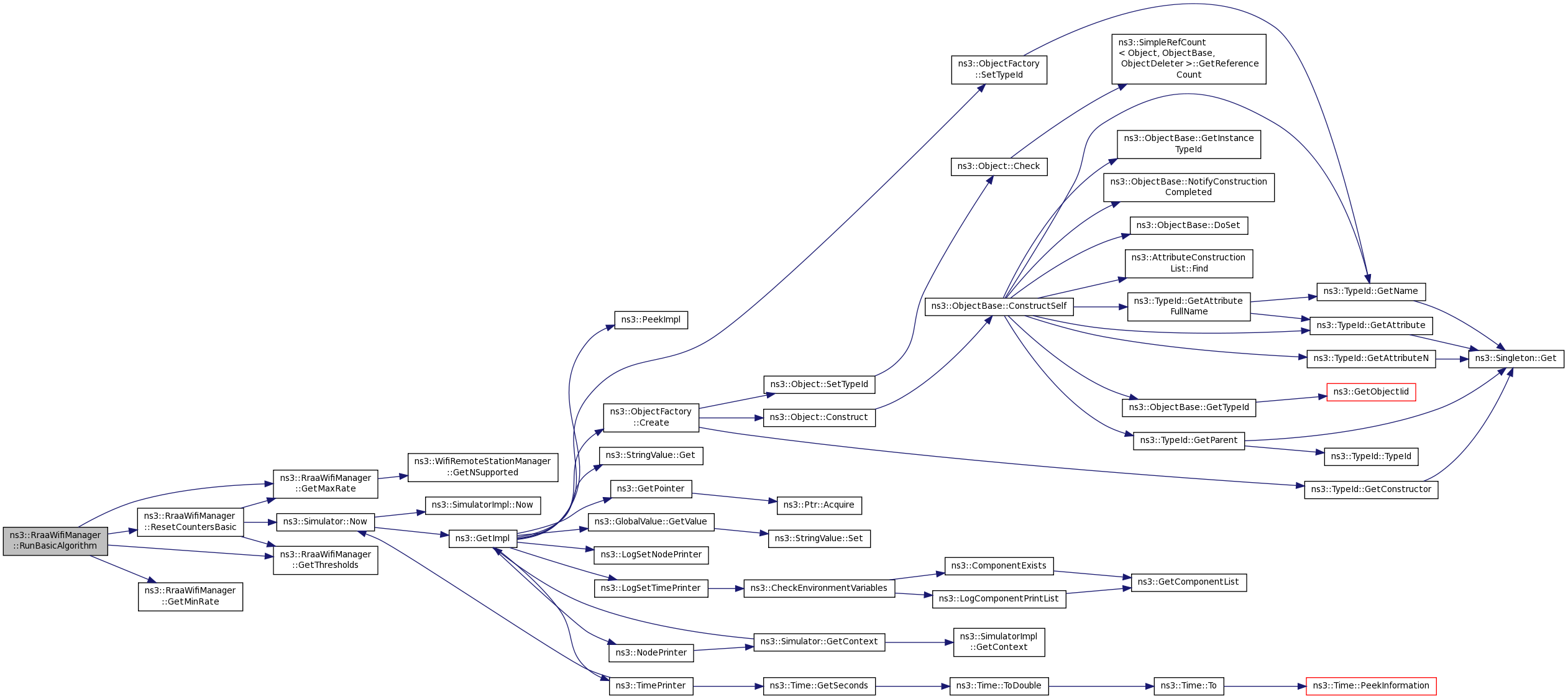

void	RunBasicAlgorithm (RraaWifiRemoteStation *station)

Private Attributes
bool	m_basic

uint32_t	m_ewndfor12

uint32_t	m_ewndfor18

uint32_t	m_ewndfor24

uint32_t	m_ewndfor36

uint32_t	m_ewndfor48

uint32_t	m_ewndfor54

uint32_t	m_ewndfor6

uint32_t	m_ewndfor9

double	m_pmtlfor12

double	m_pmtlfor18

double	m_pmtlfor24

double	m_pmtlfor36

double	m_pmtlfor48

double	m_pmtlfor54

double	m_pmtlfor9

double	m_porifor12

double	m_porifor18

double	m_porifor24

double	m_porifor36

double	m_porifor48

double	m_porifor6

double	m_porifor9

Time	m_timeout

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void	DoDispose (void)

bool	GetGreenfield (const WifiRemoteStation *station) const

uint32_t	GetLongRetryCount (const WifiRemoteStation *station) const

uint8_t	GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const

uint32_t	GetNMcsSupported (const WifiRemoteStation *station) const

uint32_t	GetNSupported (const WifiRemoteStation *station) const

uint32_t	GetNumberOfReceiveAntennas (const WifiRemoteStation *station) const

uint32_t	GetNumberOfTransmitAntennas (const WifiRemoteStation *station) const

bool	GetShortGuardInterval (const WifiRemoteStation *station) const

uint32_t	GetShortRetryCount (const WifiRemoteStation *station) const

bool	GetStbc (const WifiRemoteStation *station) const

WifiMode	GetSupported (const WifiRemoteStation *station, uint32_t i) const

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Robust Rate Adaptation Algorithm

This is an implementation of RRAA as described in "Robust rate adaptation for 802.11 wireless networks" by "Starsky H. Y. Wong", "Hao Yang", "Songwu Lu", and, "Vaduvur Bharghavan" published in Mobicom 06.

Config Paths

ns3::RraaWifiManager is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::RraaWifiManager

Attributes

Basic: If true the RRAA-BASIC algorithm will be used, otherwise the RRAA wil be used
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
Timeout: Timeout for the RRAA BASIC loss estimaton block (s)
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +50000000.0ns
- Flags: construct write read
ewndFor54mbps: ewnd parameter for 54 Mbs data mode
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 40
- Flags: construct write read
ewndFor48mbps: ewnd parameter for 48 Mbs data mode
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 40
- Flags: construct write read
ewndFor36mbps: ewnd parameter for 36 Mbs data mode
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 40
- Flags: construct write read
ewndFor24mbps: ewnd parameter for 24 Mbs data mode
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 40
- Flags: construct write read
ewndFor18mbps: ewnd parameter for 18 Mbs data mode
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 20
- Flags: construct write read
ewndFor12mbps: ewnd parameter for 12 Mbs data mode
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 20
- Flags: construct write read
ewndFor9mbps: ewnd parameter for 9 Mbs data mode
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
ewndFor6mbps: ewnd parameter for 6 Mbs data mode
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 6
- Flags: construct write read
poriFor48mbps: Pori parameter for 48 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.047
- Flags: construct write read
poriFor36mbps: Pori parameter for 36 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.115
- Flags: construct write read
poriFor24mbps: Pori parameter for 24 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.1681
- Flags: construct write read
poriFor18mbps: Pori parameter for 18 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.1325
- Flags: construct write read
poriFor12mbps: Pori parameter for 12 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.1861
- Flags: construct write read
poriFor9mbps: Pori parameter for 9 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.1434
- Flags: construct write read
poriFor6mbps: Pori parameter for 6 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.5
- Flags: construct write read
pmtlFor54mbps: Pmtl parameter for 54 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.094
- Flags: construct write read
pmtlFor48mbps: Pmtl parameter for 48 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.23
- Flags: construct write read
pmtlFor36mbps: Pmtl parameter for 36 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.3363
- Flags: construct write read
pmtlFor24mbps: Pmtl parameter for 24 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.265
- Flags: construct write read
pmtlFor18mbps: Pmtl parameter for 18 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.3722
- Flags: construct write read
pmtlFor12mbps: Pmtl parameter for 12 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.2868
- Flags: construct write read
pmtlFor9mbps: Pmtl parameter for 9 Mbs data mode
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.3932
- Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager

IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
- Set with class: BooleanValue
- Underlying type: bool
- Flags: read
MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
NonUnicastMode: Wifi mode used for non-unicast transmissions.
- Set with class: WifiModeValue
- Underlying type: WifiMode
- Initial value: Invalid-WifiMode
- Flags: construct write read
DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do notimplement TX power control.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiRemoteStationManager

MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 39 of file rraa-wifi-manager.h.

Constructor & Destructor Documentation

ns3::RraaWifiManager::RraaWifiManager ( )

Definition at line 182 of file rraa-wifi-manager.cc.

ns3::RraaWifiManager::~RraaWifiManager ( )

virtual

Definition at line 185 of file rraa-wifi-manager.cc.

Member Function Documentation

void ns3::RraaWifiManager::ARts ( RraaWifiRemoteStation * station )

private

Definition at line 335 of file rraa-wifi-manager.cc.

References ns3::RraaWifiRemoteStation::m_lastFrameFail, ns3::RraaWifiRemoteStation::m_rtsCounter, ns3::RraaWifiRemoteStation::m_rtsOn, and ns3::RraaWifiRemoteStation::m_rtsWnd.

Referenced by DoNeedRts().

Here is the caller graph for this function:

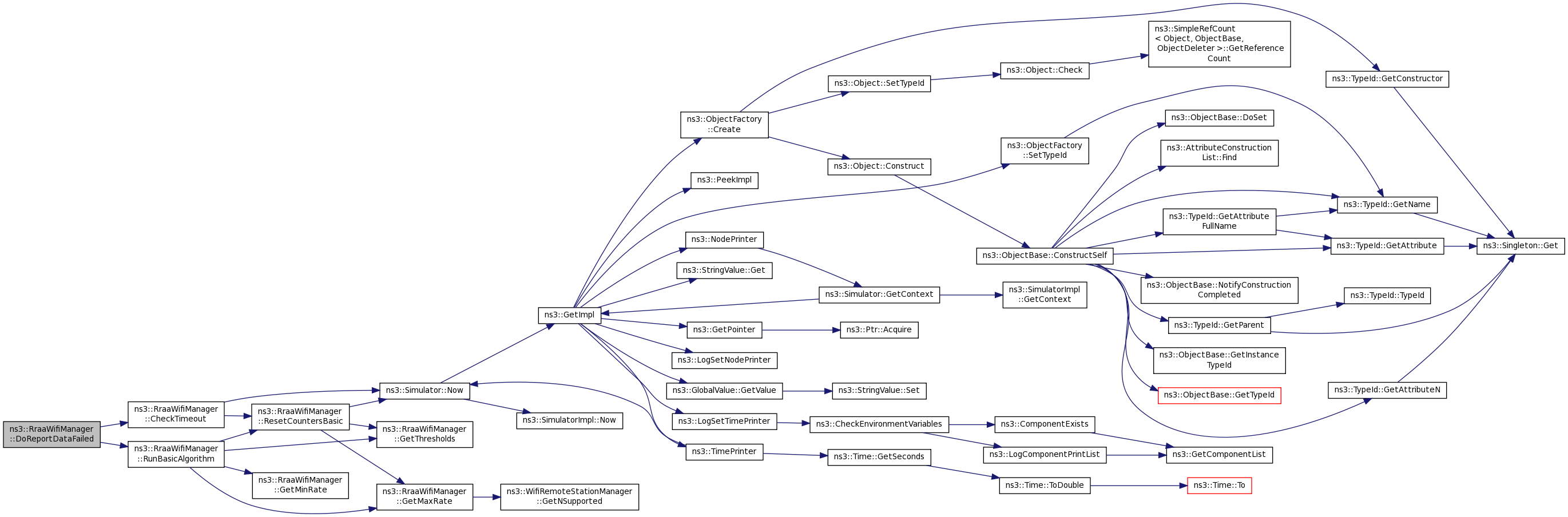

void ns3::RraaWifiManager::CheckTimeout ( RraaWifiRemoteStation * station )

private

Definition at line 303 of file rraa-wifi-manager.cc.

References ns3::RraaWifiRemoteStation::m_counter, ns3::RraaWifiRemoteStation::m_lastReset, m_timeout, ns3::Simulator::Now(), and ResetCountersBasic().

Referenced by DoReportDataFailed(), and DoReportDataOk().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiRemoteStation * ns3::RraaWifiManager::DoCreateStation ( void ) const

privatevirtual

Returns: a new station data structure

Implements ns3::WifiRemoteStationManager.

Definition at line 191 of file rraa-wifi-manager.cc.

References ns3::RraaWifiRemoteStation::m_initialized, ns3::RraaWifiRemoteStation::m_lastFrameFail, ns3::RraaWifiRemoteStation::m_rtsCounter, ns3::RraaWifiRemoteStation::m_rtsOn, and ns3::RraaWifiRemoteStation::m_rtsWnd.

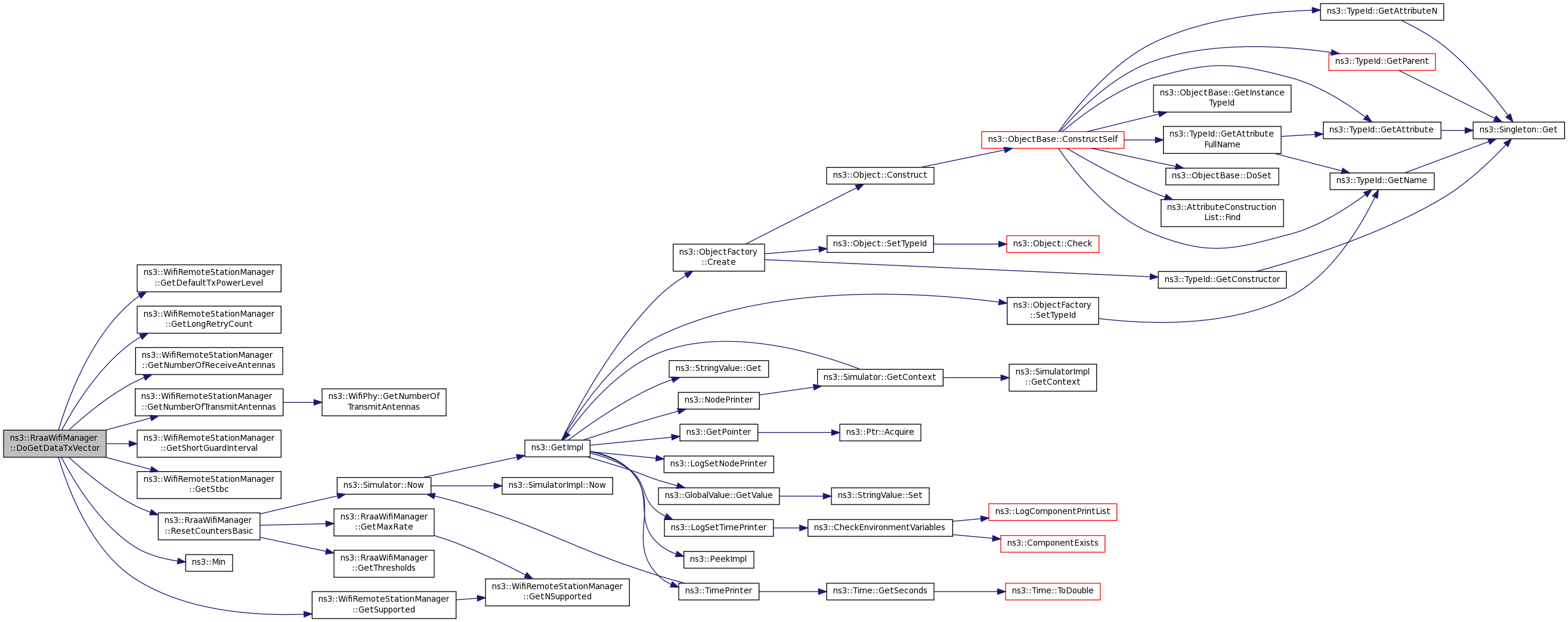

WifiTxVector ns3::RraaWifiManager::DoGetDataTxVector	(	WifiRemoteStation *	station,
		uint32_t	size
	)

privatevirtual

Parameters

station	the station with which we need to communicate
size	size of the packet or fragment we want to send

Returns: the transmission mode to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Implements ns3::WifiRemoteStationManager.

Definition at line 273 of file rraa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetLongRetryCount(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), ns3::RraaWifiRemoteStation::m_initialized, ns3::RraaWifiRemoteStation::m_rate, ns3::Min(), and ResetCountersBasic().

Here is the call graph for this function:

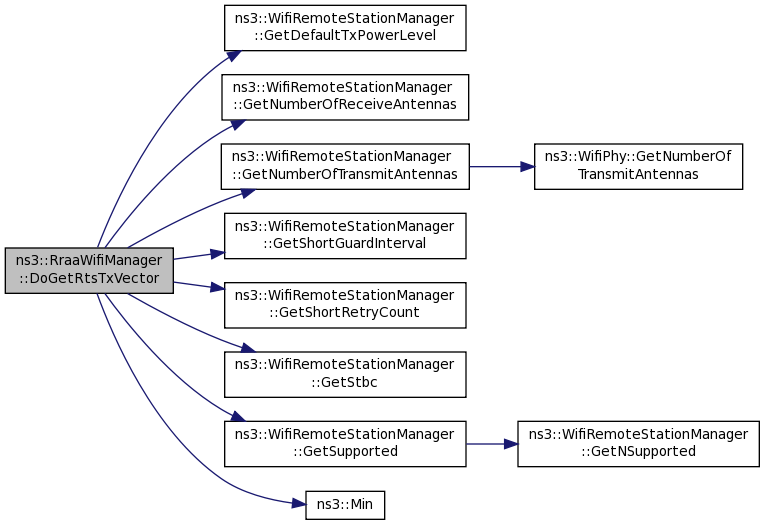

WifiTxVector ns3::RraaWifiManager::DoGetRtsTxVector ( WifiRemoteStation * station )

privatevirtual

Parameters

station the station with which we need to communicate

Returns: the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Implements ns3::WifiRemoteStationManager.

Definition at line 284 of file rraa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortRetryCount(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), and ns3::Min().

Here is the call graph for this function:

bool ns3::RraaWifiManager::DoNeedRts	(	WifiRemoteStation *	station,
		Ptr< const Packet >	packet,
		bool	normally
	)

privatevirtual

Parameters

station	the station with which we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 rts enable mechanism would request that the rts is sent or not.

Returns: true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Note: This method is called before a unicast packet is sent on the medium.

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 290 of file rraa-wifi-manager.cc.

References ARts(), m_basic, and ns3::RraaWifiRemoteStation::m_rtsOn.

Here is the call graph for this function:

void ns3::RraaWifiManager::DoReportDataFailed ( WifiRemoteStation * station )

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 233 of file rraa-wifi-manager.cc.

References CheckTimeout(), ns3::RraaWifiRemoteStation::m_counter, ns3::RraaWifiRemoteStation::m_failed, ns3::RraaWifiRemoteStation::m_lastFrameFail, and RunBasicAlgorithm().

Here is the call graph for this function:

void ns3::RraaWifiManager::DoReportDataOk	(	WifiRemoteStation *	station,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 254 of file rraa-wifi-manager.cc.

References CheckTimeout(), ns3::RraaWifiRemoteStation::m_counter, ns3::RraaWifiRemoteStation::m_lastFrameFail, and RunBasicAlgorithm().

Here is the call graph for this function:

void ns3::RraaWifiManager::DoReportFinalDataFailed ( WifiRemoteStation * station )

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 268 of file rraa-wifi-manager.cc.

void ns3::RraaWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation * station )

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 264 of file rraa-wifi-manager.cc.

void ns3::RraaWifiManager::DoReportRtsFailed ( WifiRemoteStation * station )

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 228 of file rraa-wifi-manager.cc.

void ns3::RraaWifiManager::DoReportRtsOk	(	WifiRemoteStation *	station,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 248 of file rraa-wifi-manager.cc.

References NS_LOG_DEBUG.

void ns3::RraaWifiManager::DoReportRxOk	(	WifiRemoteStation *	station,
		double	rxSnr,
		WifiMode	txMode
	)

privatevirtual

Implements ns3::WifiRemoteStationManager.

Definition at line 243 of file rraa-wifi-manager.cc.

uint32_t ns3::RraaWifiManager::GetMaxRate ( RraaWifiRemoteStation * station )

private

Definition at line 216 of file rraa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetNSupported().

Referenced by ResetCountersBasic(), and RunBasicAlgorithm().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::RraaWifiManager::GetMinRate ( RraaWifiRemoteStation * station )

private

Definition at line 221 of file rraa-wifi-manager.cc.

Referenced by RunBasicAlgorithm().

Here is the caller graph for this function:

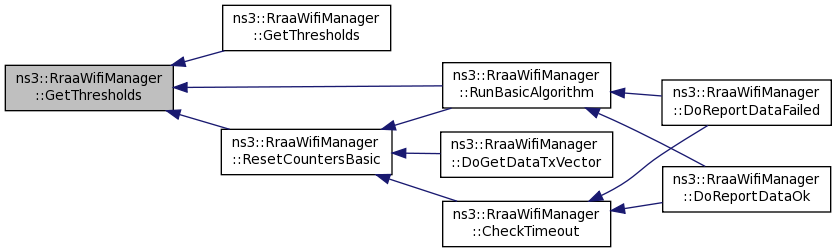

struct RraaWifiManager::ThresholdsItem ns3::RraaWifiManager::GetThresholds ( WifiMode mode ) const

private

Definition at line 369 of file rraa-wifi-manager.cc.

References m_ewndfor12, m_ewndfor18, m_ewndfor24, m_ewndfor36, m_ewndfor48, m_ewndfor54, m_ewndfor6, m_ewndfor9, m_pmtlfor12, m_pmtlfor18, m_pmtlfor24, m_pmtlfor36, m_pmtlfor48, m_pmtlfor54, m_pmtlfor9, m_porifor12, m_porifor18, m_porifor24, m_porifor36, m_porifor48, m_porifor6, m_porifor9, and NS_ASSERT_MSG.

Referenced by GetThresholds(), ResetCountersBasic(), and RunBasicAlgorithm().

Here is the caller graph for this function:

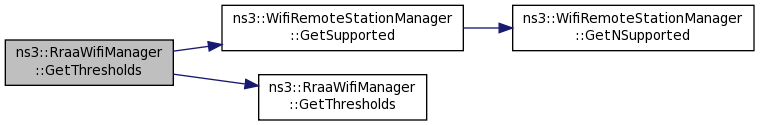

struct RraaWifiManager::ThresholdsItem ns3::RraaWifiManager::GetThresholds	(	RraaWifiRemoteStation *	station,
		uint32_t	rate
	)		const

private

Definition at line 361 of file rraa-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetSupported(), and GetThresholds().

Here is the call graph for this function:

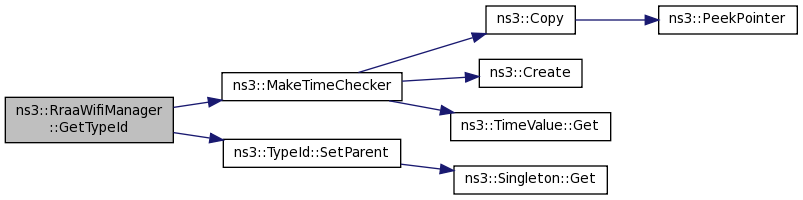

TypeId ns3::RraaWifiManager::GetTypeId ( void )

static

Definition at line 52 of file rraa-wifi-manager.cc.

References m_basic, m_ewndfor12, m_ewndfor18, m_ewndfor24, m_ewndfor36, m_ewndfor48, m_ewndfor54, m_ewndfor6, m_ewndfor9, m_pmtlfor12, m_pmtlfor18, m_pmtlfor24, m_pmtlfor36, m_pmtlfor48, m_pmtlfor54, m_pmtlfor9, m_porifor12, m_porifor18, m_porifor24, m_porifor36, m_porifor48, m_porifor6, m_porifor9, m_timeout, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::RraaWifiManager::IsLowLatency ( void ) const

privatevirtual

Returns: whether this manager is a manager designed to work in low-latency environments.

Note: In this context, low vs high latency is defined in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Implements ns3::WifiRemoteStationManager.

Definition at line 459 of file rraa-wifi-manager.cc.

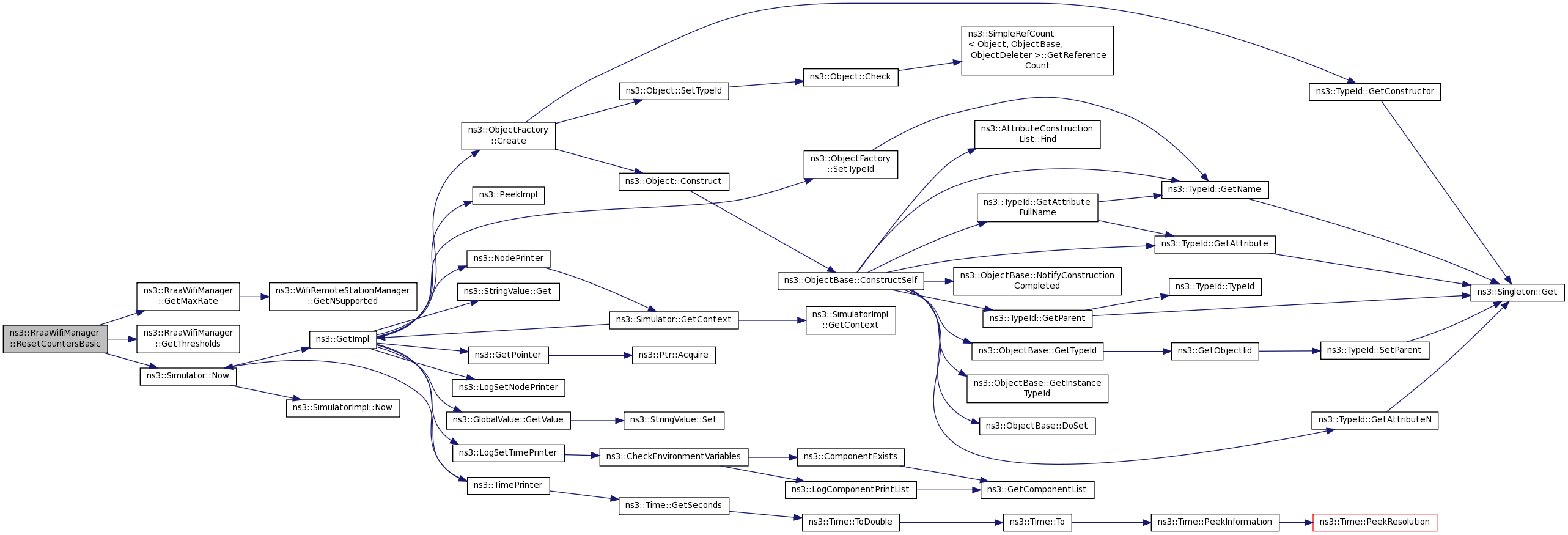

void ns3::RraaWifiManager::ResetCountersBasic ( RraaWifiRemoteStation * station )

private

Definition at line 203 of file rraa-wifi-manager.cc.

References ns3::RraaWifiManager::ThresholdsItem::ewnd, GetMaxRate(), GetThresholds(), ns3::RraaWifiRemoteStation::m_counter, ns3::RraaWifiRemoteStation::m_failed, ns3::RraaWifiRemoteStation::m_initialized, ns3::RraaWifiRemoteStation::m_lastReset, ns3::RraaWifiRemoteStation::m_rate, and ns3::Simulator::Now().

Referenced by CheckTimeout(), DoGetDataTxVector(), and RunBasicAlgorithm().

Here is the call graph for this function:
