Non-gateway node MAC for reservation channel MAC protocol. More...

#include <uan-mac-rc.h>

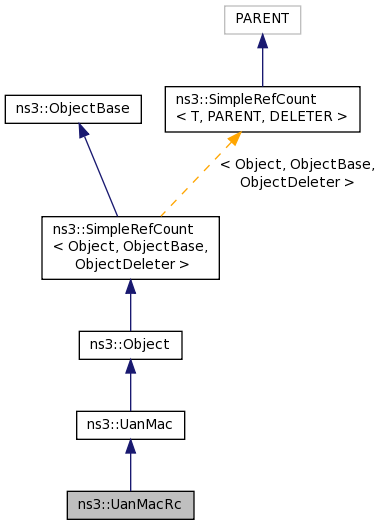

Inheritance diagram for ns3::UanMacRc:

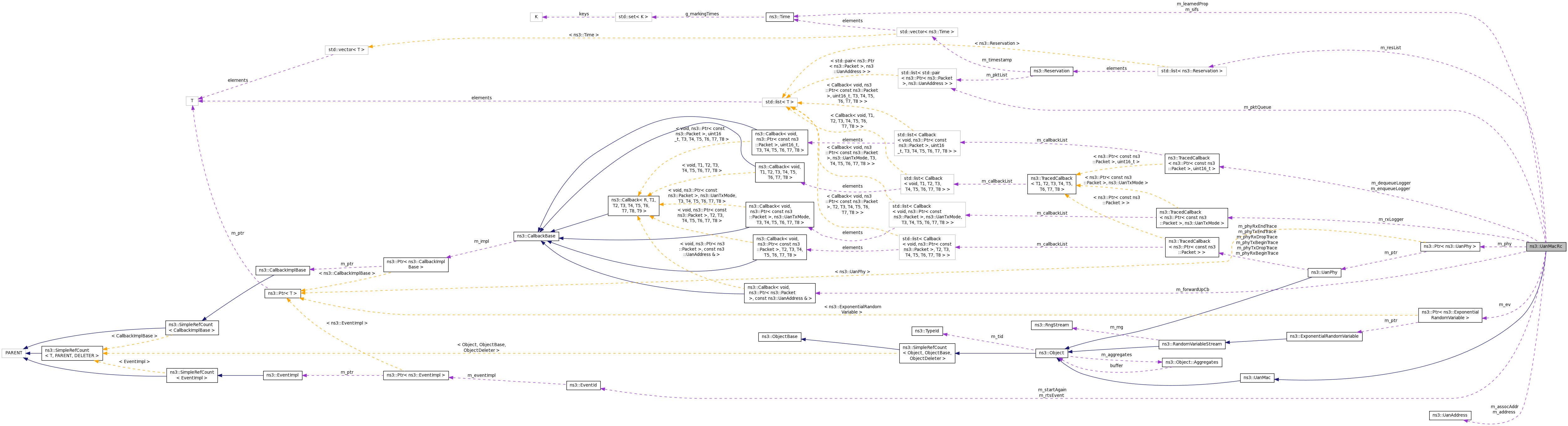

Collaboration diagram for ns3::UanMacRc:

Public Types
enum	{ TYPE_DATA, TYPE_GWPING, TYPE_RTS, TYPE_CTS, TYPE_ACK }

Public Member Functions
	UanMacRc ()

virtual	~UanMacRc ()

int64_t	AssignStreams (int64_t stream)

virtual void	AttachPhy (Ptr< UanPhy > phy)

virtual void	Clear (void)

virtual bool	Enqueue (Ptr< Packet > pkt, const Address &dest, uint16_t protocolNumber)

virtual Address	GetAddress (void)

virtual Address	GetBroadcast (void) const

virtual void	SetAddress (UanAddress addr)

virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, const UanAddress & > cb)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::UanMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
void	DoDispose ()

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Private Types
enum	State { UNASSOCIATED, GWPSENT, IDLE, RTSSENT, DATATX }

Private Member Functions
void	Associate (void)

void	AssociateTimeout (void)

void	BlockRtsing (void)

UanHeaderRcRts	CreateRtsHeader (const Reservation &res)

bool	IsPhy1Ok (void)

void	ProcessAck (Ptr< Packet > ack)

void	ReceiveOkFromPhy (Ptr< Packet >, double sinr, UanTxMode mode)

void	RtsTimeout (void)

void	ScheduleData (const UanHeaderRcCts &ctsh, const UanHeaderRcCtsGlobal &ctsg, uint32_t ctsBytes)

void	SendPacket (Ptr< Packet > pkt, uint32_t rate)

void	SendRts (void)

Private Attributes
UanAddress	m_address

UanAddress	m_assocAddr

bool	m_cleared

uint32_t	m_ctsSizeG

uint32_t	m_ctsSizeN

uint32_t	m_currentRate

TracedCallback< Ptr< const Packet >, uint16_t >	m_dequeueLogger

TracedCallback< Ptr< const Packet >, uint16_t >	m_enqueueLogger

Ptr< ExponentialRandomVariable >	m_ev
	Provides exponential random variables. More...

Callback< void, Ptr< Packet > , const UanAddress & >	m_forwardUpCb

uint8_t	m_frameNo

Time	m_learnedProp

uint32_t	m_maxFrames

double	m_minRetryRate

uint32_t	m_numRates

Ptr< UanPhy >	m_phy

std::list< std::pair< Ptr < Packet >, UanAddress > >	m_pktQueue

uint32_t	m_queueLimit

std::list< Reservation >	m_resList

double	m_retryRate

double	m_retryStep

bool	m_rtsBlocked

EventId	m_rtsEvent

TracedCallback< Ptr< const Packet >, UanTxMode >	m_rxLogger

Time	m_sifs

EventId	m_startAgain

State	m_state

Static Private Attributes
static uint32_t	m_cntrlSends = 0

Detailed Description

Non-gateway node MAC for reservation channel MAC protocol.

Config Paths

ns3::UanMacRc is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanMacRc

Attributes

RetryRate: Number of retry attempts per second (of RTS/GWPING)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.2
- Flags: construct write read
MaxFrames: Maximum number of frames to include in a single RTS
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
QueueLimit: Maximum packets to queue at MAC
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
SIFS: Spacing to give between frames (this should match gateway)
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read
NumberOfRates: Number of rate divisions supported by each PHY
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
MinRetryRate: Smallest allowed RTS retry rate
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.01
- Flags: construct write read
RetryStep: Retry rate increment
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.01
- Flags: construct write read
MaxPropDelay: Maximum possible propagation delay to gateway
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000000000.0ns
- Flags: construct write read

TraceSources

Enqueue: A (data) packet arrived at MAC for transmission
Dequeue: A (data) packet was passed down to PHY from MAC
RX: A packet was destined for and received at this MAC layer

This MAC protocol assumes a network topology where all traffic is destined for a set of GW nodes which are connected via some out of band (RF?) means. This particular implementation assumes that there is only a single gateway.

For more information on class operation email lentr.nosp@m.acy@.nosp@m.u.was.nosp@m.hing.nosp@m.ton.e.nosp@m.du (This work is, as of yet, unpublished)

Definition at line 137 of file uan-mac-rc.h.

Member Enumeration Documentation

anonymous enum

Enumerator
TYPE_DATA
TYPE_GWPING
TYPE_RTS
TYPE_CTS
TYPE_ACK

Definition at line 140 of file uan-mac-rc.h.

enum ns3::UanMacRc::State

private

Enumerator
UNASSOCIATED
GWPSENT
IDLE
RTSSENT
DATATX

Definition at line 168 of file uan-mac-rc.h.

Constructor & Destructor Documentation

ns3::UanMacRc::UanMacRc ( )

Definition at line 153 of file uan-mac-rc.cc.

References ns3::UanHeaderRcCtsGlobal::GetSerializedSize(), ns3::UanHeaderRcCts::GetSerializedSize(), m_ctsSizeG, m_ctsSizeN, and m_ev.

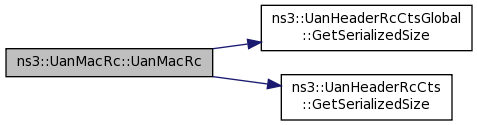

Here is the call graph for this function:

ns3::UanMacRc::~UanMacRc ( )

virtual

Definition at line 171 of file uan-mac-rc.cc.

Member Function Documentation

int64_t ns3::UanMacRc::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::UanMac.

Definition at line 266 of file uan-mac-rc.cc.

References m_ev, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

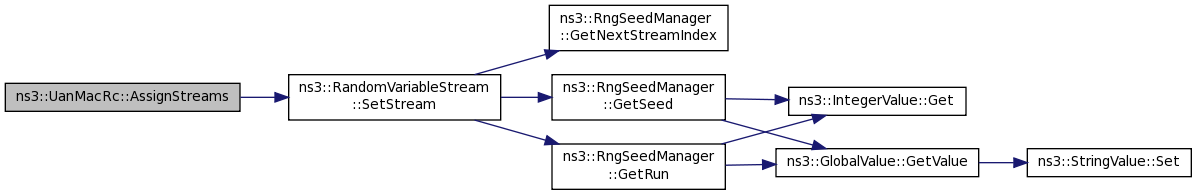

Here is the call graph for this function:

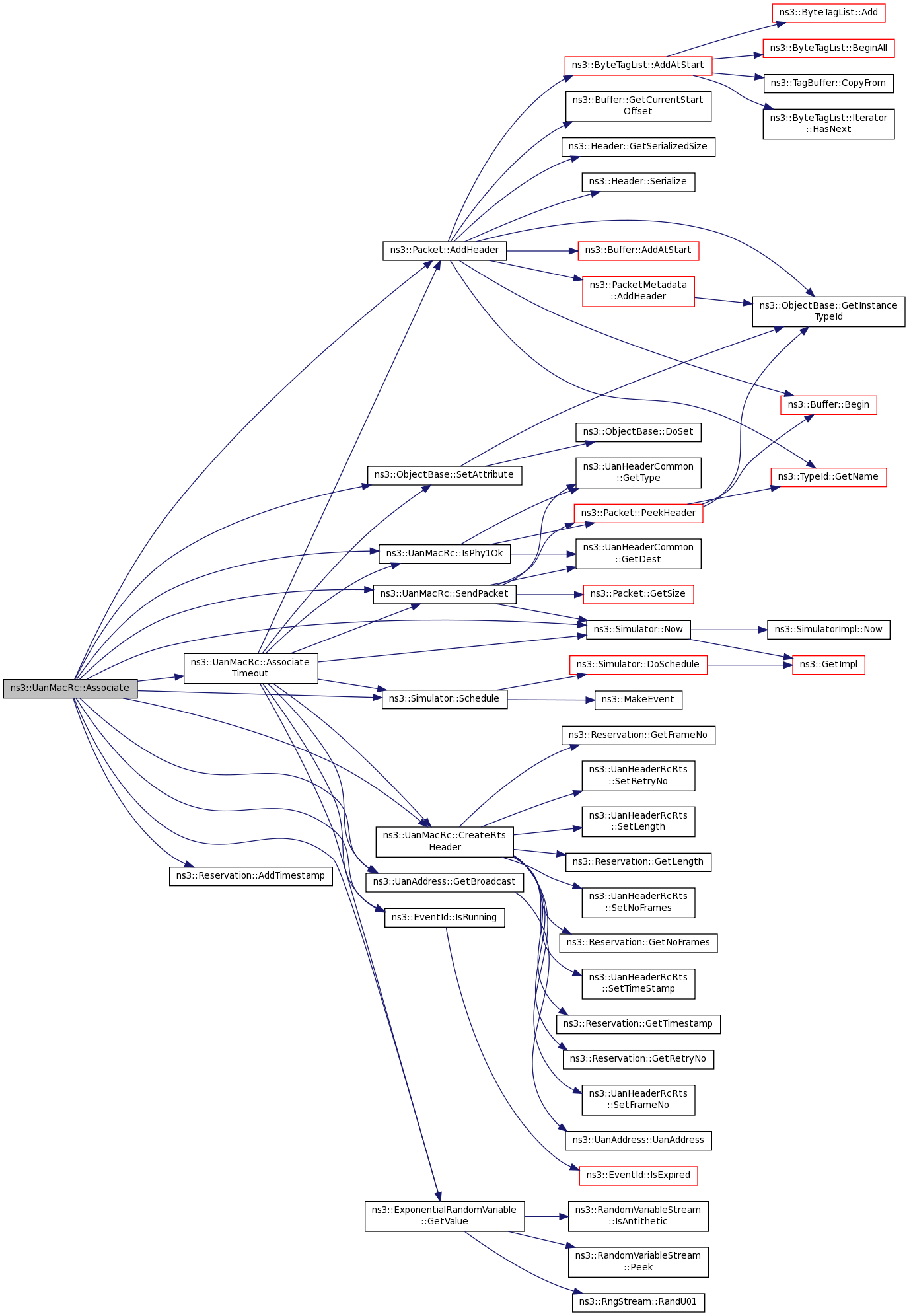

void ns3::UanMacRc::Associate ( void )

private

Definition at line 618 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), ns3::Reservation::AddTimestamp(), AssociateTimeout(), CreateRtsHeader(), ns3::UanAddress::GetBroadcast(), ns3::ExponentialRandomVariable::GetValue(), GWPSENT, IsPhy1Ok(), ns3::EventId::IsRunning(), m_address, m_cntrlSends, m_currentRate, m_ev, m_frameNo, m_maxFrames, m_numRates, m_phy, m_pktQueue, m_resList, m_retryRate, m_rtsBlocked, m_rtsEvent, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, ns3::Simulator::Schedule(), SendPacket(), ns3::ObjectBase::SetAttribute(), timeout, and TYPE_GWPING.

Referenced by Enqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::AssociateTimeout ( void )

private

Definition at line 644 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), CreateRtsHeader(), ns3::UanAddress::GetBroadcast(), ns3::ExponentialRandomVariable::GetValue(), GWPSENT, IsPhy1Ok(), ns3::EventId::IsRunning(), m_address, m_cntrlSends, m_currentRate, m_ev, m_numRates, m_phy, m_resList, m_retryRate, m_rtsBlocked, m_rtsEvent, m_state, ns3::Simulator::Now(), NS_ASSERT, ns3::Simulator::Schedule(), SendPacket(), ns3::ObjectBase::SetAttribute(), timeout, and TYPE_GWPING.

Referenced by Associate().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::AttachPhy ( Ptr< UanPhy > phy )

virtual

Attach PHY layer to this MAC. Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters

phy	Phy layer to attach to this MAC

Implements ns3::UanMac.

Definition at line 328 of file uan-mac-rc.cc.

References m_phy, ns3::MakeCallback(), and ReceiveOkFromPhy().

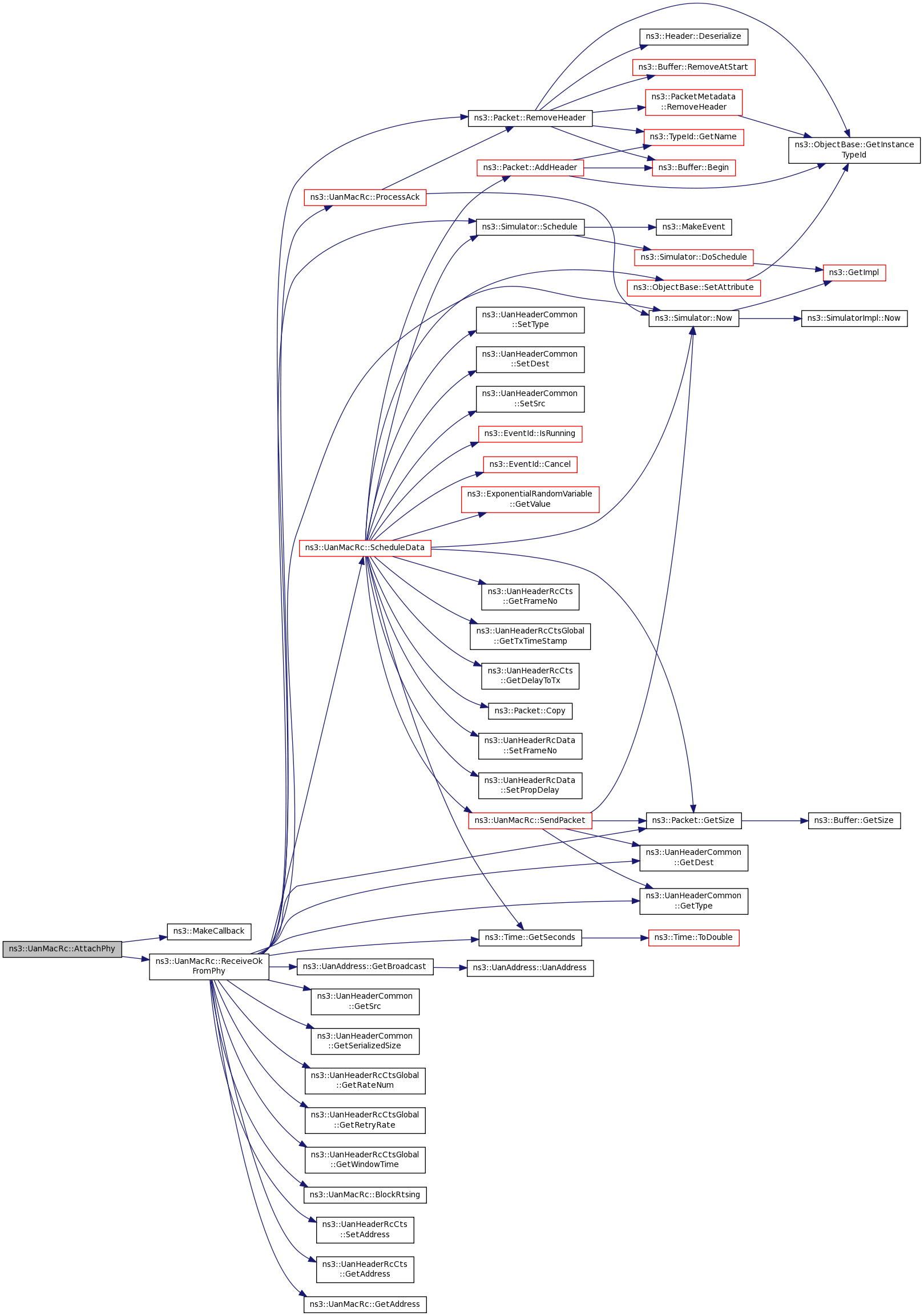

Here is the call graph for this function:

void ns3::UanMacRc::BlockRtsing ( void )

private

Definition at line 771 of file uan-mac-rc.cc.

References m_rtsBlocked.

Referenced by ReceiveOkFromPhy().

Here is the caller graph for this function:

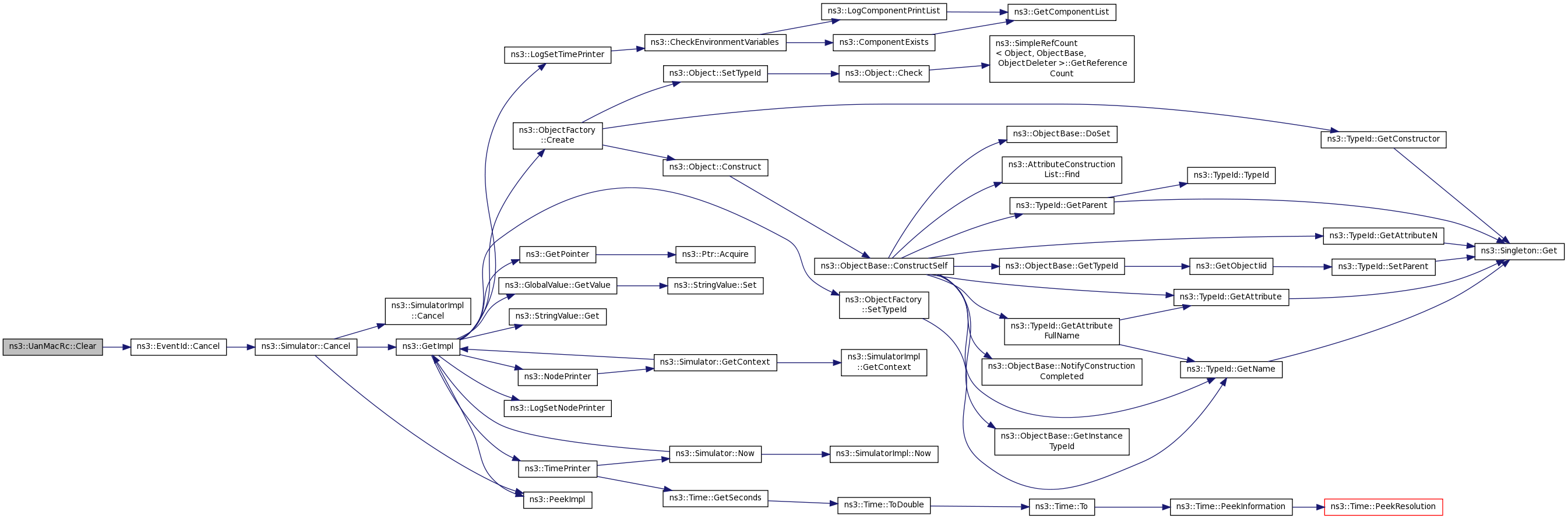

void ns3::UanMacRc::Clear ( void )

virtual

Clears all pointer references

Implements ns3::UanMac.

Definition at line 176 of file uan-mac-rc.cc.

References ns3::EventId::Cancel(), m_cleared, m_phy, m_pktQueue, m_resList, m_rtsEvent, and m_startAgain.

Referenced by DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

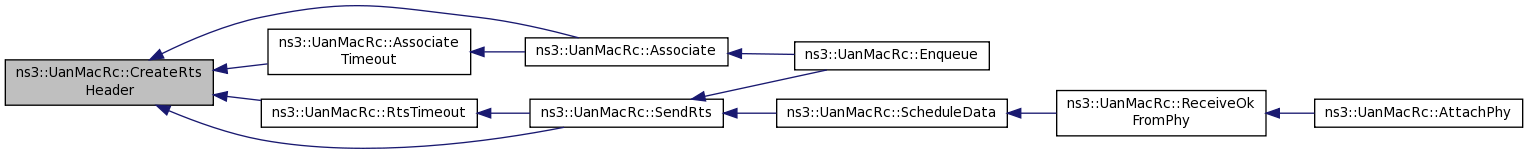

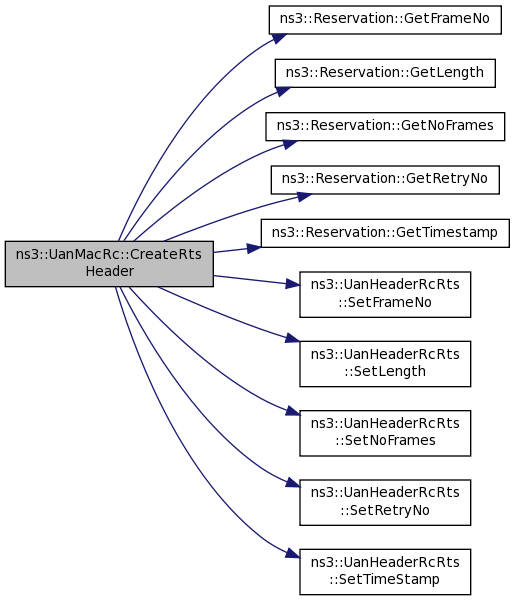

UanHeaderRcRts ns3::UanMacRc::CreateRtsHeader ( const Reservation & res )

private

Definition at line 605 of file uan-mac-rc.cc.

References ns3::Reservation::GetFrameNo(), ns3::Reservation::GetLength(), ns3::Reservation::GetNoFrames(), ns3::Reservation::GetRetryNo(), ns3::Reservation::GetTimestamp(), ns3::UanHeaderRcRts::SetFrameNo(), ns3::UanHeaderRcRts::SetLength(), ns3::UanHeaderRcRts::SetNoFrames(), ns3::UanHeaderRcRts::SetRetryNo(), and ns3::UanHeaderRcRts::SetTimeStamp().

Referenced by Associate(), AssociateTimeout(), RtsTimeout(), and SendRts().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 200 of file uan-mac-rc.cc.

References Clear(), and ns3::Object::DoDispose().

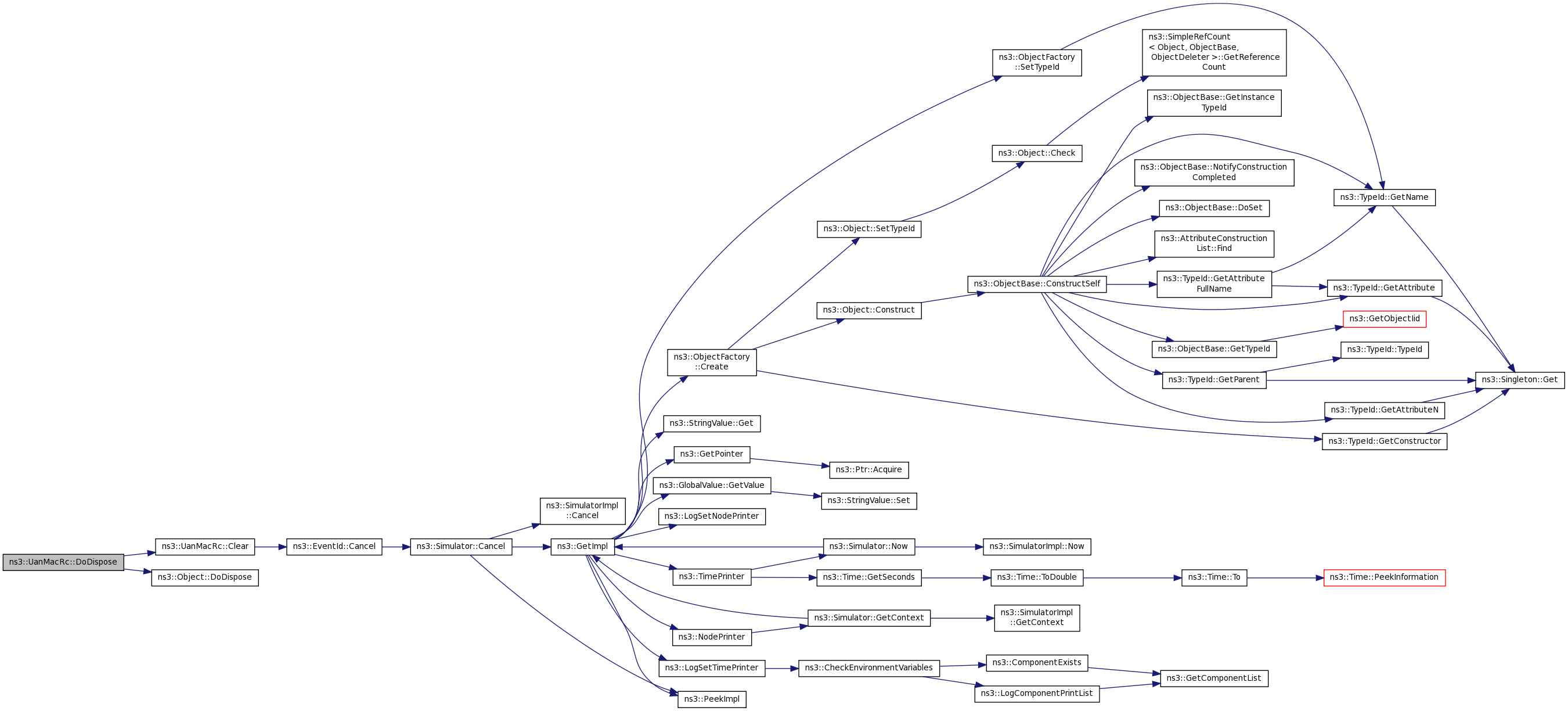

Here is the call graph for this function:

bool ns3::UanMacRc::Enqueue	(	Ptr< Packet >	pkt,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Enqueue packet to be transmitted

Parameters

pkt	Packet to be transmitted
dest	Destination address
protocolNumber	Protocol #. Usage varies by MAC

Implements ns3::UanMac.

Definition at line 286 of file uan-mac-rc.cc.

References Associate(), ns3::UanAddress::ConvertFrom(), DATATX, GWPSENT, IDLE, ns3::EventId::IsRunning(), m_pktQueue, m_queueLimit, m_rtsEvent, m_state, NS_LOG_WARN, RTSSENT, SendRts(), and UNASSOCIATED.

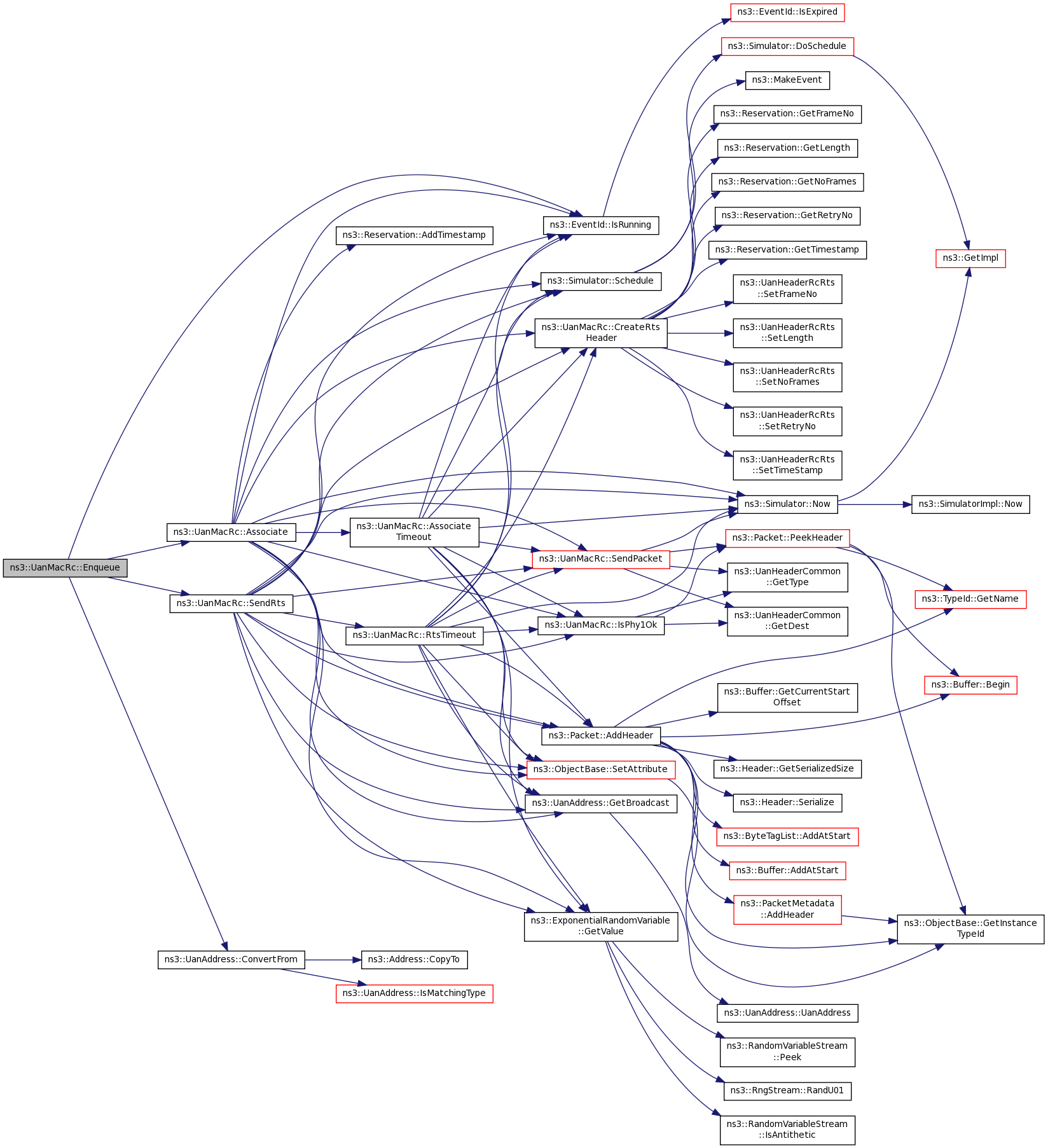

Here is the call graph for this function:

Address ns3::UanMacRc::GetAddress ( void )

virtual

Returns: MAC Address

Implements ns3::UanMac.

Definition at line 274 of file uan-mac-rc.cc.

References m_address.

Referenced by ReceiveOkFromPhy().

Here is the caller graph for this function:

Address ns3::UanMacRc::GetBroadcast ( void ) const

virtual

Returns: Broadcast address

Implements ns3::UanMac.

Definition at line 335 of file uan-mac-rc.cc.

References ns3::UanAddress::GetBroadcast().

Here is the call graph for this function:

TypeId ns3::UanMacRc::GetTypeId ( void )

static

Definition at line 207 of file uan-mac-rc.cc.

References m_dequeueLogger, m_enqueueLogger, m_learnedProp, m_maxFrames, m_minRetryRate, m_numRates, m_queueLimit, m_retryRate, m_retryStep, m_rxLogger, m_sifs, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

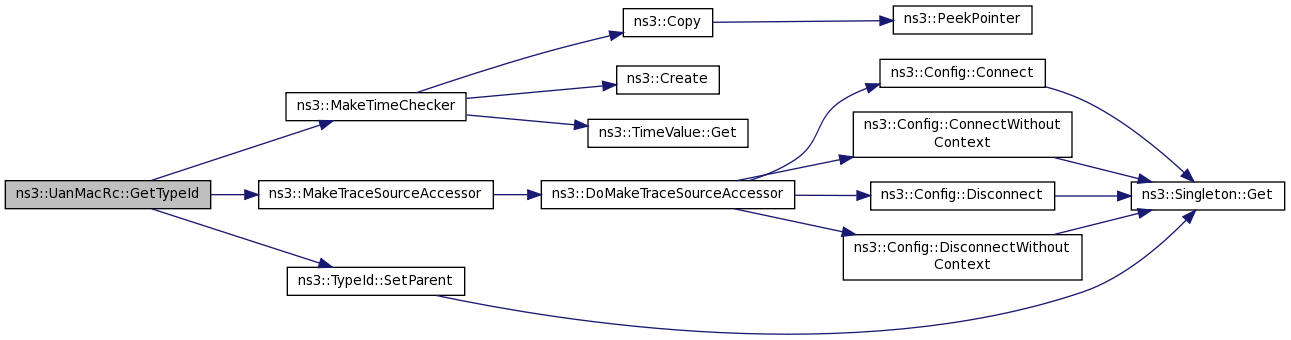

Here is the call graph for this function:

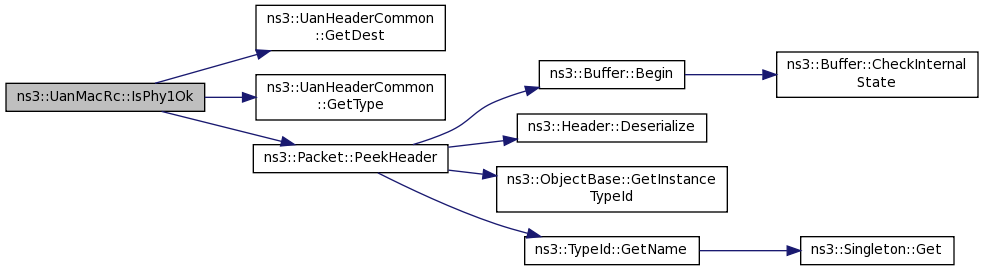

bool ns3::UanMacRc::IsPhy1Ok ( void )

private

Definition at line 709 of file uan-mac-rc.cc.

References ns3::UanHeaderCommon::GetDest(), ns3::UanHeaderCommon::GetType(), m_address, m_phy, ns3::Packet::PeekHeader(), TYPE_ACK, and TYPE_CTS.

Referenced by Associate(), AssociateTimeout(), RtsTimeout(), and SendRts().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::ProcessAck ( Ptr< Packet > ack )

private

Definition at line 553 of file uan-mac-rc.cc.

References ns3::UanHeaderRcAck::GetFrameNo(), ns3::UanHeaderRcAck::GetNackedFrames(), ns3::UanHeaderRcAck::GetNoNacks(), m_address, m_pktQueue, m_resList, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::Packet::RemoveHeader().

Referenced by ReceiveOkFromPhy().

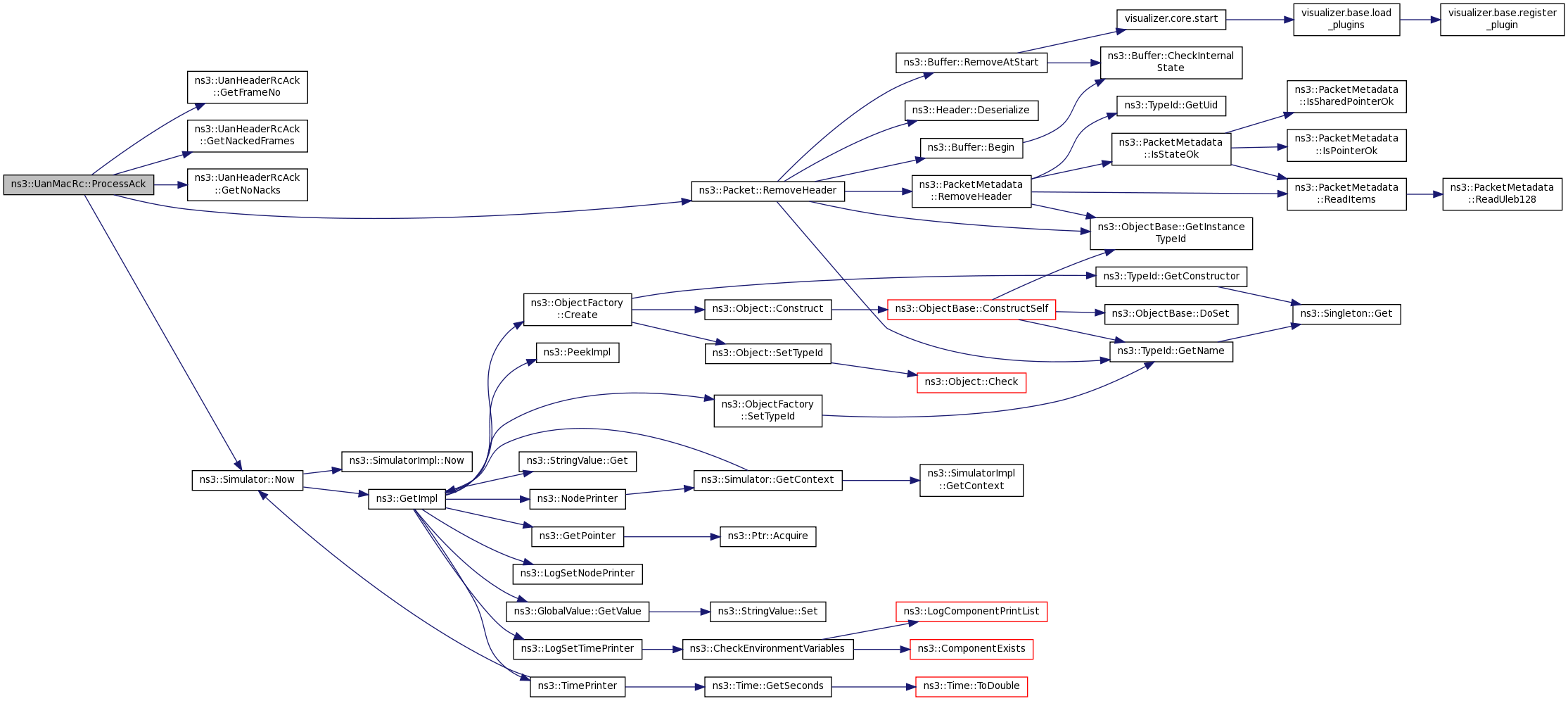

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::ReceiveOkFromPhy	(	Ptr< Packet >	pkt,
		double	sinr,
		UanTxMode	mode
	)

private

Definition at line 341 of file uan-mac-rc.cc.

References BlockRtsing(), GetAddress(), ns3::UanHeaderRcCts::GetAddress(), ns3::UanAddress::GetBroadcast(), ns3::UanHeaderCommon::GetDest(), ns3::UanHeaderRcCtsGlobal::GetRateNum(), ns3::UanHeaderRcCtsGlobal::GetRetryRate(), ns3::Time::GetSeconds(), ns3::UanHeaderCommon::GetSerializedSize(), ns3::Packet::GetSize(), ns3::UanHeaderCommon::GetSrc(), ns3::UanHeaderCommon::GetType(), ns3::UanHeaderRcCtsGlobal::GetWindowTime(), GWPSENT, m_address, m_assocAddr, m_currentRate, m_forwardUpCb, m_minRetryRate, m_retryRate, m_retryStep, m_rtsBlocked, m_rxLogger, m_state, ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_DEBUG, ProcessAck(), ns3::Packet::RemoveHeader(), RTSSENT, ns3::Simulator::Schedule(), ScheduleData(), ns3::UanHeaderRcCts::SetAddress(), TYPE_ACK, TYPE_CTS, TYPE_DATA, TYPE_GWPING, and TYPE_RTS.

Referenced by AttachPhy().

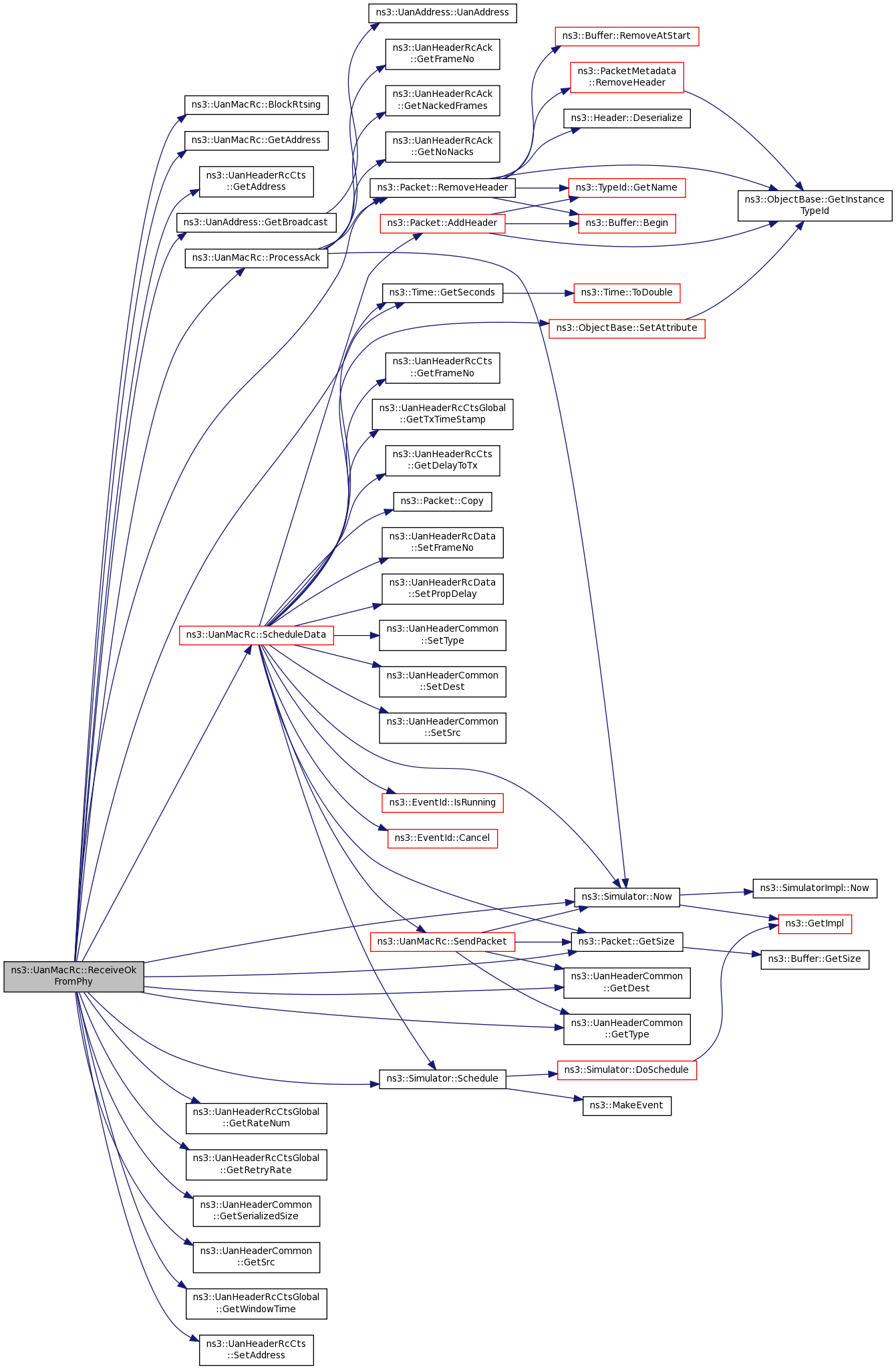

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::RtsTimeout ( void )

private

Definition at line 732 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), CreateRtsHeader(), ns3::UanAddress::GetBroadcast(), ns3::ExponentialRandomVariable::GetValue(), IsPhy1Ok(), ns3::EventId::IsRunning(), m_address, m_cntrlSends, m_currentRate, m_ev, m_numRates, m_phy, m_resList, m_retryRate, m_rtsBlocked, m_rtsEvent, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, RTSSENT, ns3::Simulator::Schedule(), SendPacket(), ns3::ObjectBase::SetAttribute(), timeout, and TYPE_RTS.

Referenced by SendRts().

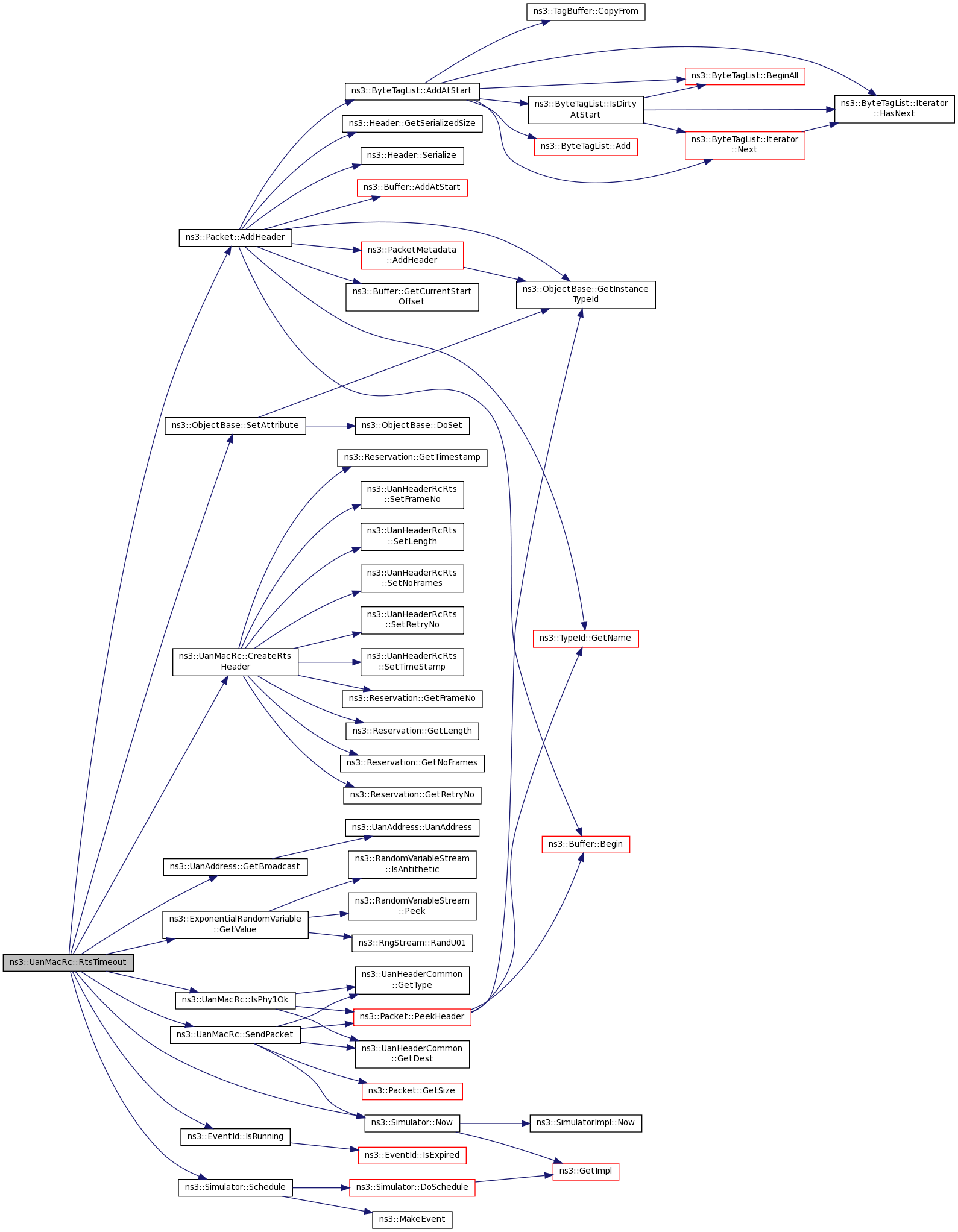

Here is the call graph for this function:

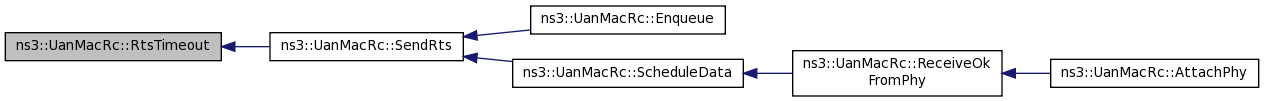

Here is the caller graph for this function:

void ns3::UanMacRc::ScheduleData	(	const UanHeaderRcCts &	ctsh,
		const UanHeaderRcCtsGlobal &	ctsg,
		uint32_t	ctsBytes
	)

private

Definition at line 432 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), ns3::EventId::Cancel(), ns3::Packet::Copy(), ns3::UanHeaderRcCts::GetDelayToTx(), ns3::UanHeaderRcCts::GetFrameNo(), ns3::Time::GetSeconds(), ns3::Packet::GetSize(), ns3::UanHeaderRcCtsGlobal::GetTxTimeStamp(), ns3::ExponentialRandomVariable::GetValue(), GWPSENT, IDLE, ns3::EventId::IsRunning(), m_address, m_assocAddr, m_currentRate, m_ev, m_learnedProp, m_phy, m_pktQueue, m_resList, m_retryRate, m_rtsEvent, m_sifs, m_state, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, RTSSENT, ns3::Simulator::Schedule(), SendPacket(), SendRts(), ns3::ObjectBase::SetAttribute(), ns3::UanHeaderCommon::SetDest(), ns3::UanHeaderRcData::SetFrameNo(), ns3::UanHeaderRcData::SetPropDelay(), ns3::UanHeaderCommon::SetSrc(), ns3::UanHeaderCommon::SetType(), timeout, and TYPE_DATA.

Referenced by ReceiveOkFromPhy().

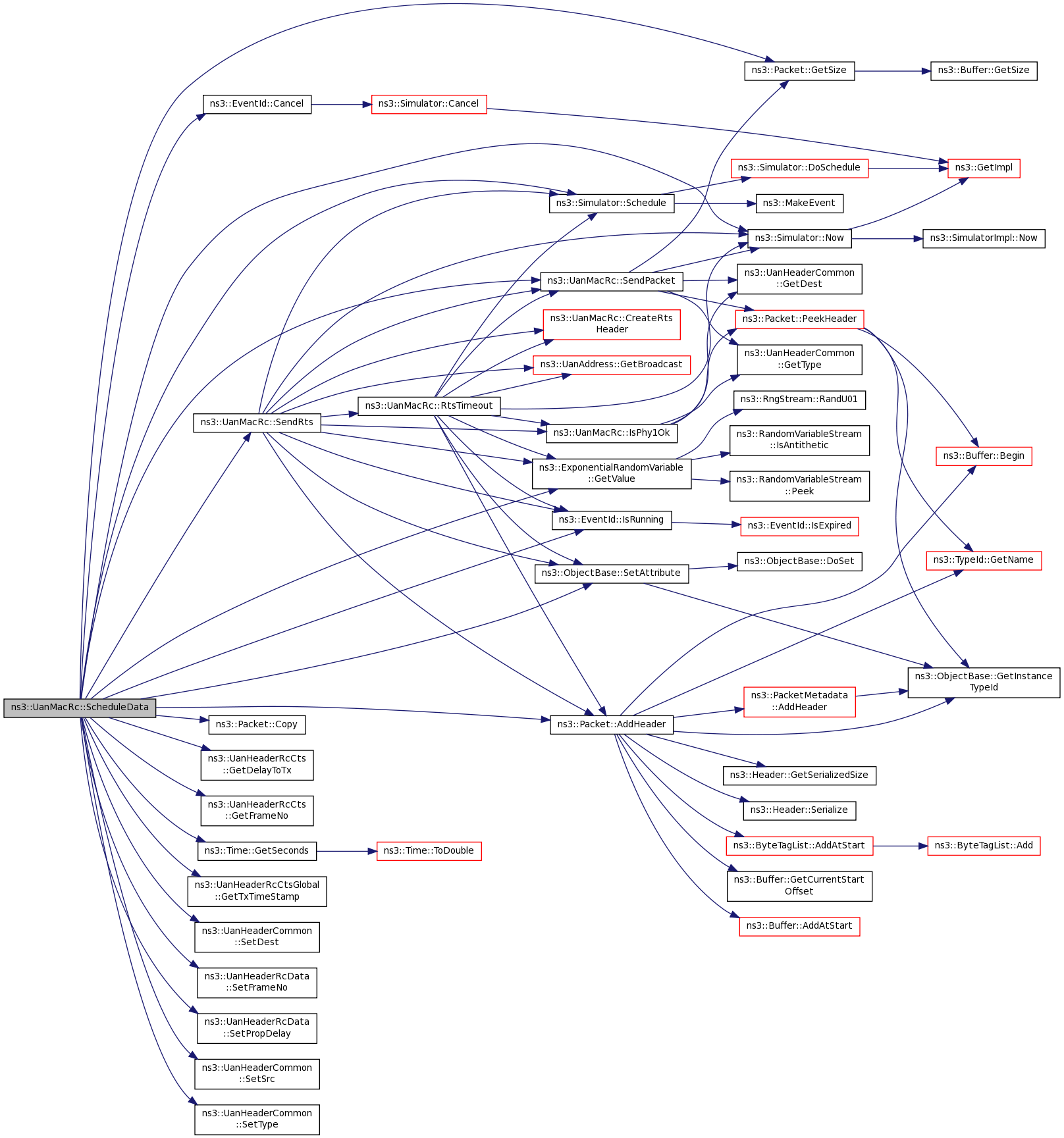

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRc::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	rate
	)

private

Definition at line 521 of file uan-mac-rc.cc.

References ns3::UanHeaderCommon::GetDest(), ns3::Packet::GetSize(), ns3::UanHeaderCommon::GetType(), m_address, m_dequeueLogger, m_phy, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Packet::PeekHeader(), TYPE_ACK, TYPE_CTS, TYPE_DATA, TYPE_GWPING, and TYPE_RTS.

Referenced by Associate(), AssociateTimeout(), RtsTimeout(), ScheduleData(), and SendRts().

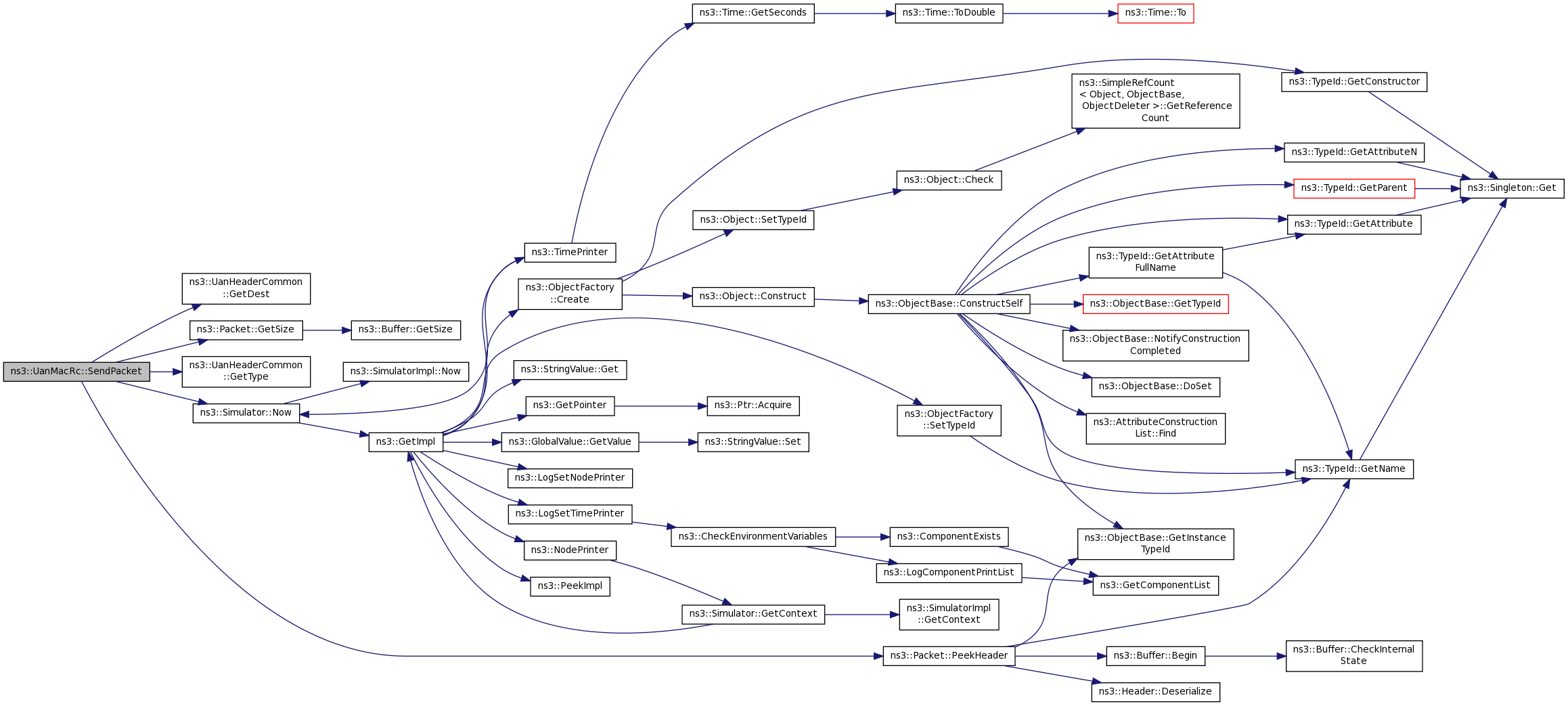

Here is the call graph for this function:

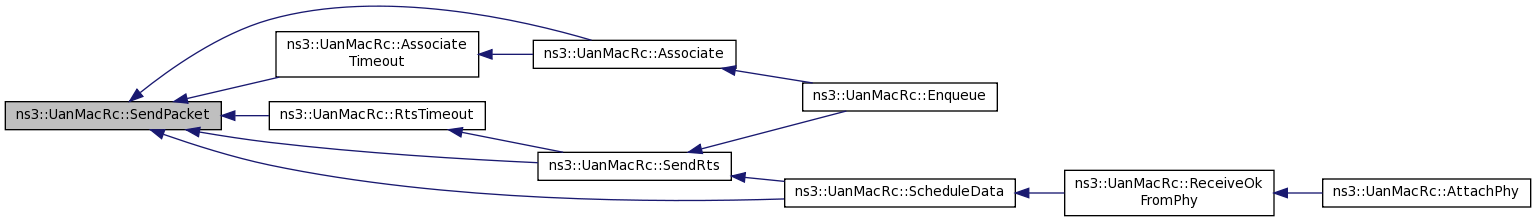

Here is the caller graph for this function:

void ns3::UanMacRc::SendRts ( void )

private

Definition at line 676 of file uan-mac-rc.cc.

References ns3::Packet::AddHeader(), CreateRtsHeader(), ns3::UanAddress::GetBroadcast(), ns3::ExponentialRandomVariable::GetValue(), IsPhy1Ok(), ns3::EventId::IsRunning(), m_address, m_cntrlSends, m_currentRate, m_ev, m_frameNo, m_maxFrames, m_numRates, m_phy, m_pktQueue, m_resList, m_retryRate, m_rtsBlocked, m_rtsEvent, m_state, ns3::Simulator::Now(), NS_ASSERT, RTSSENT, RtsTimeout(), ns3::Simulator::Schedule(), SendPacket(), ns3::ObjectBase::SetAttribute(), timeout, and TYPE_RTS.

Referenced by Enqueue(), and ScheduleData().

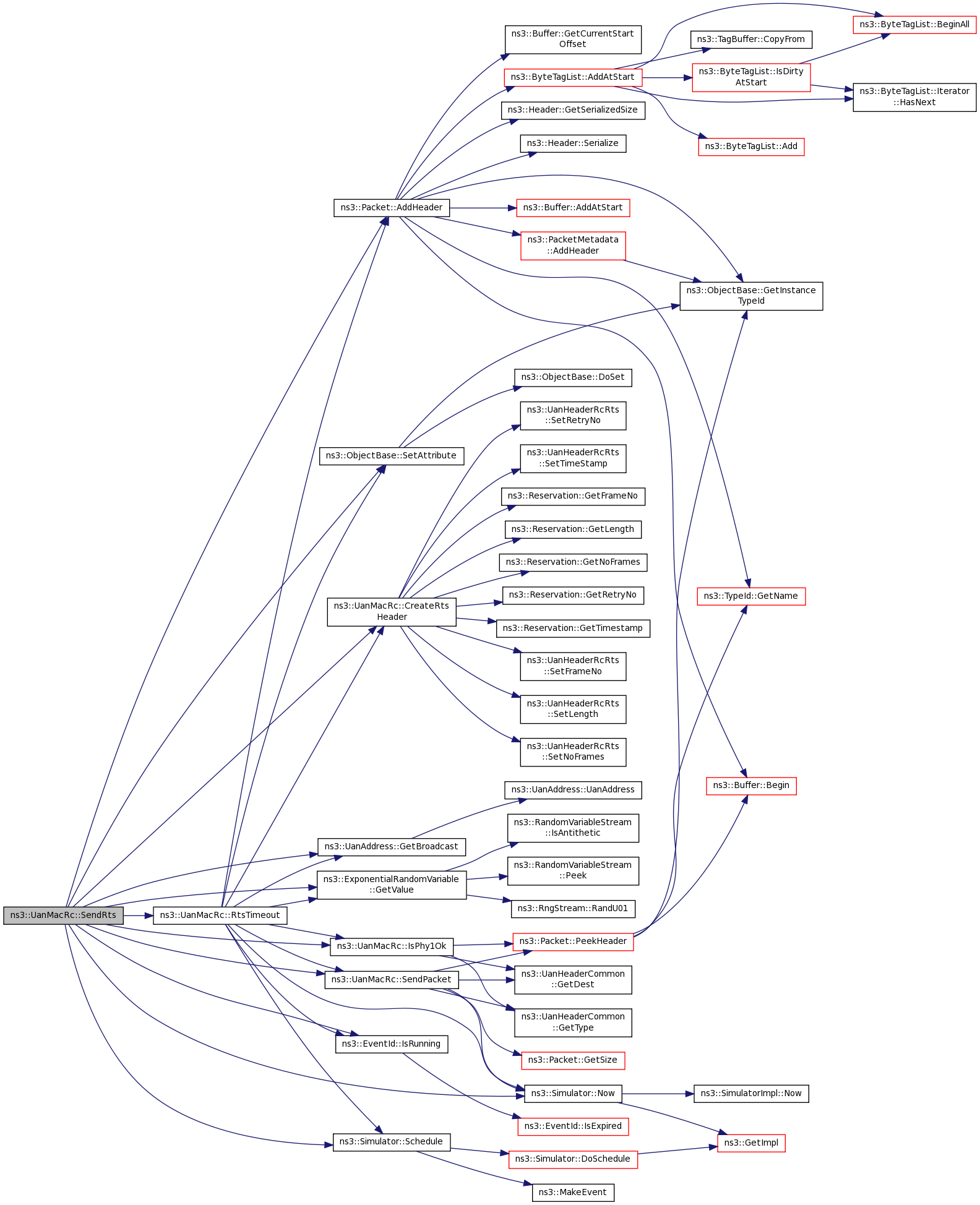

Here is the call graph for this function:

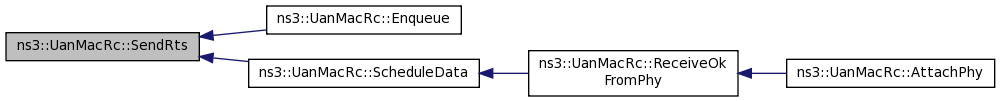

Here is the caller graph for this function:

void ns3::UanMacRc::SetAddress ( UanAddress addr )

virtual

Parameters

addr	UanAddress for this MAC

Implements ns3::UanMac.

Definition at line 280 of file uan-mac-rc.cc.

References m_address.

void ns3::UanMacRc::SetForwardUpCb ( Callback< void, Ptr< Packet >, const UanAddress & > cb )

virtual

Parameters

cb	Callback to be called when a packet is forwarded up to higher layer

Implements ns3::UanMac.

Definition at line 322 of file uan-mac-rc.cc.

References m_forwardUpCb.

Member Data Documentation

UanAddress ns3::UanMacRc::m_address

private

Definition at line 176 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), GetAddress(), IsPhy1Ok(), ProcessAck(), ReceiveOkFromPhy(), RtsTimeout(), ScheduleData(), SendPacket(), SendRts(), and SetAddress().

UanAddress ns3::UanMacRc::m_assocAddr

private

Definition at line 178 of file uan-mac-rc.h.

Referenced by ReceiveOkFromPhy(), and ScheduleData().

bool ns3::UanMacRc::m_cleared

private

Definition at line 194 of file uan-mac-rc.h.

Referenced by Clear().

uint32_t ns3::UanMacRc::m_cntrlSends = 0

staticprivate

Definition at line 219 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), RtsTimeout(), and SendRts().

uint32_t ns3::UanMacRc::m_ctsSizeG

private

Definition at line 192 of file uan-mac-rc.h.

Referenced by UanMacRc().

uint32_t ns3::UanMacRc::m_ctsSizeN

private

Definition at line 191 of file uan-mac-rc.h.

Referenced by UanMacRc().

uint32_t ns3::UanMacRc::m_currentRate

private

Definition at line 181 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), ReceiveOkFromPhy(), RtsTimeout(), ScheduleData(), and SendRts().

TracedCallback<Ptr<const Packet>, uint16_t > ns3::UanMacRc::m_dequeueLogger

private

Definition at line 203 of file uan-mac-rc.h.

Referenced by GetTypeId(), and SendPacket().

TracedCallback<Ptr<const Packet>, uint16_t > ns3::UanMacRc::m_enqueueLogger

private

Definition at line 202 of file uan-mac-rc.h.

Referenced by GetTypeId().

Ptr<ExponentialRandomVariable> ns3::UanMacRc::m_ev

private

Provides exponential random variables.

Definition at line 222 of file uan-mac-rc.h.

Referenced by AssignStreams(), Associate(), AssociateTimeout(), RtsTimeout(), ScheduleData(), SendRts(), and UanMacRc().

Callback<void, Ptr<Packet>, const UanAddress& > ns3::UanMacRc::m_forwardUpCb

private

Definition at line 199 of file uan-mac-rc.h.

Referenced by ReceiveOkFromPhy(), and SetForwardUpCb().

uint8_t ns3::UanMacRc::m_frameNo

private

Definition at line 184 of file uan-mac-rc.h.

Referenced by Associate(), and SendRts().

Time ns3::UanMacRc::m_learnedProp

private

Definition at line 186 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ScheduleData().

uint32_t ns3::UanMacRc::m_maxFrames

private

Definition at line 182 of file uan-mac-rc.h.

Referenced by Associate(), GetTypeId(), and SendRts().

double ns3::UanMacRc::m_minRetryRate

private

Definition at line 188 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ReceiveOkFromPhy().

uint32_t ns3::UanMacRc::m_numRates

private

Definition at line 180 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), GetTypeId(), RtsTimeout(), and SendRts().

Ptr<UanPhy> ns3::UanMacRc::m_phy

private

Definition at line 179 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), AttachPhy(), Clear(), IsPhy1Ok(), RtsTimeout(), ScheduleData(), SendPacket(), and SendRts().

std::list<std::pair <Ptr<Packet>, UanAddress > > ns3::UanMacRc::m_pktQueue

private

Definition at line 196 of file uan-mac-rc.h.

Referenced by Associate(), Clear(), Enqueue(), ProcessAck(), ScheduleData(), and SendRts().

uint32_t ns3::UanMacRc::m_queueLimit

private

Definition at line 183 of file uan-mac-rc.h.

Referenced by Enqueue(), and GetTypeId().

std::list<Reservation> ns3::UanMacRc::m_resList

private

Definition at line 197 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), Clear(), ProcessAck(), RtsTimeout(), ScheduleData(), and SendRts().

double ns3::UanMacRc::m_retryRate

private

Definition at line 177 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), GetTypeId(), ReceiveOkFromPhy(), RtsTimeout(), ScheduleData(), and SendRts().

double ns3::UanMacRc::m_retryStep

private

Definition at line 189 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ReceiveOkFromPhy().

bool ns3::UanMacRc::m_rtsBlocked

private

Definition at line 173 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), BlockRtsing(), ReceiveOkFromPhy(), RtsTimeout(), and SendRts().

EventId ns3::UanMacRc::m_rtsEvent

private

Definition at line 205 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), Clear(), Enqueue(), RtsTimeout(), ScheduleData(), and SendRts().

TracedCallback<Ptr<const Packet>, UanTxMode > ns3::UanMacRc::m_rxLogger

private

Definition at line 201 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ReceiveOkFromPhy().

Time ns3::UanMacRc::m_sifs

private

Definition at line 185 of file uan-mac-rc.h.

Referenced by GetTypeId(), and ScheduleData().

EventId ns3::UanMacRc::m_startAgain

private

Definition at line 175 of file uan-mac-rc.h.

Referenced by Clear().

State ns3::UanMacRc::m_state

private

Definition at line 172 of file uan-mac-rc.h.

Referenced by Associate(), AssociateTimeout(), Enqueue(), ReceiveOkFromPhy(), RtsTimeout(), ScheduleData(), and SendRts().

The documentation for this class was generated from the following files:

src/uan/model/uan-mac-rc.h
src/uan/model/uan-mac-rc.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
