ns3::WifiMacQueue Class Reference
Wifi Models

#include <wifi-mac-queue.h>

+ Inheritance diagram for ns3::WifiMacQueue:
+ Collaboration diagram for ns3::WifiMacQueue:

Classes

struct  Item


Public Member Functions

 WifiMacQueue ()

 ~WifiMacQueue ()

Ptr< const Packet > Dequeue (WifiMacHeader *hdr)

Ptr< const Packet > DequeueByTidAndAddress (WifiMacHeader *hdr, uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)

Ptr< const Packet > DequeueFirstAvailable (WifiMacHeader *hdr, Time &tStamp, const QosBlockedDestinations *blockedPackets)

void Enqueue (Ptr< const Packet > packet, const WifiMacHeader &hdr)

void Flush (void)

Time GetMaxDelay (void) const

uint32_t GetMaxSize (void) const

uint32_t GetNPacketsByTidAndAddress (uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)

uint32_t GetSize (void)

bool IsEmpty (void)

Ptr< const Packet > Peek (WifiMacHeader *hdr)

Ptr< const Packet > PeekByTidAndAddress (WifiMacHeader *hdr, uint8_t tid, WifiMacHeader::AddressType type, Mac48Address addr)

Ptr< const Packet > PeekFirstAvailable (WifiMacHeader *hdr, Time &tStamp, const QosBlockedDestinations *blockedPackets)

void PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)

bool Remove (Ptr< const Packet > packet)

void SetMaxDelay (Time delay)

void SetMaxSize (uint32_t maxSize)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Types

typedef std::list< struct Item > PacketQueue

typedef std::list< struct Item >
::iterator 		PacketQueueI

typedef std::list< struct Item >
::reverse_iterator 		PacketQueueRI


Private Member Functions

void Cleanup (void)

Mac48Address GetAddressForPacket (enum WifiMacHeader::AddressType type, PacketQueueI)


Private Attributes

Time m_maxDelay

uint32_t m_maxSize

PacketQueue m_queue

uint32_t m_size


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Detailed Description

This queue implements the timeout procedure described in IEEE Std. 802.11-2007, section 9.9.1.6, paragraph 6.

When a packet is received by the MAC, to be sent to the PHY, it is queued in the internal queue after being tagged by the current time.

When a packet is dequeued, the queue checks its timestamp to verify whether or not it should be dropped. If dot11EDCATableMSDULifetime has elapsed, it is dropped. Otherwise, it is returned to the caller.

Config Paths

ns3::WifiMacQueue is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_EdcaTxopN/Queue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_EdcaTxopN/Queue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/DcaTxop/Queue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_EdcaTxopN/Queue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_EdcaTxopN/Queue

Attributes

  • MaxPacketNumber: If a packet arrives when there are already this number of packets, it is dropped.
  • MaxDelay: If a packet stays longer than this delay in the queue, it is dropped.
    • Set with class: ns3::TimeValue
    • Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +10000000000.0ns
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 52 of file wifi-mac-queue.h.

Member Typedef Documentation

typedef std::list<struct Item> ns3::WifiMacQueue::PacketQueue
private

Definition at line 124 of file wifi-mac-queue.h.

typedef std::list<struct Item>::iterator ns3::WifiMacQueue::PacketQueueI
private

Definition at line 128 of file wifi-mac-queue.h.

typedef std::list<struct Item>::reverse_iterator ns3::WifiMacQueue::PacketQueueRI
private

Definition at line 127 of file wifi-mac-queue.h.

Constructor & Destructor Documentation

ns3::WifiMacQueue::WifiMacQueue ( )

Definition at line 61 of file wifi-mac-queue.cc.

ns3::WifiMacQueue::~WifiMacQueue ( )

Definition at line 66 of file wifi-mac-queue.cc.

References Flush().

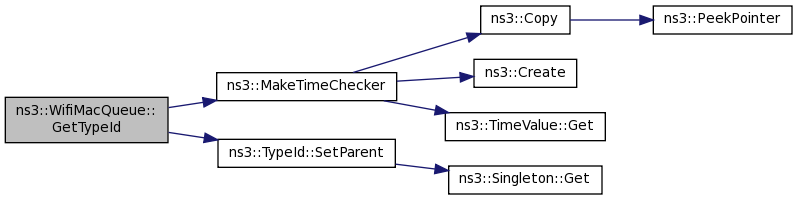

+ Here is the call graph for this function:

Member Function Documentation

void ns3::WifiMacQueue::Cleanup ( void  )
private

Definition at line 109 of file wifi-mac-queue.cc.

References m_maxDelay, m_queue, m_size, and ns3::Simulator::Now().

Referenced by Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), GetNPacketsByTidAndAddress(), IsEmpty(), Peek(), PeekByTidAndAddress(), PeekFirstAvailable(), and PushFront().

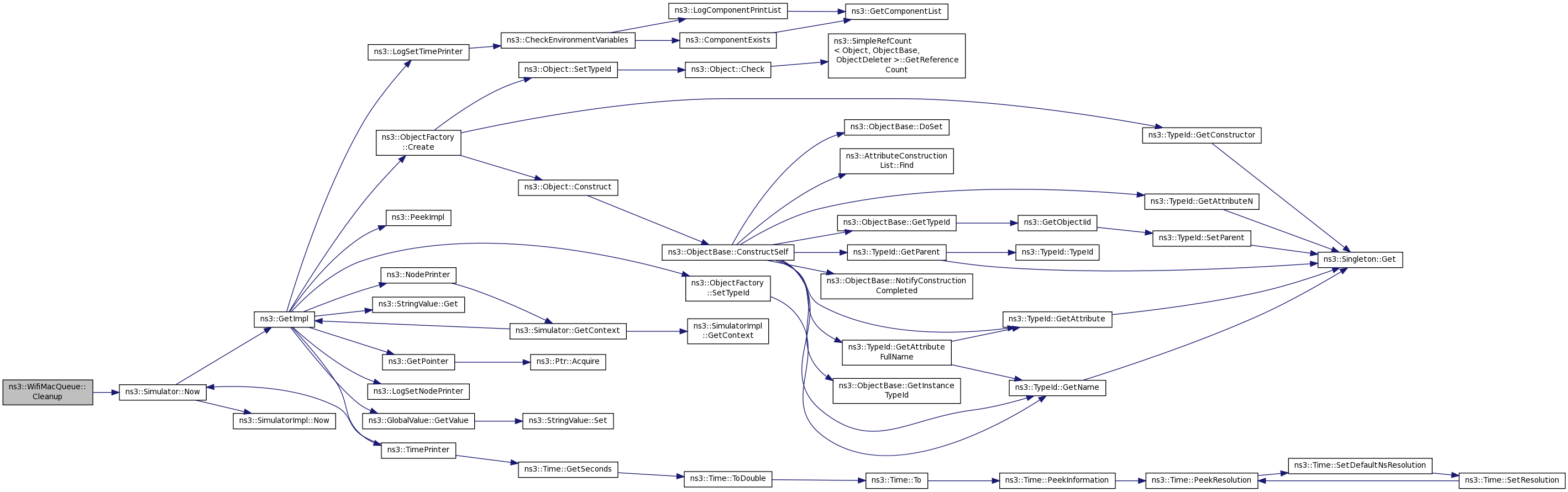

+ Here is the call graph for this function:

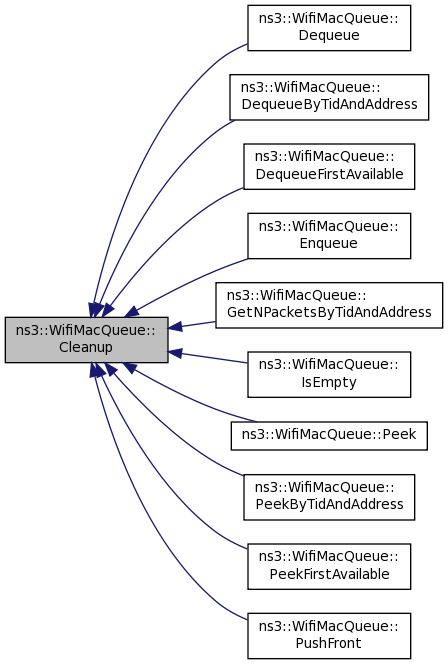

+ Here is the caller graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::Dequeue ( WifiMacHeader *  hdr)

Definition at line 134 of file wifi-mac-queue.cc.

References Cleanup(), ns3::WifiMacQueue::Item::hdr, m_queue, m_size, and ns3::WifiMacQueue::Item::packet.

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::DequeueByTidAndAddress ( WifiMacHeader *  hdr,
uint8_t  tid,
WifiMacHeader::AddressType  type,
Mac48Address  addr
)

Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid. This method removes the packet from this queue. Is typically used by ns3::EdcaTxopN in order to perform correct MSDU aggregation (A-MSDU).

Definition at line 162 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), m_queue, and m_size.

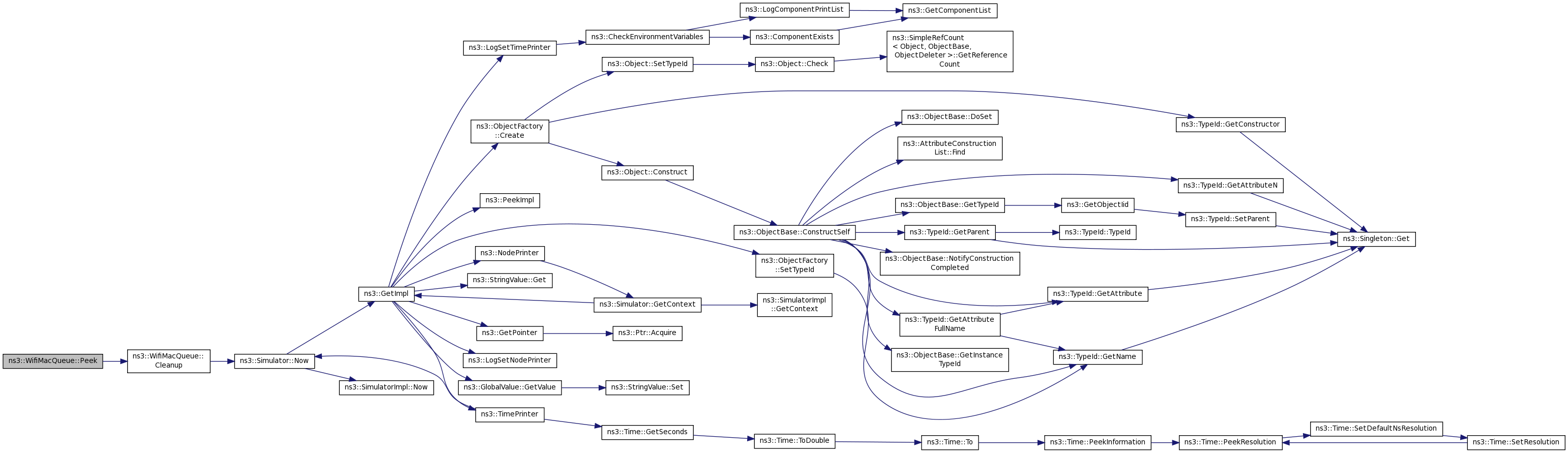

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::DequeueFirstAvailable ( WifiMacHeader *  hdr,
Time &  tStamp,
const QosBlockedDestinations *  blockedPackets
)

Returns first available packet for transmission. A packet could be no available if it's a QoS packet with a tid and an address1 fields equal to tid and addr respectively that index a pending agreement in the BlockAckManager object. So that packet must not be transmitted until reception of an ADDBA response frame from station addressed by addr. This method removes the packet from queue.

Definition at line 304 of file wifi-mac-queue.cc.

References Cleanup(), ns3::QosBlockedDestinations::IsBlocked(), m_queue, and m_size.

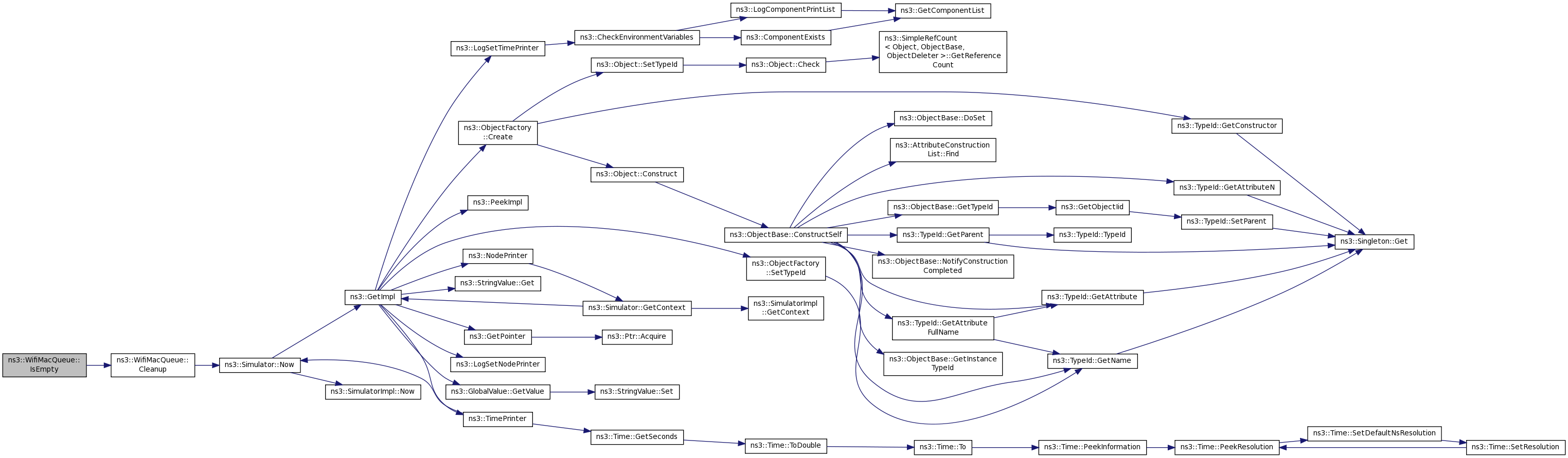

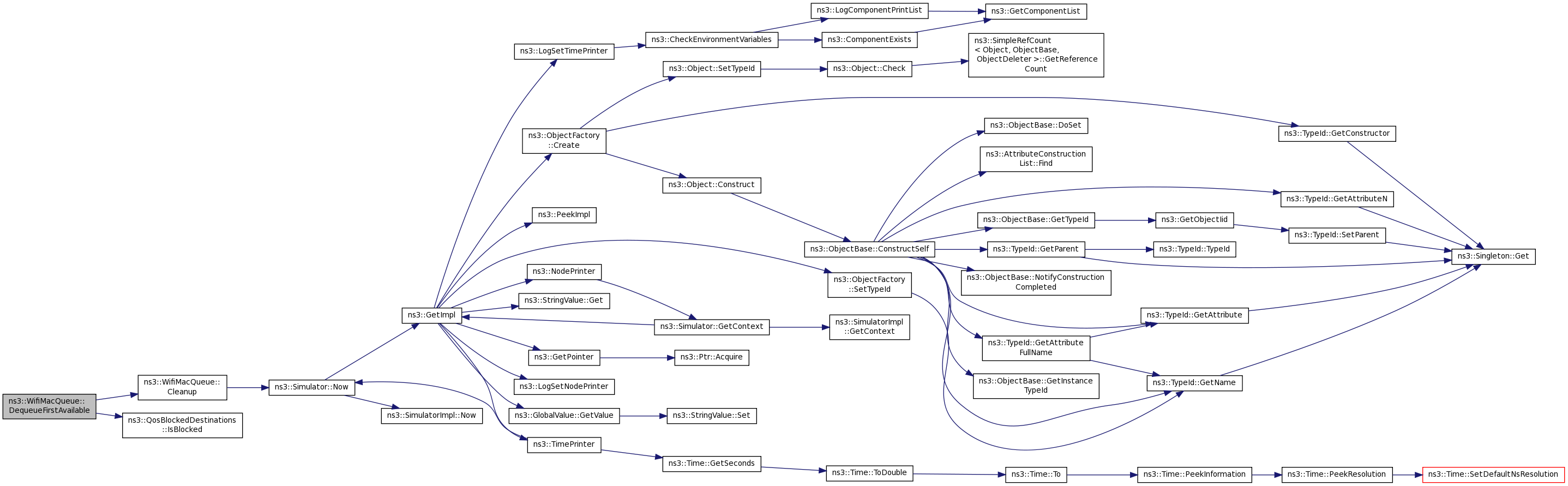

+ Here is the call graph for this function:

void ns3::WifiMacQueue::Enqueue ( Ptr< const Packet >  packet,
const WifiMacHeader &  hdr
)

Definition at line 96 of file wifi-mac-queue.cc.

References Cleanup(), m_maxSize, m_queue, m_size, and ns3::Simulator::Now().

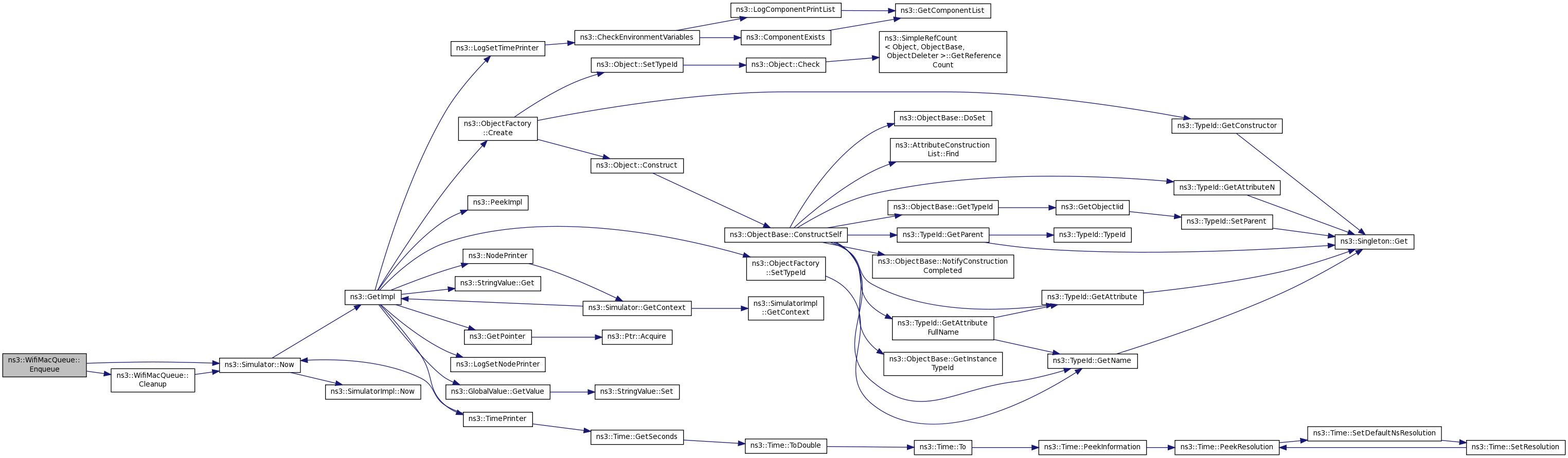

+ Here is the call graph for this function:

void ns3::WifiMacQueue::Flush ( void  )

Definition at line 227 of file wifi-mac-queue.cc.

References m_queue, and m_size.

Referenced by ~WifiMacQueue().

+ Here is the caller graph for this function:

Mac48Address ns3::WifiMacQueue::GetAddressForPacket ( enum WifiMacHeader::AddressType  type,
PacketQueueI  it
)
private

Definition at line 234 of file wifi-mac-queue.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::ADDR2, and ns3::WifiMacHeader::ADDR3.

Referenced by DequeueByTidAndAddress(), GetNPacketsByTidAndAddress(), and PeekByTidAndAddress().

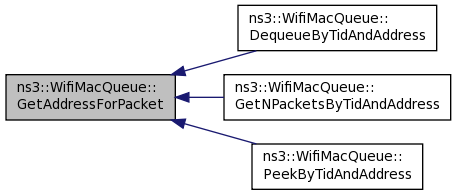

+ Here is the caller graph for this function:

Time ns3::WifiMacQueue::GetMaxDelay ( void  ) const

Definition at line 90 of file wifi-mac-queue.cc.

References m_maxDelay.

uint32_t ns3::WifiMacQueue::GetMaxSize ( void  ) const

Definition at line 84 of file wifi-mac-queue.cc.

References m_maxSize.

uint32_t ns3::WifiMacQueue::GetNPacketsByTidAndAddress ( uint8_t  tid,
WifiMacHeader::AddressType  type,
Mac48Address  addr
)

Returns number of QoS packets having tid equals to tid and address specified by type equals to addr.

Definition at line 281 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), and m_queue.

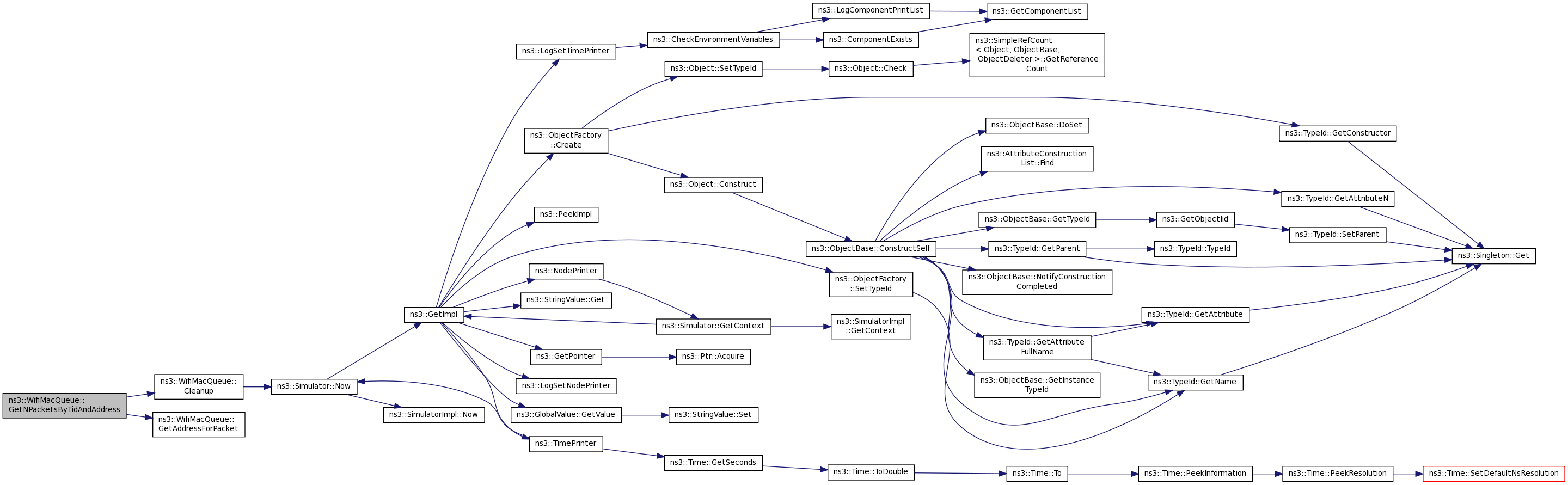

+ Here is the call graph for this function:

uint32_t ns3::WifiMacQueue::GetSize ( void  )

Definition at line 221 of file wifi-mac-queue.cc.

References m_size.

TypeId ns3::WifiMacQueue::GetTypeId ( void  )
static

Definition at line 44 of file wifi-mac-queue.cc.

References m_maxDelay, m_maxSize, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

bool ns3::WifiMacQueue::IsEmpty ( void  )

Definition at line 214 of file wifi-mac-queue.cc.

References Cleanup(), and m_queue.

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::Peek ( WifiMacHeader *  hdr)

Definition at line 149 of file wifi-mac-queue.cc.

References Cleanup(), ns3::WifiMacQueue::Item::hdr, m_queue, and ns3::WifiMacQueue::Item::packet.

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::PeekByTidAndAddress ( WifiMacHeader *  hdr,
uint8_t  tid,
WifiMacHeader::AddressType  type,
Mac48Address  addr
)

Searchs and returns, if is present in this queue, first packet having address indicated by type equals to addr, and tid equals to tid. This method doesn't remove the packet from this queue. Is typically used by ns3::EdcaTxopN in order to perform correct MSDU aggregation (A-MSDU).

Definition at line 190 of file wifi-mac-queue.cc.

References Cleanup(), GetAddressForPacket(), and m_queue.

+ Here is the call graph for this function:

Ptr< const Packet > ns3::WifiMacQueue::PeekFirstAvailable ( WifiMacHeader *  hdr,
Time &  tStamp,
const QosBlockedDestinations *  blockedPackets
)

Returns first available packet for transmission. The packet isn't removed from queue.

Definition at line 326 of file wifi-mac-queue.cc.

References Cleanup(), ns3::QosBlockedDestinations::IsBlocked(), and m_queue.

+ Here is the call graph for this function:

void ns3::WifiMacQueue::PushFront ( Ptr< const Packet >  packet,
const WifiMacHeader &  hdr
)

Definition at line 268 of file wifi-mac-queue.cc.

References Cleanup(), m_maxSize, m_queue, m_size, and ns3::Simulator::Now().

+ Here is the call graph for this function:

bool ns3::WifiMacQueue::Remove ( Ptr< const Packet >  packet)

If exists, removes packet from queue and returns true. Otherwise it takes no effects and return false. Deletion of the packet is performed in linear time (O(n)).

Definition at line 252 of file wifi-mac-queue.cc.

References m_queue, and m_size.

void ns3::WifiMacQueue::SetMaxDelay ( Time  delay)

Definition at line 78 of file wifi-mac-queue.cc.

References m_maxDelay.

void ns3::WifiMacQueue::SetMaxSize ( uint32_t  maxSize)

Definition at line 72 of file wifi-mac-queue.cc.

References m_maxSize.

Member Data Documentation

Time ns3::WifiMacQueue::m_maxDelay
private

Definition at line 146 of file wifi-mac-queue.h.

Referenced by Cleanup(), GetMaxDelay(), GetTypeId(), and SetMaxDelay().

uint32_t ns3::WifiMacQueue::m_maxSize
private

Definition at line 145 of file wifi-mac-queue.h.

Referenced by Enqueue(), GetMaxSize(), GetTypeId(), PushFront(), and SetMaxSize().

PacketQueue ns3::WifiMacQueue::m_queue
private

Definition at line 143 of file wifi-mac-queue.h.

Referenced by Cleanup(), Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), Flush(), GetNPacketsByTidAndAddress(), IsEmpty(), Peek(), PeekByTidAndAddress(), PeekFirstAvailable(), PushFront(), and Remove().

uint32_t ns3::WifiMacQueue::m_size
private

Definition at line 144 of file wifi-mac-queue.h.

Referenced by Cleanup(), Dequeue(), DequeueByTidAndAddress(), DequeueFirstAvailable(), Enqueue(), Flush(), GetSize(), PushFront(), and Remove().
