ns3::EdcaTxopN Class Reference
Wifi Models

#include <edca-txop-n.h>

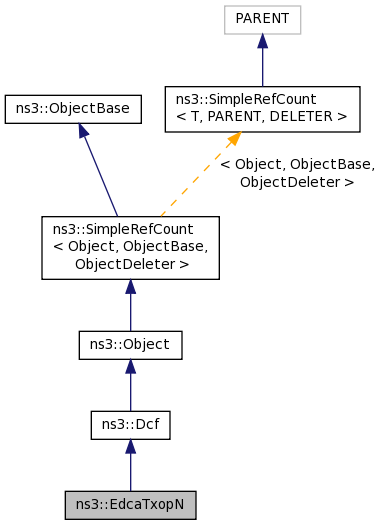

+ Inheritance diagram for ns3::EdcaTxopN:

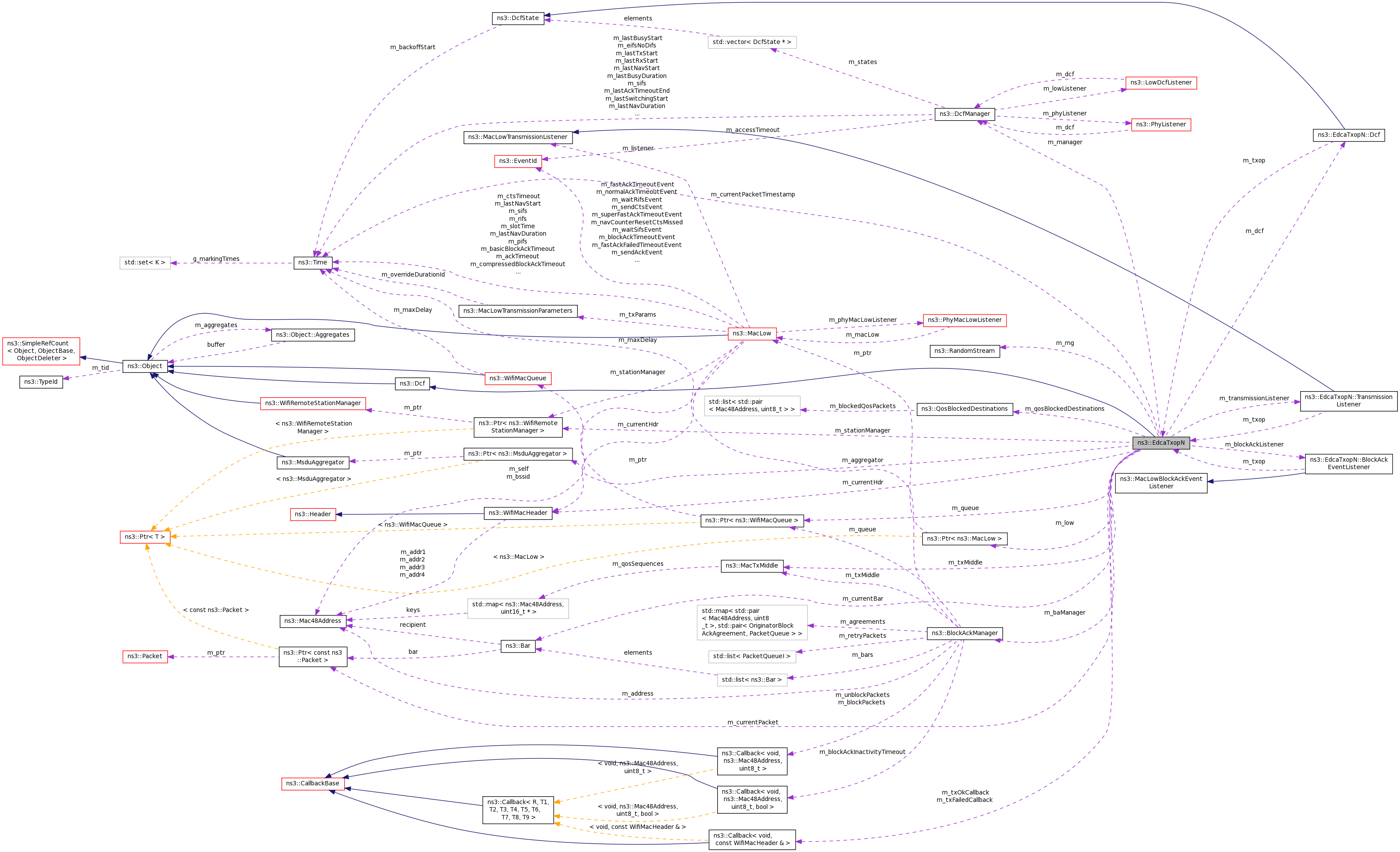

+ Collaboration diagram for ns3::EdcaTxopN:

Classes

class  BlockAckEventListener

class  Dcf

class  TransmissionListener


Public Types

typedef Callback< void, const
WifiMacHeader & > 		TxFailed

typedef Callback< void, const
WifiMacHeader & > 		TxOk


Public Member Functions

 EdcaTxopN ()

virtual ~EdcaTxopN ()

int64_t AssignStreams (int64_t stream)

void Cancel (void)

void CompleteConfig (void)

void DoDispose ()

void EndTxNoAck (void)

virtual uint32_t GetAifsn (void) const

uint8_t GetBlockAckThreshold (void) const

uint32_t GetFragmentOffset (void)

Ptr< Packet > GetFragmentPacket (WifiMacHeader *hdr)

uint32_t GetFragmentSize (void)

virtual uint32_t GetMaxCw (void) const

virtual uint32_t GetMinCw (void) const

Ptr< MsduAggregator > GetMsduAggregator (void) const

uint32_t GetNextFragmentSize (void)

Ptr< WifiMacQueue > GetQueue () const

enum TypeOfStation GetTypeOfStation (void) const

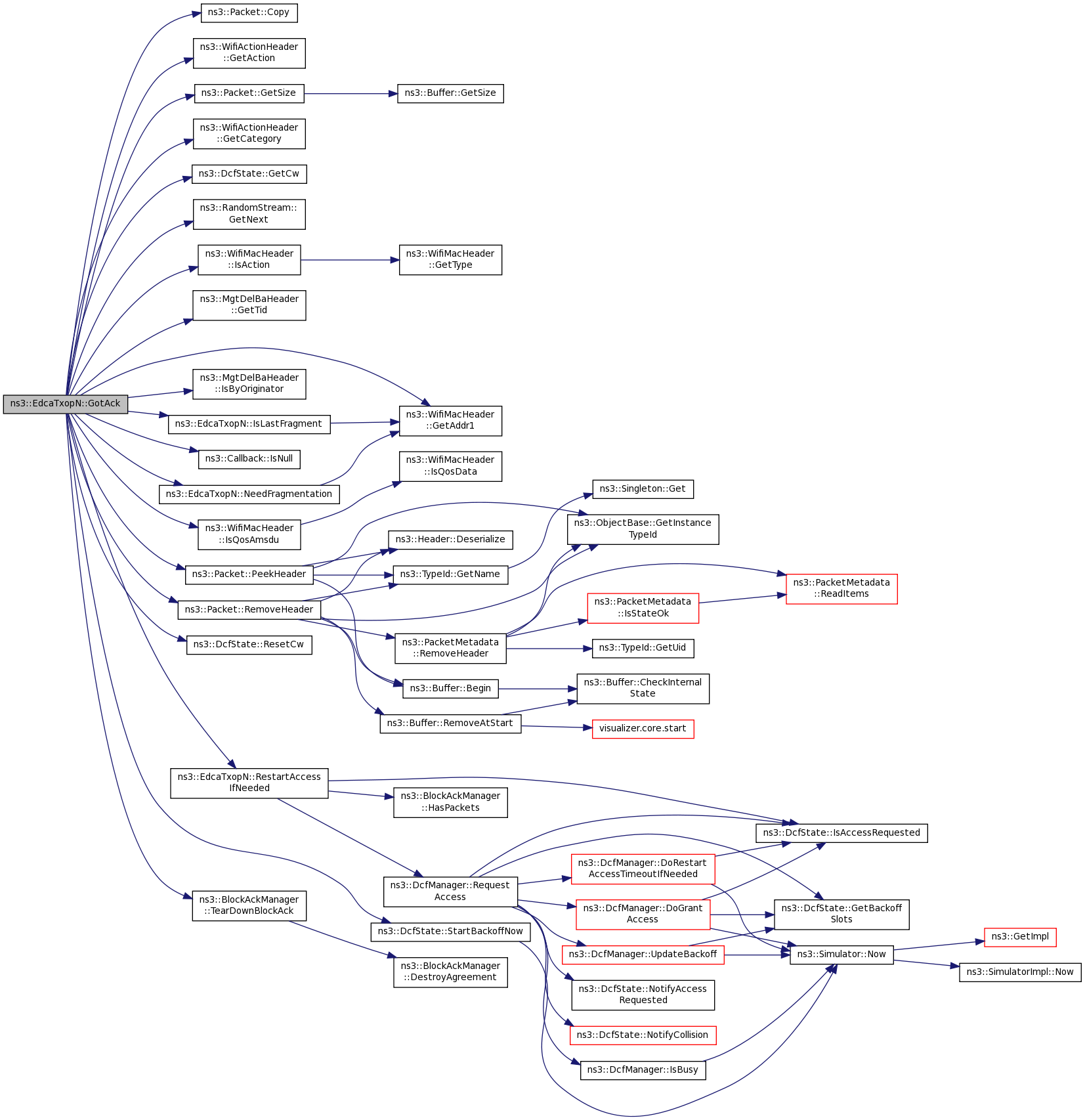

void GotAck (double snr, WifiMode txMode)

void GotAddBaResponse (const MgtAddBaResponseHeader *respHdr, Mac48Address recipient)

void GotBlockAck (const CtrlBAckResponseHeader *blockAck, Mac48Address recipient)

void GotCts (double snr, WifiMode txMode)

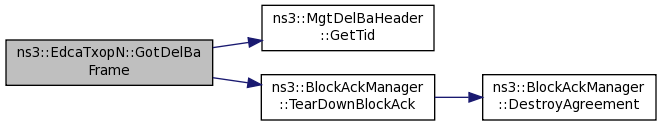

void GotDelBaFrame (const MgtDelBaHeader *delBaHdr, Mac48Address recipient)

bool IsLastFragment (void) const

Ptr< MacLow > Low (void)

void MissedAck (void)

void MissedBlockAck (void)

void MissedCts (void)

bool NeedDataRetransmission (void)

bool NeedFragmentation (void) const

bool NeedRts (void)

bool NeedRtsRetransmission (void)

bool NeedsAccess (void) const

void NextFragment (void)

void NotifyAccessGranted (void)

void NotifyChannelSwitching (void)

void NotifyCollision (void)

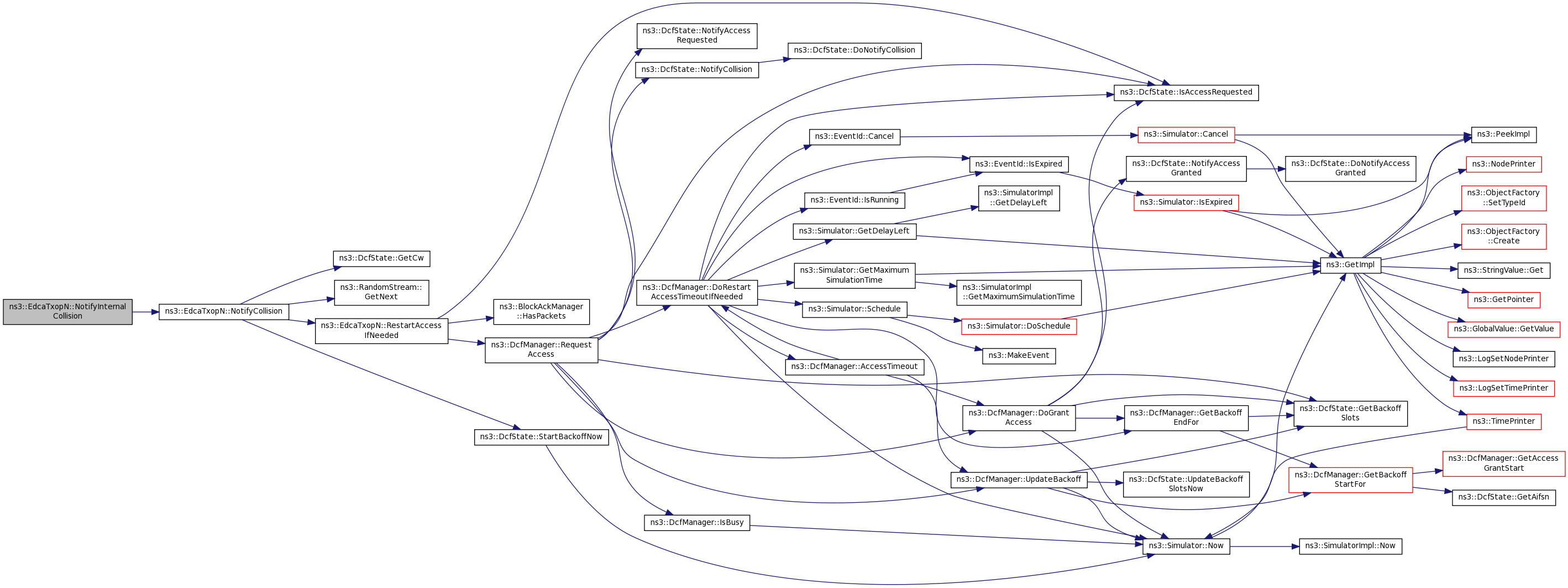

void NotifyInternalCollision (void)

void PushFront (Ptr< const Packet > packet, const WifiMacHeader &hdr)

void Queue (Ptr< const Packet > packet, const WifiMacHeader &hdr)

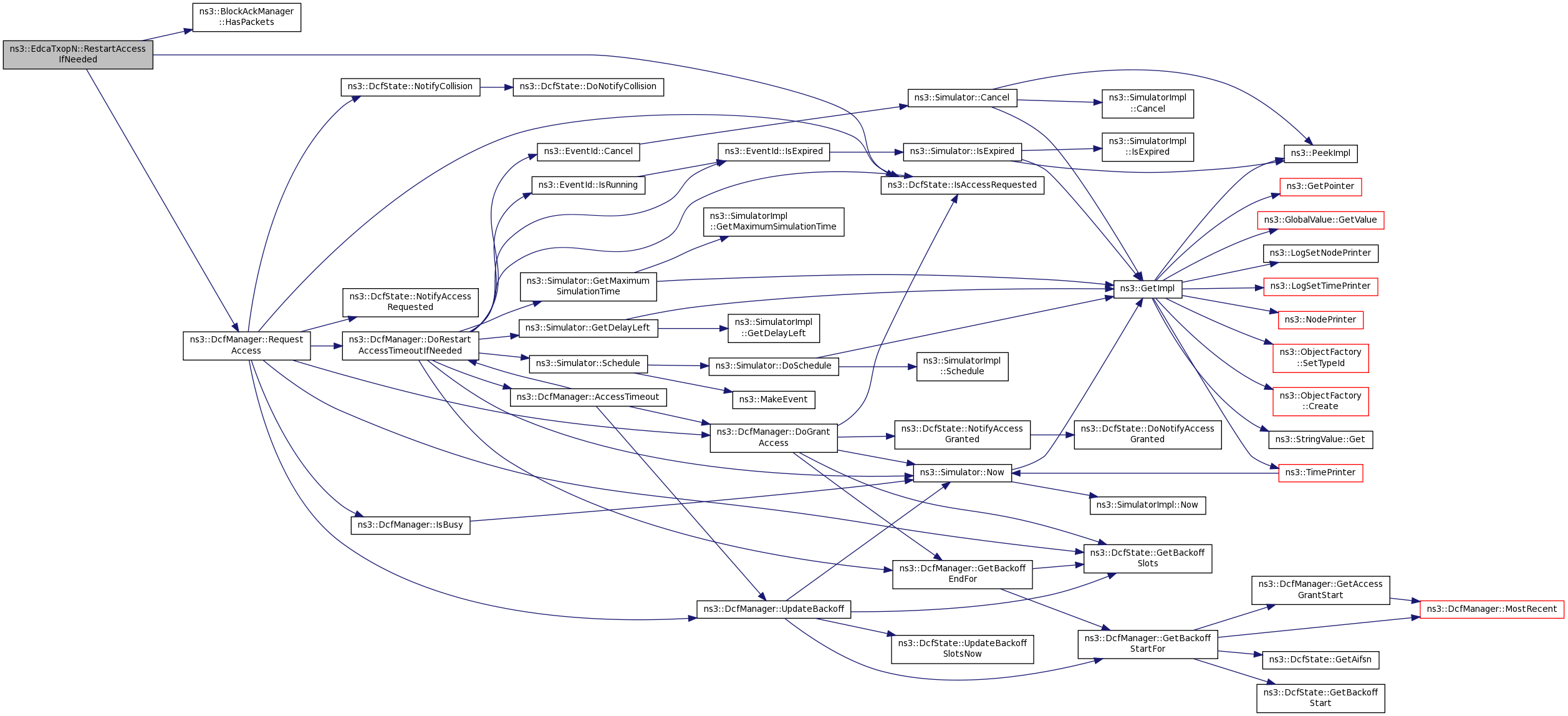

void RestartAccessIfNeeded (void)

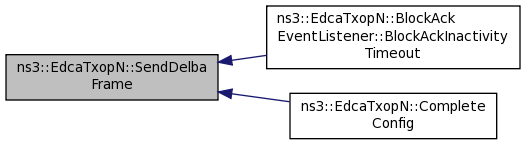

void SendDelbaFrame (Mac48Address addr, uint8_t tid, bool byOriginator)

void SetAccessCategory (enum AcIndex ac)

virtual void SetAifsn (uint32_t aifsn)

void SetBlockAckInactivityTimeout (uint16_t timeout)

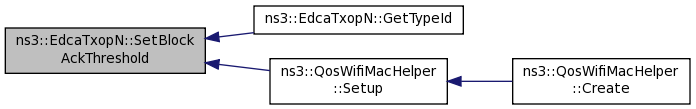

void SetBlockAckThreshold (uint8_t threshold)

void SetLow (Ptr< MacLow > low)

void SetManager (DcfManager *manager)

virtual void SetMaxCw (uint32_t maxCw)

virtual void SetMinCw (uint32_t minCw)

void SetMsduAggregator (Ptr< MsduAggregator > aggr)

void SetTxFailedCallback (TxFailed callback)

void SetTxMiddle (MacTxMiddle *txMiddle)

void SetTxOkCallback (TxOk callback)

void SetTypeOfStation (enum TypeOfStation type)

void SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > remoteManager)

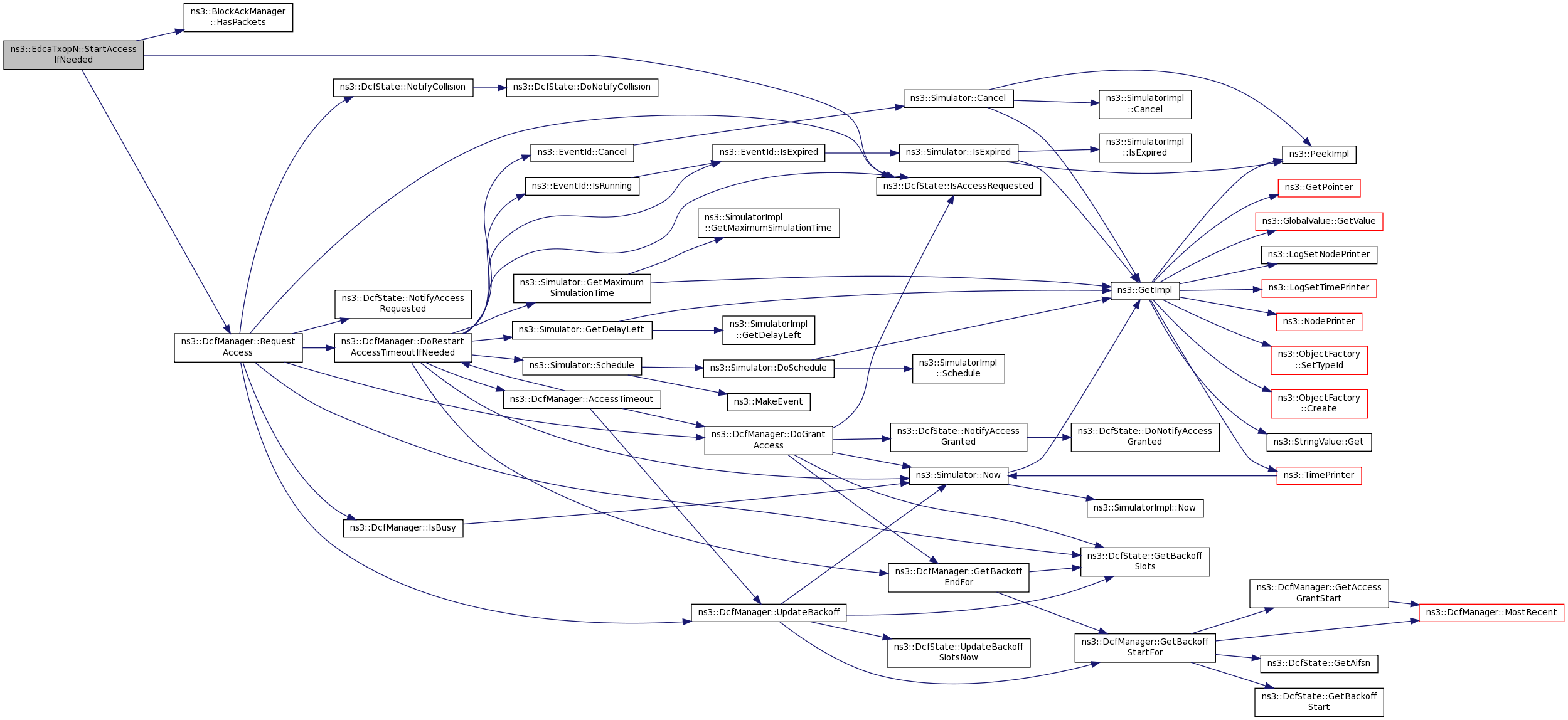

void StartAccessIfNeeded (void)

void StartNext (void)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Dcf
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Member Functions

 EdcaTxopN (const EdcaTxopN &)

void CompleteTx (void)

void DoInitialize ()

Mac48Address MapDestAddressForAggregation (const WifiMacHeader &hdr)

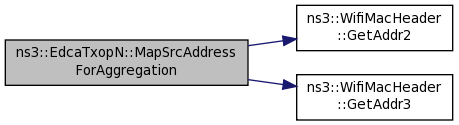

Mac48Address MapSrcAddressForAggregation (const WifiMacHeader &hdr)

EdcaTxopN & operator= (const EdcaTxopN &)

void SendAddBaRequest (Mac48Address recipient, uint8_t tid, uint16_t startSeq, uint16_t timeout, bool immediateBAck)

void SendBlockAckRequest (const struct Bar &bar)

bool SetupBlockAckIfNeeded ()

void VerifyBlockAck (void)


Private Attributes

AcIndex m_ac

Ptr< MsduAggregator > m_aggregator

BlockAckManager * m_baManager

uint16_t m_blockAckInactivityTimeout

BlockAckEventListener * m_blockAckListener

uint8_t m_blockAckThreshold

enum BlockAckType m_blockAckType

struct Bar m_currentBar

WifiMacHeader m_currentHdr

Ptr< const Packet > m_currentPacket

Time m_currentPacketTimestamp

Dcf * m_dcf

uint8_t m_fragmentNumber

Ptr< MacLow > m_low

DcfManager * m_manager

QosBlockedDestinations * m_qosBlockedDestinations

Ptr< WifiMacQueue > m_queue

RandomStream * m_rng

Ptr< WifiRemoteStationManager > m_stationManager

TransmissionListener * m_transmissionListener

TxFailed m_txFailedCallback

MacTxMiddle * m_txMiddle

TxOk m_txOkCallback

TypeOfStation m_typeOfStation


Friends

class Dcf

class TransmissionListener


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Detailed Description

This queue contains packets for a particular access class. possibles access classes are:

-AC_VO : voice, tid = 6,7 ^ -AC_VI : video, tid = 4,5 | -AC_BE : best-effort, tid = 0,3 | priority -AC_BK : background, tid = 1,2 |

For more details see section 9.1.3.1 in 802.11 standard.

Config Paths

ns3::EdcaTxopN is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BE_EdcaTxopN
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/BK_EdcaTxopN
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VI_EdcaTxopN
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/VO_EdcaTxopN

Attributes

  • BlockAckThreshold: If number of packets in this queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.
  • BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ack inactivity. If this value isn't equal to 0 a timer start after that a block ack setup is completed and will be reset every time that a block ack frame is received. If this value is 0, block ack inactivity timeout won't be used.
  • Queue: The WifiMacQueue object
    • Set with class: ns3::PointerValue
    • Underlying type: ns3::Ptr< ns3::WifiMacQueue >
    • Flags: read

Attributes defined in parent class ns3::Dcf

  • MinCw: The minimum value of the contention window.
  • MaxCw: The maximum value of the contention window.
  • Aifsn: The AIFSN: the default value conforms to simple DCA.

No TraceSources are defined for this type.

Definition at line 80 of file edca-txop-n.h.

Member Typedef Documentation

typedef Callback<void, const WifiMacHeader&> ns3::EdcaTxopN::TxFailed

Definition at line 84 of file edca-txop-n.h.

typedef Callback<void, const WifiMacHeader&> ns3::EdcaTxopN::TxOk

Definition at line 83 of file edca-txop-n.h.

Constructor & Destructor Documentation

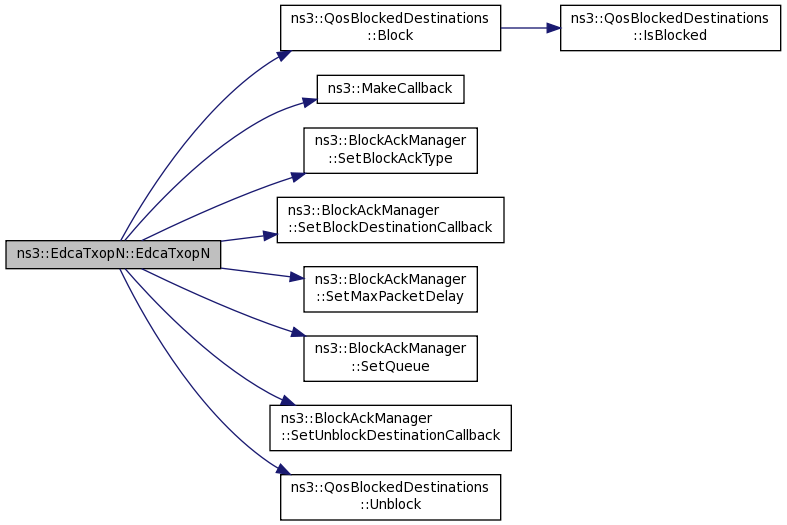

ns3::EdcaTxopN::EdcaTxopN ( )

Definition at line 170 of file edca-txop-n.cc.

References ns3::QosBlockedDestinations::Block(), Dcf, m_baManager, m_blockAckListener, m_blockAckType, m_dcf, m_qosBlockedDestinations, m_queue, m_rng, m_transmissionListener, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::BlockAckManager::SetBlockAckType(), ns3::BlockAckManager::SetBlockDestinationCallback(), ns3::BlockAckManager::SetMaxPacketDelay(), ns3::BlockAckManager::SetQueue(), ns3::BlockAckManager::SetUnblockDestinationCallback(), TransmissionListener, and ns3::QosBlockedDestinations::Unblock().

+ Here is the call graph for this function:

ns3::EdcaTxopN::~EdcaTxopN ( )
virtual

Definition at line 191 of file edca-txop-n.cc.

References NS_LOG_FUNCTION.

ns3::EdcaTxopN::EdcaTxopN ( const EdcaTxopN &  )
private

Member Function Documentation

int64_t ns3::EdcaTxopN::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 1148 of file edca-txop-n.cc.

References ns3::RandomStream::AssignStreams(), m_rng, and NS_LOG_FUNCTION.

Referenced by ns3::WifiHelper::AssignStreams(), and ns3::AssignWifiRandomStreams().

+ Here is the call graph for this function:

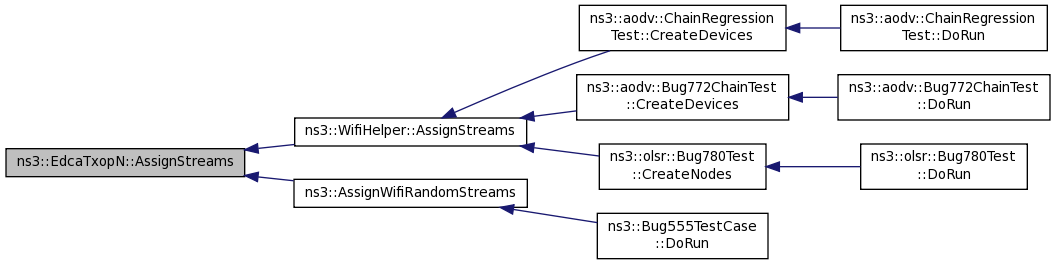

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::Cancel ( void  )

Definition at line 743 of file edca-txop-n.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::Cancel().

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::CompleteConfig ( void  )

Definition at line 1019 of file edca-txop-n.cc.

References m_ac, m_baManager, m_blockAckListener, m_low, m_txMiddle, ns3::MakeCallback(), NS_LOG_FUNCTION, SendDelbaFrame(), ns3::BlockAckManager::SetBlockAckInactivityCallback(), and ns3::BlockAckManager::SetTxMiddle().

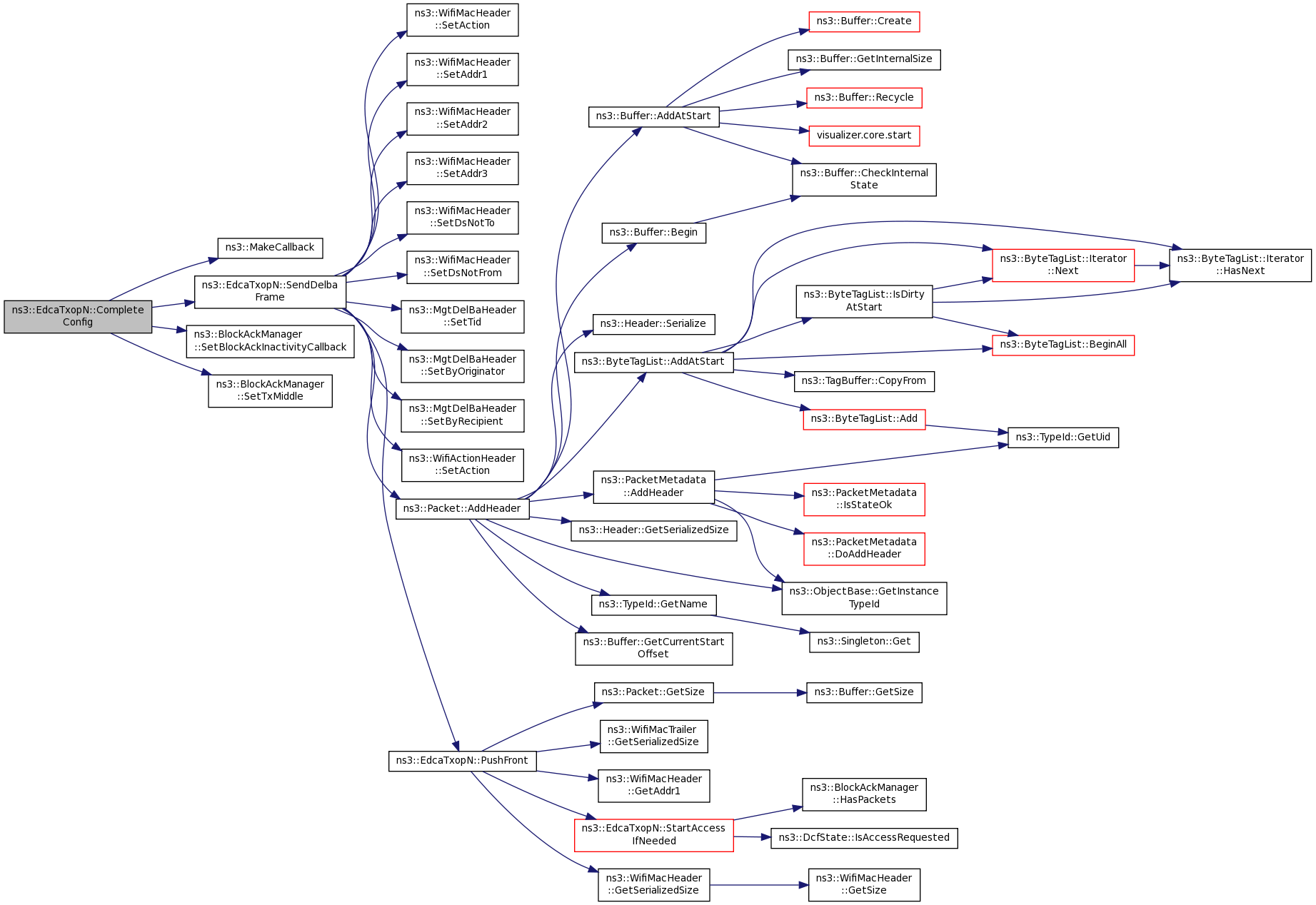

+ Here is the call graph for this function:

void ns3::EdcaTxopN::CompleteTx ( void  )
private

Definition at line 940 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsRetry(), m_baManager, m_currentHdr, m_currentPacket, m_currentPacketTimestamp, m_txMiddle, ns3::BlockAckManager::NotifyMpduTransmission(), NS_LOG_FUNCTION, and ns3::BlockAckManager::StorePacket().

Referenced by NotifyAccessGranted().

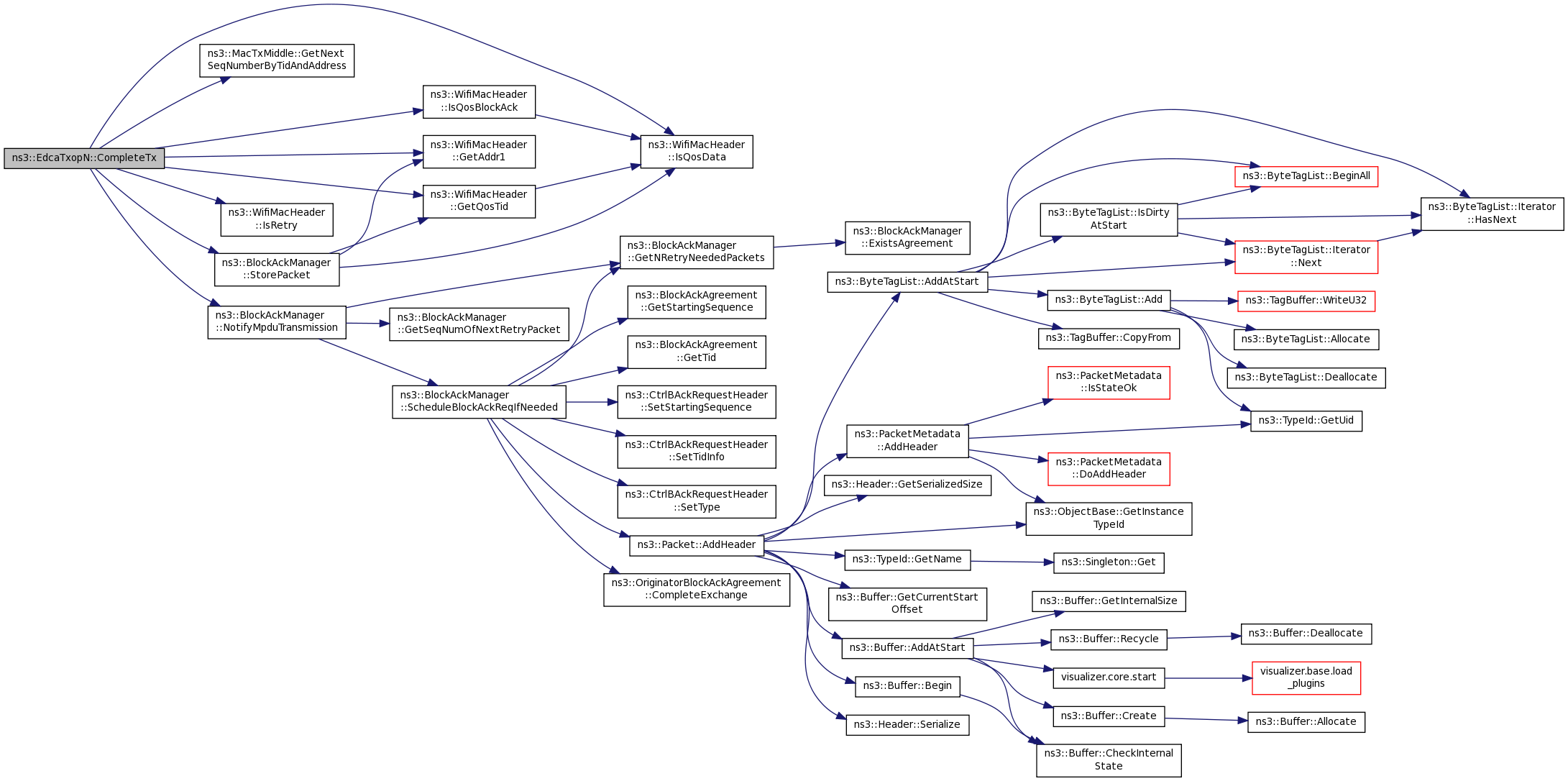

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 197 of file edca-txop-n.cc.

References m_aggregator, m_baManager, m_blockAckListener, m_dcf, m_low, m_qosBlockedDestinations, m_queue, m_rng, m_stationManager, m_transmissionListener, m_txMiddle, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::DoInitialize ( void  )
privatevirtual

This method is called only once by Object::Initialize. If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 1156 of file edca-txop-n.cc.

References ns3::Object::DoInitialize(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), and ns3::DcfState::StartBackoffNow().

+ Here is the call graph for this function:

void ns3::EdcaTxopN::EndTxNoAck ( void  )

Definition at line 750 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentPacket, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), StartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::TransmissionListener::EndTxNoAck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetAifsn ( void  ) const
virtual

Implements ns3::Dcf.

Definition at line 304 of file edca-txop-n.cc.

References ns3::DcfState::GetAifsn(), m_dcf, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

uint8_t ns3::EdcaTxopN::GetBlockAckThreshold ( void  ) const

Definition at line 1043 of file edca-txop-n.cc.

References m_blockAckThreshold, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetFragmentOffset ( void  )

Definition at line 785 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

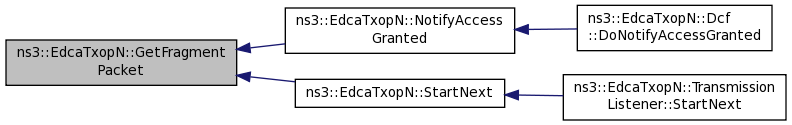

Referenced by GetFragmentPacket().

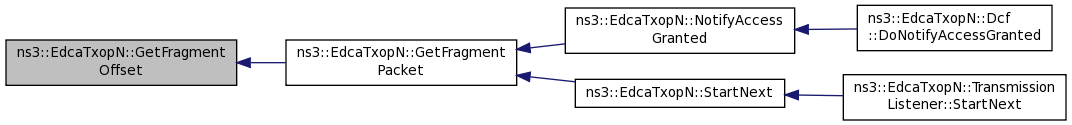

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

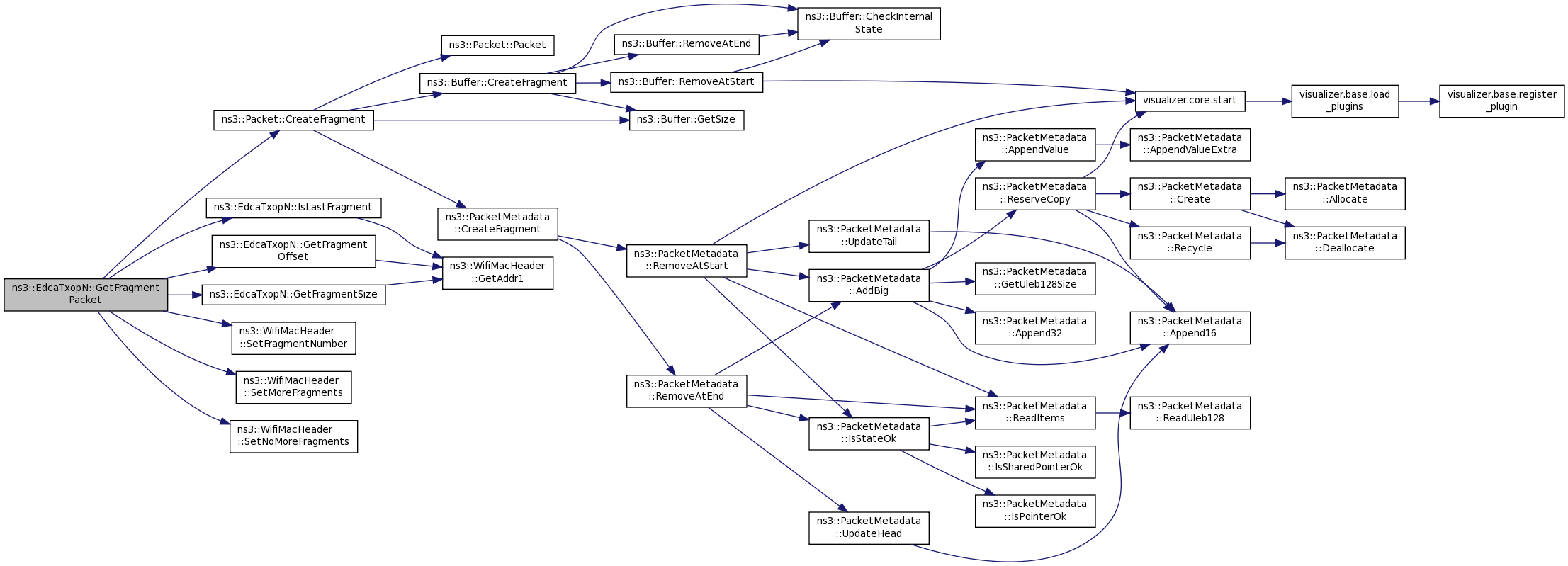

Ptr< Packet > ns3::EdcaTxopN::GetFragmentPacket ( WifiMacHeader *  hdr)

Definition at line 802 of file edca-txop-n.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

Referenced by NotifyAccessGranted(), and StartNext().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

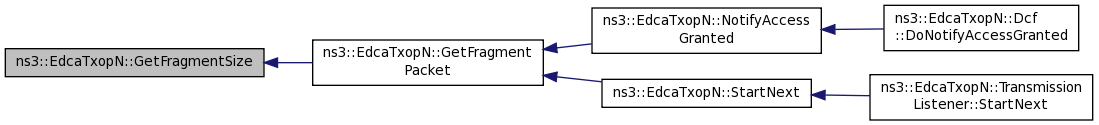

uint32_t ns3::EdcaTxopN::GetFragmentSize ( void  )

Definition at line 769 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::EdcaTxopN::GetMaxCw ( void  ) const
virtual

Implements ns3::Dcf.

Definition at line 297 of file edca-txop-n.cc.

References ns3::DcfState::GetCwMax(), m_dcf, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

uint32_t ns3::EdcaTxopN::GetMinCw ( void  ) const
virtual

Implements ns3::Dcf.

Definition at line 290 of file edca-txop-n.cc.

References ns3::DcfState::GetCwMin(), m_dcf, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ptr< MsduAggregator > ns3::EdcaTxopN::GetMsduAggregator ( void  ) const

Definition at line 658 of file edca-txop-n.cc.

References m_aggregator.

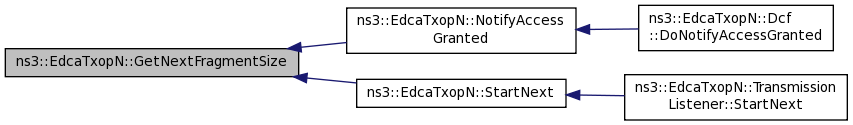

uint32_t ns3::EdcaTxopN::GetNextFragmentSize ( void  )

Definition at line 777 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNext().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< WifiMacQueue > ns3::EdcaTxopN::GetQueue ( void  ) const

Definition at line 262 of file edca-txop-n.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

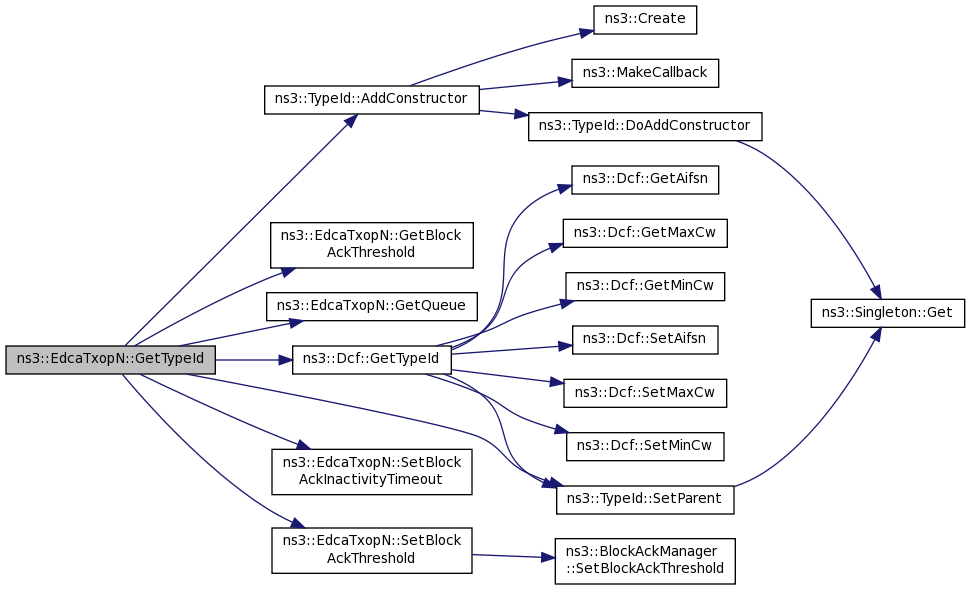

TypeId ns3::EdcaTxopN::GetTypeId ( void  )
static

Definition at line 144 of file edca-txop-n.cc.

References ns3::TypeId::AddConstructor(), GetBlockAckThreshold(), GetQueue(), ns3::Dcf::GetTypeId(), SetBlockAckInactivityTimeout(), SetBlockAckThreshold(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

enum TypeOfStation ns3::EdcaTxopN::GetTypeOfStation ( void  ) const

Definition at line 255 of file edca-txop-n.cc.

References m_typeOfStation, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::GotAck ( double  snr,
WifiMode  txMode
)

Definition at line 571 of file edca-txop-n.cc.

References ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, ns3::Packet::Copy(), ns3::WifiActionHeader::GetAction(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiActionHeader::GetCategory(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Packet::GetSize(), ns3::MgtDelBaHeader::GetTid(), ns3::WifiMacHeader::IsAction(), ns3::MgtDelBaHeader::IsByOriginator(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), ns3::WifiMacHeader::IsQosAmsdu(), m_baManager, m_currentHdr, m_currentPacket, m_dcf, m_low, m_rng, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::PeekHeader(), ns3::Packet::RemoveHeader(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::BlockAckManager::TearDownBlockAck().

Referenced by ns3::EdcaTxopN::TransmissionListener::GotAck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

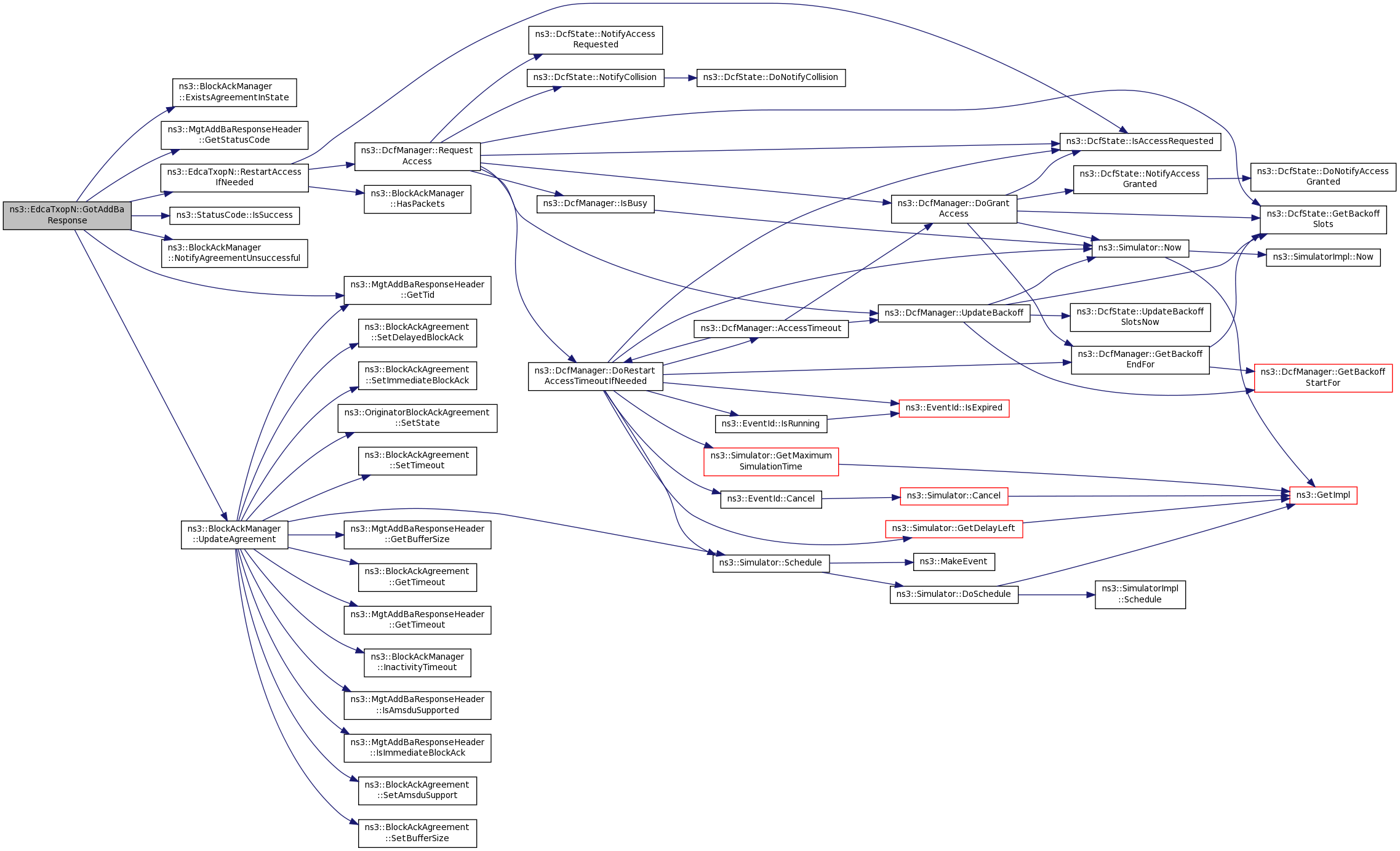

void ns3::EdcaTxopN::GotAddBaResponse ( const MgtAddBaResponseHeader *  respHdr,
Mac48Address  recipient
)

Definition at line 881 of file edca-txop-n.cc.

References ns3::BlockAckManager::ExistsAgreementInState(), ns3::MgtAddBaResponseHeader::GetStatusCode(), ns3::MgtAddBaResponseHeader::GetTid(), ns3::StatusCode::IsSuccess(), m_baManager, ns3::BlockAckManager::NotifyAgreementUnsuccessful(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::OriginatorBlockAckAgreement::PENDING, RestartAccessIfNeeded(), and ns3::BlockAckManager::UpdateAgreement().

+ Here is the call graph for this function:

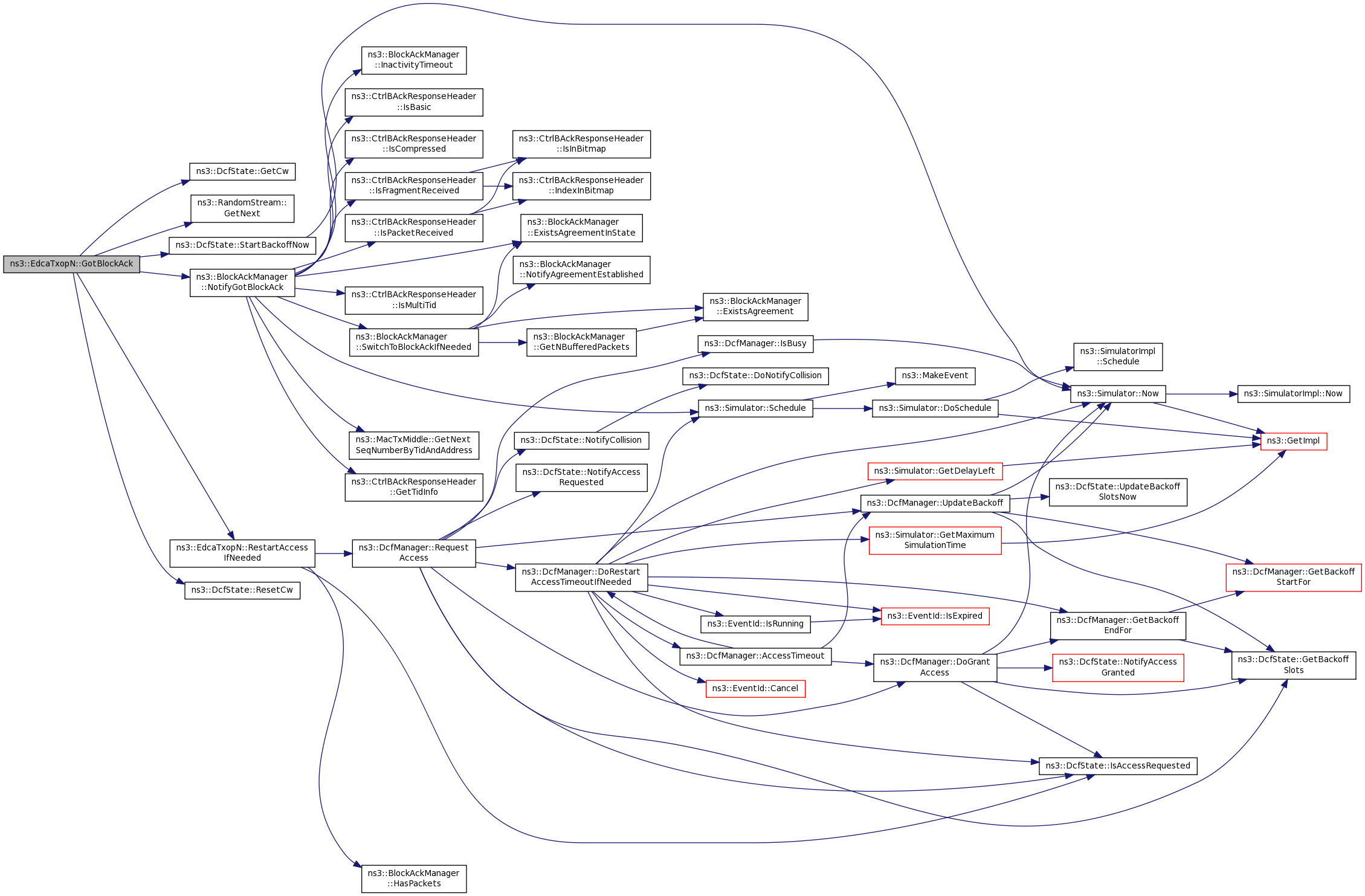

void ns3::EdcaTxopN::GotBlockAck ( const CtrlBAckResponseHeader *  blockAck,
Mac48Address  recipient
)

Definition at line 911 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_baManager, m_currentPacket, m_dcf, m_rng, ns3::BlockAckManager::NotifyGotBlockAck(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::TransmissionListener::GotBlockAck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::GotCts ( double  snr,
WifiMode  txMode
)

Definition at line 519 of file edca-txop-n.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::GotCts().

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::GotDelBaFrame ( const MgtDelBaHeader *  delBaHdr,
Mac48Address  recipient
)

Definition at line 903 of file edca-txop-n.cc.

References ns3::MgtDelBaHeader::GetTid(), m_baManager, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::BlockAckManager::TearDownBlockAck().

+ Here is the call graph for this function:

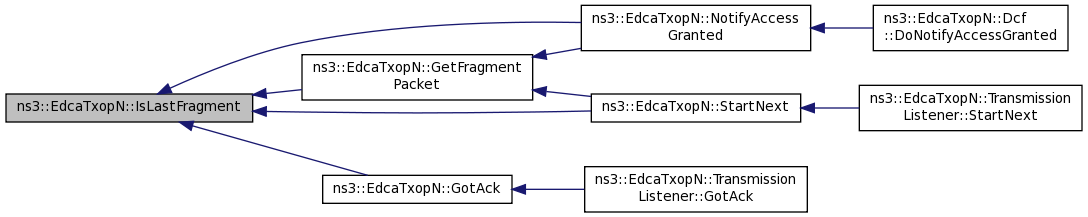

bool ns3::EdcaTxopN::IsLastFragment ( void  ) const

Definition at line 794 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNext().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< MacLow > ns3::EdcaTxopN::Low ( void  )

Definition at line 318 of file edca-txop-n.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by StartNext().

+ Here is the caller graph for this function:

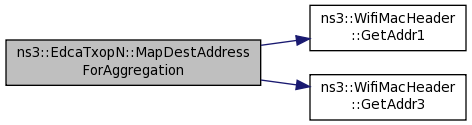

Mac48Address ns3::EdcaTxopN::MapDestAddressForAggregation ( const WifiMacHeader &  hdr)
private

Definition at line 846 of file edca-txop-n.cc.

References ns3::ADHOC_STA, ns3::AP, ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr3(), m_typeOfStation, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Mac48Address ns3::EdcaTxopN::MapSrcAddressForAggregation ( const WifiMacHeader &  hdr)
private

This functions are used only to correctly set addresses in a-msdu subframe. If aggregating sta is a STA (in an infrastructured network): SA = Address2 DA = Address3 If aggregating sta is an AP SA = Address3 DA = Address1

Definition at line 830 of file edca-txop-n.cc.

References ns3::ADHOC_STA, ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), m_typeOfStation, NS_LOG_FUNCTION, and ns3::STA.

Referenced by NotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

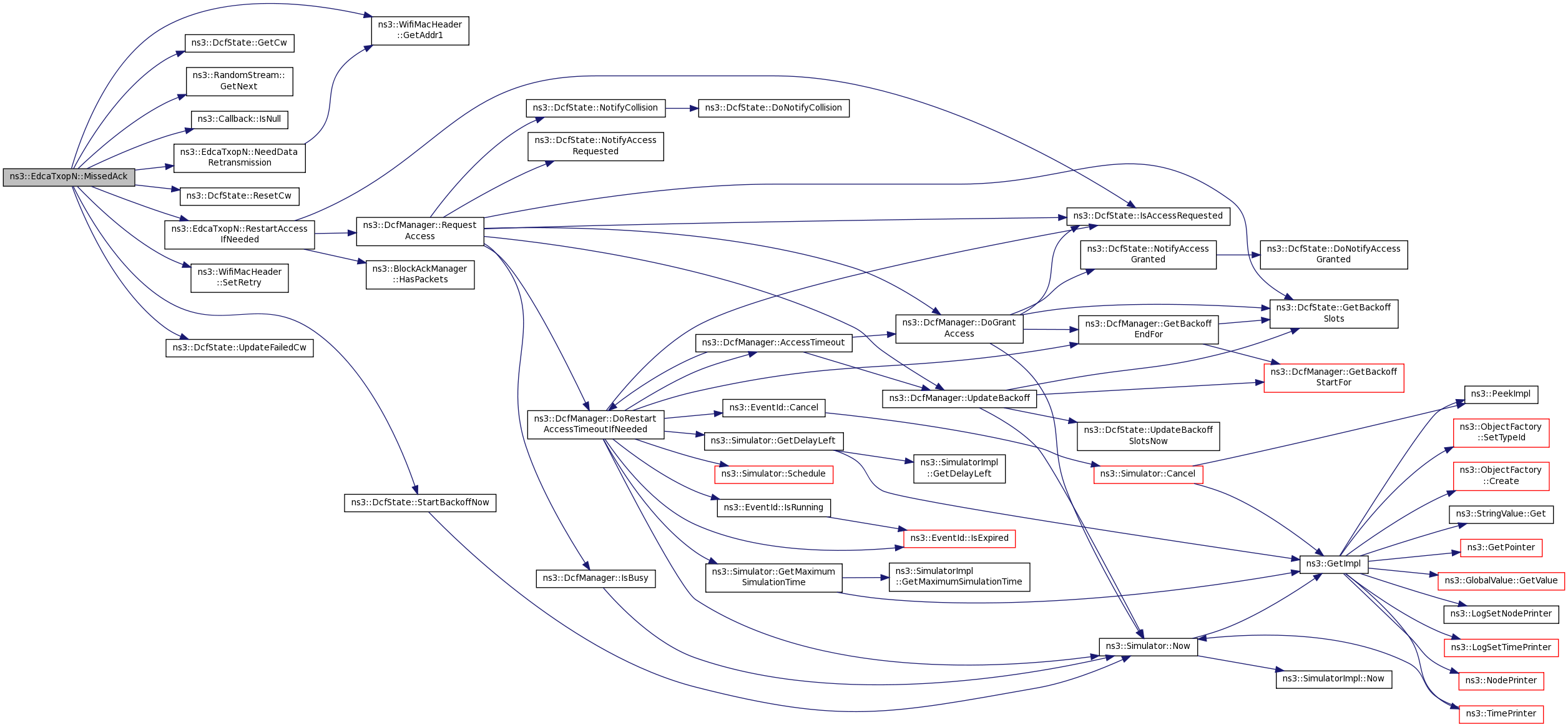

void ns3::EdcaTxopN::MissedAck ( void  )

Definition at line 617 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedAck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

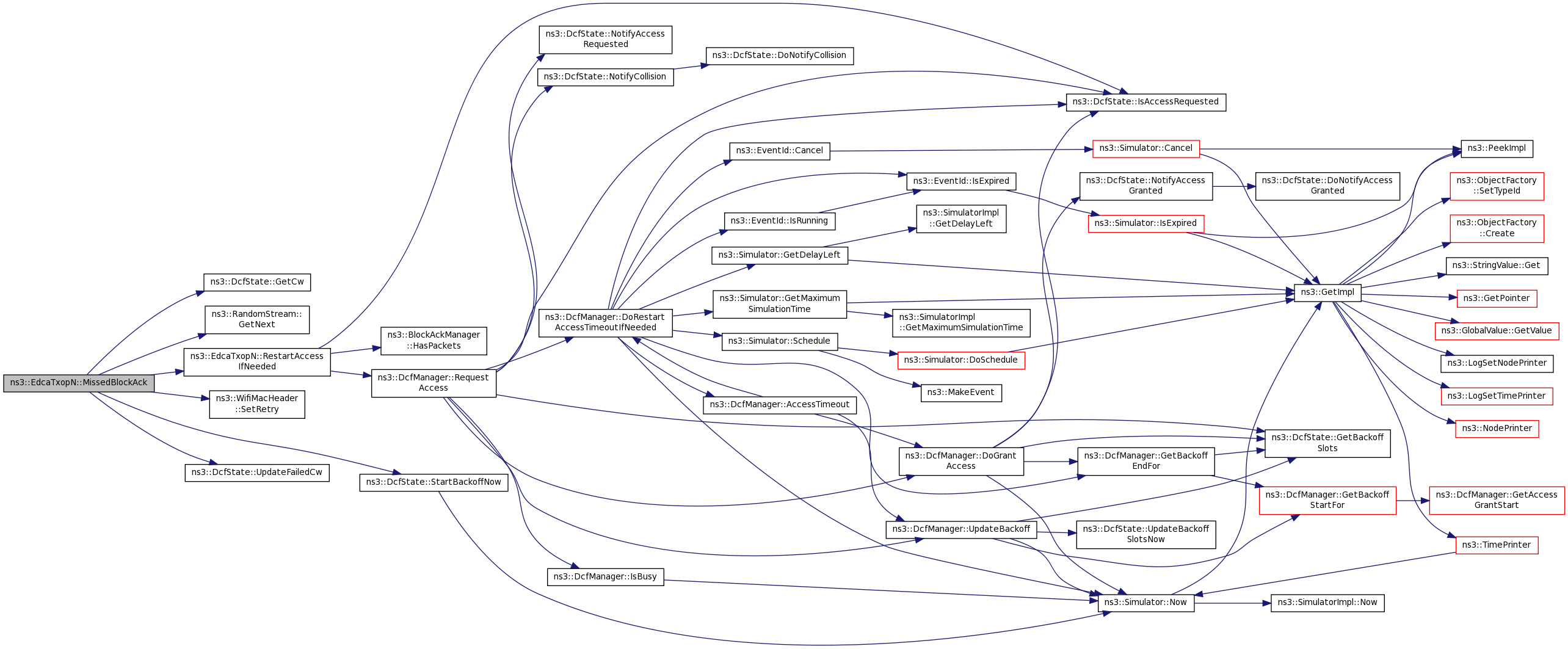

void ns3::EdcaTxopN::MissedBlockAck ( void  )

Definition at line 644 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentHdr, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedBlockAck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

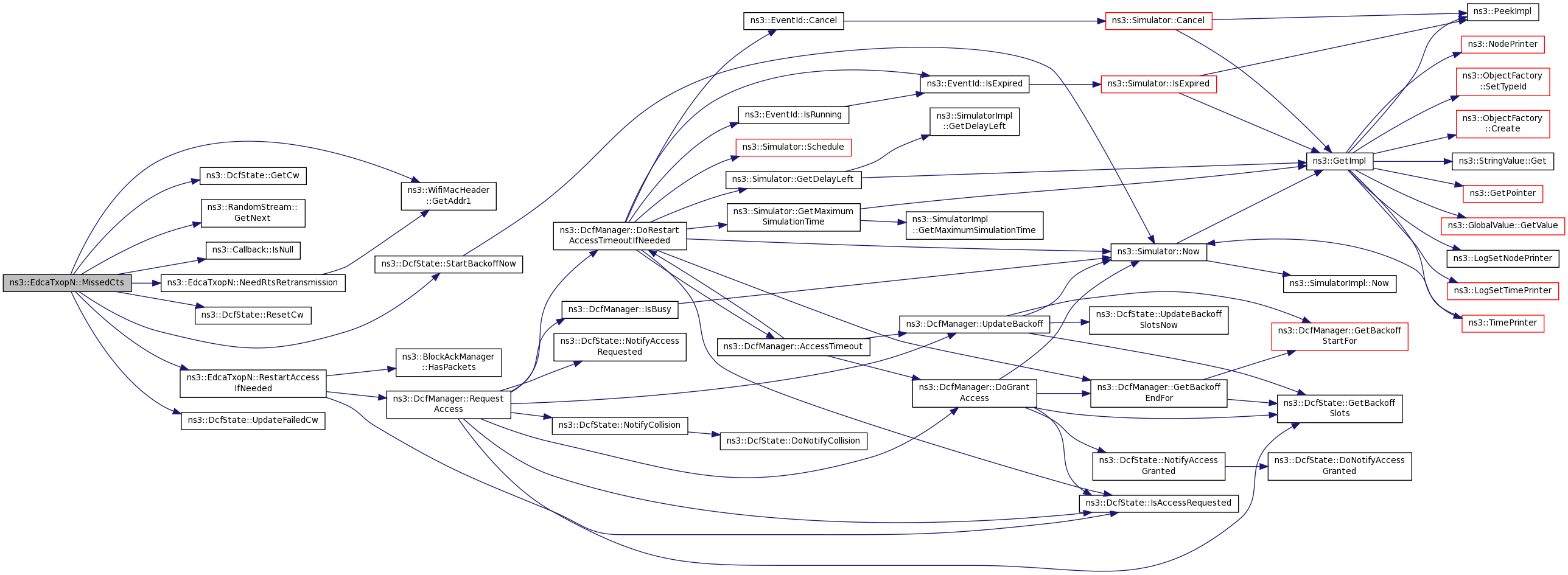

void ns3::EdcaTxopN::MissedCts ( void  )

Definition at line 526 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedRtsRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::EdcaTxopN::TransmissionListener::MissedCts().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedDataRetransmission ( void  )

Definition at line 704 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by MissedAck().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

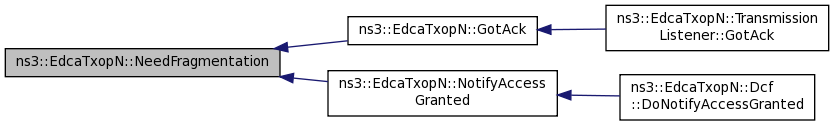

bool ns3::EdcaTxopN::NeedFragmentation ( void  ) const

Definition at line 761 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GotAck(), and NotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedRts ( void  )

Definition at line 688 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedRtsRetransmission ( void  )

Definition at line 696 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, and NS_LOG_FUNCTION.

Referenced by MissedCts().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::EdcaTxopN::NeedsAccess ( void  ) const

Definition at line 332 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), m_baManager, m_currentPacket, m_queue, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

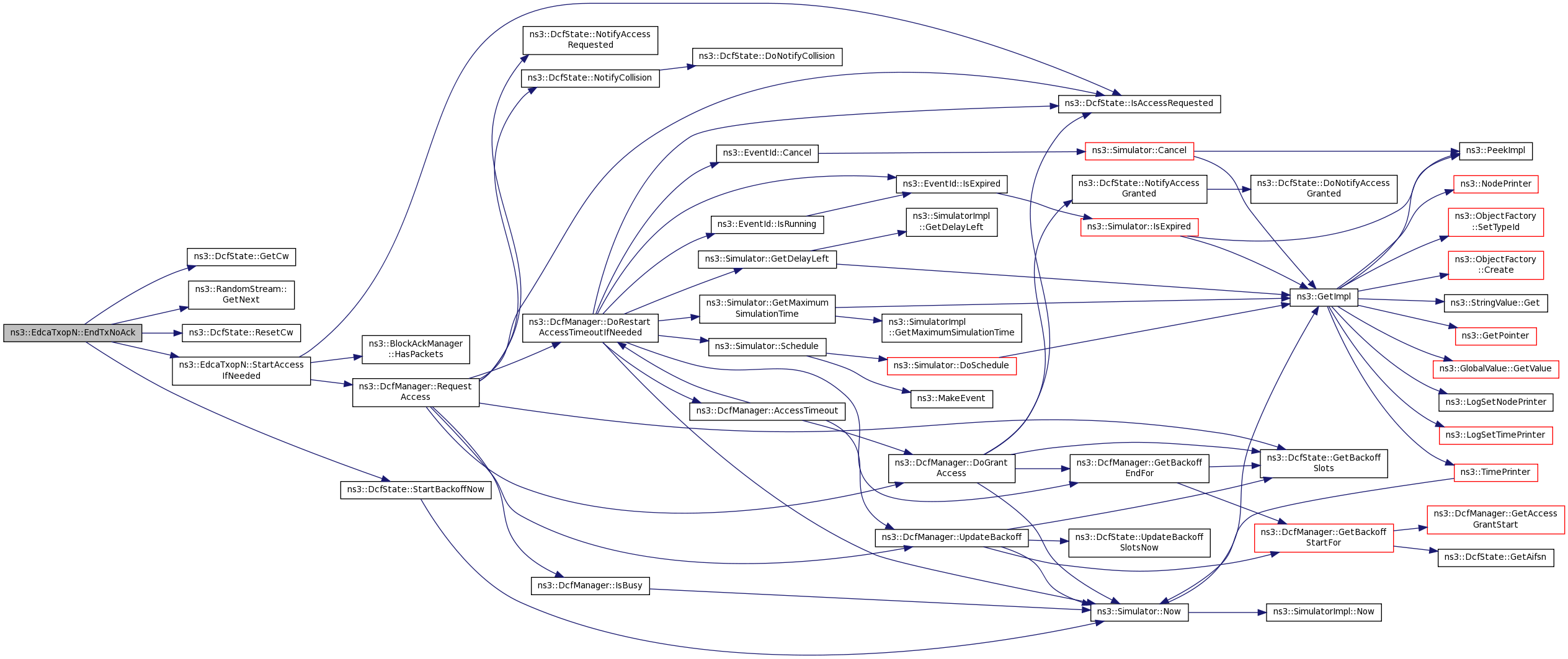

void ns3::EdcaTxopN::NextFragment ( void  )

Definition at line 712 of file edca-txop-n.cc.

References m_fragmentNumber, and NS_LOG_FUNCTION.

Referenced by StartNext().

+ Here is the caller graph for this function:

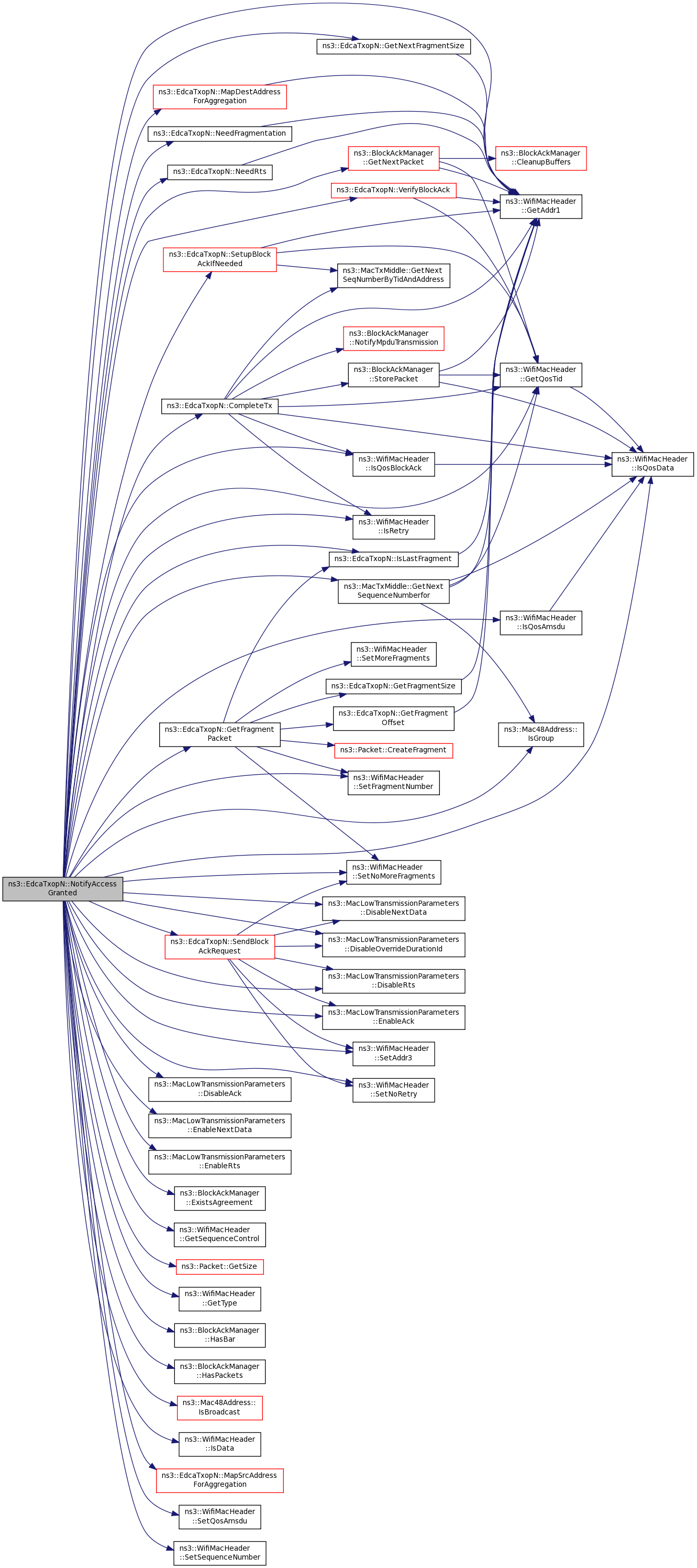

void ns3::EdcaTxopN::NotifyAccessGranted ( void  )

Definition at line 339 of file edca-txop-n.cc.

References ns3::WifiMacHeader::ADDR1, ns3::BASIC_BLOCK_ACK, CompleteTx(), ns3::MacLowTransmissionParameters::DisableAck(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), ns3::MacLowTransmissionParameters::EnableRts(), ns3::BlockAckManager::ExistsAgreement(), ns3::WifiMacHeader::GetAddr1(), GetFragmentPacket(), GetNextFragmentSize(), ns3::BlockAckManager::GetNextPacket(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceControl(), ns3::Packet::GetSize(), ns3::WifiMacHeader::GetType(), ns3::BlockAckManager::HasBar(), ns3::BlockAckManager::HasPackets(), ns3::Mac48Address::IsBroadcast(), ns3::WifiMacHeader::IsData(), ns3::Mac48Address::IsGroup(), IsLastFragment(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsRetry(), m_aggregator, m_baManager, m_blockAckThreshold, m_blockAckType, m_currentBar, m_currentHdr, m_currentPacket, m_currentPacketTimestamp, m_fragmentNumber, m_low, m_qosBlockedDestinations, m_queue, m_transmissionListener, m_txMiddle, MapDestAddressForAggregation(), MapSrcAddressForAggregation(), NeedFragmentation(), NeedRts(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, SendBlockAckRequest(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetQosAmsdu(), ns3::WifiMacHeader::SetSequenceNumber(), SetupBlockAckIfNeeded(), VerifyBlockAck(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyChannelSwitching ( void  )

When a channel switching occurs, enqueued packets are removed.

Definition at line 551 of file edca-txop-n.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyChannelSwitching().

+ Here is the caller graph for this function:

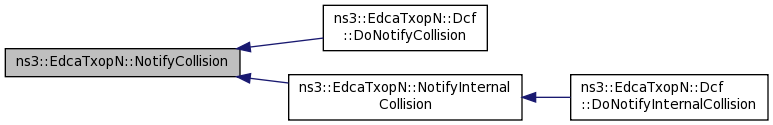

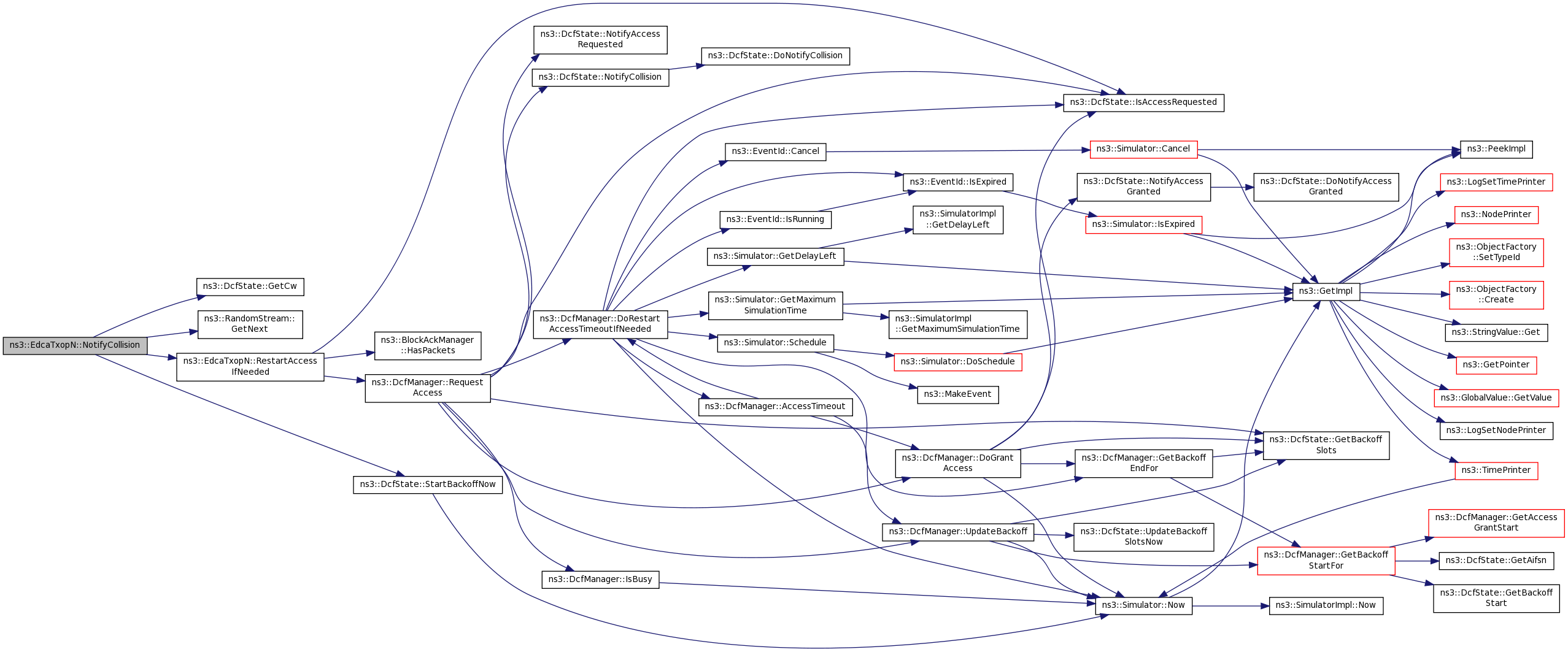

void ns3::EdcaTxopN::NotifyCollision ( void  )

Definition at line 511 of file edca-txop-n.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyCollision(), and NotifyInternalCollision().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::NotifyInternalCollision ( void  )

Definition at line 504 of file edca-txop-n.cc.

References NotifyCollision(), and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::Dcf::DoNotifyInternalCollision().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

EdcaTxopN& ns3::EdcaTxopN::operator= ( const EdcaTxopN &  )
private

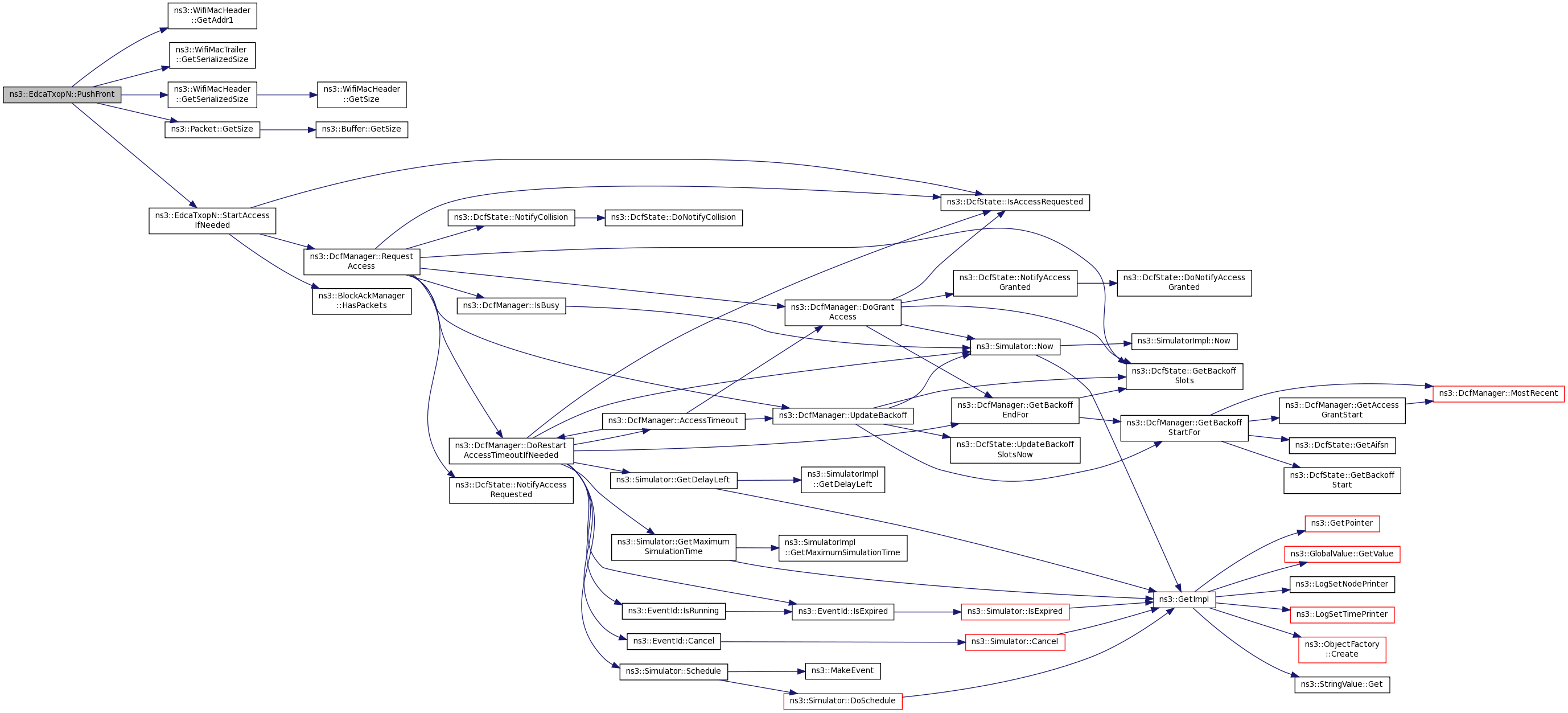

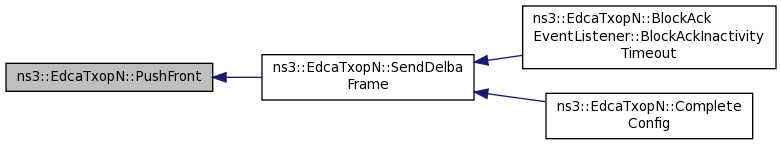

void ns3::EdcaTxopN::PushFront ( Ptr< const Packet >  packet,
const WifiMacHeader &  hdr
)

Definition at line 869 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_queue, m_stationManager, NS_LOG_FUNCTION, and StartAccessIfNeeded().

Referenced by SendDelbaFrame().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

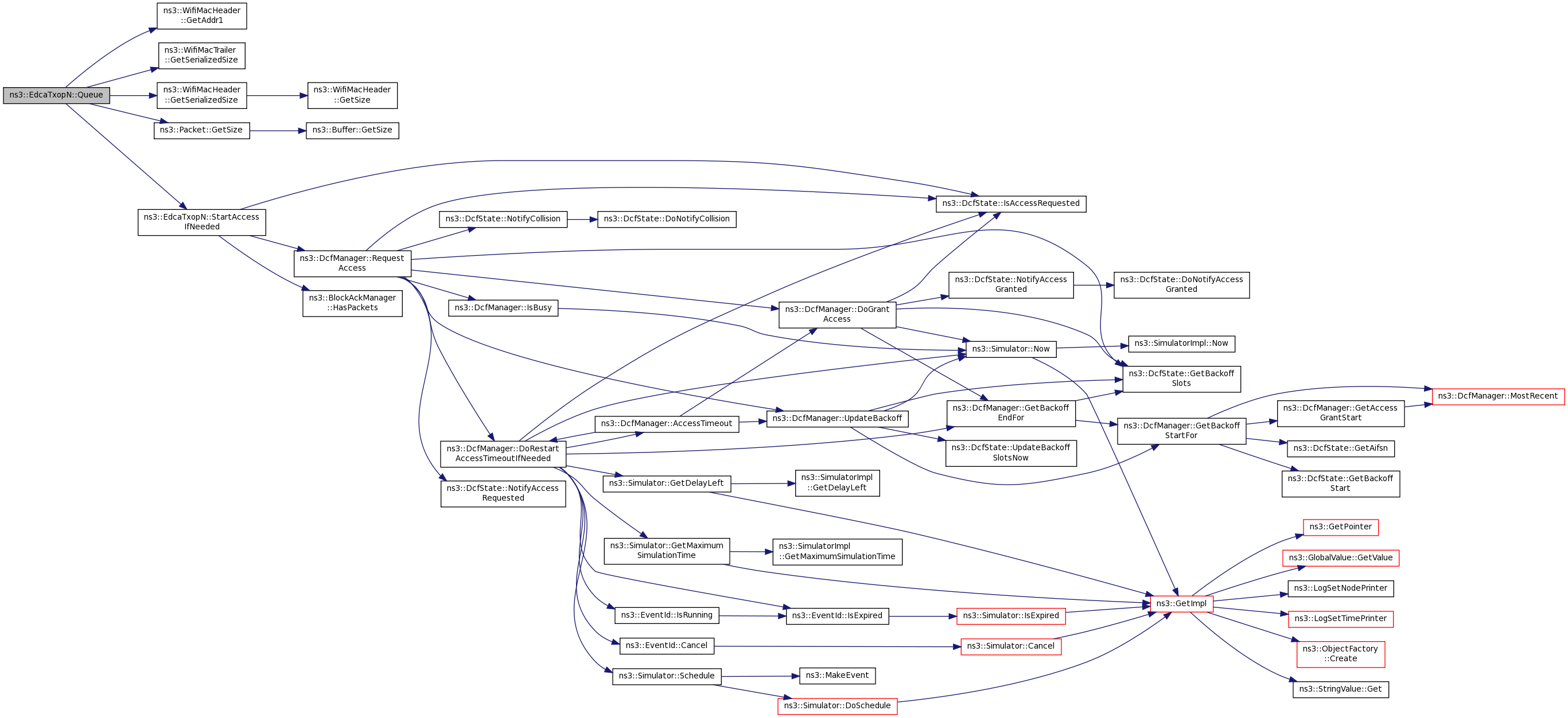

void ns3::EdcaTxopN::Queue ( Ptr< const Packet >  packet,
const WifiMacHeader &  hdr
)

Definition at line 559 of file edca-txop-n.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_queue, m_stationManager, NS_LOG_FUNCTION, and StartAccessIfNeeded().

+ Here is the call graph for this function:

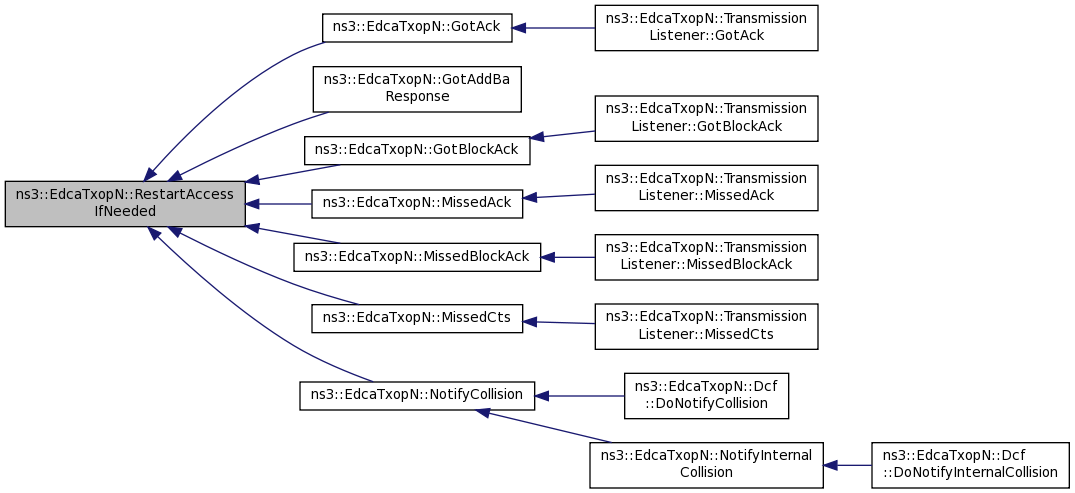

void ns3::EdcaTxopN::RestartAccessIfNeeded ( void  )

Definition at line 664 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::DcfState::IsAccessRequested(), m_baManager, m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by GotAck(), GotAddBaResponse(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), and NotifyCollision().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

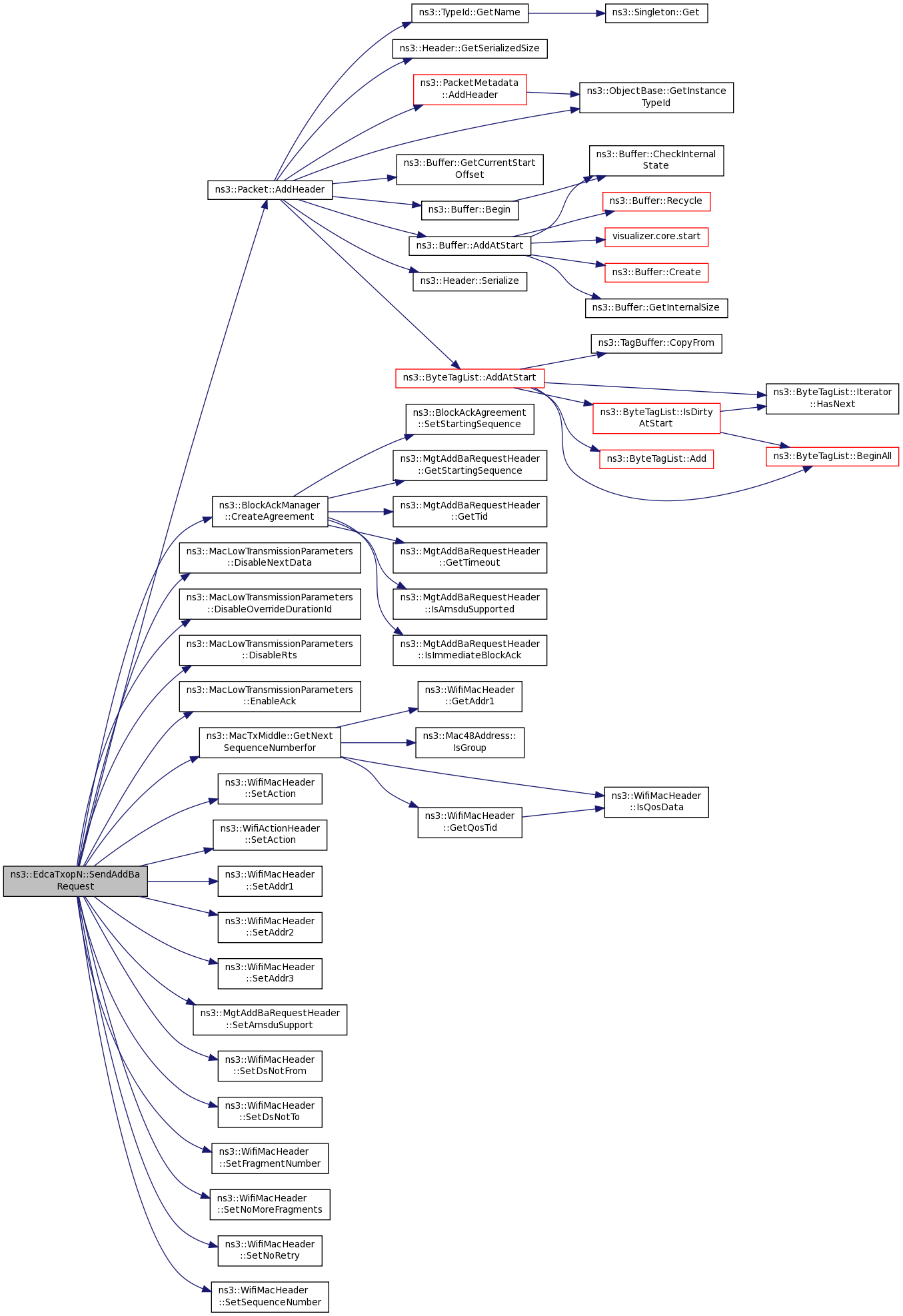

void ns3::EdcaTxopN::SendAddBaRequest ( Mac48Address  recipient,
uint8_t  tid,
uint16_t  startSeq,
uint16_t  timeout,
bool  immediateBAck
)
private

Definition at line 1050 of file edca-txop-n.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_ADDBA_REQUEST, ns3::WifiActionHeader::ActionValue::blockAck, ns3::BlockAckManager::CreateAgreement(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), m_baManager, m_currentHdr, m_currentPacket, m_low, m_transmissionListener, m_txMiddle, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtAddBaRequestHeader::SetAmsduSupport(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), and ns3::WifiMacHeader::SetSequenceNumber().

Referenced by SetupBlockAckIfNeeded().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

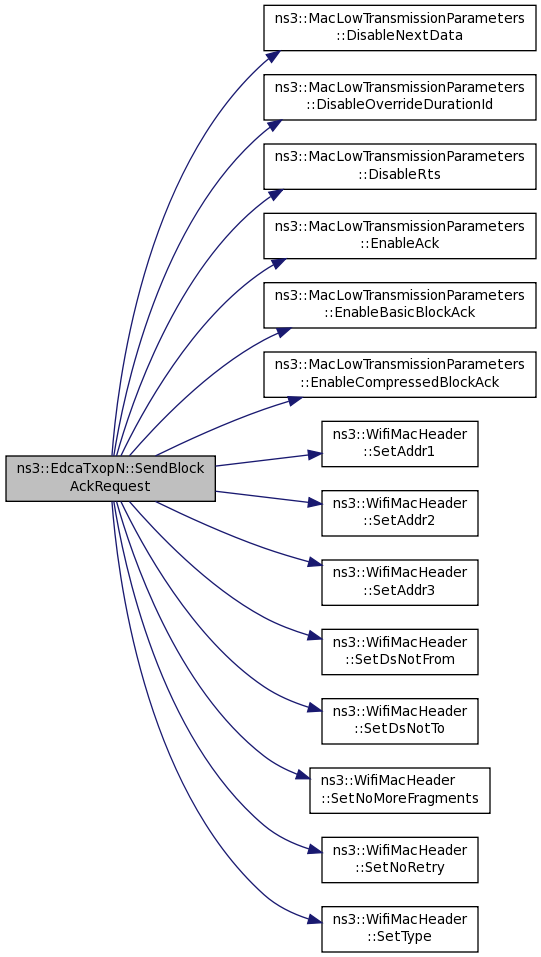

void ns3::EdcaTxopN::SendBlockAckRequest ( const struct Bar &  bar)
private

Definition at line 975 of file edca-txop-n.cc.

References ns3::Bar::bar, ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableBasicBlockAck(), ns3::MacLowTransmissionParameters::EnableCompressedBlockAck(), ns3::Bar::immediate, m_blockAckType, m_currentHdr, m_currentPacket, m_low, m_transmissionListener, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Bar::recipient, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by NotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

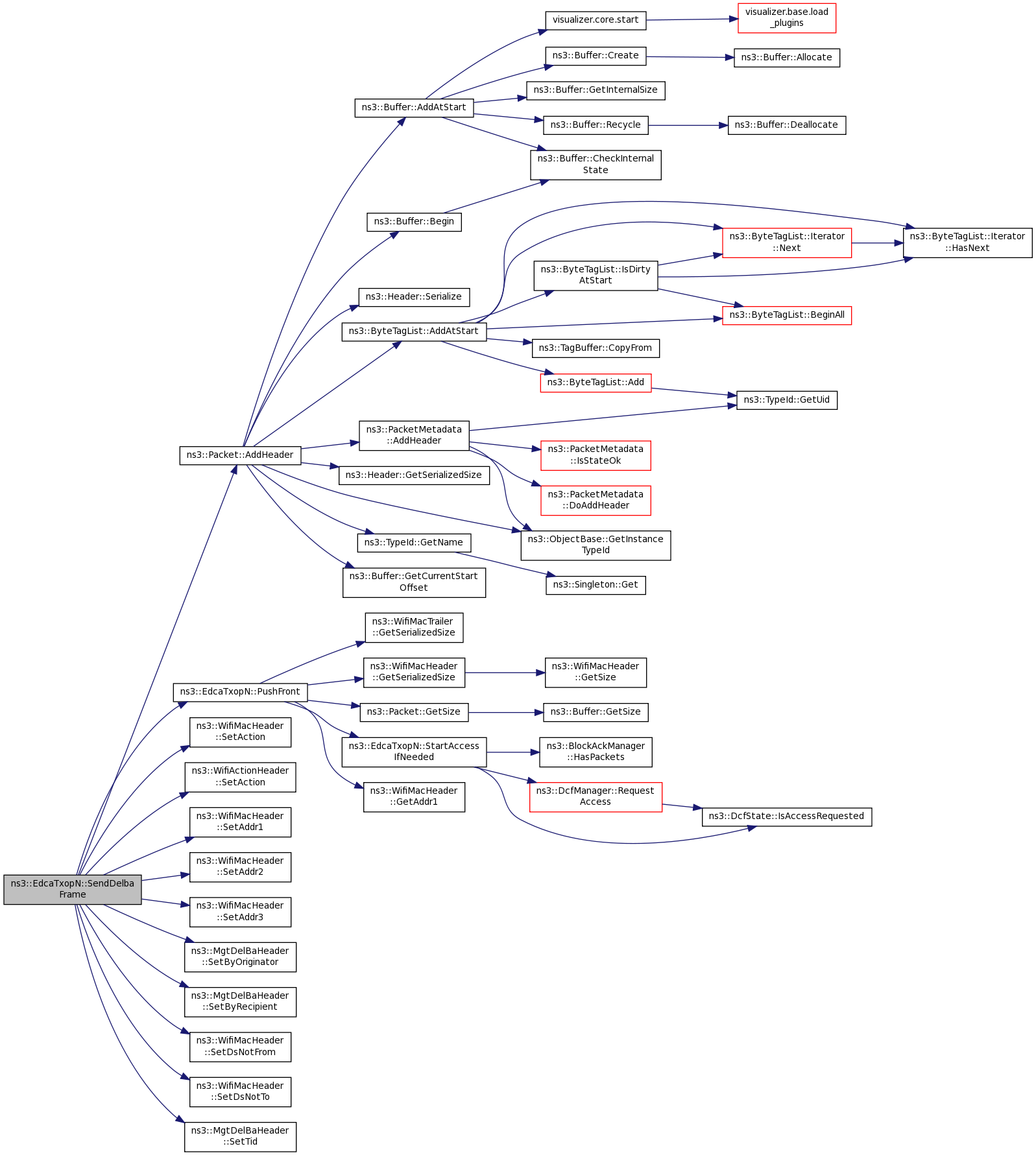

void ns3::EdcaTxopN::SendDelbaFrame ( Mac48Address  addr,
uint8_t  tid,
bool  byOriginator
)

Definition at line 1113 of file edca-txop-n.cc.

References ns3::Packet::AddHeader(), ns3::WifiActionHeader::BLOCK_ACK, ns3::WifiActionHeader::BLOCK_ACK_DELBA, ns3::WifiActionHeader::ActionValue::blockAck, m_low, NS_LOG_FUNCTION, PushFront(), ns3::WifiMacHeader::SetAction(), ns3::WifiActionHeader::SetAction(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetAddr3(), ns3::MgtDelBaHeader::SetByOriginator(), ns3::MgtDelBaHeader::SetByRecipient(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::MgtDelBaHeader::SetTid().

Referenced by ns3::EdcaTxopN::BlockAckEventListener::BlockAckInactivityTimeout(), and CompleteConfig().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::SetAccessCategory ( enum AcIndex  ac)

Definition at line 823 of file edca-txop-n.cc.

References m_ac, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetAifsn ( uint32_t  aifsn)
virtual

Implements ns3::Dcf.

Definition at line 283 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetAifsn().

+ Here is the call graph for this function:

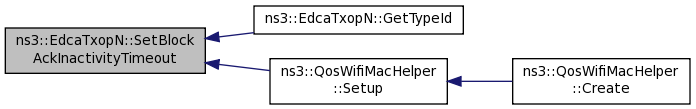

void ns3::EdcaTxopN::SetBlockAckInactivityTimeout ( uint16_t  timeout)

Definition at line 1036 of file edca-txop-n.cc.

References m_blockAckInactivityTimeout, NS_LOG_FUNCTION, and timeout.

Referenced by GetTypeId(), and ns3::QosWifiMacHelper::Setup().

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::SetBlockAckThreshold ( uint8_t  threshold)

Definition at line 1028 of file edca-txop-n.cc.

References m_baManager, m_blockAckThreshold, NS_LOG_FUNCTION, and ns3::BlockAckManager::SetBlockAckThreshold().

Referenced by GetTypeId(), and ns3::QosWifiMacHelper::Setup().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::SetLow ( Ptr< MacLow >  low)

Definition at line 325 of file edca-txop-n.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by ns3::RegularWifiMac::SetupEdcaQueue().

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::SetManager ( DcfManager *  manager)

Definition at line 220 of file edca-txop-n.cc.

References ns3::DcfManager::Add(), m_dcf, m_manager, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::EdcaTxopN::SetMaxCw ( uint32_t  maxCw)
virtual

Implements ns3::Dcf.

Definition at line 276 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMax().

+ Here is the call graph for this function:

void ns3::EdcaTxopN::SetMinCw ( uint32_t  minCw)
virtual

Implements ns3::Dcf.

Definition at line 269 of file edca-txop-n.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMin().

+ Here is the call graph for this function:

void ns3::EdcaTxopN::SetMsduAggregator ( Ptr< MsduAggregator >  aggr)

Definition at line 862 of file edca-txop-n.cc.

References m_aggregator, and NS_LOG_FUNCTION.

Referenced by ns3::QosWifiMacHelper::Setup().

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::SetTxFailedCallback ( TxFailed  callback)

Definition at line 235 of file edca-txop-n.cc.

References m_txFailedCallback, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTxMiddle ( MacTxMiddle *  txMiddle)

Definition at line 311 of file edca-txop-n.cc.

References m_txMiddle, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTxOkCallback ( TxOk  callback)

Definition at line 228 of file edca-txop-n.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

void ns3::EdcaTxopN::SetTypeOfStation ( enum TypeOfStation  type)

Definition at line 248 of file edca-txop-n.cc.

References m_typeOfStation, and NS_LOG_FUNCTION.

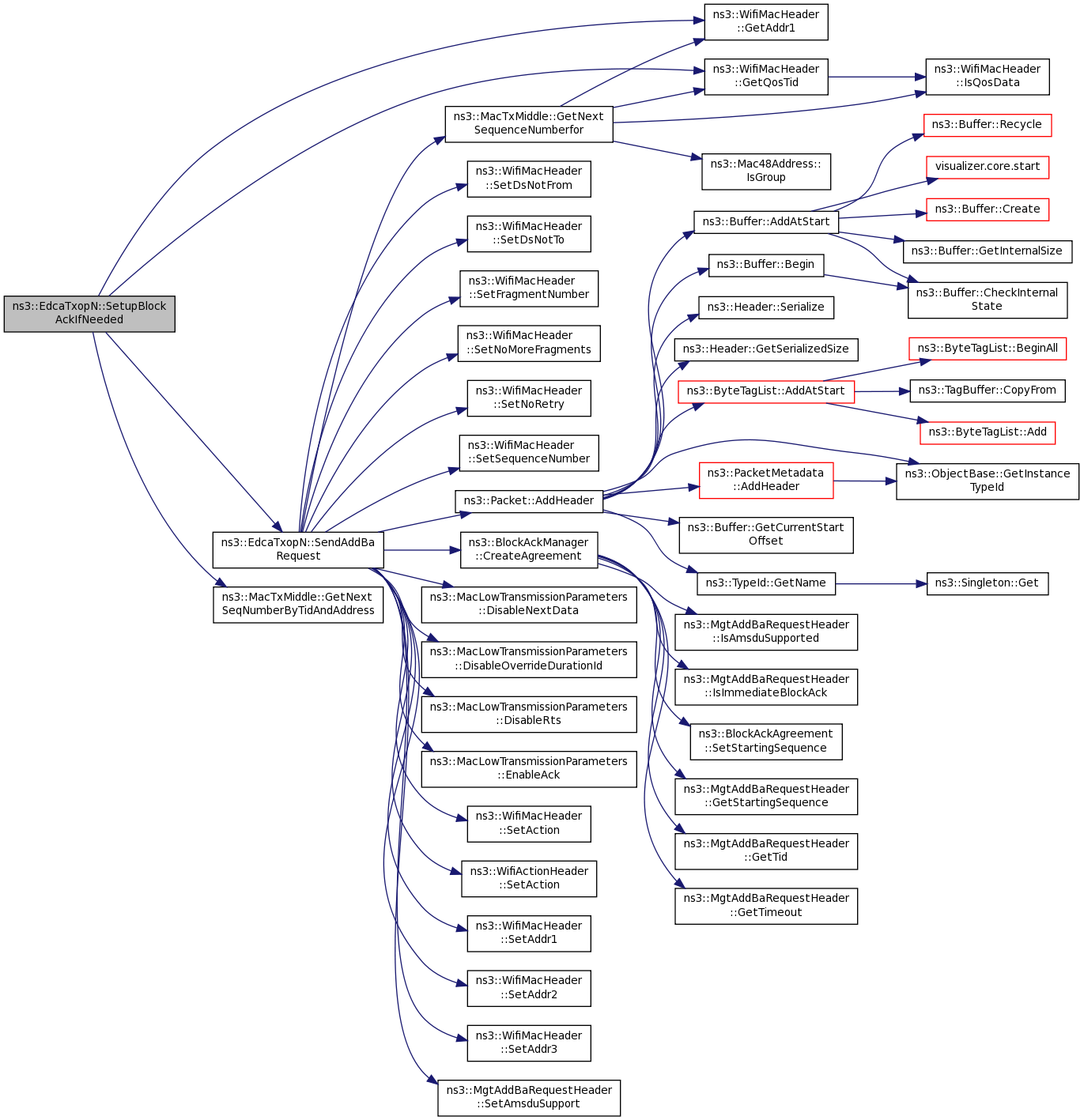

bool ns3::EdcaTxopN::SetupBlockAckIfNeeded ( )
private

Definition at line 956 of file edca-txop-n.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::GetAddr1(), ns3::MacTxMiddle::GetNextSeqNumberByTidAndAddress(), ns3::WifiMacHeader::GetQosTid(), m_blockAckInactivityTimeout, m_blockAckThreshold, m_currentHdr, m_queue, m_txMiddle, NS_LOG_FUNCTION, and SendAddBaRequest().

Referenced by NotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::EdcaTxopN::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager >  remoteManager)

Definition at line 242 of file edca-txop-n.cc.

References m_stationManager, and NS_LOG_FUNCTION.

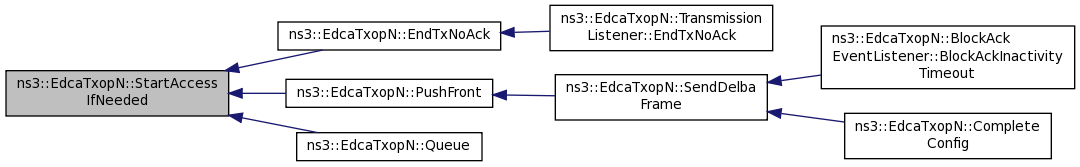

void ns3::EdcaTxopN::StartAccessIfNeeded ( void  )

Definition at line 676 of file edca-txop-n.cc.

References ns3::BlockAckManager::HasPackets(), ns3::DcfState::IsAccessRequested(), m_baManager, m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by EndTxNoAck(), PushFront(), and Queue().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

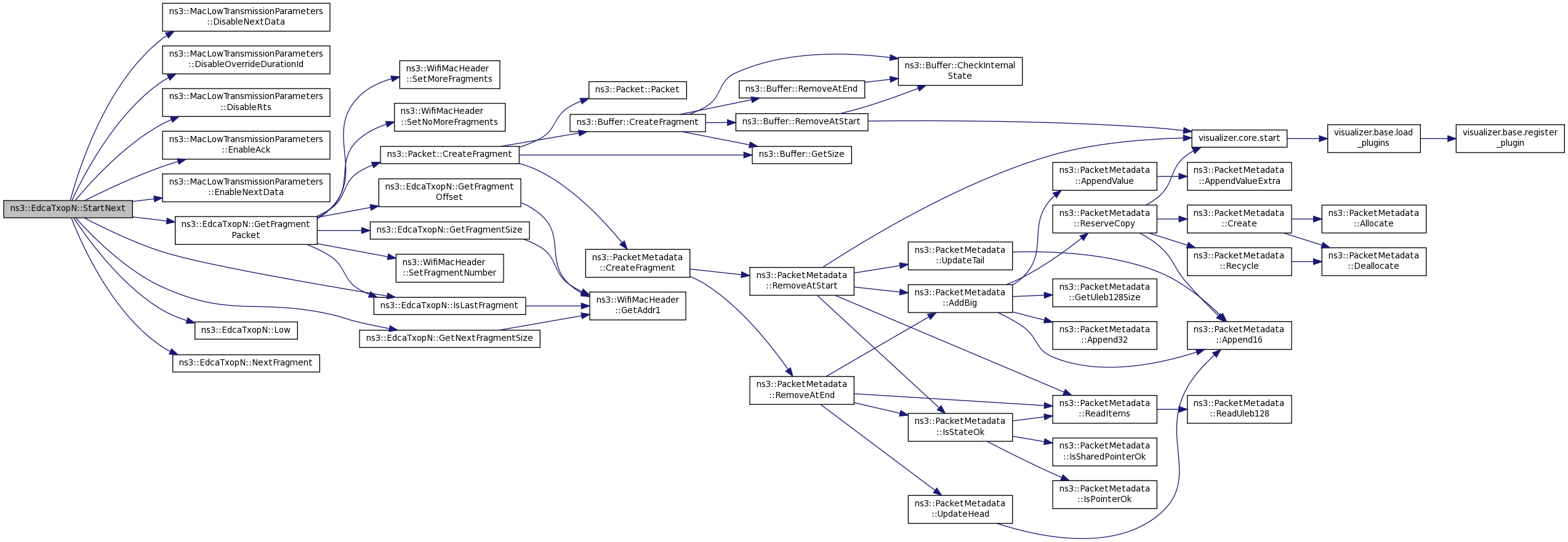

void ns3::EdcaTxopN::StartNext ( void  )

Definition at line 719 of file edca-txop-n.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetNextFragmentSize(), IsLastFragment(), Low(), m_transmissionListener, NextFragment(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::EdcaTxopN::TransmissionListener::StartNext().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

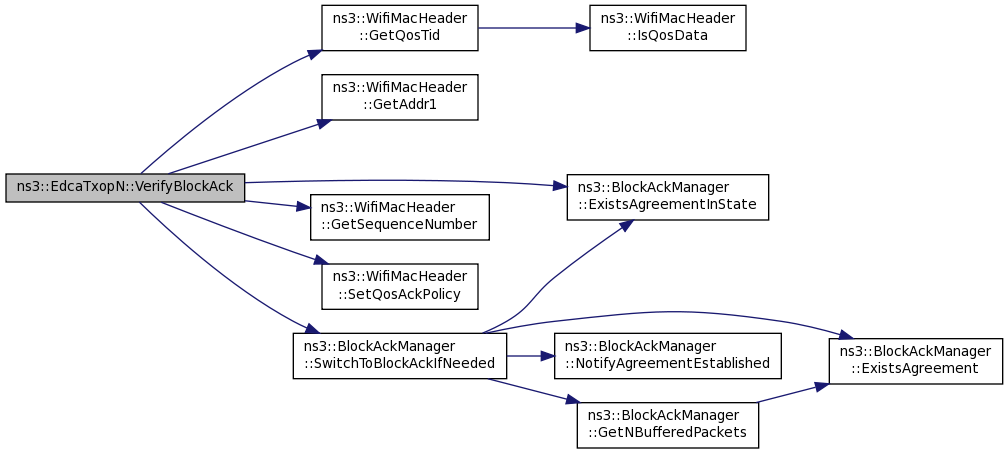

void ns3::EdcaTxopN::VerifyBlockAck ( void  )
private

Definition at line 923 of file edca-txop-n.cc.

References ns3::WifiMacHeader::BLOCK_ACK, ns3::OriginatorBlockAckAgreement::ESTABLISHED, ns3::BlockAckManager::ExistsAgreementInState(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::OriginatorBlockAckAgreement::INACTIVE, m_baManager, m_currentHdr, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetQosAckPolicy(), and ns3::BlockAckManager::SwitchToBlockAckIfNeeded().

Referenced by NotifyAccessGranted().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Dcf
friend

Definition at line 208 of file edca-txop-n.h.

Referenced by EdcaTxopN().

friend class TransmissionListener
friend

Definition at line 210 of file edca-txop-n.h.

Referenced by EdcaTxopN().

Member Data Documentation

AcIndex ns3::EdcaTxopN::m_ac
private

Definition at line 205 of file edca-txop-n.h.

Referenced by CompleteConfig(), and SetAccessCategory().

Ptr<MsduAggregator> ns3::EdcaTxopN::m_aggregator
private

Definition at line 230 of file edca-txop-n.h.

Referenced by DoDispose(), GetMsduAggregator(), NotifyAccessGranted(), and SetMsduAggregator().

BlockAckManager* ns3::EdcaTxopN::m_baManager
private

Definition at line 233 of file edca-txop-n.h.

Referenced by CompleteConfig(), CompleteTx(), DoDispose(), EdcaTxopN(), GotAck(), GotAddBaResponse(), GotBlockAck(), GotDelBaFrame(), NeedsAccess(), NotifyAccessGranted(), RestartAccessIfNeeded(), SendAddBaRequest(), SetBlockAckThreshold(), StartAccessIfNeeded(), and VerifyBlockAck().

uint16_t ns3::EdcaTxopN::m_blockAckInactivityTimeout
private

Definition at line 240 of file edca-txop-n.h.

Referenced by SetBlockAckInactivityTimeout(), and SetupBlockAckIfNeeded().

BlockAckEventListener* ns3::EdcaTxopN::m_blockAckListener
private

Definition at line 219 of file edca-txop-n.h.

Referenced by CompleteConfig(), DoDispose(), and EdcaTxopN().

uint8_t ns3::EdcaTxopN::m_blockAckThreshold
private

Definition at line 237 of file edca-txop-n.h.

Referenced by GetBlockAckThreshold(), NotifyAccessGranted(), SetBlockAckThreshold(), and SetupBlockAckIfNeeded().

enum BlockAckType ns3::EdcaTxopN::m_blockAckType
private

Definition at line 238 of file edca-txop-n.h.

Referenced by EdcaTxopN(), NotifyAccessGranted(), and SendBlockAckRequest().

struct Bar ns3::EdcaTxopN::m_currentBar
private

Definition at line 241 of file edca-txop-n.h.

Referenced by NotifyAccessGranted().

WifiMacHeader ns3::EdcaTxopN::m_currentHdr
private

Definition at line 229 of file edca-txop-n.h.

Referenced by CompleteTx(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedBlockAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), SetupBlockAckIfNeeded(), and VerifyBlockAck().

Ptr<const Packet> ns3::EdcaTxopN::m_currentPacket
private

Definition at line 227 of file edca-txop-n.h.

Referenced by CompleteTx(), EndTxNoAck(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), GotBlockAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), RestartAccessIfNeeded(), SendAddBaRequest(), SendBlockAckRequest(), and StartAccessIfNeeded().

Time ns3::EdcaTxopN::m_currentPacketTimestamp
private

Definition at line 239 of file edca-txop-n.h.

Referenced by CompleteTx(), and NotifyAccessGranted().

Dcf* ns3::EdcaTxopN::m_dcf
private

Definition at line 211 of file edca-txop-n.h.

Referenced by DoDispose(), DoInitialize(), EdcaTxopN(), EndTxNoAck(), GetAifsn(), GetMaxCw(), GetMinCw(), GotAck(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), NotifyCollision(), RestartAccessIfNeeded(), SetAifsn(), SetManager(), SetMaxCw(), SetMinCw(), and StartAccessIfNeeded().

uint8_t ns3::EdcaTxopN::m_fragmentNumber
private

Definition at line 222 of file edca-txop-n.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), NextFragment(), and NotifyAccessGranted().

Ptr<MacLow> ns3::EdcaTxopN::m_low
private

Definition at line 216 of file edca-txop-n.h.

Referenced by CompleteConfig(), DoDispose(), GotAck(), Low(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), SendDelbaFrame(), and SetLow().

DcfManager* ns3::EdcaTxopN::m_manager
private

Definition at line 212 of file edca-txop-n.h.

Referenced by RestartAccessIfNeeded(), SetManager(), and StartAccessIfNeeded().

QosBlockedDestinations* ns3::EdcaTxopN::m_qosBlockedDestinations
private

Definition at line 232 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), and NotifyAccessGranted().

Ptr<WifiMacQueue> ns3::EdcaTxopN::m_queue
private

Definition at line 213 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), GetQueue(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), PushFront(), Queue(), RestartAccessIfNeeded(), SetupBlockAckIfNeeded(), and StartAccessIfNeeded().

RandomStream* ns3::EdcaTxopN::m_rng
private

Definition at line 220 of file edca-txop-n.h.

Referenced by AssignStreams(), DoDispose(), DoInitialize(), EdcaTxopN(), EndTxNoAck(), GotAck(), GotBlockAck(), MissedAck(), MissedBlockAck(), MissedCts(), and NotifyCollision().

Ptr<WifiRemoteStationManager> ns3::EdcaTxopN::m_stationManager
private

Definition at line 221 of file edca-txop-n.h.

Referenced by DoDispose(), GetFragmentOffset(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), PushFront(), Queue(), and SetWifiRemoteStationManager().

TransmissionListener* ns3::EdcaTxopN::m_transmissionListener
private

Definition at line 218 of file edca-txop-n.h.

Referenced by DoDispose(), EdcaTxopN(), NotifyAccessGranted(), SendAddBaRequest(), SendBlockAckRequest(), and StartNext().

TxFailed ns3::EdcaTxopN::m_txFailedCallback
private

Definition at line 215 of file edca-txop-n.h.

Referenced by MissedAck(), MissedCts(), and SetTxFailedCallback().

MacTxMiddle* ns3::EdcaTxopN::m_txMiddle
private

Definition at line 217 of file edca-txop-n.h.

Referenced by CompleteConfig(), CompleteTx(), DoDispose(), NotifyAccessGranted(), SendAddBaRequest(), SetTxMiddle(), and SetupBlockAckIfNeeded().

TxOk ns3::EdcaTxopN::m_txOkCallback
private

Definition at line 214 of file edca-txop-n.h.

Referenced by GotAck(), and SetTxOkCallback().

TypeOfStation ns3::EdcaTxopN::m_typeOfStation
private

Definition at line 231 of file edca-txop-n.h.

Referenced by GetTypeOfStation(), MapDestAddressForAggregation(), MapSrcAddressForAggregation(), and SetTypeOfStation().

The documentation for this class was generated from the following files:
