Ipv4FragmentationTest Class Reference
+ Inheritance diagram for Ipv4FragmentationTest:
+ Collaboration diagram for Ipv4FragmentationTest:

Public Member Functions

 Ipv4FragmentationTest ()

 ~Ipv4FragmentationTest ()

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

void HandleReadClient (Ptr< Socket > socket)

void HandleReadIcmpClient (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)

void HandleReadServer (Ptr< Socket > socket)

Ptr< PacketSendClient (void)

void SetFill (uint8_t *fill, uint32_t fillSize, uint32_t dataSize)

void StartClient (Ptr< Node > ClientNode)

void StartServer (Ptr< Node > ServerNode)

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...


Private Attributes

uint8_t * m_data

uint32_t m_dataSize

uint8_t m_icmpType

Ptr< Packetm_receivedPacketClient

Ptr< Packetm_receivedPacketServer

Ptr< Packetm_sentPacketClient

uint32_t m_size

Ptr< Socketm_socketClient

Ptr< Socketm_socketServer


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)

void AddTestCase (TestCase *testCase) NS_DEPRECATED
 Add an individual child TestCase case to this TestCase. More...

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

std::string CreateDataDirFilename (std::string filename)

std::string CreateTempDirFilename (std::string filename)

bool GetErrorStatus (void) const NS_DEPRECATED

std::string GetName (void) const

bool IsStatusFailure (void) const

bool IsStatusSuccess (void) const

bool MustAssertOnFailure (void) const

bool MustContinueOnFailure (void) const

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)

void SetDataDir (std::string directory)


Detailed Description

Definition at line 80 of file ipv4-fragmentation-test.cc.

Constructor & Destructor Documentation

Ipv4FragmentationTest::Ipv4FragmentationTest ( )

Definition at line 115 of file ipv4-fragmentation-test.cc.

References m_data, m_dataSize, and m_socketServer.

Ipv4FragmentationTest::~Ipv4FragmentationTest ( )

Definition at line 123 of file ipv4-fragmentation-test.cc.

References m_data, and m_dataSize.

Member Function Documentation

void Ipv4FragmentationTest::HandleReadClient ( Ptr< Socket socket)

Definition at line 190 of file ipv4-fragmentation-test.cc.

References ns3::Packet::Copy(), m_receivedPacketClient, and ns3::Socket::RecvFrom().

Referenced by StartClient().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void Ipv4FragmentationTest::HandleReadIcmpClient ( Ipv4Address  icmpSource,
uint8_t  icmpTtl,
uint8_t  icmpType,
uint8_t  icmpCode,
uint32_t  icmpInfo
)

Definition at line 204 of file ipv4-fragmentation-test.cc.

References m_icmpType.

Referenced by StartClient().

+ Here is the caller graph for this function:

void Ipv4FragmentationTest::HandleReadServer ( Ptr< Socket socket)

Definition at line 156 of file ipv4-fragmentation-test.cc.

References ns3::Packet::Copy(), m_receivedPacketServer, ns3::Socket::RecvFrom(), ns3::Packet::RemoveAllByteTags(), and ns3::Packet::RemoveAllPacketTags().

Referenced by StartServer().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< Packet > Ipv4FragmentationTest::SendClient ( void  )

Definition at line 239 of file ipv4-fragmentation-test.cc.

References m_data, m_dataSize, m_size, m_socketClient, and ns3::Socket::Send().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void Ipv4FragmentationTest::SetFill ( uint8_t *  fill,
uint32_t  fillSize,
uint32_t  dataSize
)

Definition at line 212 of file ipv4-fragmentation-test.cc.

References m_data, m_dataSize, and m_size.

Referenced by DoRun().

+ Here is the caller graph for this function:

void Ipv4FragmentationTest::StartClient ( Ptr< Node ClientNode)

Definition at line 173 of file ipv4-fragmentation-test.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), HandleReadClient(), HandleReadIcmpClient(), m_socketClient, ns3::MakeCallback(), ns3::ObjectBase::SetAttribute(), and ns3::Socket::SetRecvCallback().

Referenced by DoRun().

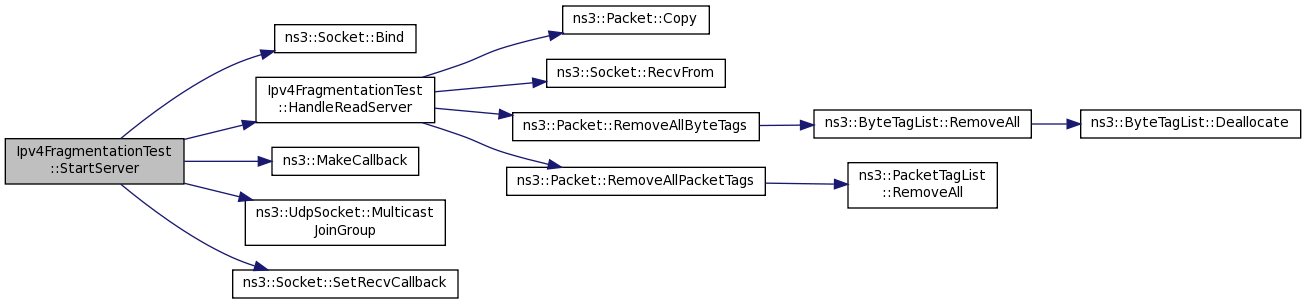

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void Ipv4FragmentationTest::StartServer ( Ptr< Node ServerNode)

Definition at line 135 of file ipv4-fragmentation-test.cc.

References ns3::Socket::Bind(), HandleReadServer(), m_socketServer, ns3::MakeCallback(), ns3::UdpSocket::MulticastJoinGroup(), and ns3::Socket::SetRecvCallback().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

uint8_t* Ipv4FragmentationTest::m_data
private
uint32_t Ipv4FragmentationTest::m_dataSize
private
uint8_t Ipv4FragmentationTest::m_icmpType
private

Definition at line 92 of file ipv4-fragmentation-test.cc.

Referenced by DoRun(), and HandleReadIcmpClient().

Ptr<Packet> Ipv4FragmentationTest::m_receivedPacketClient
private

Definition at line 83 of file ipv4-fragmentation-test.cc.

Referenced by HandleReadClient().

Ptr<Packet> Ipv4FragmentationTest::m_receivedPacketServer
private

Definition at line 84 of file ipv4-fragmentation-test.cc.

Referenced by DoRun(), and HandleReadServer().

Ptr<Packet> Ipv4FragmentationTest::m_sentPacketClient
private

Definition at line 82 of file ipv4-fragmentation-test.cc.

uint32_t Ipv4FragmentationTest::m_size
private

Definition at line 91 of file ipv4-fragmentation-test.cc.

Referenced by SendClient(), and SetFill().

Ptr<Socket> Ipv4FragmentationTest::m_socketClient
private

Definition at line 88 of file ipv4-fragmentation-test.cc.

Referenced by DoRun(), SendClient(), and StartClient().

Ptr<Socket> Ipv4FragmentationTest::m_socketServer
private

Definition at line 87 of file ipv4-fragmentation-test.cc.

Referenced by Ipv4FragmentationTest(), and StartServer().


The documentation for this class was generated from the following file:
