TimestampTag Class Reference

#include <wifi-example-apps.h>

Inheritance diagram for TimestampTag:

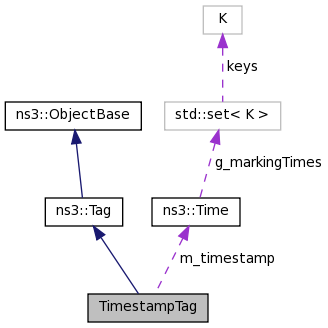

Collaboration diagram for TimestampTag:

Public Member Functions
virtual void	Deserialize (TagBuffer i)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
Time	GetTimestamp (void) const
void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
void	SetTimestamp (Time time)
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Time	m_timestamp

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Definition at line 105 of file wifi-example-apps.h.

Member Function Documentation

void TimestampTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 309 of file wifi-example-apps.cc.

References m_timestamp, and ns3::TagBuffer::Read().

Here is the call graph for this function:

TypeId TimestampTag::GetInstanceTypeId ( void  ) const

virtual

Returns

the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 292 of file wifi-example-apps.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t TimestampTag::GetSerializedSize ( void  ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 298 of file wifi-example-apps.cc.

Time TimestampTag::GetTimestamp

(

void

)

const

Definition at line 322 of file wifi-example-apps.cc.

References m_timestamp.

Referenced by GetTypeId(), and Receiver::Receive().

Here is the caller graph for this function:

TypeId TimestampTag::GetTypeId ( void  )

static

Definition at line 278 of file wifi-example-apps.cc.

References GetTimestamp(), ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

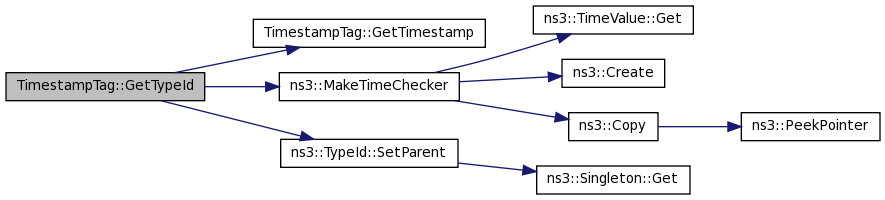

Here is the call graph for this function:

Here is the caller graph for this function:

void TimestampTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 328 of file wifi-example-apps.cc.

References m_timestamp.

void TimestampTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 303 of file wifi-example-apps.cc.

References ns3::Time::GetNanoSeconds(), m_timestamp, and ns3::TagBuffer::Write().

Here is the call graph for this function:

void TimestampTag::SetTimestamp

(

Time

time

)

Definition at line 317 of file wifi-example-apps.cc.

References m_timestamp.

Referenced by Sender::SendPacket().

Here is the caller graph for this function:

Member Data Documentation

Time TimestampTag::m_timestamp

private

Definition at line 121 of file wifi-example-apps.h.

Referenced by Deserialize(), GetTimestamp(), Print(), Serialize(), and SetTimestamp().

---

The documentation for this class was generated from the following files:

• examples/stats/wifi-example-apps.h
• examples/stats/wifi-example-apps.cc
