A Discrete-Event Network Simulator
API
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Macros Groups Pages
Public Member Functions | Static Public Member Functions | List of all members
anonymous_namespace{packet-test-suite.cc}::ATestTag< N > Class Template Reference
+ Inheritance diagram for anonymous_namespace{packet-test-suite.cc}::ATestTag< N >:

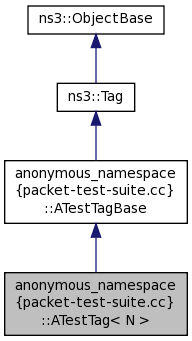

+ Collaboration diagram for anonymous_namespace{packet-test-suite.cc}::ATestTag< N >:

Public Member Functions

 ATestTag ()

 ATestTag (uint8_t data)

virtual void Deserialize (TagBuffer buf)

virtual TypeId GetInstanceTypeId (void) const

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer buf) const

- Public Member Functions inherited from anonymous_namespace{packet-test-suite.cc}::ATestTagBase
 ATestTagBase ()

 ATestTagBase (uint8_t data)

virtual int GetData () const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Public Attributes inherited from anonymous_namespace{packet-test-suite.cc}::ATestTagBase
uint8_t m_data

bool m_error

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

template<int N>
class anonymous_namespace{packet-test-suite.cc}::ATestTag< N >

Definition at line 52 of file packet-test-suite.cc.

Constructor & Destructor Documentation

template<int N>
anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::ATestTag ( )
inline

Definition at line 92 of file packet-test-suite.cc.

template<int N>
anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::ATestTag ( uint8_t  data)
inline

Definition at line 94 of file packet-test-suite.cc.

Member Function Documentation

template<int N>
virtual void anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::Deserialize ( TagBuffer  i)
inlinevirtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 78 of file packet-test-suite.cc.

References ns3::TagBuffer::ReadU8().

+ Here is the call graph for this function:

template<int N>
virtual TypeId anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::GetInstanceTypeId ( void  ) const
inlinevirtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 65 of file packet-test-suite.cc.

template<int N>
virtual uint32_t anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::GetSerializedSize ( void  ) const
inlinevirtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 68 of file packet-test-suite.cc.

template<int N>
static TypeId anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::GetTypeId ( void  )
inlinestatic

Definition at line 55 of file packet-test-suite.cc.

References ns3::TypeId::AddConstructor().

+ Here is the call graph for this function:

template<int N>
virtual void anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::Print ( std::ostream &  os) const
inlinevirtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 89 of file packet-test-suite.cc.

template<int N>
virtual void anonymous_namespace{packet-test-suite.cc}::ATestTag< N >::Serialize ( TagBuffer  i) const
inlinevirtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 71 of file packet-test-suite.cc.

References ns3::TagBuffer::WriteU8().

+ Here is the call graph for this function:

The documentation for this class was generated from the following file:
