ns3::AmsduSubframeHeader Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <amsdu-subframe-header.h>

+ Inheritance diagram for ns3::AmsduSubframeHeader:

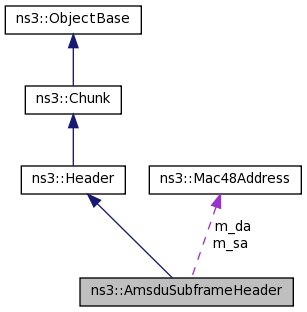

+ Collaboration diagram for ns3::AmsduSubframeHeader:

Public Member Functions

 AmsduSubframeHeader ()

virtual ~AmsduSubframeHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

Mac48Address GetDestinationAddr (void) const

virtual TypeId GetInstanceTypeId (void) const

uint16_t GetLength (void) const

virtual uint32_t GetSerializedSize (void) const

Mac48Address GetSourceAddr (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetDestinationAddr (Mac48Address to)

void SetLength (uint16_t)

void SetSourceAddr (Mac48Address to)

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Mac48Address m_da

uint16_t m_length

Mac48Address m_sa


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 33 of file amsdu-subframe-header.h.

Constructor & Destructor Documentation

ns3::AmsduSubframeHeader::AmsduSubframeHeader ( )

Definition at line 47 of file amsdu-subframe-header.cc.

References NS_LOG_FUNCTION.

ns3::AmsduSubframeHeader::~AmsduSubframeHeader ( )
virtual

Definition at line 53 of file amsdu-subframe-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::AmsduSubframeHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should written.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 75 of file amsdu-subframe-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_da, m_length, m_sa, NS_LOG_FUNCTION, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), and visualizer.core::start().

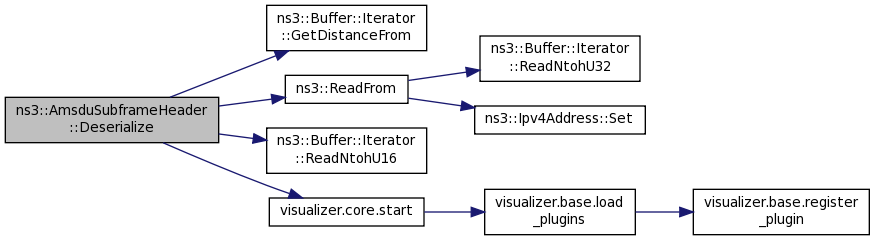

+ Here is the call graph for this function:

Mac48Address ns3::AmsduSubframeHeader::GetDestinationAddr ( void  ) const

Definition at line 114 of file amsdu-subframe-header.cc.

References m_da, and NS_LOG_FUNCTION.

TypeId ns3::AmsduSubframeHeader::GetInstanceTypeId ( void  ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 42 of file amsdu-subframe-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint16_t ns3::AmsduSubframeHeader::GetLength ( void  ) const

Definition at line 128 of file amsdu-subframe-header.cc.

References m_length, and NS_LOG_FUNCTION.

Referenced by ns3::MsduAggregator::Deaggregate().

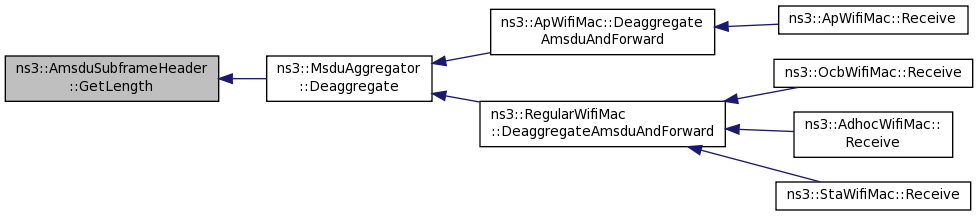

+ Here is the caller graph for this function:

uint32_t ns3::AmsduSubframeHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 59 of file amsdu-subframe-header.cc.

References NS_LOG_FUNCTION.

Mac48Address ns3::AmsduSubframeHeader::GetSourceAddr ( void  ) const

Definition at line 121 of file amsdu-subframe-header.cc.

References m_sa, and NS_LOG_FUNCTION.

TypeId ns3::AmsduSubframeHeader::GetTypeId ( void  )
static

Definition at line 32 of file amsdu-subframe-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::AmsduSubframeHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 86 of file amsdu-subframe-header.cc.

References m_da, m_length, m_sa, and NS_LOG_FUNCTION.

void ns3::AmsduSubframeHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 66 of file amsdu-subframe-header.cc.

References m_da, m_length, m_sa, NS_LOG_FUNCTION, ns3::Buffer::Iterator::WriteHtonU16(), and ns3::WriteTo().

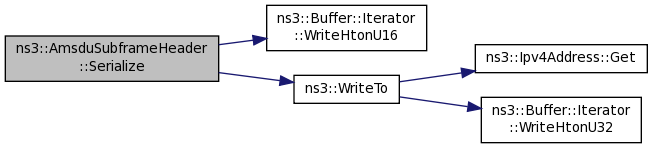

+ Here is the call graph for this function:

void ns3::AmsduSubframeHeader::SetDestinationAddr ( Mac48Address  to)

Definition at line 93 of file amsdu-subframe-header.cc.

References m_da, and NS_LOG_FUNCTION.

Referenced by ns3::MsduStandardAggregator::Aggregate().

+ Here is the caller graph for this function:

void ns3::AmsduSubframeHeader::SetLength ( uint16_t  length)

Definition at line 107 of file amsdu-subframe-header.cc.

References m_length, and NS_LOG_FUNCTION.

Referenced by ns3::MsduStandardAggregator::Aggregate().

+ Here is the caller graph for this function:

void ns3::AmsduSubframeHeader::SetSourceAddr ( Mac48Address  to)

Definition at line 100 of file amsdu-subframe-header.cc.

References m_sa, and NS_LOG_FUNCTION.

Referenced by ns3::MsduStandardAggregator::Aggregate().

+ Here is the caller graph for this function:

Member Data Documentation

Mac48Address ns3::AmsduSubframeHeader::m_da
private
uint16_t ns3::AmsduSubframeHeader::m_length
private

Definition at line 56 of file amsdu-subframe-header.h.

Referenced by Deserialize(), GetLength(), Print(), Serialize(), and SetLength().

Mac48Address ns3::AmsduSubframeHeader::m_sa
private

Definition at line 55 of file amsdu-subframe-header.h.

Referenced by Deserialize(), GetSourceAddr(), Print(), Serialize(), and SetSourceAddr().


The documentation for this class was generated from the following files:
