ns3::AsciiTraceHelper Class Reference

Manage ASCII trace files for device models. More...

#include <trace-helper.h>

Public Member Functions
	AsciiTraceHelper ()
	Create an ascii trace helper. More...
	~AsciiTraceHelper ()
	Destroy an ascii trace helper. More...
Ptr< OutputStreamWrapper >	CreateFileStream (std::string filename, std::ios::openmode filemode=std::ios::out)
	Create and initialize an output stream object we'll use to write the traced bits. More...
std::string	GetFilenameFromDevice (std::string prefix, Ptr< NetDevice > device, bool useObjectNames=true)
	Let the ascii trace helper figure out a reasonable filename to use for an ascii trace file associated with a device. More...
std::string	GetFilenameFromInterfacePair (std::string prefix, Ptr< Object > object, uint32_t interface, bool useObjectNames=true)
	Let the ascii trace helper figure out a reasonable filename to use for an ascii trace file associated with a node. More...
template<typename T >
void	HookDefaultDequeueSinkWithContext (Ptr< T > object, std::string context, std::string traceName, Ptr< OutputStreamWrapper > stream)
	Hook a trace source to the default dequeue operation trace sink that does accept and log a trace context. More...
template<typename T >
void	HookDefaultDequeueSinkWithoutContext (Ptr< T > object, std::string traceName, Ptr< OutputStreamWrapper > stream)
	Hook a trace source to the default dequeue operation trace sink that does not accept nor log a trace context. More...
template<typename T >
void	HookDefaultDropSinkWithContext (Ptr< T > object, std::string context, std::string traceName, Ptr< OutputStreamWrapper > stream)
	Hook a trace source to the default drop operation trace sink that does accept and log a trace context. More...
template<typename T >
void	HookDefaultDropSinkWithoutContext (Ptr< T > object, std::string traceName, Ptr< OutputStreamWrapper > stream)
	Hook a trace source to the default drop operation trace sink that does not accept nor log a trace context. More...
template<typename T >
void	HookDefaultEnqueueSinkWithContext (Ptr< T > object, std::string context, std::string traceName, Ptr< OutputStreamWrapper > stream)
	Hook a trace source to the default enqueue operation trace sink that does accept and log a trace context. More...
template<typename T >
void	HookDefaultEnqueueSinkWithoutContext (Ptr< T > object, std::string traceName, Ptr< OutputStreamWrapper > stream)
	Hook a trace source to the default enqueue operation trace sink that does not accept nor log a trace context. More...
template<typename T >
void	HookDefaultReceiveSinkWithContext (Ptr< T > object, std::string context, std::string traceName, Ptr< OutputStreamWrapper > stream)
	Hook a trace source to the default receive operation trace sink that does accept and log a trace context. More...
template<typename T >
void	HookDefaultReceiveSinkWithoutContext (Ptr< T > object, std::string traceName, Ptr< OutputStreamWrapper > stream)
	Hook a trace source to the default receive operation trace sink that does not accept nor log a trace context. More...

Static Public Member Functions
static void	DefaultDequeueSinkWithContext (Ptr< OutputStreamWrapper > file, std::string context, Ptr< const Packet > p)
static void	DefaultDequeueSinkWithoutContext (Ptr< OutputStreamWrapper > file, Ptr< const Packet > p)
static void	DefaultDropSinkWithContext (Ptr< OutputStreamWrapper > file, std::string context, Ptr< const Packet > p)
static void	DefaultDropSinkWithoutContext (Ptr< OutputStreamWrapper > file, Ptr< const Packet > p)
static void	DefaultEnqueueSinkWithContext (Ptr< OutputStreamWrapper > file, std::string context, Ptr< const Packet > p)
static void	DefaultEnqueueSinkWithoutContext (Ptr< OutputStreamWrapper > file, Ptr< const Packet > p)
static void	DefaultReceiveSinkWithContext (Ptr< OutputStreamWrapper > file, std::string context, Ptr< const Packet > p)
static void	DefaultReceiveSinkWithoutContext (Ptr< OutputStreamWrapper > file, Ptr< const Packet > p)

Detailed Description

Manage ASCII trace files for device models.

Handling ascii trace files is a common operation for ns-3 devices. It is useful to provide a common base class for dealing with these ops.

Definition at line 128 of file trace-helper.h.

Constructor & Destructor Documentation

ns3::AsciiTraceHelper::AsciiTraceHelper

(

)

Create an ascii trace helper.

Definition at line 173 of file trace-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::AsciiTraceHelper::~AsciiTraceHelper

(

)

Destroy an ascii trace helper.

Definition at line 178 of file trace-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

Ptr< OutputStreamWrapper > ns3::AsciiTraceHelper::CreateFileStream	(	std::string	filename,
		std::ios::openmode	filemode = std::ios::out
	)

Create and initialize an output stream object we'll use to write the traced bits.

One of the common issues users run into when trying to use tracing in ns-3 is actually a design decision made in the C++ stream library. It is not widely known that copy and assignment of iostreams is forbidden by std::basic_ios<>. This is because it is not possible to predict the semantics of the stream desired by a user.

The tempting ns-3 idiom when tracing to a file is to create a bound callback with an ofstream as the bound object. Unfortunately, this implies a copy construction in order to get the ofstream object into the callback. This operation, as mentioned above, is forbidden by the STL. You could use a global ostream and pass a pointer to it, but that is pretty ugly. You could create an ostream on the stack and pass a pointer to it, but you may run into object lifetime issues. Ns-3 has a nice reference counted object that can solve the problem so we use one of those to carry the stream around and deal with the lifetime issues.

Parameters

filename	file name
filemode	file mode

Definition at line 184 of file trace-helper.cc.

References NS_LOG_FUNCTION.

Referenced by DsdvManetExample::CreateDevices(), MobilityTraceTestCase::DoRun(), Ns3TcpLossTestCase::DoRun(), ns3::FdNetDeviceHelper::EnableAsciiInternal(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), ns3::YansWifiPhyHelper::EnableAsciiInternal(), ns3::WimaxHelper::EnableAsciiInternal(), ns3::InternetStackHelper::EnableAsciiIpv4Internal(), ns3::InternetStackHelper::EnableAsciiIpv6Internal(), ns3::SpectrumAnalyzerHelper::Install(), main(), Experiment::Run(), RoutingExperiment::Run(), TraceCwnd(), and TraceSsThresh().

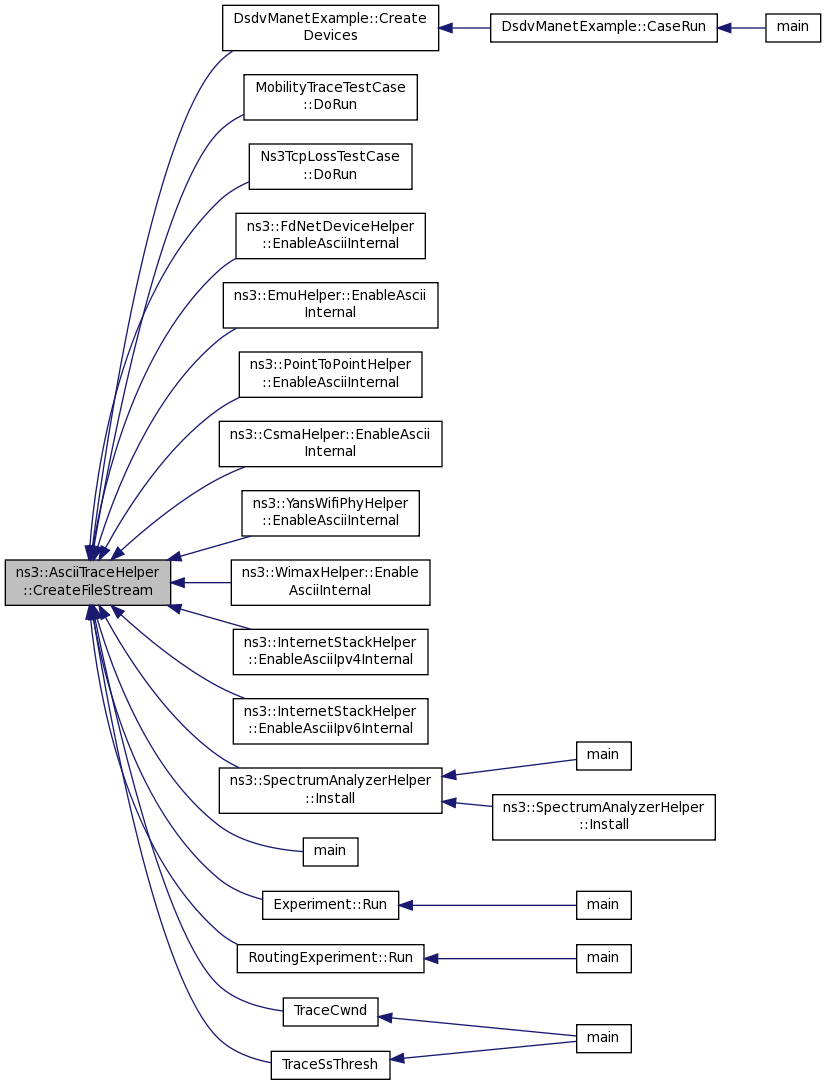

Here is the caller graph for this function:

void ns3::AsciiTraceHelper::DefaultDequeueSinkWithContext ( Ptr< OutputStreamWrapper >  file, std::string  context, Ptr< const Packet >  p  )

static

Definition at line 363 of file trace-helper.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::WimaxHelper::EnableAsciiForConnection(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), and HookDefaultDequeueSinkWithContext().

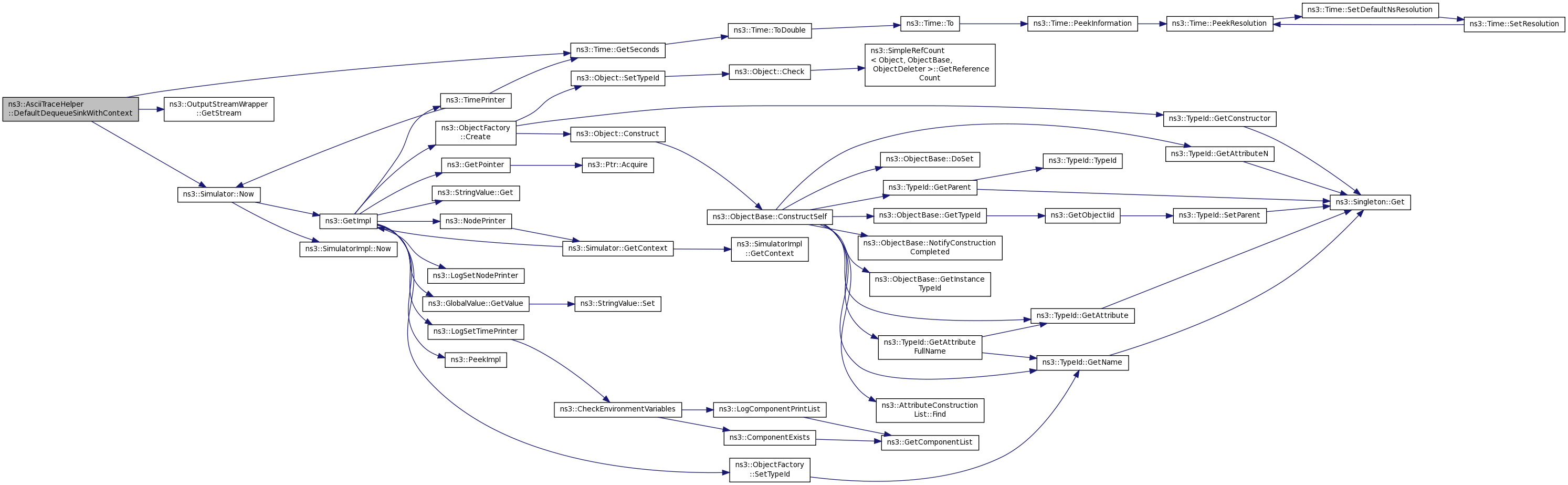

Here is the call graph for this function:

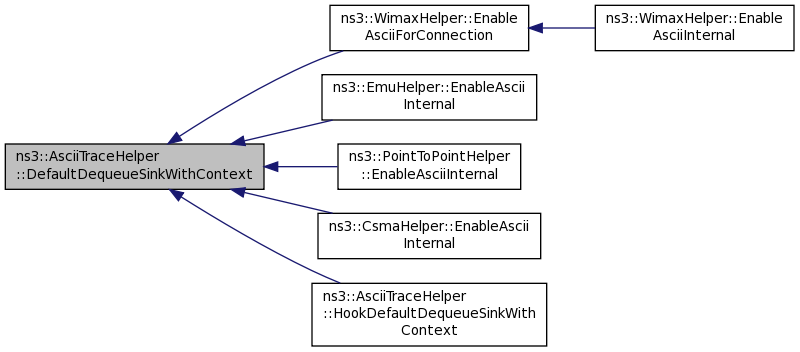

Here is the caller graph for this function:

void ns3::AsciiTraceHelper::DefaultDequeueSinkWithoutContext ( Ptr< OutputStreamWrapper >  file, Ptr< const Packet >  p  )

static

Definition at line 356 of file trace-helper.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by HookDefaultDequeueSinkWithoutContext().

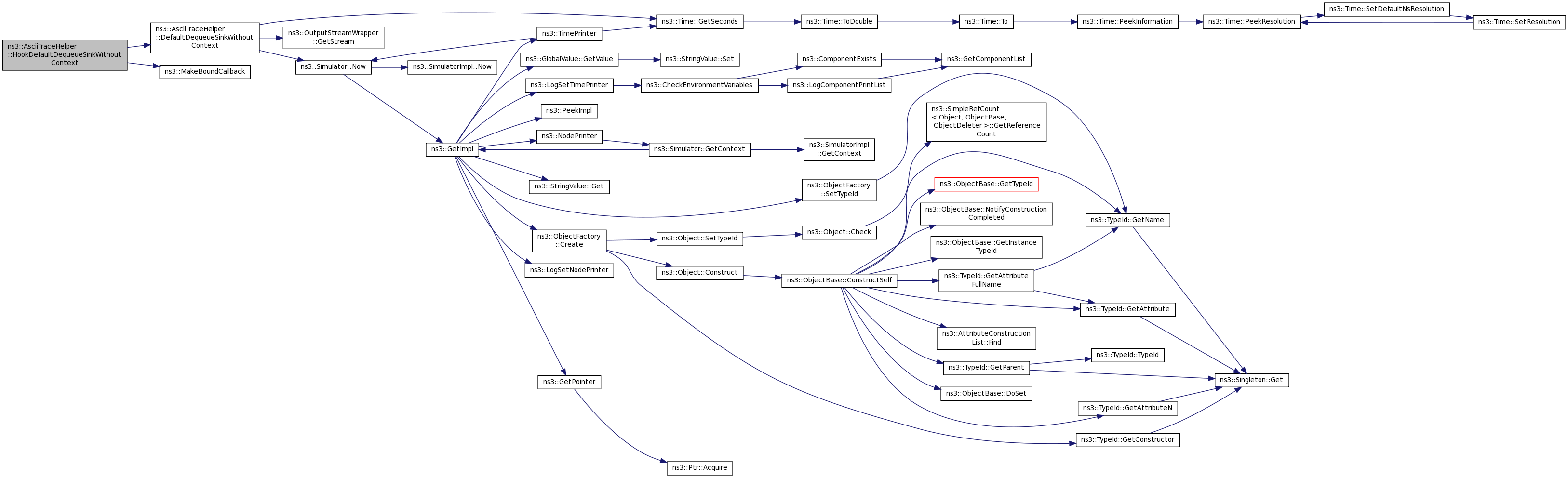

Here is the call graph for this function:

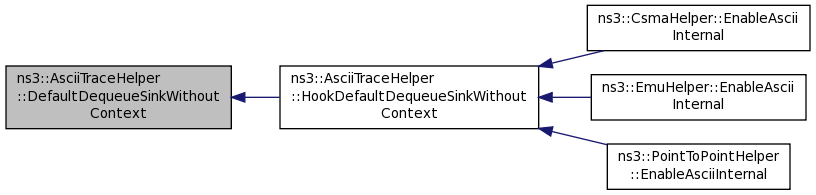

Here is the caller graph for this function:

void ns3::AsciiTraceHelper::DefaultDropSinkWithContext ( Ptr< OutputStreamWrapper >  file, std::string  context, Ptr< const Packet >  p  )

static

Definition at line 336 of file trace-helper.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::WimaxHelper::EnableAsciiForConnection(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), ns3::InternetStackHelper::EnableAsciiIpv4Internal(), and HookDefaultDropSinkWithContext().

Here is the call graph for this function:

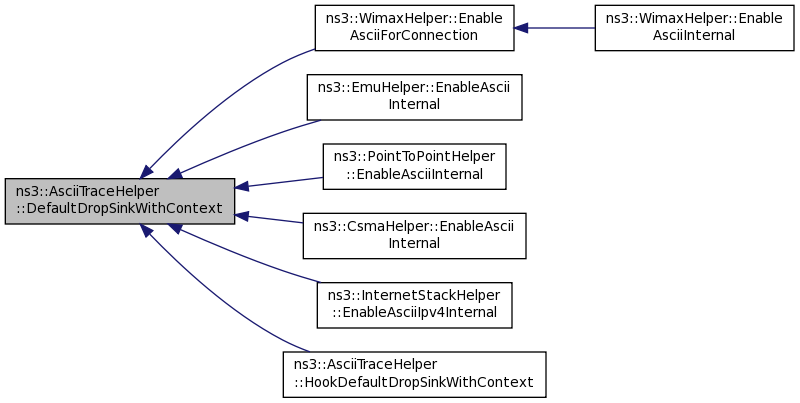

Here is the caller graph for this function:

void ns3::AsciiTraceHelper::DefaultDropSinkWithoutContext ( Ptr< OutputStreamWrapper >  file, Ptr< const Packet >  p  )

static

Definition at line 329 of file trace-helper.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by HookDefaultDropSinkWithoutContext().

Here is the call graph for this function:

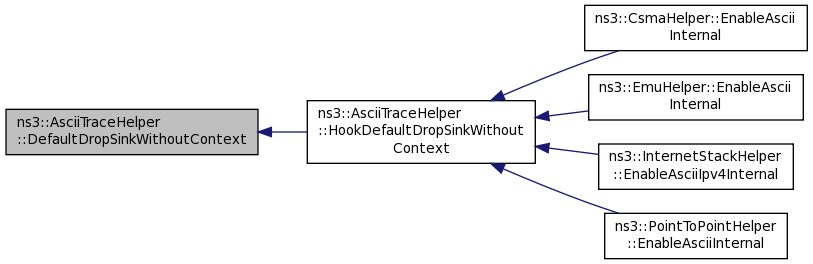

Here is the caller graph for this function:

void ns3::AsciiTraceHelper::DefaultEnqueueSinkWithContext ( Ptr< OutputStreamWrapper >  file, std::string  context, Ptr< const Packet >  p  )

static

Definition at line 310 of file trace-helper.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::WimaxHelper::EnableAsciiForConnection(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), and HookDefaultEnqueueSinkWithContext().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AsciiTraceHelper::DefaultEnqueueSinkWithoutContext ( Ptr< OutputStreamWrapper >  file, Ptr< const Packet >  p  )

static

Definition at line 303 of file trace-helper.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by HookDefaultEnqueueSinkWithoutContext().

Here is the call graph for this function:

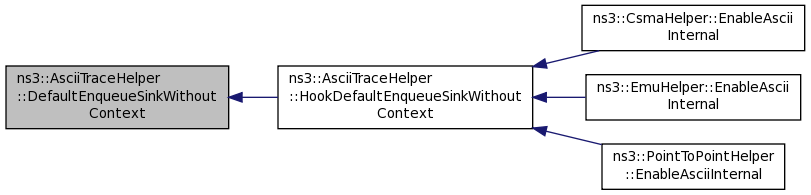

Here is the caller graph for this function:

void ns3::AsciiTraceHelper::DefaultReceiveSinkWithContext ( Ptr< OutputStreamWrapper >  file, std::string  context, Ptr< const Packet >  p  )

static

Definition at line 387 of file trace-helper.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::FdNetDeviceHelper::EnableAsciiInternal(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), and HookDefaultReceiveSinkWithContext().

Here is the call graph for this function:

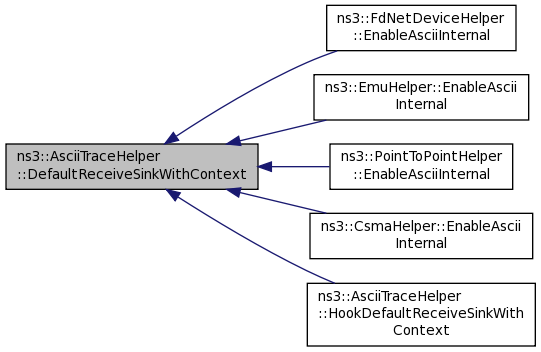

Here is the caller graph for this function:

void ns3::AsciiTraceHelper::DefaultReceiveSinkWithoutContext ( Ptr< OutputStreamWrapper >  file, Ptr< const Packet >  p  )

static

Definition at line 380 of file trace-helper.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by HookDefaultReceiveSinkWithoutContext().

Here is the call graph for this function:

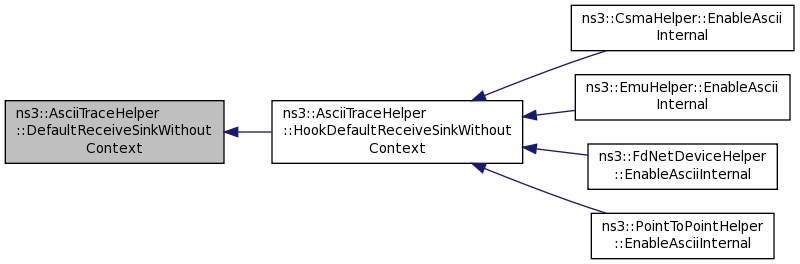

Here is the caller graph for this function:

std::string ns3::AsciiTraceHelper::GetFilenameFromDevice	(	std::string	prefix,
		Ptr< NetDevice >	device,
		bool	useObjectNames = true
	)

Let the ascii trace helper figure out a reasonable filename to use for an ascii trace file associated with a device.

Parameters

prefix	prefix string
device	NetDevice
useObjectNames	use node and device names instead of indexes

Definition at line 205 of file trace-helper.cc.

References ns3::Names::FindName(), ns3::Node::GetId(), NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION.

Referenced by ns3::FdNetDeviceHelper::EnableAsciiInternal(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), ns3::YansWifiPhyHelper::EnableAsciiInternal(), ns3::WimaxHelper::EnableAsciiInternal(), and ns3::SpectrumAnalyzerHelper::Install().

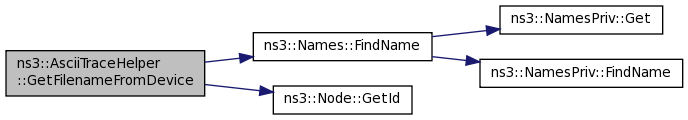

Here is the call graph for this function:

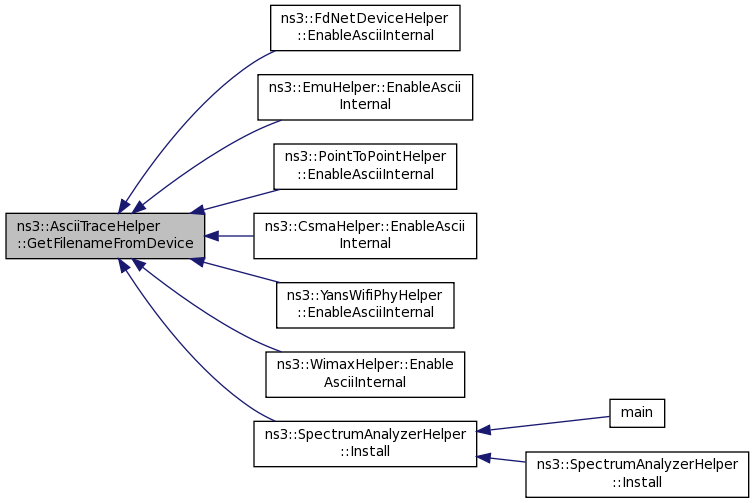

Here is the caller graph for this function:

std::string ns3::AsciiTraceHelper::GetFilenameFromInterfacePair	(	std::string	prefix,
		Ptr< Object >	object,
		uint32_t	interface,
		bool	useObjectNames = true
	)

Let the ascii trace helper figure out a reasonable filename to use for an ascii trace file associated with a node.

Parameters

prefix	prefix string
object	interface (such as Ipv4Interface or Ipv6Interface)
interface	interface id
useObjectNames	use node and device names instead of indexes

Definition at line 250 of file trace-helper.cc.

References ns3::Names::FindName(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION.

Referenced by ns3::InternetStackHelper::EnableAsciiIpv4Internal(), and ns3::InternetStackHelper::EnableAsciiIpv6Internal().

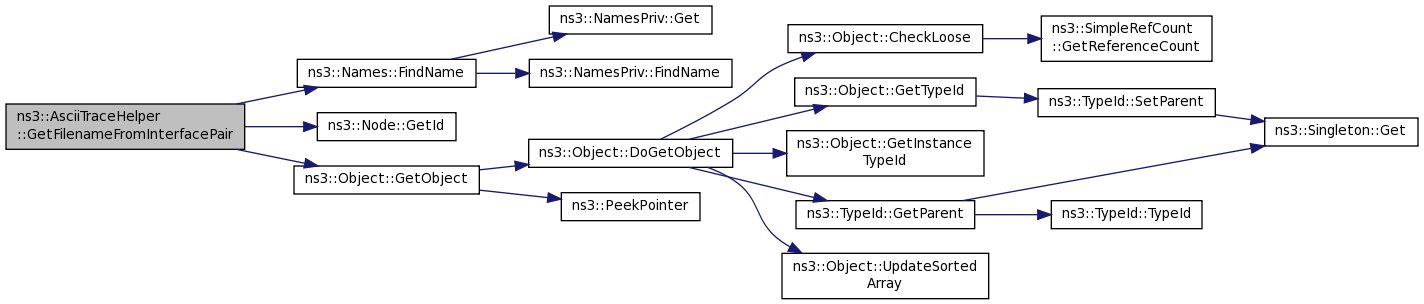

Here is the call graph for this function:

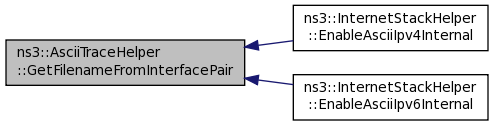

Here is the caller graph for this function:

template<typename T >

void ns3::AsciiTraceHelper::HookDefaultDequeueSinkWithContext	(	Ptr< T >	object,
		std::string	context,
		std::string	traceName,
		Ptr< OutputStreamWrapper >	stream
	)

Hook a trace source to the default dequeue operation trace sink that does accept and log a trace context.

Parameters

object	object
context	context string
traceName	trace source name
stream	output stream wrapper

Definition at line 352 of file trace-helper.h.

References DefaultDequeueSinkWithContext(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

Here is the call graph for this function:

template<typename T >

void ns3::AsciiTraceHelper::HookDefaultDequeueSinkWithoutContext	(	Ptr< T >	object,
		std::string	traceName,
		Ptr< OutputStreamWrapper >	stream
	)

Hook a trace source to the default dequeue operation trace sink that does not accept nor log a trace context.

Parameters

object	object
traceName	trace source name
stream	output stream wrapper

Definition at line 343 of file trace-helper.h.

References DefaultDequeueSinkWithoutContext(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

Referenced by ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), and ns3::CsmaHelper::EnableAsciiInternal().

Here is the call graph for this function:

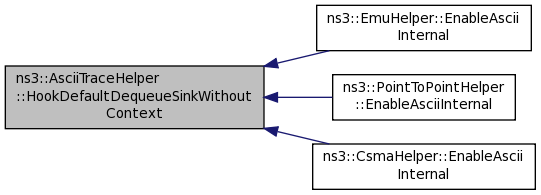

Here is the caller graph for this function:

template<typename T >

void ns3::AsciiTraceHelper::HookDefaultDropSinkWithContext	(	Ptr< T >	object,
		std::string	context,
		std::string	traceName,
		Ptr< OutputStreamWrapper >	stream
	)

Hook a trace source to the default drop operation trace sink that does accept and log a trace context.

Parameters

object	object
context	context string
traceName	trace source name
stream	output stream wrapper

Definition at line 330 of file trace-helper.h.

References DefaultDropSinkWithContext(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

Here is the call graph for this function:

template<typename T >

void ns3::AsciiTraceHelper::HookDefaultDropSinkWithoutContext	(	Ptr< T >	object,
		std::string	traceName,
		Ptr< OutputStreamWrapper >	stream
	)

Hook a trace source to the default drop operation trace sink that does not accept nor log a trace context.

Parameters

object	object
traceName	trace source name
stream	output stream wrapper

Definition at line 321 of file trace-helper.h.

References DefaultDropSinkWithoutContext(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

Referenced by ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), and ns3::InternetStackHelper::EnableAsciiIpv4Internal().

Here is the call graph for this function:

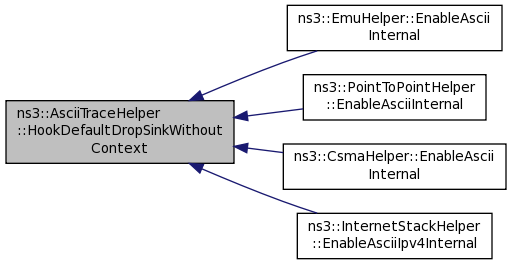

Here is the caller graph for this function:

template<typename T >

void ns3::AsciiTraceHelper::HookDefaultEnqueueSinkWithContext	(	Ptr< T >	object,
		std::string	context,
		std::string	traceName,
		Ptr< OutputStreamWrapper >	stream
	)

Hook a trace source to the default enqueue operation trace sink that does accept and log a trace context.

Parameters

object	object
context	context string
traceName	trace source name
stream	output stream wrapper

Definition at line 308 of file trace-helper.h.

References DefaultEnqueueSinkWithContext(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

Here is the call graph for this function:

template<typename T >

void ns3::AsciiTraceHelper::HookDefaultEnqueueSinkWithoutContext	(	Ptr< T >	object,
		std::string	traceName,
		Ptr< OutputStreamWrapper >	stream
	)

Hook a trace source to the default enqueue operation trace sink that does not accept nor log a trace context.

Parameters

object	object
traceName	trace source name
stream	output stream wrapper

Definition at line 299 of file trace-helper.h.

References DefaultEnqueueSinkWithoutContext(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

Referenced by ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), and ns3::CsmaHelper::EnableAsciiInternal().

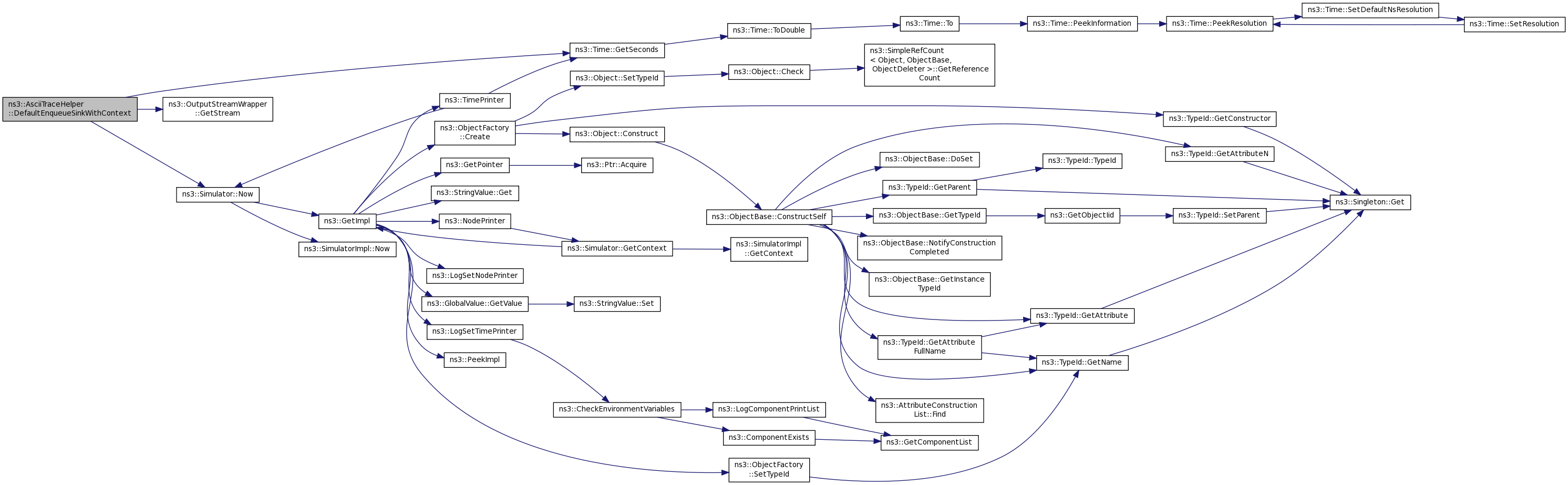

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T >

void ns3::AsciiTraceHelper::HookDefaultReceiveSinkWithContext	(	Ptr< T >	object,
		std::string	context,
		std::string	traceName,
		Ptr< OutputStreamWrapper >	stream
	)

Hook a trace source to the default receive operation trace sink that does accept and log a trace context.

Parameters

object	object
context	context string
traceName	trace source name
stream	output stream wrapper

Definition at line 374 of file trace-helper.h.

References DefaultReceiveSinkWithContext(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

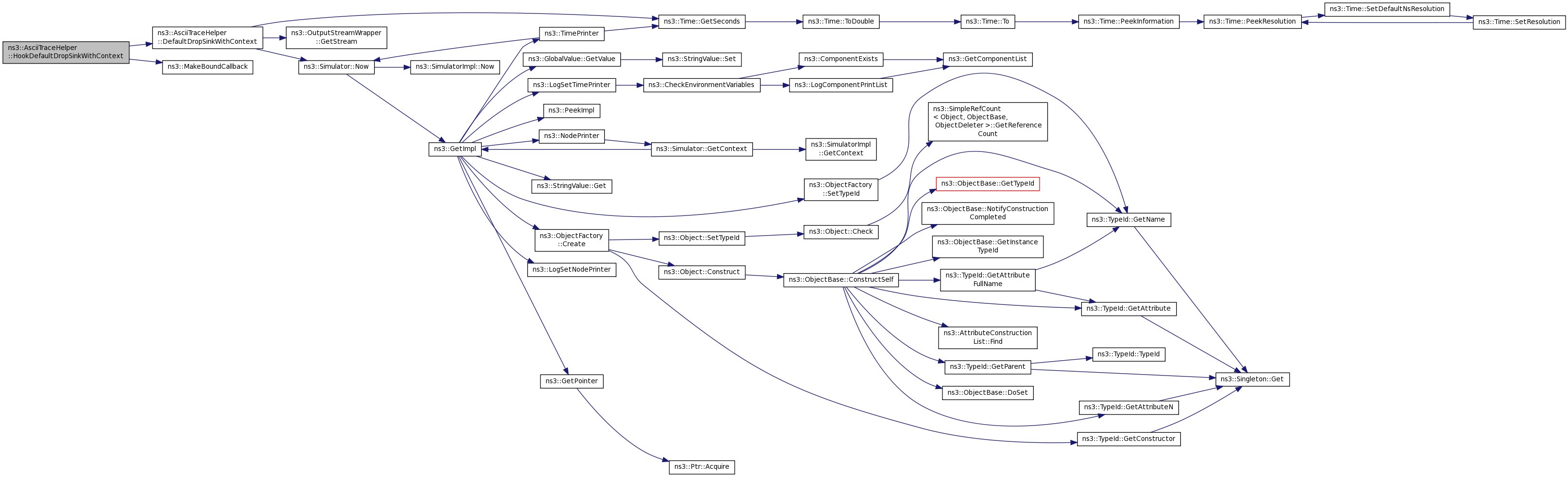

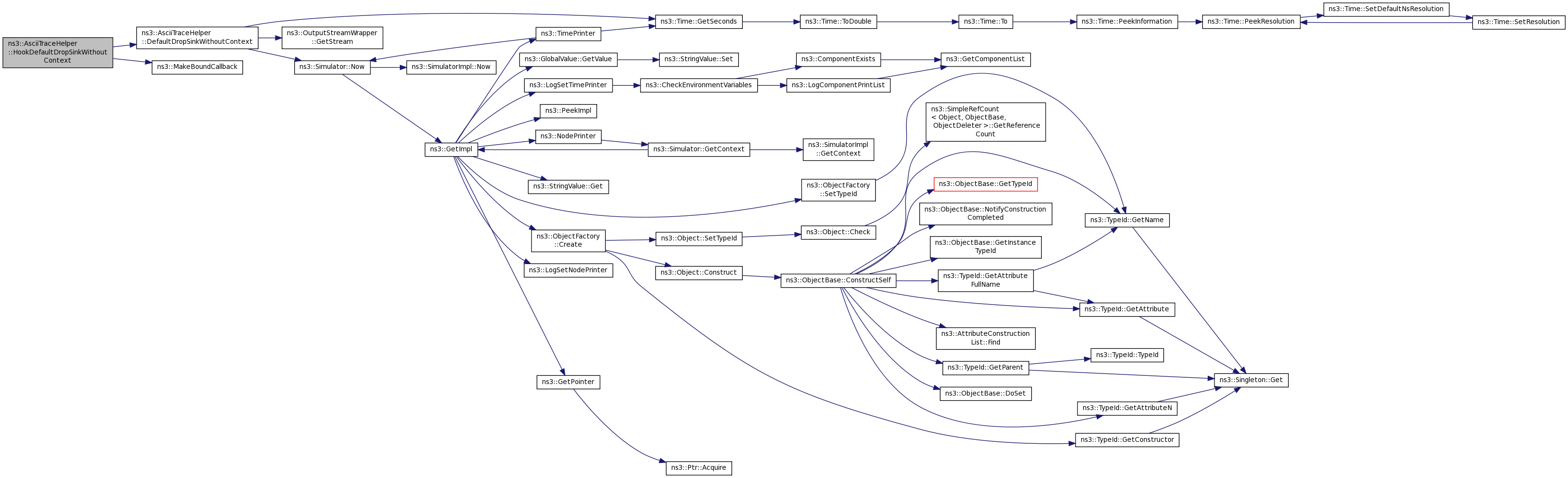

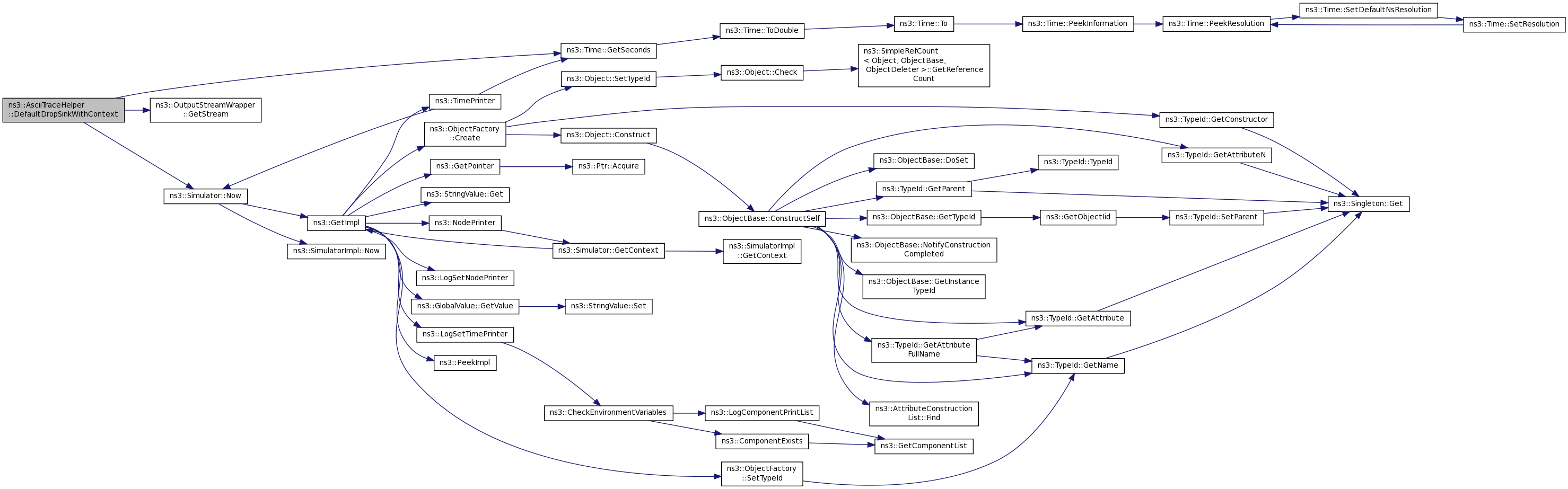

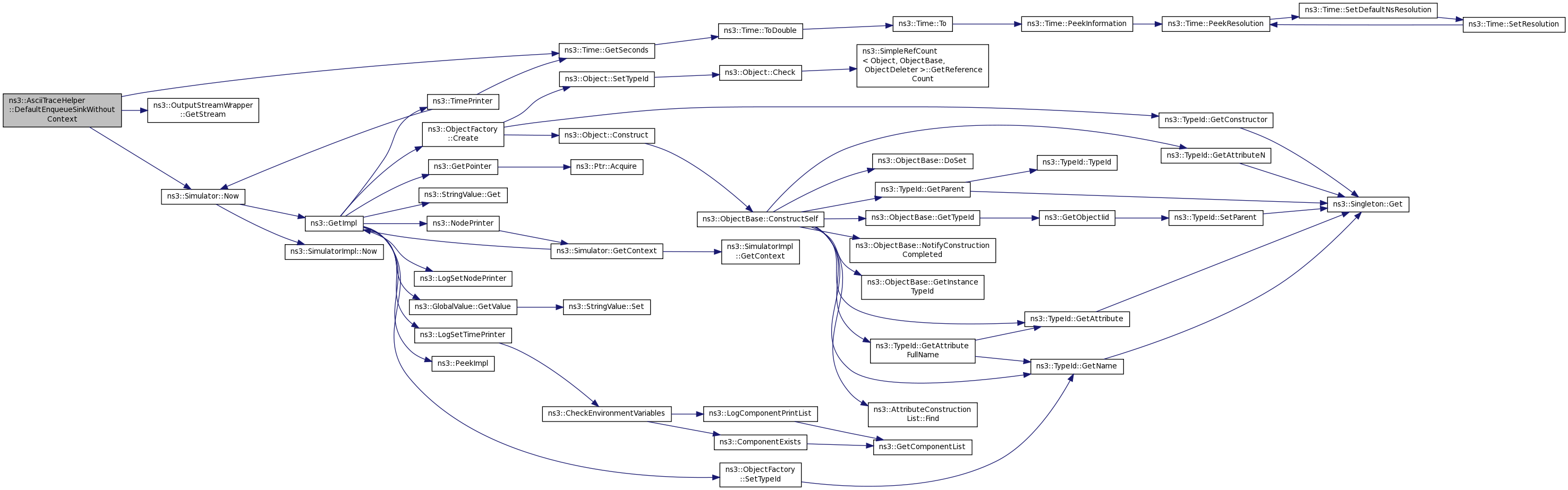

Here is the call graph for this function:

template<typename T >

void ns3::AsciiTraceHelper::HookDefaultReceiveSinkWithoutContext	(	Ptr< T >	object,
		std::string	traceName,
		Ptr< OutputStreamWrapper >	stream
	)

Hook a trace source to the default receive operation trace sink that does not accept nor log a trace context.

Parameters

object	object
traceName	trace source name
stream	output stream wrapper

Definition at line 365 of file trace-helper.h.

References DefaultReceiveSinkWithoutContext(), ns3::MakeBoundCallback(), and NS_ASSERT_MSG.

Referenced by ns3::FdNetDeviceHelper::EnableAsciiInternal(), ns3::EmuHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), and ns3::CsmaHelper::EnableAsciiInternal().

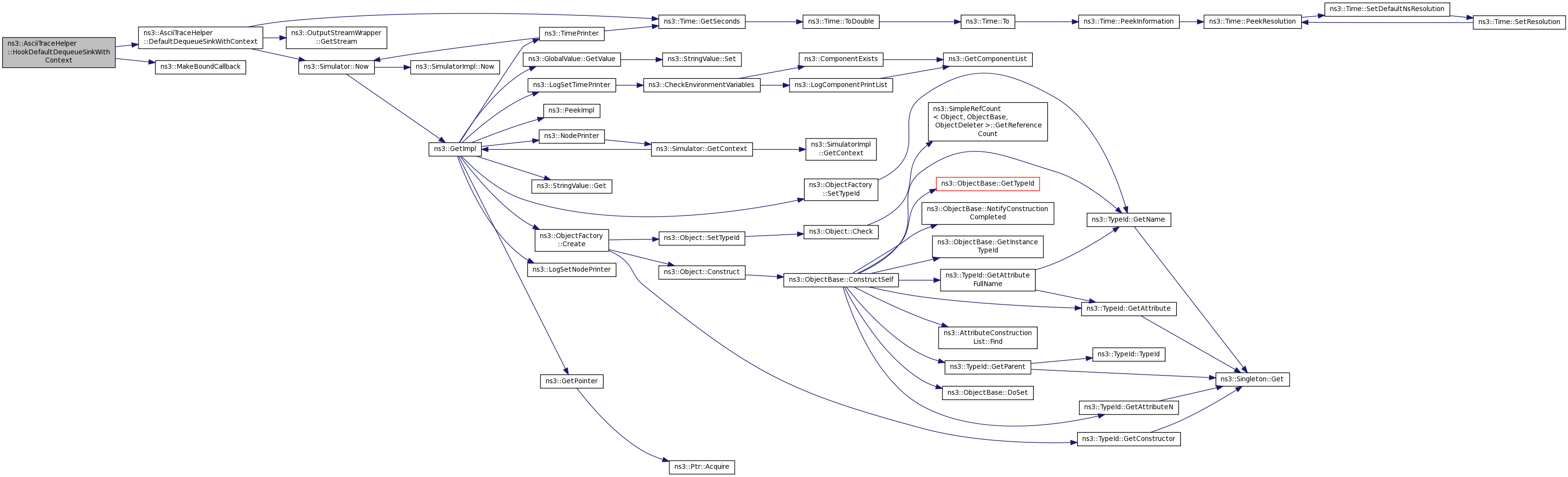

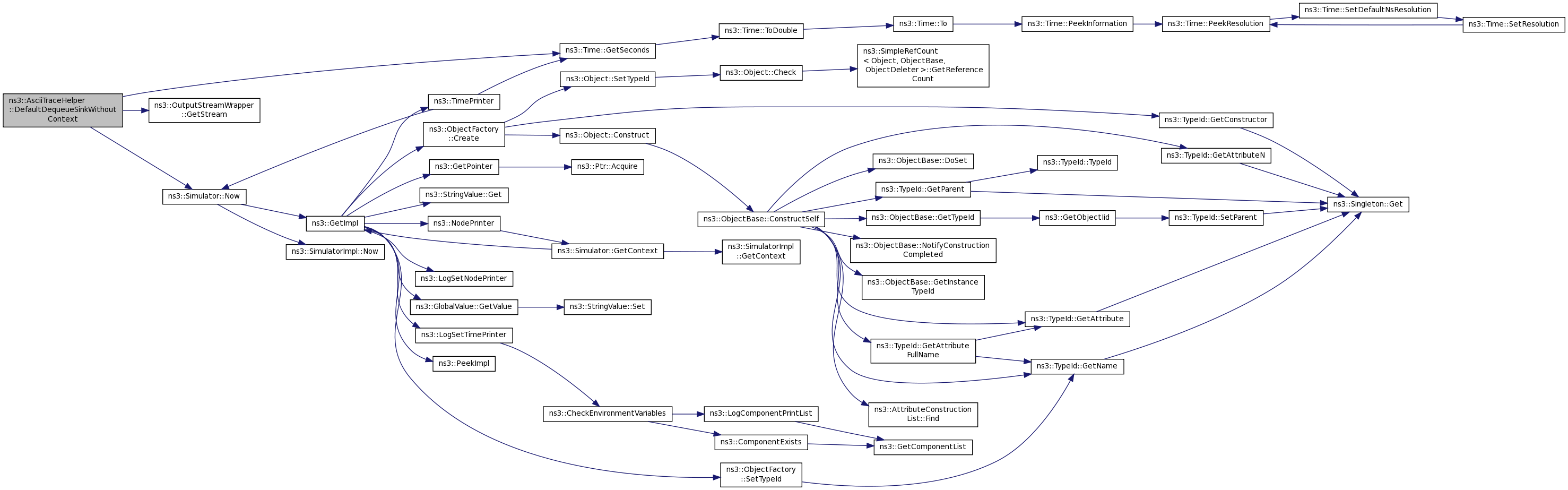

Here is the call graph for this function:

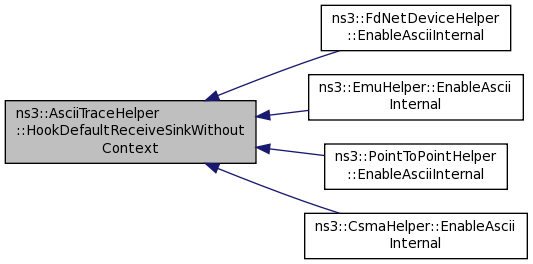

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/network/helper/trace-helper.h
• src/network/helper/trace-helper.cc
