ns3::Config::MatchContainer Class Reference

hold a set of objects which match a specific search string. More...

#include <config.h>

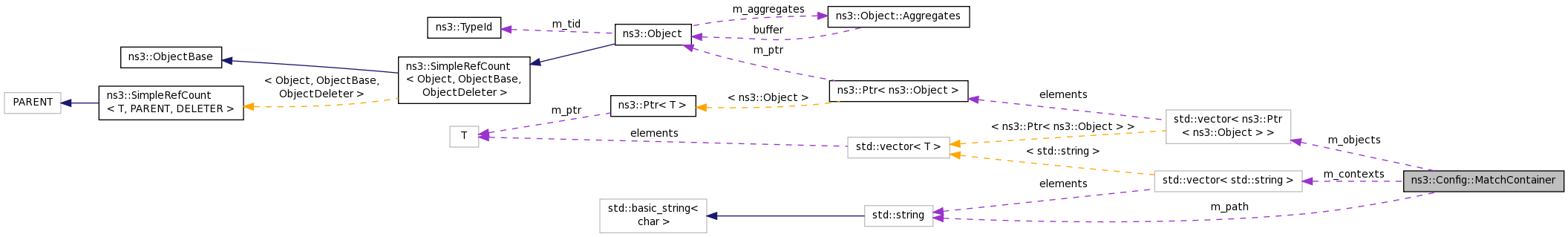

Collaboration diagram for ns3::Config::MatchContainer:

Public Types
typedef std::vector< Ptr < Object > >::const_iterator	Iterator

Public Member Functions
	MatchContainer ()
	MatchContainer (const std::vector< Ptr< Object > > &objects, const std::vector< std::string > &contexts, std::string path)
MatchContainer::Iterator	Begin (void) const
void	Connect (std::string name, const CallbackBase &cb)
void	ConnectWithoutContext (std::string name, const CallbackBase &cb)
void	Disconnect (std::string name, const CallbackBase &cb)
void	DisconnectWithoutContext (std::string name, const CallbackBase &cb)
MatchContainer::Iterator	End (void) const
Ptr< Object >	Get (uint32_t i) const
std::string	GetMatchedPath (uint32_t i) const
uint32_t	GetN (void) const
std::string	GetPath (void) const
void	Set (std::string name, const AttributeValue &value)

Private Attributes
std::vector< std::string >	m_contexts
std::vector< Ptr< Object > >	m_objects
std::string	m_path

Detailed Description

hold a set of objects which match a specific search string.

This class also allows you to perform a set of configuration operations on the set of matching objects stored in the container. Specifically, it is possible to perform bulk Connects and Sets.

Definition at line 127 of file config.h.

Member Typedef Documentation

typedef std::vector<Ptr<Object> >::const_iterator ns3::Config::MatchContainer::Iterator

Definition at line 130 of file config.h.

Constructor & Destructor Documentation

ns3::Config::MatchContainer::MatchContainer

(

)

Definition at line 37 of file config.cc.

References NS_LOG_FUNCTION.

ns3::Config::MatchContainer::MatchContainer	(	const std::vector< Ptr< Object > > &	objects,
		const std::vector< std::string > &	contexts,
		std::string	path
	)

Definition at line 41 of file config.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

MatchContainer::Iterator ns3::Config::MatchContainer::Begin

(

void

)

const

Returns

an iterator which points to the first item in the container

Definition at line 51 of file config.cc.

References m_objects, and NS_LOG_FUNCTION.

Referenced by ns3::RandomVariableStreamHelper::AssignStreams(), ConnectWithoutContext(), DisconnectWithoutContext(), and Set().

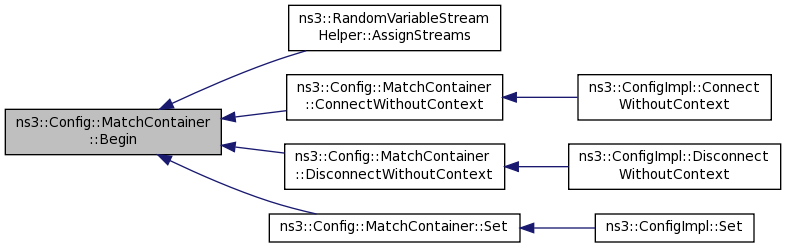

Here is the caller graph for this function:

void ns3::Config::MatchContainer::Connect	(	std::string	name,
		const CallbackBase &	cb
	)

Parameters

name	the name of the trace source to connect to
cb	the sink to connect to the trace source

Connect the specified sink to all the objects stored in this container.

See also

ns3::Config::Connect

Definition at line 98 of file config.cc.

References m_contexts, m_objects, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ConfigImpl::Connect().

Here is the caller graph for this function:

void ns3::Config::MatchContainer::ConnectWithoutContext	(	std::string	name,
		const CallbackBase &	cb
	)

Parameters

name	the name of the trace source to connect to
cb	the sink to connect to the trace source

Connect the specified sink to all the objects stored in this container.

See also

ns3::Config::ConnectWithoutContext

Definition at line 110 of file config.cc.

References Begin(), End(), NS_LOG_FUNCTION, and ns3::ObjectBase::TraceConnectWithoutContext().

Referenced by ns3::ConfigImpl::ConnectWithoutContext().

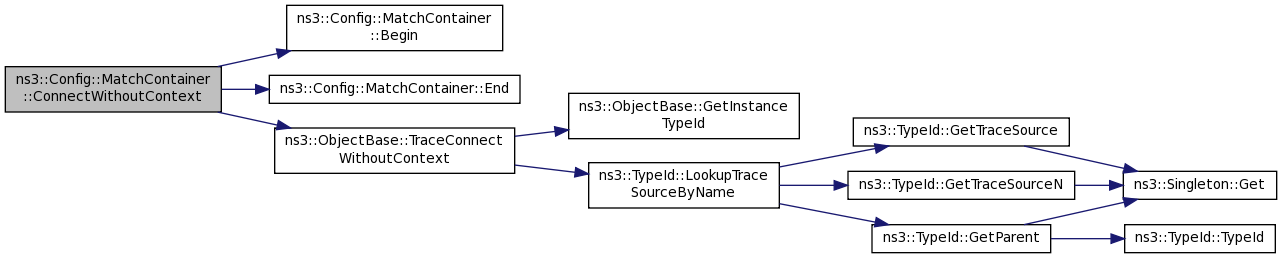

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Config::MatchContainer::Disconnect	(	std::string	name,
		const CallbackBase &	cb
	)

Parameters

name	the name of the trace source to disconnect from
cb	the sink to disconnect from the trace source

Disconnect the specified sink from all the objects stored in this container.

See also

ns3::Config::Disconnect

Definition at line 121 of file config.cc.

References m_contexts, m_objects, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::ConfigImpl::Disconnect().

Here is the caller graph for this function:

void ns3::Config::MatchContainer::DisconnectWithoutContext	(	std::string	name,
		const CallbackBase &	cb
	)

Parameters

name	the name of the trace source to disconnect from
cb	the sink to disconnect from the trace source

Disconnect the specified sink from all the objects stored in this container.

See also

ns3::Config::DisconnectWithoutContext

Definition at line 133 of file config.cc.

References Begin(), End(), NS_LOG_FUNCTION, and ns3::ObjectBase::TraceDisconnectWithoutContext().

Referenced by ns3::ConfigImpl::DisconnectWithoutContext().

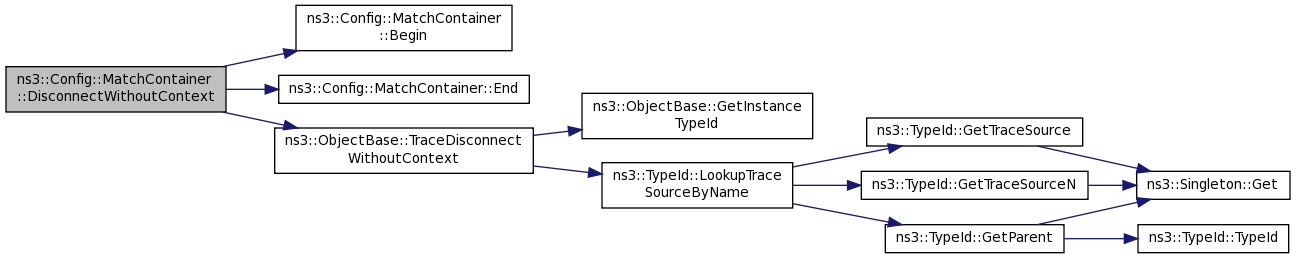

Here is the call graph for this function:

Here is the caller graph for this function:

MatchContainer::Iterator ns3::Config::MatchContainer::End

(

void

)

const

Returns

an iterator which points to the last item in the container

Definition at line 57 of file config.cc.

References m_objects, and NS_LOG_FUNCTION.

Referenced by ns3::RandomVariableStreamHelper::AssignStreams(), ConnectWithoutContext(), DisconnectWithoutContext(), and Set().

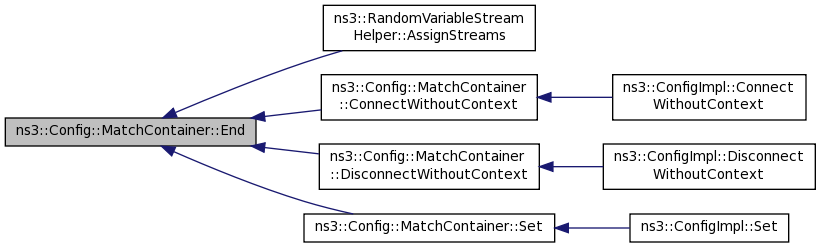

Here is the caller graph for this function:

Ptr< Object > ns3::Config::MatchContainer::Get

(

uint32_t

i

)

const

Parameters

i	index of item to lookup ([0,n[)

Returns

the item requested.

Definition at line 69 of file config.cc.

References m_objects, and NS_LOG_FUNCTION.

Referenced by ns3::RandomVariableStreamHelper::AssignStreams(), ns3::LteStatsCalculator::FindCellIdFromEnbRlcPath(), ns3::LteStatsCalculator::FindImsiFromEnbRlcPath(), ns3::LteStatsCalculator::FindImsiFromLteNetDevice(), ns3::LteStatsCalculator::FindImsiFromUePhy(), and ns3::RadioEnvironmentMapHelper::Install().

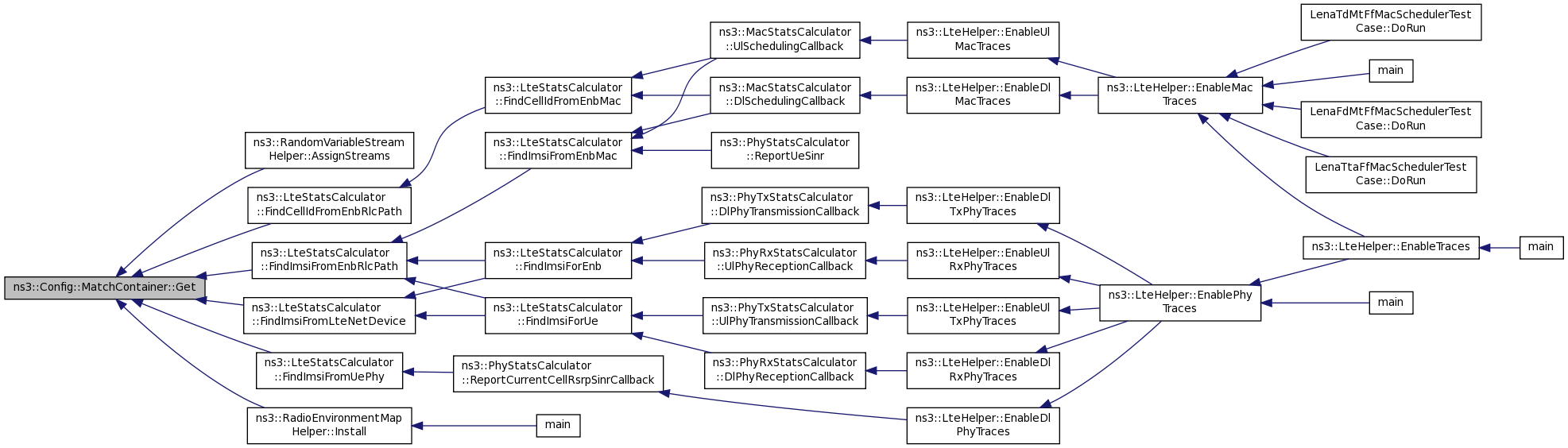

Here is the caller graph for this function:

std::string ns3::Config::MatchContainer::GetMatchedPath

(

uint32_t

i

)

const

Parameters

i	index of item to lookup ([0,n[)

Returns

the fully-qualified matching path associated to the requested item.

The matching patch uniquely identifies the requested object.

Definition at line 75 of file config.cc.

References m_contexts, and NS_LOG_FUNCTION.

Referenced by ns3::GnuplotHelper::PlotProbe(), and ns3::FileHelper::WriteProbe().

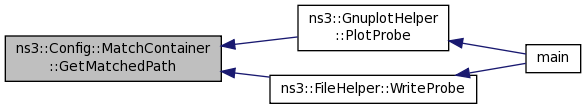

Here is the caller graph for this function:

uint32_t ns3::Config::MatchContainer::GetN

(

void

)

const

Returns

the number of items in the container

Definition at line 63 of file config.cc.

References m_objects, and NS_LOG_FUNCTION.

Referenced by ns3::LteStatsCalculator::FindCellIdFromEnbRlcPath(), ns3::LteStatsCalculator::FindImsiFromEnbRlcPath(), ns3::LteStatsCalculator::FindImsiFromLteNetDevice(), ns3::LteStatsCalculator::FindImsiFromUePhy(), ns3::RadioEnvironmentMapHelper::Install(), ns3::GnuplotHelper::PlotProbe(), and ns3::FileHelper::WriteProbe().

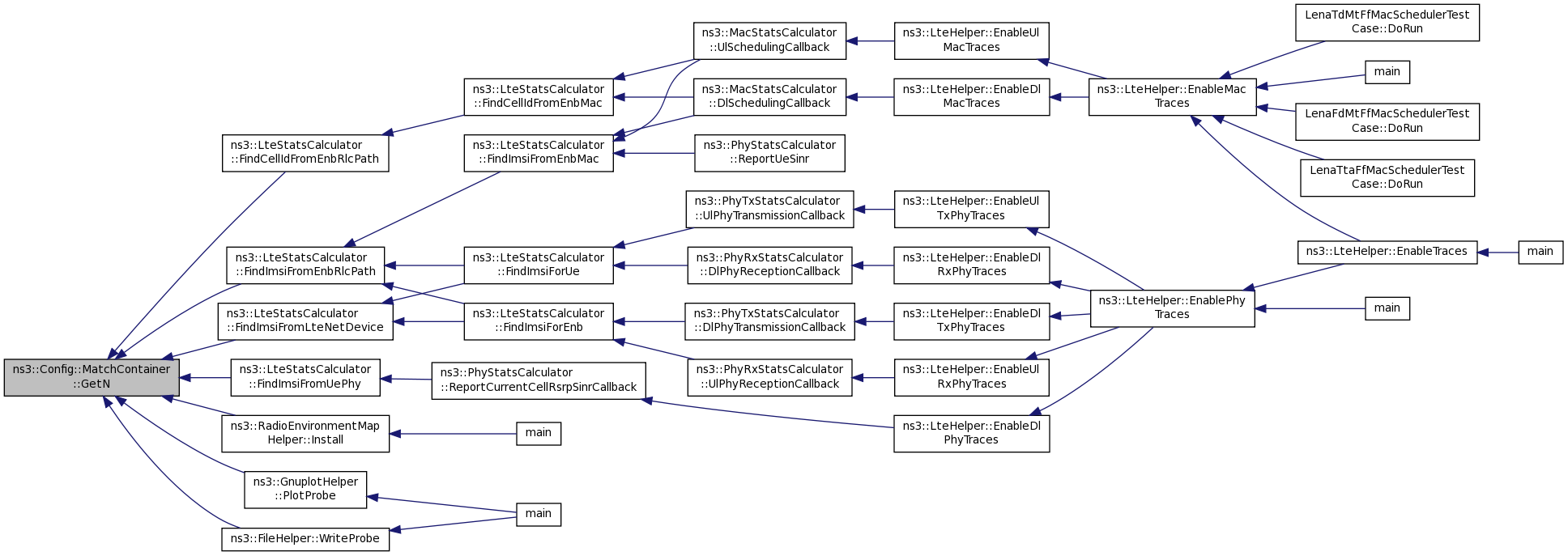

Here is the caller graph for this function:

std::string ns3::Config::MatchContainer::GetPath

(

void

)

const

Returns

the path used to perform the object matching.

Definition at line 81 of file config.cc.

References m_path, and NS_LOG_FUNCTION.

void ns3::Config::MatchContainer::Set	(	std::string	name,
		const AttributeValue &	value
	)

Parameters

name	name of attribute to set
value	value to set to the attribute

Set the specified attribute value to all the objects stored in this container.

See also

ns3::Config::Set

Definition at line 88 of file config.cc.

References Begin(), End(), NS_LOG_FUNCTION, and ns3::ObjectBase::SetAttribute().

Referenced by ns3::ConfigImpl::Set().

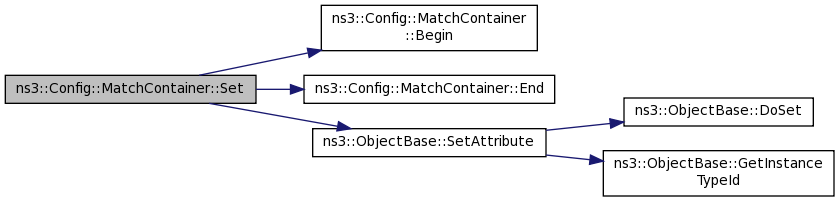

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::vector<std::string> ns3::Config::MatchContainer::m_contexts

private

Definition at line 214 of file config.h.

Referenced by Connect(), Disconnect(), and GetMatchedPath().

std::vector<Ptr<Object> > ns3::Config::MatchContainer::m_objects

private

Definition at line 213 of file config.h.

Referenced by Begin(), Connect(), Disconnect(), End(), Get(), and GetN().

std::string ns3::Config::MatchContainer::m_path

private

Definition at line 215 of file config.h.

Referenced by GetPath().

---

The documentation for this class was generated from the following files:

• src/core/model/config.h
• src/core/model/config.cc
