Headers for Block ack response. More...

#include <ctrl-headers.h>

Inheritance diagram for ns3::CtrlBAckResponseHeader:

Collaboration diagram for ns3::CtrlBAckResponseHeader:

Public Member Functions
	CtrlBAckResponseHeader ()

	~CtrlBAckResponseHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

const uint16_t *	GetBitmap (void) const
	Return the bitmap from the block ACK response header. More...

uint64_t	GetCompressedBitmap (void) const
	Return the compressed bitmap from the block ACK response header. More...

virtual TypeId	GetInstanceTypeId (void) const

virtual uint32_t	GetSerializedSize (void) const

uint16_t	GetStartingSequence (void) const
	Return the starting sequence number. More...

uint16_t	GetStartingSequenceControl (void) const
	Return the starting sequence control. More...

uint8_t	GetTidInfo (void) const
	Return the Traffic ID (TID). More...

bool	IsBasic (void) const
	Check if the current ACK policy is basic (i.e. More...

bool	IsCompressed (void) const
	Check if the current ACK policy is compressed ACK and not multiple TID. More...

bool	IsFragmentReceived (uint16_t seq, uint8_t frag) const
	Check if the packet with the given sequence number and fragment number was ACKed in this Block ACK response. More...

bool	IsMultiTid (void) const
	Check if the current ACK policy has multiple TID. More...

bool	IsPacketReceived (uint16_t seq) const
	Check if the packet with the given sequence number was ACKed in this Block ACK response. More...

bool	MustSendHtImmediateAck (void) const
	Check if the current ACK policy is immediate. More...

virtual void	Print (std::ostream &os) const

void	ResetBitmap (void)
	Reset the bitmap to 0. More...

virtual void	Serialize (Buffer::Iterator start) const

void	SetHtImmediateAck (bool immediateAck)
	Enable or disable HT immediate ACK. More...

void	SetReceivedFragment (uint16_t seq, uint8_t frag)
	Set the bitmap that the packet with the given sequence number and fragment number was received. More...

void	SetReceivedPacket (uint16_t seq)
	Set the bitmap that the packet with the given sequence number was received. More...

void	SetStartingSequence (uint16_t seq)
	Set the starting sequence number from the given raw sequence control field. More...

void	SetStartingSequenceControl (uint16_t seqControl)
	Set the starting sequence control with the given sequence control value. More...

void	SetTidInfo (uint8_t tid)
	Set Traffic ID (TID). More...

void	SetType (enum BlockAckType type)
	Set the block ACK type. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
Buffer::Iterator	DeserializeBitmap (Buffer::Iterator start)
	Deserialize bitmap from the given buffer. More...

uint16_t	GetBaControl (void) const
	Return the block ACK control. More...

uint8_t	IndexInBitmap (uint16_t seq) const
	This function is used to correctly index in both bitmap and compressed bitmap, one bit or one block of 16 bits respectively. More...

bool	IsInBitmap (uint16_t seq) const
	Checks if sequence number seq can be acknowledged in the bitmap. More...

Buffer::Iterator	SerializeBitmap (Buffer::Iterator start) const
	Serialize bitmap to the given buffer. More...

void	SetBaControl (uint16_t bar)
	Set the block ACK control. More...

Private Attributes
union {
uint16_t m_bitmap [64]

uint64_t m_compressedBitmap

}	bitmap

bool	m_baAckPolicy
	The lsb bit of the BA control field is used only for the HT (High Throughput) delayed block ack configuration. More...

bool	m_compressed

bool	m_multiTid

uint16_t	m_startingSeq

uint16_t	m_tidInfo

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Headers for Block ack response.

Doxygen introspection did not find any typical Config paths.

802.11n standard includes three types of block ack:

Basic block ack (unique type in 802.11e)
Compressed block ack
Multi-TID block ack For now only basic block ack and compressed block ack are supported. Basic block ack is also default variant.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 183 of file ctrl-headers.h.

Constructor & Destructor Documentation

ns3::CtrlBAckResponseHeader::CtrlBAckResponseHeader ( )

Definition at line 285 of file ctrl-headers.cc.

References bitmap, and NS_LOG_FUNCTION.

ns3::CtrlBAckResponseHeader::~CtrlBAckResponseHeader ( )

Definition at line 294 of file ctrl-headers.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::CtrlBAckResponseHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 378 of file ctrl-headers.cc.

References DeserializeBitmap(), ns3::Buffer::Iterator::GetDistanceFrom(), m_compressed, m_multiTid, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadLsbtohU16(), SetBaControl(), SetStartingSequenceControl(), and visualizer.core::start().

Here is the call graph for this function:

Buffer::Iterator ns3::CtrlBAckResponseHeader::DeserializeBitmap ( Buffer::Iterator start )

private

Deserialize bitmap from the given buffer.

Parameters

start

Returns: Buffer::Iterator to the next available buffer

Definition at line 569 of file ctrl-headers.cc.

References bitmap, m_compressed, m_multiTid, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU64(), and visualizer.core::start().

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::CtrlBAckResponseHeader::GetBaControl ( void ) const

private

Return the block ACK control.

Returns: the block ACK control

Definition at line 491 of file ctrl-headers.cc.

References m_baAckPolicy, m_compressed, m_multiTid, m_tidInfo, and NS_LOG_FUNCTION.

Referenced by Serialize().

Here is the caller graph for this function:

const uint16_t * ns3::CtrlBAckResponseHeader::GetBitmap ( void ) const

Return the bitmap from the block ACK response header.

Returns: the bitmap from the block ACK response header

Definition at line 767 of file ctrl-headers.cc.

References bitmap, and NS_LOG_FUNCTION.

uint64_t ns3::CtrlBAckResponseHeader::GetCompressedBitmap ( void ) const

Return the compressed bitmap from the block ACK response header.

Returns: the compressed bitmap from the block ACK response header

Definition at line 774 of file ctrl-headers.cc.

References bitmap, and NS_LOG_FUNCTION.

Referenced by CtrlBAckResponseHeaderTest::DoRun().

Here is the caller graph for this function:

TypeId ns3::CtrlBAckResponseHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 310 of file ctrl-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::CtrlBAckResponseHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 323 of file ctrl-headers.cc.

References m_compressed, m_multiTid, m_tidInfo, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::GetBlockAckSize().

Here is the caller graph for this function:

uint16_t ns3::CtrlBAckResponseHeader::GetStartingSequence ( void ) const

Return the starting sequence number.

Returns: the starting sequence number

Definition at line 463 of file ctrl-headers.cc.

References m_startingSeq, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckCache::FillBlockAckBitmap().

Here is the caller graph for this function:

uint16_t ns3::CtrlBAckResponseHeader::GetStartingSequenceControl ( void ) const

Return the starting sequence control.

Returns: the starting sequence control

Definition at line 522 of file ctrl-headers.cc.

References m_startingSeq, and NS_LOG_FUNCTION.

Referenced by Serialize().

Here is the caller graph for this function:

uint8_t ns3::CtrlBAckResponseHeader::GetTidInfo ( void ) const

Return the Traffic ID (TID).

Returns: TID

Definition at line 455 of file ctrl-headers.cc.

References m_tidInfo, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckManager::NotifyGotBlockAck().

Here is the caller graph for this function:

TypeId ns3::CtrlBAckResponseHeader::GetTypeId ( void )

static

Definition at line 300 of file ctrl-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::CtrlBAckResponseHeader::IndexInBitmap ( uint16_t seq ) const

private

This function is used to correctly index in both bitmap and compressed bitmap, one bit or one block of 16 bits respectively.

for more details see 7.2.1.8 in IEEE 802.11n/D4.00

Parameters

seq	the sequence number

Returns: If we are using basic block ack, return value represents index of block of 16 bits for packet having sequence number equals to seq. If we are using compressed block ack, return value represents bit to set to 1 in the compressed bitmap to indicate that packet having sequence number equals to seq was correctly received.

Definition at line 743 of file ctrl-headers.cc.

References m_startingSeq, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by IsFragmentReceived(), IsPacketReceived(), SetReceivedFragment(), and SetReceivedPacket().

Here is the caller graph for this function:

bool ns3::CtrlBAckResponseHeader::IsBasic ( void ) const

Check if the current ACK policy is basic (i.e.

not multiple TID and not compressed ACK).

Returns: true if the current ACK policy is basic, false otherwise

Definition at line 470 of file ctrl-headers.cc.

References m_compressed, m_multiTid, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckCache::FillBlockAckBitmap(), ns3::BlockAckManager::NotifyGotBlockAck(), and ns3::MacLow::SendBlockAckResponse().

Here is the caller graph for this function:

bool ns3::CtrlBAckResponseHeader::IsCompressed ( void ) const

Check if the current ACK policy is compressed ACK and not multiple TID.

Returns: true if the current ACK policy is compressed ACK, false otherwise

Definition at line 477 of file ctrl-headers.cc.

References m_compressed, m_multiTid, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckCache::FillBlockAckBitmap(), ns3::BlockAckManager::NotifyGotBlockAck(), and ns3::MacLow::SendBlockAckResponse().

Here is the caller graph for this function:

bool ns3::CtrlBAckResponseHeader::IsFragmentReceived	(	uint16_t	seq,
		uint8_t	frag
	)		const

Check if the packet with the given sequence number and fragment number was ACKed in this Block ACK response.

Parameters

seq
frag

Returns: true if the packet with the given sequence number and sequence number was ACKed in this Block ACK response, false otherwise

Definition at line 705 of file ctrl-headers.cc.

References bitmap, IndexInBitmap(), IsInBitmap(), m_compressed, m_multiTid, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckManager::NotifyGotBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::CtrlBAckResponseHeader::IsInBitmap ( uint16_t seq ) const

private

Checks if sequence number seq can be acknowledged in the bitmap.

Parameters

seq	the sequence number

Returns

Definition at line 760 of file ctrl-headers.cc.

References m_startingSeq, and NS_LOG_FUNCTION.

Referenced by IsFragmentReceived(), IsPacketReceived(), SetReceivedFragment(), and SetReceivedPacket().

Here is the caller graph for this function:

bool ns3::CtrlBAckResponseHeader::IsMultiTid ( void ) const

Check if the current ACK policy has multiple TID.

Returns: true if the current ACK policy has multiple TID, false otherwise

Definition at line 484 of file ctrl-headers.cc.

References m_compressed, m_multiTid, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckCache::FillBlockAckBitmap(), ns3::BlockAckManager::NotifyGotBlockAck(), and ns3::MacLow::SendBlockAckResponse().

Here is the caller graph for this function:

bool ns3::CtrlBAckResponseHeader::IsPacketReceived ( uint16_t seq ) const

Check if the packet with the given sequence number was ACKed in this Block ACK response.

Parameters

seq

Returns: true if the packet with the given sequence number was ACKed in this Block ACK response, false otherwise

Definition at line 670 of file ctrl-headers.cc.

References bitmap, IndexInBitmap(), IsInBitmap(), m_compressed, m_multiTid, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by CtrlBAckResponseHeaderTest::DoRun(), and ns3::BlockAckManager::NotifyGotBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::CtrlBAckResponseHeader::MustSendHtImmediateAck ( void ) const

Check if the current ACK policy is immediate.

Returns: true if the current ACK policy is immediate, false otherwise

Definition at line 448 of file ctrl-headers.cc.

References m_baAckPolicy, and NS_LOG_FUNCTION.

void ns3::CtrlBAckResponseHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 316 of file ctrl-headers.cc.

References m_startingSeq, m_tidInfo, and NS_LOG_FUNCTION.

void ns3::CtrlBAckResponseHeader::ResetBitmap ( void )

Reset the bitmap to 0.

Definition at line 781 of file ctrl-headers.cc.

References bitmap, and NS_LOG_FUNCTION.

Referenced by CtrlBAckResponseHeaderTest::DoRun().

Here is the caller graph for this function:

void ns3::CtrlBAckResponseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 354 of file ctrl-headers.cc.

References GetBaControl(), GetStartingSequenceControl(), m_compressed, m_multiTid, NS_FATAL_ERROR, NS_LOG_FUNCTION, SerializeBitmap(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

Here is the call graph for this function:

Buffer::Iterator ns3::CtrlBAckResponseHeader::SerializeBitmap ( Buffer::Iterator start ) const

private

Serialize bitmap to the given buffer.

Parameters

start

Returns: Buffer::Iterator to the next available buffer

Definition at line 536 of file ctrl-headers.cc.

References bitmap, m_compressed, m_multiTid, NS_FATAL_ERROR, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteHtolsbU64().

Referenced by Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::CtrlBAckResponseHeader::SetBaControl ( uint16_t bar )

private

Set the block ACK control.

Parameters

bar

Definition at line 512 of file ctrl-headers.cc.

References m_baAckPolicy, m_compressed, m_multiTid, m_tidInfo, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::CtrlBAckResponseHeader::SetHtImmediateAck ( bool immediateAck )

Enable or disable HT immediate ACK.

Parameters

immediateAck enable or disable HT immediate ACK

Definition at line 403 of file ctrl-headers.cc.

References m_baAckPolicy, and NS_LOG_FUNCTION.

void ns3::CtrlBAckResponseHeader::SetReceivedFragment	(	uint16_t	seq,
		uint8_t	frag
	)

Set the bitmap that the packet with the given sequence number and fragment number was received.

Parameters

seq
frag

Definition at line 636 of file ctrl-headers.cc.

References bitmap, IndexInBitmap(), IsInBitmap(), m_compressed, m_multiTid, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::CtrlBAckResponseHeader::SetReceivedPacket ( uint16_t seq )

Set the bitmap that the packet with the given sequence number was received.

Parameters

seq

Definition at line 602 of file ctrl-headers.cc.

References bitmap, IndexInBitmap(), IsInBitmap(), m_compressed, m_multiTid, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by CtrlBAckResponseHeaderTest::DoRun(), and ns3::BlockAckCache::FillBlockAckBitmap().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::CtrlBAckResponseHeader::SetStartingSequence ( uint16_t seq )

Set the starting sequence number from the given raw sequence control field.

Parameters

seq	the raw sequence control

Definition at line 441 of file ctrl-headers.cc.

References m_startingSeq, and NS_LOG_FUNCTION.

Referenced by CtrlBAckResponseHeaderTest::DoRun(), and ns3::MacLow::SendBlockAckAfterBlockAckRequest().

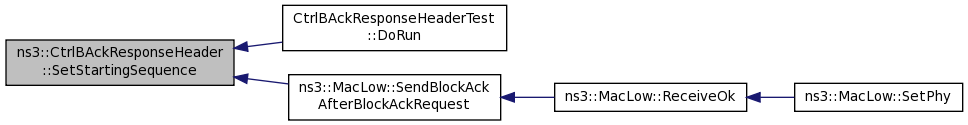

Here is the caller graph for this function:

void ns3::CtrlBAckResponseHeader::SetStartingSequenceControl ( uint16_t seqControl )

Set the starting sequence control with the given sequence control value.

Parameters

seqControl

Definition at line 529 of file ctrl-headers.cc.

References m_startingSeq, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::CtrlBAckResponseHeader::SetTidInfo ( uint8_t tid )

Set Traffic ID (TID).

Parameters

tid

Definition at line 434 of file ctrl-headers.cc.

References m_tidInfo, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::SendBlockAckAfterBlockAckRequest().

Here is the caller graph for this function:

void ns3::CtrlBAckResponseHeader::SetType ( enum BlockAckType type )

Set the block ACK type.

Parameters

type

Definition at line 410 of file ctrl-headers.cc.

References ns3::BASIC_BLOCK_ACK, ns3::COMPRESSED_BLOCK_ACK, m_compressed, m_multiTid, ns3::MULTI_TID_BLOCK_ACK, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by CtrlBAckResponseHeaderTest::DoRun(), ns3::MacLow::GetBlockAckSize(), and ns3::MacLow::SendBlockAckAfterBlockAckRequest().

Here is the caller graph for this function:

Member Data Documentation

union { ... } ns3::CtrlBAckResponseHeader::bitmap

Referenced by CtrlBAckResponseHeader(), DeserializeBitmap(), GetBitmap(), GetCompressedBitmap(), IsFragmentReceived(), IsPacketReceived(), ResetBitmap(), SerializeBitmap(), SetReceivedFragment(), and SetReceivedPacket().

bool ns3::CtrlBAckResponseHeader::m_baAckPolicy

private

The lsb bit of the BA control field is used only for the HT (High Throughput) delayed block ack configuration.

For now only non HT immediate block ack is implemented so this field is here only for a future implementation of HT delayed variant.

Definition at line 391 of file ctrl-headers.h.

Referenced by GetBaControl(), MustSendHtImmediateAck(), SetBaControl(), and SetHtImmediateAck().

uint16_t ns3::CtrlBAckResponseHeader::m_bitmap[64]

Definition at line 399 of file ctrl-headers.h.

bool ns3::CtrlBAckResponseHeader::m_compressed

private

Definition at line 393 of file ctrl-headers.h.

Referenced by Deserialize(), DeserializeBitmap(), GetBaControl(), GetSerializedSize(), IsBasic(), IsCompressed(), IsFragmentReceived(), IsMultiTid(), IsPacketReceived(), Serialize(), SerializeBitmap(), SetBaControl(), SetReceivedFragment(), SetReceivedPacket(), and SetType().

uint64_t ns3::CtrlBAckResponseHeader::m_compressedBitmap

Definition at line 400 of file ctrl-headers.h.

bool ns3::CtrlBAckResponseHeader::m_multiTid

private

Definition at line 392 of file ctrl-headers.h.

Referenced by Deserialize(), DeserializeBitmap(), GetBaControl(), GetSerializedSize(), IsBasic(), IsCompressed(), IsFragmentReceived(), IsMultiTid(), IsPacketReceived(), Serialize(), SerializeBitmap(), SetBaControl(), SetReceivedFragment(), SetReceivedPacket(), and SetType().

uint16_t ns3::CtrlBAckResponseHeader::m_startingSeq

private

Definition at line 395 of file ctrl-headers.h.

Referenced by GetStartingSequence(), GetStartingSequenceControl(), IndexInBitmap(), IsInBitmap(), Print(), SetStartingSequence(), and SetStartingSequenceControl().

uint16_t ns3::CtrlBAckResponseHeader::m_tidInfo

private

Definition at line 394 of file ctrl-headers.h.

Referenced by GetBaControl(), GetSerializedSize(), GetTidInfo(), Print(), SetBaControl(), and SetTidInfo().

The documentation for this class was generated from the following files:

src/wifi/model/ctrl-headers.h
src/wifi/model/ctrl-headers.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
