build a set of EmuNetDevice objects More...

#include <emu-helper.h>

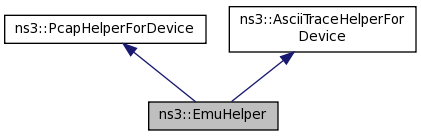

Inheritance diagram for ns3::EmuHelper:

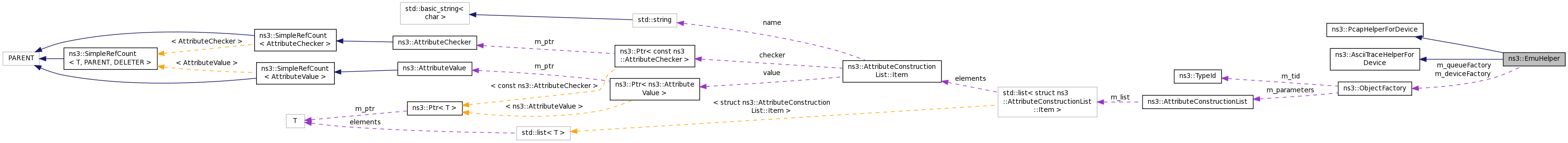

Collaboration diagram for ns3::EmuHelper:

Public Member Functions
	EmuHelper ()

NetDeviceContainer	Install (Ptr< Node > node) const
	This method creates an ns3::EmuNetDevice with the attributes configured by EmuHelper::SetDeviceAttribute and then adds the device to the node. More...

NetDeviceContainer	Install (std::string nodeName) const
	This method creates an ns3::EmuNetDevice with the attributes configured by EmuHelper::SetDeviceAttribute and then adds the device to the node. More...

NetDeviceContainer	Install (const NodeContainer &c) const
	For each Ptr<node> in the provided container this method creates an ns3::EmuNetDevice (with the attributes configured by EmuHelper::SetDeviceAttribute); adds the device to the node. More...

void	SetAttribute (std::string n1, const AttributeValue &v1)

void	SetQueue (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue())

Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...

virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...

void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...

void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...

void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...

virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...

void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Private Member Functions
virtual void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)
	Enable ascii trace output on the indicated net device. More...

virtual void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)
	Enable pcap output the indicated net device. More...

Ptr< NetDevice >	InstallPriv (Ptr< Node > node) const

Private Attributes
ObjectFactory	m_deviceFactory

ObjectFactory	m_queueFactory

Detailed Description

build a set of EmuNetDevice objects

Normally we eschew multiple inheritance, however, the classes PcapUserHelperForDevice and AsciiTraceUserHelperForDevice are treated as "mixins". A mixin is a self-contained class that encapsulates a general attribute or a set of functionality that may be of interest to many other classes.

Definition at line 46 of file emu-helper.h.

Constructor & Destructor Documentation

ns3::EmuHelper::EmuHelper ( )

Definition at line 37 of file emu-helper.cc.

References m_deviceFactory, m_queueFactory, NS_LOG_FUNCTION_NOARGS, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

Member Function Documentation

void ns3::EmuHelper::EnableAsciiInternal	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	explicitFilename
	)

privatevirtual

Enable ascii trace output on the indicated net device.

Internal:

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

stream	The output stream object to use when logging ascii traces.
prefix	Filename prefix to use for ascii trace files.
nd	Net device for which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Definition at line 106 of file emu-helper.cc.

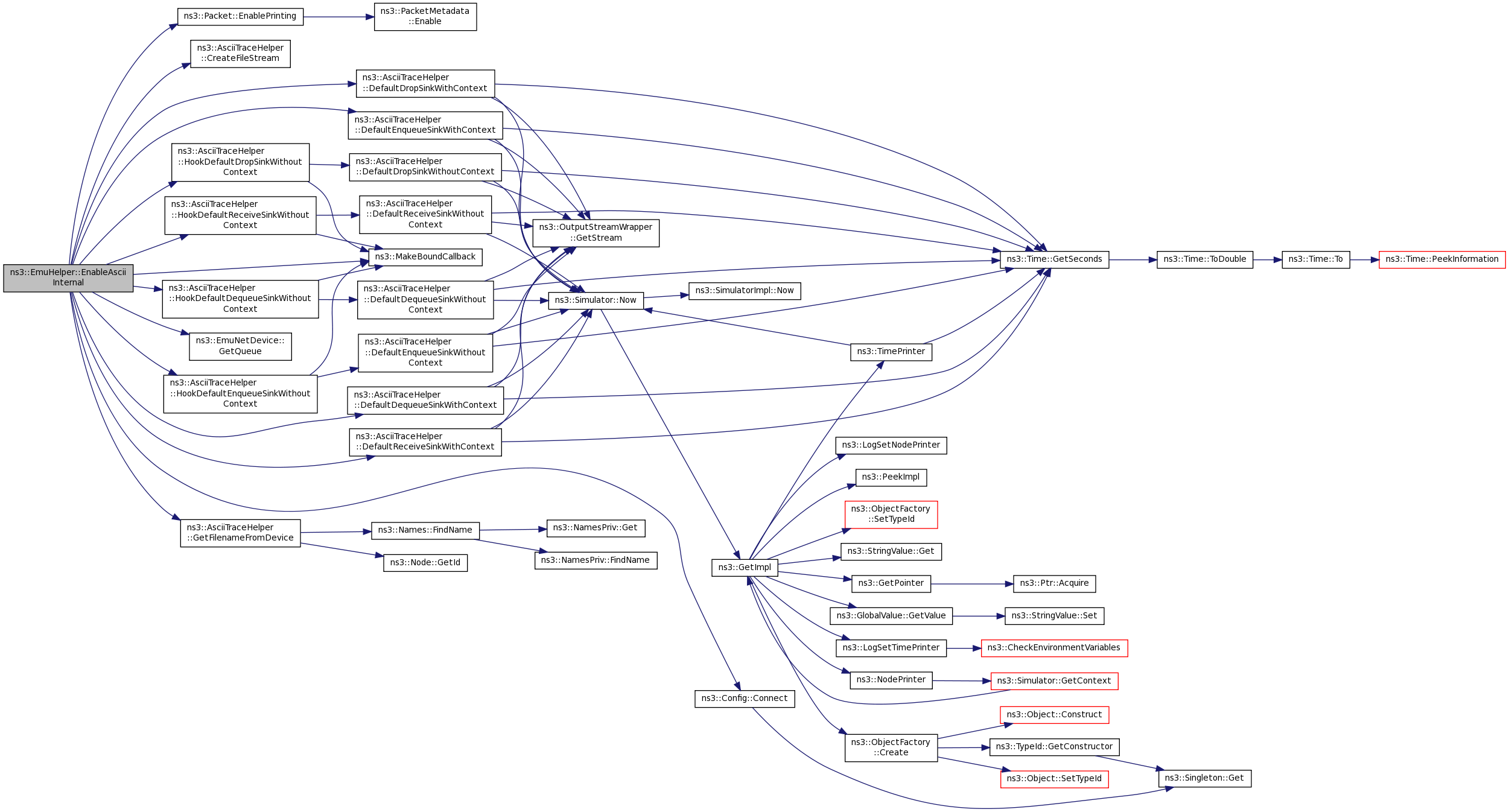

Here is the call graph for this function:

void ns3::EmuHelper::EnablePcapInternal	(	std::string	prefix,
		Ptr< NetDevice >	nd,
		bool	promiscuous,
		bool	explicitFilename
	)

privatevirtual

Enable pcap output the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

prefix	Filename prefix to use for pcap files.
nd	Net device for which you want to enable tracing.
promiscuous	If true capture all possible packets available at the device.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Definition at line 68 of file emu-helper.cc.

References ns3::PcapHelper::CreateFile(), ns3::PcapHelper::DLT_EN10MB, ns3::PcapHelper::GetFilenameFromDevice(), ns3::PcapHelper::HookDefaultSink(), and NS_LOG_INFO.

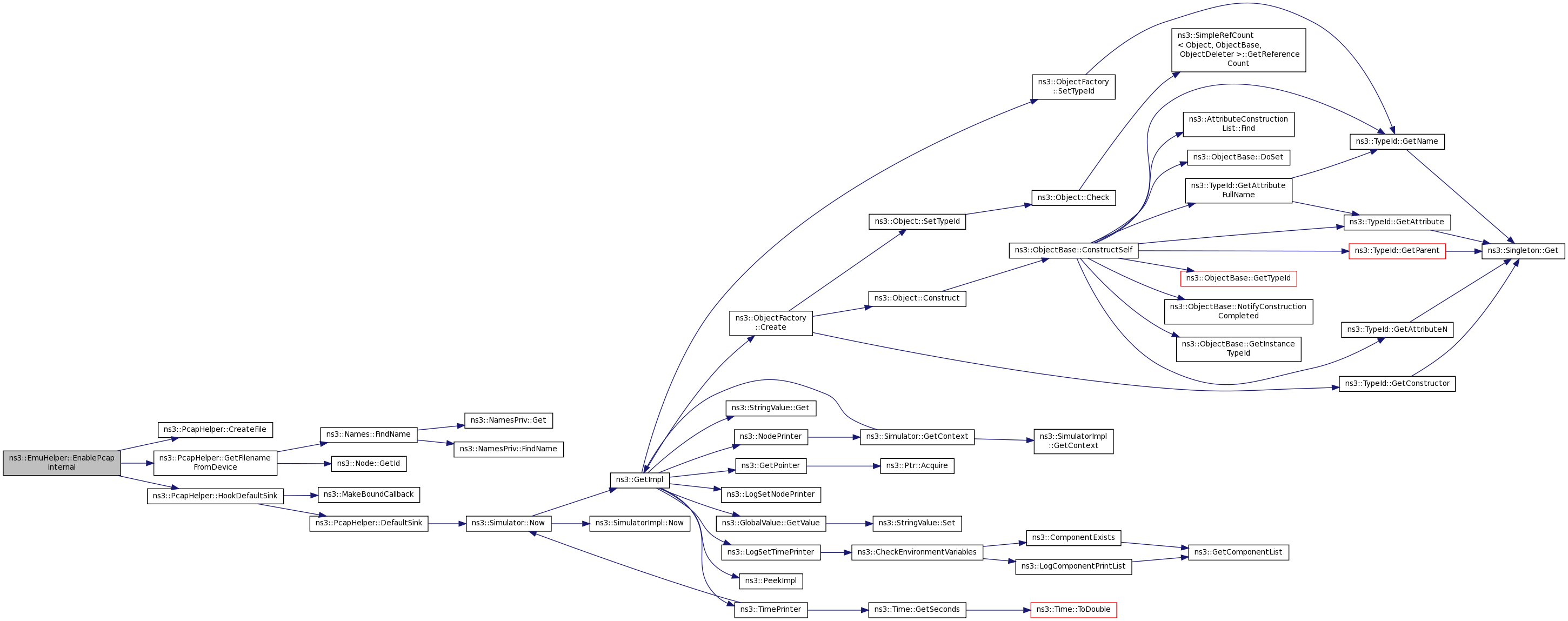

Here is the call graph for this function:

NetDeviceContainer ns3::EmuHelper::Install ( Ptr< Node > node ) const

This method creates an ns3::EmuNetDevice with the attributes configured by EmuHelper::SetDeviceAttribute and then adds the device to the node.

Parameters

node	The node to install the device in

Returns: A container holding the added net device.

Definition at line 207 of file emu-helper.cc.

References InstallPriv().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

NetDeviceContainer ns3::EmuHelper::Install ( std::string nodeName ) const

This method creates an ns3::EmuNetDevice with the attributes configured by EmuHelper::SetDeviceAttribute and then adds the device to the node.

Parameters

nodeName The name of the node to install the device in

Returns: A container holding the added net device.

Definition at line 213 of file emu-helper.cc.

References InstallPriv().

Here is the call graph for this function:

NetDeviceContainer ns3::EmuHelper::Install ( const NodeContainer & c ) const

For each Ptr<node> in the provided container this method creates an ns3::EmuNetDevice (with the attributes configured by EmuHelper::SetDeviceAttribute); adds the device to the node.

Parameters

c	The NodeContainer holding the nodes to be changed.

Returns: A container holding the added net devices.

Definition at line 220 of file emu-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Here is the call graph for this function:

Ptr< NetDevice > ns3::EmuHelper::InstallPriv ( Ptr< Node > node ) const

private

Definition at line 233 of file emu-helper.cc.

References ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), ns3::ObjectFactory::Create(), m_deviceFactory, and m_queueFactory.

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EmuHelper::SetAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each ns3::EmuNetDevice created by EmuHelper::Install

Definition at line 61 of file emu-helper.cc.

References m_deviceFactory, NS_LOG_FUNCTION_NOARGS, and ns3::ObjectFactory::Set().

Referenced by main().

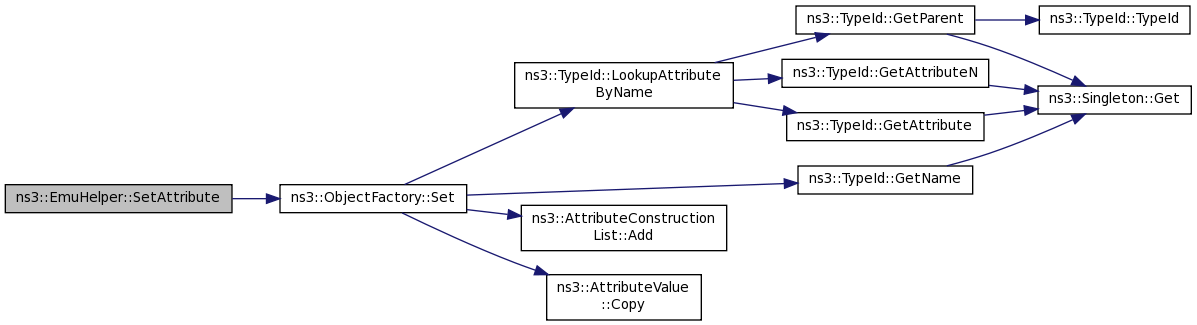

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EmuHelper::SetQueue	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`
	)

Parameters

type	the type of queue
n1	the name of the attribute to set on the queue
v1	the value of the attribute to set on the queue
n2	the name of the attribute to set on the queue
v2	the value of the attribute to set on the queue
n3	the name of the attribute to set on the queue
v3	the value of the attribute to set on the queue
n4	the name of the attribute to set on the queue
v4	the value of the attribute to set on the queue
